8-60 — HEATER UNIT; FRONT (#64455) — 41 parça

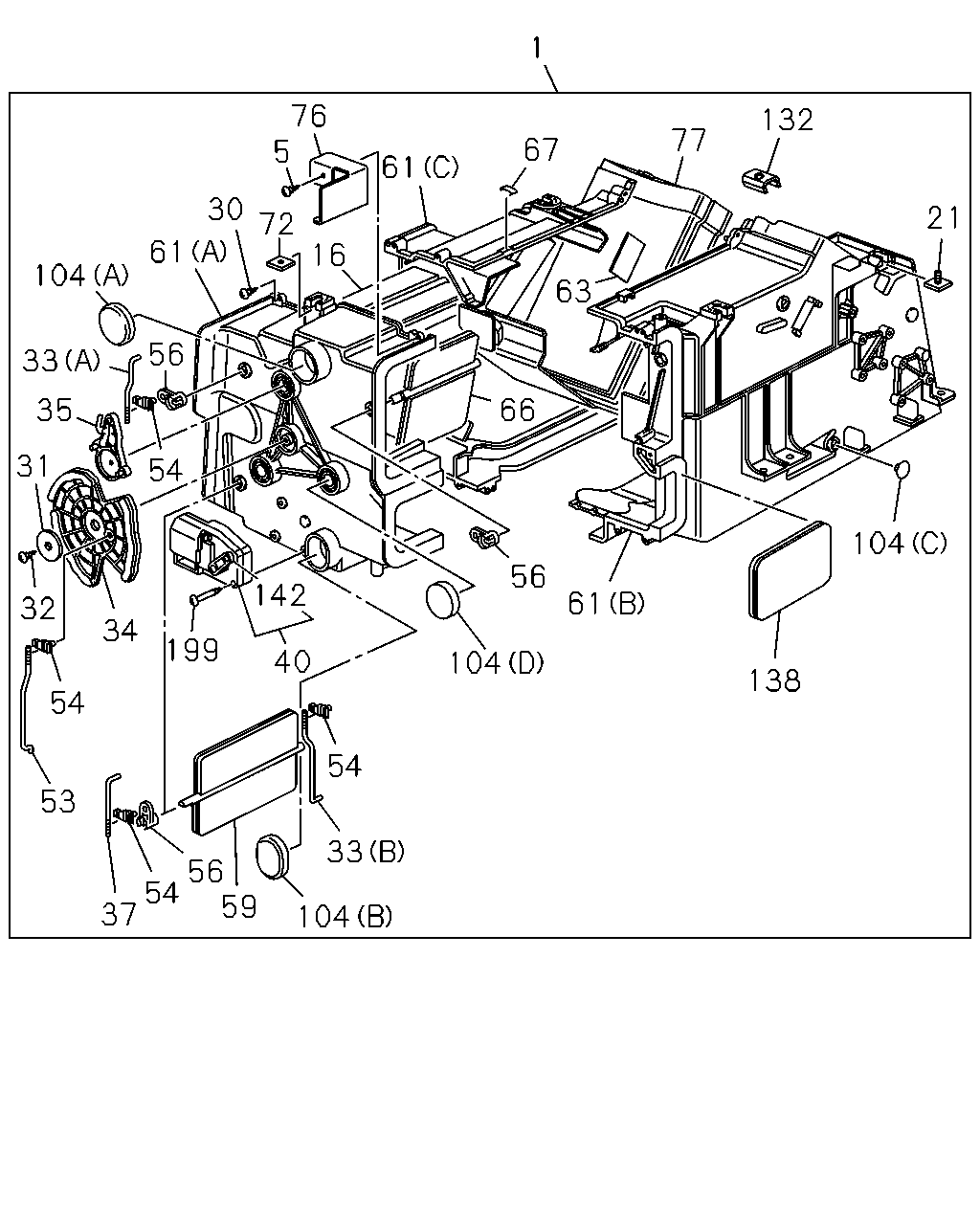

çizim 184953
1 76 5 132 77 67 61 30 21 72 61 16 104 63 56 33 35 66 31 54 104 56 142 61 32 34 199 40 104 138 54 54 53 33 56 54 59 37 104
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT 1-83511-139-3 01 1 9707- ● ●
5 SCREW; BRKT
M4X16 		8-94324-850-0 01 1 0012- ● ●
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-625-1 01 1 9707- ● ●
21 BOLT; CASE,HTR UNIT 1-83579-657-2 02 1 9707- ● ●
30 SCREW; HTR UNIT
M4X16 		8-94324-850-0 12 1 9707-0011 ● ●
30 SCREW; HTR UNIT
M4X16 		8-94324-850-0 11 1 0012- ● ●
31 WASHER; HTR UNIT 8-94129-950-0 01 1 9707- ● ●
32 SCREW; HTR UNIT
M5X20 		9-09829-324-1 02 1 9707- ● ●
33 ROD; SHUTTER LEVER
(A) 		1-83579-619-0 01 1 9707- ● ●
33 ROD; SHUTTER LEVER
(B) 		1-83579-621-0 01 1 9707-0011 ● ●
34 LEVER; SHUTTER,HTR UNIT 1-83564-326-0 01 1 9707- ● ●
35 LEVER; SHUTTER,HTR UNIT 8-94389-502-1 03 1 9707-0011 ● ●
35 LEVER; SHUTTER,HTR UNIT 8-94389-502-1 02 1 0012- ● ●
37 ROD; LEVER 1-83579-620-1 01 1 9707- ● ●
40 ACTUATOR; HTR UNIT 1-83579-649-1 01 1 9707- ● ●
53 ROD; SHUTTER LEVER 1-83579-622-0 01 1 9707- ● ●
54 CLIP; SHUTTER LEVER 1-83579-488-0 04 1 9707-0011 ● ●
54 CLIP; SHUTTER LEVER 8-94248-794-0 03 1 0012- ● ●
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 03 1 9707-0011 ● ●
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 02 1 0012- ● ●
59 SHUTTER; HTR UNIT,SIDE 1-83579-626-2 01 1 9707- ● ●
61 CASE; HTR UNIT
(B) 		1-83564-323-5 01 1 9707-0011 ● ●
61 CASE; HTR UNIT
(B) 		1-83564-401-0 01 1 0012- ● ●
61 CASE; HTR UNIT
(C) 		1-83564-346-3 01 1 9707- ● ●
61 CASE; HTR UNIT
(A) 		1-83564-347-3 01 1 9707-0011 ● ●
61 CASE; HTR UNIT
(A) 		1-83564-402-0 01 1 0012- ● ●
63 LINING; HTR UNIT 1-83578-033-0 01 1 0012- ● ●
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-627-0 01 1 9707- ● ●
67 CLIP; HTR UNIT 1-83574-148-0 01 1 9707- ● ●
72 NUT; CASE,HTR UNIT 1-83579-659-4 02 1 9707- ● ●
76 BRACKET; HTR UNIT 1-83573-194-0 01 1 0012- ● ●
77 COVER; HTR CASE 1-83579-802-0 01 1 9707-0011 ● ●
77 COVER; HTR CASE 8-97102-661-0 01 1 0012- ● ●
104 CAP; CASE,HTR UNIT
(A) 		1-83579-617-0 01 1 9707- ● ●
104 CAP; CASE,HTR UNIT
(B) 		1-83579-618-0 01 1 9707- ● ●
104 CAP; CASE,HTR UNIT
(C) 		8-94328-657-0 04 1 9707- ● ●
104 CAP; CASE,HTR UNIT
(D) 		8-94387-703-0 01 1 0012- ● ●
132 BRACKET; HTR CORE 1-83573-195-0 01 1 0012- ● ●
138 COVER; HTR CASE 1-83579-599-2 01 1 9707-0011 ● ●
142 LEVER; ACTUATOR 1-83564-345-1 01 1 0012- ● ●
199 SCREW; ACTUATOR 8-94348-809-0 02 1 9707- ● ●
