8-28 — CHASSIS ELECTRICAL (#64451) — 47 parça

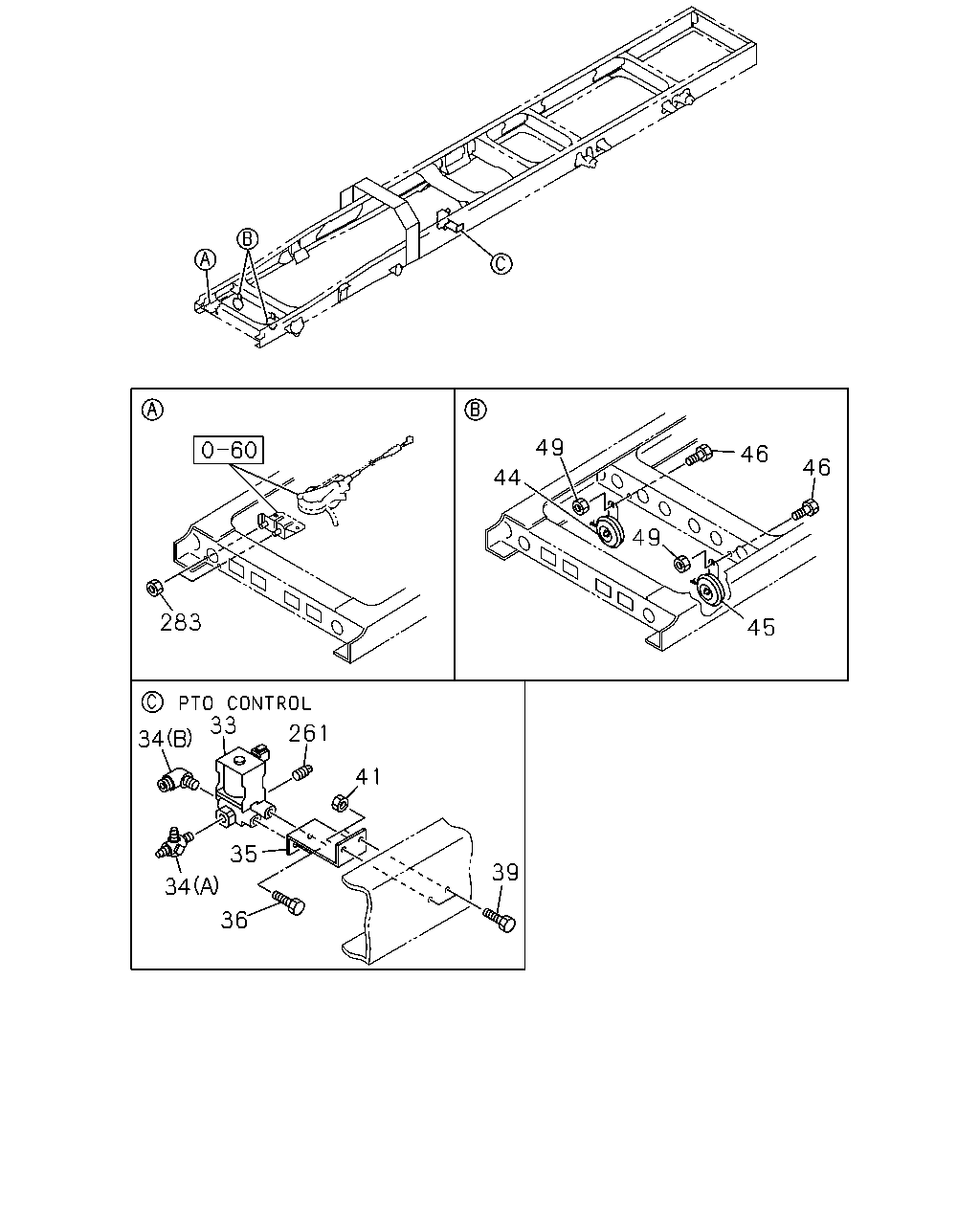

49 46 46 44 49 283 45 33 261 34 41 35 39 34 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	VALVE; MAG,PTO CONT PTO CONTROL<SV6>	1-82563-600-5	01	1	9707-	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	9707-	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (B) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9707-0204	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0205-	●
35	BRACKET; MAG VLV,PTO CONT PTO CONTROL<SV6>	1-47477-953-1	01	1	9707-	●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X20 FLANGE	0-28080-820-0	02	1	9707-0512	●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X20 FLANGE	0-28050-820-0	02	1	0601-	●
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> M8X30 FLANGE	0-28680-830-0	02	1	9707-0512	●
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> M8X30 FLANGE	0-28650-830-0	02	1	0601-	●
41	NUT; BRKT,MAG VLV PTO CONTROL<SV6> M8 FLANGE	0-91150-108-0	02	1	9707-0602	●
41	NUT; BRKT,MAG VLV PTO CONTROL<SV6> M8 FLANGE	0-91180-108-0	02	1	0603-	●
44	HORN; HIGH NOTE IDN	8-97520-169-0	01	1	9707-	●	●
45	HORN; LOW NOTE IDN	8-97520-170-0	01	1	9707-	●	●
46	BOLT; HORN TO BODY M8X25 FLANGE IDN	0-28680-825-0	02	1	9707-0512	●	●
46	BOLT; HORN TO BODY M8X25 FLANGE IDN	0-28650-825-0	02	1	0601-	●	●
49	NUT; HORN TO BODY M8 FLANGE	0-91150-108-0	02	1	9707-0602	●	●
49	NUT; HORN TO BODY M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
261	PLUG; MAG VLV PTO CONTROL<SV6> PT1/4	9-99204-513-0	01	1	9707-	●
283	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9707-0602	●	●
283	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●

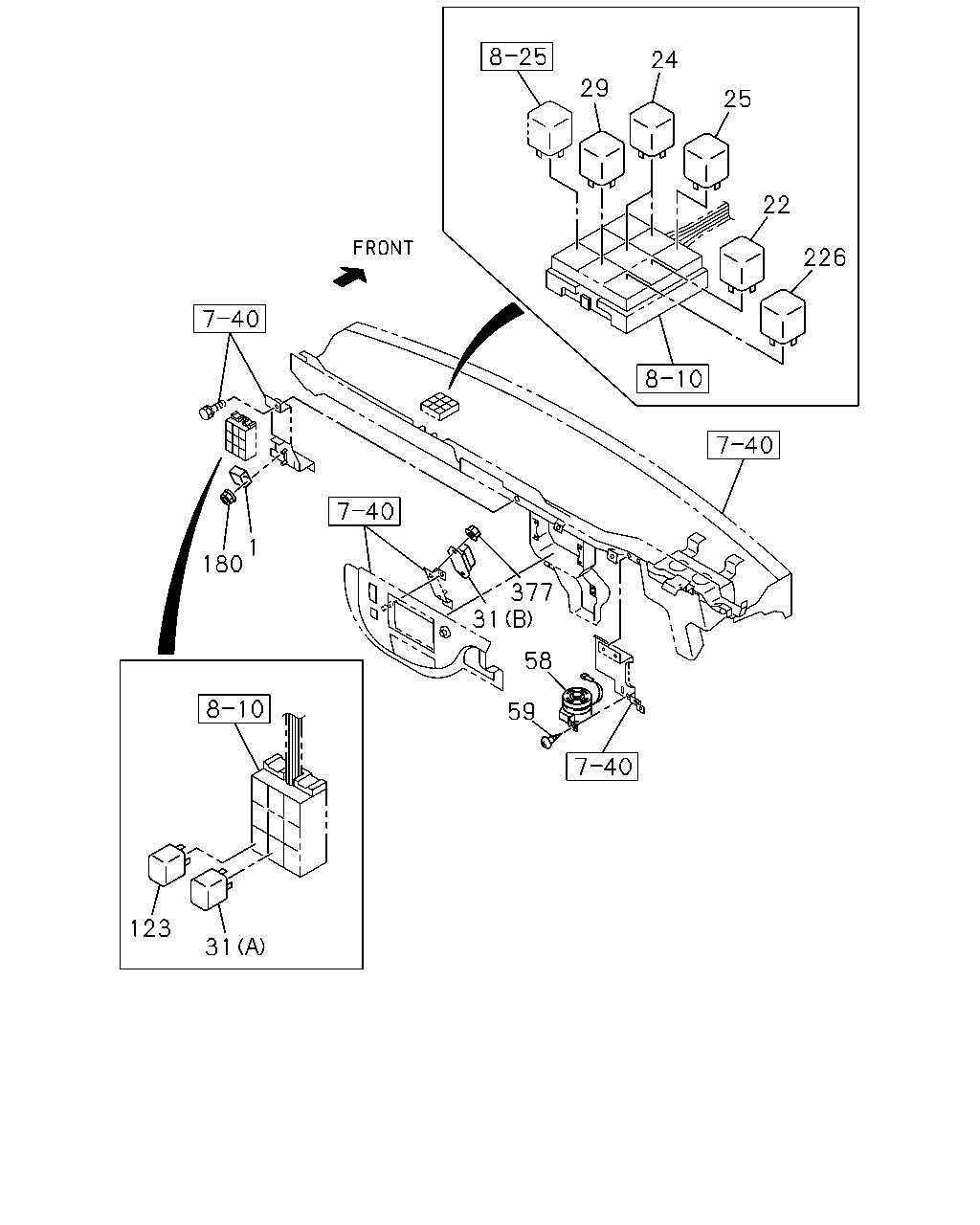

24 29 25 22 226 1 180 377 31 58 59 123 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	UNIT; FLASHER	1-83470-060-1	01	1	9707-	●	●
22	RELAY; STOP LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	9707-0111	●	●
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●	●
24	RELAY; LIGHTING 24V 12.5A MITUBA	8-97062-815-1	02	1	9707-0111	●	●
24	RELAY; LIGHTING 24V 12.5A PANASONIC	8-97262-933-0	02	1	0112-	●	●
25	RELAY; TAIL LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	9707-0111	●	●
25	RELAY; TAIL LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●	●
29	RELAY; HORN 24V 12.5A MITUBA	8-97062-815-1	01	1	9707-0111	●	●
29	RELAY; HORN 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●	●
31	RELAY; PTO CONT PTO CONTROL<SV6> (B) 24V	1-82550-187-1	01	1	9707-	●
31	RELAY; PTO CONT PTO CONTROL<SV6> (A) 24V 12.5A MITUBA	8-97062-815-1	01	1	9707-0111	●
31	RELAY; PTO CONT PTO CONTROL<SV6> (A) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●
58	BUZZER; AIR PRESSURE WARNING NIKKO	1-83460-056-0	01	1	9707-1308	●	●
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	1-83460-074-0	01	1	9904-9907	●	●
58	BUZZER; AIR PRESSURE WARNING EXC. NIKKO<Y70> METRO DENSO	1-83460-074-1	01	1	9908-0612	●	●
58	BUZZER; AIR PRESSURE WARNING EXC. NIKKO<Y70> METRO DENSO	8-98069-865-0	01	1	0701-1308	●	●
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	8-98069-865-0	01	1	1309-	●	●
58	BUZZER; AIR PRESSURE WARNING EXC. NIKKO<Y70> METRO DENSO	8-98069-865-0	01	1	1309-	●	●
59	SCREW; BUZZER M5X14	8-94279-325-0	01	1	9707-	●	●
123	RELAY; HTR 24V 12.5A MITUBA	8-97062-815-1	01	1	9707-0111	●	●
123	RELAY; HTR 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●	●
180	NUT; FLASHER UNIT M6 FLANGE	0-91150-106-0	01	1	9707-0602	●	●
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	0603-	●	●
226	RELAY; EXH BRK 24V 12.5A MITUBA	8-97062-815-1	01	1	9707-0111	●	●
226	RELAY; EXH BRK 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●	●
377	NUT; RELAY PTO CONTROL<SV6> M6 FLANGE	0-91150-106-0	02	1	9707-0602	●
377	NUT; RELAY PTO CONTROL<SV6> M6 FLANGE	0-91180-106-0	02	1	0603-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
