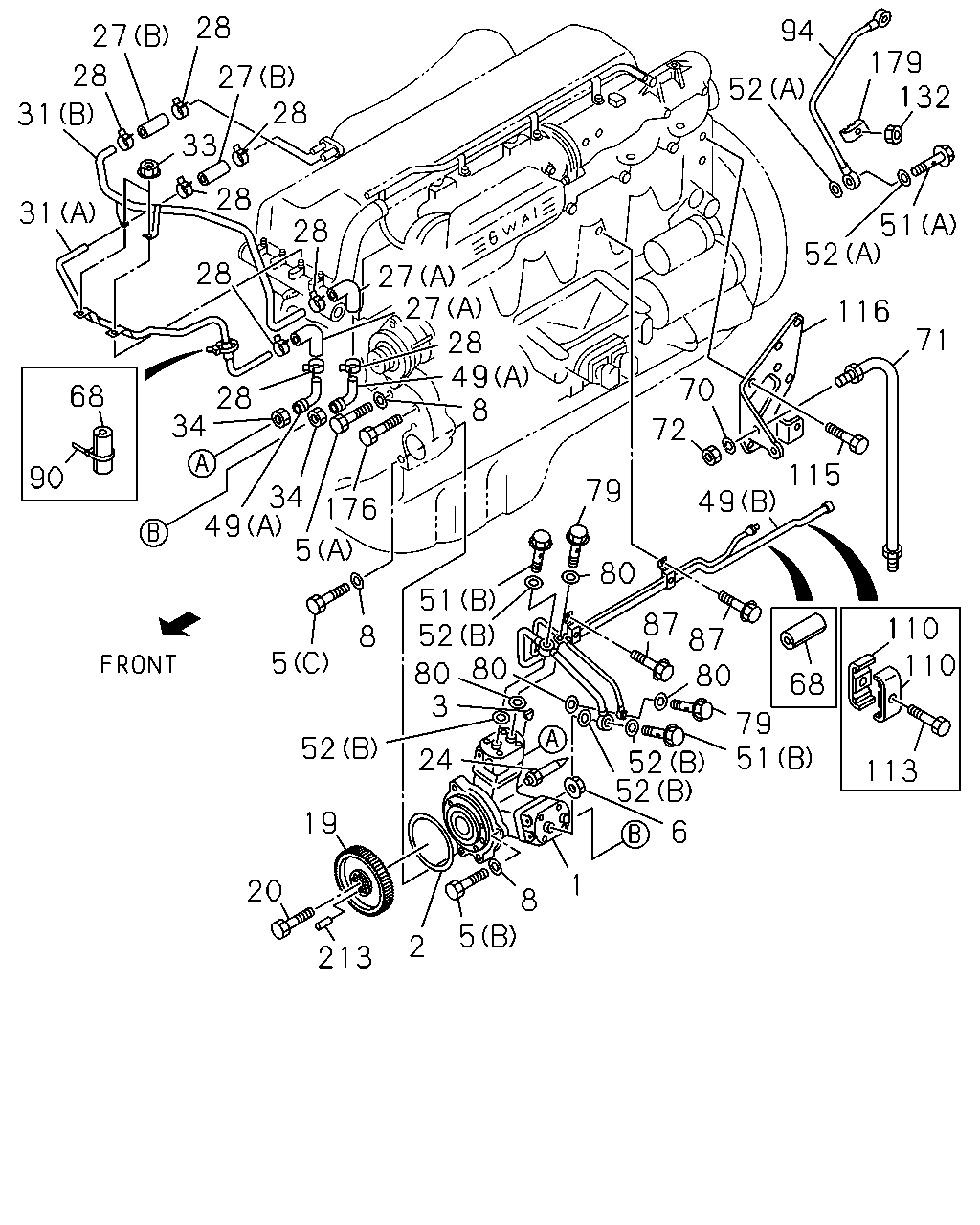

0-38A — AIR COMPRESSOR PIPING; ENGINE SIDE (#6445) — 138 parça

28 94 27 179 132 28 27 28 52 31 33 28 27 27 28 49 8 31 51 28 52 28 116 71 70 68 28 34 115 72 90 176 79 34 49 49 5 80 51 52 80 87 87 80 110 110 8 5 80 3 68 79 51 52 24 52 52 113 19 6 1 20 8 5 2 213

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-268-9	01	1	9601-9606	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-300-1	01	1	9607-9610	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-300-2	01	1	9611-9904	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-300-4	01	1	9905-		●	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-476-0	01	1	9601-9610	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-476-0	01	1	9611-9904	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-476-0	01	1	9905-		●	●	●
3	KEY; COUPLING,INJ PUMP	9-08055-622-0	01	1	9601-9610	●
3	KEY; COUPLING,INJ PUMP	9-08055-622-0	01	1	9611-9904	●	●
3	KEY; COUPLING,INJ PUMP	9-08055-622-0	01	1	9905-		●	●	●
5	BOLT; AIR CMPR FIX (A) M14X128	8-94399-253-1	01	1	9601-9610	●
5	BOLT; AIR CMPR FIX (A) M14X128	8-94399-253-1	01	1	9611-9904	●	●
5	BOLT; AIR CMPR FIX (A) M14X128	8-94399-253-1	01	1	9905-		●	●	●
5	BOLT; AIR CMPR FIX (C) M14X100	9-91666-400-0	01	1	9601-9609	●
5	BOLT; AIR CMPR FIX HEATER & DEFROSTER(C41) (C) M14X100	9-91666-400-0	01	1	9610-9610	●
5	BOLT; AIR CMPR FIX HEATER & DEFROSTER(C41) (C) M14X100	9-91666-400-0	01	1	9611-9904	●	●
5	BOLT; AIR CMPR FIX HEATER & DEFROSTER(C41) (C) M14X100	9-91666-400-0	01	1	9905-		●	●	●
5	BOLT; AIR CMPR FIX (B) M14X90	9-91666-490-0	01	1	9601-9610	●
5	BOLT; AIR CMPR FIX (B) M14X90	9-91666-490-0	01	1	9611-9904	●	●
5	BOLT; AIR CMPR FIX (B) M14X90	9-91666-490-0	01	1	9905-		●	●	●
5	BOLT; AIR CMPR FIX AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X140	1-09020-112-0	01	1	9706-9904	●	●
5	BOLT; AIR CMPR FIX AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X140	1-09020-112-0	01	1	9611-9705		●
5	BOLT; AIR CMPR FIX AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X140	1-09020-112-0	01	1	9905-		●	●	●
6	NUT; AIR CMPR M14 FLANGE	0-91150-114-0	01	1	9601-9610	●
6	NUT; AIR CMPR M14 FLANGE	0-91150-114-0	01	1	9611-9904	●	●
6	NUT; AIR CMPR M14 FLANGE	0-91150-114-0	01	1	9905-		●	●	●
8	WASHER; PL,AIR CMPR ID=15 OD=26	9-09164-514-0	03	1	9601-9610	●
8	WASHER; PL,AIR CMPR ID=15 OD=26	9-09164-514-0	03	1	9611-9904	●	●
8	WASHER; PL,AIR CMPR ID=15 OD=26	9-09164-514-0	03	1	9905-		●	●	●
19	GEAR; INJ PUMP Z=54	1-12524-087-6	01	1	9601-9604	●
19	GEAR; INJ PUMP Z=54	1-12524-111-1	01	1	9605-9610	●
19	GEAR; INJ PUMP Z=54	1-12524-111-1	01	1	9611-9904	●	●
19	GEAR; INJ PUMP Z=54	1-12524-111-1	01	1	9905-		●	●	●
20	BOLT; GEAR TO SHAFT M12X39 FLANGE	1-09070-116-0	05	1	9601-9610	●
20	BOLT; GEAR TO SHAFT M12X39 FLANGE	1-09070-116-0	05	1	9611-9904	●	●
20	BOLT; GEAR TO SHAFT M12X39 FLANGE	1-09070-116-0	05	1	9905-		●	●	●
24	POINTER; AIR CMPR	1-11327-017-0	01	1	9601-9610	●
24	POINTER; AIR CMPR	1-11327-017-0	01	1	9611-9904	●	●
24	POINTER; AIR CMPR	1-11327-017-1	01	1	9905-		●	●	●
27	HOSE; AIR CMPR,SUCTION (B)	0-02117-080-0	02	1	9601-9610	●
27	HOSE; AIR CMPR,SUCTION (B)	0-02117-080-0	02	1	9611-9904	●	●
27	HOSE; AIR CMPR,SUCTION (B)	0-02117-080-0	02	1	9905-		●	●	●
27	HOSE; AIR CMPR,SUCTION (A)	1-09360-916-0	02	1	9601-9610	●
27	HOSE; AIR CMPR,SUCTION (A)	1-09360-916-0	02	1	9611-9904	●	●
27	HOSE; AIR CMPR,SUCTION (A)	1-09360-916-0	02	1	9905-		●	●	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	08	1	9601-9610	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	08	1	9611-9904	●	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	08	1	9905-		●	●	●
31	PIPE; AIR,AIR CMPR SUCTION (A)	1-19192-659-0	01	1	9601-9610	●
31	PIPE; AIR,AIR CMPR SUCTION (A)	1-19192-659-0	01	1	9611-9904	●	●
31	PIPE; AIR,AIR CMPR SUCTION (A)	1-19192-659-0	01	1	9905-		●	●	●
31	PIPE; AIR,AIR CMPR SUCTION (B)	1-19192-660-0	01	1	9601-9602	●
31	PIPE; AIR,AIR CMPR SUCTION (B)	1-19192-993-0	01	1	9604-9610	●
31	PIPE; AIR,AIR CMPR SUCTION (B)	1-19192-993-0	01	1	9611-9904	●	●
31	PIPE; AIR,AIR CMPR SUCTION (B)	1-19192-993-0	01	1	9905-		●	●	●
33	NUT; PIPE FIX M8 FLANGE	0-91150-108-0	02	1	9601-9610	●
33	NUT; PIPE FIX M8 FLANGE	0-91150-108-0	02	1	9611-9904	●	●
33	NUT; PIPE FIX M8 FLANGE	0-91150-108-0	02	1	9905-		●	●	●
34	NUT; LK SUCTION PIPE	9-09840-254-0	02	1	9601-9610	●
34	NUT; LK SUCTION PIPE	9-09840-254-0	02	1	9611-9904	●	●
34	NUT; LK SUCTION PIPE	9-09840-254-0	02	1	9905-		●	●	●
49	PIPE; AIR,CHARGE (B)	1-19192-661-2	01	1	9601-9610	●
49	PIPE; AIR,CHARGE (B)	1-19192-661-2	01	1	9611-9904	●	●
49	PIPE; AIR,CHARGE (B)	1-19192-661-2	01	1	9905-		●
49	PIPE; AIR,CHARGE EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (B)	1-19192-661-2	01	1	9905-			●
49	PIPE; AIR,CHARGE (A)	9-19119-032-0	02	1	9601-9610	●
49	PIPE; AIR,CHARGE (A)	9-19119-032-0	02	1	9611-9904	●	●
49	PIPE; AIR,CHARGE (A)	9-19119-032-0	02	1	9905-		●	●	●
49	PIPE; AIR,CHARGE INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (B)	1-19192-985-0	01	1	9905-			●
49	PIPE; AIR,CHARGE (B)	1-19192-985-0	01	1	9905-				●
51	BOLT; EYE,AIR PIPE TO CMPR (A) M10X21 FLANGE	1-09675-077-0	01	1	9601-9610	●
51	BOLT; EYE,AIR PIPE TO CMPR (A) M10X21 FLANGE	1-09675-077-0	01	1	9611-9904		●	●
51	BOLT; EYE,AIR PIPE TO CMPR RLD GOVERNOR(SD7) (A) M10X21 FLANGE	1-09675-077-0	01	1	9905-		●
51	BOLT; EYE,AIR PIPE TO CMPR (A) M10X21 FLANGE	1-09675-077-0	01	1	9905-			●	●
51	BOLT; EYE,AIR PIPE TO CMPR (B) M24X39	1-09675-175-1	02	1	9601-9610	●
51	BOLT; EYE,AIR PIPE TO CMPR (B) M24X39	1-09675-175-1	02	1	9611-9904	●	●
51	BOLT; EYE,AIR PIPE TO CMPR (B) M24X39	1-09675-175-1	02	1	9905-		●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	9601-9610	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	9611-9904		●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). RLD GOVERNOR(SD7). (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	9905-		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	9905-			●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=24.5 OD=32	9-09571-424-0	04	1	9601-9610	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=24.5 OD=32	9-09571-424-0	04	1	9611-9904	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=24.5 OD=32	9-09571-424-0	04	1	9905-		●	●	●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	02	1	9601-9610	●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	02	1	9611-9904	●	●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	02	1	9905-		●	●	●
70	WASHER; LK ID=12.2	9-09150-512-0	01	1	9601-9610	●
70	WASHER; LK ID=12.2	9-09150-512-0	01	1	9611-9904	●	●
70	WASHER; LK ID=12.2	9-09150-512-0	01	1	9905-		●	●	●
71	HOSE; FLEX,AIR GOV L=520	0-07030-520-0	01	1	9601-9607	●
71	HOSE; FLEX,AIR GOV L=520	1-09363-657-0	01	1	9608-9610	●
71	HOSE; FLEX,AIR GOV L=520	1-09363-657-0	01	1	9611-9904	●	●
71	HOSE; FLEX,AIR GOV L=520	1-09363-657-0	01	1	9905-		●	●	●
72	NUT; GOV HOSE M12	9-09840-280-0	01	1	9601-9610	●
72	NUT; GOV HOSE M12	9-09840-280-0	01	1	9611-9904	●	●
72	NUT; GOV HOSE M12	9-09840-280-0	01	1	9905-		●	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	02	1	9601-9610	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	02	1	9611-9904	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	02	1	9905-		●	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	04	1	9601-9610	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	04	1	9611-9904	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	04	1	9905-		●	●	●
87	BOLT; BRKT FIX M10X18 FLANGE	0-28181-018-0	02	1	9601-9604	●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28181-020-0	02	1	9605-9610	●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28181-020-0	02	1	9611-9904	●	●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28181-020-0	02	1	9905-		●	●	●
90	CLIP; HARNESS EURO2 SPECIFICATION<THN> L=140	5-09707-031-1	02	1	9611-9904	●
90	CLIP; HARNESS L=140	5-09707-031-1	02	1	9905-		●
94	PIPE; AIR,BOOST	1-19192-975-0	01	1	9601-9610	●
94	PIPE; AIR,BOOST	1-19192-975-0	01	1	9611-9904		●	●
94	PIPE; AIR,BOOST	1-19192-975-0	01	1	9905-			●	●
94	PIPE; AIR,BOOST	1-19193-109-0	01	1	9905-		●
110	CLIP; AIR PIPE	1-09701-210-0	02	1	9601-9610	●
110	CLIP; AIR PIPE	1-09701-210-0	02	1	9611-9904	●	●
110	CLIP; AIR PIPE	1-09701-210-0	02	1	9905-		●	●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	9601-9610	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	9611-9904	●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	9905-		●	●	●
115	BOLT; AIR PIPE M10X18 FLANGE	0-28181-018-0	02	1	9601-9604	●
115	BOLT; AIR PIPE M10X20 FLANGE	0-28181-020-0	02	1	9605-9610	●
115	BOLT; AIR PIPE M10X20 FLANGE	0-28181-020-0	02	1	9611-9904	●	●
115	BOLT; AIR PIPE M10X20 FLANGE	0-28181-020-0	02	1	9905-		●	●	●
116	BRACKET; AIR PIPE	1-19199-212-0	01	1	9601-9610	●
116	BRACKET; AIR PIPE	1-19199-212-0	01	1	9611-9904	●	●
116	BRACKET; AIR PIPE	1-19199-212-0	01	1	9905-		●	●	●
132	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	9601-9610	●
132	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	9611-9904		●	●
132	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	9905-		●	●	●
176	BOLT; BRKT FIX M10X135	8-94397-139-1	01	1	9601-9610	●
176	BOLT; BRKT FIX M10X135	8-94397-139-1	01	1	9611-9904	●	●
176	BOLT; BRKT FIX M10X135	8-94397-139-1	01	1	9905-		●	●	●
179	CLIP; PIPE	1-09701-132-0	02	1	9601-9610	●
179	CLIP; PIPE	1-09701-132-0	02	1	9611-9904		●	●
179	CLIP; PIPE	1-09701-132-1	02	1	9905-		●	●	●
213	PIN; AIR CMPR GEAR OD=5 L=10	9-08150-510-0	01	1	9601-9610	●
213	PIN; AIR CMPR GEAR OD=5 L=10	9-08150-510-0	01	1	9611-9904	●	●
213	PIN; AIR CMPR GEAR OD=5 L=10	9-08150-510-0	01	1	9905-		●	●	●
