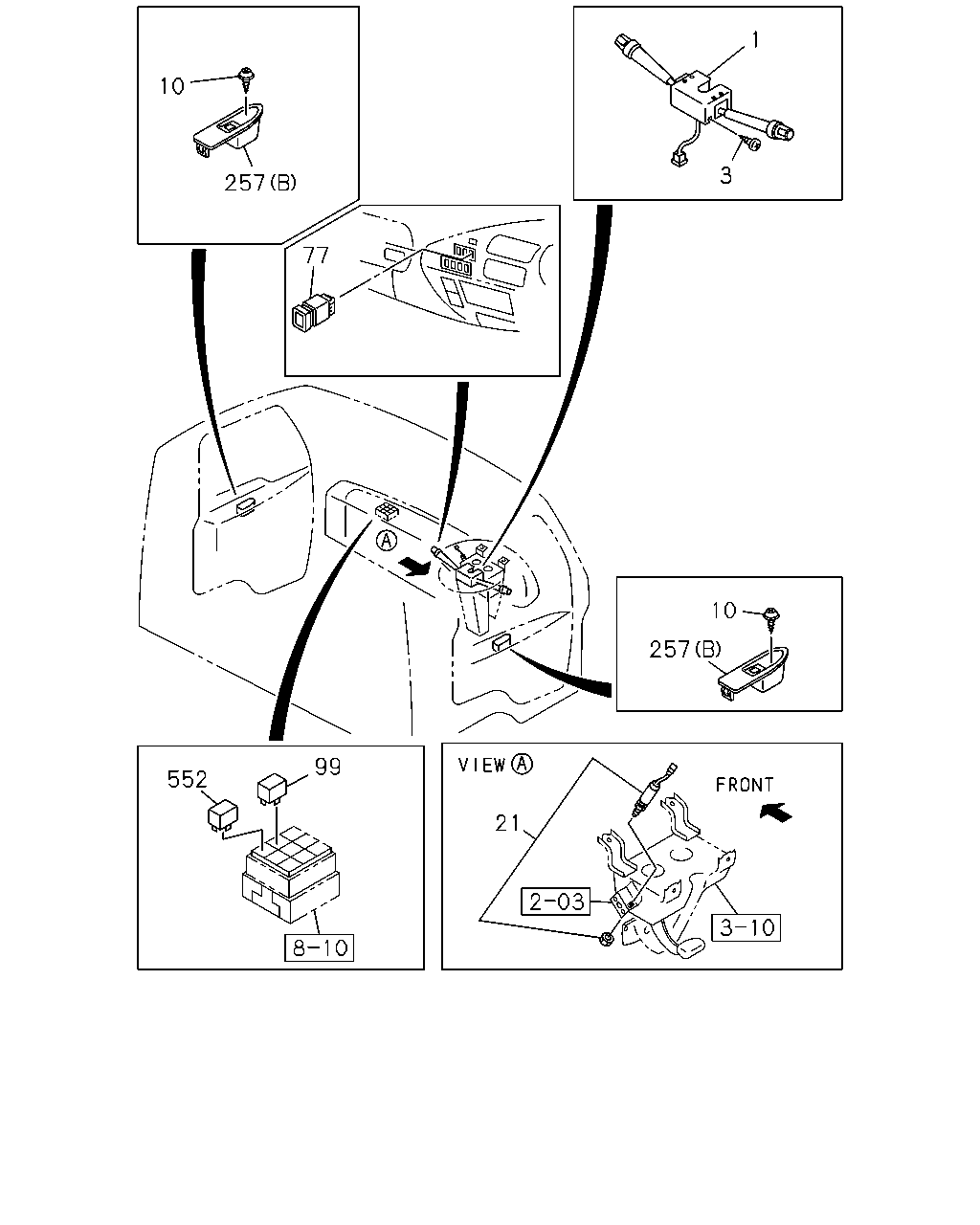

8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#64449) — 19 parça

1 10 3 257 77 10 257 99 552 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SWITCH; COMB	1-82360-412-3	01	1	9707-0103	●	●
1	SWITCH; COMB	1-82360-619-0	01	1	0104-0312	●	●
1	SWITCH; COMB	1-82360-715-0	01	1	0401-	●	●
3	SCREW; COMB SW M5X12 TAPPING W/PL WASHER	0-74105-512-0	04	1	9707-0604	●	●
3	SCREW; COMB SW M5X12 TAPPING W/PL WASHER	0-74165-512-0	04	1	0605-	●	●
10	SCREW; POWER WINDOW SW M5X16 TAPPING W/PL WASHER IDN	0-74310-516-0	02	1	9707-0604	●	●
10	SCREW; POWER WINDOW SW M5X16 TAPPING W/PL WASHER IDN	0-74360-516-0	02	1	0605-	●	●
21	SWITCH; CLU	1-82380-114-3	01	1	9707-	●	●
77	SWITCH; PTO PTO CONTROL<SV6>	1-82340-403-0	01	1	9707-	●
99	RELAY; FOG LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	9707-0111	●	●
99	RELAY; FOG LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●	●
257	COVER; HOLE,SW (A)	8-94229-914-1	02	1	9707-	●	●
257	COVER; HOLE,SW (B)	1-82389-012-2	01	1	9707-	●	●
257	COVER; HOLE,SW (B)	1-82389-011-2	01	1	9707-	●	●
552	RELAY; CIGAR LIGHTER 24V 12.5A MITUBA	8-97062-815-1	01	1	9707-0111	●	●
552	RELAY; CIGAR LIGHTER 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●	●

257

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
257	COVER; HOLE,SW (A)	8-94229-914-1	02	1	9707-	●	●
257	COVER; HOLE,SW (B)	1-82389-012-2	01	1	9707-	●	●
257	COVER; HOLE,SW (B)	1-82389-011-2	01	1	9707-	●	●
