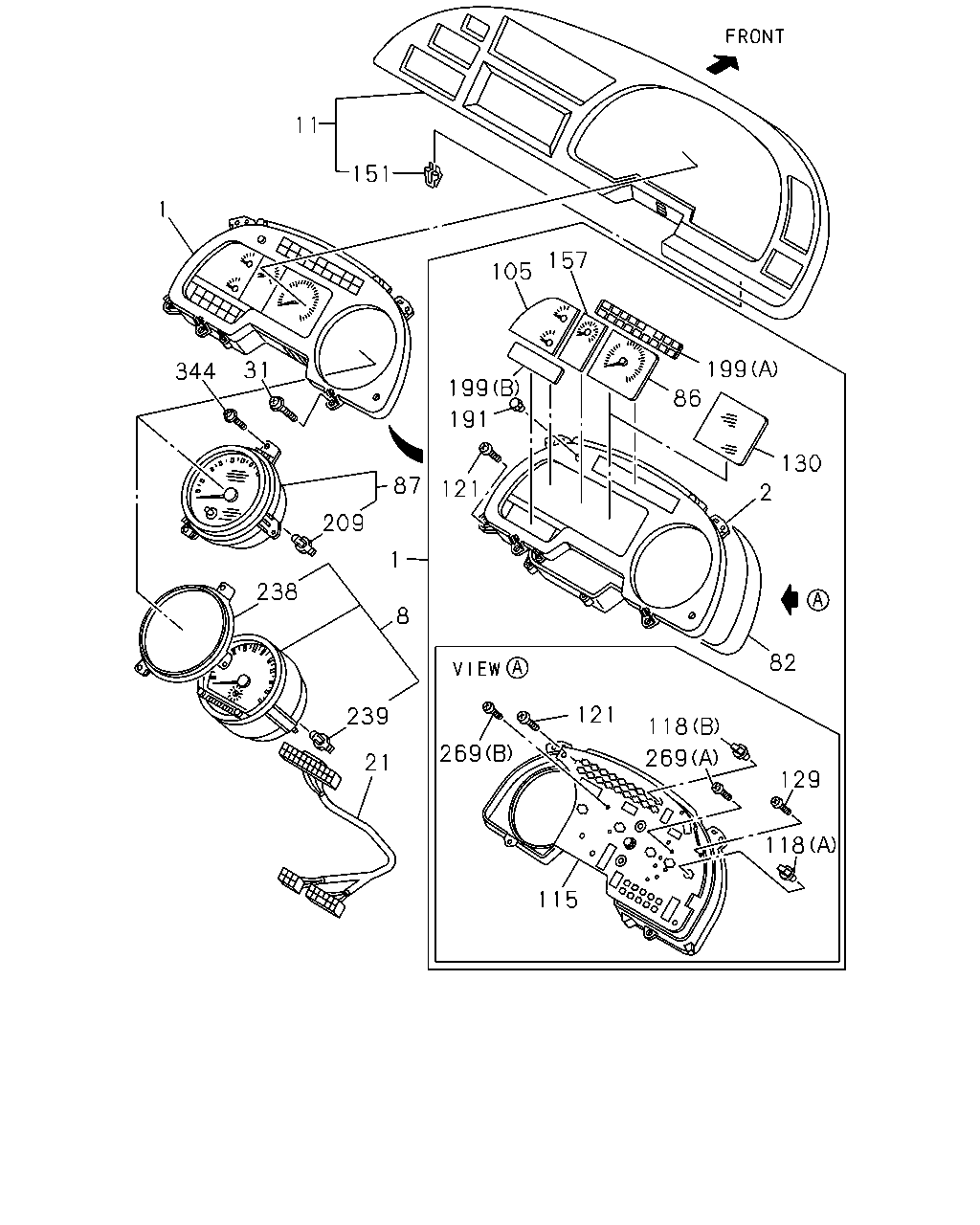

1 |
METER COMPL; CLUSTER
TACHOMETER<UD7>
|
1-83114-963-0 |
01 |
1 |
9707- |
● |
● |
| |
1 |
METER COMPL; CLUSTER
EXC. TACHOMETER<UD7>
|
1-83114-961-0 |
01 |
1 |
9707- |
● |
● |
| |
2 |
PANEL; CLUSTER
|
1-83119-499-0 |
01 |
1 |
9707- |
● |
● |
| |
8 |
TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H 7DAYS<WC7>
|
1-83120-746-0 |
01 |
1 |
9707-0204 |
● |
● |
| |
8 |
TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H 7DAYS<WC7>
|
1-83120-935-0 |
01 |
1 |
0205- |
● |
● |
| |
11 |
CLUSTER ASM; METER
|
1-72418-012-9 |
01 |
1 |
9707- |
● |
● |
| |
21 |
HARNESS; TACHOGRAPH
TACHOGRAPH 140KM/H 7DAYS<WC7>
|
1-82624-665-1 |
01 |
1 |
9707- |
● |
● |
| |
31 |
SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER
|
0-74110-620-0 |
03 |
1 |
9707-0604 |
● |
● |
| |
31 |
SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER
|
0-74160-620-0 |
03 |
1 |
0605- |
● |
● |
| |
82 |
CASE ASM; CLUSTER METER
|
1-83119-432-0 |
01 |
1 |
9707- |
● |
● |
| |
86 |
TACHOMETER; CLUSTER METER
TACHOMETER<UD7>
|
1-83120-566-0 |
01 |
1 |
9707- |
● |
● |
| |
87 |
SPEEDOMETER
|
1-83120-490-1 |
01 |
1 |
9707-9708 |
● |
● |
| |
87 |
SPEEDOMETER
EXC. TACHOGRAPH 140KM/H 7DAYS<WC7>
|
1-83120-490-1 |
01 |
1 |
9709- |
● |
● |
| |
105 |
GAUGE; THERMO & FUEL,CLUSTER METER
|
1-83180-274-0 |
01 |
1 |
9707- |
● |
● |
| |
115 |
CIRCUIT; PRINTED,CLUSTER METER
TACHOMETER<UD7>
|
1-83189-303-0 |
01 |
1 |
9707- |
● |
● |
| |
115 |
CIRCUIT; PRINTED,CLUSTER METER
EXC. TACHOMETER<UD7>
|
1-83189-301-0 |
01 |
1 |
9707- |
● |
● |
| |
118 |
BULB; CLUSTER METER
(B)
24V 1.8W BROWN SOCKET
|
1-82194-062-0 |
14 |
1 |
9707- |
● |
● |
| |
118 |
BULB; CLUSTER METER
TACHOMETER<UD7>
(A)
24V 3W GREEN SOCKET
|
1-82194-061-0 |
04 |
1 |
9707- |
● |
● |
| |
118 |
BULB; CLUSTER METER
EXC. TACHOMETER<UD7>
(A)
24V 3W GREEN SOCKET
|
1-82194-061-0 |
03 |
1 |
9707- |
● |
● |
| |
121 |
SCREW; PANEL FIX,CLUSTER METER
M4 TAPPING
|
1-83119-442-0 |
08 |
1 |
9707- |
● |
● |
| |
129 |
SCREW; PRINTED CIRCUIT,CLUSTER METER
M3 TAPPING
|
1-83119-052-0 |
10 |
1 |
9707- |
● |
● |
| |
130 |
COVER; METER HOLE,CLUSTER METER
EXC. TACHOMETER<UD7>
|
1-83119-523-0 |
01 |
1 |
9707- |
● |
● |
| |
151 |
CLIP; METER CLUSTER
|
8-97853-939-4 |
10 |
1 |
9707-9812 |
● |
● |
| |
151 |
CLIP; METER CLUSTER
IDN
|
8-97217-066-0 |
10 |
1 |
9901- |
● |
● |
| |
157 |
METER; AIR PRESSURE,CLUSTER METER
|
1-83150-178-0 |
01 |
1 |
9707- |
● |
● |
| |
191 |
KNOB; BULB CHECK
|
1-83119-500-0 |
01 |
1 |
9707- |
● |
● |
| |
199 |
LENS; WARNING LAMP
(B)
|
1-83119-435-0 |
01 |
1 |
9707- |
● |
● |
| |
199 |
LENS; WARNING LAMP
(A)
|
1-83119-526-0 |
01 |
1 |
9707- |
● |
● |
| |
209 |
BULB; SPEEDOMETER
24V 3W GREEN SOCKET
|
1-82194-061-0 |
02 |
1 |
9707-9708 |
● |
● |
| |
209 |
BULB; SPEEDOMETER
EXC. TACHOGRAPH 140KM/H 7DAYS<WC7>
24V 3W GREEN SOCKET
|
1-82194-061-0 |
02 |
1 |
9709- |
● |
● |
| |
238 |
PANEL; TACHOGRAPH
TACHOGRAPH 140KM/H 7DAYS<WC7>
|
1-83129-311-0 |
01 |
1 |
9707- |
● |
● |
| |
239 |
BULB; TACHOGRAPH
TACHOGRAPH 140KM/H 7DAYS<WC7>
24V 1.8W
|
1-82194-076-0 |
03 |
1 |
9707-0204 |
● |
● |
| |
239 |
BULB; TACHOGRAPH
TACHOGRAPH 140KM/H 7DAYS<WC7>
24V 1.4W
|
1-82194-101-0 |
03 |
1 |
0205- |
● |
● |
| |
269 |
SCREW; METER CLUSTER
(A)
M3 TAPPING
|
1-83119-441-0 |
06 |
1 |
9707- |
● |
● |
| |
269 |
SCREW; METER CLUSTER
TACHOMETER<UD7>
(B)
M3 TAPPING
|
1-83119-439-0 |
03 |
1 |
9707- |
● |
● |
| |
344 |
SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER
|
0-74110-620-0 |
03 |
1 |
9707-0604 |
● |
● |
| |
344 |
SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER
|
0-74160-620-0 |
03 |
1 |
0605- |
● |
● |
