8-15 — FIXING PARTS; WIRING HARNESS (#64447) — 175 parça

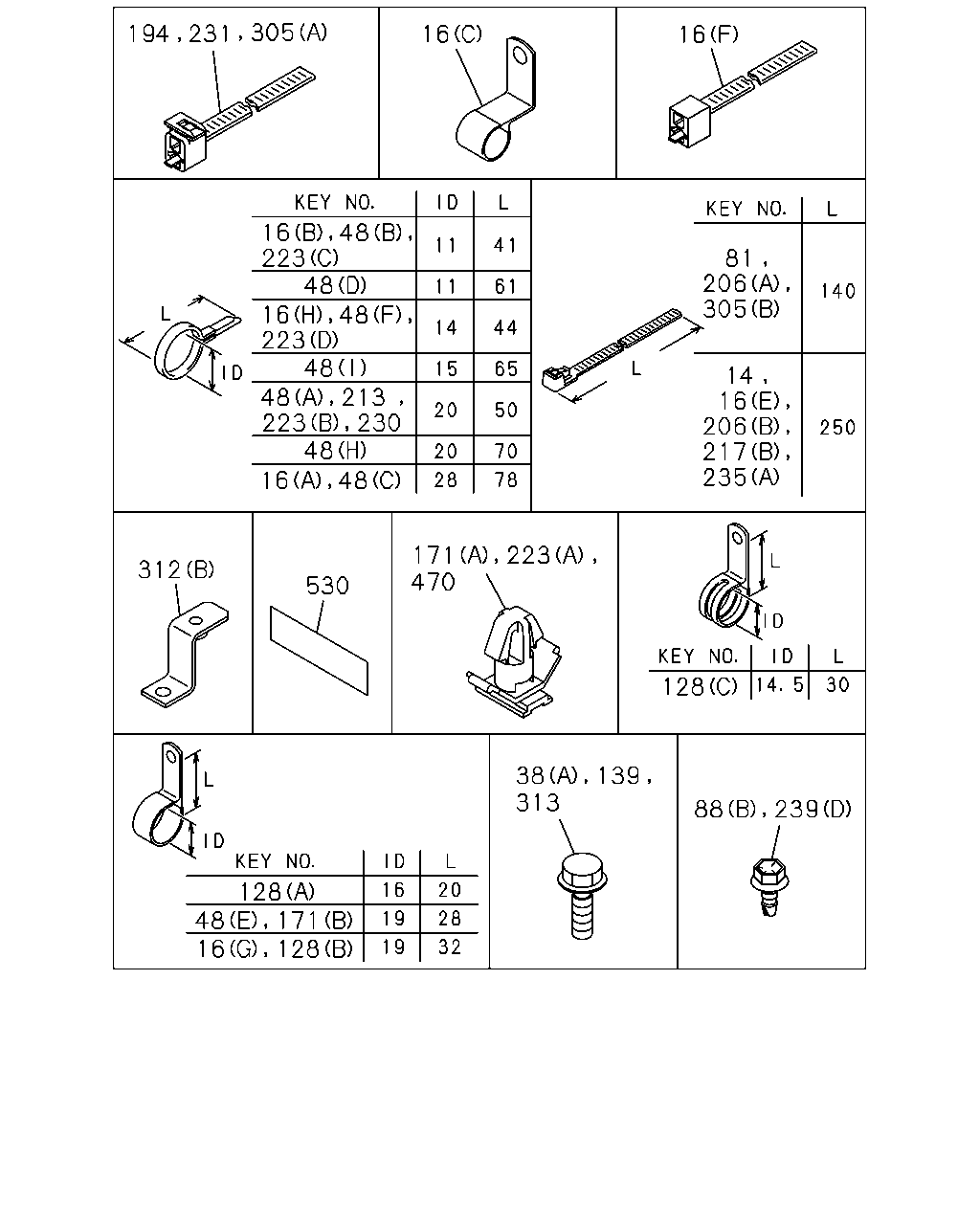

çizim 184944
305 16 16 223 48 223 48 48 48 81 206 305 14 16 206 217 235 16 171 470 223 312 530 128 38 313 139 128 48 171 16 128 194 231 16 48 16 48 48 213 223 230 88 239
BalonParca AdiParca NoAdetTipApplied Date A B
14 CLIP; BAND,HARNESS
L=250 IDN 		5-09707-030-1 01 1 0002-0304 ● ●
14 CLIP; BAND,HARNESS
EXC. FLUID DRIVE FAN<KA3> L=250 IDN 		5-09707-030-1 01 1 0305-1205 ● ●
14 CLIP; BAND,HARNESS
EXC. FLUID DRIVE FAN<KA3> L=250 		8-98216-430-0 01 1 1206- ● ●
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 03 1 9707- ● ●
16 CLIP; HARNESS
(A) ID=28 L=78 		1-09700-858-0 01 1 9707- ● ●
16 CLIP; HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9707- ● ●
16 CLIP; HARNESS
(C) ID=19 H=33 L=45 		1-09701-045-0 01 1 9707- ● ●
16 CLIP; HARNESS
(F) L=300 		1-09707-001-1 01 1 9707- ● ●
16 CLIP; HARNESS
(E) L=250 IDN 		5-09707-030-1 01 1 9707- ● ●
16 CLIP; HARNESS
(G) ID=19 L=32 		9-09525-866-0 01 1 9707-0606 ● ●
16 CLIP; HARNESS
(G) ID=19 L=32 		0-95235-866-0 01 1 0607- ● ●
16 CLIP; HARNESS
(H) ID=14 L=44 		9-09917-427-0 03 1 9707- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28080-816-0 04 1 9707-9809 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 05 1 9810-0512 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE IDN 		0-28650-820-0 05 1 0601- ● ●
38 BOLT; CLIP,HARNESS
(A) M10X16 FLANGE 		0-28181-016-0 01 1 9707-0512 ● ●
38 BOLT; CLIP,HARNESS
(A) M10X16 FLANGE 		0-28151-016-0 01 1 0601- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9707-0512 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE IDN 		0-28650-820-0 02 1 0601- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE IDN 		0-28680-825-0 01 1 9707-0512 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE IDN 		0-28650-825-0 01 1 0601- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X30 FLANGE 		0-28680-830-0 02 1 9707-0512 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ●
38 BOLT; CLIP,HARNESS
(B) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 9707-0512 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0601- ● ●
38 BOLT; CLIP,HARNESS
(C) M8X20 W/LK&PL WASHER IDN 		8-97086-825-0 01 1 9707-9903 ● ●
38 BOLT; CLIP,HARNESS
(D) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9904-9909 ● ●
38 BOLT; CLIP,HARNESS
(C) M8X20 W/LK&PL WASHER IDN 		8-97086-825-0 01 1 9910-1202 ● ●
38 BOLT; CLIP,HARNESS
(D) M8X18.5 W/PL WASHER IDN 		8-98141-255-0 01 1 1203- ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 11 1 9707- ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 9707- ● ●
48 CLIP; FRAME HARNESS
(I) ID=15 L=65 		1-09700-466-0 01 1 9707- ● ●
48 CLIP; FRAME HARNESS
(D) ID=11 L=61 		1-09700-484-0 03 1 9707- ● ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 04 1 9707- ● ●
48 CLIP; FRAME HARNESS
(C) ID=28 L=78 		1-09700-858-0 04 1 9707- ● ●
48 CLIP; FRAME HARNESS
(E) ID=19 L=28 		9-09525-856-0 01 1 9707-0606 ● ●
48 CLIP; FRAME HARNESS
(E) ID=19 L=28 		0-95235-856-0 01 1 0607- ● ●
48 CLIP; FRAME HARNESS
(F) ID=14 L=44 		9-09917-427-0 02 1 9707- ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 9707- ● ●
48 CLIP; FRAME HARNESS
(G) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 9707- ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 14 1 9707- ●
81 CLIP; HARNESS
L=140 IDN 		5-09707-031-1 02 1 9707- ● ●
88 BOLT; DOOR HARNESS EARTH
(A) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9707-1007 ● ●
88 BOLT; DOOR HARNESS EARTH
(B) M8X18.5 W/PL WASHER IDN 		8-98141-255-0 01 1 1008- ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 9707-0606 ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0607- ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=19 L=32 		9-09525-862-0 01 1 9707-0011 ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(C) ID=14.5 L=30 		9-09916-893-1 01 1 0012- ● ●
139 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 9707-0512 ● ●
139 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0601- ● ●
171 CLIP; STARTER HARNESS
(C) ID=21 L=30 H=40 		1-09700-991-1 01 1 9707- ● ●
171 CLIP; STARTER HARNESS
(A) OD=9 H=6 		1-09709-178-0 02 1 9707- ● ●
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		9-09525-856-0 03 1 9707-9809 ● ●
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		9-09525-856-0 04 1 9810-0606 ● ●
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		0-95235-856-0 04 1 0607- ● ●
194 CLIP; BAND
L=180 		1-09707-162-1 01 1 9707- ● ●
206 CLIP; FUEL TANK HARNESS
(A) L=140 		5-09707-031-0 02 1 9707-9709 ● ●
206 CLIP; FUEL TANK HARNESS
(B) L=250 IDN 		5-09707-030-1 01 1 9710- ● ●
213 CLIP; END CROSS HARNESS
ID=20 L=50 		9-09917-430-0 03 1 9707- ● ●
217 CLIP; RR BODY HARNESS
(A) ID=15 L=70 		1-09700-980-0 02 1 9707- ● ●
217 CLIP; RR BODY HARNESS
(B) L=250 IDN 		5-09707-030-1 02 1 9707- ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=11 L=41 		1-09700-403-0 01 1 9707- ● ●
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 03 1 9707- ● ●
223 CLIP; AIR TANK HARNESS
(D) ID=14 L=44 		9-09917-427-0 02 1 9707- ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 03 1 9707- ● ●
230 CLIP; C/MBR HARNESS
ID=20 L=50 		9-09917-430-0 02 1 9707- ● ●
231 CLIP; BAND,OIL PRESS
L=180 		1-09707-162-1 01 1 9707- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) ID=6 H=25 L=21 		1-09700-432-0 01 1 9707- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) L=250 IDN 		5-09707-030-1 01 1 9707- ● ●
239 BOLT; GRAND
(A) M5X8 		0-20800-508-0 01 1 9707- ● ●
239 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 9707-1007 ● ●
239 BOLT; GRAND
(D) M6X14 W/PL WASHER IDN 		8-98164-836-0 02 1 1008- ● ●
239 BOLT; GRAND
(C) M8X20 W/LK&PL WASHER IDN 		8-97086-825-0 01 1 9707-9903 ● ●
239 BOLT; GRAND
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9904-1202 ● ●
239 BOLT; GRAND
(B) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1203- ● ●
305 CLIP; ENG HARNESS
(A) L=180 		1-09707-162-1 01 1 9707- ● ●
305 CLIP; ENG HARNESS
EXC. TACHOMETER<UD7> (B) L=140 IDN 		5-09707-031-1 01 1 9707- ● ●
312 BRACKET; CLIP HARNESS
(A) 		1-82699-588-0 01 1 9707-0302 ● ●
312 BRACKET; CLIP HARNESS
(B) 		1-47478-981-0 01 1 0303- ● ●
313 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 9707-0512 ● ●
313 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 9707- ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 06 1 0102- ● ●

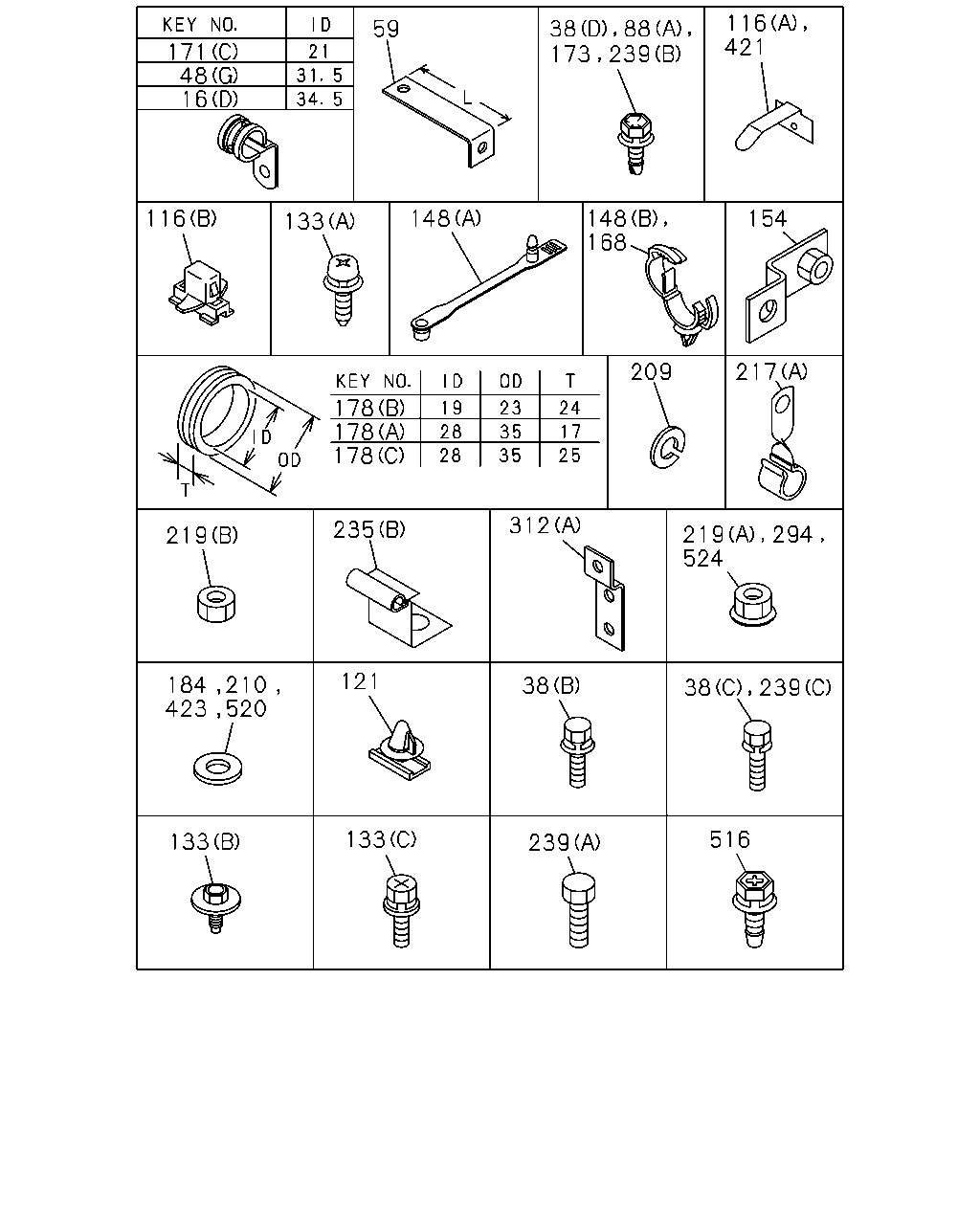

çizim 184955
116 421 59 171 48 16 116 148 148 168 154 133 217 209 178 178 178 312 235 219 524 294 219 121 184 423 210 520 38 133 516 133 239 38 88 173 239 38 239
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 03 1 9707- ● ●
16 CLIP; HARNESS
(A) ID=28 L=78 		1-09700-858-0 01 1 9707- ● ●
16 CLIP; HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9707- ● ●
16 CLIP; HARNESS
(C) ID=19 H=33 L=45 		1-09701-045-0 01 1 9707- ● ●
16 CLIP; HARNESS
(F) L=300 		1-09707-001-1 01 1 9707- ● ●
16 CLIP; HARNESS
(E) L=250 IDN 		5-09707-030-1 01 1 9707- ● ●
16 CLIP; HARNESS
(G) ID=19 L=32 		9-09525-866-0 01 1 9707-0606 ● ●
16 CLIP; HARNESS
(G) ID=19 L=32 		0-95235-866-0 01 1 0607- ● ●
16 CLIP; HARNESS
(H) ID=14 L=44 		9-09917-427-0 03 1 9707- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28080-816-0 04 1 9707-9809 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 05 1 9810-0512 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE IDN 		0-28650-820-0 05 1 0601- ● ●
38 BOLT; CLIP,HARNESS
(A) M10X16 FLANGE 		0-28181-016-0 01 1 9707-0512 ● ●
38 BOLT; CLIP,HARNESS
(A) M10X16 FLANGE 		0-28151-016-0 01 1 0601- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9707-0512 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE IDN 		0-28650-820-0 02 1 0601- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE IDN 		0-28680-825-0 01 1 9707-0512 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE IDN 		0-28650-825-0 01 1 0601- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X30 FLANGE 		0-28680-830-0 02 1 9707-0512 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ●
38 BOLT; CLIP,HARNESS
(B) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 9707-0512 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0601- ● ●
38 BOLT; CLIP,HARNESS
(C) M8X20 W/LK&PL WASHER IDN 		8-97086-825-0 01 1 9707-9903 ● ●
38 BOLT; CLIP,HARNESS
(D) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9904-9909 ● ●
38 BOLT; CLIP,HARNESS
(C) M8X20 W/LK&PL WASHER IDN 		8-97086-825-0 01 1 9910-1202 ● ●
38 BOLT; CLIP,HARNESS
(D) M8X18.5 W/PL WASHER IDN 		8-98141-255-0 01 1 1203- ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 11 1 9707- ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 9707- ● ●
48 CLIP; FRAME HARNESS
(I) ID=15 L=65 		1-09700-466-0 01 1 9707- ● ●
48 CLIP; FRAME HARNESS
(D) ID=11 L=61 		1-09700-484-0 03 1 9707- ● ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 04 1 9707- ● ●
48 CLIP; FRAME HARNESS
(C) ID=28 L=78 		1-09700-858-0 04 1 9707- ● ●
48 CLIP; FRAME HARNESS
(E) ID=19 L=28 		9-09525-856-0 01 1 9707-0606 ● ●
48 CLIP; FRAME HARNESS
(E) ID=19 L=28 		0-95235-856-0 01 1 0607- ● ●
48 CLIP; FRAME HARNESS
(F) ID=14 L=44 		9-09917-427-0 02 1 9707- ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 9707- ● ●
48 CLIP; FRAME HARNESS
(G) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 9707- ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 14 1 9707- ●
59 BRACKET; FRAME HARNESS
L=95 		1-82699-085-0 01 1 9707- ● ●
88 BOLT; DOOR HARNESS EARTH
(A) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9707-1007 ● ●
88 BOLT; DOOR HARNESS EARTH
(B) M8X18.5 W/PL WASHER IDN 		8-98141-255-0 01 1 1008- ● ●
116 CLIP; ROOF HARNESS
(A) L=20 SET=10 PIECE 		1-09987-246-2 02 1 9707-0009 ● ●
116 CLIP; ROOF HARNESS
(A) L=20 SET=10 PIECE 		1-09987-246-2 03 1 0010- ● ●
116 CLIP; ROOF HARNESS
(B) L=15 		8-94315-436-1 01 1 9707- ● ●
121 CLIP; FACIA HARNESS
OD=7 H=1.2 		8-94364-750-0 02 1 9707- ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER IDN 		8-94279-402-0 01 1 9707-0110 ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111- ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(C) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-0210 ● ●
148 CLIP; BAND,HEADLAMP HARNESS
(A) L=85 		8-94232-611-0 01 1 9707- ● ●
148 CLIP; BAND,HEADLAMP HARNESS
(B) ID=6 & 10-13 		8-97069-515-0 01 1 9707- ● ●
154 BRACKET; STARTER EARTH CABLE
EXC. FLUID DRIVE FAN<KA3> 		1-47465-518-0 01 1 9707- ● ●
168 CLIP; DASH HARNESS
ID=6 & 10-13 		8-97069-515-0 06 1 9707- ● ●
171 CLIP; STARTER HARNESS
(C) ID=21 L=30 H=40 		1-09700-991-1 01 1 9707- ● ●
171 CLIP; STARTER HARNESS
(A) OD=9 H=6 		1-09709-178-0 02 1 9707- ● ●
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		9-09525-856-0 03 1 9707-9809 ● ●
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		9-09525-856-0 04 1 9810-0606 ● ●
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		0-95235-856-0 04 1 0607- ● ●
173 BOLT; STARTER EARTH
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 9707- ● ●
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=25 		1-09332-011-1 01 1 9707- ● ●
178 GROMMET; HARNESS
(B) ID=19 OD=23 T=24 		1-09332-103-0 01 1 9707- ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 9707- ● ●
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 9904- ● ●
209 WASHER; LK,GEN,EARTH
ID=5.1 		9-09150-505-0 01 1 9707-0603 ● ●
209 WASHER; LK,GEN,EARTH
ID=5.1 		0-91510-505-0 01 1 0604- ● ●
210 WASHER; PL,GEN
ID=8.4 		1-09503-264-0 01 1 9904- ● ●
217 CLIP; RR BODY HARNESS
(A) ID=15 L=70 		1-09700-980-0 02 1 9707- ● ●
217 CLIP; RR BODY HARNESS
(B) L=250 IDN 		5-09707-030-1 02 1 9707- ● ●
219 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 9707-0602 ● ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
219 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 9707-0602 ● ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
219 NUT
(B) M8 		9-09110-408-0 02 1 9707-0512 ● ●
219 NUT
(B) M8 IDN 		0-91110-508-0 02 1 0601- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) ID=6 H=25 L=21 		1-09700-432-0 01 1 9707- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) L=250 IDN 		5-09707-030-1 01 1 9707- ● ●
239 BOLT; GRAND
(A) M5X8 		0-20800-508-0 01 1 9707- ● ●
239 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 9707-1007 ● ●
239 BOLT; GRAND
(D) M6X14 W/PL WASHER IDN 		8-98164-836-0 02 1 1008- ● ●
239 BOLT; GRAND
(C) M8X20 W/LK&PL WASHER IDN 		8-97086-825-0 01 1 9707-9903 ● ●
239 BOLT; GRAND
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9904-1202 ● ●
239 BOLT; GRAND
(B) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1203- ● ●
294 NUT
M8 FLANGE 		0-91150-108-0 02 1 9707-0602 ● ●
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
312 BRACKET; CLIP HARNESS
(A) 		1-82699-588-0 01 1 9707-0302 ● ●
312 BRACKET; CLIP HARNESS
(B) 		1-47478-981-0 01 1 0303- ● ●
421 CLIP; FLOOR HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 07 1 9707-0101 ● ●
421 CLIP; FLOOR HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 01 1 0102- ● ●
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 01 1 9904-9909 ● ●
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9707- ● ●
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 9904- ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 9707-0602 ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 01 1 0603- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
