◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10752 - FTR(IDN)WB3600/4200 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#64446) — 42 parça

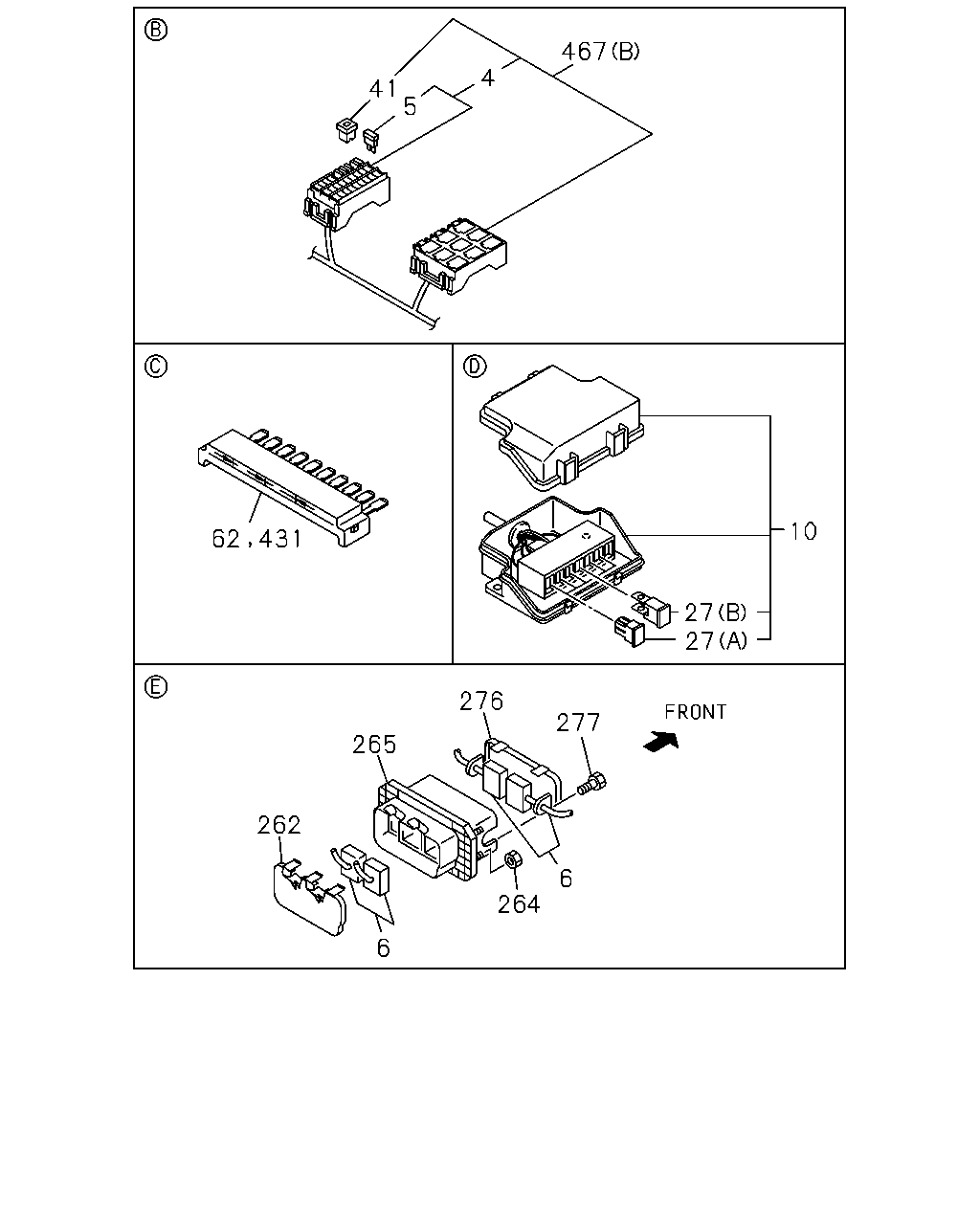

çizim 136063
467 4 41 5 10 27 27 276 277 265 262 6 264 6 62 431
BalonParca AdiParca NoAdetTipApplied Date A B
4 BOX ASM; FUSE,HARNESS
7.5AX11 15AX8 IDN 		8-97520-468-0 01 1 9707- ● ●
5 FUSE; FACIA HARNESS
7.5A BROWN IDN 		8-97520-466-0 11 1 9707- ● ●
5 FUSE; FACIA HARNESS
15A BLUE IDN 		8-97520-467-0 08 1 9707- ● ●
6 HARNESS; FRAME
IDN 		8-97520-256-1 01 1 9707- ●
6 HARNESS; FRAME
IDN 		8-97520-257-1 01 1 9707- ●
10 BOX; FUSE,HARNESS
IDN 		8-97520-459-0 01 1 9707- ● ●
27 FUSE UNIT
(A) 40A IDN 		8-97520-460-0 03 1 9707- ● ●
27 FUSE UNIT
(B) 60A IDN 		8-97520-461-0 01 1 9707- ● ●
41 PULLER; FUSE
IDN 		8-97520-465-0 01 1 9707- ● ●
62 DIODE; HARNESS
10P BROWN IDN 		8-97520-463-0 01 1 9707-0609 ● ●
62 DIODE; HARNESS
BLACK 10P IDN 		8-97520-464-0 01 1 9707- ● ●
262 COVER; CONNECTOR BOX,FRT PNL 1-82699-605-1 01 1 9707- ● ●
264 NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 9707- ● ●
265 BOX; CONN,FRT PNL 1-82699-538-3 01 1 9707- ● ●
276 COVER; BOX,FRAME HARNESS 1-82699-558-3 01 1 9707- ● ●
277 BOLT; BOX ASM FIX
M6X25 W/LK&PL WASHER 		0-50140-625-0 02 1 9707-0512 ● ●
277 BOLT; BOX ASM FIX
M6X25 W/LK&PL WASHER 		0-50640-625-0 02 1 0601- ● ●
431 CONNECTOR; JOINT
10P BROWN IDN 		8-97520-463-0 01 1 0610- ● ●
467 HARNESS; FACIA
(A) IDN 		8-97520-151-3 01 1 9707- ● ●
467 HARNESS; FACIA
(B) IDN 		8-97520-259-3 01 1 9707- ● ●

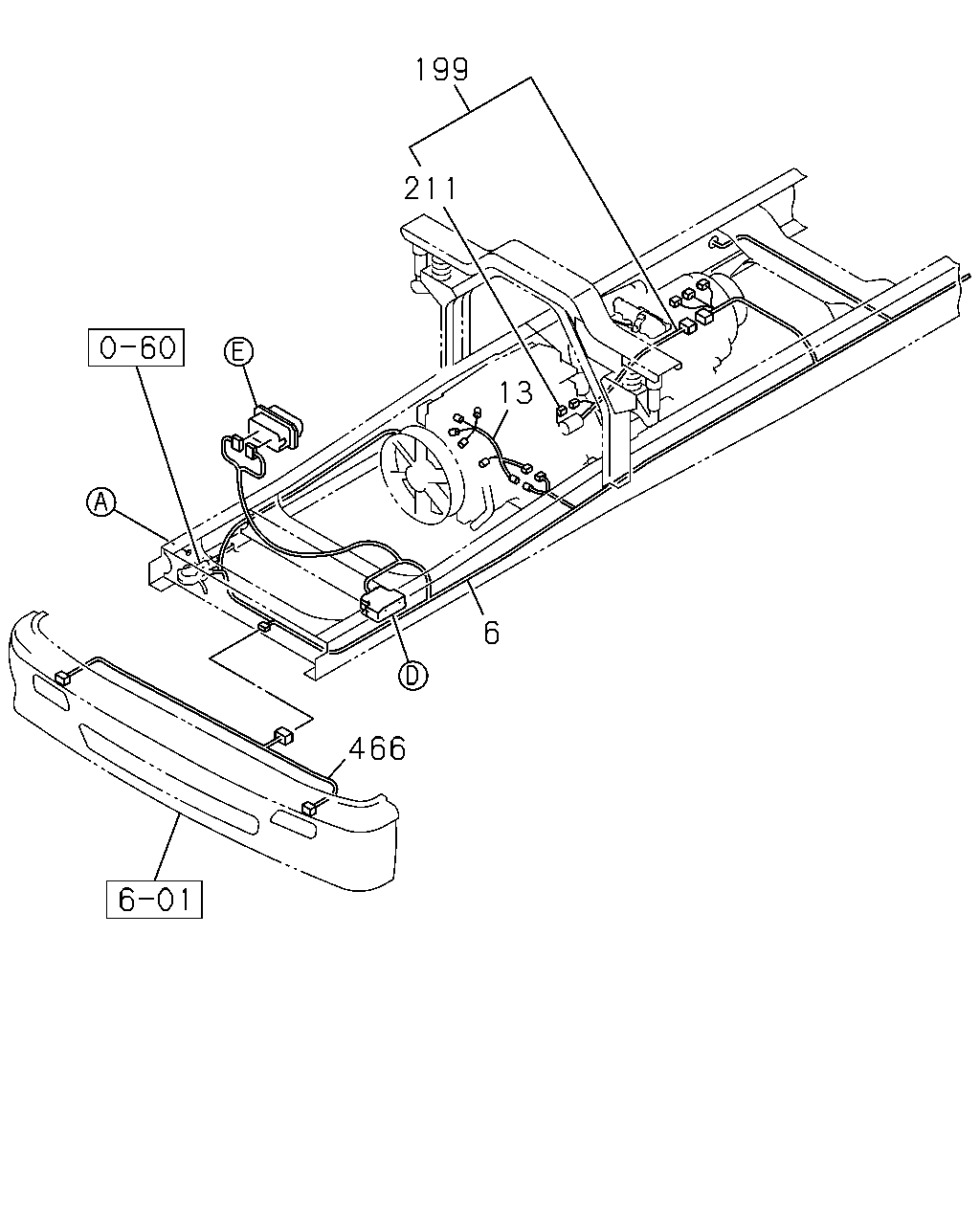

çizim 136313
199 211 13 6 466
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
IDN 		8-97520-256-1 01 1 9707- ●
6 HARNESS; FRAME
IDN 		8-97520-257-1 01 1 9707- ●
13 HARNESS; ENG
IDN 		8-97520-146-0 01 1 9707- ● ●
199 HARNESS; STARTER
IDN 		8-97520-147-0 01 1 9707- ● ●
211 WIRE; FUSIBLE LINK,STARTER
IDN 		8-97520-462-0 01 1 9707- ● ●
466 HARNESS; BUMPER
IDN 		8-97520-140-0 01 1 9707- ● ●
çizim 136454
450 544 213 419 12 254 189
BalonParca AdiParca NoAdetTipApplied Date A B
12 HARNESS; ROOF
IDN 		8-97520-150-1 01 1 9707- ● ●
189 HARNESS; EXT
IDN 		8-97520-153-0 02 1 9707- ● ●
213 CABLE; EARTH,CAB TO FRAME
IDN 		8-97520-139-0 01 1 9707- ● ●
254 HARNESS; CAB FLOOR
IDN 		8-97520-154-2 01 1 9707- ● ●
419 BOLT; CAB EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9707-1202 ● ●
419 BOLT; CAB EARTH
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1203- ● ●
450 WASHER; PL,CAB EARTH
ID=8.4 OD=18 		9-09164-608-0 01 1 0205-0605 ● ●
450 WASHER; PL,CAB EARTH
ID=8.4 OD=18 		0-91614-608-0 01 1 0606- ● ●
544 SEAL; FRT MTG RAIL
OD=25 BLACK 		1-76798-019-0 01 1 9707- ● ●

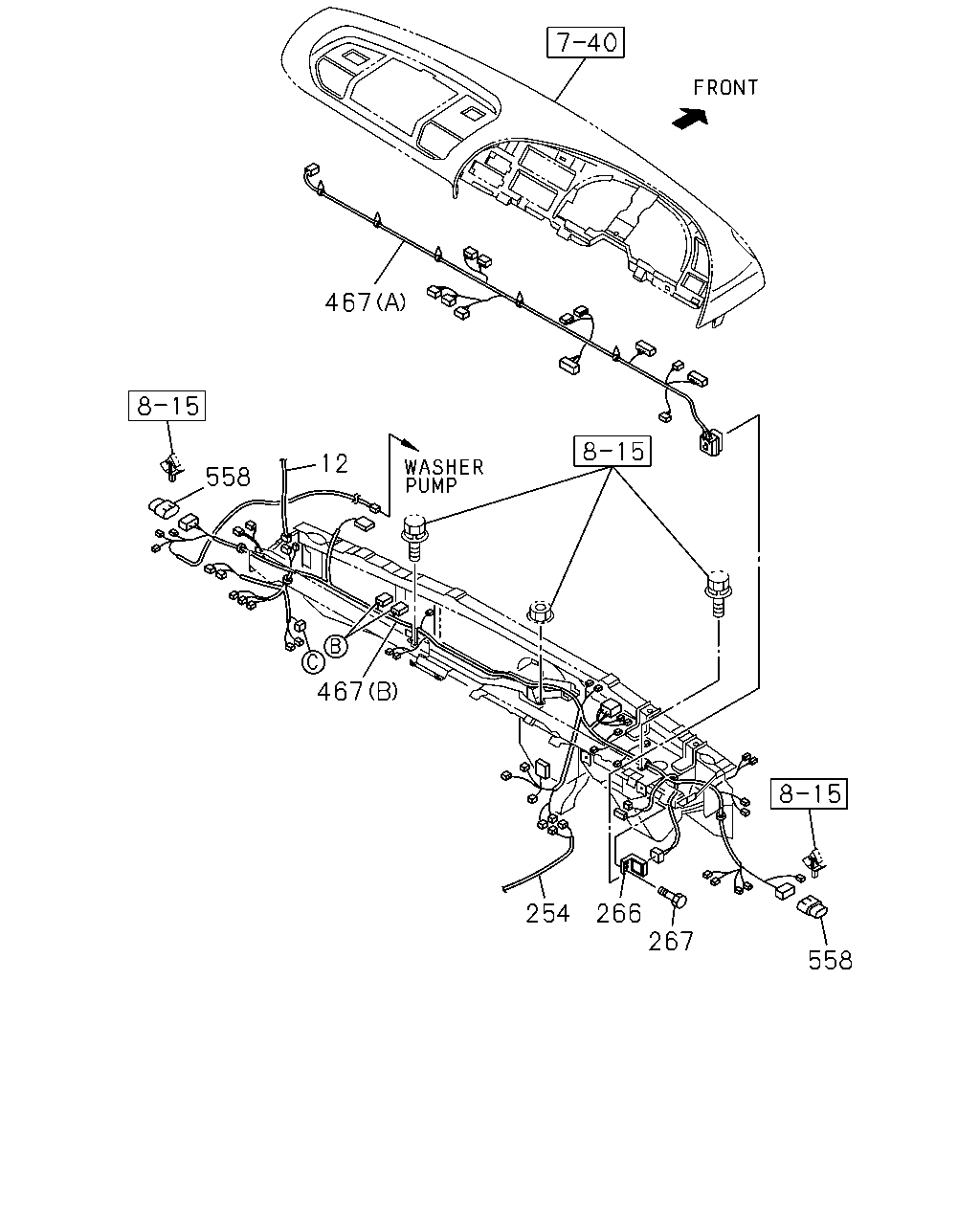

çizim 184950
467 12 558 467 254 266 267 558
BalonParca AdiParca NoAdetTipApplied Date A B
12 HARNESS; ROOF
IDN 		8-97520-150-1 01 1 9707- ● ●
254 HARNESS; CAB FLOOR
IDN 		8-97520-154-2 01 1 9707- ● ●
266 BRACKET; CONN BOX 1-82699-580-0 01 1 9707- ● ●
267 BOLT; BRKT
M6X16 W/PL WASHER 		1-09981-438-0 02 1 9707- ● ●
467 HARNESS; FACIA
(A) IDN 		8-97520-151-3 01 1 9707- ● ●
467 HARNESS; FACIA
(B) IDN 		8-97520-259-3 01 1 9707- ● ●
558 CONNECTOR; HARNESS 1-82690-666-0 02 1 9707- ● ●
