Isuzu WW
▶
TRUCKS
▶
FTR
▶
10752 - FTR(IDN)WB3600/4200
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-03 - LAMP; REAR AND REAR SIDE
▶

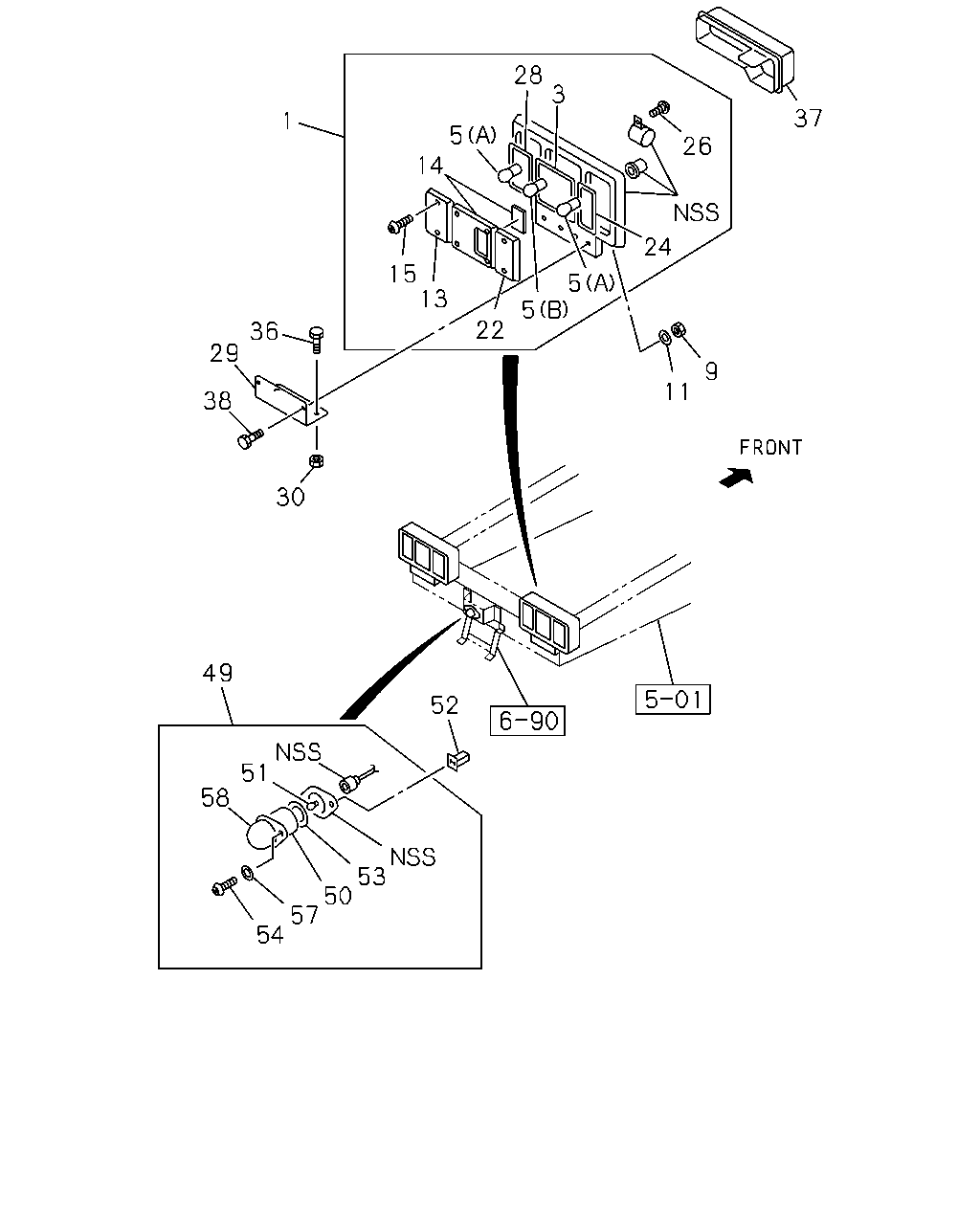

8-03 — LAMP; REAR AND REAR SIDE
(#64444) — 36 parça
Tümü
A - FTR5MC
B - FTR5MF
28
3
37
1
5
14
26
24
15
13
5
5
22
36
29
9
11
38
30
49
52
51
58
53
50
57
54
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
LAMP ASM; RR COMB
IDN
8-97520-172-0
01
1
9707-
●
●
1
LAMP ASM; RR COMB
IDN
8-97520-171-0
01
1
9707-
●
●
3
GASKET; RR COMB LAMP
IDN
8-97520-405-0
02
1
9707-
●
●
5
BULB; RR COMB LAMP
(B) 24V 21/5W IDN
8-97520-401-0
02
1
9707-
●
●
5
BULB; RR COMB LAMP
(A) 24V 21W IDN
8-97520-402-0
04
1
9707-
●
●
9
NUT; LAMP,RR COMB
M6
9-09110-406-0
04
1
9707-0512
●
●
9
NUT; LAMP,RR COMB
M6
0-91110-506-0
04
1
0601-
●
●
11
WASHER; PL,LAMP,RR COMB
ID=6.4 OD=18
9-09160-706-0
04
1
9707-0605
●
●
11
WASHER; PL,LAMP,RR COMB
ID=6.4 OD=18
0-91610-706-0
04
1
0606-
●
●
13
LENS; TURN SIGNAL
IDN
8-97520-415-0
01
1
9707-
●
●
13
LENS; TURN SIGNAL
IDN
8-97520-414-0
01
1
9707-
●
●
14
LENS; TAIL & STOP,RR COMB LAMP
IDN
8-97520-404-0
01
1
9707-
●
●
14
LENS; TAIL & STOP,RR COMB LAMP
IDN
8-97520-403-0
01
1
9707-
●
●
15
SCREW; RR COMB LAMP
IDN
8-97520-416-0
16
1
9707-
●
●
22
LENS; BACKUP,RR COMB LAMP
IDN
8-97520-411-0
02
1
9707-
●
●
24
GASKET; BACK,LAMP
IDN
8-97520-406-0
02
1
9707-
●
●
26
SCREW; BACK HORN
IDN
8-97520-418-0
01
1
9707-
●
●
26
SCREW; BACK HORN
IDN
8-97520-417-0
01
1
9707-
●
●
28
GASKET; TURN,LAMP
IDN
8-97520-408-0
02
1
9707-
●
●
29
BRACKET; LAMP,RR COMB
1-82699-978-0
02
1
9707-
●
●
30
NUT; BRKT,RR COMB
M8 FLANGE
0-91150-108-0
04
1
9707-0602
●
●
30
NUT; BRKT,RR COMB
M8 FLANGE
0-91180-108-0
04
1
0603-
●
●
36
BOLT; BRKT,RR COMB
M8X25 FLANGE IDN
0-28680-825-0
04
1
9707-0512
●
●
36
BOLT; BRKT,RR COMB
M8X25 FLANGE IDN
0-28650-825-0
04
1
0601-
●
●
37
COVER; RR COMB LAMP
IDN
8-97520-138-0
01
1
9707-
●
●
37
COVER; RR COMB LAMP
IDN
8-97520-137-0
01
1
9707-
●
●
38
BOLT; LAMP,RR COMB
M6X30 W/LK&PL WASHER
0-50140-630-0
04
1
9707-0512
●
●
38
BOLT; LAMP,RR COMB
M6X30 W/LK&PL WASHER
0-50640-630-0
04
1
0601-
●
●
49
LAMP; LICENSE PLATE
24V 10W
1-82120-024-1
01
1
9707-
●
●
50
LENS; LICENSE PLATE LAMP
1-82235-006-0
01
1
9707-
●
●
51
BULB; LICENSE PLATE LAMP
24V 10W IDN
1-82194-037-0
01
1
9707-
●
●
52
GROMMET; SCREW,LICENSE PLATE LAMP
D=7.8X7.8 L=18 M5 BLACK
8-94275-946-0
02
1
9707-
●
●
53
GASKET; LICENSE LAMP
1-82126-005-0
01
1
9707-
●
●
54
SCREW; LICENSE PLATE LAMP
M5X20
1-82129-007-0
02
1
9707-
●
●
57
WASHER; PL,LICENSE PLATE LAMP
1-82129-008-0
02
1
9707-
●
●
58
COVER; LICENSE PLATE LAMP
1-82129-005-0
01
1
9707-
●
●
