8-01 — LAMP; FRONT AND FRONT SIDE (#64443) — 61 parça

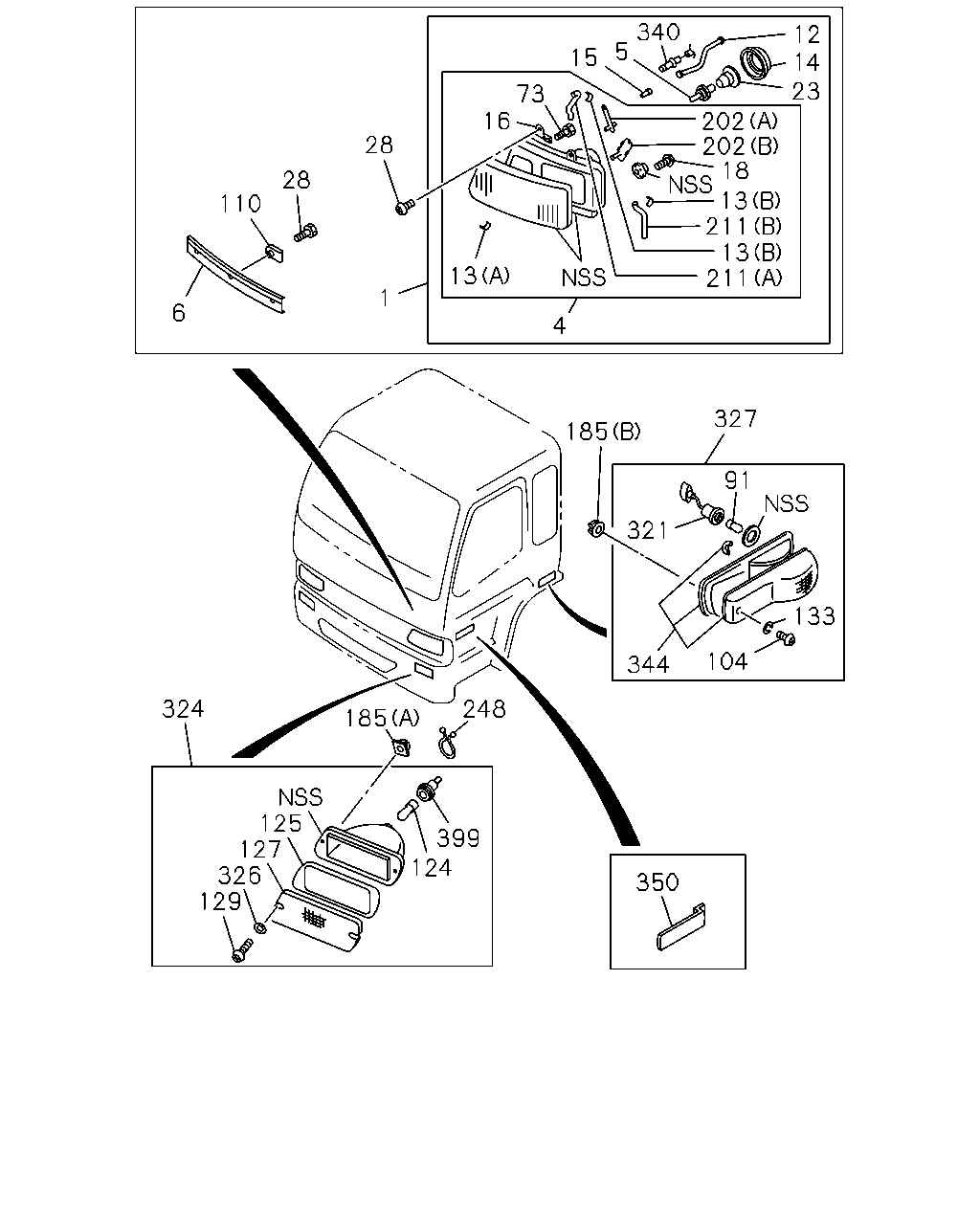

çizim 184947
340 5 12 14 23 15 73 16 202 202 18 28 28 13 211 13 211 110 13 1 6 4 327 185 91 321 133 104 344 324 248 185 125 127 326 129 399 124 350
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD 1-86830-178-6 01 1 9707-0509 ● ●
1 LAMP ASM; HEAD 8-97609-430-0 01 1 0510- ● ●
1 LAMP ASM; HEAD 1-86830-177-6 01 1 9707-0509 ● ●
1 LAMP ASM; HEAD 8-97609-429-0 01 1 0510- ● ●
4 HEADLAMP UNIT 1-86830-190-1 01 1 9707- ● ●
4 HEADLAMP UNIT 1-86830-189-1 01 1 9707- ● ●
5 BULB; HEADLAMP
24V 75/70W IDN 		1-82194-063-0 02 1 9707- ● ●
6 RIM; HEADLAMP 1-86830-006-5 01 1 9707- ● ●
6 RIM; HEADLAMP 1-86830-005-5 01 1 9707- ● ●
12 HARNESS; HEADLAMP 1-86830-145-0 02 1 9707- ● ●
13 CLIP; HEADLAMP
(B) 		1-82119-084-0 04 1 9707- ● ●
13 CLIP; HEADLAMP
(A) 		8-94381-588-0 14 1 9707- ● ●
14 CAP; BULB,LAMP 1-86830-148-0 02 1 9707- ● ●
15 BULB; FOG LAMP
24V 55W 		1-82194-079-0 02 1 9707- ● ●
16 BRACKET; HEADLAMP 1-86830-075-0 01 1 9707- ● ●
16 BRACKET; HEADLAMP 1-86830-076-0 01 1 9707- ● ●
18 SCREW; GEAR CASE
M4X16 TAPPING 		1-82119-067-0 08 1 9707- ● ●
23 COVER; BULB,HEADLAMP 1-86830-147-0 02 1 9707- ● ●
28 BOLT; HEADLAMP
M6X16 FLANGE 		0-28650-616-0 04 1 0709- ● ●
28 BOLT; HEADLAMP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 9707-0708 ● ●
28 BOLT; HEADLAMP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 0709- ● ●
73 BOLT; BRKT,HEADLAMP 8-94332-050-0 04 1 9707- ● ●
91 BULB; SIDE TURN SIGNAL
24V 10W IDN 		1-82194-037-0 02 1 9707-9809 ● ●
91 BULB; SIDE TURN SIGNAL
24V 12W 		1-82194-030-0 02 1 9810- ● ●
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 9707- ● ●
110 CLIP; RIM,HEADLAMP 1-86830-213-1 04 1 9707- ● ●
124 BULB; FRT TURN SIGNAL
24V 21W 		1-82194-036-0 02 1 9707- ● ●
125 GASKET; FRT TURN SIGNAL 1-82216-033-0 02 1 9707- ● ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-065-0 01 1 9707- ● ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-064-0 01 1 9707- ● ●
129 SCREW; FRT TURN SIGNAL 1-82219-026-0 04 1 9707- ● ●
133 WASHER; PL,SIDE FLASHER LAMP 1-86830-150-0 02 1 9707-0206 ● ●
185 GROMMET; SCREW
(B) D=8.6X7.7 L=7.5 		1-09983-177-0 02 1 9707-9807 ● ●
185 GROMMET; SCREW
(A) D=9.7X9.7 L=8 		8-94222-314-0 04 1 9707- ● ●
202 GEAR UNIT; HEADLAMP
(A) 		1-86830-139-0 02 1 9707- ● ●
202 GEAR UNIT; HEADLAMP
(B) 		1-86830-140-0 02 1 9707- ● ●
211 TUBE; HEADLAMP
(A) 		1-86830-142-0 01 1 9707-9911 ● ●
211 TUBE; HEADLAMP
(A) 		1-86830-329-0 01 1 9912-0105 ● ●
211 TUBE; HEADLAMP
(B) 		1-86830-144-0 01 1 9707-9911 ● ●
211 TUBE; HEADLAMP
(B) 		1-86830-331-0 01 1 9912- ● ●
211 TUBE; HEADLAMP
(A) 		1-86830-141-0 01 1 9707-9911 ● ●
211 TUBE; HEADLAMP
(A) 		1-86830-328-0 01 1 9912-0105 ● ●
211 TUBE; HEADLAMP
(B) 		1-86830-143-0 01 1 9707-9911 ● ●
211 TUBE; HEADLAMP
(B) 		1-86830-330-0 01 1 9912- ● ●
248 CLIP; HARNESS
ID=11.5 		1-09709-083-0 01 1 9707- ● ●
321 HARNESS; SIDE FLASHER LAMP 1-86830-253-0 02 1 9707- ● ●
324 LAMP; FRT FLASHER 1-82210-203-1 01 1 9707- ● ●
324 LAMP; FRT FLASHER 1-82210-202-1 01 1 9707- ● ●
326 WASHER; PL,FRT TURN SIGNAL 1-82216-032-0 04 1 9707- ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-263-0 01 1 9707-9809 ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-011-6 01 1 9810- ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-262-0 01 1 9707-9809 ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-007-6 01 1 9810- ● ●
340 BULB; POSITION
24V 5W 		1-82194-042-0 02 1 9707- ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-241-1 01 1 9707- ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-240-1 01 1 9707- ● ●
350 COVER; SIDE TURN HOLE 1-79998-944-1 01 1 9707-0209 ● ●
350 COVER; SIDE TURN HOLE 1-79996-607-0 01 1 0210- ● ●
350 COVER; SIDE TURN HOLE 1-79998-943-1 01 1 9707-0209 ● ●
350 COVER; SIDE TURN HOLE 1-79996-606-0 01 1 0210- ● ●
399 SOCKET; TURN SIGNAL 1-82219-034-0 02 1 9707- ● ●
