Isuzu WW
▶
TRUCKS
▶
FTR
▶
10752 - FTR(IDN)WB3600/4200
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-70 - SEPARATER AND BED
▶

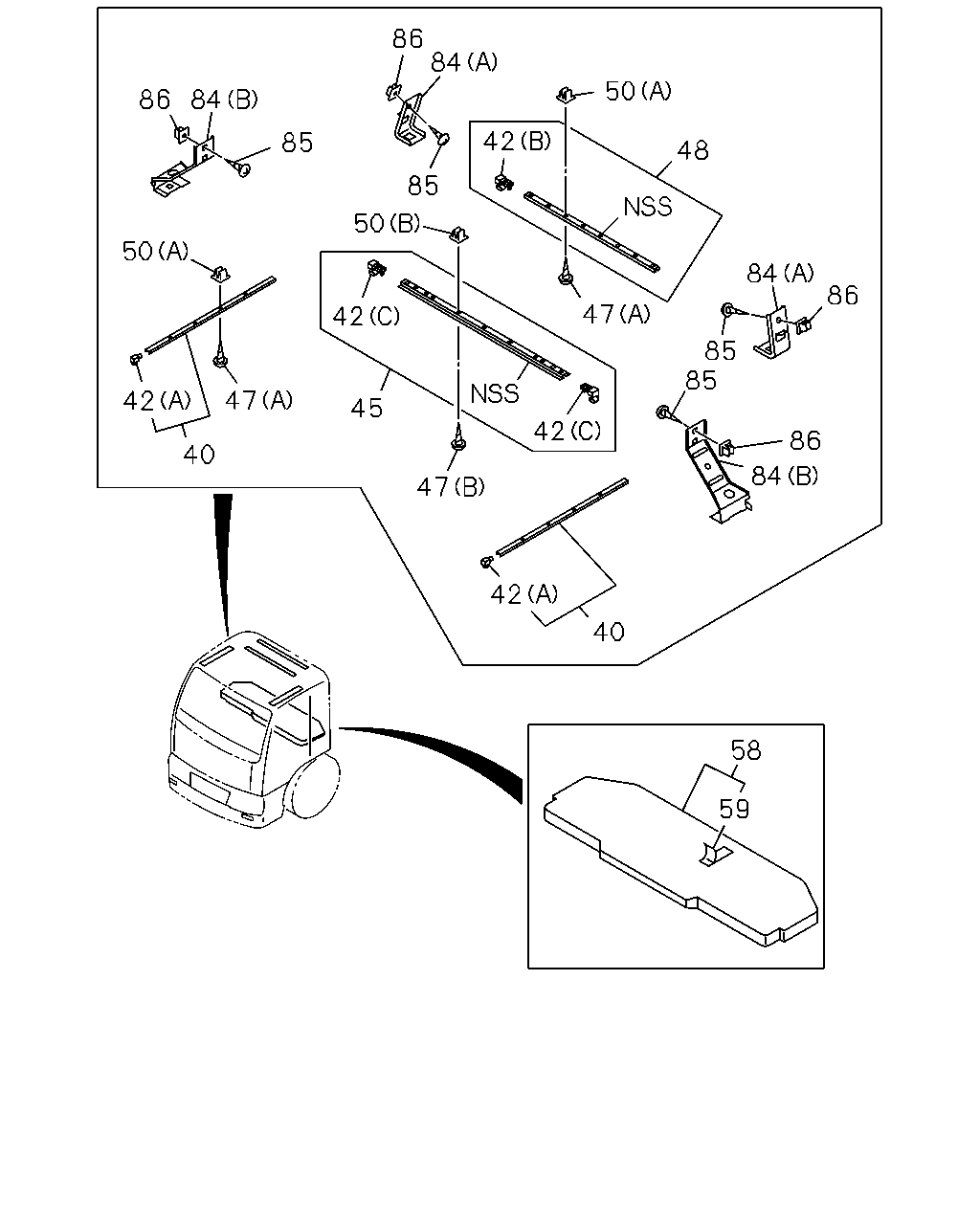

7-70 — SEPARATER AND BED
(#64442) — 18 parça
Tümü
A - FTR5MC
B - FTR5MF
86
84
50
86
84
42
85
48
85
50
50
84
86
47
42
85
85
47
42
45
42
86
40
84
47
42
40
58
59
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
40
RAIL; CURTAIN,SIDE
1-73996-334-2
02
1
9707-
●
●
42
STOPPER; CURTAIN RAIL
(C)
1-73907-449-2
02
1
9707-
●
●
42
STOPPER; CURTAIN RAIL
(A)
1-73908-193-0
02
1
9707-
●
●
42
STOPPER; CURTAIN RAIL
(B)
1-73996-146-2
01
1
9707-
●
●
45
RAIL; CURTAIN,FRT
1-73996-303-4
01
1
9707-
●
●
47
SCREW; CURTAIN RAIL
(A) M5X20
5-09981-059-0
19
1
9707-
●
●
47
SCREW; CURTAIN RAIL
(B) M5X25
5-09981-093-0
07
1
9707-
●
●
48
RAIL; CURTAIN,BACK
8-94265-811-1
01
1
9707-
●
●
50
GROMMET; SCREW,CURTAIN RAIL
(B) D=8X8 L=13 M5
1-09983-159-0
15
1
9707-
●
●
50
GROMMET; SCREW,CURTAIN RAIL
(A) D=8X8 L=7.5 M5 YELLOW
8-94279-740-0
11
1
9707-9708
●
●
50
GROMMET; SCREW,CURTAIN RAIL
(A) D=8.6X7.7 L=7.5 IDN
8-94279-078-0
11
1
9709-
●
●
58
BED; MAT
MATTRESS SLEEPER CAB<E40> IDN
8-97525-073-0
01
1
9707-
●
●
59
COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> IDN
8-97525-086-0
01
1
9707-
●
●
84
BRACKET; CURTAIN RAIL
(A)
1-73998-986-2
02
1
9707-
●
●
84
BRACKET; CURTAIN RAIL
(B)
1-73998-987-4
07
1
9707-
●
●
85
SCREW; BRKT
M5X20
5-09981-059-0
09
1
9707-
●
●
86
GROMMET; SCREW,BRKT
D=8X8 L=7.5 M5 YELLOW
8-94279-740-0
09
1
9707-9708
●
●
86
GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 IDN
8-94279-078-0
09
1
9709-
●
●
