◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10752 - FTR(IDN)WB3600/4200 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#64440) — 27 parça

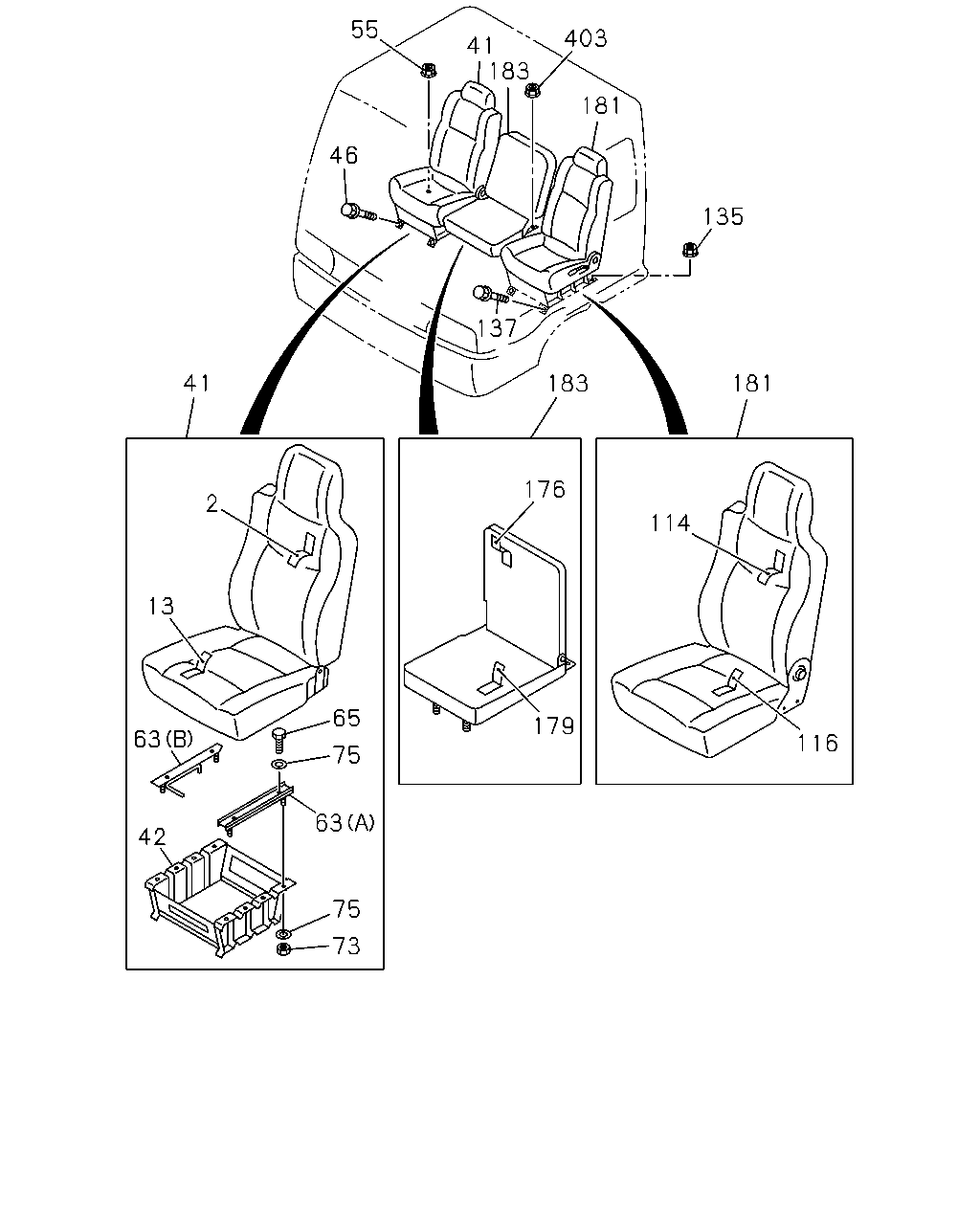

çizim 134100
55 403 41 183 181 46 135 137 183 181 41 176 2 114 13 65 179 63 116 75 63 42 75 73
BalonParca AdiParca NoAdetTipApplied Date A B
2 COVER; TRIM,FRT SEAT,BACK
IDN 		8-97525-075-0 01 1 9707- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
IDN 		8-97525-077-0 01 1 9707- ● ●
41 SEAT ASM; DRIVER
IDN 		8-97525-016-0 01 1 9707- ● ●
42 STAND; DRIVER SEAT
IDN 		8-97525-087-0 01 1 9707- ● ●
46 BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 9707-0703 ● ●
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 0704- ● ●
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		1-09984-153-0 02 1 9707-0703 ● ●
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		0-91180-110-0 02 1 0704- ● ●
63 ADJUSTER; SEAT SLIDE
(A) IDN 		8-97525-079-0 01 1 9707- ● ●
63 ADJUSTER; SEAT SLIDE
(B) IDN 		8-97525-080-0 01 1 9707- ● ●
65 SCREW; ADJ TO SEAT
IDN 		8-97525-081-0 04 1 9707- ● ●
73 NUT; ADJ,HEIGHT CONT
IDN 		8-97525-083-0 04 1 9707- ● ●
75 WASHER; SEAT ADJ
IDN 		8-97525-082-0 08 1 9707- ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
IDN 		8-97525-076-0 01 1 9707- ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
IDN 		8-97525-078-0 01 1 9707- ● ●
135 NUT; SEAT STAND
M10 FLANGE 		1-09984-153-0 02 1 9707-0703 ● ●
135 NUT; SEAT STAND
M10 FLANGE 		0-91180-110-0 02 1 0704- ● ●
137 BOLT; STAND
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 9707-0703 ● ●
137 BOLT; STAND
M10X20 FLANGE 		0-28451-020-0 02 1 0704- ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
IDN 		8-97525-084-0 01 1 9707- ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
IDN 		8-97525-085-0 01 1 9707- ● ●
181 SEAT ASM; PASSENGER
IDN 		8-97525-017-1 01 1 9707- ● ●
183 SEAT ASM; PASSENGER CENTER
IDN 		8-97525-018-1 01 1 9707- ● ●
403 NUT; CENTER SEAT
M8 FLANGE 		8-94279-504-1 04 1 9707-0206 ● ●
403 NUT; CENTER SEAT
M8 FLANGE 		8-94279-518-0 04 1 0207-0312 ● ●
403 NUT; CENTER SEAT
M8 FLANGE 		1-75538-207-0 04 1 0401-0703 ● ●
403 NUT; CENTER SEAT
M8 FLANGE 		0-91180-108-0 04 1 0704- ● ●
