Sayfa 0-37 - Isuzu EPC

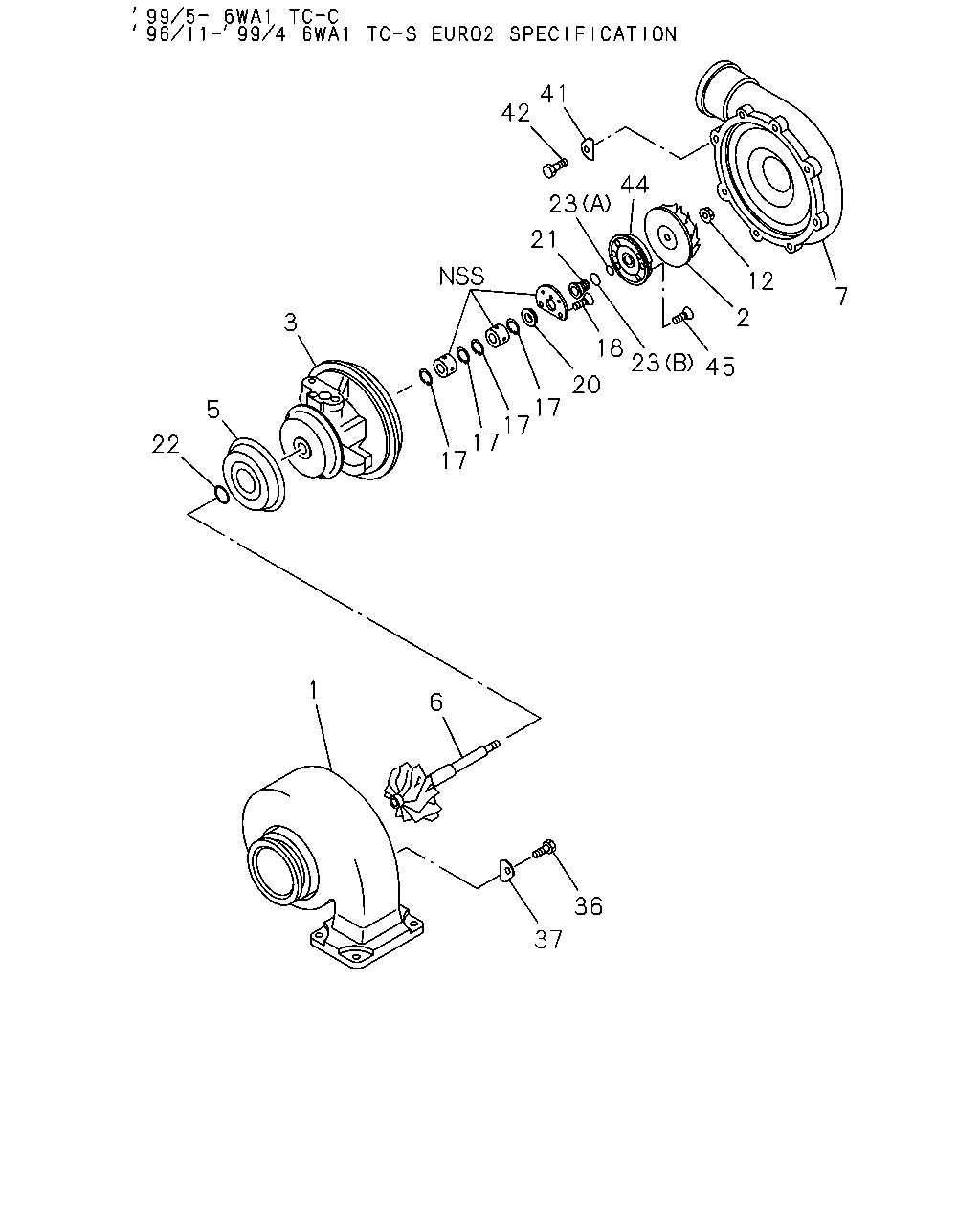

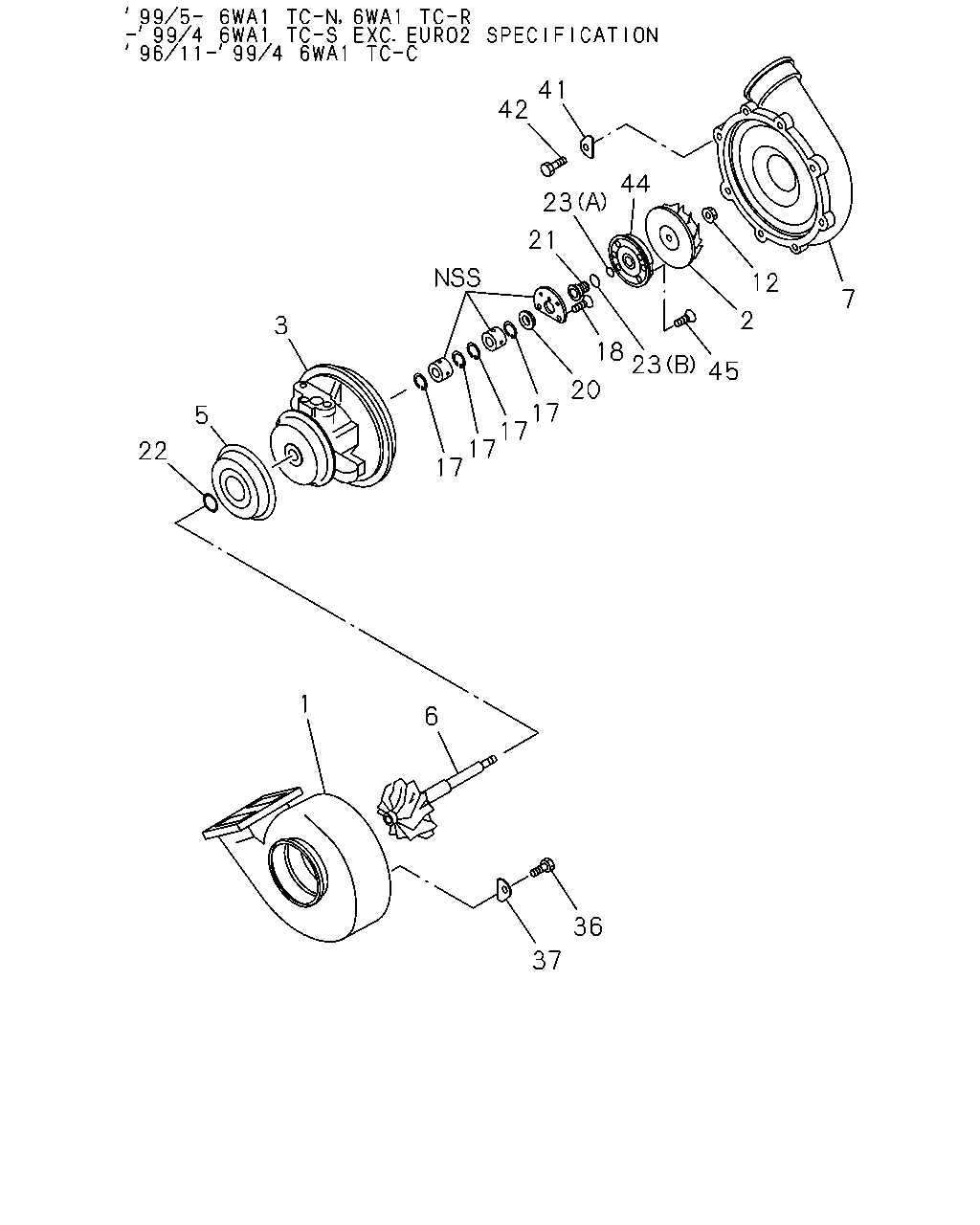

0-37 — TURBOCHARGER (#6444) — 62 parça

41 42 44 23 21 12 7 2 3 18 23 45 20 17 17 17 17 5 22 1 6 36 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: A = 1-14400-290-1	1-14415-090-0	01	1	-
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: B = 1-14400-342-4	1-14415-101-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: A = 1-14400-290-1	1-14451-044-0	01	1	-9904
2	IMPELLER; TURBOCHARGER ASM PART: B = 1-14400-342-4	1-14451-044-0	01	1	-9610
2	IMPELLER; TURBOCHARGER ASM PART: A = 1-14400-290-1	1-14451-059-0	01	1	9905-
2	IMPELLER; TURBOCHARGER ASM PART: B = 1-14400-342-4	1-14451-059-0	01	1	9611-
3	HOUSING; BRG,TURBOCHARGER ASM PART: A = 1-14400-290-1, B = 1-14400-342-4	1-14411-044-0	01	1	-
5	PROTECTOR; HEAT,TURBOCHARGER ASM PART: A = 1-14400-290-1, B = 1-14400-342-4	1-14425-017-0	01	1	-
6	SHAFT; TURBINE,TURBOCHARGER ASM PART: A = 1-14400-290-1, B = 1-14400-342-4	1-14450-038-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: A = 1-14400-290-1, B = 1-14400-342-4	1-14414-066-0	01	1	-
12	NUT; LK,TURBINE SHAFT TO IMPELLER,TC ASM PART: A = 1-14400-290-1, B = 1-14400-342-4	1-09400-047-0	01	1	-
17	RING; JOURNAL BRG,TURBOCHARGER ASM PART: A = 1-14400-290-1, B = 1-14400-342-4	1-14455-026-0	04	1	-
18	SCREW; THRUST BRG,TURBOCHARGER ASM PART: A = 1-14400-290-1, B = 1-14400-342-4	1-09100-015-0	04	1	-
20	BUSHING; THRUST,TURBOCHARGER ASM PART: A = 1-14400-290-1, B = 1-14400-342-4	1-14453-028-0	01	1	-
21	THROWER; OIL,TURBOCHARGER ASM PART: A = 1-14400-290-1, B = 1-14400-342-4	1-14455-027-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER ASM PART: A = 1-14400-290-1, B = 1-14400-342-4	1-14453-027-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (A) ASM PART: A = 1-14400-290-1, B = 1-14400-342-4	1-14453-025-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (B) ASM PART: A = 1-14400-290-1, B = 1-14400-342-4	1-14453-026-0	01	1	-
36	BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE ASM PART: A = 1-14400-290-1, B = 1-14400-342-4	1-09000-405-0	10	1	-
37	PLATE; LK,TURBINE HSG,TURBOCHARGER ASM PART: A = 1-14400-290-1, B = 1-14400-342-4	1-14421-018-0	10	1	-
41	PLATE; LK,BLOWER HSG,TURBOCHARGER ASM PART: A = 1-14400-290-1, B = 1-14400-342-4	1-14421-016-0	08	1	-
42	BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER ASM PART: A = 1-14400-290-1, B = 1-14400-342-4	1-09000-404-0	08	1	-
44	PLATE; SEAL,TURBOCHARGER ASM PART: A = 1-14400-290-1, B = 1-14400-342-4	1-14425-007-0	01	1	-
45	SCREW; SEAL PLATE,TURBOCHARGER ASM PART: A = 1-14400-290-1, B = 1-14400-342-4	1-09100-014-0	04	1	-

41 42 44 23 21 12 7 2 3 18 23 45 20 17 17 17 17 5 22 1 6 36 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: A = 1-14400-290-1	1-14415-090-0	01	1	-
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: B = 1-14400-342-4	1-14415-101-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: A = 1-14400-290-1	1-14451-044-0	01	1	-9904
2	IMPELLER; TURBOCHARGER ASM PART: B = 1-14400-342-4	1-14451-044-0	01	1	-9610
2	IMPELLER; TURBOCHARGER ASM PART: A = 1-14400-290-1	1-14451-059-0	01	1	9905-
2	IMPELLER; TURBOCHARGER ASM PART: B = 1-14400-342-4	1-14451-059-0	01	1	9611-
3	HOUSING; BRG,TURBOCHARGER ASM PART: A = 1-14400-290-1, B = 1-14400-342-4	1-14411-044-0	01	1	-
5	PROTECTOR; HEAT,TURBOCHARGER ASM PART: A = 1-14400-290-1, B = 1-14400-342-4	1-14425-017-0	01	1	-
6	SHAFT; TURBINE,TURBOCHARGER ASM PART: A = 1-14400-290-1, B = 1-14400-342-4	1-14450-038-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: A = 1-14400-290-1, B = 1-14400-342-4	1-14414-066-0	01	1	-
12	NUT; LK,TURBINE SHAFT TO IMPELLER,TC ASM PART: A = 1-14400-290-1, B = 1-14400-342-4	1-09400-047-0	01	1	-
17	RING; JOURNAL BRG,TURBOCHARGER ASM PART: A = 1-14400-290-1, B = 1-14400-342-4	1-14455-026-0	04	1	-
18	SCREW; THRUST BRG,TURBOCHARGER ASM PART: A = 1-14400-290-1, B = 1-14400-342-4	1-09100-015-0	04	1	-
20	BUSHING; THRUST,TURBOCHARGER ASM PART: A = 1-14400-290-1, B = 1-14400-342-4	1-14453-028-0	01	1	-
21	THROWER; OIL,TURBOCHARGER ASM PART: A = 1-14400-290-1, B = 1-14400-342-4	1-14455-027-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER ASM PART: A = 1-14400-290-1, B = 1-14400-342-4	1-14453-027-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (A) ASM PART: A = 1-14400-290-1, B = 1-14400-342-4	1-14453-025-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (B) ASM PART: A = 1-14400-290-1, B = 1-14400-342-4	1-14453-026-0	01	1	-
36	BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE ASM PART: A = 1-14400-290-1, B = 1-14400-342-4	1-09000-405-0	10	1	-
37	PLATE; LK,TURBINE HSG,TURBOCHARGER ASM PART: A = 1-14400-290-1, B = 1-14400-342-4	1-14421-018-0	10	1	-
41	PLATE; LK,BLOWER HSG,TURBOCHARGER ASM PART: A = 1-14400-290-1, B = 1-14400-342-4	1-14421-016-0	08	1	-
42	BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER ASM PART: A = 1-14400-290-1, B = 1-14400-342-4	1-09000-404-0	08	1	-
44	PLATE; SEAL,TURBOCHARGER ASM PART: A = 1-14400-290-1, B = 1-14400-342-4	1-14425-007-0	01	1	-
45	SCREW; SEAL PLATE,TURBOCHARGER ASM PART: A = 1-14400-290-1, B = 1-14400-342-4	1-09100-014-0	04	1	-

10 23 18 23 45 17 17 17 17 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	REPAIR KIT; TURBOCHARGER ASM PART: A = 1-14400-290-1, B = 1-14400-342-4	1-14453-041-0	01	1	-
17	RING; JOURNAL BRG,TURBOCHARGER ASM PART: A = 1-14400-290-1, B = 1-14400-342-4	1-14455-026-0	04	1	-
18	SCREW; THRUST BRG,TURBOCHARGER ASM PART: A = 1-14400-290-1, B = 1-14400-342-4	1-09100-015-0	04	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER ASM PART: A = 1-14400-290-1, B = 1-14400-342-4	1-14453-027-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (A) ASM PART: A = 1-14400-290-1, B = 1-14400-342-4	1-14453-025-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (B) ASM PART: A = 1-14400-290-1, B = 1-14400-342-4	1-14453-026-0	01	1	-
45	SCREW; SEAL PLATE,TURBOCHARGER ASM PART: A = 1-14400-290-1, B = 1-14400-342-4	1-09100-014-0	04	1	-

10 23 18 23 45 17 17 17 17 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	REPAIR KIT; TURBOCHARGER ASM PART: A = 1-14400-290-1, B = 1-14400-342-4	1-14453-041-0	01	1	-
17	RING; JOURNAL BRG,TURBOCHARGER ASM PART: A = 1-14400-290-1, B = 1-14400-342-4	1-14455-026-0	04	1	-
18	SCREW; THRUST BRG,TURBOCHARGER ASM PART: A = 1-14400-290-1, B = 1-14400-342-4	1-09100-015-0	04	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER ASM PART: A = 1-14400-290-1, B = 1-14400-342-4	1-14453-027-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (A) ASM PART: A = 1-14400-290-1, B = 1-14400-342-4	1-14453-025-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (B) ASM PART: A = 1-14400-290-1, B = 1-14400-342-4	1-14453-026-0	01	1	-
45	SCREW; SEAL PLATE,TURBOCHARGER ASM PART: A = 1-14400-290-1, B = 1-14400-342-4	1-09100-014-0	04	1	-
