◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10752 - FTR(IDN)WB3600/4200 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#64437) — 120 parça
çizim 184938
597
BalonParca AdiParca NoAdetTipApplied Date A B
597 SEAL; HOLE,DASH
OD=16 BLACK 		1-76798-037-0 02 1 9707- ● ●

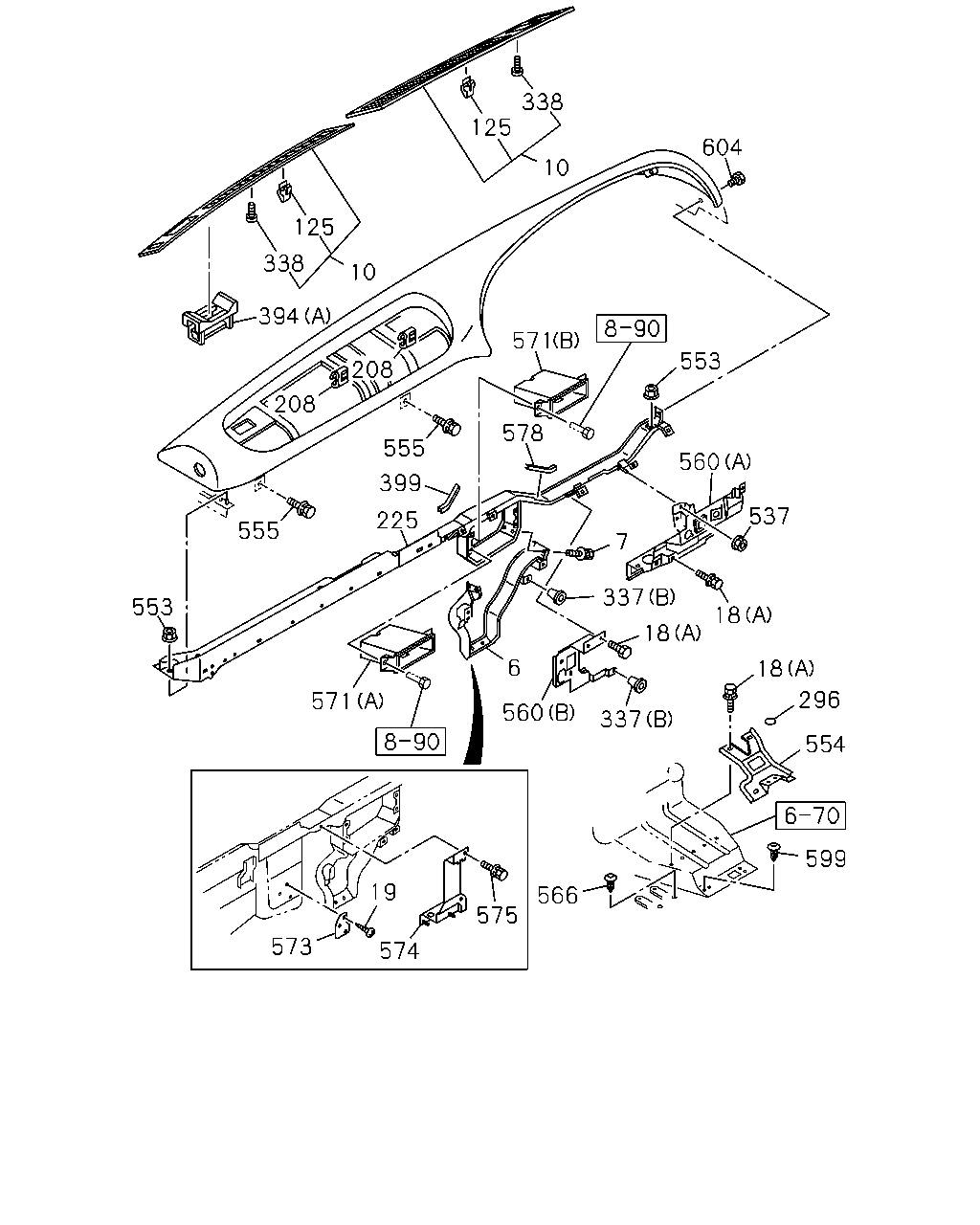

çizim 184939
338 125 604 10 125 338 10 394 571 553 208 208 578 555 560 399 537 225 555 7 337 553 18 18 6 18 296 571 560 337 554 599 19 566 575 573 574
BalonParca AdiParca NoAdetTipApplied Date A B
6 SUPPORT; INST PANEL 1-65680-961-4 01 1 9707-9904 ● ●
6 SUPPORT; INST PANEL 1-65681-165-2 01 1 9905- ● ●
7 BOLT; SUPPORT,INST PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 9707- ● ●
10 PANEL ASM; GARNISH
W/SPEAKER NET 		1-72437-601-6 01 1 9707- ● ●
10 PANEL ASM; GARNISH
W/SPEAKER NET 		1-72437-600-7 01 1 9707- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 09 1 9707-9801 ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 07 1 9802- ● ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 9707- ● ●
18 BOLT; BRKT
(A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9802-9804 ● ●
18 BOLT; BRKT
(A) M8X40 FLANGE 		0-28680-840-0 03 1 9805-9810 ● ●
18 BOLT; BRKT
(A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9811- ● ●
19 SCREW; BRKT
M5X14 		8-94279-325-0 02 1 9707- ● ●
19 SCREW; BRKT
PTO CONTROL<SV6> M5X14 		8-94279-325-0 02 1 9707- ●
125 CLIP; INST PANEL 8-97853-939-4 01 1 9707-9812 ● ●
125 CLIP; INST PANEL
IDN 		8-97217-066-0 01 1 9901- ● ●
125 CLIP; INST PANEL 8-97853-939-4 08 1 9707-9812 ● ●
125 CLIP; INST PANEL
IDN 		8-97217-066-0 08 1 9901- ● ●
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 9707- ● ●
225 FRAME; FACIA 1-65681-096-2 01 1 9707-1002 ● ●
225 FRAME; FACIA 8-98142-102-0 01 1 1003- ● ●
296 SEAL; INST CENTER BEZEL
OD=25 BLACK 		1-76798-019-0 01 1 9707-9806 ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 9707- ● ●
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 9707- ● ●
338 SCREW; COVER
M5X14 		8-94279-325-0 10 1 9707-0208 ● ●
338 SCREW; COVER
M5X14 IDN 		8-94148-576-1 10 1 0209-0309 ● ●
338 SCREW; COVER
M5X14 		8-94279-325-0 20 1 0310-0405 ● ●
338 SCREW; COVER
M5X14 		8-94279-325-0 10 1 0406-0801 ● ●
338 SCREW; COVER
M5X14 		8-94279-325-0 15 1 0802- ● ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 06 1 9707- ● ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 9707- ● ●
399 FINISHER; HARNESS
L=60 		8-97865-346-0 01 1 9803-9807 ● ●
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 9707-0602 ● ●
537 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0603- ● ●
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 9707-0602 ● ●
553 NUT; FRAME
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
554 BRACKET; CENTER BEZEL 1-65680-963-2 01 1 9707- ● ●
555 BOLT; PAD
M10X25 FLANGE 		0-28281-025-0 07 1 9707-0512 ● ●
555 BOLT; PAD
M10X25 FLANGE 		0-28251-025-0 07 1 0601-0604 ● ●
555 BOLT; PAD
M10X25 FLANGE 		8-98041-453-0 07 1 0605- ● ●
555 BOLT; PAD
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9707- ● ●
560 BRACKET
(A) 		1-65680-976-3 01 1 9707- ● ●
560 BRACKET
(B) 		1-65671-717-8 01 1 9707-0302 ● ●
560 BRACKET
(B) 		1-65671-786-2 01 1 0303- ● ●
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 9707- ● ●
571 BEZEL; POCKET
(A) 		1-72438-060-1 01 1 9707-9812 ● ●
571 BEZEL; POCKET
EXC. RADIO AM/FM STEREO & TAPE PLAYER<UN3> (B) 		1-72438-151-0 01 1 9707-9812 ● ●
571 BEZEL; POCKET
(B) 		1-72438-151-3 01 1 9901- ● ●
571 BEZEL; POCKET
EXC. RADIO AM/FM STEREO & TAPE PLAYER<UN3> (B) 		1-72438-151-3 01 1 9901- ● ●
573 BRACKET; PANEL,RELAY BOX 1-73908-023-2 01 1 9707- ● ●
574 PANEL; RELAY BOX 1-73908-011-3 01 1 9707-9910 ● ●
574 PANEL; RELAY BOX 1-73908-252-3 01 1 9911- ● ●
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9707- ● ●
578 SEAL; PROTECTOR,HARNESS
100X30 		1-72498-014-1 01 1 9707-9903 ● ●
578 SEAL; PROTECTOR,HARNESS
100X40 		1-72498-022-1 01 1 9904- ● ●
599 PLUG; BRKT
D4.7X11 		1-76378-154-0 01 1 9707- ● ●
604 CLIP; INST PAD 1-09983-123-0 01 1 9707- ● ●

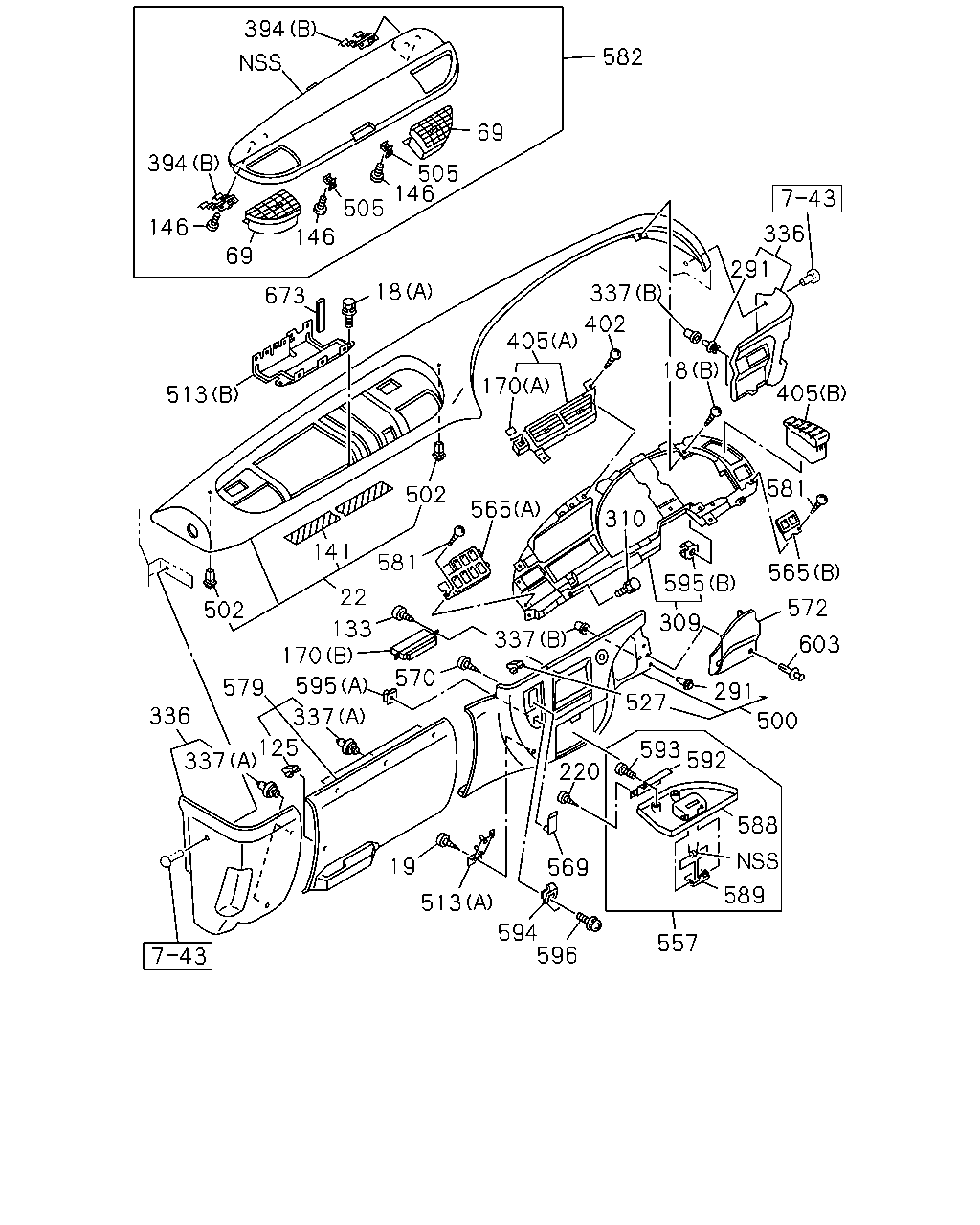

çizim 184945
394 582 69 394 505 146 505 146 336 146 69 291 18 337 673 402 405 18 170 405 513 581 502 565 310 141 581 565 595 22 572 502 309 133 170 337 603 570 595 579 291 527 336 337 500 125 593 592 337 220 588 19 569 589 513 594 596 557
BalonParca AdiParca NoAdetTipApplied Date A B
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 09 1 9707-9801 ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 07 1 9802- ● ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 9707- ● ●
18 BOLT; BRKT
(A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9802-9804 ● ●
18 BOLT; BRKT
(A) M8X40 FLANGE 		0-28680-840-0 03 1 9805-9810 ● ●
18 BOLT; BRKT
(A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9811- ● ●
19 SCREW; BRKT
M5X14 		8-94279-325-0 02 1 9707- ● ●
19 SCREW; BRKT
PTO CONTROL<SV6> M5X14 		8-94279-325-0 02 1 9707- ●
22 PAD; INST 1-72318-421-6 01 1 9707- ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76368-029-5 01 1 9707- ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76368-028-5 01 1 9707- ● ●
125 CLIP; INST PANEL 8-97853-939-4 01 1 9707-9812 ● ●
125 CLIP; INST PANEL
IDN 		8-97217-066-0 01 1 9901- ● ●
125 CLIP; INST PANEL 8-97853-939-4 08 1 9707-9812 ● ●
125 CLIP; INST PANEL
IDN 		8-97217-066-0 08 1 9901- ● ●
133 SCREW; COVER,INST PNL
M5X14 		8-94279-325-0 02 1 9707- ● ●
141 PROTECTOR; EDGE 1-72318-430-0 01 1 9707- ● ●
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 9707- ● ●
170 COVER; HOLE
(B) IDN 		1-72438-139-1 01 1 9707- ● ●
170 COVER; HOLE
(A) 		1-76367-068-0 01 1 9707- ● ●
220 SCREW; LID TO STOPPER
M5X14 		8-94279-325-0 02 1 9707- ● ●
291 FASTENER; INST CLUSTER 1-72438-137-0 06 1 9707- ● ●
309 PANEL; SW,INST 1-72418-009-6 01 1 9707- ● ●
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9707- ● ●
336 COVER; INST PANEL SIDE 1-72438-111-4 01 1 9707- ● ●
336 COVER; INST PANEL SIDE 1-72438-109-6 01 1 9707- ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 9707- ● ●
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 9707- ● ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 06 1 9707- ● ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 9707- ● ●
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 9707-0604 ● ●
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605- ● ●
405 GRILLE ASM; METER VENT
(B) 		1-76367-062-2 01 1 9707- ● ●
405 GRILLE ASM; METER VENT
(A) 		1-76367-059-3 01 1 9707- ● ●
500 CLUSTER; INST CENTER 1-72438-117-9 01 1 9707- ● ●
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 9707- ● ●
505 LOCK; LID 1-72558-024-2 02 1 9707- ● ●
513 BRACKET; RELAY
PTO CONTROL<SV6> (A) 		1-73908-043-1 01 1 9707- ●
513 BRACKET; RELAY
(B) 		1-73908-009-9 01 1 9707-0205 ● ●
513 BRACKET; RELAY
(B) 		1-73908-425-0 01 1 0206- ● ●
527 CLIP; INST CLUSTER 8-97853-939-4 04 1 9707-9812 ● ●
527 CLIP; INST CLUSTER
IDN 		8-97217-066-0 04 1 9901- ● ●
557 LID; BOX,COOL & HOT 1-72548-142-1 01 1 9707- ● ●
565 BEZEL; SW PANEL
(A) 		1-72418-010-2 01 1 9707- ● ●
565 BEZEL; SW PANEL
(B) 		1-72418-011-3 01 1 9707- ● ●
569 HOLDER; CARD 1-72498-015-2 01 1 9707- ● ●
570 SCREW; HOLDER
M5X14 		8-94279-325-0 01 1 9707- ● ●
572 COVER; INSPECTION 1-72438-054-3 01 1 9707- ● ●
579 COVER; INST PNL 1-72438-113-4 01 1 9707- ● ●
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 9707-0604 ● ●
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605- ● ●
582 LID; FUSE & RELAY 1-72548-127-8 01 1 9707- ● ●
588 LID; BOX 1-72548-135-3 01 1 9707- ● ●
589 KNOB; LID 1-72548-143-0 01 1 9707- ● ●
592 HINGE; LID 1-72548-133-3 01 1 9707- ● ●
593 SCREW; HINGE
M5X14 		8-94279-325-0 02 1 9707- ● ●
594 HOOK; COAT 1-72498-013-0 01 1 9707- ● ●
595 NUT; HOOK
(A) M5 		1-09984-162-0 01 1 9707- ● ●
595 NUT; HOOK
(B) 		1-72418-013-0 11 1 9707- ● ●
596 SCREW; HOOK
M5X16 W/LK&PL WASHER 		8-94279-400-0 01 1 9707- ● ●
603 CLIP; COVER 1-09987-245-1 01 1 9707- ● ●
673 FINISHER; BRKT,RELAY
L=30 SERVICED BY L=50 		8-94270-377-1 01 1 0006-0009 ● ●
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 0010- ● ●
