Isuzu WW
▶
TRUCKS
▶
FTR
▶
10752 - FTR(IDN)WB3600/4200
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-70 - FLOOR PANEL
▶

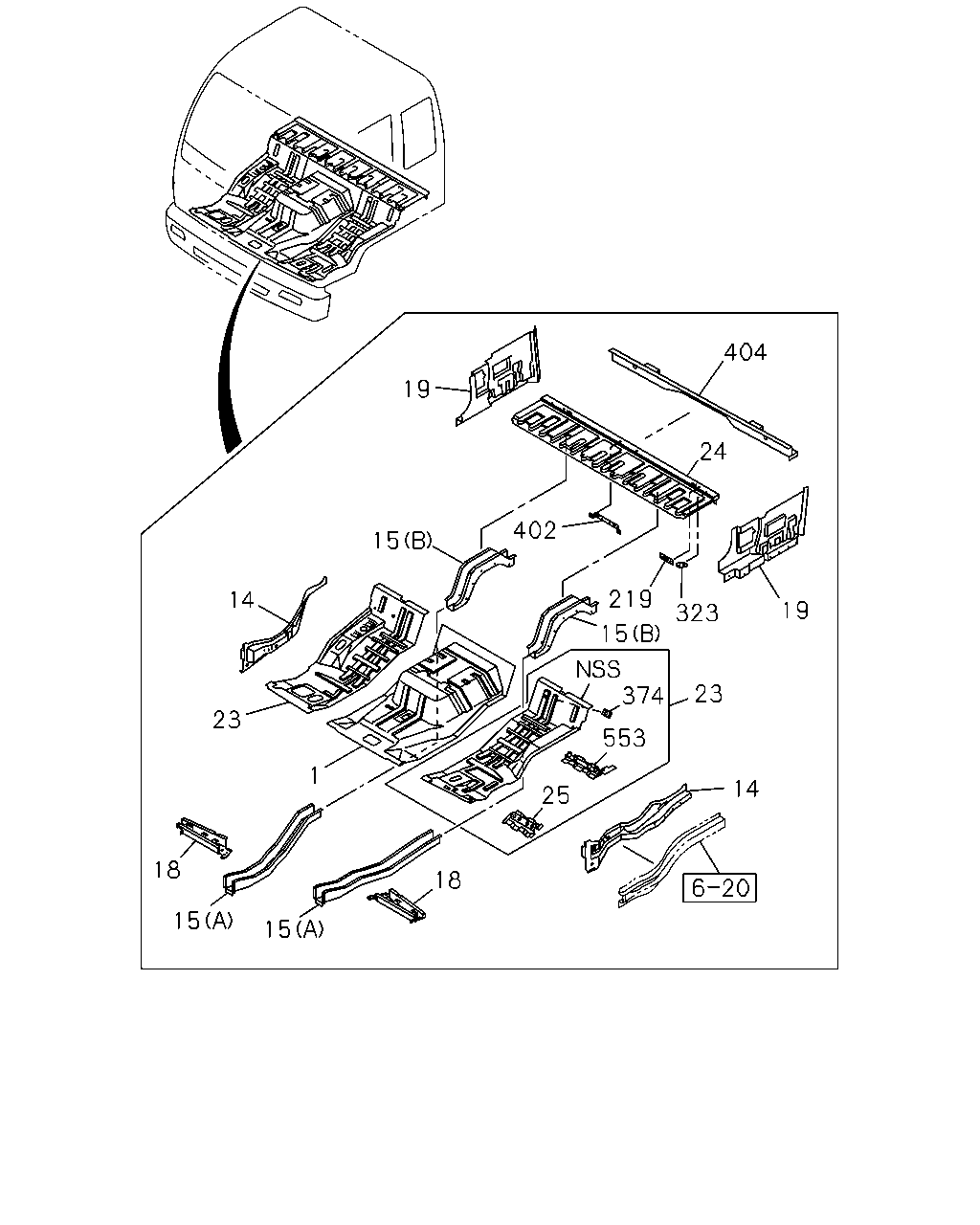

6-70 — FLOOR PANEL
(#64425) — 24 parça
Tümü
A - FTR5MC
B - FTR5MF
404
19
24
402
15
219
14
19
323
15
374
23
23
553
1
14
25
18
18
15
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PANEL; FLOOR
1-62183-334-4
01
1
9707-
●
●
14
PANEL; FLOOR SIDE,FRT
1-62482-918-6
01
1
9707-
●
●
14
PANEL; FLOOR SIDE,FRT
1-62482-917-6
01
1
9707-
●
●
15
FRAME; UNDER
(A) IDN
1-62482-931-9
01
1
9707-0401
●
●
15
FRAME; UNDER
(A)
8-97583-580-0
01
1
0402-
●
●
15
FRAME; UNDER
(B) IDN
1-62483-154-3
01
1
9707-
●
●
15
FRAME; UNDER
(A) IDN
1-62482-930-9
01
1
9707-0103
●
●
15
FRAME; UNDER
(A)
1-62483-333-1
01
1
0104-
●
●
15
FRAME; UNDER
(B) IDN
1-62483-153-3
01
1
9707-
●
●
18
FRAME; FLOOR,CENTER SIDE
1-62482-958-6
01
1
9707-
●
●
18
FRAME; FLOOR,CENTER SIDE
1-62482-957-6
01
1
9707-
●
●
19
PANEL; FLOOR SIDE,REAR
1-62482-924-6
01
1
9707-
●
●
19
PANEL; FLOOR SIDE,REAR
1-62482-923-5
01
1
9707-
●
●
23
PANEL; FLOOR,SIDE
1-62183-273-4
01
1
9707-9904
●
●
23
PANEL; FLOOR,SIDE
IDN
1-62172-799-0
01
1
9905-
●
●
23
PANEL; FLOOR,SIDE
1-62183-271-4
01
1
9707-
●
●
24
PANEL; BED PAN
1-62182-940-9
01
1
9707-
●
●
25
REINFORCEMENT; FRAME FLOOR,FRT
1-62182-926-4
01
1
9707-
●
●
219
PATCH; AIR DUCT LWR
1-62182-941-0
01
1
9707-
●
●
323
PATCH; HAND LEVER
1-62182-961-0
01
1
9707-
●
●
374
NUT; FLOOR
M6
1-09984-110-0
01
1
9707-
●
●
402
PATCH; CAB LOCK
1-62182-947-2
01
1
9707-
●
●
404
RAIL ASM; MTG,RR
1-62483-123-1
01
1
9707-
●
●
553
REINFORCEMENT; SEAT STAND RR
1-62172-795-0
01
1
9905-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
