◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10752 - FTR(IDN)WB3600/4200 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-60 - ROOF PANEL ▶
6-60 — ROOF PANEL (#64423) — 27 parça

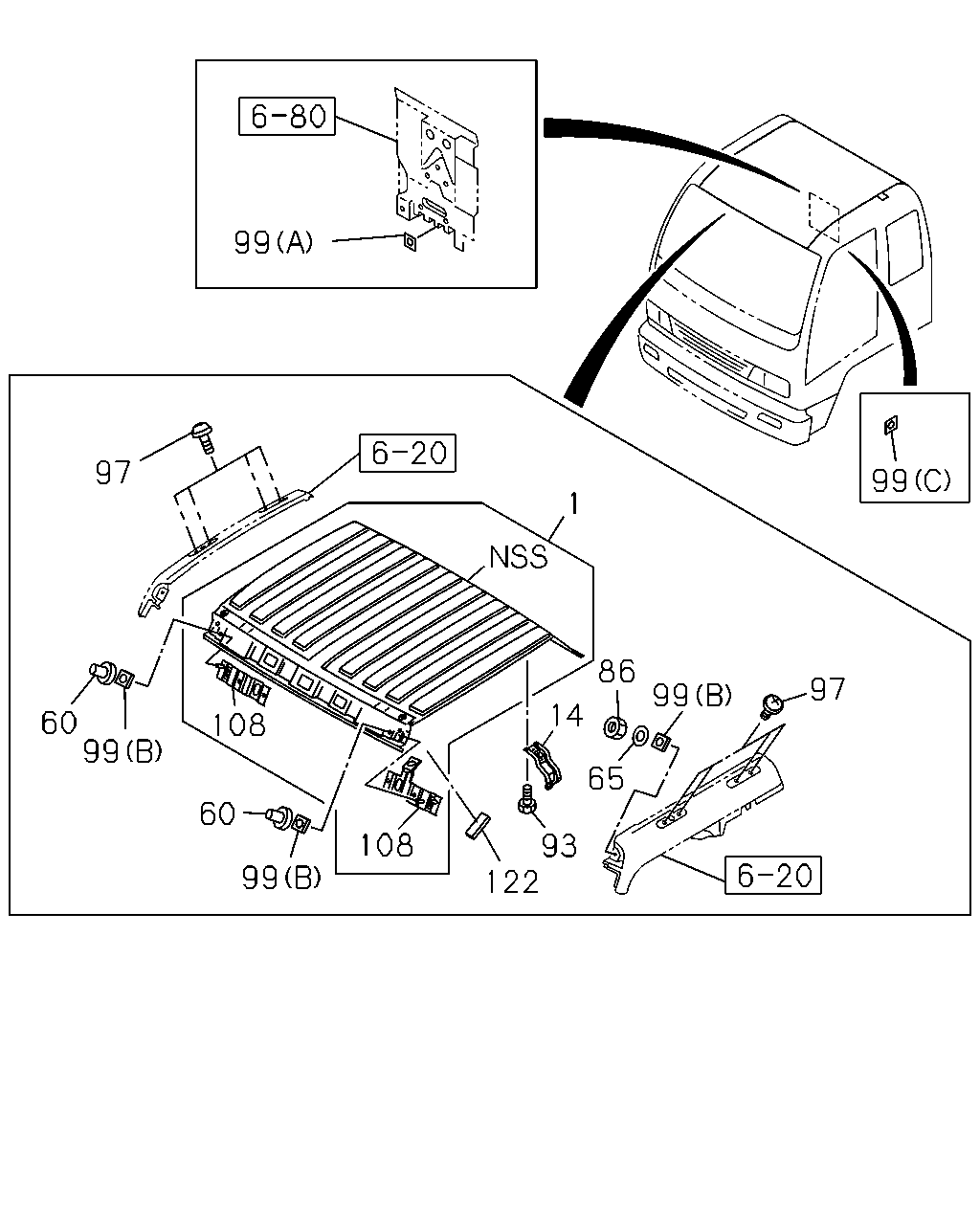

çizim 131454
99 97 99 1 86 97 99 108 14 60 99 65 60 108 93 122 99
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; ROOF
IDN 		8-97525-006-0 01 1 9707- ● ●
14 SUPPORT; ROOF 1-73318-595-3 02 1 9707- ● ●
60 COVER; ROOF 1-79998-922-3 02 1 9707- ● ●
65 WASHER; PL
ID=8 T=2.3 		8-94368-403-1 01 1 9707-0701 ● ●
65 WASHER; PL
ID=8 T=2.3 		8-98073-399-0 01 1 0702- ● ●
86 NUT; ROOF
M8 FLANGE 		9-09130-408-0 01 1 9707-0011 ● ●
86 NUT; ROOF
M8 LOCK NUT 		9-09131-408-0 01 1 0012-0103 ● ●
86 NUT; ROOF
M8 LOCK NUT 		9-09131-508-0 01 1 0104-0603 ● ●
86 NUT; ROOF
M8 LOCK NUT 		0-91370-008-0 01 1 0604- ● ●
93 BOLT; SUPPORT
M6X12 W/LK&PL WASHER 		8-94279-200-0 10 1 9707- ● ●
97 BOLT; AIR DEFLECTOR
M8X15 W/PL WASHER 		1-79198-003-2 08 1 9707- ● ●
99 SEAL; BODY,METAL
(A) 30X30 ID=20 T=0.7 		1-61281-380-1 29 1 9707-9806 ● ●
99 SEAL; BODY,METAL
(C) 14X14 ID=10 T=0.7 		1-61281-427-0 10 1 9707-9806 ● ●
99 SEAL; BODY,METAL
(B) 30X30 ID=9 T=0.7 		1-61281-444-0 03 1 9707-9711 ● ●
99 SEAL; BODY,METAL
(B) 30X30 ID=9 T=0.7 		1-61281-444-0 05 1 9712-9806 ● ●
99 SEAL; BODY,METAL
(B) 55X55 ID=42 T=0.7 		1-61281-445-0 02 1 9707-9711 ● ●
99 SEAL; BODY,METAL
(A) 30X30 ID=20 T=0.7 		1-61281-380-1 13 1 9807-0001 ● ●
99 SEAL; BODY,METAL
(A) 30X30 ID=20 T=0.7 		1-61281-380-2 15 1 0002- ● ●
99 SEAL; BODY,METAL
(A) 30X30 ID=20 T=0.7 		1-61281-380-2 08 1 9807- ● ●
99 SEAL; BODY,METAL
(C) 14X14 ID=10 T=0.7 		1-61281-427-1 08 1 9807- ● ●
99 SEAL; BODY,METAL
(B) 30X30 ID=9 T=0.7 		1-61281-444-1 02 1 9807- ● ●
99 SEAL; BODY,METAL
(C) 14X14 ID=10 T=0.7 		1-61281-427-0 06 1 9808-0403 ● ●
99 SEAL; BODY,METAL
(C) 14X14 ID=10 T=0.7 		1-61281-427-1 02 1 0404- ● ●
108 PATCH; MIRROR
IDN 		1-61180-979-4 01 1 9707- ● ●
108 PATCH; MIRROR
IDN 		1-61180-956-4 01 1 9707- ● ●
122 SEAL; FRT UPR 1-61270-919-0 02 1 9707-0809 ● ●
122 SEAL; FRT UPR 1-61270-973-0 02 1 0810- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
