◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10752 - FTR(IDN)WB3600/4200 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶
6-35 — FRONT DOOR TRIM (#64419) — 42 parça

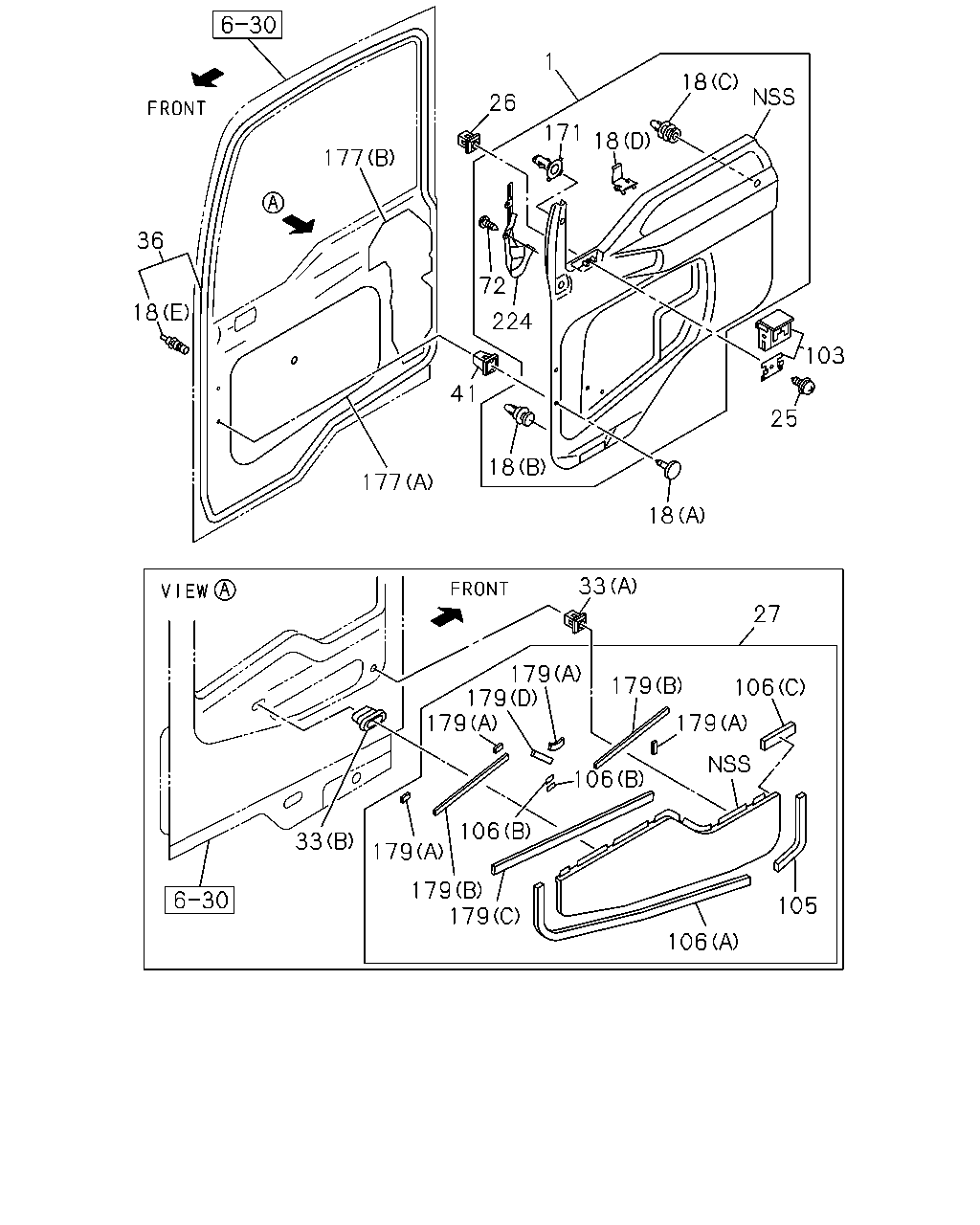

çizim 130999
1 26 177 36 18 33 179 179 179 106 106 105 179 106 27 33 179 179 179 179 106 177 41 18 18 25 103 18 18 171 72 224
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAD; TRIM,FRT DOOR 1-73338-449-4 01 1 9707-0012 ● ●
1 PAD; TRIM,FRT DOOR 1-73338-531-1 01 1 0101- ● ●
1 PAD; TRIM,FRT DOOR 1-73338-467-4 01 1 9707-0012 ● ●
1 PAD; TRIM,FRT DOOR 1-73338-535-1 01 1 0101- ● ●
18 CLIP; DOOR PAD
(A) D4.2X19.9 DARK GRAY 		1-09987-242-0 04 1 9707- ● ●
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 46 1 9707- ● ●
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 08 1 9707-0005 ● ●
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 10 1 0006- ● ●
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-94126-768-0 10 1 9707-0012 ● ●
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-97893-482-0 10 1 0101- ● ●
18 CLIP; DOOR PAD
(C) OD=7.9 BLACK 		8-94279-974-1 02 1 9707- ● ●
25 SCREW; ASH TRAY,DOOR
M5X16 W/PL WASHER TAPPING IDN 		8-94279-123-0 02 1 9707- ● ●
26 GROMMET; SCREW,ASH TRAY DOOR
D=7.8X7.8 L=18 NATURAL IDN 		8-94279-043-0 02 1 9707- ● ●
27 PANEL; ORNAMENT,DOOR 1-76218-099-7 01 1 9707- ● ●
27 PANEL; ORNAMENT,DOOR 1-76218-095-7 01 1 9707-1210 ● ●
27 PANEL; ORNAMENT,DOOR 8-98229-328-0 01 1 1211- ● ●
33 GROMMET; DOOR ORNAMENT
(A) 		1-09983-149-1 02 1 9707-0802 ● ●
33 GROMMET; DOOR ORNAMENT
(A) OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 02 1 0803- ● ●
33 GROMMET; DOOR ORNAMENT
(B) 		1-74998-111-0 02 1 9707- ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-177-9 01 1 9707-1010 ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98177-764-0 01 1 1011- ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-176-9 01 1 9707-1010 ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98177-763-0 01 1 1011- ● ●
41 GROMMET; SCREW,DOOR PAD
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 04 1 9707- ● ●
72 SCREW; DOOR TRIM 1-73338-527-0 08 1 0006- ● ●
103 TRAY ASM; ASH,DOOR 1-76458-078-2 01 1 9707-0111 ● ●
103 TRAY ASM; ASH,DOOR 1-76458-084-1 01 1 0112- ● ●
103 TRAY ASM; ASH,DOOR 1-76458-077-2 01 1 9707-0111 ● ●
103 TRAY ASM; ASH,DOOR 1-76458-083-1 01 1 0112- ● ●
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 02 1 9707- ● ●
106 SEAL; DOOR ORNAMENT
(C) 		8-98226-642-0 01 1 1211- ● ●
106 SEAL; DOOR ORNAMENT
(A) 		1-76218-083-2 02 1 9707- ● ●
106 SEAL; DOOR ORNAMENT
(B) 		1-76218-104-0 02 1 9707- ● ●
171 RETAINER; DOOR PAD 1-09987-264-0 02 1 9707- ● ●
177 SEAL; WATER,DOOR
(A) 		1-76778-047-3 02 1 9707- ● ●
177 SEAL; WATER,DOOR
(B) 		1-76778-055-2 02 1 9707- ● ●
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-2 08 1 9707- ● ●
179 TAPE; ORNAMENT
(C) L=770 		1-76218-091-2 02 1 9707- ● ●
179 TAPE; ORNAMENT
(D) L=160 		1-76218-094-1 02 1 9707- ● ●
179 TAPE; ORNAMENT
(B) L=235 		1-76218-127-1 04 1 9707- ● ●
224 DEFLECTOR; DUCT 1-73338-529-0 01 1 0006- ● ●
224 DEFLECTOR; DUCT 1-73338-528-0 01 1 0006- ● ●
