◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10752 - FTR(IDN)WB3600/4200 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-31 - FRONT DOOR GLASS AND REGULATOR ▶
6-31 — FRONT DOOR GLASS AND REGULATOR (#64417) — 61 parça

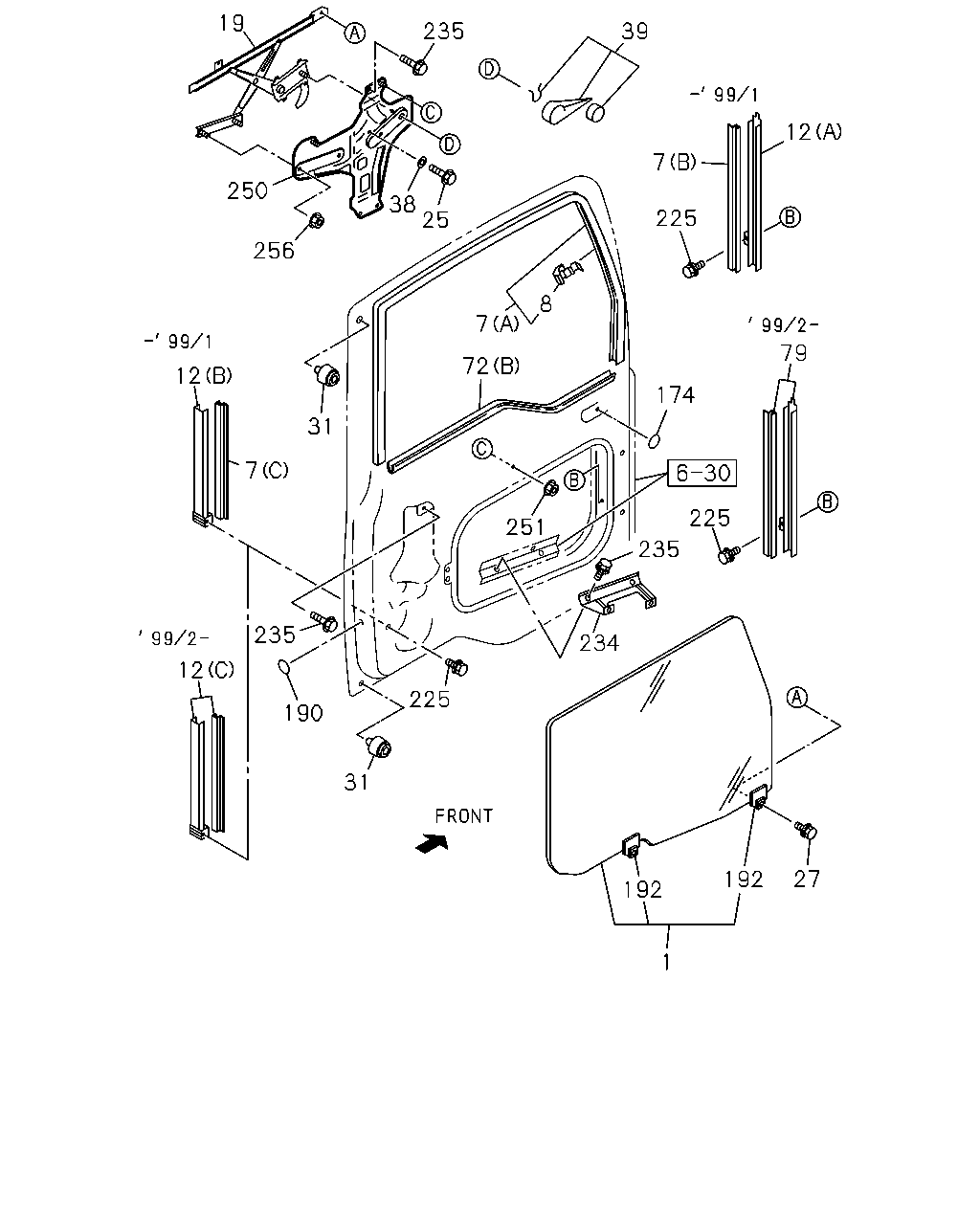

çizim 130704
19 235 39 12 7 250 38 25 225 256 8 7 79 72 12 174 31 7 225 251 235 235 234 12 225 190 31 27 192 192 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 GLASS; FRT DOOR
IDN 		8-97525-013-0 01 1 9707-9801 ● ●
1 GLASS; FRT DOOR
IDN 		8-97525-089-0 01 1 9802- ● ●
1 GLASS; FRT DOOR
IDN 		8-97525-012-0 01 1 9707-9801 ● ●
1 GLASS; FRT DOOR
IDN 		8-97525-088-0 01 1 9802- ● ●
7 GLASS RUN; FRT DOOR
(B) 		1-74318-038-0 02 1 9707-9901 ● ●
7 GLASS RUN; FRT DOOR
(A) 		1-74318-022-8 01 1 9707- ● ●
7 GLASS RUN; FRT DOOR
(C) 		1-74318-041-0 01 1 9707-9901 ● ●
7 GLASS RUN; FRT DOOR
(A) 		1-74318-021-8 01 1 9707- ● ●
7 GLASS RUN; FRT DOOR
(C) 		1-74318-040-0 01 1 9707-9901 ● ●
8 CLIP; GLASS GUIDE 1-74318-029-1 02 1 9707- ● ●
12 CHANNEL; GLASS RUN,FRT
(A) 		1-74338-037-1 01 1 9707-9901 ● ●
12 CHANNEL; GLASS RUN,FRT
(B) 		1-74338-049-1 01 1 9707-9901 ● ●
12 CHANNEL; GLASS RUN,FRT
(C) 		1-74338-071-3 01 1 9902- ● ●
12 CHANNEL; GLASS RUN,FRT
(A) 		1-74338-046-1 01 1 9707-9901 ● ●
12 CHANNEL; GLASS RUN,FRT
(C) 		1-74338-070-3 01 1 9902- ● ●
12 CHANNEL; GLASS RUN,FRT
(B) 		1-74338-048-1 01 1 9707-9901 ● ●
19 REGULATOR; WINDOW,FRT DOOR 1-74418-134-5 01 1 9707- ● ●
19 REGULATOR; WINDOW,FRT DOOR 1-74418-144-5 01 1 9707- ● ●
25 BOLT; WINDOW REG
M6X12 W/LK&PL WASHER 		8-94279-200-0 08 1 0208- ● ●
27 BOLT; GLASS FIX
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9707- ● ●
31 STOPPER; RUBBER,DOOR INNER 1-09983-169-0 04 1 9707- ● ●
38 WASHER; PL,WINDOW REG
ID=6.4 OD=14 T=1 		1-09985-187-0 04 1 0208- ● ●
39 HANDLE; WINDOW REG,FRT DOOR
IDN 		8-97525-046-0 02 1 9707- ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-9 01 1 9707-1207 ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-040-0 01 1 1208- ● ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-6 01 1 9707- ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-9 01 1 9707-1207 ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-039-0 01 1 1208- ● ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-6 01 1 9707- ● ●
79 CHANNEL; DOOR GLASS,FRT 1-74338-069-3 01 1 9902- ● ●
79 CHANNEL; DOOR GLASS,FRT 1-74338-068-3 01 1 9902- ● ●
174 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 20 1 9707-0212 ● ●
174 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 22 1 0301- ● ●
174 SEAL; LOCATION HOLE
OD=52 BLACK 		1-76798-041-0 06 1 9707- ● ●
190 REFLECTOR; FRT DOOR INNER 5-76777-060-1 01 1 9707- ● ●
192 HOLDER; DOOR GLASS
IDN 		1-74428-013-0 04 1 9707-9801 ● ●
192 HOLDER; DOOR GLASS
IDN 		1-74427-170-0 04 1 9802- ● ●
225 BOLT; FRT CHANNEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9707-0003 ● ●
225 BOLT; FRT CHANNEL
M6X10 FLANGE IDN 		0-28080-610-0 04 1 0004-0512 ● ●
225 BOLT; FRT CHANNEL
M6X10 FLANGE IDN 		0-28050-610-0 04 1 0601- ● ●
234 BRACKET; OK WINDOW 1-74998-057-4 01 1 9707- ● ●
234 BRACKET; OK WINDOW 1-74998-062-4 01 1 9707- ● ●
235 BOLT; BRKT
M6X16 FLANGE 		0-28080-616-0 08 1 0406-0512 ● ●
235 BOLT; BRKT
M6X16 FLANGE IDN 		0-28050-616-0 08 1 0601-0710 ● ●
235 BOLT; BRKT
M6X10 FLANGE IDN 		0-28050-610-0 08 1 0711- ● ●
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 16 1 9707-0405 ● ●
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0406- ● ●
250 BRACKET; REGULATOR 1-74418-148-0 01 1 9707- ● ●
250 BRACKET; REGULATOR 1-74418-149-0 01 1 9707- ● ●
251 NUT; BRKT
M6 FLANGE 		1-09984-141-0 04 1 9707- ● ●
256 NUT
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0208- ● ●

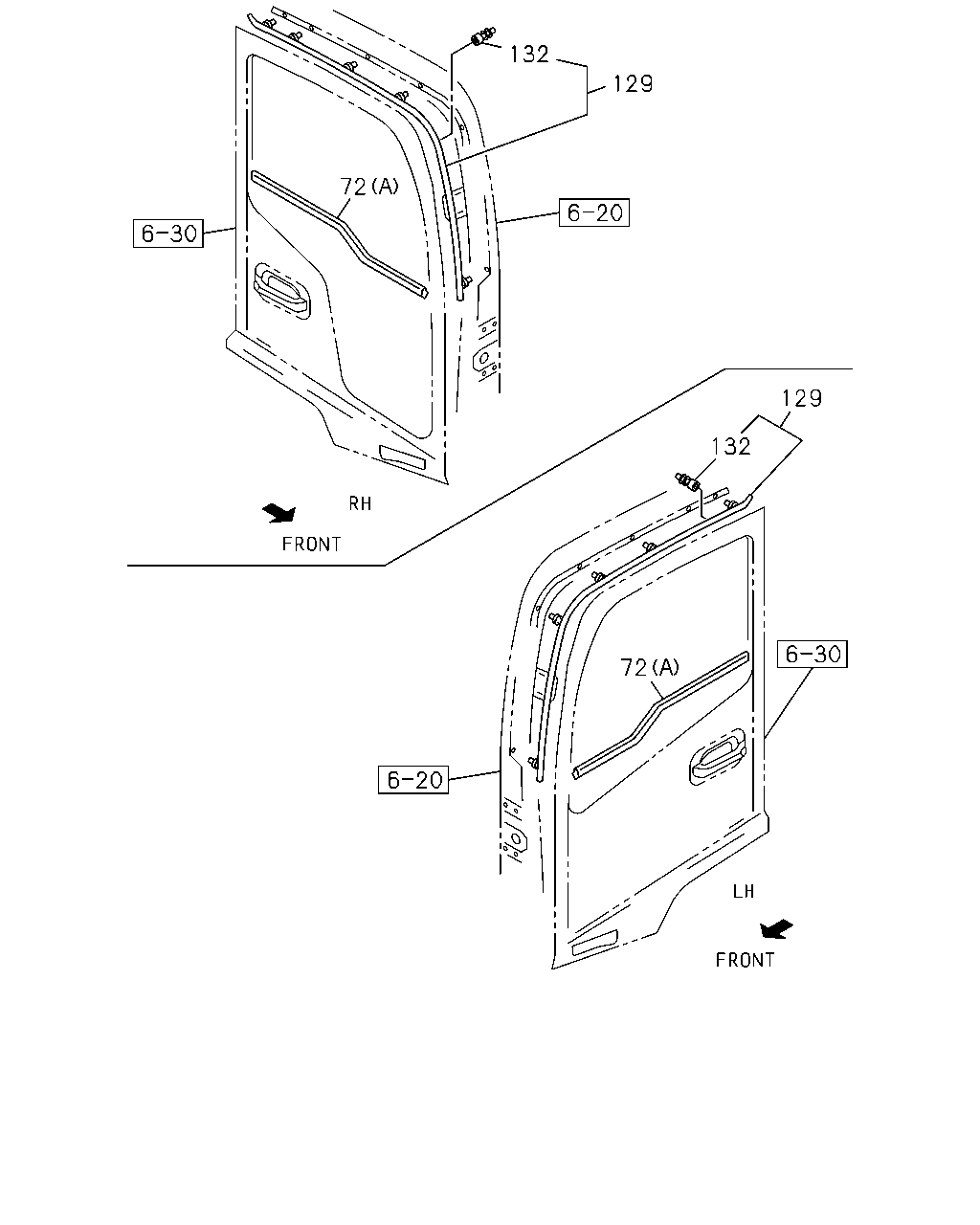

çizim 184936
132 129 72 129 132 72
BalonParca AdiParca NoAdetTipApplied Date A B
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-9 01 1 9707-1207 ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-040-0 01 1 1208- ● ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-6 01 1 9707- ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-9 01 1 9707-1207 ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-039-0 01 1 1208- ● ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-6 01 1 9707- ● ●
129 SEAL; DOOR,SUB UPR 1-76718-199-0 01 1 9707- ● ●
129 SEAL; DOOR,SUB UPR 1-76718-198-0 01 1 9707- ● ●
132 CLIP; SEAL,DOOR
YELLOW IDN 		1-09987-254-1 06 1 9911- ● ●
132 CLIP; SEAL,DOOR
NATURAL IDN 		1-09987-253-1 06 1 9911- ● ●
