◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10752 - FTR(IDN)WB3600/4200 ▶ 5 - Frame, Cab Mounting ▶ 5-10 - CAB MOUNTING; FRAME SIDE ▶
5-10 — CAB MOUNTING; FRAME SIDE (#64407) — 63 parça

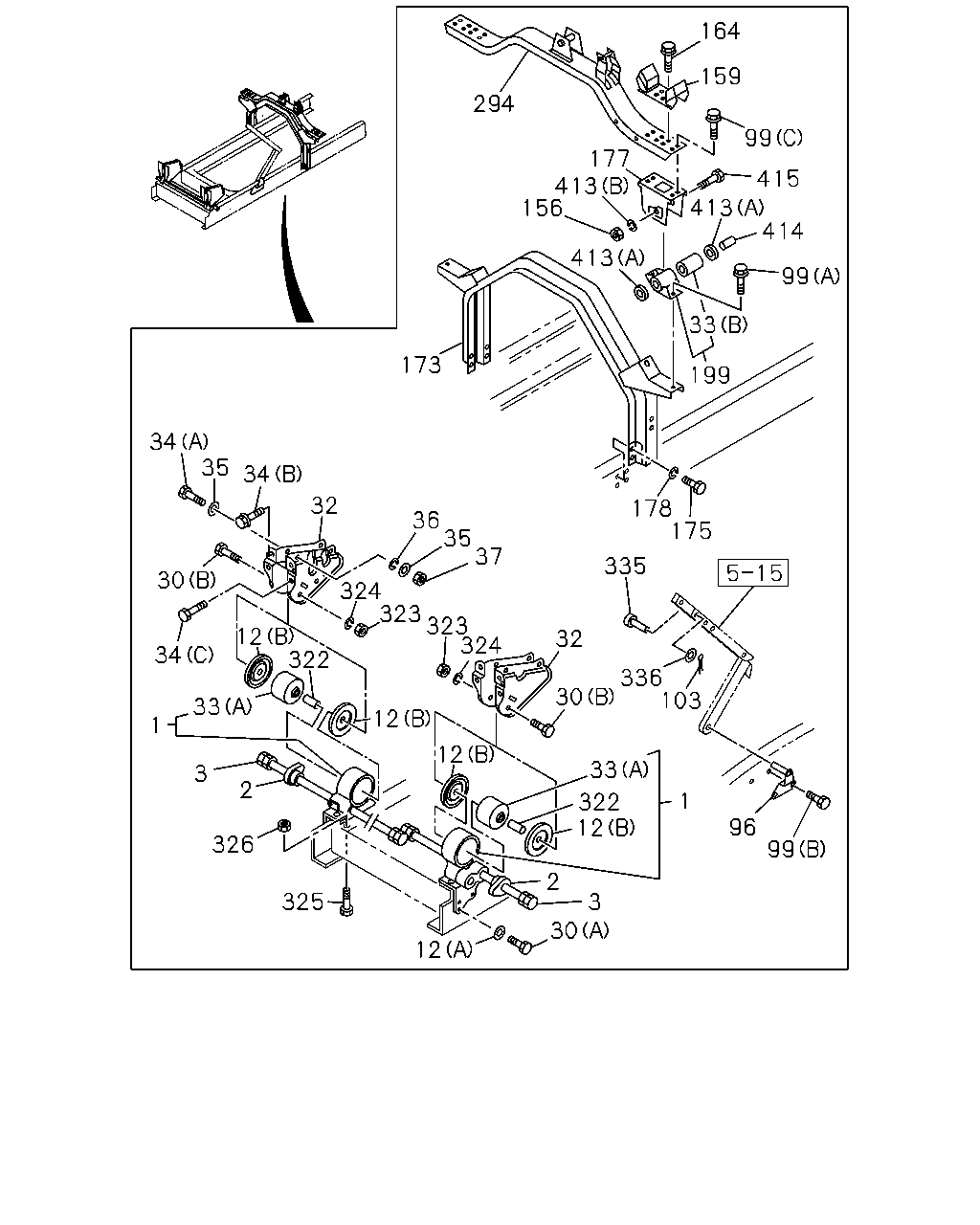

çizim 184928
164 159 294 99 177 413 156 415 413 414 413 99 33 173 199 34 35 34 32 178 175 36 35 37 335 30 324 323 323 324 12 322 32 34 336 30 103 33 12 1 12 33 3 2 1 322 12 96 326 99 2 325 3 30 12
BalonParca AdiParca NoAdetTipApplied Date A B
1 BRACKET; CAB MTG 1-53453-289-0 01 1 9707- ● ●
1 BRACKET; CAB MTG 1-53453-288-0 01 1 9707- ● ●
2 BUSHING; TORSION BAR 1-53458-282-0 02 1 9707- ● ●
3 TORSION BAR 1-09585-130-0 01 1 9707- ● ●
3 TORSION BAR 1-09585-129-0 01 1 9707- ● ●
12 WASHER; LK,BRKT
(B) ID=23 		1-53458-693-1 04 1 9707-0306 ● ●
12 WASHER; LK,BRKT
(B) ID=23 		1-53457-076-1 04 1 0307- ● ●
12 WASHER; LK,BRKT
(A) ID=15 		9-09651-069-0 10 1 9707-1201 ● ●
12 WASHER; LK,BRKT
(A) ID=15 		8-98010-627-1 10 1 1202- ● ●
30 BOLT; CAB FRT FOOT
(B) M16X115 		5-51361-002-1 02 1 9707- ● ●
30 BOLT; CAB FRT FOOT
(A) M14X50 		9-92061-450-0 10 1 9707-0512 ● ●
30 BOLT; CAB FRT FOOT
(A) M14X50 		0-20951-450-0 10 1 0601- ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-231-4 01 1 9707- ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-230-4 01 1 9707- ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(B) 		1-53458-635-0 02 1 9707- ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(A) 		1-53458-681-0 02 1 9707- ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(A) M10X105 		1-79198-008-1 04 1 9707- ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9707-0904 ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905- ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(B) M10X20 W/LK&PL WASHER 		8-94279-219-0 08 1 9707- ● ●
35 WASHER; PL,CAB MTG BRKT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 08 1 9707- ● ●
36 WASHER; LK,CAB MTG BRKT
ID=10 		1-09985-185-0 04 1 9707- ● ●
37 NUT; CAB MTG BRKT,CAB SIDE
M10 		1-09984-142-0 04 1 9707- ● ●
96 BRACKET; CAB STAY 1-62500-628-0 01 1 9707- ● ●
99 BOLT; BRKT
(C) M8X20 FLANGE 		0-28680-820-0 08 1 9707-0512 ● ●
99 BOLT; BRKT
(C) M8X20 FLANGE IDN 		0-28650-820-0 08 1 0601- ● ●
99 BOLT; BRKT
(A) M12X30 FLANGE 		0-28681-230-0 04 1 9707-0512 ● ●
99 BOLT; BRKT
(A) M12X30 FLANGE 		0-28651-230-0 04 1 0601-0612 ● ●
99 BOLT; BRKT
(A) M12X25 FLANGE 		0-28651-225-0 04 1 0701- ● ●
99 BOLT; BRKT
(B) M10X30 FLANGE 		0-28691-030-0 02 1 9707-0512 ● ●
99 BOLT; BRKT
(B) M10X30 FLANGE 		0-28661-030-0 02 1 0601- ● ●
103 PIN; SPLIT,CAB STAY 1-09746-021-0 01 1 9707- ● ●
156 NUT; CAB MTG RR
M16 IDN 		9-99110-516-0 02 1 9707-0512 ● ●
156 NUT; CAB MTG RR
M16 		0-91110-516-0 02 1 0601- ● ●
159 RUBBER; CUSHION,CAB MTG 1-53458-285-0 02 1 9707- ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
M8X20 FLANGE 		0-28680-820-0 04 1 9707-0512 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
M8X20 FLANGE IDN 		0-28650-820-0 04 1 0601- ● ●
173 MEMBER; CAB MTG RR 1-53454-599-3 01 1 9707- ● ●
175 BOLT; MEMBER TO FRAME
M12X35 		9-92061-235-0 08 1 9707-0512 ● ●
175 BOLT; MEMBER TO FRAME
M12X35 		0-20951-235-0 08 1 0601- ● ●
177 BRACKET; MEMBER 1-53454-528-1 01 1 9707- ● ●
177 BRACKET; MEMBER 1-53454-529-1 01 1 9707- ● ●
178 WASHER; LK,MEMBER
ID=12.2 		9-09150-612-0 08 1 9707-0603 ● ●
178 WASHER; LK,MEMBER
ID=12.2 		0-91510-612-0 08 1 0604- ● ●
199 BRACKET; CAB RR MTG 1-53454-627-1 02 1 9707- ● ●
294 MEMBER; FLOATING 1-53454-530-1 01 1 9707- ● ●
322 COLLAR; CAB FRT FOOT 1-53459-941-1 02 1 9707- ● ●
323 NUT; CAB FRT FOOT
M16 IDN 		9-99110-516-0 02 1 9707-0512 ● ●
323 NUT; CAB FRT FOOT
M16 		0-91110-516-0 02 1 0601- ● ●
324 WASHER; LK
ID=16.2 		9-09150-816-0 02 1 9707-0603 ● ●
324 WASHER; LK
ID=16.2 		0-91510-816-0 02 1 0604- ● ●
325 BOLT; GUIDE NUT
M12X40 FLANGE 		0-28681-240-0 02 1 9707-0512 ● ●
325 BOLT; GUIDE NUT
M12X40 FLANGE 		0-28651-240-0 02 1 0601- ● ●
326 NUT; GUIDE NUT
M12 IDN 		9-99110-512-0 02 1 9707-0512 ● ●
326 NUT; GUIDE NUT
M12 		0-91110-512-0 02 1 0601- ● ●
335 PIN; ADJ,STAY LOCK
OD=10 L=48 		1-09744-107-0 01 1 9707- ● ●
336 WASHER; PL,STAY LOCK
ID=10.5 T=2.0 		1-09985-183-0 01 1 9707- ● ●
413 WASHER; LK,CAB MTG RR
(A) ID=23 		1-53458-693-1 04 1 9707-0306 ● ●
413 WASHER; LK,CAB MTG RR
(A) ID=23 		1-53457-076-1 04 1 0307- ● ●
413 WASHER; LK,CAB MTG RR
(B) ID=16.2 		9-09150-816-0 02 1 9707-0603 ● ●
413 WASHER; LK,CAB MTG RR
(B) ID=16.2 		0-91510-816-0 02 1 0604- ● ●
414 COLLAR; CAB MTG RR 1-53459-941-1 02 1 9707- ● ●
415 PIN; CAB MTG RR
M16X115 		5-51361-002-1 02 1 9707- ● ●
