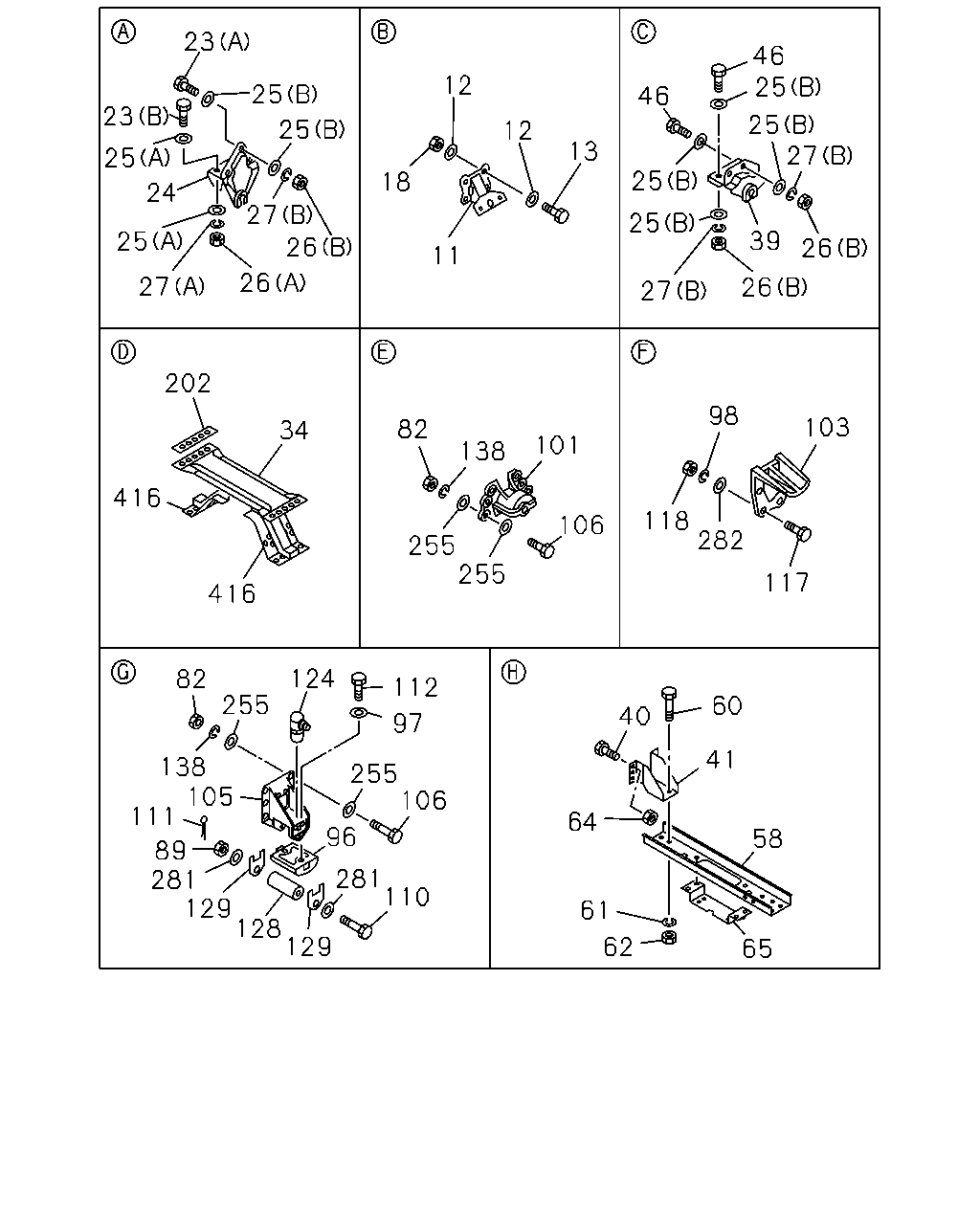

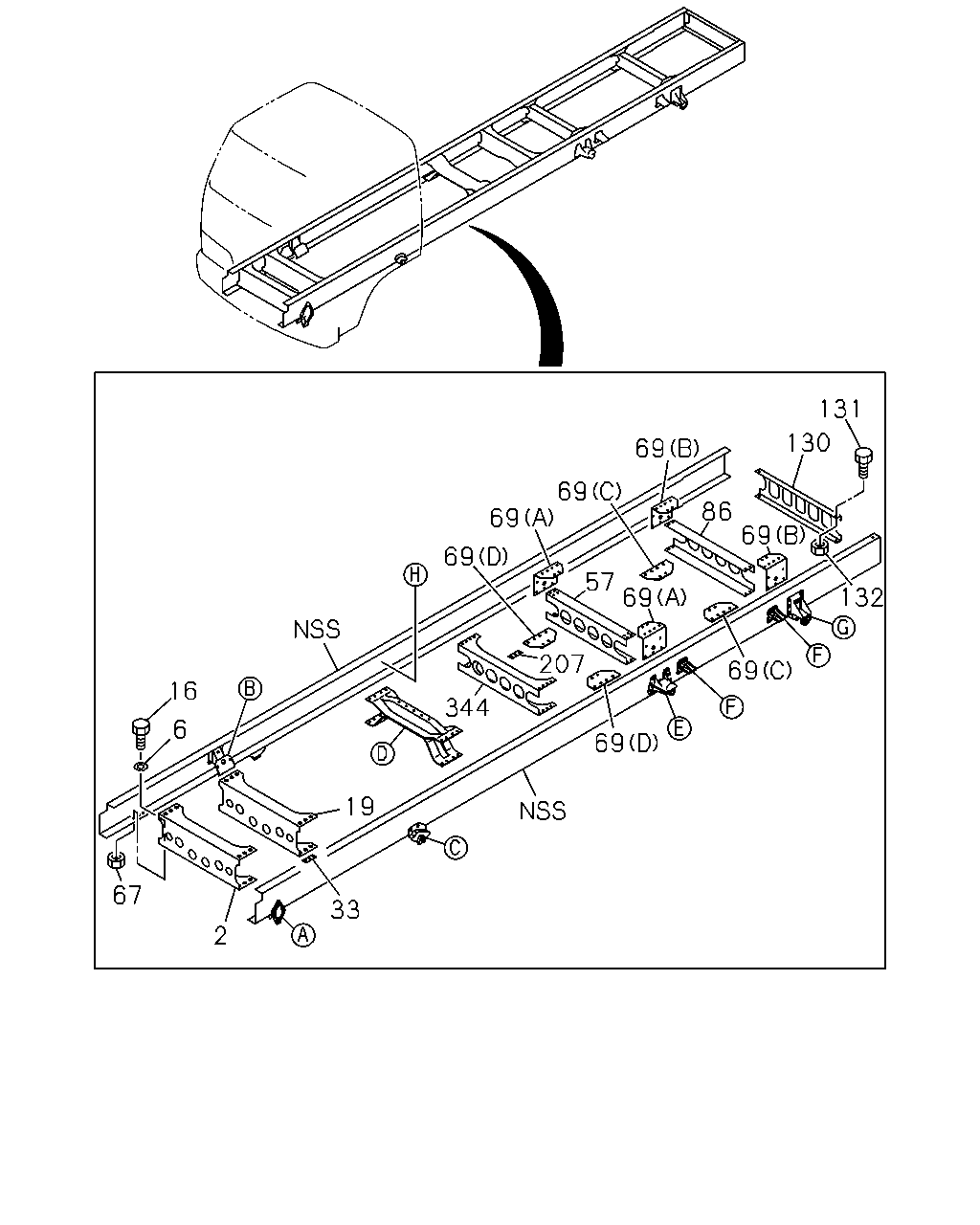

5-01 — FRAME AND OTHER PARTS (#64406) — 106 parça

131 130 69 69 86 69 69 69 57 69 132 207 344 69 16 6 69 19 67 33 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	MEMBER; CROSS,1ST IDN	8-97520-002-0	01	1	9707-	●	●
6	WASHER; LK,1ST C/MBR ID=16.2	9-09150-616-0	01	1	9707-0603	●	●
6	WASHER; LK,1ST C/MBR ID=16.2	0-91510-616-0	01	1	0604-	●	●
16	BOLT; 1ST C/MBR TO S/MBR M16X40	0-20801-640-0	01	1	9707-0512	●	●
16	BOLT; 1ST C/MBR TO S/MBR M16X40	0-20851-640-0	01	1	0601-	●	●
19	MEMBER; CROSS,2ND IDN	8-97520-003-0	01	1	9707-	●	●
33	SPACER; 2ND C/MBR,UPR UPPER	1-53168-276-0	02	1	9707-	●	●
33	SPACER; 2ND C/MBR,UPR LOWER	1-53168-287-0	02	1	9707-	●	●
57	MEMBER; CROSS,RR SUSP FRT IDN	8-97520-007-0	01	1	9707-	●	●
67	NUT; C/MBR M16 IDN	9-99110-516-0	01	1	9707-0512	●	●
67	NUT; C/MBR M16	0-91110-516-0	01	1	0601-	●	●
69	GUSSET; RR SUSP,UPR (C) LOWER	1-53167-099-4	02	1	9707-	●	●
69	GUSSET; RR SUSP,UPR (D) LOWER	1-53167-100-3	02	1	9707-	●	●
69	GUSSET; RR SUSP,UPR (A) UPPER 21-HOLE	1-53167-095-5	01	1	9707-	●	●
69	GUSSET; RR SUSP,UPR (B) UPPER 17-HOLE	1-53167-098-5	01	1	9707-	●	●
69	GUSSET; RR SUSP,UPR (A) UPPER 21-HOLE	1-53167-096-4	01	1	9707-	●	●
69	GUSSET; RR SUSP,UPR (B) UPPER 17-HOLE	1-53167-097-5	01	1	9707-	●	●
86	MEMBER; CROSS,RR SUSP RR IDN	8-97520-007-0	01	1	9707-	●	●
130	MEMBER; CROSS,END IDN	8-97520-012-0	01	1	9707-	●	●
131	BOLT; END C/MBR M12X30 W/LK WASHER	0-50041-230-0	04	1	9707-0512	●	●
131	BOLT; END C/MBR M12X30 W/LK WASHER	0-50541-230-0	04	1	0601-	●	●
132	NUT; END C/MBR M12	9-99110-412-0	04	1	9707-0512	●	●
132	NUT; END C/MBR M12	0-91110-512-0	04	1	0601-	●	●
207	SPACER; 4TH C/MBR MIDDLE CHASSIS(FT***F) IDN	8-97520-107-0	02	1	9707-	●	●
344	MEMBER; CROSS,4TH MIDDLE CHASSIS(FT***F) IDN	8-97520-006-0	01	1	9707-	●	●

23 46 25 12 25 46 23 25 27 25 12 13 25 25 25 18 24 27 26 39 25 26 11 26 27 26 27 202 98 103 82 34 101 138 416 118 282 106 255 255 117 416 124 82 112 255 60 40 97 41 138 105 255 106 96 111 64 58 89 281 129 128 129 281 110 61 62 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	BRACKET; ENG MTG IDN	8-97520-001-0	02	1	9707-	●	●
12	WASHER; PL,BRKT,ENG MTG ID=12.5	1-09503-171-0	16	1	9707-	●	●
13	BOLT; BRKT,ENG MTG M12X35	9-92061-235-0	08	1	9707-0512	●	●
13	BOLT; BRKT,ENG MTG M12X35	0-20951-235-0	08	1	0601-	●	●
18	NUT; BRKT,ENG MTG M12 IDN	9-99110-512-0	08	1	9707-0512	●	●
18	NUT; BRKT,ENG MTG M12	0-91110-512-0	08	1	0601-	●	●
23	BOLT; BRKT,SPR (A) M14X50	9-92061-450-0	06	1	9707-0512	●	●
23	BOLT; BRKT,SPR (A) M14X50	0-20951-450-0	06	1	0601-	●	●
23	BOLT; BRKT,SPR (B) M16X60	9-92061-660-0	04	1	9707-0512	●	●
23	BOLT; BRKT,SPR (B) M16X60	0-20951-660-0	04	1	0601-	●	●
24	BRACKET; FRT SPR,FRT IDN	8-97520-017-0	01	1	9707-	●	●
24	BRACKET; FRT SPR,FRT IDN	8-97520-016-0	01	1	9707-	●	●
25	WASHER; PL,BRKT (A) ID=16.2	1-09503-223-0	08	1	9707-	●	●
25	WASHER; PL,BRKT (B) ID=15	9-09651-069-0	28	1	9707-1201	●	●
25	WASHER; PL,BRKT (B) ID=15	8-98010-627-1	28	1	1202-	●	●
26	NUT; BRKT,SPR (B) M14 IDN	9-99110-514-0	14	1	9707-0512	●	●
26	NUT; BRKT,SPR (B) M14	0-91110-514-0	14	1	0601-	●	●
26	NUT; BRKT,SPR (A) M16 IDN	9-99110-516-0	04	1	9707-0512	●	●
26	NUT; BRKT,SPR (A) M16	0-91110-516-0	04	1	0601-	●	●
27	WASHER; LK,BRKT,FRT SPR (B) ID=14.2	9-09150-614-0	14	1	9707-0603	●	●
27	WASHER; LK,BRKT,FRT SPR (B) ID=14.2	0-91510-614-0	14	1	0604-	●	●
27	WASHER; LK,BRKT,FRT SPR (A) ID=16.2	9-09150-616-0	04	1	9707-0603	●	●
27	WASHER; LK,BRKT,FRT SPR (A) ID=16.2	0-91510-616-0	04	1	0604-	●	●
34	MEMBER; CROSS,3RD IDN	8-97520-005-0	01	1	9707-	●	●
39	BRACKET; FRT SPR,RR IDN	8-97520-019-0	01	1	9707-	●	●
39	BRACKET; FRT SPR,RR IDN	8-97520-018-0	01	1	9707-	●	●
40	BOLT; BRKT TO FRAME SHORT CHASSIS(FT***C) M10X30 W/LK WASHER	0-50041-030-0	08	1	9707-0512	●	●
40	BOLT; BRKT TO FRAME SHORT CHASSIS(FT***C) M10X30 W/LK WASHER IDN	0-50541-030-0	08	1	0601-	●	●
41	BRACKET; CENTER BRG,FRAME SIDE SHORT CHASSIS(FT***C) IDN	8-97520-024-0	02	1	9707-	●	●
46	BOLT; BRKT FIX M14X50	9-92061-450-0	08	1	9707-0512	●	●
46	BOLT; BRKT FIX M14X50	0-20951-450-0	08	1	0601-	●	●
58	MEMBER; CENTER BRG SHORT CHASSIS(FT***C)	1-37529-100-0	01	1	9707-	●	●
60	BOLT; MBR SHORT CHASSIS(FT***C) M10X25 W/LK WASHER	0-50041-025-0	08	1	9707-0512	●	●
60	BOLT; MBR SHORT CHASSIS(FT***C) M10X25 W/LK WASHER	0-50541-025-0	08	1	0601-	●	●
61	WASHER; PL,MBR SHORT CHASSIS(FT***C) ID=10.5 OD=22	9-09164-610-0	08	1	9707-0605	●	●
61	WASHER; PL,MBR SHORT CHASSIS(FT***C) ID=10.5 OD=22	0-91614-610-0	08	1	0606-	●	●
62	NUT; MBR SHORT CHASSIS(FT***C) M10	9-09110-410-0	08	1	9707-0512	●	●
62	NUT; MBR SHORT CHASSIS(FT***C) M10	0-91110-510-0	08	1	0601-	●	●
64	NUT; BRKT TO FRAME SHORT CHASSIS(FT***C) M10	9-09110-410-0	08	1	9707-0512	●	●
64	NUT; BRKT TO FRAME SHORT CHASSIS(FT***C) M10	0-91110-510-0	08	1	0601-	●	●
65	BRACKET; CENTER BRG SHORT CHASSIS(FT***C)	1-53271-334-1	01	1	9707-	●	●
82	NUT; BRKT M14 IDN	9-99110-514-0	24	1	9707-0512	●	●
82	NUT; BRKT M14	0-91110-514-0	24	1	0601-	●	●
89	NUT; LEAF SPR STOPPER M14	9-99116-414-0	02	1	9707-0604	●	●
89	NUT; LEAF SPR STOPPER M14 SLOTTED	0-91116-514-0	02	1	0605-	●	●
96	PAD; RR SPR	1-53359-047-0	02	1	9707-	●	●
97	WASHER; LK,PAD ID=14.2	9-09150-514-0	04	1	9707-0603	●	●
97	WASHER; LK,PAD ID=14.2	0-91510-514-0	04	1	0604-	●	●
98	WASHER; LK,STOPPER ID=14.2	9-09150-614-0	16	1	9707-0603	●	●
98	WASHER; LK,STOPPER ID=14.2	0-91510-614-0	16	1	0604-	●	●
101	BRACKET; RR SPR,FRT IDN	8-97520-115-0	02	1	9707-0002	●	●
101	BRACKET; RR SPR,FRT	1-53353-078-1	02	1	0003-	●	●
103	STOPPER; SUB SPR	1-53356-057-0	04	1	9707-	●	●
105	BRACKET; RR SPR,RR IDN	8-97520-116-0	02	1	9707-0002	●	●
105	BRACKET; RR SPR,RR	1-53354-064-1	02	1	0003-	●	●
106	BOLT; BRKT M14X50	9-92061-450-0	24	1	9707-0512	●	●
106	BOLT; BRKT M14X50	0-20951-450-0	24	1	0601-	●	●
110	BOLT; LEAF SPR STOPPER	1-09000-007-0	02	1	9707-	●	●
111	PIN; SPLIT,LEAF SPR STOPPER OD=2.8 L=28	9-08113-028-0	02	1	9707-0606	●	●
111	PIN; SPLIT,LEAF SPR STOPPER OD=2.8 L=28	0-81123-028-0	02	1	0607-	●	●
112	BOLT; PAD M14X35	0-20801-435-0	04	1	9707-0512	●	●
112	BOLT; PAD M14X35	0-20851-435-0	04	1	0601-	●	●
117	BOLT; STOPPER M14X50	9-91066-450-0	16	1	9707-0512	●	●
117	BOLT; STOPPER M14X50	0-10956-450-0	16	1	0601-	●	●
118	NUT; STOPPER M14 IDN	9-99110-514-0	16	1	9707-0512	●	●
118	NUT; STOPPER M14	0-91110-514-0	16	1	0601-	●	●
124	NIPPLE; GREASE PT1/8 ELBOW	9-09031-210-0	02	1	9707-0512	●	●
124	NIPPLE; GREASE PT1/8 ELBOW	0-90301-610-0	02	1	0601-	●	●
128	COLLAR; RUBBER	1-53359-004-0	02	1	9707-	●	●
129	SHIM; SIDE T=4.5	1-53359-061-1	02	1	9707-	●	●
129	SHIM; SIDE T=3.2	1-53359-062-1	02	1	9707-	●	●
138	WASHER; LK,BRKT ID=14.2	9-09150-614-0	24	1	9707-0603	●	●
138	WASHER; LK,BRKT ID=14.2	0-91510-614-0	24	1	0604-	●	●
202	SPACER; 3RD C/MBR IDN	8-97520-106-0	02	1	9707-	●	●
255	WASHER; PL,BRKT ID=15	9-09651-069-0	48	1	9707-1201	●	●
255	WASHER; PL,BRKT ID=15	8-98010-627-1	48	1	1202-	●	●
281	WASHER; LEAF SPR STOPPER ID=15 OD=30	9-09160-614-0	04	1	9707-	●	●
282	WASHER; PL,STOPPER ID=15	9-09651-069-0	16	1	9707-1201	●	●
282	WASHER; PL,STOPPER ID=15	8-98010-627-1	16	1	1202-	●	●
416	GUSSET; 3RD C/MBR IDN	8-97520-014-0	01	1	9707-	●	●
416	GUSSET; 3RD C/MBR IDN	8-97520-013-0	01	1	9707-	●	●
