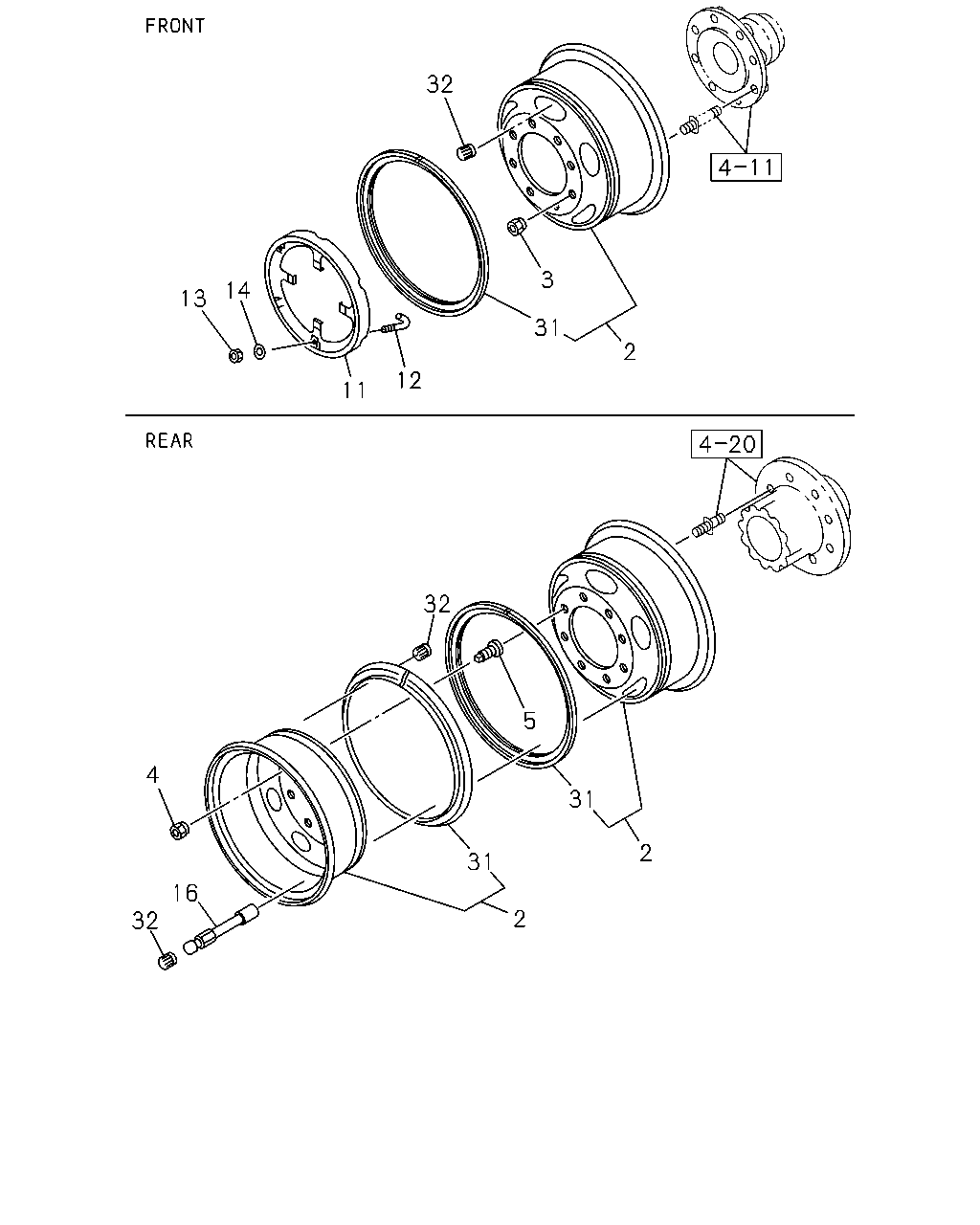

4-80 — ROAD WHEEL (#64405) — 29 parça

32 3 14 13 31 2 12 11 32 5 4 31 2 31 16 2 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	WHEEL; DISC FRONT IDN	8-97520-099-0	02	1	9707-	●	●
2	WHEEL; DISC REAR IDN	8-97520-099-0	04	1	9707-	●	●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL REAR(R46) SPARE IDN	8-97520-099-0	01	1	9707-	●	●
3	NUT; WHEEL,FRT AXLE M24 LH THREAD	1-42334-022-3	08	1	9707-	●	●
3	NUT; WHEEL,FRT AXLE M24	1-42333-022-3	08	1	9707-	●	●
4	NUT; WHEEL,RR AXLE M30 LH THREAD	1-42334-023-0	08	1	9707-0610	●	●
4	NUT; WHEEL,RR AXLE M30 LH THREAD	8-97359-810-0	08	1	0611-	●	●
4	NUT; WHEEL,RR AXLE M30	1-42333-023-0	08	1	9707-0610	●	●
4	NUT; WHEEL,RR AXLE M30 RH THREAD	8-97359-809-0	08	1	0611-	●	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	1-42336-005-1	08	1	9707-0610	●	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD IDN	8-97359-806-0	08	1	0611-	●	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	1-42335-005-1	08	1	9707-0610	●	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD IDN	8-97359-805-0	08	1	0611-	●	●
11	STEP; DISC WHEEL SIDE DISC WHEEL STEP<W66>	1-43139-028-0	02	1	9707-	●	●
12	U-BOLT; STEP DISC DISC WHEEL STEP<W66> L=44	9-43139-023-1	06	1	9707-	●	●
13	NUT; STEP DISC DISC WHEEL STEP<W66> M10	9-09110-510-0	06	1	9707-0512	●	●
13	NUT; STEP DISC DISC WHEEL STEP<W66> M10	0-91110-510-0	06	1	0601-	●	●
14	WASHER; LK,STEP DISC DISC WHEEL STEP<W66> ID=10.2	9-09150-510-0	06	1	9707-0603	●	●
14	WASHER; LK,STEP DISC DISC WHEEL STEP<W66> ID=10.2	0-91510-510-0	06	1	0604-	●	●
16	HOLDER; TIRE VALVE,DISC WHEEL IDN	8-97520-201-0	02	1	0305-	●	●
16	HOLDER; TIRE VALVE,DISC WHEEL IDN	8-97520-201-0	02	1	9707-0210	●	●
31	RING; SIDE,DISC WHEEL FRONT IDN	8-97520-156-0	02	1	9707-	●	●
31	RING; SIDE,DISC WHEEL REAR IDN	8-97520-156-0	04	1	9707-	●	●
31	RING; SIDE,DISC WHEEL SPARE TIRE & DISC WHEEL REAR(R46) SPARE IDN	8-97520-156-0	01	1	9707-	●	●
32	CAP; VALVE EXC. SPARE TIRE & DISC WHEEL REAR(R46) IDN	8-97520-205-0	06	1	0211-0304	●	●
32	CAP; VALVE EXC. SPARE TIRE & DISC WHEEL REAR(R46) IDN	8-97520-205-0	04	1	0305-	●	●
32	CAP; VALVE IDN	8-97520-205-0	05	1	9707-0210	●	●
32	CAP; VALVE SPARE TIRE & DISC WHEEL REAR(R46) IDN	8-97520-205-0	07	1	0211-0304	●	●
32	CAP; VALVE SPARE TIRE & DISC WHEEL REAR(R46) IDN	8-97520-205-0	05	1	0305-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
