◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10752 - FTR(IDN)WB3600/4200 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-65 - REAR LEAF SPRING ▶
4-65 — REAR LEAF SPRING (#64404) — 126 parça

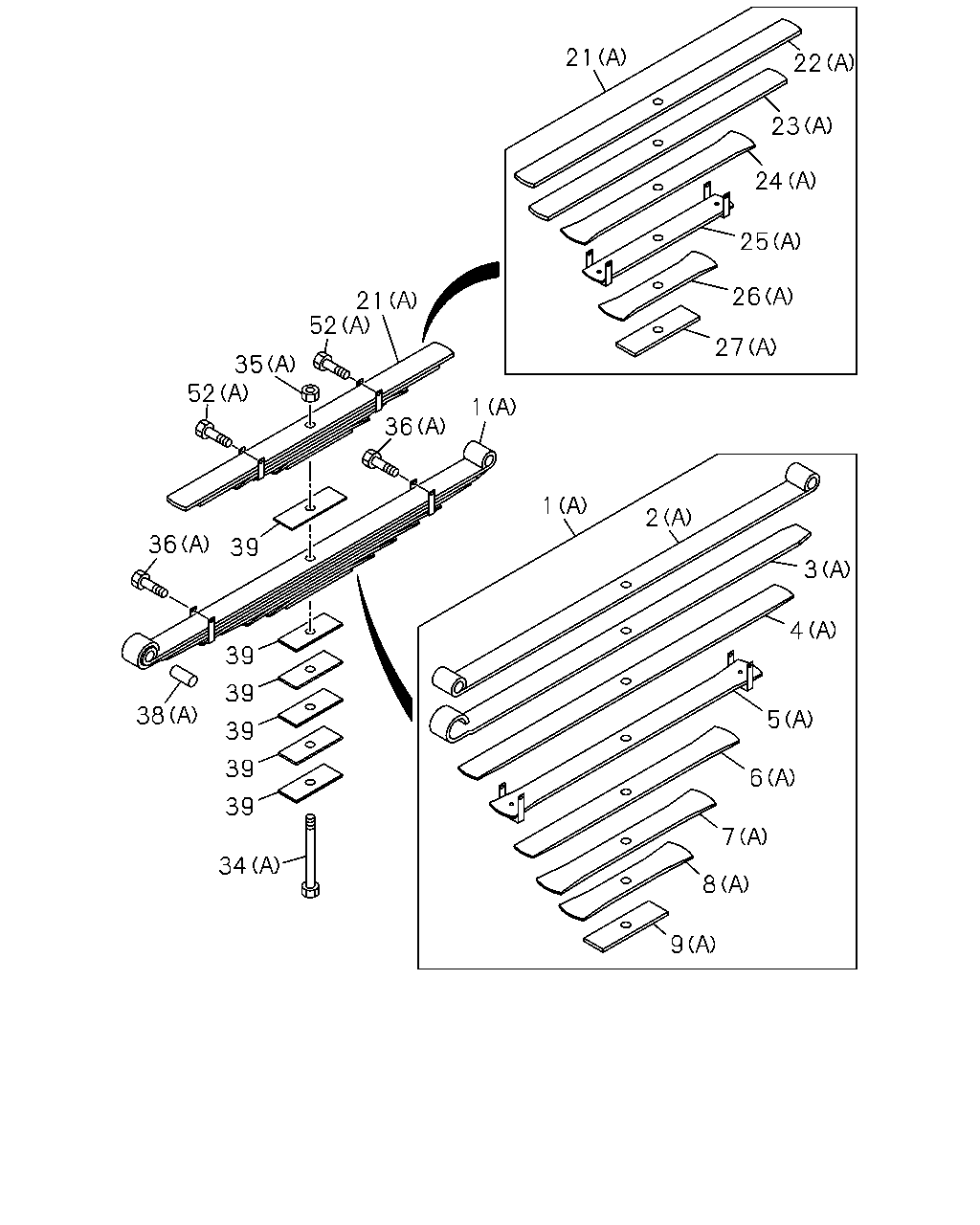

çizim 124648
21 22 23 24 25 26 21 52 27 35 52 1 36 1 2 36 39 3 4 39 39 38 5 39 39 6 39 7 34 8 9
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR MAIN
(B), IDN ASM PART: B = 8-97520-264-0 		8-97520-434-0 01 1 -
1 SPRING ASM; LEAF,RR MAIN
(B), IDN ASM PART: C = 8-97520-297-0 		8-97520-479-0 01 1 -
1 SPRING ASM; LEAF,RR MAIN
(A), IDN ASM PART: A = 8-97520-038-0 		8-97520-536-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
(B), IDN ASM PART: B = 8-97520-264-0 		8-97520-435-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
(B), IDN ASM PART: C = 8-97520-297-0 		8-97520-480-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
(A), IDN ASM PART: A = 8-97520-038-0 		8-97520-538-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
(B), IDN ASM PART: B = 8-97520-264-0 		8-97520-436-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
(B), IDN ASM PART: C = 8-97520-297-0 		8-97520-481-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
(A), IDN ASM PART: A = 8-97520-038-0 		8-97520-539-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
(B), IDN ASM PART: B = 8-97520-264-0 		8-97520-437-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
(B), IDN ASM PART: C = 8-97520-297-0 		8-97520-482-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
(A), IDN ASM PART: A = 8-97520-038-0 		8-97520-540-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
(B), IDN ASM PART: B = 8-97520-264-0 		8-97520-438-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
(B), IDN ASM PART: C = 8-97520-297-0 		8-97520-483-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
(A), IDN ASM PART: A = 8-97520-038-0 		8-97520-541-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
(B), IDN ASM PART: B = 8-97520-264-0 		8-97520-439-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
(B), IDN ASM PART: C = 8-97520-297-0 		8-97520-484-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
(A), IDN ASM PART: A = 8-97520-038-0 		8-97520-542-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
(B), IDN ASM PART: B = 8-97520-264-0 		8-97520-440-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
(B), IDN ASM PART: C = 8-97520-297-0 		8-97520-485-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
(A), IDN ASM PART: A = 8-97520-038-0 		8-97520-543-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
(B), IDN ASM PART: B = 8-97520-264-0 		8-97520-441-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
(B), IDN ASM PART: C = 8-97520-297-0 		8-97520-486-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
(A), IDN ASM PART: A = 8-97520-038-0 		8-97520-544-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
(B), IDN ASM PART: B = 8-97520-264-0 		8-97520-442-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
(B), IDN ASM PART: C = 8-97520-297-0 		8-97520-487-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
(A), IDN ASM PART: A = 8-97520-038-0 		8-97520-545-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
(B), IDN ASM PART: B = 8-97520-264-0 		8-97520-443-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
(B), IDN ASM PART: C = 8-97520-297-0 		8-97520-488-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
(A), IDN ASM PART: A = 8-97520-038-0 		8-97520-537-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
(B), IDN ASM PART: B = 8-97520-264-0 		8-97520-444-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
(B), IDN ASM PART: C = 8-97520-297-0 		8-97520-489-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
(A), IDN ASM PART: A = 8-97520-038-0 		8-97520-546-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
(B), IDN ASM PART: B = 8-97520-264-0 		8-97520-445-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
(B), IDN ASM PART: C = 8-97520-297-0 		8-97520-490-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
(A), IDN ASM PART: A = 8-97520-038-0 		8-97520-547-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
(B), IDN ASM PART: B = 8-97520-264-0 		8-97520-446-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
(B), IDN ASM PART: C = 8-97520-297-0 		8-97520-491-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
(A), IDN ASM PART: A = 8-97520-038-0 		8-97520-548-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
(B), IDN ASM PART: B = 8-97520-264-0 		8-97520-447-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
(B), IDN ASM PART: C = 8-97520-297-0 		8-97520-492-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
(A), IDN ASM PART: A = 8-97520-038-0 		8-97520-549-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
(B), IDN ASM PART: B = 8-97520-264-0 		8-97520-448-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
(B), IDN ASM PART: C = 8-97520-297-0 		8-97520-493-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
(A), IDN ASM PART: A = 8-97520-038-0 		8-97520-550-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
(B), IDN ASM PART: B = 8-97520-264-0 		8-97520-449-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
(B), IDN ASM PART: C = 8-97520-297-0 		8-97520-494-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
(A), IDN ASM PART: A = 8-97520-038-0 		8-97520-551-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
(B), L=240 ASM PART: C = 8-97520-297-0 		1-51156-168-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
(A), L=240 ASM PART: A = 8-97520-038-0 		1-51356-131-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
(B), L=240 ASM PART: B = 8-97520-264-0 		8-97520-457-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
(A), M16 ASM PART: A = 8-97520-038-0 		1-09400-054-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
(B), M16 ASM PART: C = 8-97520-297-0 		1-09400-061-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
(B), M16 ASM PART: B = 8-97520-264-0 		8-97520-386-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
(A), M10X117 ASM PART: A = 8-97520-038-0 		1-09000-334-0 02 1 -
36 BOLT; CLIP,LEAF SPR,RR
(B), IDN ASM PART: B = 8-97520-264-0, C = 8-97520-297-0 		8-97520-452-0 02 1 -
38 BUSHING; LEAF SPR,RR
(A), IDN ASM PART: A = 8-97520-038-0 		1-51351-010-0 01 1 -
38 BUSHING; LEAF SPR,RR
(B), IDN ASM PART: B = 8-97520-264-0 		8-97520-458-0 01 1 -
38 BUSHING; LEAF SPR,RR
(B), IDN ASM PART: C = 8-97520-297-0 		9-51351-028-0 01 1 -
39 SEAT; LEAF SPR,RR MAIN
T=10, IDN ASM PART: A = 8-97520-038-0 		1-51377-118-0 06 1 -
52 BOLT; CLIP,LEAF SPR,RR SUB
(A), M10X117 ASM PART: A = 8-97520-038-0 		1-09000-334-0 02 1 -
52 BOLT; CLIP,LEAF SPR,RR SUB
(B), IDN ASM PART: B = 8-97520-264-0, C = 8-97520-297-0 		8-97520-452-0 02 1 -

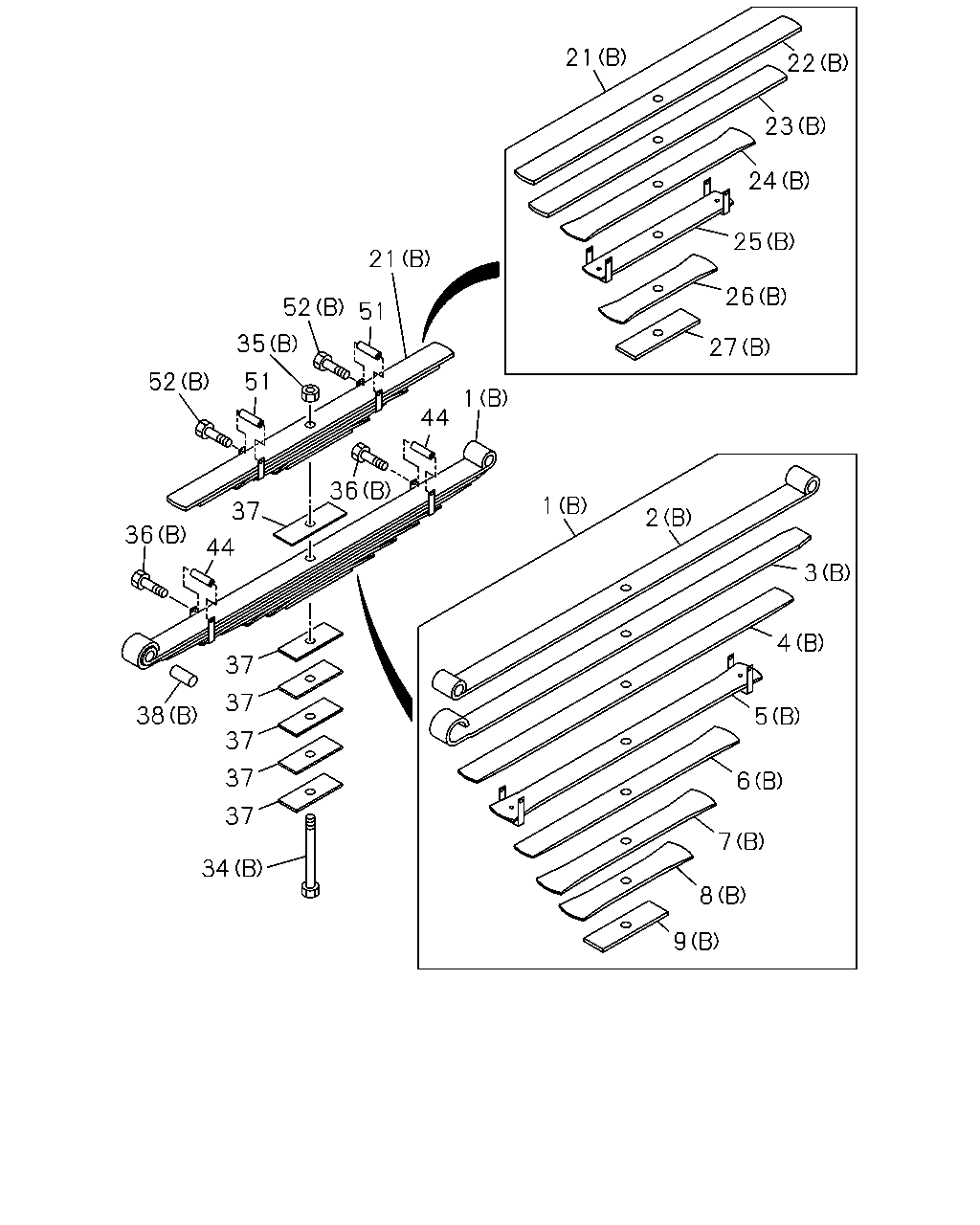

çizim 184925
21 22 23 24 25 21 26 52 51 35 27 52 51 1 44 36 1 37 2 36 44 3 4 37 37 38 5 37 37 6 37 7 34 8 9
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR MAIN
(B), IDN ASM PART: B = 8-97520-264-0 		8-97520-434-0 01 1 -
1 SPRING ASM; LEAF,RR MAIN
(B), IDN ASM PART: C = 8-97520-297-0 		8-97520-479-0 01 1 -
1 SPRING ASM; LEAF,RR MAIN
(A), IDN ASM PART: A = 8-97520-038-0 		8-97520-536-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
(B), IDN ASM PART: B = 8-97520-264-0 		8-97520-435-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
(B), IDN ASM PART: C = 8-97520-297-0 		8-97520-480-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
(A), IDN ASM PART: A = 8-97520-038-0 		8-97520-538-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
(B), IDN ASM PART: B = 8-97520-264-0 		8-97520-436-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
(B), IDN ASM PART: C = 8-97520-297-0 		8-97520-481-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
(A), IDN ASM PART: A = 8-97520-038-0 		8-97520-539-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
(B), IDN ASM PART: B = 8-97520-264-0 		8-97520-437-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
(B), IDN ASM PART: C = 8-97520-297-0 		8-97520-482-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
(A), IDN ASM PART: A = 8-97520-038-0 		8-97520-540-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
(B), IDN ASM PART: B = 8-97520-264-0 		8-97520-438-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
(B), IDN ASM PART: C = 8-97520-297-0 		8-97520-483-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
(A), IDN ASM PART: A = 8-97520-038-0 		8-97520-541-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
(B), IDN ASM PART: B = 8-97520-264-0 		8-97520-439-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
(B), IDN ASM PART: C = 8-97520-297-0 		8-97520-484-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
(A), IDN ASM PART: A = 8-97520-038-0 		8-97520-542-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
(B), IDN ASM PART: B = 8-97520-264-0 		8-97520-440-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
(B), IDN ASM PART: C = 8-97520-297-0 		8-97520-485-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
(A), IDN ASM PART: A = 8-97520-038-0 		8-97520-543-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
(B), IDN ASM PART: B = 8-97520-264-0 		8-97520-441-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
(B), IDN ASM PART: C = 8-97520-297-0 		8-97520-486-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
(A), IDN ASM PART: A = 8-97520-038-0 		8-97520-544-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
(B), IDN ASM PART: B = 8-97520-264-0 		8-97520-442-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
(B), IDN ASM PART: C = 8-97520-297-0 		8-97520-487-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
(A), IDN ASM PART: A = 8-97520-038-0 		8-97520-545-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
(B), IDN ASM PART: B = 8-97520-264-0 		8-97520-443-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
(B), IDN ASM PART: C = 8-97520-297-0 		8-97520-488-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
(A), IDN ASM PART: A = 8-97520-038-0 		8-97520-537-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
(B), IDN ASM PART: B = 8-97520-264-0 		8-97520-444-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
(B), IDN ASM PART: C = 8-97520-297-0 		8-97520-489-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
(A), IDN ASM PART: A = 8-97520-038-0 		8-97520-546-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
(B), IDN ASM PART: B = 8-97520-264-0 		8-97520-445-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
(B), IDN ASM PART: C = 8-97520-297-0 		8-97520-490-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
(A), IDN ASM PART: A = 8-97520-038-0 		8-97520-547-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
(B), IDN ASM PART: B = 8-97520-264-0 		8-97520-446-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
(B), IDN ASM PART: C = 8-97520-297-0 		8-97520-491-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
(A), IDN ASM PART: A = 8-97520-038-0 		8-97520-548-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
(B), IDN ASM PART: B = 8-97520-264-0 		8-97520-447-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
(B), IDN ASM PART: C = 8-97520-297-0 		8-97520-492-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
(A), IDN ASM PART: A = 8-97520-038-0 		8-97520-549-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
(B), IDN ASM PART: B = 8-97520-264-0 		8-97520-448-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
(B), IDN ASM PART: C = 8-97520-297-0 		8-97520-493-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
(A), IDN ASM PART: A = 8-97520-038-0 		8-97520-550-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
(B), IDN ASM PART: B = 8-97520-264-0 		8-97520-449-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
(B), IDN ASM PART: C = 8-97520-297-0 		8-97520-494-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
(A), IDN ASM PART: A = 8-97520-038-0 		8-97520-551-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
(B), L=240 ASM PART: C = 8-97520-297-0 		1-51156-168-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
(A), L=240 ASM PART: A = 8-97520-038-0 		1-51356-131-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
(B), L=240 ASM PART: B = 8-97520-264-0 		8-97520-457-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
(A), M16 ASM PART: A = 8-97520-038-0 		1-09400-054-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
(B), M16 ASM PART: C = 8-97520-297-0 		1-09400-061-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
(B), M16 ASM PART: B = 8-97520-264-0 		8-97520-386-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
(A), M10X117 ASM PART: A = 8-97520-038-0 		1-09000-334-0 02 1 -
36 BOLT; CLIP,LEAF SPR,RR
(B), IDN ASM PART: B = 8-97520-264-0, C = 8-97520-297-0 		8-97520-452-0 02 1 -
37 SPACER; CENTER,LEAF SPR,RR
IDN ASM PART: B = 8-97520-264-0, C = 8-97520-297-0 		8-97520-450-0 06 1 -
38 BUSHING; LEAF SPR,RR
(A), IDN ASM PART: A = 8-97520-038-0 		1-51351-010-0 01 1 -
38 BUSHING; LEAF SPR,RR
(B), IDN ASM PART: B = 8-97520-264-0 		8-97520-458-0 01 1 -
38 BUSHING; LEAF SPR,RR
(B), IDN ASM PART: C = 8-97520-297-0 		9-51351-028-0 01 1 -
44 PIPE; CLIP,LEAF SPR,RR MAIN
IDN ASM PART: B = 8-97520-264-0, C = 8-97520-297-0 		8-97520-451-0 02 1 -
51 PIPE; CLIP,LEAF SPR,RR SUB
IDN ASM PART: B = 8-97520-264-0, C = 8-97520-297-0 		8-97520-451-0 02 1 -
52 BOLT; CLIP,LEAF SPR,RR SUB
(A), M10X117 ASM PART: A = 8-97520-038-0 		1-09000-334-0 02 1 -
52 BOLT; CLIP,LEAF SPR,RR SUB
(B), IDN ASM PART: B = 8-97520-264-0, C = 8-97520-297-0 		8-97520-452-0 02 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
