Isuzu WW
▶
TRUCKS
▶
FTR
▶
10752 - FTR(IDN)WB3600/4200
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-60 - REAR SUSPENSION
▶

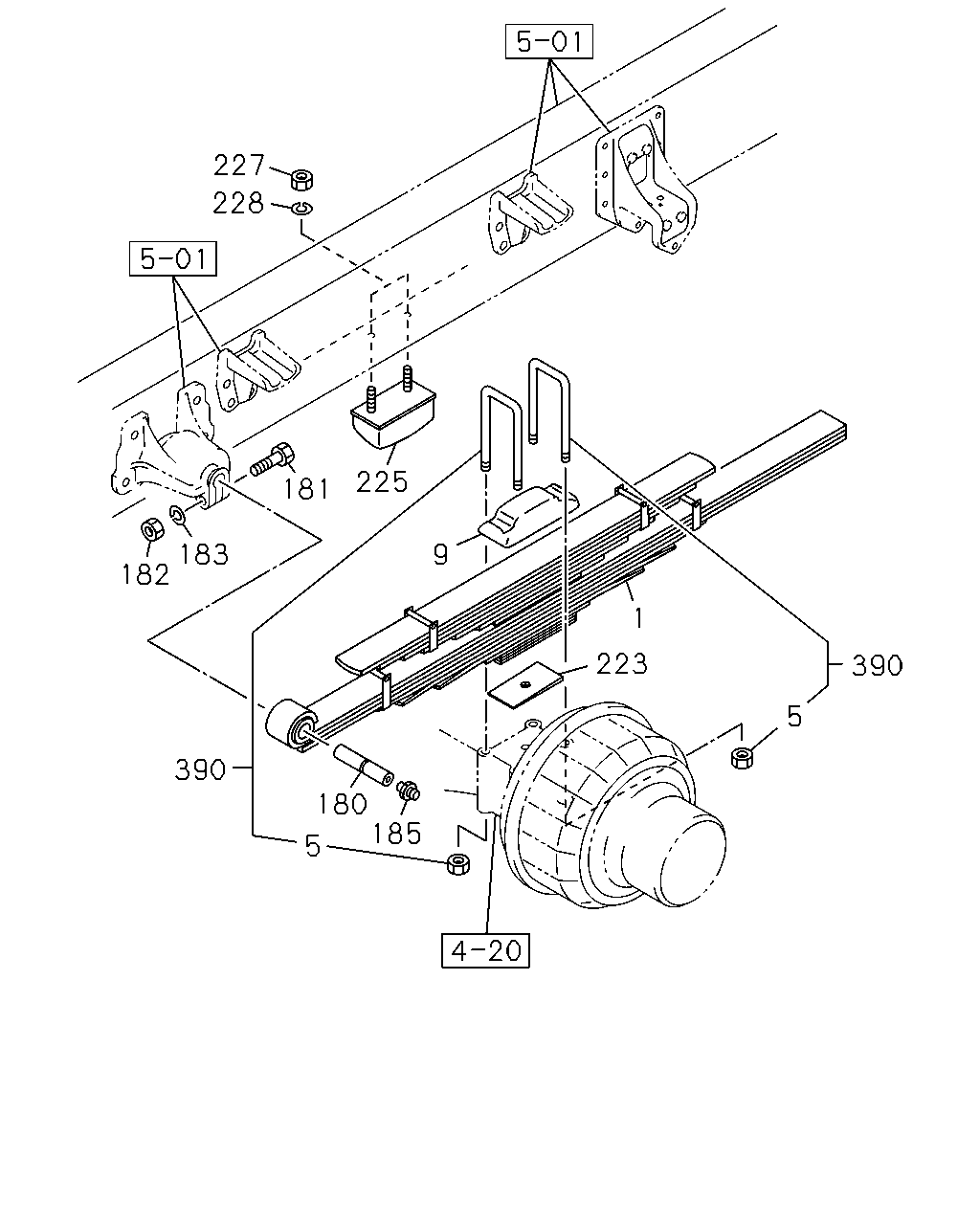

4-60 — REAR SUSPENSION
(#64403) — 27 parça
Tümü
A - FTR5MC
B - FTR5MF
227
228
225
181
183
182
9
1
223
390
5
390
180
185
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. PT.MUARATEWE SPRING IDN
8-97520-038-0
02
1
9707-
●
●
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. PT.INDOSPRING IDN
8-97520-180-0
02
1
9707-9708
●
●
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. PT.INDOSPRING IDN
8-97520-264-0
02
1
9709-9711
●
●
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. PT.INDOSPRING IDN
8-97520-297-0
02
1
9712-
●
●
5
NUT; U-BOLT,RR SPR
M24
9-99112-824-0
08
1
9707-0512
●
●
5
NUT; U-BOLT,RR SPR
M24
0-91112-824-0
08
1
0601-
●
●
9
PAD; U BOLT,RR SPR
1-51372-030-0
02
1
9707-
●
●
180
PIN; RR SPR
1-51361-020-0
02
1
9707-
●
●
181
BOLT; SPR & SHACKLE
M14X80
0-10806-480-0
02
1
9707-0512
●
●
181
BOLT; SPR & SHACKLE
M14X80
0-10856-480-0
02
1
0601-
●
●
182
NUT; PIN,RR SPR
M14
9-99110-414-0
02
1
9707-0512
●
●
182
NUT; PIN,RR SPR
M14
0-91110-514-0
02
1
0601-
●
●
183
WASHER; LK,PIN,RR SPR
ID=14.2
9-09150-514-0
02
1
9707-0603
●
●
183
WASHER; LK,PIN,RR SPR
ID=14.2
0-91510-514-0
02
1
0604-
●
●
185
NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT
9-09031-010-0
02
1
9707-0512
●
●
185
NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT
0-90301-410-0
02
1
0601-
●
●
223
SPACER; U BOLT,RR SPR
1-51377-131-0
02
1
9707-9803
●
223
SPACER; U BOLT,RR SPR
1-51377-368-1
02
1
9804-1212
●
223
SPACER; U BOLT,RR SPR
1-51377-344-0
02
1
9707-9803
●
223
SPACER; U BOLT,RR SPR
1-51377-371-1
02
1
9804-1212
●
225
RUBBER; CUSHION,RR SPR
1-53366-045-1
02
1
9707-
●
●
227
NUT; CUSHION RUBBER
M12 IDN
9-99110-512-0
04
1
9707-0512
●
●
227
NUT; CUSHION RUBBER
M12
0-91110-512-0
04
1
0601-
●
●
228
WASHER; LK,CUSHION RUBBER
ID=12.2
9-09150-512-0
04
1
9707-0603
●
●
228
WASHER; LK,CUSHION RUBBER
ID=12.2
0-91510-512-0
04
1
0604-
●
●
390
U-BOLT SET; RR SPRING
L=490 IDN
8-97520-469-0
04
1
9707-9711
●
●
390
U-BOLT SET; RR SPRING
L=490
8-97520-478-1
04
1
9712-
●
●
