4-50 — FRONT SUSPENSION (#64401) — 44 parça

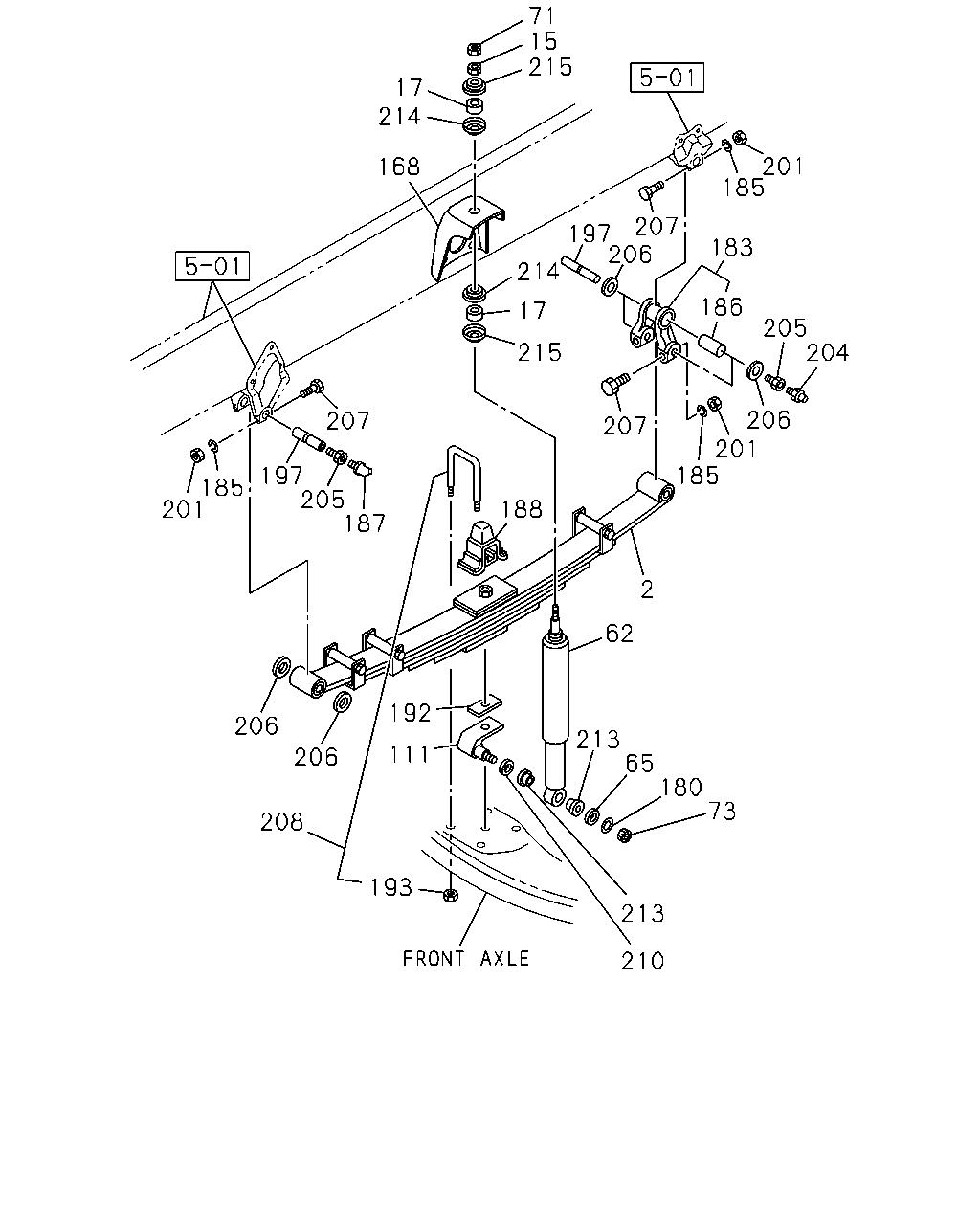

çizim 184920
71 15 215 17 214 201 185 168 207 197 206 183 214 186 17 205 204 215 206 201 185 207 207 197 205 187 185 201 188 2 62 192 206 213 65 180 73 111 206 208 193 213 210
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. PT.MUARATEWE SPRING IDN 		8-97520-025-0 02 1 9707- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. PT.INDOSPRING IDN 		8-97520-178-0 02 1 9707-9708 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. PT.INDOSPRING IDN 		8-97520-262-0 02 1 9709- ● ●
15 NUT; S/ABS,UPR
IDN 		8-97520-118-0 02 1 9707- ● ●
17 BUSHING; RUBBER,S/ABS
IDN 		8-97520-036-0 04 1 9707- ● ●
62 ABSORBER ASM; SHOCK,FRT
IDN 		8-97520-034-0 02 1 9707- ● ●
65 WASHER; S/ABS
ID=23 		1-51631-019-0 02 1 9707- ● ●
71 NUT; LK,S/ABS,UPR
IDN 		8-97520-118-0 02 1 9707- ● ●
73 NUT; BRKT,SHOCK
M16 IDN 		9-99110-416-0 02 1 9707-0512 ● ●
73 NUT; BRKT,SHOCK
M16 		0-91110-516-0 02 1 0601- ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-721-1 01 1 9707-1004 ● ●
111 SUPPORTER; S/ABS,FRT SUSP 8-98153-482-0 01 1 1005- ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-720-1 01 1 9707-1004 ● ●
111 SUPPORTER; S/ABS,FRT SUSP 8-98153-481-0 01 1 1005- ● ●
168 BRACKET; S/ABS,FRT SUSP
IDN 		8-97520-015-0 02 1 9707- ● ●
180 WASHER; PL,PIN
ID=17 		9-09160-516-0 02 1 9707-0605 ● ●
180 WASHER; PL,PIN
ID=17 OD=30 		0-91610-516-0 02 1 0606- ● ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 9707- ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 9707-0603 ● ●
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 12 1 0604- ● ●
186 BUSHING; SHACKLE
OD=38 IDN 		1-51351-009-0 02 1 9707-0902 ● ●
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 0903- ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 9707-0512 ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 0601- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-088-1 02 1 9707- ● ●
192 PIECE; DIST
IDN 		8-97520-027-0 01 1 9707- ● ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 9707-0512 ● ●
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 0601-1206 ● ●
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1207- ● ●
197 PIN; FRT SPR,FRT 1-51161-031-0 06 1 9707- ● ●
201 NUT; PIN LK
M12 IDN 		9-99110-512-0 12 1 9707-0512 ● ●
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 0601- ● ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		9-09031-010-0 04 1 9707-0512 ● ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		0-90301-410-0 04 1 0601- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 9707- ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 9707- ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 9707-0512 ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 12 1 0601- ● ●
208 U-BOLT SET; FRT SPRING
L=210 		8-97520-290-1 04 1 9707-1206 ● ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-507-0 04 1 1207- ● ●
210 WASHER; S/ABS,OUTER
ID=17 		1-51631-020-0 02 1 9707- ● ●
213 BUSHING; RUBBER,LWR
IDN 		8-97520-037-0 04 1 9707- ● ●
214 WASHER; S/ABS,UPR,INNER
IDN 		8-97520-103-0 04 1 9707- ● ●
215 WASHER; S/ABS,UPR,OUTER
IDN 		8-97520-102-0 04 1 9707- ● ●
