4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#64397) — 52 parça

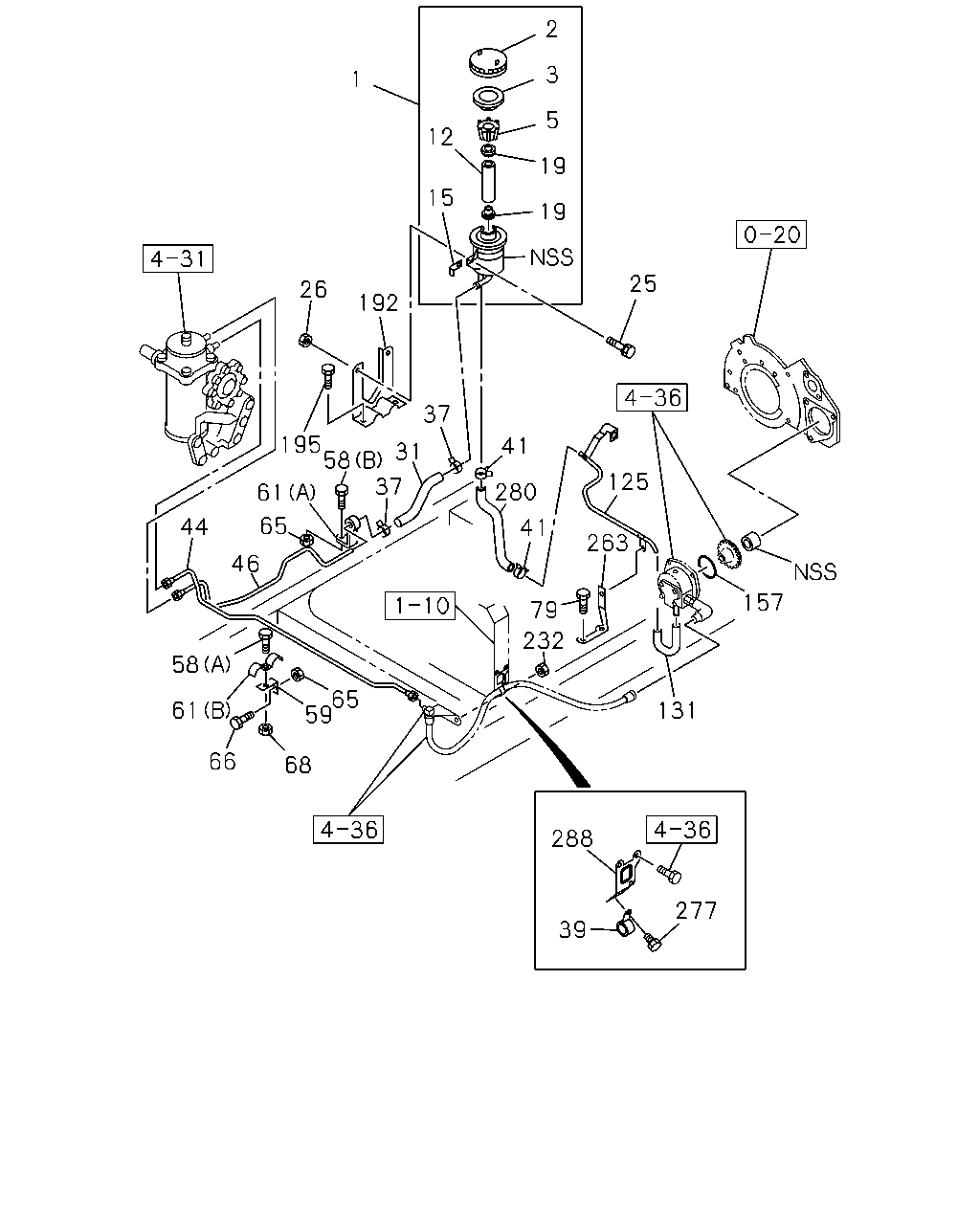

çizim 184918
2 3 1 5 12 19 15 19 25 26 192 37 195 58 37 41 31 125 280 61 65 44 41 263 46 157 79 232 58 65 59 61 131 66 68 288 277 39
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; OIL,P/S 1-21210-205-0 01 1 9707-0508 ● ●
1 TANK ASM; OIL,P/S 1-21210-238-1 01 1 0509-1006 ● ●
1 TANK ASM; OIL,P/S
IDN 		8-98166-928-0 01 1 1007- ● ●
2 CAP; OIL TANK,P/S 1-21241-004-4 01 1 9707-1006 ● ●
2 CAP; OIL TANK,P/S
IDN 		8-98166-876-0 01 1 1007- ● ●
3 GASKET; OIL TANK,P/S
IDN 		1-21249-003-1 01 1 9707- ● ●
5 STRAINER; OIL TANK,P/S
IDN 		1-21235-007-1 01 1 9707- ● ●
12 FILTER; MICROBON,OIL TANK,P/S
IDN 		1-21235-011-0 01 1 9707- ● ●
15 PLATE; FILTER,OIL TANK 1-21249-007-1 02 1 9707-0508 ● ●
15 PLATE; FILTER,OIL TANK
IDN 		1-21249-016-0 02 1 0509- ● ●
19 SEAT; OIL TANK
IDN 		1-21249-004-0 02 1 9707- ● ●
25 BOLT; OIL TANK BRKT
M8X25 FLANGE IDN 		0-28680-825-0 02 1 9707-0512 ● ●
25 BOLT; OIL TANK BRKT
M8X25 FLANGE IDN 		0-28650-825-0 02 1 0601- ● ●
26 NUT; OIL TANK TO BRKT
M8 FLANGE 		0-91150-108-0 02 1 9707-0602 ● ●
26 NUT; OIL TANK TO BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
31 HOSE; P/S OIL TANK,INL 1-21113-590-0 01 1 9707- ● ●
37 CLIP; HOSE,P/S
ID=26 		1-09704-082-0 02 1 9707- ● ●
39 CLIP; FLEX HOSE
ID=40 		8-94226-553-0 01 1 9707- ● ●
41 CLIP; HOSE,P/S
ID=32 		1-09704-085-0 02 1 9707- ● ●
44 PIPE; OIL,P/S UNIT TO NIPPLE 1-21115-358-0 01 1 9707- ● ●
46 PIPE; OIL,P/S UNIT TO OIL TANK 1-21115-144-0 01 1 9707- ● ●
58 BOLT; CLIP
(A) M8X20 FLANGE 		0-28080-820-0 01 1 9707-0512 ● ●
58 BOLT; CLIP
(A) M8X20 FLANGE 		0-28050-820-0 01 1 0601- ● ●
58 BOLT; CLIP
(B) M8X30 FLANGE 		0-28680-830-0 01 1 9707-0512 ● ●
58 BOLT; CLIP
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0601- ● ●
59 BRACKET; CLIP,OIL PIPE
L=60 		1-47475-455-0 01 1 9707- ● ●
61 CLIP; OIL PIPE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 9707- ● ●
61 CLIP; OIL PIPE
(B) ID=16 & 13 L=18 & 17 		1-09700-658-0 01 1 9707- ● ●
65 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9707-0602 ● ●
65 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
66 BOLT; BRKT,OIL PIPE
M8X25 FLANGE IDN 		0-28680-825-0 01 1 9707-0512 ● ●
66 BOLT; BRKT,OIL PIPE
M8X25 FLANGE IDN 		0-28650-825-0 01 1 0601- ● ●
68 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91150-108-0 01 1 9707-0602 ● ●
68 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
79 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 02 1 9707-0512 ● ●
79 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 0601- ● ●
125 CONNECTOR; P/S PUMP 8-94390-310-0 01 1 9707-9901 ● ●
125 CONNECTOR; P/S PUMP 8-97600-113-0 01 1 9902- ● ●
131 HOSE; RUBBER,P/S 8-94396-331-1 01 1 9707- ● ●
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4 		1-09623-178-0 01 1 9707- ● ●
192 BRACKET; P/S OIL TANK 1-21119-142-1 01 1 9707- ● ●
195 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 02 1 9707-0512 ● ●
195 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0601- ● ●
232 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9707-0602 ● ●
232 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
263 BRACKET; P/S PIPE 8-94393-981-0 01 1 9707-9901 ● ●
263 BRACKET; P/S PIPE 8-97600-117-0 01 1 9902- ● ●
277 BOLT; HOSE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9707-0512 ● ●
277 BOLT; HOSE CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
280 HOSE; P/S OIL PUMP,INL 1-21115-491-0 01 1 9707-0206 ● ●
280 HOSE; P/S OIL PUMP,INL 1-21116-721-0 01 1 0207- ● ●
288 BRACKET; CLIP,P/S 1-82659-149-0 01 1 9707- ● ●
