Sayfa 0-80C - Isuzu EPC

0-80C — INJECTION PUMP (#64395) — 555 parça

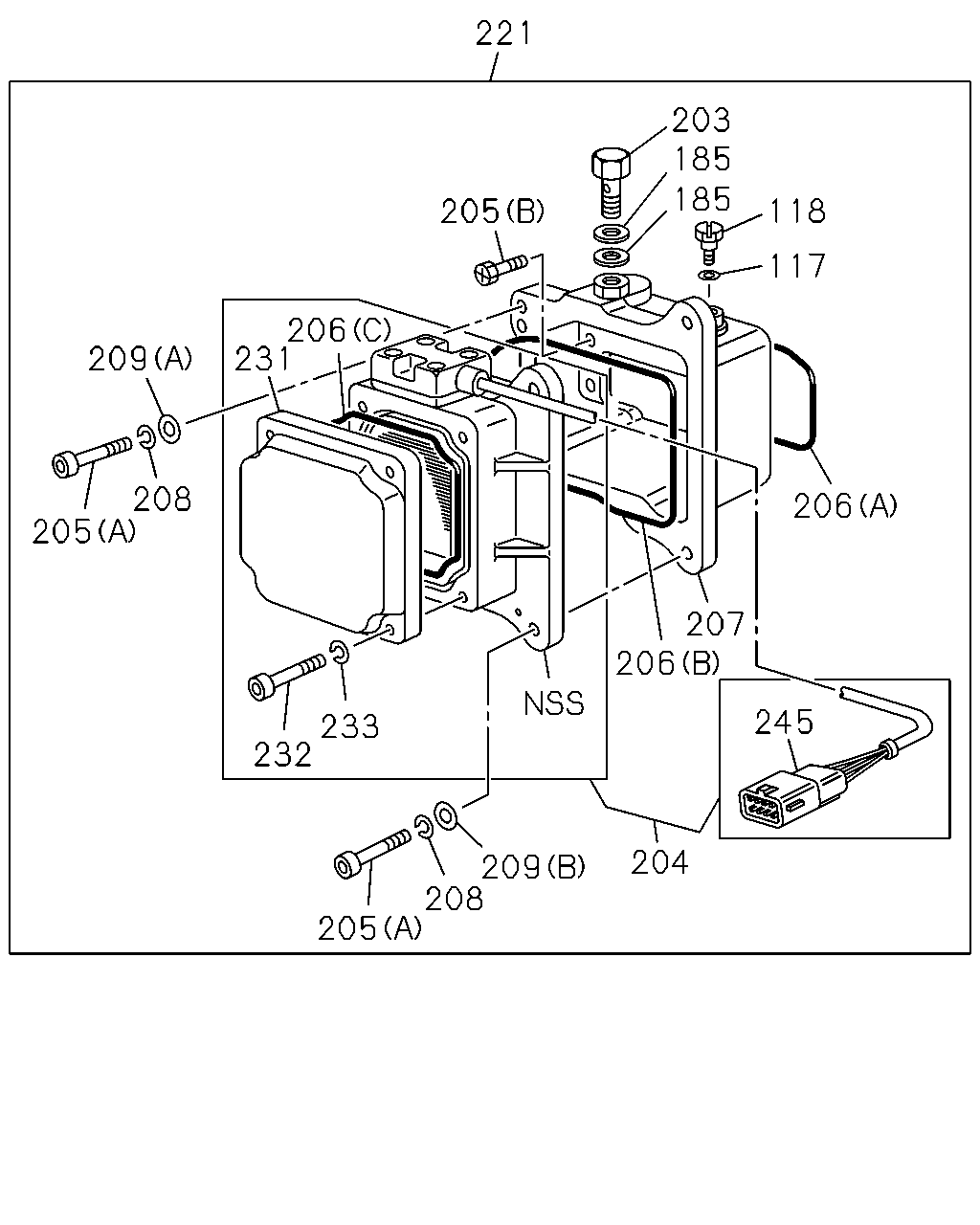

6 6 221 203 185 185 205 209 208 118 204 117 20 206 207 206 206 231 233 232 285 245 248 285 209 208 205

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15644-016-1	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15644-018-0	06	1	-
20	WASHER; PLUNGER BARREL ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-020-0	12	1	-
117	GASKET; EYE BOLT,INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	5-15729-099-0	01	1	-
118	BOLT; EYE,FUEL INL,INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	9-81215-148-0	01	1	-
185	GASKET; PLUG ID=14.2 OD=19.2 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-09630-085-0	02	1	-
203	BOLT; FUEL INL ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15759-011-0	01	1	-
204	ACTUATOR; INJ PUMP ASM PART: D = 8-94390-618-3	1-15612-064-0	01	1	-9806
204	ACTUATOR; INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15612-065-2	01	1	-
204	ACTUATOR; INJ PUMP ASM PART: E = 8-94392-231-8	1-15612-084-2	01	1	-0503
204	ACTUATOR; INJ PUMP ASM PART: D = 8-94390-618-3	1-15612-116-0	01	1	9807-
204	ACTUATOR; INJ PUMP ASM PART: F = 8-97600-665-4	1-15612-121-3	01	1	-
204	ACTUATOR; INJ PUMP ASM PART: E = 8-94392-231-8	1-15612-147-0	01	1	0504-
205	BOLT; ACTUATOR (A) ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-09054-032-0	04	1	-
205	BOLT; ACTUATOR (B) ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15619-348-0	04	1	-
205	BOLT; ACTUATOR (B) ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15619-348-0	06	1	-
206	GASKET; ACTUATOR (C) ASM PART: D = 8-94390-618-3	1-15619-379-0	01	1	-9806
206	GASKET; ACTUATOR (A) ASM PART: D = 8-94390-618-3	1-15619-438-0	01	1	-9806
206	GASKET; ACTUATOR (B) ASM PART: D = 8-94390-618-3	1-15619-439-0	01	1	-9806
206	GASKET; ACTUATOR (C) ASM PART: D = 8-94390-618-3	1-15629-140-0	01	1	9807-
206	GASKET; ACTUATOR (C) ASM PART: F = 8-97600-665-4	1-15629-140-0	01	1	-
206	GASKET; ACTUATOR (C) ASM PART: E = 8-94392-231-8	1-15629-140-0	01	1	-0503
206	GASKET; ACTUATOR (A) ASM PART: E = 8-94392-231-8	1-15629-141-0	01	1	-0503
206	GASKET; ACTUATOR (A) ASM PART: F = 8-97600-665-4	1-15629-141-0	01	1	-
206	GASKET; ACTUATOR (A) ASM PART: D = 8-94390-618-3	1-15629-141-0	01	1	9807-
206	GASKET; ACTUATOR (B) ASM PART: E = 8-94392-231-8	1-15629-143-0	01	1	-0503
206	GASKET; ACTUATOR (B) ASM PART: F = 8-97600-665-4	1-15629-143-0	01	1	-
206	GASKET; ACTUATOR (B) ASM PART: D = 8-94390-618-3	1-15629-143-0	01	1	9807-
206	GASKET; ACTUATOR (A) ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15629-145-0	01	1	-
206	GASKET; ACTUATOR (B) ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15629-146-0	01	1	-
206	GASKET; ACTUATOR (C) ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15629-147-0	01	1	-
206	GASKET; ACTUATOR (A) ASM PART: E = 8-94392-231-8	1-15629-157-0	01	1	0504-
206	GASKET; ACTUATOR (B) ASM PART: E = 8-94392-231-8	1-15629-158-0	01	1	0504-
206	GASKET; ACTUATOR (C) ASM PART: E = 8-94392-231-8	1-15629-160-0	01	1	0504-
207	HOUSING; ACTUATOR ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15611-177-1	01	1	-
207	HOUSING; ACTUATOR ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15611-192-0	01	1	-
208	WASHER; LK,ACTUATOR ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	8-94128-928-0	04	1	-
209	WASHER; PL,ACTUATOR (A) ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15619-351-0	01	1	-
209	WASHER; PL,ACTUATOR (B) ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15619-352-0	03	1	-
221	ACTUATOR ASM; INJ PUMP ASM PART: D = 8-94390-618-3	1-15612-062-0	01	1	-9806
221	ACTUATOR ASM; INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15612-066-1	01	1	-
221	ACTUATOR ASM; INJ PUMP ASM PART: E = 8-94392-231-8	1-15612-083-2	01	1	-0503
221	ACTUATOR ASM; INJ PUMP ASM PART: D = 8-94390-618-3	1-15612-117-0	01	1	9807-
221	ACTUATOR ASM; INJ PUMP ASM PART: F = 8-97600-665-4	1-15612-119-3	01	1	-
221	ACTUATOR ASM; INJ PUMP ASM PART: E = 8-94392-231-8	1-15612-146-0	01	1	0504-
231	COVER; ACTUATOR ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15619-378-0	01	1	-
231	COVER; ACTUATOR ASM PART: D = 8-94390-618-3	1-15619-440-0	01	1	-
231	COVER; ACTUATOR ASM PART: E = 8-94392-231-8, F = 8-97600-665-4	1-15619-460-0	01	1	-
232	BOLT; ACTUATOR COVER ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-09054-032-0	04	1	-
233	WASHER; ACTUATOR COVER ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	8-94128-928-0	04	1	-
245	HOUSING; SOCKET,INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15619-416-0	01	1	-
245	HOUSING; SOCKET,INJ PUMP ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15619-441-0	01	1	-
248	RING; SOCKET HOUSING,INJ PUMP ASM PART: D = 8-94390-618-3	1-15619-442-0	01	1	-
285	CLIP; COVER,INJ PUMP (A) ASM PART: E = 8-94392-231-8	1-15619-454-0	01	1	-
285	CLIP; COVER,INJ PUMP (B) ASM PART: E = 8-94392-231-8	1-15619-459-0	01	1	-

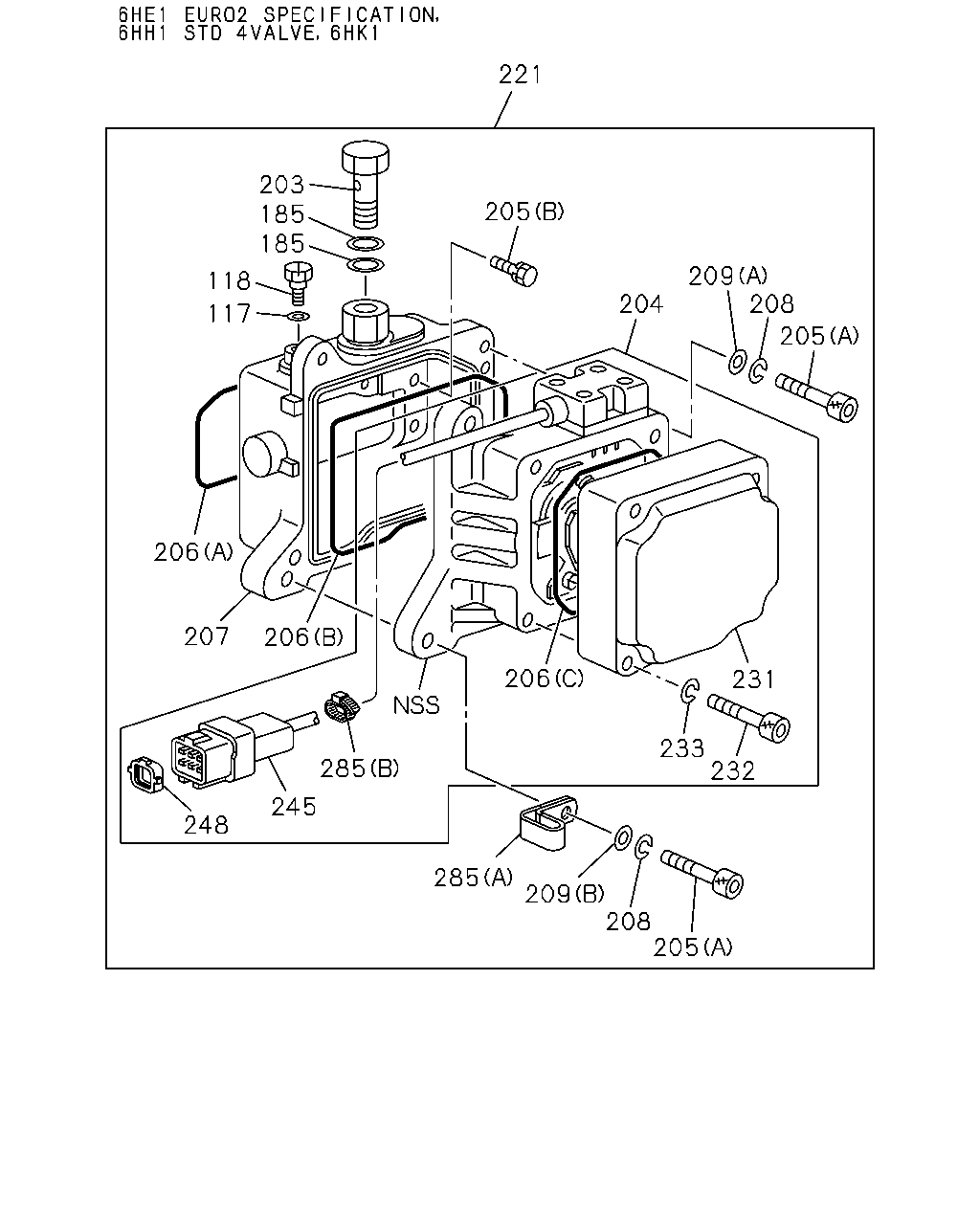

221 203 185 185 118 205 117 206 231 209 208 206 205 207 206 245 233 232 204 209 208 205

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
117	GASKET; EYE BOLT,INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	5-15729-099-0	01	1	-
118	BOLT; EYE,FUEL INL,INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	9-81215-148-0	01	1	-
185	GASKET; PLUG ID=14.2 OD=19.2 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-09630-085-0	02	1	-
203	BOLT; FUEL INL ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15759-011-0	01	1	-
204	ACTUATOR; INJ PUMP ASM PART: D = 8-94390-618-3	1-15612-064-0	01	1	-9806
204	ACTUATOR; INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15612-065-2	01	1	-
204	ACTUATOR; INJ PUMP ASM PART: E = 8-94392-231-8	1-15612-084-2	01	1	-0503
204	ACTUATOR; INJ PUMP ASM PART: D = 8-94390-618-3	1-15612-116-0	01	1	9807-
204	ACTUATOR; INJ PUMP ASM PART: F = 8-97600-665-4	1-15612-121-3	01	1	-
204	ACTUATOR; INJ PUMP ASM PART: E = 8-94392-231-8	1-15612-147-0	01	1	0504-
205	BOLT; ACTUATOR (A) ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-09054-032-0	04	1	-
205	BOLT; ACTUATOR (B) ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15619-348-0	04	1	-
205	BOLT; ACTUATOR (B) ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15619-348-0	06	1	-
206	GASKET; ACTUATOR (C) ASM PART: D = 8-94390-618-3	1-15619-379-0	01	1	-9806
206	GASKET; ACTUATOR (A) ASM PART: D = 8-94390-618-3	1-15619-438-0	01	1	-9806
206	GASKET; ACTUATOR (B) ASM PART: D = 8-94390-618-3	1-15619-439-0	01	1	-9806
206	GASKET; ACTUATOR (C) ASM PART: D = 8-94390-618-3	1-15629-140-0	01	1	9807-
206	GASKET; ACTUATOR (C) ASM PART: F = 8-97600-665-4	1-15629-140-0	01	1	-
206	GASKET; ACTUATOR (C) ASM PART: E = 8-94392-231-8	1-15629-140-0	01	1	-0503
206	GASKET; ACTUATOR (A) ASM PART: E = 8-94392-231-8	1-15629-141-0	01	1	-0503
206	GASKET; ACTUATOR (A) ASM PART: F = 8-97600-665-4	1-15629-141-0	01	1	-
206	GASKET; ACTUATOR (A) ASM PART: D = 8-94390-618-3	1-15629-141-0	01	1	9807-
206	GASKET; ACTUATOR (B) ASM PART: E = 8-94392-231-8	1-15629-143-0	01	1	-0503
206	GASKET; ACTUATOR (B) ASM PART: F = 8-97600-665-4	1-15629-143-0	01	1	-
206	GASKET; ACTUATOR (B) ASM PART: D = 8-94390-618-3	1-15629-143-0	01	1	9807-
206	GASKET; ACTUATOR (A) ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15629-145-0	01	1	-
206	GASKET; ACTUATOR (B) ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15629-146-0	01	1	-
206	GASKET; ACTUATOR (C) ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15629-147-0	01	1	-
206	GASKET; ACTUATOR (A) ASM PART: E = 8-94392-231-8	1-15629-157-0	01	1	0504-
206	GASKET; ACTUATOR (B) ASM PART: E = 8-94392-231-8	1-15629-158-0	01	1	0504-
206	GASKET; ACTUATOR (C) ASM PART: E = 8-94392-231-8	1-15629-160-0	01	1	0504-
207	HOUSING; ACTUATOR ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15611-177-1	01	1	-
207	HOUSING; ACTUATOR ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15611-192-0	01	1	-
208	WASHER; LK,ACTUATOR ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	8-94128-928-0	04	1	-
209	WASHER; PL,ACTUATOR (A) ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15619-351-0	01	1	-
209	WASHER; PL,ACTUATOR (B) ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15619-352-0	03	1	-
221	ACTUATOR ASM; INJ PUMP ASM PART: D = 8-94390-618-3	1-15612-062-0	01	1	-9806
221	ACTUATOR ASM; INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15612-066-1	01	1	-
221	ACTUATOR ASM; INJ PUMP ASM PART: E = 8-94392-231-8	1-15612-083-2	01	1	-0503
221	ACTUATOR ASM; INJ PUMP ASM PART: D = 8-94390-618-3	1-15612-117-0	01	1	9807-
221	ACTUATOR ASM; INJ PUMP ASM PART: F = 8-97600-665-4	1-15612-119-3	01	1	-
221	ACTUATOR ASM; INJ PUMP ASM PART: E = 8-94392-231-8	1-15612-146-0	01	1	0504-
231	COVER; ACTUATOR ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15619-378-0	01	1	-
231	COVER; ACTUATOR ASM PART: D = 8-94390-618-3	1-15619-440-0	01	1	-
231	COVER; ACTUATOR ASM PART: E = 8-94392-231-8, F = 8-97600-665-4	1-15619-460-0	01	1	-
232	BOLT; ACTUATOR COVER ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-09054-032-0	04	1	-
233	WASHER; ACTUATOR COVER ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	8-94128-928-0	04	1	-
245	HOUSING; SOCKET,INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15619-416-0	01	1	-
245	HOUSING; SOCKET,INJ PUMP ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15619-441-0	01	1	-

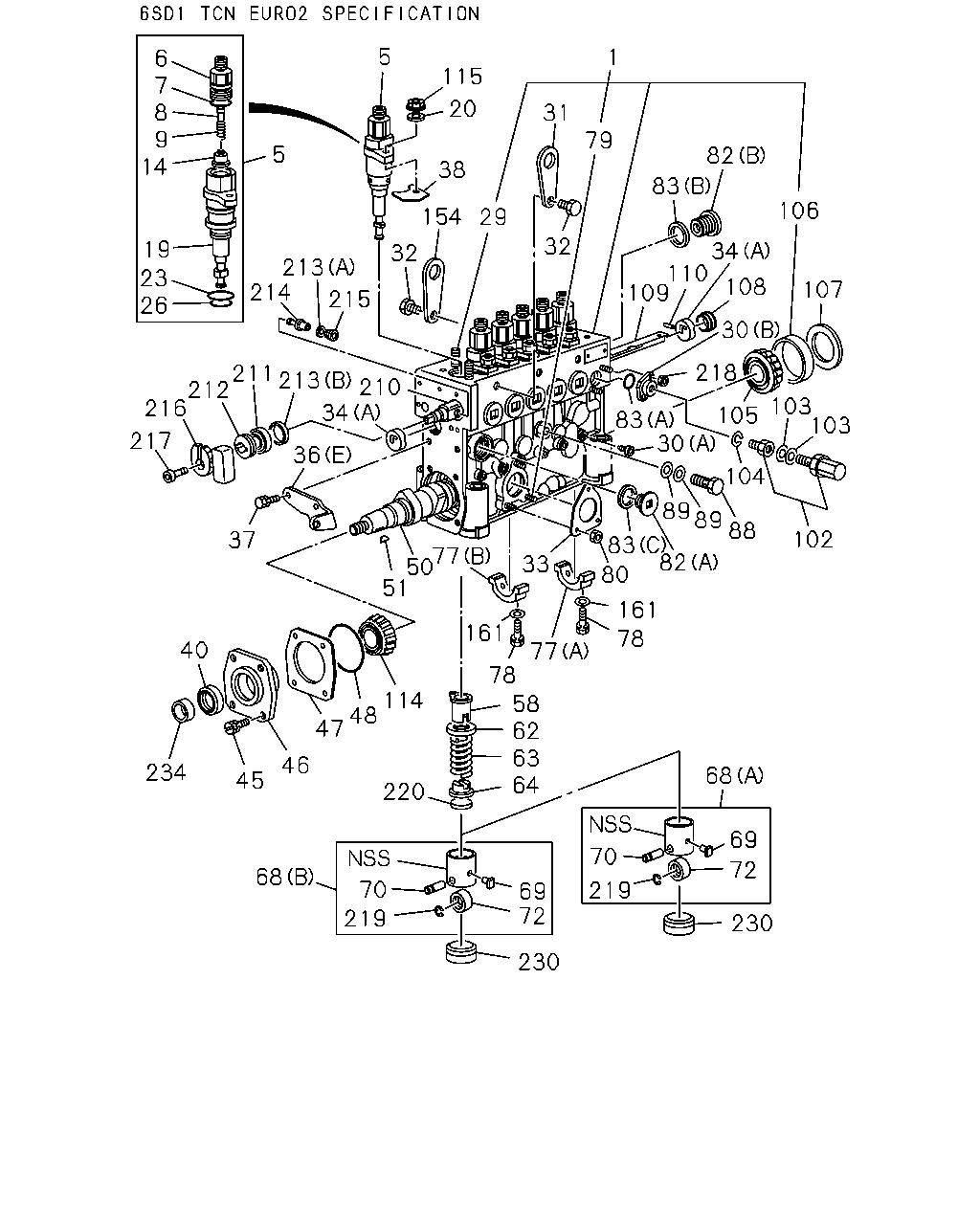

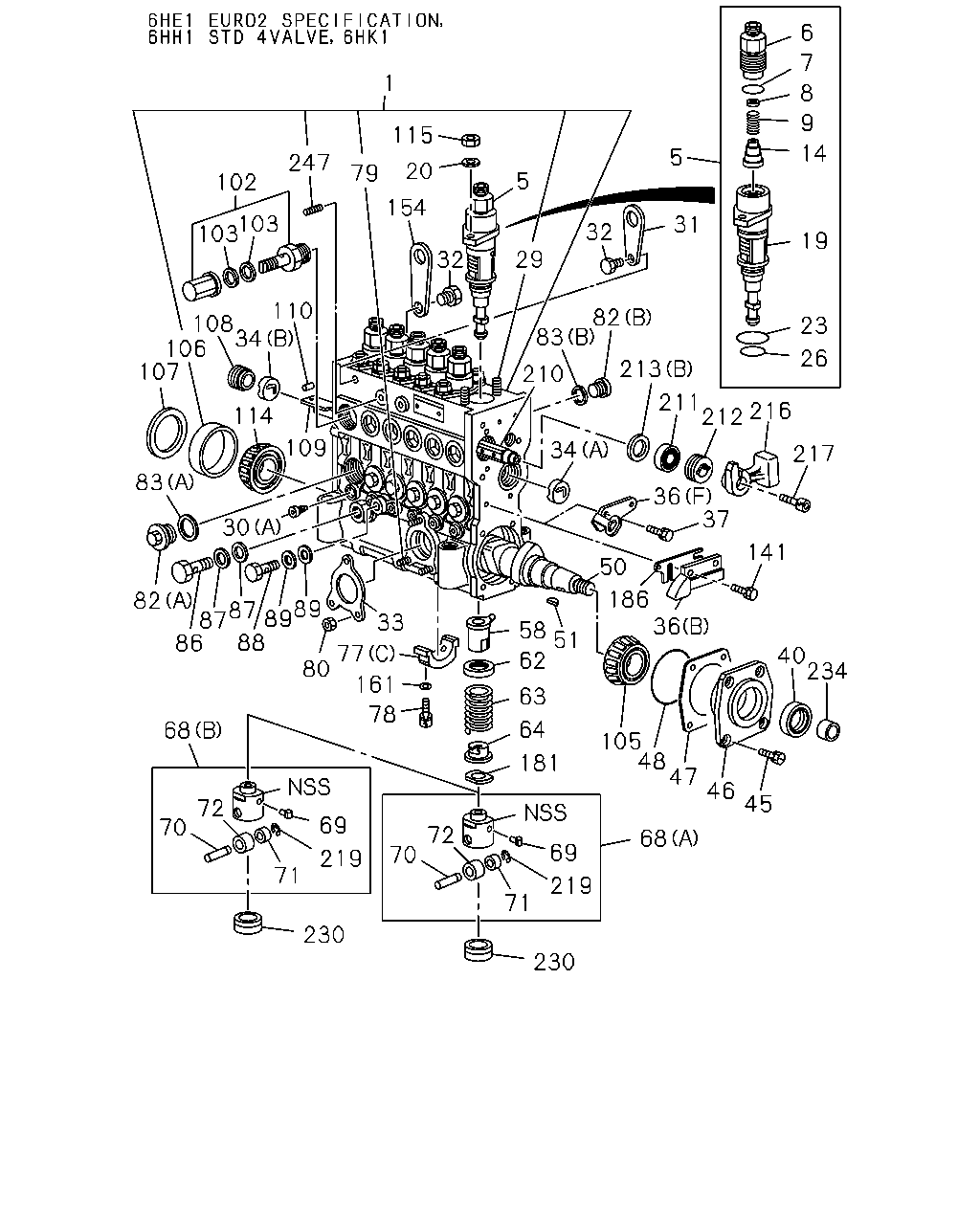

5 1 6 7 8 9 14 115 20 31 79 5 82 38 83 106 154 29 32 19 34 110 109 32 213 214 23 26 108 107 215 30 211 213 212 210 216 34 218 103 103 83 30 105 217 36 104 89 89 88 83 82 102 37 77 50 51 33 80 161 161 78 40 77 78 114 48 47 58 62 63 64 46 234 68 45 220 69 70 72 68 70 219 69 72 219 230 230

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; PUMP,FUEL INJ ASM PART: D = 8-94390-618-3	1-15611-191-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15611-193-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: E = 8-94392-231-8	1-15611-202-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: F = 8-97600-665-4	1-15611-212-0	01	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: D = 8-94390-618-3	1-15631-203-0	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15631-204-0	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: E = 8-94392-231-8	1-15631-212-0	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: F = 8-97600-665-4	1-15631-231-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15644-016-1	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15644-018-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: D = 8-94390-618-3	1-09623-052-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: E = 8-94392-231-8, F = 8-97600-665-4	1-15619-456-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15629-095-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-104-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15643-012-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15643-130-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: E = 8-94392-231-8, F = 8-97600-665-4	1-15619-453-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15641-041-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: D = 8-94390-618-3	1-15641-043-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15632-042-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: D = 8-94390-618-3	1-15632-044-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: E = 8-94392-231-8	1-15632-049-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: F = 8-97600-665-4	1-15632-066-0	06	1	-
20	WASHER; PLUNGER BARREL ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-020-0	12	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15629-096-0	06	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15629-131-0	06	1	-
26	GASKET; PLUNGER UPR ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15629-097-0	06	1	-
26	GASKET; PLUNGER UPR ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15629-132-0	06	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15619-328-0	12	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15619-426-0	12	1	-
30	PLUG; SCREW,INJ PUMP HSG (B) ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15619-345-0	01	1	-
30	PLUG; SCREW,INJ PUMP HSG (A) ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	9-81215-130-0	06	1	-
31	HANGER; FRT,INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, F = 8-97600-665-4	1-15619-347-0	01	1	-
32	BOLT; HANGER TO INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15789-098-0	02	1	-
32	BOLT; HANGER TO INJ PUMP ASM PART: F = 8-97600-665-4	9-02341-012-0	02	1	-
32	BOLT; HANGER TO INJ PUMP ASM PART: D = 8-94390-618-3, E = 8-94392-231-8	9-02341-012-0	01	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15619-320-0	01	1	-
34	BUSHING; CONT RACK,INJ PUMP (B) ASM PART: D = 8-94390-618-3, E = 8-94392-231-8	1-15619-429-0	01	1	-
34	BUSHING; CONT RACK,INJ PUMP (A) ASM PART: F = 8-97600-665-4	1-15619-493-0	01	1	-
34	BUSHING; CONT RACK,INJ PUMP (B) ASM PART: F = 8-97600-665-4	1-15619-510-0	01	1	-
34	BUSHING; CONT RACK,INJ PUMP (A) ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	9-81215-123-0	02	1	-
34	BUSHING; CONT RACK,INJ PUMP (A) ASM PART: D = 8-94390-618-3, E = 8-94392-231-8	9-81215-123-0	01	1	-
36	POINTER; TIMING,INJ PUMP (B) ASM PART: D = 8-94390-618-3, F = 8-97600-665-4	1-15619-304-0	01	1	-
36	POINTER; TIMING,INJ PUMP (E) ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15619-408-0	01	1	-
36	POINTER; TIMING,INJ PUMP (F) ASM PART: E = 8-94392-231-8	1-15619-452-0	01	1	-
37	BOLT; POINTER FIX,INJ PUMP ASM PART: B = 1-15603-264-3	5-15729-063-0	02	1	-0004
37	BOLT; POINTER FIX,INJ PUMP ASM PART: A = 1-15603-160-2	5-15729-063-0	02	1	-
37	BOLT; POINTER FIX,INJ PUMP M6X14 W/LK WASHER ASM PART: E = 8-94392-231-8	9-01900-614-0	02	1	-
37	BOLT; POINTER FIX,INJ PUMP M6X16 W/LK WASHER ASM PART: C = 1-15603-305-3	9-01900-616-0	02	1	-
37	BOLT; POINTER FIX,INJ PUMP M6X16 W/LK WASHER ASM PART: B = 1-15603-264-3	9-01900-616-0	02	1	0005-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.500 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-024-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.525 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-025-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.550 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-026-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.575 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-027-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.600 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-028-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.625 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-029-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.650 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-030-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.675 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-031-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.700 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-032-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.725 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-033-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.750 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-034-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.775 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-035-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.800 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-036-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.825 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-037-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.850 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-038-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.875 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-039-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.900 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-040-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.925 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-041-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.950 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-042-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.975 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-043-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.000 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-044-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.025 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-045-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.050 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-046-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.075 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-047-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.100 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-048-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.125 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-049-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.150 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-050-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.175 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-051-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.200 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-052-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.225 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-053-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.250 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-054-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.275 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-055-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.300 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-056-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.325 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-057-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.350 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-058-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.375 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-059-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.400 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-060-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.425 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-061-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.450 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-062-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.475 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-063-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.500 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-064-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.525 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-065-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.550 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-066-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.575 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-067-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.600 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-068-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.625 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-069-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.650 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-070-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.675 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-071-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.700 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-072-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.725 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-073-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.750 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-074-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.775 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-075-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.800 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-076-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.825 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-077-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.850 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-078-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.875 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-079-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.900 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-080-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.925 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-081-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.950 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-082-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.975 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-083-0	AR	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15629-100-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15749-498-0	01	1	-
45	BOLT; FRT COVER TO HSG ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15619-338-0	04	1	-
46	COVER; FRT,PUMP HSG ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15612-042-0	01	1	-
46	COVER; FRT,PUMP HSG ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15612-063-0	01	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.10 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-097-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.12 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-098-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.14 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-099-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.16 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-100-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.18 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-101-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.30 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-102-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.50 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-103-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.10 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-166-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.12 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-167-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.14 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-168-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.16 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-169-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.18 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-170-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.30 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-171-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.50 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-172-0	AR	1	-
48	GASKET; FRT COVER TO HSG ASM PART: E = 8-94392-231-8, F = 8-97600-665-4	1-15619-318-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15629-101-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: D = 8-94390-618-3	9-81215-128-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15621-103-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15621-116-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-09735-041-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15629-009-0	01	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15635-003-0	06	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15635-006-0	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15634-017-1	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15634-020-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15634-019-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15634-022-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15634-021-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15643-009-0	06	1	-
68	TAPPET; CM/SHF,INJ PUMP (B) ASM PART: B = 1-15603-264-3	1-15612-126-0	04	1	0005-
68	TAPPET; CM/SHF,INJ PUMP (B) ASM PART: C = 1-15603-305-3	1-15612-126-0	04	1	-
68	TAPPET; CM/SHF,INJ PUMP (A) ASM PART: B = 1-15603-264-3	1-15612-127-0	02	1	0005-
68	TAPPET; CM/SHF,INJ PUMP (A) ASM PART: C = 1-15603-305-3	1-15612-127-0	02	1	-
68	TAPPET; CM/SHF,INJ PUMP (A) ASM PART: A = 1-15603-160-2	1-15622-009-0	02	1	-
68	TAPPET; CM/SHF,INJ PUMP (A) ASM PART: B = 1-15603-264-3	1-15622-009-0	02	1	-0004
68	TAPPET; CM/SHF,INJ PUMP (B) ASM PART: A = 1-15603-160-2	1-15622-010-0	04	1	-
68	TAPPET; CM/SHF,INJ PUMP (B) ASM PART: B = 1-15603-264-3	1-15622-010-0	04	1	-0004
68	TAPPET; CM/SHF,INJ PUMP (A) ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15622-014-0	04	1	-
68	TAPPET; CM/SHF,INJ PUMP (B) ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15622-015-0	02	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15629-063-0	06	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15629-134-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15619-313-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15619-431-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15619-312-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15619-430-0	06	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (A) ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15619-396-0	01	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (B) ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15619-397-0	02	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (C) ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15619-433-0	03	1	-
78	BOLT; CENTER BRG,INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-09054-022-0	06	1	-
78	BOLT; CENTER BRG,INJ PUMP ASM PART: E = 8-94392-231-8, F = 8-97600-665-4	1-09054-030-0	06	1	-
78	BOLT; CENTER BRG,INJ PUMP ASM PART: D = 8-94390-618-3	1-15619-434-0	06	1	-
79	STUD; FUEL FEED PUMP TO HSG ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	9-81215-115-0	03	1	-
80	NUT; FUEL FEED PUMP FIX ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	8-94171-110-0	03	1	-
82	PLUG; HSG,INJ PUMP (B) ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15619-329-0	01	1	-
82	PLUG; HSG,INJ PUMP (A) ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15619-436-0	06	1	-
82	PLUG; HSG,INJ PUMP (B) ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15619-437-0	07	1	-
82	PLUG; HSG,INJ PUMP (A) ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	9-81215-129-0	01	1	-
83	GASKET; HSG PLUG (C) ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15619-067-0	01	1	-
83	GASKET; HSG PLUG (B) ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15619-102-0	07	1	-
83	GASKET; HSG PLUG (A) ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15629-102-0	01	1	-
83	GASKET; HSG PLUG (A) ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	5-15729-021-0	06	1	-
83	GASKET; HSG PLUG (B) ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	5-15729-022-0	01	1	-
88	BOLT; EYE,OIL FEED,INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15619-092-0	01	1	-
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15719-093-0	02	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: D = 8-94390-618-3	1-15619-363-0	01	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: E = 8-94392-231-8, F = 8-97600-665-4	1-15619-447-0	01	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15719-346-0	01	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-09630-085-0	02	1	-
104	GASKET; OVERFLOW VLV ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15729-850-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	9-81225-068-0	01	1	-
106	RING; HSG,INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	9-81225-064-0	01	1	-
107	SHIM; RR BEARING,CM/SHF T=0.60 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-019-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.60 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-105-0	01	1	-
107	SHIM; RR BEARING,CM/SHF T=1.50 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	9-81215-176-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.80 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	9-81215-177-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=2.00 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	9-81215-178-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.20 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	9-88410-441-0	AR	1	-
108	BUSHING; CONT RACK END,INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	9-81215-125-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: D = 8-94390-618-3	1-15637-033-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: A = 1-15603-160-2	1-15637-034-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: B = 1-15603-264-3, C = 1-15603-305-3	1-15637-040-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: E = 8-94392-231-8	1-15637-043-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: F = 8-97600-665-4	1-15637-055-0	01	1	-
110	PIN; CONT RACK,INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	9-88410-440-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15629-099-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	9-81225-068-0	01	1	-
115	NUT; PLUNGER FIX,INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15619-337-0	12	1	-
154	HANGER; RR,INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15619-347-0	01	1	-
161	GASKET; SCREW,CENTER BRG ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	5-15729-099-0	06	1	-
210	ROD; CONT ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15637-019-0	01	1	-
210	ROD; CONT ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15637-032-0	01	1	-
211	BEARING; CONT ROD ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15629-098-0	01	1	-
212	BUSHING; CONT ROD ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15619-330-0	01	1	-
213	WASHER; CONT ROD (A) ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15619-331-0	06	1	-
213	WASHER; CONT ROD (B) ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15619-336-0	01	1	-
214	PIN; CONT ROD ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15619-332-0	06	1	-
215	SCREW; CONT ROD ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15619-333-0	06	1	-
216	CONNECTOR; CONT ROD ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15619-334-0	01	1	-
216	CONNECTOR; CONT ROD ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15619-428-0	01	1	-
217	BOLT; CONT ROD ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15619-335-0	01	1	-
218	NUT; PLUG ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15619-344-0	02	1	-
219	RING; SNAP,ROLLER ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15619-314-0	06	1	-
219	RING; SNAP,ROLLER ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15619-432-0	06	1	-
220	SEAT; TAPPET ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15619-311-0	06	1	-
230	PLUG; TAPPET ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15619-388-0	06	1	-
230	PLUG; TAPPET ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15619-435-0	06	1	-
234	SLEEVE; FRT COVER ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15635-002-0	01	1	-
234	SLEEVE; FRT COVER ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15635-004-0	01	1	-

6 7 1 8 9 115 14 5 247 20 79 5 102 154 103 103 31 32 19 29 32 110 108 34 106 107 82 83 23 26 213 210 211 216 212 114 109 34 217 83 36 37 30 141 50 186 36 82 33 58 51 62 77 80 40 234 161 63 78 64 68 105 48 47 46 45 181 72 69 70 72 68 69 70 219 71 219 71 230 230 86 87 87 88 89 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; PUMP,FUEL INJ ASM PART: D = 8-94390-618-3	1-15611-191-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15611-193-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: E = 8-94392-231-8	1-15611-202-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: F = 8-97600-665-4	1-15611-212-0	01	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: D = 8-94390-618-3	1-15631-203-0	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15631-204-0	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: E = 8-94392-231-8	1-15631-212-0	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: F = 8-97600-665-4	1-15631-231-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15644-016-1	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15644-018-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: D = 8-94390-618-3	1-09623-052-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: E = 8-94392-231-8, F = 8-97600-665-4	1-15619-456-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15629-095-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-104-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15643-012-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15643-130-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: E = 8-94392-231-8, F = 8-97600-665-4	1-15619-453-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15641-041-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: D = 8-94390-618-3	1-15641-043-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15632-042-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: D = 8-94390-618-3	1-15632-044-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: E = 8-94392-231-8	1-15632-049-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: F = 8-97600-665-4	1-15632-066-0	06	1	-
20	WASHER; PLUNGER BARREL ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-020-0	12	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15629-096-0	06	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15629-131-0	06	1	-
26	GASKET; PLUNGER UPR ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15629-097-0	06	1	-
26	GASKET; PLUNGER UPR ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15629-132-0	06	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15619-328-0	12	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15619-426-0	12	1	-
30	PLUG; SCREW,INJ PUMP HSG (B) ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15619-345-0	01	1	-
30	PLUG; SCREW,INJ PUMP HSG (A) ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	9-81215-130-0	06	1	-
31	HANGER; FRT,INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, F = 8-97600-665-4	1-15619-347-0	01	1	-
32	BOLT; HANGER TO INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15789-098-0	02	1	-
32	BOLT; HANGER TO INJ PUMP ASM PART: F = 8-97600-665-4	9-02341-012-0	02	1	-
32	BOLT; HANGER TO INJ PUMP ASM PART: D = 8-94390-618-3, E = 8-94392-231-8	9-02341-012-0	01	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15619-320-0	01	1	-
34	BUSHING; CONT RACK,INJ PUMP (B) ASM PART: D = 8-94390-618-3, E = 8-94392-231-8	1-15619-429-0	01	1	-
34	BUSHING; CONT RACK,INJ PUMP (A) ASM PART: F = 8-97600-665-4	1-15619-493-0	01	1	-
34	BUSHING; CONT RACK,INJ PUMP (B) ASM PART: F = 8-97600-665-4	1-15619-510-0	01	1	-
34	BUSHING; CONT RACK,INJ PUMP (A) ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	9-81215-123-0	02	1	-
34	BUSHING; CONT RACK,INJ PUMP (A) ASM PART: D = 8-94390-618-3, E = 8-94392-231-8	9-81215-123-0	01	1	-
36	POINTER; TIMING,INJ PUMP (B) ASM PART: D = 8-94390-618-3, F = 8-97600-665-4	1-15619-304-0	01	1	-
36	POINTER; TIMING,INJ PUMP (E) ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15619-408-0	01	1	-
36	POINTER; TIMING,INJ PUMP (F) ASM PART: E = 8-94392-231-8	1-15619-452-0	01	1	-
37	BOLT; POINTER FIX,INJ PUMP ASM PART: B = 1-15603-264-3	5-15729-063-0	02	1	-0004
37	BOLT; POINTER FIX,INJ PUMP ASM PART: A = 1-15603-160-2	5-15729-063-0	02	1	-
37	BOLT; POINTER FIX,INJ PUMP M6X14 W/LK WASHER ASM PART: E = 8-94392-231-8	9-01900-614-0	02	1	-
37	BOLT; POINTER FIX,INJ PUMP M6X16 W/LK WASHER ASM PART: C = 1-15603-305-3	9-01900-616-0	02	1	-
37	BOLT; POINTER FIX,INJ PUMP M6X16 W/LK WASHER ASM PART: B = 1-15603-264-3	9-01900-616-0	02	1	0005-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15629-100-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15749-498-0	01	1	-
45	BOLT; FRT COVER TO HSG ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15619-338-0	04	1	-
46	COVER; FRT,PUMP HSG ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15612-042-0	01	1	-
46	COVER; FRT,PUMP HSG ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15612-063-0	01	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.10 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-097-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.12 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-098-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.14 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-099-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.16 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-100-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.18 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-101-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.30 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-102-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.50 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-103-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.10 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-166-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.12 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-167-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.14 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-168-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.16 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-169-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.18 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-170-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.30 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-171-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.50 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-172-0	AR	1	-
48	GASKET; FRT COVER TO HSG ASM PART: E = 8-94392-231-8, F = 8-97600-665-4	1-15619-318-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15629-101-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: D = 8-94390-618-3	9-81215-128-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15621-103-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15621-116-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-09735-041-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15629-009-0	01	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15635-003-0	06	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15635-006-0	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15634-017-1	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15634-020-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15634-019-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15634-022-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15634-021-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15643-009-0	06	1	-
68	TAPPET; CM/SHF,INJ PUMP (B) ASM PART: B = 1-15603-264-3	1-15612-126-0	04	1	0005-
68	TAPPET; CM/SHF,INJ PUMP (B) ASM PART: C = 1-15603-305-3	1-15612-126-0	04	1	-
68	TAPPET; CM/SHF,INJ PUMP (A) ASM PART: B = 1-15603-264-3	1-15612-127-0	02	1	0005-
68	TAPPET; CM/SHF,INJ PUMP (A) ASM PART: C = 1-15603-305-3	1-15612-127-0	02	1	-
68	TAPPET; CM/SHF,INJ PUMP (A) ASM PART: A = 1-15603-160-2	1-15622-009-0	02	1	-
68	TAPPET; CM/SHF,INJ PUMP (A) ASM PART: B = 1-15603-264-3	1-15622-009-0	02	1	-0004
68	TAPPET; CM/SHF,INJ PUMP (B) ASM PART: A = 1-15603-160-2	1-15622-010-0	04	1	-
68	TAPPET; CM/SHF,INJ PUMP (B) ASM PART: B = 1-15603-264-3	1-15622-010-0	04	1	-0004
68	TAPPET; CM/SHF,INJ PUMP (A) ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15622-014-0	04	1	-
68	TAPPET; CM/SHF,INJ PUMP (B) ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15622-015-0	02	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15629-063-0	06	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15629-134-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15619-313-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15619-431-0	06	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15629-133-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15619-312-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15619-430-0	06	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (A) ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15619-396-0	01	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (B) ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15619-397-0	02	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (C) ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15619-433-0	03	1	-
78	BOLT; CENTER BRG,INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-09054-022-0	06	1	-
78	BOLT; CENTER BRG,INJ PUMP ASM PART: E = 8-94392-231-8, F = 8-97600-665-4	1-09054-030-0	06	1	-
78	BOLT; CENTER BRG,INJ PUMP ASM PART: D = 8-94390-618-3	1-15619-434-0	06	1	-
79	STUD; FUEL FEED PUMP TO HSG ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	9-81215-115-0	03	1	-
80	NUT; FUEL FEED PUMP FIX ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	8-94171-110-0	03	1	-
82	PLUG; HSG,INJ PUMP (B) ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15619-329-0	01	1	-
82	PLUG; HSG,INJ PUMP (A) ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15619-436-0	06	1	-
82	PLUG; HSG,INJ PUMP (B) ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15619-437-0	07	1	-
82	PLUG; HSG,INJ PUMP (A) ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	9-81215-129-0	01	1	-
83	GASKET; HSG PLUG (C) ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15619-067-0	01	1	-
83	GASKET; HSG PLUG (B) ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15619-102-0	07	1	-
83	GASKET; HSG PLUG (A) ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15629-102-0	01	1	-
83	GASKET; HSG PLUG (A) ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	5-15729-021-0	06	1	-
83	GASKET; HSG PLUG (B) ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	5-15729-022-0	01	1	-
86	BOLT; EYE,OIL RETURN,INJ PUMP ASM PART: D = 8-94390-618-3	1-15619-309-0	01	1	-
86	BOLT; EYE,OIL RETURN,INJ PUMP ASM PART: E = 8-94392-231-8, F = 8-97600-665-4	1-15619-457-0	01	1	-
87	GASKET; OIL RETURN BOLT,INJ PUMP ID=14.2 OD=19.2 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-09630-085-0	02	1	-
88	BOLT; EYE,OIL FEED,INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15619-092-0	01	1	-
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15719-093-0	02	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: D = 8-94390-618-3	1-15619-363-0	01	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: E = 8-94392-231-8, F = 8-97600-665-4	1-15619-447-0	01	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15719-346-0	01	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-09630-085-0	02	1	-
105	BEARING; CM/SHF RR,INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	9-81225-068-0	01	1	-
106	RING; HSG,INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	9-81225-064-0	01	1	-
107	SHIM; RR BEARING,CM/SHF T=0.60 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-019-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.60 ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15639-105-0	01	1	-
107	SHIM; RR BEARING,CM/SHF T=1.50 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	9-81215-176-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.80 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	9-81215-177-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=2.00 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	9-81215-178-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.20 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	9-88410-441-0	AR	1	-
108	BUSHING; CONT RACK END,INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	9-81215-125-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: D = 8-94390-618-3	1-15637-033-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: A = 1-15603-160-2	1-15637-034-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: B = 1-15603-264-3, C = 1-15603-305-3	1-15637-040-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: E = 8-94392-231-8	1-15637-043-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: F = 8-97600-665-4	1-15637-055-0	01	1	-
110	PIN; CONT RACK,INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	9-88410-440-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15629-099-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	9-81225-068-0	01	1	-
115	NUT; PLUNGER FIX,INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15619-337-0	12	1	-
141	BOLT; POINTER ASM PART: D = 8-94390-618-3, F = 8-97600-665-4	1-15729-758-0	02	1	-
154	HANGER; RR,INJ PUMP ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15619-347-0	01	1	-
161	GASKET; SCREW,CENTER BRG ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	5-15729-099-0	06	1	-
181	SHIM; TAPPET,INJ PUMP T=0.500 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-106-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.525 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-107-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.550 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-108-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.575 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-109-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.600 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-110-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.625 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-111-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.650 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-112-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.675 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-113-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.700 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-114-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.725 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-115-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.750 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-116-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.775 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-117-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.800 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-118-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.825 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-119-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.850 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-120-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.875 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-121-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.900 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-122-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.925 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-123-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.950 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-124-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.975 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-125-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.000 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-126-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.025 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-127-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.050 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-128-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.075 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-129-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.100 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-130-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.125 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-131-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.150 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-132-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.175 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-133-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.200 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-134-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.225 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-135-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.250 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-136-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.275 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-137-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.300 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-138-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.325 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-139-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.350 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-140-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.375 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-141-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.400 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-142-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.425 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-143-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.450 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-144-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.475 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-145-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.500 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-146-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.525 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-147-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.550 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-148-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.575 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-149-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.600 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-150-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.625 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-151-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.650 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-152-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.675 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-153-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.700 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-154-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.725 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-155-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.750 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-156-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.775 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-157-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.800 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-158-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.825 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-159-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.850 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-160-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.875 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-161-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.900 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-162-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.925 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-163-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.950 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-164-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.975 ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15639-165-0	AR	1	-
186	SHIM; POINTER T=0.20 ASM PART: D = 8-94390-618-3, F = 8-97600-665-4	1-15639-093-0	AR	1	-
186	SHIM; POINTER T=0.30 ASM PART: D = 8-94390-618-3, F = 8-97600-665-4	1-15639-094-0	AR	1	-
186	SHIM; POINTER T=0.50 ASM PART: D = 8-94390-618-3, F = 8-97600-665-4	1-15639-095-0	AR	1	-
186	SHIM; POINTER T=1.00 ASM PART: D = 8-94390-618-3, F = 8-97600-665-4	1-15639-096-0	AR	1	-
210	ROD; CONT ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15637-019-0	01	1	-
210	ROD; CONT ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15637-032-0	01	1	-
211	BEARING; CONT ROD ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15629-098-0	01	1	-
212	BUSHING; CONT ROD ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15619-330-0	01	1	-
213	WASHER; CONT ROD (A) ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15619-331-0	06	1	-
213	WASHER; CONT ROD (B) ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15619-336-0	01	1	-
216	CONNECTOR; CONT ROD ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15619-334-0	01	1	-
216	CONNECTOR; CONT ROD ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15619-428-0	01	1	-
217	BOLT; CONT ROD ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3, D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15619-335-0	01	1	-
219	RING; SNAP,ROLLER ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15619-314-0	06	1	-
219	RING; SNAP,ROLLER ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15619-432-0	06	1	-
230	PLUG; TAPPET ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15619-388-0	06	1	-
230	PLUG; TAPPET ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15619-435-0	06	1	-
234	SLEEVE; FRT COVER ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15635-002-0	01	1	-
234	SLEEVE; FRT COVER ASM PART: A = 1-15603-160-2, B = 1-15603-264-3, C = 1-15603-305-3	1-15635-004-0	01	1	-
247	STUD; HOUSING,INJ PUMP ASM PART: D = 8-94390-618-3, E = 8-94392-231-8, F = 8-97600-665-4	1-15619-427-0	02	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
