1 |

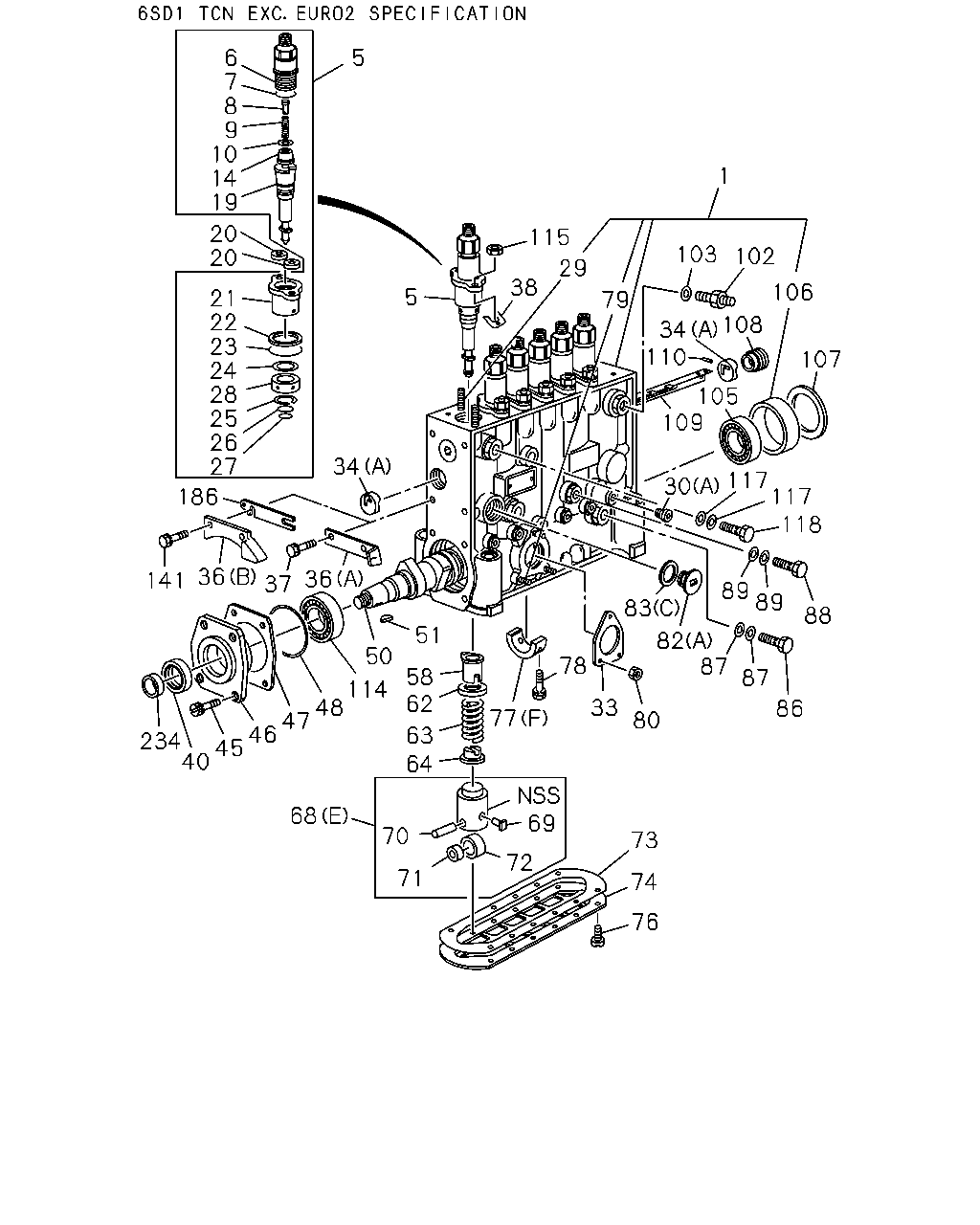

HOUSING; PUMP,FUEL INJ
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15611-178-0 |
01 |
1 |
- |
| |
5 |
PLUNGER COMPL; INJ PUMP
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0
|
1-15631-185-0 |
06 |
1 |
- |
| |
5 |
PLUNGER COMPL; INJ PUMP
ASM PART: E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
K = 1-15603-217-1
|
1-15631-197-0 |
06 |
1 |
- |
| |
5 |
PLUNGER COMPL; INJ PUMP
ASM PART: I = 1-15603-214-4, J = 1-15603-215-4
|
1-15631-197-0 |
06 |
1 |
-9705 |
| |
5 |
PLUNGER COMPL; INJ PUMP
ASM PART: L = 1-15603-246-3, M = 1-15603-257-3,
N = 1-15603-258-3
|
1-15631-207-2 |
06 |
1 |
- |
| |
5 |
PLUNGER COMPL; INJ PUMP
ASM PART: I = 1-15603-214-4, J = 1-15603-215-4
|
1-15631-207-2 |
06 |
1 |
9706- |
| |
6 |
HOLDER; DELIVERY VLV,INJ PUMP
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15644-012-0 |
06 |
1 |
- |
| |
7 |
GASKET; HOLDER,DELIVERY VLV
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15629-088-0 |
06 |
1 |
- |
| |
8 |
STOPPER; DELIVERY VLV,INJ PUMP
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-084-0 |
06 |
1 |
- |
| |
9 |
SPRING; DELIVERY VLV
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15723-273-0 |
06 |
1 |
- |
| |
10 |
GASKET; DELIVERY VLV,INJ PUMP
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
9-81215-174-0 |
06 |
1 |
- |
| |
14 |
VALVE; DELIVERY,INJ PUMP
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15641-035-0 |
06 |
1 |
- |
| |
19 |
PLUNGER ASM; INJ PUMP
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
K = 1-15603-217-1
|
1-15632-028-0 |
06 |
1 |
- |
| |
19 |
PLUNGER ASM; INJ PUMP
ASM PART: I = 1-15603-214-4, J = 1-15603-215-4
|
1-15632-028-0 |
06 |
1 |
-9705 |
| |
19 |
PLUNGER ASM; INJ PUMP
ASM PART: I = 1-15603-214-4, J = 1-15603-215-4
|
1-15632-045-0 |
06 |
1 |
9706- |
| |
19 |
PLUNGER ASM; INJ PUMP
ASM PART: L = 1-15603-246-3, M = 1-15603-257-3,
N = 1-15603-258-3
|
1-15632-045-0 |
06 |
1 |
- |
| |
20 |
WASHER; PLUNGER BARREL
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-020-0 |
12 |
1 |
- |
| |
21 |
FLANGE; PLUNGER
ASM PART: I = 1-15603-214-4, J = 1-15603-215-4,
L = 1-15603-246-3, M = 1-15603-257-3,
N = 1-15603-258-3
|
1-15742-082-0 |
06 |
1 |
-9803 |
| |
21 |
FLANGE; PLUNGER
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
K = 1-15603-217-1
|
1-15742-082-0 |
06 |
1 |
- |
| |
21 |
FLANGE; PLUNGER
ASM PART: I = 1-15603-214-4, J = 1-15603-215-4,
L = 1-15603-246-3, M = 1-15603-257-3,
N = 1-15603-258-3
|
1-15742-141-0 |
06 |
1 |
9804- |
| |
22 |
RING; PLUNGER,INJ PUMP
ASM PART: I = 1-15603-214-4, J = 1-15603-215-4,
L = 1-15603-246-3, M = 1-15603-257-3,
N = 1-15603-258-3
|
1-15649-008-0 |
06 |
1 |
-9803 |
| |
22 |
RING; PLUNGER,INJ PUMP
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
K = 1-15603-217-1
|
1-15649-008-0 |
06 |
1 |
- |
| |
23 |
GASKET; PLUNGER,BARREL SIDE
ASM PART: I = 1-15603-214-4, J = 1-15603-215-4,
L = 1-15603-246-3, M = 1-15603-257-3,
N = 1-15603-258-3
|
1-15619-449-0 |
06 |
1 |
9804- |
| |
23 |
GASKET; PLUNGER,BARREL SIDE
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
K = 1-15603-217-1
|
1-15629-089-0 |
06 |
1 |
- |
| |
23 |
GASKET; PLUNGER,BARREL SIDE
ASM PART: I = 1-15603-214-4, J = 1-15603-215-4,
L = 1-15603-246-3, M = 1-15603-257-3,
N = 1-15603-258-3
|
1-15629-089-0 |
06 |
1 |
-9803 |
| |
24 |
WASHER; PLUNGER,INJ PUMP
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
9-88410-430-0 |
06 |
1 |
- |
| |
25 |
RING; SNAP
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
9-88410-431-0 |
06 |
1 |
- |
| |
26 |
GASKET; PLUNGER UPR
ASM PART: L = 1-15603-246-3, M = 1-15603-257-3,
N = 1-15603-258-3
|
1-15619-424-0 |
06 |
1 |
- |
| |
26 |
GASKET; PLUNGER UPR
ASM PART: I = 1-15603-214-4, J = 1-15603-215-4
|
1-15619-424-0 |
06 |
1 |
9706- |
| |
26 |
GASKET; PLUNGER UPR
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0
|
1-15629-090-0 |
06 |
1 |
- |
| |
26 |
GASKET; PLUNGER UPR
ASM PART: I = 1-15603-214-4, J = 1-15603-215-4
|
1-15629-113-0 |
06 |
1 |
-9705 |
| |
26 |
GASKET; PLUNGER UPR
ASM PART: E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
K = 1-15603-217-1
|
1-15629-113-0 |
06 |
1 |
- |
| |
27 |
GASKET; PLUNGER LWR
ASM PART: L = 1-15603-246-3, M = 1-15603-257-3,
N = 1-15603-258-3
|
1-15619-424-0 |
06 |
1 |
- |
| |
27 |
GASKET; PLUNGER LWR
ASM PART: I = 1-15603-214-4, J = 1-15603-215-4
|
1-15619-424-0 |
06 |
1 |
9706- |
| |
27 |
GASKET; PLUNGER LWR
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0
|
1-15629-090-0 |
06 |
1 |
- |
| |
27 |
GASKET; PLUNGER LWR
ASM PART: I = 1-15603-214-4, J = 1-15603-215-4
|
1-15629-113-0 |
06 |
1 |
-9705 |
| |
27 |
GASKET; PLUNGER LWR
ASM PART: E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
K = 1-15603-217-1
|
1-15629-113-0 |
06 |
1 |
- |
| |
28 |
DEFLECTOR; PLUNGER
ASM PART: E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15629-093-0 |
06 |
1 |
- |
| |
28 |
DEFLECTOR; PLUNGER
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0
|
1-15639-086-0 |
06 |
1 |
- |
| |
29 |
STUD; PLUNGER FIX,PUMP HSG
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
9-88410-432-0 |
12 |
1 |
- |
| |
30 |
PLUG; SCREW,INJ PUMP HSG
(A) ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
9-81215-130-0 |
06 |
1 |
- |
| |
33 |
GASKET; FUEL FEED PUMP,INJ PUMP
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15619-320-0 |
01 |
1 |
- |
| |
34 |
BUSHING; CONT RACK,INJ PUMP
(A) ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
9-81215-123-0 |
02 |
1 |
- |
| |
36 |
POINTER; TIMING,INJ PUMP
(A) ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0
|
1-15619-085-0 |
01 |
1 |
- |
| |
36 |
POINTER; TIMING,INJ PUMP
(B) ASM PART: E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15619-417-0 |
01 |
1 |
- |
| |
37 |
BOLT; POINTER FIX,INJ PUMP
M6X12 W/LK WASHER
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0
|
9-01910-612-0 |
02 |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=0.500
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-024-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=0.525
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-025-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=0.550
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-026-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=0.575
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-027-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=0.600
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-028-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=0.625
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-029-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=0.650
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-030-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=0.675
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-031-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=0.700
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-032-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=0.725
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-033-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=0.750
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-034-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=0.775
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-035-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=0.800
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-036-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=0.825
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-037-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=0.850
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-038-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=0.875
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-039-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=0.900
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-040-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=0.925
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-041-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=0.950
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-042-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=0.975
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-043-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.000
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-044-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.025
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-045-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.050
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-046-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.075
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-047-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.100
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-048-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.125
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-049-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.150
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-050-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.175
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-051-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.200
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-052-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.225
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-053-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.250
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-054-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.275
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-055-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.300
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-056-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.325
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-057-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.350
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-058-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.375
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-059-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.400
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-060-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.425
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-061-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.450
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-062-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.475
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-063-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.500
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-064-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.525
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-065-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.550
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-066-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.575
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-067-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.600
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-068-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.625
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-069-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.650
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-070-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.675
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-071-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.700
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-072-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.725
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-073-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.750
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-074-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.775
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-075-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.800
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-076-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.825
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-077-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.850
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-078-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.875
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-079-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.900
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-080-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.925
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-081-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.950
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-082-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.975
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-083-0 |
AR |
1 |
- |
| |
40 |
SEAL; OIL,CM/SHF FRT,INJ PUMP
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15749-498-0 |
01 |
1 |
- |
| |
45 |
BOLT; FRT COVER TO HSG
M6X15
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
5-15729-027-0 |
04 |
1 |
- |
| |
46 |
COVER; FRT,PUMP HSG
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15629-067-0 |
01 |
1 |
- |
| |
47 |
SHIM; FRT COVER,INJ PUMP HSG
T=0.10
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
9-88410-445-0 |
AR |
1 |
- |
| |
47 |
SHIM; FRT COVER,INJ PUMP HSG
T=0.12
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
9-88410-446-0 |
AR |
1 |
- |
| |
47 |
SHIM; FRT COVER,INJ PUMP HSG
T=0.14
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
9-88410-447-0 |
AR |
1 |
- |
| |
47 |
SHIM; FRT COVER,INJ PUMP HSG
T=0.16
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
9-88410-448-0 |
AR |
1 |
- |
| |
47 |
SHIM; FRT COVER,INJ PUMP HSG
T=0.18
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
9-88410-449-0 |
AR |
1 |
- |
| |
47 |
SHIM; FRT COVER,INJ PUMP HSG
T=0.30
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
9-88410-450-0 |
AR |
1 |
- |
| |
47 |
SHIM; FRT COVER,INJ PUMP HSG
T=0.50
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
9-88410-451-0 |
AR |
1 |
- |
| |
48 |
GASKET; FRT COVER TO HSG
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
9-81215-128-0 |
01 |
1 |
- |
| |
50 |
CAMSHAFT; INJ PUMP
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15621-108-0 |
01 |
1 |
- |
| |
51 |
KEY; DRIVE GEAR,INJ PUMP
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15629-009-0 |
01 |
1 |
- |
| |
58 |
SLEEVE; CONT,INJ PUMP
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15629-085-0 |
06 |
1 |
- |
| |
62 |
SEAT; PLUNGER SPRING,INJ PUMP
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
9-81215-136-0 |
06 |
1 |
- |
| |
63 |
SPRING; PLUNGER,INJ PUMP
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15634-013-0 |
06 |
1 |
- |
| |
64 |
SEAT; PLUNGER SPRING LWR,INJ PUMP
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15643-004-0 |
06 |
1 |
- |
| |
68 |
TAPPET; CM/SHF,INJ PUMP
(E) ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15622-008-0 |
06 |
1 |
- |
| |
69 |
GUIDE; TAPPET,INJ PUMP
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15629-063-0 |
06 |
1 |
- |
| |
70 |
PIN; TAPPET ROLLER,INJ PUMP
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
9-81225-062-0 |
06 |
1 |
- |
| |
71 |
BUSHING; TAPPET ROLLER,INJ PUMP
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
9-81225-061-0 |
06 |
1 |
- |
| |
72 |
ROLLER; TAPPET,INJ PUMP
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15619-288-0 |
06 |
1 |
- |
| |
73 |
GASKET; COVER TO HSG
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15629-094-0 |
01 |
1 |
- |
| |
74 |
COVER; HSG,INJ PUMP
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15612-012-0 |
01 |
1 |
- |
| |
76 |
BOLT; COVER TO HSG
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15619-066-0 |
12 |
1 |
- |
| |
77 |
BEARING; CM/SHF CENTER,INJ PUMP
(F) ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15619-358-0 |
01 |
1 |
- |
| |
78 |
BOLT; CENTER BRG,INJ PUMP
M6X20
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
9-81325-187-0 |
02 |
1 |
- |
| |
79 |
STUD; FUEL FEED PUMP TO HSG
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
9-81215-115-0 |
03 |
1 |
- |
| |
80 |
NUT; FUEL FEED PUMP FIX
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
8-94171-110-0 |
03 |
1 |
- |
| |
82 |
PLUG; HSG,INJ PUMP
(A) ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
9-81215-129-0 |
01 |
1 |
- |
| |
83 |
GASKET; HSG PLUG
(C) ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15619-067-0 |
01 |
1 |
- |
| |
86 |
BOLT; EYE,OIL RETURN,INJ PUMP
ASM PART: E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15619-309-0 |
01 |
1 |
- |
| |
86 |
BOLT; EYE,OIL RETURN,INJ PUMP
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0
|
1-15759-011-0 |
01 |
1 |
- |
| |
87 |
GASKET; OIL RETURN BOLT,INJ PUMP
ID=14.2 OD=19.2
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-09630-085-0 |
02 |
1 |
- |
| |
88 |
BOLT; EYE,OIL FEED,INJ PUMP
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15619-092-0 |
01 |
1 |
- |
| |
89 |
GASKET; OIL FEED BOLT,INJ PUMP
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15719-093-0 |
02 |
1 |
- |
| |
102 |
VALVE; OVERFLOW,INJ PUMP
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0
|
1-13260-050-1 |
01 |
1 |
- |
| |
103 |
GASKET; OVERFLOW VLV,INJ PUMP
ID=14.2 OD=19.2
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0
|
1-09630-085-0 |
01 |
1 |
- |
| |
105 |
BEARING; CM/SHF RR,INJ PUMP
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
9-81225-068-0 |
01 |
1 |
- |
| |
106 |
RING; HSG,INJ PUMP
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
9-81225-064-0 |
01 |
1 |
- |
| |
107 |
SHIM; RR BEARING,CM/SHF
T=0.60
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-019-0 |
AR |
1 |
- |
| |
107 |
SHIM; RR BEARING,CM/SHF
T=1.50
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
9-81215-176-0 |
AR |
1 |
- |
| |
107 |
SHIM; RR BEARING,CM/SHF
T=1.80
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
9-81215-177-0 |
AR |
1 |
- |
| |
107 |
SHIM; RR BEARING,CM/SHF
T=2.00
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
9-81215-178-0 |
AR |
1 |
- |
| |
107 |
SHIM; RR BEARING,CM/SHF
T=1.20
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
9-88410-441-0 |
AR |
1 |
- |
| |
108 |
BUSHING; CONT RACK END,INJ PUMP
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
9-81215-125-0 |
01 |
1 |
- |
| |
109 |
RACK; CONT,INJ PUMP
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15637-017-0 |
01 |
1 |
- |
| |
110 |
PIN; CONT RACK,INJ PUMP
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
9-88410-440-0 |
01 |
1 |
- |
| |
114 |
BEARING; CM/SHF FRT,INJ PUMP
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
9-81225-068-0 |
01 |
1 |
- |
| |
115 |
NUT; PLUNGER FIX,INJ PUMP
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
9-88410-456-0 |
12 |
1 |
- |
| |
117 |
GASKET; EYE BOLT,INJ PUMP
ID=14.2 OD=19.2
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-09630-085-0 |
02 |
1 |
- |
| |
118 |
BOLT; EYE,FUEL INL,INJ PUMP
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15759-011-0 |
01 |
1 |
- |
| |
141 |
BOLT; POINTER
ASM PART: E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
5-15729-063-0 |
02 |
1 |
- |
| |
186 |
SHIM; POINTER
T=0.20
ASM PART: E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15619-302-0 |
AR |
1 |
- |
| |
186 |
SHIM; POINTER
T=0.30
ASM PART: E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-089-0 |
AR |
1 |
- |
| |
186 |
SHIM; POINTER
T=0.50
ASM PART: E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-090-0 |
AR |
1 |
- |
| |
186 |
SHIM; POINTER
T=1.00
ASM PART: E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-091-0 |
AR |
1 |
- |
| |
186 |
SHIM; POINTER
T=1.10
ASM PART: E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15639-092-0 |
AR |
1 |
- |
| |
234 |
SLEEVE; FRT COVER
ASM PART: A = 1-15603-051-3, B = 1-15603-076-1,
C = 1-15603-112-1, D = 1-15603-116-0,
E = 1-15603-147-0, F = 1-15603-148-0,
G = 1-15603-150-1, H = 1-15603-151-0,
I = 1-15603-214-4, J = 1-15603-215-4,
K = 1-15603-217-1, L = 1-15603-246-3,
M = 1-15603-257-3, N = 1-15603-258-3
|
1-15635-002-0 |
01 |
1 |
- |
