Isuzu WW
▶
TRUCKS
▶
EXR
▶
10724 - EXR RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-33B - FAN AND FAN BELT
▶

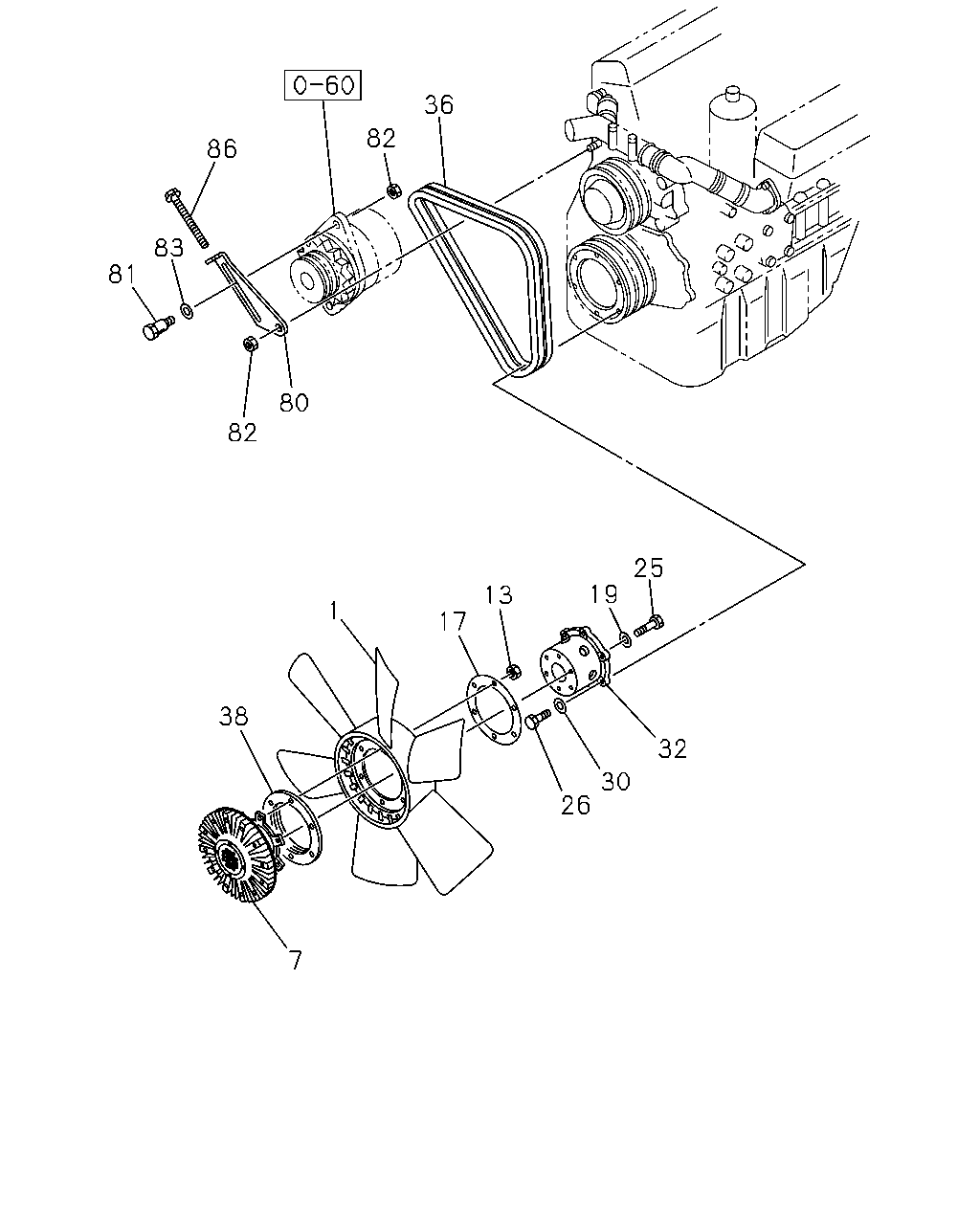

0-33B — FAN AND FAN BELT
(#6439) — 43 parça
Tümü
A - 10PE1S
B - 10PE1N
36
82
86
83
81
80
82
25
19
13
1
17
38
32
30
26
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
FAN; COOLING
1-13660-224-0
01
1
9601-9610
●
1
FAN; COOLING
1-13660-224-0
01
1
9611-9904
●
1
FAN; COOLING
EXC. TROPICAL ZONE KIT<WB6>
1-13660-224-0
01
1
9905-
●
1
FAN; COOLING
1-13660-224-0
01
1
9905-
●
1
FAN; COOLING
TROPICAL ZONE KIT<WB6>
1-13660-305-0
01
1
9905-
●
7
COUPLING; FAN
1-21650-184-1
01
1
9601-9904
●
7
COUPLING; FAN
TROPICAL ZONE KIT<WB6>
1-21650-167-0
01
1
9905-
●
7
COUPLING; FAN
EXC. TROPICAL ZONE KIT<WB6>
1-21650-184-1
01
1
9905-
●
7
COUPLING; FAN
1-21650-184-1
01
1
9905-
●
13
NUT; COOLING FAN
M8 FLANGE
0-91150-108-0
06
1
9601-9904
●
13
NUT; COOLING FAN
M8 FLANGE
0-91150-108-0
06
1
9905-
●
●
17
WASHER; LK,FAN TO COUPLING
1-13669-107-0
01
1
9601-9904
●
17
WASHER; LK,FAN TO COUPLING
1-13669-107-0
01
1
9905-
●
●
19
WASHER; PL,FAN DRIVE
ID=10
1-09503-033-1
06
1
9601-9904
●
19
WASHER; PL,FAN DRIVE
ID=10
1-09503-033-1
06
1
9905-
●
●
25
BOLT; ADAPTER
M10X110
9-09801-316-1
06
1
9601-9904
●
25
BOLT; ADAPTER
M10X110
9-09801-316-1
06
1
9905-
●
●
26
BOLT; FAN TO CLU
M10X30 FLANGE
0-28181-030-0
06
1
9601-9904
●
26
BOLT; FAN TO CLU
M10X30 FLANGE
0-28181-030-0
06
1
9905-
●
●
30
WASHER; PL,ADAPTER
ID=10
1-09503-033-1
06
1
9601-9904
●
30
WASHER; PL,ADAPTER
ID=10
1-09503-033-1
06
1
9905-
●
●
32
ADAPTER; FAN TO PULLEY
1-13669-156-0
01
1
9601-9904
●
32
ADAPTER; FAN TO PULLEY
EXC. TROPICAL ZONE KIT<WB6>
1-13669-156-0
01
1
9905-
●
32
ADAPTER; FAN TO PULLEY
1-13669-156-0
01
1
9905-
●
32
ADAPTER; FAN TO PULLEY
TROPICAL ZONE KIT<WB6>
1-13669-115-1
01
1
9905-
●
36
BELT; COOLING FAN
1 SET=2 PIECE(1136714010) MITSUBOSHI
1-13671-400-0
01
1
9601-9904
●
36
BELT; COOLING FAN
1 SET=2 PIECE(1136714010) MITSUBOSHI
1-13671-400-0
01
1
9905-
●
●
38
SPACER; FAN
1-13669-162-1
01
1
9602-9904
●
38
SPACER; FAN
EXC. TROPICAL ZONE KIT<WB6>
1-13669-162-1
01
1
9905-
●
38
SPACER; FAN
1-13669-162-1
01
1
9905-
●
80
PLATE; ADJ
1-13674-105-0
01
1
9601-9608
●
80
PLATE; ADJ
1-13674-257-0
01
1
9609-9904
●
80
PLATE; ADJ
1-13674-257-0
01
1
9905-
●
●
81
PIECE; SLIDING
M12X45
1-13674-160-0
01
1
9601-9608
●
81
PIECE; SLIDING
M12X59
1-13674-161-0
01
1
9609-9904
●
81
PIECE; SLIDING
M12X59
1-13674-161-0
01
1
9905-
●
●
82
NUT; ADJ PLATE
M12 FLANGE
0-91150-112-0
02
1
9601-9904
●
82
NUT; ADJ PLATE
M12 FLANGE
0-91150-112-0
02
1
9905-
●
●
83
WASHER; PL
ID=12.5 OD=32
9-09160-712-0
01
1
9601-9608
●
83
WASHER; PL
ID=12.5 T=5.8
8-94217-363-0
01
1
9609-9904
●
83
WASHER; PL
ID=12.5 T=5.8
8-94217-363-0
01
1
9906-
●
●
86
BOLT; ADJ
M10X155 FLANGE
1-09009-114-1
01
1
9601-9904
●
86
BOLT; ADJ
M10X155 FLANGE
1-09009-114-1
01
1
9905-
●
●
