0-60 — ENGINE ELECTRICAL CONTROL PARTS (#64389) — 607 parça

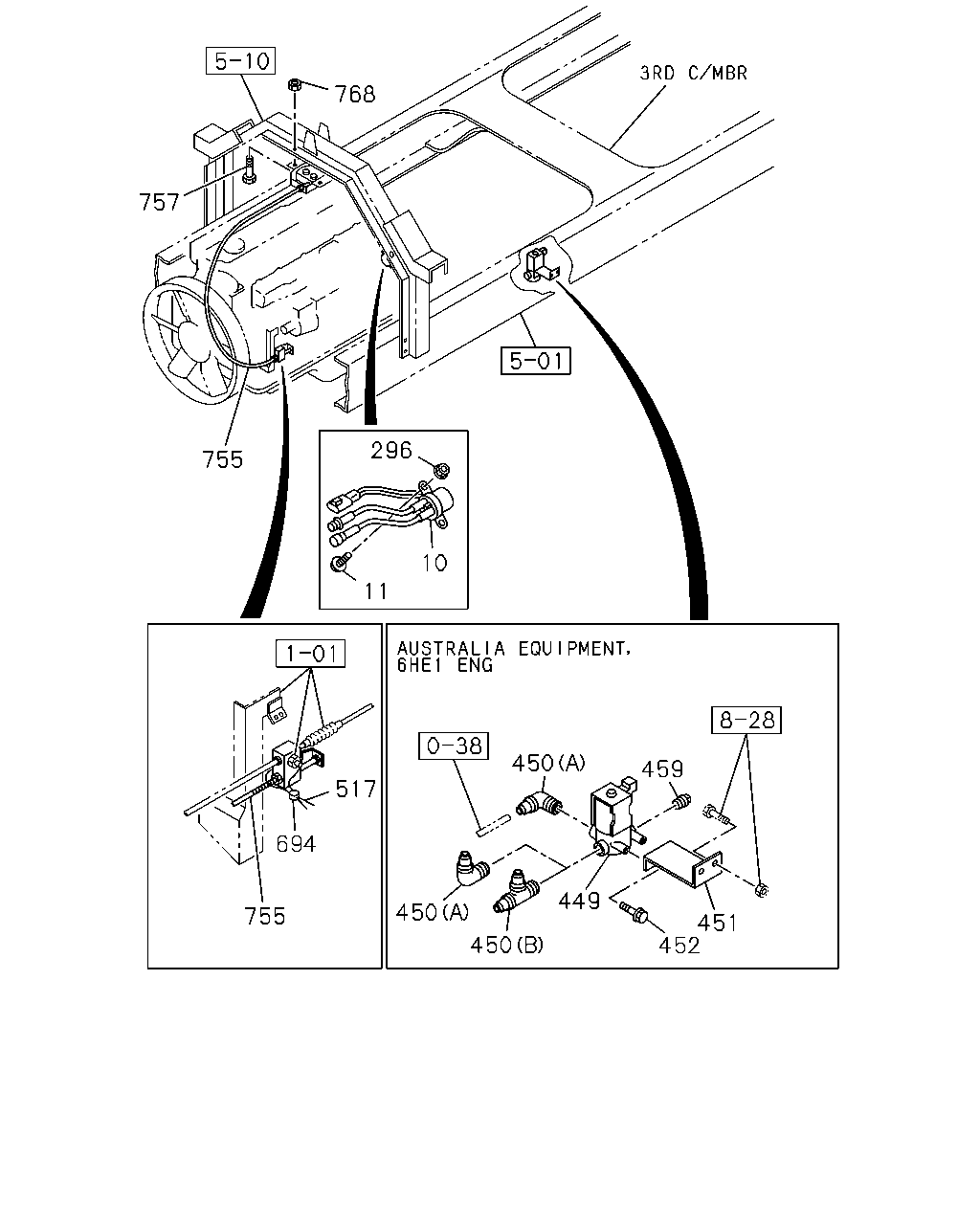

çizim 72612
768 757 296 755 10 11 450 459 517 694 449 450 755 451 452 450
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
10 RELAY; STARTER
EXC. STARTER DENSO(RC6) NIKKO 		1-81171-067-0 01 1 9601-9608 ● ●
10 RELAY; STARTER
EXC. STARTER DENSO(RC6) NIKKO 		1-81171-075-0 01 1 9609-9705 ● ●
10 RELAY; STARTER
EXC. STARTER DENSO(RC6) NIKKO 		1-81171-075-0 01 1 9706-9709 ● ● ●
10 RELAY; STARTER
EXC. STARTER DENSO(RC6) NIKKO 		1-81171-075-0 01 1 9710-0004 ● ● ● ●
10 RELAY; STARTER
EXC. STARTER DENSO(RC6) HITACHI 		1-81171-087-0 01 1 9904-0004 ● ● ● ●
10 RELAY; STARTER
EXC. STARTER DENSO(RC6) HITACHI 		1-81171-087-0 01 1 0005-0303 ● ●
10 RELAY; STARTER
EXC. STARTER DENSO(RC6) NIKKO 		1-81171-075-1 01 1 0304- ● ●
10 RELAY; STARTER
DENSO 		1-81171-070-0 01 1 9601-9803 ● ●
10 RELAY; STARTER
STARTER DENSO(RC6) DENSO 		1-81171-070-0 01 1 9601-9803 ●
10 RELAY; STARTER
STARTER DENSO(RC6) DENSO 		1-81171-070-0 01 1 9804-0004 ● ● ● ●
10 RELAY; STARTER
STARTER DENSO(RC6) DENSO 		1-81171-070-0 01 1 0005-0405 ● ● ●
10 RELAY; STARTER
STARTER DENSO(RC6) DENSO 		1-81171-070-0 01 1 0406- ● ● ● ●
10 RELAY; STARTER
EXC. STARTER DENSO(RC6) 		1-81171-060-0 01 1 9601-9709 ●
11 BOLT; RELAY STARTER
M8X20 FLANGE 		0-28080-820-0 02 1 9601-9606 ● ● ● ●
11 BOLT; RELAY STARTER
M8X25 FLANGE 		0-28680-825-0 02 1 9607-9801 ● ● ● ●
11 BOLT; RELAY STARTER
M8X20 FLANGE 		0-28680-820-0 02 1 9802-9803 ● ● ● ● ●
11 BOLT; RELAY STARTER
M8X20 FLANGE 		0-28680-820-0 02 1 9804-0004 ● ● ● ●
11 BOLT; RELAY STARTER
M8X20 FLANGE 		0-28680-820-0 02 1 0005-0405 ● ● ● ● ●
11 BOLT; RELAY STARTER
M8X20 FLANGE 		0-28680-820-0 02 1 0406-0512 ● ● ● ● ● ●
11 BOLT; RELAY STARTER
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ● ● ● ●
296 NUT; RELAY,STARTER
M8 		9-09110-408-0 02 1 9601-9606 ● ● ● ●
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91150-108-0 02 1 9607-0004 ● ● ● ●
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91150-108-0 02 1 0005-0405 ● ● ● ● ●
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91150-108-0 02 1 0406-0602 ● ● ● ● ● ●
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ● ● ●
449 VALVE; MAG,VARIABLE SWIRL SYSTEM
AUSTRALIA EQUIPMENT(RR3) 		1-82563-600-2 01 1 9601-9705 ●
449 VALVE; MAG,VARIABLE SWIRL SYSTEM 1-82563-600-2 01 1 9601-9705 ●
449 VALVE; MAG,VARIABLE SWIRL SYSTEM
AUSTRALIA EQUIPMENT(RR3) 		1-82563-600-2 01 1 9706-9706 ●
449 VALVE; MAG,VARIABLE SWIRL SYSTEM
EURO2 SPECIFICATION<THN> 		1-82563-600-2 01 1 9706-9706 ●
449 VALVE; MAG,VARIABLE SWIRL SYSTEM
FVR STD CAB MIDDLE CHASSIS(FV**MF) AUSTRALIA EQUIPMENT(RR3) 		1-82563-600-2 01 1 9707-9803 ●
449 VALVE; MAG,VARIABLE SWIRL SYSTEM
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> 		1-82563-600-2 01 1 9707-9803 ●
449 VALVE; MAG,VARIABLE SWIRL SYSTEM
AUSTRALIA EQUIPMENT(RR3) 		1-82563-599-4 01 1 9804-0004 ●
449 VALVE; MAG,VARIABLE SWIRL SYSTEM
EURO2 SPECIFICATION<THN> 		1-82563-599-4 01 1 9804-0004 ●
449 VALVE; MAG,VARIABLE SWIRL SYSTEM
EURO2 SPECIFICATION<THN> 		1-82563-599-5 01 1 0005-0405 ●
449 VALVE; MAG,VARIABLE SWIRL SYSTEM
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> 		1-82563-599-5 01 1 0406- ●
449 VALVE; MAG,VARIABLE SWIRL SYSTEM
FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 5000MM(50W) EURO2 SPECIFICATION<THN> 		1-82563-598-2 01 1 9707-9803 ●
450 CONNECTOR; MAG VLV,INL PORT
AUSTRALIA EQUIPMENT(RR3) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9601-9705 ●
450 CONNECTOR; MAG VLV,INL PORT
(A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9601-9705 ●
450 CONNECTOR; MAG VLV,INL PORT
FVR STD CAB MIDDLE CHASSIS(FV**MF) AUSTRALIA EQUIPMENT(RR3) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9706-9706 ●
450 CONNECTOR; MAG VLV,INL PORT
EURO2 SPECIFICATION<THN> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9706-9706 ●
450 CONNECTOR; MAG VLV,INL PORT
FVR STD CAB MIDDLE CHASSIS(FV**MF) AUSTRALIA EQUIPMENT(RR3) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9707-9803 ●
450 CONNECTOR; MAG VLV,INL PORT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9707-9803 ●
450 CONNECTOR; MAG VLV,INL PORT
AUSTRALIA EQUIPMENT(RR3) (B) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 9804-0004 ●
450 CONNECTOR; MAG VLV,INL PORT
EURO2 SPECIFICATION<THN> (B) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 9804-0004 ●
450 CONNECTOR; MAG VLV,INL PORT
EURO2 SPECIFICATION<THN> (B) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 0005-0405 ●
450 CONNECTOR; MAG VLV,INL PORT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> (B) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 0406- ●
450 CONNECTOR; MAG VLV,INL PORT
AUSTRALIA EQUIPMENT(RR3) (B) 		1-09660-718-1 01 1 9601-9705 ●
450 CONNECTOR; MAG VLV,INL PORT
(B) 		1-09660-718-1 01 1 9601-9705 ●
450 CONNECTOR; MAG VLV,INL PORT
AUSTRALIA EQUIPMENT(RR3) (B) 		1-09660-718-1 01 1 9706-9706 ●
450 CONNECTOR; MAG VLV,INL PORT
EURO2 SPECIFICATION<THN> (B) 		1-09660-718-1 01 1 9706-9706 ●
450 CONNECTOR; MAG VLV,INL PORT
AUSTRALIA EQUIPMENT(RR3) (B) 		1-09660-718-1 01 1 9707-9803 ●
450 CONNECTOR; MAG VLV,INL PORT
(B) 		1-09660-718-1 01 1 9707-9803 ●
450 CONNECTOR; MAG VLV,INL PORT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> (B) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9707-9803 ●
450 CONNECTOR; MAG VLV,INL PORT
AUSTRALIA EQUIPMENT(RR3) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9804-0004 ●
450 CONNECTOR; MAG VLV,INL PORT
EURO2 SPECIFICATION<THN> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9804-0004 ●
450 CONNECTOR; MAG VLV,INL PORT
EURO2 SPECIFICATION<THN> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005-0405 ●
450 CONNECTOR; MAG VLV,INL PORT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0406- ●
450 CONNECTOR; MAG VLV,INL PORT
FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 5000MM(50W) EURO2 SPECIFICATION<THN> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 02 1 9707-9803 ●
451 BRACKET; MAG VLV,VSS
AUSTRALIA EQUIPMENT(RR3) 		1-47477-462-0 01 1 9601-9704 ●
451 BRACKET; MAG VLV,VSS 1-47477-462-0 01 1 9601-9704 ●
451 BRACKET; MAG VLV,VSS
AUSTRALIA EQUIPMENT(RR3) 		1-47477-953-0 01 1 9705-9705 ●
451 BRACKET; MAG VLV,VSS 1-47477-953-0 01 1 9705-9705 ●
451 BRACKET; MAG VLV,VSS
AUSTRALIA EQUIPMENT(RR3) 		1-47477-953-0 01 1 9706-9803 ●
451 BRACKET; MAG VLV,VSS
EURO2 SPECIFICATION<THN> 		1-47477-953-0 01 1 9706-9803 ●
451 BRACKET; MAG VLV,VSS
AUSTRALIA EQUIPMENT(RR3) 		1-82569-208-0 01 1 9804-0004 ●
451 BRACKET; MAG VLV,VSS
EURO2 SPECIFICATION<THN> 		1-82569-208-0 01 1 9804-0004 ●
451 BRACKET; MAG VLV,VSS
EURO2 SPECIFICATION<THN> 		1-82569-208-0 01 1 0005-0405 ●
451 BRACKET; MAG VLV,VSS
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> 		1-82569-208-0 01 1 0406- ●
452 BOLT; VSS MAG VLV
AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28080-820-0 02 1 9601-9705 ●
452 BOLT; VSS MAG VLV
M8X20 FLANGE 		0-28080-820-0 02 1 9601-9705 ●
452 BOLT; VSS MAG VLV
AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28080-820-0 02 1 9706-0004 ●
452 BOLT; VSS MAG VLV
EURO2 SPECIFICATION<THN> M8X20 FLANGE 		0-28080-820-0 02 1 9706-0004 ●
452 BOLT; VSS MAG VLV
EURO2 SPECIFICATION<THN> M8X20 FLANGE 		0-28080-820-0 02 1 0005-0405 ●
452 BOLT; VSS MAG VLV
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> M8X20 FLANGE 		0-28080-820-0 02 1 0406-0512 ●
452 BOLT; VSS MAG VLV
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> M8X20 FLANGE 		0-28050-820-0 02 1 0601- ●
459 PLUG
AUSTRALIA EQUIPMENT(RR3) PT1/4 		9-99204-513-0 01 1 9601-9705 ●
459 PLUG
PT1/4 		9-99204-513-0 01 1 9601-9705 ●
459 PLUG
AUSTRALIA EQUIPMENT(RR3) PT1/4 		9-99204-513-0 01 1 9706-9706 ●
459 PLUG
EURO2 SPECIFICATION<THN> PT1/4 		9-99204-513-0 01 1 9706-9706 ●
459 PLUG
FVR STD CAB MIDDLE CHASSIS(FV**MF) AUSTRALIA EQUIPMENT(RR3) PT1/4 		9-99204-513-0 01 1 9707-9803 ●
459 PLUG
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> PT1/4 		9-99204-513-0 01 1 9707-9803 ●
517 WIRE
SPEED LIMITER CABLE STROKE CONTROL<TDT> 		9-81325-446-0 02 1 9601-9803 ● ● ●
517 WIRE
SPEED LIMITER CABLE STROKE CONTROL<TDT> 		9-81325-446-0 02 1 9804-0004 ● ● ● ●
517 WIRE
SPEED LIMITER CABLE STROKE CONTROL<TDT> 		9-81325-446-0 02 1 0005- ●
694 SEAL; COVER
SPEED LIMITER CABLE STROKE CONTROL<TDT> 		1-15739-002-0 02 1 9601-0004 ● ●
694 SEAL; COVER
SPEED LIMITER CABLE STROKE CONTROL<TDT> 		1-15739-002-0 02 1 0005-0407 ●
694 SEAL; COVER
SPEED LIMITER CABLE STROKE CONTROL<TDT> 		1-15739-008-0 02 1 0408- ●
755 MOTOR; SERVO
SPEED LIMITER CABLE STROKE CONTROL<TDT> 		1-82840-147-0 01 1 9601-0004 ●
755 MOTOR; SERVO
SPEED LIMITER CABLE STROKE CONTROL<TDT> 		1-82840-149-1 01 1 9601- ●
755 MOTOR; SERVO
FVR STD CAB MIDDLE CHASSIS(FV**MF) SPEED LIMITER CABLE STROKE CONTROL<TDT> EURO2 SPECIFICATION<THN> 		1-82840-159-1 01 1 9807-0004 ●
757 BOLT; SERVO MOTOR
SPEED LIMITER CABLE STROKE CONTROL<TDT> M8X16 FLANGE 		0-28080-816-0 04 1 9602-9806 ●
757 BOLT; SERVO MOTOR
FVR STD CAB MIDDLE CHASSIS(FV**MF) SPEED LIMITER CABLE STROKE CONTROL<TDT> M8X16 FLANGE 		0-28080-816-0 04 1 9807-0004 ● ●
757 BOLT; SERVO MOTOR
SPEED LIMITER CABLE STROKE CONTROL<TDT> M8X16 FLANGE 		0-28080-816-0 04 1 9601-9601 ● ●
757 BOLT; SERVO MOTOR
SPEED LIMITER CABLE STROKE CONTROL<TDT> M8X16 FLANGE 		0-28080-816-0 02 1 9602-0512 ●
757 BOLT; SERVO MOTOR
SPEED LIMITER CABLE STROKE CONTROL<TDT> M8X16 FLANGE 		0-28050-816-0 02 1 0601- ●
757 BOLT; SERVO MOTOR
SPEED LIMITER CABLE STROKE CONTROL<TDT> M8X25 FLANGE 		0-28080-825-0 02 1 9602-9606 ●
757 BOLT; SERVO MOTOR
SPEED LIMITER CABLE STROKE CONTROL<TDT> M8X25 FLANGE 		0-28680-825-0 02 1 9607-0512 ●
757 BOLT; SERVO MOTOR
SPEED LIMITER CABLE STROKE CONTROL<TDT> M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
768 NUT; SERVO MOTOR
SPEED LIMITER CABLE STROKE CONTROL<TDT> M8 		9-09110-408-0 04 1 9601-9606 ● ●
768 NUT; SERVO MOTOR
SPEED LIMITER CABLE STROKE CONTROL<TDT> M8 FLANGE 		0-91150-108-0 04 1 9607-0004 ● ●
768 NUT; SERVO MOTOR
SPEED LIMITER CABLE STROKE CONTROL<TDT> M8 FLANGE 		0-91150-108-0 04 1 0005-0602 ●
768 NUT; SERVO MOTOR
SPEED LIMITER CABLE STROKE CONTROL<TDT> M8 FLANGE 		0-91180-108-0 04 1 0603- ●

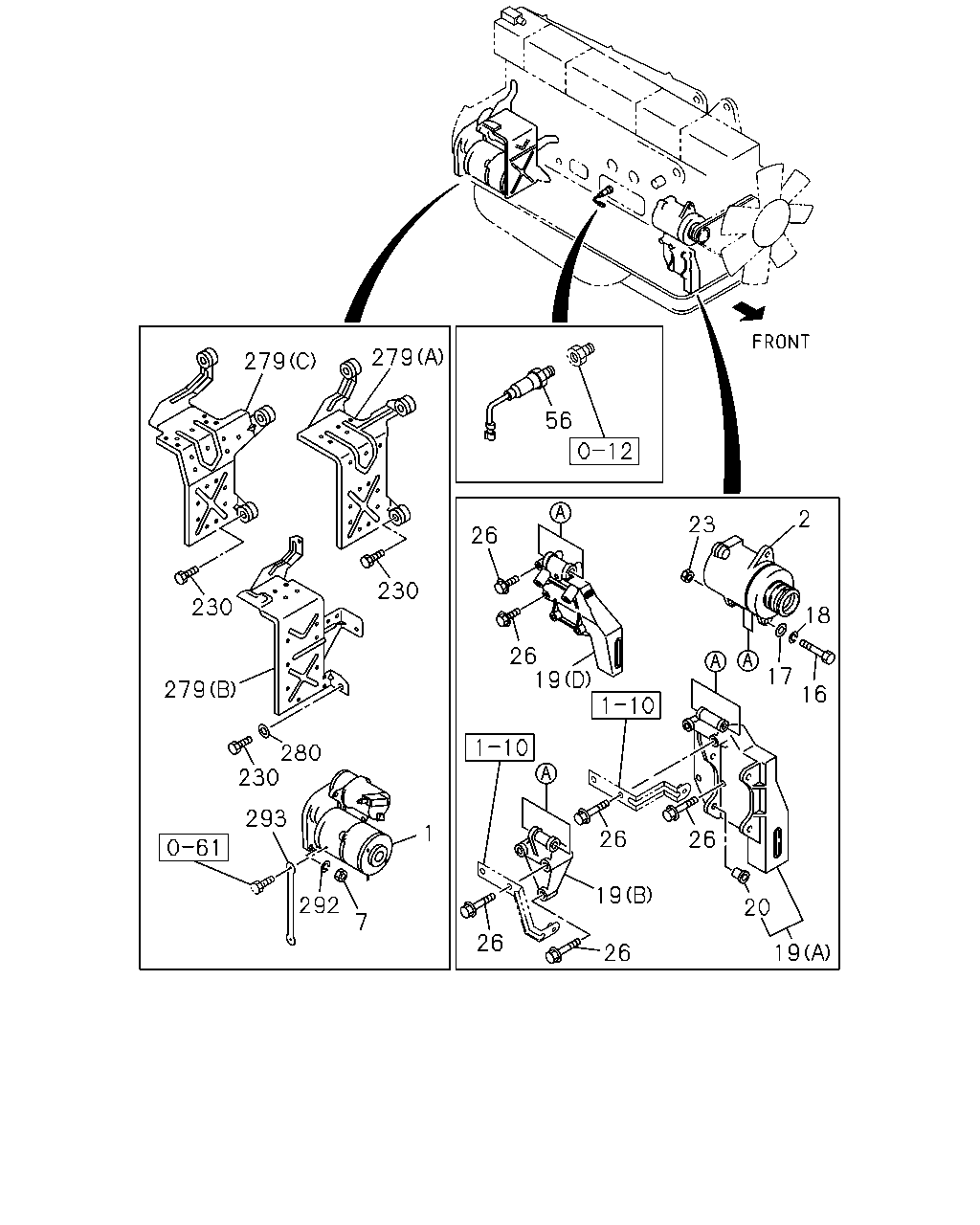

çizim 72844
279 279 56 2 23 26 230 230 18 26 19 17 279 16 280 230 293 1 26 26 19 292 20 7 26 19 26
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. FLYWHEEL HOUSING FC<E1R> 24V 4.5KW NIKKO 		1-81100-307-0 01 1 9601-9708 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. FLYWHEEL HOUSING FC<E1R> 24V 4.5KW NIKKO 		1-81100-323-0 01 1 9709-0004 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. FLYWHEEL HOUSING FC<E1R> 24V 4.5KW NIKKO 		1-81100-323-0 01 1 0005-0302 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. FLYWHEEL HOUSING FC<E1R> 24V 4.5KW NIKKO 		1-81100-308-0 01 1 9601-9708 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. FLYWHEEL HOUSING FC<E1R> 24V 4.5KW NIKKO 		1-81100-324-0 01 1 9709-9805 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. FLYWHEEL HOUSING FC<E1R>,ENGINE REAR PTO<SV1> 24V 4.5KW NIKKO 		1-81100-324-0 01 1 9806-0004 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. FLYWHEEL HOUSING FC<E1R> 24V 4.5KW NIKKO 		1-81100-324-0 01 1 0005-0302 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO 		1-81100-324-0 01 1 0005-0302 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO 		1-81100-324-1 01 1 0303- ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.5KW DENSO 		1-81100-230-2 01 1 9601-0108 ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.5KW DENSO 		1-81100-422-0 01 1 0109- ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO 		8-94394-151-1 01 1 9610-9803 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EURO2 SPECIFICATION<THN> 24V 4.5KW DENSO 		8-94394-151-2 01 1 9804-9904 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. FLYWHEEL HOUSING FC<E1R> 24V 4.5KW DENSO 		8-94394-151-2 01 1 9905-9907 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EURO2 SPECIFICATION<THN> 24V 4.5KW DENSO 		8-94394-151-2 01 1 9905-9907 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EURO2 SPECIFICATION<THN> 24V 4.5KW DENSO 		8-94394-151-2 01 1 9908-0108 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EURO2 SPECIFICATION<THN> 24V 4.5KW DENSO 		8-97602-169-1 01 1 0109-0405 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EURO2 SPECIFICATION<THN> 24V 4.5KW DENSO 		8-97602-169-1 01 1 0406- ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO 		8-97602-169-1 01 1 0406- ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. EURO2 SPECIFICATION<THN> 24V 4.5KW DENSO 		8-94399-159-4 01 1 9804-9904 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. FLYWHEEL HOUSING FC<E1R> 24V 4.5KW DENSO 		8-94399-159-4 01 1 9905-9907 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. EURO2 SPECIFICATION<THN> 24V 4.5KW DENSO 		8-94399-159-4 01 1 9905-9907 ●

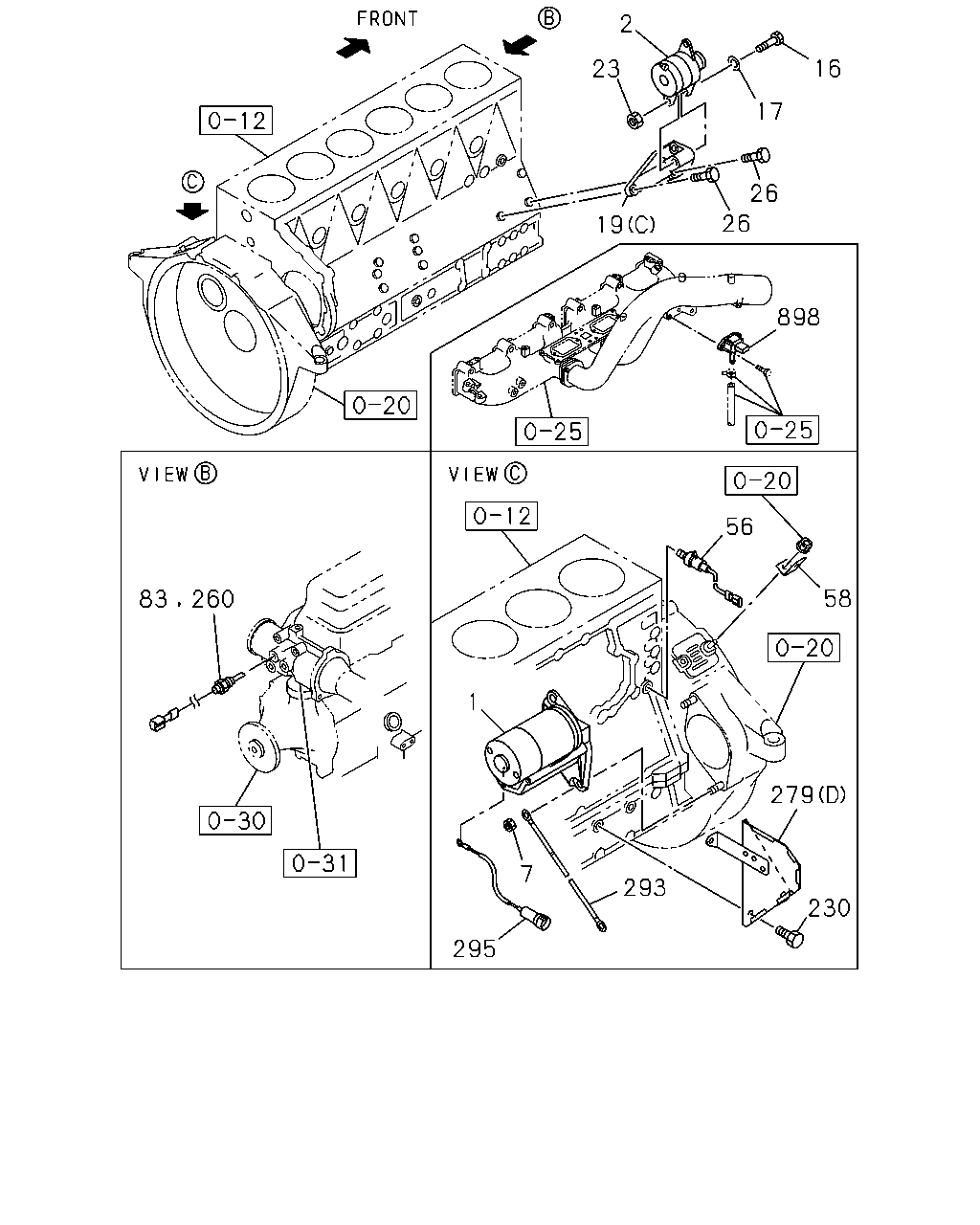

1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. EURO2 SPECIFICATION<THN> 24V 4.5KW DENSO 		8-94399-159-4 01 1 9908-0108 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. EURO2 SPECIFICATION<THN> 24V 4.5KW DENSO 		8-97602-167-1 01 1 0109-0405 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 50A MITSUBISHI 		1-81200-599-5 01 1 0406- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO 		1-81200-416-3 01 1 9601-9609 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO 		1-81200-416-4 01 1 9610-9703 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO 		1-81200-416-4 01 1 9704-9705 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO 		1-81200-416-4 01 1 9706-9806 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO 		1-81200-416-4 01 1 9807-9904 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO 		1-81200-416-4 01 1 9905-9905 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO 		1-81200-416-4 01 1 9905-9908 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO 		1-81200-416-4 01 1 9909-0004 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO 		1-81200-416-5 01 1 0005- ● ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A DENSO 		8-94399-157-1 01 1 9601- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A MITSUBISHI 		1-81200-521-0 01 1 9904-9904 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A MITSUBISHI 		1-81200-521-0 01 1 9905-9905 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A MITSUBISHI 		1-81200-521-0 01 1 9905-9905 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A MITSUBISHI 		1-81200-577-0 01 1 9906-9907 ● ●
7 NUT; STARTER
M14 		9-99110-414-0 02 1 9601-9609 ●
7 NUT; STARTER
M14 		9-99110-414-0 02 1 9610-0004 ● ●
7 NUT; STARTER
M14 		9-99110-414-0 02 1 0005-0405 ● ● ●
7 NUT; STARTER
M14 		9-99110-414-0 02 1 0406-0512 ● ● ● ●
7 NUT; STARTER
M14 		0-91110-514-0 02 1 0601- ● ● ● ●
7 NUT; STARTER
M14 FLANGE 		0-91150-114-0 02 1 9601- ● ●
16 BOLT; GEN
M14X135 		1-09000-133-1 01 1 9601-9609 ●
16 BOLT; GEN
M14X135 		1-09000-133-1 01 1 9610-0004 ● ●
16 BOLT; GEN
M14X135 		1-09000-133-1 01 1 0005-0405 ● ● ●
16 BOLT; GEN
M14X135 		1-09000-133-1 01 1 0406- ● ● ● ●
16 BOLT; GEN
M14X128 		9-09801-203-0 01 1 9601-9611 ● ●
16 BOLT; GEN
M14X123 		9-09801-204-1 01 1 9612- ● ●
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 01 1 9601-9912 ● ● ● ●
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 01 1 0001-0405 ● ● ● ● ●
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 01 1 0406-0605 ● ● ● ● ● ●
17 WASHER; PL,GEN
ID=15 		0-91610-514-0 01 1 0606- ● ● ● ● ● ●
18 WASHER; LK,GEN
ID=14.2 		9-09150-514-0 01 1 9601-9609 ●
18 WASHER; LK,GEN
ID=14.2 		9-09150-514-0 01 1 9610-0004 ● ●
18 WASHER; LK,GEN
ID=14.2 		9-09150-514-0 01 1 0005-0405 ● ● ●
18 WASHER; LK,GEN
ID=14.2 		9-09150-514-0 01 1 0406-0603 ● ● ● ●
18 WASHER; LK,GEN
ID=14.2 		0-91510-514-0 01 1 0604- ● ● ● ●
19 BRACKET; GEN
(D) 		8-94390-588-0 01 1 0406-0511 ●
19 BRACKET; GEN
(D) 		8-94390-589-1 01 1 0512-0704 ●
19 BRACKET; GEN
(D) 		8-97609-149-0 01 1 0705-0803 ●
19 BRACKET; GEN
(D) 		8-98082-615-1 01 1 0804- ●
19 BRACKET; GEN
(B) 		8-94396-297-0 01 1 9601-9609 ●
19 BRACKET; GEN
(B) 		8-94396-297-0 01 1 9610-9803 ● ●
19 BRACKET; GEN
(B) 		8-94396-297-0 01 1 9804-0004 ●
19 BRACKET; GEN
HEATER & DEFROSTER(C41) (B) 		8-94396-297-0 01 1 9804-0004 ●
19 BRACKET; GEN
(B) 		8-94396-297-0 01 1 0005-0112 ● ●
19 BRACKET; GEN
HEATER & DEFROSTER(C41) EURO2 SPECIFICATION<THN> (B) 		8-94396-297-0 01 1 0005-0112 ●
19 BRACKET; GEN
EXC. EURO2 SPECIFICATION<THN> (B) 		8-94396-297-0 01 1 0005-0112 ●
19 BRACKET; GEN
(B) 		8-97602-318-0 01 1 0201-0405 ● ●
19 BRACKET; GEN
HEATER & DEFROSTER(C41) EURO2 SPECIFICATION<THN> (B) 		8-97602-318-0 01 1 0201-0405 ●
19 BRACKET; GEN
EXC. EURO2 SPECIFICATION<THN> (B) 		8-97602-318-0 01 1 0201-0405 ●
19 BRACKET; GEN
(B) 		8-97602-318-0 01 1 0406- ● ●
19 BRACKET; GEN
HEATER & DEFROSTER(C41) EURO2 SPECIFICATION<THN> (B) 		8-97602-318-0 01 1 0406- ●
19 BRACKET; GEN
(C) 		1-19711-038-0 01 1 9601- ●
19 BRACKET; GEN
EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATO R(YC4) (C) 		1-19711-038-0 01 1 9601- ●
19 BRACKET; GEN
INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (C) 		1-19711-097-0 01 1 9601-0604 ●
19 BRACKET; GEN
INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-19711-097-0 01 1 0605- ●
19 BRACKET; GEN
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-94395-470-2 01 1 9804-0004 ●
19 BRACKET; GEN
AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> (A) 		8-94395-470-3 01 1 0005-0406 ●
19 BRACKET; GEN
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-94395-470-5 01 1 0407- ●
20 COLLAR; BRKT,GEN
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94201-057-1 02 1 9804-0004 ●
20 COLLAR; BRKT,GEN
AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> 		8-94201-057-1 02 1 0005-0406 ●
20 COLLAR; BRKT,GEN
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94201-057-1 02 1 0407-1302 ●
23 NUT; GEN
M14 		9-99110-414-0 01 1 9601-9609 ●
23 NUT; GEN
M14 		9-99110-414-0 01 1 9610-0004 ● ●
23 NUT; GEN
M14 		9-99110-414-0 01 1 0005-0405 ● ● ●
23 NUT; GEN
M14 		9-99110-414-0 01 1 0406-0512 ● ● ● ●
23 NUT; GEN
M14 		0-91110-514-0 01 1 0601- ● ● ● ●
23 NUT; GEN
M14 FLANGE 		0-91150-114-0 01 1 9601- ● ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28181-080-0 02 1 9601-9609 ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28181-080-0 02 1 9610-0004 ● ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28181-080-0 02 1 0005-0405 ● ● ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28181-080-0 02 1 0406-0512 ● ● ● ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28151-080-0 02 1 0601- ● ● ● ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28181-040-0 01 1 9601-9803 ● ● ● ●
26 BOLT; GEN BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE 		0-28181-040-0 02 1 9804-9904 ●
26 BOLT; GEN BRKT
EURO2 SPECIFICATION<THN> M10X40 FLANGE 		0-28181-040-0 02 1 9905-9905 ●
26 BOLT; GEN BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE 		0-28181-040-0 02 1 9905-0004 ●
26 BOLT; GEN BRKT
AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> M10X40 FLANGE 		0-28181-040-0 02 1 0005-0405 ●
26 BOLT; GEN BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE 		0-28181-040-0 02 1 0406-0512 ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28181-040-0 02 1 0406-0512 ●
26 BOLT; GEN BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE 		0-28151-040-0 02 1 0601- ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28151-040-0 02 1 0601- ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28181-040-0 01 1 9804-9904 ● ● ● ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28181-040-0 01 1 9905-0004 ● ● ●
26 BOLT; GEN BRKT
EXC. EURO2 SPECIFICATION<THN> M10X40 FLANGE 		0-28181-040-0 01 1 9905-0004 ●
26 BOLT; GEN BRKT
EURO2 SPECIFICATION<THN> HEATER & DEFROSTER(C41) M10X40 FLANGE 		0-28181-040-0 01 1 9905-0004 ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28181-040-0 01 1 0005-0405 ● ● ● ●
26 BOLT; GEN BRKT
HEATER & DEFROSTER(C41) EURO2 SPECIFICATION<THN> M10X40 FLANGE 		0-28181-040-0 01 1 0005-0405 ●
26 BOLT; GEN BRKT
EXC. EURO2 SPECIFICATION<THN> M10X40 FLANGE 		0-28181-040-0 01 1 0005-0405 ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28181-040-0 01 1 0406-0512 ● ● ● ●
26 BOLT; GEN BRKT
HEATER & DEFROSTER(C41) M10X40 FLANGE 		0-28181-040-0 01 1 0406-0512 ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28151-040-0 01 1 0601- ● ● ● ●
26 BOLT; GEN BRKT
HEATER & DEFROSTER(C41) M10X40 FLANGE 		0-28151-040-0 01 1 0601- ●
26 BOLT; GEN BRKT
M10X70 FLANGE 		0-28181-070-0 02 1 9601-0512 ● ●
26 BOLT; GEN BRKT
M10X70 FLANGE 		0-28151-070-0 02 1 0601- ● ●
56 SWITCH; OIL PRESSURE WARNING 1-82410-170-0 01 1 9601-0004 ● ● ● ●
56 SWITCH; OIL PRESSURE WARNING 1-82410-170-0 01 1 0005-0405 ● ● ● ● ●
56 SWITCH; OIL PRESSURE WARNING 1-82410-170-1 01 1 0406- ● ● ● ● ● ●
230 BOLT; HEAT PROTECTOR
FLYWHEEL HOUSING FC<E1R> M8X28 FLANGE 		0-28080-828-0 01 1 9601-9607 ●
230 BOLT; HEAT PROTECTOR
FLYWHEEL HOUSING FC<E1R> EXC. ENGINE REAR PTO<SV1> M8X28 FLANGE 		0-28080-828-0 01 1 9608-9803 ●
230 BOLT; HEAT PROTECTOR
FLYWHEEL HOUSING FC<E1R> EXC. ENGINE REAR PTO<SV1> M8X28 FLANGE 		0-28080-828-0 01 1 9804-0004 ●
230 BOLT; HEAT PROTECTOR
EXC. EURO2 SPECIFICATION<THN> M8X28 FLANGE 		0-28080-828-0 01 1 9804-0004 ●
230 BOLT; HEAT PROTECTOR
FLYWHEEL HOUSING FC<E1R> M8X28 FLANGE 		0-28080-828-0 01 1 0005-0302 ●
230 BOLT; HEAT PROTECTOR
EXC. EURO2 SPECIFICATION<THN> M8X28 FLANGE 		0-28080-828-0 01 1 0005-0302 ●
230 BOLT; HEAT PROTECTOR
EXC. EURO2 SPECIFICATION<THN> M8X28 FLANGE 		0-28080-828-0 01 1 0303-0405 ●
230 BOLT; HEAT PROTECTOR
FLYWHEEL HOUSING FC<E1R> M10X30 FLANGE 		0-28181-030-0 01 1 9601-9607 ●
230 BOLT; HEAT PROTECTOR
FLYWHEEL HOUSING FC<E1R> EXC. ENGINE REAR PTO<SV1> M10X30 FLANGE 		0-28181-030-0 01 1 9608-9803 ●
230 BOLT; HEAT PROTECTOR
FLYWHEEL HOUSING FC<E1R> EXC. ENGINE REAR PTO<SV1> M10X30 FLANGE 		0-28181-030-0 01 1 9804-0004 ●
230 BOLT; HEAT PROTECTOR
EXC. EURO2 SPECIFICATION<THN> M10X30 FLANGE 		0-28181-030-0 01 1 9804-0004 ●
230 BOLT; HEAT PROTECTOR
FLYWHEEL HOUSING FC<E1R> M10X30 FLANGE 		0-28181-030-0 01 1 0005-0302 ●
230 BOLT; HEAT PROTECTOR
EXC. EURO2 SPECIFICATION<THN> M10X30 FLANGE 		0-28181-030-0 01 1 0005-0302 ●
230 BOLT; HEAT PROTECTOR
EXC. EURO2 SPECIFICATION<THN> M10X30 FLANGE 		0-28181-030-0 01 1 0303-0405 ●
230 BOLT; HEAT PROTECTOR
FLYWHEEL HOUSING FC<E1R> ENGINE REAR PTO<SV1> M8X14 		0-20800-814-0 03 1 9608-9803 ●
230 BOLT; HEAT PROTECTOR
ENGINE REAR PTO<SV1> M8X14 		0-20800-814-0 03 1 9804-0004 ●
230 BOLT; HEAT PROTECTOR
M10X16 FLANGE 		0-28181-016-0 02 1 9601-0512 ●
230 BOLT; HEAT PROTECTOR
M10X16 FLANGE 		0-28151-016-0 02 1 0601- ●
279 PROTECTOR; STARTER
FLYWHEEL HOUSING FC<E1R> (A) 		8-94394-952-1 01 1 9601-9607 ●
279 PROTECTOR; STARTER
FLYWHEEL HOUSING FC<E1R> EXC. ENGINE REAR PTO<SV1> (A) 		8-94394-952-1 01 1 9608-0004 ●
279 PROTECTOR; STARTER
FLYWHEEL HOUSING FC<E1R> (A) 		8-94394-952-1 01 1 0005-0302 ●
279 PROTECTOR; STARTER
FLYWHEEL HOUSING FC<E1R> ENGINE REAR PTO<SV1> (B) 		8-94394-435-2 01 1 9608-9803 ●
279 PROTECTOR; STARTER
ENGINE REAR PTO<SV1> (B) 		8-94394-435-2 01 1 9804-0004 ●
279 PROTECTOR; STARTER
(D) 		1-14181-292-0 01 1 9601- ●
279 PROTECTOR; STARTER
EXC. EURO2 SPECIFICATION<THN> (C) 		8-94394-501-0 01 1 9804-0405 ●
280 WASHER; PL,HEAT PROTECTOR
ENGINE REAR PTO<SV1> ID=8.4 OD=18 		9-09160-608-0 03 1 9608-0004 ●
292 WASHER; LK,STARTER
ID=14.2 		9-09150-514-0 02 1 9601-9609 ●
292 WASHER; LK,STARTER
ID=14.2 		9-09150-514-0 02 1 9610-0004 ● ●
292 WASHER; LK,STARTER
ID=14.2 		9-09150-514-0 02 1 0005-0405 ● ● ●
292 WASHER; LK,STARTER
ID=14.2 		9-09150-514-0 02 1 0406-0603 ● ● ● ●
292 WASHER; LK,STARTER
ID=14.2 		0-91510-514-0 02 1 0604- ● ● ● ●
293 CABLE; STARTER EARTH
FLYWHEEL HOUSING FC<E1R> L=360 		1-82650-230-1 01 1 9601-9803 ●
293 CABLE; STARTER EARTH
FLYWHEEL HOUSING FC<E1R> L=360 		1-82650-230-1 01 1 9804-0004 ●
293 CABLE; STARTER EARTH
EXC. EURO2 SPECIFICATION<THN> L=360 		1-82650-230-1 01 1 9804-0004 ●
293 CABLE; STARTER EARTH
FLYWHEEL HOUSING FC<E1R> L=360 		1-82650-230-1 01 1 0005-0006 ●
293 CABLE; STARTER EARTH
EXC. EURO2 SPECIFICATION<THN> L=360 		1-82650-230-1 01 1 0005-0006 ●
293 CABLE; STARTER EARTH
FLYWHEEL HOUSING FC<E1R> L=360 		1-82650-230-1 01 1 0007-0302 ●
293 CABLE; STARTER EARTH
EXC. FLYWHEEL HOUSING FC<E1R> L=350 		1-82650-266-0 01 1 9601-9607 ●
293 CABLE; STARTER EARTH
EXC. FLYWHEEL HOUSING FC<E1R> L=350 		1-82650-266-0 01 1 9608-9803 ●
293 CABLE; STARTER EARTH
L=350 		1-82650-266-0 01 1 9608-9803 ●
293 CABLE; STARTER EARTH
EXC. FLYWHEEL HOUSING FC<E1R> L=350 		1-82650-266-0 01 1 9804-9904 ●
293 CABLE; STARTER EARTH
EURO2 SPECIFICATION<THN> L=350 		1-82650-266-0 01 1 9804-9904 ●
293 CABLE; STARTER EARTH
EXC. FLYWHEEL HOUSING FC<E1R> L=350 		1-82650-266-0 02 1 9905-9905 ●
293 CABLE; STARTER EARTH
EURO2 SPECIFICATION<THN> L=350 		1-82650-266-0 02 1 9905-9905 ●
293 CABLE; STARTER EARTH
EXC. FLYWHEEL HOUSING FC<E1R>,ENGINE REAR PTO<SV1> L=350 		1-82650-266-0 02 1 9905-9905 ●
293 CABLE; STARTER EARTH
EURO2 SPECIFICATION<THN> L=350 		1-82650-266-0 02 1 9905-9905 ●
293 CABLE; STARTER EARTH
EXC. FLYWHEEL HOUSING FC<E1R> L=350 		1-82650-266-0 02 1 9905-9907 ●
293 CABLE; STARTER EARTH
EURO2 SPECIFICATION<THN> L=350 		1-82650-266-0 02 1 9905-9907 ●
293 CABLE; STARTER EARTH
EXC. FLYWHEEL HOUSING FC<E1R> L=350 		1-82650-266-0 01 1 9908-0001 ●
293 CABLE; STARTER EARTH
EURO2 SPECIFICATION<THN> L=350 		1-82650-266-0 01 1 9908-0001 ●
293 CABLE; STARTER EARTH
EXC. FLYWHEEL HOUSING FC<E1R>,ENGINE REAR PTO<SV1> L=350 		1-82650-266-0 01 1 0002-0004 ●
293 CABLE; STARTER EARTH
EXC. FLYWHEEL HOUSING FC<E1R> L=350 		1-82650-266-0 01 1 0005-0005 ●
293 CABLE; STARTER EARTH
L=350 		1-82650-266-0 01 1 0005-0005 ●
293 CABLE; STARTER EARTH
L=550 		1-82650-239-0 01 1 9601- ● ●
293 CABLE; STARTER EARTH
EURO2 SPECIFICATION<THN> L=320 		1-82650-324-0 01 1 0002-0005 ●
293 CABLE; STARTER EARTH
EXC. FLYWHEEL HOUSING FC<E1R> L=320 		1-82650-324-0 01 1 0006-0302 ●
293 CABLE; STARTER EARTH
EURO2 SPECIFICATION<THN> L=320 		1-82650-324-0 01 1 0006-0302 ● ●
293 CABLE; STARTER EARTH
L=320 		1-82650-324-0 01 1 0303-0405 ● ●
293 CABLE; STARTER EARTH
EURO2 SPECIFICATION<THN> L=320 		1-82650-324-0 01 1 0303-0405 ●
293 CABLE; STARTER EARTH
L=320 		1-82650-324-0 01 1 0406- ● ● ● ●
293 CABLE; STARTER EARTH
EXC. EURO2 SPECIFICATION<THN> L=300 		1-82650-223-0 01 1 0007-0405 ●

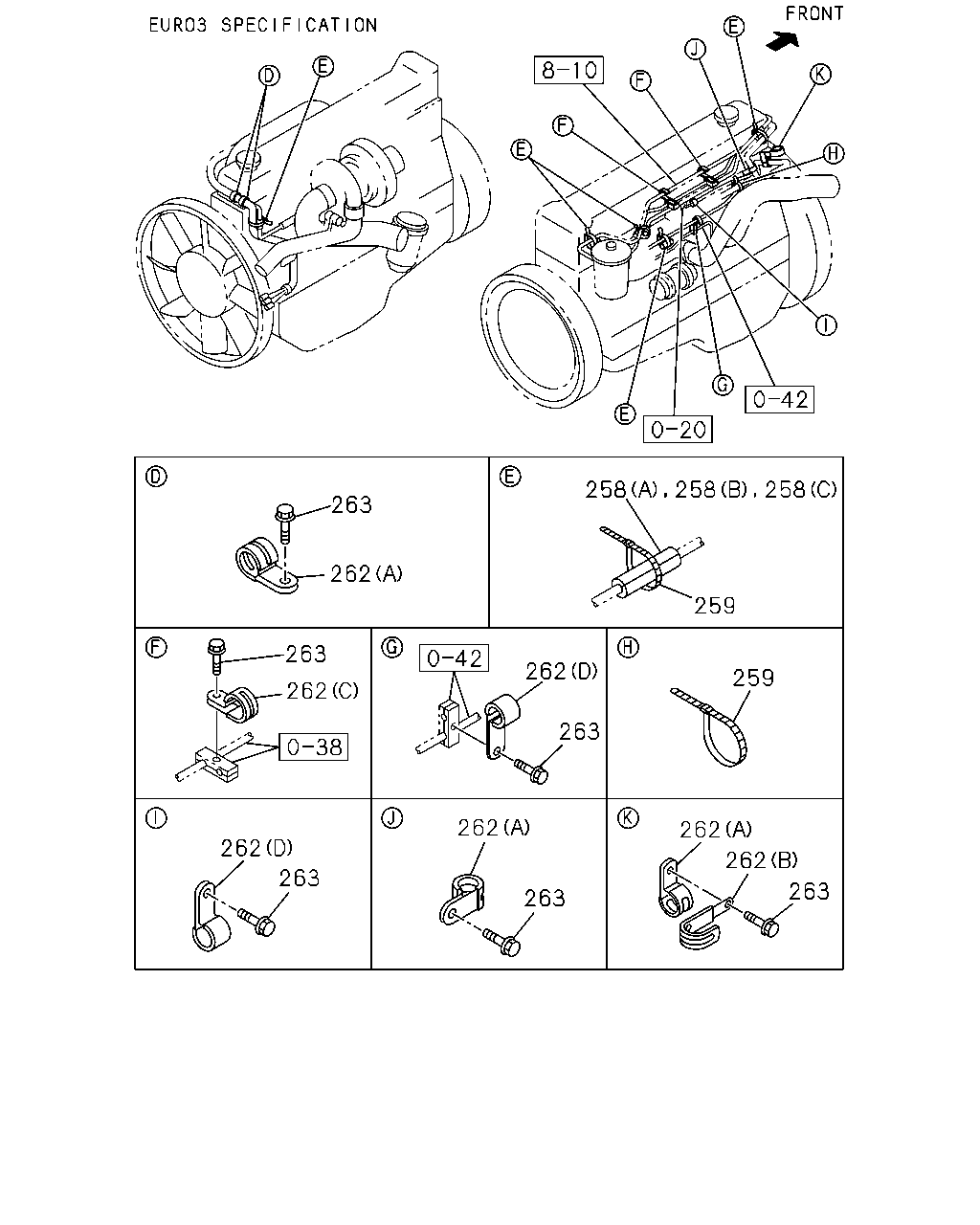

çizim 73340
258 263 262 259 263 262 259 262 263 262 262 262 262 263 263 263 258 258
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
258 SLEEVE; RUBBER OIL PIPE
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) (A) ID=6 L=30 		5-09360-352-0 02 1 0605- ●
258 SLEEVE; RUBBER OIL PIPE
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) (B) ID=18 OD=22 L=25 		8-94412-773-0 05 1 0605- ●
258 SLEEVE; RUBBER OIL PIPE
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) (C) ID=10 OD=14 L=30 		9-09956-682-0 02 1 0605- ●
259 CLIP; BAND,HARNESS TO OIL PIPE
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) L=250 		5-09707-030-1 05 1 0605-1205 ●
259 CLIP; BAND,HARNESS TO OIL PIPE
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) L=250 		8-98216-430-0 05 1 1206- ●
259 CLIP; BAND,HARNESS TO OIL PIPE
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) L=140 		5-09707-031-1 05 1 0605-1205 ●
259 CLIP; BAND,HARNESS TO OIL PIPE
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) L=140 		8-98216-431-0 05 1 1206- ●
262 CLIP; HARNESS
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) (A) ID=31 L=35 		1-09700-329-1 06 1 0605- ●
262 CLIP; HARNESS
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) (B) ID=18 L=44 		8-94225-185-0 01 1 0605-0801 ●
262 CLIP; HARNESS
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) (B) ID=18 L=44 		8-97367-985-1 01 1 0802- ●
262 CLIP; HARNESS
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) (D) ID=11 L=20 		9-09525-035-0 06 1 0605-0606 ●
262 CLIP; HARNESS
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) (D) ID=11 L=20 		0-95235-035-0 06 1 0607- ●
262 CLIP; HARNESS
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) (C) ID=19 L=28 		9-09525-856-0 03 1 0605-0606 ●
262 CLIP; HARNESS
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) (C) ID=19 L=28 		0-95235-856-0 03 1 0607- ●
263 BOLT; CLIP
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) M8X16 FLANGE 		0-28050-816-0 16 1 0605- ●

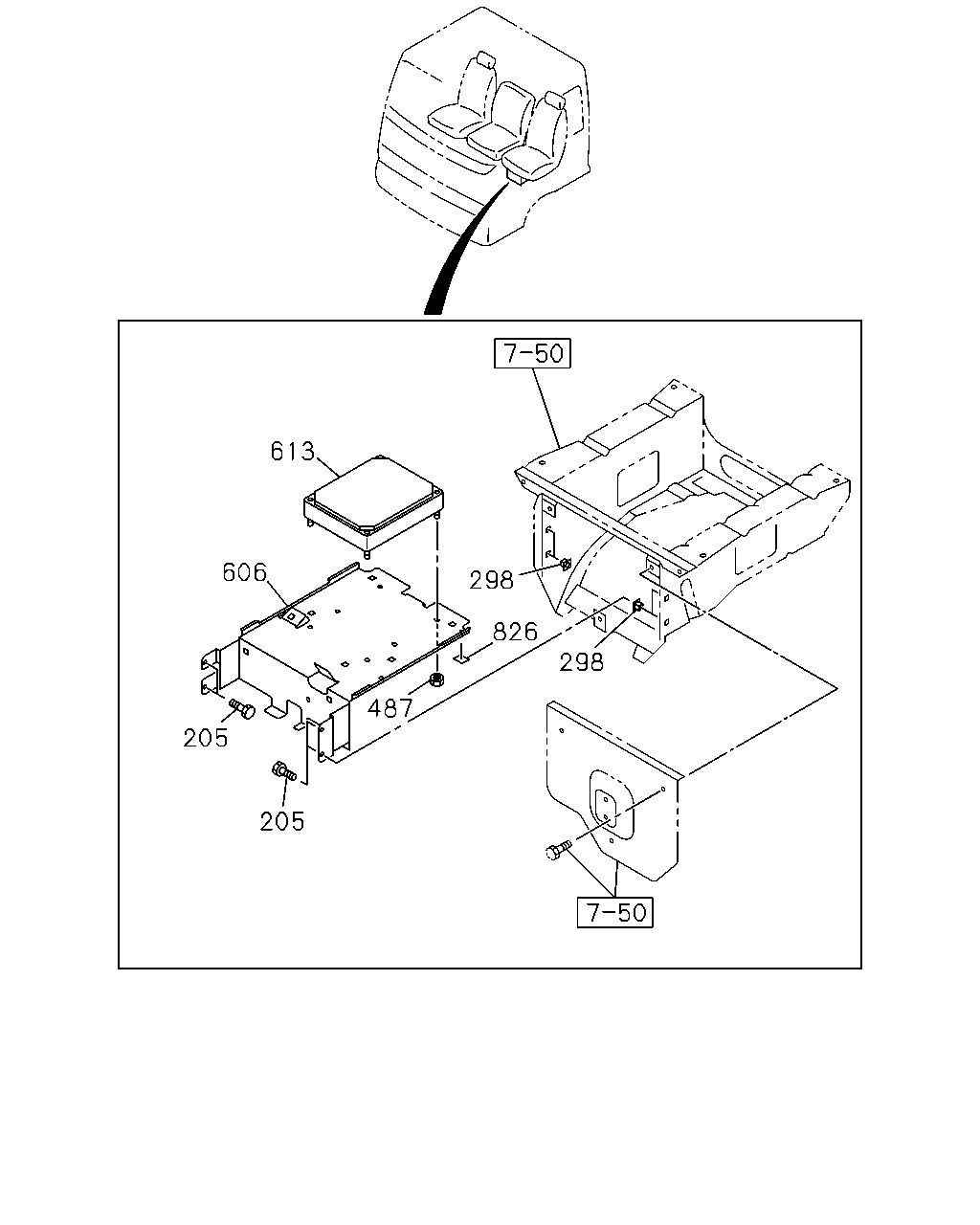

çizim 73535
613 606 298 826 298 487 205 205
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
205 SCREW; BRKT
EURO2 SPECIFICATION<THN> M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 9611-0405 ● ●
205 SCREW; BRKT
A/T<X9D> EXC. EURO2 SPECIFICATION<THN> M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 0406- ●
205 SCREW; BRKT
EURO3 SPECIFICATION<NJX> M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 0406- ●
298 GROMMET; SCREW
EURO2 SPECIFICATION<THN> D=9.7X9.7 L=8 		8-94222-314-0 04 1 9611-0405 ● ●
298 GROMMET; SCREW
A/T<X9D> EXC. EURO2 SPECIFICATION<THN> D=9.7X9.7 L=8 		8-94222-314-0 04 1 0406- ●
298 GROMMET; SCREW
EURO3 SPECIFICATION<NJX> D=9.7X9.7 L=8 		8-94222-314-0 04 1 0406- ●
487 NUT
EURO2 SPECIFICATION<THN> M6 FLANGE 		0-91150-106-0 04 1 9611-0602 ● ●
487 NUT
EURO2 SPECIFICATION<THN> M6 FLANGE 		0-91180-106-0 04 1 0603-0604 ● ●
487 NUT
EURO2 SPECIFICATION<THN> M6 FLANGE 		0-91180-106-0 04 1 0605- ● ● ●
487 NUT
EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN> M6 FLANGE 		0-91180-106-0 04 1 0605- ●
606 BRACKET; CONT UNIT
EURO3 SPECIFICATION<NJX> 		1-75558-568-4 01 1 0605- ●
606 BRACKET; CONT UNIT
EURO3 SPECIFICATION<NJX> 		1-75558-552-9 01 1 0406- ●
606 BRACKET; CONT UNIT
A/T<X9D> EXC. EURO2 SPECIFICATION<THN> 		1-75557-465-6 01 1 0005- ●
606 BRACKET; CONT UNIT
EURO2 SPECIFICATION<THN> A/T<X9D> 		1-75558-594-0 01 1 0005- ●
606 BRACKET; CONT UNIT
EURO2 SPECIFICATION<THN> 		1-75558-534-7 01 1 9611-0004 ● ●
606 BRACKET; CONT UNIT
EURO2 SPECIFICATION<THN> EXC. A/T<X9D> 		1-75558-534-9 01 1 0005- ● ● ●
613 CONTROL UNIT; ENG
EURO3 SPECIFICATION<NJX> 		1-80110-820-2 01 1 0605- ●
613 CONTROL UNIT; ENG 8-97601-781-2 01 1 0406-0504 ●
613 CONTROL UNIT; ENG 8-98012-977-0 01 1 0505- ●
613 CONTROL UNIT; ENG
EURO2 SPECIFICATION<THN> 		1-80110-099-0 01 1 9610-9612 ●
613 CONTROL UNIT; ENG
EURO2 SPECIFICATION<THN> 		1-80110-131-0 01 1 9701-9701 ●
613 CONTROL UNIT; ENG
EURO2 SPECIFICATION<THN> 		1-80110-177-0 01 1 9702-9803 ●
613 CONTROL UNIT; ENG
FVR MIDDLE CHASSIS(FV***F) EURO2 SPECIFICATION<THN> 		1-80110-177-0 01 1 9804-9807 ●
613 CONTROL UNIT; ENG
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) EURO2 SPECIFICATION<THN> 		1-80110-177-0 01 1 9808-0004 ●
613 CONTROL UNIT; ENG
FVR STD CAB MIDDLE CHASSIS(FV**MF) EURO2 SPECIFICATION<THN> EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATO R(YC4) 		1-80110-177-0 01 1 9808-0004 ●
613 CONTROL UNIT; ENG
HONG KONG EQUIPMENT(PQ1) EURO2 SPECIFICATION<THN> 		1-80110-177-0 01 1 0005- ●
613 CONTROL UNIT; ENG
FVR STD CAB MIDDLE CHASSIS(FV**MF) EURO2 SPECIFICATION<THN> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-80110-441-0 01 1 9808-0004 ●
613 CONTROL UNIT; ENG
EURO2 SPECIFICATION<THN> EXC. HONG KONG EQUIPMENT(PQ1) 		1-80110-441-0 01 1 0005- ●
613 CONTROL UNIT; ENG 1-80110-100-0 01 1 9610-9612 ●
613 CONTROL UNIT; ENG 1-80110-132-0 01 1 9701-9701 ●
613 CONTROL UNIT; ENG 1-80110-178-0 01 1 9702-9705 ●
613 CONTROL UNIT; ENG
EURO2 SPECIFICATION<THN> 		1-80110-178-0 01 1 9706-9803 ●
613 CONTROL UNIT; ENG
EURO2 SPECIFICATION<THN> 		1-80110-178-0 01 1 9804- ●
613 CONTROL UNIT; ENG
EURO2 SPECIFICATION<THN> 		8-94392-232-2 01 1 0005- ●
826 SEAL; NOISE INSULATION
EURO2 SPECIFICATION<THN> 30X30 		8-97866-626-0 03 1 9611-0309 ● ●
826 SEAL; NOISE INSULATION
EURO2 SPECIFICATION<THN> 30X30 		1-74998-128-0 03 1 0310-0405 ● ●
826 SEAL; NOISE INSULATION
A/T<X9D> EXC. EURO2 SPECIFICATION<THN> 30X30 		1-74998-128-1 03 1 0406-0908 ●
826 SEAL; NOISE INSULATION
EURO3 SPECIFICATION<NJX> 30X30 		1-74998-128-1 03 1 0406-0908 ●
826 SEAL; NOISE INSULATION
A/T<X9D> EXC. EURO2 SPECIFICATION<THN> 30X30 		8-98142-344-0 03 1 0909- ●
826 SEAL; NOISE INSULATION
EURO3 SPECIFICATION<NJX> 30X30 		8-98142-344-0 03 1 0909- ●
çizim 184257
2 23 16 17 26 26 19 898 56 58 1 279 7 293 230 295 83 260
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. FLYWHEEL HOUSING FC<E1R> 24V 4.5KW NIKKO 		1-81100-307-0 01 1 9601-9708 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. FLYWHEEL HOUSING FC<E1R> 24V 4.5KW NIKKO 		1-81100-323-0 01 1 9709-0004 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. FLYWHEEL HOUSING FC<E1R> 24V 4.5KW NIKKO 		1-81100-323-0 01 1 0005-0302 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. FLYWHEEL HOUSING FC<E1R> 24V 4.5KW NIKKO 		1-81100-308-0 01 1 9601-9708 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. FLYWHEEL HOUSING FC<E1R> 24V 4.5KW NIKKO 		1-81100-324-0 01 1 9709-9805 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. FLYWHEEL HOUSING FC<E1R>,ENGINE REAR PTO<SV1> 24V 4.5KW NIKKO 		1-81100-324-0 01 1 9806-0004 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. FLYWHEEL HOUSING FC<E1R> 24V 4.5KW NIKKO 		1-81100-324-0 01 1 0005-0302 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO 		1-81100-324-0 01 1 0005-0302 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO 		1-81100-324-1 01 1 0303- ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.5KW DENSO 		1-81100-230-2 01 1 9601-0108 ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.5KW DENSO 		1-81100-422-0 01 1 0109- ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO 		8-94394-151-1 01 1 9610-9803 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EURO2 SPECIFICATION<THN> 24V 4.5KW DENSO 		8-94394-151-2 01 1 9804-9904 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. FLYWHEEL HOUSING FC<E1R> 24V 4.5KW DENSO 		8-94394-151-2 01 1 9905-9907 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EURO2 SPECIFICATION<THN> 24V 4.5KW DENSO 		8-94394-151-2 01 1 9905-9907 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EURO2 SPECIFICATION<THN> 24V 4.5KW DENSO 		8-94394-151-2 01 1 9908-0108 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EURO2 SPECIFICATION<THN> 24V 4.5KW DENSO 		8-97602-169-1 01 1 0109-0405 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EURO2 SPECIFICATION<THN> 24V 4.5KW DENSO 		8-97602-169-1 01 1 0406- ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO 		8-97602-169-1 01 1 0406- ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. EURO2 SPECIFICATION<THN> 24V 4.5KW DENSO 		8-94399-159-4 01 1 9804-9904 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. FLYWHEEL HOUSING FC<E1R> 24V 4.5KW DENSO 		8-94399-159-4 01 1 9905-9907 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. EURO2 SPECIFICATION<THN> 24V 4.5KW DENSO 		8-94399-159-4 01 1 9905-9907 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. EURO2 SPECIFICATION<THN> 24V 4.5KW DENSO 		8-94399-159-4 01 1 9908-0108 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. EURO2 SPECIFICATION<THN> 24V 4.5KW DENSO 		8-97602-167-1 01 1 0109-0405 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 50A MITSUBISHI 		1-81200-599-5 01 1 0406- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO 		1-81200-416-3 01 1 9601-9609 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO 		1-81200-416-4 01 1 9610-9703 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO 		1-81200-416-4 01 1 9704-9705 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO 		1-81200-416-4 01 1 9706-9806 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO 		1-81200-416-4 01 1 9807-9904 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO 		1-81200-416-4 01 1 9905-9905 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO 		1-81200-416-4 01 1 9905-9908 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO 		1-81200-416-4 01 1 9909-0004 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO 		1-81200-416-5 01 1 0005- ● ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A DENSO 		8-94399-157-1 01 1 9601- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A MITSUBISHI 		1-81200-521-0 01 1 9904-9904 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A MITSUBISHI 		1-81200-521-0 01 1 9905-9905 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A MITSUBISHI 		1-81200-521-0 01 1 9905-9905 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A MITSUBISHI 		1-81200-577-0 01 1 9906-9907 ● ●
7 NUT; STARTER
M14 		9-99110-414-0 02 1 9601-9609 ●
7 NUT; STARTER
M14 		9-99110-414-0 02 1 9610-0004 ● ●
7 NUT; STARTER
M14 		9-99110-414-0 02 1 0005-0405 ● ● ●
7 NUT; STARTER
M14 		9-99110-414-0 02 1 0406-0512 ● ● ● ●
7 NUT; STARTER
M14 		0-91110-514-0 02 1 0601- ● ● ● ●
7 NUT; STARTER
M14 FLANGE 		0-91150-114-0 02 1 9601- ● ●
16 BOLT; GEN
M14X135 		1-09000-133-1 01 1 9601-9609 ●
16 BOLT; GEN
M14X135 		1-09000-133-1 01 1 9610-0004 ● ●
16 BOLT; GEN
M14X135 		1-09000-133-1 01 1 0005-0405 ● ● ●
16 BOLT; GEN
M14X135 		1-09000-133-1 01 1 0406- ● ● ● ●
16 BOLT; GEN
M14X128 		9-09801-203-0 01 1 9601-9611 ● ●
16 BOLT; GEN
M14X123 		9-09801-204-1 01 1 9612- ● ●
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 01 1 9601-9912 ● ● ● ●
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 01 1 0001-0405 ● ● ● ● ●
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 01 1 0406-0605 ● ● ● ● ● ●
17 WASHER; PL,GEN
ID=15 		0-91610-514-0 01 1 0606- ● ● ● ● ● ●
19 BRACKET; GEN
(D) 		8-94390-588-0 01 1 0406-0511 ●
19 BRACKET; GEN
(D) 		8-94390-589-1 01 1 0512-0704 ●
19 BRACKET; GEN
(D) 		8-97609-149-0 01 1 0705-0803 ●
19 BRACKET; GEN
(D) 		8-98082-615-1 01 1 0804- ●
19 BRACKET; GEN
(B) 		8-94396-297-0 01 1 9601-9609 ●
19 BRACKET; GEN
(B) 		8-94396-297-0 01 1 9610-9803 ● ●
19 BRACKET; GEN
(B) 		8-94396-297-0 01 1 9804-0004 ●
19 BRACKET; GEN
HEATER & DEFROSTER(C41) (B) 		8-94396-297-0 01 1 9804-0004 ●
19 BRACKET; GEN
(B) 		8-94396-297-0 01 1 0005-0112 ● ●
19 BRACKET; GEN
HEATER & DEFROSTER(C41) EURO2 SPECIFICATION<THN> (B) 		8-94396-297-0 01 1 0005-0112 ●
19 BRACKET; GEN
EXC. EURO2 SPECIFICATION<THN> (B) 		8-94396-297-0 01 1 0005-0112 ●
19 BRACKET; GEN
(B) 		8-97602-318-0 01 1 0201-0405 ● ●
19 BRACKET; GEN
HEATER & DEFROSTER(C41) EURO2 SPECIFICATION<THN> (B) 		8-97602-318-0 01 1 0201-0405 ●
19 BRACKET; GEN
EXC. EURO2 SPECIFICATION<THN> (B) 		8-97602-318-0 01 1 0201-0405 ●
19 BRACKET; GEN
(B) 		8-97602-318-0 01 1 0406- ● ●
19 BRACKET; GEN
HEATER & DEFROSTER(C41) EURO2 SPECIFICATION<THN> (B) 		8-97602-318-0 01 1 0406- ●
19 BRACKET; GEN
(C) 		1-19711-038-0 01 1 9601- ●
19 BRACKET; GEN
EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATO R(YC4) (C) 		1-19711-038-0 01 1 9601- ●
19 BRACKET; GEN
INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (C) 		1-19711-097-0 01 1 9601-0604 ●
19 BRACKET; GEN
INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-19711-097-0 01 1 0605- ●
19 BRACKET; GEN
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-94395-470-2 01 1 9804-0004 ●
19 BRACKET; GEN
AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> (A) 		8-94395-470-3 01 1 0005-0406 ●
19 BRACKET; GEN
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-94395-470-5 01 1 0407- ●
23 NUT; GEN
M14 		9-99110-414-0 01 1 9601-9609 ●
23 NUT; GEN
M14 		9-99110-414-0 01 1 9610-0004 ● ●
23 NUT; GEN
M14 		9-99110-414-0 01 1 0005-0405 ● ● ●
23 NUT; GEN
M14 		9-99110-414-0 01 1 0406-0512 ● ● ● ●
23 NUT; GEN
M14 		0-91110-514-0 01 1 0601- ● ● ● ●
23 NUT; GEN
M14 FLANGE 		0-91150-114-0 01 1 9601- ● ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28181-080-0 02 1 9601-9609 ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28181-080-0 02 1 9610-0004 ● ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28181-080-0 02 1 0005-0405 ● ● ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28181-080-0 02 1 0406-0512 ● ● ● ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28151-080-0 02 1 0601- ● ● ● ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28181-040-0 01 1 9601-9803 ● ● ● ●
26 BOLT; GEN BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE 		0-28181-040-0 02 1 9804-9904 ●
26 BOLT; GEN BRKT
EURO2 SPECIFICATION<THN> M10X40 FLANGE 		0-28181-040-0 02 1 9905-9905 ●
26 BOLT; GEN BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE 		0-28181-040-0 02 1 9905-0004 ●
26 BOLT; GEN BRKT
AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> M10X40 FLANGE 		0-28181-040-0 02 1 0005-0405 ●
26 BOLT; GEN BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE 		0-28181-040-0 02 1 0406-0512 ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28181-040-0 02 1 0406-0512 ●
26 BOLT; GEN BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE 		0-28151-040-0 02 1 0601- ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28151-040-0 02 1 0601- ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28181-040-0 01 1 9804-9904 ● ● ● ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28181-040-0 01 1 9905-0004 ● ● ●
26 BOLT; GEN BRKT
EXC. EURO2 SPECIFICATION<THN> M10X40 FLANGE 		0-28181-040-0 01 1 9905-0004 ●
26 BOLT; GEN BRKT
EURO2 SPECIFICATION<THN> HEATER & DEFROSTER(C41) M10X40 FLANGE 		0-28181-040-0 01 1 9905-0004 ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28181-040-0 01 1 0005-0405 ● ● ● ●
26 BOLT; GEN BRKT
HEATER & DEFROSTER(C41) EURO2 SPECIFICATION<THN> M10X40 FLANGE 		0-28181-040-0 01 1 0005-0405 ●
26 BOLT; GEN BRKT
EXC. EURO2 SPECIFICATION<THN> M10X40 FLANGE 		0-28181-040-0 01 1 0005-0405 ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28181-040-0 01 1 0406-0512 ● ● ● ●
26 BOLT; GEN BRKT
HEATER & DEFROSTER(C41) M10X40 FLANGE 		0-28181-040-0 01 1 0406-0512 ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28151-040-0 01 1 0601- ● ● ● ●
26 BOLT; GEN BRKT
HEATER & DEFROSTER(C41) M10X40 FLANGE 		0-28151-040-0 01 1 0601- ●
26 BOLT; GEN BRKT
M10X70 FLANGE 		0-28181-070-0 02 1 9601-0512 ● ●
26 BOLT; GEN BRKT
M10X70 FLANGE 		0-28151-070-0 02 1 0601- ● ●
56 SWITCH; OIL PRESSURE WARNING 1-82410-170-0 01 1 9601-0004 ● ● ● ●
56 SWITCH; OIL PRESSURE WARNING 1-82410-170-0 01 1 0005-0405 ● ● ● ● ●
56 SWITCH; OIL PRESSURE WARNING 1-82410-170-1 01 1 0406- ● ● ● ● ● ●
58 BRACKET; CLIP
L=55 		1-47475-304-0 01 1 9601- ● ●
83 THERMOMETER UNIT 1-83161-031-1 01 1 9601-9803 ● ● ●
83 THERMOMETER UNIT 1-83161-031-1 01 1 9804-9904 ● ● ●
83 THERMOMETER UNIT
EXC. EURO2 SPECIFICATION<THN> 		1-83161-031-1 01 1 9804-9904 ●
83 THERMOMETER UNIT 1-83161-031-1 01 1 9905-9912 ● ●
83 THERMOMETER UNIT
EXC. EURO2 SPECIFICATION<THN> 		1-83161-031-1 01 1 9905-9912 ● ●
83 THERMOMETER UNIT 1-83161-031-1 01 1 0001-0405 ● ●
83 THERMOMETER UNIT
EXC. EURO2 SPECIFICATION<THN> 		1-83161-031-1 01 1 0001-0405 ● ●
83 THERMOMETER UNIT 1-83161-031-1 01 1 0406-0604 ● ●
83 THERMOMETER UNIT
EXC. EURO2 SPECIFICATION<THN> 		1-83161-031-1 01 1 0406-0604 ●
83 THERMOMETER UNIT 1-83161-031-1 01 1 0605- ● ●
83 THERMOMETER UNIT
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN> 		1-83161-031-1 01 1 0605- ●
83 THERMOMETER UNIT
EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN> 		1-83161-031-1 01 1 0605- ●
230 BOLT; HEAT PROTECTOR
FLYWHEEL HOUSING FC<E1R> M8X28 FLANGE 		0-28080-828-0 01 1 9601-9607 ●
230 BOLT; HEAT PROTECTOR
FLYWHEEL HOUSING FC<E1R> EXC. ENGINE REAR PTO<SV1> M8X28 FLANGE 		0-28080-828-0 01 1 9608-9803 ●
230 BOLT; HEAT PROTECTOR
FLYWHEEL HOUSING FC<E1R> EXC. ENGINE REAR PTO<SV1> M8X28 FLANGE 		0-28080-828-0 01 1 9804-0004 ●
230 BOLT; HEAT PROTECTOR
EXC. EURO2 SPECIFICATION<THN> M8X28 FLANGE 		0-28080-828-0 01 1 9804-0004 ●
230 BOLT; HEAT PROTECTOR
FLYWHEEL HOUSING FC<E1R> M8X28 FLANGE 		0-28080-828-0 01 1 0005-0302 ●
230 BOLT; HEAT PROTECTOR
EXC. EURO2 SPECIFICATION<THN> M8X28 FLANGE 		0-28080-828-0 01 1 0005-0302 ●
230 BOLT; HEAT PROTECTOR
EXC. EURO2 SPECIFICATION<THN> M8X28 FLANGE 		0-28080-828-0 01 1 0303-0405 ●
230 BOLT; HEAT PROTECTOR
FLYWHEEL HOUSING FC<E1R> M10X30 FLANGE 		0-28181-030-0 01 1 9601-9607 ●
230 BOLT; HEAT PROTECTOR
FLYWHEEL HOUSING FC<E1R> EXC. ENGINE REAR PTO<SV1> M10X30 FLANGE 		0-28181-030-0 01 1 9608-9803 ●
230 BOLT; HEAT PROTECTOR
FLYWHEEL HOUSING FC<E1R> EXC. ENGINE REAR PTO<SV1> M10X30 FLANGE 		0-28181-030-0 01 1 9804-0004 ●
230 BOLT; HEAT PROTECTOR
EXC. EURO2 SPECIFICATION<THN> M10X30 FLANGE 		0-28181-030-0 01 1 9804-0004 ●
230 BOLT; HEAT PROTECTOR
FLYWHEEL HOUSING FC<E1R> M10X30 FLANGE 		0-28181-030-0 01 1 0005-0302 ●
230 BOLT; HEAT PROTECTOR
EXC. EURO2 SPECIFICATION<THN> M10X30 FLANGE 		0-28181-030-0 01 1 0005-0302 ●
230 BOLT; HEAT PROTECTOR
EXC. EURO2 SPECIFICATION<THN> M10X30 FLANGE 		0-28181-030-0 01 1 0303-0405 ●
230 BOLT; HEAT PROTECTOR
FLYWHEEL HOUSING FC<E1R> ENGINE REAR PTO<SV1> M8X14 		0-20800-814-0 03 1 9608-9803 ●
230 BOLT; HEAT PROTECTOR
ENGINE REAR PTO<SV1> M8X14 		0-20800-814-0 03 1 9804-0004 ●
230 BOLT; HEAT PROTECTOR
M10X16 FLANGE 		0-28181-016-0 02 1 9601-0512 ●
230 BOLT; HEAT PROTECTOR
M10X16 FLANGE 		0-28151-016-0 02 1 0601- ●
260 SENSOR; WATER TEMP
EURO2 SPECIFICATION<THN> 		1-80210-004-0 01 1 9610- ● ●
260 SENSOR; WATER TEMP 1-80210-005-1 01 1 0005-0405 ●
260 SENSOR; WATER TEMP 1-80210-005-1 01 1 0406-0604 ● ●
260 SENSOR; WATER TEMP
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) 		1-80210-005-1 01 1 0605- ●
260 SENSOR; WATER TEMP 1-80210-005-1 01 1 0605- ● ●
279 PROTECTOR; STARTER
FLYWHEEL HOUSING FC<E1R> (A) 		8-94394-952-1 01 1 9601-9607 ●
279 PROTECTOR; STARTER
FLYWHEEL HOUSING FC<E1R> EXC. ENGINE REAR PTO<SV1> (A) 		8-94394-952-1 01 1 9608-0004 ●
279 PROTECTOR; STARTER
FLYWHEEL HOUSING FC<E1R> (A) 		8-94394-952-1 01 1 0005-0302 ●
279 PROTECTOR; STARTER
FLYWHEEL HOUSING FC<E1R> ENGINE REAR PTO<SV1> (B) 		8-94394-435-2 01 1 9608-9803 ●
279 PROTECTOR; STARTER
ENGINE REAR PTO<SV1> (B) 		8-94394-435-2 01 1 9804-0004 ●
279 PROTECTOR; STARTER
(D) 		1-14181-292-0 01 1 9601- ●
279 PROTECTOR; STARTER
EXC. EURO2 SPECIFICATION<THN> (C) 		8-94394-501-0 01 1 9804-0405 ●
293 CABLE; STARTER EARTH
FLYWHEEL HOUSING FC<E1R> L=360 		1-82650-230-1 01 1 9601-9803 ●
293 CABLE; STARTER EARTH
FLYWHEEL HOUSING FC<E1R> L=360 		1-82650-230-1 01 1 9804-0004 ●
293 CABLE; STARTER EARTH
EXC. EURO2 SPECIFICATION<THN> L=360 		1-82650-230-1 01 1 9804-0004 ●
293 CABLE; STARTER EARTH
FLYWHEEL HOUSING FC<E1R> L=360 		1-82650-230-1 01 1 0005-0006 ●
293 CABLE; STARTER EARTH
EXC. EURO2 SPECIFICATION<THN> L=360 		1-82650-230-1 01 1 0005-0006 ●
293 CABLE; STARTER EARTH
FLYWHEEL HOUSING FC<E1R> L=360 		1-82650-230-1 01 1 0007-0302 ●
293 CABLE; STARTER EARTH
EXC. FLYWHEEL HOUSING FC<E1R> L=350 		1-82650-266-0 01 1 9601-9607 ●
293 CABLE; STARTER EARTH
EXC. FLYWHEEL HOUSING FC<E1R> L=350 		1-82650-266-0 01 1 9608-9803 ●
293 CABLE; STARTER EARTH
L=350 		1-82650-266-0 01 1 9608-9803 ●
293 CABLE; STARTER EARTH
EXC. FLYWHEEL HOUSING FC<E1R> L=350 		1-82650-266-0 01 1 9804-9904 ●
293 CABLE; STARTER EARTH
EURO2 SPECIFICATION<THN> L=350 		1-82650-266-0 01 1 9804-9904 ●
293 CABLE; STARTER EARTH
EXC. FLYWHEEL HOUSING FC<E1R> L=350 		1-82650-266-0 02 1 9905-9905 ●
293 CABLE; STARTER EARTH
EURO2 SPECIFICATION<THN> L=350 		1-82650-266-0 02 1 9905-9905 ●
293 CABLE; STARTER EARTH
EXC. FLYWHEEL HOUSING FC<E1R>,ENGINE REAR PTO<SV1> L=350 		1-82650-266-0 02 1 9905-9905 ●
293 CABLE; STARTER EARTH
EURO2 SPECIFICATION<THN> L=350 		1-82650-266-0 02 1 9905-9905 ●
293 CABLE; STARTER EARTH
EXC. FLYWHEEL HOUSING FC<E1R> L=350 		1-82650-266-0 02 1 9905-9907 ●
293 CABLE; STARTER EARTH
EURO2 SPECIFICATION<THN> L=350 		1-82650-266-0 02 1 9905-9907 ●
293 CABLE; STARTER EARTH
EXC. FLYWHEEL HOUSING FC<E1R> L=350 		1-82650-266-0 01 1 9908-0001 ●
293 CABLE; STARTER EARTH
EURO2 SPECIFICATION<THN> L=350 		1-82650-266-0 01 1 9908-0001 ●
293 CABLE; STARTER EARTH
EXC. FLYWHEEL HOUSING FC<E1R>,ENGINE REAR PTO<SV1> L=350 		1-82650-266-0 01 1 0002-0004 ●
293 CABLE; STARTER EARTH
EXC. FLYWHEEL HOUSING FC<E1R> L=350 		1-82650-266-0 01 1 0005-0005 ●
293 CABLE; STARTER EARTH
L=350 		1-82650-266-0 01 1 0005-0005 ●
293 CABLE; STARTER EARTH
L=550 		1-82650-239-0 01 1 9601- ● ●
293 CABLE; STARTER EARTH
EURO2 SPECIFICATION<THN> L=320 		1-82650-324-0 01 1 0002-0005 ●
293 CABLE; STARTER EARTH
EXC. FLYWHEEL HOUSING FC<E1R> L=320 		1-82650-324-0 01 1 0006-0302 ●
293 CABLE; STARTER EARTH
EURO2 SPECIFICATION<THN> L=320 		1-82650-324-0 01 1 0006-0302 ● ●
293 CABLE; STARTER EARTH
L=320 		1-82650-324-0 01 1 0303-0405 ● ●
293 CABLE; STARTER EARTH
EURO2 SPECIFICATION<THN> L=320 		1-82650-324-0 01 1 0303-0405 ●
293 CABLE; STARTER EARTH
L=320 		1-82650-324-0 01 1 0406- ● ● ● ●
293 CABLE; STARTER EARTH
EXC. EURO2 SPECIFICATION<THN> L=300 		1-82650-223-0 01 1 0007-0405 ●
295 HARNESS; STARTER 1-82640-527-1 01 1 9601- ● ●
898 SENSOR; BOOST
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) 		1-80220-005-0 01 1 0605- ●

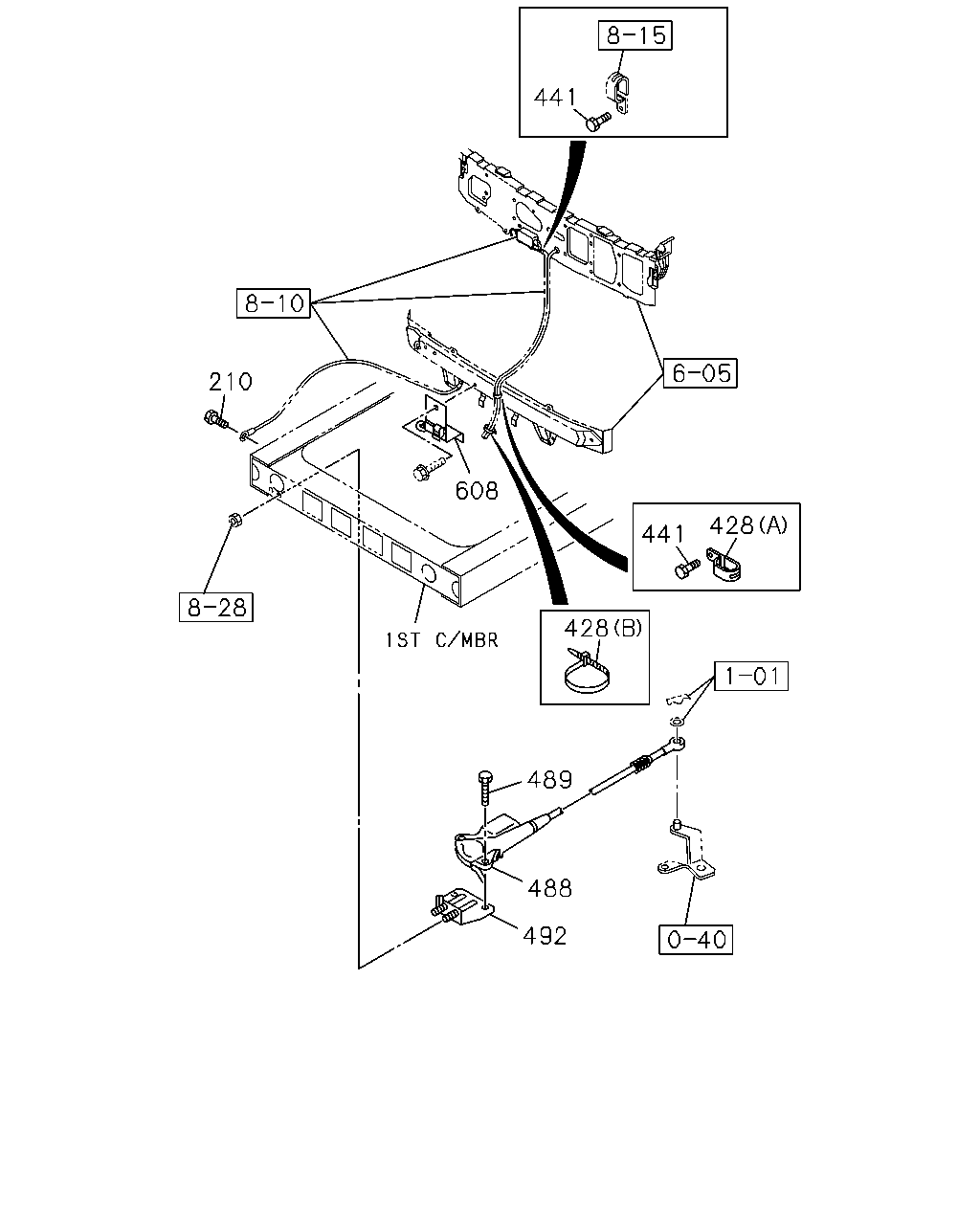

çizim 184261
441 210 608 428 441 428 489 488 492
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
210 BOLT; CABLE FIX
M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9601-9903 ● ● ● ●
210 BOLT; CABLE FIX
M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9904-0004 ● ● ● ●
210 BOLT; CABLE FIX
M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0005-1201 ● ● ● ●
210 BOLT; CABLE FIX
A/T<X9D> M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0005-1201 ●
210 BOLT; CABLE FIX
M8X14 W/PL WASHER 		8-98164-837-0 01 1 1202- ● ● ● ●
210 BOLT; CABLE FIX
A/T<X9D> M8X14 W/PL WASHER 		8-98164-837-0 01 1 1202- ●
428 CLIP; HARNESS
(A) ID=35 L=50 		1-09701-214-0 02 1 9601-0004 ● ● ● ●
428 CLIP; HARNESS
(A) ID=35 L=50 		1-09701-214-0 02 1 0005-0405 ● ● ● ● ●
428 CLIP; HARNESS
(A) ID=35 L=50 		1-09701-214-0 02 1 0406- ● ● ● ● ● ●
428 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (B) L=300 		1-09707-001-1 03 1 9610-0405 ● ●
428 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (B) L=300 		1-09707-001-1 03 1 0406-0604 ● ● ●
428 CLIP; HARNESS
(B) L=300 		1-09707-001-1 03 1 0406-0604 ●
428 CLIP; HARNESS
EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN> (B) L=300 		1-09707-001-1 03 1 0605- ●
428 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (B) L=300 		1-09707-001-1 03 1 0605- ● ●
428 CLIP; HARNESS
(B) L=300 		1-09707-001-1 03 1 0605- ●
441 BOLT; HARNESS TO FRAME
M8X25 FLANGE 		0-28080-825-0 02 1 9601-9606 ● ● ● ●
441 BOLT; HARNESS TO FRAME
M8X25 FLANGE 		0-28680-825-0 02 1 9607-0004 ● ● ● ●
441 BOLT; HARNESS TO FRAME
M8X25 FLANGE 		0-28680-825-0 02 1 0005-0405 ● ● ● ● ●
441 BOLT; HARNESS TO FRAME
M8X25 FLANGE 		0-28680-825-0 02 1 0406-0512 ● ● ● ● ● ●
441 BOLT; HARNESS TO FRAME
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ● ● ● ● ●
488 STOPPER; ENG 1-82840-128-1 01 1 9601-9705 ●
488 STOPPER; ENG 1-82840-128-2 01 1 9706-0004 ●
488 STOPPER; ENG
EXC. EURO2 SPECIFICATION<THN> 		1-82840-128-2 01 1 9706-0004 ●
488 STOPPER; ENG
EXC. EURO2 SPECIFICATION<THN> 		1-82840-128-3 01 1 0005- ● ●
488 STOPPER; ENG 1-82840-128-3 01 1 0005- ●
488 STOPPER; ENG 1-82840-142-3 01 1 9601- ●
488 STOPPER; ENG 1-82840-150-1 01 1 9601-0604 ●
488 STOPPER; ENG
EXC. EURO3 SPECIFICATION<NJX> 		1-82840-150-2 01 1 0605- ●
488 STOPPER; ENG 1-82840-153-0 01 1 9610-9705 ●
488 STOPPER; ENG
EURO2 SPECIFICATION<THN> 		1-82840-153-0 01 1 9706-9803 ●
488 STOPPER; ENG
EURO2 SPECIFICATION<THN> 		1-82840-153-2 01 1 9804- ●
489 BOLT; ENG STOPPER
M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 9601-0004 ● ● ● ●
489 BOLT; ENG STOPPER
M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 0005-0512 ● ● ● ● ●
489 BOLT; ENG STOPPER
M8X25 W/LK&PL WASHER 		0-50640-825-0 02 1 0601-0604 ● ● ● ● ●
489 BOLT; ENG STOPPER
M8X25 W/LK&PL WASHER 		0-50640-825-0 02 1 0605- ● ● ● ●
489 BOLT; ENG STOPPER
EXC. EURO3 SPECIFICATION<NJX> M8X25 W/LK&PL WASHER 		0-50640-825-0 02 1 0605- ●
492 BRACKET; ENG STOPPER 1-82849-089-1 01 1 9601-0004 ● ● ● ●
492 BRACKET; ENG STOPPER 1-82849-089-1 01 1 0005-0604 ● ● ● ● ●
492 BRACKET; ENG STOPPER 1-82849-089-1 01 1 0605- ● ● ● ●
492 BRACKET; ENG STOPPER
EXC. EURO3 SPECIFICATION<NJX> 		1-82849-089-1 01 1 0605- ●
608 SENSOR; AIR TEMP 1-83544-031-0 01 1 0406-0604 ●
608 SENSOR; AIR TEMP
EURO3 SPECIFICATION<NJX> 		1-83544-031-0 01 1 0605- ●
608 SENSOR; AIR TEMP 1-83544-031-0 01 1 0605- ●
çizim 184323
788 801 108 702 38 151 46 150 83 260
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
38 RESISTOR; CONT,GLOW PLUG 1-81402-008-0 01 1 9601-0004 ● ● ● ●
38 RESISTOR; CONT,GLOW PLUG 1-81402-008-0 01 1 0005- ● ● ● ● ●
46 RELAY; GLOW PLUG 8-94258-014-0 01 1 9601-0004 ● ● ● ●
46 RELAY; GLOW PLUG 8-94258-014-0 01 1 0005-0405 ● ● ● ● ●
46 RELAY; GLOW PLUG 8-94258-014-0 01 1 0406- ● ● ● ● ● ●
83 THERMOMETER UNIT 1-83161-031-1 01 1 9601-9803 ● ● ●
83 THERMOMETER UNIT 1-83161-031-1 01 1 9804-9904 ● ● ●
83 THERMOMETER UNIT
EXC. EURO2 SPECIFICATION<THN> 		1-83161-031-1 01 1 9804-9904 ●
83 THERMOMETER UNIT 1-83161-031-1 01 1 9905-9912 ● ●
83 THERMOMETER UNIT
EXC. EURO2 SPECIFICATION<THN> 		1-83161-031-1 01 1 9905-9912 ● ●
83 THERMOMETER UNIT 1-83161-031-1 01 1 0001-0405 ● ●
83 THERMOMETER UNIT
EXC. EURO2 SPECIFICATION<THN> 		1-83161-031-1 01 1 0001-0405 ● ●
83 THERMOMETER UNIT 1-83161-031-1 01 1 0406-0604 ● ●
83 THERMOMETER UNIT
EXC. EURO2 SPECIFICATION<THN> 		1-83161-031-1 01 1 0406-0604 ●
83 THERMOMETER UNIT 1-83161-031-1 01 1 0605- ● ●
83 THERMOMETER UNIT
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN> 		1-83161-031-1 01 1 0605- ●
83 THERMOMETER UNIT
EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN> 		1-83161-031-1 01 1 0605- ●
108 SWITCH; THERMO
AUSTRALIA EQUIPMENT(RR3) 		1-83161-030-0 01 1 9601-0004 ●
150 CLIP; HARNESS,SOLENOID VLV
ID=18 L=44 		8-94225-185-0 02 1 9703-9803 ●
150 CLIP; HARNESS,SOLENOID VLV
EURO2 SPECIFICATION<THN> ID=18 L=44 		8-94225-185-0 02 1 9804-0801 ●
150 CLIP; HARNESS,SOLENOID VLV
ID=18 L=44 		8-97367-985-1 02 1 0802- ●
151 BOLT; HARNESS CLIP,SOLENOID VLV
M8X12 FLANGE 		0-28080-812-0 02 1 9703-9803 ●
151 BOLT; HARNESS CLIP,SOLENOID VLV
EURO2 SPECIFICATION<THN> M8X12 FLANGE 		0-28080-812-0 02 1 9804-0405 ●
151 BOLT; HARNESS CLIP,SOLENOID VLV
M8X12 FLANGE 		0-28080-812-0 02 1 0406-0512 ●
151 BOLT; HARNESS CLIP,SOLENOID VLV
M8X12 FLANGE 		0-28050-812-0 02 1 0601- ●
260 SENSOR; WATER TEMP
EURO2 SPECIFICATION<THN> 		1-80210-004-0 01 1 9610- ● ●
260 SENSOR; WATER TEMP 1-80210-005-1 01 1 0005-0405 ●
260 SENSOR; WATER TEMP 1-80210-005-1 01 1 0406-0604 ● ●
260 SENSOR; WATER TEMP
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) 		1-80210-005-1 01 1 0605- ●
260 SENSOR; WATER TEMP 1-80210-005-1 01 1 0605- ● ●
702 BOLT; RELAY
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9601-0004 ● ● ● ●
702 BOLT; RELAY
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0005-0405 ● ● ● ● ●
702 BOLT; RELAY
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0406- ● ● ● ● ● ●
788 HARNESS; EXT,WATER TEMP SENSOR 8-94395-142-1 01 1 9610-9612 ●
801 ADAPTER; THERMO SWITCH
AUSTRALIA EQUIPMENT(RR3) 		8-94395-352-0 01 1 9601-0004 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
