◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10704 - FVR/GVR-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-50 - OIL COOLER AND OIL FILTER ▶
0-50 — OIL COOLER AND OIL FILTER (#64385) — 1629 parça

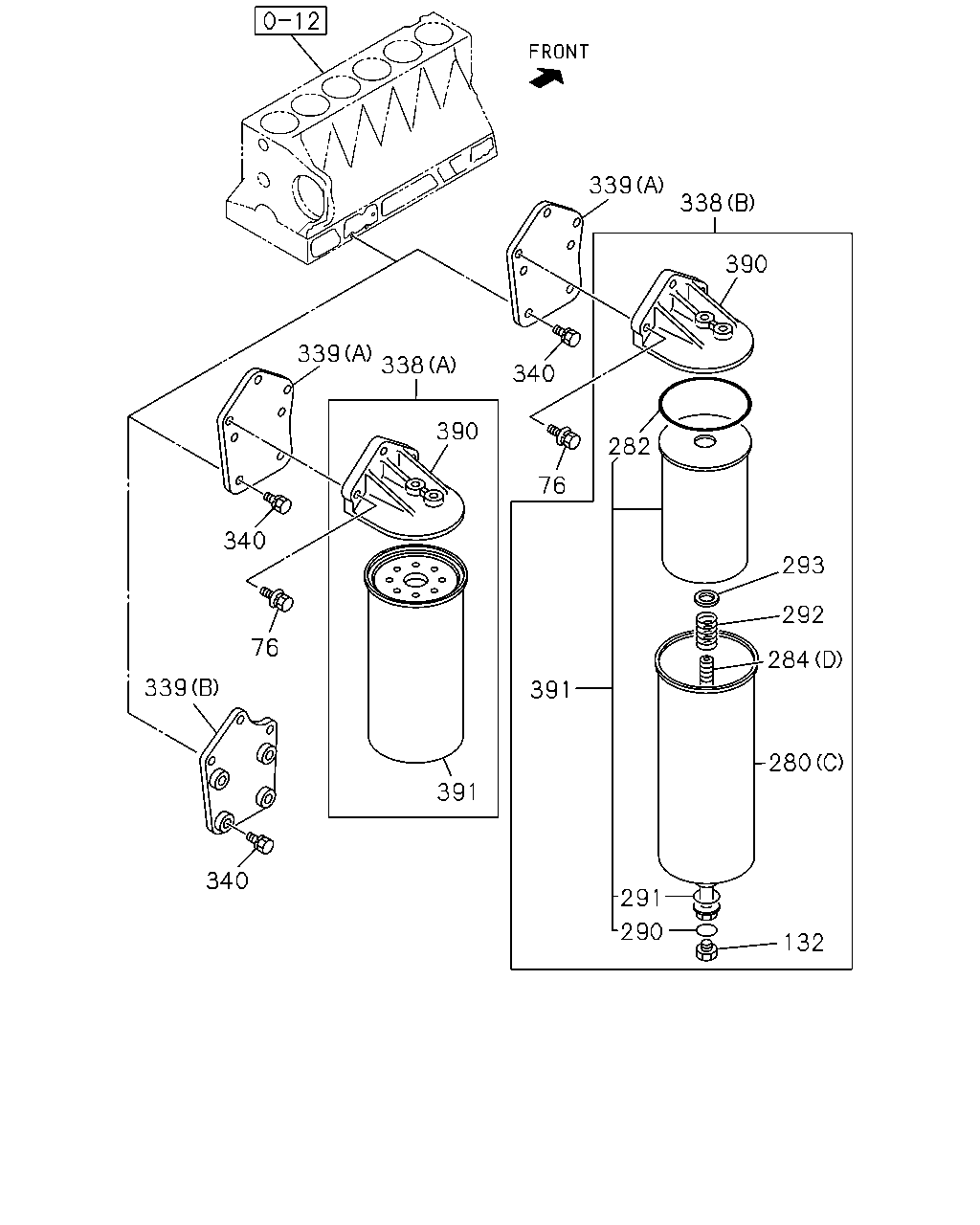

çizim 64267
339 338 390 339 338 340 390 282 76 340 293 292 76 284 339 391 280 391 340 291 290 132
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
76 BOLT; OIL FILTER
M10X35 W/LK&PL WASHER 		0-50141-035-0 03 1 9601-0512 ● ●
76 BOLT; OIL FILTER
M10X35 W/LK&PL WASHER 		0-50641-035-0 03 1 0601- ● ●
132 PLUG; PARTIAL OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> M10 		1-09000-105-0 01 1 9802-9803 ●
132 PLUG; PARTIAL OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> M10 		1-09000-105-0 01 1 9805- ●
280 CASE ASM; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A) 		8-94393-504-1 01 1 9605- ●
280 CASE ASM; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) 		8-94393-505-1 01 1 9605- ●
280 CASE ASM; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (C) 		1-13212-150-0 01 1 9802-9803 ●
280 CASE ASM; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (C) 		1-13212-150-0 01 1 9805- ●
282 GASKET; BODY TO CASE
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		9-09920-311-0 02 1 9605-1406 ●
282 GASKET; BODY TO CASE
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		8-98274-489-0 02 1 1407- ●
282 GASKET; BODY TO CASE
PARTIAL OIL FILTER ELEMENT TYPE<KC1> ID=27.7 		1-09623-170-0 01 1 9802-9803 ●
282 GASKET; BODY TO CASE
PARTIAL OIL FILTER ELEMENT TYPE<KC1> ID=27.7 		1-09623-170-0 01 1 9805- ●
284 BOLT; CENTER,OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A) 		1-13231-069-0 01 1 9605- ●
284 BOLT; CENTER,OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) 		1-13231-070-1 01 1 9605- ●
284 BOLT; CENTER,OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V> (C) 		1-13231-047-0 01 1 9601-0706 ●
284 BOLT; CENTER,OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> (C) 		1-13231-047-0 01 1 0707-1204 ●
284 BOLT; CENTER,OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V> (C) 		1-13231-047-0 01 1 1205- ●
284 BOLT; CENTER,OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (D) 		1-13212-064-1 01 1 9802-9803 ●
284 BOLT; CENTER,OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (D) 		1-13212-064-1 01 1 9805- ●
290 GASKET; PLUG,OIL DRAIN
PARTIAL OIL FILTER ELEMENT TYPE<KC1> ID=15.5 		9-09920-694-0 02 1 9605-1406 ●
290 GASKET; PLUG,OIL DRAIN
PARTIAL OIL FILTER ELEMENT TYPE<KC1> ID=15.5 		8-98274-488-0 02 1 1407- ●
290 GASKET; PLUG,OIL DRAIN
OIL FILTER SETTING DOWNWARD<E7V> ID=9.8 		1-09623-055-0 01 1 9601-9801 ●
290 GASKET; PLUG,OIL DRAIN
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> ID=9.8 		1-09623-055-0 01 1 9802-9803 ●
290 GASKET; PLUG,OIL DRAIN
OIL FILTER SETTING DOWNWARD<E7V> ID=9.8 		1-09623-055-0 01 1 9804-9804 ●
290 GASKET; PLUG,OIL DRAIN
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> ID=9.8 		1-09623-055-0 01 1 9805-0706 ●
290 GASKET; PLUG,OIL DRAIN
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> ID=9.8 		1-09623-055-0 01 1 0707-1204 ●
290 GASKET; PLUG,OIL DRAIN
PARTIAL OIL FILTER ELEMENT TYPE<KC1> ID=9.8 		1-09623-055-0 01 1 0707-1204 ●
290 GASKET; PLUG,OIL DRAIN
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> ID=9.8 		1-09623-055-0 01 1 1205- ●
291 GASKET; OIL DRAIN,CENTER BOLT
PARTIAL OIL FILTER ELEMENT TYPE<KC1> ID=15.5 		9-09920-694-0 01 1 9802-9803 ●
291 GASKET; OIL DRAIN,CENTER BOLT
PARTIAL OIL FILTER ELEMENT TYPE<KC1> ID=15.5 		9-09920-694-0 01 1 9805- ●
292 SPRING; ELEMENT
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		9-09941-283-0 02 1 9605- ●
292 SPRING; ELEMENT
OIL FILTER SETTING DOWNWARD<E7V> 		9-09941-283-0 01 1 9601-9801 ●
292 SPRING; ELEMENT
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		9-09941-283-0 01 1 9802-9803 ●
292 SPRING; ELEMENT
OIL FILTER SETTING DOWNWARD<E7V> 		9-09941-283-0 01 1 9804-9804 ●
292 SPRING; ELEMENT
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		9-09941-283-0 01 1 9805-0706 ●
292 SPRING; ELEMENT
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		9-09941-283-0 01 1 0707-1204 ●
292 SPRING; ELEMENT
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		9-09941-283-0 01 1 0707-1204 ●
292 SPRING; ELEMENT
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		9-09941-283-0 01 1 1205- ●
293 SEAT; SPR
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		9-13239-025-0 02 1 9605- ●
293 SEAT; SPR
OIL FILTER SETTING DOWNWARD<E7V> 		1-13219-173-0 01 1 9601-9801 ●
293 SEAT; SPR
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13219-173-0 01 1 9802-9803 ●
293 SEAT; SPR
OIL FILTER SETTING DOWNWARD<E7V> 		1-13219-173-0 01 1 9804-9804 ●
293 SEAT; SPR
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13219-173-0 01 1 9805-0706 ●
293 SEAT; SPR
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13219-173-0 01 1 0707-1204 ●
293 SEAT; SPR
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13219-173-0 01 1 0707-1204 ●
293 SEAT; SPR
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13219-173-0 01 1 1205- ●
338 FILTER ASM; OIL PARTIAL
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) 		1-13200-704-1 01 1 9802- ●
338 FILTER ASM; OIL PARTIAL
(A) 		1-13200-744-0 01 1 9601-9710 ● ●
338 FILTER ASM; OIL PARTIAL
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (A) 		1-13200-744-0 01 1 9802- ●
338 FILTER ASM; OIL PARTIAL
(A) 		1-13200-744-0 01 1 9802- ●
339 BRACKET; PARTIAL OIL FILTER
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) (B) 		8-97604-630-0 01 1 0605- ●
339 BRACKET; PARTIAL OIL FILTER
(A) 		1-19755-062-1 01 1 9601-0604 ● ●
339 BRACKET; PARTIAL OIL FILTER
(A) 		1-19755-062-1 01 1 0605- ●
339 BRACKET; PARTIAL OIL FILTER
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> (A) 		1-19755-062-1 01 1 0605- ●
339 BRACKET; PARTIAL OIL FILTER
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-19755-062-1 01 1 0605- ●
340 BOLT; BRKT
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) M10X35 FLANGE 		0-28751-035-0 04 1 0605- ●
340 BOLT; BRKT
M10X25 W/LK WASHER 		0-50051-025-0 04 1 9601-0604 ● ●
340 BOLT; BRKT
M10X25 W/LK WASHER 		0-50051-025-0 04 1 0605-0906 ●
340 BOLT; BRKT
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> M10X25 W/LK WASHER 		0-50051-025-0 04 1 0605-0906 ●
340 BOLT; BRKT
EXC. NEW ZEALAND EQUIPMENT(PK5) M10X25 W/LK WASHER 		0-50051-025-0 04 1 0605-0906 ●
340 BOLT; BRKT
M10X25 W/LK WASHER 		0-50551-025-0 04 1 0907- ●
340 BOLT; BRKT
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> M10X25 W/LK WASHER 		0-50551-025-0 04 1 0907- ●
340 BOLT; BRKT
EXC. NEW ZEALAND EQUIPMENT(PK5) M10X25 W/LK WASHER 		0-50551-025-0 04 1 0907- ●
390 BODY; OIL FILTER,PARTIAL
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13212-141-0 01 1 9802- ●
390 BODY; OIL FILTER,PARTIAL 1-13212-089-2 01 1 9601-9710 ● ●
390 BODY; OIL FILTER,PARTIAL
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-13212-089-2 01 1 9802- ●
390 BODY; OIL FILTER,PARTIAL 1-13212-089-2 01 1 9802- ●
391 CARTRIDGE; OIL FILTER,PARTIAL
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> BEST VALUE PARTS 		1-87610-065-0 01 1 9601- ●
391 CARTRIDGE; OIL FILTER,PARTIAL
BEST VALUE PARTS 		1-87610-065-0 01 1 9601- ●
391 CARTRIDGE; OIL FILTER,PARTIAL
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13240-077-1 01 1 9802- ●
391 CARTRIDGE; OIL FILTER,PARTIAL 1-13240-163-2 01 1 9601-9710 ● ●
391 CARTRIDGE; OIL FILTER,PARTIAL
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-13240-163-2 01 1 9802- ●
391 CARTRIDGE; OIL FILTER,PARTIAL 1-13240-163-2 01 1 9802- ●

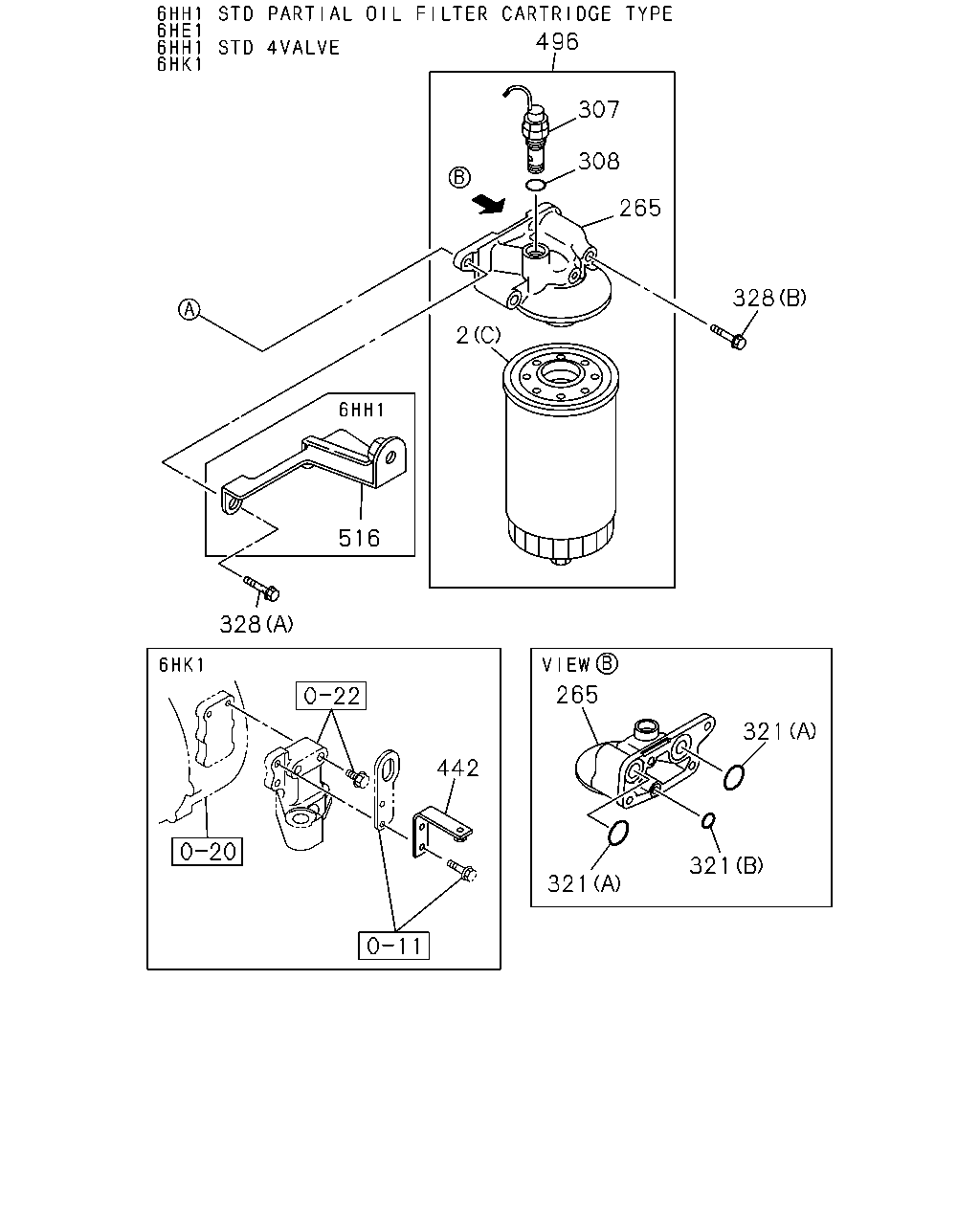

çizim 64285
496 307 308 265 328 2 516 328 265 321 442 321 321
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C) BEST VALUE PARTS 		1-87610-011-1 01 1 0005-1110 ●
2 ELEMENT; OIL FILTER
(C) BEST VALUE PARTS 		1-87610-011-1 01 1 0005-1110 ● ● ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C) BEST VALUE PARTS 		1-87610-064-0 01 1 1111- ●
2 ELEMENT; OIL FILTER
(C) BEST VALUE PARTS 		1-87610-064-0 01 1 1111- ● ● ●
2 ELEMENT; OIL FILTER
(C) 		8-94396-375-4 01 1 9601-9606 ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C) 		8-94396-375-4 01 1 9607-9609 ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C) 		8-94391-049-0 01 1 9610-0004 ●
2 ELEMENT; OIL FILTER
(C) 		8-94391-049-0 01 1 9610-0004 ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C) 		8-94391-049-2 01 1 0005-0405 ●
2 ELEMENT; OIL FILTER
(C) 		8-94391-049-2 01 1 0005-0405 ● ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C) 		8-94391-049-4 01 1 0406- ●
2 ELEMENT; OIL FILTER
(C) 		8-94391-049-4 01 1 0406- ● ● ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A) 		1-13240-132-0 01 1 9605-0904 ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A) 		8-98140-515-0 01 1 0905-1406 ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A) 		8-98274-487-0 01 1 1407- ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) 		1-87810-372-1 01 1 9605-1406 ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) 		8-98274-486-0 01 1 1407- ●
2 ELEMENT; OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V> (D) 		1-87810-075-2 01 1 9601-0706 ●
2 ELEMENT; OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> (D) 		1-87810-075-2 01 1 0707-1204 ●
2 ELEMENT; OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V> (D) 		1-87810-075-2 01 1 1205- ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (E) 		1-13240-168-1 01 1 9601- ●
2 ELEMENT; OIL FILTER
(E) 		1-13240-168-1 01 1 9601- ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (F) TOKYO ROKI 		1-13240-116-0 01 1 9802-9803 ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (F) TOKYO ROKI 		1-13240-116-0 01 1 9805-0206 ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (F) 		1-13240-217-1 01 1 0207- ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (F) BEST VALUE PARTS 		1-87610-055-1 01 1 0207- ●
265 BODY; OIL FILTER 8-94395-701-0 01 1 9601-9606 ●
265 BODY; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-94395-701-0 01 1 9607-9609 ●
265 BODY; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-94391-016-0 01 1 9610-9803 ●
265 BODY; OIL FILTER 8-94391-016-0 01 1 9610-9803 ●
265 BODY; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-94391-016-2 01 1 9804-0004 ●
265 BODY; OIL FILTER
EURO2 SPECIFICATION<THN> 		8-94391-016-2 01 1 9804-0004 ●
265 BODY; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-94391-016-4 01 1 0005-0405 ●
265 BODY; OIL FILTER
EURO2 SPECIFICATION<THN> 		8-94391-016-4 01 1 0005-0405 ●
265 BODY; OIL FILTER 8-94391-016-4 01 1 0005-0405 ●
265 BODY; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-94391-016-4 01 1 0406- ●
265 BODY; OIL FILTER 8-94391-016-4 01 1 0406- ● ● ●
265 BODY; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		8-94393-503-0 01 1 9605- ●
265 BODY; OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V> 		1-13212-161-0 01 1 9601-0706 ●
265 BODY; OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13212-161-0 01 1 0707-1204 ●
265 BODY; OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V> 		1-13212-161-0 01 1 1205- ●
265 BODY; OIL FILTER
EXC. EURO2 SPECIFICATION<THN> 		8-94391-020-4 01 1 9804-0405 ●
307 VALVE; OVERFLOW 8-94395-700-0 01 1 9601-9606 ●
307 VALVE; OVERFLOW
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-94395-700-0 01 1 9607-0004 ●
307 VALVE; OVERFLOW 8-94395-700-0 01 1 9607-0004 ●
307 VALVE; OVERFLOW
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-94395-700-0 01 1 0005-0405 ●
307 VALVE; OVERFLOW 8-94395-700-0 01 1 0005-0405 ● ●
307 VALVE; OVERFLOW
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-94395-700-0 01 1 0406- ●
307 VALVE; OVERFLOW 8-94395-700-0 01 1 0406- ● ● ●
307 VALVE; OVERFLOW
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13260-066-1 01 1 9605-9809 ●
307 VALVE; OVERFLOW
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		8-97015-672-0 01 1 9810- ●
308 GASKET; VLV,OVERFLOW
ID=15.8 		1-09623-163-0 01 1 9601-9604 ●
308 GASKET; VLV,OVERFLOW
ID=15.8 		1-09623-163-0 01 1 9605-0004 ● ●
308 GASKET; VLV,OVERFLOW
ID=15.8 		1-09623-163-0 01 1 0005-0405 ● ● ●
308 GASKET; VLV,OVERFLOW
ID=15.8 		1-09623-163-0 01 1 0406- ● ● ● ●
321 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8 		8-94399-339-0 01 1 9601-9604 ●
321 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94399-339-0 01 1 9605-0004 ● ●
321 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) ID=9.8 		8-94399-339-0 01 1 9605-0004 ●
321 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94399-339-0 01 1 0005-0405 ● ● ●
321 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) ID=9.8 		8-94399-339-0 01 1 0005-0405 ●
321 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94399-339-0 01 1 0406- ● ● ● ●
321 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) ID=9.8 		8-94399-339-0 01 1 0406- ●
321 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1 		8-94399-399-0 02 1 9601-9609 ●
321 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1 		8-94399-399-0 02 1 9610-0004 ● ●
321 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1 		8-94399-399-0 02 1 0005-0405 ● ● ●
321 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1 		8-94399-399-0 02 1 0406- ● ● ● ●
328 BOLT; OIL FILTER
(A) M10X30 FLANGE 		0-28181-030-0 02 1 9601-9609 ●
328 BOLT; OIL FILTER
(A) M10X30 FLANGE 		0-28181-030-0 02 1 9610-0004 ● ●
328 BOLT; OIL FILTER
(A) M10X30 FLANGE 		0-28181-030-0 02 1 0005-0405 ● ● ●
328 BOLT; OIL FILTER
(A) M10X30 FLANGE 		0-28181-030-0 02 1 0406-0512 ● ● ● ●
328 BOLT; OIL FILTER
(A) M10X30 FLANGE 		0-28151-030-0 02 1 0601- ● ● ● ●
328 BOLT; OIL FILTER
(B) M10X90 FLANGE 		0-28181-090-0 02 1 9601-9606 ●
328 BOLT; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) M10X90 FLANGE 		0-28181-090-0 02 1 9607-9609 ●
328 BOLT; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) M10X90 FLANGE 		0-28181-090-0 02 1 9610-0004 ●
328 BOLT; OIL FILTER
(B) M10X90 FLANGE 		0-28181-090-0 02 1 9610-0004 ●
328 BOLT; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) M10X90 FLANGE 		0-28181-090-0 02 1 0005-0405 ●
328 BOLT; OIL FILTER
(B) M10X90 FLANGE 		0-28181-090-0 02 1 0005-0405 ● ●
328 BOLT; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) M10X90 FLANGE 		0-28181-090-0 02 1 0406-0512 ●
328 BOLT; OIL FILTER
(B) M10X90 FLANGE 		0-28181-090-0 02 1 0406-0512 ● ● ●
328 BOLT; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) M10X90 FLANGE 		0-28151-090-0 02 1 0601- ●
328 BOLT; OIL FILTER
(B) M10X90 FLANGE 		0-28151-090-0 02 1 0601- ● ● ●
328 BOLT; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) M10X135 		8-94397-139-1 03 1 9605- ●
328 BOLT; OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V> (A) M10X40 W/LK&PL WASHER 		0-50141-040-0 01 1 9601-9910 ●
328 BOLT; OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V> (A) M10X35 FLANGE 		0-28681-035-0 01 1 9911-0512 ●
328 BOLT; OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V> (A) M10X35 FLANGE 		0-28651-035-0 01 1 0601-0706 ●
328 BOLT; OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A) M10X35 FLANGE 		0-28651-035-0 01 1 0707-1204 ●
328 BOLT; OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V> (A) M10X35 FLANGE 		0-28651-035-0 01 1 1205- ●
328 BOLT; OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V> (B) M10X142 		5-09000-160-1 02 1 9601-9910 ●
328 BOLT; OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V> (B) M10X140 FLANGE 		0-28086-014-0 02 1 9911-0512 ●
328 BOLT; OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V> (B) M10X140 FLANGE 		0-28056-014-0 02 1 0601-0706 ●
328 BOLT; OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) M10X140 FLANGE 		0-28056-014-0 02 1 0707-1204 ●
328 BOLT; OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V> (B) M10X140 FLANGE 		0-28056-014-0 02 1 1205- ●
442 BRACKET; HARNESS,OIL FILTER 8-94392-781-0 01 1 0406- ●
496 FILTER ASM; OIL 8-94395-686-0 01 1 9601-9606 ●
496 FILTER ASM; OIL
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-94395-686-0 01 1 9607-9609 ●
496 FILTER ASM; OIL
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-94391-015-1 01 1 9610-9803 ●
496 FILTER ASM; OIL 8-94391-015-1 01 1 9610-9803 ●
496 FILTER ASM; OIL
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-94391-015-2 01 1 9804-0004 ●
496 FILTER ASM; OIL
EURO2 SPECIFICATION<THN> 		8-94391-015-2 01 1 9804-0004 ●
496 FILTER ASM; OIL
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-94391-015-5 01 1 0005-0405 ●
496 FILTER ASM; OIL
EURO2 SPECIFICATION<THN> 		8-94391-015-5 01 1 0005-0405 ●
496 FILTER ASM; OIL 8-94391-015-5 01 1 0005-0405 ●
496 FILTER ASM; OIL
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-94391-015-8 01 1 0406- ●
496 FILTER ASM; OIL 8-94391-015-8 01 1 0406- ● ● ●
496 FILTER ASM; OIL
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		8-94393-427-1 01 1 9605-9809 ●
496 FILTER ASM; OIL
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		8-94392-898-2 01 1 9810-1406 ●
496 FILTER ASM; OIL
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		8-98274-485-0 01 1 1407- ●
496 FILTER ASM; OIL
OIL FILTER SETTING DOWNWARD<E7V> 		1-13200-848-0 01 1 9601-0706 ●
496 FILTER ASM; OIL
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13200-848-0 01 1 0707-1204 ●
496 FILTER ASM; OIL
OIL FILTER SETTING DOWNWARD<E7V> 		1-13200-848-0 01 1 1205- ●
496 FILTER ASM; OIL
EXC. EURO2 SPECIFICATION<THN> 		8-94391-018-5 01 1 9804-0405 ●
516 BRACKET; COVER
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94394-986-2 01 1 9601-9611 ●
516 BRACKET; COVER
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		8-94394-986-2 01 1 9612-0004 ●

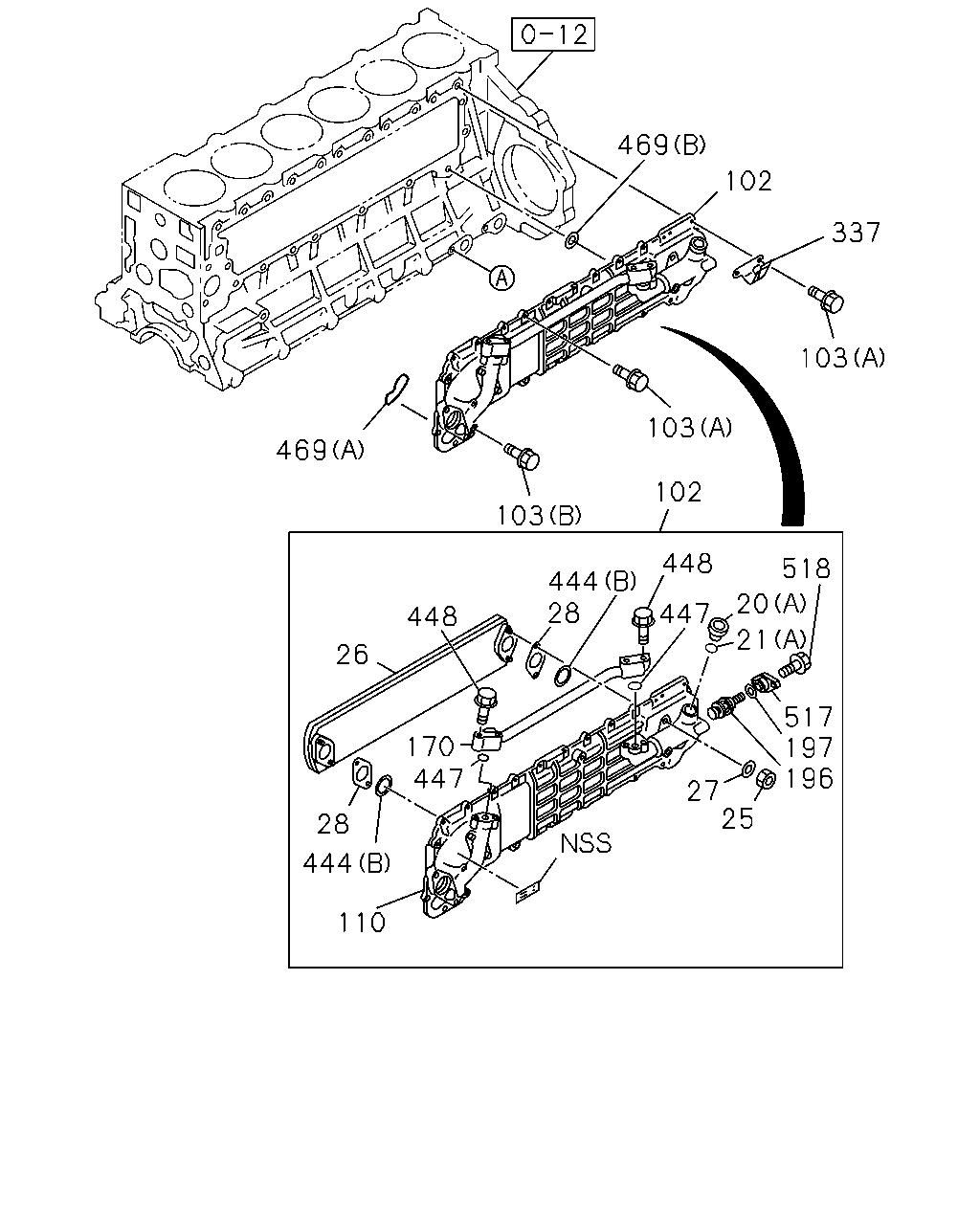

çizim 64400
469 102 337 103 103 469 102 103 448 518 444 28 20 447 21 448 26 517 197 196 170 447 27 25 28 444 110
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
20 PLUG; COOLER BODY
(A) 		8-94396-753-0 01 1 9601-0004 ●
20 PLUG; COOLER BODY
(B) 		8-94393-604-0 01 1 0005-0405 ●
20 PLUG; COOLER BODY
(B) 		8-94393-604-0 01 1 0406- ● ●
20 PLUG; COOLER BODY
(A) 		8-94396-753-0 01 1 0005-0405 ● ●
20 PLUG; COOLER BODY
(A) 		8-94396-753-0 01 1 0406- ● ● ●
20 PLUG; COOLER BODY
(A) M20 		1-13219-152-0 03 1 9601-9906 ● ●
20 PLUG; COOLER BODY
(A) M24 		1-13219-356-0 01 1 9907- ● ●
20 PLUG; COOLER BODY
(B) M26 		1-13219-153-0 02 1 9601-9906 ● ●
20 PLUG; COOLER BODY
(B) M26 		1-13219-153-0 04 1 9907- ● ●
21 GASKET; PLUG
(A) M24 		8-94396-755-0 01 1 9601-9906 ●
21 GASKET; PLUG
(A) M24 		8-94396-755-0 01 1 9907-0004 ● ● ●
21 GASKET; PLUG
(A) M24 		8-94396-755-0 01 1 0005-0103 ● ● ● ●
21 GASKET; PLUG
EXC. PAKISTAN EQUIPMENT(WN3) (A) M24 		8-94396-755-0 01 1 0104-0109 ●
21 GASKET; PLUG
EURO2 SPECIFICATION<THN> (A) M24 		8-94396-755-0 01 1 0104-0109 ●
21 GASKET; PLUG
(A) M24 		8-94396-755-0 01 1 0104-0109 ●
21 GASKET; PLUG
(A) M24 		8-94396-755-0 01 1 0110-0405 ● ● ● ●
21 GASKET; PLUG
(A) M24 		8-94396-755-0 01 1 0406- ● ● ● ● ●
21 GASKET; PLUG
(A) M20 		1-13219-158-0 03 1 9601-9906 ● ●
21 GASKET; PLUG
(B) M26 		1-13219-159-0 02 1 9601-9906 ● ●
21 GASKET; PLUG
(B) M26 		1-13219-159-0 04 1 9907- ● ●
21 GASKET; PLUG
(B) 		1-13219-253-0 01 1 0005-0405 ●
21 GASKET; PLUG
(B) 		1-13219-253-0 01 1 0406- ● ●
25 NUT; CORE TO BODY
M10 		9-09111-410-0 04 1 9601-0512 ●
25 NUT; CORE TO BODY
M10 		0-91111-510-0 04 1 0601- ●
25 NUT; CORE TO BODY 1-21729-074-0 04 1 9601-9906 ● ●
25 NUT; CORE TO BODY
M10 FLANGE 		1-13219-324-0 04 1 9907-0004 ● ●
25 NUT; CORE TO BODY
M10 FLANGE 		1-13219-324-0 04 1 0005-0405 ● ● ●
25 NUT; CORE TO BODY
M10 FLANGE 		1-13219-324-0 04 1 0406- ● ● ● ●
26 CORE ASM; OIL COOLER 8-94395-711-0 01 1 9601-9611 ●
26 CORE ASM; OIL COOLER
EXC. ENG OIL PUMP HEAVY DUTY<Q1V> 		8-94395-711-0 01 1 9610- ●
26 CORE ASM; OIL COOLER
ENG OIL PUMP HEAVY DUTY<Q1V> 		8-94395-712-0 01 1 9610- ●
26 CORE ASM; OIL COOLER
OIL FILTER SETTING DOWNWARD<E7V> 		1-21723-039-0 01 1 9601-9906 ●
26 CORE ASM; OIL COOLER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-21723-049-0 01 1 9601-9804 ●
26 CORE ASM; OIL COOLER 1-21723-049-0 01 1 9601-9804 ●
26 CORE ASM; OIL COOLER
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-21723-049-0 01 1 9805-9906 ●
26 CORE ASM; OIL COOLER 1-21723-049-0 01 1 9805-9906 ●
26 CORE ASM; OIL COOLER 1-21723-058-0 01 1 9907- ● ●
26 CORE ASM; OIL COOLER 8-94391-738-1 01 1 0005-0405 ●
26 CORE ASM; OIL COOLER 8-94391-738-1 01 1 0406- ● ●
27 WASHER; PL,CORE TO BODY
ID=10.5 		9-09164-510-0 04 1 9601- ●
27 WASHER; PL,CORE TO BODY 1-21729-075-0 04 1 9601-9906 ● ●
28 GASKET; CORE TO BODY 8-94394-930-0 02 1 9601-0004 ●
28 GASKET; CORE TO BODY 8-94394-930-0 02 1 0005-0405 ● ●
28 GASKET; CORE TO BODY 8-94394-930-0 02 1 0406- ● ● ●
28 GASKET; CORE TO BODY 1-21729-076-0 02 1 9601-9906 ● ●
28 GASKET; CORE TO BODY 8-94396-810-0 02 1 9907- ● ●
102 COOLER ASM; OIL 8-94390-074-2 01 1 9601-9608 ●
102 COOLER ASM; OIL 8-94390-074-2 01 1 9610-9611 ●
102 COOLER ASM; OIL
EXC. ENG OIL PUMP HEAVY DUTY<Q1V> 		8-94390-074-4 01 1 9612- ●
102 COOLER ASM; OIL
ENG OIL PUMP HEAVY DUTY<Q1V> 		8-94390-076-4 01 1 9610- ●
102 COOLER ASM; OIL 8-94390-536-0 01 1 9610-9803 ●
102 COOLER ASM; OIL
EURO2 SPECIFICATION<THN> 		8-94390-536-0 01 1 9804-0405 ●
102 COOLER ASM; OIL 8-94390-536-0 01 1 0406- ●
102 COOLER ASM; OIL
EXC. EURO2 SPECIFICATION<THN> 		8-94394-992-1 01 1 9804-0405 ●
102 COOLER ASM; OIL 8-97601-079-1 01 1 0406- ●
102 COOLER ASM; OIL 8-94392-618-1 01 1 0005- ●
103 BOLT; OIL COOLER
(B) M8X22 FLANGE 		0-28080-822-0 25 1 9601-9609 ●
103 BOLT; OIL COOLER
(B) M8X22 FLANGE 		0-28080-822-0 25 1 9610-0004 ● ●
103 BOLT; OIL COOLER
(A) M8X22 FLANGE 		0-28080-822-0 24 1 0005-0405 ●
103 BOLT; OIL COOLER
(A) M8X22 FLANGE 		0-28080-822-0 24 1 0406- ● ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28080-835-0 02 1 9601-9609 ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28080-835-0 02 1 9610-0004 ● ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28080-835-0 03 1 0005-0405 ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28080-835-0 03 1 0406-0512 ● ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28050-835-0 03 1 0601- ● ●
103 BOLT; OIL COOLER
(A) M8X22 FLANGE 		0-28080-822-0 25 1 0005- ● ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28080-835-0 02 1 0005-0512 ● ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28050-835-0 02 1 0601- ● ●
103 BOLT; OIL COOLER
OIL FILTER SETTING DOWNWARD<E7V> (B) M8X145 		1-09000-448-1 02 1 9601- ●
103 BOLT; OIL COOLER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) M8X138 		5-09000-031-1 02 1 9601-9801 ●
103 BOLT; OIL COOLER
(B) M8X138 		5-09000-031-1 02 1 9601-9801 ●
103 BOLT; OIL COOLER
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) M8X138 		5-09000-031-1 02 1 9802-9803 ●
103 BOLT; OIL COOLER
(B) M8X138 		5-09000-031-1 02 1 9802-9803 ●
103 BOLT; OIL COOLER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) M8X138 		5-09000-031-1 02 1 9804-9804 ●
103 BOLT; OIL COOLER
(B) M8X138 		5-09000-031-1 02 1 9804-9804 ●
103 BOLT; OIL COOLER
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) M8X138 		5-09000-031-1 02 1 9805- ● ●
103 BOLT; OIL COOLER
(A) M8X25 FLANGE 		0-28080-825-0 24 1 9601-0512 ● ●
103 BOLT; OIL COOLER
(A) M8X25 FLANGE 		0-28050-825-0 24 1 0601- ● ●
103 BOLT; OIL COOLER
(C) M8X155 		9-09801-275-0 02 1 9601- ● ●
110 BODY; CASE,OIL COOLER 8-94395-283-4 01 1 9610-9803 ●
110 BODY; CASE,OIL COOLER
EURO2 SPECIFICATION<THN> 		8-94395-283-4 01 1 9804-0405 ●
110 BODY; CASE,OIL COOLER 8-94395-283-4 01 1 0406- ●
110 BODY; CASE,OIL COOLER
EXC. EURO2 SPECIFICATION<THN> 		8-94393-606-3 01 1 9804-0405 ●
170 PIPE; BYPASS 8-94390-078-2 01 1 9601- ●
196 THERMOSTAT; OIL COOLER
90 CELSIUS 		8-97600-936-0 01 1 0112-0405 ● ●
196 THERMOSTAT; OIL COOLER
90 CELSIUS 		8-97600-936-0 01 1 0406- ● ● ●
196 THERMOSTAT; OIL COOLER
90 CELSIUS 		8-94394-815-2 01 1 9601-9609 ●
196 THERMOSTAT; OIL COOLER
90 CELSIUS 		8-94394-815-2 01 1 9610-0004 ● ●
196 THERMOSTAT; OIL COOLER
90 CELSIUS 		8-94394-815-2 01 1 0005-0111 ● ● ●
196 THERMOSTAT; OIL COOLER
90 CELSIUS 		8-97600-935-0 01 1 0112- ●
197 GASKET; THERMOSTAT
ID=25.7 		8-94399-279-0 01 1 9601-0004 ●
197 GASKET; THERMOSTAT
ID=25.7 		8-94399-279-0 01 1 0005-0405 ● ●
197 GASKET; THERMOSTAT
ID=25.7 		8-94399-279-0 01 1 0406- ● ● ●
337 BRACKET; FUEL PIPE 8-94396-688-1 01 1 9601- ●
444 GASKET; ELEMENT TO BODY
(B) 		8-94396-810-0 02 1 9610-0004 ● ●
444 GASKET; ELEMENT TO BODY
(B) 		8-94396-810-0 02 1 0005-0405 ● ● ●
444 GASKET; ELEMENT TO BODY
(B) 		8-94396-810-0 02 1 0406- ● ● ● ●
444 GASKET; ELEMENT TO BODY
(A) 		8-94394-930-0 02 1 9610-9803 ●
444 GASKET; ELEMENT TO BODY
EURO2 SPECIFICATION<THN> (A) 		8-94394-930-0 02 1 9804-0405 ●
444 GASKET; ELEMENT TO BODY
(A) 		8-94394-930-0 02 1 0406- ●
444 GASKET; ELEMENT TO BODY
EXC. EURO2 SPECIFICATION<THN> (A) 		8-94396-754-0 02 1 9804-0405 ●
447 GASKET; BYPASS PIPE
ID=17.8 		1-09623-588-0 02 1 9601- ●
448 BOLT; BYPASS PIPE
M8X30 FLANGE 		0-28080-830-0 04 1 9601-0512 ●
448 BOLT; BYPASS PIPE
M8X30 FLANGE 		0-28050-830-0 04 1 0601- ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94399-002-0 01 1 9601-9609 ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94399-002-0 01 1 9610-0004 ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94399-002-0 01 1 0005-0405 ● ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94399-002-0 01 1 0406- ● ● ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7 		8-94399-279-0 01 1 9601-9609 ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7 		8-94399-279-0 01 1 9610-0004 ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7 		8-94399-279-0 01 1 0005-0405 ● ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7 		8-94399-279-0 01 1 0406-0606 ● ● ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20 		8-98045-449-0 01 1 0607- ● ● ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (C) 		1-11219-177-1 01 1 9601- ● ●
517 PLUG; THERMOSTAT,OIL COOLER 8-94395-191-0 01 1 9601- ●
517 PLUG; THERMOSTAT,OIL COOLER 8-94391-740-0 01 1 0005-0405 ●
517 PLUG; THERMOSTAT,OIL COOLER 8-94391-740-0 01 1 0406- ● ●
518 BOLT; PLUG,THERMOSTAT
M8X16 FLANGE 		0-28080-816-0 02 1 9601-0004 ●
518 BOLT; PLUG,THERMOSTAT
M8X16 FLANGE 		0-28080-816-0 02 1 0005-0405 ● ●
518 BOLT; PLUG,THERMOSTAT
M8X16 FLANGE 		0-28080-816-0 02 1 0406-0512 ● ● ●
518 BOLT; PLUG,THERMOSTAT
M8X16 FLANGE 		0-28050-816-0 02 1 0601- ● ● ●

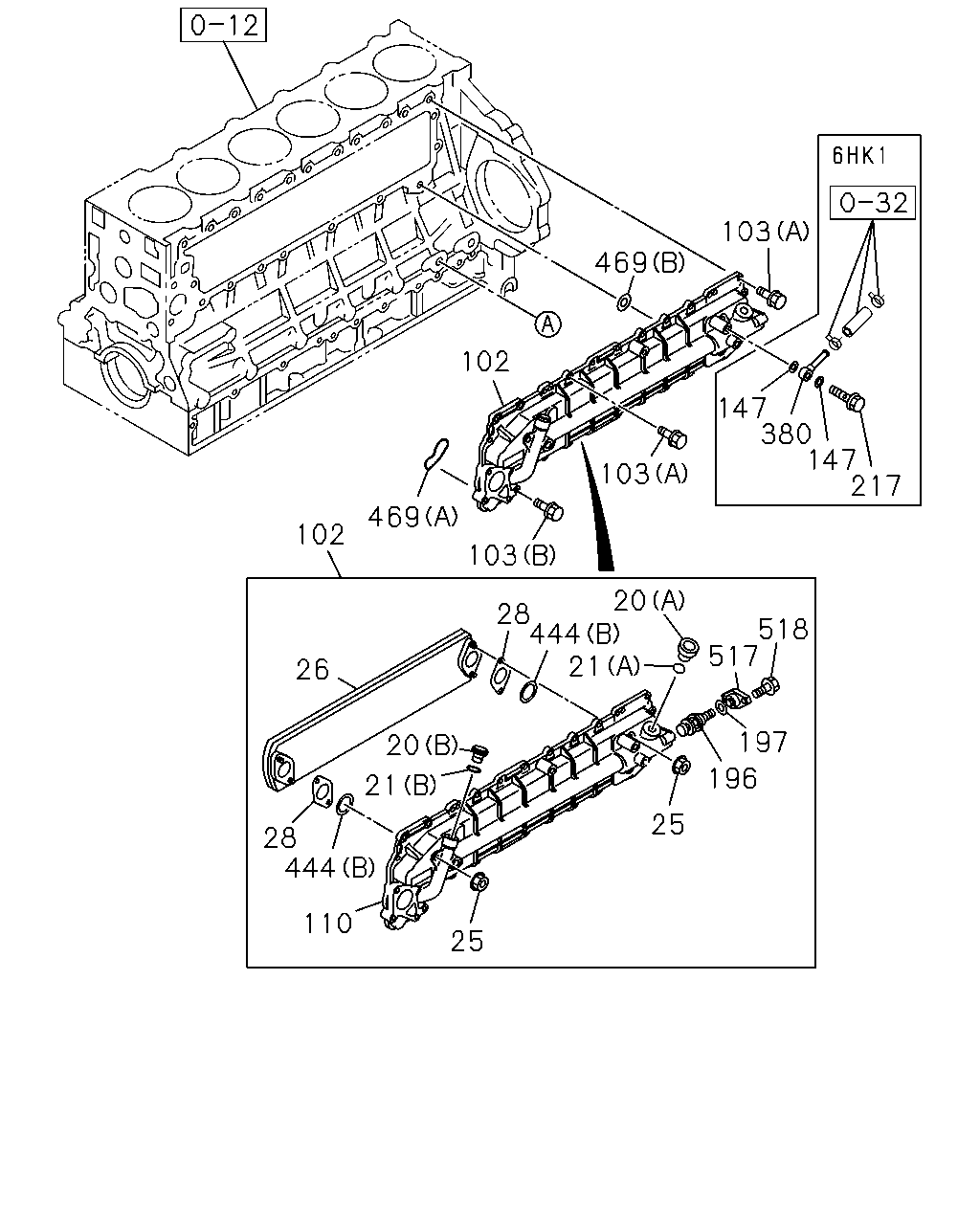

çizim 64530
103 469 102 147 380 147 217 103 469 102 103 20 28 444 21 518 517 26 197 20 196 21 25 28 444 110 25
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
20 PLUG; COOLER BODY
(A) 		8-94396-753-0 01 1 9601-0004 ●
20 PLUG; COOLER BODY
(B) 		8-94393-604-0 01 1 0005-0405 ●
20 PLUG; COOLER BODY
(B) 		8-94393-604-0 01 1 0406- ● ●
20 PLUG; COOLER BODY
(A) 		8-94396-753-0 01 1 0005-0405 ● ●
20 PLUG; COOLER BODY
(A) 		8-94396-753-0 01 1 0406- ● ● ●
20 PLUG; COOLER BODY
(A) M20 		1-13219-152-0 03 1 9601-9906 ● ●
20 PLUG; COOLER BODY
(A) M24 		1-13219-356-0 01 1 9907- ● ●
20 PLUG; COOLER BODY
(B) M26 		1-13219-153-0 02 1 9601-9906 ● ●
20 PLUG; COOLER BODY
(B) M26 		1-13219-153-0 04 1 9907- ● ●
21 GASKET; PLUG
(A) M24 		8-94396-755-0 01 1 9601-9906 ●
21 GASKET; PLUG
(A) M24 		8-94396-755-0 01 1 9907-0004 ● ● ●
21 GASKET; PLUG
(A) M24 		8-94396-755-0 01 1 0005-0103 ● ● ● ●
21 GASKET; PLUG
EXC. PAKISTAN EQUIPMENT(WN3) (A) M24 		8-94396-755-0 01 1 0104-0109 ●
21 GASKET; PLUG
EURO2 SPECIFICATION<THN> (A) M24 		8-94396-755-0 01 1 0104-0109 ●
21 GASKET; PLUG
(A) M24 		8-94396-755-0 01 1 0104-0109 ●
21 GASKET; PLUG
(A) M24 		8-94396-755-0 01 1 0110-0405 ● ● ● ●
21 GASKET; PLUG
(A) M24 		8-94396-755-0 01 1 0406- ● ● ● ● ●
21 GASKET; PLUG
(A) M20 		1-13219-158-0 03 1 9601-9906 ● ●
21 GASKET; PLUG
(B) M26 		1-13219-159-0 02 1 9601-9906 ● ●
21 GASKET; PLUG
(B) M26 		1-13219-159-0 04 1 9907- ● ●
21 GASKET; PLUG
(B) 		1-13219-253-0 01 1 0005-0405 ●
21 GASKET; PLUG
(B) 		1-13219-253-0 01 1 0406- ● ●
25 NUT; CORE TO BODY
M10 		9-09111-410-0 04 1 9601-0512 ●
25 NUT; CORE TO BODY
M10 		0-91111-510-0 04 1 0601- ●
25 NUT; CORE TO BODY 1-21729-074-0 04 1 9601-9906 ● ●
25 NUT; CORE TO BODY
M10 FLANGE 		1-13219-324-0 04 1 9907-0004 ● ●
25 NUT; CORE TO BODY
M10 FLANGE 		1-13219-324-0 04 1 0005-0405 ● ● ●
25 NUT; CORE TO BODY
M10 FLANGE 		1-13219-324-0 04 1 0406- ● ● ● ●
26 CORE ASM; OIL COOLER 8-94395-711-0 01 1 9601-9611 ●
26 CORE ASM; OIL COOLER
EXC. ENG OIL PUMP HEAVY DUTY<Q1V> 		8-94395-711-0 01 1 9610- ●
26 CORE ASM; OIL COOLER
ENG OIL PUMP HEAVY DUTY<Q1V> 		8-94395-712-0 01 1 9610- ●
26 CORE ASM; OIL COOLER
OIL FILTER SETTING DOWNWARD<E7V> 		1-21723-039-0 01 1 9601-9906 ●
26 CORE ASM; OIL COOLER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-21723-049-0 01 1 9601-9804 ●
26 CORE ASM; OIL COOLER 1-21723-049-0 01 1 9601-9804 ●
26 CORE ASM; OIL COOLER
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-21723-049-0 01 1 9805-9906 ●
26 CORE ASM; OIL COOLER 1-21723-049-0 01 1 9805-9906 ●
26 CORE ASM; OIL COOLER 1-21723-058-0 01 1 9907- ● ●
26 CORE ASM; OIL COOLER 8-94391-738-1 01 1 0005-0405 ●
26 CORE ASM; OIL COOLER 8-94391-738-1 01 1 0406- ● ●
28 GASKET; CORE TO BODY 8-94394-930-0 02 1 9601-0004 ●
28 GASKET; CORE TO BODY 8-94394-930-0 02 1 0005-0405 ● ●
28 GASKET; CORE TO BODY 8-94394-930-0 02 1 0406- ● ● ●
28 GASKET; CORE TO BODY 1-21729-076-0 02 1 9601-9906 ● ●
28 GASKET; CORE TO BODY 8-94396-810-0 02 1 9907- ● ●
102 COOLER ASM; OIL 8-94390-074-2 01 1 9601-9608 ●
102 COOLER ASM; OIL 8-94390-074-2 01 1 9610-9611 ●
102 COOLER ASM; OIL
EXC. ENG OIL PUMP HEAVY DUTY<Q1V> 		8-94390-074-4 01 1 9612- ●
102 COOLER ASM; OIL
ENG OIL PUMP HEAVY DUTY<Q1V> 		8-94390-076-4 01 1 9610- ●
102 COOLER ASM; OIL 8-94390-536-0 01 1 9610-9803 ●
102 COOLER ASM; OIL
EURO2 SPECIFICATION<THN> 		8-94390-536-0 01 1 9804-0405 ●
102 COOLER ASM; OIL 8-94390-536-0 01 1 0406- ●
102 COOLER ASM; OIL
EXC. EURO2 SPECIFICATION<THN> 		8-94394-992-1 01 1 9804-0405 ●
102 COOLER ASM; OIL 8-97601-079-1 01 1 0406- ●
102 COOLER ASM; OIL 8-94392-618-1 01 1 0005- ●
103 BOLT; OIL COOLER
(B) M8X22 FLANGE 		0-28080-822-0 25 1 9601-9609 ●
103 BOLT; OIL COOLER
(B) M8X22 FLANGE 		0-28080-822-0 25 1 9610-0004 ● ●
103 BOLT; OIL COOLER
(A) M8X22 FLANGE 		0-28080-822-0 24 1 0005-0405 ●
103 BOLT; OIL COOLER
(A) M8X22 FLANGE 		0-28080-822-0 24 1 0406- ● ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28080-835-0 02 1 9601-9609 ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28080-835-0 02 1 9610-0004 ● ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28080-835-0 03 1 0005-0405 ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28080-835-0 03 1 0406-0512 ● ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28050-835-0 03 1 0601- ● ●
103 BOLT; OIL COOLER
(A) M8X22 FLANGE 		0-28080-822-0 25 1 0005- ● ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28080-835-0 02 1 0005-0512 ● ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28050-835-0 02 1 0601- ● ●
103 BOLT; OIL COOLER
OIL FILTER SETTING DOWNWARD<E7V> (B) M8X145 		1-09000-448-1 02 1 9601- ●
103 BOLT; OIL COOLER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) M8X138 		5-09000-031-1 02 1 9601-9801 ●
103 BOLT; OIL COOLER
(B) M8X138 		5-09000-031-1 02 1 9601-9801 ●
103 BOLT; OIL COOLER
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) M8X138 		5-09000-031-1 02 1 9802-9803 ●
103 BOLT; OIL COOLER
(B) M8X138 		5-09000-031-1 02 1 9802-9803 ●
103 BOLT; OIL COOLER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) M8X138 		5-09000-031-1 02 1 9804-9804 ●
103 BOLT; OIL COOLER
(B) M8X138 		5-09000-031-1 02 1 9804-9804 ●
103 BOLT; OIL COOLER
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) M8X138 		5-09000-031-1 02 1 9805- ● ●
103 BOLT; OIL COOLER
(A) M8X25 FLANGE 		0-28080-825-0 24 1 9601-0512 ● ●
103 BOLT; OIL COOLER
(A) M8X25 FLANGE 		0-28050-825-0 24 1 0601- ● ●
103 BOLT; OIL COOLER
(C) M8X155 		9-09801-275-0 02 1 9601- ● ●
110 BODY; CASE,OIL COOLER 8-94395-283-4 01 1 9610-9803 ●
110 BODY; CASE,OIL COOLER
EURO2 SPECIFICATION<THN> 		8-94395-283-4 01 1 9804-0405 ●
110 BODY; CASE,OIL COOLER 8-94395-283-4 01 1 0406- ●
110 BODY; CASE,OIL COOLER
EXC. EURO2 SPECIFICATION<THN> 		8-94393-606-3 01 1 9804-0405 ●
147 GASKET; PLUG
ID=14.2 OD=19.2 		1-09630-085-0 02 1 0406-1312 ●
147 GASKET; PLUG
ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ●
196 THERMOSTAT; OIL COOLER
90 CELSIUS 		8-97600-936-0 01 1 0112-0405 ● ●
196 THERMOSTAT; OIL COOLER
90 CELSIUS 		8-97600-936-0 01 1 0406- ● ● ●
196 THERMOSTAT; OIL COOLER
90 CELSIUS 		8-94394-815-2 01 1 9601-9609 ●
196 THERMOSTAT; OIL COOLER
90 CELSIUS 		8-94394-815-2 01 1 9610-0004 ● ●
196 THERMOSTAT; OIL COOLER
90 CELSIUS 		8-94394-815-2 01 1 0005-0111 ● ● ●
196 THERMOSTAT; OIL COOLER
90 CELSIUS 		8-97600-935-0 01 1 0112- ●
197 GASKET; THERMOSTAT
ID=25.7 		8-94399-279-0 01 1 9601-0004 ●
197 GASKET; THERMOSTAT
ID=25.7 		8-94399-279-0 01 1 0005-0405 ● ●
197 GASKET; THERMOSTAT
ID=25.7 		8-94399-279-0 01 1 0406- ● ● ●
217 BOLT; CONNECTOR
M14X33 FLANGE 		1-09675-088-0 01 1 0406- ●
380 CONNECTOR; WATER 8-97601-493-0 01 1 0406- ●
444 GASKET; ELEMENT TO BODY
(B) 		8-94396-810-0 02 1 9610-0004 ● ●
444 GASKET; ELEMENT TO BODY
(B) 		8-94396-810-0 02 1 0005-0405 ● ● ●
444 GASKET; ELEMENT TO BODY
(B) 		8-94396-810-0 02 1 0406- ● ● ● ●
444 GASKET; ELEMENT TO BODY
(A) 		8-94394-930-0 02 1 9610-9803 ●
444 GASKET; ELEMENT TO BODY
EURO2 SPECIFICATION<THN> (A) 		8-94394-930-0 02 1 9804-0405 ●
444 GASKET; ELEMENT TO BODY
(A) 		8-94394-930-0 02 1 0406- ●
444 GASKET; ELEMENT TO BODY
EXC. EURO2 SPECIFICATION<THN> (A) 		8-94396-754-0 02 1 9804-0405 ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94399-002-0 01 1 9601-9609 ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94399-002-0 01 1 9610-0004 ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94399-002-0 01 1 0005-0405 ● ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94399-002-0 01 1 0406- ● ● ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7 		8-94399-279-0 01 1 9601-9609 ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7 		8-94399-279-0 01 1 9610-0004 ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7 		8-94399-279-0 01 1 0005-0405 ● ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7 		8-94399-279-0 01 1 0406-0606 ● ● ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20 		8-98045-449-0 01 1 0607- ● ● ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (C) 		1-11219-177-1 01 1 9601- ● ●
517 PLUG; THERMOSTAT,OIL COOLER 8-94395-191-0 01 1 9601- ●
517 PLUG; THERMOSTAT,OIL COOLER 8-94391-740-0 01 1 0005-0405 ●
517 PLUG; THERMOSTAT,OIL COOLER 8-94391-740-0 01 1 0406- ● ●
518 BOLT; PLUG,THERMOSTAT
M8X16 FLANGE 		0-28080-816-0 02 1 9601-0004 ●
518 BOLT; PLUG,THERMOSTAT
M8X16 FLANGE 		0-28080-816-0 02 1 0005-0405 ● ●
518 BOLT; PLUG,THERMOSTAT
M8X16 FLANGE 		0-28080-816-0 02 1 0406-0512 ● ● ●
518 BOLT; PLUG,THERMOSTAT
M8X16 FLANGE 		0-28050-816-0 02 1 0601- ● ● ●
çizim 64533
328 496 328 308 307 265 434 386 282 282 293 292 293 292 2 265 297 290 280 290 2 297 321 321 284 284 280
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C) BEST VALUE PARTS 		1-87610-011-1 01 1 0005-1110 ●
2 ELEMENT; OIL FILTER
(C) BEST VALUE PARTS 		1-87610-011-1 01 1 0005-1110 ● ● ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C) BEST VALUE PARTS 		1-87610-064-0 01 1 1111- ●
2 ELEMENT; OIL FILTER
(C) BEST VALUE PARTS 		1-87610-064-0 01 1 1111- ● ● ●
2 ELEMENT; OIL FILTER
(C) 		8-94396-375-4 01 1 9601-9606 ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C) 		8-94396-375-4 01 1 9607-9609 ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C) 		8-94391-049-0 01 1 9610-0004 ●
2 ELEMENT; OIL FILTER
(C) 		8-94391-049-0 01 1 9610-0004 ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C) 		8-94391-049-2 01 1 0005-0405 ●
2 ELEMENT; OIL FILTER
(C) 		8-94391-049-2 01 1 0005-0405 ● ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C) 		8-94391-049-4 01 1 0406- ●
2 ELEMENT; OIL FILTER
(C) 		8-94391-049-4 01 1 0406- ● ● ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A) 		1-13240-132-0 01 1 9605-0904 ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A) 		8-98140-515-0 01 1 0905-1406 ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A) 		8-98274-487-0 01 1 1407- ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) 		1-87810-372-1 01 1 9605-1406 ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) 		8-98274-486-0 01 1 1407- ●
2 ELEMENT; OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V> (D) 		1-87810-075-2 01 1 9601-0706 ●
2 ELEMENT; OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> (D) 		1-87810-075-2 01 1 0707-1204 ●
2 ELEMENT; OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V> (D) 		1-87810-075-2 01 1 1205- ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (E) 		1-13240-168-1 01 1 9601- ●
2 ELEMENT; OIL FILTER
(E) 		1-13240-168-1 01 1 9601- ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (F) TOKYO ROKI 		1-13240-116-0 01 1 9802-9803 ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (F) TOKYO ROKI 		1-13240-116-0 01 1 9805-0206 ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (F) 		1-13240-217-1 01 1 0207- ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (F) BEST VALUE PARTS 		1-87610-055-1 01 1 0207- ●
265 BODY; OIL FILTER 8-94395-701-0 01 1 9601-9606 ●
265 BODY; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-94395-701-0 01 1 9607-9609 ●
265 BODY; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-94391-016-0 01 1 9610-9803 ●
265 BODY; OIL FILTER 8-94391-016-0 01 1 9610-9803 ●
265 BODY; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-94391-016-2 01 1 9804-0004 ●
265 BODY; OIL FILTER
EURO2 SPECIFICATION<THN> 		8-94391-016-2 01 1 9804-0004 ●
265 BODY; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-94391-016-4 01 1 0005-0405 ●
265 BODY; OIL FILTER
EURO2 SPECIFICATION<THN> 		8-94391-016-4 01 1 0005-0405 ●
265 BODY; OIL FILTER 8-94391-016-4 01 1 0005-0405 ●
265 BODY; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-94391-016-4 01 1 0406- ●
265 BODY; OIL FILTER 8-94391-016-4 01 1 0406- ● ● ●
265 BODY; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		8-94393-503-0 01 1 9605- ●
265 BODY; OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V> 		1-13212-161-0 01 1 9601-0706 ●
265 BODY; OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13212-161-0 01 1 0707-1204 ●
265 BODY; OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V> 		1-13212-161-0 01 1 1205- ●
265 BODY; OIL FILTER
EXC. EURO2 SPECIFICATION<THN> 		8-94391-020-4 01 1 9804-0405 ●
280 CASE ASM; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A) 		8-94393-504-1 01 1 9605- ●
280 CASE ASM; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) 		8-94393-505-1 01 1 9605- ●
280 CASE ASM; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (C) 		1-13212-150-0 01 1 9802-9803 ●
280 CASE ASM; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (C) 		1-13212-150-0 01 1 9805- ●
282 GASKET; BODY TO CASE
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		9-09920-311-0 02 1 9605-1406 ●
282 GASKET; BODY TO CASE
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		8-98274-489-0 02 1 1407- ●
282 GASKET; BODY TO CASE
PARTIAL OIL FILTER ELEMENT TYPE<KC1> ID=27.7 		1-09623-170-0 01 1 9802-9803 ●
282 GASKET; BODY TO CASE
PARTIAL OIL FILTER ELEMENT TYPE<KC1> ID=27.7 		1-09623-170-0 01 1 9805- ●
284 BOLT; CENTER,OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A) 		1-13231-069-0 01 1 9605- ●
284 BOLT; CENTER,OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) 		1-13231-070-1 01 1 9605- ●
284 BOLT; CENTER,OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V> (C) 		1-13231-047-0 01 1 9601-0706 ●
284 BOLT; CENTER,OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> (C) 		1-13231-047-0 01 1 0707-1204 ●
284 BOLT; CENTER,OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V> (C) 		1-13231-047-0 01 1 1205- ●
284 BOLT; CENTER,OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (D) 		1-13212-064-1 01 1 9802-9803 ●
284 BOLT; CENTER,OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (D) 		1-13212-064-1 01 1 9805- ●
290 GASKET; PLUG,OIL DRAIN
PARTIAL OIL FILTER ELEMENT TYPE<KC1> ID=15.5 		9-09920-694-0 02 1 9605-1406 ●
290 GASKET; PLUG,OIL DRAIN
PARTIAL OIL FILTER ELEMENT TYPE<KC1> ID=15.5 		8-98274-488-0 02 1 1407- ●
290 GASKET; PLUG,OIL DRAIN
OIL FILTER SETTING DOWNWARD<E7V> ID=9.8 		1-09623-055-0 01 1 9601-9801 ●
290 GASKET; PLUG,OIL DRAIN
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> ID=9.8 		1-09623-055-0 01 1 9802-9803 ●
290 GASKET; PLUG,OIL DRAIN
OIL FILTER SETTING DOWNWARD<E7V> ID=9.8 		1-09623-055-0 01 1 9804-9804 ●
290 GASKET; PLUG,OIL DRAIN
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> ID=9.8 		1-09623-055-0 01 1 9805-0706 ●
290 GASKET; PLUG,OIL DRAIN
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> ID=9.8 		1-09623-055-0 01 1 0707-1204 ●
290 GASKET; PLUG,OIL DRAIN
PARTIAL OIL FILTER ELEMENT TYPE<KC1> ID=9.8 		1-09623-055-0 01 1 0707-1204 ●
290 GASKET; PLUG,OIL DRAIN
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> ID=9.8 		1-09623-055-0 01 1 1205- ●
292 SPRING; ELEMENT
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		9-09941-283-0 02 1 9605- ●
292 SPRING; ELEMENT
OIL FILTER SETTING DOWNWARD<E7V> 		9-09941-283-0 01 1 9601-9801 ●
292 SPRING; ELEMENT
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		9-09941-283-0 01 1 9802-9803 ●
292 SPRING; ELEMENT
OIL FILTER SETTING DOWNWARD<E7V> 		9-09941-283-0 01 1 9804-9804 ●
292 SPRING; ELEMENT
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		9-09941-283-0 01 1 9805-0706 ●
292 SPRING; ELEMENT
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		9-09941-283-0 01 1 0707-1204 ●
292 SPRING; ELEMENT
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		9-09941-283-0 01 1 0707-1204 ●
292 SPRING; ELEMENT
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		9-09941-283-0 01 1 1205- ●
293 SEAT; SPR
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		9-13239-025-0 02 1 9605- ●
293 SEAT; SPR
OIL FILTER SETTING DOWNWARD<E7V> 		1-13219-173-0 01 1 9601-9801 ●
293 SEAT; SPR
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13219-173-0 01 1 9802-9803 ●
293 SEAT; SPR
OIL FILTER SETTING DOWNWARD<E7V> 		1-13219-173-0 01 1 9804-9804 ●
293 SEAT; SPR
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13219-173-0 01 1 9805-0706 ●
293 SEAT; SPR
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13219-173-0 01 1 0707-1204 ●
293 SEAT; SPR
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13219-173-0 01 1 0707-1204 ●
293 SEAT; SPR
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13219-173-0 01 1 1205- ●
297 PLUG; COVER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13219-275-0 02 1 9605- ●
307 VALVE; OVERFLOW 8-94395-700-0 01 1 9601-9606 ●
307 VALVE; OVERFLOW
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-94395-700-0 01 1 9607-0004 ●
307 VALVE; OVERFLOW 8-94395-700-0 01 1 9607-0004 ●
307 VALVE; OVERFLOW
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-94395-700-0 01 1 0005-0405 ●
307 VALVE; OVERFLOW 8-94395-700-0 01 1 0005-0405 ● ●
307 VALVE; OVERFLOW
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-94395-700-0 01 1 0406- ●
307 VALVE; OVERFLOW 8-94395-700-0 01 1 0406- ● ● ●
307 VALVE; OVERFLOW
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13260-066-1 01 1 9605-9809 ●
307 VALVE; OVERFLOW
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		8-97015-672-0 01 1 9810- ●
308 GASKET; VLV,OVERFLOW
ID=15.8 		1-09623-163-0 01 1 9601-9604 ●
308 GASKET; VLV,OVERFLOW
ID=15.8 		1-09623-163-0 01 1 9605-0004 ● ●
308 GASKET; VLV,OVERFLOW
ID=15.8 		1-09623-163-0 01 1 0005-0405 ● ● ●
308 GASKET; VLV,OVERFLOW
ID=15.8 		1-09623-163-0 01 1 0406- ● ● ● ●
321 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8 		8-94399-339-0 01 1 9601-9604 ●
321 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94399-339-0 01 1 9605-0004 ● ●
321 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) ID=9.8 		8-94399-339-0 01 1 9605-0004 ●
321 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94399-339-0 01 1 0005-0405 ● ● ●
321 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) ID=9.8 		8-94399-339-0 01 1 0005-0405 ●
321 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94399-339-0 01 1 0406- ● ● ● ●
321 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) ID=9.8 		8-94399-339-0 01 1 0406- ●
321 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1 		8-94399-399-0 02 1 9601-9609 ●
321 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1 		8-94399-399-0 02 1 9610-0004 ● ●
321 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1 		8-94399-399-0 02 1 0005-0405 ● ● ●
321 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1 		8-94399-399-0 02 1 0406- ● ● ● ●
328 BOLT; OIL FILTER
(A) M10X30 FLANGE 		0-28181-030-0 02 1 9601-9609 ●
328 BOLT; OIL FILTER
(A) M10X30 FLANGE 		0-28181-030-0 02 1 9610-0004 ● ●
328 BOLT; OIL FILTER
(A) M10X30 FLANGE 		0-28181-030-0 02 1 0005-0405 ● ● ●
328 BOLT; OIL FILTER
(A) M10X30 FLANGE 		0-28181-030-0 02 1 0406-0512 ● ● ● ●
328 BOLT; OIL FILTER
(A) M10X30 FLANGE 		0-28151-030-0 02 1 0601- ● ● ● ●
328 BOLT; OIL FILTER
(B) M10X90 FLANGE 		0-28181-090-0 02 1 9601-9606 ●
328 BOLT; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) M10X90 FLANGE 		0-28181-090-0 02 1 9607-9609 ●
328 BOLT; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) M10X90 FLANGE 		0-28181-090-0 02 1 9610-0004 ●
328 BOLT; OIL FILTER
(B) M10X90 FLANGE 		0-28181-090-0 02 1 9610-0004 ●
328 BOLT; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) M10X90 FLANGE 		0-28181-090-0 02 1 0005-0405 ●
328 BOLT; OIL FILTER
(B) M10X90 FLANGE 		0-28181-090-0 02 1 0005-0405 ● ●
328 BOLT; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) M10X90 FLANGE 		0-28181-090-0 02 1 0406-0512 ●
328 BOLT; OIL FILTER
(B) M10X90 FLANGE 		0-28181-090-0 02 1 0406-0512 ● ● ●
328 BOLT; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) M10X90 FLANGE 		0-28151-090-0 02 1 0601- ●
328 BOLT; OIL FILTER
(B) M10X90 FLANGE 		0-28151-090-0 02 1 0601- ● ● ●
328 BOLT; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) M10X135 		8-94397-139-1 03 1 9605- ●
328 BOLT; OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V> (A) M10X40 W/LK&PL WASHER 		0-50141-040-0 01 1 9601-9910 ●
328 BOLT; OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V> (A) M10X35 FLANGE 		0-28681-035-0 01 1 9911-0512 ●
328 BOLT; OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V> (A) M10X35 FLANGE 		0-28651-035-0 01 1 0601-0706 ●
328 BOLT; OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A) M10X35 FLANGE 		0-28651-035-0 01 1 0707-1204 ●
328 BOLT; OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V> (A) M10X35 FLANGE 		0-28651-035-0 01 1 1205- ●
328 BOLT; OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V> (B) M10X142 		5-09000-160-1 02 1 9601-9910 ●
328 BOLT; OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V> (B) M10X140 FLANGE 		0-28086-014-0 02 1 9911-0512 ●
328 BOLT; OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V> (B) M10X140 FLANGE 		0-28056-014-0 02 1 0601-0706 ●
328 BOLT; OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) M10X140 FLANGE 		0-28056-014-0 02 1 0707-1204 ●
328 BOLT; OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V> (B) M10X140 FLANGE 		0-28056-014-0 02 1 1205- ●
386 PLUG; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> M16X9 		9-13226-011-0 01 1 9605- ●
434 GASKET; PLUG,OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		9-09920-526-0 01 1 9605- ●
496 FILTER ASM; OIL 8-94395-686-0 01 1 9601-9606 ●
496 FILTER ASM; OIL
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-94395-686-0 01 1 9607-9609 ●
496 FILTER ASM; OIL
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-94391-015-1 01 1 9610-9803 ●
496 FILTER ASM; OIL 8-94391-015-1 01 1 9610-9803 ●
496 FILTER ASM; OIL
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-94391-015-2 01 1 9804-0004 ●
496 FILTER ASM; OIL
EURO2 SPECIFICATION<THN> 		8-94391-015-2 01 1 9804-0004 ●
496 FILTER ASM; OIL
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-94391-015-5 01 1 0005-0405 ●
496 FILTER ASM; OIL
EURO2 SPECIFICATION<THN> 		8-94391-015-5 01 1 0005-0405 ●
496 FILTER ASM; OIL 8-94391-015-5 01 1 0005-0405 ●
496 FILTER ASM; OIL
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-94391-015-8 01 1 0406- ●
496 FILTER ASM; OIL 8-94391-015-8 01 1 0406- ● ● ●
496 FILTER ASM; OIL
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		8-94393-427-1 01 1 9605-9809 ●
496 FILTER ASM; OIL
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		8-94392-898-2 01 1 9810-1406 ●
496 FILTER ASM; OIL
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		8-98274-485-0 01 1 1407- ●
496 FILTER ASM; OIL
OIL FILTER SETTING DOWNWARD<E7V> 		1-13200-848-0 01 1 9601-0706 ●
496 FILTER ASM; OIL
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13200-848-0 01 1 0707-1204 ●
496 FILTER ASM; OIL
OIL FILTER SETTING DOWNWARD<E7V> 		1-13200-848-0 01 1 1205- ●
496 FILTER ASM; OIL
EXC. EURO2 SPECIFICATION<THN> 		8-94391-018-5 01 1 9804-0405 ●
çizim 184251
102 469 103 103 196 469 102 103 112 111 444 113 444 112 112 113 113 444 116 115 444 110
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
102 COOLER ASM; OIL 8-94390-074-2 01 1 9601-9608 ●
102 COOLER ASM; OIL 8-94390-074-2 01 1 9610-9611 ●
102 COOLER ASM; OIL
EXC. ENG OIL PUMP HEAVY DUTY<Q1V> 		8-94390-074-4 01 1 9612- ●
102 COOLER ASM; OIL
ENG OIL PUMP HEAVY DUTY<Q1V> 		8-94390-076-4 01 1 9610- ●
102 COOLER ASM; OIL 8-94390-536-0 01 1 9610-9803 ●
102 COOLER ASM; OIL
EURO2 SPECIFICATION<THN> 		8-94390-536-0 01 1 9804-0405 ●
102 COOLER ASM; OIL 8-94390-536-0 01 1 0406- ●
102 COOLER ASM; OIL
EXC. EURO2 SPECIFICATION<THN> 		8-94394-992-1 01 1 9804-0405 ●
102 COOLER ASM; OIL 8-97601-079-1 01 1 0406- ●
102 COOLER ASM; OIL 8-94392-618-1 01 1 0005- ●
103 BOLT; OIL COOLER
(B) M8X22 FLANGE 		0-28080-822-0 25 1 9601-9609 ●
103 BOLT; OIL COOLER
(B) M8X22 FLANGE 		0-28080-822-0 25 1 9610-0004 ● ●
103 BOLT; OIL COOLER
(A) M8X22 FLANGE 		0-28080-822-0 24 1 0005-0405 ●
103 BOLT; OIL COOLER
(A) M8X22 FLANGE 		0-28080-822-0 24 1 0406- ● ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28080-835-0 02 1 9601-9609 ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28080-835-0 02 1 9610-0004 ● ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28080-835-0 03 1 0005-0405 ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28080-835-0 03 1 0406-0512 ● ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28050-835-0 03 1 0601- ● ●
103 BOLT; OIL COOLER
(A) M8X22 FLANGE 		0-28080-822-0 25 1 0005- ● ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28080-835-0 02 1 0005-0512 ● ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28050-835-0 02 1 0601- ● ●
103 BOLT; OIL COOLER
OIL FILTER SETTING DOWNWARD<E7V> (B) M8X145 		1-09000-448-1 02 1 9601- ●
103 BOLT; OIL COOLER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) M8X138 		5-09000-031-1 02 1 9601-9801 ●
103 BOLT; OIL COOLER
(B) M8X138 		5-09000-031-1 02 1 9601-9801 ●
103 BOLT; OIL COOLER
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) M8X138 		5-09000-031-1 02 1 9802-9803 ●
103 BOLT; OIL COOLER
(B) M8X138 		5-09000-031-1 02 1 9802-9803 ●
103 BOLT; OIL COOLER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) M8X138 		5-09000-031-1 02 1 9804-9804 ●
103 BOLT; OIL COOLER
(B) M8X138 		5-09000-031-1 02 1 9804-9804 ●
103 BOLT; OIL COOLER
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) M8X138 		5-09000-031-1 02 1 9805- ● ●
103 BOLT; OIL COOLER
(A) M8X25 FLANGE 		0-28080-825-0 24 1 9601-0512 ● ●
103 BOLT; OIL COOLER
(A) M8X25 FLANGE 		0-28050-825-0 24 1 0601- ● ●
103 BOLT; OIL COOLER
(C) M8X155 		9-09801-275-0 02 1 9601- ● ●
110 BODY; CASE,OIL COOLER 8-94395-283-4 01 1 9610-9803 ●
110 BODY; CASE,OIL COOLER
EURO2 SPECIFICATION<THN> 		8-94395-283-4 01 1 9804-0405 ●
110 BODY; CASE,OIL COOLER 8-94395-283-4 01 1 0406- ●
110 BODY; CASE,OIL COOLER
EXC. EURO2 SPECIFICATION<THN> 		8-94393-606-3 01 1 9804-0405 ●
111 CORE; OIL COOLER 8-94390-537-0 01 1 9610-9803 ●
111 CORE; OIL COOLER
EURO2 SPECIFICATION<THN> 		8-94390-537-0 01 1 9804-0405 ●
111 CORE; OIL COOLER 8-94390-537-0 01 1 0406- ●
111 CORE; OIL COOLER
EXC. EURO2 SPECIFICATION<THN> 		8-94395-918-0 01 1 9804-0405 ●
112 PLUG; OIL COOLER CASE
(A) 		8-94393-604-0 01 1 9610- ●
112 PLUG; OIL COOLER CASE
(B) 		8-94396-753-0 02 1 9610- ●
113 GASKET; PLUG,OIL COOLER CASE
(A) 		1-09623-499-0 01 1 9610- ●
113 GASKET; PLUG,OIL COOLER CASE
(B) M24 		8-94396-755-0 02 1 9610- ●
115 NUT; ELEMENT
M10 		9-09111-410-0 04 1 9610-0512 ●
115 NUT; ELEMENT
M10 		0-91111-510-0 04 1 0601- ●
116 WASHER; PL,ELEMENT
ID=10.5 		9-09164-510-0 04 1 9610- ●
196 THERMOSTAT; OIL COOLER
90 CELSIUS 		8-97600-936-0 01 1 0112-0405 ● ●
196 THERMOSTAT; OIL COOLER
90 CELSIUS 		8-97600-936-0 01 1 0406- ● ● ●
196 THERMOSTAT; OIL COOLER
90 CELSIUS 		8-94394-815-2 01 1 9601-9609 ●
196 THERMOSTAT; OIL COOLER
90 CELSIUS 		8-94394-815-2 01 1 9610-0004 ● ●
196 THERMOSTAT; OIL COOLER
90 CELSIUS 		8-94394-815-2 01 1 0005-0111 ● ● ●
196 THERMOSTAT; OIL COOLER
90 CELSIUS 		8-97600-935-0 01 1 0112- ●
444 GASKET; ELEMENT TO BODY
(B) 		8-94396-810-0 02 1 9610-0004 ● ●
444 GASKET; ELEMENT TO BODY
(B) 		8-94396-810-0 02 1 0005-0405 ● ● ●
444 GASKET; ELEMENT TO BODY
(B) 		8-94396-810-0 02 1 0406- ● ● ● ●
444 GASKET; ELEMENT TO BODY
(A) 		8-94394-930-0 02 1 9610-9803 ●
444 GASKET; ELEMENT TO BODY
EURO2 SPECIFICATION<THN> (A) 		8-94394-930-0 02 1 9804-0405 ●
444 GASKET; ELEMENT TO BODY
(A) 		8-94394-930-0 02 1 0406- ●
444 GASKET; ELEMENT TO BODY
EXC. EURO2 SPECIFICATION<THN> (A) 		8-94396-754-0 02 1 9804-0405 ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94399-002-0 01 1 9601-9609 ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94399-002-0 01 1 9610-0004 ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94399-002-0 01 1 0005-0405 ● ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94399-002-0 01 1 0406- ● ● ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7 		8-94399-279-0 01 1 9601-9609 ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7 		8-94399-279-0 01 1 9610-0004 ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7 		8-94399-279-0 01 1 0005-0405 ● ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7 		8-94399-279-0 01 1 0406-0606 ● ● ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20 		8-98045-449-0 01 1 0607- ● ● ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (C) 		1-11219-177-1 01 1 9601- ● ●
çizim 184253
185 186 103 193 107 106 469 1 1 462 103 20 200 462 41 107 106 103 23 24 45 29 28 22 54 33 2 27 26 25 83 21 20 32 13 16 14 15 12 88 87 86 85 32 21 20
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 FILTER & COOLER ASM; OIL
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) 		1-13201-022-0 01 1 0605- ●
1 FILTER & COOLER ASM; OIL
OIL FILTER SETTING DOWNWARD<E7V> 		1-21700-295-2 01 1 9601-0202 ●
1 FILTER & COOLER ASM; OIL
OIL FILTER SETTING DOWNWARD<E7V> 		1-21700-369-0 01 1 0203- ●
1 FILTER & COOLER ASM; OIL
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-13200-935-2 01 1 9601- ●
1 FILTER & COOLER ASM; OIL
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13200-955-1 01 1 9802-9803 ●
1 FILTER & COOLER ASM; OIL
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13200-955-3 01 1 9805- ●
1 FILTER & COOLER ASM; OIL 1-13200-936-2 01 1 9601-0604 ●
1 FILTER & COOLER ASM; OIL
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> 		1-13200-936-2 01 1 0605- ●
1 FILTER & COOLER ASM; OIL
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-13200-936-2 01 1 0605- ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C) BEST VALUE PARTS 		1-87610-011-1 01 1 0005-1110 ●
2 ELEMENT; OIL FILTER
(C) BEST VALUE PARTS 		1-87610-011-1 01 1 0005-1110 ● ● ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C) BEST VALUE PARTS 		1-87610-064-0 01 1 1111- ●
2 ELEMENT; OIL FILTER
(C) BEST VALUE PARTS 		1-87610-064-0 01 1 1111- ● ● ●
2 ELEMENT; OIL FILTER
(C) 		8-94396-375-4 01 1 9601-9606 ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C) 		8-94396-375-4 01 1 9607-9609 ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C) 		8-94391-049-0 01 1 9610-0004 ●
2 ELEMENT; OIL FILTER
(C) 		8-94391-049-0 01 1 9610-0004 ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C) 		8-94391-049-2 01 1 0005-0405 ●
2 ELEMENT; OIL FILTER
(C) 		8-94391-049-2 01 1 0005-0405 ● ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C) 		8-94391-049-4 01 1 0406- ●
2 ELEMENT; OIL FILTER
(C) 		8-94391-049-4 01 1 0406- ● ● ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A) 		1-13240-132-0 01 1 9605-0904 ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A) 		8-98140-515-0 01 1 0905-1406 ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A) 		8-98274-487-0 01 1 1407- ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) 		1-87810-372-1 01 1 9605-1406 ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) 		8-98274-486-0 01 1 1407- ●
2 ELEMENT; OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V> (D) 		1-87810-075-2 01 1 9601-0706 ●
2 ELEMENT; OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> (D) 		1-87810-075-2 01 1 0707-1204 ●
2 ELEMENT; OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V> (D) 		1-87810-075-2 01 1 1205- ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (E) 		1-13240-168-1 01 1 9601- ●
2 ELEMENT; OIL FILTER
(E) 		1-13240-168-1 01 1 9601- ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (F) TOKYO ROKI 		1-13240-116-0 01 1 9802-9803 ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (F) TOKYO ROKI 		1-13240-116-0 01 1 9805-0206 ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (F) 		1-13240-217-1 01 1 0207- ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (F) BEST VALUE PARTS 		1-87610-055-1 01 1 0207- ●
12 VALVE ASM; BYPASS 1-13260-096-0 01 1 9601-9605 ● ●
12 VALVE ASM; BYPASS 1-13260-110-0 01 1 9606- ● ●
13 VALVE; RELIEF 9-13262-010-0 01 1 9601- ● ●
14 SPRING; RELIEF VLV 1-13263-006-0 01 1 9601- ● ●
15 PLUG; RELIEF VLV 1-13265-023-0 01 1 9601-9605 ● ●
15 PLUG; RELIEF VLV 1-13219-322-0 01 1 9606- ● ●
16 VALVE ASM; RELIEF 1-13269-002-0 01 1 9601-9605 ● ●
20 PLUG; COOLER BODY
(A) 		8-94396-753-0 01 1 9601-0004 ●
20 PLUG; COOLER BODY
(B) 		8-94393-604-0 01 1 0005-0405 ●
20 PLUG; COOLER BODY
(B) 		8-94393-604-0 01 1 0406- ● ●
20 PLUG; COOLER BODY
(A) 		8-94396-753-0 01 1 0005-0405 ● ●
20 PLUG; COOLER BODY
(A) 		8-94396-753-0 01 1 0406- ● ● ●
20 PLUG; COOLER BODY
(A) M20 		1-13219-152-0 03 1 9601-9906 ● ●
20 PLUG; COOLER BODY
(A) M24 		1-13219-356-0 01 1 9907- ● ●
20 PLUG; COOLER BODY
(B) M26 		1-13219-153-0 02 1 9601-9906 ● ●
20 PLUG; COOLER BODY
(B) M26 		1-13219-153-0 04 1 9907- ● ●
21 GASKET; PLUG
(A) M24 		8-94396-755-0 01 1 9601-9906 ●
21 GASKET; PLUG
(A) M24 		8-94396-755-0 01 1 9907-0004 ● ● ●
21 GASKET; PLUG
(A) M24 		8-94396-755-0 01 1 0005-0103 ● ● ● ●
21 GASKET; PLUG
EXC. PAKISTAN EQUIPMENT(WN3) (A) M24 		8-94396-755-0 01 1 0104-0109 ●
21 GASKET; PLUG
EURO2 SPECIFICATION<THN> (A) M24 		8-94396-755-0 01 1 0104-0109 ●
21 GASKET; PLUG
(A) M24 		8-94396-755-0 01 1 0104-0109 ●
21 GASKET; PLUG
(A) M24 		8-94396-755-0 01 1 0110-0405 ● ● ● ●
21 GASKET; PLUG
(A) M24 		8-94396-755-0 01 1 0406- ● ● ● ● ●
21 GASKET; PLUG
(A) M20 		1-13219-158-0 03 1 9601-9906 ● ●
21 GASKET; PLUG
(B) M26 		1-13219-159-0 02 1 9601-9906 ● ●
21 GASKET; PLUG
(B) M26 		1-13219-159-0 04 1 9907- ● ●
21 GASKET; PLUG
(B) 		1-13219-253-0 01 1 0005-0405 ●
21 GASKET; PLUG
(B) 		1-13219-253-0 01 1 0406- ● ●
22 GUIDE; WATER 1-13219-155-1 01 1 9601- ● ●
23 SCREW; WATER GUIDE 1-13219-156-0 07 1 9601- ● ●
24 WASHER; WATER GUIDE 1-13219-157-0 07 1 9601- ● ●
25 NUT; CORE TO BODY
M10 		9-09111-410-0 04 1 9601-0512 ●
25 NUT; CORE TO BODY
M10 		0-91111-510-0 04 1 0601- ●
25 NUT; CORE TO BODY 1-21729-074-0 04 1 9601-9906 ● ●
25 NUT; CORE TO BODY
M10 FLANGE 		1-13219-324-0 04 1 9907-0004 ● ●
25 NUT; CORE TO BODY
M10 FLANGE 		1-13219-324-0 04 1 0005-0405 ● ● ●
25 NUT; CORE TO BODY
M10 FLANGE 		1-13219-324-0 04 1 0406- ● ● ● ●
26 CORE ASM; OIL COOLER 8-94395-711-0 01 1 9601-9611 ●
26 CORE ASM; OIL COOLER
EXC. ENG OIL PUMP HEAVY DUTY<Q1V> 		8-94395-711-0 01 1 9610- ●
26 CORE ASM; OIL COOLER
ENG OIL PUMP HEAVY DUTY<Q1V> 		8-94395-712-0 01 1 9610- ●
26 CORE ASM; OIL COOLER
OIL FILTER SETTING DOWNWARD<E7V> 		1-21723-039-0 01 1 9601-9906 ●
26 CORE ASM; OIL COOLER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-21723-049-0 01 1 9601-9804 ●
26 CORE ASM; OIL COOLER 1-21723-049-0 01 1 9601-9804 ●
26 CORE ASM; OIL COOLER
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-21723-049-0 01 1 9805-9906 ●
26 CORE ASM; OIL COOLER 1-21723-049-0 01 1 9805-9906 ●
26 CORE ASM; OIL COOLER 1-21723-058-0 01 1 9907- ● ●
26 CORE ASM; OIL COOLER 8-94391-738-1 01 1 0005-0405 ●
26 CORE ASM; OIL COOLER 8-94391-738-1 01 1 0406- ● ●
27 WASHER; PL,CORE TO BODY
ID=10.5 		9-09164-510-0 04 1 9601- ●
27 WASHER; PL,CORE TO BODY 1-21729-075-0 04 1 9601-9906 ● ●
28 GASKET; CORE TO BODY 8-94394-930-0 02 1 9601-0004 ●
28 GASKET; CORE TO BODY 8-94394-930-0 02 1 0005-0405 ● ●
28 GASKET; CORE TO BODY 8-94394-930-0 02 1 0406- ● ● ●
28 GASKET; CORE TO BODY 1-21729-076-0 02 1 9601-9906 ● ●
28 GASKET; CORE TO BODY 8-94396-810-0 02 1 9907- ● ●
29 GASKET; CORE TO BODY 1-21729-077-0 02 1 9601-9906 ● ●
29 GASKET; CORE TO BODY 8-94394-930-0 02 1 9907- ● ●
32 PLUG; DRAIN
OIL FILTER SETTING DOWNWARD<E7V> (A) 		1-13219-276-0 01 1 9601-9804 ●
32 PLUG; DRAIN
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A) 		1-13219-276-0 01 1 9805-9906 ●
32 PLUG; DRAIN
(A) 		1-13219-276-0 01 1 9907- ● ●
32 PLUG; DRAIN
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (A) 		1-13219-151-0 01 1 9601-9906 ●
32 PLUG; DRAIN
(A) 		1-13219-151-0 01 1 9601-9906 ●
32 PLUG; DRAIN
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) 		1-13219-295-1 01 1 9601-9804 ●
32 PLUG; DRAIN
(B) 		1-13219-295-1 01 1 9601-9804 ●
32 PLUG; DRAIN
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) 		1-13219-295-1 01 1 9805- ●
32 PLUG; DRAIN
(B) 		1-13219-295-1 01 1 9805- ●
33 HOUSING ASM; COOLER
OIL FILTER SETTING DOWNWARD<E7V> 		1-13211-254-0 01 1 9601-9906 ●
33 HOUSING ASM; COOLER
OIL FILTER SETTING DOWNWARD<E7V> 		1-13211-312-0 01 1 9907-0202 ●
33 HOUSING ASM; COOLER
OIL FILTER SETTING DOWNWARD<E7V> 		1-13211-324-0 01 1 0203- ●
33 HOUSING ASM; COOLER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-13211-248-0 01 1 9601-9906 ●
33 HOUSING ASM; COOLER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-13211-307-0 01 1 9907- ●
33 HOUSING ASM; COOLER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13211-252-0 01 1 9802-9803 ●
33 HOUSING ASM; COOLER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13211-252-0 01 1 9805-9906 ●
33 HOUSING ASM; COOLER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13211-309-0 01 1 9907- ●
33 HOUSING ASM; COOLER 1-13211-250-0 01 1 9601-9906 ●
33 HOUSING ASM; COOLER 1-13211-308-0 01 1 9907- ●
41 BOLT; COVER FIX
M10X25 FLANGE 		8-98272-067-0 02 1 0005- ● ●
41 BOLT; COVER FIX 1-13219-161-0 02 1 9601-9906 ● ●
41 BOLT; COVER FIX
M8X25 FLANGE 		0-28680-825-0 02 1 9907-0004 ● ●
45 COVER; OIL PORT
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13210-172-0 01 1 9805- ●
45 COVER; OIL PORT 1-13219-172-0 01 1 9601-9912 ● ●
45 COVER; OIL PORT
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-13219-172-0 01 1 0001-0604 ●
45 COVER; OIL PORT 1-13219-172-0 01 1 0001-0604 ●
45 COVER; OIL PORT
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-13219-172-0 01 1 0605- ●
45 COVER; OIL PORT
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> 		1-13219-172-0 01 1 0605- ●
45 COVER; OIL PORT
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-13219-172-0 01 1 0605- ●
54 GASKET; OIL PIPE
(A) 		1-13219-162-0 01 1 0605- ● ●
54 GASKET; OIL PIPE
(A) 		1-13219-162-0 01 1 9601-0604 ● ●
54 GASKET; OIL PIPE
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) (B) 		1-13219-164-0 01 1 0605- ●
83 CUP; SEALING,BODY,OIL COOLER & FILTER
OD=20 		9-11129-128-0 01 1 9601- ● ●
85 PLUG; DRAIN UNIT,OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V> 		1-13219-252-0 01 1 9601- ●
85 PLUG; DRAIN UNIT,OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-13219-146-0 01 1 9601-9801 ●
85 PLUG; DRAIN UNIT,OIL FILTER 1-13219-146-0 01 1 9601-9801 ●
85 PLUG; DRAIN UNIT,OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-13219-146-0 01 1 9802-9803 ●
85 PLUG; DRAIN UNIT,OIL FILTER 1-13219-146-0 01 1 9802-9803 ●
85 PLUG; DRAIN UNIT,OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-13219-146-0 01 1 9804-9804 ●
85 PLUG; DRAIN UNIT,OIL FILTER 1-13219-146-0 01 1 9804-9804 ●
85 PLUG; DRAIN UNIT,OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-13219-146-0 01 1 9805- ●
85 PLUG; DRAIN UNIT,OIL FILTER 1-13219-146-0 01 1 9805- ●
86 GASKET; DRAIN UNIT,OIL FILTER 1-13219-147-0 01 1 9601- ● ●
87 SPRING; DRAIN UNIT,OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-13219-148-0 01 1 9601-9801 ●
87 SPRING; DRAIN UNIT,OIL FILTER 1-13219-148-0 01 1 9601-9801 ●
87 SPRING; DRAIN UNIT,OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-13219-148-0 01 1 9802-9803 ●
87 SPRING; DRAIN UNIT,OIL FILTER 1-13219-148-0 01 1 9802-9803 ●
87 SPRING; DRAIN UNIT,OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-13219-148-0 01 1 9804-9804 ●
87 SPRING; DRAIN UNIT,OIL FILTER 1-13219-148-0 01 1 9804-9804 ●
87 SPRING; DRAIN UNIT,OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-13219-148-0 01 1 9805- ●
87 SPRING; DRAIN UNIT,OIL FILTER 1-13219-148-0 01 1 9805- ●
88 VALVE; DRAIN UNIT,OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		9-13262-009-0 01 1 9601-9801 ●
88 VALVE; DRAIN UNIT,OIL FILTER 9-13262-009-0 01 1 9601-9801 ●
88 VALVE; DRAIN UNIT,OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		9-13262-009-0 01 1 9802-9803 ●
88 VALVE; DRAIN UNIT,OIL FILTER 9-13262-009-0 01 1 9802-9803 ●
88 VALVE; DRAIN UNIT,OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		9-13262-009-0 01 1 9804-9804 ●
88 VALVE; DRAIN UNIT,OIL FILTER 9-13262-009-0 01 1 9804-9804 ●
88 VALVE; DRAIN UNIT,OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		9-13262-009-0 01 1 9805- ●
88 VALVE; DRAIN UNIT,OIL FILTER 9-13262-009-0 01 1 9805- ●
103 BOLT; OIL COOLER
(B) M8X22 FLANGE 		0-28080-822-0 25 1 9601-9609 ●
103 BOLT; OIL COOLER
(B) M8X22 FLANGE 		0-28080-822-0 25 1 9610-0004 ● ●
103 BOLT; OIL COOLER
(A) M8X22 FLANGE 		0-28080-822-0 24 1 0005-0405 ●
103 BOLT; OIL COOLER
(A) M8X22 FLANGE 		0-28080-822-0 24 1 0406- ● ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28080-835-0 02 1 9601-9609 ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28080-835-0 02 1 9610-0004 ● ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28080-835-0 03 1 0005-0405 ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28080-835-0 03 1 0406-0512 ● ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28050-835-0 03 1 0601- ● ●
103 BOLT; OIL COOLER
(A) M8X22 FLANGE 		0-28080-822-0 25 1 0005- ● ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28080-835-0 02 1 0005-0512 ● ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28050-835-0 02 1 0601- ● ●
103 BOLT; OIL COOLER
OIL FILTER SETTING DOWNWARD<E7V> (B) M8X145 		1-09000-448-1 02 1 9601- ●
103 BOLT; OIL COOLER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) M8X138 		5-09000-031-1 02 1 9601-9801 ●
103 BOLT; OIL COOLER
(B) M8X138 		5-09000-031-1 02 1 9601-9801 ●
103 BOLT; OIL COOLER
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) M8X138 		5-09000-031-1 02 1 9802-9803 ●
103 BOLT; OIL COOLER
(B) M8X138 		5-09000-031-1 02 1 9802-9803 ●
103 BOLT; OIL COOLER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) M8X138 		5-09000-031-1 02 1 9804-9804 ●
103 BOLT; OIL COOLER
(B) M8X138 		5-09000-031-1 02 1 9804-9804 ●
103 BOLT; OIL COOLER
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) M8X138 		5-09000-031-1 02 1 9805- ● ●
103 BOLT; OIL COOLER
(A) M8X25 FLANGE 		0-28080-825-0 24 1 9601-0512 ● ●
103 BOLT; OIL COOLER
(A) M8X25 FLANGE 		0-28050-825-0 24 1 0601- ● ●
103 BOLT; OIL COOLER
(C) M8X155 		9-09801-275-0 02 1 9601- ● ●
106 WASHER; LK,OIL COOLER
ID=8.2 		9-09150-508-0 04 1 9601-0603 ● ●
106 WASHER; LK,OIL COOLER
ID=8.2 		0-91510-508-0 04 1 0604- ● ●
107 WASHER; PL,OIL COOLER
ID=8.4 		9-09160-508-0 04 1 9601-0605 ● ●
107 WASHER; PL,OIL COOLER
ID=8.4 OD=16 		0-91610-508-0 04 1 0606- ● ●
185 VALVE; OIL RELIEF,OIL COOLER
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) 		1-13160-034-0 01 1 0605- ●
185 VALVE; OIL RELIEF,OIL COOLER 1-13160-017-1 01 1 9601-0604 ● ●
185 VALVE; OIL RELIEF,OIL COOLER 1-13160-017-1 01 1 0605- ●
185 VALVE; OIL RELIEF,OIL COOLER
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> 		1-13160-017-1 01 1 0605- ●
185 VALVE; OIL RELIEF,OIL COOLER
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-13160-017-1 01 1 0605- ●
186 GASKET; RELIEF VLV,OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7 		9-09565-228-0 01 1 9601- ● ●
193 PLUG; TAPER
EXC. HEATER & DEFROSTER(C41) PT3/8 T=8.0 		1-09605-066-0 01 1 9708-1003 ● ●
193 PLUG; TAPER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) PT3/8 T=8.0 		1-09605-066-0 01 1 1004- ●
200 PIPE; VINYL,WATER DRAIN
L=360 SERVICED BY L=3000 		0-03157-300-0 01 1 9601-0206 ● ●
200 PIPE; VINYL,WATER DRAIN
L=360 SERVICED BY L=3000 		0-03457-300-0 01 1 0207- ● ●
462 CLIP; HOSE,DRAIN
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) ID=13.5 		8-97015-754-0 01 1 9601-9804 ●
462 CLIP; HOSE,DRAIN
(B) ID=13.5 		8-97015-754-0 01 1 9601-9804 ●
462 CLIP; HOSE,DRAIN
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) ID=13.5 		8-97015-754-1 01 1 9805- ● ●
462 CLIP; HOSE,DRAIN
(A) 		1-09704-100-0 01 1 9601- ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94399-002-0 01 1 9601-9609 ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94399-002-0 01 1 9610-0004 ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94399-002-0 01 1 0005-0405 ● ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94399-002-0 01 1 0406- ● ● ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7 		8-94399-279-0 01 1 9601-9609 ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7 		8-94399-279-0 01 1 9610-0004 ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7 		8-94399-279-0 01 1 0005-0405 ● ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7 		8-94399-279-0 01 1 0406-0606 ● ● ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20 		8-98045-449-0 01 1 0607- ● ● ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (C) 		1-11219-177-1 01 1 9601- ● ●
çizim 184254
7 185 8 186 11 9 2 5 103 193 3 107 106 1 10 469 1 462 103 20 200 462 107 106 103 41 23 24 45 29 28 54 22 33 494 27 25 495 26 83 21 20 32 13 16 14 15 12 88 87 86 85 32 21 20
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 FILTER & COOLER ASM; OIL
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) 		1-13201-022-0 01 1 0605- ●
1 FILTER & COOLER ASM; OIL
OIL FILTER SETTING DOWNWARD<E7V> 		1-21700-295-2 01 1 9601-0202 ●
1 FILTER & COOLER ASM; OIL
OIL FILTER SETTING DOWNWARD<E7V> 		1-21700-369-0 01 1 0203- ●
1 FILTER & COOLER ASM; OIL
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-13200-935-2 01 1 9601- ●
1 FILTER & COOLER ASM; OIL
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13200-955-1 01 1 9802-9803 ●
1 FILTER & COOLER ASM; OIL
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13200-955-3 01 1 9805- ●
1 FILTER & COOLER ASM; OIL 1-13200-936-2 01 1 9601-0604 ●
1 FILTER & COOLER ASM; OIL
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> 		1-13200-936-2 01 1 0605- ●
1 FILTER & COOLER ASM; OIL
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-13200-936-2 01 1 0605- ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C) BEST VALUE PARTS 		1-87610-011-1 01 1 0005-1110 ●
2 ELEMENT; OIL FILTER
(C) BEST VALUE PARTS 		1-87610-011-1 01 1 0005-1110 ● ● ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C) BEST VALUE PARTS 		1-87610-064-0 01 1 1111- ●
2 ELEMENT; OIL FILTER
(C) BEST VALUE PARTS 		1-87610-064-0 01 1 1111- ● ● ●
2 ELEMENT; OIL FILTER
(C) 		8-94396-375-4 01 1 9601-9606 ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C) 		8-94396-375-4 01 1 9607-9609 ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C) 		8-94391-049-0 01 1 9610-0004 ●
2 ELEMENT; OIL FILTER
(C) 		8-94391-049-0 01 1 9610-0004 ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C) 		8-94391-049-2 01 1 0005-0405 ●
2 ELEMENT; OIL FILTER
(C) 		8-94391-049-2 01 1 0005-0405 ● ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C) 		8-94391-049-4 01 1 0406- ●
2 ELEMENT; OIL FILTER
(C) 		8-94391-049-4 01 1 0406- ● ● ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A) 		1-13240-132-0 01 1 9605-0904 ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A) 		8-98140-515-0 01 1 0905-1406 ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A) 		8-98274-487-0 01 1 1407- ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) 		1-87810-372-1 01 1 9605-1406 ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) 		8-98274-486-0 01 1 1407- ●
2 ELEMENT; OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V> (D) 		1-87810-075-2 01 1 9601-0706 ●
2 ELEMENT; OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> (D) 		1-87810-075-2 01 1 0707-1204 ●
2 ELEMENT; OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V> (D) 		1-87810-075-2 01 1 1205- ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (E) 		1-13240-168-1 01 1 9601- ●
2 ELEMENT; OIL FILTER
(E) 		1-13240-168-1 01 1 9601- ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (F) TOKYO ROKI 		1-13240-116-0 01 1 9802-9803 ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (F) TOKYO ROKI 		1-13240-116-0 01 1 9805-0206 ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (F) 		1-13240-217-1 01 1 0207- ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (F) BEST VALUE PARTS 		1-87610-055-1 01 1 0207- ●
3 GASKET
OIL FILTER SETTING DOWNWARD<E7V> (A) 		1-09623-352-0 01 1 9601- ●
3 GASKET
OIL FILTER SETTING DOWNWARD<E7V> (B) 		1-09630-109-0 01 1 9601- ●
3 GASKET
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (C) 		1-13213-010-1 01 1 9802-9803 ●
3 GASKET
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (C) 		1-13213-010-1 01 1 9805- ●
5 CASE; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13211-256-0 01 1 9802-9803 ●
5 CASE; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13211-256-0 01 1 9805- ●
7 PLUG; CENTER BOLT
PARTIAL OIL FILTER ELEMENT TYPE<KC1> M10 		1-09000-105-0 01 1 9802-9803 ●
7 PLUG; CENTER BOLT
PARTIAL OIL FILTER ELEMENT TYPE<KC1> M10 		1-09000-105-0 01 1 9805- ●
8 GASKET; PLUG
PARTIAL OIL FILTER ELEMENT TYPE<KC1> ID=9.8 		1-09623-055-0 01 1 9802-9803 ●
8 GASKET; PLUG
PARTIAL OIL FILTER ELEMENT TYPE<KC1> ID=9.8 		1-09623-055-0 01 1 9805- ●
9 GASKET; CENTER BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). OIL FILTER SETTING DOWNWARD<E7V> ID=15.5 		9-09920-694-0 01 1 9601- ●
9 GASKET; CENTER BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-09623-499-0 01 1 9802-9803 ●
9 GASKET; CENTER BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-09623-499-0 01 1 9805- ●
10 SPRING; ELEMENT
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13219-263-0 01 1 9802-9803 ●
10 SPRING; ELEMENT
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13219-263-0 01 1 9805- ●
11 BOLT; CENTER
OIL FILTER SETTING DOWNWARD<E7V> 		1-13231-062-0 01 1 9601- ●
11 BOLT; CENTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13231-076-0 01 1 9802- ●
12 VALVE ASM; BYPASS 1-13260-096-0 01 1 9601-9605 ● ●
12 VALVE ASM; BYPASS 1-13260-110-0 01 1 9606- ● ●
13 VALVE; RELIEF 9-13262-010-0 01 1 9601- ● ●
14 SPRING; RELIEF VLV 1-13263-006-0 01 1 9601- ● ●
15 PLUG; RELIEF VLV 1-13265-023-0 01 1 9601-9605 ● ●
15 PLUG; RELIEF VLV 1-13219-322-0 01 1 9606- ● ●
16 VALVE ASM; RELIEF 1-13269-002-0 01 1 9601-9605 ● ●
20 PLUG; COOLER BODY
(A) 		8-94396-753-0 01 1 9601-0004 ●
20 PLUG; COOLER BODY
(B) 		8-94393-604-0 01 1 0005-0405 ●
20 PLUG; COOLER BODY
(B) 		8-94393-604-0 01 1 0406- ● ●
20 PLUG; COOLER BODY
(A) 		8-94396-753-0 01 1 0005-0405 ● ●
20 PLUG; COOLER BODY
(A) 		8-94396-753-0 01 1 0406- ● ● ●
20 PLUG; COOLER BODY
(A) M20 		1-13219-152-0 03 1 9601-9906 ● ●
20 PLUG; COOLER BODY
(A) M24 		1-13219-356-0 01 1 9907- ● ●
20 PLUG; COOLER BODY
(B) M26 		1-13219-153-0 02 1 9601-9906 ● ●
20 PLUG; COOLER BODY
(B) M26 		1-13219-153-0 04 1 9907- ● ●
21 GASKET; PLUG
(A) M24 		8-94396-755-0 01 1 9601-9906 ●
21 GASKET; PLUG
(A) M24 		8-94396-755-0 01 1 9907-0004 ● ● ●
21 GASKET; PLUG
(A) M24 		8-94396-755-0 01 1 0005-0103 ● ● ● ●
21 GASKET; PLUG
EXC. PAKISTAN EQUIPMENT(WN3) (A) M24 		8-94396-755-0 01 1 0104-0109 ●
21 GASKET; PLUG
EURO2 SPECIFICATION<THN> (A) M24 		8-94396-755-0 01 1 0104-0109 ●
21 GASKET; PLUG
(A) M24 		8-94396-755-0 01 1 0104-0109 ●
21 GASKET; PLUG
(A) M24 		8-94396-755-0 01 1 0110-0405 ● ● ● ●
21 GASKET; PLUG
(A) M24 		8-94396-755-0 01 1 0406- ● ● ● ● ●
21 GASKET; PLUG
(A) M20 		1-13219-158-0 03 1 9601-9906 ● ●
21 GASKET; PLUG
(B) M26 		1-13219-159-0 02 1 9601-9906 ● ●
21 GASKET; PLUG
(B) M26 		1-13219-159-0 04 1 9907- ● ●
21 GASKET; PLUG
(B) 		1-13219-253-0 01 1 0005-0405 ●
21 GASKET; PLUG
(B) 		1-13219-253-0 01 1 0406- ● ●
22 GUIDE; WATER 1-13219-155-1 01 1 9601- ● ●
23 SCREW; WATER GUIDE 1-13219-156-0 07 1 9601- ● ●
24 WASHER; WATER GUIDE 1-13219-157-0 07 1 9601- ● ●
25 NUT; CORE TO BODY
M10 		9-09111-410-0 04 1 9601-0512 ●
25 NUT; CORE TO BODY
M10 		0-91111-510-0 04 1 0601- ●
25 NUT; CORE TO BODY 1-21729-074-0 04 1 9601-9906 ● ●
25 NUT; CORE TO BODY
M10 FLANGE 		1-13219-324-0 04 1 9907-0004 ● ●
25 NUT; CORE TO BODY
M10 FLANGE 		1-13219-324-0 04 1 0005-0405 ● ● ●
25 NUT; CORE TO BODY
M10 FLANGE 		1-13219-324-0 04 1 0406- ● ● ● ●
26 CORE ASM; OIL COOLER 8-94395-711-0 01 1 9601-9611 ●
26 CORE ASM; OIL COOLER
EXC. ENG OIL PUMP HEAVY DUTY<Q1V> 		8-94395-711-0 01 1 9610- ●
26 CORE ASM; OIL COOLER
ENG OIL PUMP HEAVY DUTY<Q1V> 		8-94395-712-0 01 1 9610- ●
26 CORE ASM; OIL COOLER
OIL FILTER SETTING DOWNWARD<E7V> 		1-21723-039-0 01 1 9601-9906 ●
26 CORE ASM; OIL COOLER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-21723-049-0 01 1 9601-9804 ●
26 CORE ASM; OIL COOLER 1-21723-049-0 01 1 9601-9804 ●
26 CORE ASM; OIL COOLER
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-21723-049-0 01 1 9805-9906 ●
26 CORE ASM; OIL COOLER 1-21723-049-0 01 1 9805-9906 ●
26 CORE ASM; OIL COOLER 1-21723-058-0 01 1 9907- ● ●
26 CORE ASM; OIL COOLER 8-94391-738-1 01 1 0005-0405 ●
26 CORE ASM; OIL COOLER 8-94391-738-1 01 1 0406- ● ●
27 WASHER; PL,CORE TO BODY
ID=10.5 		9-09164-510-0 04 1 9601- ●
27 WASHER; PL,CORE TO BODY 1-21729-075-0 04 1 9601-9906 ● ●
28 GASKET; CORE TO BODY 8-94394-930-0 02 1 9601-0004 ●
28 GASKET; CORE TO BODY 8-94394-930-0 02 1 0005-0405 ● ●
28 GASKET; CORE TO BODY 8-94394-930-0 02 1 0406- ● ● ●
28 GASKET; CORE TO BODY 1-21729-076-0 02 1 9601-9906 ● ●
28 GASKET; CORE TO BODY 8-94396-810-0 02 1 9907- ● ●
29 GASKET; CORE TO BODY 1-21729-077-0 02 1 9601-9906 ● ●
29 GASKET; CORE TO BODY 8-94394-930-0 02 1 9907- ● ●
32 PLUG; DRAIN
OIL FILTER SETTING DOWNWARD<E7V> (A) 		1-13219-276-0 01 1 9601-9804 ●
32 PLUG; DRAIN
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A) 		1-13219-276-0 01 1 9805-9906 ●
32 PLUG; DRAIN
(A) 		1-13219-276-0 01 1 9907- ● ●
32 PLUG; DRAIN
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (A) 		1-13219-151-0 01 1 9601-9906 ●
32 PLUG; DRAIN
(A) 		1-13219-151-0 01 1 9601-9906 ●
32 PLUG; DRAIN
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) 		1-13219-295-1 01 1 9601-9804 ●
32 PLUG; DRAIN
(B) 		1-13219-295-1 01 1 9601-9804 ●
32 PLUG; DRAIN
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) 		1-13219-295-1 01 1 9805- ●
32 PLUG; DRAIN
(B) 		1-13219-295-1 01 1 9805- ●
33 HOUSING ASM; COOLER
OIL FILTER SETTING DOWNWARD<E7V> 		1-13211-254-0 01 1 9601-9906 ●
33 HOUSING ASM; COOLER
OIL FILTER SETTING DOWNWARD<E7V> 		1-13211-312-0 01 1 9907-0202 ●
33 HOUSING ASM; COOLER
OIL FILTER SETTING DOWNWARD<E7V> 		1-13211-324-0 01 1 0203- ●
33 HOUSING ASM; COOLER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-13211-248-0 01 1 9601-9906 ●
33 HOUSING ASM; COOLER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-13211-307-0 01 1 9907- ●
33 HOUSING ASM; COOLER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13211-252-0 01 1 9802-9803 ●
33 HOUSING ASM; COOLER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13211-252-0 01 1 9805-9906 ●
33 HOUSING ASM; COOLER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13211-309-0 01 1 9907- ●
33 HOUSING ASM; COOLER 1-13211-250-0 01 1 9601-9906 ●
33 HOUSING ASM; COOLER 1-13211-308-0 01 1 9907- ●
41 BOLT; COVER FIX
M10X25 FLANGE 		8-98272-067-0 02 1 0005- ● ●
41 BOLT; COVER FIX 1-13219-161-0 02 1 9601-9906 ● ●
41 BOLT; COVER FIX
M8X25 FLANGE 		0-28680-825-0 02 1 9907-0004 ● ●
45 COVER; OIL PORT
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13210-172-0 01 1 9805- ●
45 COVER; OIL PORT 1-13219-172-0 01 1 9601-9912 ● ●
45 COVER; OIL PORT
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-13219-172-0 01 1 0001-0604 ●
45 COVER; OIL PORT 1-13219-172-0 01 1 0001-0604 ●
45 COVER; OIL PORT
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-13219-172-0 01 1 0605- ●
45 COVER; OIL PORT
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> 		1-13219-172-0 01 1 0605- ●
45 COVER; OIL PORT
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-13219-172-0 01 1 0605- ●
54 GASKET; OIL PIPE
(A) 		1-13219-162-0 01 1 0605- ● ●
54 GASKET; OIL PIPE
(A) 		1-13219-162-0 01 1 9601-0604 ● ●
54 GASKET; OIL PIPE
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) (B) 		1-13219-164-0 01 1 0605- ●
83 CUP; SEALING,BODY,OIL COOLER & FILTER
OD=20 		9-11129-128-0 01 1 9601- ● ●
85 PLUG; DRAIN UNIT,OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V> 		1-13219-252-0 01 1 9601- ●
85 PLUG; DRAIN UNIT,OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-13219-146-0 01 1 9601-9801 ●
85 PLUG; DRAIN UNIT,OIL FILTER 1-13219-146-0 01 1 9601-9801 ●
85 PLUG; DRAIN UNIT,OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-13219-146-0 01 1 9802-9803 ●
85 PLUG; DRAIN UNIT,OIL FILTER 1-13219-146-0 01 1 9802-9803 ●
85 PLUG; DRAIN UNIT,OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-13219-146-0 01 1 9804-9804 ●
85 PLUG; DRAIN UNIT,OIL FILTER 1-13219-146-0 01 1 9804-9804 ●
85 PLUG; DRAIN UNIT,OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-13219-146-0 01 1 9805- ●
85 PLUG; DRAIN UNIT,OIL FILTER 1-13219-146-0 01 1 9805- ●
86 GASKET; DRAIN UNIT,OIL FILTER 1-13219-147-0 01 1 9601- ● ●
87 SPRING; DRAIN UNIT,OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-13219-148-0 01 1 9601-9801 ●
87 SPRING; DRAIN UNIT,OIL FILTER 1-13219-148-0 01 1 9601-9801 ●
87 SPRING; DRAIN UNIT,OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-13219-148-0 01 1 9802-9803 ●
87 SPRING; DRAIN UNIT,OIL FILTER 1-13219-148-0 01 1 9802-9803 ●
87 SPRING; DRAIN UNIT,OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-13219-148-0 01 1 9804-9804 ●
87 SPRING; DRAIN UNIT,OIL FILTER 1-13219-148-0 01 1 9804-9804 ●
87 SPRING; DRAIN UNIT,OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-13219-148-0 01 1 9805- ●
87 SPRING; DRAIN UNIT,OIL FILTER 1-13219-148-0 01 1 9805- ●
88 VALVE; DRAIN UNIT,OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		9-13262-009-0 01 1 9601-9801 ●
88 VALVE; DRAIN UNIT,OIL FILTER 9-13262-009-0 01 1 9601-9801 ●
88 VALVE; DRAIN UNIT,OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		9-13262-009-0 01 1 9802-9803 ●
88 VALVE; DRAIN UNIT,OIL FILTER 9-13262-009-0 01 1 9802-9803 ●
88 VALVE; DRAIN UNIT,OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		9-13262-009-0 01 1 9804-9804 ●
88 VALVE; DRAIN UNIT,OIL FILTER 9-13262-009-0 01 1 9804-9804 ●
88 VALVE; DRAIN UNIT,OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		9-13262-009-0 01 1 9805- ●
88 VALVE; DRAIN UNIT,OIL FILTER 9-13262-009-0 01 1 9805- ●
103 BOLT; OIL COOLER
(B) M8X22 FLANGE 		0-28080-822-0 25 1 9601-9609 ●
103 BOLT; OIL COOLER
(B) M8X22 FLANGE 		0-28080-822-0 25 1 9610-0004 ● ●
103 BOLT; OIL COOLER
(A) M8X22 FLANGE 		0-28080-822-0 24 1 0005-0405 ●
103 BOLT; OIL COOLER
(A) M8X22 FLANGE 		0-28080-822-0 24 1 0406- ● ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28080-835-0 02 1 9601-9609 ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28080-835-0 02 1 9610-0004 ● ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28080-835-0 03 1 0005-0405 ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28080-835-0 03 1 0406-0512 ● ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28050-835-0 03 1 0601- ● ●
103 BOLT; OIL COOLER
(A) M8X22 FLANGE 		0-28080-822-0 25 1 0005- ● ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28080-835-0 02 1 0005-0512 ● ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28050-835-0 02 1 0601- ● ●
103 BOLT; OIL COOLER
OIL FILTER SETTING DOWNWARD<E7V> (B) M8X145 		1-09000-448-1 02 1 9601- ●
103 BOLT; OIL COOLER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) M8X138 		5-09000-031-1 02 1 9601-9801 ●
103 BOLT; OIL COOLER
(B) M8X138 		5-09000-031-1 02 1 9601-9801 ●
103 BOLT; OIL COOLER
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) M8X138 		5-09000-031-1 02 1 9802-9803 ●
103 BOLT; OIL COOLER
(B) M8X138 		5-09000-031-1 02 1 9802-9803 ●
103 BOLT; OIL COOLER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) M8X138 		5-09000-031-1 02 1 9804-9804 ●
103 BOLT; OIL COOLER
(B) M8X138 		5-09000-031-1 02 1 9804-9804 ●
103 BOLT; OIL COOLER
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) M8X138 		5-09000-031-1 02 1 9805- ● ●
103 BOLT; OIL COOLER
(A) M8X25 FLANGE 		0-28080-825-0 24 1 9601-0512 ● ●
103 BOLT; OIL COOLER
(A) M8X25 FLANGE 		0-28050-825-0 24 1 0601- ● ●
103 BOLT; OIL COOLER
(C) M8X155 		9-09801-275-0 02 1 9601- ● ●
106 WASHER; LK,OIL COOLER
ID=8.2 		9-09150-508-0 04 1 9601-0603 ● ●
106 WASHER; LK,OIL COOLER
ID=8.2 		0-91510-508-0 04 1 0604- ● ●
107 WASHER; PL,OIL COOLER
ID=8.4 		9-09160-508-0 04 1 9601-0605 ● ●
107 WASHER; PL,OIL COOLER
ID=8.4 OD=16 		0-91610-508-0 04 1 0606- ● ●
185 VALVE; OIL RELIEF,OIL COOLER
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) 		1-13160-034-0 01 1 0605- ●
185 VALVE; OIL RELIEF,OIL COOLER 1-13160-017-1 01 1 9601-0604 ● ●
185 VALVE; OIL RELIEF,OIL COOLER 1-13160-017-1 01 1 0605- ●
185 VALVE; OIL RELIEF,OIL COOLER
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> 		1-13160-017-1 01 1 0605- ●
185 VALVE; OIL RELIEF,OIL COOLER
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-13160-017-1 01 1 0605- ●
186 GASKET; RELIEF VLV,OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7 		9-09565-228-0 01 1 9601- ● ●
193 PLUG; TAPER
EXC. HEATER & DEFROSTER(C41) PT3/8 T=8.0 		1-09605-066-0 01 1 9708-1003 ● ●
193 PLUG; TAPER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) PT3/8 T=8.0 		1-09605-066-0 01 1 1004- ●
200 PIPE; VINYL,WATER DRAIN
L=360 SERVICED BY L=3000 		0-03157-300-0 01 1 9601-0206 ● ●
200 PIPE; VINYL,WATER DRAIN
L=360 SERVICED BY L=3000 		0-03457-300-0 01 1 0207- ● ●
462 CLIP; HOSE,DRAIN
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) ID=13.5 		8-97015-754-0 01 1 9601-9804 ●
462 CLIP; HOSE,DRAIN
(B) ID=13.5 		8-97015-754-0 01 1 9601-9804 ●
462 CLIP; HOSE,DRAIN
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) ID=13.5 		8-97015-754-1 01 1 9805- ● ●
462 CLIP; HOSE,DRAIN
(A) 		1-09704-100-0 01 1 9601- ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94399-002-0 01 1 9601-9609 ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94399-002-0 01 1 9610-0004 ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94399-002-0 01 1 0005-0405 ● ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94399-002-0 01 1 0406- ● ● ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7 		8-94399-279-0 01 1 9601-9609 ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7 		8-94399-279-0 01 1 9610-0004 ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7 		8-94399-279-0 01 1 0005-0405 ● ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7 		8-94399-279-0 01 1 0406-0606 ● ● ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20 		8-98045-449-0 01 1 0607- ● ● ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (C) 		1-11219-177-1 01 1 9601- ● ●
494 RING; SNAP,OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13219-307-0 01 1 9802-9803 ●
494 RING; SNAP,OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13219-307-0 01 1 9805- ●
495 PLATE; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13219-306-0 01 1 9802- ●
çizim 184255
185 469 186 103 1 462 1 200 193 103 11 41 107 106 9 45 54 23 24 20 21 415 29 28 3 20 3 22 21 26 33 32 27 25 83 12 21 20 13 16 14 15 21 20 86 85 21 20
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 FILTER & COOLER ASM; OIL
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) 		1-13201-022-0 01 1 0605- ●
1 FILTER & COOLER ASM; OIL
OIL FILTER SETTING DOWNWARD<E7V> 		1-21700-295-2 01 1 9601-0202 ●
1 FILTER & COOLER ASM; OIL
OIL FILTER SETTING DOWNWARD<E7V> 		1-21700-369-0 01 1 0203- ●
1 FILTER & COOLER ASM; OIL
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-13200-935-2 01 1 9601- ●
1 FILTER & COOLER ASM; OIL
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13200-955-1 01 1 9802-9803 ●
1 FILTER & COOLER ASM; OIL
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13200-955-3 01 1 9805- ●
1 FILTER & COOLER ASM; OIL 1-13200-936-2 01 1 9601-0604 ●
1 FILTER & COOLER ASM; OIL
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> 		1-13200-936-2 01 1 0605- ●
1 FILTER & COOLER ASM; OIL
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-13200-936-2 01 1 0605- ●
3 GASKET
OIL FILTER SETTING DOWNWARD<E7V> (A) 		1-09623-352-0 01 1 9601- ●
3 GASKET
OIL FILTER SETTING DOWNWARD<E7V> (B) 		1-09630-109-0 01 1 9601- ●
3 GASKET
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (C) 		1-13213-010-1 01 1 9802-9803 ●
3 GASKET
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (C) 		1-13213-010-1 01 1 9805- ●
9 GASKET; CENTER BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). OIL FILTER SETTING DOWNWARD<E7V> ID=15.5 		9-09920-694-0 01 1 9601- ●
9 GASKET; CENTER BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-09623-499-0 01 1 9802-9803 ●
9 GASKET; CENTER BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-09623-499-0 01 1 9805- ●
11 BOLT; CENTER
OIL FILTER SETTING DOWNWARD<E7V> 		1-13231-062-0 01 1 9601- ●
11 BOLT; CENTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13231-076-0 01 1 9802- ●
12 VALVE ASM; BYPASS 1-13260-096-0 01 1 9601-9605 ● ●
12 VALVE ASM; BYPASS 1-13260-110-0 01 1 9606- ● ●
13 VALVE; RELIEF 9-13262-010-0 01 1 9601- ● ●
14 SPRING; RELIEF VLV 1-13263-006-0 01 1 9601- ● ●
15 PLUG; RELIEF VLV 1-13265-023-0 01 1 9601-9605 ● ●
15 PLUG; RELIEF VLV 1-13219-322-0 01 1 9606- ● ●
16 VALVE ASM; RELIEF 1-13269-002-0 01 1 9601-9605 ● ●
20 PLUG; COOLER BODY
(A) 		8-94396-753-0 01 1 9601-0004 ●
20 PLUG; COOLER BODY
(B) 		8-94393-604-0 01 1 0005-0405 ●
20 PLUG; COOLER BODY
(B) 		8-94393-604-0 01 1 0406- ● ●
20 PLUG; COOLER BODY
(A) 		8-94396-753-0 01 1 0005-0405 ● ●
20 PLUG; COOLER BODY
(A) 		8-94396-753-0 01 1 0406- ● ● ●
20 PLUG; COOLER BODY
(A) M20 		1-13219-152-0 03 1 9601-9906 ● ●
20 PLUG; COOLER BODY
(A) M24 		1-13219-356-0 01 1 9907- ● ●
20 PLUG; COOLER BODY
(B) M26 		1-13219-153-0 02 1 9601-9906 ● ●
20 PLUG; COOLER BODY
(B) M26 		1-13219-153-0 04 1 9907- ● ●
21 GASKET; PLUG
(A) M24 		8-94396-755-0 01 1 9601-9906 ●
21 GASKET; PLUG
(A) M24 		8-94396-755-0 01 1 9907-0004 ● ● ●
21 GASKET; PLUG
(A) M24 		8-94396-755-0 01 1 0005-0103 ● ● ● ●
21 GASKET; PLUG
EXC. PAKISTAN EQUIPMENT(WN3) (A) M24 		8-94396-755-0 01 1 0104-0109 ●
21 GASKET; PLUG
EURO2 SPECIFICATION<THN> (A) M24 		8-94396-755-0 01 1 0104-0109 ●
21 GASKET; PLUG
(A) M24 		8-94396-755-0 01 1 0104-0109 ●
21 GASKET; PLUG
(A) M24 		8-94396-755-0 01 1 0110-0405 ● ● ● ●
21 GASKET; PLUG
(A) M24 		8-94396-755-0 01 1 0406- ● ● ● ● ●
21 GASKET; PLUG
(A) M20 		1-13219-158-0 03 1 9601-9906 ● ●
21 GASKET; PLUG
(B) M26 		1-13219-159-0 02 1 9601-9906 ● ●
21 GASKET; PLUG
(B) M26 		1-13219-159-0 04 1 9907- ● ●
21 GASKET; PLUG
(B) 		1-13219-253-0 01 1 0005-0405 ●
21 GASKET; PLUG
(B) 		1-13219-253-0 01 1 0406- ● ●
22 GUIDE; WATER 1-13219-155-1 01 1 9601- ● ●
23 SCREW; WATER GUIDE 1-13219-156-0 07 1 9601- ● ●
24 WASHER; WATER GUIDE 1-13219-157-0 07 1 9601- ● ●
25 NUT; CORE TO BODY
M10 		9-09111-410-0 04 1 9601-0512 ●
25 NUT; CORE TO BODY
M10 		0-91111-510-0 04 1 0601- ●
25 NUT; CORE TO BODY 1-21729-074-0 04 1 9601-9906 ● ●
25 NUT; CORE TO BODY
M10 FLANGE 		1-13219-324-0 04 1 9907-0004 ● ●
25 NUT; CORE TO BODY
M10 FLANGE 		1-13219-324-0 04 1 0005-0405 ● ● ●
25 NUT; CORE TO BODY
M10 FLANGE 		1-13219-324-0 04 1 0406- ● ● ● ●
26 CORE ASM; OIL COOLER 8-94395-711-0 01 1 9601-9611 ●
26 CORE ASM; OIL COOLER
EXC. ENG OIL PUMP HEAVY DUTY<Q1V> 		8-94395-711-0 01 1 9610- ●
26 CORE ASM; OIL COOLER
ENG OIL PUMP HEAVY DUTY<Q1V> 		8-94395-712-0 01 1 9610- ●
26 CORE ASM; OIL COOLER
OIL FILTER SETTING DOWNWARD<E7V> 		1-21723-039-0 01 1 9601-9906 ●
26 CORE ASM; OIL COOLER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-21723-049-0 01 1 9601-9804 ●
26 CORE ASM; OIL COOLER 1-21723-049-0 01 1 9601-9804 ●
26 CORE ASM; OIL COOLER
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-21723-049-0 01 1 9805-9906 ●
26 CORE ASM; OIL COOLER 1-21723-049-0 01 1 9805-9906 ●
26 CORE ASM; OIL COOLER 1-21723-058-0 01 1 9907- ● ●
26 CORE ASM; OIL COOLER 8-94391-738-1 01 1 0005-0405 ●
26 CORE ASM; OIL COOLER 8-94391-738-1 01 1 0406- ● ●
27 WASHER; PL,CORE TO BODY
ID=10.5 		9-09164-510-0 04 1 9601- ●
27 WASHER; PL,CORE TO BODY 1-21729-075-0 04 1 9601-9906 ● ●
28 GASKET; CORE TO BODY 8-94394-930-0 02 1 9601-0004 ●
28 GASKET; CORE TO BODY 8-94394-930-0 02 1 0005-0405 ● ●
28 GASKET; CORE TO BODY 8-94394-930-0 02 1 0406- ● ● ●
28 GASKET; CORE TO BODY 1-21729-076-0 02 1 9601-9906 ● ●
28 GASKET; CORE TO BODY 8-94396-810-0 02 1 9907- ● ●
29 GASKET; CORE TO BODY 1-21729-077-0 02 1 9601-9906 ● ●
29 GASKET; CORE TO BODY 8-94394-930-0 02 1 9907- ● ●
32 PLUG; DRAIN
OIL FILTER SETTING DOWNWARD<E7V> (A) 		1-13219-276-0 01 1 9601-9804 ●
32 PLUG; DRAIN
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A) 		1-13219-276-0 01 1 9805-9906 ●
32 PLUG; DRAIN
(A) 		1-13219-276-0 01 1 9907- ● ●
32 PLUG; DRAIN
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (A) 		1-13219-151-0 01 1 9601-9906 ●
32 PLUG; DRAIN
(A) 		1-13219-151-0 01 1 9601-9906 ●
32 PLUG; DRAIN
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) 		1-13219-295-1 01 1 9601-9804 ●
32 PLUG; DRAIN
(B) 		1-13219-295-1 01 1 9601-9804 ●
32 PLUG; DRAIN
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) 		1-13219-295-1 01 1 9805- ●
32 PLUG; DRAIN
(B) 		1-13219-295-1 01 1 9805- ●
33 HOUSING ASM; COOLER
OIL FILTER SETTING DOWNWARD<E7V> 		1-13211-254-0 01 1 9601-9906 ●
33 HOUSING ASM; COOLER
OIL FILTER SETTING DOWNWARD<E7V> 		1-13211-312-0 01 1 9907-0202 ●
33 HOUSING ASM; COOLER
OIL FILTER SETTING DOWNWARD<E7V> 		1-13211-324-0 01 1 0203- ●
33 HOUSING ASM; COOLER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-13211-248-0 01 1 9601-9906 ●
33 HOUSING ASM; COOLER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-13211-307-0 01 1 9907- ●
33 HOUSING ASM; COOLER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13211-252-0 01 1 9802-9803 ●
33 HOUSING ASM; COOLER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13211-252-0 01 1 9805-9906 ●
33 HOUSING ASM; COOLER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13211-309-0 01 1 9907- ●
33 HOUSING ASM; COOLER 1-13211-250-0 01 1 9601-9906 ●
33 HOUSING ASM; COOLER 1-13211-308-0 01 1 9907- ●
41 BOLT; COVER FIX
M10X25 FLANGE 		8-98272-067-0 02 1 0005- ● ●
41 BOLT; COVER FIX 1-13219-161-0 02 1 9601-9906 ● ●
41 BOLT; COVER FIX
M8X25 FLANGE 		0-28680-825-0 02 1 9907-0004 ● ●
45 COVER; OIL PORT
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13210-172-0 01 1 9805- ●
45 COVER; OIL PORT 1-13219-172-0 01 1 9601-9912 ● ●
45 COVER; OIL PORT
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-13219-172-0 01 1 0001-0604 ●
45 COVER; OIL PORT 1-13219-172-0 01 1 0001-0604 ●
45 COVER; OIL PORT
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-13219-172-0 01 1 0605- ●
45 COVER; OIL PORT
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> 		1-13219-172-0 01 1 0605- ●
45 COVER; OIL PORT
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-13219-172-0 01 1 0605- ●
54 GASKET; OIL PIPE
(A) 		1-13219-162-0 01 1 0605- ● ●
54 GASKET; OIL PIPE
(A) 		1-13219-162-0 01 1 9601-0604 ● ●
54 GASKET; OIL PIPE
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) (B) 		1-13219-164-0 01 1 0605- ●
83 CUP; SEALING,BODY,OIL COOLER & FILTER
OD=20 		9-11129-128-0 01 1 9601- ● ●
85 PLUG; DRAIN UNIT,OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V> 		1-13219-252-0 01 1 9601- ●
85 PLUG; DRAIN UNIT,OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-13219-146-0 01 1 9601-9801 ●
85 PLUG; DRAIN UNIT,OIL FILTER 1-13219-146-0 01 1 9601-9801 ●
85 PLUG; DRAIN UNIT,OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-13219-146-0 01 1 9802-9803 ●
85 PLUG; DRAIN UNIT,OIL FILTER 1-13219-146-0 01 1 9802-9803 ●
85 PLUG; DRAIN UNIT,OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-13219-146-0 01 1 9804-9804 ●
85 PLUG; DRAIN UNIT,OIL FILTER 1-13219-146-0 01 1 9804-9804 ●
85 PLUG; DRAIN UNIT,OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-13219-146-0 01 1 9805- ●
85 PLUG; DRAIN UNIT,OIL FILTER 1-13219-146-0 01 1 9805- ●
86 GASKET; DRAIN UNIT,OIL FILTER 1-13219-147-0 01 1 9601- ● ●
103 BOLT; OIL COOLER
(B) M8X22 FLANGE 		0-28080-822-0 25 1 9601-9609 ●
103 BOLT; OIL COOLER
(B) M8X22 FLANGE 		0-28080-822-0 25 1 9610-0004 ● ●
103 BOLT; OIL COOLER
(A) M8X22 FLANGE 		0-28080-822-0 24 1 0005-0405 ●
103 BOLT; OIL COOLER
(A) M8X22 FLANGE 		0-28080-822-0 24 1 0406- ● ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28080-835-0 02 1 9601-9609 ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28080-835-0 02 1 9610-0004 ● ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28080-835-0 03 1 0005-0405 ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28080-835-0 03 1 0406-0512 ● ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28050-835-0 03 1 0601- ● ●
103 BOLT; OIL COOLER
(A) M8X22 FLANGE 		0-28080-822-0 25 1 0005- ● ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28080-835-0 02 1 0005-0512 ● ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28050-835-0 02 1 0601- ● ●
103 BOLT; OIL COOLER
OIL FILTER SETTING DOWNWARD<E7V> (B) M8X145 		1-09000-448-1 02 1 9601- ●
103 BOLT; OIL COOLER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) M8X138 		5-09000-031-1 02 1 9601-9801 ●
103 BOLT; OIL COOLER
(B) M8X138 		5-09000-031-1 02 1 9601-9801 ●
103 BOLT; OIL COOLER
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) M8X138 		5-09000-031-1 02 1 9802-9803 ●
103 BOLT; OIL COOLER
(B) M8X138 		5-09000-031-1 02 1 9802-9803 ●
103 BOLT; OIL COOLER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) M8X138 		5-09000-031-1 02 1 9804-9804 ●
103 BOLT; OIL COOLER
(B) M8X138 		5-09000-031-1 02 1 9804-9804 ●
103 BOLT; OIL COOLER
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) M8X138 		5-09000-031-1 02 1 9805- ● ●
103 BOLT; OIL COOLER
(A) M8X25 FLANGE 		0-28080-825-0 24 1 9601-0512 ● ●
103 BOLT; OIL COOLER
(A) M8X25 FLANGE 		0-28050-825-0 24 1 0601- ● ●
103 BOLT; OIL COOLER
(C) M8X155 		9-09801-275-0 02 1 9601- ● ●
106 WASHER; LK,OIL COOLER
ID=8.2 		9-09150-508-0 04 1 9601-0603 ● ●
106 WASHER; LK,OIL COOLER
ID=8.2 		0-91510-508-0 04 1 0604- ● ●
107 WASHER; PL,OIL COOLER
ID=8.4 		9-09160-508-0 04 1 9601-0605 ● ●
107 WASHER; PL,OIL COOLER
ID=8.4 OD=16 		0-91610-508-0 04 1 0606- ● ●
185 VALVE; OIL RELIEF,OIL COOLER
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) 		1-13160-034-0 01 1 0605- ●
185 VALVE; OIL RELIEF,OIL COOLER 1-13160-017-1 01 1 9601-0604 ● ●
185 VALVE; OIL RELIEF,OIL COOLER 1-13160-017-1 01 1 0605- ●
185 VALVE; OIL RELIEF,OIL COOLER
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> 		1-13160-017-1 01 1 0605- ●
185 VALVE; OIL RELIEF,OIL COOLER
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-13160-017-1 01 1 0605- ●
186 GASKET; RELIEF VLV,OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7 		9-09565-228-0 01 1 9601- ● ●
193 PLUG; TAPER
EXC. HEATER & DEFROSTER(C41) PT3/8 T=8.0 		1-09605-066-0 01 1 9708-1003 ● ●
193 PLUG; TAPER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) PT3/8 T=8.0 		1-09605-066-0 01 1 1004- ●
200 PIPE; VINYL,WATER DRAIN
L=360 SERVICED BY L=3000 		0-03157-300-0 01 1 9601-0206 ● ●
200 PIPE; VINYL,WATER DRAIN
L=360 SERVICED BY L=3000 		0-03457-300-0 01 1 0207- ● ●
415 COVER; OIL COOLER
OIL FILTER SETTING DOWNWARD<E7V> 		1-21722-031-0 01 1 9601- ●
462 CLIP; HOSE,DRAIN
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) ID=13.5 		8-97015-754-0 01 1 9601-9804 ●
462 CLIP; HOSE,DRAIN
(B) ID=13.5 		8-97015-754-0 01 1 9601-9804 ●
462 CLIP; HOSE,DRAIN
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) ID=13.5 		8-97015-754-1 01 1 9805- ● ●
462 CLIP; HOSE,DRAIN
(A) 		1-09704-100-0 01 1 9601- ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94399-002-0 01 1 9601-9609 ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94399-002-0 01 1 9610-0004 ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94399-002-0 01 1 0005-0405 ● ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94399-002-0 01 1 0406- ● ● ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7 		8-94399-279-0 01 1 9601-9609 ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7 		8-94399-279-0 01 1 9610-0004 ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7 		8-94399-279-0 01 1 0005-0405 ● ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7 		8-94399-279-0 01 1 0406-0606 ● ● ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20 		8-98045-449-0 01 1 0607- ● ● ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (C) 		1-11219-177-1 01 1 9601- ● ●
çizim 184256
1 185 186 31 30 31 54 17 19 84 48 103 107 106 103 54 469 1 23 24 462 33 201 200 28 462 107 106 29 20 26 103 22 2 21 25 20 83 32 21 20 21 21 20 13 88 14 15 32 87 21 20 85 86 12
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 FILTER & COOLER ASM; OIL
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) 		1-13201-022-0 01 1 0605- ●
1 FILTER & COOLER ASM; OIL
OIL FILTER SETTING DOWNWARD<E7V> 		1-21700-295-2 01 1 9601-0202 ●
1 FILTER & COOLER ASM; OIL
OIL FILTER SETTING DOWNWARD<E7V> 		1-21700-369-0 01 1 0203- ●
1 FILTER & COOLER ASM; OIL
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-13200-935-2 01 1 9601- ●
1 FILTER & COOLER ASM; OIL
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13200-955-1 01 1 9802-9803 ●
1 FILTER & COOLER ASM; OIL
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13200-955-3 01 1 9805- ●
1 FILTER & COOLER ASM; OIL 1-13200-936-2 01 1 9601-0604 ●
1 FILTER & COOLER ASM; OIL
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> 		1-13200-936-2 01 1 0605- ●
1 FILTER & COOLER ASM; OIL
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-13200-936-2 01 1 0605- ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C) BEST VALUE PARTS 		1-87610-011-1 01 1 0005-1110 ●
2 ELEMENT; OIL FILTER
(C) BEST VALUE PARTS 		1-87610-011-1 01 1 0005-1110 ● ● ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C) BEST VALUE PARTS 		1-87610-064-0 01 1 1111- ●
2 ELEMENT; OIL FILTER
(C) BEST VALUE PARTS 		1-87610-064-0 01 1 1111- ● ● ●
2 ELEMENT; OIL FILTER
(C) 		8-94396-375-4 01 1 9601-9606 ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C) 		8-94396-375-4 01 1 9607-9609 ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C) 		8-94391-049-0 01 1 9610-0004 ●
2 ELEMENT; OIL FILTER
(C) 		8-94391-049-0 01 1 9610-0004 ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C) 		8-94391-049-2 01 1 0005-0405 ●
2 ELEMENT; OIL FILTER
(C) 		8-94391-049-2 01 1 0005-0405 ● ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C) 		8-94391-049-4 01 1 0406- ●
2 ELEMENT; OIL FILTER
(C) 		8-94391-049-4 01 1 0406- ● ● ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A) 		1-13240-132-0 01 1 9605-0904 ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A) 		8-98140-515-0 01 1 0905-1406 ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A) 		8-98274-487-0 01 1 1407- ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) 		1-87810-372-1 01 1 9605-1406 ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) 		8-98274-486-0 01 1 1407- ●
2 ELEMENT; OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V> (D) 		1-87810-075-2 01 1 9601-0706 ●
2 ELEMENT; OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> (D) 		1-87810-075-2 01 1 0707-1204 ●
2 ELEMENT; OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V> (D) 		1-87810-075-2 01 1 1205- ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (E) 		1-13240-168-1 01 1 9601- ●
2 ELEMENT; OIL FILTER
(E) 		1-13240-168-1 01 1 9601- ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (F) TOKYO ROKI 		1-13240-116-0 01 1 9802-9803 ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (F) TOKYO ROKI 		1-13240-116-0 01 1 9805-0206 ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (F) 		1-13240-217-1 01 1 0207- ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (F) BEST VALUE PARTS 		1-87610-055-1 01 1 0207- ●
12 VALVE ASM; BYPASS 1-13260-096-0 01 1 9601-9605 ● ●
12 VALVE ASM; BYPASS 1-13260-110-0 01 1 9606- ● ●
13 VALVE; RELIEF 9-13262-010-0 01 1 9601- ● ●
14 SPRING; RELIEF VLV 1-13263-006-0 01 1 9601- ● ●
15 PLUG; RELIEF VLV 1-13265-023-0 01 1 9601-9605 ● ●
15 PLUG; RELIEF VLV 1-13219-322-0 01 1 9606- ● ●
17 STOPPER; VLV
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) 		1-13779-009-0 01 1 0605- ●
19 SEAL ASM; VLV
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) 		1-13779-007-0 01 1 0605- ●
20 PLUG; COOLER BODY
(A) 		8-94396-753-0 01 1 9601-0004 ●
20 PLUG; COOLER BODY
(B) 		8-94393-604-0 01 1 0005-0405 ●
20 PLUG; COOLER BODY
(B) 		8-94393-604-0 01 1 0406- ● ●
20 PLUG; COOLER BODY
(A) 		8-94396-753-0 01 1 0005-0405 ● ●
20 PLUG; COOLER BODY
(A) 		8-94396-753-0 01 1 0406- ● ● ●
20 PLUG; COOLER BODY
(A) M20 		1-13219-152-0 03 1 9601-9906 ● ●
20 PLUG; COOLER BODY
(A) M24 		1-13219-356-0 01 1 9907- ● ●
20 PLUG; COOLER BODY
(B) M26 		1-13219-153-0 02 1 9601-9906 ● ●
20 PLUG; COOLER BODY
(B) M26 		1-13219-153-0 04 1 9907- ● ●
21 GASKET; PLUG
(A) M24 		8-94396-755-0 01 1 9601-9906 ●
21 GASKET; PLUG
(A) M24 		8-94396-755-0 01 1 9907-0004 ● ● ●
21 GASKET; PLUG
(A) M24 		8-94396-755-0 01 1 0005-0103 ● ● ● ●
21 GASKET; PLUG
EXC. PAKISTAN EQUIPMENT(WN3) (A) M24 		8-94396-755-0 01 1 0104-0109 ●
21 GASKET; PLUG
EURO2 SPECIFICATION<THN> (A) M24 		8-94396-755-0 01 1 0104-0109 ●
21 GASKET; PLUG
(A) M24 		8-94396-755-0 01 1 0104-0109 ●
21 GASKET; PLUG
(A) M24 		8-94396-755-0 01 1 0110-0405 ● ● ● ●
21 GASKET; PLUG
(A) M24 		8-94396-755-0 01 1 0406- ● ● ● ● ●
21 GASKET; PLUG
(A) M20 		1-13219-158-0 03 1 9601-9906 ● ●
21 GASKET; PLUG
(B) M26 		1-13219-159-0 02 1 9601-9906 ● ●
21 GASKET; PLUG
(B) M26 		1-13219-159-0 04 1 9907- ● ●
21 GASKET; PLUG
(B) 		1-13219-253-0 01 1 0005-0405 ●
21 GASKET; PLUG
(B) 		1-13219-253-0 01 1 0406- ● ●
22 GUIDE; WATER 1-13219-155-1 01 1 9601- ● ●
23 SCREW; WATER GUIDE 1-13219-156-0 07 1 9601- ● ●
24 WASHER; WATER GUIDE 1-13219-157-0 07 1 9601- ● ●
25 NUT; CORE TO BODY
M10 		9-09111-410-0 04 1 9601-0512 ●
25 NUT; CORE TO BODY
M10 		0-91111-510-0 04 1 0601- ●
25 NUT; CORE TO BODY 1-21729-074-0 04 1 9601-9906 ● ●
25 NUT; CORE TO BODY
M10 FLANGE 		1-13219-324-0 04 1 9907-0004 ● ●
25 NUT; CORE TO BODY
M10 FLANGE 		1-13219-324-0 04 1 0005-0405 ● ● ●
25 NUT; CORE TO BODY
M10 FLANGE 		1-13219-324-0 04 1 0406- ● ● ● ●
26 CORE ASM; OIL COOLER 8-94395-711-0 01 1 9601-9611 ●
26 CORE ASM; OIL COOLER
EXC. ENG OIL PUMP HEAVY DUTY<Q1V> 		8-94395-711-0 01 1 9610- ●
26 CORE ASM; OIL COOLER
ENG OIL PUMP HEAVY DUTY<Q1V> 		8-94395-712-0 01 1 9610- ●
26 CORE ASM; OIL COOLER
OIL FILTER SETTING DOWNWARD<E7V> 		1-21723-039-0 01 1 9601-9906 ●
26 CORE ASM; OIL COOLER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-21723-049-0 01 1 9601-9804 ●
26 CORE ASM; OIL COOLER 1-21723-049-0 01 1 9601-9804 ●
26 CORE ASM; OIL COOLER
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-21723-049-0 01 1 9805-9906 ●
26 CORE ASM; OIL COOLER 1-21723-049-0 01 1 9805-9906 ●
26 CORE ASM; OIL COOLER 1-21723-058-0 01 1 9907- ● ●
26 CORE ASM; OIL COOLER 8-94391-738-1 01 1 0005-0405 ●
26 CORE ASM; OIL COOLER 8-94391-738-1 01 1 0406- ● ●
28 GASKET; CORE TO BODY 8-94394-930-0 02 1 9601-0004 ●
28 GASKET; CORE TO BODY 8-94394-930-0 02 1 0005-0405 ● ●
28 GASKET; CORE TO BODY 8-94394-930-0 02 1 0406- ● ● ●
28 GASKET; CORE TO BODY 1-21729-076-0 02 1 9601-9906 ● ●
28 GASKET; CORE TO BODY 8-94396-810-0 02 1 9907- ● ●
29 GASKET; CORE TO BODY 1-21729-077-0 02 1 9601-9906 ● ●
29 GASKET; CORE TO BODY 8-94394-930-0 02 1 9907- ● ●
30 PIPE ASM; OIL COOLER
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) 		1-13312-247-0 01 1 0605- ●
31 BOLT; OIL PIPE
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) (A) M10X25 FLANGE 		8-98272-067-0 02 1 0605- ●
31 BOLT; OIL PIPE
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) (B) M8X20 FLANGE 		1-13219-163-0 02 1 0605- ●
32 PLUG; DRAIN
OIL FILTER SETTING DOWNWARD<E7V> (A) 		1-13219-276-0 01 1 9601-9804 ●
32 PLUG; DRAIN
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A) 		1-13219-276-0 01 1 9805-9906 ●
32 PLUG; DRAIN
(A) 		1-13219-276-0 01 1 9907- ● ●
32 PLUG; DRAIN
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (A) 		1-13219-151-0 01 1 9601-9906 ●
32 PLUG; DRAIN
(A) 		1-13219-151-0 01 1 9601-9906 ●
32 PLUG; DRAIN
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) 		1-13219-295-1 01 1 9601-9804 ●
32 PLUG; DRAIN
(B) 		1-13219-295-1 01 1 9601-9804 ●
32 PLUG; DRAIN
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) 		1-13219-295-1 01 1 9805- ●
32 PLUG; DRAIN
(B) 		1-13219-295-1 01 1 9805- ●
33 HOUSING ASM; COOLER
OIL FILTER SETTING DOWNWARD<E7V> 		1-13211-254-0 01 1 9601-9906 ●
33 HOUSING ASM; COOLER
OIL FILTER SETTING DOWNWARD<E7V> 		1-13211-312-0 01 1 9907-0202 ●
33 HOUSING ASM; COOLER
OIL FILTER SETTING DOWNWARD<E7V> 		1-13211-324-0 01 1 0203- ●
33 HOUSING ASM; COOLER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-13211-248-0 01 1 9601-9906 ●
33 HOUSING ASM; COOLER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-13211-307-0 01 1 9907- ●
33 HOUSING ASM; COOLER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13211-252-0 01 1 9802-9803 ●
33 HOUSING ASM; COOLER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13211-252-0 01 1 9805-9906 ●
33 HOUSING ASM; COOLER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13211-309-0 01 1 9907- ●
33 HOUSING ASM; COOLER 1-13211-250-0 01 1 9601-9906 ●
33 HOUSING ASM; COOLER 1-13211-308-0 01 1 9907- ●
48 VALVE; THERMO,OIL COOLER
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) 		8-98271-171-0 01 1 0605- ●
54 GASKET; OIL PIPE
(A) 		1-13219-162-0 01 1 0605- ● ●
54 GASKET; OIL PIPE
(A) 		1-13219-162-0 01 1 9601-0604 ● ●
54 GASKET; OIL PIPE
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) (B) 		1-13219-164-0 01 1 0605- ●
83 CUP; SEALING,BODY,OIL COOLER & FILTER
OD=20 		9-11129-128-0 01 1 9601- ● ●
84 SUPPORT; VLV,OIL COOLER & FILTER
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) 		1-13779-010-0 01 1 0605- ●
85 PLUG; DRAIN UNIT,OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V> 		1-13219-252-0 01 1 9601- ●
85 PLUG; DRAIN UNIT,OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-13219-146-0 01 1 9601-9801 ●
85 PLUG; DRAIN UNIT,OIL FILTER 1-13219-146-0 01 1 9601-9801 ●
85 PLUG; DRAIN UNIT,OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-13219-146-0 01 1 9802-9803 ●
85 PLUG; DRAIN UNIT,OIL FILTER 1-13219-146-0 01 1 9802-9803 ●
85 PLUG; DRAIN UNIT,OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-13219-146-0 01 1 9804-9804 ●
85 PLUG; DRAIN UNIT,OIL FILTER 1-13219-146-0 01 1 9804-9804 ●
85 PLUG; DRAIN UNIT,OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-13219-146-0 01 1 9805- ●
85 PLUG; DRAIN UNIT,OIL FILTER 1-13219-146-0 01 1 9805- ●
86 GASKET; DRAIN UNIT,OIL FILTER 1-13219-147-0 01 1 9601- ● ●
87 SPRING; DRAIN UNIT,OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-13219-148-0 01 1 9601-9801 ●
87 SPRING; DRAIN UNIT,OIL FILTER 1-13219-148-0 01 1 9601-9801 ●
87 SPRING; DRAIN UNIT,OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-13219-148-0 01 1 9802-9803 ●
87 SPRING; DRAIN UNIT,OIL FILTER 1-13219-148-0 01 1 9802-9803 ●
87 SPRING; DRAIN UNIT,OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-13219-148-0 01 1 9804-9804 ●
87 SPRING; DRAIN UNIT,OIL FILTER 1-13219-148-0 01 1 9804-9804 ●
87 SPRING; DRAIN UNIT,OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-13219-148-0 01 1 9805- ●
87 SPRING; DRAIN UNIT,OIL FILTER 1-13219-148-0 01 1 9805- ●
88 VALVE; DRAIN UNIT,OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		9-13262-009-0 01 1 9601-9801 ●
88 VALVE; DRAIN UNIT,OIL FILTER 9-13262-009-0 01 1 9601-9801 ●
88 VALVE; DRAIN UNIT,OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		9-13262-009-0 01 1 9802-9803 ●
88 VALVE; DRAIN UNIT,OIL FILTER 9-13262-009-0 01 1 9802-9803 ●
88 VALVE; DRAIN UNIT,OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		9-13262-009-0 01 1 9804-9804 ●
88 VALVE; DRAIN UNIT,OIL FILTER 9-13262-009-0 01 1 9804-9804 ●
88 VALVE; DRAIN UNIT,OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		9-13262-009-0 01 1 9805- ●
88 VALVE; DRAIN UNIT,OIL FILTER 9-13262-009-0 01 1 9805- ●
103 BOLT; OIL COOLER
(B) M8X22 FLANGE 		0-28080-822-0 25 1 9601-9609 ●
103 BOLT; OIL COOLER
(B) M8X22 FLANGE 		0-28080-822-0 25 1 9610-0004 ● ●
103 BOLT; OIL COOLER
(A) M8X22 FLANGE 		0-28080-822-0 24 1 0005-0405 ●
103 BOLT; OIL COOLER
(A) M8X22 FLANGE 		0-28080-822-0 24 1 0406- ● ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28080-835-0 02 1 9601-9609 ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28080-835-0 02 1 9610-0004 ● ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28080-835-0 03 1 0005-0405 ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28080-835-0 03 1 0406-0512 ● ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28050-835-0 03 1 0601- ● ●
103 BOLT; OIL COOLER
(A) M8X22 FLANGE 		0-28080-822-0 25 1 0005- ● ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28080-835-0 02 1 0005-0512 ● ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28050-835-0 02 1 0601- ● ●
103 BOLT; OIL COOLER
OIL FILTER SETTING DOWNWARD<E7V> (B) M8X145 		1-09000-448-1 02 1 9601- ●
103 BOLT; OIL COOLER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) M8X138 		5-09000-031-1 02 1 9601-9801 ●
103 BOLT; OIL COOLER
(B) M8X138 		5-09000-031-1 02 1 9601-9801 ●
103 BOLT; OIL COOLER
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) M8X138 		5-09000-031-1 02 1 9802-9803 ●
103 BOLT; OIL COOLER
(B) M8X138 		5-09000-031-1 02 1 9802-9803 ●
103 BOLT; OIL COOLER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) M8X138 		5-09000-031-1 02 1 9804-9804 ●
103 BOLT; OIL COOLER
(B) M8X138 		5-09000-031-1 02 1 9804-9804 ●
103 BOLT; OIL COOLER
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) M8X138 		5-09000-031-1 02 1 9805- ● ●
103 BOLT; OIL COOLER
(A) M8X25 FLANGE 		0-28080-825-0 24 1 9601-0512 ● ●
103 BOLT; OIL COOLER
(A) M8X25 FLANGE 		0-28050-825-0 24 1 0601- ● ●
103 BOLT; OIL COOLER
(C) M8X155 		9-09801-275-0 02 1 9601- ● ●
106 WASHER; LK,OIL COOLER
ID=8.2 		9-09150-508-0 04 1 9601-0603 ● ●
106 WASHER; LK,OIL COOLER
ID=8.2 		0-91510-508-0 04 1 0604- ● ●
107 WASHER; PL,OIL COOLER
ID=8.4 		9-09160-508-0 04 1 9601-0605 ● ●
107 WASHER; PL,OIL COOLER
ID=8.4 OD=16 		0-91610-508-0 04 1 0606- ● ●
185 VALVE; OIL RELIEF,OIL COOLER
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) 		1-13160-034-0 01 1 0605- ●
185 VALVE; OIL RELIEF,OIL COOLER 1-13160-017-1 01 1 9601-0604 ● ●
185 VALVE; OIL RELIEF,OIL COOLER 1-13160-017-1 01 1 0605- ●
185 VALVE; OIL RELIEF,OIL COOLER
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> 		1-13160-017-1 01 1 0605- ●
185 VALVE; OIL RELIEF,OIL COOLER
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-13160-017-1 01 1 0605- ●
186 GASKET; RELIEF VLV,OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7 		9-09565-228-0 01 1 9601- ● ●
200 PIPE; VINYL,WATER DRAIN
L=360 SERVICED BY L=3000 		0-03157-300-0 01 1 9601-0206 ● ●
200 PIPE; VINYL,WATER DRAIN
L=360 SERVICED BY L=3000 		0-03457-300-0 01 1 0207- ● ●
201 PIPE; VINYL,OIL DRAIN
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> L=480 SERVICED BY L=10000 		9-09914-701-0 01 1 9601-9804 ●
201 PIPE; VINYL,OIL DRAIN
L=480 SERVICED BY L=10000 		9-09914-701-0 01 1 9601-9804 ●
201 PIPE; VINYL,OIL DRAIN
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> L=480 SERVICED BY L=10000 		9-09914-701-0 01 1 9805- ● ●
462 CLIP; HOSE,DRAIN
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) ID=13.5 		8-97015-754-0 01 1 9601-9804 ●
462 CLIP; HOSE,DRAIN
(B) ID=13.5 		8-97015-754-0 01 1 9601-9804 ●
462 CLIP; HOSE,DRAIN
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) ID=13.5 		8-97015-754-1 01 1 9805- ● ●
462 CLIP; HOSE,DRAIN
(A) 		1-09704-100-0 01 1 9601- ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94399-002-0 01 1 9601-9609 ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94399-002-0 01 1 9610-0004 ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94399-002-0 01 1 0005-0405 ● ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94399-002-0 01 1 0406- ● ● ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7 		8-94399-279-0 01 1 9601-9609 ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7 		8-94399-279-0 01 1 9610-0004 ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7 		8-94399-279-0 01 1 0005-0405 ● ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7 		8-94399-279-0 01 1 0406-0606 ● ● ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20 		8-98045-449-0 01 1 0607- ● ● ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (C) 		1-11219-177-1 01 1 9601- ● ●
çizim 184319
1 188 496 410 304 410 304 265 304 188 304 283 410 410 328 332 331 328 293 107 322 106 103 292 496 281 325 283 287 284 2 290 288 287 290
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 FILTER & COOLER ASM; OIL
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) 		1-13201-022-0 01 1 0605- ●
1 FILTER & COOLER ASM; OIL
OIL FILTER SETTING DOWNWARD<E7V> 		1-21700-295-2 01 1 9601-0202 ●
1 FILTER & COOLER ASM; OIL
OIL FILTER SETTING DOWNWARD<E7V> 		1-21700-369-0 01 1 0203- ●
1 FILTER & COOLER ASM; OIL
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-13200-935-2 01 1 9601- ●
1 FILTER & COOLER ASM; OIL
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13200-955-1 01 1 9802-9803 ●
1 FILTER & COOLER ASM; OIL
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13200-955-3 01 1 9805- ●
1 FILTER & COOLER ASM; OIL 1-13200-936-2 01 1 9601-0604 ●
1 FILTER & COOLER ASM; OIL
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> 		1-13200-936-2 01 1 0605- ●
1 FILTER & COOLER ASM; OIL
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-13200-936-2 01 1 0605- ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C) BEST VALUE PARTS 		1-87610-011-1 01 1 0005-1110 ●
2 ELEMENT; OIL FILTER
(C) BEST VALUE PARTS 		1-87610-011-1 01 1 0005-1110 ● ● ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C) BEST VALUE PARTS 		1-87610-064-0 01 1 1111- ●
2 ELEMENT; OIL FILTER
(C) BEST VALUE PARTS 		1-87610-064-0 01 1 1111- ● ● ●
2 ELEMENT; OIL FILTER
(C) 		8-94396-375-4 01 1 9601-9606 ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C) 		8-94396-375-4 01 1 9607-9609 ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C) 		8-94391-049-0 01 1 9610-0004 ●
2 ELEMENT; OIL FILTER
(C) 		8-94391-049-0 01 1 9610-0004 ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C) 		8-94391-049-2 01 1 0005-0405 ●
2 ELEMENT; OIL FILTER
(C) 		8-94391-049-2 01 1 0005-0405 ● ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C) 		8-94391-049-4 01 1 0406- ●
2 ELEMENT; OIL FILTER
(C) 		8-94391-049-4 01 1 0406- ● ● ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A) 		1-13240-132-0 01 1 9605-0904 ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A) 		8-98140-515-0 01 1 0905-1406 ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A) 		8-98274-487-0 01 1 1407- ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) 		1-87810-372-1 01 1 9605-1406 ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) 		8-98274-486-0 01 1 1407- ●
2 ELEMENT; OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V> (D) 		1-87810-075-2 01 1 9601-0706 ●
2 ELEMENT; OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> (D) 		1-87810-075-2 01 1 0707-1204 ●
2 ELEMENT; OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V> (D) 		1-87810-075-2 01 1 1205- ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (E) 		1-13240-168-1 01 1 9601- ●
2 ELEMENT; OIL FILTER
(E) 		1-13240-168-1 01 1 9601- ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (F) TOKYO ROKI 		1-13240-116-0 01 1 9802-9803 ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (F) TOKYO ROKI 		1-13240-116-0 01 1 9805-0206 ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (F) 		1-13240-217-1 01 1 0207- ●
2 ELEMENT; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (F) BEST VALUE PARTS 		1-87610-055-1 01 1 0207- ●
103 BOLT; OIL COOLER
(B) M8X22 FLANGE 		0-28080-822-0 25 1 9601-9609 ●
103 BOLT; OIL COOLER
(B) M8X22 FLANGE 		0-28080-822-0 25 1 9610-0004 ● ●
103 BOLT; OIL COOLER
(A) M8X22 FLANGE 		0-28080-822-0 24 1 0005-0405 ●
103 BOLT; OIL COOLER
(A) M8X22 FLANGE 		0-28080-822-0 24 1 0406- ● ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28080-835-0 02 1 9601-9609 ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28080-835-0 02 1 9610-0004 ● ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28080-835-0 03 1 0005-0405 ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28080-835-0 03 1 0406-0512 ● ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28050-835-0 03 1 0601- ● ●
103 BOLT; OIL COOLER
(A) M8X22 FLANGE 		0-28080-822-0 25 1 0005- ● ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28080-835-0 02 1 0005-0512 ● ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28050-835-0 02 1 0601- ● ●
103 BOLT; OIL COOLER
OIL FILTER SETTING DOWNWARD<E7V> (B) M8X145 		1-09000-448-1 02 1 9601- ●
103 BOLT; OIL COOLER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) M8X138 		5-09000-031-1 02 1 9601-9801 ●
103 BOLT; OIL COOLER
(B) M8X138 		5-09000-031-1 02 1 9601-9801 ●
103 BOLT; OIL COOLER
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) M8X138 		5-09000-031-1 02 1 9802-9803 ●
103 BOLT; OIL COOLER
(B) M8X138 		5-09000-031-1 02 1 9802-9803 ●
103 BOLT; OIL COOLER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) M8X138 		5-09000-031-1 02 1 9804-9804 ●
103 BOLT; OIL COOLER
(B) M8X138 		5-09000-031-1 02 1 9804-9804 ●
103 BOLT; OIL COOLER
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) M8X138 		5-09000-031-1 02 1 9805- ● ●
103 BOLT; OIL COOLER
(A) M8X25 FLANGE 		0-28080-825-0 24 1 9601-0512 ● ●
103 BOLT; OIL COOLER
(A) M8X25 FLANGE 		0-28050-825-0 24 1 0601- ● ●
103 BOLT; OIL COOLER
(C) M8X155 		9-09801-275-0 02 1 9601- ● ●
106 WASHER; LK,OIL COOLER
ID=8.2 		9-09150-508-0 04 1 9601-0603 ● ●
106 WASHER; LK,OIL COOLER
ID=8.2 		0-91510-508-0 04 1 0604- ● ●
107 WASHER; PL,OIL COOLER
ID=8.4 		9-09160-508-0 04 1 9601-0605 ● ●
107 WASHER; PL,OIL COOLER
ID=8.4 OD=16 		0-91610-508-0 04 1 0606- ● ●
188 PIPE; BYPASS
OIL FILTER SETTING DOWNWARD<E7V> 		1-13312-650-0 02 1 9601-0706 ●
188 PIPE; BYPASS
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13312-650-0 02 1 0707-1204 ●
188 PIPE; BYPASS
OIL FILTER SETTING DOWNWARD<E7V> 		1-13312-650-0 02 1 1205- ●
265 BODY; OIL FILTER 8-94395-701-0 01 1 9601-9606 ●
265 BODY; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-94395-701-0 01 1 9607-9609 ●
265 BODY; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-94391-016-0 01 1 9610-9803 ●
265 BODY; OIL FILTER 8-94391-016-0 01 1 9610-9803 ●
265 BODY; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-94391-016-2 01 1 9804-0004 ●
265 BODY; OIL FILTER
EURO2 SPECIFICATION<THN> 		8-94391-016-2 01 1 9804-0004 ●
265 BODY; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-94391-016-4 01 1 0005-0405 ●
265 BODY; OIL FILTER
EURO2 SPECIFICATION<THN> 		8-94391-016-4 01 1 0005-0405 ●
265 BODY; OIL FILTER 8-94391-016-4 01 1 0005-0405 ●
265 BODY; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-94391-016-4 01 1 0406- ●
265 BODY; OIL FILTER 8-94391-016-4 01 1 0406- ● ● ●
265 BODY; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		8-94393-503-0 01 1 9605- ●
265 BODY; OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V> 		1-13212-161-0 01 1 9601-0706 ●
265 BODY; OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13212-161-0 01 1 0707-1204 ●
265 BODY; OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V> 		1-13212-161-0 01 1 1205- ●
265 BODY; OIL FILTER
EXC. EURO2 SPECIFICATION<THN> 		8-94391-020-4 01 1 9804-0405 ●
281 COVER; OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V> 		1-13211-153-0 01 1 9601-0706 ●
281 COVER; OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13211-153-0 01 1 0707-1204 ●
281 COVER; OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V> 		1-13211-153-0 01 1 1205- ●
283 GASKET; BODY TO COVER
OIL FILTER SETTING DOWNWARD<E7V> ID=27.7 		1-09623-170-0 01 1 9601-0706 ●
283 GASKET; BODY TO COVER
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> ID=27.7 		1-09623-170-0 01 1 0707-1204 ●
283 GASKET; BODY TO COVER
OIL FILTER SETTING DOWNWARD<E7V> ID=27.7 		1-09623-170-0 01 1 1205- ●
284 BOLT; CENTER,OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A) 		1-13231-069-0 01 1 9605- ●
284 BOLT; CENTER,OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) 		1-13231-070-1 01 1 9605- ●
284 BOLT; CENTER,OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V> (C) 		1-13231-047-0 01 1 9601-0706 ●
284 BOLT; CENTER,OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> (C) 		1-13231-047-0 01 1 0707-1204 ●
284 BOLT; CENTER,OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V> (C) 		1-13231-047-0 01 1 1205- ●
284 BOLT; CENTER,OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (D) 		1-13212-064-1 01 1 9802-9803 ●
284 BOLT; CENTER,OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (D) 		1-13212-064-1 01 1 9805- ●
287 GASKET; CENTER BOLT
OIL FILTER SETTING DOWNWARD<E7V> ID=15.5 		9-09920-694-0 01 1 9601-0706 ●
287 GASKET; CENTER BOLT
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> ID=15.5 		9-09920-694-0 01 1 0707-1204 ●
287 GASKET; CENTER BOLT
OIL FILTER SETTING DOWNWARD<E7V> ID=15.5 		9-09920-694-0 01 1 1205- ●
288 PLUG; OIL DRAIN
OIL FILTER SETTING DOWNWARD<E7V> M10 		1-09000-105-0 01 1 9601-0706 ●
288 PLUG; OIL DRAIN
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> M10 		1-09000-105-0 01 1 0707-1204 ●
288 PLUG; OIL DRAIN
OIL FILTER SETTING DOWNWARD<E7V> M10 		1-09000-105-0 01 1 1205- ●
290 GASKET; PLUG,OIL DRAIN
PARTIAL OIL FILTER ELEMENT TYPE<KC1> ID=15.5 		9-09920-694-0 02 1 9605-1406 ●
290 GASKET; PLUG,OIL DRAIN
PARTIAL OIL FILTER ELEMENT TYPE<KC1> ID=15.5 		8-98274-488-0 02 1 1407- ●
290 GASKET; PLUG,OIL DRAIN
OIL FILTER SETTING DOWNWARD<E7V> ID=9.8 		1-09623-055-0 01 1 9601-9801 ●
290 GASKET; PLUG,OIL DRAIN
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> ID=9.8 		1-09623-055-0 01 1 9802-9803 ●
290 GASKET; PLUG,OIL DRAIN
OIL FILTER SETTING DOWNWARD<E7V> ID=9.8 		1-09623-055-0 01 1 9804-9804 ●
290 GASKET; PLUG,OIL DRAIN
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> ID=9.8 		1-09623-055-0 01 1 9805-0706 ●
290 GASKET; PLUG,OIL DRAIN
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> ID=9.8 		1-09623-055-0 01 1 0707-1204 ●
290 GASKET; PLUG,OIL DRAIN
PARTIAL OIL FILTER ELEMENT TYPE<KC1> ID=9.8 		1-09623-055-0 01 1 0707-1204 ●
290 GASKET; PLUG,OIL DRAIN
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> ID=9.8 		1-09623-055-0 01 1 1205- ●
292 SPRING; ELEMENT
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		9-09941-283-0 02 1 9605- ●
292 SPRING; ELEMENT
OIL FILTER SETTING DOWNWARD<E7V> 		9-09941-283-0 01 1 9601-9801 ●
292 SPRING; ELEMENT
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		9-09941-283-0 01 1 9802-9803 ●
292 SPRING; ELEMENT
OIL FILTER SETTING DOWNWARD<E7V> 		9-09941-283-0 01 1 9804-9804 ●
292 SPRING; ELEMENT
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		9-09941-283-0 01 1 9805-0706 ●
292 SPRING; ELEMENT
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		9-09941-283-0 01 1 0707-1204 ●
292 SPRING; ELEMENT
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		9-09941-283-0 01 1 0707-1204 ●
292 SPRING; ELEMENT
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		9-09941-283-0 01 1 1205- ●
293 SEAT; SPR
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		9-13239-025-0 02 1 9605- ●
293 SEAT; SPR
OIL FILTER SETTING DOWNWARD<E7V> 		1-13219-173-0 01 1 9601-9801 ●
293 SEAT; SPR
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13219-173-0 01 1 9802-9803 ●
293 SEAT; SPR
OIL FILTER SETTING DOWNWARD<E7V> 		1-13219-173-0 01 1 9804-9804 ●
293 SEAT; SPR
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13219-173-0 01 1 9805-0706 ●
293 SEAT; SPR
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13219-173-0 01 1 0707-1204 ●
293 SEAT; SPR
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13219-173-0 01 1 0707-1204 ●
293 SEAT; SPR
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13219-173-0 01 1 1205- ●
304 BOLT; PIPE TO COVER
OIL FILTER SETTING DOWNWARD<E7V> M8X20 FLANGE 		0-28080-820-0 08 1 9601-0512 ●
304 BOLT; PIPE TO COVER
OIL FILTER SETTING DOWNWARD<E7V> M8X20 FLANGE 		0-28050-820-0 08 1 0601-0706 ●
304 BOLT; PIPE TO COVER
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> M8X20 FLANGE 		0-28050-820-0 08 1 0707-1204 ●
304 BOLT; PIPE TO COVER
OIL FILTER SETTING DOWNWARD<E7V> M8X20 FLANGE 		0-28050-820-0 08 1 1205- ●
322 BRACKET; OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V> 		1-19755-122-1 01 1 9601-0706 ●
322 BRACKET; OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-19755-122-1 01 1 0707-1204 ●
322 BRACKET; OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V> 		1-19755-122-1 01 1 1205- ●
325 BOLT; BRKT TO BODY
OIL FILTER SETTING DOWNWARD<E7V> M10X22 W/LK WASHER 		0-50051-022-0 02 1 9601-0706 ●
325 BOLT; BRKT TO BODY
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> M10X22 W/LK WASHER 		0-50051-022-0 02 1 0707-0906 ●
325 BOLT; BRKT TO BODY
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> M10X22 W/LK WASHER 		0-50551-022-0 02 1 0907-1204 ●
325 BOLT; BRKT TO BODY
OIL FILTER SETTING DOWNWARD<E7V> M10X22 W/LK WASHER 		0-50551-022-0 02 1 1205- ●
328 BOLT; OIL FILTER
(A) M10X30 FLANGE 		0-28181-030-0 02 1 9601-9609 ●
328 BOLT; OIL FILTER
(A) M10X30 FLANGE 		0-28181-030-0 02 1 9610-0004 ● ●
328 BOLT; OIL FILTER
(A) M10X30 FLANGE 		0-28181-030-0 02 1 0005-0405 ● ● ●
328 BOLT; OIL FILTER
(A) M10X30 FLANGE 		0-28181-030-0 02 1 0406-0512 ● ● ● ●
328 BOLT; OIL FILTER
(A) M10X30 FLANGE 		0-28151-030-0 02 1 0601- ● ● ● ●
328 BOLT; OIL FILTER
(B) M10X90 FLANGE 		0-28181-090-0 02 1 9601-9606 ●
328 BOLT; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) M10X90 FLANGE 		0-28181-090-0 02 1 9607-9609 ●
328 BOLT; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) M10X90 FLANGE 		0-28181-090-0 02 1 9610-0004 ●
328 BOLT; OIL FILTER
(B) M10X90 FLANGE 		0-28181-090-0 02 1 9610-0004 ●
328 BOLT; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) M10X90 FLANGE 		0-28181-090-0 02 1 0005-0405 ●
328 BOLT; OIL FILTER
(B) M10X90 FLANGE 		0-28181-090-0 02 1 0005-0405 ● ●
328 BOLT; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) M10X90 FLANGE 		0-28181-090-0 02 1 0406-0512 ●
328 BOLT; OIL FILTER
(B) M10X90 FLANGE 		0-28181-090-0 02 1 0406-0512 ● ● ●
328 BOLT; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) M10X90 FLANGE 		0-28151-090-0 02 1 0601- ●
328 BOLT; OIL FILTER
(B) M10X90 FLANGE 		0-28151-090-0 02 1 0601- ● ● ●
328 BOLT; OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) M10X135 		8-94397-139-1 03 1 9605- ●
328 BOLT; OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V> (A) M10X40 W/LK&PL WASHER 		0-50141-040-0 01 1 9601-9910 ●
328 BOLT; OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V> (A) M10X35 FLANGE 		0-28681-035-0 01 1 9911-0512 ●
328 BOLT; OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V> (A) M10X35 FLANGE 		0-28651-035-0 01 1 0601-0706 ●
328 BOLT; OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A) M10X35 FLANGE 		0-28651-035-0 01 1 0707-1204 ●
328 BOLT; OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V> (A) M10X35 FLANGE 		0-28651-035-0 01 1 1205- ●
328 BOLT; OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V> (B) M10X142 		5-09000-160-1 02 1 9601-9910 ●
328 BOLT; OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V> (B) M10X140 FLANGE 		0-28086-014-0 02 1 9911-0512 ●
328 BOLT; OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V> (B) M10X140 FLANGE 		0-28056-014-0 02 1 0601-0706 ●
328 BOLT; OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) M10X140 FLANGE 		0-28056-014-0 02 1 0707-1204 ●
328 BOLT; OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V> (B) M10X140 FLANGE 		0-28056-014-0 02 1 1205- ●
331 WASHER; PL,OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V> ID=10.5 OD=18 		9-09160-510-0 02 1 9601-9910 ●
332 WASHER; LK,OIL FILTER
OIL FILTER SETTING DOWNWARD<E7V> ID=10.2 		9-09150-510-0 02 1 9601-9910 ●
410 GASKET
OIL FILTER SETTING DOWNWARD<E7V> ID=27.7 		1-09623-450-0 04 1 9601-0706 ●
410 GASKET
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> ID=27.7 		1-09623-450-0 04 1 0707-1204 ●
410 GASKET
OIL FILTER SETTING DOWNWARD<E7V> ID=27.7 		1-09623-450-0 04 1 1205- ●
496 FILTER ASM; OIL 8-94395-686-0 01 1 9601-9606 ●
496 FILTER ASM; OIL
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-94395-686-0 01 1 9607-9609 ●
496 FILTER ASM; OIL
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-94391-015-1 01 1 9610-9803 ●
496 FILTER ASM; OIL 8-94391-015-1 01 1 9610-9803 ●
496 FILTER ASM; OIL
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-94391-015-2 01 1 9804-0004 ●
496 FILTER ASM; OIL
EURO2 SPECIFICATION<THN> 		8-94391-015-2 01 1 9804-0004 ●
496 FILTER ASM; OIL
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-94391-015-5 01 1 0005-0405 ●
496 FILTER ASM; OIL
EURO2 SPECIFICATION<THN> 		8-94391-015-5 01 1 0005-0405 ●
496 FILTER ASM; OIL 8-94391-015-5 01 1 0005-0405 ●
496 FILTER ASM; OIL
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-94391-015-8 01 1 0406- ●
496 FILTER ASM; OIL 8-94391-015-8 01 1 0406- ● ● ●
496 FILTER ASM; OIL
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		8-94393-427-1 01 1 9605-9809 ●
496 FILTER ASM; OIL
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		8-94392-898-2 01 1 9810-1406 ●
496 FILTER ASM; OIL
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		8-98274-485-0 01 1 1407- ●
496 FILTER ASM; OIL
OIL FILTER SETTING DOWNWARD<E7V> 		1-13200-848-0 01 1 9601-0706 ●
496 FILTER ASM; OIL
OIL FILTER SETTING DOWNWARD<E7V>,PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13200-848-0 01 1 0707-1204 ●
496 FILTER ASM; OIL
OIL FILTER SETTING DOWNWARD<E7V> 		1-13200-848-0 01 1 1205- ●
496 FILTER ASM; OIL
EXC. EURO2 SPECIFICATION<THN> 		8-94391-018-5 01 1 9804-0405 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
