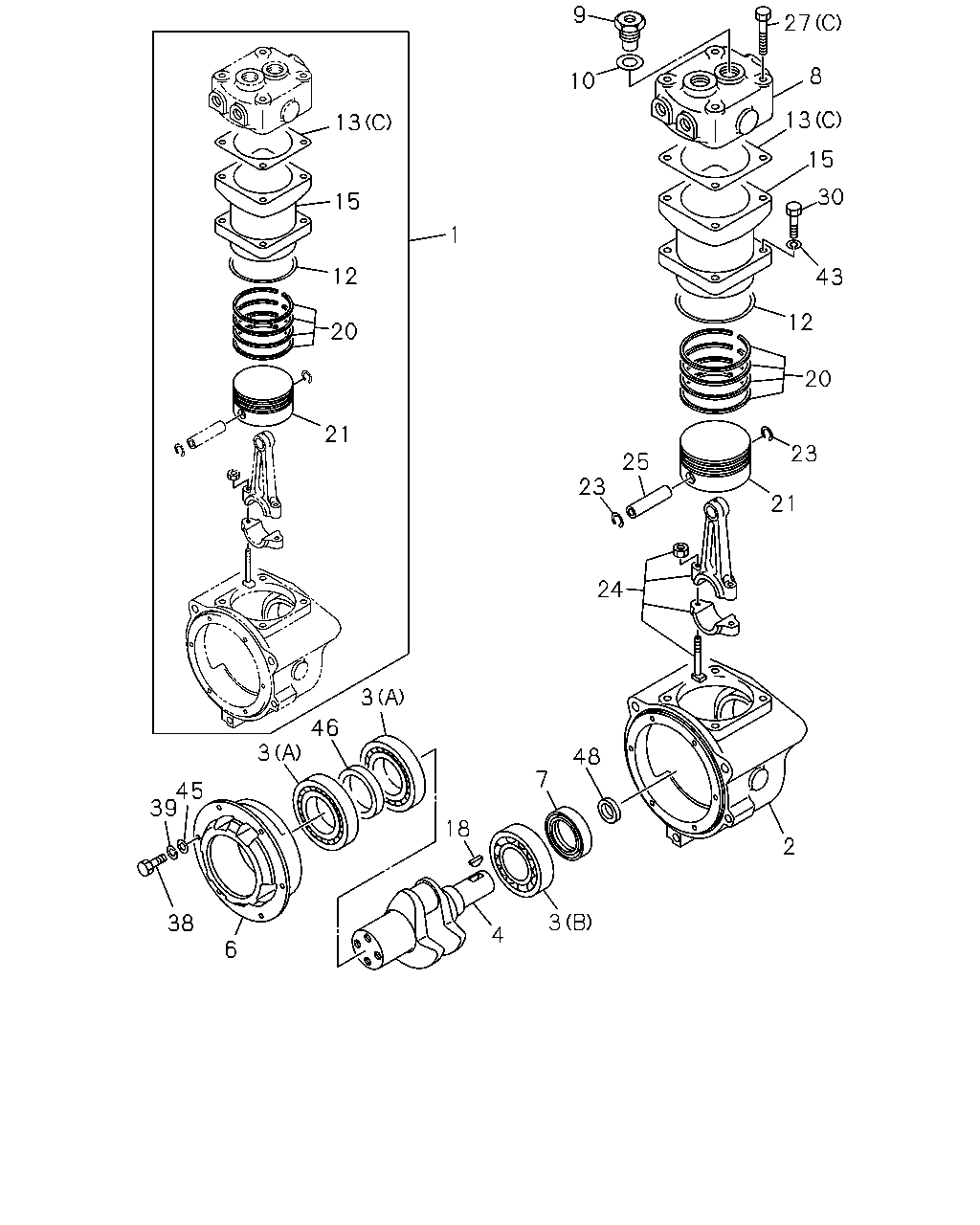

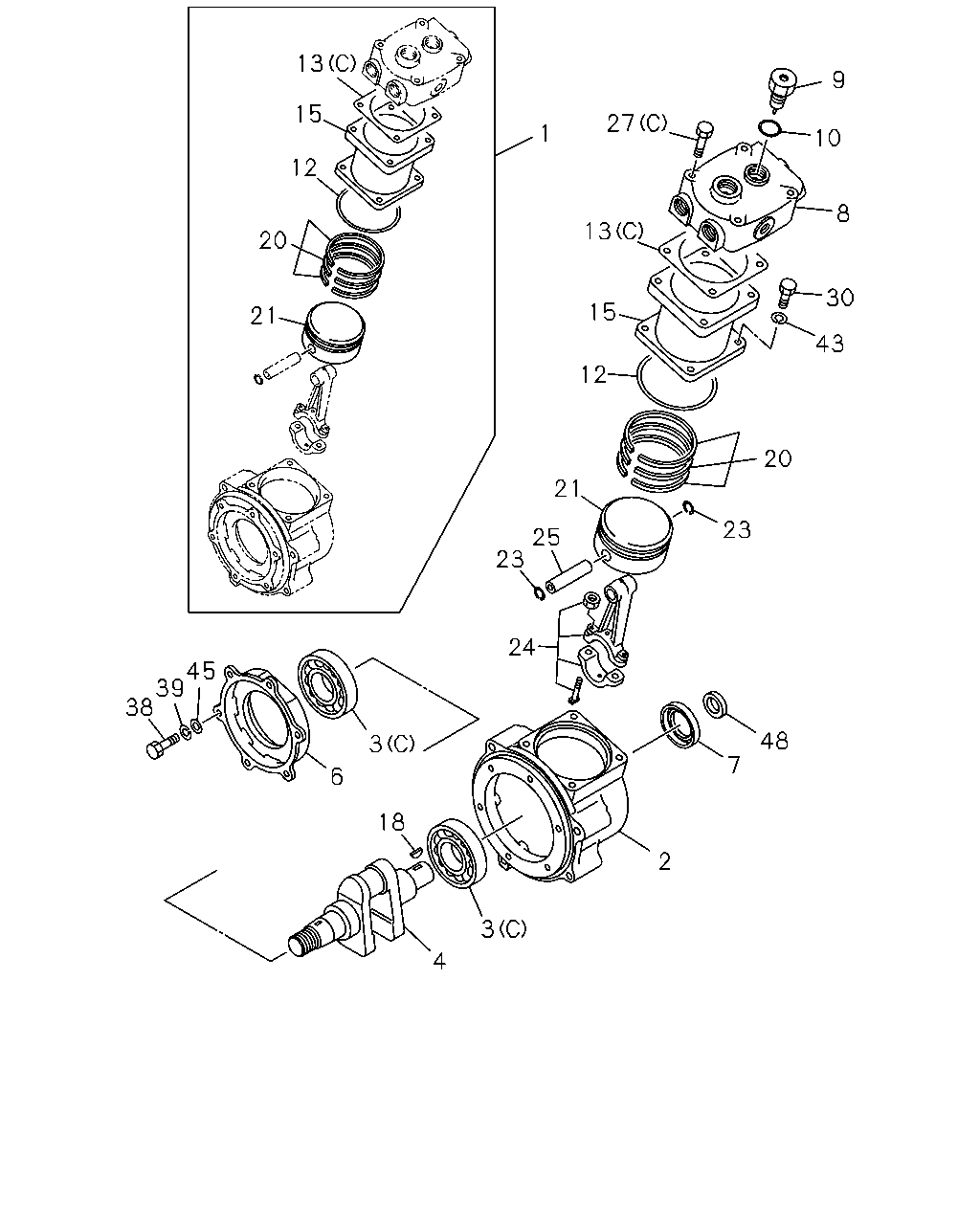

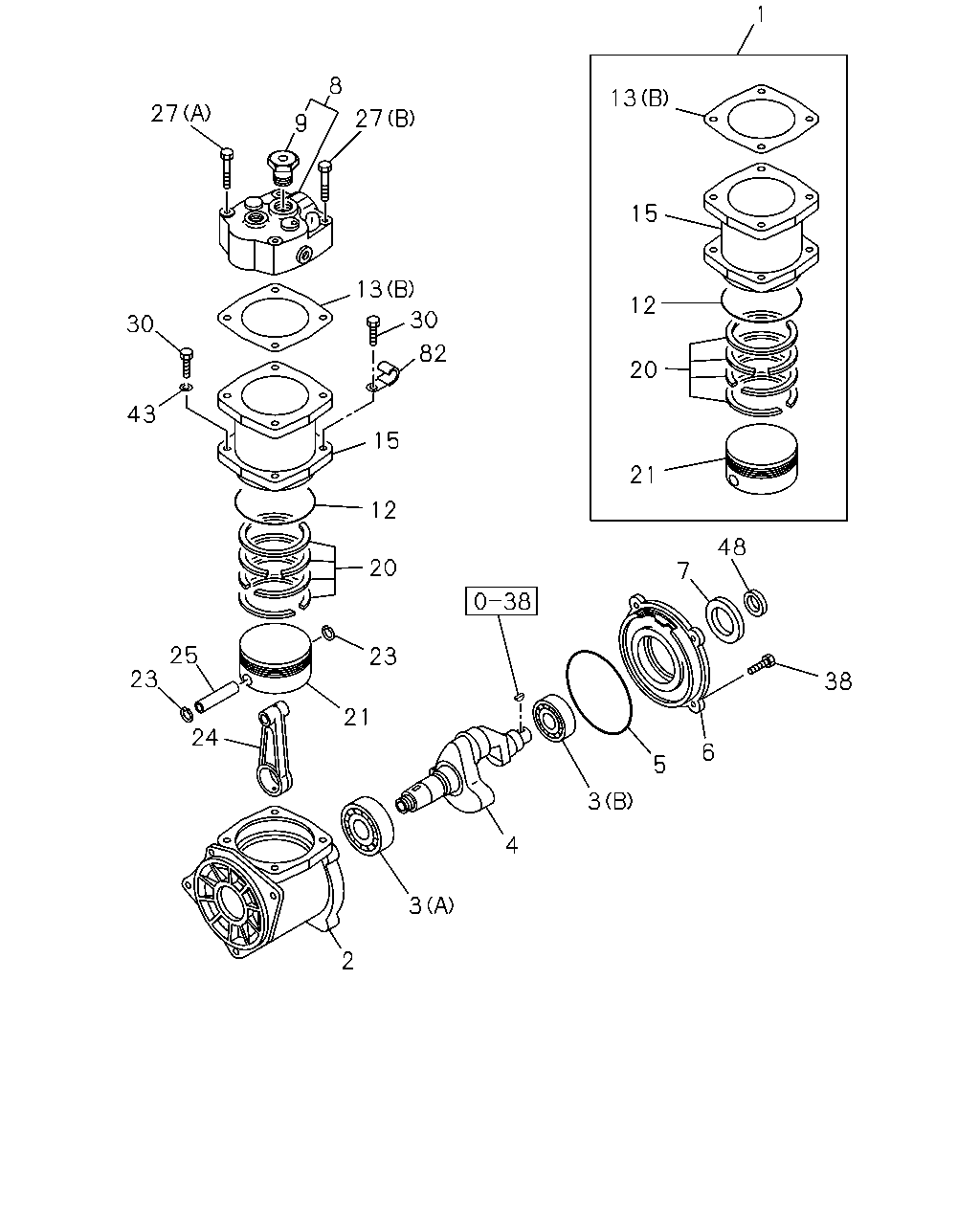

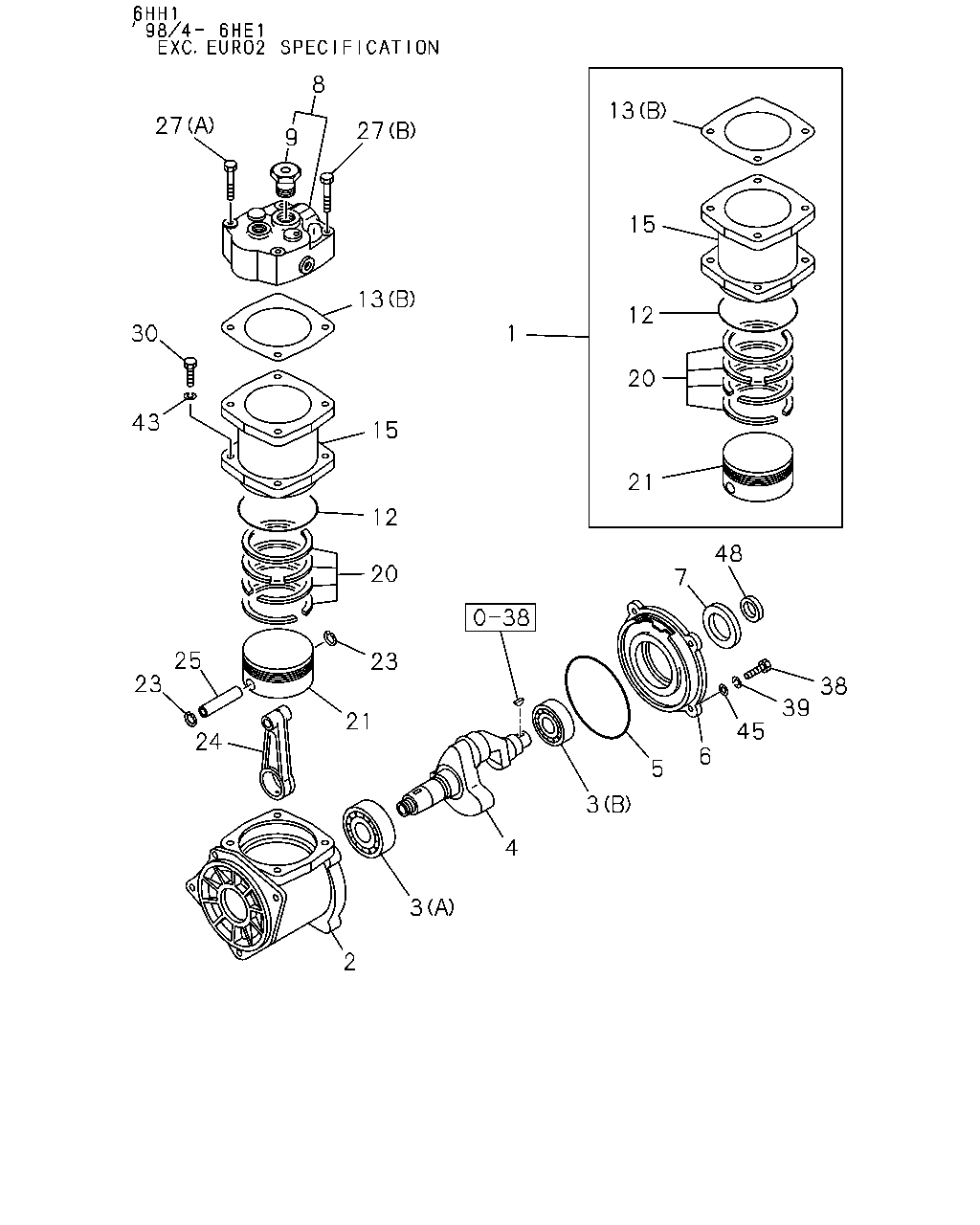

0-39 — AIR COMPRESSOR; BRAKE (#64381) — 1108 parça

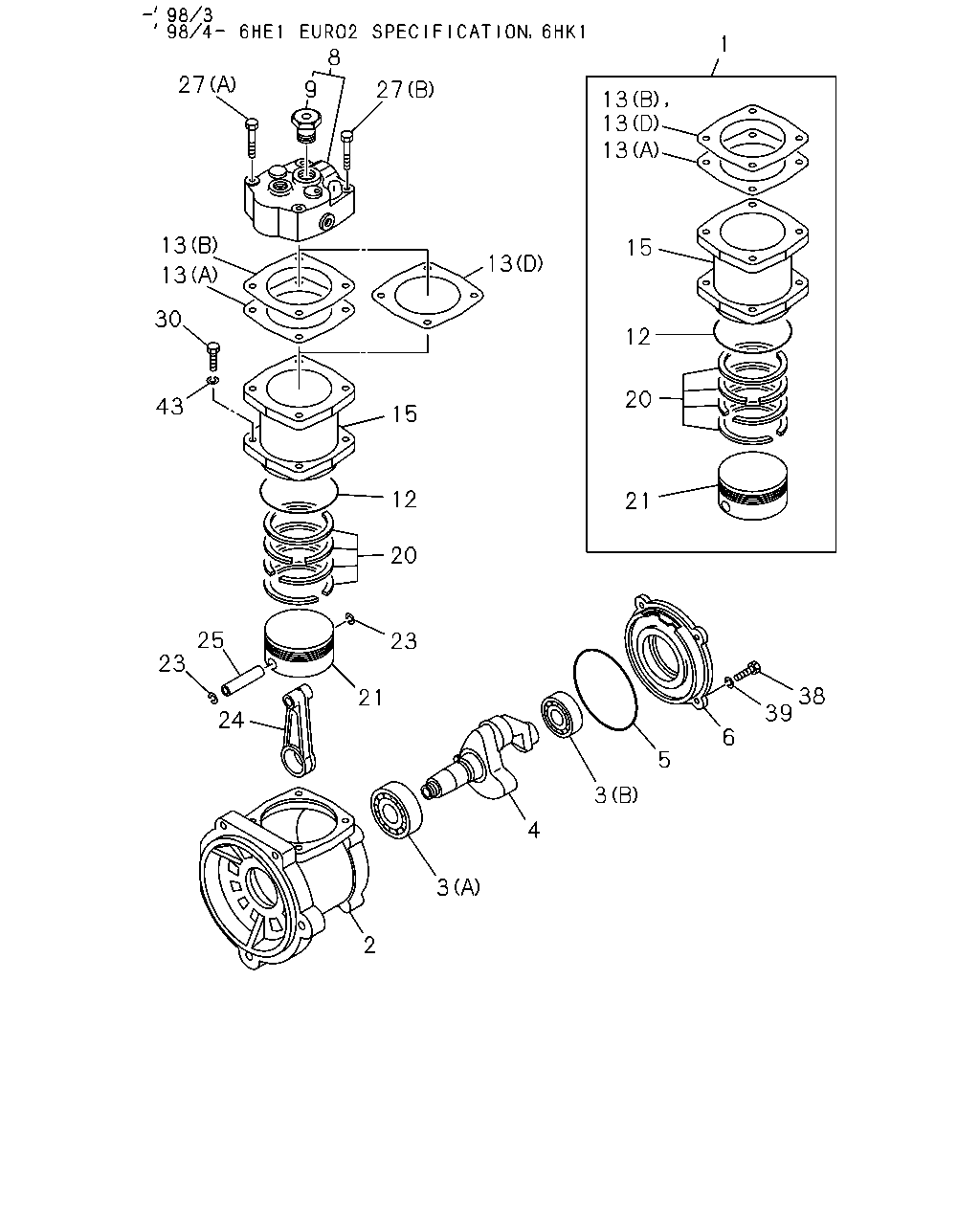

çizim 62414
8 1 27 9 27 13 13 13 13 15 13 13 30 12 20 43 15 12 21 20 25 23 23 38 39 21 24 6 5 3 4 3 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 LINER KIT; CYL,AIR CMPR 1-19163-053-1 01 1 9601-9803 ●
1 LINER KIT; CYL,AIR CMPR 1-19163-053-2 01 1 9804-0405 ●
1 LINER KIT; CYL,AIR CMPR
EXC. EURO2 SPECIFICATION<THN> 		1-19163-053-2 01 1 9804-0405 ●
1 LINER KIT; CYL,AIR CMPR 1-19163-053-2 01 1 0406-0812 ●
1 LINER KIT; CYL,AIR CMPR 1-19163-074-0 01 1 0901- ●
1 LINER KIT; CYL,AIR CMPR 1-19163-038-0 01 1 9601- ●
1 LINER KIT; CYL,AIR CMPR 1-19163-054-1 01 1 9601-0301 ●
1 LINER KIT; CYL,AIR CMPR 1-19163-060-1 01 1 0302-0811 ●
1 LINER KIT; CYL,AIR CMPR 1-19163-077-0 01 1 0812- ●
1 LINER KIT; CYL,AIR CMPR 1-19163-052-1 01 1 9610-9803 ●
1 LINER KIT; CYL,AIR CMPR
EURO2 SPECIFICATION<THN> 		1-19163-052-1 01 1 9804-0405 ●
1 LINER KIT; CYL,AIR CMPR 1-19163-052-1 01 1 0406-0812 ● ●
1 LINER KIT; CYL,AIR CMPR 1-19163-075-0 01 1 0901- ● ●
1 LINER KIT; CYL,AIR CMPR 1-19163-062-1 01 1 0005- ●
2 CRANKCASE; AIR CMPR 1-19151-266-1 01 1 9601-9803 ●
2 CRANKCASE; AIR CMPR 1-19151-266-1 01 1 9804-0405 ●
2 CRANKCASE; AIR CMPR
EXC. EURO2 SPECIFICATION<THN> 		1-19151-266-1 01 1 9804-0405 ●
2 CRANKCASE; AIR CMPR 1-19151-266-1 01 1 0406- ●
2 CRANKCASE; AIR CMPR 1-19151-277-0 01 1 9601-9810 ● ●
2 CRANKCASE; AIR CMPR 1-19151-277-0 01 1 9811-9904 ●
2 CRANKCASE; AIR CMPR 1-19151-288-0 01 1 9811-9904 ●
2 CRANKCASE; AIR CMPR 1-19151-288-0 01 1 9905- ● ●
2 CRANKCASE; AIR CMPR 1-19151-274-0 01 1 9610-9803 ●
2 CRANKCASE; AIR CMPR
EURO2 SPECIFICATION<THN> 		1-19151-274-0 01 1 9804-0405 ●
2 CRANKCASE; AIR CMPR 1-19151-274-0 01 1 0406- ● ●
2 CRANKCASE; AIR CMPR 1-19151-282-2 01 1 0005- ●
3 BEARING; AIR CMPR
(B) 		9-00006-206-0 01 1 9601-9609 ●
3 BEARING; AIR CMPR
(B) 		9-00006-206-0 01 1 9610-0405 ● ●
3 BEARING; AIR CMPR
(B) 		9-00006-206-0 01 1 0406-1202 ● ● ●
3 BEARING; AIR CMPR
(B) 		9-00006-206-0 01 1 1203- ●
3 BEARING; AIR CMPR
(A) 		9-00090-152-0 01 1 9601-9609 ●
3 BEARING; AIR CMPR
(A) 		9-00090-152-0 01 1 9610-0405 ● ●
3 BEARING; AIR CMPR
(A) 		9-00090-152-0 01 1 0406- ● ● ●
3 BEARING; AIR CMPR
(C) 		1-09800-232-0 02 1 9601- ●
3 BEARING; AIR CMPR
(A) 		1-09800-211-0 02 1 9601-9810 ●
3 BEARING; AIR CMPR
(A) 		1-09800-282-0 02 1 9811- ●
3 BEARING; AIR CMPR
(B) 		1-09800-232-0 01 1 9601- ●
3 BEARING; AIR CMPR
(A) 		1-19177-009-0 01 1 0005- ●
3 BEARING; AIR CMPR
(B) 		1-19177-010-0 01 1 0005- ●
4 CRANKSHAFT; AIR CMPR 1-19171-048-1 01 1 9601-9803 ●
4 CRANKSHAFT; AIR CMPR 1-19171-048-1 01 1 9804-0405 ●
4 CRANKSHAFT; AIR CMPR
EXC. EURO2 SPECIFICATION<THN> 		1-19171-048-1 01 1 9804-0405 ●
4 CRANKSHAFT; AIR CMPR 1-19171-048-1 01 1 0406- ●
4 CRANKSHAFT; AIR CMPR 1-19171-055-1 01 1 9601- ●
4 CRANKSHAFT; AIR CMPR 1-19171-070-0 01 1 9601-9810 ●
4 CRANKSHAFT; AIR CMPR 1-19171-081-1 01 1 9811- ●
4 CRANKSHAFT; AIR CMPR 1-19171-028-0 01 1 9610-9803 ●
4 CRANKSHAFT; AIR CMPR
EURO2 SPECIFICATION<THN> 		1-19171-028-0 01 1 9804-0405 ●
4 CRANKSHAFT; AIR CMPR 1-19171-028-0 01 1 0406-1202 ● ●
4 CRANKSHAFT; AIR CMPR 8-98209-089-0 01 1 1203- ● ●
4 CRANKSHAFT; AIR CMPR 1-19171-074-0 01 1 0005- ●
5 GASKET; AIR CMPR 1-09623-361-0 01 1 9601-9609 ●
5 GASKET; AIR CMPR 1-09623-361-0 01 1 9610-0405 ● ●
5 GASKET; AIR CMPR 1-09623-361-0 01 1 0406-1107 ● ● ●
5 GASKET; AIR CMPR 8-98192-460-0 01 1 1108- ● ● ●
5 GASKET; AIR CMPR 1-09623-627-0 01 1 0005-1107 ●
5 GASKET; AIR CMPR 8-98192-464-0 01 1 1108- ●
6 COVER ASM; BRG,AIR CMPR 1-19156-058-1 01 1 9601-9803 ●
6 COVER ASM; BRG,AIR CMPR 1-19156-058-1 01 1 9804-0405 ●
6 COVER ASM; BRG,AIR CMPR
EXC. EURO2 SPECIFICATION<THN> 		1-19156-058-1 01 1 9804-0405 ●
6 COVER ASM; BRG,AIR CMPR 1-19156-058-1 01 1 0406- ●
6 COVER ASM; BRG,AIR CMPR 1-19156-043-0 01 1 9601- ●
6 COVER ASM; BRG,AIR CMPR 1-19156-045-0 01 1 9601-9810 ●
6 COVER ASM; BRG,AIR CMPR 1-19156-080-0 01 1 9811- ●
6 COVER ASM; BRG,AIR CMPR 1-19156-039-0 01 1 9610-9803 ●
6 COVER ASM; BRG,AIR CMPR
EURO2 SPECIFICATION<THN> 		1-19156-039-0 01 1 9804-0405 ●
6 COVER ASM; BRG,AIR CMPR 1-19156-039-0 01 1 0406-1202 ● ●
6 COVER ASM; BRG,AIR CMPR 8-98209-092-0 01 1 1203- ● ●
6 COVER ASM; BRG,AIR CMPR 1-19156-075-1 01 1 0005- ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-052-1 01 1 9601-9803 ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-052-1 01 1 9804-0405 ●
8 HEAD ASM; CYL,AIR CMPR
EXC. EURO2 SPECIFICATION<THN> 		1-19110-052-1 01 1 9804-0405 ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-052-1 01 1 0406-1107 ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-052-1 01 1 1108- ● ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-016-0 01 1 9601- ● ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-056-1 01 1 9610-9803 ●
8 HEAD ASM; CYL,AIR CMPR
EURO2 SPECIFICATION<THN> 		1-19110-056-1 01 1 9804-0405 ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-056-1 01 1 0406- ● ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-051-0 01 1 0005-1107 ●
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-017-1 01 1 9601-0004 ● ●
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-017-1 01 1 0005-0405 ● ● ●
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-017-1 01 1 0406- ● ● ● ●
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-021-1 01 1 9601- ● ●
12 GASKET; AIR CMPR 8-98185-684-0 01 1 1108- ● ● ● ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 9601-0004 ● ● ● ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 0005-0405 ● ● ● ● ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 0406-1107 ● ● ● ● ● ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 1108- ● ●
13 GASKET; AIR CMPR
(B) 		8-98112-947-0 01 1 0005-0405 ● ●
13 GASKET; AIR CMPR
EXC. EURO2 SPECIFICATION<THN> (B) 		8-98112-947-0 01 1 0005-0405 ●
13 GASKET; AIR CMPR
(B) 		8-98112-947-0 01 1 0406- ● ●
13 GASKET; AIR CMPR
EURO2 SPECIFICATION<THN> (D) 		1-19139-016-0 01 1 0005-0405 ●
13 GASKET; AIR CMPR
(D) 		1-19139-016-0 01 1 0406- ● ●
13 GASKET; AIR CMPR
(C) 		1-19139-017-1 01 1 0302-0811 ●
13 GASKET; AIR CMPR
(C) 		8-98113-037-0 01 1 0812-1402 ●
13 GASKET; AIR CMPR
(C) 		8-98113-037-0 01 1 1403- ● ●
13 GASKET; AIR CMPR
(B) T=0.8 		1-19139-004-0 01 1 9601-9609 ●
13 GASKET; AIR CMPR
(A) 		1-19139-002-0 01 1 9610-9803 ●
13 GASKET; AIR CMPR
EURO2 SPECIFICATION<THN> (A) 		1-19139-002-0 01 1 9804-0004 ●
13 GASKET; AIR CMPR
(B) 		1-09623-626-0 01 1 9806-0004 ●
13 GASKET; AIR CMPR
EXC. EURO2 SPECIFICATION<THN> (B) 		1-09623-626-0 01 1 9806-0004 ●
13 GASKET; AIR CMPR
(B) T=0.8 		1-19139-004-0 01 1 9610-9805 ● ●
13 GASKET; AIR CMPR
EURO2 SPECIFICATION<THN> (B) T=0.8 		1-19139-004-0 01 1 9806-0004 ●
13 GASKET; AIR CMPR
(C) 		1-19139-001-0 01 1 9601-0301 ● ●
13 GASKET; AIR CMPR
(C) 		1-19139-001-0 01 1 0302-1402 ●
15 CYLINDER; AIR CMPR 1-19151-219-0 01 1 9601-9803 ●
15 CYLINDER; AIR CMPR 1-19151-219-0 01 1 9804-0405 ●
15 CYLINDER; AIR CMPR
EXC. EURO2 SPECIFICATION<THN> 		1-19151-219-0 01 1 9804-0405 ●
15 CYLINDER; AIR CMPR 1-19151-219-0 01 1 0406- ●
15 CYLINDER; AIR CMPR 1-19151-251-0 01 1 9601- ● ●
15 CYLINDER; AIR CMPR 1-19151-218-0 01 1 9610-9803 ●
15 CYLINDER; AIR CMPR
EURO2 SPECIFICATION<THN> 		1-19151-218-0 01 1 9804-0405 ●
15 CYLINDER; AIR CMPR 1-19151-218-0 01 1 0406- ● ●
15 CYLINDER; AIR CMPR 1-19151-283-1 01 1 0005- ●
20 RING KIT; PISTON,AIR CMPR 1-19163-058-0 01 1 0812-0812 ●
20 RING KIT; PISTON,AIR CMPR 1-19163-058-0 01 1 0901- ● ● ● ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 01 1 9601-0004 ● ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 01 1 0005-0405 ● ● ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 01 1 0406-0811 ● ● ● ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 01 1 0812-0812 ● ● ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 01 1 0901- ●
20 RING KIT; PISTON,AIR CMPR 1-19163-034-0 01 1 9601- ●
21 PISTON; AIR CMPR 1-19161-027-0 01 1 0812-0812 ●
21 PISTON; AIR CMPR 1-19161-027-0 01 1 0901- ● ● ● ● ●
21 PISTON; AIR CMPR 1-19161-016-0 01 1 9601-0004 ● ● ● ●
21 PISTON; AIR CMPR 1-19161-016-0 01 1 0005-0405 ● ● ● ● ●
21 PISTON; AIR CMPR 1-19161-016-0 01 1 0406-0811 ● ● ● ● ● ●
21 PISTON; AIR CMPR 1-19161-016-0 01 1 0812-0812 ● ● ● ● ●
21 PISTON; AIR CMPR 1-19161-016-0 01 1 0901- ● ●
23 RING; SNAP,PISTON,AIR CMPR 1-19169-004-0 02 1 0302-0811 ●
23 RING; SNAP,PISTON,AIR CMPR 1-19169-004-0 02 1 0812-0812 ● ●
23 RING; SNAP,PISTON,AIR CMPR 1-19169-004-0 02 1 0901- ● ● ● ● ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 9601-9803 ● ● ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 9804-9904 ● ● ●
23 RING; SNAP,PISTON,AIR CMPR
FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. EURO2 SPECIFICATION<THN> 		9-19168-003-0 02 1 9804-9904 ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 9905-9908 ● ● ●
23 RING; SNAP,PISTON,AIR CMPR
EXC. EURO2 SPECIFICATION<THN> 		9-19168-003-0 02 1 9905-9908 ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 9909-9912 ● ● ● ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 0001-0004 ● ● ●
23 RING; SNAP,PISTON,AIR CMPR
EXC. EURO2 SPECIFICATION<THN> 		9-19168-003-0 02 1 0001-0004 ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 0005-0301 ● ● ● ●
23 RING; SNAP,PISTON,AIR CMPR
EXC. EURO2 SPECIFICATION<THN> 		9-19168-003-0 02 1 0005-0301 ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 0302-0405 ● ● ●
23 RING; SNAP,PISTON,AIR CMPR
EXC. EURO2 SPECIFICATION<THN> 		9-19168-003-0 02 1 0302-0405 ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 0406-0811 ● ● ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 0812-0812 ● ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 0901- ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-008-0 02 1 9610-9803 ●
23 RING; SNAP,PISTON,AIR CMPR
EURO2 SPECIFICATION<THN> 		9-19168-008-0 02 1 9804-0405 ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-008-0 02 1 0406-0812 ● ●
24 ROD ASM; CONN,AIR CMPR 8-98209-093-0 01 1 1203- ● ●
24 ROD ASM; CONN,AIR CMPR 1-19173-010-0 01 1 9601-9609 ●
24 ROD ASM; CONN,AIR CMPR 1-19173-010-0 01 1 9610-0405 ● ●
24 ROD ASM; CONN,AIR CMPR 1-19173-010-0 01 1 0406-1202 ● ● ●
24 ROD ASM; CONN,AIR CMPR 1-19173-010-0 01 1 1203- ●
24 ROD ASM; CONN,AIR CMPR 1-19173-007-0 01 1 9601-0004 ● ●
24 ROD ASM; CONN,AIR CMPR 1-19173-007-0 01 1 0005- ● ● ●
25 PIN; PISTON,AIR CMPR 1-19167-003-0 01 1 0302-0811 ●
25 PIN; PISTON,AIR CMPR 1-19167-003-0 01 1 0812-0812 ● ●
25 PIN; PISTON,AIR CMPR 1-19167-003-0 01 1 0901- ● ● ● ● ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 9601-0004 ● ● ● ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 0005-0301 ● ● ● ● ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 0302-0405 ● ● ● ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 0406-0811 ● ● ● ● ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 0812-0812 ● ● ● ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 0901- ●
27 BOLT; HD
(B) M10X45 		9-01066-045-0 02 1 9601-9609 ●
27 BOLT; HD
(B) M10X45 		9-01066-045-0 02 1 9610-0004 ● ●
27 BOLT; HD
(B) M10X45 		9-01066-045-0 02 1 0005-0405 ● ● ●
27 BOLT; HD
(B) M10X45 		9-01066-045-0 02 1 0406- ● ● ● ●
27 BOLT; HD
(A) M10X60 		9-01066-060-0 02 1 9601-9609 ●
27 BOLT; HD
(A) M10X60 		9-01066-060-0 02 1 9610-0004 ● ●
27 BOLT; HD
(A) M10X60 		9-01066-060-0 02 1 0005-0405 ● ● ●
27 BOLT; HD
(A) M10X60 		9-01066-060-0 02 1 0406- ● ● ● ●
27 BOLT; HD
(C) M10X60 		9-01066-060-0 04 1 9601- ● ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-01911-025-0 04 1 9806-0004 ●
30 BOLT; CYL TO CRANKCASE
EXC. EURO2 SPECIFICATION<THN> M10X25 		9-01911-025-0 04 1 9806-0004 ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-01911-025-0 04 1 0005-0405 ● ●
30 BOLT; CYL TO CRANKCASE
EXC. EURO2 SPECIFICATION<THN> M10X25 		9-01911-025-0 04 1 0005-0405 ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-01911-025-0 04 1 0406- ● ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-02051-025-0 04 1 9601-9805 ● ● ● ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-02051-025-0 04 1 9806-9904 ● ●
30 BOLT; CYL TO CRANKCASE
FVR STD CAB MIDDLE CHASSIS(FV**MF) EURO2 SPECIFICATION<THN> M10X25 		9-02051-025-0 04 1 9806-9904 ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-02051-025-0 04 1 9905-0405 ● ●
30 BOLT; CYL TO CRANKCASE
EURO2 SPECIFICATION<THN> M10X25 		9-02051-025-0 04 1 9905-0405 ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-02051-025-0 04 1 0406- ● ● ● ●
38 BOLT; COVER FIX 9-81385-023-0 04 1 9601-9803 ●
38 BOLT; COVER FIX 9-81385-023-0 04 1 9804-0405 ●
38 BOLT; COVER FIX
EXC. EURO2 SPECIFICATION<THN> 		9-81385-023-0 04 1 9804-0405 ●
38 BOLT; COVER FIX 9-81385-023-0 04 1 0406- ●
38 BOLT; COVER FIX
M6X16 		9-02050-616-0 06 1 9601- ● ●
38 BOLT; COVER FIX 1-19179-011-0 04 1 9610-9803 ●
38 BOLT; COVER FIX
EURO2 SPECIFICATION<THN> 		1-19179-011-0 04 1 9804-0405 ●
38 BOLT; COVER FIX 1-19179-011-0 04 1 0406- ● ●
38 BOLT; COVER FIX 1-09100-018-0 02 1 0005- ●
39 WASHER; LK,COVER FIX
ID=8.2 		9-09150-608-0 04 1 9601-9609 ●
39 WASHER; LK,COVER FIX
ID=8.2 		9-09150-608-0 04 1 9610-0405 ● ●
39 WASHER; LK,COVER FIX
ID=8.2 		9-09150-608-0 04 1 0406- ● ● ●
39 WASHER; LK,COVER FIX
ID=6.1 		9-09150-506-0 06 1 9601-9810 ● ●
39 WASHER; LK,COVER FIX
ID=6.1 		9-09150-506-0 06 1 9811- ●
39 WASHER; LK,COVER FIX
ID=10.2 		9-09150-510-0 06 1 9811- ●
43 WASHER; LK,CYL TO CRANKCASE,AIR CMPR
ID=10.2 		9-09150-610-0 04 1 9601-9805 ● ● ● ●
43 WASHER; LK,CYL TO CRANKCASE,AIR CMPR
ID=10.2 		9-09150-610-0 04 1 9806-9904 ● ●
43 WASHER; LK,CYL TO CRANKCASE,AIR CMPR
FVR STD CAB MIDDLE CHASSIS(FV**MF) EURO2 SPECIFICATION<THN> ID=10.2 		9-09150-610-0 04 1 9806-9904 ●
43 WASHER; LK,CYL TO CRANKCASE,AIR CMPR
ID=10.2 		9-09150-610-0 04 1 9905-0405 ● ●
43 WASHER; LK,CYL TO CRANKCASE,AIR CMPR
EURO2 SPECIFICATION<THN> ID=10.2 		9-09150-610-0 04 1 9905-0405 ●
43 WASHER; LK,CYL TO CRANKCASE,AIR CMPR
ID=10.2 		9-09150-610-0 04 1 0406- ● ● ● ●
çizim 62581
8 13 27 27 9 15 13 12 1 30 20 43 15 21 12 48 20 7 25 23 23 38 39 21 45 24 6 5 3 4 3 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 LINER KIT; CYL,AIR CMPR 1-19163-053-1 01 1 9601-9803 ●
1 LINER KIT; CYL,AIR CMPR 1-19163-053-2 01 1 9804-0405 ●
1 LINER KIT; CYL,AIR CMPR
EXC. EURO2 SPECIFICATION<THN> 		1-19163-053-2 01 1 9804-0405 ●
1 LINER KIT; CYL,AIR CMPR 1-19163-053-2 01 1 0406-0812 ●
1 LINER KIT; CYL,AIR CMPR 1-19163-074-0 01 1 0901- ●
1 LINER KIT; CYL,AIR CMPR 1-19163-038-0 01 1 9601- ●
1 LINER KIT; CYL,AIR CMPR 1-19163-054-1 01 1 9601-0301 ●
1 LINER KIT; CYL,AIR CMPR 1-19163-060-1 01 1 0302-0811 ●
1 LINER KIT; CYL,AIR CMPR 1-19163-077-0 01 1 0812- ●
1 LINER KIT; CYL,AIR CMPR 1-19163-052-1 01 1 9610-9803 ●
1 LINER KIT; CYL,AIR CMPR
EURO2 SPECIFICATION<THN> 		1-19163-052-1 01 1 9804-0405 ●
1 LINER KIT; CYL,AIR CMPR 1-19163-052-1 01 1 0406-0812 ● ●
1 LINER KIT; CYL,AIR CMPR 1-19163-075-0 01 1 0901- ● ●
1 LINER KIT; CYL,AIR CMPR 1-19163-062-1 01 1 0005- ●
2 CRANKCASE; AIR CMPR 1-19151-266-1 01 1 9601-9803 ●
2 CRANKCASE; AIR CMPR 1-19151-266-1 01 1 9804-0405 ●
2 CRANKCASE; AIR CMPR
EXC. EURO2 SPECIFICATION<THN> 		1-19151-266-1 01 1 9804-0405 ●
2 CRANKCASE; AIR CMPR 1-19151-266-1 01 1 0406- ●
2 CRANKCASE; AIR CMPR 1-19151-277-0 01 1 9601-9810 ● ●
2 CRANKCASE; AIR CMPR 1-19151-277-0 01 1 9811-9904 ●
2 CRANKCASE; AIR CMPR 1-19151-288-0 01 1 9811-9904 ●
2 CRANKCASE; AIR CMPR 1-19151-288-0 01 1 9905- ● ●
2 CRANKCASE; AIR CMPR 1-19151-274-0 01 1 9610-9803 ●
2 CRANKCASE; AIR CMPR
EURO2 SPECIFICATION<THN> 		1-19151-274-0 01 1 9804-0405 ●
2 CRANKCASE; AIR CMPR 1-19151-274-0 01 1 0406- ● ●
2 CRANKCASE; AIR CMPR 1-19151-282-2 01 1 0005- ●
3 BEARING; AIR CMPR
(B) 		9-00006-206-0 01 1 9601-9609 ●
3 BEARING; AIR CMPR
(B) 		9-00006-206-0 01 1 9610-0405 ● ●
3 BEARING; AIR CMPR
(B) 		9-00006-206-0 01 1 0406-1202 ● ● ●
3 BEARING; AIR CMPR
(B) 		9-00006-206-0 01 1 1203- ●
3 BEARING; AIR CMPR
(A) 		9-00090-152-0 01 1 9601-9609 ●
3 BEARING; AIR CMPR
(A) 		9-00090-152-0 01 1 9610-0405 ● ●
3 BEARING; AIR CMPR
(A) 		9-00090-152-0 01 1 0406- ● ● ●
3 BEARING; AIR CMPR
(C) 		1-09800-232-0 02 1 9601- ●
3 BEARING; AIR CMPR
(A) 		1-09800-211-0 02 1 9601-9810 ●
3 BEARING; AIR CMPR
(A) 		1-09800-282-0 02 1 9811- ●
3 BEARING; AIR CMPR
(B) 		1-09800-232-0 01 1 9601- ●
3 BEARING; AIR CMPR
(A) 		1-19177-009-0 01 1 0005- ●
3 BEARING; AIR CMPR
(B) 		1-19177-010-0 01 1 0005- ●
4 CRANKSHAFT; AIR CMPR 1-19171-048-1 01 1 9601-9803 ●
4 CRANKSHAFT; AIR CMPR 1-19171-048-1 01 1 9804-0405 ●
4 CRANKSHAFT; AIR CMPR
EXC. EURO2 SPECIFICATION<THN> 		1-19171-048-1 01 1 9804-0405 ●
4 CRANKSHAFT; AIR CMPR 1-19171-048-1 01 1 0406- ●
4 CRANKSHAFT; AIR CMPR 1-19171-055-1 01 1 9601- ●
4 CRANKSHAFT; AIR CMPR 1-19171-070-0 01 1 9601-9810 ●
4 CRANKSHAFT; AIR CMPR 1-19171-081-1 01 1 9811- ●
4 CRANKSHAFT; AIR CMPR 1-19171-028-0 01 1 9610-9803 ●
4 CRANKSHAFT; AIR CMPR
EURO2 SPECIFICATION<THN> 		1-19171-028-0 01 1 9804-0405 ●
4 CRANKSHAFT; AIR CMPR 1-19171-028-0 01 1 0406-1202 ● ●
4 CRANKSHAFT; AIR CMPR 8-98209-089-0 01 1 1203- ● ●
4 CRANKSHAFT; AIR CMPR 1-19171-074-0 01 1 0005- ●
5 GASKET; AIR CMPR 1-09623-361-0 01 1 9601-9609 ●
5 GASKET; AIR CMPR 1-09623-361-0 01 1 9610-0405 ● ●
5 GASKET; AIR CMPR 1-09623-361-0 01 1 0406-1107 ● ● ●
5 GASKET; AIR CMPR 8-98192-460-0 01 1 1108- ● ● ●
5 GASKET; AIR CMPR 1-09623-627-0 01 1 0005-1107 ●
5 GASKET; AIR CMPR 8-98192-464-0 01 1 1108- ●
6 COVER ASM; BRG,AIR CMPR 1-19156-058-1 01 1 9601-9803 ●
6 COVER ASM; BRG,AIR CMPR 1-19156-058-1 01 1 9804-0405 ●
6 COVER ASM; BRG,AIR CMPR
EXC. EURO2 SPECIFICATION<THN> 		1-19156-058-1 01 1 9804-0405 ●
6 COVER ASM; BRG,AIR CMPR 1-19156-058-1 01 1 0406- ●
6 COVER ASM; BRG,AIR CMPR 1-19156-043-0 01 1 9601- ●
6 COVER ASM; BRG,AIR CMPR 1-19156-045-0 01 1 9601-9810 ●
6 COVER ASM; BRG,AIR CMPR 1-19156-080-0 01 1 9811- ●
6 COVER ASM; BRG,AIR CMPR 1-19156-039-0 01 1 9610-9803 ●
6 COVER ASM; BRG,AIR CMPR
EURO2 SPECIFICATION<THN> 		1-19156-039-0 01 1 9804-0405 ●
6 COVER ASM; BRG,AIR CMPR 1-19156-039-0 01 1 0406-1202 ● ●
6 COVER ASM; BRG,AIR CMPR 8-98209-092-0 01 1 1203- ● ●
6 COVER ASM; BRG,AIR CMPR 1-19156-075-1 01 1 0005- ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-19158-026-0 01 1 9601-9803 ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-19158-026-0 01 1 9804-0405 ●
7 SEAL; OIL,BRG COVER,AIR CMPR
EXC. EURO2 SPECIFICATION<THN> 		1-19158-026-0 01 1 9804-0405 ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-19158-026-0 01 1 0406- ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-09625-187-0 01 1 9601-9810 ● ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-09625-187-0 01 1 9811-9904 ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-09625-187-0 01 1 9905-9905 ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-09625-534-0 01 1 9811-9904 ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-09625-534-0 01 1 9905-0004 ● ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-09625-534-0 01 1 0005- ● ● ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-052-1 01 1 9601-9803 ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-052-1 01 1 9804-0405 ●
8 HEAD ASM; CYL,AIR CMPR
EXC. EURO2 SPECIFICATION<THN> 		1-19110-052-1 01 1 9804-0405 ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-052-1 01 1 0406-1107 ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-052-1 01 1 1108- ● ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-016-0 01 1 9601- ● ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-056-1 01 1 9610-9803 ●
8 HEAD ASM; CYL,AIR CMPR
EURO2 SPECIFICATION<THN> 		1-19110-056-1 01 1 9804-0405 ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-056-1 01 1 0406- ● ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-051-0 01 1 0005-1107 ●
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-017-1 01 1 9601-0004 ● ●
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-017-1 01 1 0005-0405 ● ● ●
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-017-1 01 1 0406- ● ● ● ●
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-021-1 01 1 9601- ● ●
12 GASKET; AIR CMPR 8-98185-684-0 01 1 1108- ● ● ● ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 9601-0004 ● ● ● ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 0005-0405 ● ● ● ● ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 0406-1107 ● ● ● ● ● ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 1108- ● ●
13 GASKET; AIR CMPR
(B) 		8-98112-947-0 01 1 0005-0405 ● ●
13 GASKET; AIR CMPR
EXC. EURO2 SPECIFICATION<THN> (B) 		8-98112-947-0 01 1 0005-0405 ●
13 GASKET; AIR CMPR
(B) 		8-98112-947-0 01 1 0406- ● ●
13 GASKET; AIR CMPR
EURO2 SPECIFICATION<THN> (D) 		1-19139-016-0 01 1 0005-0405 ●
13 GASKET; AIR CMPR
(D) 		1-19139-016-0 01 1 0406- ● ●
13 GASKET; AIR CMPR
(C) 		1-19139-017-1 01 1 0302-0811 ●
13 GASKET; AIR CMPR
(C) 		8-98113-037-0 01 1 0812-1402 ●
13 GASKET; AIR CMPR
(C) 		8-98113-037-0 01 1 1403- ● ●
13 GASKET; AIR CMPR
(B) T=0.8 		1-19139-004-0 01 1 9601-9609 ●
13 GASKET; AIR CMPR
(A) 		1-19139-002-0 01 1 9610-9803 ●
13 GASKET; AIR CMPR
EURO2 SPECIFICATION<THN> (A) 		1-19139-002-0 01 1 9804-0004 ●
13 GASKET; AIR CMPR
(B) 		1-09623-626-0 01 1 9806-0004 ●
13 GASKET; AIR CMPR
EXC. EURO2 SPECIFICATION<THN> (B) 		1-09623-626-0 01 1 9806-0004 ●
13 GASKET; AIR CMPR
(B) T=0.8 		1-19139-004-0 01 1 9610-9805 ● ●
13 GASKET; AIR CMPR
EURO2 SPECIFICATION<THN> (B) T=0.8 		1-19139-004-0 01 1 9806-0004 ●
13 GASKET; AIR CMPR
(C) 		1-19139-001-0 01 1 9601-0301 ● ●
13 GASKET; AIR CMPR
(C) 		1-19139-001-0 01 1 0302-1402 ●
15 CYLINDER; AIR CMPR 1-19151-219-0 01 1 9601-9803 ●
15 CYLINDER; AIR CMPR 1-19151-219-0 01 1 9804-0405 ●
15 CYLINDER; AIR CMPR
EXC. EURO2 SPECIFICATION<THN> 		1-19151-219-0 01 1 9804-0405 ●
15 CYLINDER; AIR CMPR 1-19151-219-0 01 1 0406- ●
15 CYLINDER; AIR CMPR 1-19151-251-0 01 1 9601- ● ●
15 CYLINDER; AIR CMPR 1-19151-218-0 01 1 9610-9803 ●
15 CYLINDER; AIR CMPR
EURO2 SPECIFICATION<THN> 		1-19151-218-0 01 1 9804-0405 ●
15 CYLINDER; AIR CMPR 1-19151-218-0 01 1 0406- ● ●
15 CYLINDER; AIR CMPR 1-19151-283-1 01 1 0005- ●
20 RING KIT; PISTON,AIR CMPR 1-19163-058-0 01 1 0812-0812 ●
20 RING KIT; PISTON,AIR CMPR 1-19163-058-0 01 1 0901- ● ● ● ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 01 1 9601-0004 ● ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 01 1 0005-0405 ● ● ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 01 1 0406-0811 ● ● ● ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 01 1 0812-0812 ● ● ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 01 1 0901- ●
20 RING KIT; PISTON,AIR CMPR 1-19163-034-0 01 1 9601- ●
21 PISTON; AIR CMPR 1-19161-027-0 01 1 0812-0812 ●
21 PISTON; AIR CMPR 1-19161-027-0 01 1 0901- ● ● ● ● ●
21 PISTON; AIR CMPR 1-19161-016-0 01 1 9601-0004 ● ● ● ●
21 PISTON; AIR CMPR 1-19161-016-0 01 1 0005-0405 ● ● ● ● ●
21 PISTON; AIR CMPR 1-19161-016-0 01 1 0406-0811 ● ● ● ● ● ●
21 PISTON; AIR CMPR 1-19161-016-0 01 1 0812-0812 ● ● ● ● ●
21 PISTON; AIR CMPR 1-19161-016-0 01 1 0901- ● ●
23 RING; SNAP,PISTON,AIR CMPR 1-19169-004-0 02 1 0302-0811 ●
23 RING; SNAP,PISTON,AIR CMPR 1-19169-004-0 02 1 0812-0812 ● ●
23 RING; SNAP,PISTON,AIR CMPR 1-19169-004-0 02 1 0901- ● ● ● ● ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 9601-9803 ● ● ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 9804-9904 ● ● ●
23 RING; SNAP,PISTON,AIR CMPR
FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. EURO2 SPECIFICATION<THN> 		9-19168-003-0 02 1 9804-9904 ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 9905-9908 ● ● ●
23 RING; SNAP,PISTON,AIR CMPR
EXC. EURO2 SPECIFICATION<THN> 		9-19168-003-0 02 1 9905-9908 ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 9909-9912 ● ● ● ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 0001-0004 ● ● ●
23 RING; SNAP,PISTON,AIR CMPR
EXC. EURO2 SPECIFICATION<THN> 		9-19168-003-0 02 1 0001-0004 ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 0005-0301 ● ● ● ●
23 RING; SNAP,PISTON,AIR CMPR
EXC. EURO2 SPECIFICATION<THN> 		9-19168-003-0 02 1 0005-0301 ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 0302-0405 ● ● ●
23 RING; SNAP,PISTON,AIR CMPR
EXC. EURO2 SPECIFICATION<THN> 		9-19168-003-0 02 1 0302-0405 ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 0406-0811 ● ● ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 0812-0812 ● ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 0901- ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-008-0 02 1 9610-9803 ●
23 RING; SNAP,PISTON,AIR CMPR
EURO2 SPECIFICATION<THN> 		9-19168-008-0 02 1 9804-0405 ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-008-0 02 1 0406-0812 ● ●
24 ROD ASM; CONN,AIR CMPR 8-98209-093-0 01 1 1203- ● ●
24 ROD ASM; CONN,AIR CMPR 1-19173-010-0 01 1 9601-9609 ●
24 ROD ASM; CONN,AIR CMPR 1-19173-010-0 01 1 9610-0405 ● ●
24 ROD ASM; CONN,AIR CMPR 1-19173-010-0 01 1 0406-1202 ● ● ●
24 ROD ASM; CONN,AIR CMPR 1-19173-010-0 01 1 1203- ●
24 ROD ASM; CONN,AIR CMPR 1-19173-007-0 01 1 9601-0004 ● ●
24 ROD ASM; CONN,AIR CMPR 1-19173-007-0 01 1 0005- ● ● ●
25 PIN; PISTON,AIR CMPR 1-19167-003-0 01 1 0302-0811 ●
25 PIN; PISTON,AIR CMPR 1-19167-003-0 01 1 0812-0812 ● ●
25 PIN; PISTON,AIR CMPR 1-19167-003-0 01 1 0901- ● ● ● ● ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 9601-0004 ● ● ● ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 0005-0301 ● ● ● ● ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 0302-0405 ● ● ● ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 0406-0811 ● ● ● ● ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 0812-0812 ● ● ● ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 0901- ●
27 BOLT; HD
(B) M10X45 		9-01066-045-0 02 1 9601-9609 ●
27 BOLT; HD
(B) M10X45 		9-01066-045-0 02 1 9610-0004 ● ●
27 BOLT; HD
(B) M10X45 		9-01066-045-0 02 1 0005-0405 ● ● ●
27 BOLT; HD
(B) M10X45 		9-01066-045-0 02 1 0406- ● ● ● ●
27 BOLT; HD
(A) M10X60 		9-01066-060-0 02 1 9601-9609 ●
27 BOLT; HD
(A) M10X60 		9-01066-060-0 02 1 9610-0004 ● ●
27 BOLT; HD
(A) M10X60 		9-01066-060-0 02 1 0005-0405 ● ● ●
27 BOLT; HD
(A) M10X60 		9-01066-060-0 02 1 0406- ● ● ● ●
27 BOLT; HD
(C) M10X60 		9-01066-060-0 04 1 9601- ● ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-01911-025-0 04 1 9806-0004 ●
30 BOLT; CYL TO CRANKCASE
EXC. EURO2 SPECIFICATION<THN> M10X25 		9-01911-025-0 04 1 9806-0004 ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-01911-025-0 04 1 0005-0405 ● ●
30 BOLT; CYL TO CRANKCASE
EXC. EURO2 SPECIFICATION<THN> M10X25 		9-01911-025-0 04 1 0005-0405 ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-01911-025-0 04 1 0406- ● ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-02051-025-0 04 1 9601-9805 ● ● ● ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-02051-025-0 04 1 9806-9904 ● ●
30 BOLT; CYL TO CRANKCASE
FVR STD CAB MIDDLE CHASSIS(FV**MF) EURO2 SPECIFICATION<THN> M10X25 		9-02051-025-0 04 1 9806-9904 ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-02051-025-0 04 1 9905-0405 ● ●
30 BOLT; CYL TO CRANKCASE
EURO2 SPECIFICATION<THN> M10X25 		9-02051-025-0 04 1 9905-0405 ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-02051-025-0 04 1 0406- ● ● ● ●
38 BOLT; COVER FIX 9-81385-023-0 04 1 9601-9803 ●
38 BOLT; COVER FIX 9-81385-023-0 04 1 9804-0405 ●
38 BOLT; COVER FIX
EXC. EURO2 SPECIFICATION<THN> 		9-81385-023-0 04 1 9804-0405 ●
38 BOLT; COVER FIX 9-81385-023-0 04 1 0406- ●
38 BOLT; COVER FIX
M6X16 		9-02050-616-0 06 1 9601- ● ●
38 BOLT; COVER FIX 1-19179-011-0 04 1 9610-9803 ●
38 BOLT; COVER FIX
EURO2 SPECIFICATION<THN> 		1-19179-011-0 04 1 9804-0405 ●
38 BOLT; COVER FIX 1-19179-011-0 04 1 0406- ● ●
38 BOLT; COVER FIX 1-09100-018-0 02 1 0005- ●
39 WASHER; LK,COVER FIX
ID=8.2 		9-09150-608-0 04 1 9601-9609 ●
39 WASHER; LK,COVER FIX
ID=8.2 		9-09150-608-0 04 1 9610-0405 ● ●
39 WASHER; LK,COVER FIX
ID=8.2 		9-09150-608-0 04 1 0406- ● ● ●
39 WASHER; LK,COVER FIX
ID=6.1 		9-09150-506-0 06 1 9601-9810 ● ●
39 WASHER; LK,COVER FIX
ID=6.1 		9-09150-506-0 06 1 9811- ●
39 WASHER; LK,COVER FIX
ID=10.2 		9-09150-510-0 06 1 9811- ●
43 WASHER; LK,CYL TO CRANKCASE,AIR CMPR
ID=10.2 		9-09150-610-0 04 1 9601-9805 ● ● ● ●
43 WASHER; LK,CYL TO CRANKCASE,AIR CMPR
ID=10.2 		9-09150-610-0 04 1 9806-9904 ● ●
43 WASHER; LK,CYL TO CRANKCASE,AIR CMPR
FVR STD CAB MIDDLE CHASSIS(FV**MF) EURO2 SPECIFICATION<THN> ID=10.2 		9-09150-610-0 04 1 9806-9904 ●
43 WASHER; LK,CYL TO CRANKCASE,AIR CMPR
ID=10.2 		9-09150-610-0 04 1 9905-0405 ● ●
43 WASHER; LK,CYL TO CRANKCASE,AIR CMPR
EURO2 SPECIFICATION<THN> ID=10.2 		9-09150-610-0 04 1 9905-0405 ●
43 WASHER; LK,CYL TO CRANKCASE,AIR CMPR
ID=10.2 		9-09150-610-0 04 1 0406- ● ● ● ●
45 WASHER; PL,COVER FIX,AIR CMPR
ID=8.4 		9-09160-508-0 04 1 9601-9803 ●
45 WASHER; PL,COVER FIX,AIR CMPR
ID=8.4 		9-09160-508-0 04 1 9804-0405 ●
45 WASHER; PL,COVER FIX,AIR CMPR
EXC. EURO2 SPECIFICATION<THN> ID=8.4 		9-09160-508-0 04 1 9804-0405 ●
45 WASHER; PL,COVER FIX,AIR CMPR
ID=8.4 		9-09160-508-0 04 1 0406- ●
45 WASHER; PL,COVER FIX,AIR CMPR 1-19159-005-0 06 1 9601- ● ●
48 SLEEVE; CR/SHF 1-19179-014-0 01 1 9601-9803 ●
48 SLEEVE; CR/SHF 1-19179-014-0 01 1 9804-0405 ●
48 SLEEVE; CR/SHF
EXC. EURO2 SPECIFICATION<THN> 		1-19179-014-0 01 1 9804-0405 ●
48 SLEEVE; CR/SHF 1-19179-014-0 01 1 0406- ●
48 SLEEVE; CR/SHF 1-19179-018-0 01 1 9811-9904 ●
48 SLEEVE; CR/SHF 1-19179-018-0 01 1 9905- ● ●
48 SLEEVE; CR/SHF 1-19179-024-0 01 1 0005- ●
çizim 62588
1 8 13 27 27 9 15 13 12 30 30 82 20 43 15 21 12 48 20 7 25 23 23 38 21 24 6 5 3 4 3 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 LINER KIT; CYL,AIR CMPR 1-19163-053-1 01 1 9601-9803 ●
1 LINER KIT; CYL,AIR CMPR 1-19163-053-2 01 1 9804-0405 ●
1 LINER KIT; CYL,AIR CMPR
EXC. EURO2 SPECIFICATION<THN> 		1-19163-053-2 01 1 9804-0405 ●
1 LINER KIT; CYL,AIR CMPR 1-19163-053-2 01 1 0406-0812 ●
1 LINER KIT; CYL,AIR CMPR 1-19163-074-0 01 1 0901- ●
1 LINER KIT; CYL,AIR CMPR 1-19163-038-0 01 1 9601- ●
1 LINER KIT; CYL,AIR CMPR 1-19163-054-1 01 1 9601-0301 ●
1 LINER KIT; CYL,AIR CMPR 1-19163-060-1 01 1 0302-0811 ●
1 LINER KIT; CYL,AIR CMPR 1-19163-077-0 01 1 0812- ●
1 LINER KIT; CYL,AIR CMPR 1-19163-052-1 01 1 9610-9803 ●
1 LINER KIT; CYL,AIR CMPR
EURO2 SPECIFICATION<THN> 		1-19163-052-1 01 1 9804-0405 ●
1 LINER KIT; CYL,AIR CMPR 1-19163-052-1 01 1 0406-0812 ● ●
1 LINER KIT; CYL,AIR CMPR 1-19163-075-0 01 1 0901- ● ●
1 LINER KIT; CYL,AIR CMPR 1-19163-062-1 01 1 0005- ●
2 CRANKCASE; AIR CMPR 1-19151-266-1 01 1 9601-9803 ●
2 CRANKCASE; AIR CMPR 1-19151-266-1 01 1 9804-0405 ●
2 CRANKCASE; AIR CMPR
EXC. EURO2 SPECIFICATION<THN> 		1-19151-266-1 01 1 9804-0405 ●
2 CRANKCASE; AIR CMPR 1-19151-266-1 01 1 0406- ●
2 CRANKCASE; AIR CMPR 1-19151-277-0 01 1 9601-9810 ● ●
2 CRANKCASE; AIR CMPR 1-19151-277-0 01 1 9811-9904 ●
2 CRANKCASE; AIR CMPR 1-19151-288-0 01 1 9811-9904 ●
2 CRANKCASE; AIR CMPR 1-19151-288-0 01 1 9905- ● ●
2 CRANKCASE; AIR CMPR 1-19151-274-0 01 1 9610-9803 ●
2 CRANKCASE; AIR CMPR
EURO2 SPECIFICATION<THN> 		1-19151-274-0 01 1 9804-0405 ●
2 CRANKCASE; AIR CMPR 1-19151-274-0 01 1 0406- ● ●
2 CRANKCASE; AIR CMPR 1-19151-282-2 01 1 0005- ●
3 BEARING; AIR CMPR
(B) 		9-00006-206-0 01 1 9601-9609 ●
3 BEARING; AIR CMPR
(B) 		9-00006-206-0 01 1 9610-0405 ● ●
3 BEARING; AIR CMPR
(B) 		9-00006-206-0 01 1 0406-1202 ● ● ●
3 BEARING; AIR CMPR
(B) 		9-00006-206-0 01 1 1203- ●
3 BEARING; AIR CMPR
(A) 		9-00090-152-0 01 1 9601-9609 ●
3 BEARING; AIR CMPR
(A) 		9-00090-152-0 01 1 9610-0405 ● ●
3 BEARING; AIR CMPR
(A) 		9-00090-152-0 01 1 0406- ● ● ●
3 BEARING; AIR CMPR
(C) 		1-09800-232-0 02 1 9601- ●
3 BEARING; AIR CMPR
(A) 		1-09800-211-0 02 1 9601-9810 ●
3 BEARING; AIR CMPR
(A) 		1-09800-282-0 02 1 9811- ●
3 BEARING; AIR CMPR
(B) 		1-09800-232-0 01 1 9601- ●
3 BEARING; AIR CMPR
(A) 		1-19177-009-0 01 1 0005- ●
3 BEARING; AIR CMPR
(B) 		1-19177-010-0 01 1 0005- ●
4 CRANKSHAFT; AIR CMPR 1-19171-048-1 01 1 9601-9803 ●
4 CRANKSHAFT; AIR CMPR 1-19171-048-1 01 1 9804-0405 ●
4 CRANKSHAFT; AIR CMPR
EXC. EURO2 SPECIFICATION<THN> 		1-19171-048-1 01 1 9804-0405 ●
4 CRANKSHAFT; AIR CMPR 1-19171-048-1 01 1 0406- ●
4 CRANKSHAFT; AIR CMPR 1-19171-055-1 01 1 9601- ●
4 CRANKSHAFT; AIR CMPR 1-19171-070-0 01 1 9601-9810 ●
4 CRANKSHAFT; AIR CMPR 1-19171-081-1 01 1 9811- ●
4 CRANKSHAFT; AIR CMPR 1-19171-028-0 01 1 9610-9803 ●
4 CRANKSHAFT; AIR CMPR
EURO2 SPECIFICATION<THN> 		1-19171-028-0 01 1 9804-0405 ●
4 CRANKSHAFT; AIR CMPR 1-19171-028-0 01 1 0406-1202 ● ●
4 CRANKSHAFT; AIR CMPR 8-98209-089-0 01 1 1203- ● ●
4 CRANKSHAFT; AIR CMPR 1-19171-074-0 01 1 0005- ●
5 GASKET; AIR CMPR 1-09623-361-0 01 1 9601-9609 ●
5 GASKET; AIR CMPR 1-09623-361-0 01 1 9610-0405 ● ●
5 GASKET; AIR CMPR 1-09623-361-0 01 1 0406-1107 ● ● ●
5 GASKET; AIR CMPR 8-98192-460-0 01 1 1108- ● ● ●
5 GASKET; AIR CMPR 1-09623-627-0 01 1 0005-1107 ●
5 GASKET; AIR CMPR 8-98192-464-0 01 1 1108- ●
6 COVER ASM; BRG,AIR CMPR 1-19156-058-1 01 1 9601-9803 ●
6 COVER ASM; BRG,AIR CMPR 1-19156-058-1 01 1 9804-0405 ●
6 COVER ASM; BRG,AIR CMPR
EXC. EURO2 SPECIFICATION<THN> 		1-19156-058-1 01 1 9804-0405 ●
6 COVER ASM; BRG,AIR CMPR 1-19156-058-1 01 1 0406- ●
6 COVER ASM; BRG,AIR CMPR 1-19156-043-0 01 1 9601- ●
6 COVER ASM; BRG,AIR CMPR 1-19156-045-0 01 1 9601-9810 ●
6 COVER ASM; BRG,AIR CMPR 1-19156-080-0 01 1 9811- ●
6 COVER ASM; BRG,AIR CMPR 1-19156-039-0 01 1 9610-9803 ●
6 COVER ASM; BRG,AIR CMPR
EURO2 SPECIFICATION<THN> 		1-19156-039-0 01 1 9804-0405 ●
6 COVER ASM; BRG,AIR CMPR 1-19156-039-0 01 1 0406-1202 ● ●
6 COVER ASM; BRG,AIR CMPR 8-98209-092-0 01 1 1203- ● ●
6 COVER ASM; BRG,AIR CMPR 1-19156-075-1 01 1 0005- ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-19158-026-0 01 1 9601-9803 ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-19158-026-0 01 1 9804-0405 ●
7 SEAL; OIL,BRG COVER,AIR CMPR
EXC. EURO2 SPECIFICATION<THN> 		1-19158-026-0 01 1 9804-0405 ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-19158-026-0 01 1 0406- ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-09625-187-0 01 1 9601-9810 ● ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-09625-187-0 01 1 9811-9904 ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-09625-187-0 01 1 9905-9905 ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-09625-534-0 01 1 9811-9904 ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-09625-534-0 01 1 9905-0004 ● ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-09625-534-0 01 1 0005- ● ● ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-052-1 01 1 9601-9803 ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-052-1 01 1 9804-0405 ●
8 HEAD ASM; CYL,AIR CMPR
EXC. EURO2 SPECIFICATION<THN> 		1-19110-052-1 01 1 9804-0405 ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-052-1 01 1 0406-1107 ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-052-1 01 1 1108- ● ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-016-0 01 1 9601- ● ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-056-1 01 1 9610-9803 ●
8 HEAD ASM; CYL,AIR CMPR
EURO2 SPECIFICATION<THN> 		1-19110-056-1 01 1 9804-0405 ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-056-1 01 1 0406- ● ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-051-0 01 1 0005-1107 ●
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-017-1 01 1 9601-0004 ● ●
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-017-1 01 1 0005-0405 ● ● ●
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-017-1 01 1 0406- ● ● ● ●
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-021-1 01 1 9601- ● ●
12 GASKET; AIR CMPR 8-98185-684-0 01 1 1108- ● ● ● ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 9601-0004 ● ● ● ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 0005-0405 ● ● ● ● ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 0406-1107 ● ● ● ● ● ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 1108- ● ●
13 GASKET; AIR CMPR
(B) 		8-98112-947-0 01 1 0005-0405 ● ●
13 GASKET; AIR CMPR
EXC. EURO2 SPECIFICATION<THN> (B) 		8-98112-947-0 01 1 0005-0405 ●
13 GASKET; AIR CMPR
(B) 		8-98112-947-0 01 1 0406- ● ●
13 GASKET; AIR CMPR
EURO2 SPECIFICATION<THN> (D) 		1-19139-016-0 01 1 0005-0405 ●
13 GASKET; AIR CMPR
(D) 		1-19139-016-0 01 1 0406- ● ●
13 GASKET; AIR CMPR
(C) 		1-19139-017-1 01 1 0302-0811 ●
13 GASKET; AIR CMPR
(C) 		8-98113-037-0 01 1 0812-1402 ●
13 GASKET; AIR CMPR
(C) 		8-98113-037-0 01 1 1403- ● ●
13 GASKET; AIR CMPR
(B) T=0.8 		1-19139-004-0 01 1 9601-9609 ●
13 GASKET; AIR CMPR
(A) 		1-19139-002-0 01 1 9610-9803 ●
13 GASKET; AIR CMPR
EURO2 SPECIFICATION<THN> (A) 		1-19139-002-0 01 1 9804-0004 ●
13 GASKET; AIR CMPR
(B) 		1-09623-626-0 01 1 9806-0004 ●
13 GASKET; AIR CMPR
EXC. EURO2 SPECIFICATION<THN> (B) 		1-09623-626-0 01 1 9806-0004 ●
13 GASKET; AIR CMPR
(B) T=0.8 		1-19139-004-0 01 1 9610-9805 ● ●
13 GASKET; AIR CMPR
EURO2 SPECIFICATION<THN> (B) T=0.8 		1-19139-004-0 01 1 9806-0004 ●
13 GASKET; AIR CMPR
(C) 		1-19139-001-0 01 1 9601-0301 ● ●
13 GASKET; AIR CMPR
(C) 		1-19139-001-0 01 1 0302-1402 ●
15 CYLINDER; AIR CMPR 1-19151-219-0 01 1 9601-9803 ●
15 CYLINDER; AIR CMPR 1-19151-219-0 01 1 9804-0405 ●
15 CYLINDER; AIR CMPR
EXC. EURO2 SPECIFICATION<THN> 		1-19151-219-0 01 1 9804-0405 ●
15 CYLINDER; AIR CMPR 1-19151-219-0 01 1 0406- ●
15 CYLINDER; AIR CMPR 1-19151-251-0 01 1 9601- ● ●
15 CYLINDER; AIR CMPR 1-19151-218-0 01 1 9610-9803 ●
15 CYLINDER; AIR CMPR
EURO2 SPECIFICATION<THN> 		1-19151-218-0 01 1 9804-0405 ●
15 CYLINDER; AIR CMPR 1-19151-218-0 01 1 0406- ● ●
15 CYLINDER; AIR CMPR 1-19151-283-1 01 1 0005- ●
20 RING KIT; PISTON,AIR CMPR 1-19163-058-0 01 1 0812-0812 ●
20 RING KIT; PISTON,AIR CMPR 1-19163-058-0 01 1 0901- ● ● ● ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 01 1 9601-0004 ● ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 01 1 0005-0405 ● ● ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 01 1 0406-0811 ● ● ● ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 01 1 0812-0812 ● ● ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 01 1 0901- ●
20 RING KIT; PISTON,AIR CMPR 1-19163-034-0 01 1 9601- ●
21 PISTON; AIR CMPR 1-19161-027-0 01 1 0812-0812 ●
21 PISTON; AIR CMPR 1-19161-027-0 01 1 0901- ● ● ● ● ●
21 PISTON; AIR CMPR 1-19161-016-0 01 1 9601-0004 ● ● ● ●
21 PISTON; AIR CMPR 1-19161-016-0 01 1 0005-0405 ● ● ● ● ●
21 PISTON; AIR CMPR 1-19161-016-0 01 1 0406-0811 ● ● ● ● ● ●
21 PISTON; AIR CMPR 1-19161-016-0 01 1 0812-0812 ● ● ● ● ●
21 PISTON; AIR CMPR 1-19161-016-0 01 1 0901- ● ●
23 RING; SNAP,PISTON,AIR CMPR 1-19169-004-0 02 1 0302-0811 ●
23 RING; SNAP,PISTON,AIR CMPR 1-19169-004-0 02 1 0812-0812 ● ●
23 RING; SNAP,PISTON,AIR CMPR 1-19169-004-0 02 1 0901- ● ● ● ● ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 9601-9803 ● ● ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 9804-9904 ● ● ●
23 RING; SNAP,PISTON,AIR CMPR
FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. EURO2 SPECIFICATION<THN> 		9-19168-003-0 02 1 9804-9904 ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 9905-9908 ● ● ●
23 RING; SNAP,PISTON,AIR CMPR
EXC. EURO2 SPECIFICATION<THN> 		9-19168-003-0 02 1 9905-9908 ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 9909-9912 ● ● ● ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 0001-0004 ● ● ●
23 RING; SNAP,PISTON,AIR CMPR
EXC. EURO2 SPECIFICATION<THN> 		9-19168-003-0 02 1 0001-0004 ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 0005-0301 ● ● ● ●
23 RING; SNAP,PISTON,AIR CMPR
EXC. EURO2 SPECIFICATION<THN> 		9-19168-003-0 02 1 0005-0301 ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 0302-0405 ● ● ●
23 RING; SNAP,PISTON,AIR CMPR
EXC. EURO2 SPECIFICATION<THN> 		9-19168-003-0 02 1 0302-0405 ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 0406-0811 ● ● ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 0812-0812 ● ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 0901- ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-008-0 02 1 9610-9803 ●
23 RING; SNAP,PISTON,AIR CMPR
EURO2 SPECIFICATION<THN> 		9-19168-008-0 02 1 9804-0405 ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-008-0 02 1 0406-0812 ● ●
24 ROD ASM; CONN,AIR CMPR 8-98209-093-0 01 1 1203- ● ●
24 ROD ASM; CONN,AIR CMPR 1-19173-010-0 01 1 9601-9609 ●
24 ROD ASM; CONN,AIR CMPR 1-19173-010-0 01 1 9610-0405 ● ●
24 ROD ASM; CONN,AIR CMPR 1-19173-010-0 01 1 0406-1202 ● ● ●
24 ROD ASM; CONN,AIR CMPR 1-19173-010-0 01 1 1203- ●
24 ROD ASM; CONN,AIR CMPR 1-19173-007-0 01 1 9601-0004 ● ●
24 ROD ASM; CONN,AIR CMPR 1-19173-007-0 01 1 0005- ● ● ●
25 PIN; PISTON,AIR CMPR 1-19167-003-0 01 1 0302-0811 ●
25 PIN; PISTON,AIR CMPR 1-19167-003-0 01 1 0812-0812 ● ●
25 PIN; PISTON,AIR CMPR 1-19167-003-0 01 1 0901- ● ● ● ● ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 9601-0004 ● ● ● ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 0005-0301 ● ● ● ● ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 0302-0405 ● ● ● ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 0406-0811 ● ● ● ● ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 0812-0812 ● ● ● ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 0901- ●
27 BOLT; HD
(B) M10X45 		9-01066-045-0 02 1 9601-9609 ●
27 BOLT; HD
(B) M10X45 		9-01066-045-0 02 1 9610-0004 ● ●
27 BOLT; HD
(B) M10X45 		9-01066-045-0 02 1 0005-0405 ● ● ●
27 BOLT; HD
(B) M10X45 		9-01066-045-0 02 1 0406- ● ● ● ●
27 BOLT; HD
(A) M10X60 		9-01066-060-0 02 1 9601-9609 ●
27 BOLT; HD
(A) M10X60 		9-01066-060-0 02 1 9610-0004 ● ●
27 BOLT; HD
(A) M10X60 		9-01066-060-0 02 1 0005-0405 ● ● ●
27 BOLT; HD
(A) M10X60 		9-01066-060-0 02 1 0406- ● ● ● ●
27 BOLT; HD
(C) M10X60 		9-01066-060-0 04 1 9601- ● ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-01911-025-0 04 1 9806-0004 ●
30 BOLT; CYL TO CRANKCASE
EXC. EURO2 SPECIFICATION<THN> M10X25 		9-01911-025-0 04 1 9806-0004 ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-01911-025-0 04 1 0005-0405 ● ●
30 BOLT; CYL TO CRANKCASE
EXC. EURO2 SPECIFICATION<THN> M10X25 		9-01911-025-0 04 1 0005-0405 ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-01911-025-0 04 1 0406- ● ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-02051-025-0 04 1 9601-9805 ● ● ● ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-02051-025-0 04 1 9806-9904 ● ●
30 BOLT; CYL TO CRANKCASE
FVR STD CAB MIDDLE CHASSIS(FV**MF) EURO2 SPECIFICATION<THN> M10X25 		9-02051-025-0 04 1 9806-9904 ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-02051-025-0 04 1 9905-0405 ● ●
30 BOLT; CYL TO CRANKCASE
EURO2 SPECIFICATION<THN> M10X25 		9-02051-025-0 04 1 9905-0405 ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-02051-025-0 04 1 0406- ● ● ● ●
38 BOLT; COVER FIX 9-81385-023-0 04 1 9601-9803 ●
38 BOLT; COVER FIX 9-81385-023-0 04 1 9804-0405 ●
38 BOLT; COVER FIX
EXC. EURO2 SPECIFICATION<THN> 		9-81385-023-0 04 1 9804-0405 ●
38 BOLT; COVER FIX 9-81385-023-0 04 1 0406- ●
38 BOLT; COVER FIX
M6X16 		9-02050-616-0 06 1 9601- ● ●
38 BOLT; COVER FIX 1-19179-011-0 04 1 9610-9803 ●
38 BOLT; COVER FIX
EURO2 SPECIFICATION<THN> 		1-19179-011-0 04 1 9804-0405 ●
38 BOLT; COVER FIX 1-19179-011-0 04 1 0406- ● ●
38 BOLT; COVER FIX 1-09100-018-0 02 1 0005- ●
43 WASHER; LK,CYL TO CRANKCASE,AIR CMPR
ID=10.2 		9-09150-610-0 04 1 9601-9805 ● ● ● ●
43 WASHER; LK,CYL TO CRANKCASE,AIR CMPR
ID=10.2 		9-09150-610-0 04 1 9806-9904 ● ●
43 WASHER; LK,CYL TO CRANKCASE,AIR CMPR
FVR STD CAB MIDDLE CHASSIS(FV**MF) EURO2 SPECIFICATION<THN> ID=10.2 		9-09150-610-0 04 1 9806-9904 ●
43 WASHER; LK,CYL TO CRANKCASE,AIR CMPR
ID=10.2 		9-09150-610-0 04 1 9905-0405 ● ●
43 WASHER; LK,CYL TO CRANKCASE,AIR CMPR
EURO2 SPECIFICATION<THN> ID=10.2 		9-09150-610-0 04 1 9905-0405 ●
43 WASHER; LK,CYL TO CRANKCASE,AIR CMPR
ID=10.2 		9-09150-610-0 04 1 0406- ● ● ● ●
48 SLEEVE; CR/SHF 1-19179-014-0 01 1 9601-9803 ●
48 SLEEVE; CR/SHF 1-19179-014-0 01 1 9804-0405 ●
48 SLEEVE; CR/SHF
EXC. EURO2 SPECIFICATION<THN> 		1-19179-014-0 01 1 9804-0405 ●
48 SLEEVE; CR/SHF 1-19179-014-0 01 1 0406- ●
48 SLEEVE; CR/SHF 1-19179-018-0 01 1 9811-9904 ●
48 SLEEVE; CR/SHF 1-19179-018-0 01 1 9905- ● ●
48 SLEEVE; CR/SHF 1-19179-024-0 01 1 0005- ●
82 CLIP; AIR COMPRESSOR 1-19159-017-0 01 1 0005- ●
çizim 62727
13 9 15 27 1 10 12 8 13 20 30 15 21 43 12 20 21 23 25 23 24 45 39 38 48 3 7 6 18 2 3 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 LINER KIT; CYL,AIR CMPR 1-19163-053-1 01 1 9601-9803 ●
1 LINER KIT; CYL,AIR CMPR 1-19163-053-2 01 1 9804-0405 ●
1 LINER KIT; CYL,AIR CMPR
EXC. EURO2 SPECIFICATION<THN> 		1-19163-053-2 01 1 9804-0405 ●
1 LINER KIT; CYL,AIR CMPR 1-19163-053-2 01 1 0406-0812 ●
1 LINER KIT; CYL,AIR CMPR 1-19163-074-0 01 1 0901- ●
1 LINER KIT; CYL,AIR CMPR 1-19163-038-0 01 1 9601- ●
1 LINER KIT; CYL,AIR CMPR 1-19163-054-1 01 1 9601-0301 ●
1 LINER KIT; CYL,AIR CMPR 1-19163-060-1 01 1 0302-0811 ●
1 LINER KIT; CYL,AIR CMPR 1-19163-077-0 01 1 0812- ●
1 LINER KIT; CYL,AIR CMPR 1-19163-052-1 01 1 9610-9803 ●
1 LINER KIT; CYL,AIR CMPR
EURO2 SPECIFICATION<THN> 		1-19163-052-1 01 1 9804-0405 ●
1 LINER KIT; CYL,AIR CMPR 1-19163-052-1 01 1 0406-0812 ● ●
1 LINER KIT; CYL,AIR CMPR 1-19163-075-0 01 1 0901- ● ●
1 LINER KIT; CYL,AIR CMPR 1-19163-062-1 01 1 0005- ●
2 CRANKCASE; AIR CMPR 1-19151-266-1 01 1 9601-9803 ●
2 CRANKCASE; AIR CMPR 1-19151-266-1 01 1 9804-0405 ●
2 CRANKCASE; AIR CMPR
EXC. EURO2 SPECIFICATION<THN> 		1-19151-266-1 01 1 9804-0405 ●
2 CRANKCASE; AIR CMPR 1-19151-266-1 01 1 0406- ●
2 CRANKCASE; AIR CMPR 1-19151-277-0 01 1 9601-9810 ● ●
2 CRANKCASE; AIR CMPR 1-19151-277-0 01 1 9811-9904 ●
2 CRANKCASE; AIR CMPR 1-19151-288-0 01 1 9811-9904 ●
2 CRANKCASE; AIR CMPR 1-19151-288-0 01 1 9905- ● ●
2 CRANKCASE; AIR CMPR 1-19151-274-0 01 1 9610-9803 ●
2 CRANKCASE; AIR CMPR
EURO2 SPECIFICATION<THN> 		1-19151-274-0 01 1 9804-0405 ●
2 CRANKCASE; AIR CMPR 1-19151-274-0 01 1 0406- ● ●
2 CRANKCASE; AIR CMPR 1-19151-282-2 01 1 0005- ●
3 BEARING; AIR CMPR
(B) 		9-00006-206-0 01 1 9601-9609 ●
3 BEARING; AIR CMPR
(B) 		9-00006-206-0 01 1 9610-0405 ● ●
3 BEARING; AIR CMPR
(B) 		9-00006-206-0 01 1 0406-1202 ● ● ●
3 BEARING; AIR CMPR
(B) 		9-00006-206-0 01 1 1203- ●
3 BEARING; AIR CMPR
(A) 		9-00090-152-0 01 1 9601-9609 ●
3 BEARING; AIR CMPR
(A) 		9-00090-152-0 01 1 9610-0405 ● ●
3 BEARING; AIR CMPR
(A) 		9-00090-152-0 01 1 0406- ● ● ●
3 BEARING; AIR CMPR
(C) 		1-09800-232-0 02 1 9601- ●
3 BEARING; AIR CMPR
(A) 		1-09800-211-0 02 1 9601-9810 ●
3 BEARING; AIR CMPR
(A) 		1-09800-282-0 02 1 9811- ●
3 BEARING; AIR CMPR
(B) 		1-09800-232-0 01 1 9601- ●
3 BEARING; AIR CMPR
(A) 		1-19177-009-0 01 1 0005- ●
3 BEARING; AIR CMPR
(B) 		1-19177-010-0 01 1 0005- ●
4 CRANKSHAFT; AIR CMPR 1-19171-048-1 01 1 9601-9803 ●
4 CRANKSHAFT; AIR CMPR 1-19171-048-1 01 1 9804-0405 ●
4 CRANKSHAFT; AIR CMPR
EXC. EURO2 SPECIFICATION<THN> 		1-19171-048-1 01 1 9804-0405 ●
4 CRANKSHAFT; AIR CMPR 1-19171-048-1 01 1 0406- ●
4 CRANKSHAFT; AIR CMPR 1-19171-055-1 01 1 9601- ●
4 CRANKSHAFT; AIR CMPR 1-19171-070-0 01 1 9601-9810 ●
4 CRANKSHAFT; AIR CMPR 1-19171-081-1 01 1 9811- ●
4 CRANKSHAFT; AIR CMPR 1-19171-028-0 01 1 9610-9803 ●
4 CRANKSHAFT; AIR CMPR
EURO2 SPECIFICATION<THN> 		1-19171-028-0 01 1 9804-0405 ●
4 CRANKSHAFT; AIR CMPR 1-19171-028-0 01 1 0406-1202 ● ●
4 CRANKSHAFT; AIR CMPR 8-98209-089-0 01 1 1203- ● ●
4 CRANKSHAFT; AIR CMPR 1-19171-074-0 01 1 0005- ●
6 COVER ASM; BRG,AIR CMPR 1-19156-058-1 01 1 9601-9803 ●
6 COVER ASM; BRG,AIR CMPR 1-19156-058-1 01 1 9804-0405 ●
6 COVER ASM; BRG,AIR CMPR
EXC. EURO2 SPECIFICATION<THN> 		1-19156-058-1 01 1 9804-0405 ●
6 COVER ASM; BRG,AIR CMPR 1-19156-058-1 01 1 0406- ●
6 COVER ASM; BRG,AIR CMPR 1-19156-043-0 01 1 9601- ●
6 COVER ASM; BRG,AIR CMPR 1-19156-045-0 01 1 9601-9810 ●
6 COVER ASM; BRG,AIR CMPR 1-19156-080-0 01 1 9811- ●
6 COVER ASM; BRG,AIR CMPR 1-19156-039-0 01 1 9610-9803 ●
6 COVER ASM; BRG,AIR CMPR
EURO2 SPECIFICATION<THN> 		1-19156-039-0 01 1 9804-0405 ●
6 COVER ASM; BRG,AIR CMPR 1-19156-039-0 01 1 0406-1202 ● ●
6 COVER ASM; BRG,AIR CMPR 8-98209-092-0 01 1 1203- ● ●
6 COVER ASM; BRG,AIR CMPR 1-19156-075-1 01 1 0005- ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-19158-026-0 01 1 9601-9803 ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-19158-026-0 01 1 9804-0405 ●
7 SEAL; OIL,BRG COVER,AIR CMPR
EXC. EURO2 SPECIFICATION<THN> 		1-19158-026-0 01 1 9804-0405 ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-19158-026-0 01 1 0406- ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-09625-187-0 01 1 9601-9810 ● ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-09625-187-0 01 1 9811-9904 ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-09625-187-0 01 1 9905-9905 ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-09625-534-0 01 1 9811-9904 ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-09625-534-0 01 1 9905-0004 ● ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-09625-534-0 01 1 0005- ● ● ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-052-1 01 1 9601-9803 ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-052-1 01 1 9804-0405 ●
8 HEAD ASM; CYL,AIR CMPR
EXC. EURO2 SPECIFICATION<THN> 		1-19110-052-1 01 1 9804-0405 ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-052-1 01 1 0406-1107 ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-052-1 01 1 1108- ● ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-016-0 01 1 9601- ● ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-056-1 01 1 9610-9803 ●
8 HEAD ASM; CYL,AIR CMPR
EURO2 SPECIFICATION<THN> 		1-19110-056-1 01 1 9804-0405 ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-056-1 01 1 0406- ● ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-051-0 01 1 0005-1107 ●
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-017-1 01 1 9601-0004 ● ●
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-017-1 01 1 0005-0405 ● ● ●
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-017-1 01 1 0406- ● ● ● ●
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-021-1 01 1 9601- ● ●
10 SHIM; AIR CMPR 9-19139-021-0 01 1 9601- ● ●
12 GASKET; AIR CMPR 8-98185-684-0 01 1 1108- ● ● ● ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 9601-0004 ● ● ● ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 0005-0405 ● ● ● ● ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 0406-1107 ● ● ● ● ● ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 1108- ● ●
13 GASKET; AIR CMPR
(B) 		8-98112-947-0 01 1 0005-0405 ● ●
13 GASKET; AIR CMPR
EXC. EURO2 SPECIFICATION<THN> (B) 		8-98112-947-0 01 1 0005-0405 ●
13 GASKET; AIR CMPR
(B) 		8-98112-947-0 01 1 0406- ● ●
13 GASKET; AIR CMPR
EURO2 SPECIFICATION<THN> (D) 		1-19139-016-0 01 1 0005-0405 ●
13 GASKET; AIR CMPR
(D) 		1-19139-016-0 01 1 0406- ● ●
13 GASKET; AIR CMPR
(C) 		1-19139-017-1 01 1 0302-0811 ●
13 GASKET; AIR CMPR
(C) 		8-98113-037-0 01 1 0812-1402 ●
13 GASKET; AIR CMPR
(C) 		8-98113-037-0 01 1 1403- ● ●
13 GASKET; AIR CMPR
(B) T=0.8 		1-19139-004-0 01 1 9601-9609 ●
13 GASKET; AIR CMPR
(A) 		1-19139-002-0 01 1 9610-9803 ●
13 GASKET; AIR CMPR
EURO2 SPECIFICATION<THN> (A) 		1-19139-002-0 01 1 9804-0004 ●
13 GASKET; AIR CMPR
(B) 		1-09623-626-0 01 1 9806-0004 ●
13 GASKET; AIR CMPR
EXC. EURO2 SPECIFICATION<THN> (B) 		1-09623-626-0 01 1 9806-0004 ●
13 GASKET; AIR CMPR
(B) T=0.8 		1-19139-004-0 01 1 9610-9805 ● ●
13 GASKET; AIR CMPR
EURO2 SPECIFICATION<THN> (B) T=0.8 		1-19139-004-0 01 1 9806-0004 ●
13 GASKET; AIR CMPR
(C) 		1-19139-001-0 01 1 9601-0301 ● ●
13 GASKET; AIR CMPR
(C) 		1-19139-001-0 01 1 0302-1402 ●
15 CYLINDER; AIR CMPR 1-19151-219-0 01 1 9601-9803 ●
15 CYLINDER; AIR CMPR 1-19151-219-0 01 1 9804-0405 ●
15 CYLINDER; AIR CMPR
EXC. EURO2 SPECIFICATION<THN> 		1-19151-219-0 01 1 9804-0405 ●
15 CYLINDER; AIR CMPR 1-19151-219-0 01 1 0406- ●
15 CYLINDER; AIR CMPR 1-19151-251-0 01 1 9601- ● ●
15 CYLINDER; AIR CMPR 1-19151-218-0 01 1 9610-9803 ●
15 CYLINDER; AIR CMPR
EURO2 SPECIFICATION<THN> 		1-19151-218-0 01 1 9804-0405 ●
15 CYLINDER; AIR CMPR 1-19151-218-0 01 1 0406- ● ●
15 CYLINDER; AIR CMPR 1-19151-283-1 01 1 0005- ●
18 KEY; AIR CMPR 9-08055-516-0 01 1 9601- ●
18 KEY; AIR CMPR 1-09735-041-0 01 1 9601- ●
20 RING KIT; PISTON,AIR CMPR 1-19163-058-0 01 1 0812-0812 ●
20 RING KIT; PISTON,AIR CMPR 1-19163-058-0 01 1 0901- ● ● ● ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 01 1 9601-0004 ● ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 01 1 0005-0405 ● ● ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 01 1 0406-0811 ● ● ● ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 01 1 0812-0812 ● ● ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 01 1 0901- ●
20 RING KIT; PISTON,AIR CMPR 1-19163-034-0 01 1 9601- ●
21 PISTON; AIR CMPR 1-19161-027-0 01 1 0812-0812 ●
21 PISTON; AIR CMPR 1-19161-027-0 01 1 0901- ● ● ● ● ●
21 PISTON; AIR CMPR 1-19161-016-0 01 1 9601-0004 ● ● ● ●
21 PISTON; AIR CMPR 1-19161-016-0 01 1 0005-0405 ● ● ● ● ●
21 PISTON; AIR CMPR 1-19161-016-0 01 1 0406-0811 ● ● ● ● ● ●
21 PISTON; AIR CMPR 1-19161-016-0 01 1 0812-0812 ● ● ● ● ●
21 PISTON; AIR CMPR 1-19161-016-0 01 1 0901- ● ●
23 RING; SNAP,PISTON,AIR CMPR 1-19169-004-0 02 1 0302-0811 ●
23 RING; SNAP,PISTON,AIR CMPR 1-19169-004-0 02 1 0812-0812 ● ●
23 RING; SNAP,PISTON,AIR CMPR 1-19169-004-0 02 1 0901- ● ● ● ● ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 9601-9803 ● ● ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 9804-9904 ● ● ●
23 RING; SNAP,PISTON,AIR CMPR
FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. EURO2 SPECIFICATION<THN> 		9-19168-003-0 02 1 9804-9904 ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 9905-9908 ● ● ●
23 RING; SNAP,PISTON,AIR CMPR
EXC. EURO2 SPECIFICATION<THN> 		9-19168-003-0 02 1 9905-9908 ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 9909-9912 ● ● ● ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 0001-0004 ● ● ●
23 RING; SNAP,PISTON,AIR CMPR
EXC. EURO2 SPECIFICATION<THN> 		9-19168-003-0 02 1 0001-0004 ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 0005-0301 ● ● ● ●
23 RING; SNAP,PISTON,AIR CMPR
EXC. EURO2 SPECIFICATION<THN> 		9-19168-003-0 02 1 0005-0301 ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 0302-0405 ● ● ●
23 RING; SNAP,PISTON,AIR CMPR
EXC. EURO2 SPECIFICATION<THN> 		9-19168-003-0 02 1 0302-0405 ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 0406-0811 ● ● ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 0812-0812 ● ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 0901- ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-008-0 02 1 9610-9803 ●
23 RING; SNAP,PISTON,AIR CMPR
EURO2 SPECIFICATION<THN> 		9-19168-008-0 02 1 9804-0405 ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-008-0 02 1 0406-0812 ● ●
24 ROD ASM; CONN,AIR CMPR 8-98209-093-0 01 1 1203- ● ●
24 ROD ASM; CONN,AIR CMPR 1-19173-010-0 01 1 9601-9609 ●
24 ROD ASM; CONN,AIR CMPR 1-19173-010-0 01 1 9610-0405 ● ●
24 ROD ASM; CONN,AIR CMPR 1-19173-010-0 01 1 0406-1202 ● ● ●
24 ROD ASM; CONN,AIR CMPR 1-19173-010-0 01 1 1203- ●
24 ROD ASM; CONN,AIR CMPR 1-19173-007-0 01 1 9601-0004 ● ●
24 ROD ASM; CONN,AIR CMPR 1-19173-007-0 01 1 0005- ● ● ●
25 PIN; PISTON,AIR CMPR 1-19167-003-0 01 1 0302-0811 ●
25 PIN; PISTON,AIR CMPR 1-19167-003-0 01 1 0812-0812 ● ●
25 PIN; PISTON,AIR CMPR 1-19167-003-0 01 1 0901- ● ● ● ● ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 9601-0004 ● ● ● ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 0005-0301 ● ● ● ● ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 0302-0405 ● ● ● ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 0406-0811 ● ● ● ● ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 0812-0812 ● ● ● ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 0901- ●
27 BOLT; HD
(B) M10X45 		9-01066-045-0 02 1 9601-9609 ●
27 BOLT; HD
(B) M10X45 		9-01066-045-0 02 1 9610-0004 ● ●
27 BOLT; HD
(B) M10X45 		9-01066-045-0 02 1 0005-0405 ● ● ●
27 BOLT; HD
(B) M10X45 		9-01066-045-0 02 1 0406- ● ● ● ●
27 BOLT; HD
(A) M10X60 		9-01066-060-0 02 1 9601-9609 ●
27 BOLT; HD
(A) M10X60 		9-01066-060-0 02 1 9610-0004 ● ●
27 BOLT; HD
(A) M10X60 		9-01066-060-0 02 1 0005-0405 ● ● ●
27 BOLT; HD
(A) M10X60 		9-01066-060-0 02 1 0406- ● ● ● ●
27 BOLT; HD
(C) M10X60 		9-01066-060-0 04 1 9601- ● ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-01911-025-0 04 1 9806-0004 ●
30 BOLT; CYL TO CRANKCASE
EXC. EURO2 SPECIFICATION<THN> M10X25 		9-01911-025-0 04 1 9806-0004 ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-01911-025-0 04 1 0005-0405 ● ●
30 BOLT; CYL TO CRANKCASE
EXC. EURO2 SPECIFICATION<THN> M10X25 		9-01911-025-0 04 1 0005-0405 ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-01911-025-0 04 1 0406- ● ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-02051-025-0 04 1 9601-9805 ● ● ● ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-02051-025-0 04 1 9806-9904 ● ●
30 BOLT; CYL TO CRANKCASE
FVR STD CAB MIDDLE CHASSIS(FV**MF) EURO2 SPECIFICATION<THN> M10X25 		9-02051-025-0 04 1 9806-9904 ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-02051-025-0 04 1 9905-0405 ● ●
30 BOLT; CYL TO CRANKCASE
EURO2 SPECIFICATION<THN> M10X25 		9-02051-025-0 04 1 9905-0405 ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-02051-025-0 04 1 0406- ● ● ● ●
38 BOLT; COVER FIX 9-81385-023-0 04 1 9601-9803 ●
38 BOLT; COVER FIX 9-81385-023-0 04 1 9804-0405 ●
38 BOLT; COVER FIX
EXC. EURO2 SPECIFICATION<THN> 		9-81385-023-0 04 1 9804-0405 ●
38 BOLT; COVER FIX 9-81385-023-0 04 1 0406- ●
38 BOLT; COVER FIX
M6X16 		9-02050-616-0 06 1 9601- ● ●
38 BOLT; COVER FIX 1-19179-011-0 04 1 9610-9803 ●
38 BOLT; COVER FIX
EURO2 SPECIFICATION<THN> 		1-19179-011-0 04 1 9804-0405 ●
38 BOLT; COVER FIX 1-19179-011-0 04 1 0406- ● ●
38 BOLT; COVER FIX 1-09100-018-0 02 1 0005- ●
39 WASHER; LK,COVER FIX
ID=8.2 		9-09150-608-0 04 1 9601-9609 ●
39 WASHER; LK,COVER FIX
ID=8.2 		9-09150-608-0 04 1 9610-0405 ● ●
39 WASHER; LK,COVER FIX
ID=8.2 		9-09150-608-0 04 1 0406- ● ● ●
39 WASHER; LK,COVER FIX
ID=6.1 		9-09150-506-0 06 1 9601-9810 ● ●
39 WASHER; LK,COVER FIX
ID=6.1 		9-09150-506-0 06 1 9811- ●
39 WASHER; LK,COVER FIX
ID=10.2 		9-09150-510-0 06 1 9811- ●
43 WASHER; LK,CYL TO CRANKCASE,AIR CMPR
ID=10.2 		9-09150-610-0 04 1 9601-9805 ● ● ● ●
43 WASHER; LK,CYL TO CRANKCASE,AIR CMPR
ID=10.2 		9-09150-610-0 04 1 9806-9904 ● ●
43 WASHER; LK,CYL TO CRANKCASE,AIR CMPR
FVR STD CAB MIDDLE CHASSIS(FV**MF) EURO2 SPECIFICATION<THN> ID=10.2 		9-09150-610-0 04 1 9806-9904 ●
43 WASHER; LK,CYL TO CRANKCASE,AIR CMPR
ID=10.2 		9-09150-610-0 04 1 9905-0405 ● ●
43 WASHER; LK,CYL TO CRANKCASE,AIR CMPR
EURO2 SPECIFICATION<THN> ID=10.2 		9-09150-610-0 04 1 9905-0405 ●
43 WASHER; LK,CYL TO CRANKCASE,AIR CMPR
ID=10.2 		9-09150-610-0 04 1 0406- ● ● ● ●
45 WASHER; PL,COVER FIX,AIR CMPR
ID=8.4 		9-09160-508-0 04 1 9601-9803 ●
45 WASHER; PL,COVER FIX,AIR CMPR
ID=8.4 		9-09160-508-0 04 1 9804-0405 ●
45 WASHER; PL,COVER FIX,AIR CMPR
EXC. EURO2 SPECIFICATION<THN> ID=8.4 		9-09160-508-0 04 1 9804-0405 ●
45 WASHER; PL,COVER FIX,AIR CMPR
ID=8.4 		9-09160-508-0 04 1 0406- ●
45 WASHER; PL,COVER FIX,AIR CMPR 1-19159-005-0 06 1 9601- ● ●
48 SLEEVE; CR/SHF 1-19179-014-0 01 1 9601-9803 ●
48 SLEEVE; CR/SHF 1-19179-014-0 01 1 9804-0405 ●
48 SLEEVE; CR/SHF
EXC. EURO2 SPECIFICATION<THN> 		1-19179-014-0 01 1 9804-0405 ●
48 SLEEVE; CR/SHF 1-19179-014-0 01 1 0406- ●
48 SLEEVE; CR/SHF 1-19179-018-0 01 1 9811-9904 ●
48 SLEEVE; CR/SHF 1-19179-018-0 01 1 9905- ● ●
48 SLEEVE; CR/SHF 1-19179-024-0 01 1 0005- ●
çizim 184242
9 27 8 10 13 13 15 30 15 1 12 43 12 20 20 21 23 25 23 21 24 3 46 3 48 7 45 39 18 2 3 38 4 6
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 LINER KIT; CYL,AIR CMPR 1-19163-053-1 01 1 9601-9803 ●
1 LINER KIT; CYL,AIR CMPR 1-19163-053-2 01 1 9804-0405 ●
1 LINER KIT; CYL,AIR CMPR
EXC. EURO2 SPECIFICATION<THN> 		1-19163-053-2 01 1 9804-0405 ●
1 LINER KIT; CYL,AIR CMPR 1-19163-053-2 01 1 0406-0812 ●
1 LINER KIT; CYL,AIR CMPR 1-19163-074-0 01 1 0901- ●
1 LINER KIT; CYL,AIR CMPR 1-19163-038-0 01 1 9601- ●
1 LINER KIT; CYL,AIR CMPR 1-19163-054-1 01 1 9601-0301 ●
1 LINER KIT; CYL,AIR CMPR 1-19163-060-1 01 1 0302-0811 ●
1 LINER KIT; CYL,AIR CMPR 1-19163-077-0 01 1 0812- ●
1 LINER KIT; CYL,AIR CMPR 1-19163-052-1 01 1 9610-9803 ●
1 LINER KIT; CYL,AIR CMPR
EURO2 SPECIFICATION<THN> 		1-19163-052-1 01 1 9804-0405 ●
1 LINER KIT; CYL,AIR CMPR 1-19163-052-1 01 1 0406-0812 ● ●
1 LINER KIT; CYL,AIR CMPR 1-19163-075-0 01 1 0901- ● ●
1 LINER KIT; CYL,AIR CMPR 1-19163-062-1 01 1 0005- ●
2 CRANKCASE; AIR CMPR 1-19151-266-1 01 1 9601-9803 ●
2 CRANKCASE; AIR CMPR 1-19151-266-1 01 1 9804-0405 ●
2 CRANKCASE; AIR CMPR
EXC. EURO2 SPECIFICATION<THN> 		1-19151-266-1 01 1 9804-0405 ●
2 CRANKCASE; AIR CMPR 1-19151-266-1 01 1 0406- ●
2 CRANKCASE; AIR CMPR 1-19151-277-0 01 1 9601-9810 ● ●
2 CRANKCASE; AIR CMPR 1-19151-277-0 01 1 9811-9904 ●
2 CRANKCASE; AIR CMPR 1-19151-288-0 01 1 9811-9904 ●
2 CRANKCASE; AIR CMPR 1-19151-288-0 01 1 9905- ● ●
2 CRANKCASE; AIR CMPR 1-19151-274-0 01 1 9610-9803 ●
2 CRANKCASE; AIR CMPR
EURO2 SPECIFICATION<THN> 		1-19151-274-0 01 1 9804-0405 ●
2 CRANKCASE; AIR CMPR 1-19151-274-0 01 1 0406- ● ●
2 CRANKCASE; AIR CMPR 1-19151-282-2 01 1 0005- ●
3 BEARING; AIR CMPR
(B) 		9-00006-206-0 01 1 9601-9609 ●
3 BEARING; AIR CMPR
(B) 		9-00006-206-0 01 1 9610-0405 ● ●
3 BEARING; AIR CMPR
(B) 		9-00006-206-0 01 1 0406-1202 ● ● ●
3 BEARING; AIR CMPR
(B) 		9-00006-206-0 01 1 1203- ●
3 BEARING; AIR CMPR
(A) 		9-00090-152-0 01 1 9601-9609 ●
3 BEARING; AIR CMPR
(A) 		9-00090-152-0 01 1 9610-0405 ● ●
3 BEARING; AIR CMPR
(A) 		9-00090-152-0 01 1 0406- ● ● ●
3 BEARING; AIR CMPR
(C) 		1-09800-232-0 02 1 9601- ●
3 BEARING; AIR CMPR
(A) 		1-09800-211-0 02 1 9601-9810 ●
3 BEARING; AIR CMPR
(A) 		1-09800-282-0 02 1 9811- ●
3 BEARING; AIR CMPR
(B) 		1-09800-232-0 01 1 9601- ●
3 BEARING; AIR CMPR
(A) 		1-19177-009-0 01 1 0005- ●
3 BEARING; AIR CMPR
(B) 		1-19177-010-0 01 1 0005- ●
4 CRANKSHAFT; AIR CMPR 1-19171-048-1 01 1 9601-9803 ●
4 CRANKSHAFT; AIR CMPR 1-19171-048-1 01 1 9804-0405 ●
4 CRANKSHAFT; AIR CMPR
EXC. EURO2 SPECIFICATION<THN> 		1-19171-048-1 01 1 9804-0405 ●
4 CRANKSHAFT; AIR CMPR 1-19171-048-1 01 1 0406- ●
4 CRANKSHAFT; AIR CMPR 1-19171-055-1 01 1 9601- ●
4 CRANKSHAFT; AIR CMPR 1-19171-070-0 01 1 9601-9810 ●
4 CRANKSHAFT; AIR CMPR 1-19171-081-1 01 1 9811- ●
4 CRANKSHAFT; AIR CMPR 1-19171-028-0 01 1 9610-9803 ●
4 CRANKSHAFT; AIR CMPR
EURO2 SPECIFICATION<THN> 		1-19171-028-0 01 1 9804-0405 ●
4 CRANKSHAFT; AIR CMPR 1-19171-028-0 01 1 0406-1202 ● ●
4 CRANKSHAFT; AIR CMPR 8-98209-089-0 01 1 1203- ● ●
4 CRANKSHAFT; AIR CMPR 1-19171-074-0 01 1 0005- ●
6 COVER ASM; BRG,AIR CMPR 1-19156-058-1 01 1 9601-9803 ●
6 COVER ASM; BRG,AIR CMPR 1-19156-058-1 01 1 9804-0405 ●
6 COVER ASM; BRG,AIR CMPR
EXC. EURO2 SPECIFICATION<THN> 		1-19156-058-1 01 1 9804-0405 ●
6 COVER ASM; BRG,AIR CMPR 1-19156-058-1 01 1 0406- ●
6 COVER ASM; BRG,AIR CMPR 1-19156-043-0 01 1 9601- ●
6 COVER ASM; BRG,AIR CMPR 1-19156-045-0 01 1 9601-9810 ●
6 COVER ASM; BRG,AIR CMPR 1-19156-080-0 01 1 9811- ●
6 COVER ASM; BRG,AIR CMPR 1-19156-039-0 01 1 9610-9803 ●
6 COVER ASM; BRG,AIR CMPR
EURO2 SPECIFICATION<THN> 		1-19156-039-0 01 1 9804-0405 ●
6 COVER ASM; BRG,AIR CMPR 1-19156-039-0 01 1 0406-1202 ● ●
6 COVER ASM; BRG,AIR CMPR 8-98209-092-0 01 1 1203- ● ●
6 COVER ASM; BRG,AIR CMPR 1-19156-075-1 01 1 0005- ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-19158-026-0 01 1 9601-9803 ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-19158-026-0 01 1 9804-0405 ●
7 SEAL; OIL,BRG COVER,AIR CMPR
EXC. EURO2 SPECIFICATION<THN> 		1-19158-026-0 01 1 9804-0405 ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-19158-026-0 01 1 0406- ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-09625-187-0 01 1 9601-9810 ● ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-09625-187-0 01 1 9811-9904 ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-09625-187-0 01 1 9905-9905 ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-09625-534-0 01 1 9811-9904 ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-09625-534-0 01 1 9905-0004 ● ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-09625-534-0 01 1 0005- ● ● ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-052-1 01 1 9601-9803 ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-052-1 01 1 9804-0405 ●
8 HEAD ASM; CYL,AIR CMPR
EXC. EURO2 SPECIFICATION<THN> 		1-19110-052-1 01 1 9804-0405 ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-052-1 01 1 0406-1107 ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-052-1 01 1 1108- ● ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-016-0 01 1 9601- ● ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-056-1 01 1 9610-9803 ●
8 HEAD ASM; CYL,AIR CMPR
EURO2 SPECIFICATION<THN> 		1-19110-056-1 01 1 9804-0405 ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-056-1 01 1 0406- ● ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-051-0 01 1 0005-1107 ●
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-017-1 01 1 9601-0004 ● ●
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-017-1 01 1 0005-0405 ● ● ●
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-017-1 01 1 0406- ● ● ● ●
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-021-1 01 1 9601- ● ●
10 SHIM; AIR CMPR 9-19139-021-0 01 1 9601- ● ●
12 GASKET; AIR CMPR 8-98185-684-0 01 1 1108- ● ● ● ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 9601-0004 ● ● ● ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 0005-0405 ● ● ● ● ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 0406-1107 ● ● ● ● ● ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 1108- ● ●
13 GASKET; AIR CMPR
(B) 		8-98112-947-0 01 1 0005-0405 ● ●
13 GASKET; AIR CMPR
EXC. EURO2 SPECIFICATION<THN> (B) 		8-98112-947-0 01 1 0005-0405 ●
13 GASKET; AIR CMPR
(B) 		8-98112-947-0 01 1 0406- ● ●
13 GASKET; AIR CMPR
EURO2 SPECIFICATION<THN> (D) 		1-19139-016-0 01 1 0005-0405 ●
13 GASKET; AIR CMPR
(D) 		1-19139-016-0 01 1 0406- ● ●
13 GASKET; AIR CMPR
(C) 		1-19139-017-1 01 1 0302-0811 ●
13 GASKET; AIR CMPR
(C) 		8-98113-037-0 01 1 0812-1402 ●
13 GASKET; AIR CMPR
(C) 		8-98113-037-0 01 1 1403- ● ●
13 GASKET; AIR CMPR
(B) T=0.8 		1-19139-004-0 01 1 9601-9609 ●
13 GASKET; AIR CMPR
(A) 		1-19139-002-0 01 1 9610-9803 ●
13 GASKET; AIR CMPR
EURO2 SPECIFICATION<THN> (A) 		1-19139-002-0 01 1 9804-0004 ●
13 GASKET; AIR CMPR
(B) 		1-09623-626-0 01 1 9806-0004 ●
13 GASKET; AIR CMPR
EXC. EURO2 SPECIFICATION<THN> (B) 		1-09623-626-0 01 1 9806-0004 ●
13 GASKET; AIR CMPR
(B) T=0.8 		1-19139-004-0 01 1 9610-9805 ● ●
13 GASKET; AIR CMPR
EURO2 SPECIFICATION<THN> (B) T=0.8 		1-19139-004-0 01 1 9806-0004 ●
13 GASKET; AIR CMPR
(C) 		1-19139-001-0 01 1 9601-0301 ● ●
13 GASKET; AIR CMPR
(C) 		1-19139-001-0 01 1 0302-1402 ●
15 CYLINDER; AIR CMPR 1-19151-219-0 01 1 9601-9803 ●
15 CYLINDER; AIR CMPR 1-19151-219-0 01 1 9804-0405 ●
15 CYLINDER; AIR CMPR
EXC. EURO2 SPECIFICATION<THN> 		1-19151-219-0 01 1 9804-0405 ●
15 CYLINDER; AIR CMPR 1-19151-219-0 01 1 0406- ●
15 CYLINDER; AIR CMPR 1-19151-251-0 01 1 9601- ● ●
15 CYLINDER; AIR CMPR 1-19151-218-0 01 1 9610-9803 ●
15 CYLINDER; AIR CMPR
EURO2 SPECIFICATION<THN> 		1-19151-218-0 01 1 9804-0405 ●
15 CYLINDER; AIR CMPR 1-19151-218-0 01 1 0406- ● ●
15 CYLINDER; AIR CMPR 1-19151-283-1 01 1 0005- ●
18 KEY; AIR CMPR 9-08055-516-0 01 1 9601- ●
18 KEY; AIR CMPR 1-09735-041-0 01 1 9601- ●
20 RING KIT; PISTON,AIR CMPR 1-19163-058-0 01 1 0812-0812 ●
20 RING KIT; PISTON,AIR CMPR 1-19163-058-0 01 1 0901- ● ● ● ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 01 1 9601-0004 ● ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 01 1 0005-0405 ● ● ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 01 1 0406-0811 ● ● ● ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 01 1 0812-0812 ● ● ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 01 1 0901- ●
20 RING KIT; PISTON,AIR CMPR 1-19163-034-0 01 1 9601- ●
21 PISTON; AIR CMPR 1-19161-027-0 01 1 0812-0812 ●
21 PISTON; AIR CMPR 1-19161-027-0 01 1 0901- ● ● ● ● ●
21 PISTON; AIR CMPR 1-19161-016-0 01 1 9601-0004 ● ● ● ●
21 PISTON; AIR CMPR 1-19161-016-0 01 1 0005-0405 ● ● ● ● ●
21 PISTON; AIR CMPR 1-19161-016-0 01 1 0406-0811 ● ● ● ● ● ●
21 PISTON; AIR CMPR 1-19161-016-0 01 1 0812-0812 ● ● ● ● ●
21 PISTON; AIR CMPR 1-19161-016-0 01 1 0901- ● ●
23 RING; SNAP,PISTON,AIR CMPR 1-19169-004-0 02 1 0302-0811 ●
23 RING; SNAP,PISTON,AIR CMPR 1-19169-004-0 02 1 0812-0812 ● ●
23 RING; SNAP,PISTON,AIR CMPR 1-19169-004-0 02 1 0901- ● ● ● ● ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 9601-9803 ● ● ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 9804-9904 ● ● ●
23 RING; SNAP,PISTON,AIR CMPR
FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. EURO2 SPECIFICATION<THN> 		9-19168-003-0 02 1 9804-9904 ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 9905-9908 ● ● ●
23 RING; SNAP,PISTON,AIR CMPR
EXC. EURO2 SPECIFICATION<THN> 		9-19168-003-0 02 1 9905-9908 ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 9909-9912 ● ● ● ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 0001-0004 ● ● ●
23 RING; SNAP,PISTON,AIR CMPR
EXC. EURO2 SPECIFICATION<THN> 		9-19168-003-0 02 1 0001-0004 ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 0005-0301 ● ● ● ●
23 RING; SNAP,PISTON,AIR CMPR
EXC. EURO2 SPECIFICATION<THN> 		9-19168-003-0 02 1 0005-0301 ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 0302-0405 ● ● ●
23 RING; SNAP,PISTON,AIR CMPR
EXC. EURO2 SPECIFICATION<THN> 		9-19168-003-0 02 1 0302-0405 ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 0406-0811 ● ● ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 0812-0812 ● ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 0901- ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-008-0 02 1 9610-9803 ●
23 RING; SNAP,PISTON,AIR CMPR
EURO2 SPECIFICATION<THN> 		9-19168-008-0 02 1 9804-0405 ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-008-0 02 1 0406-0812 ● ●
24 ROD ASM; CONN,AIR CMPR 8-98209-093-0 01 1 1203- ● ●
24 ROD ASM; CONN,AIR CMPR 1-19173-010-0 01 1 9601-9609 ●
24 ROD ASM; CONN,AIR CMPR 1-19173-010-0 01 1 9610-0405 ● ●
24 ROD ASM; CONN,AIR CMPR 1-19173-010-0 01 1 0406-1202 ● ● ●
24 ROD ASM; CONN,AIR CMPR 1-19173-010-0 01 1 1203- ●
24 ROD ASM; CONN,AIR CMPR 1-19173-007-0 01 1 9601-0004 ● ●
24 ROD ASM; CONN,AIR CMPR 1-19173-007-0 01 1 0005- ● ● ●
25 PIN; PISTON,AIR CMPR 1-19167-003-0 01 1 0302-0811 ●
25 PIN; PISTON,AIR CMPR 1-19167-003-0 01 1 0812-0812 ● ●
25 PIN; PISTON,AIR CMPR 1-19167-003-0 01 1 0901- ● ● ● ● ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 9601-0004 ● ● ● ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 0005-0301 ● ● ● ● ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 0302-0405 ● ● ● ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 0406-0811 ● ● ● ● ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 0812-0812 ● ● ● ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 0901- ●
27 BOLT; HD
(B) M10X45 		9-01066-045-0 02 1 9601-9609 ●
27 BOLT; HD
(B) M10X45 		9-01066-045-0 02 1 9610-0004 ● ●
27 BOLT; HD
(B) M10X45 		9-01066-045-0 02 1 0005-0405 ● ● ●
27 BOLT; HD
(B) M10X45 		9-01066-045-0 02 1 0406- ● ● ● ●
27 BOLT; HD
(A) M10X60 		9-01066-060-0 02 1 9601-9609 ●
27 BOLT; HD
(A) M10X60 		9-01066-060-0 02 1 9610-0004 ● ●
27 BOLT; HD
(A) M10X60 		9-01066-060-0 02 1 0005-0405 ● ● ●
27 BOLT; HD
(A) M10X60 		9-01066-060-0 02 1 0406- ● ● ● ●
27 BOLT; HD
(C) M10X60 		9-01066-060-0 04 1 9601- ● ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-01911-025-0 04 1 9806-0004 ●
30 BOLT; CYL TO CRANKCASE
EXC. EURO2 SPECIFICATION<THN> M10X25 		9-01911-025-0 04 1 9806-0004 ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-01911-025-0 04 1 0005-0405 ● ●
30 BOLT; CYL TO CRANKCASE
EXC. EURO2 SPECIFICATION<THN> M10X25 		9-01911-025-0 04 1 0005-0405 ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-01911-025-0 04 1 0406- ● ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-02051-025-0 04 1 9601-9805 ● ● ● ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-02051-025-0 04 1 9806-9904 ● ●
30 BOLT; CYL TO CRANKCASE
FVR STD CAB MIDDLE CHASSIS(FV**MF) EURO2 SPECIFICATION<THN> M10X25 		9-02051-025-0 04 1 9806-9904 ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-02051-025-0 04 1 9905-0405 ● ●
30 BOLT; CYL TO CRANKCASE
EURO2 SPECIFICATION<THN> M10X25 		9-02051-025-0 04 1 9905-0405 ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-02051-025-0 04 1 0406- ● ● ● ●
38 BOLT; COVER FIX 9-81385-023-0 04 1 9601-9803 ●
38 BOLT; COVER FIX 9-81385-023-0 04 1 9804-0405 ●
38 BOLT; COVER FIX
EXC. EURO2 SPECIFICATION<THN> 		9-81385-023-0 04 1 9804-0405 ●
38 BOLT; COVER FIX 9-81385-023-0 04 1 0406- ●
38 BOLT; COVER FIX
M6X16 		9-02050-616-0 06 1 9601- ● ●
38 BOLT; COVER FIX 1-19179-011-0 04 1 9610-9803 ●
38 BOLT; COVER FIX
EURO2 SPECIFICATION<THN> 		1-19179-011-0 04 1 9804-0405 ●
38 BOLT; COVER FIX 1-19179-011-0 04 1 0406- ● ●
38 BOLT; COVER FIX 1-09100-018-0 02 1 0005- ●
39 WASHER; LK,COVER FIX
ID=8.2 		9-09150-608-0 04 1 9601-9609 ●
39 WASHER; LK,COVER FIX
ID=8.2 		9-09150-608-0 04 1 9610-0405 ● ●
39 WASHER; LK,COVER FIX
ID=8.2 		9-09150-608-0 04 1 0406- ● ● ●
39 WASHER; LK,COVER FIX
ID=6.1 		9-09150-506-0 06 1 9601-9810 ● ●
39 WASHER; LK,COVER FIX
ID=6.1 		9-09150-506-0 06 1 9811- ●
39 WASHER; LK,COVER FIX
ID=10.2 		9-09150-510-0 06 1 9811- ●
43 WASHER; LK,CYL TO CRANKCASE,AIR CMPR
ID=10.2 		9-09150-610-0 04 1 9601-9805 ● ● ● ●
43 WASHER; LK,CYL TO CRANKCASE,AIR CMPR
ID=10.2 		9-09150-610-0 04 1 9806-9904 ● ●
43 WASHER; LK,CYL TO CRANKCASE,AIR CMPR
FVR STD CAB MIDDLE CHASSIS(FV**MF) EURO2 SPECIFICATION<THN> ID=10.2 		9-09150-610-0 04 1 9806-9904 ●
43 WASHER; LK,CYL TO CRANKCASE,AIR CMPR
ID=10.2 		9-09150-610-0 04 1 9905-0405 ● ●
43 WASHER; LK,CYL TO CRANKCASE,AIR CMPR
EURO2 SPECIFICATION<THN> ID=10.2 		9-09150-610-0 04 1 9905-0405 ●
43 WASHER; LK,CYL TO CRANKCASE,AIR CMPR
ID=10.2 		9-09150-610-0 04 1 0406- ● ● ● ●
45 WASHER; PL,COVER FIX,AIR CMPR
ID=8.4 		9-09160-508-0 04 1 9601-9803 ●
45 WASHER; PL,COVER FIX,AIR CMPR
ID=8.4 		9-09160-508-0 04 1 9804-0405 ●
45 WASHER; PL,COVER FIX,AIR CMPR
EXC. EURO2 SPECIFICATION<THN> ID=8.4 		9-09160-508-0 04 1 9804-0405 ●
45 WASHER; PL,COVER FIX,AIR CMPR
ID=8.4 		9-09160-508-0 04 1 0406- ●
45 WASHER; PL,COVER FIX,AIR CMPR 1-19159-005-0 06 1 9601- ● ●
46 SPACER; BRG 1-19179-010-0 01 1 9601- ●
48 SLEEVE; CR/SHF 1-19179-014-0 01 1 9601-9803 ●
48 SLEEVE; CR/SHF 1-19179-014-0 01 1 9804-0405 ●
48 SLEEVE; CR/SHF
EXC. EURO2 SPECIFICATION<THN> 		1-19179-014-0 01 1 9804-0405 ●
48 SLEEVE; CR/SHF 1-19179-014-0 01 1 0406- ●
48 SLEEVE; CR/SHF 1-19179-018-0 01 1 9811-9904 ●
48 SLEEVE; CR/SHF 1-19179-018-0 01 1 9905- ● ●
48 SLEEVE; CR/SHF 1-19179-024-0 01 1 0005- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
