Sayfa 0-37 - Isuzu EPC

0-37 — TURBOCHARGER (#64379) — 417 parça

7 41 42 12 23 21 2 44 23 45 20 17 17 17 18 36 3 136 5 22 6 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: E = 8-94394-457-3	1-14415-088-1	01	1	-
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: A = 1-14400-339-5, B = 1-14400-356-1	1-14415-102-1	01	1	-
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: D = 8-94390-650-0	1-14415-103-0	01	1	-
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: F = 8-97601-974-0	1-14415-110-0	01	1	-
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: C = 1-14400-407-4	1-14415-129-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: E = 8-94394-457-3	1-14451-030-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: A = 1-14400-339-5	1-14451-054-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: B = 1-14400-356-1	1-14451-058-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: C = 1-14400-407-4	1-14451-070-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: D = 8-94390-650-0	1-14452-018-0	01	1	-
3	HOUSING; BRG,TURBOCHARGER ASM PART: D = 8-94390-650-0	1-14411-029-0	01	1	-
3	HOUSING; BRG,TURBOCHARGER ASM PART: E = 8-94394-457-3	1-14411-037-0	01	1	-
3	HOUSING; BRG,TURBOCHARGER ASM PART: A = 1-14400-339-5, B = 1-14400-356-1	1-14411-056-0	01	1	-
3	HOUSING; BRG,TURBOCHARGER ASM PART: C = 1-14400-407-4	1-14411-069-0	01	1	-
5	PROTECTOR; HEAT,TURBOCHARGER ASM PART: C = 1-14400-407-4	1-14419-166-0	01	1	-
5	PROTECTOR; HEAT,TURBOCHARGER ASM PART: E = 8-94394-457-3	1-14425-016-0	01	1	-
5	PROTECTOR; HEAT,TURBOCHARGER ASM PART: A = 1-14400-339-5, B = 1-14400-356-1	1-14425-027-0	01	1	-
5	PROTECTOR; HEAT,TURBOCHARGER ASM PART: D = 8-94390-650-0	5-14429-003-0	01	1	-
6	SHAFT; TURBINE,TURBOCHARGER ASM PART: E = 8-94394-457-3	1-14450-036-0	01	1	-
6	SHAFT; TURBINE,TURBOCHARGER ASM PART: A = 1-14400-339-5, B = 1-14400-356-1	1-14450-051-1	01	1	-
6	SHAFT; TURBINE,TURBOCHARGER ASM PART: C = 1-14400-407-4	1-14450-057-0	01	1	-
6	SHAFT; TURBINE,TURBOCHARGER ASM PART: D = 8-94390-650-0	1-14451-038-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: E = 8-94394-457-3	1-14414-063-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: A = 1-14400-339-5	1-14414-081-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: B = 1-14400-356-1	1-14414-098-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: D = 8-94390-650-0	1-14414-100-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: F = 8-97601-974-0	1-14414-109-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: C = 1-14400-407-4	1-14414-115-0	01	1	-
12	NUT; LK,TURBINE SHAFT TO IMPELLER,TC ASM PART: A = 1-14400-339-5, B = 1-14400-356-1, E = 8-94394-457-3	1-09400-041-0	01	1	-
12	NUT; LK,TURBINE SHAFT TO IMPELLER,TC ASM PART: D = 8-94390-650-0	1-14459-021-0	01	1	-
12	NUT; LK,TURBINE SHAFT TO IMPELLER,TC ASM PART: C = 1-14400-407-4	1-14459-057-0	01	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (C) ASM PART: D = 8-94390-650-0	1-14419-083-0	04	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (A) ASM PART: C = 1-14400-407-4	1-14419-117-0	01	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (C) ASM PART: E = 8-94394-457-3	1-14455-025-0	04	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (C) ASM PART: A = 1-14400-339-5, B = 1-14400-356-1	1-14455-025-0	03	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (B) ASM PART: C = 1-14400-407-4	1-14459-062-0	02	1	-
18	SCREW; THRUST BRG,TURBOCHARGER ASM PART: A = 1-14400-339-5, B = 1-14400-356-1, E = 8-94394-457-3	1-09100-016-0	04	1	-
20	BUSHING; THRUST,TURBOCHARGER ASM PART: E = 8-94394-457-3	1-14453-034-0	01	1	-
20	BUSHING; THRUST,TURBOCHARGER ASM PART: A = 1-14400-339-5, B = 1-14400-356-1	1-14453-073-0	01	1	-
21	THROWER; OIL,TURBOCHARGER ASM PART: E = 8-94394-457-3	1-14455-032-0	01	1	-
21	THROWER; OIL,TURBOCHARGER ASM PART: A = 1-14400-339-5, B = 1-14400-356-1	1-14455-037-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER (A) ASM PART: D = 8-94390-650-0	1-14419-102-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER (B) ASM PART: D = 8-94390-650-0	1-14429-059-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER (C) ASM PART: A = 1-14400-339-5, B = 1-14400-356-1, E = 8-94394-457-3	1-14453-037-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER (D) ASM PART: C = 1-14400-407-4	1-14459-063-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (A) ASM PART: A = 1-14400-339-5, B = 1-14400-356-1, E = 8-94394-457-3	1-14453-035-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (B) ASM PART: A = 1-14400-339-5, B = 1-14400-356-1, E = 8-94394-457-3	1-14453-036-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (D) ASM PART: C = 1-14400-407-4	1-14459-059-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (C) ASM PART: D = 8-94390-650-0	5-14419-010-0	01	1	-
36	BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE ASM PART: E = 8-94394-457-3	1-09000-405-0	08	1	-
36	BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE ASM PART: A = 1-14400-339-5, B = 1-14400-356-1	1-09000-611-0	08	1	-
36	BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE ASM PART: D = 8-94390-650-0	1-14419-104-0	06	1	-
36	BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE ASM PART: C = 1-14400-407-4	1-14419-165-0	10	1	-
41	PLATE; LK,BLOWER HSG,TURBOCHARGER ASM PART: D = 8-94390-650-0	1-14419-093-0	02	1	-
41	PLATE; LK,BLOWER HSG,TURBOCHARGER ASM PART: F = 8-97601-974-0	1-14419-151-0	03	1	-
41	PLATE; LK,BLOWER HSG,TURBOCHARGER ASM PART: E = 8-94394-457-3	1-14421-016-0	04	1	-
41	PLATE; LK,BLOWER HSG,TURBOCHARGER ASM PART: A = 1-14400-339-5, B = 1-14400-356-1	1-14421-016-0	06	1	-
42	BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER ASM PART: A = 1-14400-339-5, B = 1-14400-356-1, E = 8-94394-457-3	1-09000-404-0	06	1	-
42	BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER ASM PART: D = 8-94390-650-0	1-14419-105-0	06	1	-
42	BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER ASM PART: F = 8-97601-974-0	1-14419-150-0	16	1	-
44	PLATE; SEAL,TURBOCHARGER ASM PART: E = 8-94394-457-3	1-14425-011-0	01	1	-
44	PLATE; SEAL,TURBOCHARGER ASM PART: A = 1-14400-339-5, B = 1-14400-356-1	1-14425-026-0	01	1	-
44	PLATE; SEAL,TURBOCHARGER ASM PART: D = 8-94390-650-0	1-14459-053-0	01	1	-
45	SCREW; SEAL PLATE,TURBOCHARGER ASM PART: E = 8-94394-457-3	1-09100-014-0	04	1	-
45	SCREW; SEAL PLATE,TURBOCHARGER ASM PART: A = 1-14400-339-5, B = 1-14400-356-1	1-09100-026-0	04	1	-
45	SCREW; SEAL PLATE,TURBOCHARGER ASM PART: D = 8-94390-650-0	1-14419-143-0	04	1	-
136	GASKET; TURBINE HSG,TURBOCHARGER ASM PART: A = 1-14400-339-5, B = 1-14400-356-1	1-14412-007-0	01	1	-

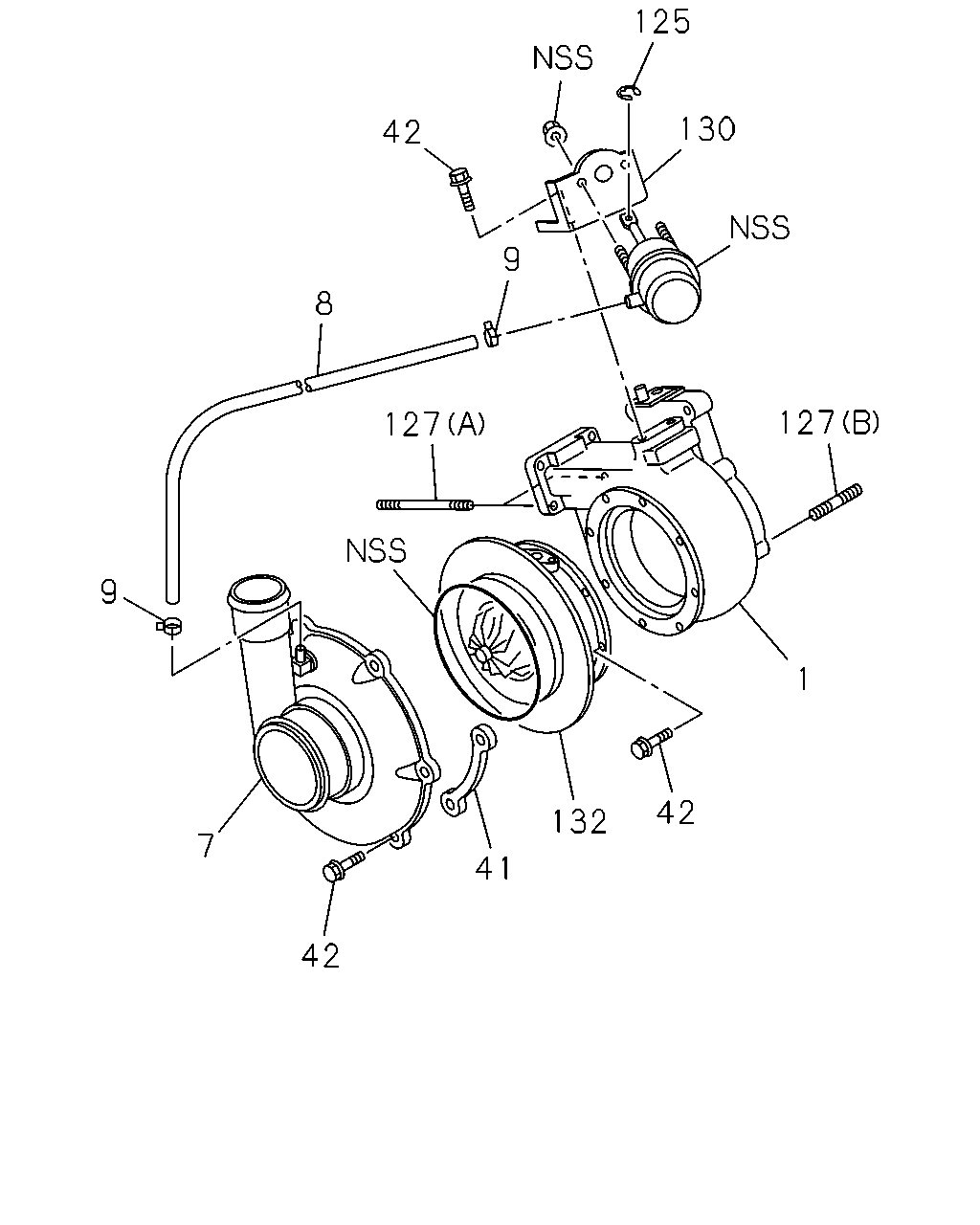

125 130 42 9 8 127 127 9 1 42 132 7 41 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: E = 8-94394-457-3	1-14415-088-1	01	1	-
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: A = 1-14400-339-5, B = 1-14400-356-1	1-14415-102-1	01	1	-
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: D = 8-94390-650-0	1-14415-103-0	01	1	-
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: F = 8-97601-974-0	1-14415-110-0	01	1	-
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: C = 1-14400-407-4	1-14415-129-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: E = 8-94394-457-3	1-14414-063-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: A = 1-14400-339-5	1-14414-081-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: B = 1-14400-356-1	1-14414-098-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: D = 8-94390-650-0	1-14414-100-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: F = 8-97601-974-0	1-14414-109-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: C = 1-14400-407-4	1-14414-115-0	01	1	-
8	HOSE; ACTUATOR TO BLOWER HSG,TC ASM PART: F = 8-97601-974-0	1-14419-133-0	01	1	-
8	HOSE; ACTUATOR TO BLOWER HSG,TC ASM PART: D = 8-94390-650-0, G = 8-98162-141-0	1-14419-145-0	01	1	-
8	HOSE; ACTUATOR TO BLOWER HSG,TC ASM PART: E = 8-94394-457-3	1-14469-010-0	01	1	-
9	CLIP; ACTUATOR HOSE,TURBOCHARGER ASM PART: D = 8-94390-650-0, F = 8-97601-974-0, G = 8-98162-141-0	1-14419-134-0	02	1	-
9	CLIP; ACTUATOR HOSE,TURBOCHARGER ASM PART: E = 8-94394-457-3	1-14469-011-0	02	1	-
41	PLATE; LK,BLOWER HSG,TURBOCHARGER ASM PART: D = 8-94390-650-0	1-14419-093-0	02	1	-
41	PLATE; LK,BLOWER HSG,TURBOCHARGER ASM PART: F = 8-97601-974-0	1-14419-151-0	03	1	-
41	PLATE; LK,BLOWER HSG,TURBOCHARGER ASM PART: E = 8-94394-457-3	1-14421-016-0	04	1	-
41	PLATE; LK,BLOWER HSG,TURBOCHARGER ASM PART: A = 1-14400-339-5, B = 1-14400-356-1	1-14421-016-0	06	1	-
42	BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER ASM PART: A = 1-14400-339-5, B = 1-14400-356-1, E = 8-94394-457-3	1-09000-404-0	06	1	-
42	BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER ASM PART: D = 8-94390-650-0	1-14419-105-0	06	1	-
42	BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER ASM PART: F = 8-97601-974-0	1-14419-150-0	16	1	-
125	RING; SNAP,CONT LINK ASM PART: F = 8-97601-974-0	1-14419-108-0	01	1	-
127	STUD; TURBOCHARGER (A) ASM PART: D = 8-94390-650-0	1-14419-137-0	02	1	-
127	STUD; TURBOCHARGER (B) ASM PART: D = 8-94390-650-0, F = 8-97601-974-0	1-14419-141-0	01	1	-
127	STUD; TURBOCHARGER (A) ASM PART: F = 8-97601-974-0	1-14419-178-0	02	1	-
127	STUD; TURBOCHARGER (C), M10X80 ASM PART: E = 8-94394-457-3	9-04731-080-0	02	1	-
130	BRACKET; ACTUATOR,TURBO ASM PART: D = 8-94390-650-0	1-14419-140-0	01	1	-
130	BRACKET; ACTUATOR,TURBO ASM PART: F = 8-97601-974-0	1-14419-152-0	01	1	-
132	CARTRIDGE; TURBO ASM PART: F = 8-97601-974-0	1-14411-083-0	01	1	-
132	CARTRIDGE; TURBO ASM PART: C = 1-14400-407-4	1-14425-039-0	01	1	-

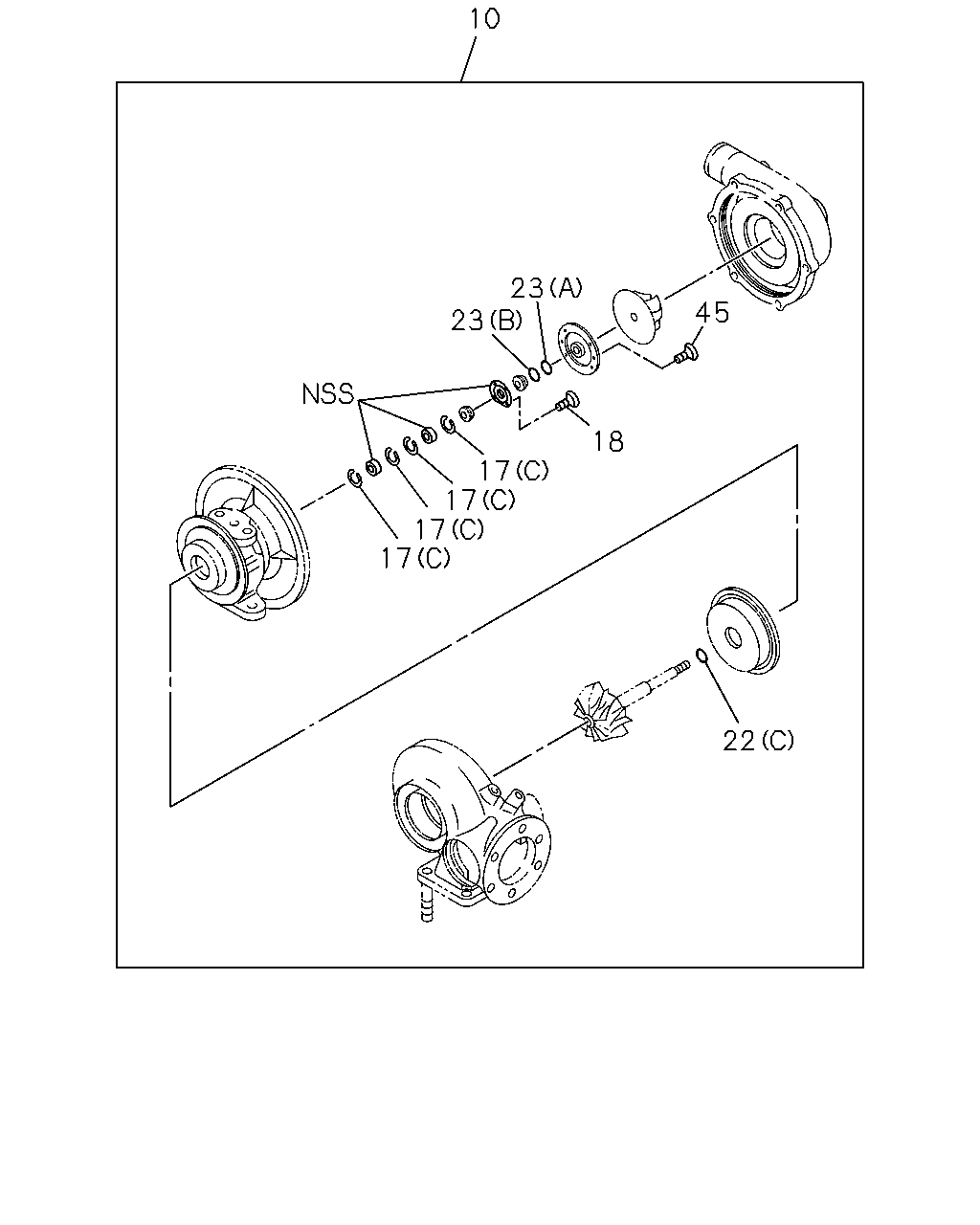

10 23 23 45 18 17 17 17 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	REPAIR KIT; TURBOCHARGER ASM PART: E = 8-94394-457-3	1-14453-048-0	01	1	-
10	REPAIR KIT; TURBOCHARGER ASM PART: A = 1-14400-339-5, B = 1-14400-356-1	1-14453-082-0	01	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (C) ASM PART: D = 8-94390-650-0	1-14419-083-0	04	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (A) ASM PART: C = 1-14400-407-4	1-14419-117-0	01	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (C) ASM PART: E = 8-94394-457-3	1-14455-025-0	04	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (C) ASM PART: A = 1-14400-339-5, B = 1-14400-356-1	1-14455-025-0	03	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (B) ASM PART: C = 1-14400-407-4	1-14459-062-0	02	1	-
18	SCREW; THRUST BRG,TURBOCHARGER ASM PART: A = 1-14400-339-5, B = 1-14400-356-1, E = 8-94394-457-3	1-09100-016-0	04	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER (A) ASM PART: D = 8-94390-650-0	1-14419-102-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER (B) ASM PART: D = 8-94390-650-0	1-14429-059-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER (C) ASM PART: A = 1-14400-339-5, B = 1-14400-356-1, E = 8-94394-457-3	1-14453-037-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER (D) ASM PART: C = 1-14400-407-4	1-14459-063-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (A) ASM PART: A = 1-14400-339-5, B = 1-14400-356-1, E = 8-94394-457-3	1-14453-035-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (B) ASM PART: A = 1-14400-339-5, B = 1-14400-356-1, E = 8-94394-457-3	1-14453-036-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (D) ASM PART: C = 1-14400-407-4	1-14459-059-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (C) ASM PART: D = 8-94390-650-0	5-14419-010-0	01	1	-
45	SCREW; SEAL PLATE,TURBOCHARGER ASM PART: E = 8-94394-457-3	1-09100-014-0	04	1	-
45	SCREW; SEAL PLATE,TURBOCHARGER ASM PART: A = 1-14400-339-5, B = 1-14400-356-1	1-09100-026-0	04	1	-
45	SCREW; SEAL PLATE,TURBOCHARGER ASM PART: D = 8-94390-650-0	1-14419-143-0	04	1	-

114

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	114	REPAIR KIT; AIR CYL ASM PART: C = 1-14400-407-4	1-85576-135-0	01	1	-

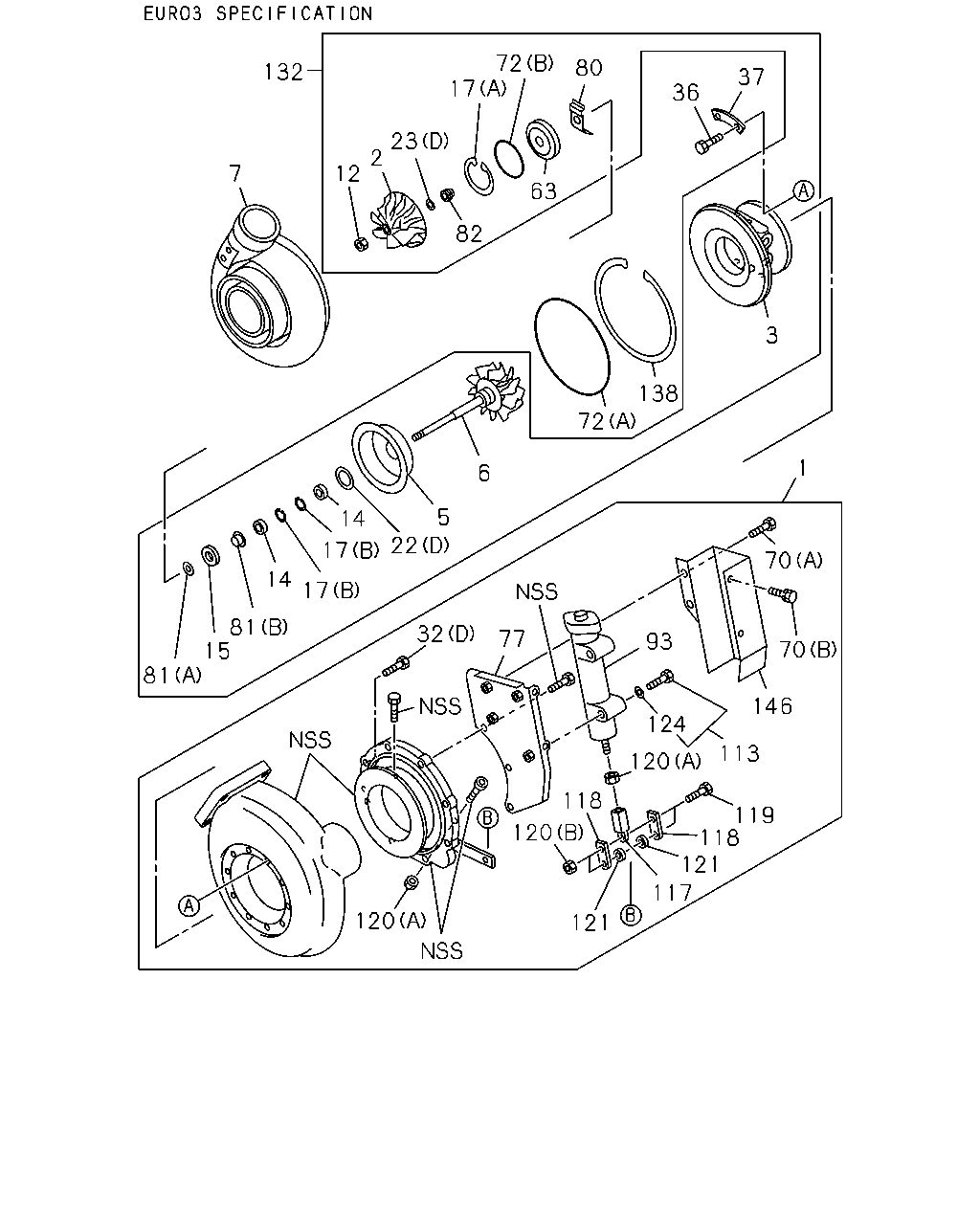

72 17 80 132 37 36 23 2 7 12 63 82 3 138 72 1 6 5 22 14 17 70 14 17 81 15 32 77 93 70 81 146 124 113 120 118 119 18 121 120 117 120 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: E = 8-94394-457-3	1-14415-088-1	01	1	-
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: A = 1-14400-339-5, B = 1-14400-356-1	1-14415-102-1	01	1	-
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: D = 8-94390-650-0	1-14415-103-0	01	1	-
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: F = 8-97601-974-0	1-14415-110-0	01	1	-
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: C = 1-14400-407-4	1-14415-129-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: E = 8-94394-457-3	1-14451-030-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: A = 1-14400-339-5	1-14451-054-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: B = 1-14400-356-1	1-14451-058-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: C = 1-14400-407-4	1-14451-070-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: D = 8-94390-650-0	1-14452-018-0	01	1	-
3	HOUSING; BRG,TURBOCHARGER ASM PART: D = 8-94390-650-0	1-14411-029-0	01	1	-
3	HOUSING; BRG,TURBOCHARGER ASM PART: E = 8-94394-457-3	1-14411-037-0	01	1	-
3	HOUSING; BRG,TURBOCHARGER ASM PART: A = 1-14400-339-5, B = 1-14400-356-1	1-14411-056-0	01	1	-
3	HOUSING; BRG,TURBOCHARGER ASM PART: C = 1-14400-407-4	1-14411-069-0	01	1	-
5	PROTECTOR; HEAT,TURBOCHARGER ASM PART: C = 1-14400-407-4	1-14419-166-0	01	1	-
5	PROTECTOR; HEAT,TURBOCHARGER ASM PART: E = 8-94394-457-3	1-14425-016-0	01	1	-
5	PROTECTOR; HEAT,TURBOCHARGER ASM PART: A = 1-14400-339-5, B = 1-14400-356-1	1-14425-027-0	01	1	-
5	PROTECTOR; HEAT,TURBOCHARGER ASM PART: D = 8-94390-650-0	5-14429-003-0	01	1	-
6	SHAFT; TURBINE,TURBOCHARGER ASM PART: E = 8-94394-457-3	1-14450-036-0	01	1	-
6	SHAFT; TURBINE,TURBOCHARGER ASM PART: A = 1-14400-339-5, B = 1-14400-356-1	1-14450-051-1	01	1	-
6	SHAFT; TURBINE,TURBOCHARGER ASM PART: C = 1-14400-407-4	1-14450-057-0	01	1	-
6	SHAFT; TURBINE,TURBOCHARGER ASM PART: D = 8-94390-650-0	1-14451-038-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: E = 8-94394-457-3	1-14414-063-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: A = 1-14400-339-5	1-14414-081-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: B = 1-14400-356-1	1-14414-098-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: D = 8-94390-650-0	1-14414-100-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: F = 8-97601-974-0	1-14414-109-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: C = 1-14400-407-4	1-14414-115-0	01	1	-
12	NUT; LK,TURBINE SHAFT TO IMPELLER,TC ASM PART: A = 1-14400-339-5, B = 1-14400-356-1, E = 8-94394-457-3	1-09400-041-0	01	1	-
12	NUT; LK,TURBINE SHAFT TO IMPELLER,TC ASM PART: D = 8-94390-650-0	1-14459-021-0	01	1	-
12	NUT; LK,TURBINE SHAFT TO IMPELLER,TC ASM PART: C = 1-14400-407-4	1-14459-057-0	01	1	-
14	BEARING; JOURNAL,TURBOCHARGER ASM PART: C = 1-14400-407-4	1-14411-065-0	02	1	-
14	BEARING; JOURNAL,TURBOCHARGER ASM PART: D = 8-94390-650-0	1-14453-044-0	02	1	-
15	BEARING; THRUST,TURBOCHARGER ASM PART: C = 1-14400-407-4	1-14411-060-0	01	1	-
15	BEARING; THRUST,TURBOCHARGER ASM PART: D = 8-94390-650-0	1-14453-061-0	01	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (C) ASM PART: D = 8-94390-650-0	1-14419-083-0	04	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (A) ASM PART: C = 1-14400-407-4	1-14419-117-0	01	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (C) ASM PART: E = 8-94394-457-3	1-14455-025-0	04	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (C) ASM PART: A = 1-14400-339-5, B = 1-14400-356-1	1-14455-025-0	03	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (B) ASM PART: C = 1-14400-407-4	1-14459-062-0	02	1	-
18	SCREW; THRUST BRG,TURBOCHARGER ASM PART: A = 1-14400-339-5, B = 1-14400-356-1, E = 8-94394-457-3	1-09100-016-0	04	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER (A) ASM PART: D = 8-94390-650-0	1-14419-102-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER (B) ASM PART: D = 8-94390-650-0	1-14429-059-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER (C) ASM PART: A = 1-14400-339-5, B = 1-14400-356-1, E = 8-94394-457-3	1-14453-037-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER (D) ASM PART: C = 1-14400-407-4	1-14459-063-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (A) ASM PART: A = 1-14400-339-5, B = 1-14400-356-1, E = 8-94394-457-3	1-14453-035-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (B) ASM PART: A = 1-14400-339-5, B = 1-14400-356-1, E = 8-94394-457-3	1-14453-036-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (D) ASM PART: C = 1-14400-407-4	1-14459-059-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (C) ASM PART: D = 8-94390-650-0	5-14419-010-0	01	1	-
32	BOLT; TURBINE HSG COVER,TURBOCHARGER (C), M8X16 FLANGE ASM PART: E = 8-94394-457-3	0-28080-816-0	02	1	-
32	BOLT; TURBINE HSG COVER,TURBOCHARGER (B), M8X30 FLANGE ASM PART: E = 8-94394-457-3	0-28080-830-0	02	1	-
32	BOLT; TURBINE HSG COVER,TURBOCHARGER (A) ASM PART: E = 8-94394-457-3	1-14379-095-0	06	1	-
32	BOLT; TURBINE HSG COVER,TURBOCHARGER (D) ASM PART: C = 1-14400-407-4	1-14379-123-0	08	1	-
36	BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE ASM PART: E = 8-94394-457-3	1-09000-405-0	08	1	-
36	BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE ASM PART: A = 1-14400-339-5, B = 1-14400-356-1	1-09000-611-0	08	1	-
36	BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE ASM PART: D = 8-94390-650-0	1-14419-104-0	06	1	-
36	BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE ASM PART: C = 1-14400-407-4	1-14419-165-0	10	1	-
37	PLATE; LK,TURBINE HSG,TURBOCHARGER ASM PART: D = 8-94390-650-0	1-14419-103-0	02	1	-
37	PLATE; LK,TURBINE HSG,TURBOCHARGER ASM PART: E = 8-94394-457-3	1-14421-018-0	08	1	-
37	PLATE; LK,TURBINE HSG,TURBOCHARGER ASM PART: C = 1-14400-407-4	1-14421-032-0	05	1	-
63	INSERT; IMPELLER,TURBOCHARGER ASM PART: C = 1-14400-407-4	1-14425-040-0	01	1	-
70	BOLT; HEAT PROTECTOR,TURBOCHARGER (B) ASM PART: C = 1-14400-407-4	1-14379-103-0	02	1	-
70	BOLT; HEAT PROTECTOR,TURBOCHARGER (A) ASM PART: C = 1-14400-407-4	1-14379-112-0	02	1	-
72	GASKET; BRG HSG,TURBOCHARGER (A) ASM PART: C = 1-14400-407-4	1-14414-107-0	01	1	-
72	GASKET; BRG HSG,TURBOCHARGER (B) ASM PART: C = 1-14400-407-4	1-14419-118-0	01	1	-
77	BRACKET; SUPPORT,TURBOCHARGER ASM PART: C = 1-14400-407-4	1-22196-356-0	01	1	-
77	BRACKET; SUPPORT,TURBOCHARGER ASM PART: E = 8-94394-457-3	8-94394-459-0	01	1	-
80	DEFLECTOR; OIL,TURBOCHARGER ASM PART: C = 1-14400-407-4	1-14419-147-0	01	1	-
81	RING; THRUST,TURBOCHARGER (A) ASM PART: C = 1-14400-407-4	1-14459-060-0	01	1	-
81	RING; THRUST,TURBOCHARGER (B) ASM PART: C = 1-14400-407-4	1-14459-061-0	01	1	-
82	SLEEVE; SPACER,TURBOCHARGER ASM PART: C = 1-14400-407-4	1-14455-047-0	01	1	-
93	CYLINDER; AIR,TURBOCHARGER ASM PART: C = 1-14400-407-4	1-22190-624-1	01	1	-
113	BOLT; AIR CYL ASM PART: C = 1-14400-407-4	1-14379-105-0	02	1	-
117	JOINT; TURBOCHARGER CONT ASM PART: C = 1-14400-407-4	1-14379-108-0	01	1	-
118	LINK; TURBOCHARGER CONT ASM PART: C = 1-14400-407-4	1-14379-126-0	02	1	-
119	BOLT; CONT LINK ASM PART: C = 1-14400-407-4	1-14379-124-0	02	1	-
120	NUT; CONT LINK (B) ASM PART: C = 1-14400-407-4	1-14379-113-0	03	1	-
120	NUT; CONT LINK (A) ASM PART: C = 1-14400-407-4	1-14379-125-0	02	1	-
121	COLLAR; CONT LINK ASM PART: C = 1-14400-407-4	1-14379-127-0	02	1	-
124	WASHER; CONT LINK ASM PART: C = 1-14400-407-4	1-14379-104-0	02	1	-
132	CARTRIDGE; TURBO ASM PART: F = 8-97601-974-0	1-14411-083-0	01	1	-
132	CARTRIDGE; TURBO ASM PART: C = 1-14400-407-4	1-14425-039-0	01	1	-
138	RING; SNAP,BLOWER HSG ASM PART: C = 1-14400-407-4	1-14459-056-0	01	1	-
146	PROTECTOR; HEAT,AIR CYL ASM PART: C = 1-14400-407-4	1-14181-347-0	01	1	-

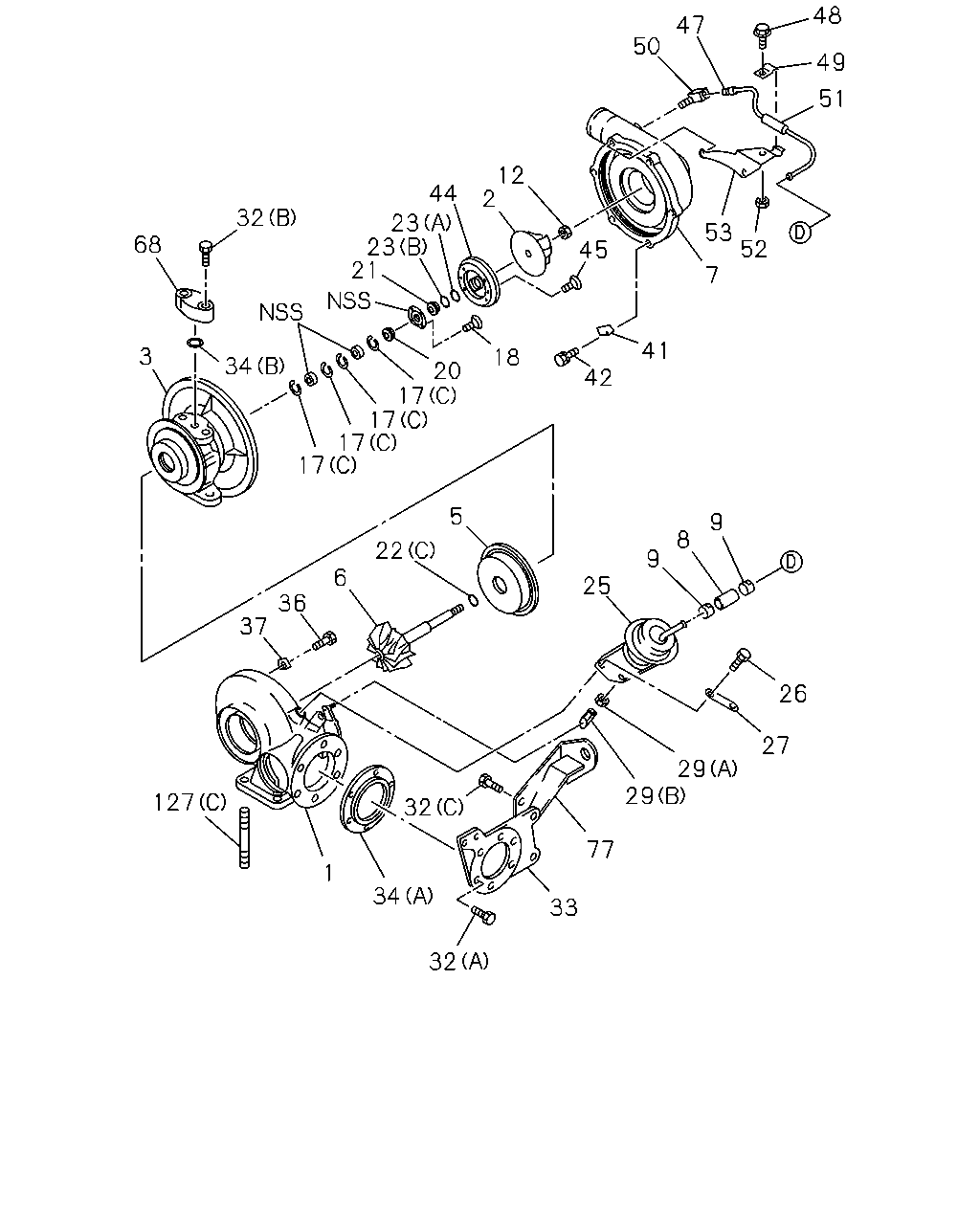

48 47 50 49 51 12 2 44 32 23 23 21 53 52 68 45 7 41 3 18 34 20 17 17 17 17 42 5 9 8 22 9 6 25 36 37 26 27 29 29 127 32 77 1 34 33 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: E = 8-94394-457-3	1-14415-088-1	01	1	-
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: A = 1-14400-339-5, B = 1-14400-356-1	1-14415-102-1	01	1	-
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: D = 8-94390-650-0	1-14415-103-0	01	1	-
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: F = 8-97601-974-0	1-14415-110-0	01	1	-
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: C = 1-14400-407-4	1-14415-129-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: E = 8-94394-457-3	1-14451-030-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: A = 1-14400-339-5	1-14451-054-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: B = 1-14400-356-1	1-14451-058-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: C = 1-14400-407-4	1-14451-070-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: D = 8-94390-650-0	1-14452-018-0	01	1	-
3	HOUSING; BRG,TURBOCHARGER ASM PART: D = 8-94390-650-0	1-14411-029-0	01	1	-
3	HOUSING; BRG,TURBOCHARGER ASM PART: E = 8-94394-457-3	1-14411-037-0	01	1	-
3	HOUSING; BRG,TURBOCHARGER ASM PART: A = 1-14400-339-5, B = 1-14400-356-1	1-14411-056-0	01	1	-
3	HOUSING; BRG,TURBOCHARGER ASM PART: C = 1-14400-407-4	1-14411-069-0	01	1	-
5	PROTECTOR; HEAT,TURBOCHARGER ASM PART: C = 1-14400-407-4	1-14419-166-0	01	1	-
5	PROTECTOR; HEAT,TURBOCHARGER ASM PART: E = 8-94394-457-3	1-14425-016-0	01	1	-
5	PROTECTOR; HEAT,TURBOCHARGER ASM PART: A = 1-14400-339-5, B = 1-14400-356-1	1-14425-027-0	01	1	-
5	PROTECTOR; HEAT,TURBOCHARGER ASM PART: D = 8-94390-650-0	5-14429-003-0	01	1	-
6	SHAFT; TURBINE,TURBOCHARGER ASM PART: E = 8-94394-457-3	1-14450-036-0	01	1	-
6	SHAFT; TURBINE,TURBOCHARGER ASM PART: A = 1-14400-339-5, B = 1-14400-356-1	1-14450-051-1	01	1	-
6	SHAFT; TURBINE,TURBOCHARGER ASM PART: C = 1-14400-407-4	1-14450-057-0	01	1	-
6	SHAFT; TURBINE,TURBOCHARGER ASM PART: D = 8-94390-650-0	1-14451-038-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: E = 8-94394-457-3	1-14414-063-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: A = 1-14400-339-5	1-14414-081-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: B = 1-14400-356-1	1-14414-098-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: D = 8-94390-650-0	1-14414-100-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: F = 8-97601-974-0	1-14414-109-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: C = 1-14400-407-4	1-14414-115-0	01	1	-
8	HOSE; ACTUATOR TO BLOWER HSG,TC ASM PART: F = 8-97601-974-0	1-14419-133-0	01	1	-
8	HOSE; ACTUATOR TO BLOWER HSG,TC ASM PART: D = 8-94390-650-0, G = 8-98162-141-0	1-14419-145-0	01	1	-
8	HOSE; ACTUATOR TO BLOWER HSG,TC ASM PART: E = 8-94394-457-3	1-14469-010-0	01	1	-
9	CLIP; ACTUATOR HOSE,TURBOCHARGER ASM PART: D = 8-94390-650-0, F = 8-97601-974-0, G = 8-98162-141-0	1-14419-134-0	02	1	-
9	CLIP; ACTUATOR HOSE,TURBOCHARGER ASM PART: E = 8-94394-457-3	1-14469-011-0	02	1	-
12	NUT; LK,TURBINE SHAFT TO IMPELLER,TC ASM PART: A = 1-14400-339-5, B = 1-14400-356-1, E = 8-94394-457-3	1-09400-041-0	01	1	-
12	NUT; LK,TURBINE SHAFT TO IMPELLER,TC ASM PART: D = 8-94390-650-0	1-14459-021-0	01	1	-
12	NUT; LK,TURBINE SHAFT TO IMPELLER,TC ASM PART: C = 1-14400-407-4	1-14459-057-0	01	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (C) ASM PART: D = 8-94390-650-0	1-14419-083-0	04	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (A) ASM PART: C = 1-14400-407-4	1-14419-117-0	01	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (C) ASM PART: E = 8-94394-457-3	1-14455-025-0	04	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (C) ASM PART: A = 1-14400-339-5, B = 1-14400-356-1	1-14455-025-0	03	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (B) ASM PART: C = 1-14400-407-4	1-14459-062-0	02	1	-
18	SCREW; THRUST BRG,TURBOCHARGER ASM PART: A = 1-14400-339-5, B = 1-14400-356-1, E = 8-94394-457-3	1-09100-016-0	04	1	-
20	BUSHING; THRUST,TURBOCHARGER ASM PART: E = 8-94394-457-3	1-14453-034-0	01	1	-
20	BUSHING; THRUST,TURBOCHARGER ASM PART: A = 1-14400-339-5, B = 1-14400-356-1	1-14453-073-0	01	1	-
21	THROWER; OIL,TURBOCHARGER ASM PART: E = 8-94394-457-3	1-14455-032-0	01	1	-
21	THROWER; OIL,TURBOCHARGER ASM PART: A = 1-14400-339-5, B = 1-14400-356-1	1-14455-037-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER (A) ASM PART: D = 8-94390-650-0	1-14419-102-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER (B) ASM PART: D = 8-94390-650-0	1-14429-059-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER (C) ASM PART: A = 1-14400-339-5, B = 1-14400-356-1, E = 8-94394-457-3	1-14453-037-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER (D) ASM PART: C = 1-14400-407-4	1-14459-063-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (A) ASM PART: A = 1-14400-339-5, B = 1-14400-356-1, E = 8-94394-457-3	1-14453-035-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (B) ASM PART: A = 1-14400-339-5, B = 1-14400-356-1, E = 8-94394-457-3	1-14453-036-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (D) ASM PART: C = 1-14400-407-4	1-14459-059-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (C) ASM PART: D = 8-94390-650-0	5-14419-010-0	01	1	-
25	ACTUATOR; TURBOCHARGER ASM PART: D = 8-94390-650-0	1-14419-132-0	01	1	-
25	ACTUATOR; TURBOCHARGER ASM PART: E = 8-94394-457-3	1-14460-022-0	01	1	-
26	BOLT; WASTE GATE,ACTUATOR,TURBOCHARGER ASM PART: E = 8-94394-457-3	1-09000-405-0	02	1	-
26	BOLT; WASTE GATE,ACTUATOR,TURBOCHARGER ASM PART: D = 8-94390-650-0	1-14419-104-0	02	1	-
27	WASHER; WASTE GATE,ACTUATOR,TURBOCHARG ASM PART: E = 8-94394-457-3	1-09509-035-0	01	1	-
29	NUT; WASTE GATE CONT,TURBOCHARGER (B) ASM PART: E = 8-94394-457-3	1-09400-121-0	01	1	-
29	NUT; WASTE GATE CONT,TURBOCHARGER (A) ASM PART: E = 8-94394-457-3	1-09400-122-0	01	1	-
29	NUT; WASTE GATE CONT,TURBOCHARGER (A) ASM PART: D = 8-94390-650-0	1-14419-136-0	01	1	-
29	NUT; WASTE GATE CONT,TURBOCHARGER (B) ASM PART: D = 8-94390-650-0	1-14419-139-0	02	1	-
32	BOLT; TURBINE HSG COVER,TURBOCHARGER (C), M8X16 FLANGE ASM PART: E = 8-94394-457-3	0-28080-816-0	02	1	-
32	BOLT; TURBINE HSG COVER,TURBOCHARGER (B), M8X30 FLANGE ASM PART: E = 8-94394-457-3	0-28080-830-0	02	1	-
32	BOLT; TURBINE HSG COVER,TURBOCHARGER (A) ASM PART: E = 8-94394-457-3	1-14379-095-0	06	1	-
32	BOLT; TURBINE HSG COVER,TURBOCHARGER (D) ASM PART: C = 1-14400-407-4	1-14379-123-0	08	1	-
33	COVER; TURBINE HSG,TURBOCHARGER ASM PART: E = 8-94394-457-3	8-94394-599-1	01	1	-
34	GASKET; TURBINE HSG COVER,TURBOCHARGER (B), ID=12.3 ASM PART: E = 8-94394-457-3	1-09623-481-0	01	1	-
34	GASKET; TURBINE HSG COVER,TURBOCHARGER (A) ASM PART: E = 8-94394-457-3	1-14412-003-0	01	1	-
36	BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE ASM PART: E = 8-94394-457-3	1-09000-405-0	08	1	-
36	BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE ASM PART: A = 1-14400-339-5, B = 1-14400-356-1	1-09000-611-0	08	1	-
36	BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE ASM PART: D = 8-94390-650-0	1-14419-104-0	06	1	-
36	BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE ASM PART: C = 1-14400-407-4	1-14419-165-0	10	1	-
37	PLATE; LK,TURBINE HSG,TURBOCHARGER ASM PART: D = 8-94390-650-0	1-14419-103-0	02	1	-
37	PLATE; LK,TURBINE HSG,TURBOCHARGER ASM PART: E = 8-94394-457-3	1-14421-018-0	08	1	-
37	PLATE; LK,TURBINE HSG,TURBOCHARGER ASM PART: C = 1-14400-407-4	1-14421-032-0	05	1	-
41	PLATE; LK,BLOWER HSG,TURBOCHARGER ASM PART: D = 8-94390-650-0	1-14419-093-0	02	1	-
41	PLATE; LK,BLOWER HSG,TURBOCHARGER ASM PART: F = 8-97601-974-0	1-14419-151-0	03	1	-
41	PLATE; LK,BLOWER HSG,TURBOCHARGER ASM PART: E = 8-94394-457-3	1-14421-016-0	04	1	-
41	PLATE; LK,BLOWER HSG,TURBOCHARGER ASM PART: A = 1-14400-339-5, B = 1-14400-356-1	1-14421-016-0	06	1	-
42	BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER ASM PART: A = 1-14400-339-5, B = 1-14400-356-1, E = 8-94394-457-3	1-09000-404-0	06	1	-
42	BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER ASM PART: D = 8-94390-650-0	1-14419-105-0	06	1	-
42	BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER ASM PART: F = 8-97601-974-0	1-14419-150-0	16	1	-
44	PLATE; SEAL,TURBOCHARGER ASM PART: E = 8-94394-457-3	1-14425-011-0	01	1	-
44	PLATE; SEAL,TURBOCHARGER ASM PART: A = 1-14400-339-5, B = 1-14400-356-1	1-14425-026-0	01	1	-
44	PLATE; SEAL,TURBOCHARGER ASM PART: D = 8-94390-650-0	1-14459-053-0	01	1	-
45	SCREW; SEAL PLATE,TURBOCHARGER ASM PART: E = 8-94394-457-3	1-09100-014-0	04	1	-
45	SCREW; SEAL PLATE,TURBOCHARGER ASM PART: A = 1-14400-339-5, B = 1-14400-356-1	1-09100-026-0	04	1	-
45	SCREW; SEAL PLATE,TURBOCHARGER ASM PART: D = 8-94390-650-0	1-14419-143-0	04	1	-
47	PIPE; ACTUATOR TO BLOWER HSG,TC ASM PART: E = 8-94394-457-3	1-14469-029-0	01	1	-
48	BOLT; ACTUATOR HOSE,TURBOCHARGER ASM PART: E = 8-94394-457-3	1-09000-225-0	01	1	-
49	SUPPORT; PIPE ASM PART: E = 8-94394-457-3	1-14469-002-0	01	1	-
50	ADAPTER; ACTUATOR TO BLOWER HSG,TC ASM PART: E = 8-94394-457-3	1-14469-003-0	01	1	-
51	HOSE; PROTECTIVE,ACTUATOR PIPE,TC ASM PART: E = 8-94394-457-3	1-14469-005-0	01	1	-
52	NUT; ACTUATOR HOSE,TURBOCHARGER ASM PART: E = 8-94394-457-3	1-09400-042-0	01	1	-
53	PLATE; ACTUATOR HOSE,TURBOCHARGER ASM PART: E = 8-94394-457-3	1-14469-007-0	01	1	-
68	FLANGE; TURBINE HSG,TURBOCHARGER ASM PART: E = 8-94394-457-3	8-94393-886-0	01	1	-
77	BRACKET; SUPPORT,TURBOCHARGER ASM PART: C = 1-14400-407-4	1-22196-356-0	01	1	-
77	BRACKET; SUPPORT,TURBOCHARGER ASM PART: E = 8-94394-457-3	8-94394-459-0	01	1	-
127	STUD; TURBOCHARGER (A) ASM PART: D = 8-94390-650-0	1-14419-137-0	02	1	-
127	STUD; TURBOCHARGER (B) ASM PART: D = 8-94390-650-0, F = 8-97601-974-0	1-14419-141-0	01	1	-
127	STUD; TURBOCHARGER (A) ASM PART: F = 8-97601-974-0	1-14419-178-0	02	1	-
127	STUD; TURBOCHARGER (C), M10X80 ASM PART: E = 8-94394-457-3	9-04731-080-0	02	1	-

10 23 23 45 18 17 17 17 17 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	REPAIR KIT; TURBOCHARGER ASM PART: E = 8-94394-457-3	1-14453-048-0	01	1	-
10	REPAIR KIT; TURBOCHARGER ASM PART: A = 1-14400-339-5, B = 1-14400-356-1	1-14453-082-0	01	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (C) ASM PART: D = 8-94390-650-0	1-14419-083-0	04	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (A) ASM PART: C = 1-14400-407-4	1-14419-117-0	01	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (C) ASM PART: E = 8-94394-457-3	1-14455-025-0	04	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (C) ASM PART: A = 1-14400-339-5, B = 1-14400-356-1	1-14455-025-0	03	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (B) ASM PART: C = 1-14400-407-4	1-14459-062-0	02	1	-
18	SCREW; THRUST BRG,TURBOCHARGER ASM PART: A = 1-14400-339-5, B = 1-14400-356-1, E = 8-94394-457-3	1-09100-016-0	04	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER (A) ASM PART: D = 8-94390-650-0	1-14419-102-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER (B) ASM PART: D = 8-94390-650-0	1-14429-059-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER (C) ASM PART: A = 1-14400-339-5, B = 1-14400-356-1, E = 8-94394-457-3	1-14453-037-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER (D) ASM PART: C = 1-14400-407-4	1-14459-063-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (A) ASM PART: A = 1-14400-339-5, B = 1-14400-356-1, E = 8-94394-457-3	1-14453-035-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (B) ASM PART: A = 1-14400-339-5, B = 1-14400-356-1, E = 8-94394-457-3	1-14453-036-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (D) ASM PART: C = 1-14400-407-4	1-14459-059-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (C) ASM PART: D = 8-94390-650-0	5-14419-010-0	01	1	-
45	SCREW; SEAL PLATE,TURBOCHARGER ASM PART: E = 8-94394-457-3	1-09100-014-0	04	1	-
45	SCREW; SEAL PLATE,TURBOCHARGER ASM PART: A = 1-14400-339-5, B = 1-14400-356-1	1-09100-026-0	04	1	-
45	SCREW; SEAL PLATE,TURBOCHARGER ASM PART: D = 8-94390-650-0	1-14419-143-0	04	1	-

7 12 73 2 44 41 42 23 16 15 22 3 17 14 17 41 17 14 17 42 5 22 6 36 37 45 1 8 9 36 37 9 25 29 130 127 29 127 26 129 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: E = 8-94394-457-3	1-14415-088-1	01	1	-
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: A = 1-14400-339-5, B = 1-14400-356-1	1-14415-102-1	01	1	-
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: D = 8-94390-650-0	1-14415-103-0	01	1	-
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: F = 8-97601-974-0	1-14415-110-0	01	1	-
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: C = 1-14400-407-4	1-14415-129-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: E = 8-94394-457-3	1-14451-030-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: A = 1-14400-339-5	1-14451-054-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: B = 1-14400-356-1	1-14451-058-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: C = 1-14400-407-4	1-14451-070-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: D = 8-94390-650-0	1-14452-018-0	01	1	-
3	HOUSING; BRG,TURBOCHARGER ASM PART: D = 8-94390-650-0	1-14411-029-0	01	1	-
3	HOUSING; BRG,TURBOCHARGER ASM PART: E = 8-94394-457-3	1-14411-037-0	01	1	-
3	HOUSING; BRG,TURBOCHARGER ASM PART: A = 1-14400-339-5, B = 1-14400-356-1	1-14411-056-0	01	1	-
3	HOUSING; BRG,TURBOCHARGER ASM PART: C = 1-14400-407-4	1-14411-069-0	01	1	-
5	PROTECTOR; HEAT,TURBOCHARGER ASM PART: C = 1-14400-407-4	1-14419-166-0	01	1	-
5	PROTECTOR; HEAT,TURBOCHARGER ASM PART: E = 8-94394-457-3	1-14425-016-0	01	1	-
5	PROTECTOR; HEAT,TURBOCHARGER ASM PART: A = 1-14400-339-5, B = 1-14400-356-1	1-14425-027-0	01	1	-
5	PROTECTOR; HEAT,TURBOCHARGER ASM PART: D = 8-94390-650-0	5-14429-003-0	01	1	-
6	SHAFT; TURBINE,TURBOCHARGER ASM PART: E = 8-94394-457-3	1-14450-036-0	01	1	-
6	SHAFT; TURBINE,TURBOCHARGER ASM PART: A = 1-14400-339-5, B = 1-14400-356-1	1-14450-051-1	01	1	-
6	SHAFT; TURBINE,TURBOCHARGER ASM PART: C = 1-14400-407-4	1-14450-057-0	01	1	-
6	SHAFT; TURBINE,TURBOCHARGER ASM PART: D = 8-94390-650-0	1-14451-038-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: E = 8-94394-457-3	1-14414-063-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: A = 1-14400-339-5	1-14414-081-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: B = 1-14400-356-1	1-14414-098-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: D = 8-94390-650-0	1-14414-100-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: F = 8-97601-974-0	1-14414-109-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: C = 1-14400-407-4	1-14414-115-0	01	1	-
8	HOSE; ACTUATOR TO BLOWER HSG,TC ASM PART: F = 8-97601-974-0	1-14419-133-0	01	1	-
8	HOSE; ACTUATOR TO BLOWER HSG,TC ASM PART: D = 8-94390-650-0, G = 8-98162-141-0	1-14419-145-0	01	1	-
8	HOSE; ACTUATOR TO BLOWER HSG,TC ASM PART: E = 8-94394-457-3	1-14469-010-0	01	1	-
9	CLIP; ACTUATOR HOSE,TURBOCHARGER ASM PART: D = 8-94390-650-0, F = 8-97601-974-0, G = 8-98162-141-0	1-14419-134-0	02	1	-
9	CLIP; ACTUATOR HOSE,TURBOCHARGER ASM PART: E = 8-94394-457-3	1-14469-011-0	02	1	-
12	NUT; LK,TURBINE SHAFT TO IMPELLER,TC ASM PART: A = 1-14400-339-5, B = 1-14400-356-1, E = 8-94394-457-3	1-09400-041-0	01	1	-
12	NUT; LK,TURBINE SHAFT TO IMPELLER,TC ASM PART: D = 8-94390-650-0	1-14459-021-0	01	1	-
12	NUT; LK,TURBINE SHAFT TO IMPELLER,TC ASM PART: C = 1-14400-407-4	1-14459-057-0	01	1	-
14	BEARING; JOURNAL,TURBOCHARGER ASM PART: C = 1-14400-407-4	1-14411-065-0	02	1	-
14	BEARING; JOURNAL,TURBOCHARGER ASM PART: D = 8-94390-650-0	1-14453-044-0	02	1	-
15	BEARING; THRUST,TURBOCHARGER ASM PART: C = 1-14400-407-4	1-14411-060-0	01	1	-
15	BEARING; THRUST,TURBOCHARGER ASM PART: D = 8-94390-650-0	1-14453-061-0	01	1	-
16	COLLAR; THRUST,TURBOCHARGER ASM PART: D = 8-94390-650-0	1-14459-019-0	01	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (C) ASM PART: D = 8-94390-650-0	1-14419-083-0	04	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (A) ASM PART: C = 1-14400-407-4	1-14419-117-0	01	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (C) ASM PART: E = 8-94394-457-3	1-14455-025-0	04	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (C) ASM PART: A = 1-14400-339-5, B = 1-14400-356-1	1-14455-025-0	03	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (B) ASM PART: C = 1-14400-407-4	1-14459-062-0	02	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER (A) ASM PART: D = 8-94390-650-0	1-14419-102-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER (B) ASM PART: D = 8-94390-650-0	1-14429-059-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER (C) ASM PART: A = 1-14400-339-5, B = 1-14400-356-1, E = 8-94394-457-3	1-14453-037-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER (D) ASM PART: C = 1-14400-407-4	1-14459-063-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (A) ASM PART: A = 1-14400-339-5, B = 1-14400-356-1, E = 8-94394-457-3	1-14453-035-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (B) ASM PART: A = 1-14400-339-5, B = 1-14400-356-1, E = 8-94394-457-3	1-14453-036-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (D) ASM PART: C = 1-14400-407-4	1-14459-059-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (C) ASM PART: D = 8-94390-650-0	5-14419-010-0	01	1	-
25	ACTUATOR; TURBOCHARGER ASM PART: D = 8-94390-650-0	1-14419-132-0	01	1	-
25	ACTUATOR; TURBOCHARGER ASM PART: E = 8-94394-457-3	1-14460-022-0	01	1	-
26	BOLT; WASTE GATE,ACTUATOR,TURBOCHARGER ASM PART: E = 8-94394-457-3	1-09000-405-0	02	1	-
26	BOLT; WASTE GATE,ACTUATOR,TURBOCHARGER ASM PART: D = 8-94390-650-0	1-14419-104-0	02	1	-
29	NUT; WASTE GATE CONT,TURBOCHARGER (B) ASM PART: E = 8-94394-457-3	1-09400-121-0	01	1	-
29	NUT; WASTE GATE CONT,TURBOCHARGER (A) ASM PART: E = 8-94394-457-3	1-09400-122-0	01	1	-
29	NUT; WASTE GATE CONT,TURBOCHARGER (A) ASM PART: D = 8-94390-650-0	1-14419-136-0	01	1	-
29	NUT; WASTE GATE CONT,TURBOCHARGER (B) ASM PART: D = 8-94390-650-0	1-14419-139-0	02	1	-
36	BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE ASM PART: E = 8-94394-457-3	1-09000-405-0	08	1	-
36	BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE ASM PART: A = 1-14400-339-5, B = 1-14400-356-1	1-09000-611-0	08	1	-
36	BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE ASM PART: D = 8-94390-650-0	1-14419-104-0	06	1	-
36	BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE ASM PART: C = 1-14400-407-4	1-14419-165-0	10	1	-
37	PLATE; LK,TURBINE HSG,TURBOCHARGER ASM PART: D = 8-94390-650-0	1-14419-103-0	02	1	-
37	PLATE; LK,TURBINE HSG,TURBOCHARGER ASM PART: E = 8-94394-457-3	1-14421-018-0	08	1	-
37	PLATE; LK,TURBINE HSG,TURBOCHARGER ASM PART: C = 1-14400-407-4	1-14421-032-0	05	1	-
41	PLATE; LK,BLOWER HSG,TURBOCHARGER ASM PART: D = 8-94390-650-0	1-14419-093-0	02	1	-
41	PLATE; LK,BLOWER HSG,TURBOCHARGER ASM PART: F = 8-97601-974-0	1-14419-151-0	03	1	-
41	PLATE; LK,BLOWER HSG,TURBOCHARGER ASM PART: E = 8-94394-457-3	1-14421-016-0	04	1	-
41	PLATE; LK,BLOWER HSG,TURBOCHARGER ASM PART: A = 1-14400-339-5, B = 1-14400-356-1	1-14421-016-0	06	1	-
42	BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER ASM PART: A = 1-14400-339-5, B = 1-14400-356-1, E = 8-94394-457-3	1-09000-404-0	06	1	-
42	BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER ASM PART: D = 8-94390-650-0	1-14419-105-0	06	1	-
42	BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER ASM PART: F = 8-97601-974-0	1-14419-150-0	16	1	-
44	PLATE; SEAL,TURBOCHARGER ASM PART: E = 8-94394-457-3	1-14425-011-0	01	1	-
44	PLATE; SEAL,TURBOCHARGER ASM PART: A = 1-14400-339-5, B = 1-14400-356-1	1-14425-026-0	01	1	-
44	PLATE; SEAL,TURBOCHARGER ASM PART: D = 8-94390-650-0	1-14459-053-0	01	1	-
45	SCREW; SEAL PLATE,TURBOCHARGER ASM PART: E = 8-94394-457-3	1-09100-014-0	04	1	-
45	SCREW; SEAL PLATE,TURBOCHARGER ASM PART: A = 1-14400-339-5, B = 1-14400-356-1	1-09100-026-0	04	1	-
45	SCREW; SEAL PLATE,TURBOCHARGER ASM PART: D = 8-94390-650-0	1-14419-143-0	04	1	-
73	GASKET; BRG HSG,TURBOCHARGER ASM PART: D = 8-94390-650-0	1-14459-037-0	01	1	-
87	RING; ACTUATOR,TURBOCHARGER ASM PART: D = 8-94390-650-0	1-14419-108-0	01	1	-
127	STUD; TURBOCHARGER (A) ASM PART: D = 8-94390-650-0	1-14419-137-0	02	1	-
127	STUD; TURBOCHARGER (B) ASM PART: D = 8-94390-650-0, F = 8-97601-974-0	1-14419-141-0	01	1	-
127	STUD; TURBOCHARGER (A) ASM PART: F = 8-97601-974-0	1-14419-178-0	02	1	-
127	STUD; TURBOCHARGER (C), M10X80 ASM PART: E = 8-94394-457-3	9-04731-080-0	02	1	-
129	ROD END; TURBO ASM PART: D = 8-94390-650-0	1-14419-135-0	01	1	-
130	BRACKET; ACTUATOR,TURBO ASM PART: D = 8-94390-650-0	1-14419-140-0	01	1	-
130	BRACKET; ACTUATOR,TURBO ASM PART: F = 8-97601-974-0	1-14419-152-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
