Sayfa 0-36 - Isuzu EPC

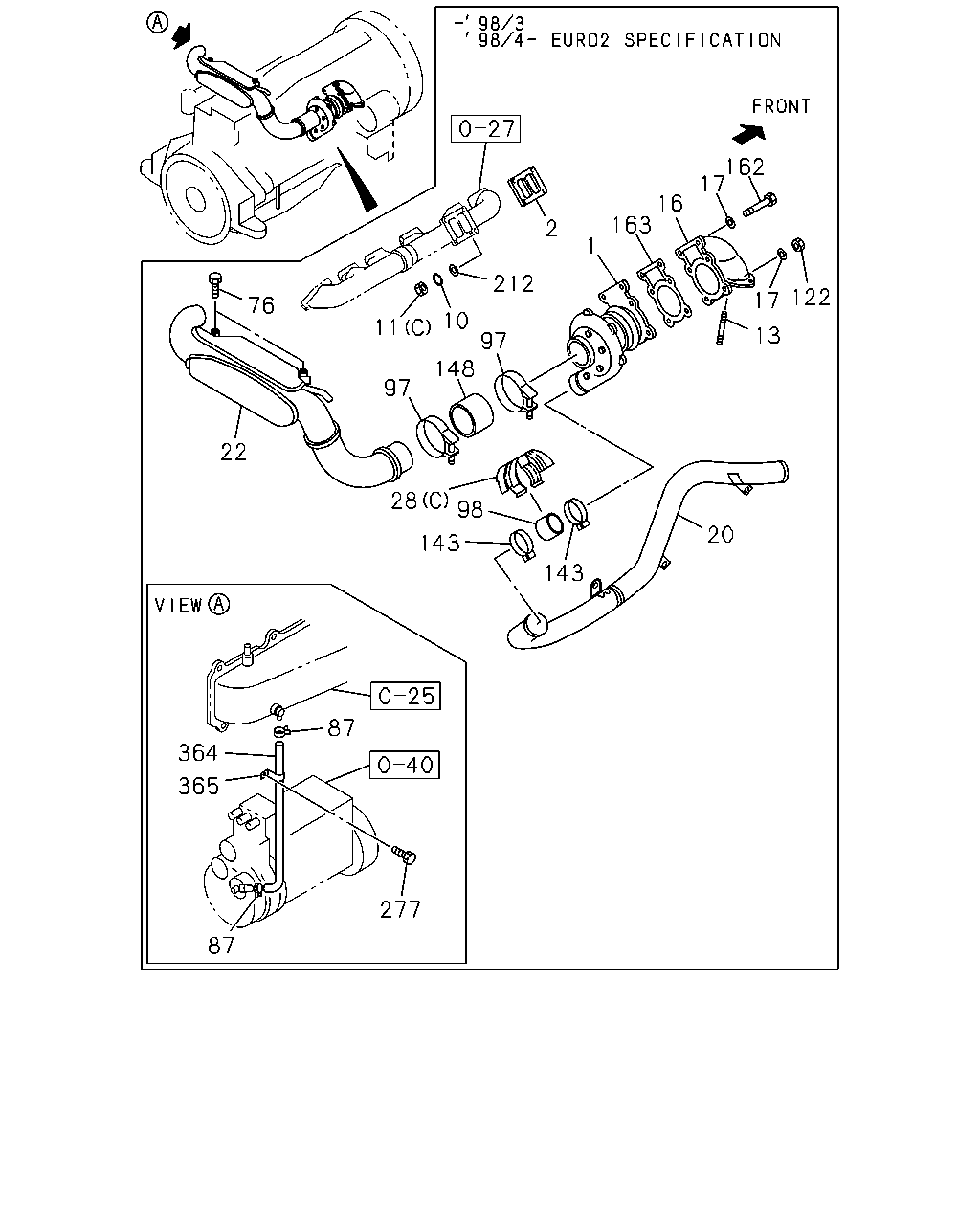

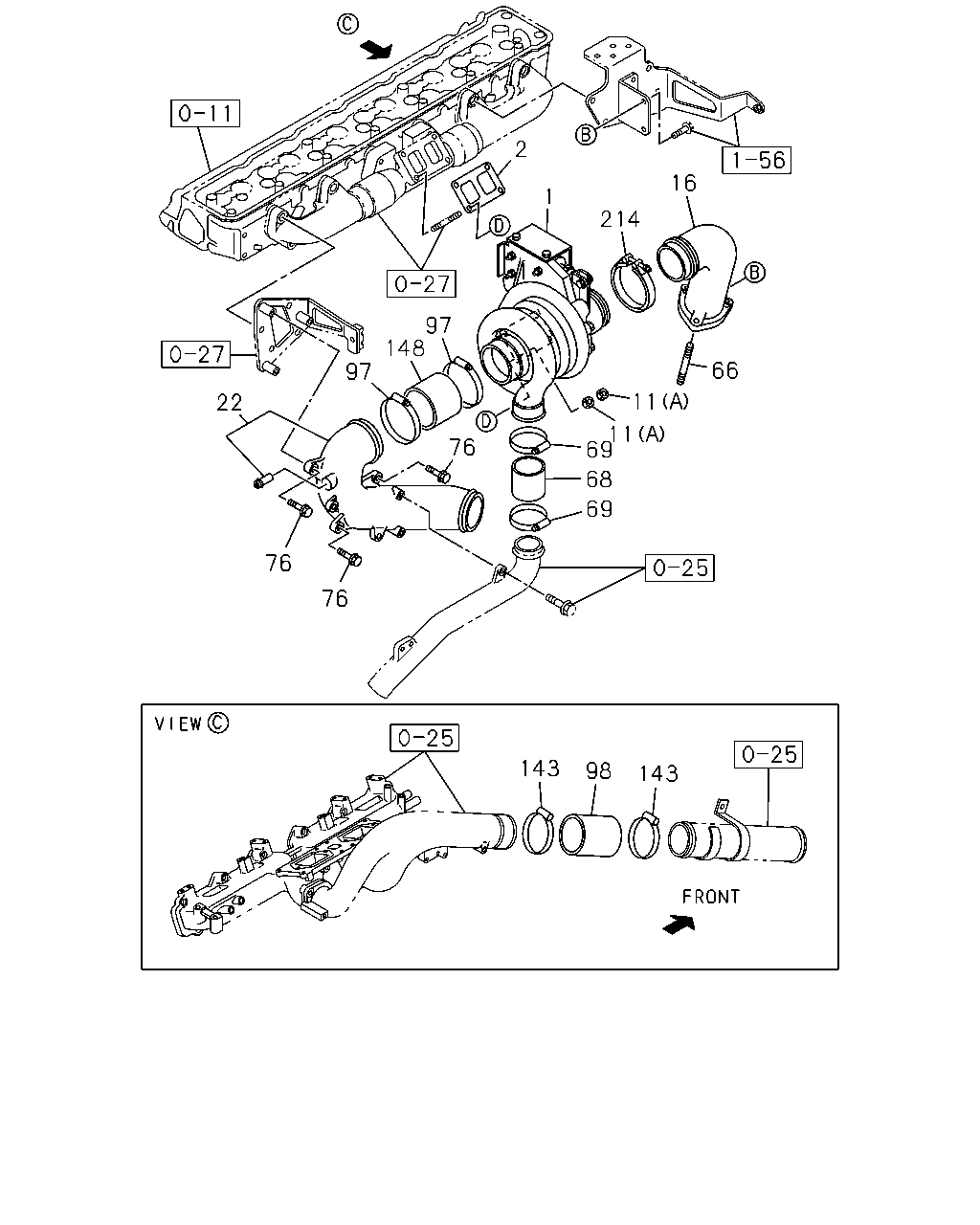

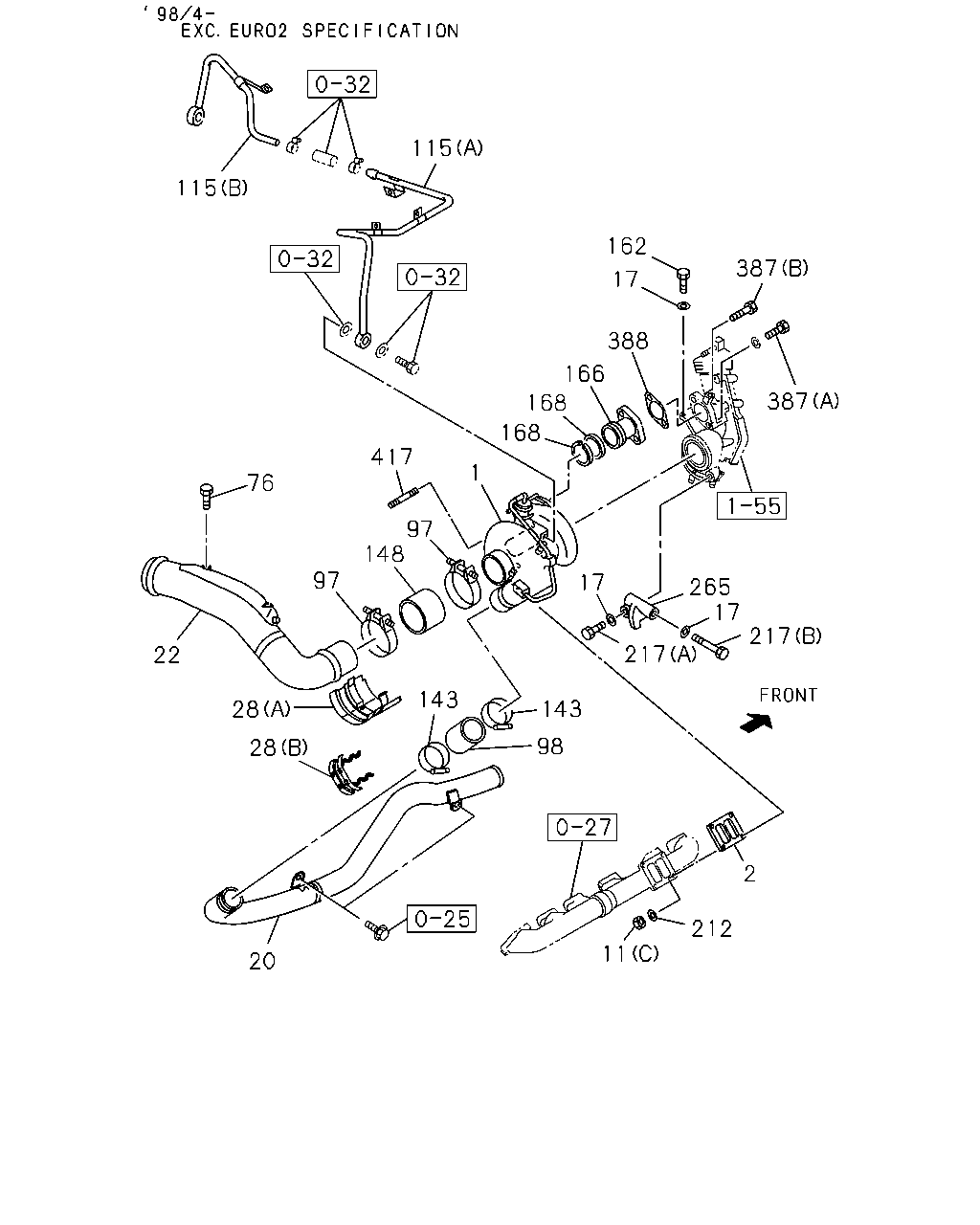

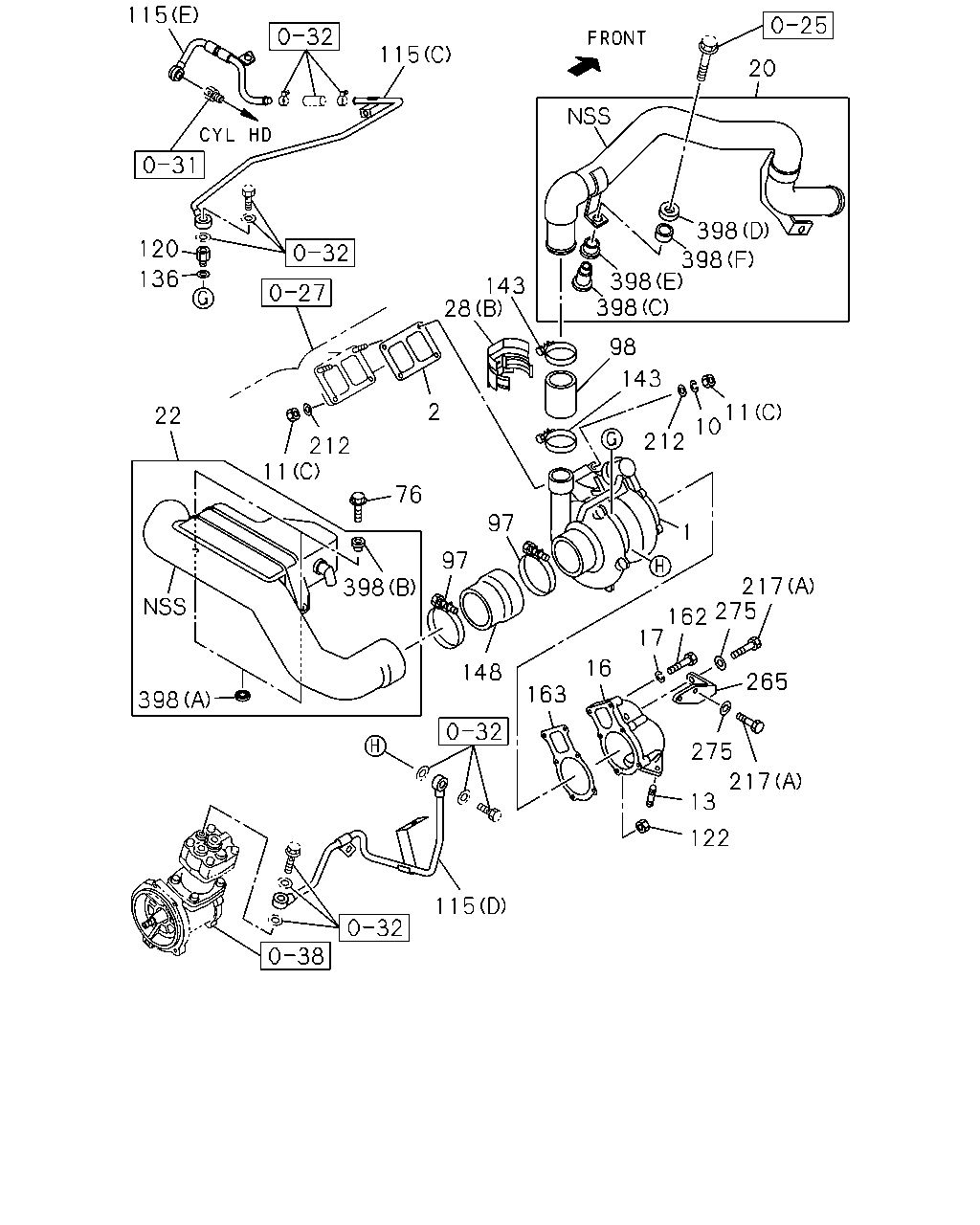

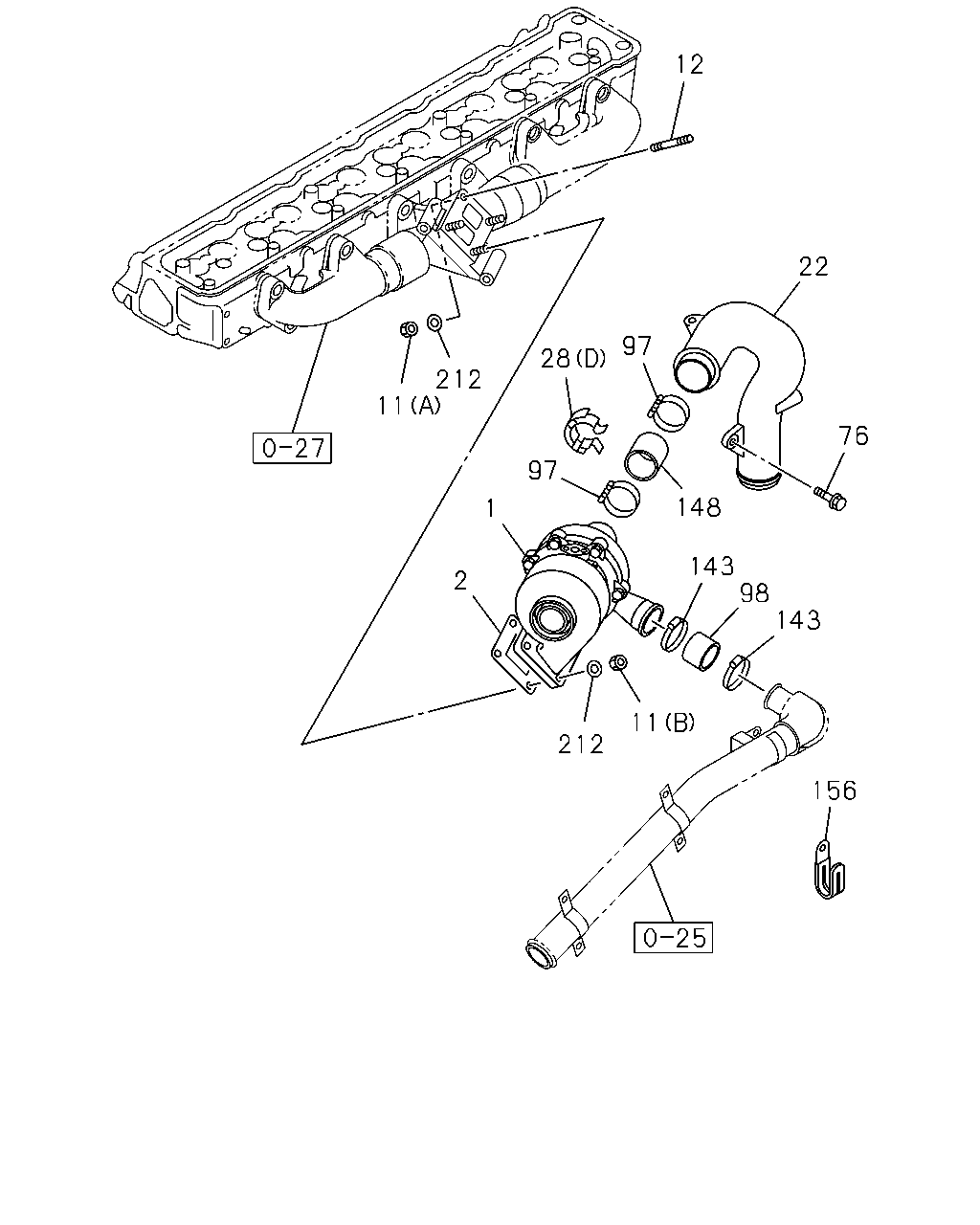

0-36 — TURBOCHARGER SYSTEM (#64378) — 698 parça

115 115 162 387 17 388 166 387 168 168 417 1 76 97 148 97 17 265 17 217 217 22 143 143 28 98 28 2 212 11 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5)	1-14400-407-5	01	1	0605-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	1-14400-339-4	01	1	9601-9609	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. EURO2 SPECIFICATION<THN>	1-14400-339-5	01	1	9610-0604	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN>	1-14400-339-5	01	1	0605-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN>	1-14400-339-5	01	1	0605-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<THN>	1-14400-356-1	01	1	9610-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-94390-650-0	01	1	9610-9803		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<THN>	8-94390-650-0	01	1	9804-0405		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-94390-650-0	01	1	0406-1007		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98162-141-0	01	1	1008-		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. EURO2 SPECIFICATION<THN>	8-94394-457-3	01	1	9804-0405		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97601-974-0	01	1	0406-			●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5)	1-14145-140-1	01	1	0605-	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-181-0	01	1	9601-0604	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX>	1-14145-181-0	01	1	0605-	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-14145-181-0	01	1	0605-	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-044-0	01	1	9610-9803		●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN>	8-94390-044-0	01	1	9804-0405		●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-044-0	01	1	0406-		●	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN>	1-14145-121-0	01	1	9804-0405		●
11	NUT; TURBOCHARGER EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) (A) M10	1-09420-005-0	08	1	0605-	●
11	NUT; TURBOCHARGER (A) M10	1-09420-005-0	01	1	9601-0604	●
11	NUT; TURBOCHARGER NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> (A) M10	1-09420-005-0	01	1	0605-	●
11	NUT; TURBOCHARGER EXC. NEW ZEALAND EQUIPMENT(PK5) (A) M10	1-09420-005-0	01	1	0605-	●
11	NUT; TURBOCHARGER (B) M10 P=1.5 H=8	9-09842-007-0	03	1	9601-0604	●
11	NUT; TURBOCHARGER NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> (B) M10 P=1.5 H=8	9-09842-007-0	03	1	0605-	●
11	NUT; TURBOCHARGER EXC. NEW ZEALAND EQUIPMENT(PK5) (B) M10 P=1.5 H=8	9-09842-007-0	03	1	0605-	●
11	NUT; TURBOCHARGER (C) M10	1-09420-005-0	04	1	9610-9705		●
11	NUT; TURBOCHARGER (C) M10	1-09420-005-0	04	1	9706-0405		●
11	NUT; TURBOCHARGER (C) M10	1-09420-005-0	04	1	0406-		●	●
17	WASHER; PL,ADAPTER T=1.9	5-09500-012-0	06	1	9610-9803		●
17	WASHER; PL,ADAPTER EURO2 SPECIFICATION<THN> T=1.9	5-09500-012-0	06	1	9804-0405		●
17	WASHER; PL,ADAPTER T=1.9	5-09500-012-0	06	1	0406-		●	●
17	WASHER; PL,ADAPTER EXC. EURO2 SPECIFICATION<THN> ID=12.2	9-09851-933-0	04	1	9804-0405		●
20	PIPE; INL,TURBOCHARGER OUT	8-94390-649-0	01	1	9610-9803		●
20	PIPE; INL,TURBOCHARGER OUT EURO2 SPECIFICATION<THN>	8-94390-649-2	01	1	9804-0405		●
20	PIPE; INL,TURBOCHARGER OUT	8-94390-649-2	01	1	0406-		●
20	PIPE; INL,TURBOCHARGER OUT EXC. EURO2 SPECIFICATION<THN>	8-94394-399-1	01	1	9804-0405		●
20	PIPE; INL,TURBOCHARGER OUT	8-97600-383-1	01	1	0406-			●
22	DUCT; INL,ACL TO TURBOCHARGER EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5)	1-14134-398-3	01	1	0605-	●
22	DUCT; INL,ACL TO TURBOCHARGER	1-14134-161-1	01	1	9601-0604	●
22	DUCT; INL,ACL TO TURBOCHARGER NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX>	1-14134-161-1	01	1	0605-	●
22	DUCT; INL,ACL TO TURBOCHARGER EXC. NEW ZEALAND EQUIPMENT(PK5)	1-14134-161-1	01	1	0605-	●
22	DUCT; INL,ACL TO TURBOCHARGER	8-94390-407-0	01	1	9610-9803		●
22	DUCT; INL,ACL TO TURBOCHARGER EURO2 SPECIFICATION<THN>	8-94390-407-0	01	1	9804-0405		●
22	DUCT; INL,ACL TO TURBOCHARGER	8-94390-407-0	01	1	0406-		●
22	DUCT; INL,ACL TO TURBOCHARGER EXC. EURO2 SPECIFICATION<THN>	8-94394-401-1	01	1	9804-0405		●
22	DUCT; INL,ACL TO TURBOCHARGER	8-97600-110-1	01	1	0406-			●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (D)	1-14181-123-0	01	1	9601-9907	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (D)	1-14181-221-0	01	1	9908-0604	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> (D)	1-14181-221-0	01	1	0605-	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EXC. NEW ZEALAND EQUIPMENT(PK5) (D)	1-14181-221-0	01	1	0605-	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (C)	1-14181-264-0	01	1	9610-9803		●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EURO2 SPECIFICATION<THN> (C)	1-14181-264-0	01	1	9804-0405		●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (C)	1-14181-264-0	01	1	0406-		●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EXC. EURO2 SPECIFICATION<THN> (A)	1-14181-220-0	01	1	9804-0405		●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EXC. EURO2 SPECIFICATION<THN> (B)	8-94393-182-0	01	1	9804-0405		●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (B)	8-94393-182-0	01	1	0406-			●
76	BOLT; AIR DUCT EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) M10X60 FLANGE	0-28051-060-0	01	1	0605-	●
76	BOLT; AIR DUCT EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) M10X80 FLANGE	0-28051-080-0	02	1	0605-	●
76	BOLT; AIR DUCT M8X35 FLANGE	0-28680-835-0	02	1	0406-0512			●
76	BOLT; AIR DUCT M8X35 FLANGE	0-28650-835-0	02	1	0601-			●
76	BOLT; AIR DUCT M10X90 FLANGE	0-28081-090-0	02	1	9601-0512	●
76	BOLT; AIR DUCT M10X90 FLANGE	0-28051-090-0	02	1	0601-0604	●
76	BOLT; AIR DUCT NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> M10X90 FLANGE	0-28051-090-0	02	1	0605-	●
76	BOLT; AIR DUCT EXC. NEW ZEALAND EQUIPMENT(PK5) M10X90 FLANGE	0-28051-090-0	02	1	0605-	●
76	BOLT; AIR DUCT M8X50 FLANGE	0-28080-850-0	02	1	9610-0512		●
76	BOLT; AIR DUCT M8X50 FLANGE	0-28050-850-0	02	1	0601-		●
97	CLIP; HOSE,TURBOCHARGER,INL EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) ID=104-139	1-09707-200-0	04	1	0605-0809	●
97	CLIP; HOSE,TURBOCHARGER,INL EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) ID=104-139	1-09707-200-0	02	1	0810-0812	●
97	CLIP; HOSE,TURBOCHARGER,INL EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) ID=104-142	1-09707-155-0	02	1	0901-	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-113	1-09707-199-0	04	1	0406-0810			●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-113	1-09707-199-0	02	1	0811-0811			●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-116	1-09707-144-0	02	1	0811-0811			●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-116	1-09707-144-0	04	1	0812-			●
97	CLIP; HOSE,TURBOCHARGER,INL EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) ID=104-142	1-09707-155-0	02	1	0809-0810	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=86	9-09915-592-0	02	1	9601-9803	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=86	9-09915-592-0	02	1	9804-0405	●
97	CLIP; HOSE,TURBOCHARGER,INL FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. EURO2 SPECIFICATION<THN> ID=86	9-09915-592-0	02	1	9804-0405		●
97	CLIP; HOSE,TURBOCHARGER,INL ID=86	9-09915-592-0	02	1	0406-0604	●
97	CLIP; HOSE,TURBOCHARGER,INL NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> ID=86	9-09915-592-0	02	1	0605-	●
97	CLIP; HOSE,TURBOCHARGER,INL EXC. NEW ZEALAND EQUIPMENT(PK5) ID=86	9-09915-592-0	02	1	0605-	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=77-95	1-09707-114-0	02	1	9803-9803		●
97	CLIP; HOSE,TURBOCHARGER,INL EURO2 SPECIFICATION<THN> ID=77-95	1-09707-114-0	02	1	9804-0306		●
97	CLIP; HOSE,TURBOCHARGER,INL EURO2 SPECIFICATION<THN> ID=77-95	1-09707-198-0	04	1	0307-0810		●
97	CLIP; HOSE,TURBOCHARGER,INL ID=77-95	1-09707-114-0	04	1	0811-		●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=58.5 OD=65.5 L=80	8-94392-854-0	01	1	0406-			●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=62 L=70	1-09360-797-1	01	1	9601-9803	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=62 L=70	1-09360-797-1	01	1	9804-0405	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. EURO2 SPECIFICATION<THN> ID=62 L=70	1-09360-797-1	01	1	9804-0405		●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=62 L=70	1-09360-797-1	01	1	0406-1408	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=62 L=70	8-98245-240-0	01	1	1409-	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET	1-09360-782-0	01	1	9610-9803		●
98	HOSE; RUBBER,TURBOCHARGER OUTLET EURO2 SPECIFICATION<THN>	1-09360-782-0	01	1	9804-0405		●
98	HOSE; RUBBER,TURBOCHARGER OUTLET	1-09360-782-0	01	1	0406-		●
115	PIPE; WATER,TURBOCHARGER OUT (E)	8-97602-490-0	01	1	0406-			●
115	PIPE; WATER,TURBOCHARGER OUT EXC. EURO2 SPECIFICATION<THN> (A)	8-94394-691-0	01	1	9804-0405		●
115	PIPE; WATER,TURBOCHARGER OUT (D)	8-97601-977-1	01	1	0406-			●
115	PIPE; WATER,TURBOCHARGER OUT EXC. EURO2 SPECIFICATION<THN> (B)	8-94395-454-4	01	1	9804-0405		●
115	PIPE; WATER,TURBOCHARGER OUT (C)	8-97602-062-0	01	1	0406-			●
143	CLIP; HOSE,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=58-76	1-09707-203-0	02	1	0307-0405		●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-76	1-09707-203-0	02	1	0406-0809			●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	9601-9803	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	9804-0306	●
143	CLIP; HOSE,TURBOCHARGER OUTLET FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. EURO2 SPECIFICATION<THN> ID=58-79	8-94126-771-0	02	1	9804-0306		●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-76	1-09707-203-0	04	1	0307-0809	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-76	1-09707-203-0	02	1	0810-0811	●		●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	0812-	●		●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=50-69	8-94316-991-0	02	1	9610-9803		●
143	CLIP; HOSE,TURBOCHARGER OUTLET EURO2 SPECIFICATION<THN> ID=50-69	8-94316-991-0	02	1	9804-0306		●
143	CLIP; HOSE,TURBOCHARGER OUTLET EURO2 SPECIFICATION<THN> ID=50-65	1-09707-204-0	02	1	0307-0810		●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=50-69	8-94316-991-0	02	1	0811-		●
148	HOSE; TURBOCHARGER,INL EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5)	1-09361-135-1	01	1	0605-	●
148	HOSE; TURBOCHARGER,INL	1-09360-403-1	01	1	9601-0604	●
148	HOSE; TURBOCHARGER,INL NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX>	1-09360-403-1	01	1	0605-	●
148	HOSE; TURBOCHARGER,INL EXC. NEW ZEALAND EQUIPMENT(PK5)	1-09360-403-1	01	1	0605-	●
148	HOSE; TURBOCHARGER,INL	5-09360-846-0	01	1	9803-9803		●
148	HOSE; TURBOCHARGER,INL EURO2 SPECIFICATION<THN>	5-09360-846-0	01	1	9804-0405		●
148	HOSE; TURBOCHARGER,INL	5-09360-846-0	01	1	0406-		●
148	HOSE; TURBOCHARGER,INL EXC. EURO2 SPECIFICATION<THN>	1-09360-600-0	01	1	9804-0405		●
148	HOSE; TURBOCHARGER,INL	8-94392-853-0	01	1	0406-			●
162	BOLT; ADAPTER M8X57	5-09000-275-0	05	1	9610-9803		●
162	BOLT; ADAPTER EURO2 SPECIFICATION<THN> M8X57	5-09000-275-0	05	1	9804-0405		●
162	BOLT; ADAPTER M8X57	5-09000-275-0	05	1	0406-		●	●
162	BOLT; ADAPTER EXC. EURO2 SPECIFICATION<THN> M12X30	8-94394-324-0	02	1	9804-0405		●
166	PIPE; EXH EXC. EURO2 SPECIFICATION<THN>	8-94393-151-0	01	1	9804-0405		●
168	RING; SEAL,EXH PIPE EXC. EURO2 SPECIFICATION<THN>	1-14149-083-1	02	1	9804-0405		●
212	WASHER; PL,TURBOCHARGER ID=10	1-09503-033-1	04	1	9601-0405	●	●
212	WASHER; PL,TURBOCHARGER ID=10	1-09503-033-1	04	1	0406-0604	●	●	●
212	WASHER; PL,TURBOCHARGER NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> ID=10	1-09503-033-1	04	1	0605-	●
212	WASHER; PL,TURBOCHARGER EXC. NEW ZEALAND EQUIPMENT(PK5) ID=10	1-09503-033-1	04	1	0605-	●
212	WASHER; PL,TURBOCHARGER ID=10	1-09503-033-1	04	1	0605-		●	●
217	BOLT; BRKT EXC. EURO2 SPECIFICATION<THN> (A) M12X30	8-94394-324-0	01	1	9804-0405		●
217	BOLT; BRKT (A) M12X30	8-94394-324-0	03	1	0406-			●
217	BOLT; BRKT EXC. EURO2 SPECIFICATION<THN> (B) M12X85	8-94394-514-0	01	1	9804-0405		●
265	BRACKET; EXH PIPE EXC. EURO2 SPECIFICATION<THN>	8-94394-373-0	01	1	9804-0405		●
265	BRACKET; EXH PIPE	8-94395-764-2	01	1	0406-			●
387	BOLT; EXH PIPE EXC. EURO2 SPECIFICATION<THN> (B) M10X40	8-94393-700-0	01	1	9804-0405		●
387	BOLT; EXH PIPE EXC. EURO2 SPECIFICATION<THN> (A) M10X70	8-94394-698-0	01	1	9804-0405		●
388	GASKET; EXH PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN>	1-14145-139-0	01	1	9804-0405		●
417	STUD; ADAPTER TO EXH PIPE M8X25	9-04130-825-0	01	1	1008-		●

162 17 16 163 2 1 212 17 122 76 10 11 13 97 148 97 22 28 98 20 143 143 87 364 365 277 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5)	1-14400-407-5	01	1	0605-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	1-14400-339-4	01	1	9601-9609	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. EURO2 SPECIFICATION<THN>	1-14400-339-5	01	1	9610-0604	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN>	1-14400-339-5	01	1	0605-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN>	1-14400-339-5	01	1	0605-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<THN>	1-14400-356-1	01	1	9610-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-94390-650-0	01	1	9610-9803		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<THN>	8-94390-650-0	01	1	9804-0405		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-94390-650-0	01	1	0406-1007		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98162-141-0	01	1	1008-		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. EURO2 SPECIFICATION<THN>	8-94394-457-3	01	1	9804-0405		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97601-974-0	01	1	0406-			●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5)	1-14145-140-1	01	1	0605-	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-181-0	01	1	9601-0604	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX>	1-14145-181-0	01	1	0605-	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-14145-181-0	01	1	0605-	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-044-0	01	1	9610-9803		●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN>	8-94390-044-0	01	1	9804-0405		●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-044-0	01	1	0406-		●	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN>	1-14145-121-0	01	1	9804-0405		●
10	WASHER; LK,TURBOCHARGER T=2.2	1-09556-015-0	02	1	9610-9803		●
10	WASHER; LK,TURBOCHARGER EURO2 SPECIFICATION<THN> T=2.2	1-09556-015-0	02	1	9804-0405		●
10	WASHER; LK,TURBOCHARGER T=2.2	1-09556-015-0	02	1	0406-		●	●
11	NUT; TURBOCHARGER EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) (A) M10	1-09420-005-0	08	1	0605-	●
11	NUT; TURBOCHARGER (A) M10	1-09420-005-0	01	1	9601-0604	●
11	NUT; TURBOCHARGER NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> (A) M10	1-09420-005-0	01	1	0605-	●
11	NUT; TURBOCHARGER EXC. NEW ZEALAND EQUIPMENT(PK5) (A) M10	1-09420-005-0	01	1	0605-	●
11	NUT; TURBOCHARGER (B) M10 P=1.5 H=8	9-09842-007-0	03	1	9601-0604	●
11	NUT; TURBOCHARGER NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> (B) M10 P=1.5 H=8	9-09842-007-0	03	1	0605-	●
11	NUT; TURBOCHARGER EXC. NEW ZEALAND EQUIPMENT(PK5) (B) M10 P=1.5 H=8	9-09842-007-0	03	1	0605-	●
11	NUT; TURBOCHARGER (C) M10	1-09420-005-0	04	1	9610-9705		●
11	NUT; TURBOCHARGER (C) M10	1-09420-005-0	04	1	9706-0405		●
11	NUT; TURBOCHARGER (C) M10	1-09420-005-0	04	1	0406-		●	●
13	STUD; EXH PIPE M12X123 L=141	1-09302-012-0	02	1	0406-			●
13	STUD; EXH PIPE M12X103 L=123	8-94394-656-0	01	1	9610-9803		●
13	STUD; EXH PIPE EURO2 SPECIFICATION<THN> M12X103 L=123	8-94394-656-0	01	1	9804-0405		●
13	STUD; EXH PIPE M12X103 L=123	8-94394-656-0	01	1	0406-		●
16	ADAPTER; EXH PIPE EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5)	1-14144-650-0	01	1	0605-	●
16	ADAPTER; EXH PIPE	8-97600-283-0	01	1	0406-			●
16	ADAPTER; EXH PIPE	8-94391-161-1	01	1	9610-9803		●
16	ADAPTER; EXH PIPE EURO2 SPECIFICATION<THN>	8-94391-161-1	01	1	9804-0405		●
16	ADAPTER; EXH PIPE	8-94391-161-1	01	1	0406-		●
17	WASHER; PL,ADAPTER T=1.9	5-09500-012-0	06	1	9610-9803		●
17	WASHER; PL,ADAPTER EURO2 SPECIFICATION<THN> T=1.9	5-09500-012-0	06	1	9804-0405		●
17	WASHER; PL,ADAPTER T=1.9	5-09500-012-0	06	1	0406-		●	●
17	WASHER; PL,ADAPTER EXC. EURO2 SPECIFICATION<THN> ID=12.2	9-09851-933-0	04	1	9804-0405		●
20	PIPE; INL,TURBOCHARGER OUT	8-94390-649-0	01	1	9610-9803		●
20	PIPE; INL,TURBOCHARGER OUT EURO2 SPECIFICATION<THN>	8-94390-649-2	01	1	9804-0405		●
20	PIPE; INL,TURBOCHARGER OUT	8-94390-649-2	01	1	0406-		●
20	PIPE; INL,TURBOCHARGER OUT EXC. EURO2 SPECIFICATION<THN>	8-94394-399-1	01	1	9804-0405		●
20	PIPE; INL,TURBOCHARGER OUT	8-97600-383-1	01	1	0406-			●
22	DUCT; INL,ACL TO TURBOCHARGER EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5)	1-14134-398-3	01	1	0605-	●
22	DUCT; INL,ACL TO TURBOCHARGER	1-14134-161-1	01	1	9601-0604	●
22	DUCT; INL,ACL TO TURBOCHARGER NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX>	1-14134-161-1	01	1	0605-	●
22	DUCT; INL,ACL TO TURBOCHARGER EXC. NEW ZEALAND EQUIPMENT(PK5)	1-14134-161-1	01	1	0605-	●
22	DUCT; INL,ACL TO TURBOCHARGER	8-94390-407-0	01	1	9610-9803		●
22	DUCT; INL,ACL TO TURBOCHARGER EURO2 SPECIFICATION<THN>	8-94390-407-0	01	1	9804-0405		●
22	DUCT; INL,ACL TO TURBOCHARGER	8-94390-407-0	01	1	0406-		●
22	DUCT; INL,ACL TO TURBOCHARGER EXC. EURO2 SPECIFICATION<THN>	8-94394-401-1	01	1	9804-0405		●
22	DUCT; INL,ACL TO TURBOCHARGER	8-97600-110-1	01	1	0406-			●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (D)	1-14181-123-0	01	1	9601-9907	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (D)	1-14181-221-0	01	1	9908-0604	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> (D)	1-14181-221-0	01	1	0605-	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EXC. NEW ZEALAND EQUIPMENT(PK5) (D)	1-14181-221-0	01	1	0605-	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (C)	1-14181-264-0	01	1	9610-9803		●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EURO2 SPECIFICATION<THN> (C)	1-14181-264-0	01	1	9804-0405		●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (C)	1-14181-264-0	01	1	0406-		●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EXC. EURO2 SPECIFICATION<THN> (A)	1-14181-220-0	01	1	9804-0405		●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EXC. EURO2 SPECIFICATION<THN> (B)	8-94393-182-0	01	1	9804-0405		●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (B)	8-94393-182-0	01	1	0406-			●
76	BOLT; AIR DUCT EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) M10X60 FLANGE	0-28051-060-0	01	1	0605-	●
76	BOLT; AIR DUCT EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) M10X80 FLANGE	0-28051-080-0	02	1	0605-	●
76	BOLT; AIR DUCT M8X35 FLANGE	0-28680-835-0	02	1	0406-0512			●
76	BOLT; AIR DUCT M8X35 FLANGE	0-28650-835-0	02	1	0601-			●
76	BOLT; AIR DUCT M10X90 FLANGE	0-28081-090-0	02	1	9601-0512	●
76	BOLT; AIR DUCT M10X90 FLANGE	0-28051-090-0	02	1	0601-0604	●
76	BOLT; AIR DUCT NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> M10X90 FLANGE	0-28051-090-0	02	1	0605-	●
76	BOLT; AIR DUCT EXC. NEW ZEALAND EQUIPMENT(PK5) M10X90 FLANGE	0-28051-090-0	02	1	0605-	●
76	BOLT; AIR DUCT M8X50 FLANGE	0-28080-850-0	02	1	9610-0512		●
76	BOLT; AIR DUCT M8X50 FLANGE	0-28050-850-0	02	1	0601-		●
87	CLIP; RUBBER HOSE FIX ID=11	8-94238-570-0	02	1	9610-9803		●
87	CLIP; RUBBER HOSE FIX EURO2 SPECIFICATION<THN> ID=11	8-94238-570-0	02	1	9804-0405		●
87	CLIP; RUBBER HOSE FIX ID=11	8-94238-570-0	02	1	0406-		●
97	CLIP; HOSE,TURBOCHARGER,INL EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) ID=104-139	1-09707-200-0	04	1	0605-0809	●
97	CLIP; HOSE,TURBOCHARGER,INL EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) ID=104-139	1-09707-200-0	02	1	0810-0812	●
97	CLIP; HOSE,TURBOCHARGER,INL EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) ID=104-142	1-09707-155-0	02	1	0901-	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-113	1-09707-199-0	04	1	0406-0810			●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-113	1-09707-199-0	02	1	0811-0811			●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-116	1-09707-144-0	02	1	0811-0811			●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-116	1-09707-144-0	04	1	0812-			●
97	CLIP; HOSE,TURBOCHARGER,INL EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) ID=104-142	1-09707-155-0	02	1	0809-0810	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=86	9-09915-592-0	02	1	9601-9803	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=86	9-09915-592-0	02	1	9804-0405	●
97	CLIP; HOSE,TURBOCHARGER,INL FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. EURO2 SPECIFICATION<THN> ID=86	9-09915-592-0	02	1	9804-0405		●
97	CLIP; HOSE,TURBOCHARGER,INL ID=86	9-09915-592-0	02	1	0406-0604	●
97	CLIP; HOSE,TURBOCHARGER,INL NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> ID=86	9-09915-592-0	02	1	0605-	●
97	CLIP; HOSE,TURBOCHARGER,INL EXC. NEW ZEALAND EQUIPMENT(PK5) ID=86	9-09915-592-0	02	1	0605-	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=77-95	1-09707-114-0	02	1	9803-9803		●
97	CLIP; HOSE,TURBOCHARGER,INL EURO2 SPECIFICATION<THN> ID=77-95	1-09707-114-0	02	1	9804-0306		●
97	CLIP; HOSE,TURBOCHARGER,INL EURO2 SPECIFICATION<THN> ID=77-95	1-09707-198-0	04	1	0307-0810		●
97	CLIP; HOSE,TURBOCHARGER,INL ID=77-95	1-09707-114-0	04	1	0811-		●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=58.5 OD=65.5 L=80	8-94392-854-0	01	1	0406-			●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=62 L=70	1-09360-797-1	01	1	9601-9803	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=62 L=70	1-09360-797-1	01	1	9804-0405	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. EURO2 SPECIFICATION<THN> ID=62 L=70	1-09360-797-1	01	1	9804-0405		●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=62 L=70	1-09360-797-1	01	1	0406-1408	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=62 L=70	8-98245-240-0	01	1	1409-	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET	1-09360-782-0	01	1	9610-9803		●
98	HOSE; RUBBER,TURBOCHARGER OUTLET EURO2 SPECIFICATION<THN>	1-09360-782-0	01	1	9804-0405		●
98	HOSE; RUBBER,TURBOCHARGER OUTLET	1-09360-782-0	01	1	0406-		●
122	NUT; ADAPTER M8	1-09400-118-1	01	1	9610-9803		●
122	NUT; ADAPTER EURO2 SPECIFICATION<THN> M8	1-09400-118-1	01	1	9804-0405		●
122	NUT; ADAPTER M8	1-09400-118-1	01	1	0406-		●	●
143	CLIP; HOSE,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=58-76	1-09707-203-0	02	1	0307-0405		●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-76	1-09707-203-0	02	1	0406-0809			●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	9601-9803	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	9804-0306	●
143	CLIP; HOSE,TURBOCHARGER OUTLET FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. EURO2 SPECIFICATION<THN> ID=58-79	8-94126-771-0	02	1	9804-0306		●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-76	1-09707-203-0	04	1	0307-0809	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-76	1-09707-203-0	02	1	0810-0811	●		●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	0812-	●		●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=50-69	8-94316-991-0	02	1	9610-9803		●
143	CLIP; HOSE,TURBOCHARGER OUTLET EURO2 SPECIFICATION<THN> ID=50-69	8-94316-991-0	02	1	9804-0306		●
143	CLIP; HOSE,TURBOCHARGER OUTLET EURO2 SPECIFICATION<THN> ID=50-65	1-09707-204-0	02	1	0307-0810		●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=50-69	8-94316-991-0	02	1	0811-		●
148	HOSE; TURBOCHARGER,INL EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5)	1-09361-135-1	01	1	0605-	●
148	HOSE; TURBOCHARGER,INL	1-09360-403-1	01	1	9601-0604	●
148	HOSE; TURBOCHARGER,INL NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX>	1-09360-403-1	01	1	0605-	●
148	HOSE; TURBOCHARGER,INL EXC. NEW ZEALAND EQUIPMENT(PK5)	1-09360-403-1	01	1	0605-	●
148	HOSE; TURBOCHARGER,INL	5-09360-846-0	01	1	9803-9803		●
148	HOSE; TURBOCHARGER,INL EURO2 SPECIFICATION<THN>	5-09360-846-0	01	1	9804-0405		●
148	HOSE; TURBOCHARGER,INL	5-09360-846-0	01	1	0406-		●
148	HOSE; TURBOCHARGER,INL EXC. EURO2 SPECIFICATION<THN>	1-09360-600-0	01	1	9804-0405		●
148	HOSE; TURBOCHARGER,INL	8-94392-853-0	01	1	0406-			●
162	BOLT; ADAPTER M8X57	5-09000-275-0	05	1	9610-9803		●
162	BOLT; ADAPTER EURO2 SPECIFICATION<THN> M8X57	5-09000-275-0	05	1	9804-0405		●
162	BOLT; ADAPTER M8X57	5-09000-275-0	05	1	0406-		●	●
162	BOLT; ADAPTER EXC. EURO2 SPECIFICATION<THN> M12X30	8-94394-324-0	02	1	9804-0405		●
163	GASKET; ADAPTER TO EXH PIPE	1-14145-162-0	01	1	9610-9803		●
163	GASKET; ADAPTER TO EXH PIPE EURO2 SPECIFICATION<THN>	1-14145-162-0	01	1	9804-0405		●
163	GASKET; ADAPTER TO EXH PIPE	1-14145-162-2	01	1	0406-		●	●
212	WASHER; PL,TURBOCHARGER ID=10	1-09503-033-1	04	1	9601-0405	●	●
212	WASHER; PL,TURBOCHARGER ID=10	1-09503-033-1	04	1	0406-0604	●	●	●
212	WASHER; PL,TURBOCHARGER NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> ID=10	1-09503-033-1	04	1	0605-	●
212	WASHER; PL,TURBOCHARGER EXC. NEW ZEALAND EQUIPMENT(PK5) ID=10	1-09503-033-1	04	1	0605-	●
212	WASHER; PL,TURBOCHARGER ID=10	1-09503-033-1	04	1	0605-		●	●
277	BOLT; CLIP M6X10 FLANGE	0-28080-610-0	01	1	9610-9803		●
277	BOLT; CLIP EURO2 SPECIFICATION<THN> M6X10 FLANGE	0-28080-610-0	01	1	9804-0405		●
277	BOLT; CLIP M6X10 FLANGE	0-28080-610-0	01	1	0406-0512		●
277	BOLT; CLIP M6X10 FLANGE	0-28050-610-0	01	1	0601-		●
364	HOSE; BOOST L=200 SERVICED BY L=3000	0-04770-300-0	01	1	9610-9803		●
364	HOSE; BOOST EURO2 SPECIFICATION<THN> L=200 SERVICED BY L=3000	0-04770-300-0	01	1	9804-0405		●
364	HOSE; BOOST L=200 SERVICED BY L=3000	0-04770-300-0	01	1	0406-		●
365	CLIP; RUBBER HOSE,BOOST D=11 H=40 L=20	8-94246-610-0	01	1	9610-9803		●
365	CLIP; RUBBER HOSE,BOOST EURO2 SPECIFICATION<THN> D=11 H=40 L=20	8-94246-610-0	01	1	9804-0405		●
365	CLIP; RUBBER HOSE,BOOST D=11 H=40 L=20	8-94246-610-0	01	1	0406-		●

2 16 1 214 97 148 66 97 11 22 76 11 69 68 69 76 76 143 98 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5)	1-14400-407-5	01	1	0605-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	1-14400-339-4	01	1	9601-9609	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. EURO2 SPECIFICATION<THN>	1-14400-339-5	01	1	9610-0604	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN>	1-14400-339-5	01	1	0605-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN>	1-14400-339-5	01	1	0605-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<THN>	1-14400-356-1	01	1	9610-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-94390-650-0	01	1	9610-9803		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<THN>	8-94390-650-0	01	1	9804-0405		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-94390-650-0	01	1	0406-1007		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98162-141-0	01	1	1008-		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. EURO2 SPECIFICATION<THN>	8-94394-457-3	01	1	9804-0405		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97601-974-0	01	1	0406-			●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5)	1-14145-140-1	01	1	0605-	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-181-0	01	1	9601-0604	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX>	1-14145-181-0	01	1	0605-	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-14145-181-0	01	1	0605-	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-044-0	01	1	9610-9803		●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN>	8-94390-044-0	01	1	9804-0405		●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-044-0	01	1	0406-		●	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN>	1-14145-121-0	01	1	9804-0405		●
11	NUT; TURBOCHARGER EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) (A) M10	1-09420-005-0	08	1	0605-	●
11	NUT; TURBOCHARGER (A) M10	1-09420-005-0	01	1	9601-0604	●
11	NUT; TURBOCHARGER NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> (A) M10	1-09420-005-0	01	1	0605-	●
11	NUT; TURBOCHARGER EXC. NEW ZEALAND EQUIPMENT(PK5) (A) M10	1-09420-005-0	01	1	0605-	●
11	NUT; TURBOCHARGER (B) M10 P=1.5 H=8	9-09842-007-0	03	1	9601-0604	●
11	NUT; TURBOCHARGER NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> (B) M10 P=1.5 H=8	9-09842-007-0	03	1	0605-	●
11	NUT; TURBOCHARGER EXC. NEW ZEALAND EQUIPMENT(PK5) (B) M10 P=1.5 H=8	9-09842-007-0	03	1	0605-	●
11	NUT; TURBOCHARGER (C) M10	1-09420-005-0	04	1	9610-9705		●
11	NUT; TURBOCHARGER (C) M10	1-09420-005-0	04	1	9706-0405		●
11	NUT; TURBOCHARGER (C) M10	1-09420-005-0	04	1	0406-		●	●
16	ADAPTER; EXH PIPE EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5)	1-14144-650-0	01	1	0605-	●
16	ADAPTER; EXH PIPE	8-97600-283-0	01	1	0406-			●
16	ADAPTER; EXH PIPE	8-94391-161-1	01	1	9610-9803		●
16	ADAPTER; EXH PIPE EURO2 SPECIFICATION<THN>	8-94391-161-1	01	1	9804-0405		●
16	ADAPTER; EXH PIPE	8-94391-161-1	01	1	0406-		●
22	DUCT; INL,ACL TO TURBOCHARGER EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5)	1-14134-398-3	01	1	0605-	●
22	DUCT; INL,ACL TO TURBOCHARGER	1-14134-161-1	01	1	9601-0604	●
22	DUCT; INL,ACL TO TURBOCHARGER NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX>	1-14134-161-1	01	1	0605-	●
22	DUCT; INL,ACL TO TURBOCHARGER EXC. NEW ZEALAND EQUIPMENT(PK5)	1-14134-161-1	01	1	0605-	●
22	DUCT; INL,ACL TO TURBOCHARGER	8-94390-407-0	01	1	9610-9803		●
22	DUCT; INL,ACL TO TURBOCHARGER EURO2 SPECIFICATION<THN>	8-94390-407-0	01	1	9804-0405		●
22	DUCT; INL,ACL TO TURBOCHARGER	8-94390-407-0	01	1	0406-		●
22	DUCT; INL,ACL TO TURBOCHARGER EXC. EURO2 SPECIFICATION<THN>	8-94394-401-1	01	1	9804-0405		●
22	DUCT; INL,ACL TO TURBOCHARGER	8-97600-110-1	01	1	0406-			●
66	STUD; EXH PIPE EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) M12X90 L=110	1-09302-035-0	02	1	0605-	●
68	HOSE; RUBBER,TURBOCHARGER TO INL COVER EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5)	1-09361-124-0	01	1	0605-	●
69	CLIP; RUBBER HOSE,TURBOCHARGER EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) ID=68-85	1-09707-202-0	02	1	0605-0808	●
69	CLIP; RUBBER HOSE,TURBOCHARGER EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) ID=68-85	8-94320-428-0	02	1	0809-	●
76	BOLT; AIR DUCT EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) M10X60 FLANGE	0-28051-060-0	01	1	0605-	●
76	BOLT; AIR DUCT EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) M10X80 FLANGE	0-28051-080-0	02	1	0605-	●
76	BOLT; AIR DUCT M8X35 FLANGE	0-28680-835-0	02	1	0406-0512			●
76	BOLT; AIR DUCT M8X35 FLANGE	0-28650-835-0	02	1	0601-			●
76	BOLT; AIR DUCT M10X90 FLANGE	0-28081-090-0	02	1	9601-0512	●
76	BOLT; AIR DUCT M10X90 FLANGE	0-28051-090-0	02	1	0601-0604	●
76	BOLT; AIR DUCT NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> M10X90 FLANGE	0-28051-090-0	02	1	0605-	●
76	BOLT; AIR DUCT EXC. NEW ZEALAND EQUIPMENT(PK5) M10X90 FLANGE	0-28051-090-0	02	1	0605-	●
76	BOLT; AIR DUCT M8X50 FLANGE	0-28080-850-0	02	1	9610-0512		●
76	BOLT; AIR DUCT M8X50 FLANGE	0-28050-850-0	02	1	0601-		●
97	CLIP; HOSE,TURBOCHARGER,INL EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) ID=104-139	1-09707-200-0	04	1	0605-0809	●
97	CLIP; HOSE,TURBOCHARGER,INL EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) ID=104-139	1-09707-200-0	02	1	0810-0812	●
97	CLIP; HOSE,TURBOCHARGER,INL EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) ID=104-142	1-09707-155-0	02	1	0901-	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-113	1-09707-199-0	04	1	0406-0810			●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-113	1-09707-199-0	02	1	0811-0811			●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-116	1-09707-144-0	02	1	0811-0811			●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-116	1-09707-144-0	04	1	0812-			●
97	CLIP; HOSE,TURBOCHARGER,INL EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) ID=104-142	1-09707-155-0	02	1	0809-0810	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=86	9-09915-592-0	02	1	9601-9803	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=86	9-09915-592-0	02	1	9804-0405	●
97	CLIP; HOSE,TURBOCHARGER,INL FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. EURO2 SPECIFICATION<THN> ID=86	9-09915-592-0	02	1	9804-0405		●
97	CLIP; HOSE,TURBOCHARGER,INL ID=86	9-09915-592-0	02	1	0406-0604	●
97	CLIP; HOSE,TURBOCHARGER,INL NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> ID=86	9-09915-592-0	02	1	0605-	●
97	CLIP; HOSE,TURBOCHARGER,INL EXC. NEW ZEALAND EQUIPMENT(PK5) ID=86	9-09915-592-0	02	1	0605-	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=77-95	1-09707-114-0	02	1	9803-9803		●
97	CLIP; HOSE,TURBOCHARGER,INL EURO2 SPECIFICATION<THN> ID=77-95	1-09707-114-0	02	1	9804-0306		●
97	CLIP; HOSE,TURBOCHARGER,INL EURO2 SPECIFICATION<THN> ID=77-95	1-09707-198-0	04	1	0307-0810		●
97	CLIP; HOSE,TURBOCHARGER,INL ID=77-95	1-09707-114-0	04	1	0811-		●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=58.5 OD=65.5 L=80	8-94392-854-0	01	1	0406-			●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=62 L=70	1-09360-797-1	01	1	9601-9803	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=62 L=70	1-09360-797-1	01	1	9804-0405	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. EURO2 SPECIFICATION<THN> ID=62 L=70	1-09360-797-1	01	1	9804-0405		●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=62 L=70	1-09360-797-1	01	1	0406-1408	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=62 L=70	8-98245-240-0	01	1	1409-	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET	1-09360-782-0	01	1	9610-9803		●
98	HOSE; RUBBER,TURBOCHARGER OUTLET EURO2 SPECIFICATION<THN>	1-09360-782-0	01	1	9804-0405		●
98	HOSE; RUBBER,TURBOCHARGER OUTLET	1-09360-782-0	01	1	0406-		●
143	CLIP; HOSE,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=58-76	1-09707-203-0	02	1	0307-0405		●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-76	1-09707-203-0	02	1	0406-0809			●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	9601-9803	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	9804-0306	●
143	CLIP; HOSE,TURBOCHARGER OUTLET FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. EURO2 SPECIFICATION<THN> ID=58-79	8-94126-771-0	02	1	9804-0306		●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-76	1-09707-203-0	04	1	0307-0809	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-76	1-09707-203-0	02	1	0810-0811	●		●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	0812-	●		●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=50-69	8-94316-991-0	02	1	9610-9803		●
143	CLIP; HOSE,TURBOCHARGER OUTLET EURO2 SPECIFICATION<THN> ID=50-69	8-94316-991-0	02	1	9804-0306		●
143	CLIP; HOSE,TURBOCHARGER OUTLET EURO2 SPECIFICATION<THN> ID=50-65	1-09707-204-0	02	1	0307-0810		●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=50-69	8-94316-991-0	02	1	0811-		●
148	HOSE; TURBOCHARGER,INL EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5)	1-09361-135-1	01	1	0605-	●
148	HOSE; TURBOCHARGER,INL	1-09360-403-1	01	1	9601-0604	●
148	HOSE; TURBOCHARGER,INL NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX>	1-09360-403-1	01	1	0605-	●
148	HOSE; TURBOCHARGER,INL EXC. NEW ZEALAND EQUIPMENT(PK5)	1-09360-403-1	01	1	0605-	●
148	HOSE; TURBOCHARGER,INL	5-09360-846-0	01	1	9803-9803		●
148	HOSE; TURBOCHARGER,INL EURO2 SPECIFICATION<THN>	5-09360-846-0	01	1	9804-0405		●
148	HOSE; TURBOCHARGER,INL	5-09360-846-0	01	1	0406-		●
148	HOSE; TURBOCHARGER,INL EXC. EURO2 SPECIFICATION<THN>	1-09360-600-0	01	1	9804-0405		●
148	HOSE; TURBOCHARGER,INL	8-94392-853-0	01	1	0406-			●
214	BAND; "V",TURBOCHARGER TO EXH PIPE EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5)	1-09709-094-1	01	1	0605-0609	●
214	BAND; "V",TURBOCHARGER TO EXH PIPE EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5)	8-98059-890-0	01	1	0610-	●

12 22 97 28 212 11 76 97 148 1 143 98 143 2 11 212 156

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5)	1-14400-407-5	01	1	0605-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	1-14400-339-4	01	1	9601-9609	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. EURO2 SPECIFICATION<THN>	1-14400-339-5	01	1	9610-0604	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN>	1-14400-339-5	01	1	0605-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN>	1-14400-339-5	01	1	0605-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<THN>	1-14400-356-1	01	1	9610-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-94390-650-0	01	1	9610-9803		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<THN>	8-94390-650-0	01	1	9804-0405		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-94390-650-0	01	1	0406-1007		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98162-141-0	01	1	1008-		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. EURO2 SPECIFICATION<THN>	8-94394-457-3	01	1	9804-0405		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97601-974-0	01	1	0406-			●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5)	1-14145-140-1	01	1	0605-	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-181-0	01	1	9601-0604	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX>	1-14145-181-0	01	1	0605-	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-14145-181-0	01	1	0605-	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-044-0	01	1	9610-9803		●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN>	8-94390-044-0	01	1	9804-0405		●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-044-0	01	1	0406-		●	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN>	1-14145-121-0	01	1	9804-0405		●
11	NUT; TURBOCHARGER EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) (A) M10	1-09420-005-0	08	1	0605-	●
11	NUT; TURBOCHARGER (A) M10	1-09420-005-0	01	1	9601-0604	●
11	NUT; TURBOCHARGER NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> (A) M10	1-09420-005-0	01	1	0605-	●
11	NUT; TURBOCHARGER EXC. NEW ZEALAND EQUIPMENT(PK5) (A) M10	1-09420-005-0	01	1	0605-	●
11	NUT; TURBOCHARGER (B) M10 P=1.5 H=8	9-09842-007-0	03	1	9601-0604	●
11	NUT; TURBOCHARGER NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> (B) M10 P=1.5 H=8	9-09842-007-0	03	1	0605-	●
11	NUT; TURBOCHARGER EXC. NEW ZEALAND EQUIPMENT(PK5) (B) M10 P=1.5 H=8	9-09842-007-0	03	1	0605-	●
11	NUT; TURBOCHARGER (C) M10	1-09420-005-0	04	1	9610-9705		●
11	NUT; TURBOCHARGER (C) M10	1-09420-005-0	04	1	9706-0405		●
11	NUT; TURBOCHARGER (C) M10	1-09420-005-0	04	1	0406-		●	●
12	STUD; TURBOCHARGER M10X80	9-04731-080-0	02	1	1008-		●
12	STUD; TURBOCHARGER M10X30,M10X22.5 L=45	9-04731-030-0	01	1	9601-0604	●
12	STUD; TURBOCHARGER NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> M10X30,M10X22.5 L=45	9-04731-030-0	01	1	0605-	●
12	STUD; TURBOCHARGER EXC. NEW ZEALAND EQUIPMENT(PK5) M10X30,M10X22.5 L=45	9-04731-030-0	01	1	0605-	●
22	DUCT; INL,ACL TO TURBOCHARGER EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5)	1-14134-398-3	01	1	0605-	●
22	DUCT; INL,ACL TO TURBOCHARGER	1-14134-161-1	01	1	9601-0604	●
22	DUCT; INL,ACL TO TURBOCHARGER NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX>	1-14134-161-1	01	1	0605-	●
22	DUCT; INL,ACL TO TURBOCHARGER EXC. NEW ZEALAND EQUIPMENT(PK5)	1-14134-161-1	01	1	0605-	●
22	DUCT; INL,ACL TO TURBOCHARGER	8-94390-407-0	01	1	9610-9803		●
22	DUCT; INL,ACL TO TURBOCHARGER EURO2 SPECIFICATION<THN>	8-94390-407-0	01	1	9804-0405		●
22	DUCT; INL,ACL TO TURBOCHARGER	8-94390-407-0	01	1	0406-		●
22	DUCT; INL,ACL TO TURBOCHARGER EXC. EURO2 SPECIFICATION<THN>	8-94394-401-1	01	1	9804-0405		●
22	DUCT; INL,ACL TO TURBOCHARGER	8-97600-110-1	01	1	0406-			●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (D)	1-14181-123-0	01	1	9601-9907	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (D)	1-14181-221-0	01	1	9908-0604	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> (D)	1-14181-221-0	01	1	0605-	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EXC. NEW ZEALAND EQUIPMENT(PK5) (D)	1-14181-221-0	01	1	0605-	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (C)	1-14181-264-0	01	1	9610-9803		●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EURO2 SPECIFICATION<THN> (C)	1-14181-264-0	01	1	9804-0405		●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (C)	1-14181-264-0	01	1	0406-		●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EXC. EURO2 SPECIFICATION<THN> (A)	1-14181-220-0	01	1	9804-0405		●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EXC. EURO2 SPECIFICATION<THN> (B)	8-94393-182-0	01	1	9804-0405		●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (B)	8-94393-182-0	01	1	0406-			●
76	BOLT; AIR DUCT EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) M10X60 FLANGE	0-28051-060-0	01	1	0605-	●
76	BOLT; AIR DUCT EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) M10X80 FLANGE	0-28051-080-0	02	1	0605-	●
76	BOLT; AIR DUCT M8X35 FLANGE	0-28680-835-0	02	1	0406-0512			●
76	BOLT; AIR DUCT M8X35 FLANGE	0-28650-835-0	02	1	0601-			●
76	BOLT; AIR DUCT M10X90 FLANGE	0-28081-090-0	02	1	9601-0512	●
76	BOLT; AIR DUCT M10X90 FLANGE	0-28051-090-0	02	1	0601-0604	●
76	BOLT; AIR DUCT NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> M10X90 FLANGE	0-28051-090-0	02	1	0605-	●
76	BOLT; AIR DUCT EXC. NEW ZEALAND EQUIPMENT(PK5) M10X90 FLANGE	0-28051-090-0	02	1	0605-	●
76	BOLT; AIR DUCT M8X50 FLANGE	0-28080-850-0	02	1	9610-0512		●
76	BOLT; AIR DUCT M8X50 FLANGE	0-28050-850-0	02	1	0601-		●
97	CLIP; HOSE,TURBOCHARGER,INL EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) ID=104-139	1-09707-200-0	04	1	0605-0809	●
97	CLIP; HOSE,TURBOCHARGER,INL EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) ID=104-139	1-09707-200-0	02	1	0810-0812	●
97	CLIP; HOSE,TURBOCHARGER,INL EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) ID=104-142	1-09707-155-0	02	1	0901-	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-113	1-09707-199-0	04	1	0406-0810			●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-113	1-09707-199-0	02	1	0811-0811			●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-116	1-09707-144-0	02	1	0811-0811			●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-116	1-09707-144-0	04	1	0812-			●
97	CLIP; HOSE,TURBOCHARGER,INL EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) ID=104-142	1-09707-155-0	02	1	0809-0810	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=86	9-09915-592-0	02	1	9601-9803	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=86	9-09915-592-0	02	1	9804-0405	●
97	CLIP; HOSE,TURBOCHARGER,INL FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. EURO2 SPECIFICATION<THN> ID=86	9-09915-592-0	02	1	9804-0405		●
97	CLIP; HOSE,TURBOCHARGER,INL ID=86	9-09915-592-0	02	1	0406-0604	●
97	CLIP; HOSE,TURBOCHARGER,INL NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> ID=86	9-09915-592-0	02	1	0605-	●
97	CLIP; HOSE,TURBOCHARGER,INL EXC. NEW ZEALAND EQUIPMENT(PK5) ID=86	9-09915-592-0	02	1	0605-	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=77-95	1-09707-114-0	02	1	9803-9803		●
97	CLIP; HOSE,TURBOCHARGER,INL EURO2 SPECIFICATION<THN> ID=77-95	1-09707-114-0	02	1	9804-0306		●
97	CLIP; HOSE,TURBOCHARGER,INL EURO2 SPECIFICATION<THN> ID=77-95	1-09707-198-0	04	1	0307-0810		●
97	CLIP; HOSE,TURBOCHARGER,INL ID=77-95	1-09707-114-0	04	1	0811-		●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=58.5 OD=65.5 L=80	8-94392-854-0	01	1	0406-			●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=62 L=70	1-09360-797-1	01	1	9601-9803	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=62 L=70	1-09360-797-1	01	1	9804-0405	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. EURO2 SPECIFICATION<THN> ID=62 L=70	1-09360-797-1	01	1	9804-0405		●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=62 L=70	1-09360-797-1	01	1	0406-1408	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=62 L=70	8-98245-240-0	01	1	1409-	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET	1-09360-782-0	01	1	9610-9803		●
98	HOSE; RUBBER,TURBOCHARGER OUTLET EURO2 SPECIFICATION<THN>	1-09360-782-0	01	1	9804-0405		●
98	HOSE; RUBBER,TURBOCHARGER OUTLET	1-09360-782-0	01	1	0406-		●
143	CLIP; HOSE,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=58-76	1-09707-203-0	02	1	0307-0405		●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-76	1-09707-203-0	02	1	0406-0809			●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	9601-9803	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	9804-0306	●
143	CLIP; HOSE,TURBOCHARGER OUTLET FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. EURO2 SPECIFICATION<THN> ID=58-79	8-94126-771-0	02	1	9804-0306		●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-76	1-09707-203-0	04	1	0307-0809	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-76	1-09707-203-0	02	1	0810-0811	●		●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	0812-	●		●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=50-69	8-94316-991-0	02	1	9610-9803		●
143	CLIP; HOSE,TURBOCHARGER OUTLET EURO2 SPECIFICATION<THN> ID=50-69	8-94316-991-0	02	1	9804-0306		●
143	CLIP; HOSE,TURBOCHARGER OUTLET EURO2 SPECIFICATION<THN> ID=50-65	1-09707-204-0	02	1	0307-0810		●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=50-69	8-94316-991-0	02	1	0811-		●
148	HOSE; TURBOCHARGER,INL EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5)	1-09361-135-1	01	1	0605-	●
148	HOSE; TURBOCHARGER,INL	1-09360-403-1	01	1	9601-0604	●
148	HOSE; TURBOCHARGER,INL NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX>	1-09360-403-1	01	1	0605-	●
148	HOSE; TURBOCHARGER,INL EXC. NEW ZEALAND EQUIPMENT(PK5)	1-09360-403-1	01	1	0605-	●
148	HOSE; TURBOCHARGER,INL	5-09360-846-0	01	1	9803-9803		●
148	HOSE; TURBOCHARGER,INL EURO2 SPECIFICATION<THN>	5-09360-846-0	01	1	9804-0405		●
148	HOSE; TURBOCHARGER,INL	5-09360-846-0	01	1	0406-		●
148	HOSE; TURBOCHARGER,INL EXC. EURO2 SPECIFICATION<THN>	1-09360-600-0	01	1	9804-0405		●
148	HOSE; TURBOCHARGER,INL	8-94392-853-0	01	1	0406-			●
156	CLIP; GLOW HARNESS ID=18 L=44	8-94225-185-0	01	1	9601-0604	●			●
156	CLIP; GLOW HARNESS ID=18 L=44	8-94225-185-0	01	1	0605-0801				●
156	CLIP; GLOW HARNESS NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> ID=18 L=44	8-94225-185-0	01	1	0605-0801	●
156	CLIP; GLOW HARNESS EXC. NEW ZEALAND EQUIPMENT(PK5) ID=18 L=44	8-94225-185-0	01	1	0605-0801	●
156	CLIP; GLOW HARNESS ID=18 L=44	8-97367-985-1	01	1	0802-				●
156	CLIP; GLOW HARNESS NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> ID=18 L=44	8-97367-985-1	01	1	0802-	●
156	CLIP; GLOW HARNESS EXC. NEW ZEALAND EQUIPMENT(PK5) ID=18 L=44	8-97367-985-1	01	1	0802-	●
212	WASHER; PL,TURBOCHARGER ID=10	1-09503-033-1	04	1	9601-0405	●	●
212	WASHER; PL,TURBOCHARGER ID=10	1-09503-033-1	04	1	0406-0604	●	●	●
212	WASHER; PL,TURBOCHARGER NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> ID=10	1-09503-033-1	04	1	0605-	●
212	WASHER; PL,TURBOCHARGER EXC. NEW ZEALAND EQUIPMENT(PK5) ID=10	1-09503-033-1	04	1	0605-	●
212	WASHER; PL,TURBOCHARGER ID=10	1-09503-033-1	04	1	0605-		●	●

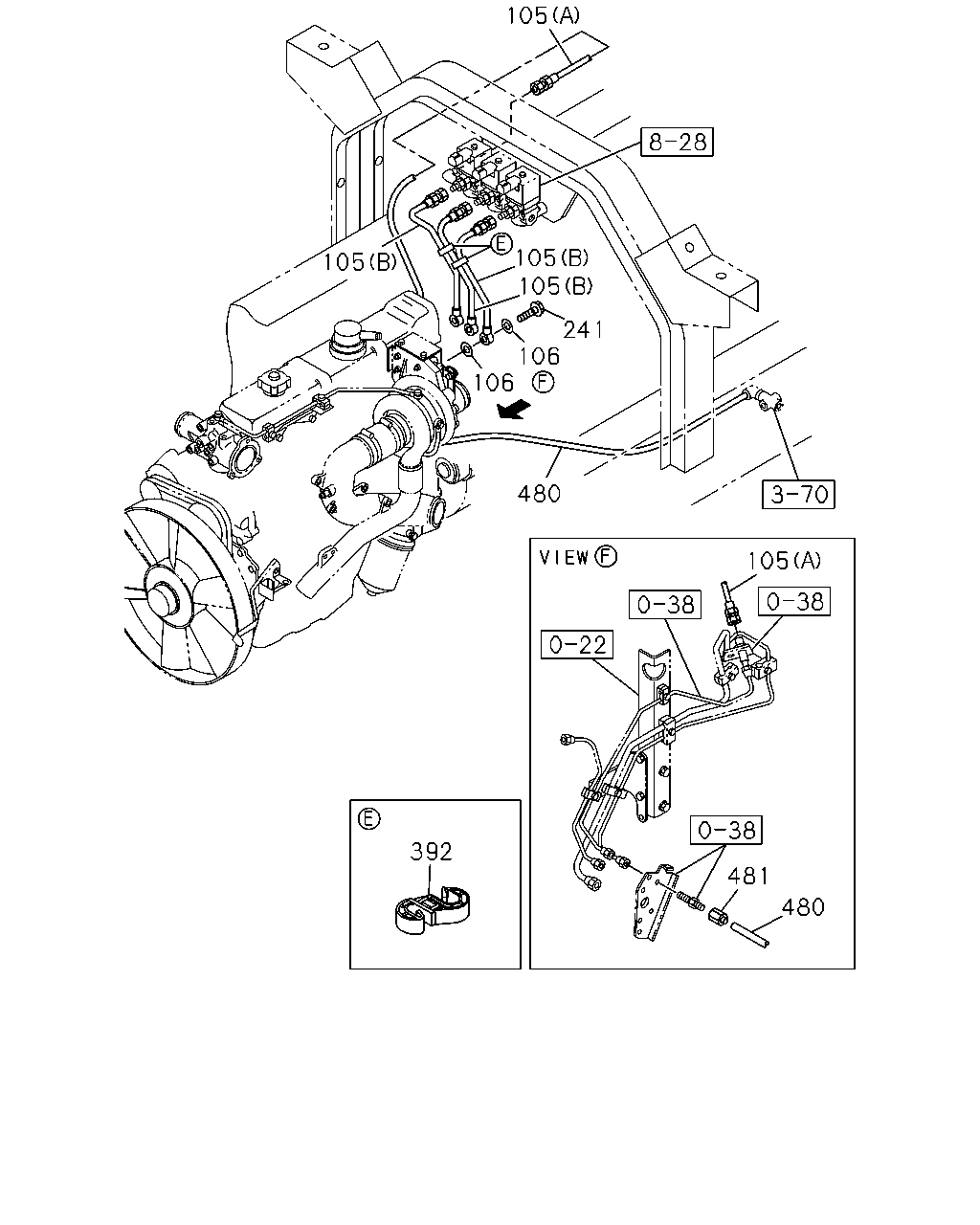

105 105 105 105 241 106 106 480 105 392 481 480

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
105	TUBE; FLEX MAG VLV EURO3 SPECIFICATION<NJX> (A) L=210	1-09363-614-0	01	1	0605-	●
105	TUBE; FLEX MAG VLV EURO3 SPECIFICATION<NJX> (B) L=390	1-09363-879-0	03	1	0605-	●
106	GASKET; FLEX TUBE EURO3 SPECIFICATION<NJX> ID=10.2 OD=15.2	1-09630-083-0	06	1	0605-	●
241	BOLT EURO3 SPECIFICATION<NJX>	8-94107-713-2	03	1	0605-	●
392	CLIP; FLEX HOSE EURO3 SPECIFICATION<NJX> ID=10 & 10	1-09709-277-1	02	1	0605-	●
480	TUBE; NYLON EURO3 SPECIFICATION<NJX> SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0605-	●
481	ADAPTER EURO3 SPECIFICATION<NJX> DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0605-	●

115 115 20 398 120 398 398 398 136 143 28 98 143 2 11 10 22 212 22 11 76 97 1 97 217 275 162 17 398 16 148 265 163 398 275 217 13 122 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5)	1-14400-407-5	01	1	0605-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	1-14400-339-4	01	1	9601-9609	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. EURO2 SPECIFICATION<THN>	1-14400-339-5	01	1	9610-0604	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN>	1-14400-339-5	01	1	0605-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN>	1-14400-339-5	01	1	0605-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<THN>	1-14400-356-1	01	1	9610-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-94390-650-0	01	1	9610-9803		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<THN>	8-94390-650-0	01	1	9804-0405		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-94390-650-0	01	1	0406-1007		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98162-141-0	01	1	1008-		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. EURO2 SPECIFICATION<THN>	8-94394-457-3	01	1	9804-0405		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97601-974-0	01	1	0406-			●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5)	1-14145-140-1	01	1	0605-	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-181-0	01	1	9601-0604	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX>	1-14145-181-0	01	1	0605-	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-14145-181-0	01	1	0605-	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-044-0	01	1	9610-9803		●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN>	8-94390-044-0	01	1	9804-0405		●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-044-0	01	1	0406-		●	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN>	1-14145-121-0	01	1	9804-0405		●
10	WASHER; LK,TURBOCHARGER T=2.2	1-09556-015-0	02	1	9610-9803		●
10	WASHER; LK,TURBOCHARGER EURO2 SPECIFICATION<THN> T=2.2	1-09556-015-0	02	1	9804-0405		●
10	WASHER; LK,TURBOCHARGER T=2.2	1-09556-015-0	02	1	0406-		●	●
11	NUT; TURBOCHARGER EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) (A) M10	1-09420-005-0	08	1	0605-	●
11	NUT; TURBOCHARGER (A) M10	1-09420-005-0	01	1	9601-0604	●
11	NUT; TURBOCHARGER NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> (A) M10	1-09420-005-0	01	1	0605-	●
11	NUT; TURBOCHARGER EXC. NEW ZEALAND EQUIPMENT(PK5) (A) M10	1-09420-005-0	01	1	0605-	●
11	NUT; TURBOCHARGER (B) M10 P=1.5 H=8	9-09842-007-0	03	1	9601-0604	●
11	NUT; TURBOCHARGER NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> (B) M10 P=1.5 H=8	9-09842-007-0	03	1	0605-	●
11	NUT; TURBOCHARGER EXC. NEW ZEALAND EQUIPMENT(PK5) (B) M10 P=1.5 H=8	9-09842-007-0	03	1	0605-	●
11	NUT; TURBOCHARGER (C) M10	1-09420-005-0	04	1	9610-9705		●
11	NUT; TURBOCHARGER (C) M10	1-09420-005-0	04	1	9706-0405		●
11	NUT; TURBOCHARGER (C) M10	1-09420-005-0	04	1	0406-		●	●
13	STUD; EXH PIPE M12X123 L=141	1-09302-012-0	02	1	0406-			●
13	STUD; EXH PIPE M12X103 L=123	8-94394-656-0	01	1	9610-9803		●
13	STUD; EXH PIPE EURO2 SPECIFICATION<THN> M12X103 L=123	8-94394-656-0	01	1	9804-0405		●
13	STUD; EXH PIPE M12X103 L=123	8-94394-656-0	01	1	0406-		●
16	ADAPTER; EXH PIPE EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5)	1-14144-650-0	01	1	0605-	●
16	ADAPTER; EXH PIPE	8-97600-283-0	01	1	0406-			●
16	ADAPTER; EXH PIPE	8-94391-161-1	01	1	9610-9803		●
16	ADAPTER; EXH PIPE EURO2 SPECIFICATION<THN>	8-94391-161-1	01	1	9804-0405		●
16	ADAPTER; EXH PIPE	8-94391-161-1	01	1	0406-		●
17	WASHER; PL,ADAPTER T=1.9	5-09500-012-0	06	1	9610-9803		●
17	WASHER; PL,ADAPTER EURO2 SPECIFICATION<THN> T=1.9	5-09500-012-0	06	1	9804-0405		●
17	WASHER; PL,ADAPTER T=1.9	5-09500-012-0	06	1	0406-		●	●
17	WASHER; PL,ADAPTER EXC. EURO2 SPECIFICATION<THN> ID=12.2	9-09851-933-0	04	1	9804-0405		●
20	PIPE; INL,TURBOCHARGER OUT	8-94390-649-0	01	1	9610-9803		●
20	PIPE; INL,TURBOCHARGER OUT EURO2 SPECIFICATION<THN>	8-94390-649-2	01	1	9804-0405		●
20	PIPE; INL,TURBOCHARGER OUT	8-94390-649-2	01	1	0406-		●
20	PIPE; INL,TURBOCHARGER OUT EXC. EURO2 SPECIFICATION<THN>	8-94394-399-1	01	1	9804-0405		●
20	PIPE; INL,TURBOCHARGER OUT	8-97600-383-1	01	1	0406-			●
22	DUCT; INL,ACL TO TURBOCHARGER EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5)	1-14134-398-3	01	1	0605-	●
22	DUCT; INL,ACL TO TURBOCHARGER	1-14134-161-1	01	1	9601-0604	●
22	DUCT; INL,ACL TO TURBOCHARGER NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX>	1-14134-161-1	01	1	0605-	●
22	DUCT; INL,ACL TO TURBOCHARGER EXC. NEW ZEALAND EQUIPMENT(PK5)	1-14134-161-1	01	1	0605-	●
22	DUCT; INL,ACL TO TURBOCHARGER	8-94390-407-0	01	1	9610-9803		●
22	DUCT; INL,ACL TO TURBOCHARGER EURO2 SPECIFICATION<THN>	8-94390-407-0	01	1	9804-0405		●
22	DUCT; INL,ACL TO TURBOCHARGER	8-94390-407-0	01	1	0406-		●
22	DUCT; INL,ACL TO TURBOCHARGER EXC. EURO2 SPECIFICATION<THN>	8-94394-401-1	01	1	9804-0405		●
22	DUCT; INL,ACL TO TURBOCHARGER	8-97600-110-1	01	1	0406-			●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (D)	1-14181-123-0	01	1	9601-9907	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (D)	1-14181-221-0	01	1	9908-0604	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> (D)	1-14181-221-0	01	1	0605-	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EXC. NEW ZEALAND EQUIPMENT(PK5) (D)	1-14181-221-0	01	1	0605-	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (C)	1-14181-264-0	01	1	9610-9803		●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EURO2 SPECIFICATION<THN> (C)	1-14181-264-0	01	1	9804-0405		●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (C)	1-14181-264-0	01	1	0406-		●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EXC. EURO2 SPECIFICATION<THN> (A)	1-14181-220-0	01	1	9804-0405		●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EXC. EURO2 SPECIFICATION<THN> (B)	8-94393-182-0	01	1	9804-0405		●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (B)	8-94393-182-0	01	1	0406-			●
76	BOLT; AIR DUCT EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) M10X60 FLANGE	0-28051-060-0	01	1	0605-	●
76	BOLT; AIR DUCT EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) M10X80 FLANGE	0-28051-080-0	02	1	0605-	●
76	BOLT; AIR DUCT M8X35 FLANGE	0-28680-835-0	02	1	0406-0512			●
76	BOLT; AIR DUCT M8X35 FLANGE	0-28650-835-0	02	1	0601-			●
76	BOLT; AIR DUCT M10X90 FLANGE	0-28081-090-0	02	1	9601-0512	●
76	BOLT; AIR DUCT M10X90 FLANGE	0-28051-090-0	02	1	0601-0604	●
76	BOLT; AIR DUCT NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> M10X90 FLANGE	0-28051-090-0	02	1	0605-	●
76	BOLT; AIR DUCT EXC. NEW ZEALAND EQUIPMENT(PK5) M10X90 FLANGE	0-28051-090-0	02	1	0605-	●
76	BOLT; AIR DUCT M8X50 FLANGE	0-28080-850-0	02	1	9610-0512		●
76	BOLT; AIR DUCT M8X50 FLANGE	0-28050-850-0	02	1	0601-		●
97	CLIP; HOSE,TURBOCHARGER,INL EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) ID=104-139	1-09707-200-0	04	1	0605-0809	●
97	CLIP; HOSE,TURBOCHARGER,INL EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) ID=104-139	1-09707-200-0	02	1	0810-0812	●
97	CLIP; HOSE,TURBOCHARGER,INL EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) ID=104-142	1-09707-155-0	02	1	0901-	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-113	1-09707-199-0	04	1	0406-0810			●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-113	1-09707-199-0	02	1	0811-0811			●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-116	1-09707-144-0	02	1	0811-0811			●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-116	1-09707-144-0	04	1	0812-			●
97	CLIP; HOSE,TURBOCHARGER,INL EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) ID=104-142	1-09707-155-0	02	1	0809-0810	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=86	9-09915-592-0	02	1	9601-9803	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=86	9-09915-592-0	02	1	9804-0405	●
97	CLIP; HOSE,TURBOCHARGER,INL FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. EURO2 SPECIFICATION<THN> ID=86	9-09915-592-0	02	1	9804-0405		●
97	CLIP; HOSE,TURBOCHARGER,INL ID=86	9-09915-592-0	02	1	0406-0604	●
97	CLIP; HOSE,TURBOCHARGER,INL NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> ID=86	9-09915-592-0	02	1	0605-	●
97	CLIP; HOSE,TURBOCHARGER,INL EXC. NEW ZEALAND EQUIPMENT(PK5) ID=86	9-09915-592-0	02	1	0605-	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=77-95	1-09707-114-0	02	1	9803-9803		●
97	CLIP; HOSE,TURBOCHARGER,INL EURO2 SPECIFICATION<THN> ID=77-95	1-09707-114-0	02	1	9804-0306		●
97	CLIP; HOSE,TURBOCHARGER,INL EURO2 SPECIFICATION<THN> ID=77-95	1-09707-198-0	04	1	0307-0810		●
97	CLIP; HOSE,TURBOCHARGER,INL ID=77-95	1-09707-114-0	04	1	0811-		●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=58.5 OD=65.5 L=80	8-94392-854-0	01	1	0406-			●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=62 L=70	1-09360-797-1	01	1	9601-9803	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=62 L=70	1-09360-797-1	01	1	9804-0405	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. EURO2 SPECIFICATION<THN> ID=62 L=70	1-09360-797-1	01	1	9804-0405		●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=62 L=70	1-09360-797-1	01	1	0406-1408	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=62 L=70	8-98245-240-0	01	1	1409-	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET	1-09360-782-0	01	1	9610-9803		●
98	HOSE; RUBBER,TURBOCHARGER OUTLET EURO2 SPECIFICATION<THN>	1-09360-782-0	01	1	9804-0405		●
98	HOSE; RUBBER,TURBOCHARGER OUTLET	1-09360-782-0	01	1	0406-		●
115	PIPE; WATER,TURBOCHARGER OUT (E)	8-97602-490-0	01	1	0406-			●
115	PIPE; WATER,TURBOCHARGER OUT EXC. EURO2 SPECIFICATION<THN> (A)	8-94394-691-0	01	1	9804-0405		●
115	PIPE; WATER,TURBOCHARGER OUT (D)	8-97601-977-1	01	1	0406-			●
115	PIPE; WATER,TURBOCHARGER OUT EXC. EURO2 SPECIFICATION<THN> (B)	8-94395-454-4	01	1	9804-0405		●
115	PIPE; WATER,TURBOCHARGER OUT (C)	8-97602-062-0	01	1	0406-			●
120	ADAPTER; WATER	8-97602-061-1	01	1	0406-			●
122	NUT; ADAPTER M8	1-09400-118-1	01	1	9610-9803		●
122	NUT; ADAPTER EURO2 SPECIFICATION<THN> M8	1-09400-118-1	01	1	9804-0405		●
122	NUT; ADAPTER M8	1-09400-118-1	01	1	0406-		●	●
136	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	01	1	0406-1312			●
136	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	8-98251-345-0	01	1	1401-			●
143	CLIP; HOSE,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=58-76	1-09707-203-0	02	1	0307-0405		●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-76	1-09707-203-0	02	1	0406-0809			●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	9601-9803	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	9804-0306	●
143	CLIP; HOSE,TURBOCHARGER OUTLET FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. EURO2 SPECIFICATION<THN> ID=58-79	8-94126-771-0	02	1	9804-0306		●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-76	1-09707-203-0	04	1	0307-0809	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-76	1-09707-203-0	02	1	0810-0811	●		●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	0812-	●		●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=50-69	8-94316-991-0	02	1	9610-9803		●
143	CLIP; HOSE,TURBOCHARGER OUTLET EURO2 SPECIFICATION<THN> ID=50-69	8-94316-991-0	02	1	9804-0306		●
143	CLIP; HOSE,TURBOCHARGER OUTLET EURO2 SPECIFICATION<THN> ID=50-65	1-09707-204-0	02	1	0307-0810		●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=50-69	8-94316-991-0	02	1	0811-		●
148	HOSE; TURBOCHARGER,INL EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5)	1-09361-135-1	01	1	0605-	●
148	HOSE; TURBOCHARGER,INL	1-09360-403-1	01	1	9601-0604	●
148	HOSE; TURBOCHARGER,INL NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX>	1-09360-403-1	01	1	0605-	●
148	HOSE; TURBOCHARGER,INL EXC. NEW ZEALAND EQUIPMENT(PK5)	1-09360-403-1	01	1	0605-	●
148	HOSE; TURBOCHARGER,INL	5-09360-846-0	01	1	9803-9803		●
148	HOSE; TURBOCHARGER,INL EURO2 SPECIFICATION<THN>	5-09360-846-0	01	1	9804-0405		●
148	HOSE; TURBOCHARGER,INL	5-09360-846-0	01	1	0406-		●
148	HOSE; TURBOCHARGER,INL EXC. EURO2 SPECIFICATION<THN>	1-09360-600-0	01	1	9804-0405		●
148	HOSE; TURBOCHARGER,INL	8-94392-853-0	01	1	0406-			●
162	BOLT; ADAPTER M8X57	5-09000-275-0	05	1	9610-9803		●
162	BOLT; ADAPTER EURO2 SPECIFICATION<THN> M8X57	5-09000-275-0	05	1	9804-0405		●
162	BOLT; ADAPTER M8X57	5-09000-275-0	05	1	0406-		●	●
162	BOLT; ADAPTER EXC. EURO2 SPECIFICATION<THN> M12X30	8-94394-324-0	02	1	9804-0405		●
163	GASKET; ADAPTER TO EXH PIPE	1-14145-162-0	01	1	9610-9803		●
163	GASKET; ADAPTER TO EXH PIPE EURO2 SPECIFICATION<THN>	1-14145-162-0	01	1	9804-0405		●
163	GASKET; ADAPTER TO EXH PIPE	1-14145-162-2	01	1	0406-		●	●
212	WASHER; PL,TURBOCHARGER ID=10	1-09503-033-1	04	1	9601-0405	●	●
212	WASHER; PL,TURBOCHARGER ID=10	1-09503-033-1	04	1	0406-0604	●	●	●
212	WASHER; PL,TURBOCHARGER NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> ID=10	1-09503-033-1	04	1	0605-	●
212	WASHER; PL,TURBOCHARGER EXC. NEW ZEALAND EQUIPMENT(PK5) ID=10	1-09503-033-1	04	1	0605-	●
212	WASHER; PL,TURBOCHARGER ID=10	1-09503-033-1	04	1	0605-		●	●
217	BOLT; BRKT EXC. EURO2 SPECIFICATION<THN> (A) M12X30	8-94394-324-0	01	1	9804-0405		●
217	BOLT; BRKT (A) M12X30	8-94394-324-0	03	1	0406-			●
217	BOLT; BRKT EXC. EURO2 SPECIFICATION<THN> (B) M12X85	8-94394-514-0	01	1	9804-0405		●
265	BRACKET; EXH PIPE EXC. EURO2 SPECIFICATION<THN>	8-94394-373-0	01	1	9804-0405		●
265	BRACKET; EXH PIPE	8-94395-764-2	01	1	0406-			●
275	WASHER; PL ID=12.2	1-09503-008-0	03	1	0406-			●
398	MOUNTING (F) ID=19 OD=26	8-94160-177-0	01	1	0406-			●
398	MOUNTING (A) ID=19.5	8-94202-456-3	02	1	0406-			●
398	MOUNTING (C) OD=28	8-94390-551-1	01	1	0406-			●
398	MOUNTING (D) ID=13 OD=28	8-94394-504-0	01	1	0406-			●
398	MOUNTING (E) OD=26	8-94394-529-0	01	1	0406-			●
398	MOUNTING (B)	8-97600-053-0	02	1	0406-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
