0-35 — ENGINE CONTROL VALVE AND LEVER (#64377) — 101 parça

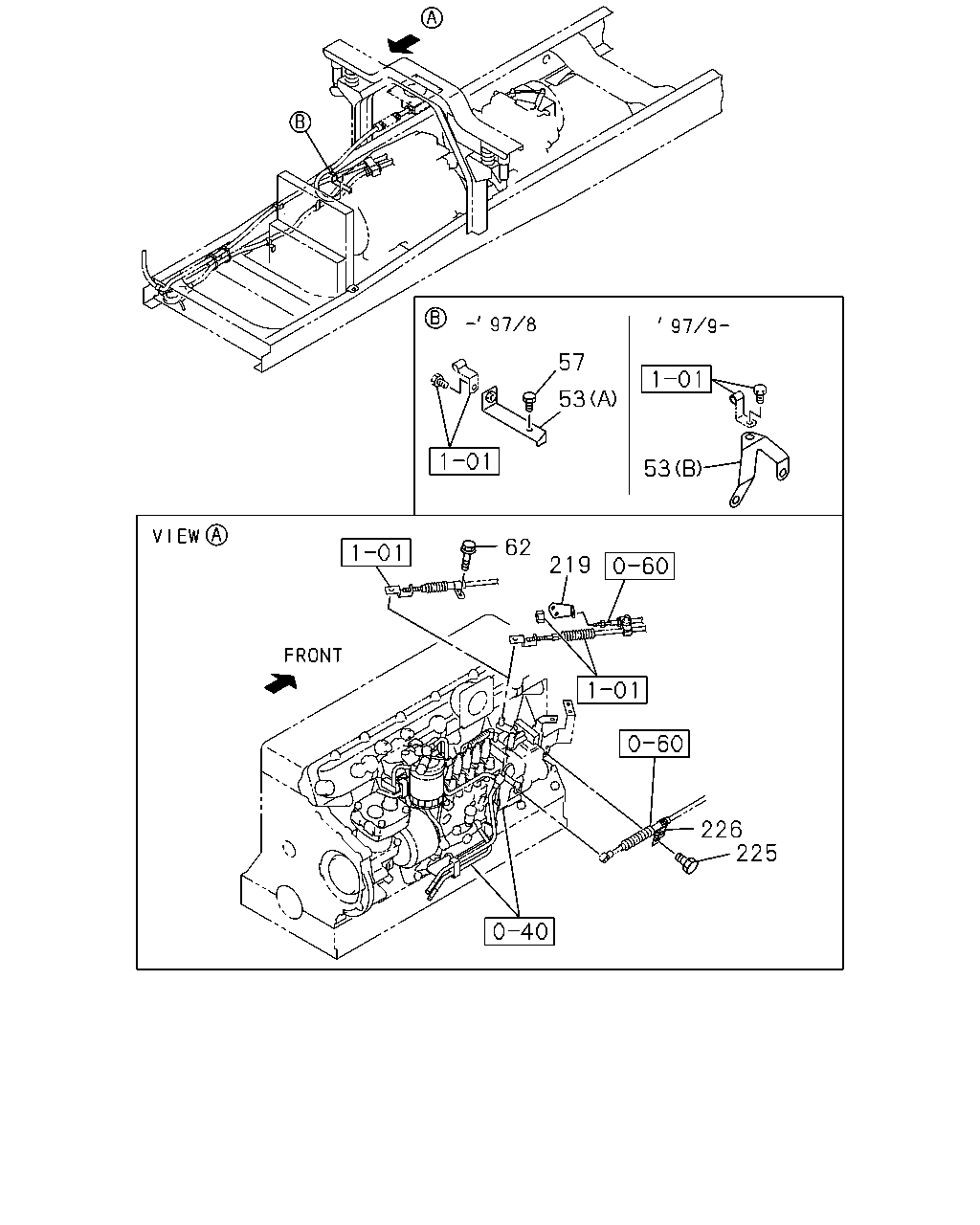

57 53 53 62 219 226 225

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
53	BRACKET; CABLE SPEED LIMITER CABLE STROKE CONTROL<TDT> (A)	1-47477-664-2	01	1	9601-9708	●
53	BRACKET; CABLE SPEED LIMITER CABLE STROKE CONTROL<TDT> (B)	1-23319-103-0	01	1	9709-	●
57	BOLT; BRKT SPEED LIMITER CABLE STROKE CONTROL<TDT> M8X20 FLANGE	0-28080-820-0	01	1	9601-9708	●
62	BOLT; CABLE END EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> M6X20 FLANGE	0-28080-620-0	02	1	9601-9606		●
62	BOLT; CABLE END EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> M6X25 FLANGE	0-28680-625-0	02	1	9607-9609		●
62	BOLT; CABLE END EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> M6X25 FLANGE	0-28680-625-0	02	1	9610-9702		●
62	BOLT; CABLE END EXC. EURO2 SPECIFICATION<THN> M6X25 FLANGE	0-28680-625-0	02	1	9610-9702			●
62	BOLT; CABLE END EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> M6X16 FLANGE	0-28080-616-0	02	1	9601-9606	●			●
62	BOLT; CABLE END EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> M6X20 FLANGE	0-28680-620-0	02	1	9607-9702	●			●
62	BOLT; CABLE END EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT>, EURO2 SPECIFICATION<THN> M6X20 FLANGE	0-28680-620-0	02	1	9703-0004		●	●
62	BOLT; CABLE END EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> M6X20 FLANGE	0-28680-620-0	02	1	9703-0004	●			●
62	BOLT; CABLE END EXC. EURO2 SPECIFICATION<THN> M6X20 FLANGE	0-28680-620-0	02	1	0005-0405		●	●
62	BOLT; CABLE END M6X20 FLANGE	0-28680-620-0	02	1	0005-0405	●			●	●
62	BOLT; CABLE END EXC. EURO2 SPECIFICATION<THN> M6X20 FLANGE	0-28680-620-0	02	1	0406-0512		●	●
62	BOLT; CABLE END M6X20 FLANGE	0-28680-620-0	02	1	0406-0512				●	●
62	BOLT; CABLE END FVR WIDE CAB MIDDLE CHASSIS(FVR5FF) FVR STD CAB SHORT CHASSIS(FVR5MC) FVR STD CAB MIDDLE CHASSIS(FVR5MF) GVR(GV****) M6X20 FLANGE	0-28680-620-0	02	1	0406-0512	●
62	BOLT; CABLE END EXC. EURO2 SPECIFICATION<THN> M6X20 FLANGE	0-28650-620-0	02	1	0601-		●	●
62	BOLT; CABLE END M6X20 FLANGE	0-28650-620-0	02	1	0601-				●	●
62	BOLT; CABLE END FVR WIDE CAB MIDDLE CHASSIS(FVR5FF) FVR STD CAB SHORT CHASSIS(FVR5MC) FVR STD CAB MIDDLE CHASSIS(FVR5MF) GVR(GV****) M6X20 FLANGE	0-28650-620-0	02	1	0601-	●
62	BOLT; CABLE END EXC. EURO2 SPECIFICATION<THN> M8X20 FLANGE	0-28680-820-0	01	1	9610-0004			●
62	BOLT; CABLE END EURO2 SPECIFICATION<THN> M8X20 FLANGE	0-28680-820-0	01	1	0005-0108			●
62	BOLT; CABLE END EURO2 SPECIFICATION<THN> M8X20 FLANGE	0-28680-820-0	02	1	0109-0512			●
62	BOLT; CABLE END EURO2 SPECIFICATION<THN> M8X20 FLANGE	0-28650-820-0	02	1	0601-			●
219	BRACKET; ENG CONT SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-23319-101-0	01	1	9601-	●
225	BOLT; CLIP FIX M8X20 FLANGE	0-28080-820-0	02	1	9601-9606		●
225	BOLT; CLIP FIX M8X25 FLANGE	0-28680-825-0	02	1	9607-9612		●	●
225	BOLT; CLIP FIX M8X20 FLANGE	0-28680-820-0	02	1	9701-0004		●	●
225	BOLT; CLIP FIX M8X20 FLANGE	0-28680-820-0	02	1	0005-0512		●	●		●
225	BOLT; CLIP FIX M8X20 FLANGE	0-28650-820-0	02	1	0601-		●	●		●
225	BOLT; CLIP FIX M6X16 FLANGE	0-28080-616-0	02	1	9601-0004				●
225	BOLT; CLIP FIX M6X16 FLANGE	0-28080-616-0	02	1	0005-0512				●
225	BOLT; CLIP FIX M6X16 FLANGE	0-28050-616-0	02	1	0601-				●
225	BOLT; CLIP FIX M8X16 FLANGE	0-28080-816-0	02	1	9601-0512	●
225	BOLT; CLIP FIX M8X16 FLANGE	0-28050-816-0	02	1	0601-	●
226	CLIP; CABLE END	1-14319-082-0	01	1	0406-						●
226	CLIP; CABLE END	1-09700-787-1	01	1	9601-9609		●
226	CLIP; CABLE END	1-09700-787-1	01	1	9610-0004		●
226	CLIP; CABLE END EXC. EURO2 SPECIFICATION<THN>	1-09700-787-1	01	1	9610-0004			●
226	CLIP; CABLE END EXC. EURO2 SPECIFICATION<THN>	1-09700-787-1	01	1	0005-		●	●
226	CLIP; CABLE END	1-09700-787-1	01	1	0005-					●
226	CLIP; CABLE END L=30	1-09700-326-0	01	1	9601-				●
226	CLIP; CABLE END	1-23219-032-0	01	1	9601-9609	●
226	CLIP; CABLE END	1-23219-032-0	01	1	9610-	●
226	CLIP; CABLE END EURO2 SPECIFICATION<THN>	1-23219-032-0	01	1	9610-			●

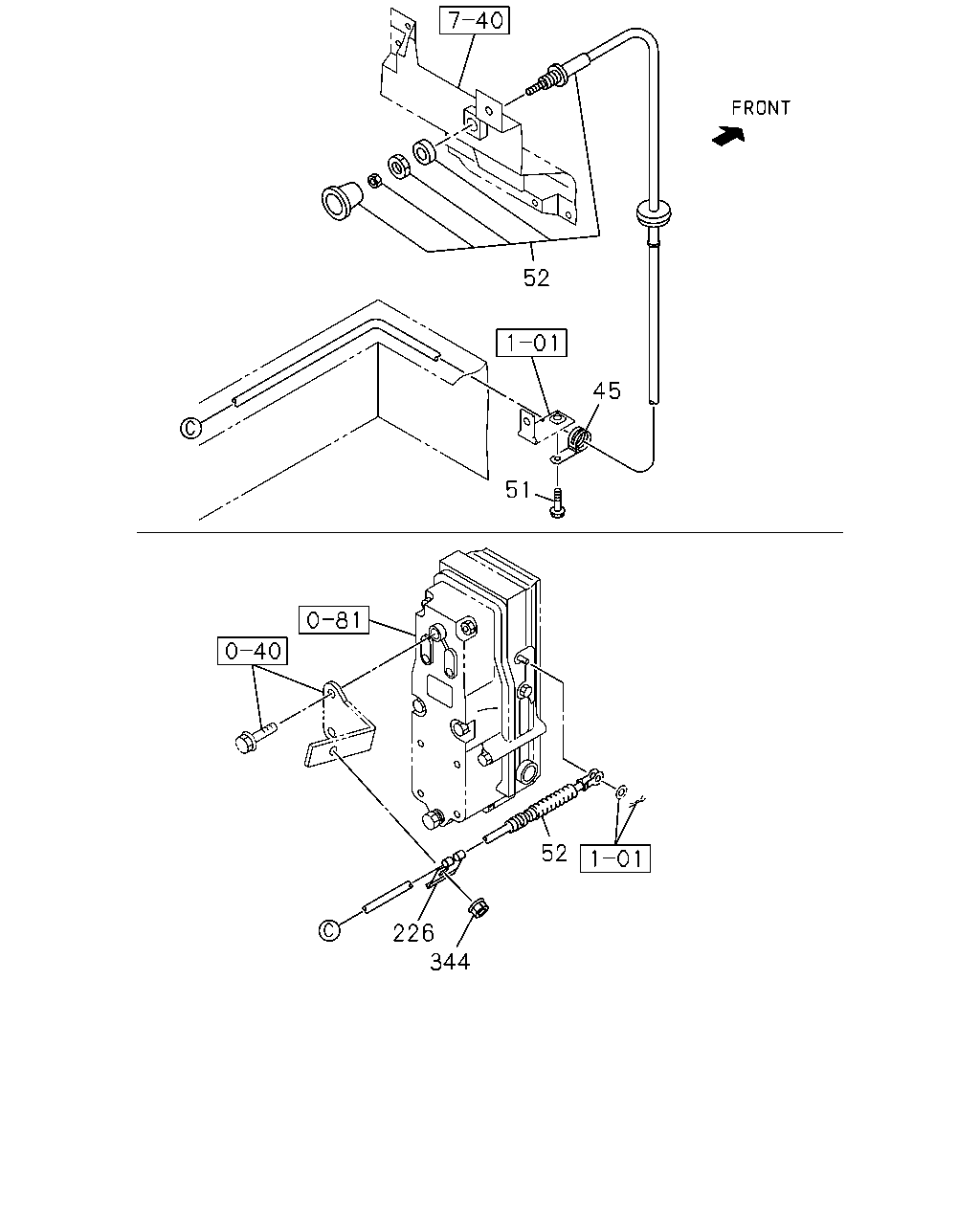

52 45 51 52 226 344

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
45	CLIP; FUEL CUT CABLE ID=11 L=20	9-09525-035-0	01	1	0406-0606						●
45	CLIP; FUEL CUT CABLE ID=11 L=20	0-95235-035-0	01	1	0607-						●
51	BOLT; CLIP,FUEL CUT CABLE M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0406-0904						●
51	BOLT; CLIP,FUEL CUT CABLE M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-						●
52	CABLE; FUEL CUT	1-73908-427-0	01	1	0406-						●
226	CLIP; CABLE END	1-14319-082-0	01	1	0406-						●
226	CLIP; CABLE END	1-09700-787-1	01	1	9601-9609		●
226	CLIP; CABLE END	1-09700-787-1	01	1	9610-0004		●
226	CLIP; CABLE END EXC. EURO2 SPECIFICATION<THN>	1-09700-787-1	01	1	9610-0004			●
226	CLIP; CABLE END EXC. EURO2 SPECIFICATION<THN>	1-09700-787-1	01	1	0005-		●	●
226	CLIP; CABLE END	1-09700-787-1	01	1	0005-					●
226	CLIP; CABLE END L=30	1-09700-326-0	01	1	9601-				●
226	CLIP; CABLE END	1-23219-032-0	01	1	9601-9609	●
226	CLIP; CABLE END	1-23219-032-0	01	1	9610-	●
226	CLIP; CABLE END EURO2 SPECIFICATION<THN>	1-23219-032-0	01	1	9610-			●
344	NUT; CABLE END M8 FLANGE	0-91150-108-0	01	1	0406-0602						●
344	NUT; CABLE END M8 FLANGE	0-91180-108-0	01	1	0603-						●

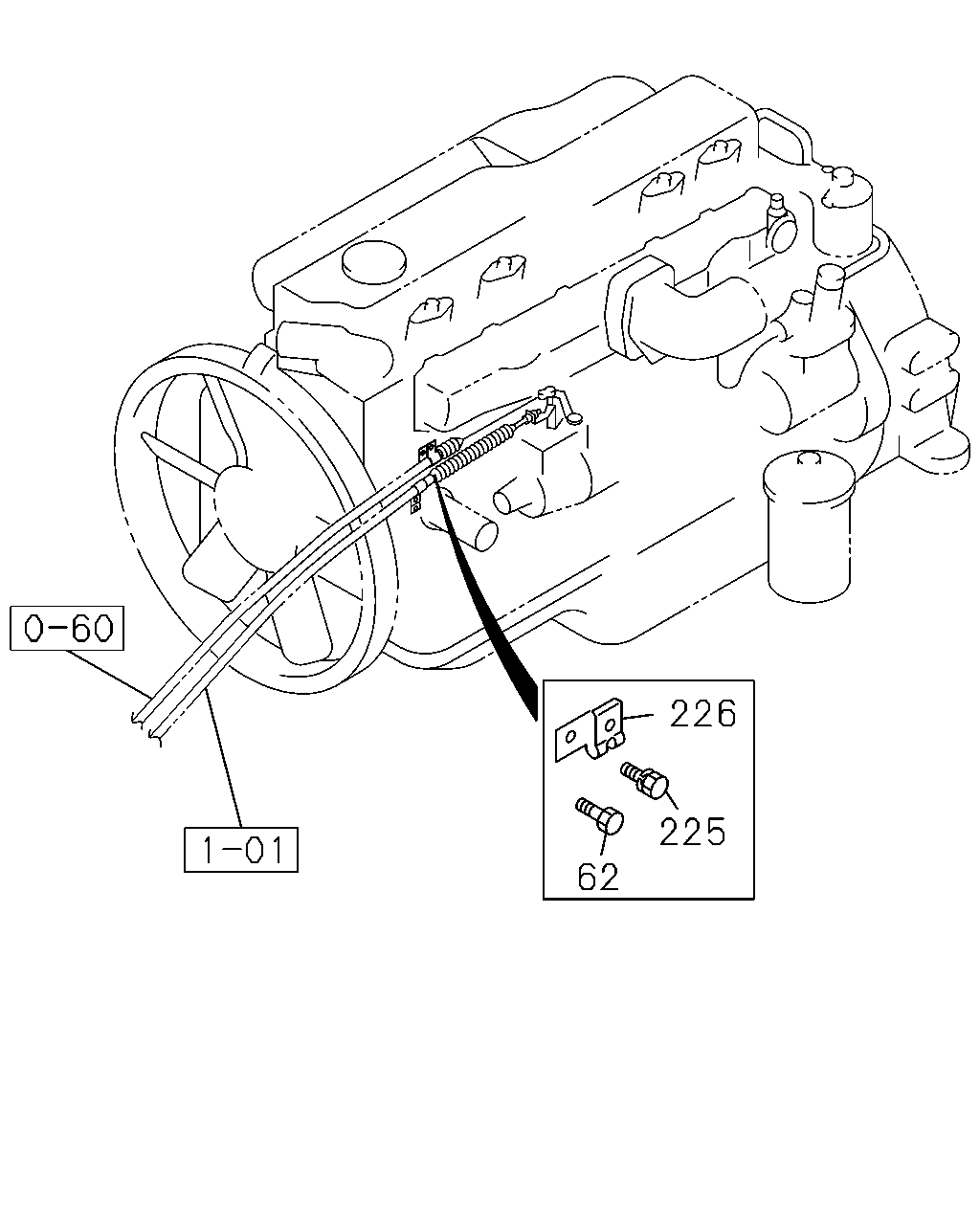

226 225 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
62	BOLT; CABLE END EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> M6X20 FLANGE	0-28080-620-0	02	1	9601-9606		●
62	BOLT; CABLE END EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> M6X25 FLANGE	0-28680-625-0	02	1	9607-9609		●
62	BOLT; CABLE END EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> M6X25 FLANGE	0-28680-625-0	02	1	9610-9702		●
62	BOLT; CABLE END EXC. EURO2 SPECIFICATION<THN> M6X25 FLANGE	0-28680-625-0	02	1	9610-9702			●
62	BOLT; CABLE END EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> M6X16 FLANGE	0-28080-616-0	02	1	9601-9606	●			●
62	BOLT; CABLE END EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> M6X20 FLANGE	0-28680-620-0	02	1	9607-9702	●			●
62	BOLT; CABLE END EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT>, EURO2 SPECIFICATION<THN> M6X20 FLANGE	0-28680-620-0	02	1	9703-0004		●	●
62	BOLT; CABLE END EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> M6X20 FLANGE	0-28680-620-0	02	1	9703-0004	●			●
62	BOLT; CABLE END EXC. EURO2 SPECIFICATION<THN> M6X20 FLANGE	0-28680-620-0	02	1	0005-0405		●	●
62	BOLT; CABLE END M6X20 FLANGE	0-28680-620-0	02	1	0005-0405	●			●	●
62	BOLT; CABLE END EXC. EURO2 SPECIFICATION<THN> M6X20 FLANGE	0-28680-620-0	02	1	0406-0512		●	●
62	BOLT; CABLE END M6X20 FLANGE	0-28680-620-0	02	1	0406-0512				●	●
62	BOLT; CABLE END FVR WIDE CAB MIDDLE CHASSIS(FVR5FF) FVR STD CAB SHORT CHASSIS(FVR5MC) FVR STD CAB MIDDLE CHASSIS(FVR5MF) GVR(GV****) M6X20 FLANGE	0-28680-620-0	02	1	0406-0512	●
62	BOLT; CABLE END EXC. EURO2 SPECIFICATION<THN> M6X20 FLANGE	0-28650-620-0	02	1	0601-		●	●
62	BOLT; CABLE END M6X20 FLANGE	0-28650-620-0	02	1	0601-				●	●
62	BOLT; CABLE END FVR WIDE CAB MIDDLE CHASSIS(FVR5FF) FVR STD CAB SHORT CHASSIS(FVR5MC) FVR STD CAB MIDDLE CHASSIS(FVR5MF) GVR(GV****) M6X20 FLANGE	0-28650-620-0	02	1	0601-	●
62	BOLT; CABLE END EXC. EURO2 SPECIFICATION<THN> M8X20 FLANGE	0-28680-820-0	01	1	9610-0004			●
62	BOLT; CABLE END EURO2 SPECIFICATION<THN> M8X20 FLANGE	0-28680-820-0	01	1	0005-0108			●
62	BOLT; CABLE END EURO2 SPECIFICATION<THN> M8X20 FLANGE	0-28680-820-0	02	1	0109-0512			●
62	BOLT; CABLE END EURO2 SPECIFICATION<THN> M8X20 FLANGE	0-28650-820-0	02	1	0601-			●
225	BOLT; CLIP FIX M8X20 FLANGE	0-28080-820-0	02	1	9601-9606		●
225	BOLT; CLIP FIX M8X25 FLANGE	0-28680-825-0	02	1	9607-9612		●	●
225	BOLT; CLIP FIX M8X20 FLANGE	0-28680-820-0	02	1	9701-0004		●	●
225	BOLT; CLIP FIX M8X20 FLANGE	0-28680-820-0	02	1	0005-0512		●	●		●
225	BOLT; CLIP FIX M8X20 FLANGE	0-28650-820-0	02	1	0601-		●	●		●
225	BOLT; CLIP FIX M6X16 FLANGE	0-28080-616-0	02	1	9601-0004				●
225	BOLT; CLIP FIX M6X16 FLANGE	0-28080-616-0	02	1	0005-0512				●
225	BOLT; CLIP FIX M6X16 FLANGE	0-28050-616-0	02	1	0601-				●
225	BOLT; CLIP FIX M8X16 FLANGE	0-28080-816-0	02	1	9601-0512	●
225	BOLT; CLIP FIX M8X16 FLANGE	0-28050-816-0	02	1	0601-	●
226	CLIP; CABLE END	1-14319-082-0	01	1	0406-						●
226	CLIP; CABLE END	1-09700-787-1	01	1	9601-9609		●
226	CLIP; CABLE END	1-09700-787-1	01	1	9610-0004		●
226	CLIP; CABLE END EXC. EURO2 SPECIFICATION<THN>	1-09700-787-1	01	1	9610-0004			●
226	CLIP; CABLE END EXC. EURO2 SPECIFICATION<THN>	1-09700-787-1	01	1	0005-		●	●
226	CLIP; CABLE END	1-09700-787-1	01	1	0005-					●
226	CLIP; CABLE END L=30	1-09700-326-0	01	1	9601-				●
226	CLIP; CABLE END	1-23219-032-0	01	1	9601-9609	●
226	CLIP; CABLE END	1-23219-032-0	01	1	9610-	●
226	CLIP; CABLE END EURO2 SPECIFICATION<THN>	1-23219-032-0	01	1	9610-			●
