1 |
FAN; COOLING
OD=560
|
8-97600-026-0 |
01 |
1 |
0406-0703 |
● |
|
|
|
|
|
| |
1 |
FAN; COOLING
OD=560
|
8-98073-467-1 |
01 |
1 |
0704- |
● |
|
|
|
|
|
| |
1 |
FAN; COOLING
OD=500
|
8-94399-286-1 |
01 |
1 |
9601-0004 |
|
● |
|
|
|
|
| |
1 |
FAN; COOLING
OD=500
|
8-94399-286-1 |
01 |
1 |
0005- |
|
● |
● |
|
|
|
| |
1 |
FAN; COOLING
OD=520
|
8-94393-117-0 |
01 |
1 |
9601-9803 |
|
|
|
● |
|
|
| |
1 |
FAN; COOLING
OD=520
|
8-94393-117-0 |
01 |
1 |
9804-9912 |
|
|
|
● |
|
|
| |
1 |
FAN; COOLING
EXC. EURO2 SPECIFICATION<THN>
OD=520
|
8-94393-117-0 |
01 |
1 |
9804-9912 |
|
|
|
|
● |
|
| |
1 |
FAN; COOLING
OD=520
|
8-94393-117-0 |
01 |
1 |
0001-0405 |
|
|
|
● |
|
|
| |
1 |
FAN; COOLING
EXC. EURO2 SPECIFICATION<THN>
OD=520
|
8-94393-117-0 |
01 |
1 |
0001-0405 |
|
|
|
|
● |
|
| |
1 |
FAN; COOLING
OD=520
|
8-94393-117-0 |
01 |
1 |
0406- |
|
|
|
● |
|
|
| |
1 |
FAN; COOLING
|
1-13660-283-1 |
01 |
1 |
9601- |
|
|
|
|
|
● |
| |
1 |
FAN; COOLING
|
1-13660-232-0 |
01 |
1 |
9610-9803 |
|
|
|
|
● |
|
| |
1 |
FAN; COOLING
EURO2 SPECIFICATION<THN>
|
1-13660-232-0 |
01 |
1 |
9804-0405 |
|
|
|
|
● |
|
| |
1 |
FAN; COOLING
|
1-13660-232-0 |
01 |
1 |
0406- |
|
|
|
|
● |
|
| |
7 |
COUPLING; FAN
|
8-97600-014-1 |
01 |
1 |
0406-0701 |
● |
|
|
|
|
|
| |
7 |
COUPLING; FAN
|
8-98075-118-0 |
01 |
1 |
0702- |
● |
|
|
|
|
|
| |
7 |
COUPLING; FAN
FLUID DRIVE FAN<KA3>
|
8-94395-254-1 |
01 |
1 |
9601-0004 |
|
● |
|
|
|
|
| |
7 |
COUPLING; FAN
FLUID DRIVE FAN<KA3>
|
8-94395-254-1 |
01 |
1 |
0005-0707 |
|
● |
|
|
|
|
| |
7 |
COUPLING; FAN
|
8-94395-254-1 |
01 |
1 |
0005-0707 |
|
|
● |
|
|
|
| |
7 |
COUPLING; FAN
FLUID DRIVE FAN<KA3>
|
8-94395-254-1 |
01 |
1 |
0708-0708 |
|
● |
|
|
|
|
| |
7 |
COUPLING; FAN
FLUID DRIVE FAN<KA3>
|
8-94395-254-1 |
01 |
1 |
0709- |
|
● |
|
|
|
|
| |
7 |
COUPLING; FAN
|
8-94395-254-1 |
01 |
1 |
0709- |
|
|
● |
|
|
|
| |
7 |
COUPLING; FAN
FLUID DRIVE FAN<KA3>
|
8-94394-009-2 |
01 |
1 |
9601-9803 |
|
|
|
● |
|
|
| |
7 |
COUPLING; FAN
FLUID DRIVE FAN<KA3>
|
8-94394-009-2 |
01 |
1 |
9804-0004 |
|
|
|
● |
|
|
| |
7 |
COUPLING; FAN
EXC. EURO2 SPECIFICATION<THN>
|
8-94394-009-2 |
01 |
1 |
9804-0004 |
|
|
|
|
● |
|
| |
7 |
COUPLING; FAN
FLUID DRIVE FAN<KA3>
|
8-94394-009-2 |
01 |
1 |
0005-0405 |
|
● |
|
|
|
|
| |
7 |
COUPLING; FAN
EXC. EURO2 SPECIFICATION<THN>
|
8-94394-009-2 |
01 |
1 |
0005-0405 |
|
|
|
|
● |
|
| |
7 |
COUPLING; FAN
FLUID DRIVE FAN<KA3>
|
8-94394-009-2 |
01 |
1 |
0406- |
|
|
|
● |
|
|
| |
7 |
COUPLING; FAN
|
1-21650-182-2 |
01 |
1 |
9601-9701 |
|
|
|
|
|
● |
| |
7 |
COUPLING; FAN
|
1-21650-195-1 |
01 |
1 |
9702-0609 |
|
|
|
|
|
● |
| |
7 |
COUPLING; FAN
|
8-97612-064-0 |
01 |
1 |
0610-0701 |
|
|
|
|
|
● |
| |
7 |
COUPLING; FAN
|
8-98075-122-0 |
01 |
1 |
0702-1009 |
|
|
|
|
|
● |
| |
7 |
COUPLING; FAN
|
8-98174-432-0 |
01 |
1 |
1010- |
|
|
|
|
|
● |
| |
7 |
COUPLING; FAN
|
8-94394-011-0 |
01 |
1 |
9610-9803 |
|
|
|
|
● |
|
| |
7 |
COUPLING; FAN
EURO2 SPECIFICATION<THN>
|
8-94394-011-0 |
01 |
1 |
9804-0405 |
|
|
|
|
● |
|
| |
7 |
COUPLING; FAN
|
8-94394-011-0 |
01 |
1 |
0406- |
|
|
|
|
● |
|
| |
24 |
BOLT; FAN
M8X14 FLANGE
|
0-28080-814-0 |
04 |
1 |
9601-9803 |
|
|
|
● |
|
|
| |
24 |
BOLT; FAN
M8X14 FLANGE
|
0-28080-814-0 |
04 |
1 |
9804-0405 |
|
|
|
● |
|
|
| |
24 |
BOLT; FAN
EXC. EURO2 SPECIFICATION<THN>
M8X14 FLANGE
|
0-28080-814-0 |
04 |
1 |
9804-0405 |
|
|
|
|
● |
|
| |
24 |
BOLT; FAN
M8X14 FLANGE
|
0-28080-814-0 |
04 |
1 |
0406- |
|
|
|
● |
|
|
| |
24 |
BOLT; FAN
M8X16 W/LK WASHER
|
0-50040-816-0 |
06 |
1 |
9601-0512 |
|
|
|
|
|
● |
| |
24 |
BOLT; FAN
M8X16 W/LK WASHER
|
0-50540-816-0 |
06 |
1 |
0601- |
|
|
|
|
|
● |
| |
24 |
BOLT; FAN
M8X14 FLANGE
|
0-28080-814-0 |
06 |
1 |
9610-9803 |
|
|
|
|
● |
|
| |
24 |
BOLT; FAN
EURO2 SPECIFICATION<THN>
M8X14 FLANGE
|
0-28080-814-0 |
06 |
1 |
9804-0405 |
|
|
|
|
● |
|
| |
24 |
BOLT; FAN
EURO2 SPECIFICATION<THN>
M8X14 FLANGE
|
0-28080-814-0 |
06 |
1 |
0406- |
|
|
|
|
● |
|
| |
24 |
BOLT; FAN
M8X14 FLANGE
|
0-28080-814-0 |
06 |
1 |
0406- |
● |
|
|
|
|
|
| |
29 |
BOLT; COUPLING TO WATER PUMP
M8X16 FLANGE
|
0-28050-816-0 |
04 |
1 |
0709- |
|
|
● |
|
|
|
| |
29 |
BOLT; COUPLING TO WATER PUMP
FLUID DRIVE FAN<KA3>
M8X14 FLANGE
|
8-94399-451-1 |
04 |
1 |
9601- |
|
● |
|
|
|
|
| |
29 |
BOLT; COUPLING TO WATER PUMP
EXC. FLUID DRIVE FAN<KA3>
M8X70 FLANGE
|
0-28080-870-0 |
04 |
1 |
9601-0512 |
|
● |
|
|
|
|
| |
29 |
BOLT; COUPLING TO WATER PUMP
EXC. FLUID DRIVE FAN<KA3>
M8X70 FLANGE
|
0-28050-870-0 |
04 |
1 |
0601-0707 |
|
● |
|
|
|
|
| |
29 |
BOLT; COUPLING TO WATER PUMP
EXC. FLUID DRIVE FAN<KA3>
M8X70 FLANGE
|
0-28050-870-0 |
04 |
1 |
0708-0708 |
|
● |
|
|
|
|
| |
29 |
BOLT; COUPLING TO WATER PUMP
M8X70 FLANGE
|
0-28050-870-0 |
04 |
1 |
0708-0708 |
|
|
● |
|
|
|
| |
29 |
BOLT; COUPLING TO WATER PUMP
EXC. FLUID DRIVE FAN<KA3>
M8X70 FLANGE
|
0-28050-870-0 |
04 |
1 |
0709- |
|
● |
|
|
|
|
| |
29 |
BOLT; COUPLING TO WATER PUMP
M10X22 FLANGE
|
0-28181-022-0 |
04 |
1 |
9601-9609 |
|
|
|
● |
|
|
| |
29 |
BOLT; COUPLING TO WATER PUMP
M10X22 FLANGE
|
0-28181-022-0 |
04 |
1 |
9610-9705 |
|
|
|
● |
● |
|
| |
29 |
BOLT; COUPLING TO WATER PUMP
M10X22 FLANGE
|
0-28181-022-0 |
06 |
1 |
9601- |
|
|
|
|
|
● |
| |
29 |
BOLT; COUPLING TO WATER PUMP
M10X22 FLANGE
|
0-28181-022-0 |
04 |
1 |
9706-9912 |
|
|
|
● |
● |
|
| |
29 |
BOLT; COUPLING TO WATER PUMP
M10X22 FLANGE
|
0-28181-022-0 |
04 |
1 |
0001-0109 |
|
● |
|
|
● |
|
| |
29 |
BOLT; COUPLING TO WATER PUMP
M10X22 FLANGE
|
0-28181-022-0 |
04 |
1 |
0110-0405 |
|
|
|
● |
● |
|
| |
29 |
BOLT; COUPLING TO WATER PUMP
M10X22 FLANGE
|
0-28181-022-0 |
04 |
1 |
0406- |
● |
|
|
● |
● |
|
| |
29 |
BOLT; COUPLING TO WATER PUMP
M8X16 FLANGE
|
0-28080-816-0 |
04 |
1 |
0005-0512 |
|
|
● |
|
|
|
| |
29 |
BOLT; COUPLING TO WATER PUMP
M8X16 FLANGE
|
0-28050-816-0 |
04 |
1 |
0601-0707 |
|
|
● |
|
|
|
| |
36 |
BELT; COOLING FAN
1 SET=2 PIECE(1136711970) MITSUBOSHI
|
1-13671-194-0 |
01 |
1 |
9601-0004 |
|
● |
|
|
|
|
| |
36 |
BELT; COOLING FAN
1 SET=2 PIECE(1136711970) MITSUBOSHI
|
1-13671-194-0 |
01 |
1 |
0005-1402 |
|
● |
● |
|
|
|
| |
36 |
BELT; COOLING FAN
1 SET=2 PIECE(8982534550) MITSUBOSHI
|
8-98253-275-0 |
01 |
1 |
1403- |
|
● |
● |
|
|
|
| |
36 |
BELT; COOLING FAN
1 SET=2 PIECE MITSUBOSHI
|
1-13671-411-0 |
01 |
1 |
9601- |
|
|
|
● |
|
|
| |
36 |
BELT; COOLING FAN
EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATO
R(YC4)
1 SET=2 PIECE MITSUBOSHI
|
1-13671-411-0 |
01 |
1 |
9601- |
|
|
|
|
|
● |
| |
36 |
BELT; COOLING FAN
INJ PUMP HIGH ALTITUDE ANEROID
COMPENSATOR(YC4)
1 SET=2 PIECE MITSUBOSHI
|
1-13671-412-0 |
01 |
1 |
9601-0604 |
|
|
|
|
|
● |
| |
36 |
BELT; COOLING FAN
INJ PUMP HIGH ALTITUDE ANEROID
COMPENSATOR(YC4)
EXC. NEW ZEALAND EQUIPMENT(PK5)
1 SET=2 PIECE MITSUBOSHI
|
1-13671-412-0 |
01 |
1 |
0605- |
|
|
|
|
|
● |
| |
36 |
BELT; COOLING FAN
1 SET=2 PIECE(1136714050) MITSUBOSHI
|
8-94395-171-1 |
01 |
1 |
9610-0405 |
|
|
|
|
● |
|
| |
36 |
BELT; COOLING FAN
EURO2 SPECIFICATION<THN>
1 SET=2 PIECE(1136714050) MITSUBOSHI
|
8-94395-171-1 |
01 |
1 |
0406- |
|
|
|
|
● |
|
| |
36 |
BELT; COOLING FAN
1 SET=2 PIECE(1136714050) MITSUBOSHI
|
8-94395-171-1 |
01 |
1 |
0406- |
● |
|
|
|
|
|
| |
36 |
BELT; COOLING FAN
BEST VALUE PARTS
|
1-87610-096-0 |
01 |
1 |
9601- |
|
|
|
● |
|
|
| |
36 |
BELT; COOLING FAN
EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATO
R(YC4)
BEST VALUE PARTS
|
1-87610-096-0 |
01 |
1 |
9601- |
|
|
|
|
|
● |
| |
45 |
BOLT; STAY
(B)
M10X20 FLANGE
|
0-28151-020-0 |
01 |
1 |
0605- |
|
|
|
|
|
● |
| |
45 |
BOLT; STAY
(A)
M8X20 FLANGE
|
0-28080-820-0 |
02 |
1 |
9601-0003 |
|
|
|
|
|
● |
| |
45 |
BOLT; STAY
(A)
M8X30 FLANGE
|
0-28080-830-0 |
02 |
1 |
0004-0512 |
|
|
|
|
|
● |
| |
45 |
BOLT; STAY
(A)
M8X30 FLANGE
|
0-28050-830-0 |
02 |
1 |
0601-0604 |
|
|
|
|
|
● |
| |
45 |
BOLT; STAY
NEW ZEALAND EQUIPMENT(PK5)
EXC. EURO3 SPECIFICATION<NJX>
(A)
M8X30 FLANGE
|
0-28050-830-0 |
02 |
1 |
0605- |
|
|
|
|
|
● |
| |
45 |
BOLT; STAY
EXC. NEW ZEALAND EQUIPMENT(PK5)
(A)
M8X30 FLANGE
|
0-28050-830-0 |
02 |
1 |
0605- |
|
|
|
|
|
● |
| |
45 |
BOLT; STAY
(B)
M10X20 FLANGE
|
0-28181-020-0 |
01 |
1 |
9601-0512 |
|
|
|
|
|
● |
| |
45 |
BOLT; STAY
(B)
M10X20 FLANGE
|
0-28151-020-0 |
01 |
1 |
0601-0604 |
|
|
|
|
|
● |
| |
45 |
BOLT; STAY
EURO3 SPECIFICATION<NJX>
NEW ZEALAND EQUIPMENT(PK5)
(A)
M8X30 FLANGE
|
0-28650-830-0 |
03 |
1 |
0605- |
|
|
|
|
|
● |
| |
80 |
PLATE; ADJ
EURO3 SPECIFICATION<NJX>
NEW ZEALAND EQUIPMENT(PK5)
(E)
|
1-13674-300-0 |
01 |
1 |
0605- |
|
|
|
|
|
● |
| |
80 |
PLATE; ADJ
(B)
|
8-97602-677-0 |
01 |
1 |
0406- |
● |
|
|
|
|
|
| |
80 |
PLATE; ADJ
(A)
|
8-94390-021-1 |
01 |
1 |
9601-0001 |
|
● |
|
|
|
|
| |
80 |
PLATE; ADJ
(A)
|
8-97601-021-0 |
01 |
1 |
0002-0004 |
|
● |
|
|
|
|
| |
80 |
PLATE; ADJ
(A)
|
8-97601-021-0 |
01 |
1 |
0005- |
|
● |
● |
|
|
|
| |
80 |
PLATE; ADJ
(C)
|
1-13674-176-0 |
01 |
1 |
9601- |
|
|
|
● |
|
|
| |
80 |
PLATE; ADJ
INJ PUMP HIGH ALTITUDE ANEROID
COMPENSATOR(YC4)
(D)
|
1-13674-250-0 |
01 |
1 |
9601-9702 |
|
|
|
|
|
● |
| |
80 |
PLATE; ADJ
INJ PUMP HIGH ALTITUDE ANEROID
COMPENSATOR(YC4)
(D)
|
1-13674-265-0 |
01 |
1 |
9703-0604 |
|
|
|
|
|
● |
| |
80 |
PLATE; ADJ
INJ PUMP HIGH ALTITUDE ANEROID
COMPENSATOR(YC4)
EXC. NEW ZEALAND EQUIPMENT(PK5)
(D)
|
1-13674-265-0 |
01 |
1 |
0605- |
|
|
|
|
|
● |
| |
80 |
PLATE; ADJ
EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATO
R(YC4)
(D)
|
1-13674-246-0 |
01 |
1 |
9601-9702 |
|
|
|
|
|
● |
| |
80 |
PLATE; ADJ
EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATO
R(YC4)
(D)
|
1-13674-264-0 |
01 |
1 |
9703-0604 |
|
|
|
|
|
● |
| |
80 |
PLATE; ADJ
NEW ZEALAND EQUIPMENT(PK5)
EXC. EURO3 SPECIFICATION<NJX>,INJ PUMP HIGH
ALTITUDE ANEROID COMPENSATOR(YC4)
(D)
|
1-13674-264-0 |
01 |
1 |
0605- |
|
|
|
|
|
● |
| |
80 |
PLATE; ADJ
EXC. NEW ZEALAND EQUIPMENT(PK5),INJ PUMP HIGH
ALTITUDE ANEROID COMPENSATOR(YC4)
(D)
|
1-13674-264-0 |
01 |
1 |
0605- |
|
|
|
|
|
● |
| |
80 |
PLATE; ADJ
(B)
|
8-94394-492-1 |
01 |
1 |
9610-0001 |
|
|
|
|
● |
|
| |
80 |
PLATE; ADJ
(B)
|
8-97601-020-1 |
01 |
1 |
0002- |
|
|
|
|
● |
|
| |
81 |
PIECE; SLIDING
M12X45
|
1-13674-160-0 |
01 |
1 |
9601-9912 |
|
● |
|
● |
● |
● |
| |
81 |
PIECE; SLIDING
M12X45
|
1-13674-160-0 |
01 |
1 |
0001-0405 |
|
● |
● |
● |
● |
● |
| |
81 |
PIECE; SLIDING
M12X45
|
1-13674-160-0 |
01 |
1 |
0406- |
● |
● |
● |
● |
● |
● |
| |
82 |
NUT; ADJ PLATE
M12 FLANGE
|
0-91150-112-0 |
01 |
1 |
9601-9912 |
|
● |
|
● |
● |
● |
| |
82 |
NUT; ADJ PLATE
M12 FLANGE
|
0-91150-112-0 |
01 |
1 |
0001-0405 |
|
● |
● |
● |
● |
● |
| |
82 |
NUT; ADJ PLATE
M12 FLANGE
|
0-91150-112-0 |
01 |
1 |
0406-0602 |
● |
● |
● |
● |
● |
● |
| |
82 |
NUT; ADJ PLATE
M12 FLANGE
|
0-91180-112-0 |
01 |
1 |
0603- |
● |
● |
● |
● |
● |
● |
| |
83 |
WASHER; PL
ID=12.5 T=5.8
|
8-94217-363-0 |
01 |
1 |
9601- |
|
|
|
● |
|
● |
| |
86 |
BOLT; ADJ
M10X155 FLANGE
|
1-09009-114-1 |
01 |
1 |
9601-9912 |
|
● |
|
● |
● |
● |
| |
86 |
BOLT; ADJ
M10X155 FLANGE
|
1-09009-114-1 |
01 |
1 |
0001-0405 |
|
● |
● |
● |
● |
● |
| |
86 |
BOLT; ADJ
M10X155 FLANGE
|
1-09009-114-1 |
01 |
1 |
0406- |
● |
● |
● |
● |
● |
● |
| |
96 |
BOLT; ADJ PLATE
M10X45 FLANGE
|
0-28181-045-0 |
01 |
1 |
9601-9609 |
|
● |
|
|
|
|
| |
96 |
BOLT; ADJ PLATE
M10X45 FLANGE
|
0-28181-045-0 |
01 |
1 |
9610-0004 |
|
● |
|
|
● |
|
| |
96 |
BOLT; ADJ PLATE
M10X45 FLANGE
|
0-28181-045-0 |
01 |
1 |
0005-0405 |
|
● |
● |
|
● |
|
| |
96 |

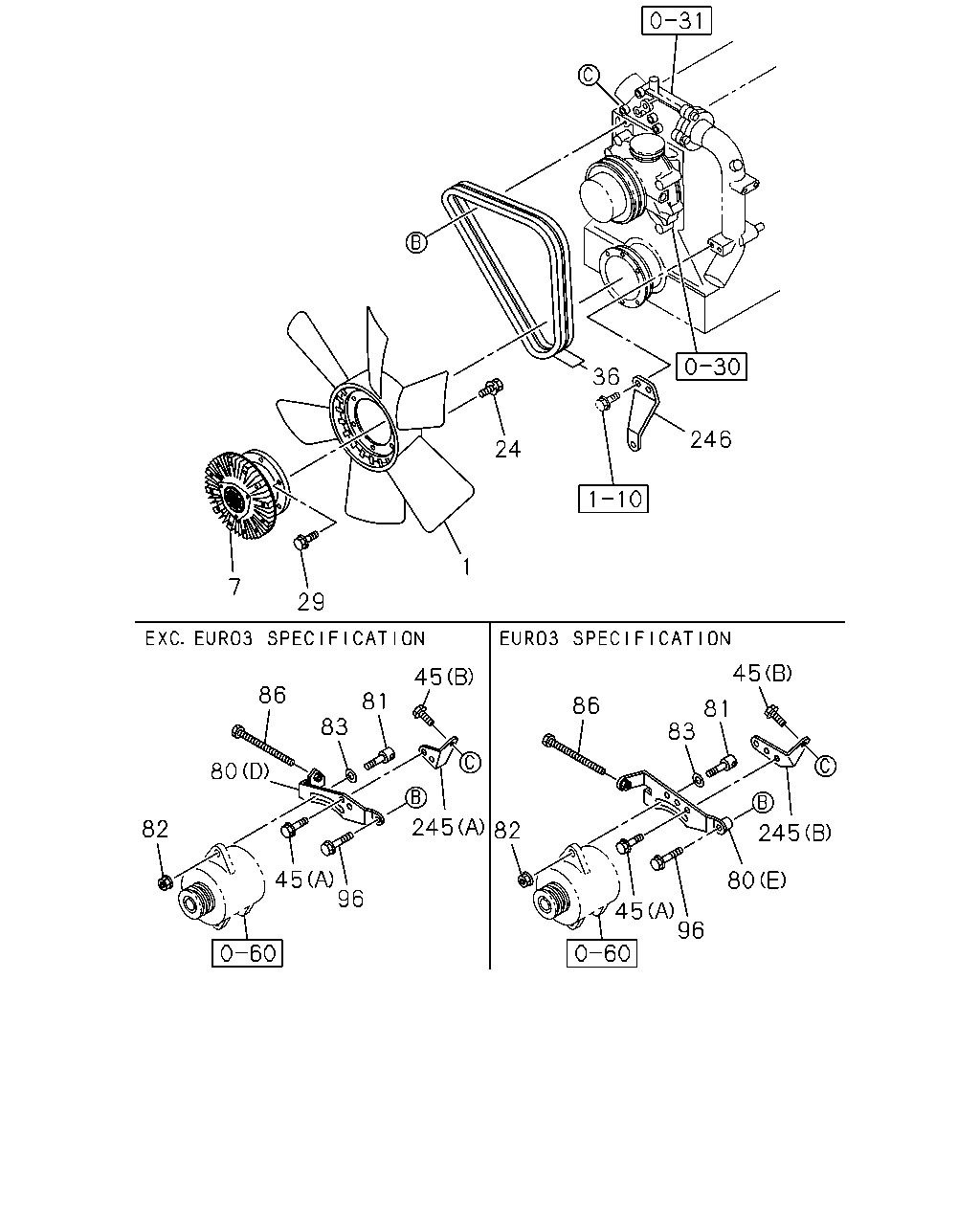

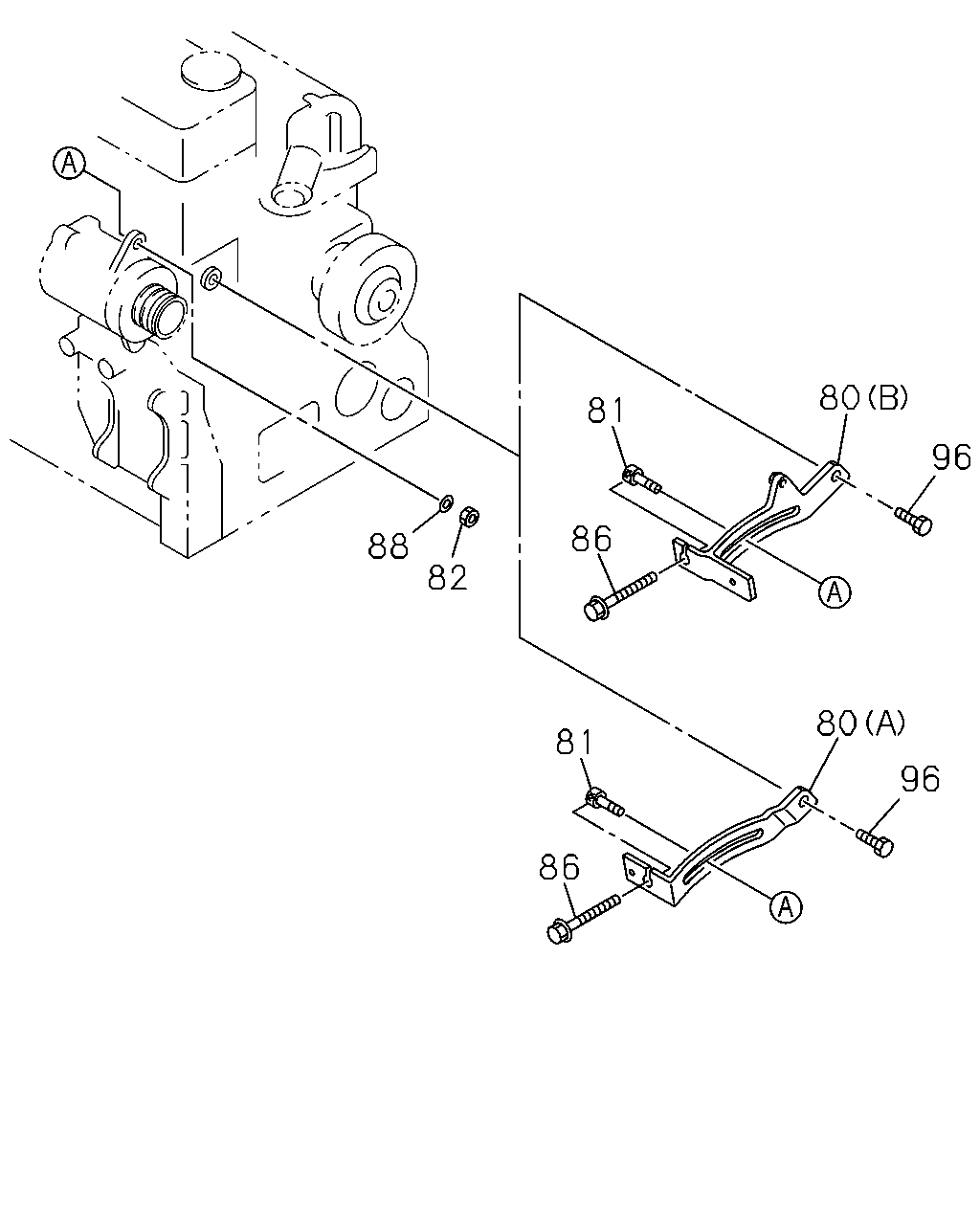

BOLT; ADJ PLATE
M10X45 FLANGE
|
0-28181-045-0 |
01 |
1 |
0406-0512 |
● |
● |
● |
|
● |
|
| |
96 |
BOLT; ADJ PLATE
M10X45 FLANGE
|
0-28151-045-0 |
01 |
1 |
0601- |
● |
● |
● |
|
● |
|
| |
96 |
BOLT; ADJ PLATE
M12X40 FLANGE
|
0-28181-240-0 |
01 |
1 |
9601-0804 |
|
|
|
● |
|
● |
| |
96 |
BOLT; ADJ PLATE
M12X40 FLANGE
|
0-28151-240-0 |
01 |
1 |
0805- |
|
|
|
● |
|
● |
| |
245 |
STAY; PLATE
EURO3 SPECIFICATION<NJX>
NEW ZEALAND EQUIPMENT(PK5)
(B)
|
1-21559-455-0 |
01 |
1 |
0605- |
|
|
|
|
|
● |
| |
245 |
STAY; PLATE
(A)
|
1-21559-374-0 |
01 |
1 |
9601-0604 |
|
|
|
|
|
● |
| |
245 |
STAY; PLATE
NEW ZEALAND EQUIPMENT(PK5)
EXC. EURO3 SPECIFICATION<NJX>
(A)
|
1-21559-374-0 |
01 |
1 |
0605- |
|
|
|
|
|
● |
| |
245 |
STAY; PLATE
EXC. NEW ZEALAND EQUIPMENT(PK5)
(A)
|
1-21559-374-0 |
01 |
1 |
0605- |
|
|
|
|
|
● |
| |

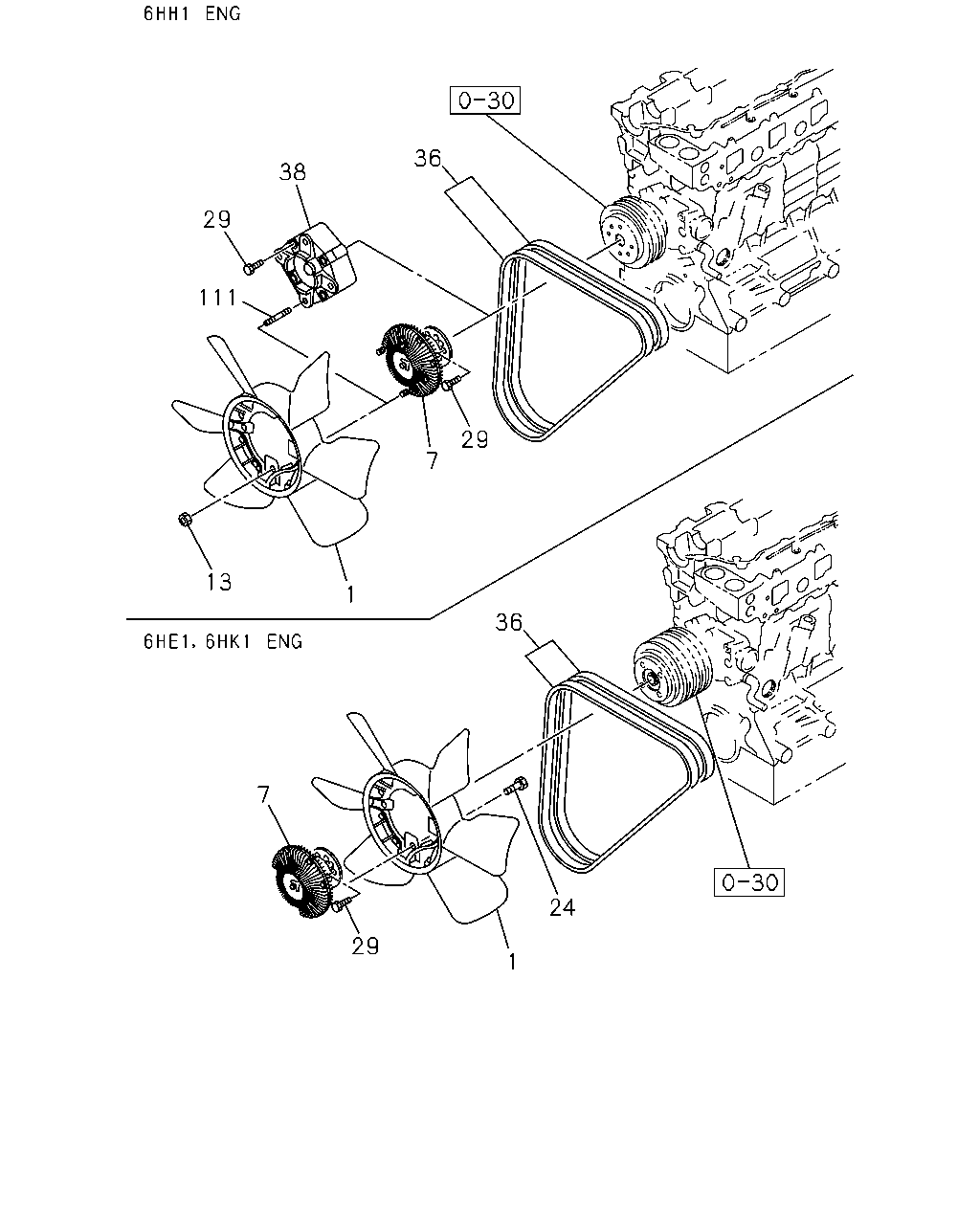

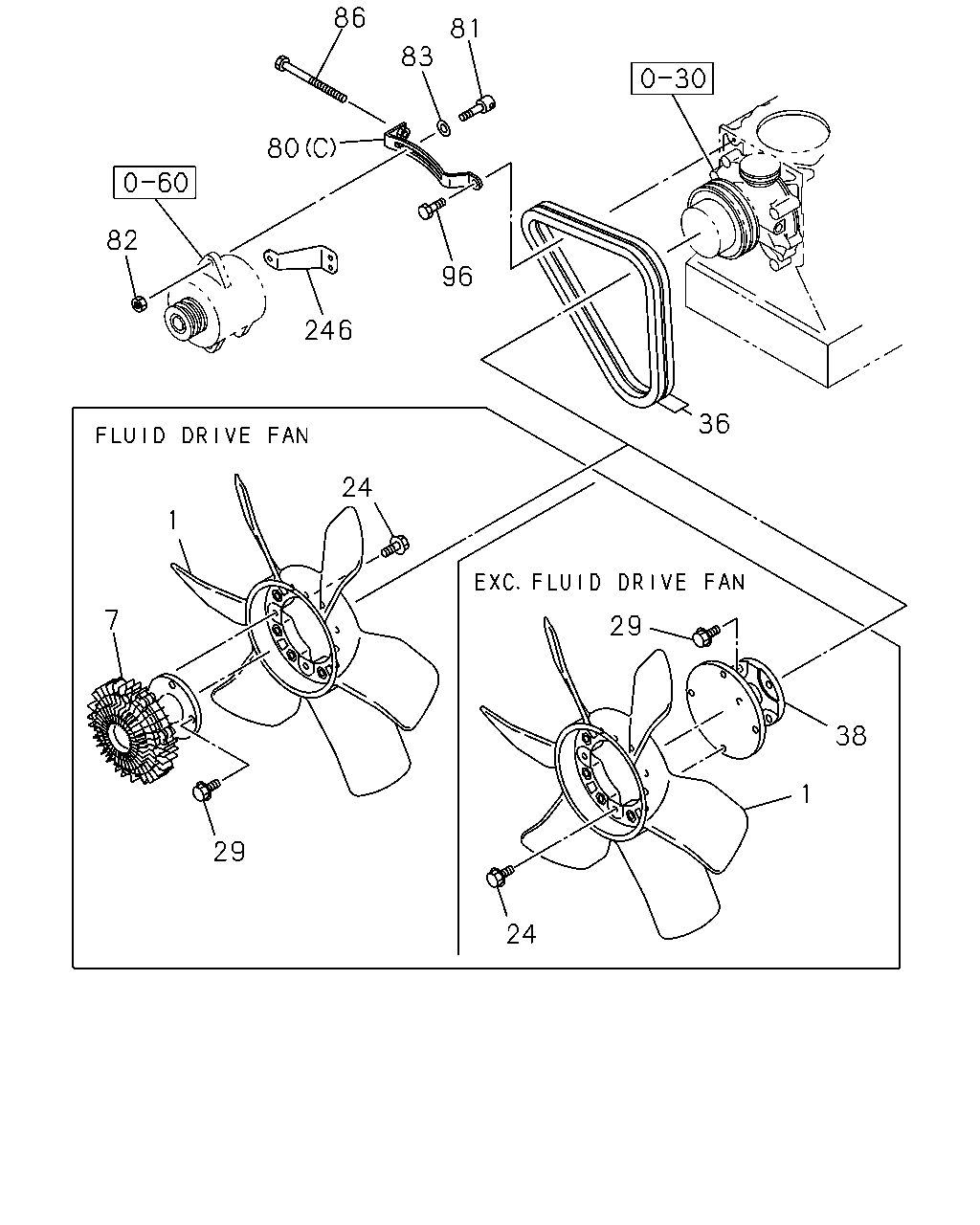

246 |
STAY; FAN
|
1-21559-367-0 |
01 |
1 |
9601-9612 |
|
|
|
● |
|
|
| |
246 |
STAY; FAN
|
1-21559-396-0 |
01 |
1 |
9701- |
|
|
|
● |
|
|
| |
246 |
STAY; FAN
|
1-21559-360-0 |
01 |
1 |
9601- |
|
|
|
|
|
● |
