◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10704 - FVR/GVR-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-31 - THERMOSTAT AND HOUSING ▶
0-31 — THERMOSTAT AND HOUSING (#64374) — 358 parça

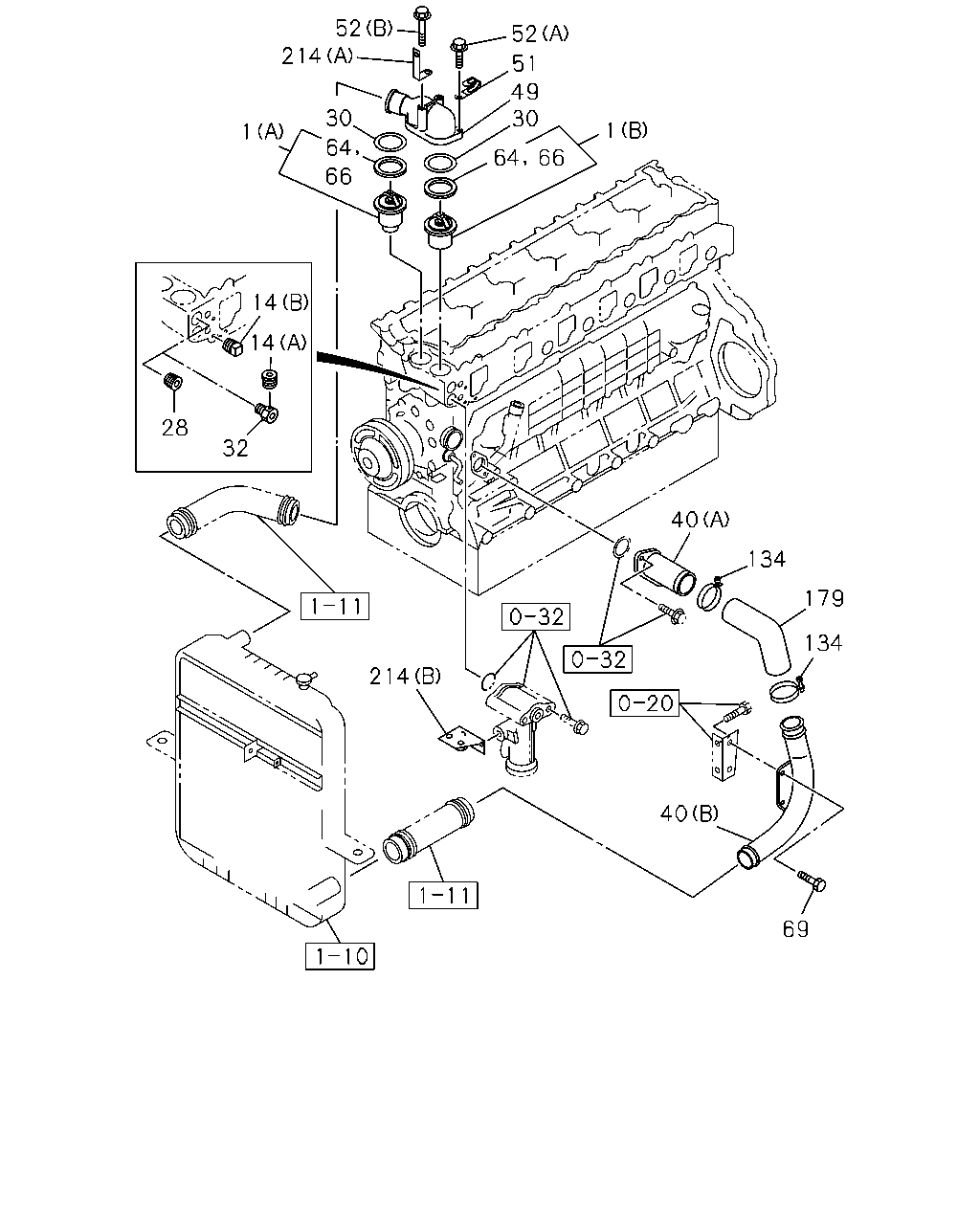

çizim 41627
52 214 52 51 49 30 30 1 1 64 64 66 66 14 14 28 32 40 134 179 134 214 40 69
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 THERMOSTAT
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) (D) 79 CELSIUS 		1-13770-097-0 01 1 0605-0609 ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-94397-310-0 01 1 9601-9609 ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-94397-310-0 01 1 9610-0004 ● ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-94397-310-0 01 1 0005-0103 ● ● ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-94397-310-0 01 1 0104-0105 ● ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-97602-048-1 01 1 0106-0405 ● ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-97602-048-3 01 1 0406- ● ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-94397-311-0 01 1 9601-9609 ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-94397-311-0 01 1 9610-9807 ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-94392-817-0 01 1 9808-0004 ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-94392-817-0 01 1 0005-0103 ● ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-94392-817-0 01 1 0104-0105 ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-97602-037-0 01 1 0106-0112 ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-97602-393-0 01 1 0201-0405 ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-97602-393-1 01 1 0406-1501 ● ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-98295-921-0 01 1 1502- ● ● ●
1 THERMOSTAT
OIL FILTER SETTING DOWNWARD<E7V> (C) 65 CELSIUS 		1-13770-087-0 01 1 9601- ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (C) 76.5 CELSIUS 		1-13770-085-0 01 1 9601-9804 ●
1 THERMOSTAT
(C) 76.5 CELSIUS 		1-13770-085-0 01 1 9601-9804 ●
1 THERMOSTAT
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C) 76.5 CELSIUS 		1-13770-085-0 01 1 9805-0604 ● ●
1 THERMOSTAT
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C) 76.5 CELSIUS 		1-13770-085-0 01 1 0605-0609 ●
1 THERMOSTAT
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> (C) 76.5 CELSIUS 		1-13770-085-0 01 1 0605-0609 ●
1 THERMOSTAT
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 76.5 CELSIUS 		1-13770-085-0 01 1 0605-0609 ●
1 THERMOSTAT
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C) 76.5 CELSIUS 		1-13770-085-0 01 1 0610- ●
1 THERMOSTAT
(C) 76.5 CELSIUS 		1-13770-085-0 01 1 0610- ●
14 PLUG; SW
(B) PT3/8 		8-94397-338-0 01 1 9601-9609 ●
14 PLUG; SW
(B) PT3/8 		8-94397-338-0 01 1 9610-0004 ● ●
14 PLUG; SW
(B) PT3/8 		8-94397-338-0 01 1 0005-0405 ● ● ●
14 PLUG; SW
(B) PT3/8 		8-94397-338-0 01 1 0406- ● ● ● ●
14 PLUG; SW
(B) PT3/8 T=8.0 		1-09605-066-0 01 1 9601-9806 ● ●
14 PLUG; SW
(B) PT3/8 T=8.0 		1-09605-066-0 01 1 9807- ●
14 PLUG; SW
(A) PT1/4 		1-09605-019-0 01 1 9601-1008 ● ● ●
14 PLUG; SW
(A) PT1/4 		1-09605-019-0 01 1 1009- ● ●
28 PLUG; HTR
EXC. AUSTRALIA EQUIPMENT(RR3) PT3/4 		1-09605-020-0 01 1 9601-0004 ●
28 PLUG; HTR
PT3/4 		1-09605-020-0 01 1 0005- ● ●
30 SPACER 8-94393-517-0 02 1 0005- ●
32 CONNECTOR; HTR 8-97601-492-0 01 1 0406- ●
32 CONNECTOR; HTR 8-94395-851-1 01 1 9610-1008 ●
32 CONNECTOR; HTR 8-98177-501-0 01 1 1009- ●
40 DUCT; WATER,SUCTION
(A) 		8-94394-403-1 01 1 9601-9609 ●
40 DUCT; WATER,SUCTION
(A) 		8-94394-403-1 01 1 9610-9611 ● ●
40 DUCT; WATER,SUCTION
(A) 		8-94391-091-0 01 1 9612-0004 ● ●
40 DUCT; WATER,SUCTION
(A) 		8-94391-091-0 01 1 0005-0005 ● ●
40 DUCT; WATER,SUCTION
EXC. EURO2 SPECIFICATION<THN> (A) 		8-94391-091-0 01 1 0005-0005 ●
40 DUCT; WATER,SUCTION
EURO2 SPECIFICATION<THN> EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATO R(YC4) (A) 		8-94391-091-0 01 1 0005-0005 ●
40 DUCT; WATER,SUCTION
(A) 		8-94391-091-0 01 1 0006-0405 ● ● ●
40 DUCT; WATER,SUCTION
(A) 		8-94391-091-1 01 1 0406- ● ● ● ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 9601-9609 ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 9610-0004 ● ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 0005-0405 ● ● ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 0406- ● ● ● ●
40 DUCT; WATER,SUCTION
(C) 		1-13711-675-0 01 1 9601- ● ●
49 PIPE; WATER OUTLET 8-94399-499-1 01 1 9601-9609 ●
49 PIPE; WATER OUTLET 8-94399-499-1 01 1 9610-0004 ● ●
49 PIPE; WATER OUTLET 8-94399-499-1 01 1 0005-0105 ● ● ●
49 PIPE; WATER OUTLET 8-97602-047-0 01 1 0106-0405 ● ● ●
49 PIPE; WATER OUTLET 8-97602-047-0 01 1 0406- ● ● ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-94225-185-0 01 1 9601-9702 ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-94225-185-0 01 1 9703-0004 ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-94225-185-0 01 1 0005-0405 ● ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-94225-185-0 01 1 0406-0801 ● ● ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-97367-985-1 01 1 0802- ● ● ● ●
51 CLIP; JOINT,THERMOSTAT
L=300 		1-09707-001-0 01 1 9704-9803 ●
51 CLIP; JOINT,THERMOSTAT
EURO2 SPECIFICATION<THN> L=300 		1-09707-001-1 01 1 9804- ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X22 FLANGE 		0-28080-822-0 02 1 9601-9609 ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28080-880-0 02 1 9610-9611 ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28080-880-0 02 1 9612-0004 ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X79 FLANGE 		8-94311-617-1 02 1 9601-9611 ●
52 BOLT; JOINT,THERMOSTAT
AUSTRALIA EQUIPMENT(RR3) (B) M8X79 FLANGE 		8-94311-617-1 01 1 9601-9611 ●
52 BOLT; JOINT,THERMOSTAT
AUSTRALIA EQUIPMENT(RR3) (B) M8X80 FLANGE 		0-28080-880-0 01 1 9612-9806 ●
52 BOLT; JOINT,THERMOSTAT
FVR STD CAB MIDDLE CHASSIS(FV**MF) AUSTRALIA EQUIPMENT(RR3) (B) M8X80 FLANGE 		0-28080-880-0 01 1 9807-0004 ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28080-880-0 02 1 0005-0405 ● ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28080-880-0 02 1 0406-0512 ● ● ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28050-880-0 02 1 0601- ● ● ● ●
52 BOLT; JOINT,THERMOSTAT
AUSTRALIA EQUIPMENT(RR3) (B) M8X85 FLANGE 		8-97023-062-0 01 1 9601-9806 ●
52 BOLT; JOINT,THERMOSTAT
FVR STD CAB MIDDLE CHASSIS(FV**MF) AUSTRALIA EQUIPMENT(RR3) (B) M8X85 FLANGE 		8-97023-062-0 01 1 9807-0004 ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X22 FLANGE 		0-28080-822-0 02 1 9610-9709 ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9710-0004 ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0005-0405 ● ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0406-0512 ● ● ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ● ● ●
64 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94370-480-0 02 1 9601-9609 ●
64 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94370-480-0 02 1 9610-0004 ● ●
64 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94370-480-0 02 1 0005-0105 ● ● ●
64 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 02 1 0106-1501 ●
64 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-98280-281-0 02 1 1502- ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 02 1 0106-0405 ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 02 1 0406-1501 ● ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-98280-281-0 02 1 1502- ● ● ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28080-820-0 02 1 9601-9712 ● ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28680-820-0 02 1 9801-0004 ● ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28680-820-0 02 1 0005-0405 ● ● ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28680-820-0 02 1 0406-0512 ● ● ● ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ● ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 9601-9803 ● ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 9804-0004 ● ● ● ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 0005-0405 ● ● ● ● ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 0406- ● ● ● ● ● ●
179 HOSE; RUBBER,WATER DUCT 8-94394-535-1 01 1 9601-0004 ● ●
179 HOSE; RUBBER,WATER DUCT 8-94394-535-2 01 1 0005-0405 ● ● ●
179 HOSE; RUBBER,WATER DUCT 8-94394-535-2 01 1 0406- ● ● ● ●
214 BRACKET; HARNESS
AUSTRALIA EQUIPMENT(RR3) (A) 		8-94393-074-1 01 1 9804-9806 ●
214 BRACKET; HARNESS
FVR STD CAB MIDDLE CHASSIS(FV**MF) AUSTRALIA EQUIPMENT(RR3) (A) 		8-94393-074-1 01 1 9807-0003 ● ●
214 BRACKET; HARNESS
AUSTRALIA EQUIPMENT(RR3) (A) 		8-94393-074-1 01 1 0004-0004 ●
214 BRACKET; HARNESS
AUSTRALIA EQUIPMENT(RR3) EURO2 SPECIFICATION<THN> (B) 		8-97601-383-0 01 1 0004-0004 ●

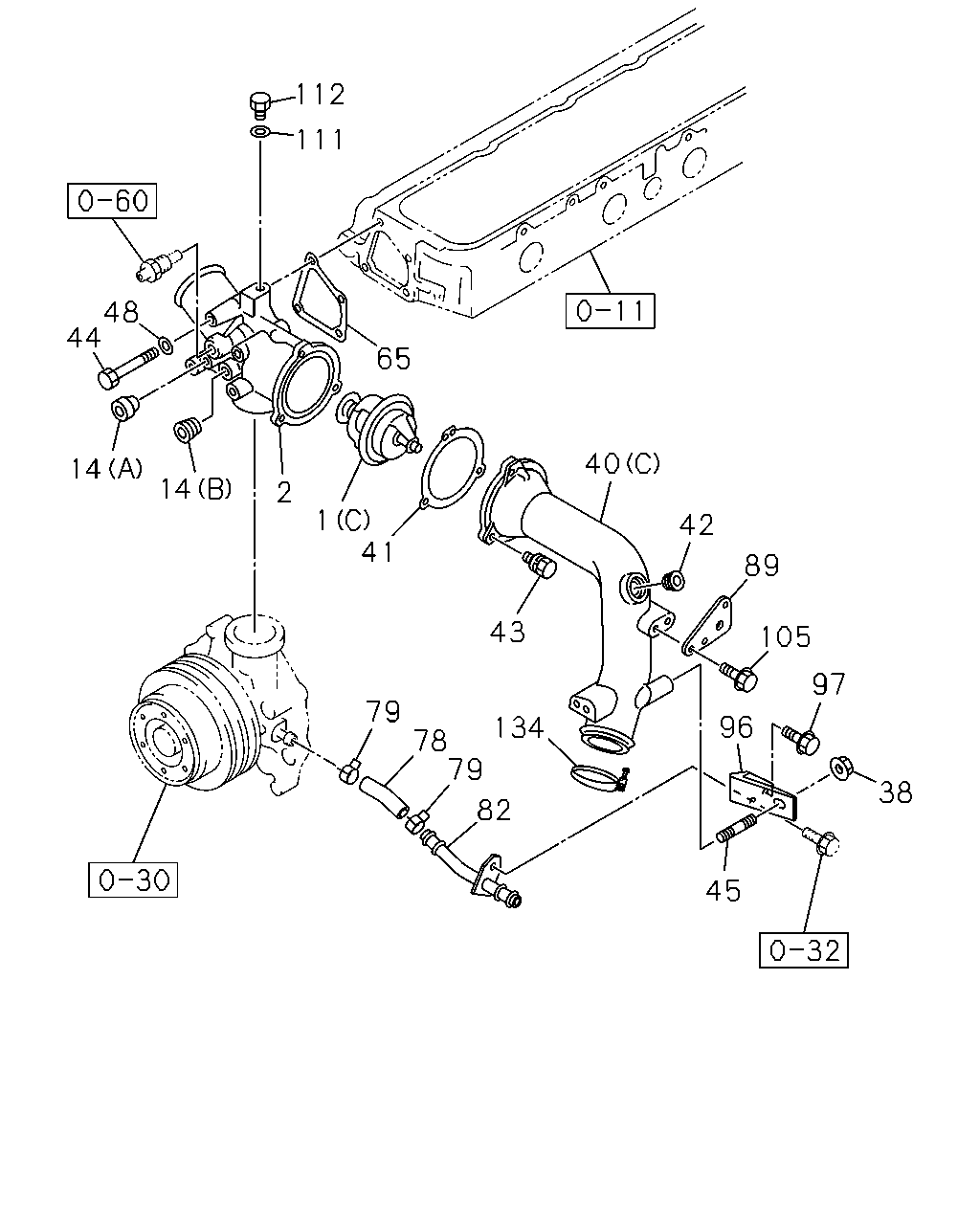

çizim 42905
112 111 48 44 65 40 14 14 2 1 41 42 89 43 105 97 79 96 134 78 79 38 82 45
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 THERMOSTAT
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) (D) 79 CELSIUS 		1-13770-097-0 01 1 0605-0609 ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-94397-310-0 01 1 9601-9609 ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-94397-310-0 01 1 9610-0004 ● ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-94397-310-0 01 1 0005-0103 ● ● ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-94397-310-0 01 1 0104-0105 ● ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-97602-048-1 01 1 0106-0405 ● ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-97602-048-3 01 1 0406- ● ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-94397-311-0 01 1 9601-9609 ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-94397-311-0 01 1 9610-9807 ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-94392-817-0 01 1 9808-0004 ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-94392-817-0 01 1 0005-0103 ● ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-94392-817-0 01 1 0104-0105 ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-97602-037-0 01 1 0106-0112 ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-97602-393-0 01 1 0201-0405 ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-97602-393-1 01 1 0406-1501 ● ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-98295-921-0 01 1 1502- ● ● ●
1 THERMOSTAT
OIL FILTER SETTING DOWNWARD<E7V> (C) 65 CELSIUS 		1-13770-087-0 01 1 9601- ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (C) 76.5 CELSIUS 		1-13770-085-0 01 1 9601-9804 ●
1 THERMOSTAT
(C) 76.5 CELSIUS 		1-13770-085-0 01 1 9601-9804 ●
1 THERMOSTAT
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C) 76.5 CELSIUS 		1-13770-085-0 01 1 9805-0604 ● ●
1 THERMOSTAT
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C) 76.5 CELSIUS 		1-13770-085-0 01 1 0605-0609 ●
1 THERMOSTAT
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> (C) 76.5 CELSIUS 		1-13770-085-0 01 1 0605-0609 ●
1 THERMOSTAT
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 76.5 CELSIUS 		1-13770-085-0 01 1 0605-0609 ●
1 THERMOSTAT
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C) 76.5 CELSIUS 		1-13770-085-0 01 1 0610- ●
1 THERMOSTAT
(C) 76.5 CELSIUS 		1-13770-085-0 01 1 0610- ●
2 HOUSING; THERMOSTAT 1-13716-180-0 01 1 9601- ● ●
14 PLUG; SW
(B) PT3/8 		8-94397-338-0 01 1 9601-9609 ●
14 PLUG; SW
(B) PT3/8 		8-94397-338-0 01 1 9610-0004 ● ●
14 PLUG; SW
(B) PT3/8 		8-94397-338-0 01 1 0005-0405 ● ● ●
14 PLUG; SW
(B) PT3/8 		8-94397-338-0 01 1 0406- ● ● ● ●
14 PLUG; SW
(B) PT3/8 T=8.0 		1-09605-066-0 01 1 9601-9806 ● ●
14 PLUG; SW
(B) PT3/8 T=8.0 		1-09605-066-0 01 1 9807- ●
14 PLUG; SW
(A) PT1/4 		1-09605-019-0 01 1 9601-1008 ● ● ●
14 PLUG; SW
(A) PT1/4 		1-09605-019-0 01 1 1009- ● ●
38 NUT; DUCT,SUCTION
M10 FLANGE 		0-91150-110-0 01 1 9601-0602 ● ●
38 NUT; DUCT,SUCTION
M10 FLANGE 		0-91180-110-0 01 1 0603- ● ●
40 DUCT; WATER,SUCTION
(A) 		8-94394-403-1 01 1 9601-9609 ●
40 DUCT; WATER,SUCTION
(A) 		8-94394-403-1 01 1 9610-9611 ● ●
40 DUCT; WATER,SUCTION
(A) 		8-94391-091-0 01 1 9612-0004 ● ●
40 DUCT; WATER,SUCTION
(A) 		8-94391-091-0 01 1 0005-0005 ● ●
40 DUCT; WATER,SUCTION
EXC. EURO2 SPECIFICATION<THN> (A) 		8-94391-091-0 01 1 0005-0005 ●
40 DUCT; WATER,SUCTION
EURO2 SPECIFICATION<THN> EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATO R(YC4) (A) 		8-94391-091-0 01 1 0005-0005 ●
40 DUCT; WATER,SUCTION
(A) 		8-94391-091-0 01 1 0006-0405 ● ● ●
40 DUCT; WATER,SUCTION
(A) 		8-94391-091-1 01 1 0406- ● ● ● ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 9601-9609 ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 9610-0004 ● ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 0005-0405 ● ● ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 0406- ● ● ● ●
40 DUCT; WATER,SUCTION
(C) 		1-13711-675-0 01 1 9601- ● ●
41 GASKET; DUCT TO HSG
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-13742-026-0 01 1 9601- ● ●
42 PLUG; WATER DUCT
PT3/4 		9-09664-005-0 01 1 9601- ● ●
43 BOLT; WATER DUCT
M8X28 W/LK&PL WASHER 		0-50140-828-0 03 1 9601-0906 ● ●
43 BOLT; WATER DUCT
M8X28 W/LK&PL WASHER 		0-50640-828-0 03 1 0907- ● ●
44 BOLT; HSG TO HD
M8X100 		0-10805-800-0 04 1 9601-0512 ● ●
44 BOLT; HSG TO HD
M8X100 		0-10855-800-0 04 1 0601- ● ●
45 STUD; DUCT
M10X20 L=35 		9-04411-020-0 01 1 9601- ● ●
48 WASHER; PL,THERMOSTAT HSG
ID=8.4 		9-09160-508-0 04 1 9601-0605 ● ●
48 WASHER; PL,THERMOSTAT HSG
ID=8.4 OD=16 		0-91610-508-0 04 1 0606- ● ●
65 GASKET; HSG TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-13743-028-0 01 1 9601- ● ●
78 HOSE; RUBBER,WATER PIPE
HEATER & DEFROSTER(C41) 		1-09360-626-0 01 1 9708-0004 ● ●
78 HOSE; RUBBER,WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) 		1-09360-626-0 01 1 0005- ● ●
79 CLIP; RUBBER HOSE
HEATER & DEFROSTER(C41) ID=20 		1-09707-084-1 02 1 9708-0004 ● ●
79 CLIP; RUBBER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) ID=20 		1-09707-084-1 02 1 0005- ● ●
82 PIPE; WATER,HTR
HEATER & DEFROSTER(C41) 		1-13711-698-0 01 1 9601-9611 ● ●
82 PIPE; WATER,HTR
HEATER & DEFROSTER(C41) 		1-13711-698-1 01 1 9708-0004 ● ●
82 PIPE; WATER,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) 		1-13711-698-1 01 1 0005- ● ●
89 BRACKET
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) 		1-13719-122-0 01 1 0605- ●
89 BRACKET
HEATER & DEFROSTER(C41) 		1-14119-389-0 01 1 9601-9903 ●
89 BRACKET
HEATER & DEFROSTER(C41) EXC. OIL FILTER SETTING DOWNWARD<E7V> 		1-14119-389-0 01 1 9904-0210 ●
89 BRACKET
HEATER & DEFROSTER(C41) EXC. OIL FILTER SETTING DOWNWARD<E7V> 		1-14119-389-0 01 1 0211- ●
89 BRACKET
AIR CONDITIONER MANUAL CONTROL(C60) 		1-14119-389-0 01 1 0211- ●
89 BRACKET
HEATER & DEFROSTER(C41) OIL FILTER SETTING DOWNWARD<E7V> 		1-14119-434-0 01 1 9904- ●
96 STAY; WATER PIPE 1-13719-089-0 01 1 9601- ●
97 BOLT; PIPE STAY
M10X20 FLANGE 		0-28181-020-0 02 1 9601-0512 ● ●
97 BOLT; PIPE STAY
M10X20 FLANGE 		0-28151-020-0 02 1 0601- ● ●
105 BOLT; BRKT
HEATER & DEFROSTER(C41) M8X16 FLANGE 		0-28080-816-0 02 1 9601-0210 ●
105 BOLT; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) M8X16 FLANGE 		0-28080-816-0 02 1 0211-0512 ●
105 BOLT; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) M8X16 FLANGE 		0-28050-816-0 02 1 0601- ●
111 GASKET; PLUG,WATER PIPE HOLE
ID=14.2 OD=19.2 		1-09630-085-0 01 1 9601-1312 ●
111 GASKET; PLUG,WATER PIPE HOLE
ID=14.2 OD=19.2 		8-98251-345-0 01 1 1401- ●
112 PLUG
M14X9 		9-99202-314-0 01 1 9601-0805 ●
112 PLUG
M14X9 		8-98042-944-0 01 1 0806- ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 9601-9803 ● ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 9804-0004 ● ● ● ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 0005-0405 ● ● ● ● ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 0406- ● ● ● ● ● ●

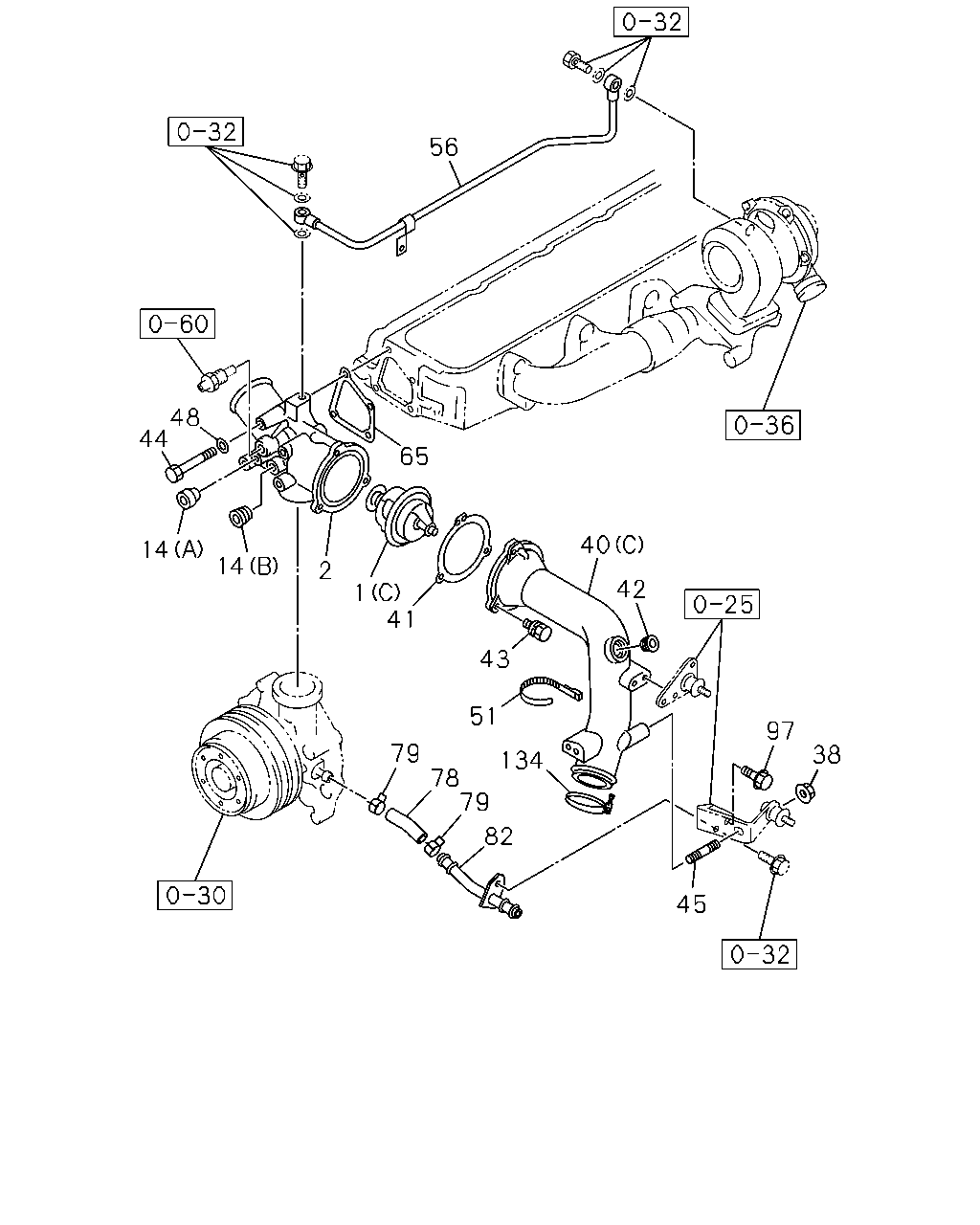

çizim 43215
56 48 44 65 40 14 14 2 42 1 41 43 51 97 79 38 134 78 79 82 45
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 THERMOSTAT
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) (D) 79 CELSIUS 		1-13770-097-0 01 1 0605-0609 ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-94397-310-0 01 1 9601-9609 ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-94397-310-0 01 1 9610-0004 ● ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-94397-310-0 01 1 0005-0103 ● ● ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-94397-310-0 01 1 0104-0105 ● ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-97602-048-1 01 1 0106-0405 ● ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-97602-048-3 01 1 0406- ● ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-94397-311-0 01 1 9601-9609 ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-94397-311-0 01 1 9610-9807 ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-94392-817-0 01 1 9808-0004 ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-94392-817-0 01 1 0005-0103 ● ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-94392-817-0 01 1 0104-0105 ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-97602-037-0 01 1 0106-0112 ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-97602-393-0 01 1 0201-0405 ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-97602-393-1 01 1 0406-1501 ● ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-98295-921-0 01 1 1502- ● ● ●
1 THERMOSTAT
OIL FILTER SETTING DOWNWARD<E7V> (C) 65 CELSIUS 		1-13770-087-0 01 1 9601- ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (C) 76.5 CELSIUS 		1-13770-085-0 01 1 9601-9804 ●
1 THERMOSTAT
(C) 76.5 CELSIUS 		1-13770-085-0 01 1 9601-9804 ●
1 THERMOSTAT
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C) 76.5 CELSIUS 		1-13770-085-0 01 1 9805-0604 ● ●
1 THERMOSTAT
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C) 76.5 CELSIUS 		1-13770-085-0 01 1 0605-0609 ●
1 THERMOSTAT
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> (C) 76.5 CELSIUS 		1-13770-085-0 01 1 0605-0609 ●
1 THERMOSTAT
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 76.5 CELSIUS 		1-13770-085-0 01 1 0605-0609 ●
1 THERMOSTAT
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C) 76.5 CELSIUS 		1-13770-085-0 01 1 0610- ●
1 THERMOSTAT
(C) 76.5 CELSIUS 		1-13770-085-0 01 1 0610- ●
2 HOUSING; THERMOSTAT 1-13716-180-0 01 1 9601- ● ●
14 PLUG; SW
(B) PT3/8 		8-94397-338-0 01 1 9601-9609 ●
14 PLUG; SW
(B) PT3/8 		8-94397-338-0 01 1 9610-0004 ● ●
14 PLUG; SW
(B) PT3/8 		8-94397-338-0 01 1 0005-0405 ● ● ●
14 PLUG; SW
(B) PT3/8 		8-94397-338-0 01 1 0406- ● ● ● ●
14 PLUG; SW
(B) PT3/8 T=8.0 		1-09605-066-0 01 1 9601-9806 ● ●
14 PLUG; SW
(B) PT3/8 T=8.0 		1-09605-066-0 01 1 9807- ●
14 PLUG; SW
(A) PT1/4 		1-09605-019-0 01 1 9601-1008 ● ● ●
14 PLUG; SW
(A) PT1/4 		1-09605-019-0 01 1 1009- ● ●
38 NUT; DUCT,SUCTION
M10 FLANGE 		0-91150-110-0 01 1 9601-0602 ● ●
38 NUT; DUCT,SUCTION
M10 FLANGE 		0-91180-110-0 01 1 0603- ● ●
40 DUCT; WATER,SUCTION
(A) 		8-94394-403-1 01 1 9601-9609 ●
40 DUCT; WATER,SUCTION
(A) 		8-94394-403-1 01 1 9610-9611 ● ●
40 DUCT; WATER,SUCTION
(A) 		8-94391-091-0 01 1 9612-0004 ● ●
40 DUCT; WATER,SUCTION
(A) 		8-94391-091-0 01 1 0005-0005 ● ●
40 DUCT; WATER,SUCTION
EXC. EURO2 SPECIFICATION<THN> (A) 		8-94391-091-0 01 1 0005-0005 ●
40 DUCT; WATER,SUCTION
EURO2 SPECIFICATION<THN> EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATO R(YC4) (A) 		8-94391-091-0 01 1 0005-0005 ●
40 DUCT; WATER,SUCTION
(A) 		8-94391-091-0 01 1 0006-0405 ● ● ●
40 DUCT; WATER,SUCTION
(A) 		8-94391-091-1 01 1 0406- ● ● ● ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 9601-9609 ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 9610-0004 ● ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 0005-0405 ● ● ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 0406- ● ● ● ●
40 DUCT; WATER,SUCTION
(C) 		1-13711-675-0 01 1 9601- ● ●
41 GASKET; DUCT TO HSG
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-13742-026-0 01 1 9601- ● ●
42 PLUG; WATER DUCT
PT3/4 		9-09664-005-0 01 1 9601- ● ●
43 BOLT; WATER DUCT
M8X28 W/LK&PL WASHER 		0-50140-828-0 03 1 9601-0906 ● ●
43 BOLT; WATER DUCT
M8X28 W/LK&PL WASHER 		0-50640-828-0 03 1 0907- ● ●
44 BOLT; HSG TO HD
M8X100 		0-10805-800-0 04 1 9601-0512 ● ●
44 BOLT; HSG TO HD
M8X100 		0-10855-800-0 04 1 0601- ● ●
45 STUD; DUCT
M10X20 L=35 		9-04411-020-0 01 1 9601- ● ●
48 WASHER; PL,THERMOSTAT HSG
ID=8.4 		9-09160-508-0 04 1 9601-0605 ● ●
48 WASHER; PL,THERMOSTAT HSG
ID=8.4 OD=16 		0-91610-508-0 04 1 0606- ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-94225-185-0 01 1 9601-9702 ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-94225-185-0 01 1 9703-0004 ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-94225-185-0 01 1 0005-0405 ● ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-94225-185-0 01 1 0406-0801 ● ● ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-97367-985-1 01 1 0802- ● ● ● ●
51 CLIP; JOINT,THERMOSTAT
L=300 		1-09707-001-0 01 1 9704-9803 ●
51 CLIP; JOINT,THERMOSTAT
EURO2 SPECIFICATION<THN> L=300 		1-09707-001-1 01 1 9804- ●
56 PIPE; WATER,THERMOSTAT HSG
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) 		1-13721-949-0 01 1 0605- ●
56 PIPE; WATER,THERMOSTAT HSG 1-13721-628-0 01 1 9601-0604 ●
56 PIPE; WATER,THERMOSTAT HSG
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> 		1-13721-628-0 01 1 0605- ●
56 PIPE; WATER,THERMOSTAT HSG
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-13721-628-0 01 1 0605- ●
65 GASKET; HSG TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-13743-028-0 01 1 9601- ● ●
78 HOSE; RUBBER,WATER PIPE
HEATER & DEFROSTER(C41) 		1-09360-626-0 01 1 9708-0004 ● ●
78 HOSE; RUBBER,WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) 		1-09360-626-0 01 1 0005- ● ●
79 CLIP; RUBBER HOSE
HEATER & DEFROSTER(C41) ID=20 		1-09707-084-1 02 1 9708-0004 ● ●
79 CLIP; RUBBER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) ID=20 		1-09707-084-1 02 1 0005- ● ●
82 PIPE; WATER,HTR
HEATER & DEFROSTER(C41) 		1-13711-698-0 01 1 9601-9611 ● ●
82 PIPE; WATER,HTR
HEATER & DEFROSTER(C41) 		1-13711-698-1 01 1 9708-0004 ● ●
82 PIPE; WATER,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) 		1-13711-698-1 01 1 0005- ● ●
97 BOLT; PIPE STAY
M10X20 FLANGE 		0-28181-020-0 02 1 9601-0512 ● ●
97 BOLT; PIPE STAY
M10X20 FLANGE 		0-28151-020-0 02 1 0601- ● ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 9601-9803 ● ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 9804-0004 ● ● ● ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 0005-0405 ● ● ● ● ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 0406- ● ● ● ● ● ●

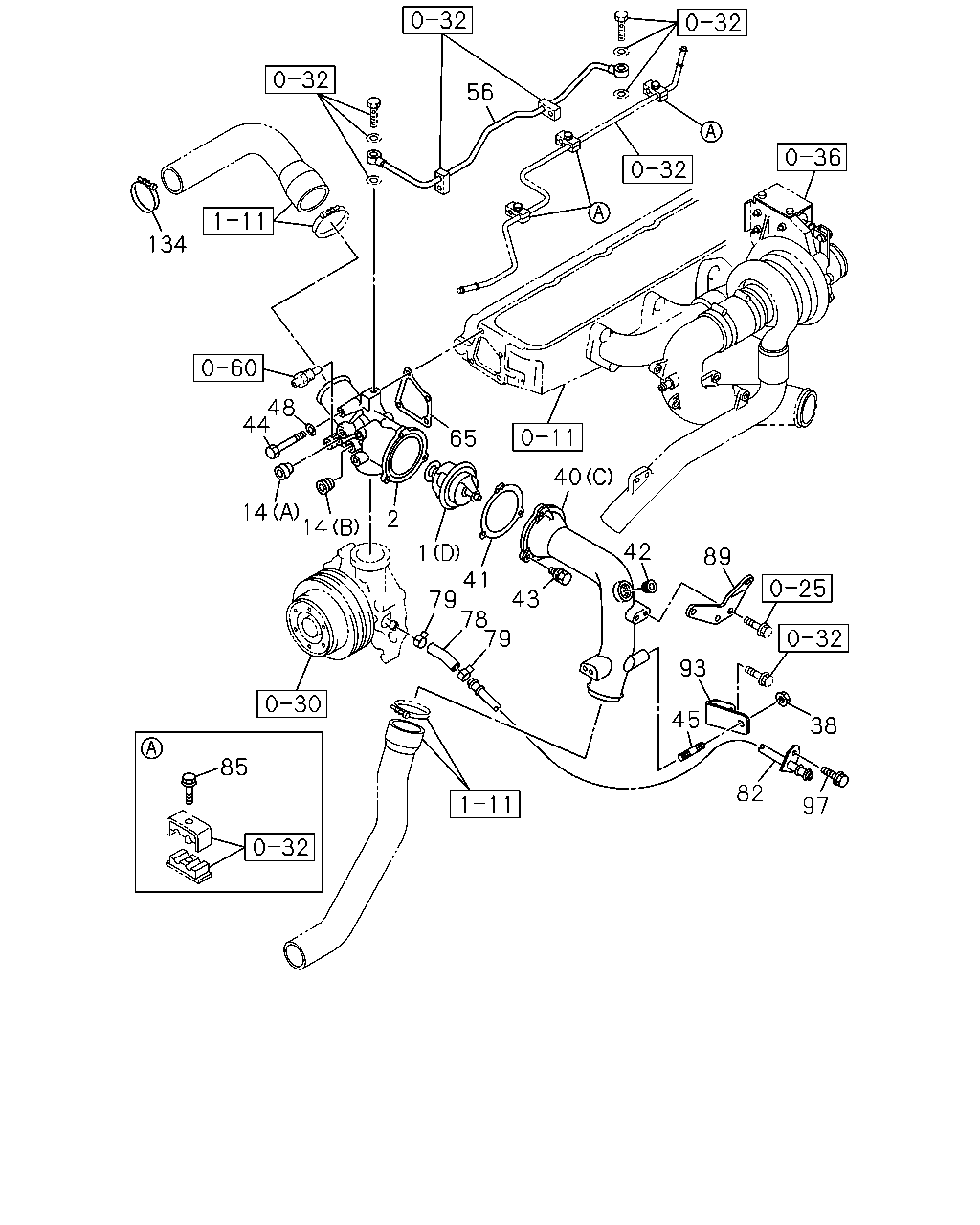

çizim 44098
56 134 48 44 65 40 14 14 2 42 1 41 79 78 79 89 43 93 45 38 85 82 97
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 THERMOSTAT
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) (D) 79 CELSIUS 		1-13770-097-0 01 1 0605-0609 ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-94397-310-0 01 1 9601-9609 ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-94397-310-0 01 1 9610-0004 ● ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-94397-310-0 01 1 0005-0103 ● ● ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-94397-310-0 01 1 0104-0105 ● ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-97602-048-1 01 1 0106-0405 ● ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-97602-048-3 01 1 0406- ● ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-94397-311-0 01 1 9601-9609 ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-94397-311-0 01 1 9610-9807 ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-94392-817-0 01 1 9808-0004 ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-94392-817-0 01 1 0005-0103 ● ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-94392-817-0 01 1 0104-0105 ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-97602-037-0 01 1 0106-0112 ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-97602-393-0 01 1 0201-0405 ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-97602-393-1 01 1 0406-1501 ● ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-98295-921-0 01 1 1502- ● ● ●
1 THERMOSTAT
OIL FILTER SETTING DOWNWARD<E7V> (C) 65 CELSIUS 		1-13770-087-0 01 1 9601- ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (C) 76.5 CELSIUS 		1-13770-085-0 01 1 9601-9804 ●
1 THERMOSTAT
(C) 76.5 CELSIUS 		1-13770-085-0 01 1 9601-9804 ●
1 THERMOSTAT
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C) 76.5 CELSIUS 		1-13770-085-0 01 1 9805-0604 ● ●
1 THERMOSTAT
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C) 76.5 CELSIUS 		1-13770-085-0 01 1 0605-0609 ●
1 THERMOSTAT
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> (C) 76.5 CELSIUS 		1-13770-085-0 01 1 0605-0609 ●
1 THERMOSTAT
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 76.5 CELSIUS 		1-13770-085-0 01 1 0605-0609 ●
1 THERMOSTAT
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C) 76.5 CELSIUS 		1-13770-085-0 01 1 0610- ●
1 THERMOSTAT
(C) 76.5 CELSIUS 		1-13770-085-0 01 1 0610- ●
2 HOUSING; THERMOSTAT 1-13716-180-0 01 1 9601- ● ●
14 PLUG; SW
(B) PT3/8 		8-94397-338-0 01 1 9601-9609 ●
14 PLUG; SW
(B) PT3/8 		8-94397-338-0 01 1 9610-0004 ● ●
14 PLUG; SW
(B) PT3/8 		8-94397-338-0 01 1 0005-0405 ● ● ●
14 PLUG; SW
(B) PT3/8 		8-94397-338-0 01 1 0406- ● ● ● ●
14 PLUG; SW
(B) PT3/8 T=8.0 		1-09605-066-0 01 1 9601-9806 ● ●
14 PLUG; SW
(B) PT3/8 T=8.0 		1-09605-066-0 01 1 9807- ●
14 PLUG; SW
(A) PT1/4 		1-09605-019-0 01 1 9601-1008 ● ● ●
14 PLUG; SW
(A) PT1/4 		1-09605-019-0 01 1 1009- ● ●
38 NUT; DUCT,SUCTION
M10 FLANGE 		0-91150-110-0 01 1 9601-0602 ● ●
38 NUT; DUCT,SUCTION
M10 FLANGE 		0-91180-110-0 01 1 0603- ● ●
40 DUCT; WATER,SUCTION
(A) 		8-94394-403-1 01 1 9601-9609 ●
40 DUCT; WATER,SUCTION
(A) 		8-94394-403-1 01 1 9610-9611 ● ●
40 DUCT; WATER,SUCTION
(A) 		8-94391-091-0 01 1 9612-0004 ● ●
40 DUCT; WATER,SUCTION
(A) 		8-94391-091-0 01 1 0005-0005 ● ●
40 DUCT; WATER,SUCTION
EXC. EURO2 SPECIFICATION<THN> (A) 		8-94391-091-0 01 1 0005-0005 ●
40 DUCT; WATER,SUCTION
EURO2 SPECIFICATION<THN> EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATO R(YC4) (A) 		8-94391-091-0 01 1 0005-0005 ●
40 DUCT; WATER,SUCTION
(A) 		8-94391-091-0 01 1 0006-0405 ● ● ●
40 DUCT; WATER,SUCTION
(A) 		8-94391-091-1 01 1 0406- ● ● ● ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 9601-9609 ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 9610-0004 ● ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 0005-0405 ● ● ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 0406- ● ● ● ●
40 DUCT; WATER,SUCTION
(C) 		1-13711-675-0 01 1 9601- ● ●
41 GASKET; DUCT TO HSG
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-13742-026-0 01 1 9601- ● ●
42 PLUG; WATER DUCT
PT3/4 		9-09664-005-0 01 1 9601- ● ●
43 BOLT; WATER DUCT
M8X28 W/LK&PL WASHER 		0-50140-828-0 03 1 9601-0906 ● ●
43 BOLT; WATER DUCT
M8X28 W/LK&PL WASHER 		0-50640-828-0 03 1 0907- ● ●
44 BOLT; HSG TO HD
M8X100 		0-10805-800-0 04 1 9601-0512 ● ●
44 BOLT; HSG TO HD
M8X100 		0-10855-800-0 04 1 0601- ● ●
45 STUD; DUCT
M10X20 L=35 		9-04411-020-0 01 1 9601- ● ●
48 WASHER; PL,THERMOSTAT HSG
ID=8.4 		9-09160-508-0 04 1 9601-0605 ● ●
48 WASHER; PL,THERMOSTAT HSG
ID=8.4 OD=16 		0-91610-508-0 04 1 0606- ● ●
56 PIPE; WATER,THERMOSTAT HSG
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) 		1-13721-949-0 01 1 0605- ●
56 PIPE; WATER,THERMOSTAT HSG 1-13721-628-0 01 1 9601-0604 ●
56 PIPE; WATER,THERMOSTAT HSG
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> 		1-13721-628-0 01 1 0605- ●
56 PIPE; WATER,THERMOSTAT HSG
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-13721-628-0 01 1 0605- ●
65 GASKET; HSG TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-13743-028-0 01 1 9601- ● ●
78 HOSE; RUBBER,WATER PIPE
HEATER & DEFROSTER(C41) 		1-09360-626-0 01 1 9708-0004 ● ●
78 HOSE; RUBBER,WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) 		1-09360-626-0 01 1 0005- ● ●
79 CLIP; RUBBER HOSE
HEATER & DEFROSTER(C41) ID=20 		1-09707-084-1 02 1 9708-0004 ● ●
79 CLIP; RUBBER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) ID=20 		1-09707-084-1 02 1 0005- ● ●
82 PIPE; WATER,HTR
HEATER & DEFROSTER(C41) 		1-13711-698-0 01 1 9601-9611 ● ●
82 PIPE; WATER,HTR
HEATER & DEFROSTER(C41) 		1-13711-698-1 01 1 9708-0004 ● ●
82 PIPE; WATER,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) 		1-13711-698-1 01 1 0005- ● ●
85 BOLT; CLIP
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) M6X40 FLANGE 		0-28650-640-0 04 1 0605- ●
89 BRACKET
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) 		1-13719-122-0 01 1 0605- ●
89 BRACKET
HEATER & DEFROSTER(C41) 		1-14119-389-0 01 1 9601-9903 ●
89 BRACKET
HEATER & DEFROSTER(C41) EXC. OIL FILTER SETTING DOWNWARD<E7V> 		1-14119-389-0 01 1 9904-0210 ●
89 BRACKET
HEATER & DEFROSTER(C41) EXC. OIL FILTER SETTING DOWNWARD<E7V> 		1-14119-389-0 01 1 0211- ●
89 BRACKET
AIR CONDITIONER MANUAL CONTROL(C60) 		1-14119-389-0 01 1 0211- ●
89 BRACKET
HEATER & DEFROSTER(C41) OIL FILTER SETTING DOWNWARD<E7V> 		1-14119-434-0 01 1 9904- ●
93 STAY; WATER PIPE
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) 		1-13719-089-0 01 1 0605- ●
97 BOLT; PIPE STAY
M10X20 FLANGE 		0-28181-020-0 02 1 9601-0512 ● ●
97 BOLT; PIPE STAY
M10X20 FLANGE 		0-28151-020-0 02 1 0601- ● ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 9601-9803 ● ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 9804-0004 ● ● ● ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 0005-0405 ● ● ● ● ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 0406- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
