◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10704 - FVR/GVR-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-30 - WATER PUMP AND CORROSION RESISTOR ▶
0-30 — WATER PUMP AND CORROSION RESISTOR (#64373) — 736 parça

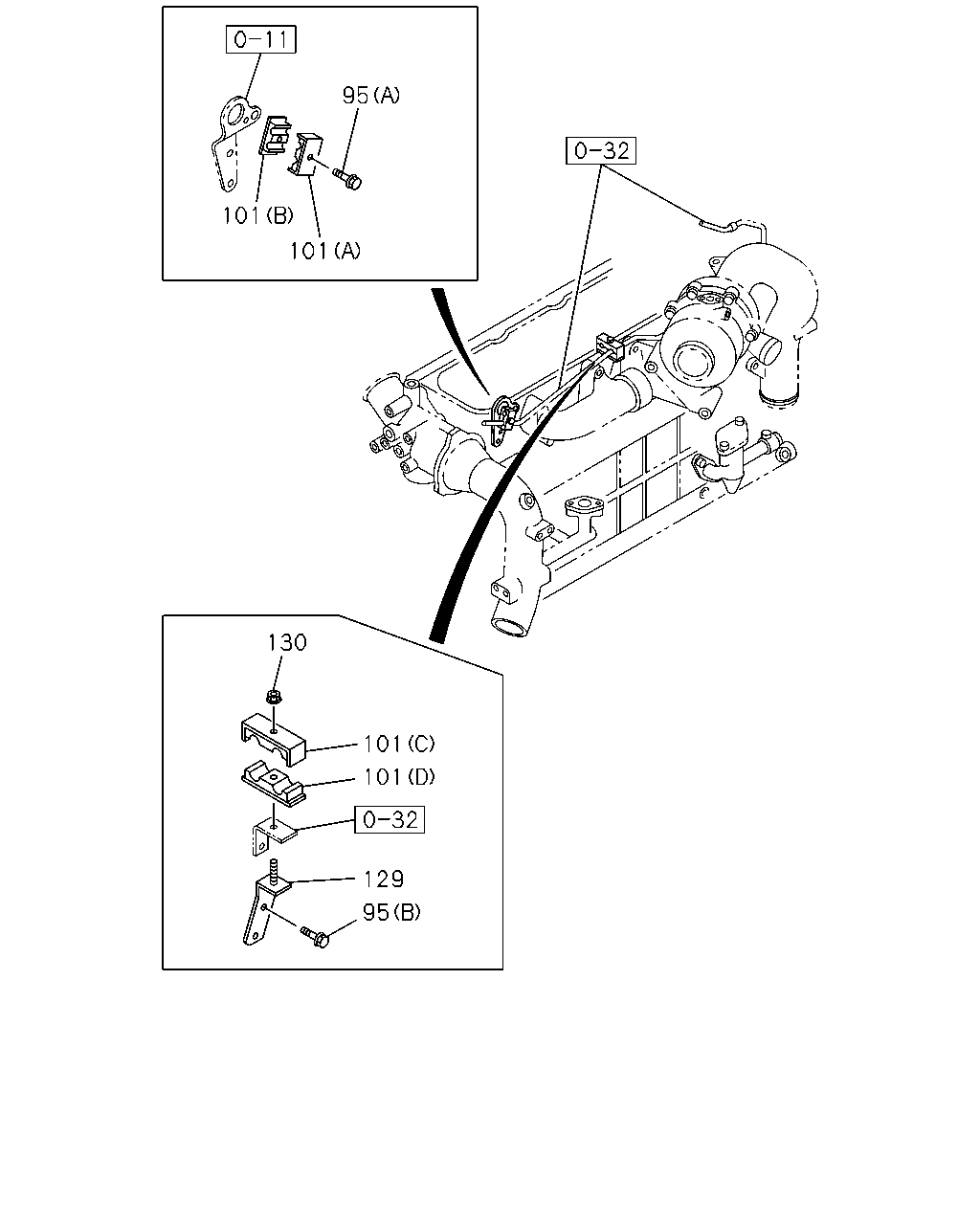

çizim 41623
95 101 101 130 101 101 129 95
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
95 BOLT; BRKT
(A) M6X35 FLANGE 		0-28080-635-0 01 1 9601-0512 ● ●
95 BOLT; BRKT
(A) M6X35 FLANGE 		0-28050-635-0 01 1 0601-0604 ● ●
95 BOLT; BRKT
(A) M6X35 FLANGE 		0-28050-635-0 01 1 0605- ●
95 BOLT; BRKT
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> (A) M6X35 FLANGE 		0-28050-635-0 01 1 0605- ●
95 BOLT; BRKT
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) M6X35 FLANGE 		0-28050-635-0 01 1 0605- ●
95 BOLT; BRKT
(B) M8X16 FLANGE 		0-28080-816-0 02 1 9601-0512 ●
95 BOLT; BRKT
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0601-0604 ●
95 BOLT; BRKT
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> (B) M8X16 FLANGE 		0-28050-816-0 02 1 0605- ●
95 BOLT; BRKT
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) M8X16 FLANGE 		0-28050-816-0 02 1 0605- ●
101 CLIP; WATER PIPE
(A) 		1-09701-172-2 01 1 9601-0604 ● ●
101 CLIP; WATER PIPE
(A) 		1-09701-172-3 01 1 0605- ●
101 CLIP; WATER PIPE
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> (A) 		1-09701-172-3 01 1 0605- ●
101 CLIP; WATER PIPE
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-09701-172-3 01 1 0605- ●
101 CLIP; WATER PIPE
(B) 		1-09701-173-1 01 1 9601-0604 ● ●
101 CLIP; WATER PIPE
(B) 		1-09701-173-2 01 1 0605- ●
101 CLIP; WATER PIPE
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> (B) 		1-09701-173-2 01 1 0605- ●
101 CLIP; WATER PIPE
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) 		1-09701-173-2 01 1 0605- ●
101 CLIP; WATER PIPE
(C) ID=7 & 11 L=28 		1-09701-230-1 01 1 9601-0604 ●
101 CLIP; WATER PIPE
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> (C) ID=7 & 11 L=28 		1-09701-230-1 01 1 0605- ●
101 CLIP; WATER PIPE
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) ID=7 & 11 L=28 		1-09701-230-1 01 1 0605- ●
101 CLIP; WATER PIPE
(D) ID=7 & 11 L=28 		1-09701-231-1 01 1 9601-0604 ●
101 CLIP; WATER PIPE
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> (D) ID=7 & 11 L=28 		1-09701-231-1 01 1 0605- ●
101 CLIP; WATER PIPE
EXC. NEW ZEALAND EQUIPMENT(PK5) (D) ID=7 & 11 L=28 		1-09701-231-1 01 1 0605- ●
129 BRACKET; CLIP 1-13319-038-0 01 1 9601-0604 ●
129 BRACKET; CLIP
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> 		1-13319-038-0 01 1 0605- ●
129 BRACKET; CLIP
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-13319-038-0 01 1 0605- ●
130 NUT; CLIP
M6 FLANGE 		0-91150-106-0 01 1 9601-0602 ●
130 NUT; CLIP
M6 FLANGE 		0-91180-106-0 01 1 0603-0604 ●
130 NUT; CLIP
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> M6 FLANGE 		0-91180-106-0 01 1 0605- ●
130 NUT; CLIP
EXC. NEW ZEALAND EQUIPMENT(PK5) M6 FLANGE 		0-91180-106-0 01 1 0605- ●

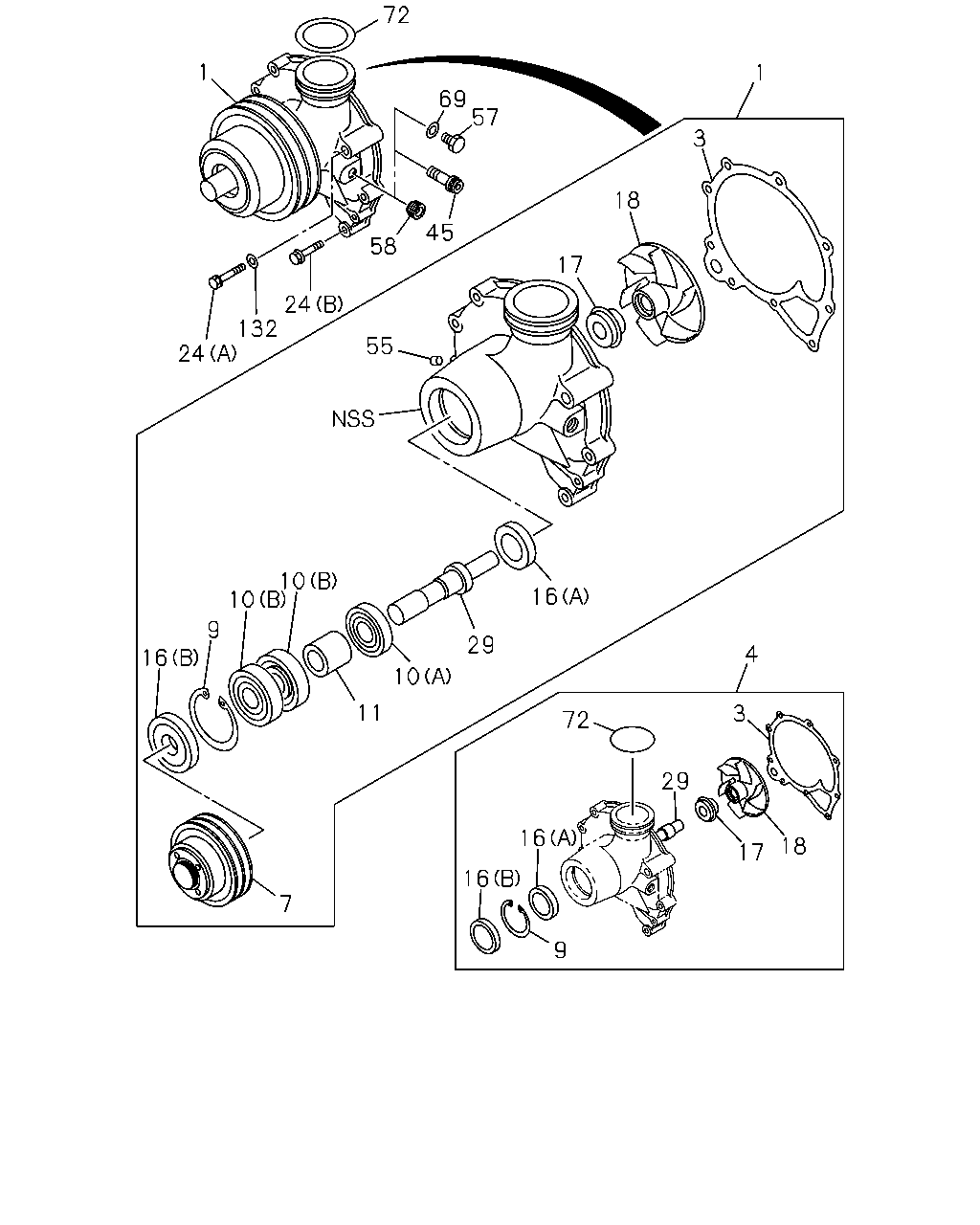

çizim 41776
72 1 1 69 57 3 18 58 45 17 24 132 55 24 10 10 16 9 16 29 4 10 11 3 72 29 16 18 17 16 7 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PUMP ASM; WATER,W/GASKET 8-97602-776-2 01 1 0406-1208 ●
1 PUMP ASM; WATER,W/GASKET 1-87310-844-0 01 1 1209-1312 ●
1 PUMP ASM; WATER,W/GASKET 1-87310-904-0 01 1 1401-1405 ●
1 PUMP ASM; WATER,W/GASKET 1-87310-976-0 01 1 1406- ●
1 PUMP ASM; WATER,W/GASKET
EXC. EURO2 SPECIFICATION<THN> 		8-94391-059-5 01 1 0209-0301 ●
1 PUMP ASM; WATER,W/GASKET
HEATER & DEFROSTER(C41) EXC. HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94395-657-1 01 1 9601-9611 ●
1 PUMP ASM; WATER,W/GASKET
HEATER & DEFROSTER(C41) EXC. HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		8-94395-657-5 01 1 9612-0004 ●
1 PUMP ASM; WATER,W/GASKET
HEATER & DEFROSTER(C41) 		8-94395-657-6 01 1 0005-0301 ●
1 PUMP ASM; WATER,W/GASKET 8-97602-775-0 01 1 0302-0801 ●
1 PUMP ASM; WATER,W/GASKET 8-97627-357-1 01 1 0802-1208 ●
1 PUMP ASM; WATER,W/GASKET 1-87310-842-0 01 1 1209-1312 ●
1 PUMP ASM; WATER,W/GASKET 1-87310-916-0 01 1 1401-1405 ●
1 PUMP ASM; WATER,W/GASKET 1-87310-988-0 01 1 1406- ●
1 PUMP ASM; WATER,W/GASKET
EXC. HEATER & DEFROSTER(C41) 		8-94390-601-0 01 1 9601-9611 ●
1 PUMP ASM; WATER,W/GASKET
EXC. HEATER & DEFROSTER(C41),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIAEQUIPMENT(SEQ) 		8-94390-601-0 01 1 9612-9805 ●
1 PUMP ASM; WATER,W/GASKET
EXC. HEATER & DEFROSTER(C41),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		8-94390-601-4 01 1 9806-0004 ●
1 PUMP ASM; WATER,W/GASKET
EXC. HEATER & DEFROSTER(C41) 		8-94390-601-5 01 1 0005-0301 ●
1 PUMP ASM; WATER,W/GASKET
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) HEATER & DEFROSTER(C41) 		8-94395-656-1 01 1 9601-9607 ●
1 PUMP ASM; WATER,W/GASKET
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94395-656-1 01 1 9608-9803 ●
1 PUMP ASM; WATER,W/GASKET
AUSTRALIA EQUIPMENT(RR3) 		8-94395-656-5 01 1 9804-0004 ●
1 PUMP ASM; WATER,W/GASKET
WEST MALAYSIA EQUIPMENT(SEQ) 		8-94390-599-4 01 1 9612-0004 ●
1 PUMP ASM; WATER,W/GASKET 8-94390-599-4 01 1 0005-0005 ●
1 PUMP ASM; WATER,W/GASKET
EXC. HEATER & DEFROSTER(C41) 		8-94390-599-5 01 1 0006-0301 ●
1 PUMP ASM; WATER,W/GASKET 8-97602-773-0 01 1 0302-0801 ●
1 PUMP ASM; WATER,W/GASKET 8-97627-355-1 01 1 0802-1208 ●
1 PUMP ASM; WATER,W/GASKET 1-87310-837-0 01 1 1209-1312 ●
1 PUMP ASM; WATER,W/GASKET 1-87310-906-0 01 1 1401-1405 ●
1 PUMP ASM; WATER,W/GASKET 1-87310-978-0 01 1 1406- ●
1 PUMP ASM; WATER,W/GASKET 1-13650-003-2 01 1 9601- ●
1 PUMP ASM; WATER,W/GASKET 1-13650-002-2 01 1 9601- ●
1 PUMP ASM; WATER,W/GASKET 8-94395-417-2 01 1 9610-9611 ●
1 PUMP ASM; WATER,W/GASKET 8-94391-059-5 01 1 9612-0208 ●
1 PUMP ASM; WATER,W/GASKET
EURO2 SPECIFICATION<THN> 		8-94391-059-5 01 1 0209-0301 ●
1 PUMP ASM; WATER,W/GASKET 8-97602-781-2 01 1 0302-1208 ●
1 PUMP ASM; WATER,W/GASKET 1-87310-839-0 01 1 1209-1312 ●
1 PUMP ASM; WATER,W/GASKET 1-87310-911-0 01 1 1401-1405 ●
1 PUMP ASM; WATER,W/GASKET 1-87310-983-0 01 1 1406- ●
1 PUMP ASM; WATER,W/GASKET
FVR STD CAB MIDDLE CHASSIS(FV**MF) HEATER & DEFROSTER(C41) 		8-97600-022-0 01 1 9807-9901 ●
1 PUMP ASM; WATER,W/GASKET
FVR STD CAB MIDDLE CHASSIS(FV**MF) HEATER & DEFROSTER(C41) 		8-97600-352-2 01 1 9902-0004 ●
1 PUMP ASM; WATER,W/GASKET
HEATER & DEFROSTER(C41) 		8-94395-656-6 01 1 0006-0301 ●
3 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-13614-018-1 01 1 9601- ● ●
4 REPAIR KIT; WATER PUMP 1-87814-172-0 01 1 1401-1405 ●
4 REPAIR KIT; WATER PUMP 1-87814-612-0 01 1 1406- ●
4 REPAIR KIT; WATER PUMP 1-87814-165-0 01 1 1401-1405 ●
4 REPAIR KIT; WATER PUMP 1-87814-605-0 01 1 1406- ●
4 REPAIR KIT; WATER PUMP 1-87814-167-0 01 1 1401-1405 ●
4 REPAIR KIT; WATER PUMP 1-87814-607-0 01 1 1406- ●
4 REPAIR KIT; WATER PUMP 1-87812-040-1 01 1 0406-1208 ●
4 REPAIR KIT; WATER PUMP 1-87813-949-0 01 1 1209-1312 ●
4 REPAIR KIT; WATER PUMP
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		1-87811-086-0 01 1 9601-9611 ●
4 REPAIR KIT; WATER PUMP
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		1-87811-086-0 01 1 9612-9810 ●
4 REPAIR KIT; WATER PUMP
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		1-87811-898-0 01 1 9811-9911 ●
4 REPAIR KIT; WATER PUMP
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		1-87812-029-0 01 1 9912-0004 ●
4 REPAIR KIT; WATER PUMP 1-87812-029-1 01 1 0005-0801 ●
4 REPAIR KIT; WATER PUMP 1-87813-358-0 01 1 0802-1208 ●
4 REPAIR KIT; WATER PUMP 1-87813-947-0 01 1 1209-1312 ●
4 REPAIR KIT; WATER PUMP
EXC. HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		1-87811-051-0 01 1 9601-9611 ●
4 REPAIR KIT; WATER PUMP
EXC. HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		1-87811-051-0 01 1 9612-9805 ●
4 REPAIR KIT; WATER PUMP
EXC. AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		1-87811-051-0 01 1 9806-9911 ●
4 REPAIR KIT; WATER PUMP
EXC. AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		1-87812-027-0 01 1 9912-0004 ●
4 REPAIR KIT; WATER PUMP 1-87812-027-1 01 1 0005-0801 ●
4 REPAIR KIT; WATER PUMP 1-87813-363-0 01 1 0802-1208 ●
4 REPAIR KIT; WATER PUMP 1-87813-948-0 01 1 1209-1312 ●
4 REPAIR KIT; WATER PUMP 1-87814-173-0 01 1 1401-1405 ●
4 REPAIR KIT; WATER PUMP 1-87814-613-0 01 1 1406- ●
4 REPAIR KIT; WATER PUMP 1-87811-181-0 01 1 9601-9807 ● ●
4 REPAIR KIT; WATER PUMP 1-87811-936-0 01 1 9808-9911 ● ●
4 REPAIR KIT; WATER PUMP 1-87812-019-1 01 1 9912- ● ●
4 REPAIR KIT; WATER PUMP 1-87811-318-0 01 1 9610-9911 ●
4 REPAIR KIT; WATER PUMP 1-87812-028-1 01 1 9912-1208 ●
4 REPAIR KIT; WATER PUMP 1-87813-946-0 01 1 1209-1312 ●
7 PULLEY; WATER PUMP
EXC. EURO2 SPECIFICATION<THN> 4-GROOVE 		8-94394-927-0 01 1 0209-0301 ●
7 PULLEY; WATER PUMP
2-GROOVE 		8-94394-826-0 01 1 9601-0004 ●
7 PULLEY; WATER PUMP
2-GROOVE 		8-94394-826-0 01 1 0005- ● ●
7 PULLEY; WATER PUMP
2-GROOVE 		1-13641-173-0 01 1 9601- ●
7 PULLEY; WATER PUMP
2-GROOVE 		1-13641-174-0 01 1 9601- ●
7 PULLEY; WATER PUMP
4-GROOVE 		8-94394-927-0 01 1 9610-0208 ●
7 PULLEY; WATER PUMP
EURO2 SPECIFICATION<THN> 4-GROOVE 		8-94394-927-0 01 1 0209-0301 ●
7 PULLEY; WATER PUMP
4-GROOVE 		8-94394-927-0 01 1 0302-0405 ●
7 PULLEY; WATER PUMP
EURO2 SPECIFICATION<THN> 4-GROOVE 		8-94394-927-0 01 1 0406- ●
7 PULLEY; WATER PUMP
4-GROOVE 		8-94394-927-0 01 1 0406- ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 0209-0301 ● ● ● ●
9 RING; SNAP,WATER PUMP
EURO2 SPECIFICATION<THN> ID=57.9 		9-09180-162-0 01 1 0209-0301 ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 9601-9912 ● ● ● ●
9 RING; SNAP,WATER PUMP
EXC. WEST MALAYSIA EQUIPMENT(SEQ) ID=57.9 		9-09180-162-0 01 1 0001-0004 ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 0001-0004 ● ● ●
9 RING; SNAP,WATER PUMP
EURO2 SPECIFICATION<THN> ID=57.9 		9-09180-162-0 01 1 0001-0004 ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 0005-0208 ● ● ● ● ●
9 RING; SNAP,WATER PUMP
EXC. EURO2 SPECIFICATION<THN> ID=57.9 		9-09180-162-0 01 1 0209-0301 ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 0302-0405 ● ● ● ● ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 0406- ● ● ● ● ● ●
10 BEARING; WATER PUMP
(D) 		1-09800-011-0 02 1 9601-0004 ●
10 BEARING; WATER PUMP
(D) 		1-09800-011-0 02 1 0005- ● ●
10 BEARING; WATER PUMP
(B) 		1-09800-155-0 02 1 9601- ● ●
10 BEARING; WATER PUMP
(A) 		1-09800-196-0 01 1 9601- ● ●
10 BEARING; WATER PUMP
(C) 		1-09800-011-0 03 1 9610-9611 ●
10 BEARING; WATER PUMP
(A) 		8-94391-298-0 02 1 9612-0208 ●
10 BEARING; WATER PUMP
EURO2 SPECIFICATION<THN> (A) 		8-94391-298-0 02 1 0209-0301 ●
10 BEARING; WATER PUMP
(A) 		8-94391-298-0 02 1 0302-0405 ●
10 BEARING; WATER PUMP
EURO2 SPECIFICATION<THN> (A) 		8-94391-298-0 02 1 0406- ●
10 BEARING; WATER PUMP
(A) 		8-94391-298-0 02 1 0406- ●
10 BEARING; WATER PUMP
(B) 		8-94391-299-0 01 1 9612-0208 ●
10 BEARING; WATER PUMP
EURO2 SPECIFICATION<THN> (B) 		8-94391-299-0 01 1 0209-0301 ●
10 BEARING; WATER PUMP
(B) 		8-94391-299-0 01 1 0302-0405 ●
10 BEARING; WATER PUMP
EURO2 SPECIFICATION<THN> (B) 		8-94391-299-0 01 1 0406- ●
10 BEARING; WATER PUMP
(B) 		8-94391-299-0 01 1 0406- ●
11 SPACER; BRG,WATER PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-13634-040-0 01 1 0209-0301 ●
11 SPACER; BRG,WATER PUMP 1-13634-025-0 01 1 9601-9611 ● ●
11 SPACER; BRG,WATER PUMP 1-13634-025-0 01 1 9612-0004 ●
11 SPACER; BRG,WATER PUMP 1-13634-025-0 01 1 0005- ● ●
11 SPACER; BRG,WATER PUMP 1-13634-029-0 01 1 9601- ● ●
11 SPACER; BRG,WATER PUMP 1-13634-040-0 01 1 9612-0208 ●
11 SPACER; BRG,WATER PUMP
EURO2 SPECIFICATION<THN> 		1-13634-040-0 01 1 0209-0301 ●
11 SPACER; BRG,WATER PUMP 1-13634-040-0 01 1 0302-0405 ●
11 SPACER; BRG,WATER PUMP
EURO2 SPECIFICATION<THN> 		1-13634-040-0 01 1 0406- ●
11 SPACER; BRG,WATER PUMP 1-13634-040-0 01 1 0406- ●
16 SEAL; OIL,WATER PUMP
(B) 		1-09625-381-0 01 1 9601-9911 ● ●
16 SEAL; OIL,WATER PUMP
(B) 		1-09625-388-0 01 1 9912- ● ●
16 SEAL; OIL,WATER PUMP
(A) 		1-09625-382-0 01 1 9601-9911 ● ●
16 SEAL; OIL,WATER PUMP
(A) 		1-09625-389-0 01 1 9912- ● ●
17 SEAL UNIT; WATER PUMP 8-98272-791-0 01 1 1406- ● ● ● ●
17 SEAL UNIT; WATER PUMP 8-98221-159-0 01 1 1209-1312 ● ● ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0209-0301 ● ● ● ●
17 SEAL UNIT; WATER PUMP
EURO2 SPECIFICATION<THN> 		8-94392-090-0 01 1 0209-0301 ●
17 SEAL UNIT; WATER PUMP 8-94395-036-0 01 1 9601-9807 ● ● ● ●
17 SEAL UNIT; WATER PUMP 8-94395-036-0 01 1 9808-9912 ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 9808-9912 ● ●
17 SEAL UNIT; WATER PUMP
EXC. WEST MALAYSIA EQUIPMENT(SEQ) 		8-94392-090-0 01 1 0001-0004 ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0001-0004 ● ● ●
17 SEAL UNIT; WATER PUMP
EURO2 SPECIFICATION<THN> 		8-94392-090-0 01 1 0001-0004 ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0005-0208 ● ● ● ● ●
17 SEAL UNIT; WATER PUMP
EXC. EURO2 SPECIFICATION<THN> 		8-94392-090-0 01 1 0209-0301 ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0302-0405 ● ● ● ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0406-1208 ● ● ● ● ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 1209-1312 ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 1401-1405 ● ● ● ● ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 1406- ● ●
18 IMPELLER; WATER PUMP 8-94397-375-0 01 1 0209-0301 ●
18 IMPELLER; WATER PUMP
EURO2 SPECIFICATION<THN> 		8-94397-375-0 01 1 0209-0301 ●
18 IMPELLER; WATER PUMP
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94394-414-1 01 1 9601-9611 ●
18 IMPELLER; WATER PUMP
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		8-94394-414-1 01 1 9612-9810 ●
18 IMPELLER; WATER PUMP
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		8-94392-922-0 01 1 9811-0004 ●
18 IMPELLER; WATER PUMP 8-94392-922-0 01 1 0005-0405 ●
18 IMPELLER; WATER PUMP 8-94392-922-0 01 1 0406- ● ●
18 IMPELLER; WATER PUMP
EXC. HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94397-375-0 01 1 9601-9609 ●
18 IMPELLER; WATER PUMP
EXC. HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		8-94397-375-0 01 1 9610-9805 ●
18 IMPELLER; WATER PUMP 8-94397-375-0 01 1 9610-9805 ●
18 IMPELLER; WATER PUMP
EXC. AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		8-94397-375-0 01 1 9806-9806 ●
18 IMPELLER; WATER PUMP 8-94397-375-0 01 1 9806-9806 ●
18 IMPELLER; WATER PUMP
EXC. HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		8-94397-375-0 01 1 9807-0004 ●
18 IMPELLER; WATER PUMP 8-94397-375-0 01 1 9807-0004 ●
18 IMPELLER; WATER PUMP
EXC. WEST MALAYSIA EQUIPMENT(SEQ) 		8-94397-375-0 01 1 0005-0103 ●
18 IMPELLER; WATER PUMP 8-94397-375-0 01 1 0005-0103 ●
18 IMPELLER; WATER PUMP 8-94397-375-0 01 1 0104-0208 ● ●
18 IMPELLER; WATER PUMP
EXC. EURO2 SPECIFICATION<THN> 		8-94397-375-0 01 1 0209-0301 ●
18 IMPELLER; WATER PUMP 8-94397-375-0 01 1 0302- ● ●
18 IMPELLER; WATER PUMP 1-13621-052-0 01 1 9601- ● ●
24 BOLT; WATER PUMP
(A) M8X58 FLANGE 		8-94130-055-1 03 1 9601-9609 ●
24 BOLT; WATER PUMP
(A) M8X58 FLANGE 		8-94130-055-1 03 1 9610-0004 ● ●
24 BOLT; WATER PUMP
(A) M8X58 FLANGE 		8-94130-055-1 03 1 0005-0405 ● ● ●
24 BOLT; WATER PUMP
(A) M8X58 FLANGE 		8-94130-055-1 03 1 0406- ● ● ● ●
24 BOLT; WATER PUMP
(B) M8X79 FLANGE 		8-94311-617-1 01 1 9601-9611 ●
24 BOLT; WATER PUMP
(C) M10X85 FLANGE 		8-94397-359-1 01 1 9601-9609 ●
24 BOLT; WATER PUMP
(C) M10X85 FLANGE 		8-94397-359-1 01 1 9610-0004 ● ●
24 BOLT; WATER PUMP
(C) M10X85 FLANGE 		8-94397-359-1 01 1 0005-0405 ● ● ●
24 BOLT; WATER PUMP
(C) M10X85 FLANGE 		8-94397-359-1 01 1 0406- ● ● ● ●
24 BOLT; WATER PUMP
(A) M10X70 		0-16806-070-0 02 1 9601-0512 ● ●
24 BOLT; WATER PUMP
(A) M10X70 		0-16856-070-0 02 1 0601- ● ●
24 BOLT; WATER PUMP
(B) M8X45 W/LK&PL WASHER 		0-50140-845-0 07 1 9601-0906 ● ●
24 BOLT; WATER PUMP
(B) M8X45 W/LK&PL WASHER 		0-50640-845-0 07 1 0907- ● ●
24 BOLT; WATER PUMP
(B) M8X80 FLANGE 		0-28080-880-0 01 1 9610-9611 ●
24 BOLT; WATER PUMP
(B) M8X80 FLANGE 		0-28080-880-0 01 1 9612-0004 ● ●
24 BOLT; WATER PUMP
(B) M8X80 FLANGE 		0-28080-880-0 01 1 0005-0405 ● ● ●
24 BOLT; WATER PUMP
(B) M8X80 FLANGE 		0-28080-880-0 01 1 0406-0512 ● ● ● ●
24 BOLT; WATER PUMP
(B) M8X80 FLANGE 		0-28050-880-0 01 1 0601- ● ● ● ●
29 SHAFT; WATER PUMP
EXC. EURO2 SPECIFICATION<THN> 		8-94396-130-1 01 1 0209-0301 ●
29 SHAFT; WATER PUMP 8-94397-374-0 01 1 9601-0004 ●
29 SHAFT; WATER PUMP 8-94397-374-0 01 1 0005- ● ●
29 SHAFT; WATER PUMP 1-13631-079-0 01 1 9601- ● ●
29 SHAFT; WATER PUMP 8-94396-130-1 01 1 9610-0208 ●
29 SHAFT; WATER PUMP
EURO2 SPECIFICATION<THN> 		8-94396-130-1 01 1 0209-0301 ●
29 SHAFT; WATER PUMP 8-94396-130-1 01 1 0302-0405 ●
29 SHAFT; WATER PUMP
EURO2 SPECIFICATION<THN> 		8-94396-130-1 01 1 0406- ●
29 SHAFT; WATER PUMP 8-94396-130-1 01 1 0406- ●
45 JOINT; HTR HOSE,WATER PUMP
EXC. EURO2 SPECIFICATION<THN> 		8-94394-389-0 01 1 0209-0301 ●
45 JOINT; HTR HOSE,WATER PUMP
HEATER & DEFROSTER(C41) 		8-94397-377-2 01 1 9601-0004 ●
45 JOINT; HTR HOSE,WATER PUMP
HEATER & DEFROSTER(C41) 		8-94397-377-2 01 1 0005-0005 ●
45 JOINT; HTR HOSE,WATER PUMP
HEATER & DEFROSTER(C41) 		8-94397-377-2 01 1 0006- ● ●
45 JOINT; HTR HOSE,WATER PUMP
HEATER & DEFROSTER(C41) PT3/8 & OD=18.3 L=47 		9-09903-631-0 01 1 9708-0004 ● ●
45 JOINT; HTR HOSE,WATER PUMP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) PT3/8 & OD=18.3 L=47 		9-09903-631-0 01 1 0005- ● ●
45 JOINT; HTR HOSE,WATER PUMP 8-94394-389-0 01 1 9610-0208 ●
45 JOINT; HTR HOSE,WATER PUMP
EURO2 SPECIFICATION<THN> 		8-94394-389-0 01 1 0209-0301 ●
45 JOINT; HTR HOSE,WATER PUMP 8-94394-389-0 01 1 0302-0405 ●
45 JOINT; HTR HOSE,WATER PUMP 8-94394-389-0 01 1 0406- ● ●
45 JOINT; HTR HOSE,WATER PUMP
FVR STD CAB MIDDLE CHASSIS(FV**MF) HEATER & DEFROSTER(C41) 		8-94392-827-1 01 1 9807-0004 ●
55 NOZZLE; OIL FEED,WATER PUMP 1-13619-046-0 01 1 9601- ● ●
57 PLUG; HTR,WATER PUMP
EXC. HEATER & DEFROSTER(C41) M20 		9-99202-320-0 01 1 0302-0303 ●
57 PLUG; HTR,WATER PUMP
EXC. HEATER & DEFROSTER(C41) M20 		9-99202-320-0 01 1 0304- ● ●
58 PLUG; HTR
EXC. HEATER & DEFROSTER(C41) PT3/8 T=8.0 		1-09605-066-0 01 1 9708-1003 ● ●
58 PLUG; HTR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) PT3/8 T=8.0 		1-09605-066-0 01 1 1004- ●
69 GASKET; PLUG,HTR
EXC. HEATER & DEFROSTER(C41) ID=20.5 OD=28.0 		9-09571-420-0 01 1 0302-0303 ●
69 GASKET; PLUG,HTR
EXC. HEATER & DEFROSTER(C41) ID=20.5 OD=28.0 		9-09571-420-0 01 1 0304- ● ●
72 GASKET; PUMP TO THERMO HSG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6 		1-09623-307-0 01 1 9601- ● ●
132 WASHER; PL,WATER PUMP
ID=10.5 OD=18 		9-09160-510-0 02 1 9601-0605 ● ●
132 WASHER; PL,WATER PUMP
ID=10.5 		0-91610-510-0 02 1 0606- ● ●

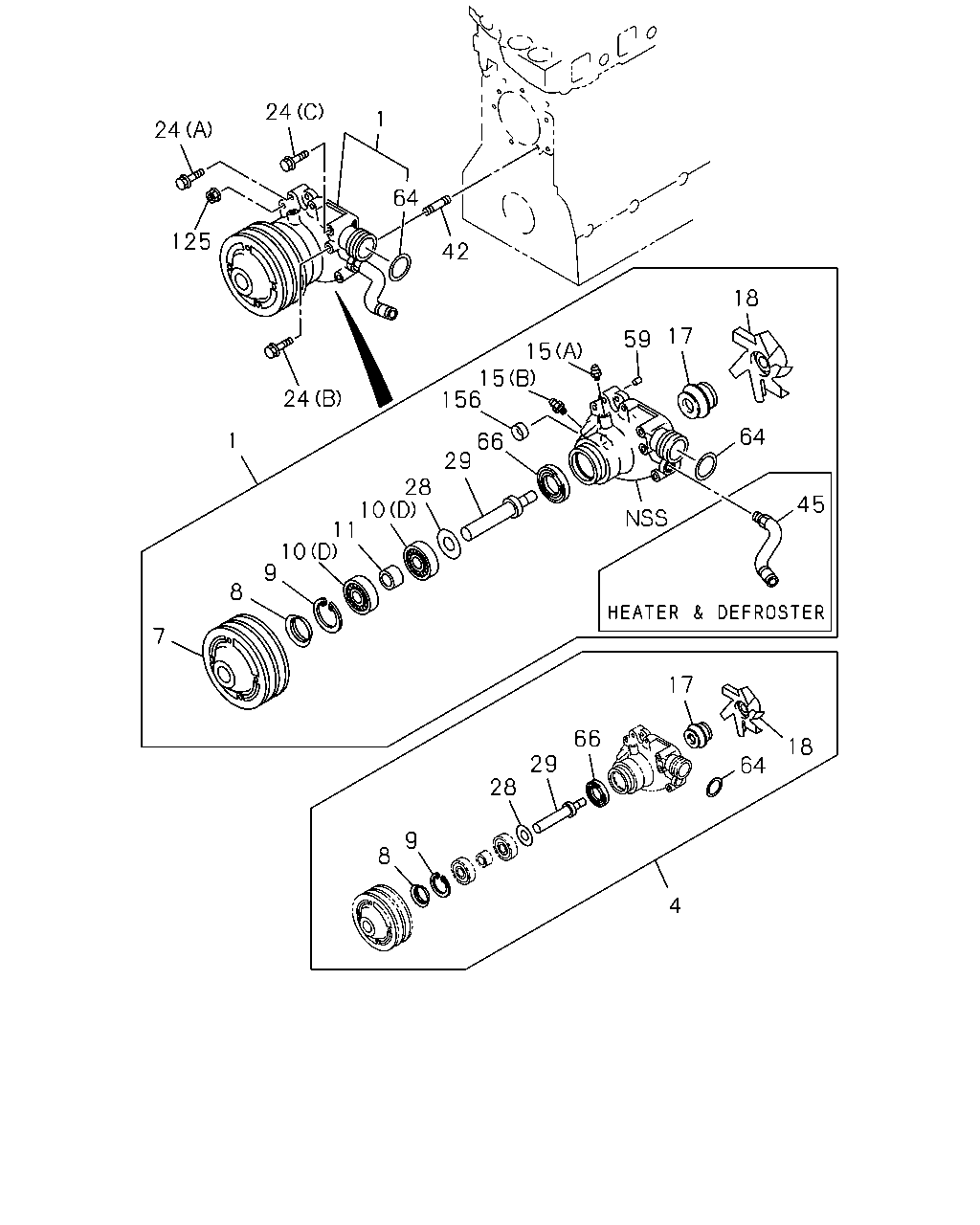

çizim 184228
24 1 24 64 125 42 18 17 59 15 15 156 24 64 1 66 29 28 10 11 10 9 45 8 7 17 66 18 29 64 28 9 8 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PUMP ASM; WATER,W/GASKET 8-97602-776-2 01 1 0406-1208 ●
1 PUMP ASM; WATER,W/GASKET 1-87310-844-0 01 1 1209-1312 ●
1 PUMP ASM; WATER,W/GASKET 1-87310-904-0 01 1 1401-1405 ●
1 PUMP ASM; WATER,W/GASKET 1-87310-976-0 01 1 1406- ●
1 PUMP ASM; WATER,W/GASKET
EXC. EURO2 SPECIFICATION<THN> 		8-94391-059-5 01 1 0209-0301 ●
1 PUMP ASM; WATER,W/GASKET
HEATER & DEFROSTER(C41) EXC. HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94395-657-1 01 1 9601-9611 ●
1 PUMP ASM; WATER,W/GASKET
HEATER & DEFROSTER(C41) EXC. HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		8-94395-657-5 01 1 9612-0004 ●
1 PUMP ASM; WATER,W/GASKET
HEATER & DEFROSTER(C41) 		8-94395-657-6 01 1 0005-0301 ●
1 PUMP ASM; WATER,W/GASKET 8-97602-775-0 01 1 0302-0801 ●
1 PUMP ASM; WATER,W/GASKET 8-97627-357-1 01 1 0802-1208 ●
1 PUMP ASM; WATER,W/GASKET 1-87310-842-0 01 1 1209-1312 ●
1 PUMP ASM; WATER,W/GASKET 1-87310-916-0 01 1 1401-1405 ●
1 PUMP ASM; WATER,W/GASKET 1-87310-988-0 01 1 1406- ●
1 PUMP ASM; WATER,W/GASKET
EXC. HEATER & DEFROSTER(C41) 		8-94390-601-0 01 1 9601-9611 ●
1 PUMP ASM; WATER,W/GASKET
EXC. HEATER & DEFROSTER(C41),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIAEQUIPMENT(SEQ) 		8-94390-601-0 01 1 9612-9805 ●
1 PUMP ASM; WATER,W/GASKET
EXC. HEATER & DEFROSTER(C41),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		8-94390-601-4 01 1 9806-0004 ●
1 PUMP ASM; WATER,W/GASKET
EXC. HEATER & DEFROSTER(C41) 		8-94390-601-5 01 1 0005-0301 ●
1 PUMP ASM; WATER,W/GASKET
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) HEATER & DEFROSTER(C41) 		8-94395-656-1 01 1 9601-9607 ●
1 PUMP ASM; WATER,W/GASKET
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94395-656-1 01 1 9608-9803 ●
1 PUMP ASM; WATER,W/GASKET
AUSTRALIA EQUIPMENT(RR3) 		8-94395-656-5 01 1 9804-0004 ●
1 PUMP ASM; WATER,W/GASKET
WEST MALAYSIA EQUIPMENT(SEQ) 		8-94390-599-4 01 1 9612-0004 ●
1 PUMP ASM; WATER,W/GASKET 8-94390-599-4 01 1 0005-0005 ●
1 PUMP ASM; WATER,W/GASKET
EXC. HEATER & DEFROSTER(C41) 		8-94390-599-5 01 1 0006-0301 ●
1 PUMP ASM; WATER,W/GASKET 8-97602-773-0 01 1 0302-0801 ●
1 PUMP ASM; WATER,W/GASKET 8-97627-355-1 01 1 0802-1208 ●
1 PUMP ASM; WATER,W/GASKET 1-87310-837-0 01 1 1209-1312 ●
1 PUMP ASM; WATER,W/GASKET 1-87310-906-0 01 1 1401-1405 ●
1 PUMP ASM; WATER,W/GASKET 1-87310-978-0 01 1 1406- ●
1 PUMP ASM; WATER,W/GASKET 1-13650-003-2 01 1 9601- ●
1 PUMP ASM; WATER,W/GASKET 1-13650-002-2 01 1 9601- ●
1 PUMP ASM; WATER,W/GASKET 8-94395-417-2 01 1 9610-9611 ●
1 PUMP ASM; WATER,W/GASKET 8-94391-059-5 01 1 9612-0208 ●
1 PUMP ASM; WATER,W/GASKET
EURO2 SPECIFICATION<THN> 		8-94391-059-5 01 1 0209-0301 ●
1 PUMP ASM; WATER,W/GASKET 8-97602-781-2 01 1 0302-1208 ●
1 PUMP ASM; WATER,W/GASKET 1-87310-839-0 01 1 1209-1312 ●
1 PUMP ASM; WATER,W/GASKET 1-87310-911-0 01 1 1401-1405 ●
1 PUMP ASM; WATER,W/GASKET 1-87310-983-0 01 1 1406- ●
1 PUMP ASM; WATER,W/GASKET
FVR STD CAB MIDDLE CHASSIS(FV**MF) HEATER & DEFROSTER(C41) 		8-97600-022-0 01 1 9807-9901 ●
1 PUMP ASM; WATER,W/GASKET
FVR STD CAB MIDDLE CHASSIS(FV**MF) HEATER & DEFROSTER(C41) 		8-97600-352-2 01 1 9902-0004 ●
1 PUMP ASM; WATER,W/GASKET
HEATER & DEFROSTER(C41) 		8-94395-656-6 01 1 0006-0301 ●
4 REPAIR KIT; WATER PUMP 1-87814-172-0 01 1 1401-1405 ●
4 REPAIR KIT; WATER PUMP 1-87814-612-0 01 1 1406- ●
4 REPAIR KIT; WATER PUMP 1-87814-165-0 01 1 1401-1405 ●
4 REPAIR KIT; WATER PUMP 1-87814-605-0 01 1 1406- ●
4 REPAIR KIT; WATER PUMP 1-87814-167-0 01 1 1401-1405 ●
4 REPAIR KIT; WATER PUMP 1-87814-607-0 01 1 1406- ●
4 REPAIR KIT; WATER PUMP 1-87812-040-1 01 1 0406-1208 ●
4 REPAIR KIT; WATER PUMP 1-87813-949-0 01 1 1209-1312 ●
4 REPAIR KIT; WATER PUMP
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		1-87811-086-0 01 1 9601-9611 ●
4 REPAIR KIT; WATER PUMP
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		1-87811-086-0 01 1 9612-9810 ●
4 REPAIR KIT; WATER PUMP
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		1-87811-898-0 01 1 9811-9911 ●
4 REPAIR KIT; WATER PUMP
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		1-87812-029-0 01 1 9912-0004 ●
4 REPAIR KIT; WATER PUMP 1-87812-029-1 01 1 0005-0801 ●
4 REPAIR KIT; WATER PUMP 1-87813-358-0 01 1 0802-1208 ●
4 REPAIR KIT; WATER PUMP 1-87813-947-0 01 1 1209-1312 ●
4 REPAIR KIT; WATER PUMP
EXC. HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		1-87811-051-0 01 1 9601-9611 ●
4 REPAIR KIT; WATER PUMP
EXC. HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		1-87811-051-0 01 1 9612-9805 ●
4 REPAIR KIT; WATER PUMP
EXC. AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		1-87811-051-0 01 1 9806-9911 ●
4 REPAIR KIT; WATER PUMP
EXC. AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		1-87812-027-0 01 1 9912-0004 ●
4 REPAIR KIT; WATER PUMP 1-87812-027-1 01 1 0005-0801 ●
4 REPAIR KIT; WATER PUMP 1-87813-363-0 01 1 0802-1208 ●
4 REPAIR KIT; WATER PUMP 1-87813-948-0 01 1 1209-1312 ●
4 REPAIR KIT; WATER PUMP 1-87814-173-0 01 1 1401-1405 ●
4 REPAIR KIT; WATER PUMP 1-87814-613-0 01 1 1406- ●
4 REPAIR KIT; WATER PUMP 1-87811-181-0 01 1 9601-9807 ● ●
4 REPAIR KIT; WATER PUMP 1-87811-936-0 01 1 9808-9911 ● ●
4 REPAIR KIT; WATER PUMP 1-87812-019-1 01 1 9912- ● ●
4 REPAIR KIT; WATER PUMP 1-87811-318-0 01 1 9610-9911 ●
4 REPAIR KIT; WATER PUMP 1-87812-028-1 01 1 9912-1208 ●
4 REPAIR KIT; WATER PUMP 1-87813-946-0 01 1 1209-1312 ●

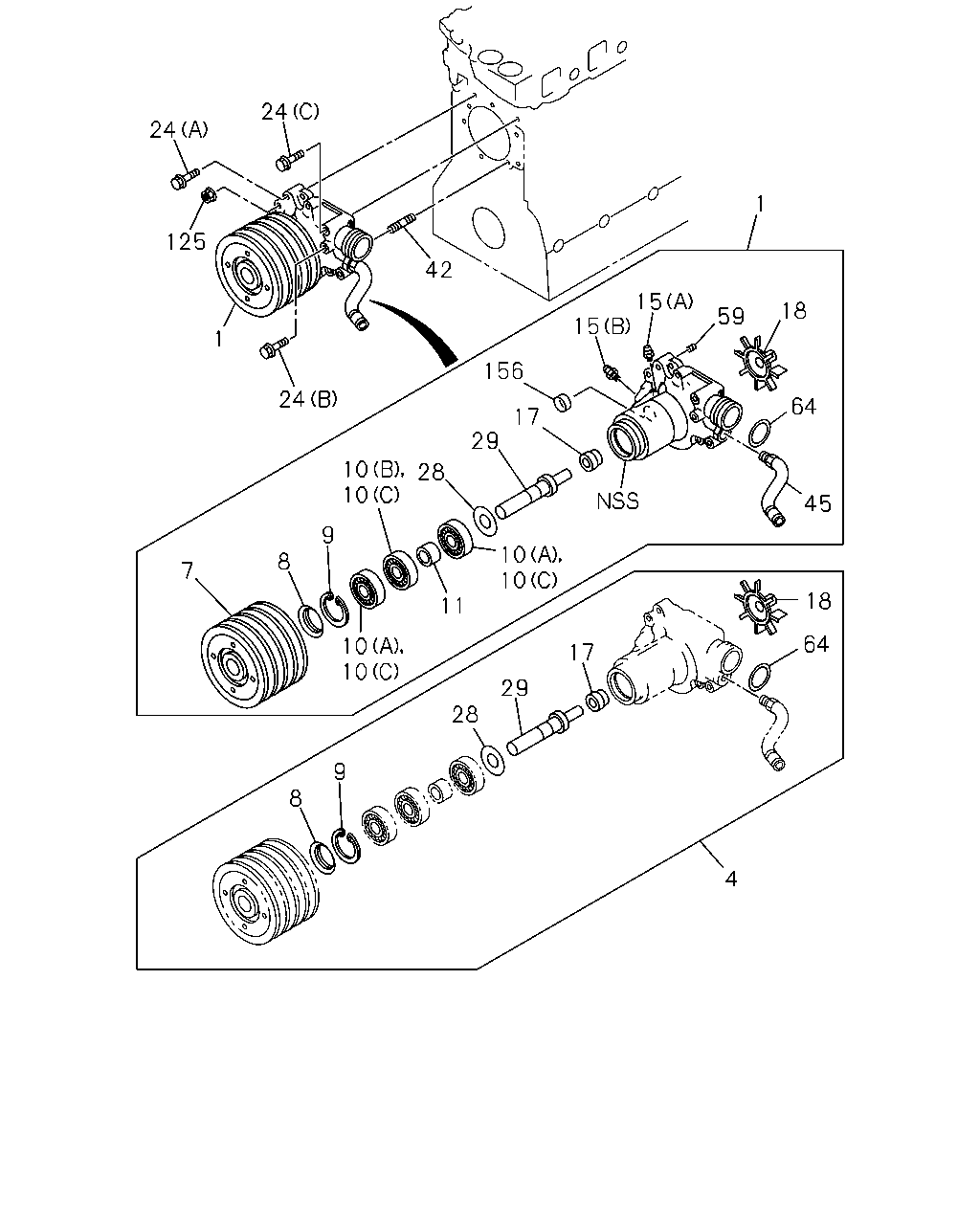

7 PULLEY; WATER PUMP
EXC. EURO2 SPECIFICATION<THN> 4-GROOVE 		8-94394-927-0 01 1 0209-0301 ●
7 PULLEY; WATER PUMP
2-GROOVE 		8-94394-826-0 01 1 9601-0004 ●
7 PULLEY; WATER PUMP
2-GROOVE 		8-94394-826-0 01 1 0005- ● ●
7 PULLEY; WATER PUMP
2-GROOVE 		1-13641-173-0 01 1 9601- ●
7 PULLEY; WATER PUMP
2-GROOVE 		1-13641-174-0 01 1 9601- ●
7 PULLEY; WATER PUMP
4-GROOVE 		8-94394-927-0 01 1 9610-0208 ●
7 PULLEY; WATER PUMP
EURO2 SPECIFICATION<THN> 4-GROOVE 		8-94394-927-0 01 1 0209-0301 ●
7 PULLEY; WATER PUMP
4-GROOVE 		8-94394-927-0 01 1 0302-0405 ●
7 PULLEY; WATER PUMP
EURO2 SPECIFICATION<THN> 4-GROOVE 		8-94394-927-0 01 1 0406- ●
7 PULLEY; WATER PUMP
4-GROOVE 		8-94394-927-0 01 1 0406- ●
8 THROWER; DUST,WATER PUMP 8-94399-457-0 01 1 0209-0301 ● ●
8 THROWER; DUST,WATER PUMP
EURO2 SPECIFICATION<THN> 		8-94399-457-0 01 1 0209-0301 ●
8 THROWER; DUST,WATER PUMP 8-94399-457-0 01 1 9601-0004 ● ●
8 THROWER; DUST,WATER PUMP 8-94399-457-0 01 1 0005-0208 ● ● ●
8 THROWER; DUST,WATER PUMP
EXC. EURO2 SPECIFICATION<THN> 		8-94399-457-0 01 1 0209-0301 ●
8 THROWER; DUST,WATER PUMP 8-94399-457-0 01 1 0302-0405 ● ● ●
8 THROWER; DUST,WATER PUMP 8-94399-457-0 01 1 0406- ● ● ● ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 0209-0301 ● ● ● ●
9 RING; SNAP,WATER PUMP
EURO2 SPECIFICATION<THN> ID=57.9 		9-09180-162-0 01 1 0209-0301 ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 9601-9912 ● ● ● ●
9 RING; SNAP,WATER PUMP
EXC. WEST MALAYSIA EQUIPMENT(SEQ) ID=57.9 		9-09180-162-0 01 1 0001-0004 ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 0001-0004 ● ● ●
9 RING; SNAP,WATER PUMP
EURO2 SPECIFICATION<THN> ID=57.9 		9-09180-162-0 01 1 0001-0004 ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 0005-0208 ● ● ● ● ●
9 RING; SNAP,WATER PUMP
EXC. EURO2 SPECIFICATION<THN> ID=57.9 		9-09180-162-0 01 1 0209-0301 ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 0302-0405 ● ● ● ● ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 0406- ● ● ● ● ● ●
10 BEARING; WATER PUMP
(D) 		1-09800-011-0 02 1 9601-0004 ●
10 BEARING; WATER PUMP
(D) 		1-09800-011-0 02 1 0005- ● ●
10 BEARING; WATER PUMP
(B) 		1-09800-155-0 02 1 9601- ● ●
10 BEARING; WATER PUMP
(A) 		1-09800-196-0 01 1 9601- ● ●
10 BEARING; WATER PUMP
(C) 		1-09800-011-0 03 1 9610-9611 ●
10 BEARING; WATER PUMP
(A) 		8-94391-298-0 02 1 9612-0208 ●
10 BEARING; WATER PUMP
EURO2 SPECIFICATION<THN> (A) 		8-94391-298-0 02 1 0209-0301 ●
10 BEARING; WATER PUMP
(A) 		8-94391-298-0 02 1 0302-0405 ●
10 BEARING; WATER PUMP
EURO2 SPECIFICATION<THN> (A) 		8-94391-298-0 02 1 0406- ●
10 BEARING; WATER PUMP
(A) 		8-94391-298-0 02 1 0406- ●
10 BEARING; WATER PUMP
(B) 		8-94391-299-0 01 1 9612-0208 ●
10 BEARING; WATER PUMP
EURO2 SPECIFICATION<THN> (B) 		8-94391-299-0 01 1 0209-0301 ●
10 BEARING; WATER PUMP
(B) 		8-94391-299-0 01 1 0302-0405 ●
10 BEARING; WATER PUMP
EURO2 SPECIFICATION<THN> (B) 		8-94391-299-0 01 1 0406- ●
10 BEARING; WATER PUMP
(B) 		8-94391-299-0 01 1 0406- ●
11 SPACER; BRG,WATER PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-13634-040-0 01 1 0209-0301 ●
11 SPACER; BRG,WATER PUMP 1-13634-025-0 01 1 9601-9611 ● ●
11 SPACER; BRG,WATER PUMP 1-13634-025-0 01 1 9612-0004 ●
11 SPACER; BRG,WATER PUMP 1-13634-025-0 01 1 0005- ● ●
11 SPACER; BRG,WATER PUMP 1-13634-029-0 01 1 9601- ● ●
11 SPACER; BRG,WATER PUMP 1-13634-040-0 01 1 9612-0208 ●
11 SPACER; BRG,WATER PUMP
EURO2 SPECIFICATION<THN> 		1-13634-040-0 01 1 0209-0301 ●
11 SPACER; BRG,WATER PUMP 1-13634-040-0 01 1 0302-0405 ●
11 SPACER; BRG,WATER PUMP
EURO2 SPECIFICATION<THN> 		1-13634-040-0 01 1 0406- ●
11 SPACER; BRG,WATER PUMP 1-13634-040-0 01 1 0406- ●
15 NIPPLE; GREASE,WATER PUMP
(A) PT1/8 STRAIGHT 		1-09380-002-0 01 1 0209-0301 ● ●
15 NIPPLE; GREASE,WATER PUMP
EURO2 SPECIFICATION<THN> (A) PT1/8 STRAIGHT 		1-09380-002-0 01 1 0209-0301 ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0209-0301 ● ●
15 NIPPLE; GREASE,WATER PUMP
EURO2 SPECIFICATION<THN> (B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0209-0301 ●
15 NIPPLE; GREASE,WATER PUMP
(A) PT1/8 STRAIGHT 		1-09380-002-0 01 1 9601-0004 ● ●
15 NIPPLE; GREASE,WATER PUMP
(A) PT1/8 STRAIGHT 		1-09380-002-0 01 1 0005-0208 ● ● ●
15 NIPPLE; GREASE,WATER PUMP
EXC. EURO2 SPECIFICATION<THN> (A) PT1/8 STRAIGHT 		1-09380-002-0 01 1 0209-0301 ●
15 NIPPLE; GREASE,WATER PUMP
(A) PT1/8 STRAIGHT 		1-09380-002-0 01 1 0302-0405 ● ● ●
15 NIPPLE; GREASE,WATER PUMP
(A) PT1/8 STRAIGHT 		1-09380-002-0 01 1 0406- ● ● ● ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9601-0004 ● ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0208 ● ● ●
15 NIPPLE; GREASE,WATER PUMP
EXC. EURO2 SPECIFICATION<THN> (B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0209-0301 ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0302-0405 ● ● ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0406-0512 ● ● ● ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ● ● ●
17 SEAL UNIT; WATER PUMP 8-98272-791-0 01 1 1406- ● ● ● ●
17 SEAL UNIT; WATER PUMP 8-98221-159-0 01 1 1209-1312 ● ● ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0209-0301 ● ● ● ●
17 SEAL UNIT; WATER PUMP
EURO2 SPECIFICATION<THN> 		8-94392-090-0 01 1 0209-0301 ●
17 SEAL UNIT; WATER PUMP 8-94395-036-0 01 1 9601-9807 ● ● ● ●
17 SEAL UNIT; WATER PUMP 8-94395-036-0 01 1 9808-9912 ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 9808-9912 ● ●
17 SEAL UNIT; WATER PUMP
EXC. WEST MALAYSIA EQUIPMENT(SEQ) 		8-94392-090-0 01 1 0001-0004 ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0001-0004 ● ● ●
17 SEAL UNIT; WATER PUMP
EURO2 SPECIFICATION<THN> 		8-94392-090-0 01 1 0001-0004 ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0005-0208 ● ● ● ● ●
17 SEAL UNIT; WATER PUMP
EXC. EURO2 SPECIFICATION<THN> 		8-94392-090-0 01 1 0209-0301 ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0302-0405 ● ● ● ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0406-1208 ● ● ● ● ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 1209-1312 ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 1401-1405 ● ● ● ● ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 1406- ● ●
18 IMPELLER; WATER PUMP 8-94397-375-0 01 1 0209-0301 ●
18 IMPELLER; WATER PUMP
EURO2 SPECIFICATION<THN> 		8-94397-375-0 01 1 0209-0301 ●
18 IMPELLER; WATER PUMP
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94394-414-1 01 1 9601-9611 ●
18 IMPELLER; WATER PUMP
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		8-94394-414-1 01 1 9612-9810 ●
18 IMPELLER; WATER PUMP
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		8-94392-922-0 01 1 9811-0004 ●
18 IMPELLER; WATER PUMP 8-94392-922-0 01 1 0005-0405 ●
18 IMPELLER; WATER PUMP 8-94392-922-0 01 1 0406- ● ●
18 IMPELLER; WATER PUMP
EXC. HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94397-375-0 01 1 9601-9609 ●
18 IMPELLER; WATER PUMP
EXC. HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		8-94397-375-0 01 1 9610-9805 ●
18 IMPELLER; WATER PUMP 8-94397-375-0 01 1 9610-9805 ●
18 IMPELLER; WATER PUMP
EXC. AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		8-94397-375-0 01 1 9806-9806 ●
18 IMPELLER; WATER PUMP 8-94397-375-0 01 1 9806-9806 ●
18 IMPELLER; WATER PUMP
EXC. HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		8-94397-375-0 01 1 9807-0004 ●
18 IMPELLER; WATER PUMP 8-94397-375-0 01 1 9807-0004 ●
18 IMPELLER; WATER PUMP
EXC. WEST MALAYSIA EQUIPMENT(SEQ) 		8-94397-375-0 01 1 0005-0103 ●
18 IMPELLER; WATER PUMP 8-94397-375-0 01 1 0005-0103 ●
18 IMPELLER; WATER PUMP 8-94397-375-0 01 1 0104-0208 ● ●
18 IMPELLER; WATER PUMP
EXC. EURO2 SPECIFICATION<THN> 		8-94397-375-0 01 1 0209-0301 ●
18 IMPELLER; WATER PUMP 8-94397-375-0 01 1 0302- ● ●
18 IMPELLER; WATER PUMP 1-13621-052-0 01 1 9601- ● ●
24 BOLT; WATER PUMP
(A) M8X58 FLANGE 		8-94130-055-1 03 1 9601-9609 ●
24 BOLT; WATER PUMP
(A) M8X58 FLANGE 		8-94130-055-1 03 1 9610-0004 ● ●
24 BOLT; WATER PUMP
(A) M8X58 FLANGE 		8-94130-055-1 03 1 0005-0405 ● ● ●
24 BOLT; WATER PUMP
(A) M8X58 FLANGE 		8-94130-055-1 03 1 0406- ● ● ● ●
24 BOLT; WATER PUMP
(B) M8X79 FLANGE 		8-94311-617-1 01 1 9601-9611 ●
24 BOLT; WATER PUMP
(C) M10X85 FLANGE 		8-94397-359-1 01 1 9601-9609 ●
24 BOLT; WATER PUMP
(C) M10X85 FLANGE 		8-94397-359-1 01 1 9610-0004 ● ●
24 BOLT; WATER PUMP
(C) M10X85 FLANGE 		8-94397-359-1 01 1 0005-0405 ● ● ●
24 BOLT; WATER PUMP
(C) M10X85 FLANGE 		8-94397-359-1 01 1 0406- ● ● ● ●
24 BOLT; WATER PUMP
(A) M10X70 		0-16806-070-0 02 1 9601-0512 ● ●
24 BOLT; WATER PUMP
(A) M10X70 		0-16856-070-0 02 1 0601- ● ●
24 BOLT; WATER PUMP
(B) M8X45 W/LK&PL WASHER 		0-50140-845-0 07 1 9601-0906 ● ●
24 BOLT; WATER PUMP
(B) M8X45 W/LK&PL WASHER 		0-50640-845-0 07 1 0907- ● ●
24 BOLT; WATER PUMP
(B) M8X80 FLANGE 		0-28080-880-0 01 1 9610-9611 ●
24 BOLT; WATER PUMP
(B) M8X80 FLANGE 		0-28080-880-0 01 1 9612-0004 ● ●
24 BOLT; WATER PUMP
(B) M8X80 FLANGE 		0-28080-880-0 01 1 0005-0405 ● ● ●
24 BOLT; WATER PUMP
(B) M8X80 FLANGE 		0-28080-880-0 01 1 0406-0512 ● ● ● ●
24 BOLT; WATER PUMP
(B) M8X80 FLANGE 		0-28050-880-0 01 1 0601- ● ● ● ●
28 WASHER; WATER PUMP
ID=25.5 OD=50 		8-94397-097-0 01 1 0209-0301 ● ●
28 WASHER; WATER PUMP
EURO2 SPECIFICATION<THN> ID=25.5 OD=50 		8-94397-097-0 01 1 0209-0301 ●
28 WASHER; WATER PUMP
ID=25.5 OD=50 		8-94397-097-0 01 1 9601-0004 ● ●
28 WASHER; WATER PUMP
ID=25.5 OD=50 		8-94397-097-0 01 1 0005-0208 ● ● ●
28 WASHER; WATER PUMP
EXC. EURO2 SPECIFICATION<THN> ID=25.5 OD=50 		8-94397-097-0 01 1 0209-0301 ●
28 WASHER; WATER PUMP
ID=25.5 OD=50 		8-94397-097-0 01 1 0302-0405 ● ● ●
28 WASHER; WATER PUMP
ID=25.5 OD=50 		8-94397-097-0 01 1 0406- ● ● ● ●
29 SHAFT; WATER PUMP
EXC. EURO2 SPECIFICATION<THN> 		8-94396-130-1 01 1 0209-0301 ●
29 SHAFT; WATER PUMP 8-94397-374-0 01 1 9601-0004 ●
29 SHAFT; WATER PUMP 8-94397-374-0 01 1 0005- ● ●
29 SHAFT; WATER PUMP 1-13631-079-0 01 1 9601- ● ●
29 SHAFT; WATER PUMP 8-94396-130-1 01 1 9610-0208 ●
29 SHAFT; WATER PUMP
EURO2 SPECIFICATION<THN> 		8-94396-130-1 01 1 0209-0301 ●
29 SHAFT; WATER PUMP 8-94396-130-1 01 1 0302-0405 ●
29 SHAFT; WATER PUMP
EURO2 SPECIFICATION<THN> 		8-94396-130-1 01 1 0406- ●
29 SHAFT; WATER PUMP 8-94396-130-1 01 1 0406- ●
42 STUD; WATER PUMP
M8X30 L=46 		9-04010-830-0 01 1 9601-9609 ●
42 STUD; WATER PUMP
M8X30 L=46 		9-04010-830-0 01 1 9610-0004 ● ●
42 STUD; WATER PUMP
M8X30 L=46 		9-04010-830-0 01 1 0005-0405 ● ● ●
42 STUD; WATER PUMP
M8X30 L=46 		9-04010-830-0 01 1 0406-0604 ● ● ● ●
42 STUD; WATER PUMP
M8X30 L=46 		0-40110-830-0 01 1 0605- ● ● ● ●
45 JOINT; HTR HOSE,WATER PUMP
EXC. EURO2 SPECIFICATION<THN> 		8-94394-389-0 01 1 0209-0301 ●
45 JOINT; HTR HOSE,WATER PUMP
HEATER & DEFROSTER(C41) 		8-94397-377-2 01 1 9601-0004 ●
45 JOINT; HTR HOSE,WATER PUMP
HEATER & DEFROSTER(C41) 		8-94397-377-2 01 1 0005-0005 ●
45 JOINT; HTR HOSE,WATER PUMP
HEATER & DEFROSTER(C41) 		8-94397-377-2 01 1 0006- ● ●
45 JOINT; HTR HOSE,WATER PUMP
HEATER & DEFROSTER(C41) PT3/8 & OD=18.3 L=47 		9-09903-631-0 01 1 9708-0004 ● ●
45 JOINT; HTR HOSE,WATER PUMP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) PT3/8 & OD=18.3 L=47 		9-09903-631-0 01 1 0005- ● ●
45 JOINT; HTR HOSE,WATER PUMP 8-94394-389-0 01 1 9610-0208 ●
45 JOINT; HTR HOSE,WATER PUMP
EURO2 SPECIFICATION<THN> 		8-94394-389-0 01 1 0209-0301 ●
45 JOINT; HTR HOSE,WATER PUMP 8-94394-389-0 01 1 0302-0405 ●
45 JOINT; HTR HOSE,WATER PUMP 8-94394-389-0 01 1 0406- ● ●
45 JOINT; HTR HOSE,WATER PUMP
FVR STD CAB MIDDLE CHASSIS(FV**MF) HEATER & DEFROSTER(C41) 		8-94392-827-1 01 1 9807-0004 ●
59 DOWEL; WATER PUMP 9-13119-022-0 02 1 9601-9611 ● ●
59 DOWEL; WATER PUMP 9-13119-022-0 02 1 9612-0004 ●
59 DOWEL; WATER PUMP 9-13119-022-0 02 1 0005-0801 ● ●
59 DOWEL; WATER PUMP
OD=12 L=9 		1-13119-003-0 02 1 9612-0208 ●
59 DOWEL; WATER PUMP
EURO2 SPECIFICATION<THN> OD=12 L=9 		1-13119-003-0 02 1 0209-0301 ●
59 DOWEL; WATER PUMP
OD=12 L=9 		1-13119-003-0 02 1 0302-0405 ●
59 DOWEL; WATER PUMP
EURO2 SPECIFICATION<THN> OD=12 L=9 		1-13119-003-0 02 1 0406-0801 ●
59 DOWEL; WATER PUMP
OD=12 L=9 		1-13119-003-0 02 1 0406-0801 ●
59 DOWEL; WATER PUMP
OD=12 L=9 		1-13119-003-0 02 1 0802- ● ● ● ●
64 GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7 		1-09623-383-0 01 1 9601-9609 ●
64 GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7 		1-09623-383-0 01 1 9610-0004 ● ●
64 GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7 		1-09623-383-0 01 1 0005-0405 ● ● ●
64 GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7 		1-09623-383-0 01 1 0406- ● ● ● ●
66 SEAL; SECONDARY 1-09625-437-0 01 1 9601-0004 ●
66 SEAL; SECONDARY 1-09625-437-0 01 1 0005-0801 ● ●
66 SEAL; SECONDARY 8-98084-780-0 01 1 0802- ● ●
125 NUT; WATER PUMP
M8 FLANGE 		0-91150-108-0 04 1 9601-9609 ●
125 NUT; WATER PUMP
M8 FLANGE 		0-91150-108-0 04 1 9610-0004 ● ●
125 NUT; WATER PUMP
M8 FLANGE 		0-91150-108-0 04 1 0005-0405 ● ● ●
125 NUT; WATER PUMP
M8 FLANGE 		0-91150-108-0 04 1 0406-0602 ● ● ● ●
125 NUT; WATER PUMP
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ● ● ●
156 CUP; SEALING
OD=25 		1-09600-016-0 01 1 0209-0301 ● ●
156 CUP; SEALING
EURO2 SPECIFICATION<THN> OD=25 		1-09600-016-0 01 1 0209-0301 ●
156 CUP; SEALING
OD=25 		1-09600-016-0 01 1 0004-0004 ● ●
156 CUP; SEALING
OD=25 		1-09600-016-0 01 1 0005-0208 ● ● ●
156 CUP; SEALING
EXC. EURO2 SPECIFICATION<THN> OD=25 		1-09600-016-0 01 1 0209-0301 ●
156 CUP; SEALING
OD=25 		1-09600-016-0 01 1 0302-0405 ● ● ●
156 CUP; SEALING
OD=25 		1-09600-016-0 01 1 0406- ● ● ● ●
çizim 184230
24 24 1 125 42 15 15 18 59 1 156 24 64 17 29 10 10 28 45 9 10 10 8 7 18 11 64 10 10 17 29 28 9 8 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PUMP ASM; WATER,W/GASKET 8-97602-776-2 01 1 0406-1208 ●
1 PUMP ASM; WATER,W/GASKET 1-87310-844-0 01 1 1209-1312 ●
1 PUMP ASM; WATER,W/GASKET 1-87310-904-0 01 1 1401-1405 ●
1 PUMP ASM; WATER,W/GASKET 1-87310-976-0 01 1 1406- ●
1 PUMP ASM; WATER,W/GASKET
EXC. EURO2 SPECIFICATION<THN> 		8-94391-059-5 01 1 0209-0301 ●
1 PUMP ASM; WATER,W/GASKET
HEATER & DEFROSTER(C41) EXC. HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94395-657-1 01 1 9601-9611 ●
1 PUMP ASM; WATER,W/GASKET
HEATER & DEFROSTER(C41) EXC. HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		8-94395-657-5 01 1 9612-0004 ●
1 PUMP ASM; WATER,W/GASKET
HEATER & DEFROSTER(C41) 		8-94395-657-6 01 1 0005-0301 ●
1 PUMP ASM; WATER,W/GASKET 8-97602-775-0 01 1 0302-0801 ●
1 PUMP ASM; WATER,W/GASKET 8-97627-357-1 01 1 0802-1208 ●
1 PUMP ASM; WATER,W/GASKET 1-87310-842-0 01 1 1209-1312 ●
1 PUMP ASM; WATER,W/GASKET 1-87310-916-0 01 1 1401-1405 ●
1 PUMP ASM; WATER,W/GASKET 1-87310-988-0 01 1 1406- ●
1 PUMP ASM; WATER,W/GASKET
EXC. HEATER & DEFROSTER(C41) 		8-94390-601-0 01 1 9601-9611 ●
1 PUMP ASM; WATER,W/GASKET
EXC. HEATER & DEFROSTER(C41),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIAEQUIPMENT(SEQ) 		8-94390-601-0 01 1 9612-9805 ●
1 PUMP ASM; WATER,W/GASKET
EXC. HEATER & DEFROSTER(C41),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		8-94390-601-4 01 1 9806-0004 ●
1 PUMP ASM; WATER,W/GASKET
EXC. HEATER & DEFROSTER(C41) 		8-94390-601-5 01 1 0005-0301 ●
1 PUMP ASM; WATER,W/GASKET
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) HEATER & DEFROSTER(C41) 		8-94395-656-1 01 1 9601-9607 ●
1 PUMP ASM; WATER,W/GASKET
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94395-656-1 01 1 9608-9803 ●
1 PUMP ASM; WATER,W/GASKET
AUSTRALIA EQUIPMENT(RR3) 		8-94395-656-5 01 1 9804-0004 ●
1 PUMP ASM; WATER,W/GASKET
WEST MALAYSIA EQUIPMENT(SEQ) 		8-94390-599-4 01 1 9612-0004 ●
1 PUMP ASM; WATER,W/GASKET 8-94390-599-4 01 1 0005-0005 ●
1 PUMP ASM; WATER,W/GASKET
EXC. HEATER & DEFROSTER(C41) 		8-94390-599-5 01 1 0006-0301 ●
1 PUMP ASM; WATER,W/GASKET 8-97602-773-0 01 1 0302-0801 ●
1 PUMP ASM; WATER,W/GASKET 8-97627-355-1 01 1 0802-1208 ●
1 PUMP ASM; WATER,W/GASKET 1-87310-837-0 01 1 1209-1312 ●
1 PUMP ASM; WATER,W/GASKET 1-87310-906-0 01 1 1401-1405 ●
1 PUMP ASM; WATER,W/GASKET 1-87310-978-0 01 1 1406- ●
1 PUMP ASM; WATER,W/GASKET 1-13650-003-2 01 1 9601- ●
1 PUMP ASM; WATER,W/GASKET 1-13650-002-2 01 1 9601- ●
1 PUMP ASM; WATER,W/GASKET 8-94395-417-2 01 1 9610-9611 ●
1 PUMP ASM; WATER,W/GASKET 8-94391-059-5 01 1 9612-0208 ●
1 PUMP ASM; WATER,W/GASKET
EURO2 SPECIFICATION<THN> 		8-94391-059-5 01 1 0209-0301 ●
1 PUMP ASM; WATER,W/GASKET 8-97602-781-2 01 1 0302-1208 ●
1 PUMP ASM; WATER,W/GASKET 1-87310-839-0 01 1 1209-1312 ●
1 PUMP ASM; WATER,W/GASKET 1-87310-911-0 01 1 1401-1405 ●
1 PUMP ASM; WATER,W/GASKET 1-87310-983-0 01 1 1406- ●
1 PUMP ASM; WATER,W/GASKET
FVR STD CAB MIDDLE CHASSIS(FV**MF) HEATER & DEFROSTER(C41) 		8-97600-022-0 01 1 9807-9901 ●
1 PUMP ASM; WATER,W/GASKET
FVR STD CAB MIDDLE CHASSIS(FV**MF) HEATER & DEFROSTER(C41) 		8-97600-352-2 01 1 9902-0004 ●
1 PUMP ASM; WATER,W/GASKET
HEATER & DEFROSTER(C41) 		8-94395-656-6 01 1 0006-0301 ●
4 REPAIR KIT; WATER PUMP 1-87814-172-0 01 1 1401-1405 ●
4 REPAIR KIT; WATER PUMP 1-87814-612-0 01 1 1406- ●
4 REPAIR KIT; WATER PUMP 1-87814-165-0 01 1 1401-1405 ●
4 REPAIR KIT; WATER PUMP 1-87814-605-0 01 1 1406- ●
4 REPAIR KIT; WATER PUMP 1-87814-167-0 01 1 1401-1405 ●
4 REPAIR KIT; WATER PUMP 1-87814-607-0 01 1 1406- ●
4 REPAIR KIT; WATER PUMP 1-87812-040-1 01 1 0406-1208 ●
4 REPAIR KIT; WATER PUMP 1-87813-949-0 01 1 1209-1312 ●
4 REPAIR KIT; WATER PUMP
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		1-87811-086-0 01 1 9601-9611 ●
4 REPAIR KIT; WATER PUMP
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		1-87811-086-0 01 1 9612-9810 ●
4 REPAIR KIT; WATER PUMP
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		1-87811-898-0 01 1 9811-9911 ●
4 REPAIR KIT; WATER PUMP
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		1-87812-029-0 01 1 9912-0004 ●
4 REPAIR KIT; WATER PUMP 1-87812-029-1 01 1 0005-0801 ●
4 REPAIR KIT; WATER PUMP 1-87813-358-0 01 1 0802-1208 ●
4 REPAIR KIT; WATER PUMP 1-87813-947-0 01 1 1209-1312 ●
4 REPAIR KIT; WATER PUMP
EXC. HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		1-87811-051-0 01 1 9601-9611 ●
4 REPAIR KIT; WATER PUMP
EXC. HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		1-87811-051-0 01 1 9612-9805 ●
4 REPAIR KIT; WATER PUMP
EXC. AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		1-87811-051-0 01 1 9806-9911 ●
4 REPAIR KIT; WATER PUMP
EXC. AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		1-87812-027-0 01 1 9912-0004 ●
4 REPAIR KIT; WATER PUMP 1-87812-027-1 01 1 0005-0801 ●
4 REPAIR KIT; WATER PUMP 1-87813-363-0 01 1 0802-1208 ●
4 REPAIR KIT; WATER PUMP 1-87813-948-0 01 1 1209-1312 ●
4 REPAIR KIT; WATER PUMP 1-87814-173-0 01 1 1401-1405 ●
4 REPAIR KIT; WATER PUMP 1-87814-613-0 01 1 1406- ●
4 REPAIR KIT; WATER PUMP 1-87811-181-0 01 1 9601-9807 ● ●
4 REPAIR KIT; WATER PUMP 1-87811-936-0 01 1 9808-9911 ● ●
4 REPAIR KIT; WATER PUMP 1-87812-019-1 01 1 9912- ● ●
4 REPAIR KIT; WATER PUMP 1-87811-318-0 01 1 9610-9911 ●
4 REPAIR KIT; WATER PUMP 1-87812-028-1 01 1 9912-1208 ●
4 REPAIR KIT; WATER PUMP 1-87813-946-0 01 1 1209-1312 ●
7 PULLEY; WATER PUMP
EXC. EURO2 SPECIFICATION<THN> 4-GROOVE 		8-94394-927-0 01 1 0209-0301 ●
7 PULLEY; WATER PUMP
2-GROOVE 		8-94394-826-0 01 1 9601-0004 ●
7 PULLEY; WATER PUMP
2-GROOVE 		8-94394-826-0 01 1 0005- ● ●
7 PULLEY; WATER PUMP
2-GROOVE 		1-13641-173-0 01 1 9601- ●
7 PULLEY; WATER PUMP
2-GROOVE 		1-13641-174-0 01 1 9601- ●
7 PULLEY; WATER PUMP
4-GROOVE 		8-94394-927-0 01 1 9610-0208 ●
7 PULLEY; WATER PUMP
EURO2 SPECIFICATION<THN> 4-GROOVE 		8-94394-927-0 01 1 0209-0301 ●
7 PULLEY; WATER PUMP
4-GROOVE 		8-94394-927-0 01 1 0302-0405 ●
7 PULLEY; WATER PUMP
EURO2 SPECIFICATION<THN> 4-GROOVE 		8-94394-927-0 01 1 0406- ●
7 PULLEY; WATER PUMP
4-GROOVE 		8-94394-927-0 01 1 0406- ●
8 THROWER; DUST,WATER PUMP 8-94399-457-0 01 1 0209-0301 ● ●
8 THROWER; DUST,WATER PUMP
EURO2 SPECIFICATION<THN> 		8-94399-457-0 01 1 0209-0301 ●
8 THROWER; DUST,WATER PUMP 8-94399-457-0 01 1 9601-0004 ● ●
8 THROWER; DUST,WATER PUMP 8-94399-457-0 01 1 0005-0208 ● ● ●
8 THROWER; DUST,WATER PUMP
EXC. EURO2 SPECIFICATION<THN> 		8-94399-457-0 01 1 0209-0301 ●
8 THROWER; DUST,WATER PUMP 8-94399-457-0 01 1 0302-0405 ● ● ●
8 THROWER; DUST,WATER PUMP 8-94399-457-0 01 1 0406- ● ● ● ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 0209-0301 ● ● ● ●
9 RING; SNAP,WATER PUMP
EURO2 SPECIFICATION<THN> ID=57.9 		9-09180-162-0 01 1 0209-0301 ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 9601-9912 ● ● ● ●
9 RING; SNAP,WATER PUMP
EXC. WEST MALAYSIA EQUIPMENT(SEQ) ID=57.9 		9-09180-162-0 01 1 0001-0004 ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 0001-0004 ● ● ●
9 RING; SNAP,WATER PUMP
EURO2 SPECIFICATION<THN> ID=57.9 		9-09180-162-0 01 1 0001-0004 ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 0005-0208 ● ● ● ● ●
9 RING; SNAP,WATER PUMP
EXC. EURO2 SPECIFICATION<THN> ID=57.9 		9-09180-162-0 01 1 0209-0301 ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 0302-0405 ● ● ● ● ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 0406- ● ● ● ● ● ●
10 BEARING; WATER PUMP
(D) 		1-09800-011-0 02 1 9601-0004 ●
10 BEARING; WATER PUMP
(D) 		1-09800-011-0 02 1 0005- ● ●
10 BEARING; WATER PUMP
(B) 		1-09800-155-0 02 1 9601- ● ●
10 BEARING; WATER PUMP
(A) 		1-09800-196-0 01 1 9601- ● ●
10 BEARING; WATER PUMP
(C) 		1-09800-011-0 03 1 9610-9611 ●
10 BEARING; WATER PUMP
(A) 		8-94391-298-0 02 1 9612-0208 ●
10 BEARING; WATER PUMP
EURO2 SPECIFICATION<THN> (A) 		8-94391-298-0 02 1 0209-0301 ●
10 BEARING; WATER PUMP
(A) 		8-94391-298-0 02 1 0302-0405 ●
10 BEARING; WATER PUMP
EURO2 SPECIFICATION<THN> (A) 		8-94391-298-0 02 1 0406- ●
10 BEARING; WATER PUMP
(A) 		8-94391-298-0 02 1 0406- ●
10 BEARING; WATER PUMP
(B) 		8-94391-299-0 01 1 9612-0208 ●
10 BEARING; WATER PUMP
EURO2 SPECIFICATION<THN> (B) 		8-94391-299-0 01 1 0209-0301 ●
10 BEARING; WATER PUMP
(B) 		8-94391-299-0 01 1 0302-0405 ●
10 BEARING; WATER PUMP
EURO2 SPECIFICATION<THN> (B) 		8-94391-299-0 01 1 0406- ●
10 BEARING; WATER PUMP
(B) 		8-94391-299-0 01 1 0406- ●
11 SPACER; BRG,WATER PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-13634-040-0 01 1 0209-0301 ●
11 SPACER; BRG,WATER PUMP 1-13634-025-0 01 1 9601-9611 ● ●
11 SPACER; BRG,WATER PUMP 1-13634-025-0 01 1 9612-0004 ●
11 SPACER; BRG,WATER PUMP 1-13634-025-0 01 1 0005- ● ●
11 SPACER; BRG,WATER PUMP 1-13634-029-0 01 1 9601- ● ●
11 SPACER; BRG,WATER PUMP 1-13634-040-0 01 1 9612-0208 ●
11 SPACER; BRG,WATER PUMP
EURO2 SPECIFICATION<THN> 		1-13634-040-0 01 1 0209-0301 ●
11 SPACER; BRG,WATER PUMP 1-13634-040-0 01 1 0302-0405 ●
11 SPACER; BRG,WATER PUMP
EURO2 SPECIFICATION<THN> 		1-13634-040-0 01 1 0406- ●
11 SPACER; BRG,WATER PUMP 1-13634-040-0 01 1 0406- ●
15 NIPPLE; GREASE,WATER PUMP
(A) PT1/8 STRAIGHT 		1-09380-002-0 01 1 0209-0301 ● ●
15 NIPPLE; GREASE,WATER PUMP
EURO2 SPECIFICATION<THN> (A) PT1/8 STRAIGHT 		1-09380-002-0 01 1 0209-0301 ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0209-0301 ● ●
15 NIPPLE; GREASE,WATER PUMP
EURO2 SPECIFICATION<THN> (B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0209-0301 ●
15 NIPPLE; GREASE,WATER PUMP
(A) PT1/8 STRAIGHT 		1-09380-002-0 01 1 9601-0004 ● ●
15 NIPPLE; GREASE,WATER PUMP
(A) PT1/8 STRAIGHT 		1-09380-002-0 01 1 0005-0208 ● ● ●
15 NIPPLE; GREASE,WATER PUMP
EXC. EURO2 SPECIFICATION<THN> (A) PT1/8 STRAIGHT 		1-09380-002-0 01 1 0209-0301 ●
15 NIPPLE; GREASE,WATER PUMP
(A) PT1/8 STRAIGHT 		1-09380-002-0 01 1 0302-0405 ● ● ●
15 NIPPLE; GREASE,WATER PUMP
(A) PT1/8 STRAIGHT 		1-09380-002-0 01 1 0406- ● ● ● ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9601-0004 ● ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0208 ● ● ●
15 NIPPLE; GREASE,WATER PUMP
EXC. EURO2 SPECIFICATION<THN> (B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0209-0301 ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0302-0405 ● ● ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0406-0512 ● ● ● ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ● ● ●
17 SEAL UNIT; WATER PUMP 8-98272-791-0 01 1 1406- ● ● ● ●
17 SEAL UNIT; WATER PUMP 8-98221-159-0 01 1 1209-1312 ● ● ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0209-0301 ● ● ● ●
17 SEAL UNIT; WATER PUMP
EURO2 SPECIFICATION<THN> 		8-94392-090-0 01 1 0209-0301 ●
17 SEAL UNIT; WATER PUMP 8-94395-036-0 01 1 9601-9807 ● ● ● ●
17 SEAL UNIT; WATER PUMP 8-94395-036-0 01 1 9808-9912 ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 9808-9912 ● ●
17 SEAL UNIT; WATER PUMP
EXC. WEST MALAYSIA EQUIPMENT(SEQ) 		8-94392-090-0 01 1 0001-0004 ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0001-0004 ● ● ●
17 SEAL UNIT; WATER PUMP
EURO2 SPECIFICATION<THN> 		8-94392-090-0 01 1 0001-0004 ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0005-0208 ● ● ● ● ●
17 SEAL UNIT; WATER PUMP
EXC. EURO2 SPECIFICATION<THN> 		8-94392-090-0 01 1 0209-0301 ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0302-0405 ● ● ● ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0406-1208 ● ● ● ● ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 1209-1312 ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 1401-1405 ● ● ● ● ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 1406- ● ●
18 IMPELLER; WATER PUMP 8-94397-375-0 01 1 0209-0301 ●
18 IMPELLER; WATER PUMP
EURO2 SPECIFICATION<THN> 		8-94397-375-0 01 1 0209-0301 ●
18 IMPELLER; WATER PUMP
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94394-414-1 01 1 9601-9611 ●
18 IMPELLER; WATER PUMP
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		8-94394-414-1 01 1 9612-9810 ●
18 IMPELLER; WATER PUMP
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		8-94392-922-0 01 1 9811-0004 ●
18 IMPELLER; WATER PUMP 8-94392-922-0 01 1 0005-0405 ●
18 IMPELLER; WATER PUMP 8-94392-922-0 01 1 0406- ● ●
18 IMPELLER; WATER PUMP
EXC. HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94397-375-0 01 1 9601-9609 ●
18 IMPELLER; WATER PUMP
EXC. HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		8-94397-375-0 01 1 9610-9805 ●
18 IMPELLER; WATER PUMP 8-94397-375-0 01 1 9610-9805 ●
18 IMPELLER; WATER PUMP
EXC. AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		8-94397-375-0 01 1 9806-9806 ●
18 IMPELLER; WATER PUMP 8-94397-375-0 01 1 9806-9806 ●
18 IMPELLER; WATER PUMP
EXC. HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		8-94397-375-0 01 1 9807-0004 ●
18 IMPELLER; WATER PUMP 8-94397-375-0 01 1 9807-0004 ●
18 IMPELLER; WATER PUMP
EXC. WEST MALAYSIA EQUIPMENT(SEQ) 		8-94397-375-0 01 1 0005-0103 ●
18 IMPELLER; WATER PUMP 8-94397-375-0 01 1 0005-0103 ●
18 IMPELLER; WATER PUMP 8-94397-375-0 01 1 0104-0208 ● ●
18 IMPELLER; WATER PUMP
EXC. EURO2 SPECIFICATION<THN> 		8-94397-375-0 01 1 0209-0301 ●
18 IMPELLER; WATER PUMP 8-94397-375-0 01 1 0302- ● ●
18 IMPELLER; WATER PUMP 1-13621-052-0 01 1 9601- ● ●
24 BOLT; WATER PUMP
(A) M8X58 FLANGE 		8-94130-055-1 03 1 9601-9609 ●
24 BOLT; WATER PUMP
(A) M8X58 FLANGE 		8-94130-055-1 03 1 9610-0004 ● ●
24 BOLT; WATER PUMP
(A) M8X58 FLANGE 		8-94130-055-1 03 1 0005-0405 ● ● ●
24 BOLT; WATER PUMP
(A) M8X58 FLANGE 		8-94130-055-1 03 1 0406- ● ● ● ●
24 BOLT; WATER PUMP
(B) M8X79 FLANGE 		8-94311-617-1 01 1 9601-9611 ●
24 BOLT; WATER PUMP
(C) M10X85 FLANGE 		8-94397-359-1 01 1 9601-9609 ●
24 BOLT; WATER PUMP
(C) M10X85 FLANGE 		8-94397-359-1 01 1 9610-0004 ● ●
24 BOLT; WATER PUMP
(C) M10X85 FLANGE 		8-94397-359-1 01 1 0005-0405 ● ● ●
24 BOLT; WATER PUMP
(C) M10X85 FLANGE 		8-94397-359-1 01 1 0406- ● ● ● ●
24 BOLT; WATER PUMP
(A) M10X70 		0-16806-070-0 02 1 9601-0512 ● ●
24 BOLT; WATER PUMP
(A) M10X70 		0-16856-070-0 02 1 0601- ● ●
24 BOLT; WATER PUMP
(B) M8X45 W/LK&PL WASHER 		0-50140-845-0 07 1 9601-0906 ● ●
24 BOLT; WATER PUMP
(B) M8X45 W/LK&PL WASHER 		0-50640-845-0 07 1 0907- ● ●
24 BOLT; WATER PUMP
(B) M8X80 FLANGE 		0-28080-880-0 01 1 9610-9611 ●
24 BOLT; WATER PUMP
(B) M8X80 FLANGE 		0-28080-880-0 01 1 9612-0004 ● ●
24 BOLT; WATER PUMP
(B) M8X80 FLANGE 		0-28080-880-0 01 1 0005-0405 ● ● ●
24 BOLT; WATER PUMP
(B) M8X80 FLANGE 		0-28080-880-0 01 1 0406-0512 ● ● ● ●
24 BOLT; WATER PUMP
(B) M8X80 FLANGE 		0-28050-880-0 01 1 0601- ● ● ● ●
28 WASHER; WATER PUMP
ID=25.5 OD=50 		8-94397-097-0 01 1 0209-0301 ● ●
28 WASHER; WATER PUMP
EURO2 SPECIFICATION<THN> ID=25.5 OD=50 		8-94397-097-0 01 1 0209-0301 ●
28 WASHER; WATER PUMP
ID=25.5 OD=50 		8-94397-097-0 01 1 9601-0004 ● ●
28 WASHER; WATER PUMP
ID=25.5 OD=50 		8-94397-097-0 01 1 0005-0208 ● ● ●
28 WASHER; WATER PUMP
EXC. EURO2 SPECIFICATION<THN> ID=25.5 OD=50 		8-94397-097-0 01 1 0209-0301 ●
28 WASHER; WATER PUMP
ID=25.5 OD=50 		8-94397-097-0 01 1 0302-0405 ● ● ●
28 WASHER; WATER PUMP
ID=25.5 OD=50 		8-94397-097-0 01 1 0406- ● ● ● ●
29 SHAFT; WATER PUMP
EXC. EURO2 SPECIFICATION<THN> 		8-94396-130-1 01 1 0209-0301 ●
29 SHAFT; WATER PUMP 8-94397-374-0 01 1 9601-0004 ●
29 SHAFT; WATER PUMP 8-94397-374-0 01 1 0005- ● ●
29 SHAFT; WATER PUMP 1-13631-079-0 01 1 9601- ● ●
29 SHAFT; WATER PUMP 8-94396-130-1 01 1 9610-0208 ●
29 SHAFT; WATER PUMP
EURO2 SPECIFICATION<THN> 		8-94396-130-1 01 1 0209-0301 ●
29 SHAFT; WATER PUMP 8-94396-130-1 01 1 0302-0405 ●
29 SHAFT; WATER PUMP
EURO2 SPECIFICATION<THN> 		8-94396-130-1 01 1 0406- ●
29 SHAFT; WATER PUMP 8-94396-130-1 01 1 0406- ●
42 STUD; WATER PUMP
M8X30 L=46 		9-04010-830-0 01 1 9601-9609 ●
42 STUD; WATER PUMP
M8X30 L=46 		9-04010-830-0 01 1 9610-0004 ● ●
42 STUD; WATER PUMP
M8X30 L=46 		9-04010-830-0 01 1 0005-0405 ● ● ●
42 STUD; WATER PUMP
M8X30 L=46 		9-04010-830-0 01 1 0406-0604 ● ● ● ●
42 STUD; WATER PUMP
M8X30 L=46 		0-40110-830-0 01 1 0605- ● ● ● ●
45 JOINT; HTR HOSE,WATER PUMP
EXC. EURO2 SPECIFICATION<THN> 		8-94394-389-0 01 1 0209-0301 ●
45 JOINT; HTR HOSE,WATER PUMP
HEATER & DEFROSTER(C41) 		8-94397-377-2 01 1 9601-0004 ●
45 JOINT; HTR HOSE,WATER PUMP
HEATER & DEFROSTER(C41) 		8-94397-377-2 01 1 0005-0005 ●
45 JOINT; HTR HOSE,WATER PUMP
HEATER & DEFROSTER(C41) 		8-94397-377-2 01 1 0006- ● ●
45 JOINT; HTR HOSE,WATER PUMP
HEATER & DEFROSTER(C41) PT3/8 & OD=18.3 L=47 		9-09903-631-0 01 1 9708-0004 ● ●
45 JOINT; HTR HOSE,WATER PUMP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) PT3/8 & OD=18.3 L=47 		9-09903-631-0 01 1 0005- ● ●
45 JOINT; HTR HOSE,WATER PUMP 8-94394-389-0 01 1 9610-0208 ●
45 JOINT; HTR HOSE,WATER PUMP
EURO2 SPECIFICATION<THN> 		8-94394-389-0 01 1 0209-0301 ●
45 JOINT; HTR HOSE,WATER PUMP 8-94394-389-0 01 1 0302-0405 ●
45 JOINT; HTR HOSE,WATER PUMP 8-94394-389-0 01 1 0406- ● ●
45 JOINT; HTR HOSE,WATER PUMP
FVR STD CAB MIDDLE CHASSIS(FV**MF) HEATER & DEFROSTER(C41) 		8-94392-827-1 01 1 9807-0004 ●
59 DOWEL; WATER PUMP 9-13119-022-0 02 1 9601-9611 ● ●
59 DOWEL; WATER PUMP 9-13119-022-0 02 1 9612-0004 ●
59 DOWEL; WATER PUMP 9-13119-022-0 02 1 0005-0801 ● ●
59 DOWEL; WATER PUMP
OD=12 L=9 		1-13119-003-0 02 1 9612-0208 ●
59 DOWEL; WATER PUMP
EURO2 SPECIFICATION<THN> OD=12 L=9 		1-13119-003-0 02 1 0209-0301 ●
59 DOWEL; WATER PUMP
OD=12 L=9 		1-13119-003-0 02 1 0302-0405 ●
59 DOWEL; WATER PUMP
EURO2 SPECIFICATION<THN> OD=12 L=9 		1-13119-003-0 02 1 0406-0801 ●
59 DOWEL; WATER PUMP
OD=12 L=9 		1-13119-003-0 02 1 0406-0801 ●
59 DOWEL; WATER PUMP
OD=12 L=9 		1-13119-003-0 02 1 0802- ● ● ● ●
64 GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7 		1-09623-383-0 01 1 9601-9609 ●
64 GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7 		1-09623-383-0 01 1 9610-0004 ● ●
64 GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7 		1-09623-383-0 01 1 0005-0405 ● ● ●
64 GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7 		1-09623-383-0 01 1 0406- ● ● ● ●
125 NUT; WATER PUMP
M8 FLANGE 		0-91150-108-0 04 1 9601-9609 ●
125 NUT; WATER PUMP
M8 FLANGE 		0-91150-108-0 04 1 9610-0004 ● ●
125 NUT; WATER PUMP
M8 FLANGE 		0-91150-108-0 04 1 0005-0405 ● ● ●
125 NUT; WATER PUMP
M8 FLANGE 		0-91150-108-0 04 1 0406-0602 ● ● ● ●
125 NUT; WATER PUMP
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ● ● ●
156 CUP; SEALING
OD=25 		1-09600-016-0 01 1 0209-0301 ● ●
156 CUP; SEALING
EURO2 SPECIFICATION<THN> OD=25 		1-09600-016-0 01 1 0209-0301 ●
156 CUP; SEALING
OD=25 		1-09600-016-0 01 1 0004-0004 ● ●
156 CUP; SEALING
OD=25 		1-09600-016-0 01 1 0005-0208 ● ● ●
156 CUP; SEALING
EXC. EURO2 SPECIFICATION<THN> OD=25 		1-09600-016-0 01 1 0209-0301 ●
156 CUP; SEALING
OD=25 		1-09600-016-0 01 1 0302-0405 ● ● ●
156 CUP; SEALING
OD=25 		1-09600-016-0 01 1 0406- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
