0-28 — VENTILATION SYSTEM (#64372) — 99 parça

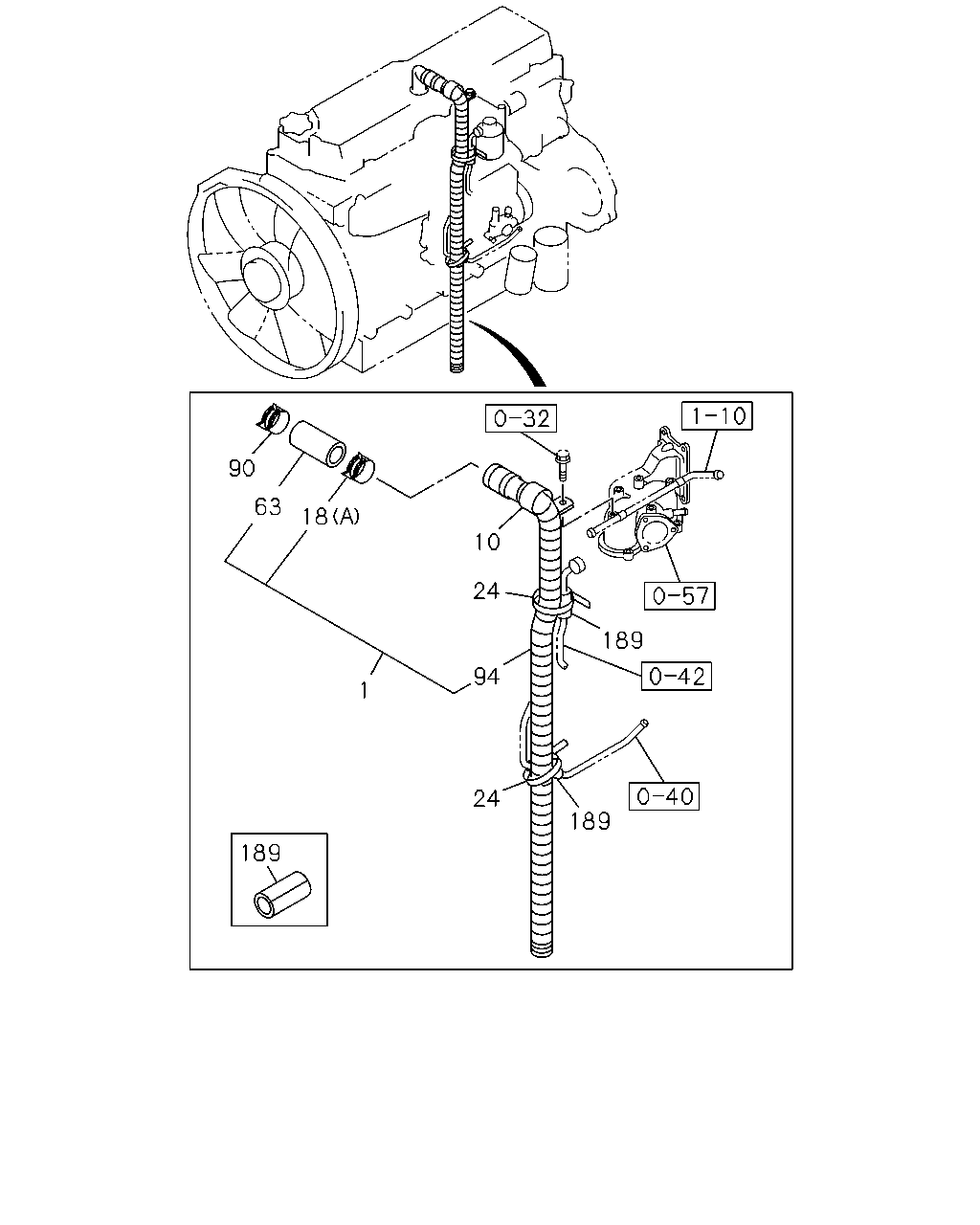

çizim 40752
90 63 18 10 24 189 94 1 24 189 189
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 BREATHER; AIR 8-97600-171-3 01 1 0406- ●
1 BREATHER; AIR 8-94394-859-4 01 1 9601- ●
1 BREATHER; AIR 8-94394-777-2 01 1 9610- ●
1 BREATHER; AIR 8-94392-083-3 01 1 0005- ●
10 CLIP; AIR BREATHER 5-09700-342-0 01 1 0406- ●
18 CLIP; RUBBER HOSE,AIR BREATHER
(A) ID=33.6 		8-94362-518-0 01 1 9601-0004 ● ●
18 CLIP; RUBBER HOSE,AIR BREATHER
(A) ID=33.6 		8-94362-518-0 01 1 0005-0405 ● ● ●
18 CLIP; RUBBER HOSE,AIR BREATHER
(A) ID=33.6 		8-94362-518-0 01 1 0406- ● ● ● ●
18 CLIP; RUBBER HOSE,AIR BREATHER
(B) ID=38 		9-09915-041-1 01 1 9610- ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		5-09707-030-0 02 1 9601-9609 ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		5-09707-030-1 02 1 9610-0005 ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
EURO2 SPECIFICATION<THN> L=250 		5-09707-030-1 03 1 0006-0405 ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		5-09707-030-1 03 1 0406-1205 ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		8-98216-430-0 03 1 1206- ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		5-09707-030-1 02 1 0006-0405 ●
24 CLIP; RUBBER HOSE,VENTILATOR
EXC. EURO2 SPECIFICATION<THN> L=250 		5-09707-030-1 02 1 0006-0405 ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		5-09707-030-1 02 1 0406-1205 ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		8-98216-430-0 02 1 1206- ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		5-09707-030-1 01 1 0005-1205 ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		8-98216-430-0 01 1 1206- ●
63 HOSE; RUBBER,AIR BREATHER
L=70 		0-02828-070-0 01 1 0704-1005 ● ● ●
63 HOSE; RUBBER,AIR BREATHER
L=70 		0-02728-070-0 01 1 1006- ● ● ●
63 HOSE; RUBBER,AIR BREATHER
L=70 		0-02728-070-0 01 1 9601-9809 ●
63 HOSE; RUBBER,AIR BREATHER 8-94394-471-0 01 1 9610- ●
90 CLIP; RUBBER HOSE
ID=33.6 		8-94362-518-0 01 1 9601-9609 ●
90 CLIP; RUBBER HOSE
ID=33.6 		8-94362-518-0 01 1 9610-0004 ● ●
90 CLIP; RUBBER HOSE
ID=33.6 		8-94362-518-0 01 1 0005-0405 ● ● ●
90 CLIP; RUBBER HOSE
ID=33.6 		8-94362-518-0 01 1 0406- ● ● ● ●
94 HOSE; BREATHER TO PIPE
L=1320 		8-97600-189-0 01 1 0406- ●
94 HOSE; BREATHER TO PIPE
L=1100 		8-94394-785-0 01 1 9601-9609 ●
94 HOSE; BREATHER TO PIPE
L=1100 		8-94394-785-0 01 1 9610- ● ●
94 HOSE; BREATHER TO PIPE
L=1260 		8-94392-082-0 01 1 0005- ●
189 SLEEVE; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 02 1 0605- ● ● ●
189 SLEEVE; RUBBER
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> ID=10 OD=14 L=30 		9-09956-682-0 02 1 0605- ●
189 SLEEVE; RUBBER
EXC. NEW ZEALAND EQUIPMENT(PK5) ID=10 OD=14 L=30 		9-09956-682-0 02 1 0605- ●
189 SLEEVE; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 02 1 0002-0106 ●
189 SLEEVE; RUBBER
EXC. EURO2 SPECIFICATION<THN> ID=10 OD=14 L=30 		9-09956-682-0 02 1 0002-0106 ●
189 SLEEVE; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 02 1 0107-0405 ● ● ●
189 SLEEVE; RUBBER
EXC. EURO2 SPECIFICATION<THN> ID=10 OD=14 L=30 		9-09956-682-0 02 1 0107-0405 ●
189 SLEEVE; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 02 1 0406-0604 ● ● ● ●
189 SLEEVE; RUBBER
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) ID=10 OD=14 L=30 		9-09956-682-0 01 1 0605- ●

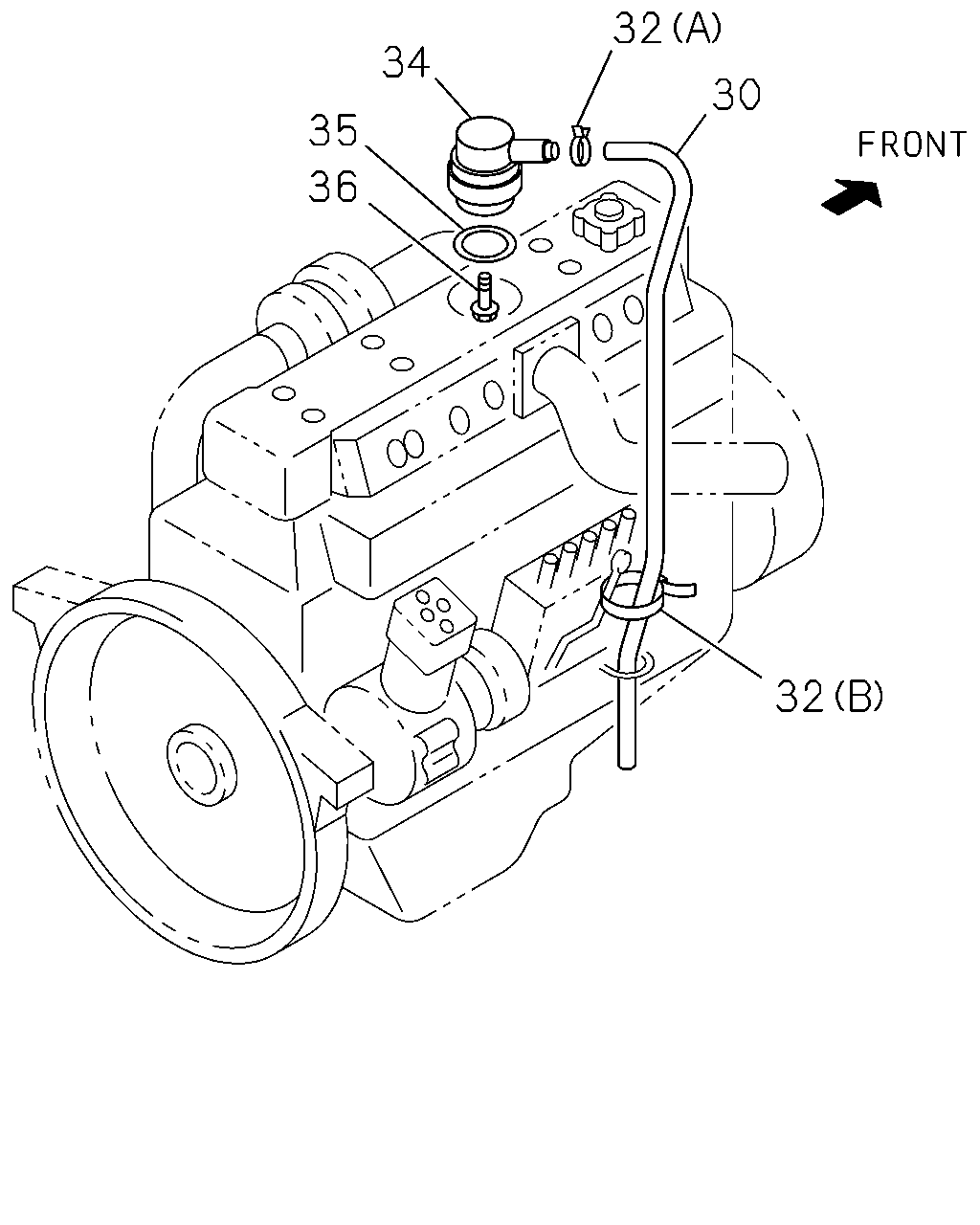

çizim 40852
32 34 30 35 36 32
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
30 HOSE; VENTILATOR,CYL HD COVER 1-09360-730-1 01 1 9601- ● ●
32 CLIP; VENT HOSE
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) (B) L=250 		5-09707-030-1 01 1 0605-1205 ●
32 CLIP; VENT HOSE
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) (B) L=250 		8-98216-430-0 01 1 1206- ●
32 CLIP; VENT HOSE
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) (B) L=140 		5-09707-031-1 01 1 0605-1205 ●
32 CLIP; VENT HOSE
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) (B) L=140 		8-98216-431-0 01 1 1206- ●
32 CLIP; VENT HOSE
(A) ID=20 		1-09707-084-1 01 1 9601- ● ●
32 CLIP; VENT HOSE
(B) L=140 		5-09707-031-1 01 1 9601-0106 ● ●
32 CLIP; VENT HOSE
(B) L=140 		5-09707-031-1 02 1 0107-0604 ● ●
32 CLIP; VENT HOSE
(B) L=140 		5-09707-031-1 02 1 0605-1205 ●
32 CLIP; VENT HOSE
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> (B) L=140 		5-09707-031-1 02 1 0605-1205 ●
32 CLIP; VENT HOSE
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) L=140 		5-09707-031-1 02 1 0605-1205 ●
32 CLIP; VENT HOSE
(B) L=140 		8-98216-431-0 02 1 1206- ●
32 CLIP; VENT HOSE
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> (B) L=140 		8-98216-431-0 02 1 1206- ●
32 CLIP; VENT HOSE
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) L=140 		8-98216-431-0 02 1 1206- ●
34 VENTILATOR 1-11740-172-2 01 1 9601- ● ●
35 GASKET; VENTILATOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09623-209-0 01 1 9601- ● ●
36 BOLT; VENTILATOR
M10X25 W/LK WASHER 		0-50051-025-0 01 1 9601-0906 ● ●
36 BOLT; VENTILATOR
M10X25 W/LK WASHER 		0-50551-025-0 01 1 0907- ● ●

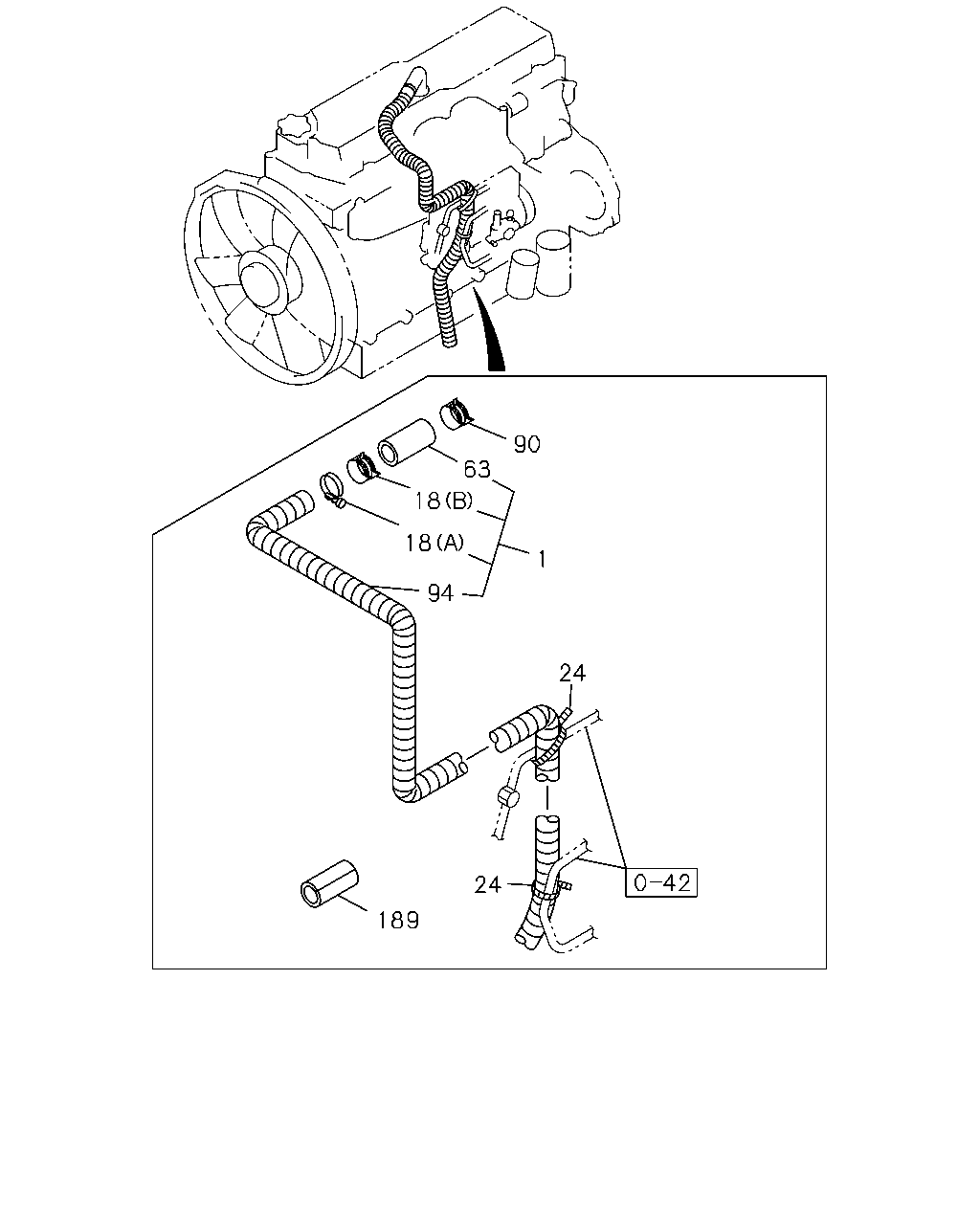

çizim 184229
90 63 18 18 1 94 24 24 189
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 BREATHER; AIR 8-97600-171-3 01 1 0406- ●
1 BREATHER; AIR 8-94394-859-4 01 1 9601- ●
1 BREATHER; AIR 8-94394-777-2 01 1 9610- ●
1 BREATHER; AIR 8-94392-083-3 01 1 0005- ●
18 CLIP; RUBBER HOSE,AIR BREATHER
(A) ID=33.6 		8-94362-518-0 01 1 9601-0004 ● ●
18 CLIP; RUBBER HOSE,AIR BREATHER
(A) ID=33.6 		8-94362-518-0 01 1 0005-0405 ● ● ●
18 CLIP; RUBBER HOSE,AIR BREATHER
(A) ID=33.6 		8-94362-518-0 01 1 0406- ● ● ● ●
18 CLIP; RUBBER HOSE,AIR BREATHER
(B) ID=38 		9-09915-041-1 01 1 9610- ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		5-09707-030-0 02 1 9601-9609 ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		5-09707-030-1 02 1 9610-0005 ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
EURO2 SPECIFICATION<THN> L=250 		5-09707-030-1 03 1 0006-0405 ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		5-09707-030-1 03 1 0406-1205 ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		8-98216-430-0 03 1 1206- ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		5-09707-030-1 02 1 0006-0405 ●
24 CLIP; RUBBER HOSE,VENTILATOR
EXC. EURO2 SPECIFICATION<THN> L=250 		5-09707-030-1 02 1 0006-0405 ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		5-09707-030-1 02 1 0406-1205 ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		8-98216-430-0 02 1 1206- ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		5-09707-030-1 01 1 0005-1205 ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		8-98216-430-0 01 1 1206- ●
63 HOSE; RUBBER,AIR BREATHER
L=70 		0-02828-070-0 01 1 0704-1005 ● ● ●
63 HOSE; RUBBER,AIR BREATHER
L=70 		0-02728-070-0 01 1 1006- ● ● ●
63 HOSE; RUBBER,AIR BREATHER
L=70 		0-02728-070-0 01 1 9601-9809 ●
63 HOSE; RUBBER,AIR BREATHER 8-94394-471-0 01 1 9610- ●
90 CLIP; RUBBER HOSE
ID=33.6 		8-94362-518-0 01 1 9601-9609 ●
90 CLIP; RUBBER HOSE
ID=33.6 		8-94362-518-0 01 1 9610-0004 ● ●
90 CLIP; RUBBER HOSE
ID=33.6 		8-94362-518-0 01 1 0005-0405 ● ● ●
90 CLIP; RUBBER HOSE
ID=33.6 		8-94362-518-0 01 1 0406- ● ● ● ●
94 HOSE; BREATHER TO PIPE
L=1320 		8-97600-189-0 01 1 0406- ●
94 HOSE; BREATHER TO PIPE
L=1100 		8-94394-785-0 01 1 9601-9609 ●
94 HOSE; BREATHER TO PIPE
L=1100 		8-94394-785-0 01 1 9610- ● ●
94 HOSE; BREATHER TO PIPE
L=1260 		8-94392-082-0 01 1 0005- ●
189 SLEEVE; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 02 1 0605- ● ● ●
189 SLEEVE; RUBBER
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> ID=10 OD=14 L=30 		9-09956-682-0 02 1 0605- ●
189 SLEEVE; RUBBER
EXC. NEW ZEALAND EQUIPMENT(PK5) ID=10 OD=14 L=30 		9-09956-682-0 02 1 0605- ●
189 SLEEVE; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 02 1 0002-0106 ●
189 SLEEVE; RUBBER
EXC. EURO2 SPECIFICATION<THN> ID=10 OD=14 L=30 		9-09956-682-0 02 1 0002-0106 ●
189 SLEEVE; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 02 1 0107-0405 ● ● ●
189 SLEEVE; RUBBER
EXC. EURO2 SPECIFICATION<THN> ID=10 OD=14 L=30 		9-09956-682-0 02 1 0107-0405 ●
189 SLEEVE; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 02 1 0406-0604 ● ● ● ●
189 SLEEVE; RUBBER
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) ID=10 OD=14 L=30 		9-09956-682-0 01 1 0605- ●
