0-22 — ENGINE MOUNTING (#64369) — 253 parça

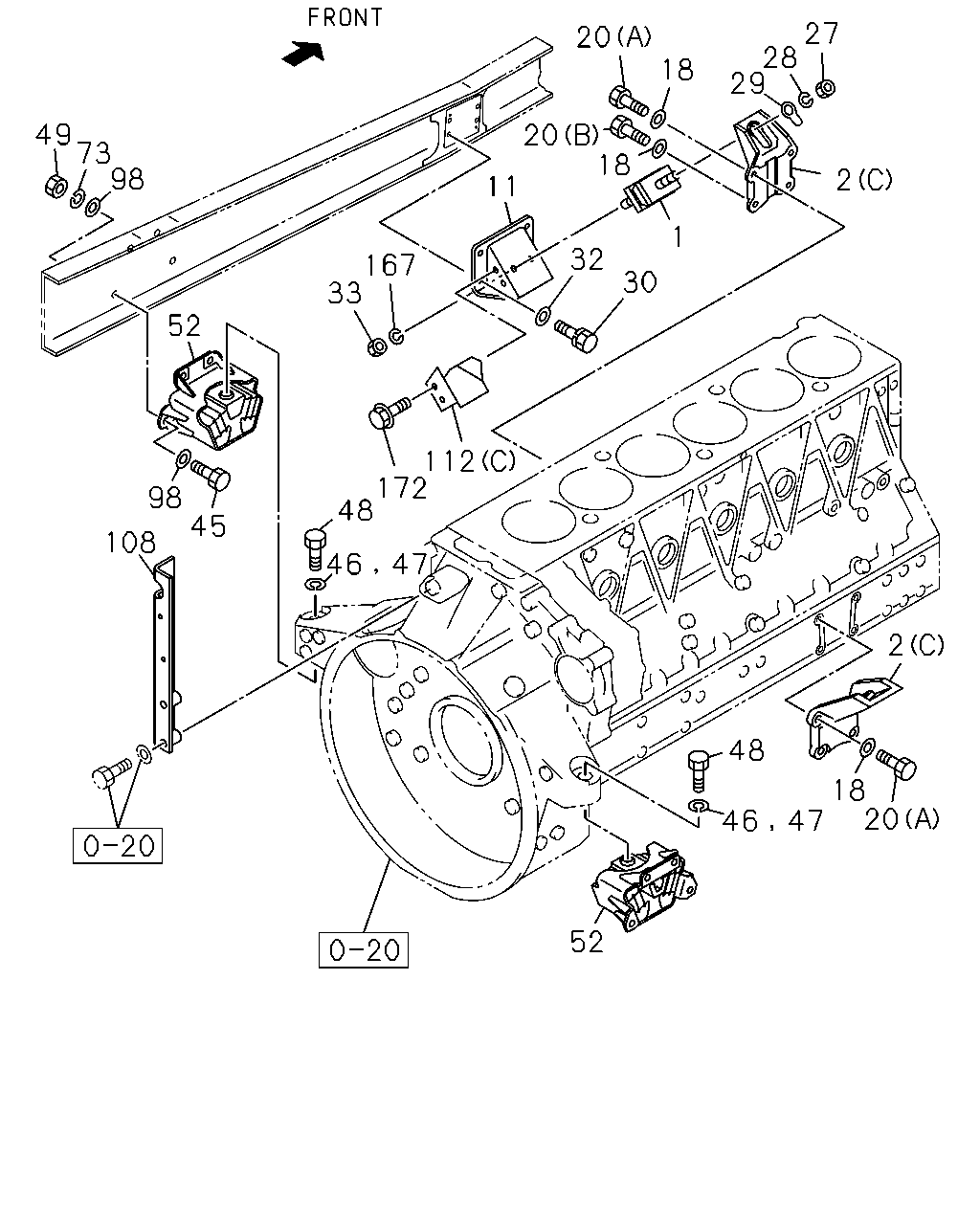

çizim 39256
27 28 29 20 18 20 18 49 73 98 2 11 1 32 167 33 30 52 112 172 48 98 45 108 2 48 18 52 46 47 20 46 47
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 RUBBER; ENG FOOT,FRT 1-53215-173-0 02 1 0406- ●
1 RUBBER; ENG FOOT,FRT 1-53215-172-0 02 1 9601-0004 ● ●
1 RUBBER; ENG FOOT,FRT 1-53215-172-0 02 1 0005- ● ● ●
1 RUBBER; ENG FOOT,FRT 1-53215-132-2 02 1 9601-0004 ● ●
1 RUBBER; ENG FOOT,FRT
EXC. A/T<X9D> 		1-53215-132-2 02 1 0005- ● ●
1 RUBBER; ENG FOOT,FRT
A/T<X9D> 		1-53215-131-2 02 1 0005- ● ●
2 FOOT; ENG
(D) 		8-94390-113-0 01 1 0406- ●
2 FOOT; ENG
(D) 		8-94392-813-0 01 1 0406- ●
2 FOOT; ENG
(A) 		8-94393-491-0 02 1 9601-9609 ●
2 FOOT; ENG
(A) 		8-94393-491-0 02 1 9610-0004 ● ●
2 FOOT; ENG
(A) 		8-94393-491-1 02 1 0005-0405 ● ● ●
2 FOOT; ENG
(A) 		8-94393-491-1 02 1 0406- ● ● ● ●
2 FOOT; ENG
(B) 		8-94394-543-1 01 1 9601-9607 ●
2 FOOT; ENG
EXC. ENGINE REAR PTO<SV1> (B) 		8-94394-543-1 01 1 9608-0004 ●
2 FOOT; ENG
(B) 		8-94394-543-1 01 1 9608-0004 ●
2 FOOT; ENG
(B) 		8-94394-543-1 01 1 0005- ● ● ●
2 FOOT; ENG
ENGINE REAR PTO<SV1> (B) 		8-94395-942-0 01 1 9702-0004 ●
2 FOOT; ENG
ENGINE REAR PTO<SV1> (B) 		8-94395-941-0 01 1 9702-0004 ●
2 FOOT; ENG
EXC. ENGINE REAR PTO<SV1> (B) 		8-94394-544-2 01 1 9608-0004 ●
2 FOOT; ENG
(B) 		8-94394-544-2 01 1 9608-0004 ●
2 FOOT; ENG
(B) 		8-94394-544-2 01 1 0005- ● ● ●
2 FOOT; ENG
(C) 		1-11771-172-0 02 1 9601- ● ●
11 BRACKET; CUSHION RUBBER,FRT 1-53211-226-0 02 1 9601- ● ●
18 WASHER; PL,ENG FOOT
ID=12.2 		1-09503-008-0 08 1 9601- ● ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		8-94395-721-0 08 1 9601-9609 ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		8-94395-721-0 08 1 9610-0004 ● ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		8-94395-721-0 08 1 0005-0405 ● ● ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		8-94395-721-0 08 1 0406- ● ● ● ●
20 BOLT; ENG FOOT
(B) M12X55 		8-94399-884-1 08 1 9601-9609 ●
20 BOLT; ENG FOOT
(B) M12X55 		8-94399-884-1 08 1 9610-0004 ● ●
20 BOLT; ENG FOOT
(B) M12X55 		8-94399-884-1 08 1 0005- ● ● ●
20 BOLT; ENG FOOT
(A) M12X28.5 		1-09020-100-0 04 1 9601- ● ●
20 BOLT; ENG FOOT
(B) M12X24 		1-09020-101-0 04 1 9601- ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 		9-99110-512-0 02 1 9601-9606 ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE 		0-91150-212-0 02 1 9607-0004 ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE 		0-91150-212-0 02 1 0005-0405 ● ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE 		0-91150-212-0 02 1 0406-0602 ● ● ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE 		0-91180-212-0 02 1 0603- ● ● ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M18 		9-99110-418-0 02 1 9601-9802 ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M18 		9-99110-518-0 02 1 9803-0512 ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M18 		0-91110-518-0 02 1 0601- ● ●
28 WASHER; LK,SUPPORT BRKT
ID=18.2 		9-09150-518-0 02 1 9601-0603 ● ●
28 WASHER; LK,SUPPORT BRKT
ID=18.2 		0-91510-518-0 02 1 0604- ● ●
29 PLATE; LK,CUSHION RUBBER,FRT 1-53229-052-1 02 1 9601-0004 ● ●
29 PLATE; LK,CUSHION RUBBER,FRT 1-53229-052-1 02 1 0005-0405 ● ● ●
29 PLATE; LK,CUSHION RUBBER,FRT 1-53229-052-1 02 1 0406- ● ● ● ●
29 PLATE; LK,CUSHION RUBBER,FRT 1-53229-040-0 02 1 9601- ● ●
30 BOLT; BRKT TO FRAME
M12X40 		9-92061-240-0 08 1 9601-0512 ● ●
30 BOLT; BRKT TO FRAME
M12X40 		0-20951-240-0 08 1 0601- ● ●
32 WASHER; PL,BRKT TO FRAME
ID=12.5 		1-09503-171-0 08 1 9601- ● ●
33 NUT; CUSHION RUBBER TO BRKT
M14 		9-99110-414-0 04 1 9601-0512 ● ●
33 NUT; CUSHION RUBBER TO BRKT
M14 		0-91110-514-0 04 1 0601- ● ●
45 BOLT; CUSHION RUBBER TO FRAME
M14X50 		9-92061-450-0 08 1 9601-0405 ● ●
45 BOLT; CUSHION RUBBER TO FRAME
M14X50 		9-92061-450-0 08 1 0406-0512 ● ● ●
45 BOLT; CUSHION RUBBER TO FRAME
M14X50 		0-20951-450-0 08 1 0601- ● ● ●
46 WASHER; PL,CUSHION TO ENG,RR
ID=17 		9-09164-516-0 02 1 0010- ● ● ●
46 WASHER; PL,CUSHION TO ENG,RR
ID=23 		9-09164-522-0 02 1 0010-0405 ● ●
46 WASHER; PL,CUSHION TO ENG,RR
ID=23 		9-09164-522-0 02 1 0406-0605 ● ● ●
46 WASHER; PL,CUSHION TO ENG,RR
ID=23 		0-91614-522-0 02 1 0606- ● ● ●
47 WASHER; LK,CUSHION RUBBER
ID=16.2 		9-09150-616-0 02 1 9601-0004 ● ●
47 WASHER; LK,CUSHION RUBBER
ID=16.2 		9-09150-616-0 02 1 0005-0009 ● ● ●
47 WASHER; LK,CUSHION RUBBER
ID=22.5 		9-09150-622-0 02 1 9601-0009 ● ●
48 BOLT; CUSHION RUBBER TO ENG
M16X60 		9-91066-660-0 02 1 9601-0004 ● ●
48 BOLT; CUSHION RUBBER TO ENG
M16X60 		9-91066-660-0 02 1 0005-0512 ● ● ●
48 BOLT; CUSHION RUBBER TO ENG
M16X60 		0-10956-660-0 02 1 0601- ● ● ●
48 BOLT; CUSHION RUBBER TO ENG
M22X60 		1-09020-143-0 02 1 9601-9604 ● ●
48 BOLT; CUSHION RUBBER TO ENG
M22X75 		1-09020-087-2 02 1 9605-0405 ● ●
48 BOLT; CUSHION RUBBER TO ENG
M22X75 		1-09020-087-2 02 1 0406- ● ● ●
49 NUT; CUSHION RUBBER TO FRAME
M14 		9-99110-514-0 08 1 9601-0405 ● ●
49 NUT; CUSHION RUBBER TO FRAME
M14 		9-99110-514-0 08 1 0406-0512 ● ● ●
49 NUT; CUSHION RUBBER TO FRAME
M14 		0-91110-514-0 08 1 0601- ● ● ●
52 RUBBER; CUSHION,ENG MTG,RR
FVR SHORT CHASSIS(FV***C) 		1-53225-316-0 02 1 0907- ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-314-1 01 1 9601-9607 ●
52 RUBBER; CUSHION,ENG MTG,RR
EXC. ENGINE REAR PTO<SV1> 		1-53225-314-1 01 1 9608-0004 ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-314-1 01 1 9608-0004 ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-314-1 01 1 0005- ● ● ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-313-1 01 1 9601-9607 ●
52 RUBBER; CUSHION,ENG MTG,RR
EXC. ENGINE REAR PTO<SV1> 		1-53225-313-1 01 1 9608-0004 ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-313-1 01 1 9608-0004 ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-313-1 01 1 0005- ● ● ●
52 RUBBER; CUSHION,ENG MTG,RR
ENGINE REAR PTO<SV1> 		1-53225-283-2 01 1 9608-0004 ●
52 RUBBER; CUSHION,ENG MTG,RR
ENGINE REAR PTO<SV1> 		1-53225-282-2 01 1 9608-0004 ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-302-0 02 1 9601-0405 ● ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-302-0 02 1 0406-0906 ● ● ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-302-0 02 1 0907- ● ●
52 RUBBER; CUSHION,ENG MTG,RR
FVR MIDDLE CHASSIS(FV***F) GVR(GV****) 		1-53225-302-0 02 1 0907- ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
ID=14.2 		9-09150-614-0 08 1 9601-0202 ● ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
ID=14.2 		9-09150-814-0 08 1 0203-0405 ● ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
ID=14.2 		9-09150-814-0 08 1 0406-0603 ● ● ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
ID=14.2 		0-91510-814-0 08 1 0604- ● ● ●
98 WASHER; PL,CUSHION RUBBER TO FRAME,RR
ID=15 		9-09651-069-0 16 1 9601-0405 ● ●
98 WASHER; PL,CUSHION RUBBER TO FRAME,RR
ID=15 		9-09651-069-0 16 1 0406-1201 ● ● ●
98 WASHER; PL,CUSHION RUBBER TO FRAME,RR
ID=15 		8-98010-627-1 16 1 1202- ● ● ●
108 HANGER; ENG FLYWHEEL HSG
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) 		1-11777-254-0 01 1 0605- ●
108 HANGER; ENG FLYWHEEL HSG 1-11777-208-0 01 1 9601-0209 ● ●
108 HANGER; ENG FLYWHEEL HSG 1-11777-268-0 01 1 0210-0604 ● ●
108 HANGER; ENG FLYWHEEL HSG 1-11777-268-0 01 1 0605- ●
108 HANGER; ENG FLYWHEEL HSG
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> 		1-11777-268-0 01 1 0605- ●
108 HANGER; ENG FLYWHEEL HSG
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-11777-268-0 01 1 0605- ●
112 PROTECTOR; HEAT
(A) 		1-53219-629-4 01 1 9601-0004 ● ●
112 PROTECTOR; HEAT
(A) 		1-53219-629-4 01 1 0005-0405 ● ● ●
112 PROTECTOR; HEAT
(A) 		1-53219-629-4 01 1 0406- ● ● ● ●
112 PROTECTOR; HEAT
(B) 		1-53219-638-0 01 1 9601-0004 ● ●
112 PROTECTOR; HEAT
(B) 		1-53219-638-0 01 1 0005- ● ● ●
112 PROTECTOR; HEAT
(C) 		1-53219-754-0 01 1 9601- ● ●
167 WASHER; LK,CUSHION RUBBER
ID=14.2 		9-09150-614-0 04 1 9601-0202 ● ●
167 WASHER; LK,CUSHION RUBBER
ID=14.2 		9-09150-514-0 04 1 0203-0603 ● ●
167 WASHER; LK,CUSHION RUBBER
ID=14.2 		0-91510-514-0 04 1 0604- ● ●
172 BOLT; HEAT PROTECTOR
M8X20 FLANGE 		0-28680-820-0 02 1 9601-0512 ● ●
172 BOLT; HEAT PROTECTOR
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●

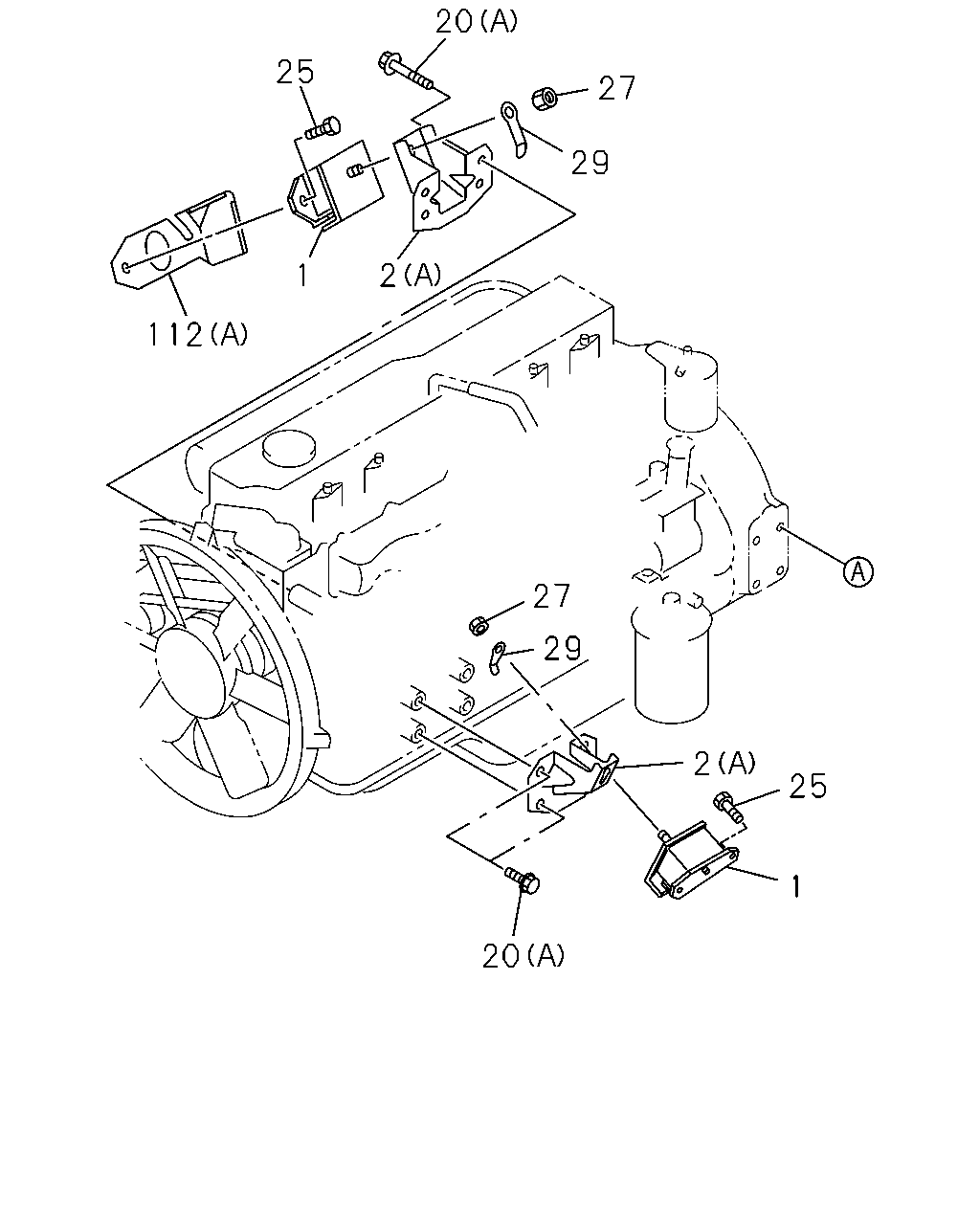

çizim 184220
20 25 27 29 2 1 112 27 29 2 25 1 20
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 RUBBER; ENG FOOT,FRT 1-53215-173-0 02 1 0406- ●
1 RUBBER; ENG FOOT,FRT 1-53215-172-0 02 1 9601-0004 ● ●
1 RUBBER; ENG FOOT,FRT 1-53215-172-0 02 1 0005- ● ● ●
1 RUBBER; ENG FOOT,FRT 1-53215-132-2 02 1 9601-0004 ● ●
1 RUBBER; ENG FOOT,FRT
EXC. A/T<X9D> 		1-53215-132-2 02 1 0005- ● ●
1 RUBBER; ENG FOOT,FRT
A/T<X9D> 		1-53215-131-2 02 1 0005- ● ●
2 FOOT; ENG
(D) 		8-94390-113-0 01 1 0406- ●
2 FOOT; ENG
(D) 		8-94392-813-0 01 1 0406- ●
2 FOOT; ENG
(A) 		8-94393-491-0 02 1 9601-9609 ●
2 FOOT; ENG
(A) 		8-94393-491-0 02 1 9610-0004 ● ●
2 FOOT; ENG
(A) 		8-94393-491-1 02 1 0005-0405 ● ● ●
2 FOOT; ENG
(A) 		8-94393-491-1 02 1 0406- ● ● ● ●
2 FOOT; ENG
(B) 		8-94394-543-1 01 1 9601-9607 ●
2 FOOT; ENG
EXC. ENGINE REAR PTO<SV1> (B) 		8-94394-543-1 01 1 9608-0004 ●
2 FOOT; ENG
(B) 		8-94394-543-1 01 1 9608-0004 ●
2 FOOT; ENG
(B) 		8-94394-543-1 01 1 0005- ● ● ●
2 FOOT; ENG
ENGINE REAR PTO<SV1> (B) 		8-94395-942-0 01 1 9702-0004 ●
2 FOOT; ENG
ENGINE REAR PTO<SV1> (B) 		8-94395-941-0 01 1 9702-0004 ●
2 FOOT; ENG
EXC. ENGINE REAR PTO<SV1> (B) 		8-94394-544-2 01 1 9608-0004 ●
2 FOOT; ENG
(B) 		8-94394-544-2 01 1 9608-0004 ●
2 FOOT; ENG
(B) 		8-94394-544-2 01 1 0005- ● ● ●
2 FOOT; ENG
(C) 		1-11771-172-0 02 1 9601- ● ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		8-94395-721-0 08 1 9601-9609 ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		8-94395-721-0 08 1 9610-0004 ● ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		8-94395-721-0 08 1 0005-0405 ● ● ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		8-94395-721-0 08 1 0406- ● ● ● ●
20 BOLT; ENG FOOT
(B) M12X55 		8-94399-884-1 08 1 9601-9609 ●
20 BOLT; ENG FOOT
(B) M12X55 		8-94399-884-1 08 1 9610-0004 ● ●
20 BOLT; ENG FOOT
(B) M12X55 		8-94399-884-1 08 1 0005- ● ● ●
20 BOLT; ENG FOOT
(A) M12X28.5 		1-09020-100-0 04 1 9601- ● ●
20 BOLT; ENG FOOT
(B) M12X24 		1-09020-101-0 04 1 9601- ● ●
25 BOLT; CUSHION RUBBER TO BRKT
M12X30 FLANGE 		0-28081-230-0 04 1 9601-9606 ●
25 BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE 		0-28681-235-0 04 1 9607-0004 ● ●
25 BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE 		0-28681-235-0 04 1 0005-0405 ● ● ●
25 BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE 		0-28681-235-0 04 1 0406-0512 ● ● ● ●
25 BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE 		0-28651-235-0 04 1 0601- ● ● ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 		9-99110-512-0 02 1 9601-9606 ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE 		0-91150-212-0 02 1 9607-0004 ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE 		0-91150-212-0 02 1 0005-0405 ● ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE 		0-91150-212-0 02 1 0406-0602 ● ● ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE 		0-91180-212-0 02 1 0603- ● ● ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M18 		9-99110-418-0 02 1 9601-9802 ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M18 		9-99110-518-0 02 1 9803-0512 ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M18 		0-91110-518-0 02 1 0601- ● ●
29 PLATE; LK,CUSHION RUBBER,FRT 1-53229-052-1 02 1 9601-0004 ● ●
29 PLATE; LK,CUSHION RUBBER,FRT 1-53229-052-1 02 1 0005-0405 ● ● ●
29 PLATE; LK,CUSHION RUBBER,FRT 1-53229-052-1 02 1 0406- ● ● ● ●
29 PLATE; LK,CUSHION RUBBER,FRT 1-53229-040-0 02 1 9601- ● ●
112 PROTECTOR; HEAT
(A) 		1-53219-629-4 01 1 9601-0004 ● ●
112 PROTECTOR; HEAT
(A) 		1-53219-629-4 01 1 0005-0405 ● ● ●
112 PROTECTOR; HEAT
(A) 		1-53219-629-4 01 1 0406- ● ● ● ●
112 PROTECTOR; HEAT
(B) 		1-53219-638-0 01 1 9601-0004 ● ●
112 PROTECTOR; HEAT
(B) 		1-53219-638-0 01 1 0005- ● ● ●
112 PROTECTOR; HEAT
(C) 		1-53219-754-0 01 1 9601- ● ●

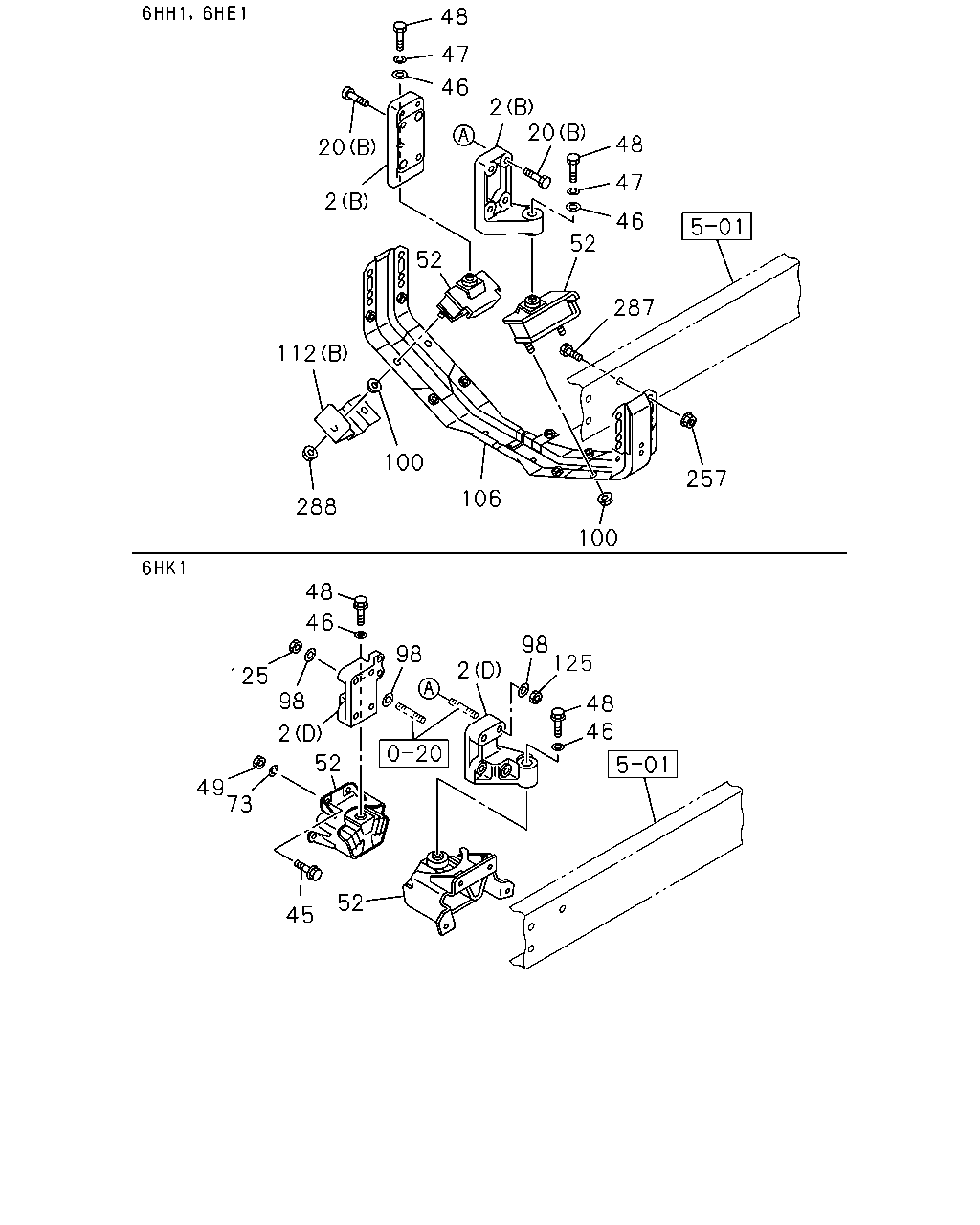

çizim 184221
48 47 46 2 20 48 20 47 2 46 52 52 287 112 100 257 106 288 100 48 46 98 125 98 2 125 98 48 46 2 52 49 73 52 45
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 FOOT; ENG
(D) 		8-94390-113-0 01 1 0406- ●
2 FOOT; ENG
(D) 		8-94392-813-0 01 1 0406- ●
2 FOOT; ENG
(A) 		8-94393-491-0 02 1 9601-9609 ●
2 FOOT; ENG
(A) 		8-94393-491-0 02 1 9610-0004 ● ●
2 FOOT; ENG
(A) 		8-94393-491-1 02 1 0005-0405 ● ● ●
2 FOOT; ENG
(A) 		8-94393-491-1 02 1 0406- ● ● ● ●
2 FOOT; ENG
(B) 		8-94394-543-1 01 1 9601-9607 ●
2 FOOT; ENG
EXC. ENGINE REAR PTO<SV1> (B) 		8-94394-543-1 01 1 9608-0004 ●
2 FOOT; ENG
(B) 		8-94394-543-1 01 1 9608-0004 ●
2 FOOT; ENG
(B) 		8-94394-543-1 01 1 0005- ● ● ●
2 FOOT; ENG
ENGINE REAR PTO<SV1> (B) 		8-94395-942-0 01 1 9702-0004 ●
2 FOOT; ENG
ENGINE REAR PTO<SV1> (B) 		8-94395-941-0 01 1 9702-0004 ●
2 FOOT; ENG
EXC. ENGINE REAR PTO<SV1> (B) 		8-94394-544-2 01 1 9608-0004 ●
2 FOOT; ENG
(B) 		8-94394-544-2 01 1 9608-0004 ●
2 FOOT; ENG
(B) 		8-94394-544-2 01 1 0005- ● ● ●
2 FOOT; ENG
(C) 		1-11771-172-0 02 1 9601- ● ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		8-94395-721-0 08 1 9601-9609 ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		8-94395-721-0 08 1 9610-0004 ● ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		8-94395-721-0 08 1 0005-0405 ● ● ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		8-94395-721-0 08 1 0406- ● ● ● ●
20 BOLT; ENG FOOT
(B) M12X55 		8-94399-884-1 08 1 9601-9609 ●
20 BOLT; ENG FOOT
(B) M12X55 		8-94399-884-1 08 1 9610-0004 ● ●
20 BOLT; ENG FOOT
(B) M12X55 		8-94399-884-1 08 1 0005- ● ● ●
20 BOLT; ENG FOOT
(A) M12X28.5 		1-09020-100-0 04 1 9601- ● ●
20 BOLT; ENG FOOT
(B) M12X24 		1-09020-101-0 04 1 9601- ● ●
45 BOLT; CUSHION RUBBER TO FRAME
M14X50 		9-92061-450-0 08 1 9601-0405 ● ●
45 BOLT; CUSHION RUBBER TO FRAME
M14X50 		9-92061-450-0 08 1 0406-0512 ● ● ●
45 BOLT; CUSHION RUBBER TO FRAME
M14X50 		0-20951-450-0 08 1 0601- ● ● ●
46 WASHER; PL,CUSHION TO ENG,RR
ID=17 		9-09164-516-0 02 1 0010- ● ● ●
46 WASHER; PL,CUSHION TO ENG,RR
ID=23 		9-09164-522-0 02 1 0010-0405 ● ●
46 WASHER; PL,CUSHION TO ENG,RR
ID=23 		9-09164-522-0 02 1 0406-0605 ● ● ●
46 WASHER; PL,CUSHION TO ENG,RR
ID=23 		0-91614-522-0 02 1 0606- ● ● ●
47 WASHER; LK,CUSHION RUBBER
ID=16.2 		9-09150-616-0 02 1 9601-0004 ● ●
47 WASHER; LK,CUSHION RUBBER
ID=16.2 		9-09150-616-0 02 1 0005-0009 ● ● ●
47 WASHER; LK,CUSHION RUBBER
ID=22.5 		9-09150-622-0 02 1 9601-0009 ● ●
48 BOLT; CUSHION RUBBER TO ENG
M16X60 		9-91066-660-0 02 1 9601-0004 ● ●
48 BOLT; CUSHION RUBBER TO ENG
M16X60 		9-91066-660-0 02 1 0005-0512 ● ● ●
48 BOLT; CUSHION RUBBER TO ENG
M16X60 		0-10956-660-0 02 1 0601- ● ● ●
48 BOLT; CUSHION RUBBER TO ENG
M22X60 		1-09020-143-0 02 1 9601-9604 ● ●
48 BOLT; CUSHION RUBBER TO ENG
M22X75 		1-09020-087-2 02 1 9605-0405 ● ●
48 BOLT; CUSHION RUBBER TO ENG
M22X75 		1-09020-087-2 02 1 0406- ● ● ●
49 NUT; CUSHION RUBBER TO FRAME
M14 		9-99110-514-0 08 1 9601-0405 ● ●
49 NUT; CUSHION RUBBER TO FRAME
M14 		9-99110-514-0 08 1 0406-0512 ● ● ●
49 NUT; CUSHION RUBBER TO FRAME
M14 		0-91110-514-0 08 1 0601- ● ● ●
52 RUBBER; CUSHION,ENG MTG,RR
FVR SHORT CHASSIS(FV***C) 		1-53225-316-0 02 1 0907- ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-314-1 01 1 9601-9607 ●
52 RUBBER; CUSHION,ENG MTG,RR
EXC. ENGINE REAR PTO<SV1> 		1-53225-314-1 01 1 9608-0004 ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-314-1 01 1 9608-0004 ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-314-1 01 1 0005- ● ● ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-313-1 01 1 9601-9607 ●
52 RUBBER; CUSHION,ENG MTG,RR
EXC. ENGINE REAR PTO<SV1> 		1-53225-313-1 01 1 9608-0004 ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-313-1 01 1 9608-0004 ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-313-1 01 1 0005- ● ● ●
52 RUBBER; CUSHION,ENG MTG,RR
ENGINE REAR PTO<SV1> 		1-53225-283-2 01 1 9608-0004 ●
52 RUBBER; CUSHION,ENG MTG,RR
ENGINE REAR PTO<SV1> 		1-53225-282-2 01 1 9608-0004 ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-302-0 02 1 9601-0405 ● ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-302-0 02 1 0406-0906 ● ● ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-302-0 02 1 0907- ● ●
52 RUBBER; CUSHION,ENG MTG,RR
FVR MIDDLE CHASSIS(FV***F) GVR(GV****) 		1-53225-302-0 02 1 0907- ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
ID=14.2 		9-09150-614-0 08 1 9601-0202 ● ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
ID=14.2 		9-09150-814-0 08 1 0203-0405 ● ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
ID=14.2 		9-09150-814-0 08 1 0406-0603 ● ● ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
ID=14.2 		0-91510-814-0 08 1 0604- ● ● ●
98 WASHER; PL,CUSHION RUBBER TO FRAME,RR
ID=15 		9-09651-069-0 16 1 9601-0405 ● ●
98 WASHER; PL,CUSHION RUBBER TO FRAME,RR
ID=15 		9-09651-069-0 16 1 0406-1201 ● ● ●
98 WASHER; PL,CUSHION RUBBER TO FRAME,RR
ID=15 		8-98010-627-1 16 1 1202- ● ● ●
100 NUT; CUSHION RUBBER
M12 FLANGE 		0-91150-212-0 04 1 9601-0004 ● ●
100 NUT; CUSHION RUBBER
M12 FLANGE 		0-91150-212-0 04 1 0005-0602 ● ● ●
100 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-212-0 04 1 0603- ● ● ●
106 MEMBER; MTG,RR 1-53221-192-0 01 1 9601-0004 ● ●
106 MEMBER; MTG,RR 1-53221-192-0 01 1 0005- ● ● ●
112 PROTECTOR; HEAT
(A) 		1-53219-629-4 01 1 9601-0004 ● ●
112 PROTECTOR; HEAT
(A) 		1-53219-629-4 01 1 0005-0405 ● ● ●
112 PROTECTOR; HEAT
(A) 		1-53219-629-4 01 1 0406- ● ● ● ●
112 PROTECTOR; HEAT
(B) 		1-53219-638-0 01 1 9601-0004 ● ●
112 PROTECTOR; HEAT
(B) 		1-53219-638-0 01 1 0005- ● ● ●
112 PROTECTOR; HEAT
(C) 		1-53219-754-0 01 1 9601- ● ●
125 NUT; ENG FOOT
M12 FLANGE 		8-94394-704-0 08 1 0406- ●
257 NUT; MEMBER
M12 		9-99110-512-0 08 1 9601-9606 ●
257 NUT; MEMBER
M12 FLANGE 		0-91150-212-0 08 1 9607-0004 ● ●
257 NUT; MEMBER
M12 FLANGE 		0-91150-212-0 08 1 0005-0602 ● ● ●
257 NUT; MEMBER
M12 FLANGE 		0-91180-212-0 08 1 0603- ● ● ●
287 BOLT; MEMBER
M12X35 FLANGE 		0-28081-235-0 08 1 9601-9606 ●
287 BOLT; MEMBER
M12X40 FLANGE 		0-28681-240-0 08 1 9607-0004 ● ●
287 BOLT; MEMBER
M12X40 FLANGE 		0-28681-240-0 08 1 0005-0512 ● ● ●
287 BOLT; MEMBER
M12X40 FLANGE 		0-28651-240-0 08 1 0601- ● ● ●
288 NUT; HEAT PROTECTOR
M12 FLANGE 		0-91150-212-0 02 1 9601-0004 ● ●
288 NUT; HEAT PROTECTOR
M12 FLANGE 		0-91150-212-0 02 1 0005-0602 ● ● ●
288 NUT; HEAT PROTECTOR
M12 FLANGE 		0-91180-212-0 02 1 0603- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
