◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10704 - FVR/GVR-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-14 - CAMSHAFT AND VALVE ▶
0-14 — CAMSHAFT AND VALVE (#64366) — 805 parça

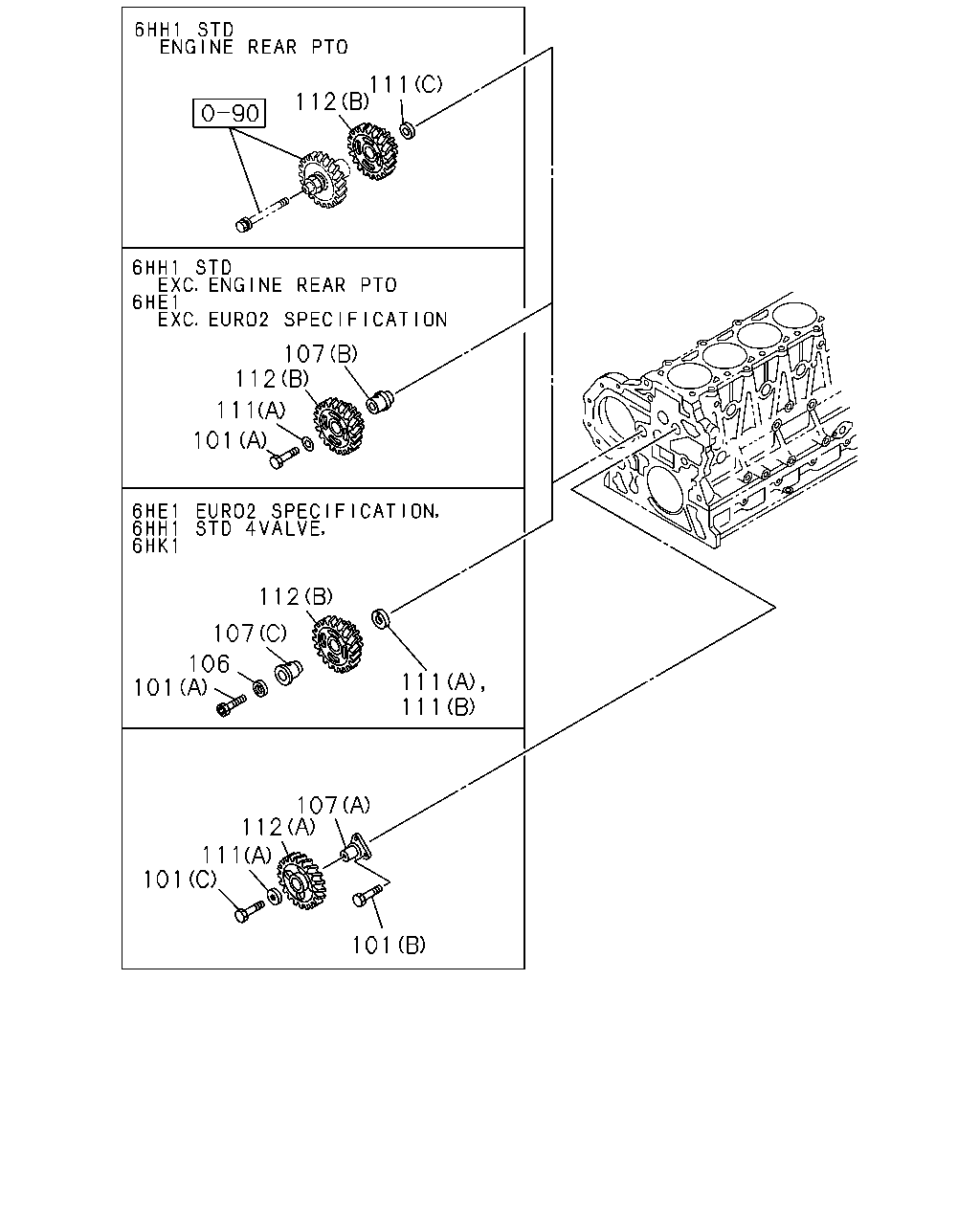

çizim 37856
111 112 107 112 101 112 107 106 101 111 111 107 112 101 101 111 111
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
101 BOLT; THRUST COLLAR
(B) M8X14 		8-97073-782-0 03 1 9601-9611 ●
101 BOLT; THRUST COLLAR
(A) M14X60 		9-91666-460-0 01 1 9601-9607 ●
101 BOLT; THRUST COLLAR
EXC. ENGINE REAR PTO<SV1> (A) M14X60 		9-91666-460-0 01 1 9608-9803 ●
101 BOLT; THRUST COLLAR
EXC. ENGINE REAR PTO<SV1> (A) M14X60 		9-91666-460-0 01 1 9804-0004 ●
101 BOLT; THRUST COLLAR
EXC. EURO2 SPECIFICATION<THN> (A) M14X60 		9-91666-460-0 01 1 9804-0004 ●
101 BOLT; THRUST COLLAR
(A) M14X60 		9-91666-460-0 01 1 0005-0405 ●
101 BOLT; THRUST COLLAR
EXC. EURO2 SPECIFICATION<THN> (A) M14X60 		9-91666-460-0 01 1 0005-0405 ●
101 BOLT; THRUST COLLAR
(A) M14X60 		9-91666-460-0 01 1 0406-0512 ●
101 BOLT; THRUST COLLAR
(A) M14X60 		0-16956-460-0 01 1 0601- ●
101 BOLT; THRUST COLLAR
(C) M14X30 		9-92361-430-0 01 1 9601-9609 ●
101 BOLT; THRUST COLLAR
(C) M14X30 		9-92361-430-0 01 1 9610-0004 ● ●
101 BOLT; THRUST COLLAR
(C) M14X30 		9-92361-430-0 01 1 0005-0405 ● ● ●
101 BOLT; THRUST COLLAR
(C) M14X30 		9-92361-430-0 01 1 0406-0512 ● ● ● ●
101 BOLT; THRUST COLLAR
(C) M14X30 		0-23951-430-0 01 1 0601- ● ● ● ●
101 BOLT; THRUST COLLAR
(B) M8X14 FLANGE 		0-28080-814-0 03 1 9601- ● ●
101 BOLT; THRUST COLLAR
(C) M14X16 		1-09000-284-0 01 1 9601- ● ●
101 BOLT; THRUST COLLAR
(A) M12X57 		1-09070-127-0 01 1 9601- ● ●
101 BOLT; THRUST COLLAR
(B) M8X16 FLANGE 		0-28090-816-0 03 1 9610-9611 ●
101 BOLT; THRUST COLLAR
(B) M8X16 FLANGE 		0-28090-816-0 03 1 9612-0004 ● ●
101 BOLT; THRUST COLLAR
(B) M8X16 FLANGE 		0-28090-816-0 03 1 0005-0405 ● ● ●
101 BOLT; THRUST COLLAR
(B) M8X16 FLANGE 		0-28090-816-0 03 1 0406-0512 ● ● ● ●
101 BOLT; THRUST COLLAR
(B) M8X16 FLANGE 		0-28060-816-0 03 1 0601- ● ● ● ●
101 BOLT; THRUST COLLAR
(A) M14X67 HEX SOCKET 		8-94394-779-0 01 1 9610-9803 ●
101 BOLT; THRUST COLLAR
EURO2 SPECIFICATION<THN> (A) M14X67 HEX SOCKET 		8-94394-779-2 01 1 9804-0004 ●
101 BOLT; THRUST COLLAR
EURO2 SPECIFICATION<THN> (A) M14X67 HEX SOCKET 		8-94394-779-2 01 1 0005-0405 ●
101 BOLT; THRUST COLLAR
(A) M14X67 HEX SOCKET 		8-94394-779-2 01 1 0005-0405 ●
101 BOLT; THRUST COLLAR
(A) M14X67 HEX SOCKET 		8-94394-779-2 01 1 0406- ● ● ●
106 WASHER; IDLE GEAR SHAFT
ID=14.2 OD=23 		1-09503-031-0 01 1 9610-9803 ●
106 WASHER; IDLE GEAR SHAFT
EURO2 SPECIFICATION<THN> ID=14.2 OD=23 		1-09503-031-0 01 1 9804-0004 ●
106 WASHER; IDLE GEAR SHAFT
EURO2 SPECIFICATION<THN> ID=14.2 OD=23 		1-09503-031-0 01 1 0005-0405 ●
106 WASHER; IDLE GEAR SHAFT
ID=14.2 OD=23 		1-09503-031-0 01 1 0005-0405 ●
106 WASHER; IDLE GEAR SHAFT
ID=14.2 OD=23 		1-09503-031-0 01 1 0406- ● ● ●
107 SHAFT; IDLE GEAR
(A) 		8-97073-938-1 01 1 9601-9609 ●
107 SHAFT; IDLE GEAR
(A) 		8-97073-938-1 01 1 9610-9805 ● ●
107 SHAFT; IDLE GEAR
(B) 		8-97104-380-0 01 1 9601-9607 ●
107 SHAFT; IDLE GEAR
EXC. ENGINE REAR PTO<SV1> (B) 		8-97104-380-0 01 1 9608-9803 ●
107 SHAFT; IDLE GEAR
EXC. ENGINE REAR PTO<SV1> (B) 		8-97104-380-0 01 1 9804-0004 ●
107 SHAFT; IDLE GEAR
EXC. EURO2 SPECIFICATION<THN> (B) 		8-97104-380-0 01 1 9804-0004 ●
107 SHAFT; IDLE GEAR
(B) 		8-97104-380-0 01 1 0005-0405 ●
107 SHAFT; IDLE GEAR
EXC. EURO2 SPECIFICATION<THN> (B) 		8-97104-380-0 01 1 0005-0405 ●
107 SHAFT; IDLE GEAR
(B) 		8-97104-380-0 01 1 0406-0609 ●
107 SHAFT; IDLE GEAR
(B) 		8-98060-780-0 01 1 0610- ●
107 SHAFT; IDLE GEAR
(A) 		8-97189-244-0 01 1 9806-0004 ● ●
107 SHAFT; IDLE GEAR
(A) 		8-97189-244-1 01 1 0005-0204 ● ● ●
107 SHAFT; IDLE GEAR
(A) 		8-97350-021-0 01 1 0205-0405 ● ● ●
107 SHAFT; IDLE GEAR
(A) 		8-97350-021-0 01 1 0406- ● ● ● ●
107 SHAFT; IDLE GEAR
(A) 		1-12531-054-1 01 1 9601-0011 ● ●
107 SHAFT; IDLE GEAR
(A) 		1-12531-097-2 01 1 0012- ● ●
107 SHAFT; IDLE GEAR
(B) 		1-12531-064-0 01 1 9601-0011 ● ●
107 SHAFT; IDLE GEAR
(B) 		1-12531-099-0 01 1 0012- ● ●
107 SHAFT; IDLE GEAR
(C) 		8-94395-073-2 01 1 9610-9803 ●
107 SHAFT; IDLE GEAR
EURO2 SPECIFICATION<THN> (C) 		8-94395-073-2 01 1 9804-0004 ●
107 SHAFT; IDLE GEAR
EURO2 SPECIFICATION<THN> (C) 		8-94395-073-2 01 1 0005-0205 ●
107 SHAFT; IDLE GEAR
(C) 		8-94395-073-2 01 1 0005-0205 ●
107 SHAFT; IDLE GEAR
EURO2 SPECIFICATION<THN> (C) 		8-97602-588-0 01 1 0206-0405 ●
107 SHAFT; IDLE GEAR
(C) 		8-97602-588-0 01 1 0206-0405 ●
107 SHAFT; IDLE GEAR
(C) 		8-97602-588-0 01 1 0406- ● ● ●
107 SHAFT; IDLE GEAR
(D) 		8-94395-096-0 01 1 9610-9803 ●
107 SHAFT; IDLE GEAR
EURO2 SPECIFICATION<THN> (D) 		8-94395-096-0 01 1 9804-0304 ●
107 SHAFT; IDLE GEAR
EURO2 SPECIFICATION<THN> (D) 		8-94334-682-0 01 1 0305-0405 ●
107 SHAFT; IDLE GEAR
(D) 		8-94334-682-1 01 1 0406- ● ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=46 		8-94370-688-0 01 1 9608-9803 ● ● ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=46 		8-94370-688-0 01 1 9804-9904 ● ● ●
111 COLLAR; THRUST,IDLE GEAR
FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. EURO2 SPECIFICATION<THN> (A) ID=14.5 OD=46 		8-94370-688-0 01 1 9804-9904 ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=46 		8-94370-688-0 01 1 9905-9912 ● ● ●
111 COLLAR; THRUST,IDLE GEAR
EXC. ENGINE REAR PTO<SV1> (A) ID=14.5 OD=46 		8-94370-688-0 01 1 9905-9912 ●
111 COLLAR; THRUST,IDLE GEAR
EXC. EURO2 SPECIFICATION<THN> (A) ID=14.5 OD=46 		8-94370-688-0 01 1 9905-9912 ●
111 COLLAR; THRUST,IDLE GEAR
EXC. EURO2 SPECIFICATION<THN> (A) ID=14.5 OD=46 		8-94370-688-0 01 1 9905-9912 ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=46 		8-94370-688-0 01 1 0001-0004 ● ● ●
111 COLLAR; THRUST,IDLE GEAR
EXC. ENGINE REAR PTO<SV1> (A) ID=14.5 OD=46 		8-94370-688-0 01 1 0001-0004 ●
111 COLLAR; THRUST,IDLE GEAR
EXC. EURO2 SPECIFICATION<THN> (A) ID=14.5 OD=46 		8-94370-688-0 01 1 0001-0004 ●
111 COLLAR; THRUST,IDLE GEAR
EXC. EURO2 SPECIFICATION<THN> (A) ID=14.5 OD=46 		8-94370-688-0 01 1 0001-0004 ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=46 		8-94370-688-0 02 1 0005-0306 ●
111 COLLAR; THRUST,IDLE GEAR
EXC. EURO2 SPECIFICATION<THN> (A) ID=14.5 OD=46 		8-94370-688-0 02 1 0005-0306 ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=46 		8-97209-728-1 02 1 0307-0405 ●
111 COLLAR; THRUST,IDLE GEAR
EXC. EURO2 SPECIFICATION<THN> (A) ID=14.5 OD=46 		8-97209-728-1 02 1 0307-0405 ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=46 		8-97209-728-2 02 1 0406- ● ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=46 		8-94370-688-0 01 1 9601-9607 ● ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=46 		8-94370-688-0 02 1 9610-9803 ●
111 COLLAR; THRUST,IDLE GEAR
EURO2 SPECIFICATION<THN> (A) ID=14.5 OD=46 		8-94370-688-0 02 1 9804-0004 ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=46 		8-94370-688-0 01 1 0005-0306 ● ● ●
111 COLLAR; THRUST,IDLE GEAR
EURO2 SPECIFICATION<THN> (A) ID=14.5 OD=46 		8-94370-688-0 01 1 0005-0306 ●
111 COLLAR; THRUST,IDLE GEAR
EURO2 SPECIFICATION<THN> (A) ID=14.5 OD=46 		8-94370-688-0 01 1 0005-0306 ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=46 		8-97209-728-1 01 1 0307-0405 ● ● ●
111 COLLAR; THRUST,IDLE GEAR
EURO2 SPECIFICATION<THN> (A) ID=14.5 OD=46 		8-97209-728-1 01 1 0307-0405 ●
111 COLLAR; THRUST,IDLE GEAR
EURO2 SPECIFICATION<THN> (A) ID=14.5 OD=46 		8-97209-728-1 01 1 0307-0405 ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=46 		8-97209-728-2 01 1 0406- ● ● ● ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=46 		8-97209-728-2 01 1 0406- ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=46 		8-94370-688-0 02 1 9601-9607 ●
111 COLLAR; THRUST,IDLE GEAR
ENGINE REAR PTO<SV1> (C) ID=24 OD=60 		8-94396-897-0 01 1 9608-0004 ●
111 COLLAR; THRUST,IDLE GEAR
(B) ID=24 OD=70 		8-94394-097-1 01 1 9610-9803 ●
111 COLLAR; THRUST,IDLE GEAR
EURO2 SPECIFICATION<THN> (B) ID=24 OD=70 		8-94394-097-1 01 1 9804-0004 ●
111 COLLAR; THRUST,IDLE GEAR
EURO2 SPECIFICATION<THN> (B) ID=24 OD=70 		8-94394-097-1 01 1 0005-0405 ●
111 COLLAR; THRUST,IDLE GEAR
(B) ID=24 OD=70 		8-94394-097-1 01 1 0005-0405 ●
111 COLLAR; THRUST,IDLE GEAR
(B) ID=24 OD=70 		8-94394-097-1 01 1 0406- ● ● ●
112 GEAR; IDLE
(B) Z=72-30 		8-94395-107-1 01 1 9601-9607 ●
112 GEAR; IDLE
EXC. ENGINE REAR PTO<SV1> (B) Z=72-30 		8-94395-107-1 01 1 9608-9803 ●
112 GEAR; IDLE
EXC. ENGINE REAR PTO<SV1> (B) Z=72-30 		8-94395-107-1 01 1 9804-0004 ●
112 GEAR; IDLE
EXC. EURO2 SPECIFICATION<THN> (B) Z=72-30 		8-94395-107-1 01 1 9804-0004 ●
112 GEAR; IDLE
(B) Z=72-30 		8-94395-107-1 01 1 0005-0405 ●
112 GEAR; IDLE
EXC. EURO2 SPECIFICATION<THN> (B) Z=72-30 		8-94395-107-1 01 1 0005-0405 ●
112 GEAR; IDLE
(B) Z=72-30 		8-94395-107-1 01 1 0406-0609 ●
112 GEAR; IDLE
(B) Z=72-30 		8-97227-074-0 01 1 0610- ●
112 GEAR; IDLE
(A) Z=61 		8-97094-546-1 01 1 9601-9803 ●
112 GEAR; IDLE
(A) Z=61 		8-97094-546-1 01 1 9804-0405 ●
112 GEAR; IDLE
EXC. EURO2 SPECIFICATION<THN> (A) Z=61 		8-97094-546-1 01 1 9804-0405 ●
112 GEAR; IDLE
(A) Z=61 		8-97094-546-2 01 1 0406- ●
112 GEAR; IDLE
ENGINE REAR PTO<SV1> (B) Z=72-30 		8-94395-109-1 01 1 9608-0004 ●
112 GEAR; IDLE
(A) Z=69-27 		1-12523-241-0 01 1 9601-0011 ● ●
112 GEAR; IDLE
(A) Z=69-27 		1-12523-346-0 01 1 0012- ● ●
112 GEAR; IDLE
(B) Z=62 		1-12523-242-0 01 1 9601-0011 ● ●
112 GEAR; IDLE
(B) Z=62 		1-12523-347-0 01 1 0012- ● ●
112 GEAR; IDLE
(A) Z=61 		8-94393-439-3 01 1 9610-9803 ●
112 GEAR; IDLE
EURO2 SPECIFICATION<THN> (A) Z=61 		8-94393-439-3 01 1 9804-0004 ●
112 GEAR; IDLE
EURO2 SPECIFICATION<THN> (A) Z=61 		8-94393-439-3 01 1 0005-0405 ●
112 GEAR; IDLE
(A) Z=61 		8-94393-439-3 01 1 0005-0405 ●
112 GEAR; IDLE
(A) Z=61 		8-94393-439-4 01 1 0406- ● ● ●
112 GEAR; IDLE
(B) Z=72-30 		8-94394-092-3 01 1 9610-9803 ●
112 GEAR; IDLE
EURO2 SPECIFICATION<THN> (B) Z=72-30 		8-94394-092-3 01 1 9804-0004 ●
112 GEAR; IDLE
EURO2 SPECIFICATION<THN> (B) Z=72-30 		8-94394-092-3 01 1 0005-0405 ●
112 GEAR; IDLE
(B) Z=72-30 		8-94394-092-3 01 1 0005-0405 ●
112 GEAR; IDLE
(B) Z=72-30 		8-94394-092-3 01 1 0406- ● ● ●
112 GEAR; IDLE
(C) Z=34 		8-94394-509-2 01 1 9610-9803 ●
112 GEAR; IDLE
EURO2 SPECIFICATION<THN> (C) Z=34 		8-94394-509-2 01 1 9804-0405 ●
112 GEAR; IDLE
(C) Z=34 		8-94394-509-3 01 1 0406- ● ●

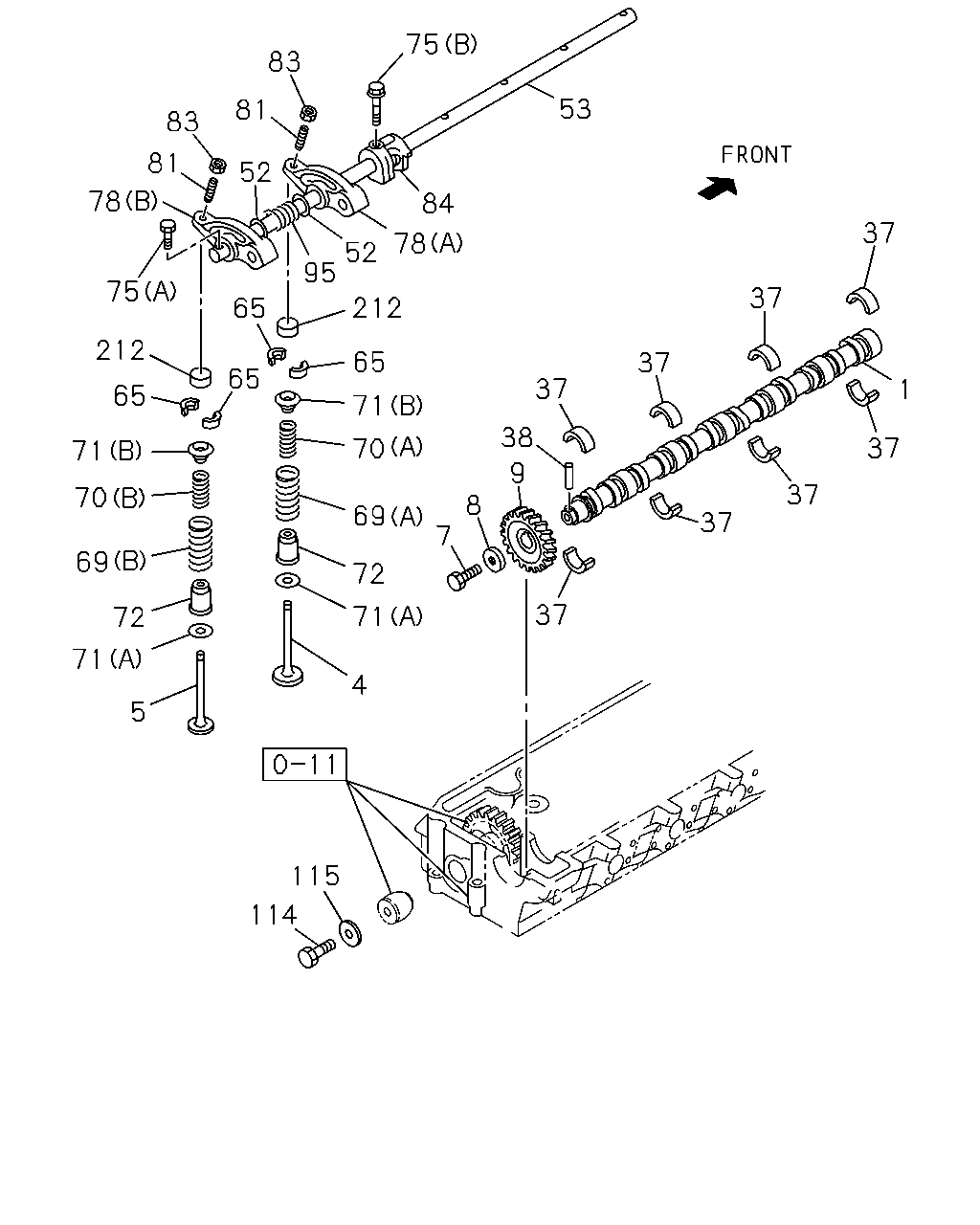

çizim 184205
75 83 53 81 83 81 52 84 37 78 52 95 75 37 212 65 212 65 37 65 37 1 65 71 38 37 71 9 37 8 37 7 72 37 71 72 71 4 5 115 114 78 70 69 69 70
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 CAMSHAFT
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) 		1-12511-274-1 01 1 0605- ●
1 CAMSHAFT 8-94395-576-2 01 1 9601-1311 ●
1 CAMSHAFT 8-98227-259-1 01 1 1312- ●
1 CAMSHAFT 1-12511-254-1 01 1 9601- ●
1 CAMSHAFT 1-12511-249-1 01 1 9601-0604 ●
1 CAMSHAFT
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> 		1-12511-249-1 01 1 0605- ●
1 CAMSHAFT
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-12511-249-1 01 1 0605- ●
1 CAMSHAFT 8-94395-758-2 01 1 9610-0405 ●
1 CAMSHAFT 8-94390-469-1 01 1 0406-1311 ● ●
1 CAMSHAFT 8-98227-260-1 01 1 1312- ● ●
1 CAMSHAFT 8-94390-469-1 01 1 0005-0405 ●
1 CAMSHAFT 8-94395-758-2 01 1 0406-1311 ●
1 CAMSHAFT 8-98227-258-1 01 1 1312- ●
4 VALVE; INL 8-94395-882-2 12 1 0406- ●
4 VALVE; INL 8-94394-160-2 06 1 9601- ●
4 VALVE; INL 1-12551-158-3 06 1 9601- ●
4 VALVE; INL 1-12551-126-1 06 1 9601-0204 ●
4 VALVE; INL 1-12551-161-4 06 1 0205- ●
4 VALVE; INL 8-94395-113-1 06 1 9610- ●
4 VALVE; INL 8-94395-881-3 12 1 0005- ●
5 VALVE; EXH
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) 		1-12552-099-2 06 1 0605- ●
5 VALVE; EXH 8-94395-462-0 06 1 9601-9609 ●
5 VALVE; EXH 8-94395-462-2 06 1 9610- ● ●
5 VALVE; EXH 1-12552-085-0 06 1 9601-9902 ● ●
5 VALVE; EXH 1-12552-108-2 06 1 9903-0604 ● ●
5 VALVE; EXH 1-12552-108-2 06 1 0605- ●
5 VALVE; EXH
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> 		1-12552-108-2 06 1 0605- ●
5 VALVE; EXH
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-12552-108-2 06 1 0605- ●
5 VALVE; EXH 8-94395-883-0 12 1 0005-0206 ●
5 VALVE; EXH 8-97209-876-2 12 1 0207-0405 ●
5 VALVE; EXH 8-97209-876-4 12 1 0406- ● ●
7 BOLT; CM/SHF GEAR
M14X40 		8-94396-439-0 01 1 9601-9609 ●
7 BOLT; CM/SHF GEAR
M14X40 		8-94396-439-0 01 1 9610-0004 ● ●
7 BOLT; CM/SHF GEAR
M14X40 		8-94396-439-0 01 1 0005-0405 ● ● ●
7 BOLT; CM/SHF GEAR
M14X40 		8-94396-439-0 01 1 0406- ● ● ● ●
7 BOLT; CM/SHF GEAR
M14X28 		9-92061-428-0 01 1 9601- ● ●
8 WASHER; CM/SHF GEAR
ID=14.5 		9-09851-850-3 01 1 9601-9912 ● ● ● ●
8 WASHER; CM/SHF GEAR
ID=14.5 		9-09851-850-3 01 1 0001-0405 ● ● ● ● ●
8 WASHER; CM/SHF GEAR
ID=14.5 		9-09851-850-3 01 1 0406- ● ● ● ● ● ●
9 GEAR; CM/SHF
Z=35 		8-97094-440-2 01 1 9601-9609 ●
9 GEAR; CM/SHF
Z=35 		8-97094-440-2 01 1 9610- ● ●
9 GEAR; CM/SHF
Z=36 		1-12522-037-2 01 1 9601- ● ●
9 GEAR; CM/SHF
Z=35 		8-94390-151-0 01 1 0005-0405 ●
9 GEAR; CM/SHF
Z=35 		8-94390-151-0 01 1 0406- ● ●
37 METAL; CM/SHF
UPPER B=16 		8-97356-939-0 04 1 0307-0312 ●
37 METAL; CM/SHF
UPPER B=16 		8-97356-939-0 04 1 0401-0405 ● ● ●
37 METAL; CM/SHF
UPPER B=16 		8-97356-939-0 04 1 0406-0706 ● ● ● ●
37 METAL; CM/SHF
B=16 		8-97386-189-0 04 1 0707- ● ● ● ●
37 METAL; CM/SHF 8-94393-380-0 14 1 9601-9608 ●
37 METAL; CM/SHF 8-94363-100-0 08 1 9609-9609 ●
37 METAL; CM/SHF 8-94363-100-1 08 1 9610-0206 ● ●
37 METAL; CM/SHF
B=22 		8-97602-698-0 08 1 0207-0312 ● ●
37 METAL; CM/SHF
LOWER B=22 		8-97602-698-0 04 1 0401- ● ●
37 METAL; CM/SHF 8-94390-311-1 08 1 0005-0206 ●
37 METAL; CM/SHF
B=26 		8-97602-699-0 08 1 0207-0306 ●
37 METAL; CM/SHF
LOWER B=26 		8-97602-699-0 04 1 0307-0405 ●
37 METAL; CM/SHF
LOWER B=26 		8-97602-699-0 04 1 0406- ● ●
38 PIN; CAM BRG SET
OD=7 L=7.5 		8-94399-487-0 01 1 9601-9609 ●
38 PIN; CAM BRG SET
OD=7 L=7.5 		8-94399-487-0 01 1 9610-0004 ● ●
38 PIN; CAM BRG SET
OD=7 L=7.5 		8-94399-487-0 01 1 0005-0405 ● ● ●
38 PIN; CAM BRG SET
OD=7 L=7.5 		8-94399-487-0 01 1 0406- ● ● ● ●
52 WASHER; ROCKER ARM SHAFT 8-94362-105-0 12 1 9601-9609 ●
52 WASHER; ROCKER ARM SHAFT 8-94362-105-0 12 1 9610- ● ●
53 SHAFT; ROCKER ARM 8-94393-984-1 01 1 9601-9609 ●
53 SHAFT; ROCKER ARM 8-94393-984-4 01 1 9610- ● ●
53 SHAFT; ROCKER ARM 1-12621-084-1 01 1 9601- ● ●
53 SHAFT; ROCKER ARM 8-94392-996-1 01 1 0005-0405 ●
53 SHAFT; ROCKER ARM 8-94392-996-1 01 1 0406-0610 ● ●
53 SHAFT; ROCKER ARM 8-97389-918-0 01 1 0611- ● ●
65 COLLAR; SPLIT 5-12565-006-0 24 1 9601-9609 ●
65 COLLAR; SPLIT 5-12565-006-0 24 1 9610- ● ●
65 COLLAR; SPLIT 1-12565-007-0 24 1 9601- ● ●
65 COLLAR; SPLIT 5-12565-004-0 48 1 0005-0405 ●
65 COLLAR; SPLIT 5-12565-004-0 48 1 0406- ● ●
69 SPRING; VLV,OUTER
(B) EXHAUST 		8-94393-310-0 06 1 9601-9609 ●
69 SPRING; VLV,OUTER
(B) EXHAUST 		8-94393-310-0 06 1 9610- ● ●
69 SPRING; VLV,OUTER
(A) INLET 		8-94394-996-0 06 1 9601-9609 ●
69 SPRING; VLV,OUTER
(A) INLET 		8-94394-996-0 06 1 9610-0111 ● ●
69 SPRING; VLV,OUTER
(A) INLET MARK PINK 		8-97120-912-0 06 1 0112- ● ●
69 SPRING; VLV,OUTER
(B) EXHAUST 		1-12561-052-0 06 1 9601- ●
69 SPRING; VLV,OUTER
(A) INLET 		1-12561-051-0 06 1 9601- ● ●
69 SPRING; VLV,OUTER
(B) EXHAUST 		1-12561-072-0 06 1 9601- ●
70 SPRING; VLV,INNER
(A) INLET 		8-94395-266-0 06 1 9601-9609 ●
70 SPRING; VLV,INNER
(A) INLET 		8-94395-266-0 06 1 9610-0111 ● ●
70 SPRING; VLV,INNER
(A) INLET MARK PINK 		8-97120-911-0 06 1 0112- ● ●
70 SPRING; VLV,INNER
(B) EXHAUST 		8-94397-500-0 06 1 9601-9609 ●
70 SPRING; VLV,INNER
(B) EXHAUST 		8-94397-500-0 06 1 9610- ● ●
70 SPRING; VLV,INNER
(B) EXHAUST 		1-12562-033-0 06 1 9601- ●
70 SPRING; VLV,INNER
(A) INLET 		1-12562-032-0 06 1 9601- ● ●
70 SPRING; VLV,INNER
(B) EXHAUST 		1-12561-073-0 06 1 9601- ●
71 SEAT; SPR
(B) OD=38 		8-94385-029-1 12 1 9601-9609 ●
71 SEAT; SPR
(B) OD=38 		8-94385-029-2 12 1 9610- ● ●
71 SEAT; SPR
(A) ID=14.3 T=0.5 		8-94396-014-0 12 1 9601-9609 ●
71 SEAT; SPR
(A) ID=14.3 T=0.5 		8-94396-014-0 12 1 9610- ● ●
71 SEAT; SPR
(B) 		1-12563-033-1 12 1 9601-0009 ● ●
71 SEAT; SPR
(B) 		1-12563-059-1 12 1 0010-0401 ● ●
71 SEAT; SPR
(B) 		8-97603-239-0 12 1 0402- ● ●
71 SEAT; SPR
(A) 		9-12563-231-1 12 1 9601- ● ●
71 SEAT; SPR
(B) OD=32.8 T=12.75 		8-94390-783-2 24 1 0005-0405 ●
71 SEAT; SPR
(B) OD=32.8 T=12.75 		8-94390-783-2 24 1 0406- ● ●
71 SEAT; SPR
(A) ID=14.3 T=1.0 		8-94391-468-0 24 1 0005-0405 ●
71 SEAT; SPR
(A) ID=14.3 T=1.0 		8-94391-468-0 24 1 0406- ● ●
72 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94396-609-1 12 1 9601-9609 ●
72 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94396-609-2 12 1 9610- ● ●
72 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-12569-017-0 12 1 9601- ● ●
72 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97120-307-0 24 1 0005-0405 ●
72 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97120-307-0 24 1 0406-0707 ● ●
72 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97376-720-0 24 1 0708- ● ●
75 BOLT; BRKT
(A) M8X40 FLANGE 		0-28080-840-0 04 1 0005-0006 ●
75 BOLT; BRKT
(A) M8X40 FLANGE 		0-28080-840-0 02 1 0007-0405 ●
75 BOLT; BRKT
(A) M8X40 FLANGE 		0-28080-840-0 02 1 0406-0512 ● ●
75 BOLT; BRKT
(A) M8X40 FLANGE 		0-28050-840-0 02 1 0601- ● ●
75 BOLT; BRKT
(A) M8X35 FLANGE 		0-28080-835-0 02 1 9601-9609 ●
75 BOLT; BRKT
(A) M8X35 FLANGE 		0-28080-835-0 02 1 9610-0512 ● ●
75 BOLT; BRKT
(A) M8X35 FLANGE 		0-28050-835-0 02 1 0601- ● ●
75 BOLT; BRKT
(B) M10X62 FLANGE 		8-94393-131-0 05 1 9601-9609 ●
75 BOLT; BRKT
(B) M10X62 FLANGE 		8-94393-131-0 05 1 9610-0004 ● ●
75 BOLT; BRKT
(B) M10X62 FLANGE 		8-94393-131-0 05 1 0005-0405 ● ● ●
75 BOLT; BRKT
(B) M10X62 FLANGE 		8-94393-131-0 05 1 0406- ● ● ● ●
75 BOLT; BRKT
(C) M8X55 		9-01065-855-0 03 1 9601- ● ●
78 ARM; ROCKER
(B) EXHAUST 		8-97014-258-1 06 1 9601-9609 ●
78 ARM; ROCKER
(B) EXHAUST 		8-97014-258-2 06 1 9610- ● ●
78 ARM; ROCKER
(A) INLET 		8-97074-614-0 06 1 9601-9609 ●
78 ARM; ROCKER
(A) INLET 		8-97074-614-1 06 1 9610- ● ●
78 ARM; ROCKER
(C) 		1-12610-045-3 12 1 9601- ● ●
78 ARM; ROCKER
(A) INLET 		8-94392-992-0 06 1 0005-0211 ●
78 ARM; ROCKER
(A) INLET EXHAUST 		8-97306-424-2 06 1 0212-0405 ●
78 ARM; ROCKER
(A) INLET EXHAUST 		8-97306-424-3 06 1 0406- ● ●
78 ARM; ROCKER
(B) EXHAUST 		8-94392-993-0 06 1 0005-0211 ●
78 ARM; ROCKER
(B) EXHAUST INLET 		8-97306-421-2 06 1 0212-0405 ●
78 ARM; ROCKER
(B) EXHAUST INLET 		8-97306-421-3 06 1 0406- ● ●
81 SCREW; ADJ,ROCKER ARM
M10 L=32 		8-94395-024-0 12 1 9601-9609 ●
81 SCREW; ADJ,ROCKER ARM
M10 L=32 		8-94395-024-0 12 1 9610-0004 ● ●
81 SCREW; ADJ,ROCKER ARM
M10 L=32 		8-94395-024-0 12 1 0005-0405 ● ● ●
81 SCREW; ADJ,ROCKER ARM
M10 L=32 		8-94395-024-0 12 1 0406- ● ● ● ●
81 SCREW; ADJ,ROCKER ARM 1-12616-038-0 12 1 9601- ● ●
83 NUT; ADJ SCREW,LK
M10 		9-09111-410-0 24 1 0005-0006 ●
83 NUT; ADJ SCREW,LK
M10 		9-09111-410-0 12 1 0007-0405 ● ● ●
83 NUT; ADJ SCREW,LK
M10 		9-09111-410-0 12 1 0406-0512 ● ● ● ●
83 NUT; ADJ SCREW,LK
M10 		0-91111-510-0 12 1 0601- ● ● ● ●
83 NUT; ADJ SCREW,LK
M10 		9-09111-510-0 12 1 9601-9609 ●
83 NUT; ADJ SCREW,LK
M10 		9-09111-510-0 12 1 9610-9705 ● ●
83 NUT; ADJ SCREW,LK
M10 		9-09111-410-0 12 1 9706-0006 ● ●
83 NUT; ADJ SCREW,LK
M8 FLANGE 		9-09844-574-0 12 1 9601- ● ●
84 BRACKET; ROCKER SHAFT,INTER 8-94388-109-3 05 1 9601-9609 ●
84 BRACKET; ROCKER SHAFT,INTER 8-94388-109-3 05 1 9610- ● ●
84 BRACKET; ROCKER SHAFT,INTER 8-94395-836-2 05 1 0005-0405 ●
84 BRACKET; ROCKER SHAFT,INTER 8-94395-836-2 05 1 0406- ● ●
95 SPRING; ROCKER SHAFT 8-94397-263-0 06 1 9601-9609 ●
95 SPRING; ROCKER SHAFT 8-94397-263-0 06 1 9610- ● ●
95 SPRING; ROCKER SHAFT 1-09580-335-0 06 1 9601- ● ●
95 SPRING; ROCKER SHAFT 8-94392-999-0 06 1 0005-0405 ●
95 SPRING; ROCKER SHAFT 8-94392-999-0 06 1 0406- ● ●
114 BOLT; IDLE GEAR
M14X36.5 		8-94372-221-1 01 1 9601-9609 ●
114 BOLT; IDLE GEAR
M14X36.5 		8-94372-221-1 01 1 9610-0004 ● ●
114 BOLT; IDLE GEAR
M14X36.5 		8-94372-221-1 01 1 0005-0405 ● ● ●
114 BOLT; IDLE GEAR
M14X36.5 		8-94372-221-1 01 1 0406- ● ● ● ●
115 WASHER; THRUST,IDLE GEAR
ID=14.5 OD=46 		8-94370-688-0 01 1 9601-9609 ●
115 WASHER; THRUST,IDLE GEAR
ID=14.5 OD=46 		8-94370-688-0 01 1 9610-0004 ● ●
115 WASHER; THRUST,IDLE GEAR
ID=14.5 OD=46 		8-94370-688-0 01 1 0005-0306 ● ● ●
115 WASHER; THRUST,IDLE GEAR
ID=14.5 OD=46 		8-97209-728-1 01 1 0307-0405 ● ● ●
115 WASHER; THRUST,IDLE GEAR
ID=14.5 OD=46 		8-97209-728-2 01 1 0406- ● ● ● ●
212 CAP; ADJ SCREW 8-94396-015-1 12 1 9601-9609 ●
212 CAP; ADJ SCREW 8-94396-015-2 12 1 9610-0004 ● ●
212 CAP; ADJ SCREW 8-94396-015-2 12 1 0005-0405 ● ● ●
212 CAP; ADJ SCREW 8-94396-015-2 12 1 0406- ● ● ● ●

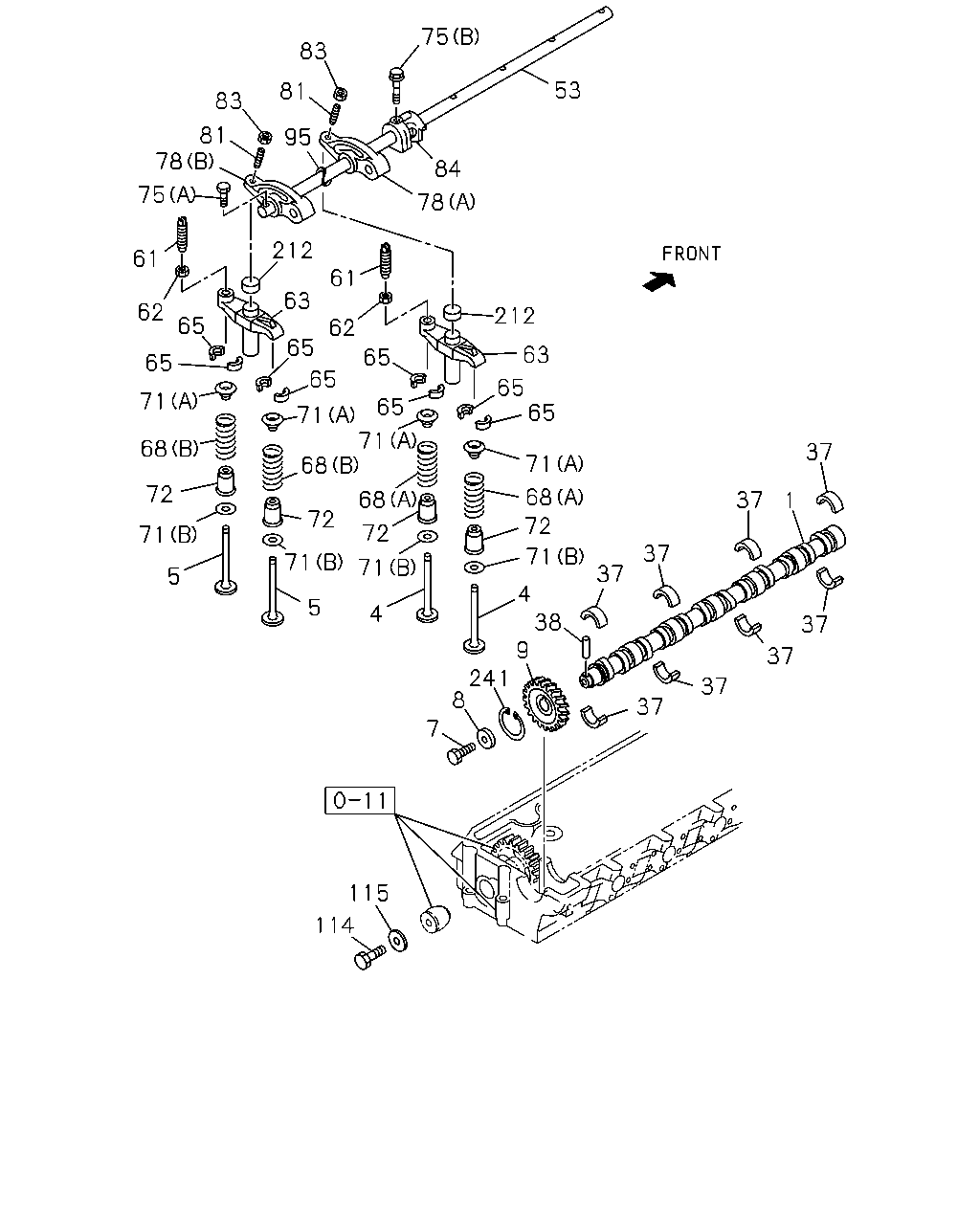

çizim 184209
75 83 53 81 83 81 78 95 84 75 78 212 61 61 63 62 212 65 62 65 63 65 65 65 65 65 71 65 71 71 68 68 37 71 72 68 68 37 1 72 72 72 71 71 37 71 71 37 5 4 38 9 5 4 37 37 241 8 37 37 7 115 114
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 CAMSHAFT
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) 		1-12511-274-1 01 1 0605- ●
1 CAMSHAFT 8-94395-576-2 01 1 9601-1311 ●
1 CAMSHAFT 8-98227-259-1 01 1 1312- ●
1 CAMSHAFT 1-12511-254-1 01 1 9601- ●
1 CAMSHAFT 1-12511-249-1 01 1 9601-0604 ●
1 CAMSHAFT
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> 		1-12511-249-1 01 1 0605- ●
1 CAMSHAFT
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-12511-249-1 01 1 0605- ●
1 CAMSHAFT 8-94395-758-2 01 1 9610-0405 ●
1 CAMSHAFT 8-94390-469-1 01 1 0406-1311 ● ●
1 CAMSHAFT 8-98227-260-1 01 1 1312- ● ●
1 CAMSHAFT 8-94390-469-1 01 1 0005-0405 ●
1 CAMSHAFT 8-94395-758-2 01 1 0406-1311 ●
1 CAMSHAFT 8-98227-258-1 01 1 1312- ●
4 VALVE; INL 8-94395-882-2 12 1 0406- ●
4 VALVE; INL 8-94394-160-2 06 1 9601- ●
4 VALVE; INL 1-12551-158-3 06 1 9601- ●
4 VALVE; INL 1-12551-126-1 06 1 9601-0204 ●
4 VALVE; INL 1-12551-161-4 06 1 0205- ●
4 VALVE; INL 8-94395-113-1 06 1 9610- ●
4 VALVE; INL 8-94395-881-3 12 1 0005- ●
5 VALVE; EXH
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) 		1-12552-099-2 06 1 0605- ●
5 VALVE; EXH 8-94395-462-0 06 1 9601-9609 ●
5 VALVE; EXH 8-94395-462-2 06 1 9610- ● ●
5 VALVE; EXH 1-12552-085-0 06 1 9601-9902 ● ●
5 VALVE; EXH 1-12552-108-2 06 1 9903-0604 ● ●
5 VALVE; EXH 1-12552-108-2 06 1 0605- ●
5 VALVE; EXH
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> 		1-12552-108-2 06 1 0605- ●
5 VALVE; EXH
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-12552-108-2 06 1 0605- ●
5 VALVE; EXH 8-94395-883-0 12 1 0005-0206 ●
5 VALVE; EXH 8-97209-876-2 12 1 0207-0405 ●
5 VALVE; EXH 8-97209-876-4 12 1 0406- ● ●
7 BOLT; CM/SHF GEAR
M14X40 		8-94396-439-0 01 1 9601-9609 ●
7 BOLT; CM/SHF GEAR
M14X40 		8-94396-439-0 01 1 9610-0004 ● ●
7 BOLT; CM/SHF GEAR
M14X40 		8-94396-439-0 01 1 0005-0405 ● ● ●
7 BOLT; CM/SHF GEAR
M14X40 		8-94396-439-0 01 1 0406- ● ● ● ●
7 BOLT; CM/SHF GEAR
M14X28 		9-92061-428-0 01 1 9601- ● ●
8 WASHER; CM/SHF GEAR

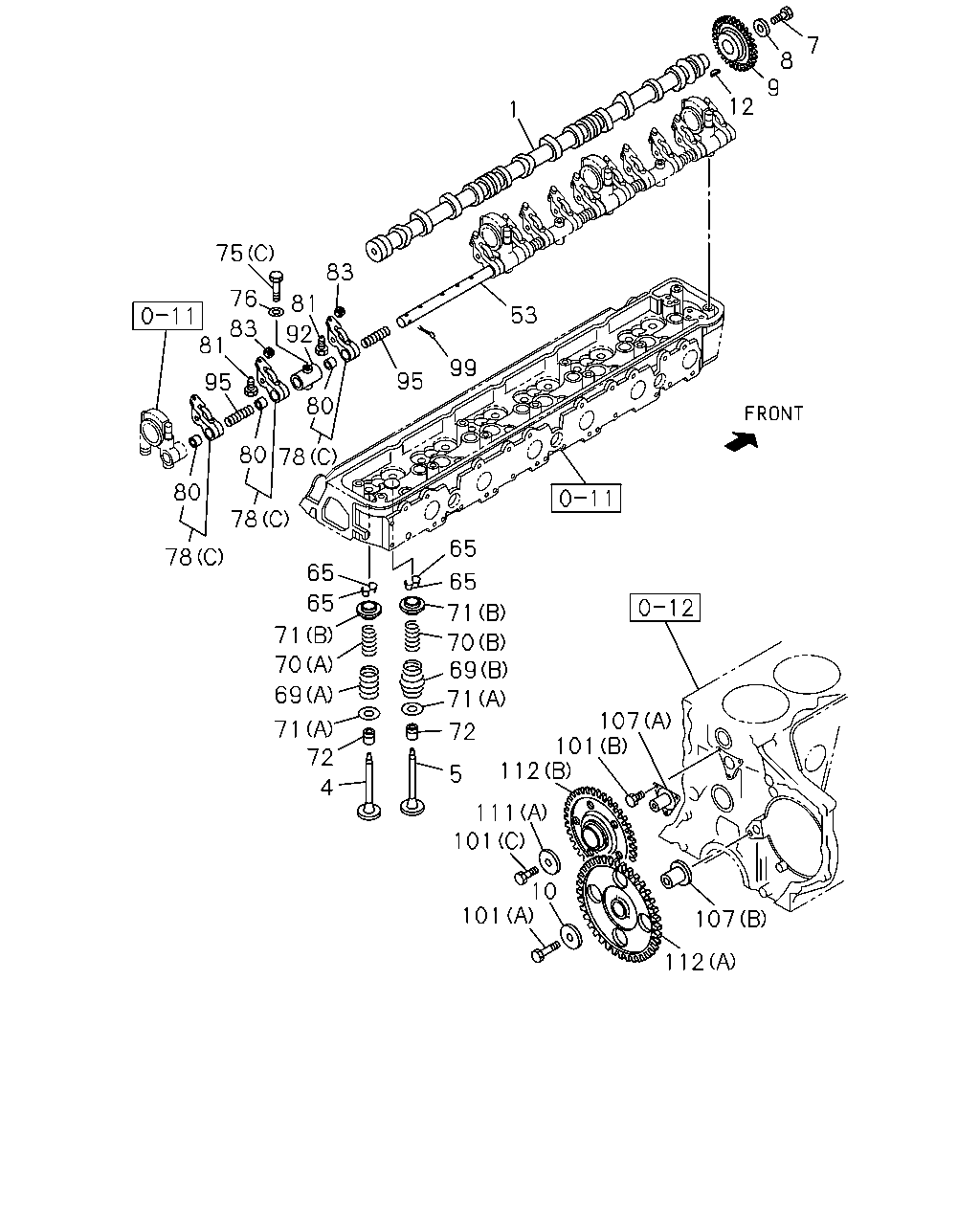

ID=14.5 		9-09851-850-3 01 1 9601-9912 ● ● ● ●
8 WASHER; CM/SHF GEAR
ID=14.5 		9-09851-850-3 01 1 0001-0405 ● ● ● ● ●
8 WASHER; CM/SHF GEAR
ID=14.5 		9-09851-850-3 01 1 0406- ● ● ● ● ● ●
9 GEAR; CM/SHF
Z=35 		8-97094-440-2 01 1 9601-9609 ●
9 GEAR; CM/SHF
Z=35 		8-97094-440-2 01 1 9610- ● ●
9 GEAR; CM/SHF
Z=36 		1-12522-037-2 01 1 9601- ● ●
9 GEAR; CM/SHF
Z=35 		8-94390-151-0 01 1 0005-0405 ●
9 GEAR; CM/SHF
Z=35 		8-94390-151-0 01 1 0406- ● ●
37 METAL; CM/SHF
UPPER B=16 		8-97356-939-0 04 1 0307-0312 ●
37 METAL; CM/SHF
UPPER B=16 		8-97356-939-0 04 1 0401-0405 ● ● ●
37 METAL; CM/SHF
UPPER B=16 		8-97356-939-0 04 1 0406-0706 ● ● ● ●
37 METAL; CM/SHF
B=16 		8-97386-189-0 04 1 0707- ● ● ● ●
37 METAL; CM/SHF 8-94393-380-0 14 1 9601-9608 ●
37 METAL; CM/SHF 8-94363-100-0 08 1 9609-9609 ●
37 METAL; CM/SHF 8-94363-100-1 08 1 9610-0206 ● ●
37 METAL; CM/SHF
B=22 		8-97602-698-0 08 1 0207-0312 ● ●
37 METAL; CM/SHF
LOWER B=22 		8-97602-698-0 04 1 0401- ● ●
37 METAL; CM/SHF 8-94390-311-1 08 1 0005-0206 ●
37 METAL; CM/SHF
B=26 		8-97602-699-0 08 1 0207-0306 ●
37 METAL; CM/SHF
LOWER B=26 		8-97602-699-0 04 1 0307-0405 ●
37 METAL; CM/SHF
LOWER B=26 		8-97602-699-0 04 1 0406- ● ●
38 PIN; CAM BRG SET
OD=7 L=7.5 		8-94399-487-0 01 1 9601-9609 ●
38 PIN; CAM BRG SET
OD=7 L=7.5 		8-94399-487-0 01 1 9610-0004 ● ●
38 PIN; CAM BRG SET
OD=7 L=7.5 		8-94399-487-0 01 1 0005-0405 ● ● ●
38 PIN; CAM BRG SET
OD=7 L=7.5 		8-94399-487-0 01 1 0406- ● ● ● ●
53 SHAFT; ROCKER ARM 8-94393-984-1 01 1 9601-9609 ●
53 SHAFT; ROCKER ARM 8-94393-984-4 01 1 9610- ● ●
53 SHAFT; ROCKER ARM 1-12621-084-1 01 1 9601- ● ●
53 SHAFT; ROCKER ARM 8-94392-996-1 01 1 0005-0405 ●
53 SHAFT; ROCKER ARM 8-94392-996-1 01 1 0406-0610 ● ●
53 SHAFT; ROCKER ARM 8-97389-918-0 01 1 0611- ● ●
61 SCREW; ADJ,BRIDGE
M8X21 		8-94394-803-0 12 1 0005-0405 ●
61 SCREW; ADJ,BRIDGE
M8X21 		8-94394-803-0 12 1 0406- ● ●
62 NUT; ADJ SCREW LK BRIDGE
M8 FLANGE 		9-09844-574-0 12 1 0005-0405 ●
62 NUT; ADJ SCREW LK BRIDGE
M8 FLANGE 		9-09844-574-0 12 1 0406- ● ●
63 BRIDGE 8-94392-002-3 12 1 0005-0405 ●
63 BRIDGE 8-94392-002-3 12 1 0406- ● ●
65 COLLAR; SPLIT 5-12565-006-0 24 1 9601-9609 ●
65 COLLAR; SPLIT 5-12565-006-0 24 1 9610- ● ●
65 COLLAR; SPLIT 1-12565-007-0 24 1 9601- ● ●
65 COLLAR; SPLIT 5-12565-004-0 48 1 0005-0405 ●
65 COLLAR; SPLIT 5-12565-004-0 48 1 0406- ● ●
68 SPRING; VLV
(A) INLET MARK BLUE 		8-94395-884-0 12 1 0005-0405 ●
68 SPRING; VLV
(A) INLET MARK BLUE 		8-94395-884-0 12 1 0406- ● ●
68 SPRING; VLV
(B) EXHAUST MARK WHITE 		8-94395-885-1 12 1 0005-0405 ●
68 SPRING; VLV
(B) EXHAUST MARK WHITE 		8-94395-885-1 12 1 0406- ● ●
71 SEAT; SPR
(B) OD=38 		8-94385-029-1 12 1 9601-9609 ●
71 SEAT; SPR
(B) OD=38 		8-94385-029-2 12 1 9610- ● ●
71 SEAT; SPR
(A) ID=14.3 T=0.5 		8-94396-014-0 12 1 9601-9609 ●
71 SEAT; SPR
(A) ID=14.3 T=0.5 		8-94396-014-0 12 1 9610- ● ●
71 SEAT; SPR
(B) 		1-12563-033-1 12 1 9601-0009 ● ●
71 SEAT; SPR
(B) 		1-12563-059-1 12 1 0010-0401 ● ●
71 SEAT; SPR
(B) 		8-97603-239-0 12 1 0402- ● ●
71 SEAT; SPR
(A) 		9-12563-231-1 12 1 9601- ● ●
71 SEAT; SPR
(B) OD=32.8 T=12.75 		8-94390-783-2 24 1 0005-0405 ●
71 SEAT; SPR
(B) OD=32.8 T=12.75 		8-94390-783-2 24 1 0406- ● ●
71 SEAT; SPR
(A) ID=14.3 T=1.0 		8-94391-468-0 24 1 0005-0405 ●
71 SEAT; SPR
(A) ID=14.3 T=1.0 		8-94391-468-0 24 1 0406- ● ●
72 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94396-609-1 12 1 9601-9609 ●
72 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94396-609-2 12 1 9610- ● ●
72 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-12569-017-0 12 1 9601- ● ●
72 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97120-307-0 24 1 0005-0405 ●
72 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97120-307-0 24 1 0406-0707 ● ●
72 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97376-720-0 24 1 0708- ● ●
75 BOLT; BRKT
(A) M8X40 FLANGE 		0-28080-840-0 04 1 0005-0006 ●
75 BOLT; BRKT
(A) M8X40 FLANGE 		0-28080-840-0 02 1 0007-0405 ●
75 BOLT; BRKT
(A) M8X40 FLANGE 		0-28080-840-0 02 1 0406-0512 ● ●
75 BOLT; BRKT
(A) M8X40 FLANGE 		0-28050-840-0 02 1 0601- ● ●
75 BOLT; BRKT
(A) M8X35 FLANGE 		0-28080-835-0 02 1 9601-9609 ●
75 BOLT; BRKT
(A) M8X35 FLANGE 		0-28080-835-0 02 1 9610-0512 ● ●
75 BOLT; BRKT
(A) M8X35 FLANGE 		0-28050-835-0 02 1 0601- ● ●
75 BOLT; BRKT
(B) M10X62 FLANGE 		8-94393-131-0 05 1 9601-9609 ●
75 BOLT; BRKT
(B) M10X62 FLANGE 		8-94393-131-0 05 1 9610-0004 ● ●
75 BOLT; BRKT
(B) M10X62 FLANGE 		8-94393-131-0 05 1 0005-0405 ● ● ●
75 BOLT; BRKT
(B) M10X62 FLANGE 		8-94393-131-0 05 1 0406- ● ● ● ●
75 BOLT; BRKT
(C) M8X55 		9-01065-855-0 03 1 9601- ● ●
78 ARM; ROCKER
(B) EXHAUST 		8-97014-258-1 06 1 9601-9609 ●
78 ARM; ROCKER
(B) EXHAUST 		8-97014-258-2 06 1 9610- ● ●
78 ARM; ROCKER
(A) INLET 		8-97074-614-0 06 1 9601-9609 ●
78 ARM; ROCKER
(A) INLET 		8-97074-614-1 06 1 9610- ● ●
78 ARM; ROCKER
(C) 		1-12610-045-3 12 1 9601- ● ●
78 ARM; ROCKER
(A) INLET 		8-94392-992-0 06 1 0005-0211 ●
78 ARM; ROCKER
(A) INLET EXHAUST 		8-97306-424-2 06 1 0212-0405 ●
78 ARM; ROCKER
(A) INLET EXHAUST 		8-97306-424-3 06 1 0406- ● ●
78 ARM; ROCKER
(B) EXHAUST 		8-94392-993-0 06 1 0005-0211 ●
78 ARM; ROCKER
(B) EXHAUST INLET 		8-97306-421-2 06 1 0212-0405 ●
78 ARM; ROCKER
(B) EXHAUST INLET 		8-97306-421-3 06 1 0406- ● ●
81 SCREW; ADJ,ROCKER ARM
M10 L=32 		8-94395-024-0 12 1 9601-9609 ●
81 SCREW; ADJ,ROCKER ARM
M10 L=32 		8-94395-024-0 12 1 9610-0004 ● ●
81 SCREW; ADJ,ROCKER ARM
M10 L=32 		8-94395-024-0 12 1 0005-0405 ● ● ●
81 SCREW; ADJ,ROCKER ARM
M10 L=32 		8-94395-024-0 12 1 0406- ● ● ● ●
81 SCREW; ADJ,ROCKER ARM 1-12616-038-0 12 1 9601- ● ●
83 NUT; ADJ SCREW,LK
M10 		9-09111-410-0 24 1 0005-0006 ●
83 NUT; ADJ SCREW,LK
M10 		9-09111-410-0 12 1 0007-0405 ● ● ●
83 NUT; ADJ SCREW,LK
M10 		9-09111-410-0 12 1 0406-0512 ● ● ● ●
83 NUT; ADJ SCREW,LK
M10 		0-91111-510-0 12 1 0601- ● ● ● ●
83 NUT; ADJ SCREW,LK
M10 		9-09111-510-0 12 1 9601-9609 ●
83 NUT; ADJ SCREW,LK
M10 		9-09111-510-0 12 1 9610-9705 ● ●
83 NUT; ADJ SCREW,LK
M10 		9-09111-410-0 12 1 9706-0006 ● ●
83 NUT; ADJ SCREW,LK
M8 FLANGE 		9-09844-574-0 12 1 9601- ● ●
84 BRACKET; ROCKER SHAFT,INTER 8-94388-109-3 05 1 9601-9609 ●
84 BRACKET; ROCKER SHAFT,INTER 8-94388-109-3 05 1 9610- ● ●
84 BRACKET; ROCKER SHAFT,INTER 8-94395-836-2 05 1 0005-0405 ●
84 BRACKET; ROCKER SHAFT,INTER 8-94395-836-2 05 1 0406- ● ●
95 SPRING; ROCKER SHAFT 8-94397-263-0 06 1 9601-9609 ●
95 SPRING; ROCKER SHAFT 8-94397-263-0 06 1 9610- ● ●
95 SPRING; ROCKER SHAFT 1-09580-335-0 06 1 9601- ● ●
95 SPRING; ROCKER SHAFT 8-94392-999-0 06 1 0005-0405 ●
95 SPRING; ROCKER SHAFT 8-94392-999-0 06 1 0406- ● ●
114 BOLT; IDLE GEAR
M14X36.5 		8-94372-221-1 01 1 9601-9609 ●
114 BOLT; IDLE GEAR
M14X36.5 		8-94372-221-1 01 1 9610-0004 ● ●
114 BOLT; IDLE GEAR
M14X36.5 		8-94372-221-1 01 1 0005-0405 ● ● ●
114 BOLT; IDLE GEAR
M14X36.5 		8-94372-221-1 01 1 0406- ● ● ● ●
115 WASHER; THRUST,IDLE GEAR
ID=14.5 OD=46 		8-94370-688-0 01 1 9601-9609 ●
115 WASHER; THRUST,IDLE GEAR
ID=14.5 OD=46 		8-94370-688-0 01 1 9610-0004 ● ●
115 WASHER; THRUST,IDLE GEAR
ID=14.5 OD=46 		8-94370-688-0 01 1 0005-0306 ● ● ●
115 WASHER; THRUST,IDLE GEAR
ID=14.5 OD=46 		8-97209-728-1 01 1 0307-0405 ● ● ●
115 WASHER; THRUST,IDLE GEAR
ID=14.5 OD=46 		8-97209-728-2 01 1 0406- ● ● ● ●
212 CAP; ADJ SCREW 8-94396-015-1 12 1 9601-9609 ●
212 CAP; ADJ SCREW 8-94396-015-2 12 1 9610-0004 ● ●
212 CAP; ADJ SCREW 8-94396-015-2 12 1 0005-0405 ● ● ●
212 CAP; ADJ SCREW 8-94396-015-2 12 1 0406- ● ● ● ●
241 RING; FRICTION 8-94390-562-0 01 1 0005-0311 ●
241 RING; FRICTION 8-97603-297-0 01 1 0312-0405 ●
241 RING; FRICTION 8-97603-297-0 01 1 0406- ● ●

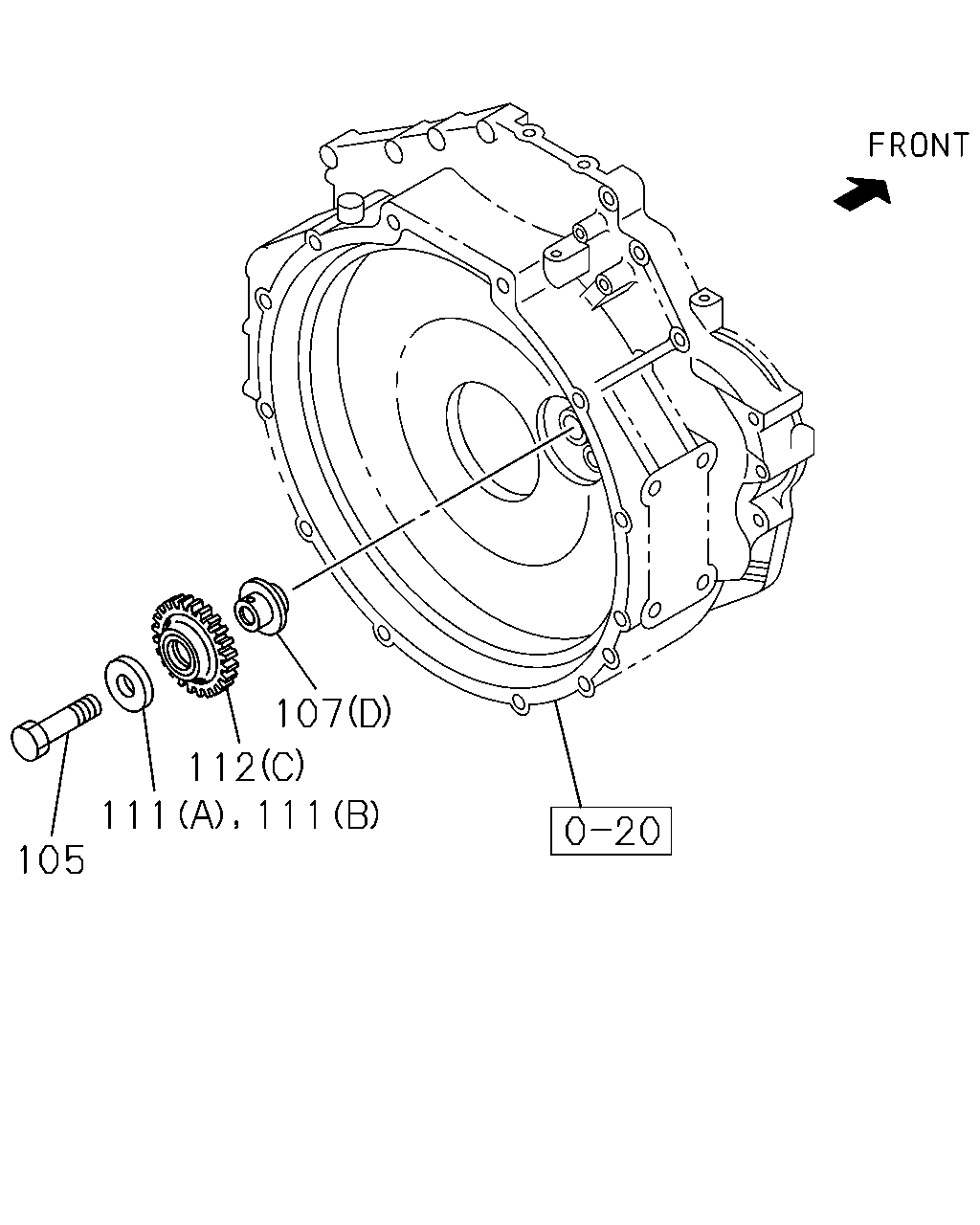

çizim 184214
107 112 111 111 105
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
105 BOLT; IDLE GEAR SHAFT
M14X65 		8-97066-798-0 01 1 9610-9803 ●
105 BOLT; IDLE GEAR SHAFT
EURO2 SPECIFICATION<THN> M14X65 		8-97066-798-0 01 1 9804-0405 ●
105 BOLT; IDLE GEAR SHAFT
M14X65 		8-97066-798-0 01 1 0406- ● ●
107 SHAFT; IDLE GEAR
(A) 		8-97073-938-1 01 1 9601-9609 ●
107 SHAFT; IDLE GEAR
(A) 		8-97073-938-1 01 1 9610-9805 ● ●
107 SHAFT; IDLE GEAR
(B) 		8-97104-380-0 01 1 9601-9607 ●
107 SHAFT; IDLE GEAR
EXC. ENGINE REAR PTO<SV1> (B) 		8-97104-380-0 01 1 9608-9803 ●
107 SHAFT; IDLE GEAR
EXC. ENGINE REAR PTO<SV1> (B) 		8-97104-380-0 01 1 9804-0004 ●
107 SHAFT; IDLE GEAR
EXC. EURO2 SPECIFICATION<THN> (B) 		8-97104-380-0 01 1 9804-0004 ●
107 SHAFT; IDLE GEAR
(B) 		8-97104-380-0 01 1 0005-0405 ●
107 SHAFT; IDLE GEAR
EXC. EURO2 SPECIFICATION<THN> (B) 		8-97104-380-0 01 1 0005-0405 ●
107 SHAFT; IDLE GEAR
(B) 		8-97104-380-0 01 1 0406-0609 ●
107 SHAFT; IDLE GEAR
(B) 		8-98060-780-0 01 1 0610- ●
107 SHAFT; IDLE GEAR
(A) 		8-97189-244-0 01 1 9806-0004 ● ●
107 SHAFT; IDLE GEAR
(A) 		8-97189-244-1 01 1 0005-0204 ● ● ●
107 SHAFT; IDLE GEAR
(A) 		8-97350-021-0 01 1 0205-0405 ● ● ●
107 SHAFT; IDLE GEAR
(A) 		8-97350-021-0 01 1 0406- ● ● ● ●
107 SHAFT; IDLE GEAR
(A) 		1-12531-054-1 01 1 9601-0011 ● ●
107 SHAFT; IDLE GEAR
(A) 		1-12531-097-2 01 1 0012- ● ●
107 SHAFT; IDLE GEAR
(B) 		1-12531-064-0 01 1 9601-0011 ● ●
107 SHAFT; IDLE GEAR
(B) 		1-12531-099-0 01 1 0012- ● ●
107 SHAFT; IDLE GEAR
(C) 		8-94395-073-2 01 1 9610-9803 ●
107 SHAFT; IDLE GEAR
EURO2 SPECIFICATION<THN> (C) 		8-94395-073-2 01 1 9804-0004 ●
107 SHAFT; IDLE GEAR
EURO2 SPECIFICATION<THN> (C) 		8-94395-073-2 01 1 0005-0205 ●
107 SHAFT; IDLE GEAR
(C) 		8-94395-073-2 01 1 0005-0205 ●
107 SHAFT; IDLE GEAR
EURO2 SPECIFICATION<THN> (C) 		8-97602-588-0 01 1 0206-0405 ●
107 SHAFT; IDLE GEAR
(C) 		8-97602-588-0 01 1 0206-0405 ●
107 SHAFT; IDLE GEAR
(C) 		8-97602-588-0 01 1 0406- ● ● ●
107 SHAFT; IDLE GEAR
(D) 		8-94395-096-0 01 1 9610-9803 ●
107 SHAFT; IDLE GEAR
EURO2 SPECIFICATION<THN> (D) 		8-94395-096-0 01 1 9804-0304 ●
107 SHAFT; IDLE GEAR
EURO2 SPECIFICATION<THN> (D) 		8-94334-682-0 01 1 0305-0405 ●
107 SHAFT; IDLE GEAR
(D) 		8-94334-682-1 01 1 0406- ● ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=46 		8-94370-688-0 01 1 9608-9803 ● ● ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=46 		8-94370-688-0 01 1 9804-9904 ● ● ●
111 COLLAR; THRUST,IDLE GEAR
FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. EURO2 SPECIFICATION<THN> (A) ID=14.5 OD=46 		8-94370-688-0 01 1 9804-9904 ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=46 		8-94370-688-0 01 1 9905-9912 ● ● ●
111 COLLAR; THRUST,IDLE GEAR
EXC. ENGINE REAR PTO<SV1> (A) ID=14.5 OD=46 		8-94370-688-0 01 1 9905-9912 ●
111 COLLAR; THRUST,IDLE GEAR
EXC. EURO2 SPECIFICATION<THN> (A) ID=14.5 OD=46 		8-94370-688-0 01 1 9905-9912 ●
111 COLLAR; THRUST,IDLE GEAR
EXC. EURO2 SPECIFICATION<THN> (A) ID=14.5 OD=46 		8-94370-688-0 01 1 9905-9912 ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=46 		8-94370-688-0 01 1 0001-0004 ● ● ●
111 COLLAR; THRUST,IDLE GEAR
EXC. ENGINE REAR PTO<SV1> (A) ID=14.5 OD=46 		8-94370-688-0 01 1 0001-0004 ●
111 COLLAR; THRUST,IDLE GEAR
EXC. EURO2 SPECIFICATION<THN> (A) ID=14.5 OD=46 		8-94370-688-0 01 1 0001-0004 ●
111 COLLAR; THRUST,IDLE GEAR
EXC. EURO2 SPECIFICATION<THN> (A) ID=14.5 OD=46 		8-94370-688-0 01 1 0001-0004 ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=46 		8-94370-688-0 02 1 0005-0306 ●
111 COLLAR; THRUST,IDLE GEAR
EXC. EURO2 SPECIFICATION<THN> (A) ID=14.5 OD=46 		8-94370-688-0 02 1 0005-0306 ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=46 		8-97209-728-1 02 1 0307-0405 ●
111 COLLAR; THRUST,IDLE GEAR
EXC. EURO2 SPECIFICATION<THN> (A) ID=14.5 OD=46 		8-97209-728-1 02 1 0307-0405 ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=46 		8-97209-728-2 02 1 0406- ● ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=46 		8-94370-688-0 01 1 9601-9607 ● ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=46 		8-94370-688-0 02 1 9610-9803 ●
111 COLLAR; THRUST,IDLE GEAR
EURO2 SPECIFICATION<THN> (A) ID=14.5 OD=46 		8-94370-688-0 02 1 9804-0004 ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=46 		8-94370-688-0 01 1 0005-0306 ● ● ●
111 COLLAR; THRUST,IDLE GEAR
EURO2 SPECIFICATION<THN> (A) ID=14.5 OD=46 		8-94370-688-0 01 1 0005-0306 ●
111 COLLAR; THRUST,IDLE GEAR
EURO2 SPECIFICATION<THN> (A) ID=14.5 OD=46 		8-94370-688-0 01 1 0005-0306 ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=46 		8-97209-728-1 01 1 0307-0405 ● ● ●
111 COLLAR; THRUST,IDLE GEAR
EURO2 SPECIFICATION<THN> (A) ID=14.5 OD=46 		8-97209-728-1 01 1 0307-0405 ●
111 COLLAR; THRUST,IDLE GEAR
EURO2 SPECIFICATION<THN> (A) ID=14.5 OD=46 		8-97209-728-1 01 1 0307-0405 ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=46 		8-97209-728-2 01 1 0406- ● ● ● ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=46 		8-97209-728-2 01 1 0406- ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=46 		8-94370-688-0 02 1 9601-9607 ●
111 COLLAR; THRUST,IDLE GEAR
ENGINE REAR PTO<SV1> (C) ID=24 OD=60 		8-94396-897-0 01 1 9608-0004 ●
111 COLLAR; THRUST,IDLE GEAR
(B) ID=24 OD=70 		8-94394-097-1 01 1 9610-9803 ●
111 COLLAR; THRUST,IDLE GEAR
EURO2 SPECIFICATION<THN> (B) ID=24 OD=70 		8-94394-097-1 01 1 9804-0004 ●
111 COLLAR; THRUST,IDLE GEAR
EURO2 SPECIFICATION<THN> (B) ID=24 OD=70 		8-94394-097-1 01 1 0005-0405 ●
111 COLLAR; THRUST,IDLE GEAR
(B) ID=24 OD=70 		8-94394-097-1 01 1 0005-0405 ●
111 COLLAR; THRUST,IDLE GEAR
(B) ID=24 OD=70 		8-94394-097-1 01 1 0406- ● ● ●
112 GEAR; IDLE
(B) Z=72-30 		8-94395-107-1 01 1 9601-9607 ●
112 GEAR; IDLE
EXC. ENGINE REAR PTO<SV1> (B) Z=72-30 		8-94395-107-1 01 1 9608-9803 ●
112 GEAR; IDLE
EXC. ENGINE REAR PTO<SV1> (B) Z=72-30 		8-94395-107-1 01 1 9804-0004 ●
112 GEAR; IDLE
EXC. EURO2 SPECIFICATION<THN> (B) Z=72-30 		8-94395-107-1 01 1 9804-0004 ●
112 GEAR; IDLE
(B) Z=72-30 		8-94395-107-1 01 1 0005-0405 ●
112 GEAR; IDLE
EXC. EURO2 SPECIFICATION<THN> (B) Z=72-30 		8-94395-107-1 01 1 0005-0405 ●
112 GEAR; IDLE
(B) Z=72-30 		8-94395-107-1 01 1 0406-0609 ●
112 GEAR; IDLE
(B) Z=72-30 		8-97227-074-0 01 1 0610- ●
112 GEAR; IDLE
(A) Z=61 		8-97094-546-1 01 1 9601-9803 ●
112 GEAR; IDLE
(A) Z=61 		8-97094-546-1 01 1 9804-0405 ●
112 GEAR; IDLE
EXC. EURO2 SPECIFICATION<THN> (A) Z=61 		8-97094-546-1 01 1 9804-0405 ●
112 GEAR; IDLE
(A) Z=61 		8-97094-546-2 01 1 0406- ●
112 GEAR; IDLE
ENGINE REAR PTO<SV1> (B) Z=72-30 		8-94395-109-1 01 1 9608-0004 ●
112 GEAR; IDLE
(A) Z=69-27 		1-12523-241-0 01 1 9601-0011 ● ●
112 GEAR; IDLE
(A) Z=69-27 		1-12523-346-0 01 1 0012- ● ●
112 GEAR; IDLE
(B) Z=62 		1-12523-242-0 01 1 9601-0011 ● ●
112 GEAR; IDLE
(B) Z=62 		1-12523-347-0 01 1 0012- ● ●
112 GEAR; IDLE
(A) Z=61 		8-94393-439-3 01 1 9610-9803 ●
112 GEAR; IDLE
EURO2 SPECIFICATION<THN> (A) Z=61 		8-94393-439-3 01 1 9804-0004 ●
112 GEAR; IDLE
EURO2 SPECIFICATION<THN> (A) Z=61 		8-94393-439-3 01 1 0005-0405 ●
112 GEAR; IDLE
(A) Z=61 		8-94393-439-3 01 1 0005-0405 ●
112 GEAR; IDLE
(A) Z=61 		8-94393-439-4 01 1 0406- ● ● ●
112 GEAR; IDLE
(B) Z=72-30 		8-94394-092-3 01 1 9610-9803 ●
112 GEAR; IDLE
EURO2 SPECIFICATION<THN> (B) Z=72-30 		8-94394-092-3 01 1 9804-0004 ●
112 GEAR; IDLE
EURO2 SPECIFICATION<THN> (B) Z=72-30 		8-94394-092-3 01 1 0005-0405 ●
112 GEAR; IDLE
(B) Z=72-30 		8-94394-092-3 01 1 0005-0405 ●
112 GEAR; IDLE
(B) Z=72-30 		8-94394-092-3 01 1 0406- ● ● ●
112 GEAR; IDLE
(C) Z=34 		8-94394-509-2 01 1 9610-9803 ●
112 GEAR; IDLE
EURO2 SPECIFICATION<THN> (C) Z=34 		8-94394-509-2 01 1 9804-0405 ●
112 GEAR; IDLE
(C) Z=34 		8-94394-509-3 01 1 0406- ● ●
çizim 184216
7 8 9 12 1 75 83 76 81 92 53 83 81 99 80 95 95 80 78 80 78 65 78 65 65 65 71 71 70 69 70 69 71 107 101 112 71 72 72 5 4 111 101 10 101 107 112
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 CAMSHAFT
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) 		1-12511-274-1 01 1 0605- ●
1 CAMSHAFT 8-94395-576-2 01 1 9601-1311 ●
1 CAMSHAFT 8-98227-259-1 01 1 1312- ●
1 CAMSHAFT 1-12511-254-1 01 1 9601- ●
1 CAMSHAFT 1-12511-249-1 01 1 9601-0604 ●
1 CAMSHAFT
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> 		1-12511-249-1 01 1 0605- ●
1 CAMSHAFT
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-12511-249-1 01 1 0605- ●
1 CAMSHAFT 8-94395-758-2 01 1 9610-0405 ●
1 CAMSHAFT 8-94390-469-1 01 1 0406-1311 ● ●
1 CAMSHAFT 8-98227-260-1 01 1 1312- ● ●
1 CAMSHAFT 8-94390-469-1 01 1 0005-0405 ●
1 CAMSHAFT 8-94395-758-2 01 1 0406-1311 ●
1 CAMSHAFT 8-98227-258-1 01 1 1312- ●
4 VALVE; INL 8-94395-882-2 12 1 0406- ●
4 VALVE; INL 8-94394-160-2 06 1 9601- ●
4 VALVE; INL 1-12551-158-3 06 1 9601- ●
4 VALVE; INL 1-12551-126-1 06 1 9601-0204 ●
4 VALVE; INL 1-12551-161-4 06 1 0205- ●
4 VALVE; INL 8-94395-113-1 06 1 9610- ●
4 VALVE; INL 8-94395-881-3 12 1 0005- ●
5 VALVE; EXH
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) 		1-12552-099-2 06 1 0605- ●
5 VALVE; EXH 8-94395-462-0 06 1 9601-9609 ●
5 VALVE; EXH 8-94395-462-2 06 1 9610- ● ●
5 VALVE; EXH 1-12552-085-0 06 1 9601-9902 ● ●
5 VALVE; EXH 1-12552-108-2 06 1 9903-0604 ● ●
5 VALVE; EXH 1-12552-108-2 06 1 0605- ●
5 VALVE; EXH
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> 		1-12552-108-2 06 1 0605- ●
5 VALVE; EXH
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-12552-108-2 06 1 0605- ●
5 VALVE; EXH 8-94395-883-0 12 1 0005-0206 ●
5 VALVE; EXH 8-97209-876-2 12 1 0207-0405 ●
5 VALVE; EXH 8-97209-876-4 12 1 0406- ● ●
7 BOLT; CM/SHF GEAR
M14X40 		8-94396-439-0 01 1 9601-9609 ●
7 BOLT; CM/SHF GEAR
M14X40 		8-94396-439-0 01 1 9610-0004 ● ●
7 BOLT; CM/SHF GEAR
M14X40 		8-94396-439-0 01 1 0005-0405 ● ● ●
7 BOLT; CM/SHF GEAR
M14X40 		8-94396-439-0 01 1 0406- ● ● ● ●
7 BOLT; CM/SHF GEAR
M14X28 		9-92061-428-0 01 1 9601- ● ●
8 WASHER; CM/SHF GEAR
ID=14.5 		9-09851-850-3 01 1 9601-9912 ● ● ● ●
8 WASHER; CM/SHF GEAR
ID=14.5 		9-09851-850-3 01 1 0001-0405 ● ● ● ● ●
8 WASHER; CM/SHF GEAR
ID=14.5 		9-09851-850-3 01 1 0406- ● ● ● ● ● ●
9 GEAR; CM/SHF
Z=35 		8-97094-440-2 01 1 9601-9609 ●
9 GEAR; CM/SHF
Z=35 		8-97094-440-2 01 1 9610- ● ●
9 GEAR; CM/SHF
Z=36 		1-12522-037-2 01 1 9601- ● ●
9 GEAR; CM/SHF
Z=35 		8-94390-151-0 01 1 0005-0405 ●
9 GEAR; CM/SHF
Z=35 		8-94390-151-0 01 1 0406- ● ●
10 PLATE; THRUST
ID=24.5 OD=62 		1-12535-021-1 01 1 9601- ● ●
12 KEY; CAM GEAR SET 9-08055-516-0 01 1 9601- ● ●
53 SHAFT; ROCKER ARM 8-94393-984-1 01 1 9601-9609 ●
53 SHAFT; ROCKER ARM 8-94393-984-4 01 1 9610- ● ●
53 SHAFT; ROCKER ARM 1-12621-084-1 01 1 9601- ● ●
53 SHAFT; ROCKER ARM 8-94392-996-1 01 1 0005-0405 ●
53 SHAFT; ROCKER ARM 8-94392-996-1 01 1 0406-0610 ● ●
53 SHAFT; ROCKER ARM 8-97389-918-0 01 1 0611- ● ●
65 COLLAR; SPLIT 5-12565-006-0 24 1 9601-9609 ●
65 COLLAR; SPLIT 5-12565-006-0 24 1 9610- ● ●
65 COLLAR; SPLIT 1-12565-007-0 24 1 9601- ● ●
65 COLLAR; SPLIT 5-12565-004-0 48 1 0005-0405 ●
65 COLLAR; SPLIT 5-12565-004-0 48 1 0406- ● ●
69 SPRING; VLV,OUTER
(B) EXHAUST 		8-94393-310-0 06 1 9601-9609 ●
69 SPRING; VLV,OUTER
(B) EXHAUST 		8-94393-310-0 06 1 9610- ● ●
69 SPRING; VLV,OUTER
(A) INLET 		8-94394-996-0 06 1 9601-9609 ●
69 SPRING; VLV,OUTER
(A) INLET 		8-94394-996-0 06 1 9610-0111 ● ●
69 SPRING; VLV,OUTER
(A) INLET MARK PINK 		8-97120-912-0 06 1 0112- ● ●
69 SPRING; VLV,OUTER
(B) EXHAUST 		1-12561-052-0 06 1 9601- ●
69 SPRING; VLV,OUTER
(A) INLET 		1-12561-051-0 06 1 9601- ● ●
69 SPRING; VLV,OUTER
(B) EXHAUST 		1-12561-072-0 06 1 9601- ●
70 SPRING; VLV,INNER
(A) INLET 		8-94395-266-0 06 1 9601-9609 ●
70 SPRING; VLV,INNER
(A) INLET 		8-94395-266-0 06 1 9610-0111 ● ●
70 SPRING; VLV,INNER
(A) INLET MARK PINK 		8-97120-911-0 06 1 0112- ● ●
70 SPRING; VLV,INNER
(B) EXHAUST 		8-94397-500-0 06 1 9601-9609 ●
70 SPRING; VLV,INNER
(B) EXHAUST 		8-94397-500-0 06 1 9610- ● ●
70 SPRING; VLV,INNER
(B) EXHAUST 		1-12562-033-0 06 1 9601- ●
70 SPRING; VLV,INNER
(A) INLET 		1-12562-032-0 06 1 9601- ● ●
70 SPRING; VLV,INNER
(B) EXHAUST 		1-12561-073-0 06 1 9601- ●
71 SEAT; SPR
(B) OD=38 		8-94385-029-1 12 1 9601-9609 ●
71 SEAT; SPR
(B) OD=38 		8-94385-029-2 12 1 9610- ● ●
71 SEAT; SPR
(A) ID=14.3 T=0.5 		8-94396-014-0 12 1 9601-9609 ●
71 SEAT; SPR
(A) ID=14.3 T=0.5 		8-94396-014-0 12 1 9610- ● ●
71 SEAT; SPR
(B) 		1-12563-033-1 12 1 9601-0009 ● ●
71 SEAT; SPR
(B) 		1-12563-059-1 12 1 0010-0401 ● ●
71 SEAT; SPR
(B) 		8-97603-239-0 12 1 0402- ● ●
71 SEAT; SPR
(A) 		9-12563-231-1 12 1 9601- ● ●
71 SEAT; SPR
(B) OD=32.8 T=12.75 		8-94390-783-2 24 1 0005-0405 ●
71 SEAT; SPR
(B) OD=32.8 T=12.75 		8-94390-783-2 24 1 0406- ● ●
71 SEAT; SPR
(A) ID=14.3 T=1.0 		8-94391-468-0 24 1 0005-0405 ●
71 SEAT; SPR
(A) ID=14.3 T=1.0 		8-94391-468-0 24 1 0406- ● ●
72 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94396-609-1 12 1 9601-9609 ●
72 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94396-609-2 12 1 9610- ● ●
72 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-12569-017-0 12 1 9601- ● ●
72 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97120-307-0 24 1 0005-0405 ●
72 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97120-307-0 24 1 0406-0707 ● ●
72 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97376-720-0 24 1 0708- ● ●
75 BOLT; BRKT
(A) M8X40 FLANGE 		0-28080-840-0 04 1 0005-0006 ●
75 BOLT; BRKT
(A) M8X40 FLANGE 		0-28080-840-0 02 1 0007-0405 ●
75 BOLT; BRKT
(A) M8X40 FLANGE 		0-28080-840-0 02 1 0406-0512 ● ●
75 BOLT; BRKT
(A) M8X40 FLANGE 		0-28050-840-0 02 1 0601- ● ●
75 BOLT; BRKT
(A) M8X35 FLANGE 		0-28080-835-0 02 1 9601-9609 ●
75 BOLT; BRKT
(A) M8X35 FLANGE 		0-28080-835-0 02 1 9610-0512 ● ●
75 BOLT; BRKT
(A) M8X35 FLANGE 		0-28050-835-0 02 1 0601- ● ●
75 BOLT; BRKT
(B) M10X62 FLANGE 		8-94393-131-0 05 1 9601-9609 ●
75 BOLT; BRKT
(B) M10X62 FLANGE 		8-94393-131-0 05 1 9610-0004 ● ●
75 BOLT; BRKT
(B) M10X62 FLANGE 		8-94393-131-0 05 1 0005-0405 ● ● ●
75 BOLT; BRKT
(B) M10X62 FLANGE 		8-94393-131-0 05 1 0406- ● ● ● ●
75 BOLT; BRKT
(C) M8X55 		9-01065-855-0 03 1 9601- ● ●
76 WASHER; PL,BRKT 9-09851-430-0 03 1 9601- ● ●
78 ARM; ROCKER
(B) EXHAUST 		8-97014-258-1 06 1 9601-9609 ●
78 ARM; ROCKER
(B) EXHAUST 		8-97014-258-2 06 1 9610- ● ●
78 ARM; ROCKER
(A) INLET 		8-97074-614-0 06 1 9601-9609 ●
78 ARM; ROCKER
(A) INLET 		8-97074-614-1 06 1 9610- ● ●
78 ARM; ROCKER
(C) 		1-12610-045-3 12 1 9601- ● ●
78 ARM; ROCKER
(A) INLET 		8-94392-992-0 06 1 0005-0211 ●
78 ARM; ROCKER
(A) INLET EXHAUST 		8-97306-424-2 06 1 0212-0405 ●
78 ARM; ROCKER
(A) INLET EXHAUST 		8-97306-424-3 06 1 0406- ● ●
78 ARM; ROCKER
(B) EXHAUST 		8-94392-993-0 06 1 0005-0211 ●
78 ARM; ROCKER
(B) EXHAUST INLET 		8-97306-421-2 06 1 0212-0405 ●
78 ARM; ROCKER
(B) EXHAUST INLET 		8-97306-421-3 06 1 0406- ● ●
80 BUSHING; ROCKER ARM 1-12615-013-1 12 1 9601- ● ●
81 SCREW; ADJ,ROCKER ARM
M10 L=32 		8-94395-024-0 12 1 9601-9609 ●
81 SCREW; ADJ,ROCKER ARM
M10 L=32 		8-94395-024-0 12 1 9610-0004 ● ●
81 SCREW; ADJ,ROCKER ARM
M10 L=32 		8-94395-024-0 12 1 0005-0405 ● ● ●
81 SCREW; ADJ,ROCKER ARM
M10 L=32 		8-94395-024-0 12 1 0406- ● ● ● ●
81 SCREW; ADJ,ROCKER ARM 1-12616-038-0 12 1 9601- ● ●
83 NUT; ADJ SCREW,LK
M10 		9-09111-410-0 24 1 0005-0006 ●
83 NUT; ADJ SCREW,LK
M10 		9-09111-410-0 12 1 0007-0405 ● ● ●
83 NUT; ADJ SCREW,LK
M10 		9-09111-410-0 12 1 0406-0512 ● ● ● ●
83 NUT; ADJ SCREW,LK
M10 		0-91111-510-0 12 1 0601- ● ● ● ●
83 NUT; ADJ SCREW,LK
M10 		9-09111-510-0 12 1 9601-9609 ●
83 NUT; ADJ SCREW,LK
M10 		9-09111-510-0 12 1 9610-9705 ● ●
83 NUT; ADJ SCREW,LK
M10 		9-09111-410-0 12 1 9706-0006 ● ●
83 NUT; ADJ SCREW,LK
M8 FLANGE 		9-09844-574-0 12 1 9601- ● ●
92 BRACKET; ROCKER ARM 1-12628-045-0 03 1 9601- ● ●
95 SPRING; ROCKER SHAFT 8-94397-263-0 06 1 9601-9609 ●
95 SPRING; ROCKER SHAFT 8-94397-263-0 06 1 9610- ● ●
95 SPRING; ROCKER SHAFT 1-09580-335-0 06 1 9601- ● ●
95 SPRING; ROCKER SHAFT 8-94392-999-0 06 1 0005-0405 ●
95 SPRING; ROCKER SHAFT 8-94392-999-0 06 1 0406- ● ●
99 PIN; SPLIT,ROCKER ARM SHAFT
OD=1.8 L=25 		9-08112-025-0 02 1 9601-0606 ● ●
99 PIN; SPLIT,ROCKER ARM SHAFT
OD=1.8 L=25 		0-81122-025-0 02 1 0607- ● ●
101 BOLT; THRUST COLLAR
(B) M8X14 		8-97073-782-0 03 1 9601-9611 ●
101 BOLT; THRUST COLLAR
(A) M14X60 		9-91666-460-0 01 1 9601-9607 ●
101 BOLT; THRUST COLLAR
EXC. ENGINE REAR PTO<SV1> (A) M14X60 		9-91666-460-0 01 1 9608-9803 ●
101 BOLT; THRUST COLLAR
EXC. ENGINE REAR PTO<SV1> (A) M14X60 		9-91666-460-0 01 1 9804-0004 ●
101 BOLT; THRUST COLLAR
EXC. EURO2 SPECIFICATION<THN> (A) M14X60 		9-91666-460-0 01 1 9804-0004 ●
101 BOLT; THRUST COLLAR
(A) M14X60 		9-91666-460-0 01 1 0005-0405 ●
101 BOLT; THRUST COLLAR
EXC. EURO2 SPECIFICATION<THN> (A) M14X60 		9-91666-460-0 01 1 0005-0405 ●
101 BOLT; THRUST COLLAR
(A) M14X60 		9-91666-460-0 01 1 0406-0512 ●
101 BOLT; THRUST COLLAR
(A) M14X60 		0-16956-460-0 01 1 0601- ●
101 BOLT; THRUST COLLAR
(C) M14X30 		9-92361-430-0 01 1 9601-9609 ●
101 BOLT; THRUST COLLAR
(C) M14X30 		9-92361-430-0 01 1 9610-0004 ● ●
101 BOLT; THRUST COLLAR
(C) M14X30 		9-92361-430-0 01 1 0005-0405 ● ● ●
101 BOLT; THRUST COLLAR
(C) M14X30 		9-92361-430-0 01 1 0406-0512 ● ● ● ●
101 BOLT; THRUST COLLAR
(C) M14X30 		0-23951-430-0 01 1 0601- ● ● ● ●
101 BOLT; THRUST COLLAR
(B) M8X14 FLANGE 		0-28080-814-0 03 1 9601- ● ●
101 BOLT; THRUST COLLAR
(C) M14X16 		1-09000-284-0 01 1 9601- ● ●
101 BOLT; THRUST COLLAR
(A) M12X57 		1-09070-127-0 01 1 9601- ● ●
101 BOLT; THRUST COLLAR
(B) M8X16 FLANGE 		0-28090-816-0 03 1 9610-9611 ●
101 BOLT; THRUST COLLAR
(B) M8X16 FLANGE 		0-28090-816-0 03 1 9612-0004 ● ●
101 BOLT; THRUST COLLAR
(B) M8X16 FLANGE 		0-28090-816-0 03 1 0005-0405 ● ● ●
101 BOLT; THRUST COLLAR
(B) M8X16 FLANGE 		0-28090-816-0 03 1 0406-0512 ● ● ● ●
101 BOLT; THRUST COLLAR
(B) M8X16 FLANGE 		0-28060-816-0 03 1 0601- ● ● ● ●
101 BOLT; THRUST COLLAR
(A) M14X67 HEX SOCKET 		8-94394-779-0 01 1 9610-9803 ●
101 BOLT; THRUST COLLAR
EURO2 SPECIFICATION<THN> (A) M14X67 HEX SOCKET 		8-94394-779-2 01 1 9804-0004 ●
101 BOLT; THRUST COLLAR
EURO2 SPECIFICATION<THN> (A) M14X67 HEX SOCKET 		8-94394-779-2 01 1 0005-0405 ●
101 BOLT; THRUST COLLAR
(A) M14X67 HEX SOCKET 		8-94394-779-2 01 1 0005-0405 ●
101 BOLT; THRUST COLLAR
(A) M14X67 HEX SOCKET 		8-94394-779-2 01 1 0406- ● ● ●
107 SHAFT; IDLE GEAR
(A) 		8-97073-938-1 01 1 9601-9609 ●
107 SHAFT; IDLE GEAR
(A) 		8-97073-938-1 01 1 9610-9805 ● ●
107 SHAFT; IDLE GEAR
(B) 		8-97104-380-0 01 1 9601-9607 ●
107 SHAFT; IDLE GEAR
EXC. ENGINE REAR PTO<SV1> (B) 		8-97104-380-0 01 1 9608-9803 ●
107 SHAFT; IDLE GEAR
EXC. ENGINE REAR PTO<SV1> (B) 		8-97104-380-0 01 1 9804-0004 ●
107 SHAFT; IDLE GEAR
EXC. EURO2 SPECIFICATION<THN> (B) 		8-97104-380-0 01 1 9804-0004 ●
107 SHAFT; IDLE GEAR
(B) 		8-97104-380-0 01 1 0005-0405 ●
107 SHAFT; IDLE GEAR
EXC. EURO2 SPECIFICATION<THN> (B) 		8-97104-380-0 01 1 0005-0405 ●
107 SHAFT; IDLE GEAR
(B) 		8-97104-380-0 01 1 0406-0609 ●
107 SHAFT; IDLE GEAR
(B) 		8-98060-780-0 01 1 0610- ●
107 SHAFT; IDLE GEAR
(A) 		8-97189-244-0 01 1 9806-0004 ● ●
107 SHAFT; IDLE GEAR
(A) 		8-97189-244-1 01 1 0005-0204 ● ● ●
107 SHAFT; IDLE GEAR
(A) 		8-97350-021-0 01 1 0205-0405 ● ● ●
107 SHAFT; IDLE GEAR
(A) 		8-97350-021-0 01 1 0406- ● ● ● ●
107 SHAFT; IDLE GEAR
(A) 		1-12531-054-1 01 1 9601-0011 ● ●
107 SHAFT; IDLE GEAR
(A) 		1-12531-097-2 01 1 0012- ● ●
107 SHAFT; IDLE GEAR
(B) 		1-12531-064-0 01 1 9601-0011 ● ●
107 SHAFT; IDLE GEAR
(B) 		1-12531-099-0 01 1 0012- ● ●
107 SHAFT; IDLE GEAR
(C) 		8-94395-073-2 01 1 9610-9803 ●
107 SHAFT; IDLE GEAR
EURO2 SPECIFICATION<THN> (C) 		8-94395-073-2 01 1 9804-0004 ●
107 SHAFT; IDLE GEAR
EURO2 SPECIFICATION<THN> (C) 		8-94395-073-2 01 1 0005-0205 ●
107 SHAFT; IDLE GEAR
(C) 		8-94395-073-2 01 1 0005-0205 ●
107 SHAFT; IDLE GEAR
EURO2 SPECIFICATION<THN> (C) 		8-97602-588-0 01 1 0206-0405 ●
107 SHAFT; IDLE GEAR
(C) 		8-97602-588-0 01 1 0206-0405 ●
107 SHAFT; IDLE GEAR
(C) 		8-97602-588-0 01 1 0406- ● ● ●
107 SHAFT; IDLE GEAR
(D) 		8-94395-096-0 01 1 9610-9803 ●
107 SHAFT; IDLE GEAR
EURO2 SPECIFICATION<THN> (D) 		8-94395-096-0 01 1 9804-0304 ●
107 SHAFT; IDLE GEAR
EURO2 SPECIFICATION<THN> (D) 		8-94334-682-0 01 1 0305-0405 ●
107 SHAFT; IDLE GEAR
(D) 		8-94334-682-1 01 1 0406- ● ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=46 		8-94370-688-0 01 1 9608-9803 ● ● ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=46 		8-94370-688-0 01 1 9804-9904 ● ● ●
111 COLLAR; THRUST,IDLE GEAR
FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. EURO2 SPECIFICATION<THN> (A) ID=14.5 OD=46 		8-94370-688-0 01 1 9804-9904 ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=46 		8-94370-688-0 01 1 9905-9912 ● ● ●
111 COLLAR; THRUST,IDLE GEAR
EXC. ENGINE REAR PTO<SV1> (A) ID=14.5 OD=46 		8-94370-688-0 01 1 9905-9912 ●
111 COLLAR; THRUST,IDLE GEAR
EXC. EURO2 SPECIFICATION<THN> (A) ID=14.5 OD=46 		8-94370-688-0 01 1 9905-9912 ●
111 COLLAR; THRUST,IDLE GEAR
EXC. EURO2 SPECIFICATION<THN> (A) ID=14.5 OD=46 		8-94370-688-0 01 1 9905-9912 ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=46 		8-94370-688-0 01 1 0001-0004 ● ● ●
111 COLLAR; THRUST,IDLE GEAR
EXC. ENGINE REAR PTO<SV1> (A) ID=14.5 OD=46 		8-94370-688-0 01 1 0001-0004 ●
111 COLLAR; THRUST,IDLE GEAR
EXC. EURO2 SPECIFICATION<THN> (A) ID=14.5 OD=46 		8-94370-688-0 01 1 0001-0004 ●
111 COLLAR; THRUST,IDLE GEAR
EXC. EURO2 SPECIFICATION<THN> (A) ID=14.5 OD=46 		8-94370-688-0 01 1 0001-0004 ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=46 		8-94370-688-0 02 1 0005-0306 ●
111 COLLAR; THRUST,IDLE GEAR
EXC. EURO2 SPECIFICATION<THN> (A) ID=14.5 OD=46 		8-94370-688-0 02 1 0005-0306 ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=46 		8-97209-728-1 02 1 0307-0405 ●
111 COLLAR; THRUST,IDLE GEAR
EXC. EURO2 SPECIFICATION<THN> (A) ID=14.5 OD=46 		8-97209-728-1 02 1 0307-0405 ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=46 		8-97209-728-2 02 1 0406- ● ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=46 		8-94370-688-0 01 1 9601-9607 ● ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=46 		8-94370-688-0 02 1 9610-9803 ●
111 COLLAR; THRUST,IDLE GEAR
EURO2 SPECIFICATION<THN> (A) ID=14.5 OD=46 		8-94370-688-0 02 1 9804-0004 ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=46 		8-94370-688-0 01 1 0005-0306 ● ● ●
111 COLLAR; THRUST,IDLE GEAR
EURO2 SPECIFICATION<THN> (A) ID=14.5 OD=46 		8-94370-688-0 01 1 0005-0306 ●
111 COLLAR; THRUST,IDLE GEAR
EURO2 SPECIFICATION<THN> (A) ID=14.5 OD=46 		8-94370-688-0 01 1 0005-0306 ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=46 		8-97209-728-1 01 1 0307-0405 ● ● ●
111 COLLAR; THRUST,IDLE GEAR
EURO2 SPECIFICATION<THN> (A) ID=14.5 OD=46 		8-97209-728-1 01 1 0307-0405 ●
111 COLLAR; THRUST,IDLE GEAR
EURO2 SPECIFICATION<THN> (A) ID=14.5 OD=46 		8-97209-728-1 01 1 0307-0405 ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=46 		8-97209-728-2 01 1 0406- ● ● ● ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=46 		8-97209-728-2 01 1 0406- ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=46 		8-94370-688-0 02 1 9601-9607 ●
111 COLLAR; THRUST,IDLE GEAR
ENGINE REAR PTO<SV1> (C) ID=24 OD=60 		8-94396-897-0 01 1 9608-0004 ●
111 COLLAR; THRUST,IDLE GEAR
(B) ID=24 OD=70 		8-94394-097-1 01 1 9610-9803 ●
111 COLLAR; THRUST,IDLE GEAR
EURO2 SPECIFICATION<THN> (B) ID=24 OD=70 		8-94394-097-1 01 1 9804-0004 ●
111 COLLAR; THRUST,IDLE GEAR
EURO2 SPECIFICATION<THN> (B) ID=24 OD=70 		8-94394-097-1 01 1 0005-0405 ●
111 COLLAR; THRUST,IDLE GEAR
(B) ID=24 OD=70 		8-94394-097-1 01 1 0005-0405 ●
111 COLLAR; THRUST,IDLE GEAR
(B) ID=24 OD=70 		8-94394-097-1 01 1 0406- ● ● ●
112 GEAR; IDLE
(B) Z=72-30 		8-94395-107-1 01 1 9601-9607 ●
112 GEAR; IDLE
EXC. ENGINE REAR PTO<SV1> (B) Z=72-30 		8-94395-107-1 01 1 9608-9803 ●
112 GEAR; IDLE
EXC. ENGINE REAR PTO<SV1> (B) Z=72-30 		8-94395-107-1 01 1 9804-0004 ●
112 GEAR; IDLE
EXC. EURO2 SPECIFICATION<THN> (B) Z=72-30 		8-94395-107-1 01 1 9804-0004 ●
112 GEAR; IDLE
(B) Z=72-30 		8-94395-107-1 01 1 0005-0405 ●
112 GEAR; IDLE
EXC. EURO2 SPECIFICATION<THN> (B) Z=72-30 		8-94395-107-1 01 1 0005-0405 ●
112 GEAR; IDLE
(B) Z=72-30 		8-94395-107-1 01 1 0406-0609 ●
112 GEAR; IDLE
(B) Z=72-30 		8-97227-074-0 01 1 0610- ●
112 GEAR; IDLE
(A) Z=61 		8-97094-546-1 01 1 9601-9803 ●
112 GEAR; IDLE
(A) Z=61 		8-97094-546-1 01 1 9804-0405 ●
112 GEAR; IDLE
EXC. EURO2 SPECIFICATION<THN> (A) Z=61 		8-97094-546-1 01 1 9804-0405 ●
112 GEAR; IDLE
(A) Z=61 		8-97094-546-2 01 1 0406- ●
112 GEAR; IDLE
ENGINE REAR PTO<SV1> (B) Z=72-30 		8-94395-109-1 01 1 9608-0004 ●
112 GEAR; IDLE
(A) Z=69-27 		1-12523-241-0 01 1 9601-0011 ● ●
112 GEAR; IDLE
(A) Z=69-27 		1-12523-346-0 01 1 0012- ● ●
112 GEAR; IDLE
(B) Z=62 		1-12523-242-0 01 1 9601-0011 ● ●
112 GEAR; IDLE
(B) Z=62 		1-12523-347-0 01 1 0012- ● ●
112 GEAR; IDLE
(A) Z=61 		8-94393-439-3 01 1 9610-9803 ●
112 GEAR; IDLE
EURO2 SPECIFICATION<THN> (A) Z=61 		8-94393-439-3 01 1 9804-0004 ●
112 GEAR; IDLE
EURO2 SPECIFICATION<THN> (A) Z=61 		8-94393-439-3 01 1 0005-0405 ●
112 GEAR; IDLE
(A) Z=61 		8-94393-439-3 01 1 0005-0405 ●
112 GEAR; IDLE
(A) Z=61 		8-94393-439-4 01 1 0406- ● ● ●
112 GEAR; IDLE
(B) Z=72-30 		8-94394-092-3 01 1 9610-9803 ●
112 GEAR; IDLE
EURO2 SPECIFICATION<THN> (B) Z=72-30 		8-94394-092-3 01 1 9804-0004 ●
112 GEAR; IDLE
EURO2 SPECIFICATION<THN> (B) Z=72-30 		8-94394-092-3 01 1 0005-0405 ●
112 GEAR; IDLE
(B) Z=72-30 		8-94394-092-3 01 1 0005-0405 ●
112 GEAR; IDLE
(B) Z=72-30 		8-94394-092-3 01 1 0406- ● ● ●
112 GEAR; IDLE
(C) Z=34 		8-94394-509-2 01 1 9610-9803 ●
112 GEAR; IDLE
EURO2 SPECIFICATION<THN> (C) Z=34 		8-94394-509-2 01 1 9804-0405 ●
112 GEAR; IDLE
(C) Z=34 		8-94394-509-3 01 1 0406- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
