0-13 — OIL PAN AND LEVEL GAUGE (#64365) — 470 parça

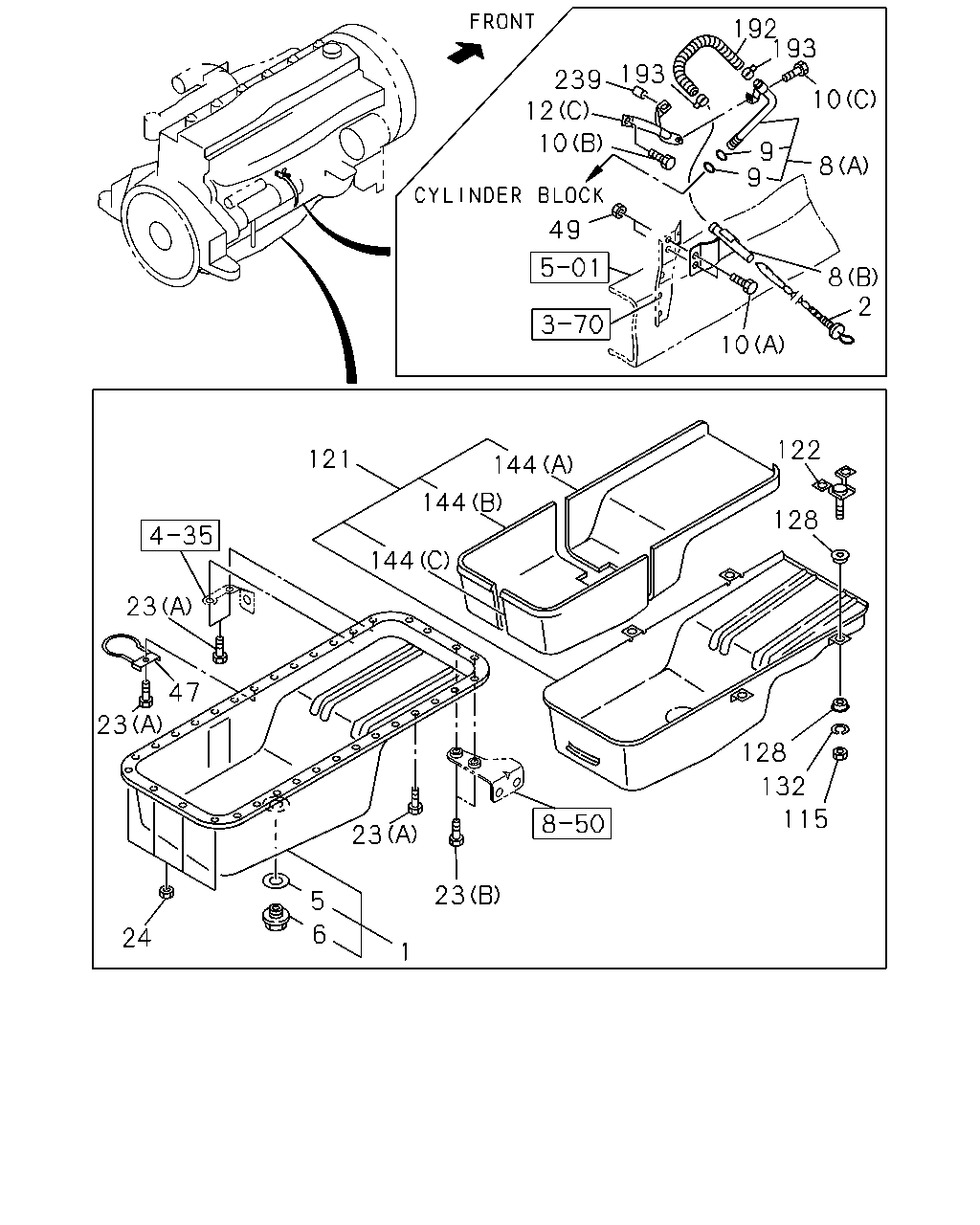

çizim 33013
192 193 193 239 12 10 10 9 9 8 49 8 2 10 122 121 144 144 128 144 23 47 23 128 132 115 23 23 5 6 24 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PAN ASM; OIL
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94395-608-0 01 1 9601-9611 ●
1 PAN ASM; OIL
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		8-94395-608-1 01 1 9612-0004 ●
1 PAN ASM; OIL
EXC. HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94395-861-0 01 1 9601-9611 ●
1 PAN ASM; OIL
EXC. HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		8-94395-861-1 01 1 9612-0004 ●
1 PAN ASM; OIL 8-94395-861-1 01 1 0005- ● ●
1 PAN ASM; OIL 1-11360-708-3 01 1 9601- ● ●
1 PAN ASM; OIL 8-94394-711-1 01 1 9610-0405 ●
1 PAN ASM; OIL 8-94394-711-2 01 1 0406- ● ●
2 GAUGE; OIL LEVEL 1-11760-396-0 01 1 9601-0004 ● ●
2 GAUGE; OIL LEVEL 1-11760-396-1 01 1 0005-0405 ● ● ●
2 GAUGE; OIL LEVEL 1-11760-396-1 01 1 0406- ● ● ● ●
2 GAUGE; OIL LEVEL 1-11760-395-0 01 1 9601- ● ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-183-0 01 1 9601-0004 ● ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-057-0 01 1 0005-0405 ● ● ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-057-0 01 1 0406- ● ● ● ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8 		1-09623-058-0 01 1 9601- ● ●
6 PLUG; OIL DRAIN
M20X16.5 		9-09662-012-0 01 1 9601-0004 ● ●
6 PLUG; OIL DRAIN
M20X16.5 		9-09662-012-0 01 1 0005-0405 ● ● ●
6 PLUG; OIL DRAIN
M20X16.5 		9-09662-012-0 01 1 0406- ● ● ● ●
6 PLUG; OIL DRAIN
M24X17 FLANGE 		1-09604-064-1 01 1 9601-0111 ● ●
6 PLUG; OIL DRAIN
M24X17 FLANGE 		1-09604-022-0 01 1 0112- ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(B) 		1-11766-453-0 01 1 9601-0004 ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(B) 		1-11766-453-0 01 1 0005-0405 ● ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(B) 		1-11766-453-0 01 1 0406- ● ● ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(A) 		8-94395-114-2 01 1 9601-0004 ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(A) 		8-94395-114-3 01 1 0005-0405 ● ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(A) 		8-94395-114-3 01 1 0406- ● ● ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(C) 		1-11766-483-0 01 1 9601- ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 02 1 9601-9609 ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 02 1 9610-0004 ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 02 1 0005-0112 ● ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		1-09623-469-0 02 1 0201-0405 ● ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		1-09623-469-0 02 1 0406- ● ● ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		1-09623-469-0 01 1 9601- ● ●
10 BOLT; GUIDE TUBE
AUSTRALIA EQUIPMENT(RR3) (B) M8X30 FLANGE 		0-28080-830-0 02 1 9601-9611 ●
10 BOLT; GUIDE TUBE
AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (B) M8X30 FLANGE 		0-28080-830-0 02 1 9612-9803 ●
10 BOLT; GUIDE TUBE
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (B) M8X30 FLANGE 		0-28080-830-0 02 1 9804-0004 ●
10 BOLT; GUIDE TUBE
(B) M8X30 FLANGE 		0-28080-830-0 01 1 0005-0405 ● ●
10 BOLT; GUIDE TUBE
EXC. EURO2 SPECIFICATION<THN> (B) M8X30 FLANGE 		0-28080-830-0 01 1 0005-0405 ●
10 BOLT; GUIDE TUBE
(B) M8X30 FLANGE 		0-28080-830-0 01 1 0406-0512 ● ●
10 BOLT; GUIDE TUBE
(B) M8X30 FLANGE 		0-28050-830-0 01 1 0601- ● ●
10 BOLT; GUIDE TUBE
EXC. AUSTRALIA EQUIPMENT(RR3) (B) M8X12 FLANGE 		0-28080-812-0 01 1 9601-9611 ●
10 BOLT; GUIDE TUBE
EXC. AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (B) M8X12 FLANGE 		0-28080-812-0 01 1 9612-9803 ●
10 BOLT; GUIDE TUBE
EXC. AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (B) M8X12 FLANGE 		0-28080-812-0 01 1 9804-0004 ●
10 BOLT; GUIDE TUBE
EXC. EURO2 SPECIFICATION<THN> (B) M8X12 FLANGE 		0-28080-812-0 01 1 9804-0004 ●
10 BOLT; GUIDE TUBE
(B) M8X12 FLANGE 		0-28080-812-0 01 1 0005-0405 ● ●
10 BOLT; GUIDE TUBE
EXC. EURO2 SPECIFICATION<THN> (B) M8X12 FLANGE 		0-28080-812-0 01 1 0005-0405 ●
10 BOLT; GUIDE TUBE
(B) M8X12 FLANGE 		0-28080-812-0 01 1 0406-0512 ● ●
10 BOLT; GUIDE TUBE
(B) M8X12 FLANGE 		0-28050-812-0 01 1 0601- ● ●
10 BOLT; GUIDE TUBE
EXC. AUSTRALIA EQUIPMENT(RR3) (B) M8X30 FLANGE 		0-28080-830-0 01 1 9601-9611 ●
10 BOLT; GUIDE TUBE
EXC. AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (B) M8X30 FLANGE 		0-28080-830-0 01 1 9612-9805 ●
10 BOLT; GUIDE TUBE
EXC. AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (B) M8X30 FLANGE 		0-28080-830-0 01 1 9806-0004 ●
10 BOLT; GUIDE TUBE
EXC. EURO2 SPECIFICATION<THN> (B) M8X30 FLANGE 		0-28080-830-0 01 1 9806-0004 ●
10 BOLT; GUIDE TUBE
(C) M8X16 FLANGE 		0-28080-816-0 01 1 9601-0004 ● ●
10 BOLT; GUIDE TUBE
(C) M8X16 FLANGE 		0-28080-816-0 01 1 0005-0405 ● ● ●
10 BOLT; GUIDE TUBE
(C) M8X16 FLANGE 		0-28080-816-0 01 1 0406-0512 ● ● ● ●
10 BOLT; GUIDE TUBE
(C) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ● ● ●
10 BOLT; GUIDE TUBE
(A) M8X25 FLANGE 		0-28080-825-0 02 1 9601-9606 ● ●
10 BOLT; GUIDE TUBE
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9607-9612 ● ●
10 BOLT; GUIDE TUBE
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9701-0004 ● ●
10 BOLT; GUIDE TUBE
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0005-0405 ● ● ●
10 BOLT; GUIDE TUBE
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0406-0512 ● ● ● ●
10 BOLT; GUIDE TUBE
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ● ●
10 BOLT; GUIDE TUBE
(A) M6X40 FLANGE 		0-28080-640-0 01 1 9601-0512 ● ●
10 BOLT; GUIDE TUBE
(A) M6X40 FLANGE 		0-28050-640-0 01 1 0601- ● ●
10 BOLT; GUIDE TUBE
(B) M8X20 FLANGE 		0-28080-820-0 01 1 9601-0512 ● ●
10 BOLT; GUIDE TUBE
(B) M8X20 FLANGE 		0-28050-820-0 01 1 0601- ● ●
10 BOLT; GUIDE TUBE
(C) M8X12 FLANGE 		0-28080-812-0 02 1 9601-0512 ●
10 BOLT; GUIDE TUBE
(C) M8X12 FLANGE 		0-28050-812-0 02 1 0601-0604 ●
10 BOLT; GUIDE TUBE
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> (C) M8X12 FLANGE 		0-28050-812-0 02 1 0605- ●
10 BOLT; GUIDE TUBE
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) M8X12 FLANGE 		0-28050-812-0 02 1 0605- ●
10 BOLT; GUIDE TUBE
(B) M8X20 FLANGE 		0-28080-820-0 02 1 9610-9803 ●
10 BOLT; GUIDE TUBE
EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE 		0-28080-820-0 02 1 9804-0405 ●
10 BOLT; GUIDE TUBE
EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE 		0-28080-820-0 02 1 0406-0512 ●
10 BOLT; GUIDE TUBE
(B) M8X20 FLANGE 		0-28080-820-0 02 1 0406-0512 ●
10 BOLT; GUIDE TUBE
EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE 		0-28050-820-0 02 1 0601- ●
10 BOLT; GUIDE TUBE
(B) M8X20 FLANGE 		0-28050-820-0 02 1 0601- ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
EURO2 SPECIFICATION<THN> (C) 		8-94395-843-0 01 1 0406- ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
(C) 		8-94395-843-0 01 1 0406- ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
AUSTRALIA EQUIPMENT(RR3) (C) 		8-94394-903-0 01 1 9601-9607 ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) EXC. ENGINE REAR PTO<SV1> (C) 		8-94394-903-0 01 1 9608-9701 ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (C) 		8-94394-903-0 01 1 9702-9803 ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (C) 		8-94394-903-0 01 1 9804-0004 ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
EXC. AUSTRALIA EQUIPMENT(RR3) (C) 		8-94395-150-0 01 1 9601-9611 ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
EXC. AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (C) 		8-94395-150-0 01 1 9612-9803 ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
EXC. AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (C) 		8-94395-150-0 01 1 9804-0004 ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
EXC. EURO2 SPECIFICATION<THN> (C) 		8-94395-150-0 01 1 9804-0004 ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
(C) 		8-94395-150-0 01 1 0005-0405 ● ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
EXC. EURO2 SPECIFICATION<THN> (C) 		8-94395-150-0 01 1 0005-0405 ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
(C) 		8-94395-150-0 01 1 0406- ● ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
ENGINE REAR PTO<SV1> (C) 		8-94394-904-0 01 1 9608-9701 ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
(B) 		1-11769-168-0 01 1 9601- ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
(A) 		1-11769-167-0 01 1 9601- ● ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
(B) 		1-11769-169-0 01 1 9601-0604 ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> (B) 		1-11769-169-0 01 1 0605- ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) 		1-11769-169-0 01 1 0605- ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
(C) 		8-94395-843-0 01 1 9610-9803 ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
EURO2 SPECIFICATION<THN> (C) 		8-94395-843-0 01 1 9804-0405 ●
23 BOLT; OIL PAN
(A) M8X18 FLANGE 		0-28080-818-0 30 1 9601-9803 ●
23 BOLT; OIL PAN
(A) M8X18 FLANGE 		0-28080-818-0 30 1 9804-9811 ●
23 BOLT; OIL PAN
EXC. EURO2 SPECIFICATION<THN> (A) M8X18 FLANGE 		0-28080-818-0 30 1 9804-9811 ●
23 BOLT; OIL PAN
(C) M8X22 W/LK&PL WASHER 		0-50140-822-0 30 1 9601-0906 ● ●
23 BOLT; OIL PAN
(C) M8X22 W/LK&PL WASHER 		0-50640-822-0 30 1 0907- ● ●
23 BOLT; OIL PAN
(A) M8X18 FLANGE 		0-28080-818-0 28 1 9610-9803 ●
23 BOLT; OIL PAN
EURO2 SPECIFICATION<THN> (A) M8X18 FLANGE 		0-28080-818-0 28 1 9804-9811 ●
23 BOLT; OIL PAN
(A) M8X18 FLANGE 		0-28080-818-0 30 1 9812-0004 ● ●
23 BOLT; OIL PAN
(A) M8X18 FLANGE 		0-28080-818-0 30 1 0005- ● ● ●
23 BOLT; OIL PAN
(B) M8X28 FLANGE 		0-28080-828-0 02 1 9610-9803 ●
23 BOLT; OIL PAN
EURO2 SPECIFICATION<THN> (B) M8X28 FLANGE 		0-28080-828-0 02 1 9804-9811 ●
23 BOLT; OIL PAN
EURO2 SPECIFICATION<THN> (A) M8X18 FLANGE 		0-28080-818-0 28 1 9902-0004 ●
23 BOLT; OIL PAN
AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> (A) M8X18 FLANGE 		0-28080-818-0 28 1 0005-0405 ●
23 BOLT; OIL PAN
AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X18 FLANGE 		0-28080-818-0 28 1 0406-0509 ●
23 BOLT; OIL PAN
(A) M8X18 FLANGE 		0-28080-818-0 28 1 0406-0509 ●
23 BOLT; OIL PAN
AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X18 FLANGE 		0-28080-818-0 28 1 0510- ● ●
23 BOLT; OIL PAN
(A) M8X18 FLANGE 		0-28080-818-0 28 1 0510- ●
23 BOLT; OIL PAN
EURO2 SPECIFICATION<THN> (B) M8X28 FLANGE 		0-28080-828-0 02 1 9902-0004 ●
23 BOLT; OIL PAN
AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> (B) M8X28 FLANGE 		0-28080-828-0 02 1 0005-0405 ●
23 BOLT; OIL PAN
AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X28 FLANGE 		0-28080-828-0 02 1 0406-0509 ●
23 BOLT; OIL PAN
(B) M8X28 FLANGE 		0-28080-828-0 02 1 0406-0509 ●
23 BOLT; OIL PAN
AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X28 FLANGE 		0-28080-828-0 02 1 0510- ● ●
23 BOLT; OIL PAN
(B) M8X28 FLANGE 		0-28080-828-0 02 1 0510- ●
24 NUT; OIL PAN
M8 FLANGE 		0-91150-108-0 04 1 9601-9609 ●
24 NUT; OIL PAN
M8 FLANGE 		0-91150-108-0 04 1 9610-0004 ● ●
24 NUT; OIL PAN
M8 FLANGE 		0-91150-108-0 04 1 0005-0405 ● ● ●
24 NUT; OIL PAN
M8 FLANGE 		0-91150-108-0 04 1 0406-0602 ● ● ● ●
24 NUT; OIL PAN
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ● ● ●
24 NUT; OIL PAN
M8 		9-09110-408-0 06 1 9601-0512 ● ●
24 NUT; OIL PAN
M8 		0-91110-508-0 06 1 0601- ● ●
47 CLIP; HOSE,AIR BREATHER 1-11369-115-0 01 1 9601-9702 ●
47 CLIP; HOSE,AIR BREATHER 1-11369-115-0 01 1 9703-0004 ● ●
47 CLIP; HOSE,AIR BREATHER 1-11369-115-0 01 1 0005-0405 ● ● ●
47 CLIP; HOSE,AIR BREATHER 1-11369-115-0 01 1 0406-1506 ● ● ● ●
47 CLIP; HOSE,AIR BREATHER 8-98303-447-0 01 1 1507- ● ● ● ●
47 CLIP; HOSE,AIR BREATHER 1-11229-014-0 01 1 9601- ● ●
49 NUT; GUIDE TUBE
M8 		9-09110-408-0 02 1 9601-9606 ●
49 NUT; GUIDE TUBE
M8 FLANGE 		0-91150-108-0 02 1 9607-0004 ● ●
49 NUT; GUIDE TUBE
M8 FLANGE 		0-91150-108-0 02 1 0005-0405 ● ● ●
49 NUT; GUIDE TUBE
M8 FLANGE 		0-91150-108-0 02 1 0406-0602 ● ● ● ●
49 NUT; GUIDE TUBE
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ●
115 NUT; OIL PAN COVER
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 04 1 9601-9611 ●
115 NUT; OIL PAN COVER
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) M8 FLANGE 		0-91150-108-0 04 1 9612-0004 ●
121 COVER; OIL PAN
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94395-613-2 01 1 9601-9611 ●
121 COVER; OIL PAN
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		8-94395-613-2 01 1 9612-0004 ●
122 BRACKET; OIL PAN COVER
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94396-827-0 04 1 9601-9611 ●
122 BRACKET; OIL PAN COVER
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		8-94396-827-0 04 1 9612-0004 ●
128 RUBBER; MTG,OIL PAN
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		1-09337-024-0 08 1 9601-9611 ●
128 RUBBER; MTG,OIL PAN
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		1-09337-024-0 08 1 9612-0004 ●
132 WASHER; PL,OIL PAN COVER
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) ID=8.4 OD=22 		9-09160-708-0 04 1 9601-9611 ●
132 WASHER; PL,OIL PAN COVER
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) ID=8.4 OD=22 		9-09160-708-0 04 1 9612-0004 ●
144 INSULATOR; OIL PAN
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (C) 		8-94395-874-0 01 1 9601-9611 ●
144 INSULATOR; OIL PAN
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (C) 		8-94395-874-0 01 1 9612-0004 ●
144 INSULATOR; OIL PAN
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (A) 		8-94395-875-0 01 1 9601-9611 ●
144 INSULATOR; OIL PAN
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (A) 		8-94395-875-0 01 1 9612-0004 ●
144 INSULATOR; OIL PAN
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (B) 		8-94395-876-0 01 1 9601-9611 ●
144 INSULATOR; OIL PAN
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (B) 		8-94395-876-0 01 1 9612-0004 ●
192 HOSE; GUIDE TUBE
L=300 		1-09360-945-1 01 1 9601-0004 ● ●
192 HOSE; GUIDE TUBE
L=300 		1-09360-945-1 01 1 0005-0305 ● ● ●
192 HOSE; GUIDE TUBE
L=300 		1-09360-978-0 01 1 0306-0405 ● ● ●
192 HOSE; GUIDE TUBE
L=300 		1-09360-978-0 01 1 0406- ● ● ● ●
193 CLIP; HOSE,GUIDE TUBE
ID=17 		1-09707-158-0 02 1 9601-0004 ● ●
193 CLIP; HOSE,GUIDE TUBE
ID=17 		1-09707-158-0 02 1 0005-0405 ● ● ●
193 CLIP; HOSE,GUIDE TUBE
ID=17 		1-09707-158-0 02 1 0406- ● ● ● ●
239 SPACER; BRKT
EXC. FLYWHEEL HOUSING FC<E1R> 		8-94313-327-0 01 1 9601-0004 ●
239 SPACER; BRKT
EXC. FLYWHEEL HOUSING FC<E1R> 		8-94313-327-0 01 1 0005-0005 ●
239 SPACER; BRKT 8-94313-327-0 01 1 0005-0005 ●
239 SPACER; BRKT 8-94313-327-0 01 1 0006-0304 ● ●
239 SPACER; BRKT 8-94313-327-0 01 1 0305-0305 ●
239 SPACER; BRKT 8-94313-327-0 01 1 0306- ● ●

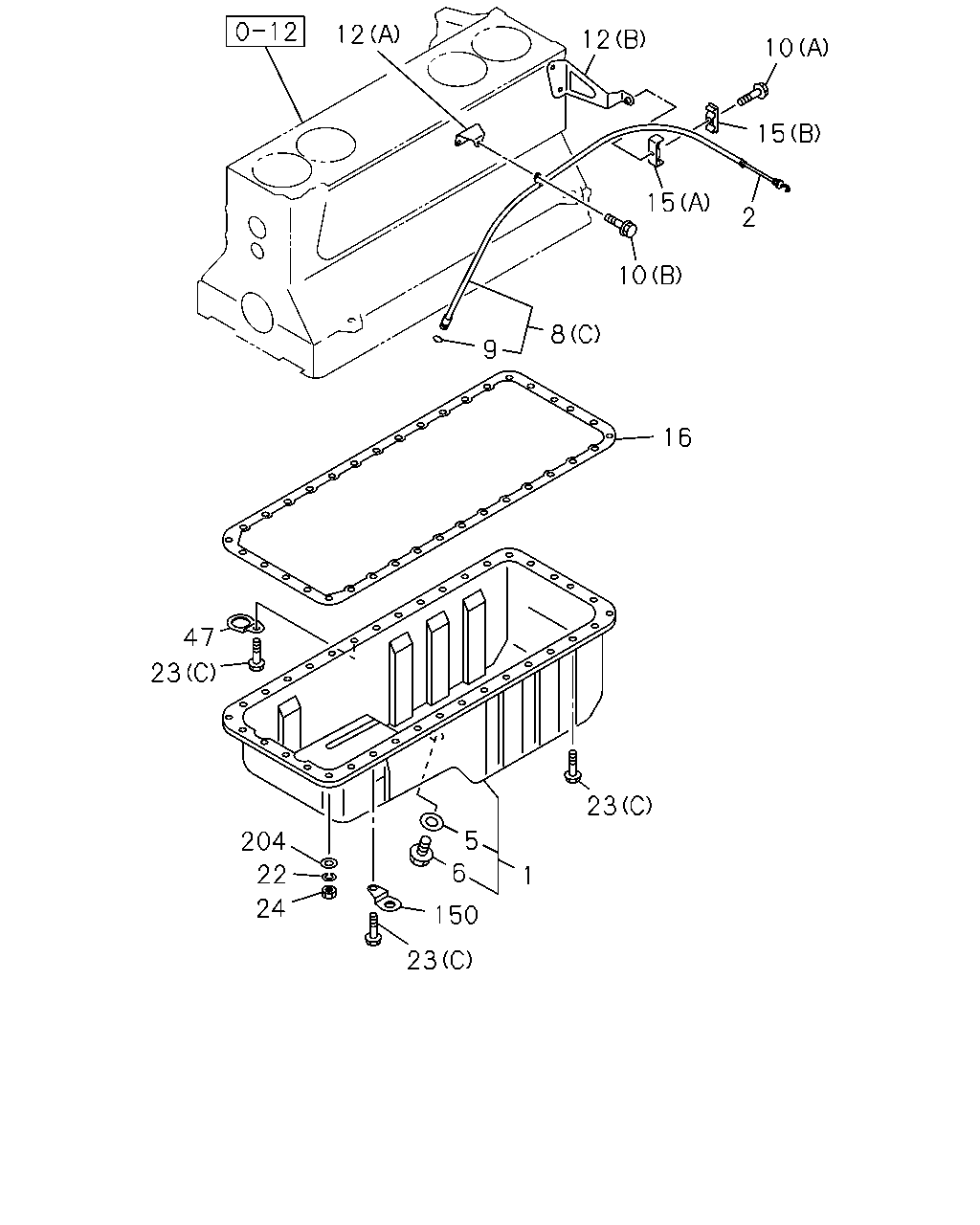

çizim 33695
12 12 10 15 15 2 10 8 9 16 47 23 23 5 204 6 22 1 24 150 23
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PAN ASM; OIL
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94395-608-0 01 1 9601-9611 ●
1 PAN ASM; OIL
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		8-94395-608-1 01 1 9612-0004 ●
1 PAN ASM; OIL
EXC. HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94395-861-0 01 1 9601-9611 ●
1 PAN ASM; OIL
EXC. HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		8-94395-861-1 01 1 9612-0004 ●
1 PAN ASM; OIL 8-94395-861-1 01 1 0005- ● ●
1 PAN ASM; OIL 1-11360-708-3 01 1 9601- ● ●
1 PAN ASM; OIL 8-94394-711-1 01 1 9610-0405 ●
1 PAN ASM; OIL 8-94394-711-2 01 1 0406- ● ●
2 GAUGE; OIL LEVEL 1-11760-396-0 01 1 9601-0004 ● ●
2 GAUGE; OIL LEVEL 1-11760-396-1 01 1 0005-0405 ● ● ●
2 GAUGE; OIL LEVEL 1-11760-396-1 01 1 0406- ● ● ● ●
2 GAUGE; OIL LEVEL 1-11760-395-0 01 1 9601- ● ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-183-0 01 1 9601-0004 ● ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-057-0 01 1 0005-0405 ● ● ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-057-0 01 1 0406- ● ● ● ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8 		1-09623-058-0 01 1 9601- ● ●
6 PLUG; OIL DRAIN
M20X16.5 		9-09662-012-0 01 1 9601-0004 ● ●
6 PLUG; OIL DRAIN
M20X16.5 		9-09662-012-0 01 1 0005-0405 ● ● ●
6 PLUG; OIL DRAIN
M20X16.5 		9-09662-012-0 01 1 0406- ● ● ● ●
6 PLUG; OIL DRAIN
M24X17 FLANGE 		1-09604-064-1 01 1 9601-0111 ● ●
6 PLUG; OIL DRAIN
M24X17 FLANGE 		1-09604-022-0 01 1 0112- ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(B) 		1-11766-453-0 01 1 9601-0004 ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(B) 		1-11766-453-0 01 1 0005-0405 ● ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(B) 		1-11766-453-0 01 1 0406- ● ● ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(A) 		8-94395-114-2 01 1 9601-0004 ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(A) 		8-94395-114-3 01 1 0005-0405 ● ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(A) 		8-94395-114-3 01 1 0406- ● ● ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(C) 		1-11766-483-0 01 1 9601- ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 02 1 9601-9609 ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 02 1 9610-0004 ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 02 1 0005-0112 ● ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		1-09623-469-0 02 1 0201-0405 ● ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		1-09623-469-0 02 1 0406- ● ● ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		1-09623-469-0 01 1 9601- ● ●
10 BOLT; GUIDE TUBE
AUSTRALIA EQUIPMENT(RR3) (B) M8X30 FLANGE 		0-28080-830-0 02 1 9601-9611 ●
10 BOLT; GUIDE TUBE
AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (B) M8X30 FLANGE 		0-28080-830-0 02 1 9612-9803 ●
10 BOLT; GUIDE TUBE
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (B) M8X30 FLANGE 		0-28080-830-0 02 1 9804-0004 ●
10 BOLT; GUIDE TUBE
(B) M8X30 FLANGE 		0-28080-830-0 01 1 0005-0405 ● ●
10 BOLT; GUIDE TUBE
EXC. EURO2 SPECIFICATION<THN> (B) M8X30 FLANGE 		0-28080-830-0 01 1 0005-0405 ●
10 BOLT; GUIDE TUBE
(B) M8X30 FLANGE 		0-28080-830-0 01 1 0406-0512 ● ●
10 BOLT; GUIDE TUBE
(B) M8X30 FLANGE 		0-28050-830-0 01 1 0601- ● ●
10 BOLT; GUIDE TUBE
EXC. AUSTRALIA EQUIPMENT(RR3) (B) M8X12 FLANGE 		0-28080-812-0 01 1 9601-9611 ●
10 BOLT; GUIDE TUBE
EXC. AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (B) M8X12 FLANGE 		0-28080-812-0 01 1 9612-9803 ●
10 BOLT; GUIDE TUBE
EXC. AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (B) M8X12 FLANGE 		0-28080-812-0 01 1 9804-0004 ●
10 BOLT; GUIDE TUBE
EXC. EURO2 SPECIFICATION<THN> (B) M8X12 FLANGE 		0-28080-812-0 01 1 9804-0004 ●
10 BOLT; GUIDE TUBE
(B) M8X12 FLANGE 		0-28080-812-0 01 1 0005-0405 ● ●
10 BOLT; GUIDE TUBE
EXC. EURO2 SPECIFICATION<THN> (B) M8X12 FLANGE 		0-28080-812-0 01 1 0005-0405 ●
10 BOLT; GUIDE TUBE
(B) M8X12 FLANGE 		0-28080-812-0 01 1 0406-0512 ● ●
10 BOLT; GUIDE TUBE
(B) M8X12 FLANGE 		0-28050-812-0 01 1 0601- ● ●
10 BOLT; GUIDE TUBE
EXC. AUSTRALIA EQUIPMENT(RR3) (B) M8X30 FLANGE 		0-28080-830-0 01 1 9601-9611 ●
10 BOLT; GUIDE TUBE
EXC. AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (B) M8X30 FLANGE 		0-28080-830-0 01 1 9612-9805 ●
10 BOLT; GUIDE TUBE
EXC. AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (B) M8X30 FLANGE 		0-28080-830-0 01 1 9806-0004 ●
10 BOLT; GUIDE TUBE
EXC. EURO2 SPECIFICATION<THN> (B) M8X30 FLANGE 		0-28080-830-0 01 1 9806-0004 ●
10 BOLT; GUIDE TUBE
(C) M8X16 FLANGE 		0-28080-816-0 01 1 9601-0004 ● ●
10 BOLT; GUIDE TUBE
(C) M8X16 FLANGE 		0-28080-816-0 01 1 0005-0405 ● ● ●
10 BOLT; GUIDE TUBE
(C) M8X16 FLANGE 		0-28080-816-0 01 1 0406-0512 ● ● ● ●
10 BOLT; GUIDE TUBE
(C) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ● ● ●
10 BOLT; GUIDE TUBE
(A) M8X25 FLANGE 		0-28080-825-0 02 1 9601-9606 ● ●
10 BOLT; GUIDE TUBE
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9607-9612 ● ●
10 BOLT; GUIDE TUBE
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9701-0004 ● ●
10 BOLT; GUIDE TUBE
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0005-0405 ● ● ●
10 BOLT; GUIDE TUBE
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0406-0512 ● ● ● ●
10 BOLT; GUIDE TUBE
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ● ●
10 BOLT; GUIDE TUBE
(A) M6X40 FLANGE 		0-28080-640-0 01 1 9601-0512 ● ●
10 BOLT; GUIDE TUBE
(A) M6X40 FLANGE 		0-28050-640-0 01 1 0601- ● ●
10 BOLT; GUIDE TUBE
(B) M8X20 FLANGE 		0-28080-820-0 01 1 9601-0512 ● ●
10 BOLT; GUIDE TUBE
(B) M8X20 FLANGE 		0-28050-820-0 01 1 0601- ● ●
10 BOLT; GUIDE TUBE
(C) M8X12 FLANGE 		0-28080-812-0 02 1 9601-0512 ●
10 BOLT; GUIDE TUBE
(C) M8X12 FLANGE 		0-28050-812-0 02 1 0601-0604 ●
10 BOLT; GUIDE TUBE
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> (C) M8X12 FLANGE 		0-28050-812-0 02 1 0605- ●
10 BOLT; GUIDE TUBE
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) M8X12 FLANGE 		0-28050-812-0 02 1 0605- ●
10 BOLT; GUIDE TUBE
(B) M8X20 FLANGE 		0-28080-820-0 02 1 9610-9803 ●
10 BOLT; GUIDE TUBE
EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE 		0-28080-820-0 02 1 9804-0405 ●
10 BOLT; GUIDE TUBE
EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE 		0-28080-820-0 02 1 0406-0512 ●
10 BOLT; GUIDE TUBE
(B) M8X20 FLANGE 		0-28080-820-0 02 1 0406-0512 ●
10 BOLT; GUIDE TUBE
EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE 		0-28050-820-0 02 1 0601- ●
10 BOLT; GUIDE TUBE
(B) M8X20 FLANGE 		0-28050-820-0 02 1 0601- ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
EURO2 SPECIFICATION<THN> (C) 		8-94395-843-0 01 1 0406- ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
(C) 		8-94395-843-0 01 1 0406- ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
AUSTRALIA EQUIPMENT(RR3) (C) 		8-94394-903-0 01 1 9601-9607 ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) EXC. ENGINE REAR PTO<SV1> (C) 		8-94394-903-0 01 1 9608-9701 ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (C) 		8-94394-903-0 01 1 9702-9803 ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (C) 		8-94394-903-0 01 1 9804-0004 ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
EXC. AUSTRALIA EQUIPMENT(RR3) (C) 		8-94395-150-0 01 1 9601-9611 ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
EXC. AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (C) 		8-94395-150-0 01 1 9612-9803 ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
EXC. AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (C) 		8-94395-150-0 01 1 9804-0004 ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
EXC. EURO2 SPECIFICATION<THN> (C) 		8-94395-150-0 01 1 9804-0004 ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
(C) 		8-94395-150-0 01 1 0005-0405 ● ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
EXC. EURO2 SPECIFICATION<THN> (C) 		8-94395-150-0 01 1 0005-0405 ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
(C) 		8-94395-150-0 01 1 0406- ● ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
ENGINE REAR PTO<SV1> (C) 		8-94394-904-0 01 1 9608-9701 ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
(B) 		1-11769-168-0 01 1 9601- ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
(A) 		1-11769-167-0 01 1 9601- ● ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
(B) 		1-11769-169-0 01 1 9601-0604 ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> (B) 		1-11769-169-0 01 1 0605- ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) 		1-11769-169-0 01 1 0605- ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
(C) 		8-94395-843-0 01 1 9610-9803 ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
EURO2 SPECIFICATION<THN> (C) 		8-94395-843-0 01 1 9804-0405 ●
15 CLIP; GUIDE TUBE
(B) ID=9 & 11 L=28 		1-09701-193-1 01 1 9601- ● ●
15 CLIP; GUIDE TUBE
(A) ID=9 & 11 L=28 		1-09701-194-1 01 1 9601- ● ●
16 GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11367-113-0 01 1 9601-0205 ● ●
16 GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11367-129-1 01 1 0206-1103 ● ●
16 GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-98187-258-0 01 1 1104- ● ●
22 WASHER; LK,OIL PAN
ID=8.2 		9-09150-508-0 06 1 9601-0603 ● ●
22 WASHER; LK,OIL PAN
ID=8.2 		0-91510-508-0 06 1 0604- ● ●
23 BOLT; OIL PAN
(A) M8X18 FLANGE 		0-28080-818-0 30 1 9601-9803 ●
23 BOLT; OIL PAN
(A) M8X18 FLANGE 		0-28080-818-0 30 1 9804-9811 ●
23 BOLT; OIL PAN
EXC. EURO2 SPECIFICATION<THN> (A) M8X18 FLANGE 		0-28080-818-0 30 1 9804-9811 ●
23 BOLT; OIL PAN
(C) M8X22 W/LK&PL WASHER 		0-50140-822-0 30 1 9601-0906 ● ●
23 BOLT; OIL PAN
(C) M8X22 W/LK&PL WASHER 		0-50640-822-0 30 1 0907- ● ●
23 BOLT; OIL PAN
(A) M8X18 FLANGE 		0-28080-818-0 28 1 9610-9803 ●
23 BOLT; OIL PAN
EURO2 SPECIFICATION<THN> (A) M8X18 FLANGE 		0-28080-818-0 28 1 9804-9811 ●
23 BOLT; OIL PAN
(A) M8X18 FLANGE 		0-28080-818-0 30 1 9812-0004 ● ●
23 BOLT; OIL PAN
(A) M8X18 FLANGE 		0-28080-818-0 30 1 0005- ● ● ●
23 BOLT; OIL PAN
(B) M8X28 FLANGE 		0-28080-828-0 02 1 9610-9803 ●
23 BOLT; OIL PAN
EURO2 SPECIFICATION<THN> (B) M8X28 FLANGE 		0-28080-828-0 02 1 9804-9811 ●
23 BOLT; OIL PAN
EURO2 SPECIFICATION<THN> (A) M8X18 FLANGE 		0-28080-818-0 28 1 9902-0004 ●
23 BOLT; OIL PAN
AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> (A) M8X18 FLANGE 		0-28080-818-0 28 1 0005-0405 ●
23 BOLT; OIL PAN
AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X18 FLANGE 		0-28080-818-0 28 1 0406-0509 ●
23 BOLT; OIL PAN
(A) M8X18 FLANGE 		0-28080-818-0 28 1 0406-0509 ●
23 BOLT; OIL PAN
AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X18 FLANGE 		0-28080-818-0 28 1 0510- ● ●
23 BOLT; OIL PAN
(A) M8X18 FLANGE 		0-28080-818-0 28 1 0510- ●
23 BOLT; OIL PAN
EURO2 SPECIFICATION<THN> (B) M8X28 FLANGE 		0-28080-828-0 02 1 9902-0004 ●
23 BOLT; OIL PAN
AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> (B) M8X28 FLANGE 		0-28080-828-0 02 1 0005-0405 ●
23 BOLT; OIL PAN
AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X28 FLANGE 		0-28080-828-0 02 1 0406-0509 ●
23 BOLT; OIL PAN
(B) M8X28 FLANGE 		0-28080-828-0 02 1 0406-0509 ●
23 BOLT; OIL PAN
AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X28 FLANGE 		0-28080-828-0 02 1 0510- ● ●
23 BOLT; OIL PAN
(B) M8X28 FLANGE 		0-28080-828-0 02 1 0510- ●
24 NUT; OIL PAN
M8 FLANGE 		0-91150-108-0 04 1 9601-9609 ●
24 NUT; OIL PAN
M8 FLANGE 		0-91150-108-0 04 1 9610-0004 ● ●
24 NUT; OIL PAN
M8 FLANGE 		0-91150-108-0 04 1 0005-0405 ● ● ●
24 NUT; OIL PAN
M8 FLANGE 		0-91150-108-0 04 1 0406-0602 ● ● ● ●
24 NUT; OIL PAN
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ● ● ●
24 NUT; OIL PAN
M8 		9-09110-408-0 06 1 9601-0512 ● ●
24 NUT; OIL PAN
M8 		0-91110-508-0 06 1 0601- ● ●
47 CLIP; HOSE,AIR BREATHER 1-11369-115-0 01 1 9601-9702 ●
47 CLIP; HOSE,AIR BREATHER 1-11369-115-0 01 1 9703-0004 ● ●
47 CLIP; HOSE,AIR BREATHER 1-11369-115-0 01 1 0005-0405 ● ● ●
47 CLIP; HOSE,AIR BREATHER 1-11369-115-0 01 1 0406-1506 ● ● ● ●
47 CLIP; HOSE,AIR BREATHER 8-98303-447-0 01 1 1507- ● ● ● ●
47 CLIP; HOSE,AIR BREATHER 1-11229-014-0 01 1 9601- ● ●
150 CLIP; WATER,OIL DRAIN
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) 		9-11229-070-0 03 1 0605- ●
150 CLIP; WATER,OIL DRAIN
OIL FILTER SETTING DOWNWARD<E7V> 		9-11229-070-0 01 1 9601- ●
150 CLIP; WATER,OIL DRAIN
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		9-11229-070-0 02 1 9601-9804 ●
150 CLIP; WATER,OIL DRAIN 9-11229-070-0 02 1 9601-9804 ●
150 CLIP; WATER,OIL DRAIN
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		9-11229-070-0 02 1 9805-0604 ● ●
150 CLIP; WATER,OIL DRAIN
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		9-11229-070-0 02 1 0605- ●
150 CLIP; WATER,OIL DRAIN
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> 		9-11229-070-0 02 1 0605- ●
150 CLIP; WATER,OIL DRAIN
EXC. NEW ZEALAND EQUIPMENT(PK5) 		9-11229-070-0 02 1 0605- ●
204 WASHER; PL,OIL PAN
ID=8.4 		9-09160-508-0 06 1 9601-0605 ● ●
204 WASHER; PL,OIL PAN
ID=8.4 OD=16 		0-91610-508-0 06 1 0606- ● ●

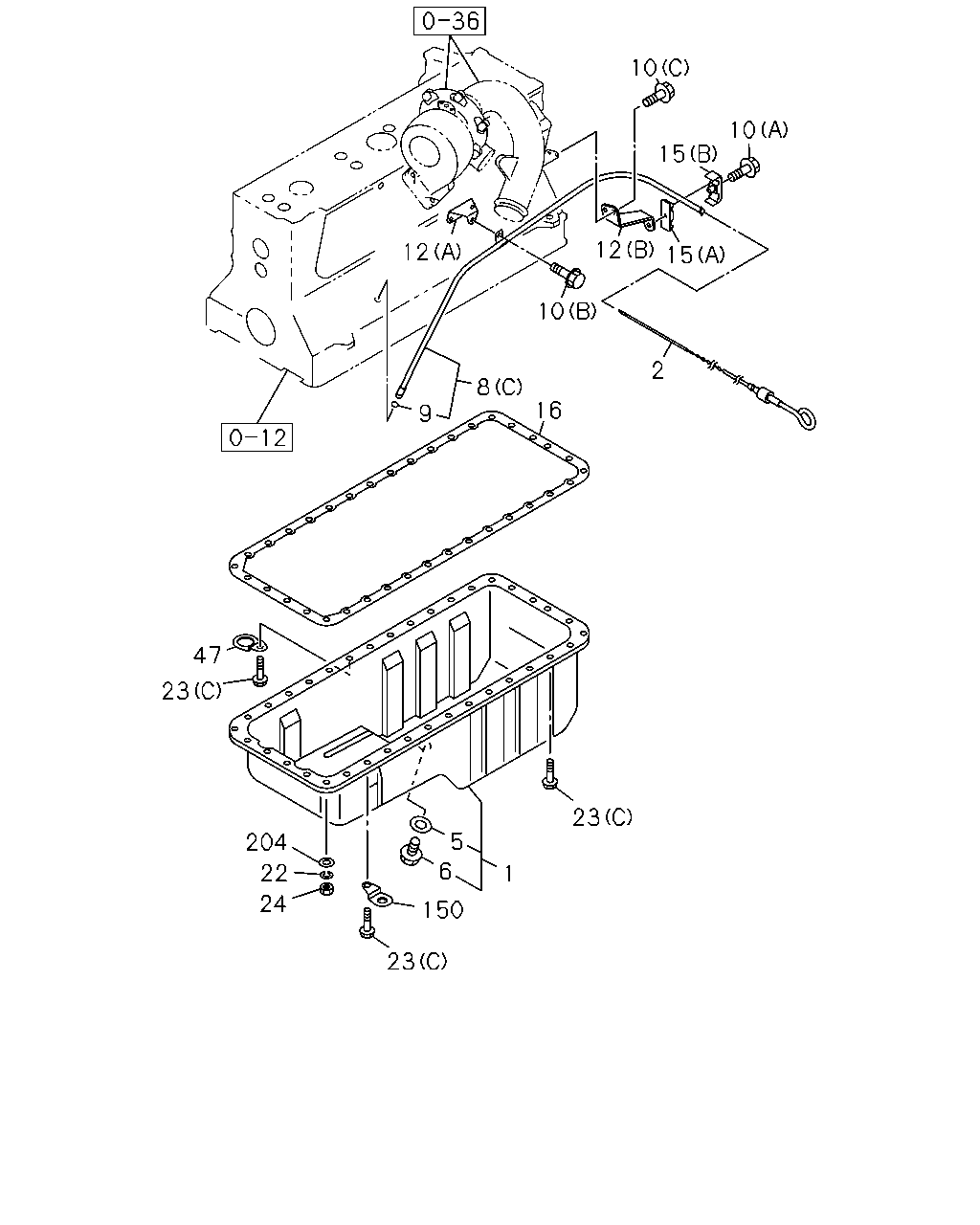

çizim 37365
10 10 15 12 12 15 10 2 8 16 9 47 23 2 5 204 6 22 1 24 150 23
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PAN ASM; OIL
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94395-608-0 01 1 9601-9611 ●
1 PAN ASM; OIL
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		8-94395-608-1 01 1 9612-0004 ●
1 PAN ASM; OIL
EXC. HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94395-861-0 01 1 9601-9611 ●
1 PAN ASM; OIL
EXC. HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		8-94395-861-1 01 1 9612-0004 ●
1 PAN ASM; OIL 8-94395-861-1 01 1 0005- ● ●
1 PAN ASM; OIL 1-11360-708-3 01 1 9601- ● ●
1 PAN ASM; OIL 8-94394-711-1 01 1 9610-0405 ●
1 PAN ASM; OIL 8-94394-711-2 01 1 0406- ● ●
2 GAUGE; OIL LEVEL 1-11760-396-0 01 1 9601-0004 ● ●
2 GAUGE; OIL LEVEL 1-11760-396-1 01 1 0005-0405 ● ● ●
2 GAUGE; OIL LEVEL 1-11760-396-1 01 1 0406- ● ● ● ●
2 GAUGE; OIL LEVEL 1-11760-395-0 01 1 9601- ● ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-183-0 01 1 9601-0004 ● ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-057-0 01 1 0005-0405 ● ● ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-057-0 01 1 0406- ● ● ● ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8 		1-09623-058-0 01 1 9601- ● ●
6 PLUG; OIL DRAIN
M20X16.5 		9-09662-012-0 01 1 9601-0004 ● ●
6 PLUG; OIL DRAIN
M20X16.5 		9-09662-012-0 01 1 0005-0405 ● ● ●
6 PLUG; OIL DRAIN
M20X16.5 		9-09662-012-0 01 1 0406- ● ● ● ●
6 PLUG; OIL DRAIN
M24X17 FLANGE 		1-09604-064-1 01 1 9601-0111 ● ●
6 PLUG; OIL DRAIN
M24X17 FLANGE 		1-09604-022-0 01 1 0112- ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(B) 		1-11766-453-0 01 1 9601-0004 ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(B) 		1-11766-453-0 01 1 0005-0405 ● ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(B) 		1-11766-453-0 01 1 0406- ● ● ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(A) 		8-94395-114-2 01 1 9601-0004 ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(A) 		8-94395-114-3 01 1 0005-0405 ● ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(A) 		8-94395-114-3 01 1 0406- ● ● ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(C) 		1-11766-483-0 01 1 9601- ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 02 1 9601-9609 ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 02 1 9610-0004 ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 02 1 0005-0112 ● ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		1-09623-469-0 02 1 0201-0405 ● ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		1-09623-469-0 02 1 0406- ● ● ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		1-09623-469-0 01 1 9601- ● ●
10 BOLT; GUIDE TUBE
AUSTRALIA EQUIPMENT(RR3) (B) M8X30 FLANGE 		0-28080-830-0 02 1 9601-9611 ●
10 BOLT; GUIDE TUBE
AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (B) M8X30 FLANGE 		0-28080-830-0 02 1 9612-9803 ●
10 BOLT; GUIDE TUBE
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (B) M8X30 FLANGE 		0-28080-830-0 02 1 9804-0004 ●
10 BOLT; GUIDE TUBE
(B) M8X30 FLANGE 		0-28080-830-0 01 1 0005-0405 ● ●
10 BOLT; GUIDE TUBE
EXC. EURO2 SPECIFICATION<THN> (B) M8X30 FLANGE 		0-28080-830-0 01 1 0005-0405 ●
10 BOLT; GUIDE TUBE
(B) M8X30 FLANGE 		0-28080-830-0 01 1 0406-0512 ● ●
10 BOLT; GUIDE TUBE
(B) M8X30 FLANGE 		0-28050-830-0 01 1 0601- ● ●
10 BOLT; GUIDE TUBE
EXC. AUSTRALIA EQUIPMENT(RR3) (B) M8X12 FLANGE 		0-28080-812-0 01 1 9601-9611 ●
10 BOLT; GUIDE TUBE
EXC. AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (B) M8X12 FLANGE 		0-28080-812-0 01 1 9612-9803 ●
10 BOLT; GUIDE TUBE
EXC. AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (B) M8X12 FLANGE 		0-28080-812-0 01 1 9804-0004 ●
10 BOLT; GUIDE TUBE
EXC. EURO2 SPECIFICATION<THN> (B) M8X12 FLANGE 		0-28080-812-0 01 1 9804-0004 ●
10 BOLT; GUIDE TUBE
(B) M8X12 FLANGE 		0-28080-812-0 01 1 0005-0405 ● ●
10 BOLT; GUIDE TUBE
EXC. EURO2 SPECIFICATION<THN> (B) M8X12 FLANGE 		0-28080-812-0 01 1 0005-0405 ●
10 BOLT; GUIDE TUBE
(B) M8X12 FLANGE 		0-28080-812-0 01 1 0406-0512 ● ●
10 BOLT; GUIDE TUBE
(B) M8X12 FLANGE 		0-28050-812-0 01 1 0601- ● ●
10 BOLT; GUIDE TUBE
EXC. AUSTRALIA EQUIPMENT(RR3) (B) M8X30 FLANGE 		0-28080-830-0 01 1 9601-9611 ●
10 BOLT; GUIDE TUBE
EXC. AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (B) M8X30 FLANGE 		0-28080-830-0 01 1 9612-9805 ●
10 BOLT; GUIDE TUBE
EXC. AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (B) M8X30 FLANGE 		0-28080-830-0 01 1 9806-0004 ●
10 BOLT; GUIDE TUBE
EXC. EURO2 SPECIFICATION<THN> (B) M8X30 FLANGE 		0-28080-830-0 01 1 9806-0004 ●
10 BOLT; GUIDE TUBE
(C) M8X16 FLANGE 		0-28080-816-0 01 1 9601-0004 ● ●
10 BOLT; GUIDE TUBE
(C) M8X16 FLANGE 		0-28080-816-0 01 1 0005-0405 ● ● ●
10 BOLT; GUIDE TUBE
(C) M8X16 FLANGE 		0-28080-816-0 01 1 0406-0512 ● ● ● ●
10 BOLT; GUIDE TUBE
(C) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ● ● ●
10 BOLT; GUIDE TUBE
(A) M8X25 FLANGE 		0-28080-825-0 02 1 9601-9606 ● ●
10 BOLT; GUIDE TUBE
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9607-9612 ● ●
10 BOLT; GUIDE TUBE
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9701-0004 ● ●
10 BOLT; GUIDE TUBE
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0005-0405 ● ● ●
10 BOLT; GUIDE TUBE
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0406-0512 ● ● ● ●
10 BOLT; GUIDE TUBE
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ● ●
10 BOLT; GUIDE TUBE
(A) M6X40 FLANGE 		0-28080-640-0 01 1 9601-0512 ● ●
10 BOLT; GUIDE TUBE
(A) M6X40 FLANGE 		0-28050-640-0 01 1 0601- ● ●
10 BOLT; GUIDE TUBE
(B) M8X20 FLANGE 		0-28080-820-0 01 1 9601-0512 ● ●
10 BOLT; GUIDE TUBE
(B) M8X20 FLANGE 		0-28050-820-0 01 1 0601- ● ●
10 BOLT; GUIDE TUBE
(C) M8X12 FLANGE 		0-28080-812-0 02 1 9601-0512 ●
10 BOLT; GUIDE TUBE
(C) M8X12 FLANGE 		0-28050-812-0 02 1 0601-0604 ●
10 BOLT; GUIDE TUBE
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> (C) M8X12 FLANGE 		0-28050-812-0 02 1 0605- ●
10 BOLT; GUIDE TUBE
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) M8X12 FLANGE 		0-28050-812-0 02 1 0605- ●
10 BOLT; GUIDE TUBE
(B) M8X20 FLANGE 		0-28080-820-0 02 1 9610-9803 ●
10 BOLT; GUIDE TUBE
EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE 		0-28080-820-0 02 1 9804-0405 ●
10 BOLT; GUIDE TUBE
EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE 		0-28080-820-0 02 1 0406-0512 ●
10 BOLT; GUIDE TUBE
(B) M8X20 FLANGE 		0-28080-820-0 02 1 0406-0512 ●
10 BOLT; GUIDE TUBE
EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE 		0-28050-820-0 02 1 0601- ●
10 BOLT; GUIDE TUBE
(B) M8X20 FLANGE 		0-28050-820-0 02 1 0601- ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
EURO2 SPECIFICATION<THN> (C) 		8-94395-843-0 01 1 0406- ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
(C) 		8-94395-843-0 01 1 0406- ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
AUSTRALIA EQUIPMENT(RR3) (C) 		8-94394-903-0 01 1 9601-9607 ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) EXC. ENGINE REAR PTO<SV1> (C) 		8-94394-903-0 01 1 9608-9701 ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (C) 		8-94394-903-0 01 1 9702-9803 ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (C) 		8-94394-903-0 01 1 9804-0004 ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
EXC. AUSTRALIA EQUIPMENT(RR3) (C) 		8-94395-150-0 01 1 9601-9611 ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
EXC. AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (C) 		8-94395-150-0 01 1 9612-9803 ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
EXC. AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (C) 		8-94395-150-0 01 1 9804-0004 ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
EXC. EURO2 SPECIFICATION<THN> (C) 		8-94395-150-0 01 1 9804-0004 ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
(C) 		8-94395-150-0 01 1 0005-0405 ● ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
EXC. EURO2 SPECIFICATION<THN> (C) 		8-94395-150-0 01 1 0005-0405 ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
(C) 		8-94395-150-0 01 1 0406- ● ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
ENGINE REAR PTO<SV1> (C) 		8-94394-904-0 01 1 9608-9701 ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
(B) 		1-11769-168-0 01 1 9601- ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
(A) 		1-11769-167-0 01 1 9601- ● ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
(B) 		1-11769-169-0 01 1 9601-0604 ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> (B) 		1-11769-169-0 01 1 0605- ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) 		1-11769-169-0 01 1 0605- ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
(C) 		8-94395-843-0 01 1 9610-9803 ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
EURO2 SPECIFICATION<THN> (C) 		8-94395-843-0 01 1 9804-0405 ●
15 CLIP; GUIDE TUBE
(B) ID=9 & 11 L=28 		1-09701-193-1 01 1 9601- ● ●
15 CLIP; GUIDE TUBE
(A) ID=9 & 11 L=28 		1-09701-194-1 01 1 9601- ● ●
16 GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11367-113-0 01 1 9601-0205 ● ●
16 GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11367-129-1 01 1 0206-1103 ● ●
16 GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-98187-258-0 01 1 1104- ● ●
22 WASHER; LK,OIL PAN
ID=8.2 		9-09150-508-0 06 1 9601-0603 ● ●
22 WASHER; LK,OIL PAN
ID=8.2 		0-91510-508-0 06 1 0604- ● ●
23 BOLT; OIL PAN
(A) M8X18 FLANGE 		0-28080-818-0 30 1 9601-9803 ●
23 BOLT; OIL PAN
(A) M8X18 FLANGE 		0-28080-818-0 30 1 9804-9811 ●
23 BOLT; OIL PAN
EXC. EURO2 SPECIFICATION<THN> (A) M8X18 FLANGE 		0-28080-818-0 30 1 9804-9811 ●
23 BOLT; OIL PAN
(C) M8X22 W/LK&PL WASHER 		0-50140-822-0 30 1 9601-0906 ● ●
23 BOLT; OIL PAN
(C) M8X22 W/LK&PL WASHER 		0-50640-822-0 30 1 0907- ● ●
23 BOLT; OIL PAN
(A) M8X18 FLANGE 		0-28080-818-0 28 1 9610-9803 ●
23 BOLT; OIL PAN
EURO2 SPECIFICATION<THN> (A) M8X18 FLANGE 		0-28080-818-0 28 1 9804-9811 ●
23 BOLT; OIL PAN
(A) M8X18 FLANGE 		0-28080-818-0 30 1 9812-0004 ● ●
23 BOLT; OIL PAN
(A) M8X18 FLANGE 		0-28080-818-0 30 1 0005- ● ● ●
23 BOLT; OIL PAN
(B) M8X28 FLANGE 		0-28080-828-0 02 1 9610-9803 ●
23 BOLT; OIL PAN
EURO2 SPECIFICATION<THN> (B) M8X28 FLANGE 		0-28080-828-0 02 1 9804-9811 ●
23 BOLT; OIL PAN
EURO2 SPECIFICATION<THN> (A) M8X18 FLANGE 		0-28080-818-0 28 1 9902-0004 ●
23 BOLT; OIL PAN
AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> (A) M8X18 FLANGE 		0-28080-818-0 28 1 0005-0405 ●
23 BOLT; OIL PAN
AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X18 FLANGE 		0-28080-818-0 28 1 0406-0509 ●
23 BOLT; OIL PAN
(A) M8X18 FLANGE 		0-28080-818-0 28 1 0406-0509 ●
23 BOLT; OIL PAN
AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X18 FLANGE 		0-28080-818-0 28 1 0510- ● ●
23 BOLT; OIL PAN
(A) M8X18 FLANGE 		0-28080-818-0 28 1 0510- ●
23 BOLT; OIL PAN
EURO2 SPECIFICATION<THN> (B) M8X28 FLANGE 		0-28080-828-0 02 1 9902-0004 ●
23 BOLT; OIL PAN
AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> (B) M8X28 FLANGE 		0-28080-828-0 02 1 0005-0405 ●
23 BOLT; OIL PAN
AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X28 FLANGE 		0-28080-828-0 02 1 0406-0509 ●
23 BOLT; OIL PAN
(B) M8X28 FLANGE 		0-28080-828-0 02 1 0406-0509 ●
23 BOLT; OIL PAN
AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X28 FLANGE 		0-28080-828-0 02 1 0510- ● ●
23 BOLT; OIL PAN
(B) M8X28 FLANGE 		0-28080-828-0 02 1 0510- ●
24 NUT; OIL PAN
M8 FLANGE 		0-91150-108-0 04 1 9601-9609 ●
24 NUT; OIL PAN
M8 FLANGE 		0-91150-108-0 04 1 9610-0004 ● ●
24 NUT; OIL PAN
M8 FLANGE 		0-91150-108-0 04 1 0005-0405 ● ● ●
24 NUT; OIL PAN
M8 FLANGE 		0-91150-108-0 04 1 0406-0602 ● ● ● ●
24 NUT; OIL PAN
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ● ● ●
24 NUT; OIL PAN
M8 		9-09110-408-0 06 1 9601-0512 ● ●
24 NUT; OIL PAN
M8 		0-91110-508-0 06 1 0601- ● ●
47 CLIP; HOSE,AIR BREATHER 1-11369-115-0 01 1 9601-9702 ●
47 CLIP; HOSE,AIR BREATHER 1-11369-115-0 01 1 9703-0004 ● ●
47 CLIP; HOSE,AIR BREATHER 1-11369-115-0 01 1 0005-0405 ● ● ●
47 CLIP; HOSE,AIR BREATHER 1-11369-115-0 01 1 0406-1506 ● ● ● ●
47 CLIP; HOSE,AIR BREATHER 8-98303-447-0 01 1 1507- ● ● ● ●
47 CLIP; HOSE,AIR BREATHER 1-11229-014-0 01 1 9601- ● ●
150 CLIP; WATER,OIL DRAIN
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) 		9-11229-070-0 03 1 0605- ●
150 CLIP; WATER,OIL DRAIN
OIL FILTER SETTING DOWNWARD<E7V> 		9-11229-070-0 01 1 9601- ●
150 CLIP; WATER,OIL DRAIN
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		9-11229-070-0 02 1 9601-9804 ●
150 CLIP; WATER,OIL DRAIN 9-11229-070-0 02 1 9601-9804 ●
150 CLIP; WATER,OIL DRAIN
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		9-11229-070-0 02 1 9805-0604 ● ●
150 CLIP; WATER,OIL DRAIN
PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		9-11229-070-0 02 1 0605- ●
150 CLIP; WATER,OIL DRAIN
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> 		9-11229-070-0 02 1 0605- ●
150 CLIP; WATER,OIL DRAIN
EXC. NEW ZEALAND EQUIPMENT(PK5) 		9-11229-070-0 02 1 0605- ●
204 WASHER; PL,OIL PAN
ID=8.4 		9-09160-508-0 06 1 9601-0605 ● ●
204 WASHER; PL,OIL PAN
ID=8.4 OD=16 		0-91610-508-0 06 1 0606- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
