Sayfa 9-01 - Isuzu EPC

9-01 — TOOLS (#64359) — 238 parça

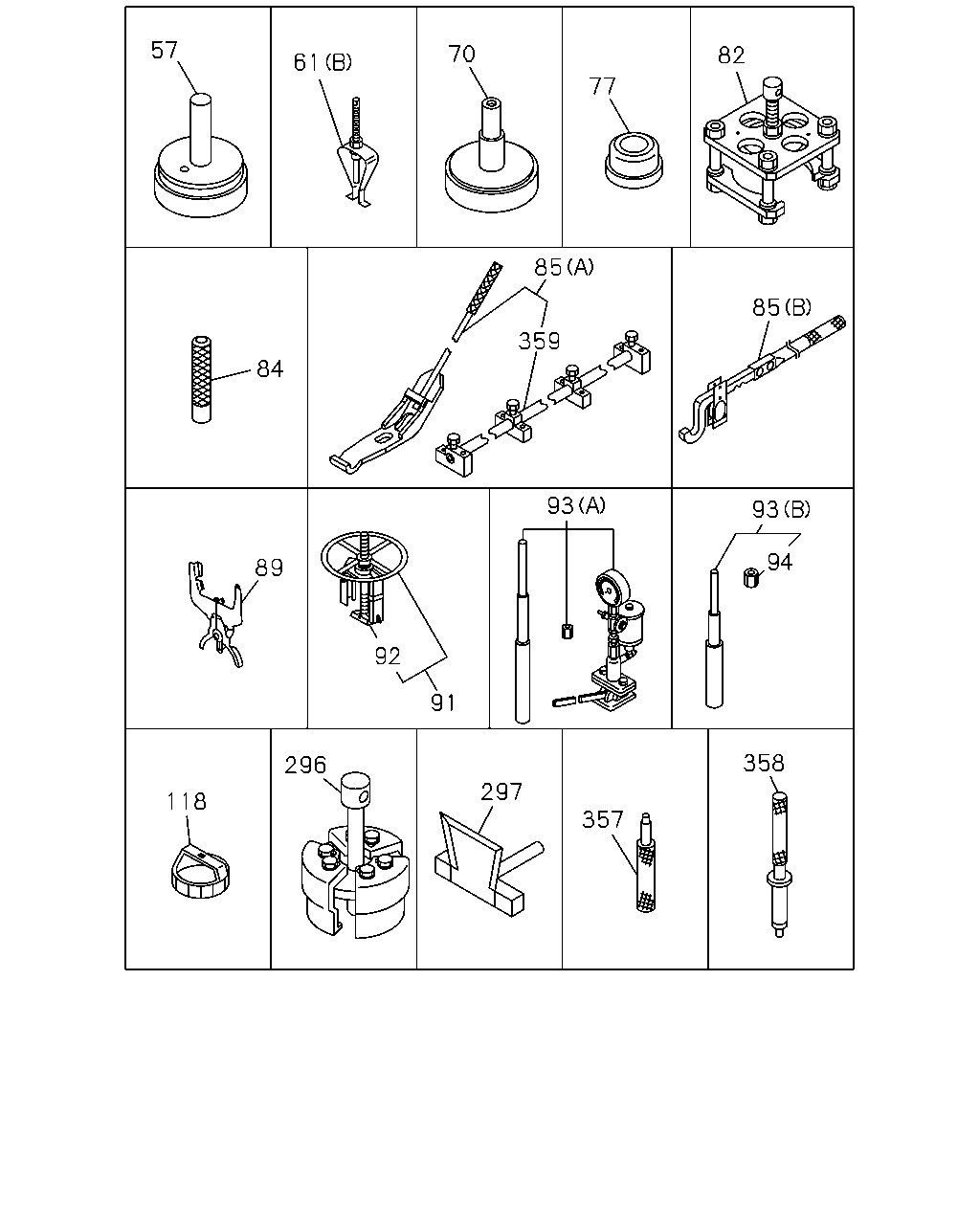

57 70 82 61 77 85 85 359 84 93 93 94 89 92 91 358 296 297 118 357

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
57	TOOL; SETTING CRANK GEAR ID=134.5	8-94396-819-0	01	1	9510-0004	●	●
61	PULLER ASM; PILOT BRG (A)	1-85210-050-0	01	1	9510-0004	●	●
61	PULLER ASM; PILOT BRG (A)	1-85210-050-0	01	1	0005-	●
61	PULLER ASM; PILOT BRG (B)	9-85210-157-0	01	1	9510-0004	●	●
70	TOOL; SETTING,OIL SEAL	8-94396-856-0	01	1	9510-0004	●	●
77	TOOL; SETTING,CYL LINER 6HE1 TCN ENG(58L)	8-94396-816-0	01	1	9610-	●
82	PULLER ASM; CR/SHF GEAR	8-94396-818-0	01	1	9510-0004	●	●
84	REPLACER; VALVE SEAL 6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN>	8-94391-525-0	01	1	9911-0004	●
84	REPLACER; VALVE SEAL	8-94396-815-0	01	1	9510-0001	●	●
84	REPLACER; VALVE SEAL 6HH1 STD ENG(65L),6HH1 N ENG(66L) EXC. EURO2 SPECIFICATION<THN>	8-94396-815-0	01	1	0002-0004	●	●
84	REPLACER; VALVE SEAL 6HE1 TCN ENG(58L)	8-94396-815-0	01	1	0002-0004	●
84	REPLACER; VALVE SEAL 6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L)	8-94396-815-0	01	1	0005-	●
85	REPLACER ASM; VALVE SPR 6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN> (A)	8-94391-528-0	01	1	9911-0004	●
85	REPLACER ASM; VALVE SPR 6HH1 STD 4VALVE ENG(1A6) (A)	8-94391-528-0	01	1	0005-0405	●
85	REPLACER ASM; VALVE SPR 6HH1 STD 4VALVE ENG(1A6),6HK1 TCC ENG(81L) (A)	8-94391-528-0	01	1	0406-	●
85	REPLACER ASM; VALVE SPR (B)	8-94396-861-0	01	1	9510-0001	●	●
85	REPLACER ASM; VALVE SPR 6HH1 STD ENG(65L),6HH1 N ENG(66L) EXC. EURO2 SPECIFICATION<THN> (B)	8-94396-861-0	01	1	0002-0004	●	●
85	REPLACER ASM; VALVE SPR 6HE1 TCN ENG(58L) (B)	8-94396-861-0	01	1	0002-0004	●
89	TOOL; PISTON RING	1-85221-029-0	01	1	9510-0004	●	●
91	REPLACER ASM; CYL LINER 6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN>	8-94391-526-0	01	1	9911-0004	●
91	REPLACER ASM; CYL LINER	8-94396-849-0	01	1	9510-0001	●	●
91	REPLACER ASM; CYL LINER 6HH1 STD ENG(65L),6HH1 N ENG(66L) EXC. EURO2 SPECIFICATION<THN>	8-94396-849-0	01	1	0002-0004	●	●
91	REPLACER ASM; CYL LINER 6HE1 TCN ENG(58L)	8-94396-849-0	01	1	0002-0004	●
91	REPLACER ASM; CYL LINER 6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L)	8-94396-849-0	01	1	0005-	●
92	ANKLE; REPLACER,CYL LINER 6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN>	8-94391-554-0	01	1	9911-0004	●
92	ANKLE; REPLACER,CYL LINER	8-94396-821-0	01	1	9510-0001	●	●
92	ANKLE; REPLACER,CYL LINER 6HH1 STD ENG(65L),6HH1 N ENG(66L) EXC. EURO2 SPECIFICATION<THN>	8-94396-821-0	01	1	0002-0004	●	●
92	ANKLE; REPLACER,CYL LINER 6HE1 TCN ENG(58L)	8-94396-821-0	01	1	0002-0004	●
92	ANKLE; REPLACER,CYL LINER 6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L)	8-94396-821-0	01	1	0005-	●
93	SETTING KIT; VALVE GUIDE 6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN> (B)	8-97600-910-0	01	1	9911-0004	●
93	SETTING KIT; VALVE GUIDE (A)	1-85220-001-0	01	1	9510-0001	●	●
93	SETTING KIT; VALVE GUIDE 6HH1 STD ENG(65L),6HH1 N ENG(66L) EXC. EURO2 SPECIFICATION<THN> (A)	1-85220-001-0	01	1	0002-0004	●	●
93	SETTING KIT; VALVE GUIDE 6HE1 TCN ENG(58L) (A)	1-85220-001-0	01	1	0002-0004	●
93	SETTING KIT; VALVE GUIDE 6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L) (A)	1-85220-001-0	01	1	0005-	●
94	RING; VALVE GUIDE SET 6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN>	8-97600-912-0	01	1	9911-0004	●
118	WRENCH; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	1-85221-097-0	01	1	9510-0004	●
118	WRENCH; OIL FILTER	1-85221-097-0	01	1	9510-0004		●
296	REPLACER; SLINGER	8-94396-858-0	01	1	9510-0004	●	●
297	CUTTER; SEAL,OIL PAN	8-94393-112-0	01	1	9510-0004	●	●
357	REPLACER; NOZZLE SLEEVE 6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN>	8-94391-555-0	01	1	9911-0004	●
357	REPLACER; NOZZLE SLEEVE 6HH1 STD 4VALVE ENG(1A6)	8-94391-555-0	01	1	0005-0405	●
357	REPLACER; NOZZLE SLEEVE 6HH1 STD 4VALVE ENG(1A6),6HK1 TCC ENG(81L)	8-94391-555-0	01	1	0406-	●
358	PLACER; NOZZLE SLEEVE 6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN>	8-94391-556-0	01	1	9911-0004	●
358	PLACER; NOZZLE SLEEVE 6HH1 STD 4VALVE ENG(1A6)	8-94391-556-0	01	1	0005-0405	●
358	PLACER; NOZZLE SLEEVE 6HH1 STD 4VALVE ENG(1A6),6HK1 TCC ENG(81L)	8-94391-556-0	01	1	0406-	●
359	PIVOT 6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN>	8-94396-862-0	01	1	9911-0004	●
359	PIVOT 6HH1 STD 4VALVE ENG(1A6)	8-94396-862-0	01	1	0005-0405	●
359	PIVOT 6HH1 STD 4VALVE ENG(1A6),6HK1 TCC ENG(81L)	8-94396-862-0	01	1	0406-	●

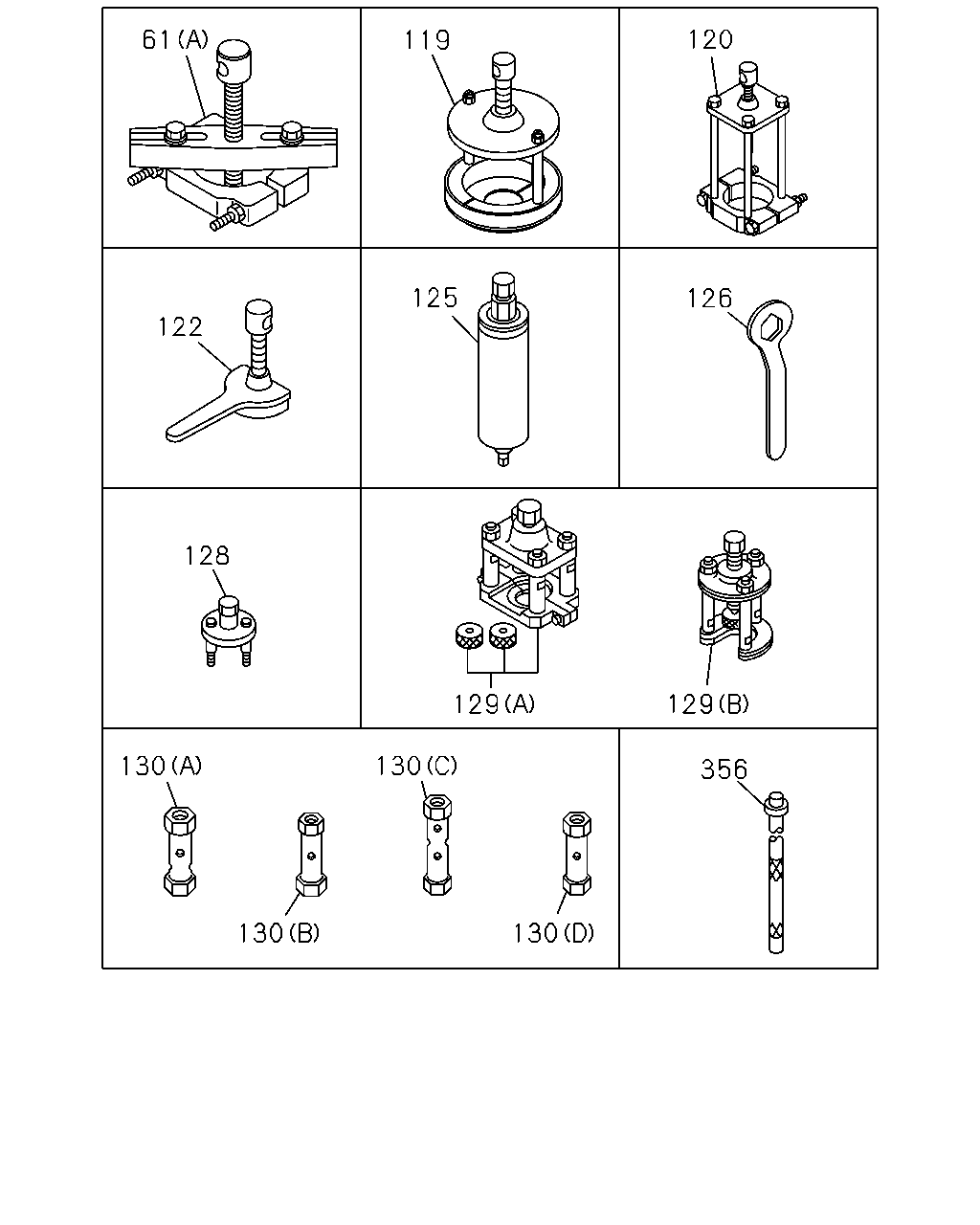

120 61 119 125 126 122 128 129 129 130 130 356 130 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
61	PULLER ASM; PILOT BRG (A)	1-85210-050-0	01	1	9510-0004	●	●
61	PULLER ASM; PILOT BRG (A)	1-85210-050-0	01	1	0005-	●
61	PULLER ASM; PILOT BRG (B)	9-85210-157-0	01	1	9510-0004	●	●
119	PULLER ASM; TOP GEAR BRG MBJ5 M/T<Y9A>,MBJ6 M/T<Y9B>	9-85210-186-0	01	1	9510-0004	●	●
120	PULLER ASM; MAIN REAR BRG MBJ5 M/T<Y9A>,MBJ6 M/T<Y9B>	9-85210-169-0	01	1	9510-0004	●	●
120	PULLER ASM; MAIN REAR BRG MBJ5 M/T<Y9A>,MBJ6 M/T<Y9B>	9-85210-169-0	01	1	0005-	●
122	PULLER ASM; COUNTER FRT MBJ5 M/T<Y9A>,MBJ6 M/T<Y9B>	9-85210-168-0	01	1	9510-0004	●	●
122	PULLER ASM; COUNTER FRT MBJ5 M/T<Y9A>,MBJ6 M/T<Y9B>	9-85210-168-0	01	1	0005-	●
125	PULLER ASM; KING PIN L=360	9-85210-151-0	01	1	9510-0004	●	●
126	WRENCH; FRT HUB BRG NUT FRONT AXLE F049(FS4) L=257 B=63	9-85111-373-0	01	1	9510-0004	●
126	WRENCH; FRT HUB BRG NUT L=257 B=63	9-85111-373-0	01	1	9510-0004		●
126	WRENCH; FRT HUB BRG NUT EXC. FRONT AXLE F049(FS4) L=257 B=54	1-85111-011-0	01	1	9510-0004	●
128	PULLER ASM; STRG WHEEL	9-85210-099-0	01	1	9510-0004	●	●
128	PULLER ASM; STRG WHEEL	9-85210-099-0	01	1	0005-	●
129	PULLER ASM; PITMAN ARM (A)	9-85210-147-0	01	1	9510-0004	●	●
129	PULLER ASM; PITMAN ARM (B)	9-85210-170-0	01	1	9510-0004	●	●
129	PULLER ASM; PITMAN ARM (B)	9-85210-170-0	01	1	0005-	●
130	WRENCH; BOX (D) B=46 & 54 L=165	9-85112-320-0	01	1	9510-0004	●	●
130	WRENCH; BOX (A) B=32 & 41 L=150	9-85112-322-0	01	1	9510-0004	●	●
130	WRENCH; BOX (B) B=36 & 41 L=200	9-85112-330-0	01	1	9510-0004	●	●
130	WRENCH; BOX (C) B=41 & 46 L=165	9-85113-401-0	01	1	9510-0004	●	●
356	TOOL; SETTING,OIL SEAL,CYL HEAD 6HK1 TCC ENG(81L)	8-94391-527-0	01	1	0406-	●

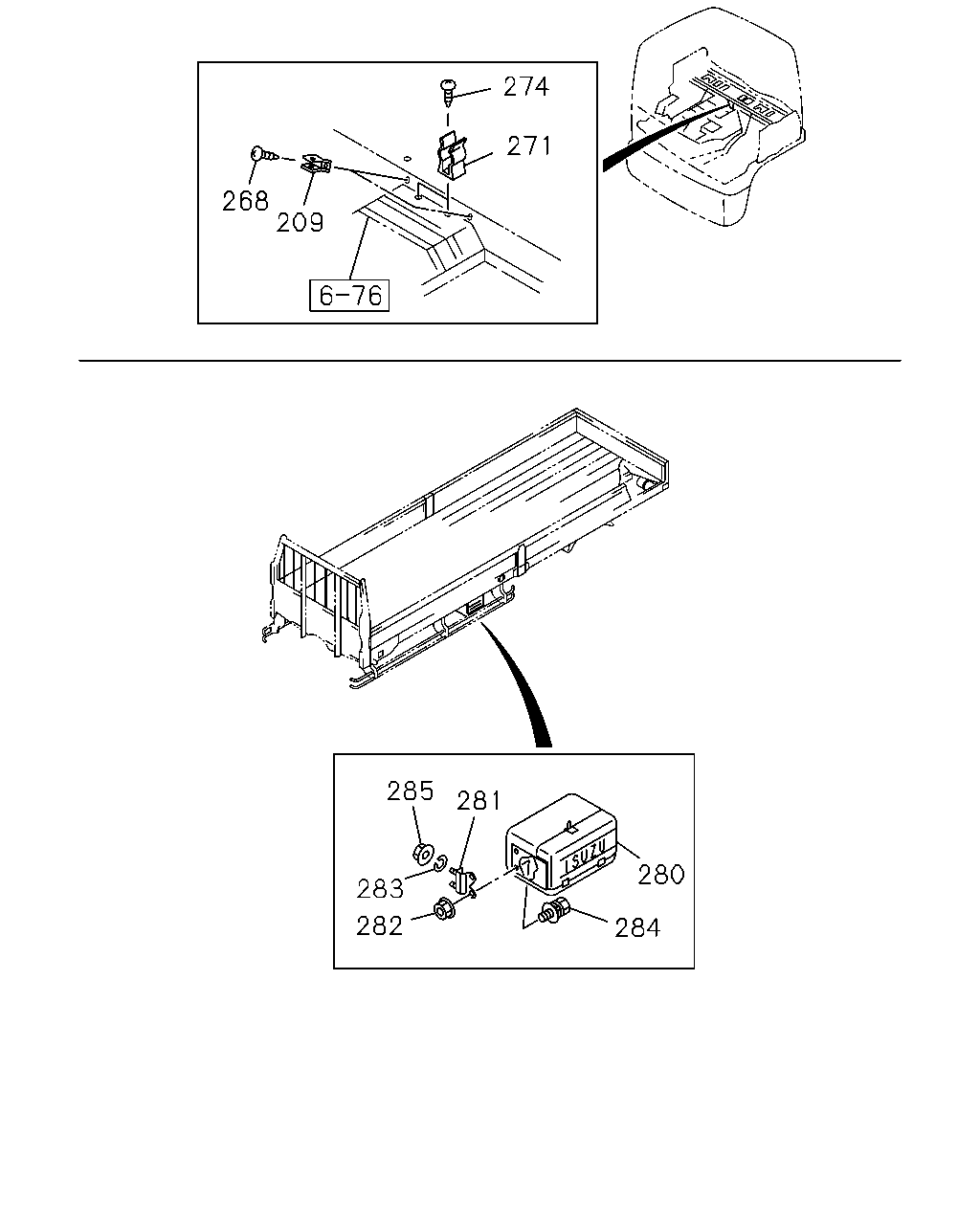

274 271 268 209 285 281 280 283 282 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
209	CLIP; JACK HANDLE	1-73638-011-1	02	1	9510-0004	●	●
209	CLIP; JACK HANDLE	1-73638-011-1	02	1	0005-0708	●
209	CLIP; JACK HANDLE	8-98053-799-0	02	1	0709-	●
268	SCREW; CLIP M6X12 W/LK WASHER	9-03910-612-0	02	1	9510-0604	●
268	SCREW; CLIP M6X12 W/LK WASHER	0-36220-612-0	02	1	0605-	●
268	SCREW; CLIP M5X16 W/LK&PL WASHER	8-94279-400-0	02	1	9510-0004		●
271	CLIP; TIRE HANGER	1-73638-012-1	02	1	9510-0004	●	●
271	CLIP; TIRE HANGER	1-73638-012-1	02	1	0005-0708	●
271	CLIP; TIRE HANGER	8-98053-800-0	02	1	0709-	●
274	SCREW; CLIP M6X12 W/LK WASHER	9-03910-612-0	02	1	9510-0604	●
274	SCREW; CLIP M6X12 W/LK WASHER	0-36220-612-0	02	1	0605-	●
274	SCREW; CLIP M5X16 W/LK&PL WASHER	8-94279-400-0	02	1	9510-0004		●
280	BOX; TOOL KEY LOCK TOOL BOX<RC5>	1-85561-006-2	01	1	9510-9802	●	●
280	BOX; TOOL KEY LOCK TOOL BOX<RC5>	1-85561-006-2	01	1	9803-0004	●
280	BOX; TOOL	1-85561-006-2	01	1	9803-0004		●
280	BOX; TOOL KEY LOCK TOOL BOX<RC5>	1-85561-006-3	01	1	0005-	●
281	BRACKET; TOOL BOX KEY LOCK TOOL BOX<RC5>	1-53459-665-2	02	1	9510-9802	●	●
281	BRACKET; TOOL BOX KEY LOCK TOOL BOX<RC5>	1-53459-665-2	02	1	9803-0004	●
281	BRACKET; TOOL BOX	1-53459-665-2	02	1	9803-0004		●
281	BRACKET; TOOL BOX KEY LOCK TOOL BOX<RC5>	1-53459-665-2	02	1	0005-	●
282	NUT; BRKT KEY LOCK TOOL BOX<RC5> M10	9-09110-510-0	04	1	9510-9606	●	●
282	NUT; BRKT KEY LOCK TOOL BOX<RC5> M10 FLANGE	0-91150-210-0	04	1	9607-9802	●	●
282	NUT; BRKT KEY LOCK TOOL BOX<RC5> M10 FLANGE	0-91150-210-0	04	1	9803-0004	●
282	NUT; BRKT M10 FLANGE	0-91150-210-0	04	1	9803-0004		●
282	NUT; BRKT KEY LOCK TOOL BOX<RC5> M10 FLANGE	0-91150-210-0	04	1	0005-0602	●
282	NUT; BRKT KEY LOCK TOOL BOX<RC5> M10 FLANGE	0-91180-210-0	04	1	0603-	●
283	WASHER; LK,BRKT KEY LOCK TOOL BOX<RC5> ID=10.2	9-09150-510-0	04	1	9510-9802	●	●
283	WASHER; LK,BRKT KEY LOCK TOOL BOX<RC5> ID=10.2	9-09150-510-0	04	1	9803-0004	●
283	WASHER; LK,BRKT ID=10.2	9-09150-510-0	04	1	9803-0004		●
283	WASHER; LK,BRKT KEY LOCK TOOL BOX<RC5> ID=10.2	9-09150-510-0	04	1	0005-0603	●
283	WASHER; LK,BRKT KEY LOCK TOOL BOX<RC5> ID=10.2	0-91510-510-0	04	1	0604-	●
284	BOLT; TOOL BOX KEY LOCK TOOL BOX<RC5> M10X20 W/LK WASHER	0-50041-020-0	04	1	9510-9606	●	●
284	BOLT; TOOL BOX KEY LOCK TOOL BOX<RC5> M10X20 FLANGE	0-28681-020-0	04	1	9607-9802	●	●
284	BOLT; TOOL BOX KEY LOCK TOOL BOX<RC5> M10X20 FLANGE	0-28681-020-0	04	1	9803-0004	●
284	BOLT; TOOL BOX M10X20 FLANGE	0-28681-020-0	04	1	9803-0004		●
284	BOLT; TOOL BOX KEY LOCK TOOL BOX<RC5> M10X20 FLANGE	0-28681-020-0	04	1	0005-0512	●
284	BOLT; TOOL BOX KEY LOCK TOOL BOX<RC5> M10X20 FLANGE	0-28651-020-0	04	1	0601-	●
285	NUT; TOOL BOX KEY LOCK TOOL BOX<RC5> M10	9-09110-510-0	04	1	9510-9606	●	●
285	NUT; TOOL BOX KEY LOCK TOOL BOX<RC5> M10 FLANGE	0-91150-210-0	04	1	9607-9802	●	●
285	NUT; TOOL BOX KEY LOCK TOOL BOX<RC5> M10 FLANGE	0-91150-210-0	04	1	9803-0004	●
285	NUT; TOOL BOX M10 FLANGE	0-91150-210-0	04	1	9803-0004		●
285	NUT; TOOL BOX KEY LOCK TOOL BOX<RC5> M10 FLANGE	0-91150-210-0	04	1	0005-0602	●
285	NUT; TOOL BOX KEY LOCK TOOL BOX<RC5> M10 FLANGE	0-91180-210-0	04	1	0603-	●

141 141 141 143 144 149 153 157 158 159 160 161 162 162 163 163 163 163 163 163 166 167 169

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
141	HANDLE; WRENCH (C) OD=25 L=480	1-85116-011-0	01	1	9510-0004	●	●
141	HANDLE; WRENCH (C) OD=25 L=480	1-85116-011-0	01	1	0005-1501	●
141	HANDLE; WRENCH (C) OD=25 L=480	1-85116-011-0	01	1	0005-1501	●
141	HANDLE; WRENCH (C) OD=25 L=480	8-98257-407-0	01	1	1502-	●
141	HANDLE; WRENCH (C) OD=25 L=480	8-98257-407-0	01	1	1502-	●
141	HANDLE; WRENCH (B) OD=19 L=400	9-85114-306-0	01	1	9510-0004	●	●
141	HANDLE; WRENCH (A) OD=16 L=300	9-85114-307-0	01	1	9510-0004	●	●
143	GUIDE; BOOT,TIE ROD END EXC. FRONT AXLE F049(FS4)	1-85229-011-0	01	1	9510-	●
144	BASE; BOOT GUIDE,TIE ROD END EXC. FRONT AXLE F049(FS4)	1-85229-012-0	01	1	9510-	●
149	PLATE; PILOT BRG PULLER	1-85219-009-0	01	1	9510-0004	●	●
153	DRIVER; WASHER,THRUST WASHER	1-85238-002-0	01	1	0005-	●
157	REPLACER KIT; RETURN SPR	9-85231-554-0	01	1	9510-0004	●	●
158	SETTING TOOL; RETURN SPR	9-85221-231-0	01	1	9510-0004	●	●
159	REMOVER; RETURN SPR ID=12.5	9-85231-555-0	01	1	9510-0004	●	●
160	REMOVER; NEEDLE BRG FRONT AXLE F049(FS4) L=228	1-85238-010-0	01	1	9510-0004	●
160	REMOVER; NEEDLE BRG L=228	1-85238-010-0	01	1	9510-0004		●
160	REMOVER; NEEDLE BRG FRONT AXLE F049(FS4) L=228	1-85238-010-0	01	1	0005-	●
160	REMOVER; NEEDLE BRG EXC. FRONT AXLE F049(FS4) L=215	1-85238-007-0	01	1	9510-0004	●
161	REMOVER; TIE ROD ARM FRONT AXLE F049(FS4)	9-85141-603-0	01	1	9510-0004	●
161	REMOVER; TIE ROD ARM	9-85141-603-0	01	1	9510-0004		●
161	REMOVER; TIE ROD ARM EXC. FRONT AXLE F049(FS4)	1-85176-001-0	01	1	9510-	●
162	SETTING TOOL; NEEDLE BRG FRONT AXLE F049(FS4) (B) L=181	1-85238-008-0	01	1	9510-0004	●
162	SETTING TOOL; NEEDLE BRG (B) L=181	1-85238-008-0	01	1	9510-0004		●
162	SETTING TOOL; NEEDLE BRG FRONT AXLE F049(FS4) (B) L=181	1-85238-008-0	01	1	0005-	●
162	SETTING TOOL; NEEDLE BRG FRONT AXLE F049(FS4) (A) L=213	1-85238-009-0	01	1	9510-0004	●
162	SETTING TOOL; NEEDLE BRG (A) L=213	1-85238-009-0	01	1	9510-0004		●
162	SETTING TOOL; NEEDLE BRG FRONT AXLE F049(FS4) (A) L=213	1-85238-009-0	01	1	0005-	●
162	SETTING TOOL; NEEDLE BRG EXC. FRONT AXLE F049(FS4) (A) L=200	1-85238-005-0	01	1	9510-0004	●
162	SETTING TOOL; NEEDLE BRG EXC. FRONT AXLE F049(FS4) (B) L=175	1-85238-006-0	01	1	9510-0004	●
163	TOOL; SETTING MLD6 M/T<X9Y> (E) L=195	1-85221-162-1	01	1	0406-	●
163	TOOL; SETTING MLD6 M/T<X9Y> (F) L=150	1-85221-163-0	01	1	0406-	●
163	TOOL; SETTING MBJ5 M/T<Y9A>,MBJ6 M/T<Y9B> (A) OD=120	1-85221-164-0	01	1	9510-0004	●	●
163	TOOL; SETTING MBJ5 M/T<Y9A>,MBJ6 M/T<Y9B> (B) L=150	9-85221-248-0	01	1	9510-0004	●	●
163	TOOL; SETTING MBJ5 M/T<Y9A>,MBJ6 M/T<Y9B> (C) L=350	9-85221-310-0	01	1	9510-0004	●	●
163	TOOL; SETTING MBJ5 M/T<Y9A>,MBJ6 M/T<Y9B> (D) L=220	9-85221-323-0	01	1	9510-0004	●	●
166	ALIGNER; CLU RELEASE LEVER 14" CLUTCH(WF6) L=480	1-85253-011-0	01	1	9510-0004	●
166	ALIGNER; CLU RELEASE LEVER L=480	1-85253-011-0	01	1	9510-0004		●
166	ALIGNER; CLU RELEASE LEVER 14" CLUTCH(WF6) L=480	1-85253-023-0	01	1	9610-0004	●
166	ALIGNER; CLU RELEASE LEVER L=480	1-85253-023-0	01	1	9610-0004		●
166	ALIGNER; CLU RELEASE LEVER 14" CLUTCH(WF6) MBJ5 M/T<Y9A>,MBJ6 M/T<Y9B> L=480	1-85253-023-0	01	1	0005-	●
167	ALIGNER; CLU PILOT ISUZU M/T<X9A> L=185	1-85253-012-0	01	1	9510-9609	●
167	ALIGNER; CLU PILOT L=185	1-85253-012-0	01	1	9510-9609		●
167	ALIGNER; CLU PILOT ISUZU M/T<X9A> L=185	1-85253-008-0	01	1	9610-0004	●
167	ALIGNER; CLU PILOT L=185	1-85253-008-0	01	1	9610-0004		●
167	ALIGNER; CLU PILOT ISUZU M/T<X9A> L=185	1-85253-008-0	01	1	0005-	●
169	BRACKET; SPLINE YOKE	9-85221-243-1	01	1	9510-0004	●	●

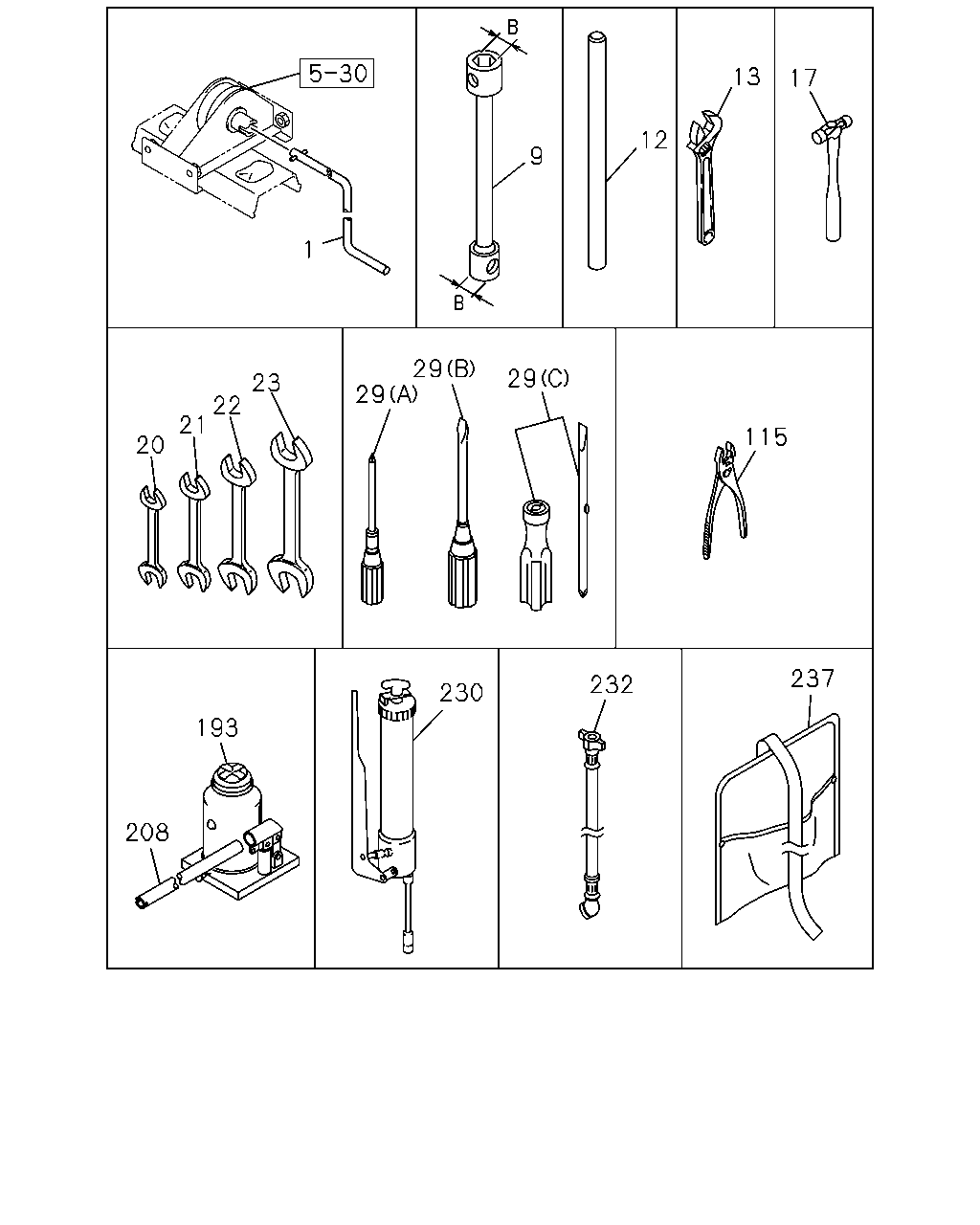

13 17 12 9 1 29 29 23 22 21 29 115 20 237 232 230 193 208

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HANDLE; SPARE TIRE CARRIER	9-23110-018-0	01	1	9510-	●
9	WRENCH; WHEEL PIN B=41X21 L=440	1-85113-015-1	01	1	9510-9802	●	●
9	WRENCH; WHEEL PIN B=41X21 L=445	8-97118-906-0	01	1	9803-9903	●	●
9	WRENCH; WHEEL PIN B=41X21 L=440	1-85113-015-1	01	1	9904-1601	●
9	WRENCH; WHEEL PIN B=41X21 L=445	8-98316-703-0	01	1	1602-	●
12	HANDLE; WRENCH,WHEEL PIN OD=25 L=480	1-85116-011-0	01	1	0005-0208	●
12	HANDLE; WRENCH,WHEEL PIN OD=25 L=480	1-85116-011-0	01	1	0209-1501	●
12	HANDLE; WRENCH,WHEEL PIN OD=25 L=480	8-98257-407-0	01	1	1502-	●
12	HANDLE; WRENCH,WHEEL PIN OD=25 L=480	1-85116-011-0	01	1	9510-9805	●	●
13	WRENCH; MONKEY L=255	1-85117-002-1	01	1	9510-0004	●	●
13	WRENCH; MONKEY L=255	1-85117-002-1	01	1	0005-0208	●
13	WRENCH; MONKEY TOOL B KIT<SL1> L=255	1-85117-002-1	01	1	0209-0211	●
13	WRENCH; MONKEY TOOL B KIT<SL1> L=247	1-85117-006-0	01	1	0212-1407	●
13	WRENCH; MONKEY TOOL B KIT<SL1> L=255	8-98270-303-0	01	1	1408-	●
17	HAMMER	9-85121-406-0	01	1	9510-0004	●	●
17	HAMMER	9-85121-406-0	01	1	0005-0208	●
17	HAMMER TOOL B KIT<SL1>	9-85121-406-0	01	1	0209-	●
20	WRENCH; 10X12 10X12	9-09592-110-0	01	1	9510-0004	●	●
20	WRENCH; 10X12 10X12	9-09592-110-0	01	1	0005-0208	●
20	WRENCH; 10X12 TOOL B KIT<SL1> 10X12	9-09592-110-0	01	1	0209-0607	●
20	WRENCH; 10X12 TOOL B KIT<SL1> 10X12	0-95902-510-0	01	1	0608-	●
21	WRENCH; 14X17 14X17	9-09592-114-0	01	1	9510-0004	●	●
21	WRENCH; 14X17 14X17	9-09592-114-0	01	1	0005-0208	●
21	WRENCH; 14X17 TOOL B KIT<SL1> 14X17	9-09592-114-0	01	1	0209-0607	●
21	WRENCH; 14X17 TOOL B KIT<SL1> 14X17	0-95902-514-0	01	1	0608-	●
22	WRENCH; 19X22 19X22	9-99592-119-0	01	1	9510-0004	●	●
22	WRENCH; 19X22 19X22	9-99592-119-0	01	1	0005-0208	●
22	WRENCH; 19X22 TOOL B KIT<SL1> 19X22	9-99592-119-0	01	1	0209-0607	●
22	WRENCH; 19X22 TOOL B KIT<SL1> 19X22	0-95902-519-0	01	1	0608-	●
23	WRENCH; 24X27 24X27	9-09592-124-0	01	1	9510-0004	●	●
23	WRENCH; 24X27 24X27	9-09592-124-0	01	1	0005-0208	●
23	WRENCH; 24X27 TOOL B KIT<SL1> 24X27	9-09592-124-0	01	1	0209-0607	●
23	WRENCH; 24X27 TOOL B KIT<SL1> 24X27	0-95902-524-0	01	1	0608-	●
29	DRIVER; SCREW (B) <-> L=285	1-85151-004-0	01	1	9510-0004	●	●
29	DRIVER; SCREW (B) <-> L=285	1-85151-004-0	01	1	0005-0208	●
29	DRIVER; SCREW TOOL B KIT<SL1> (B) <-> L=285	1-85151-004-0	01	1	0209-0611	●
29	DRIVER; SCREW TOOL B KIT<SL1> (B) <-> L=275	8-98061-105-0	01	1	0612-	●
29	DRIVER; SCREW (C) <+>,<-> L=160	8-94242-798-1	01	1	9510-0004	●	●
29	DRIVER; SCREW (C) <+>,<-> L=160	8-94242-798-1	01	1	0005-	●
29	DRIVER; SCREW (A) <+> L=190	9-09595-522-0	01	1	9510-0004	●	●
29	DRIVER; SCREW (A) <+> L=190	9-09595-522-0	01	1	0005-0208	●
29	DRIVER; SCREW TOOL B KIT<SL1> (A) <+> L=190	9-09595-522-0	01	1	0209-	●
115	PLIER	5-85171-002-0	01	1	9510-0004	●	●
115	PLIER	5-85171-002-0	01	1	0005-0208	●
115	PLIER TOOL B KIT<SL1>	5-85171-002-0	01	1	0209-1410	●
115	PLIER TOOL B KIT<SL1>	8-98282-845-0	01	1	1411-	●
193	JACK ASM CAUTIONS ARABIAN<WJ7> 7TON	1-85510-024-0	01	1	0306-	●
193	JACK ASM 7TON	1-85510-005-2	01	1	9510-0004	●	●
193	JACK ASM 7TON	1-85510-005-2	01	1	0005-0305	●
193	JACK ASM EXC. CAUTIONS ARABIAN<WJ7> 7TON	1-85510-005-2	01	1	0306-	●
208	HANDLE; JACK L=600	1-85515-008-0	01	1	9510-0004	●	●
208	HANDLE; JACK L=600	1-85515-008-0	01	1	0005-0105	●
208	HANDLE; JACK L=600	1-85515-009-0	01	1	0106-1107	●
208	HANDLE; JACK L=600	8-98181-437-0	01	1	1108-	●
230	PUMP; GREASE	1-85556-007-2	01	1	9510-0004	●	●
230	PUMP; GREASE	1-85556-007-2	01	1	0005-0208	●
230	PUMP; GREASE TOOL B KIT<SL1>	1-85556-007-5	01	1	0209-	●
232	HOSE; AIR,AIR CHARGE TIRE INFLATOR DEVICE<SG4>	1-09360-245-1	01	1	9510-	●
237	BAG; TOOL	8-97130-902-0	01	1	9510-0004	●	●
237	BAG; TOOL	8-97130-902-1	01	1	0005-	●

170 171 172 174 177 178 179 180 180 182 321 362

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
170	HANDLE; TURNING,FINAL	9-85251-121-0	01	1	9510-0004	●	●
171	PULLER ASM; PINION BRG	9-85210-172-0	01	1	9510-0004	●	●
172	PULLER ASM; BRG DIFF PILOT	9-85210-173-0	01	1	9510-0004	●	●
174	PULLER ASM; MAIN CLU SHAFT	9-85210-148-0	01	1	9510-0004	●	●
174	PULLER ASM; MAIN CLU SHAFT	9-85210-148-0	01	1	0005-	●
177	SETTING TOOL KIT	9-85220-040-0	01	1	9510-0004	●	●
178	BAR; TRANS GUIDE	9-85291-203-0	01	1	9510-0004	●	●
178	BAR; TRANS GUIDE	9-85291-203-0	01	1	0005-	●
179	PULLER; SPD METER GEAR	9-85210-181-0	01	1	9510-0004	●	●
180	PULLER; FRT & RR HUB (B) L=260 B=90	9-85113-534-0	01	1	9510-0004	●
180	PULLER; FRT & RR HUB (A) M20	9-85210-187-0	01	1	9510-0004	●	●
182	REMOVER ASM	9-85210-095-0	01	1	9510-0004	●	●
321	SOCKET; PROP SHAFT 6HE1 TCN ENG(58L) L=300	1-85115-024-0	01	1	9610-9802	●
321	SOCKET; PROP SHAFT L=300	1-85115-024-0	01	1	9803-0004	●	●
321	SOCKET; PROP SHAFT 6HH1 STD ENG(65L),6HH1 N ENG(66L) L=250	1-85115-023-0	01	1	9510-9802	●
321	SOCKET; PROP SHAFT 6HH1 STD ENG(65L),6HH1 N ENG(66L) L=250	1-85115-023-0	01	1	9803-9805	●
321	SOCKET; PROP SHAFT L=250	1-85115-023-0	01	1	9803-9805		●
321	SOCKET; PROP SHAFT 6HH1 STD ENG(65L),6HH1 N ENG(66L) L=250	1-85115-023-0	01	1	9806-0004	●	●
362	PLACER; GUIDE BRIDGE 6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN>	8-94392-014-0	01	1	9911-0004	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
