Sayfa 8-75 - Isuzu EPC

8-75 — CONDENSER (#64356) — 235 parça

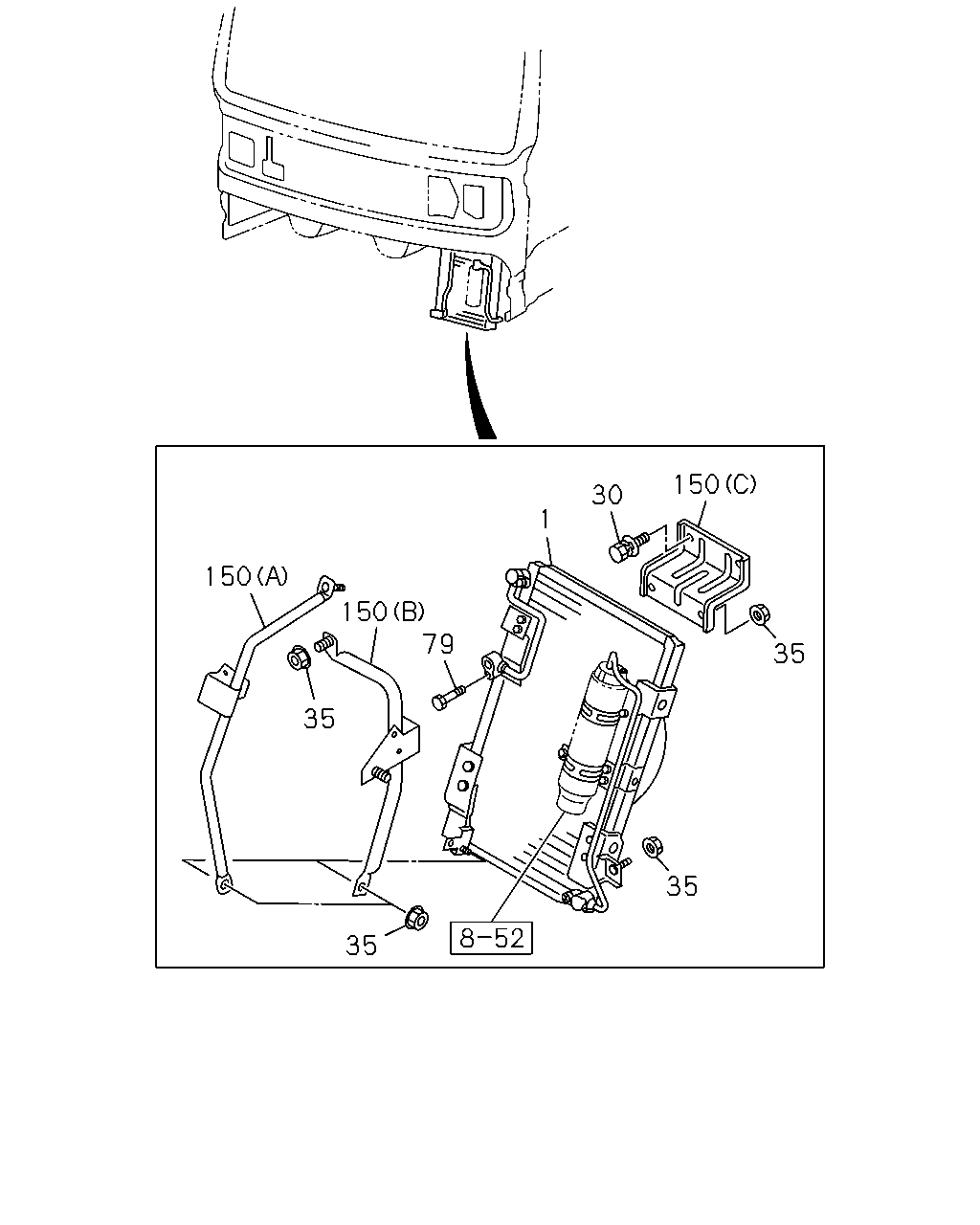

150 30 1 150 150 79 35 35 35 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5)	1-83534-250-3	01	1	0404-
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-213-2	01	1	9803-0209
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-211-2	01	1	0210-0403
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83534-211-2	01	1	0404-
30	BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9803-0904
30	BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-
35	NUT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	05	1	9803-0602
35	NUT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	05	1	0603-
79	BOLT; CONDENSER BRKT AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) M6X25 FLANGE	0-28080-625-0	02	1	0404-0512
79	BOLT; CONDENSER BRKT AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) M6X25 FLANGE	0-28050-625-0	02	1	0601-
79	BOLT; CONDENSER BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X35	8-97103-452-0	01	1	0002-0403
79	BOLT; CONDENSER BRKT AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) M8X35	8-97103-452-0	01	1	0404-
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (C)	1-83571-986-0	01	1	0404-
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (B)	1-83573-099-2	01	1	0404-
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83571-786-1	01	1	9803-0403
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (C)	1-83571-786-1	01	1	0404-
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83573-067-0	01	1	9803-9803
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-785-2	01	1	9804-0403
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	1-83571-785-2	01	1	0404-

1 5 59 127 106 169 20 129 106 15 65 9 79 4 19 18 55 60 43 29 29 22 29

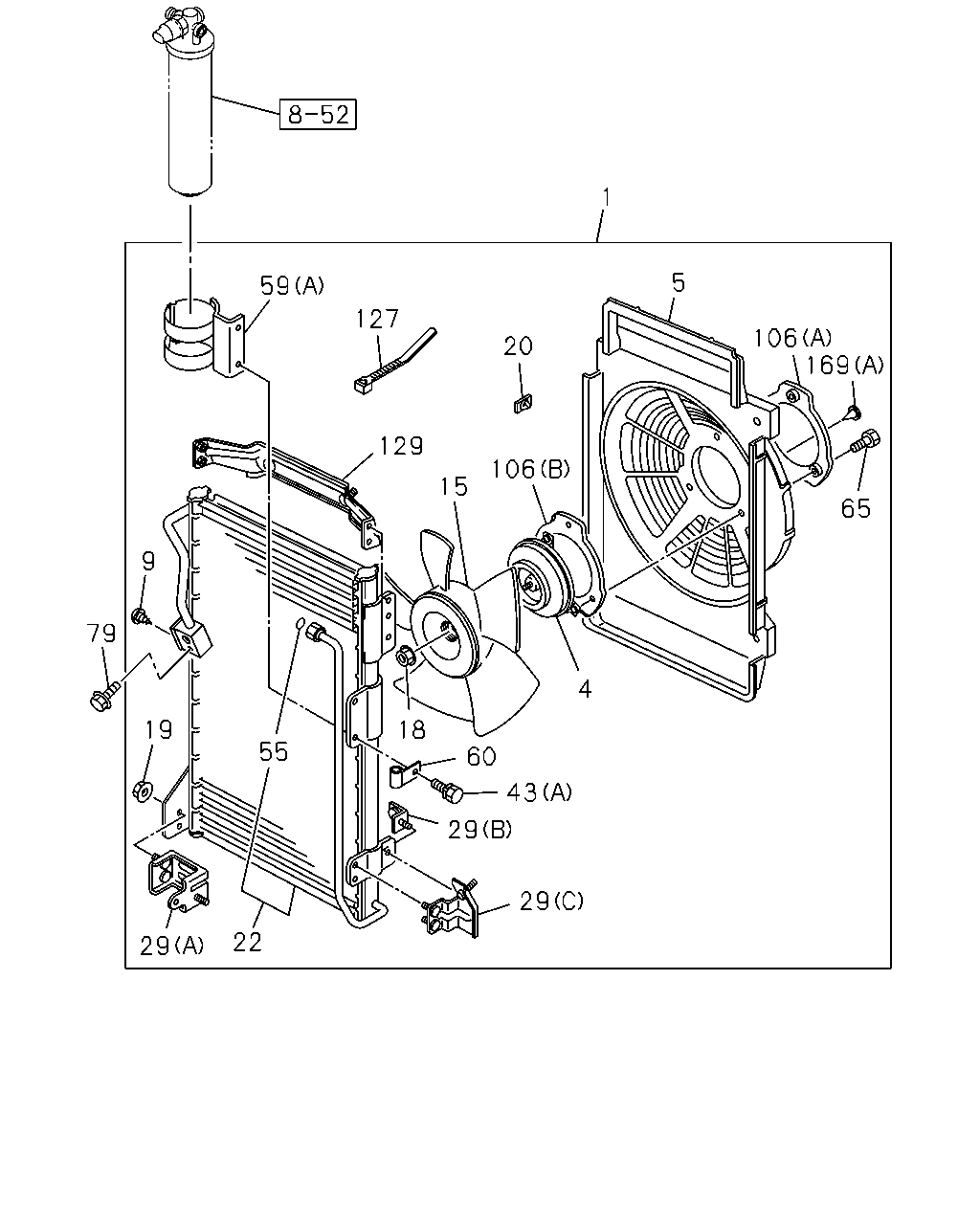

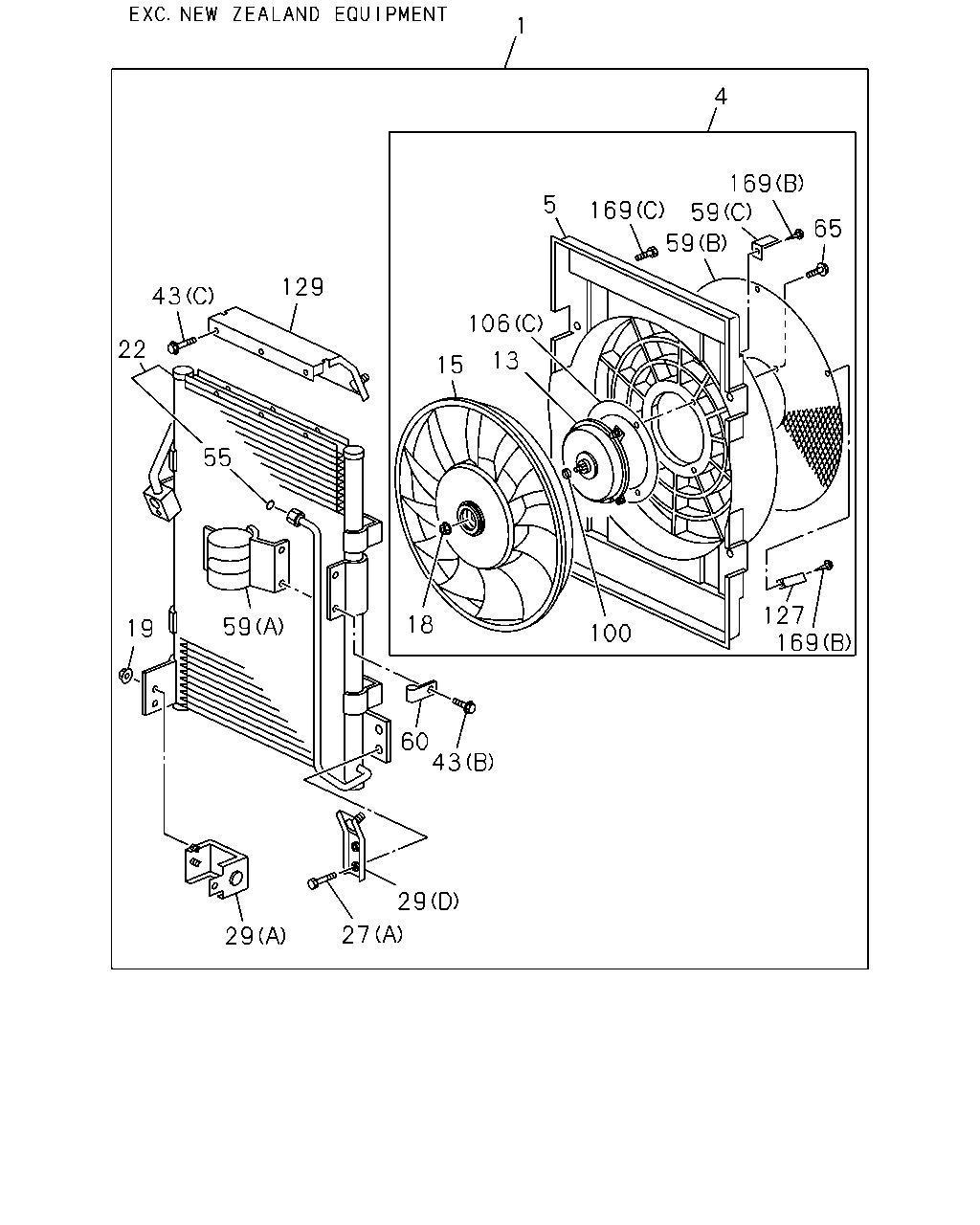

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5)	1-83534-250-3	01	1	0404-
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-213-2	01	1	9803-0209
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-211-2	01	1	0210-0403
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83534-211-2	01	1	0404-
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5)	1-83561-139-3	01	1	0404-0703
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5)	8-98014-458-0	01	1	0704-
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-231-0	01	1	9803-0209
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-156-1	01	1	0210-0403
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83561-156-1	01	1	0404-
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5)	1-83539-380-0	01	1	0404-
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-230-2	01	1	9803-0209
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-343-0	01	1	0210-0403
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83539-343-0	01	1	0404-
9	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) M6X14	1-83539-382-0	04	1	0404-
9	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-374-0	01	1	9803-0209
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5)	1-83561-140-0	01	1	0404-
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-232-0	01	1	9803-0209
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-158-0	01	1	0210-0403
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83561-158-0	01	1	0404-
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5)	1-83539-313-0	01	1	0404-
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONTROL(C60)	8-97018-672-0	01	1	9803-0403
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	8-97018-672-0	01	1	0404-
19	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-235-0	11	1	9803-0209
19	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-235-0	02	1	0210-0403
19	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83539-235-0	02	1	0404-
20	CLIP; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	8-94364-751-0	01	1	9803-0209
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5)	1-83534-261-0	01	1	0404-1409
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5)	8-98275-189-0	01	1	1410-
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-222-1	01	1	9803-0209
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-224-0	01	1	0210-0403
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83534-224-0	01	1	0404-
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (E)	1-83573-278-0	01	1	0404-
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (F)	1-83573-279-0	01	1	0404-
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (G)	1-83573-280-0	01	1	0404-
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-227-1	01	1	9803-0403
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-83539-227-1	01	1	0404-
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-236-0	04	1	9803-0209
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83539-311-1	01	1	9803-0209
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83539-348-1	01	1	0210-0403
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (D)	1-83539-348-1	01	1	0404-
43	BOLT; BRKT,CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-975-0	02	1	0210-0403
43	BOLT; BRKT,CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	1-83579-975-0	02	1	0404-
43	BOLT; BRKT,CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X16 W/FLANGE	1-83539-260-0	06	1	9803-0209
43	BOLT; BRKT,CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-97018-671-0	03	1	0210-0403
43	BOLT; BRKT,CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (C)	8-97018-671-0	03	1	0404-
55	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-97161-776-0	01	1	9803-0403
55	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	8-97161-776-0	01	1	0404-
59	BRACKET; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-344-0	01	1	0210-0403
59	BRACKET; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	1-83539-344-0	01	1	0404-
59	BRACKET; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83539-346-0	01	1	0210-0403
59	BRACKET; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (C)	1-83539-346-0	01	1	0404-
59	BRACKET; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-228-2	01	1	9803-0403
59	BRACKET; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-83539-228-2	01	1	0404-
60	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5)	1-83574-266-0	01	1	0404-
60	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-234-0	01	1	9803-0403
60	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83539-234-0	01	1	0404-
65	BOLT; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) M6X16	8-97096-525-0	04	1	0404-
65	BOLT; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-242-0	03	1	9803-0209
65	BOLT; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	8-97117-796-0	03	1	0210-0403
65	BOLT; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	8-97117-796-0	03	1	0404-
79	BOLT; CONDENSER BRKT AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) M6X25 FLANGE	0-28080-625-0	02	1	0404-0512
79	BOLT; CONDENSER BRKT AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) M6X25 FLANGE	0-28050-625-0	02	1	0601-
79	BOLT; CONDENSER BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X35	8-97103-452-0	01	1	0002-0403
79	BOLT; CONDENSER BRKT AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) M8X35	8-97103-452-0	01	1	0404-
106	BRACKET; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-243-0	01	1	9803-0209
106	BRACKET; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83539-345-0	01	1	0210-0403
106	BRACKET; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (C)	1-83539-345-0	01	1	0404-
106	BRACKET; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-244-0	01	1	9803-0209
127	CLIP; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) L=140	5-09707-008-0	01	1	9803-0209
127	CLIP; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	8-94158-260-0	01	1	0210-0403
127	CLIP; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	8-94158-260-0	01	1	0404-
129	BRACKET; UPR AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5)	1-83573-129-0	01	1	0404-
129	BRACKET; UPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-237-1	01	1	9803-0209
129	BRACKET; UPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-347-1	01	1	0210-0403
129	BRACKET; UPR AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83539-347-1	01	1	0404-
169	SCREW; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-975-0	04	1	0210-0403
169	SCREW; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (C)	1-83579-975-0	04	1	0404-
169	SCREW; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-94248-807-0	01	1	9803-0209
169	SCREW; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-974-0	08	1	0210-0403
169	SCREW; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	1-83579-974-0	08	1	0404-

1 187 129 188 65 11 4 15 29 12 18 65 9 5 187 201 9 22 26 60 29 27 29 27

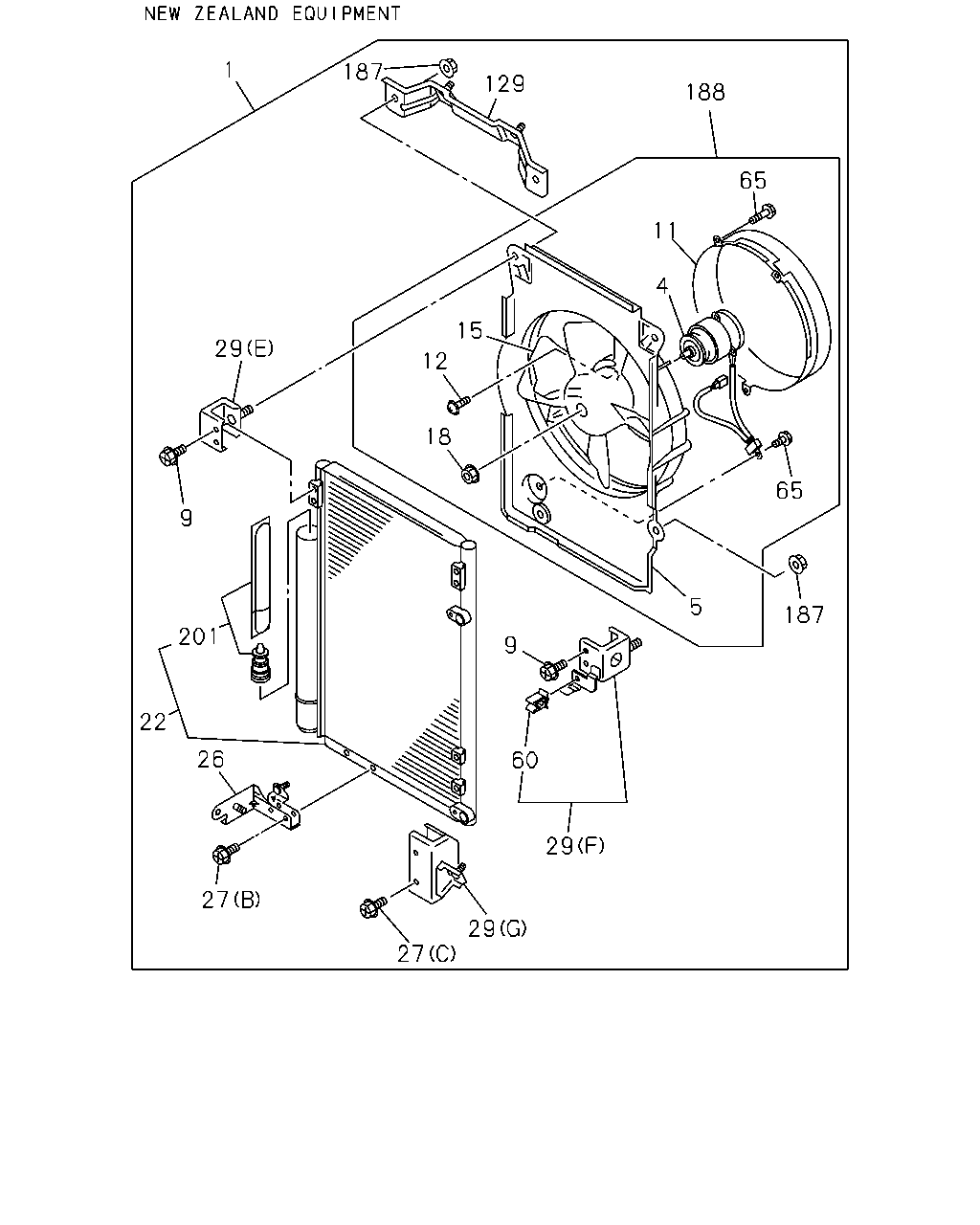

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5)	1-83534-250-3	01	1	0404-
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-213-2	01	1	9803-0209
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-211-2	01	1	0210-0403
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83534-211-2	01	1	0404-
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5)	1-83561-139-3	01	1	0404-0703
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5)	8-98014-458-0	01	1	0704-
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-231-0	01	1	9803-0209
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-156-1	01	1	0210-0403
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83561-156-1	01	1	0404-
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5)	1-83539-380-0	01	1	0404-
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-230-2	01	1	9803-0209
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-343-0	01	1	0210-0403
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83539-343-0	01	1	0404-
9	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) M6X14	1-83539-382-0	04	1	0404-
9	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-374-0	01	1	9803-0209
11	COVER; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5)	1-83539-381-0	01	1	0404-
12	BOLT; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5)	1-83539-314-0	03	1	0404-
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5)	1-83561-140-0	01	1	0404-
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-232-0	01	1	9803-0209
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-158-0	01	1	0210-0403
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83561-158-0	01	1	0404-
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5)	1-83539-313-0	01	1	0404-
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONTROL(C60)	8-97018-672-0	01	1	9803-0403
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	8-97018-672-0	01	1	0404-
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5)	1-83534-261-0	01	1	0404-1409
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5)	8-98275-189-0	01	1	1410-
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-222-1	01	1	9803-0209
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-224-0	01	1	0210-0403
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83534-224-0	01	1	0404-
26	BRACKET; LOW AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5)	1-83573-281-0	01	1	0404-
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (C) M6X14	1-83539-382-0	02	1	0404-
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (B) M5X25	8-97178-770-0	02	1	0404-
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-975-0	02	1	0210-0403
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-83579-975-0	02	1	0404-
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (E)	1-83573-278-0	01	1	0404-
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (F)	1-83573-279-0	01	1	0404-
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (G)	1-83573-280-0	01	1	0404-
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-227-1	01	1	9803-0403
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-83539-227-1	01	1	0404-
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-236-0	04	1	9803-0209
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83539-311-1	01	1	9803-0209
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83539-348-1	01	1	0210-0403
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (D)	1-83539-348-1	01	1	0404-
60	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5)	1-83574-266-0	01	1	0404-
60	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-234-0	01	1	9803-0403
60	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83539-234-0	01	1	0404-
65	BOLT; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) M6X16	8-97096-525-0	04	1	0404-
65	BOLT; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-242-0	03	1	9803-0209
65	BOLT; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	8-97117-796-0	03	1	0210-0403
65	BOLT; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	8-97117-796-0	03	1	0404-
129	BRACKET; UPR AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5)	1-83573-129-0	01	1	0404-
129	BRACKET; UPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-237-1	01	1	9803-0209
129	BRACKET; UPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-347-1	01	1	0210-0403
129	BRACKET; UPR AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83539-347-1	01	1	0404-
187	NUT; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) M6	1-83539-354-0	04	1	0404-
188	BLOWER ASM; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5)	1-83561-184-1	01	1	0404-
201	DRYER ASM; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5)	1-83535-097-0	01	1	0404-1409
201	DRYER ASM; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5)	8-98282-482-0	01	1	1410-

1 4 169 59 5 169 65 59 12 43 106 22 13 15 55 127 169 18 59 19 100 60 43 29 27 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5)	1-83534-250-3	01	1	0404-
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-213-2	01	1	9803-0209
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-211-2	01	1	0210-0403
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83534-211-2	01	1	0404-
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5)	1-83561-139-3	01	1	0404-0703
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5)	8-98014-458-0	01	1	0704-
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-231-0	01	1	9803-0209
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-156-1	01	1	0210-0403
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83561-156-1	01	1	0404-
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5)	1-83539-380-0	01	1	0404-
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-230-2	01	1	9803-0209
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-343-0	01	1	0210-0403
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83539-343-0	01	1	0404-
12	BOLT; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5)	1-83539-314-0	03	1	0404-
13	MOTOR; FAN AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-157-1	01	1	0210-0403
13	MOTOR; FAN AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83561-157-1	01	1	0404-
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5)	1-83561-140-0	01	1	0404-
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-232-0	01	1	9803-0209
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-158-0	01	1	0210-0403
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83561-158-0	01	1	0404-
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5)	1-83539-313-0	01	1	0404-
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONTROL(C60)	8-97018-672-0	01	1	9803-0403
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	8-97018-672-0	01	1	0404-
19	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-235-0	11	1	9803-0209
19	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-235-0	02	1	0210-0403
19	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83539-235-0	02	1	0404-
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5)	1-83534-261-0	01	1	0404-1409
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5)	8-98275-189-0	01	1	1410-
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-222-1	01	1	9803-0209
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-224-0	01	1	0210-0403
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83534-224-0	01	1	0404-
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (C) M6X14	1-83539-382-0	02	1	0404-
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (B) M5X25	8-97178-770-0	02	1	0404-
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-975-0	02	1	0210-0403
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-83579-975-0	02	1	0404-
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (E)	1-83573-278-0	01	1	0404-
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (F)	1-83573-279-0	01	1	0404-
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (G)	1-83573-280-0	01	1	0404-
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-227-1	01	1	9803-0403
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-83539-227-1	01	1	0404-
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-236-0	04	1	9803-0209
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83539-311-1	01	1	9803-0209
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83539-348-1	01	1	0210-0403
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (D)	1-83539-348-1	01	1	0404-
43	BOLT; BRKT,CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-975-0	02	1	0210-0403
43	BOLT; BRKT,CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	1-83579-975-0	02	1	0404-
43	BOLT; BRKT,CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X16 W/FLANGE	1-83539-260-0	06	1	9803-0209
43	BOLT; BRKT,CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-97018-671-0	03	1	0210-0403
43	BOLT; BRKT,CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (C)	8-97018-671-0	03	1	0404-
55	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-97161-776-0	01	1	9803-0403
55	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	8-97161-776-0	01	1	0404-
59	BRACKET; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-344-0	01	1	0210-0403
59	BRACKET; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	1-83539-344-0	01	1	0404-
59	BRACKET; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83539-346-0	01	1	0210-0403
59	BRACKET; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (C)	1-83539-346-0	01	1	0404-
59	BRACKET; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-228-2	01	1	9803-0403
59	BRACKET; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-83539-228-2	01	1	0404-
60	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5)	1-83574-266-0	01	1	0404-
60	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-234-0	01	1	9803-0403
60	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83539-234-0	01	1	0404-
65	BOLT; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) M6X16	8-97096-525-0	04	1	0404-
65	BOLT; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-242-0	03	1	9803-0209
65	BOLT; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	8-97117-796-0	03	1	0210-0403
65	BOLT; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	8-97117-796-0	03	1	0404-
100	COLLAR; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-349-0	01	1	0210-0403
100	COLLAR; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83539-349-0	01	1	0404-
106	BRACKET; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-243-0	01	1	9803-0209
106	BRACKET; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83539-345-0	01	1	0210-0403
106	BRACKET; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (C)	1-83539-345-0	01	1	0404-
106	BRACKET; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-244-0	01	1	9803-0209
127	CLIP; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) L=140	5-09707-008-0	01	1	9803-0209
127	CLIP; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	8-94158-260-0	01	1	0210-0403
127	CLIP; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	8-94158-260-0	01	1	0404-
169	SCREW; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-975-0	04	1	0210-0403
169	SCREW; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (C)	1-83579-975-0	04	1	0404-
169	SCREW; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-94248-807-0	01	1	9803-0209
169	SCREW; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-974-0	08	1	0210-0403
169	SCREW; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	1-83579-974-0	08	1	0404-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
