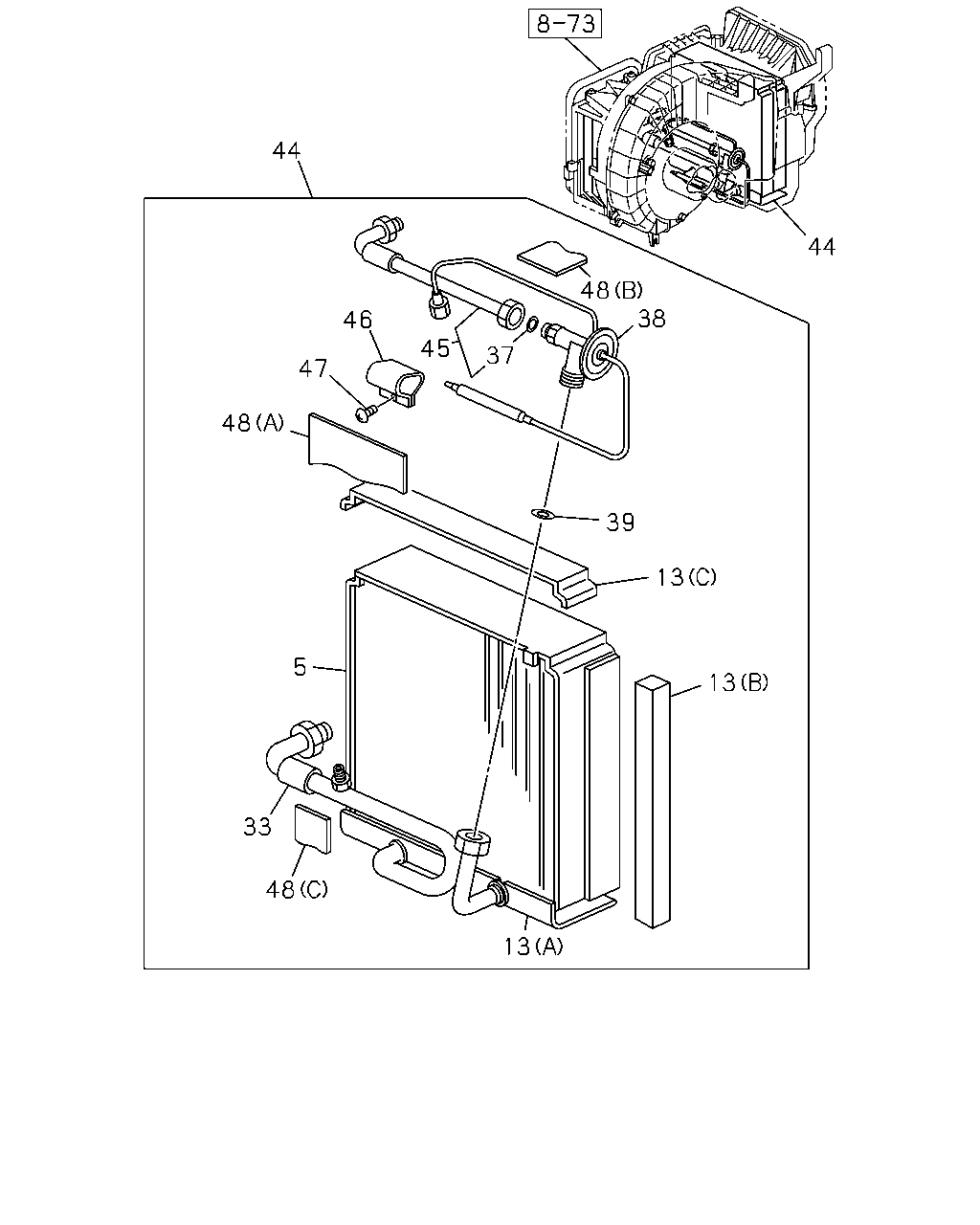

8-74 — EVAPORATOR (#64355) — 28 parça

44 44 48 38 46 45 37 47 48 39 13 5 13 33 48 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5)	1-83562-097-0	01	1	0404-
5	EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83562-095-0	01	1	9803-0403
5	EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83562-095-0	01	1	0404-
13	SEAL; EVAP AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (A)	1-83579-959-0	01	1	0404-
13	SEAL; EVAP AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (C)	1-83579-960-0	01	1	0404-
13	SEAL; EVAP AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-669-1	01	1	9803-0403
13	SEAL; EVAP AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-83579-669-1	01	1	0404-
13	SEAL; EVAP AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-938-0	01	1	9803-
13	SEAL; EVAP AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-939-0	01	1	9803-0403
13	SEAL; EVAP AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (C)	1-83579-939-0	01	1	0404-
33	LINING; EVAP AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-653-0	01	1	9803-
37	GASKET; EVAP AIR CONDITIONER MANUAL CONTROL(C60) ID=6.07	8-94461-902-0	01	1	9803-
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5)	1-83569-189-0	01	1	0404-
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONTROL(C60)	1-83569-158-0	01	1	9803-0403
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83569-158-0	01	1	0404-
39	GASKET; EVAP AIR CONDITIONER MANUAL CONTROL(C60)	8-94481-717-0	01	1	9803-
44	EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5)	1-83562-099-0	01	1	0404-
44	EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83562-094-1	01	1	9803-0403
44	EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83562-094-1	01	1	0404-
45	PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5)	1-83567-682-0	01	1	0404-
45	PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-681-1	01	1	9803-0403
45	PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83567-681-1	01	1	0404-
46	CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONTROL(C60)	1-83574-214-0	01	1	9803-
47	SCREW; EVAP AIR CONDITIONER MANUAL CONTROL(C60)	8-97130-601-0	01	1	9803-
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-784-0	01	1	9803-
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-969-0	01	1	9902-
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-970-0	01	1	9902-0403
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (C)	1-83579-970-0	01	1	0404-
