8-71 — COMPRESSOR; AIR CONDITIONING (#64353) — 125 parça

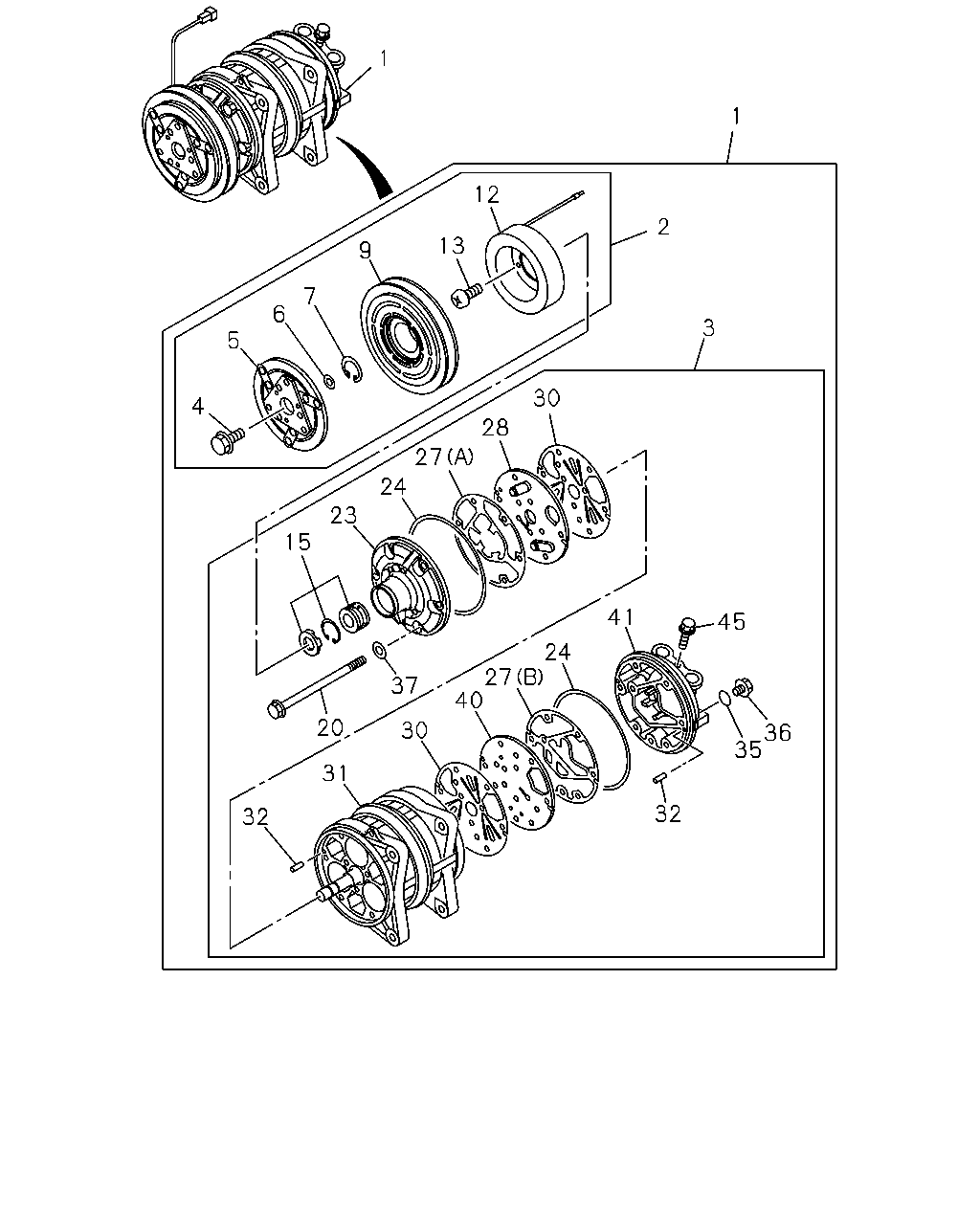

çizim 158226
1 1 12 2 13 9 7 6 3 5 30 4 28 27 24 23 15 41 45 24 27 40 37 20 30 36 35 31 32 32
BalonParca AdiParca NoAdetTipApplied Date
1 COMPRESSOR ASM; A/C
6HH1 STD ENG(65L),6HH1 N ENG(66L) 		1-83532-252-1 01 1 1502-1502
1 COMPRESSOR ASM; A/C
6HK1 TCC ENG(81L) 		1-83532-314-0 01 1 0406-
1 COMPRESSOR ASM; A/C
6HE1 TCN ENG(58L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83532-287-0 01 1 9803-0006
1 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83532-287-1 01 1 0007-0405
1 COMPRESSOR ASM; A/C
6HE1 TCN ENG(58L),6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83532-287-1 01 1 0406-1101
1 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83532-287-1 01 1 1102-
1 COMPRESSOR ASM; A/C
6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83532-252-0 01 1 9902-0006
2 CLUTCH; MAGNET,A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83533-037-0 01 1 9803-0405
2 CLUTCH; MAGNET,A/C
6HE1 TCN ENG(58L),6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83533-037-0 01 1 0406-1101
2 CLUTCH; MAGNET,A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83533-037-0 01 1 1102-
3 COMPRESSOR ASM; A/C
6HH1 STD ENG(65L),6HH1 N ENG(66L) 		1-83532-263-1 01 1 1502-1502
3 COMPRESSOR ASM; A/C
6HE1 TCN ENG(58L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83532-290-0 01 1 9803-0006
3 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83532-290-0 01 1 0007-0405
3 COMPRESSOR ASM; A/C
6HE1 TCN ENG(58L),6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83532-290-0 01 1 0406-1101
3 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83532-290-0 01 1 1102-
3 COMPRESSOR ASM; A/C
6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83532-263-0 01 1 9902-0006
4 BOLT; MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94164-439-0 01 1 9803-0405
4 BOLT; MAGNET CLU
6HE1 TCN ENG(58L),6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-94164-439-0 01 1 0406-1101
4 BOLT; MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94164-439-0 01 1 1102-
5 ARMATURE ASM; MAGNET CLU,A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97034-788-0 01 1 9803-0405
5 ARMATURE ASM; MAGNET CLU,A/C
6HE1 TCN ENG(58L),6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97034-788-0 01 1 0406-1101
5 ARMATURE ASM; MAGNET CLU,A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97034-788-0 01 1 1102-
6 SHIM; MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) T=0.1 		8-94120-721-0 AR 1 9803-0405
6 SHIM; MAGNET CLU
6HE1 TCN ENG(58L),6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) T=0.1 		8-94120-721-0 AR 1 0406-1101
6 SHIM; MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) T=0.1 		8-94120-721-0 AR 1 1102-
6 SHIM; MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) T=0.3 		8-94120-722-0 AR 1 9803-0405
6 SHIM; MAGNET CLU
6HE1 TCN ENG(58L),6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) T=0.3 		8-94120-722-0 AR 1 0406-1101
6 SHIM; MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) T=0.3 		8-94120-722-0 AR 1 1102-
6 SHIM; MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) T=0.5 		8-94120-723-0 AR 1 9803-0405
6 SHIM; MAGNET CLU
6HE1 TCN ENG(58L),6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) T=0.5 		8-94120-723-0 AR 1 0406-1101
6 SHIM; MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) T=0.5 		8-94120-723-0 AR 1 1102-
7 RING; SNAP,PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94120-724-0 01 1 9803-0405
7 RING; SNAP,PULLEY
6HE1 TCN ENG(58L),6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-94120-724-0 01 1 0406-1101
7 RING; SNAP,PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94120-724-0 01 1 1102-
9 PULLEY; MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-609-1 01 1 9803-0405
9 PULLEY; MAGNET CLU
6HE1 TCN ENG(58L),6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-609-1 01 1 0406-1101
9 PULLEY; MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-609-1 01 1 1102-
12 COIL; FIELD,MAGNET CLU
6HE1 TCN ENG(58L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83578-091-0 01 1 9803-0006
12 COIL; FIELD,MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83578-091-0 01 1 0007-0405
12 COIL; FIELD,MAGNET CLU
6HE1 TCN ENG(58L),6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83578-091-0 01 1 0406-1101
12 COIL; FIELD,MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83578-091-0 01 1 1102-
12 COIL; FIELD,MAGNET CLU
6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-593-0 01 1 9902-0006
13 SCREW; COIL FIELD
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94120-727-0 03 1 9803-0405
13 SCREW; COIL FIELD
6HE1 TCN ENG(58L),6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-94120-727-0 03 1 0406-1101
13 SCREW; COIL FIELD
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94120-727-0 03 1 1102-
15 SEAL; SHAFT
6HE1 TCN ENG(58L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83578-090-0 01 1 9803-0006
15 SEAL; SHAFT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83578-090-0 01 1 0007-0405
15 SEAL; SHAFT
6HE1 TCN ENG(58L),6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83578-090-0 01 1 0406-1101
15 SEAL; SHAFT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83578-090-0 01 1 1102-
15 SEAL; SHAFT
6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) "R-134A" 		8-97114-217-1 01 1 9902-0006
20 BOLT; CMPR
6HE1 TCN ENG(58L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97233-738-0 06 1 9803-0006
20 BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97233-738-0 06 1 0007-0405
20 BOLT; CMPR
6HE1 TCN ENG(58L),6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97233-738-0 06 1 0406-1101
20 BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97233-738-0 06 1 1102-
20 BOLT; CMPR
6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97081-394-0 06 1 9902-0006
23 HEAD; CYL,FRT
6HE1 TCN ENG(58L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97178-401-0 01 1 9803-0006
23 HEAD; CYL,FRT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97178-401-0 01 1 0007-0405
23 HEAD; CYL,FRT
6HE1 TCN ENG(58L),6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97178-401-0 01 1 0406-1101
23 HEAD; CYL,FRT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97178-401-0 01 1 1102-
23 HEAD; CYL,FRT
6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) "R-134A" 		8-97114-215-0 01 1 9902-0006
24 GASKET; CMPR
6HH1 STD ENG(65L),6HH1 N ENG(66L) 		1-83579-951-0 02 1 1502-1502
24 GASKET; CMPR
6HE1 TCN ENG(58L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-953-0 02 1 9803-0006
24 GASKET; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-953-0 02 1 0007-0405
24 GASKET; CMPR
6HE1 TCN ENG(58L),6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-953-0 02 1 0406-1101
24 GASKET; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-953-0 02 1 1102-
24 GASKET; CMPR
6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) "R-134A" 		8-97081-396-0 02 1 9902-0006
27 GASKET; CYL HD
6HE1 TCN ENG(58L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97170-930-0 01 1 9803-0006
27 GASKET; CYL HD
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97170-930-0 01 1 0007-0405
27 GASKET; CYL HD
6HE1 TCN ENG(58L),6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97170-930-0 01 1 0406-1101
27 GASKET; CYL HD
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97170-930-0 01 1 1102-
27 GASKET; CYL HD
6HE1 TCN ENG(58L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97170-933-0 01 1 9803-0006
27 GASKET; CYL HD
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97170-933-0 01 1 0007-0405
27 GASKET; CYL HD
6HE1 TCN ENG(58L),6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97170-933-0 01 1 0406-1101
27 GASKET; CYL HD
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97170-933-0 01 1 1102-
27 GASKET; CYL HD
6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) (A) "R-134A" 		8-97085-777-0 01 1 9902-0006
27 GASKET; CYL HD
6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) (B) "R-134A" 		8-97085-779-0 01 1 9902-0006
28 PLATE; VLV,CMPR
6HE1 TCN ENG(58L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97170-932-1 01 1 9803-0006
28 PLATE; VLV,CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97170-932-1 01 1 0007-0405
28 PLATE; VLV,CMPR
6HE1 TCN ENG(58L),6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97170-932-1 01 1 0406-1101
28 PLATE; VLV,CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97170-932-1 01 1 1102-
28 PLATE; VLV,CMPR
6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97135-796-0 01 1 9902-0006
30 VALVE; SUCTION
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97134-755-0 02 1 9803-0405
30 VALVE; SUCTION
6HE1 TCN ENG(58L),6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97134-755-0 02 1 0406-1101
30 VALVE; SUCTION
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97134-755-0 02 1 1102-
31 CYLINDER & SHAFT ASM; AIR CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97138-175-0 01 1 9803-0405
31 CYLINDER & SHAFT ASM; AIR CMPR
6HE1 TCN ENG(58L),6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97138-175-0 01 1 0406-1101
31 CYLINDER & SHAFT ASM; AIR CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97138-175-0 01 1 1102-
32 PIN; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94154-711-0 04 1 9803-0405
32 PIN; CMPR
6HE1 TCN ENG(58L),6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-94154-711-0 04 1 0406-1101
32 PIN; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94154-711-0 04 1 1102-
35 GASKET; PLUG,CYL
AIR CONDITIONER MANUAL CONTROL(C60) "R-134A" 		8-97081-395-0 01 1 9803-0405
35 GASKET; PLUG,CYL
6HE1 TCN ENG(58L),6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) "R-134A" 		8-97081-395-0 01 1 0406-1101
35 GASKET; PLUG,CYL
AIR CONDITIONER MANUAL CONTROL(C60) "R-134A" 		8-97081-395-0 01 1 1102-
36 PLUG; CYL
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94164-473-0 01 1 9803-0405
36 PLUG; CYL
6HE1 TCN ENG(58L),6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-94164-473-0 01 1 0406-1101
36 PLUG; CYL
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94164-473-0 01 1 1102-
37 GASKET; CMPR
6HE1 TCN ENG(58L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97233-739-0 06 1 9803-0006
37 GASKET; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97233-739-0 06 1 0007-0405
37 GASKET; CMPR
6HE1 TCN ENG(58L),6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97233-739-0 06 1 0406-1101
37 GASKET; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97233-739-0 06 1 1102-
37 GASKET; CMPR
6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-94466-678-0 06 1 9902-0006
40 PLATE; VLV,RR
6HE1 TCN ENG(58L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97170-931-1 01 1 9803-0006
40 PLATE; VLV,RR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97170-931-1 01 1 0007-0405
40 PLATE; VLV,RR
6HE1 TCN ENG(58L),6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97170-931-1 01 1 0406-1101
40 PLATE; VLV,RR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97170-931-1 01 1 1102-
40 PLATE; VLV,RR
6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97135-797-0 01 1 9902-0006
41 HEAD; CYL,RR
6HH1 STD ENG(65L),6HH1 N ENG(66L) 		8-97081-405-1 01 1 1502-1502
41 HEAD; CYL,RR
6HE1 TCN ENG(58L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97178-402-0 01 1 9803-0006
41 HEAD; CYL,RR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97178-402-0 01 1 0007-0405
41 HEAD; CYL,RR
6HE1 TCN ENG(58L),6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97178-402-0 01 1 0406-1101
41 HEAD; CYL,RR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97178-402-0 01 1 1102-
41 HEAD; CYL,RR
6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97081-405-0 01 1 9902-0006
45 BOLT; PLATE TO CYL HD
6HH1 STD ENG(65L),6HH1 N ENG(66L) 		8-97205-574-0 01 1 1502-1502
45 BOLT; PLATE TO CYL HD
AIR CONDITIONER MANUAL CONTROL(C60) M10X35 W/LK&PL WASHER 		9-01971-035-0 01 1 9803-0405
45 BOLT; PLATE TO CYL HD
6HE1 TCN ENG(58L),6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) M10X35 W/LK&PL WASHER 		9-01971-035-0 01 1 0406-1101
45 BOLT; PLATE TO CYL HD
AIR CONDITIONER MANUAL CONTROL(C60) M10X35 W/LK&PL WASHER 		9-01971-035-0 01 1 1102-

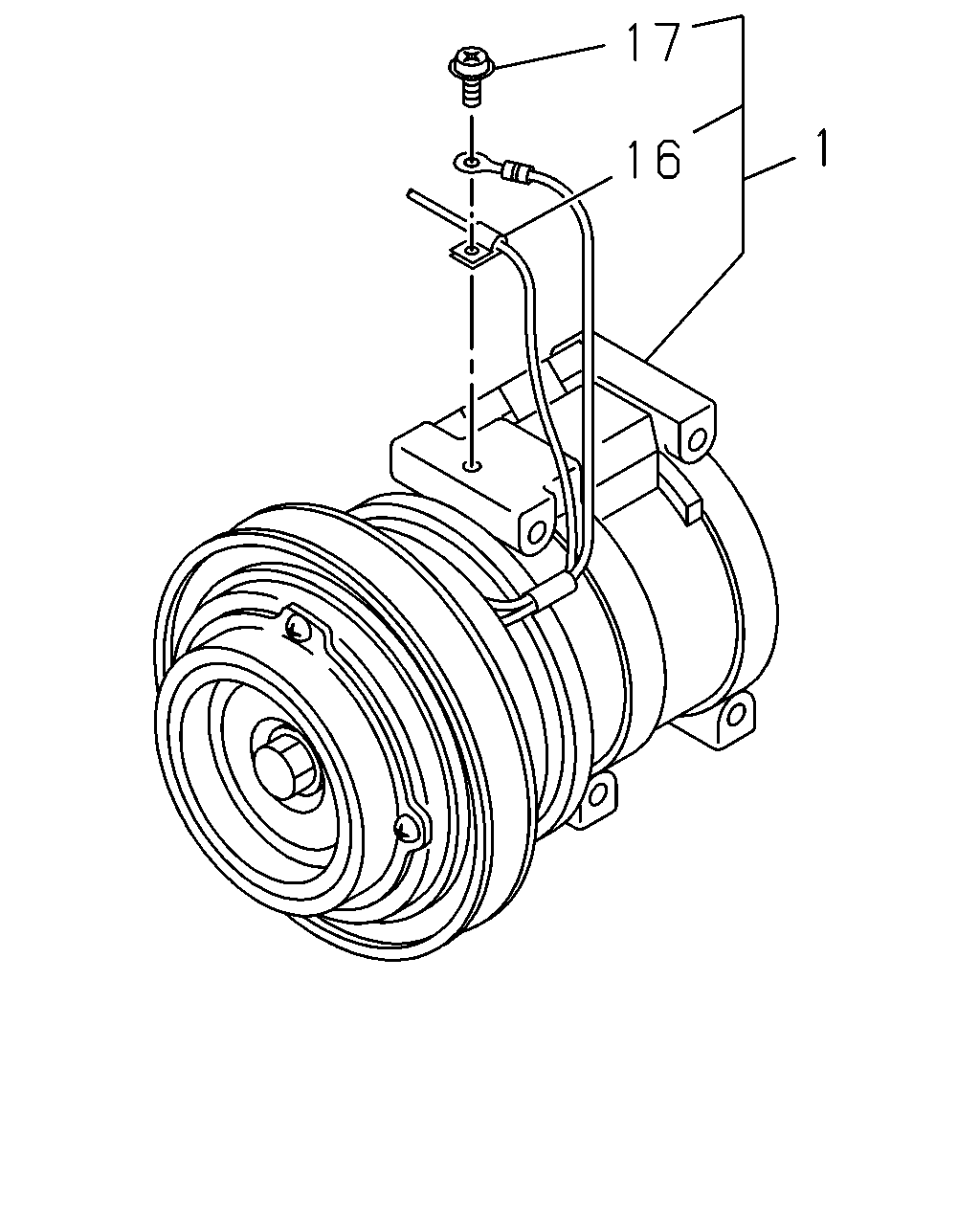

çizim 184061
17 1 16
BalonParca AdiParca NoAdetTipApplied Date
1 COMPRESSOR ASM; A/C
6HH1 STD ENG(65L),6HH1 N ENG(66L) 		1-83532-252-1 01 1 1502-1502
1 COMPRESSOR ASM; A/C
6HK1 TCC ENG(81L) 		1-83532-314-0 01 1 0406-
1 COMPRESSOR ASM; A/C
6HE1 TCN ENG(58L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83532-287-0 01 1 9803-0006
1 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83532-287-1 01 1 0007-0405
1 COMPRESSOR ASM; A/C
6HE1 TCN ENG(58L),6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83532-287-1 01 1 0406-1101
1 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83532-287-1 01 1 1102-
1 COMPRESSOR ASM; A/C
6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83532-252-0 01 1 9902-0006
16 CLIP; WIRE,MAGNET CLU
6HK1 TCC ENG(81L) 		1-83579-893-0 01 1 0406-
17 SCREW; WIRE CLIP MAGNET CLU
6HK1 TCC ENG(81L) 		5-81129-130-0 01 1 0406-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
