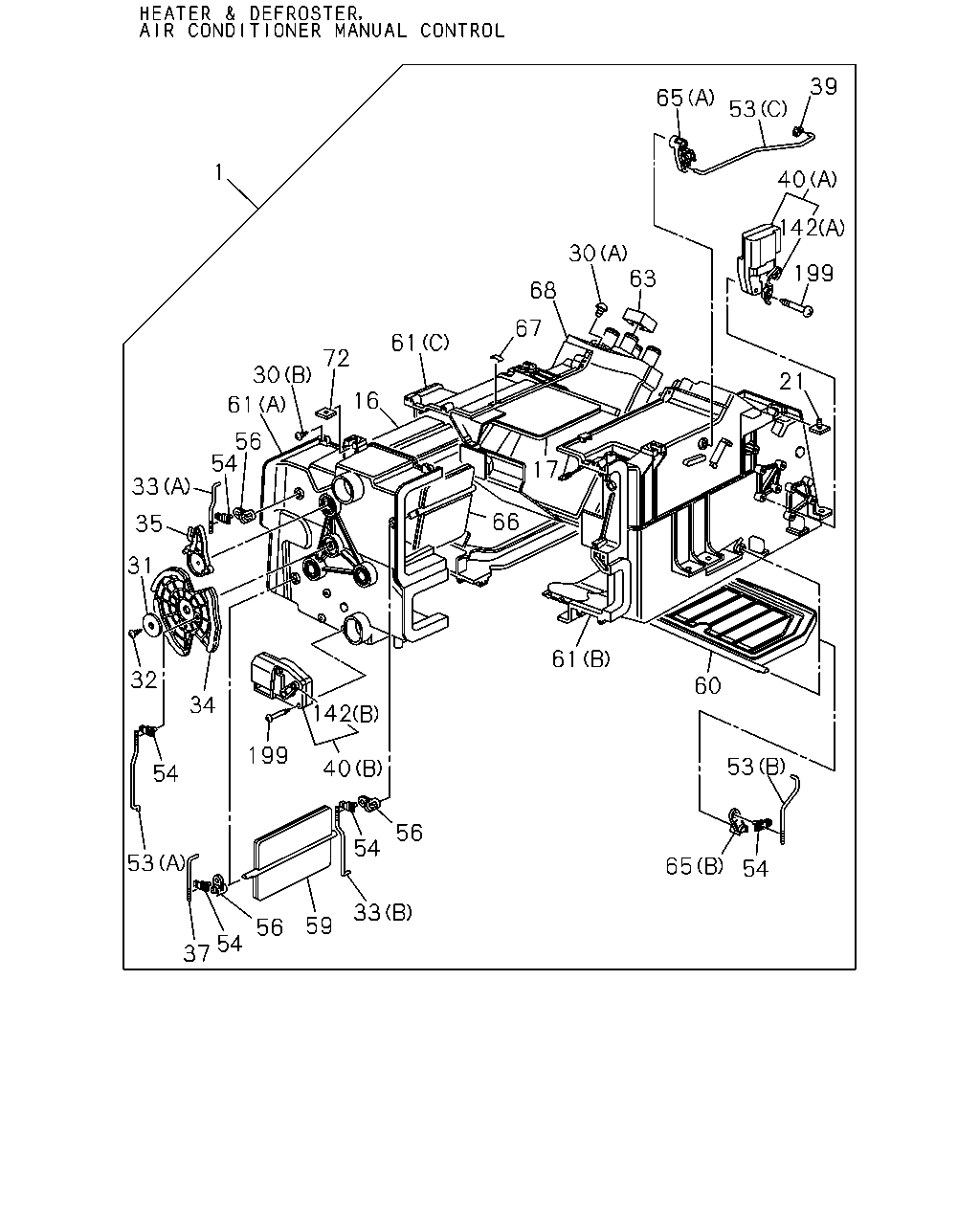

8-60 — HEATER UNIT; FRONT (#64352) — 388 parça

39 65 53 1 40 30 63 199 68 67 61 72 30 21 16 61 56 54 17 33 66 35 31 61 32 60 34 199 53 40 54 56 54 53 65 54 33 59 56 54 37 142

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HEATER UNIT HEATER & DEFROSTER(C41)	1-83511-129-7	01	1	9510-9802	●
1	HEATER UNIT	1-83511-129-7	01	1	9510-9802		●
1	HEATER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83511-129-7	01	1	9803-0004	●
1	HEATER UNIT	1-83511-129-7	01	1	9803-0004		●
1	HEATER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83511-129-8	01	1	0005-0109	●
1	HEATER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83511-175-1	01	1	0110-1409	●
1	HEATER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98238-476-0	01	1	1410-	●
1	HEATER UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83511-139-3	01	1	9510-	●
16	SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-625-1	01	1	9510-9802	●
16	SHUTTER; HTR UNIT,CENTER UPR	1-83579-625-1	01	1	9510-9802		●
16	SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-625-1	01	1	9803-0004	●
16	SHUTTER; HTR UNIT,CENTER UPR	1-83579-625-1	01	1	9803-0004		●
16	SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-625-1	01	1	0005-	●
17	SHUTTER; HTR UNIT,CENTER HEATER & DEFROSTER(C41)	1-83579-628-1	01	1	9510-9802	●
17	SHUTTER; HTR UNIT,CENTER	1-83579-628-1	01	1	9510-9802		●
17	SHUTTER; HTR UNIT,CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-628-1	01	1	9803-0004	●
17	SHUTTER; HTR UNIT,CENTER	1-83579-628-1	01	1	9803-0004		●
17	SHUTTER; HTR UNIT,CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-628-1	01	1	0005-	●
21	BOLT; CASE,HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-657-0	02	1	9510-9802	●
21	BOLT; CASE,HTR UNIT	1-83579-657-0	02	1	9510-9802		●
21	BOLT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-657-0	02	1	9803-0004	●
21	BOLT; CASE,HTR UNIT	1-83579-657-0	02	1	9803-0004		●
21	BOLT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-657-2	02	1	0005-	●
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M5X20	9-09829-324-1	01	1	9703-1409	●
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M5X16	8-94248-820-0	01	1	1410-	●
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41) (A) M5X20	9-09829-324-1	01	1	9510-9702	●
30	SCREW; HTR UNIT (A) M5X20	9-09829-324-1	01	1	9510-9702		●
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M4X16	8-94324-850-0	12	1	9510-9802	●
30	SCREW; HTR UNIT (B) M4X16	8-94324-850-0	12	1	9510-9802		●
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M4X16	8-94324-850-0	12	1	9803-0004	●
30	SCREW; HTR UNIT (B) M4X16	8-94324-850-0	12	1	9803-0004		●
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M4X16	8-94324-850-0	12	1	0005-0011	●
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M4X16	8-94324-850-0	12	1	0012-	●
30	SCREW; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M4X16	8-94324-850-0	11	1	0012-	●
31	WASHER; HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94129-950-0	01	1	9510-9802	●
31	WASHER; HTR UNIT	8-94129-950-0	01	1	9510-9802		●
31	WASHER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94129-950-0	01	1	9803-0004	●
31	WASHER; HTR UNIT	8-94129-950-0	01	1	9803-0004		●
31	WASHER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94129-950-0	01	1	0005-	●
32	SCREW; HTR UNIT HEATER & DEFROSTER(C41) M5X20	9-09829-324-1	01	1	9510-9802	●
32	SCREW; HTR UNIT M5X20	9-09829-324-1	01	1	9510-9802		●
32	SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20	9-09829-324-1	01	1	9803-0004	●
32	SCREW; HTR UNIT M5X20	9-09829-324-1	01	1	9803-0004		●
32	SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20	9-09829-324-1	01	1	0005-1409	●
32	SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X16	8-94248-820-0	01	1	1410-	●
32	SCREW; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20	9-09829-324-1	02	1	9510-	●
33	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-619-0	01	1	9510-9802	●
33	ROD; SHUTTER LEVER (A)	1-83579-619-0	01	1	9510-9802		●
33	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-619-0	01	1	9803-0004	●
33	ROD; SHUTTER LEVER (A)	1-83579-619-0	01	1	9803-0004		●
33	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-619-0	01	1	0005-	●
33	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-621-0	01	1	9510-9802	●
33	ROD; SHUTTER LEVER (B)	1-83579-621-0	01	1	9510-9802		●
33	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-621-0	01	1	9803-0004	●
33	ROD; SHUTTER LEVER (B)	1-83579-621-0	01	1	9803-0004		●
33	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-621-0	01	1	0005-0011	●
33	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-621-0	01	1	0012-	●
34	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83564-326-0	01	1	9510-9802	●
34	LEVER; SHUTTER,HTR UNIT	1-83564-326-0	01	1	9510-9802		●
34	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83564-326-0	01	1	9803-0004	●
34	LEVER; SHUTTER,HTR UNIT	1-83564-326-0	01	1	9803-0004		●
34	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83564-326-0	01	1	0005-	●
35	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94389-502-1	03	1	9510-9802	●
35	LEVER; SHUTTER,HTR UNIT	8-94389-502-1	03	1	9510-9802		●
35	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94389-502-1	03	1	9803-0004	●
35	LEVER; SHUTTER,HTR UNIT	8-94389-502-1	03	1	9803-0004		●
35	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94389-502-1	03	1	0005-0011	●
35	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-94389-502-1	03	1	0012-	●
35	LEVER; SHUTTER,HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94389-502-1	02	1	0012-	●
37	ROD; LEVER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-620-1	01	1	9510-9802	●
37	ROD; LEVER	1-83579-620-1	01	1	9510-9802		●
37	ROD; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-620-1	01	1	9803-0004	●
37	ROD; LEVER	1-83579-620-1	01	1	9803-0004		●
37	ROD; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-620-1	01	1	0005-	●
39	CLIP; HTR UNIT HEATER & DEFROSTER(C41)	1-83574-136-0	01	1	9510-9802	●
39	CLIP; HTR UNIT	1-83574-136-0	01	1	9510-9802		●
39	CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83574-136-0	01	1	9803-0004	●
39	CLIP; HTR UNIT	1-83574-136-0	01	1	9803-0004		●
39	CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83574-136-0	01	1	0005-	●
40	ACTUATOR; HTR UNIT HEATER & DEFROSTER(C41) (A)	1-83579-650-0	01	1	9510-9802	●
40	ACTUATOR; HTR UNIT (A)	1-83579-650-0	01	1	9510-9802		●
40	ACTUATOR; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-650-0	01	1	9803-0004	●
40	ACTUATOR; HTR UNIT (A)	1-83579-650-0	01	1	9803-0004		●
40	ACTUATOR; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-650-1	01	1	0005-	●
40	ACTUATOR; HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-649-0	01	1	9510-9802	●
40	ACTUATOR; HTR UNIT (B)	1-83579-649-0	01	1	9510-9802		●
40	ACTUATOR; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-649-0	01	1	9803-0004	●
40	ACTUATOR; HTR UNIT (B)	1-83579-649-0	01	1	9803-0004		●
40	ACTUATOR; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-649-1	01	1	0005-	●
53	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41) (B)	1-83579-623-0	01	1	9510-9802	●
53	ROD; SHUTTER LEVER (B)	1-83579-623-0	01	1	9510-9802		●
53	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-623-0	01	1	9803-0004	●
53	ROD; SHUTTER LEVER (B)	1-83579-623-0	01	1	9803-0004		●
53	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-623-0	01	1	0005-	●
53	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41) (C)	1-83579-624-0	01	1	9510-9802	●
53	ROD; SHUTTER LEVER (C)	1-83579-624-0	01	1	9510-9802		●
53	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-624-0	01	1	9803-0004	●
53	ROD; SHUTTER LEVER (C)	1-83579-624-0	01	1	9803-0004		●
53	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-624-0	01	1	0005-	●
53	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-622-0	01	1	9510-9802	●
53	ROD; SHUTTER LEVER (A)	1-83579-622-0	01	1	9510-9802		●
53	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-622-0	01	1	9803-0004	●
53	ROD; SHUTTER LEVER (A)	1-83579-622-0	01	1	9803-0004		●
53	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-622-0	01	1	0005-	●
54	CLIP; SHUTTER LEVER HEATER & DEFROSTER(C41)	1-83579-488-0	05	1	9510-9702	●
54	CLIP; SHUTTER LEVER	1-83579-488-0	05	1	9510-9702		●
54	CLIP; SHUTTER LEVER HEATER & DEFROSTER(C41)	8-94248-794-0	05	1	9703-9802	●
54	CLIP; SHUTTER LEVER	8-94248-794-0	05	1	9703-9802		●
54	CLIP; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-94248-794-0	05	1	9803-0004	●
54	CLIP; SHUTTER LEVER	8-94248-794-0	05	1	9803-0004		●
54	CLIP; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-94248-794-0	05	1	0005-	●
54	CLIP; SHUTTER LEVER VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-488-0	04	1	9510-0011	●
54	CLIP; SHUTTER LEVER VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94248-794-0	03	1	0012-	●
56	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83564-325-0	03	1	9510-9802	●
56	LEVER; SHUTTER,HTR UNIT	1-83564-325-0	03	1	9510-9802		●
56	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83564-325-0	03	1	9803-0004	●
56	LEVER; SHUTTER,HTR UNIT	1-83564-325-0	03	1	9803-0004		●
56	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83564-325-0	03	1	0005-0011	●
56	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-325-0	03	1	0012-	●
56	LEVER; SHUTTER,HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83564-325-0	02	1	0012-	●
59	SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-626-1	01	1	9510-9802	●
59	SHUTTER; HTR UNIT,SIDE	1-83579-626-1	01	1	9510-9802		●
59	SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-626-1	01	1	9803-0004	●
59	SHUTTER; HTR UNIT,SIDE	1-83579-626-1	01	1	9803-0004		●
59	SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-626-2	01	1	0005-	●
60	DOOR; MIX,HTR UNIT HEATER & DEFROSTER(C41)	1-83579-629-0	01	1	9510-9802	●
60	DOOR; MIX,HTR UNIT	1-83579-629-0	01	1	9510-9802		●
60	DOOR; MIX,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-629-0	01	1	9803-0004	●
60	DOOR; MIX,HTR UNIT	1-83579-629-0	01	1	9803-0004		●
60	DOOR; MIX,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-629-0	01	1	0005-0109	●
60	DOOR; MIX,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83578-084-0	01	1	0110-	●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98299-713-0	01	1	1410-	●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98299-715-0	01	1	1410-	●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41) (B)	1-83564-401-0	01	1	9703-9802	●
61	CASE; HTR UNIT (B)	1-83564-401-0	01	1	9703-9802		●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-401-0	01	1	9803-0004	●
61	CASE; HTR UNIT (B)	1-83564-401-0	01	1	9803-0004		●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-401-0	01	1	0005-0011	●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83564-401-0	01	1	0012-1409	●
61	CASE; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83564-401-0	01	1	1410-	●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41) (A)	1-83564-402-0	01	1	9703-9802	●
61	CASE; HTR UNIT (A)	1-83564-402-0	01	1	9703-9802		●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83564-402-0	01	1	9803-0004	●
61	CASE; HTR UNIT (A)	1-83564-402-0	01	1	9803-0004		●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83564-402-0	01	1	0005-0011	●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83564-402-0	01	1	0012-1409	●
61	CASE; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83564-402-0	01	1	1410-	●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83564-323-5	01	1	9510-9702	●
61	CASE; HTR UNIT (B)	1-83564-323-5	01	1	9510-9702		●
61	CASE; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83564-323-5	01	1	9703-0011	●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	1-83564-346-3	01	1	9510-9802	●
61	CASE; HTR UNIT (C)	1-83564-346-3	01	1	9510-9802		●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	1-83564-346-3	01	1	9803-0004	●
61	CASE; HTR UNIT (C)	1-83564-346-3	01	1	9803-0004		●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	1-83564-346-3	01	1	0005-	●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83564-347-3	01	1	9510-9702	●
61	CASE; HTR UNIT (A)	1-83564-347-3	01	1	9510-9702		●
61	CASE; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83564-347-3	01	1	9703-0011	●
63	LINING; HTR UNIT HEATER & DEFROSTER(C41)	1-83579-557-0	02	1	9510-9802	●
63	LINING; HTR UNIT	1-83579-557-0	02	1	9510-9802		●
63	LINING; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-557-0	02	1	9803-0004	●
63	LINING; HTR UNIT	1-83579-557-0	02	1	9803-0004		●
63	LINING; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-557-0	02	1	0005-	●
63	LINING; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83578-033-0	01	1	0012-	●
65	LEVER; MIX,DOOR HEATER & DEFROSTER(C41) (A)	1-83564-327-0	01	1	9510-9802	●
65	LEVER; MIX,DOOR (A)	1-83564-327-0	01	1	9510-9802		●
65	LEVER; MIX,DOOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83564-327-0	01	1	9803-0004	●
65	LEVER; MIX,DOOR (A)	1-83564-327-0	01	1	9803-0004		●
65	LEVER; MIX,DOOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83564-327-0	01	1	0005-	●
65	LEVER; MIX,DOOR HEATER & DEFROSTER(C41) (B)	1-83564-328-1	01	1	9510-9802	●
65	LEVER; MIX,DOOR (B)	1-83564-328-1	01	1	9510-9802		●
65	LEVER; MIX,DOOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-328-1	01	1	9803-0004	●
65	LEVER; MIX,DOOR (B)	1-83564-328-1	01	1	9803-0004		●
65	LEVER; MIX,DOOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-328-1	01	1	0005-	●
66	SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-627-0	01	1	9510-9802	●
66	SHUTTER; HTR UNIT,CENTER LWR	1-83579-627-0	01	1	9510-9802		●
66	SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-627-0	01	1	9803-0004	●
66	SHUTTER; HTR UNIT,CENTER LWR	1-83579-627-0	01	1	9803-0004		●
66	SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-627-0	01	1	0005-	●
67	CLIP; HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83574-148-0	01	1	9510-9802	●
67	CLIP; HTR UNIT	1-83574-148-0	01	1	9510-9802		●
67	CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83574-148-0	01	1	9803-0004	●
67	CLIP; HTR UNIT	1-83574-148-0	01	1	9803-0004		●
67	CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83574-148-0	01	1	0005-	●
68	CORE; HTR UNIT HEATER & DEFROSTER(C41)	1-83562-078-1	01	1	9510-9802	●
68	CORE; HTR UNIT	1-83562-078-1	01	1	9510-9802		●
68	CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83562-078-1	01	1	9803-0004	●
68	CORE; HTR UNIT	1-83562-078-1	01	1	9803-0004		●
68	CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83562-078-1	01	1	0005-1409	●
68	CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98238-475-0	01	1	1410-	●
72	NUT; CASE,HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-659-0	02	1	9510-9802	●
72	NUT; CASE,HTR UNIT	1-83579-659-0	02	1	9510-9802		●
72	NUT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-659-0	02	1	9803-0004	●
72	NUT; CASE,HTR UNIT	1-83579-659-0	02	1	9803-0004		●
72	NUT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-659-4	02	1	0005-	●
142	LEVER; ACTUATOR HEATER & DEFROSTER(C41) (B)	1-83564-345-1	01	1	9703-9802	●
142	LEVER; ACTUATOR (B)	1-83564-345-1	01	1	9703-9802		●
142	LEVER; ACTUATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-345-1	01	1	9803-0004	●
142	LEVER; ACTUATOR (B)	1-83564-345-1	01	1	9803-0004		●
142	LEVER; ACTUATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-345-1	01	1	0005-0011	●
142	LEVER; ACTUATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83564-414-0	01	1	0012-	●
142	LEVER; ACTUATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83564-345-1	01	1	0012-	●
199	SCREW; ACTUATOR HEATER & DEFROSTER(C41)	8-94348-809-0	04	1	9510-9802	●
199	SCREW; ACTUATOR	8-94348-809-0	04	1	9510-9802		●
199	SCREW; ACTUATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-94348-809-0	04	1	9803-0004	●
199	SCREW; ACTUATOR	8-94348-809-0	04	1	9803-0004		●
199	SCREW; ACTUATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-94348-809-0	04	1	0005-	●
199	SCREW; ACTUATOR VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94348-809-0	02	1	9510-	●

1 76 132 5 77 67 61 30 72 21 61 16 104 56 33 35 66 31 54 104 61 32 34 56 142 104 199 54 138 40 54 53 33 56 54 59 37 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HEATER UNIT HEATER & DEFROSTER(C41)	1-83511-129-7	01	1	9510-9802	●
1	HEATER UNIT	1-83511-129-7	01	1	9510-9802		●
1	HEATER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83511-129-7	01	1	9803-0004	●
1	HEATER UNIT	1-83511-129-7	01	1	9803-0004		●
1	HEATER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83511-129-8	01	1	0005-0109	●
1	HEATER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83511-175-1	01	1	0110-1409	●
1	HEATER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98238-476-0	01	1	1410-	●
1	HEATER UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83511-139-3	01	1	9510-	●
5	SCREW; BRKT VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16	8-94324-850-0	01	1	0012-	●
16	SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-625-1	01	1	9510-9802	●
16	SHUTTER; HTR UNIT,CENTER UPR	1-83579-625-1	01	1	9510-9802		●
16	SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-625-1	01	1	9803-0004	●
16	SHUTTER; HTR UNIT,CENTER UPR	1-83579-625-1	01	1	9803-0004		●
16	SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-625-1	01	1	0005-	●
21	BOLT; CASE,HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-657-0	02	1	9510-9802	●
21	BOLT; CASE,HTR UNIT	1-83579-657-0	02	1	9510-9802		●
21	BOLT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-657-0	02	1	9803-0004	●
21	BOLT; CASE,HTR UNIT	1-83579-657-0	02	1	9803-0004		●
21	BOLT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-657-2	02	1	0005-	●
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M5X20	9-09829-324-1	01	1	9703-1409	●
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M5X16	8-94248-820-0	01	1	1410-	●
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41) (A) M5X20	9-09829-324-1	01	1	9510-9702	●
30	SCREW; HTR UNIT (A) M5X20	9-09829-324-1	01	1	9510-9702		●
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M4X16	8-94324-850-0	12	1	9510-9802	●
30	SCREW; HTR UNIT (B) M4X16	8-94324-850-0	12	1	9510-9802		●
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M4X16	8-94324-850-0	12	1	9803-0004	●
30	SCREW; HTR UNIT (B) M4X16	8-94324-850-0	12	1	9803-0004		●
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M4X16	8-94324-850-0	12	1	0005-0011	●
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M4X16	8-94324-850-0	12	1	0012-	●
30	SCREW; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M4X16	8-94324-850-0	11	1	0012-	●
31	WASHER; HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94129-950-0	01	1	9510-9802	●
31	WASHER; HTR UNIT	8-94129-950-0	01	1	9510-9802		●
31	WASHER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94129-950-0	01	1	9803-0004	●
31	WASHER; HTR UNIT	8-94129-950-0	01	1	9803-0004		●
31	WASHER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94129-950-0	01	1	0005-	●
32	SCREW; HTR UNIT HEATER & DEFROSTER(C41) M5X20	9-09829-324-1	01	1	9510-9802	●
32	SCREW; HTR UNIT M5X20	9-09829-324-1	01	1	9510-9802		●
32	SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20	9-09829-324-1	01	1	9803-0004	●
32	SCREW; HTR UNIT M5X20	9-09829-324-1	01	1	9803-0004		●
32	SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20	9-09829-324-1	01	1	0005-1409	●
32	SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X16	8-94248-820-0	01	1	1410-	●
32	SCREW; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20	9-09829-324-1	02	1	9510-	●
33	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-619-0	01	1	9510-9802	●
33	ROD; SHUTTER LEVER (A)	1-83579-619-0	01	1	9510-9802		●
33	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-619-0	01	1	9803-0004	●
33	ROD; SHUTTER LEVER (A)	1-83579-619-0	01	1	9803-0004		●
33	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-619-0	01	1	0005-	●
33	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-621-0	01	1	9510-9802	●
33	ROD; SHUTTER LEVER (B)	1-83579-621-0	01	1	9510-9802		●
33	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-621-0	01	1	9803-0004	●
33	ROD; SHUTTER LEVER (B)	1-83579-621-0	01	1	9803-0004		●
33	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-621-0	01	1	0005-0011	●
33	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-621-0	01	1	0012-	●
34	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83564-326-0	01	1	9510-9802	●
34	LEVER; SHUTTER,HTR UNIT	1-83564-326-0	01	1	9510-9802		●
34	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83564-326-0	01	1	9803-0004	●
34	LEVER; SHUTTER,HTR UNIT	1-83564-326-0	01	1	9803-0004		●
34	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83564-326-0	01	1	0005-	●
35	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94389-502-1	03	1	9510-9802	●
35	LEVER; SHUTTER,HTR UNIT	8-94389-502-1	03	1	9510-9802		●
35	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94389-502-1	03	1	9803-0004	●
35	LEVER; SHUTTER,HTR UNIT	8-94389-502-1	03	1	9803-0004		●
35	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94389-502-1	03	1	0005-0011	●
35	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-94389-502-1	03	1	0012-	●
35	LEVER; SHUTTER,HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94389-502-1	02	1	0012-	●
37	ROD; LEVER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-620-1	01	1	9510-9802	●
37	ROD; LEVER	1-83579-620-1	01	1	9510-9802		●
37	ROD; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-620-1	01	1	9803-0004	●
37	ROD; LEVER	1-83579-620-1	01	1	9803-0004		●
37	ROD; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-620-1	01	1	0005-	●
40	ACTUATOR; HTR UNIT HEATER & DEFROSTER(C41) (A)	1-83579-650-0	01	1	9510-9802	●
40	ACTUATOR; HTR UNIT (A)	1-83579-650-0	01	1	9510-9802		●
40	ACTUATOR; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-650-0	01	1	9803-0004	●
40	ACTUATOR; HTR UNIT (A)	1-83579-650-0	01	1	9803-0004		●
40	ACTUATOR; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-650-1	01	1	0005-	●
40	ACTUATOR; HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-649-0	01	1	9510-9802	●
40	ACTUATOR; HTR UNIT (B)	1-83579-649-0	01	1	9510-9802		●
40	ACTUATOR; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-649-0	01	1	9803-0004	●
40	ACTUATOR; HTR UNIT (B)	1-83579-649-0	01	1	9803-0004		●
40	ACTUATOR; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-649-1	01	1	0005-	●
53	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41) (B)	1-83579-623-0	01	1	9510-9802	●
53	ROD; SHUTTER LEVER (B)	1-83579-623-0	01	1	9510-9802		●
53	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-623-0	01	1	9803-0004	●
53	ROD; SHUTTER LEVER (B)	1-83579-623-0	01	1	9803-0004		●
53	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-623-0	01	1	0005-	●
53	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41) (C)	1-83579-624-0	01	1	9510-9802	●
53	ROD; SHUTTER LEVER (C)	1-83579-624-0	01	1	9510-9802		●
53	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-624-0	01	1	9803-0004	●
53	ROD; SHUTTER LEVER (C)	1-83579-624-0	01	1	9803-0004		●
53	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-624-0	01	1	0005-	●
53	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-622-0	01	1	9510-9802	●
53	ROD; SHUTTER LEVER (A)	1-83579-622-0	01	1	9510-9802		●
53	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-622-0	01	1	9803-0004	●
53	ROD; SHUTTER LEVER (A)	1-83579-622-0	01	1	9803-0004		●
53	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-622-0	01	1	0005-	●
54	CLIP; SHUTTER LEVER HEATER & DEFROSTER(C41)	1-83579-488-0	05	1	9510-9702	●
54	CLIP; SHUTTER LEVER	1-83579-488-0	05	1	9510-9702		●
54	CLIP; SHUTTER LEVER HEATER & DEFROSTER(C41)	8-94248-794-0	05	1	9703-9802	●
54	CLIP; SHUTTER LEVER	8-94248-794-0	05	1	9703-9802		●
54	CLIP; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-94248-794-0	05	1	9803-0004	●
54	CLIP; SHUTTER LEVER	8-94248-794-0	05	1	9803-0004		●
54	CLIP; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-94248-794-0	05	1	0005-	●
54	CLIP; SHUTTER LEVER VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-488-0	04	1	9510-0011	●
54	CLIP; SHUTTER LEVER VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94248-794-0	03	1	0012-	●
56	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83564-325-0	03	1	9510-9802	●
56	LEVER; SHUTTER,HTR UNIT	1-83564-325-0	03	1	9510-9802		●
56	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83564-325-0	03	1	9803-0004	●
56	LEVER; SHUTTER,HTR UNIT	1-83564-325-0	03	1	9803-0004		●
56	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83564-325-0	03	1	0005-0011	●
56	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-325-0	03	1	0012-	●
56	LEVER; SHUTTER,HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83564-325-0	02	1	0012-	●
59	SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-626-1	01	1	9510-9802	●
59	SHUTTER; HTR UNIT,SIDE	1-83579-626-1	01	1	9510-9802		●
59	SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-626-1	01	1	9803-0004	●
59	SHUTTER; HTR UNIT,SIDE	1-83579-626-1	01	1	9803-0004		●
59	SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-626-2	01	1	0005-	●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98299-713-0	01	1	1410-	●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98299-715-0	01	1	1410-	●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41) (B)	1-83564-401-0	01	1	9703-9802	●
61	CASE; HTR UNIT (B)	1-83564-401-0	01	1	9703-9802		●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-401-0	01	1	9803-0004	●
61	CASE; HTR UNIT (B)	1-83564-401-0	01	1	9803-0004		●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-401-0	01	1	0005-0011	●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83564-401-0	01	1	0012-1409	●
61	CASE; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83564-401-0	01	1	1410-	●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41) (A)	1-83564-402-0	01	1	9703-9802	●
61	CASE; HTR UNIT (A)	1-83564-402-0	01	1	9703-9802		●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83564-402-0	01	1	9803-0004	●
61	CASE; HTR UNIT (A)	1-83564-402-0	01	1	9803-0004		●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83564-402-0	01	1	0005-0011	●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83564-402-0	01	1	0012-1409	●
61	CASE; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83564-402-0	01	1	1410-	●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83564-323-5	01	1	9510-9702	●
61	CASE; HTR UNIT (B)	1-83564-323-5	01	1	9510-9702		●
61	CASE; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83564-323-5	01	1	9703-0011	●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	1-83564-346-3	01	1	9510-9802	●
61	CASE; HTR UNIT (C)	1-83564-346-3	01	1	9510-9802		●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	1-83564-346-3	01	1	9803-0004	●
61	CASE; HTR UNIT (C)	1-83564-346-3	01	1	9803-0004		●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	1-83564-346-3	01	1	0005-	●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83564-347-3	01	1	9510-9702	●
61	CASE; HTR UNIT (A)	1-83564-347-3	01	1	9510-9702		●
61	CASE; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83564-347-3	01	1	9703-0011	●
66	SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-627-0	01	1	9510-9802	●
66	SHUTTER; HTR UNIT,CENTER LWR	1-83579-627-0	01	1	9510-9802		●
66	SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-627-0	01	1	9803-0004	●
66	SHUTTER; HTR UNIT,CENTER LWR	1-83579-627-0	01	1	9803-0004		●
66	SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-627-0	01	1	0005-	●
67	CLIP; HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83574-148-0	01	1	9510-9802	●
67	CLIP; HTR UNIT	1-83574-148-0	01	1	9510-9802		●
67	CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83574-148-0	01	1	9803-0004	●
67	CLIP; HTR UNIT	1-83574-148-0	01	1	9803-0004		●
67	CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83574-148-0	01	1	0005-	●
72	NUT; CASE,HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-659-0	02	1	9510-9802	●
72	NUT; CASE,HTR UNIT	1-83579-659-0	02	1	9510-9802		●
72	NUT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-659-0	02	1	9803-0004	●
72	NUT; CASE,HTR UNIT	1-83579-659-0	02	1	9803-0004		●
72	NUT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-659-4	02	1	0005-	●
76	BRACKET; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83573-194-0	01	1	0012-	●
77	COVER; HTR CASE VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-802-0	01	1	9510-0011	●
77	COVER; HTR CASE VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-97102-661-0	01	1	0012-	●
104	CAP; CASE,HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-617-0	01	1	9510-	●
104	CAP; CASE,HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-618-0	01	1	9510-	●
104	CAP; CASE,HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	8-94328-657-0	04	1	9510-	●
104	CAP; CASE,HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	8-94387-703-0	01	1	0012-	●
132	BRACKET; HTR CORE VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83573-195-0	01	1	0012-	●
138	COVER; HTR CASE VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-599-2	01	1	9510-0011	●
142	LEVER; ACTUATOR HEATER & DEFROSTER(C41) (B)	1-83564-345-1	01	1	9703-9802	●
142	LEVER; ACTUATOR (B)	1-83564-345-1	01	1	9703-9802		●
142	LEVER; ACTUATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-345-1	01	1	9803-0004	●
142	LEVER; ACTUATOR (B)	1-83564-345-1	01	1	9803-0004		●
142	LEVER; ACTUATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-345-1	01	1	0005-0011	●
142	LEVER; ACTUATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83564-414-0	01	1	0012-	●
142	LEVER; ACTUATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83564-345-1	01	1	0012-	●
199	SCREW; ACTUATOR HEATER & DEFROSTER(C41)	8-94348-809-0	04	1	9510-9802	●
199	SCREW; ACTUATOR	8-94348-809-0	04	1	9510-9802		●
199	SCREW; ACTUATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-94348-809-0	04	1	9803-0004	●
199	SCREW; ACTUATOR	8-94348-809-0	04	1	9803-0004		●
199	SCREW; ACTUATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-94348-809-0	04	1	0005-	●
199	SCREW; ACTUATOR VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94348-809-0	02	1	9510-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
