◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10700 - FSR32,33(RHD) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-45 - HEATER PIPING ▶
8-45 — HEATER PIPING (#64349) — 94 parça

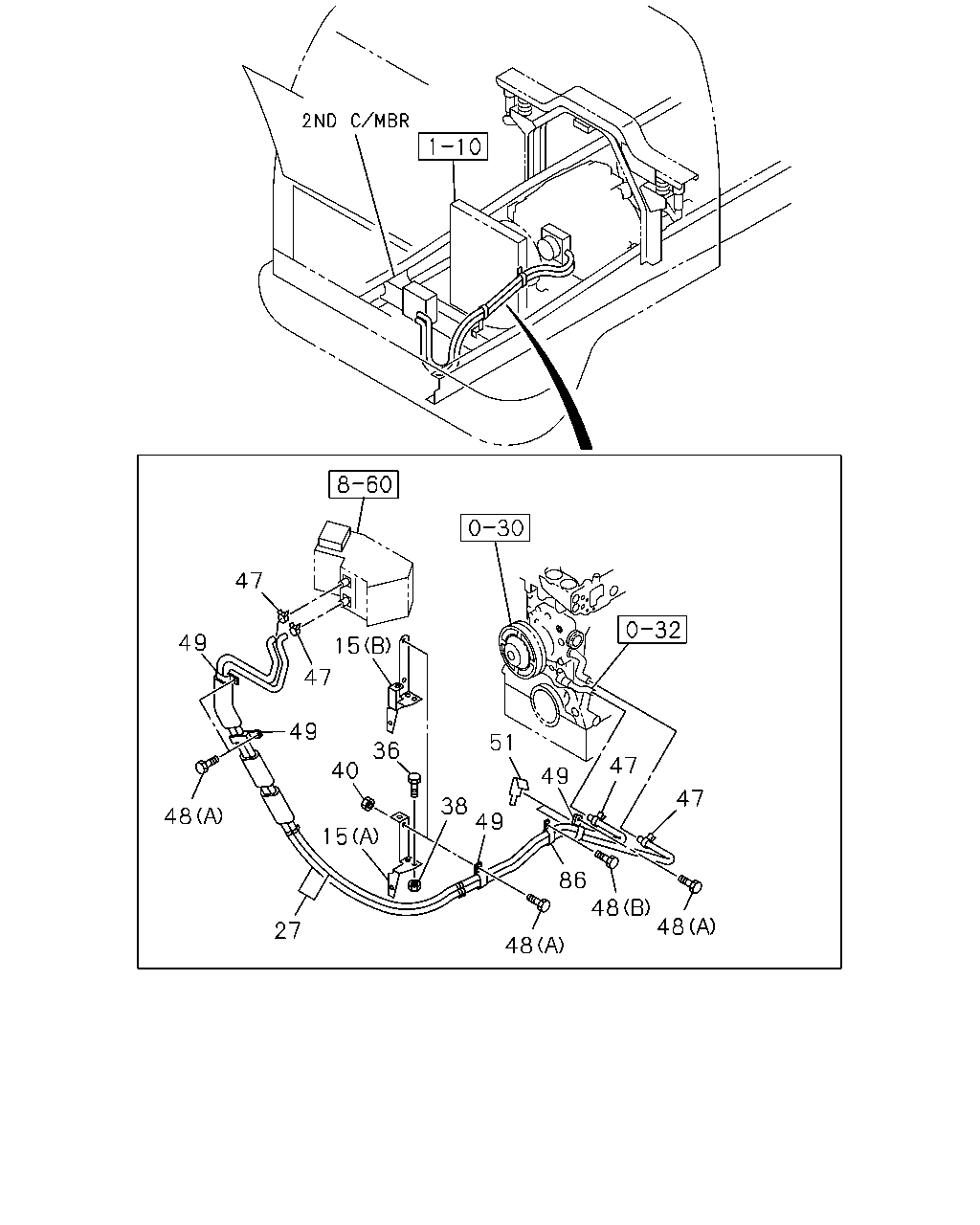

çizim 6243
47 49 15 47 49 51 36 47 40 49 47 38 49 48 15 86 48 48 27 48
BalonParca AdiParca NoAdetTipApplied Date A B
15 BRACKET; WATER HOSE
6HK1 TCC ENG(81L) (B) 		1-83573-252-0 01 1 0406- ●
15 BRACKET; WATER HOSE
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (A) 		1-83573-070-1 01 1 0011- ●
15 BRACKET; WATER HOSE
(A) 		1-83571-844-1 01 1 9510-0004 ● ●
15 BRACKET; WATER HOSE
(A) 		1-83571-844-1 01 1 0005-0010 ●
15 BRACKET; WATER HOSE
6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) (A) 		1-83571-844-2 01 1 0011- ●
15 BRACKET; WATER HOSE
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-83571-844-2 01 1 0011- ●
27 HOSE; WATER,HTR UNIT TO WATER PIPE
6HK1 TCC ENG(81L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83565-790-0 01 1 0406- ●
27 HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41) 		1-83565-586-5 01 1 9510-9802 ●
27 HOSE; WATER,HTR UNIT TO WATER PIPE 1-83565-586-5 01 1 9510-9802 ●
27 HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83565-586-6 01 1 9803-9912 ●
27 HOSE; WATER,HTR UNIT TO WATER PIPE 1-83565-586-6 01 1 9803-9912 ●
27 HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83565-748-0 01 1 0001-0004 ●
27 HOSE; WATER,HTR UNIT TO WATER PIPE 1-83565-748-0 01 1 0001-0004 ●
27 HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83565-748-0 01 1 0005-0403 ●
27 HOSE; WATER,HTR UNIT TO WATER PIPE
6HH1 STD 4VALVE ENG(1A6),6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83565-748-0 01 1 0404- ●
36 BOLT; BRKT
M8X20 FLANGE 		0-28080-820-0 02 1 9510-9606 ● ●
36 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 9607-9801 ● ●
36 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 9802-0004 ● ●
36 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 0005-0512 ●
36 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
38 NUT; BRKT
M8 		9-09110-408-0 02 1 9510-9606 ● ●
38 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9607-0004 ● ●
38 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0005-0602 ●
38 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
40 NUT; CLIP
HEATER & DEFROSTER(C41) M8 		9-09110-408-0 01 1 9510-9606 ●
40 NUT; CLIP
M8 		9-09110-408-0 01 1 9510-9606 ●
40 NUT; CLIP
HEATER & DEFROSTER(C41) M8 FLANGE 		0-91150-108-0 01 1 9607-9802 ●
40 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 9607-9802 ●
40 NUT; CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 9803-0004 ●
40 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 9803-0004 ●
40 NUT; CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 0005-0602 ●
40 NUT; CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 01 1 0603- ●
47 CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41) ID=22 		8-94382-401-0 04 1 9510-9802 ●
47 CLAMP; WATER HOSE,HTR
ID=22 		8-94382-401-0 04 1 9510-9802 ●
47 CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22 		8-94382-401-0 04 1 9803-0004 ●
47 CLAMP; WATER HOSE,HTR
ID=22 		8-94382-401-0 04 1 9803-0004 ●
47 CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22 		8-94382-401-0 04 1 0005-0611 ●
47 CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22 		8-97359-141-0 04 1 0612- ●
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41) (A) M8X20 FLANGE 		0-28080-820-0 02 1 9510-9606 ●
48 BOLT; CLIP FIX
(A) M8X20 FLANGE 		0-28080-820-0 02 1 9510-9606 ●
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41) (A) M8X20 FLANGE 		0-28680-820-0 02 1 9607-9802 ●
48 BOLT; CLIP FIX
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9607-9802 ●
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28680-820-0 02 1 9803-9901 ●
48 BOLT; CLIP FIX
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9803-9901 ●
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28680-820-0 01 1 9902-0004 ●
48 BOLT; CLIP FIX
(A) M8X20 FLANGE 		0-28680-820-0 01 1 9902-0004 ●
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28680-820-0 01 1 0005-0512 ●
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28680-820-0 02 1 0601-0601 ●
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28650-820-0 02 1 0602- ●
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41) (B) M8X16 W/LK&PL WASHER 		1-09980-498-0 01 1 9510-9802 ●
48 BOLT; CLIP FIX
(B) M8X16 W/LK&PL WASHER 		1-09980-498-0 01 1 9510-9802 ●
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 W/LK&PL WASHER 		1-09980-498-0 01 1 9803-0004 ●
48 BOLT; CLIP FIX
(B) M8X16 W/LK&PL WASHER 		1-09980-498-0 01 1 9803-0004 ●
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 W/LK&PL WASHER 		1-09980-498-0 01 1 0005- ●
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41) (A) M8X25 FLANGE 		0-28680-825-0 01 1 9607-9801 ●
48 BOLT; CLIP FIX
(A) M8X25 FLANGE 		0-28680-825-0 01 1 9607-9801 ●
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28680-820-0 02 1 9902-0004 ●
48 BOLT; CLIP FIX
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9902-0004 ●
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28680-820-0 02 1 0005-0405 ●
48 BOLT; CLIP FIX
6HK1 TCC ENG(81L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28680-820-0 02 1 0406-0512 ●
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28680-820-0 02 1 0406-0512 ●
48 BOLT; CLIP FIX
6HK1 TCC ENG(81L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28680-820-0 01 1 0601-0601 ●
48 BOLT; CLIP FIX
6HK1 TCC ENG(81L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28680-820-0 01 1 0601-0601 ●
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28680-820-0 01 1 0601-0601 ●
48 BOLT; CLIP FIX
6HK1 TCC ENG(81L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28650-820-0 01 1 0602- ●
48 BOLT; CLIP FIX
6HK1 TCC ENG(81L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28650-820-0 01 1 0602- ●
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28650-820-0 01 1 0602- ●
49 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41) ID=24X2 L=25 		1-09700-710-0 02 1 9510-9802 ●
49 CLIP; WATER HOSE,HTR
ID=24X2 L=25 		1-09700-710-0 02 1 9510-9802 ●
49 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25 		1-09700-710-0 02 1 9803-9901 ●
49 CLIP; WATER HOSE,HTR
ID=24X2 L=25 		1-09700-710-0 02 1 9803-9901 ●
49 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25 		1-09700-710-0 01 1 9902-0004 ●
49 CLIP; WATER HOSE,HTR
ID=24X2 L=25 		1-09700-710-0 01 1 9902-0004 ●
49 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25 		1-09700-710-0 01 1 0005-0405 ●
49 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25 		1-09700-710-0 02 1 0406- ●
49 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25 		1-09700-710-0 02 1 9902-0004 ●
49 CLIP; WATER HOSE,HTR
ID=24X2 L=25 		1-09700-710-0 02 1 9902-0004 ●
49 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25 		1-09700-710-0 02 1 0005-0405 ●
49 CLIP; WATER HOSE,HTR
6HK1 TCC ENG(81L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25 		1-09700-710-0 01 1 0406- ●
49 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25 		1-09700-710-0 01 1 0406- ●
51 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41) L=170 		1-83574-139-0 01 1 9510-9802 ●
51 CLIP; WATER HOSE,HTR
L=170 		1-83574-139-0 01 1 9510-9802 ●
51 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170 		1-83574-139-0 01 1 9803-0004 ●
51 CLIP; WATER HOSE,HTR
L=170 		1-83574-139-0 01 1 9803-0004 ●
51 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170 		1-83574-139-0 01 1 0005-0405 ●
51 CLIP; WATER HOSE,HTR
6HE1 TCN ENG(58L),6HK1 TCC ENG(81L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170 		1-83574-139-0 01 1 0406-1205 ●
51 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170 		1-83574-139-0 01 1 0406-1205 ●
51 CLIP; WATER HOSE,HTR
6HE1 TCN ENG(58L),6HK1 TCC ENG(81L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170 		8-98166-021-0 01 1 1206- ●
51 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170 		8-98166-021-0 01 1 1206- ●
86 CLIP; HTR HOSE
HEATER & DEFROSTER(C41) 		1-83571-049-1 01 1 9510-9802 ●
86 CLIP; HTR HOSE 1-83571-049-1 01 1 9510-9802 ●
86 CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-049-1 01 1 9803-0004 ●
86 CLIP; HTR HOSE 1-83571-049-1 01 1 9803-0004 ●
86 CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-049-1 01 1 0005- ●
