Sayfa 8-40 - Isuzu EPC

8-40 — HEATER SYSTEM (#64348) — 165 parça

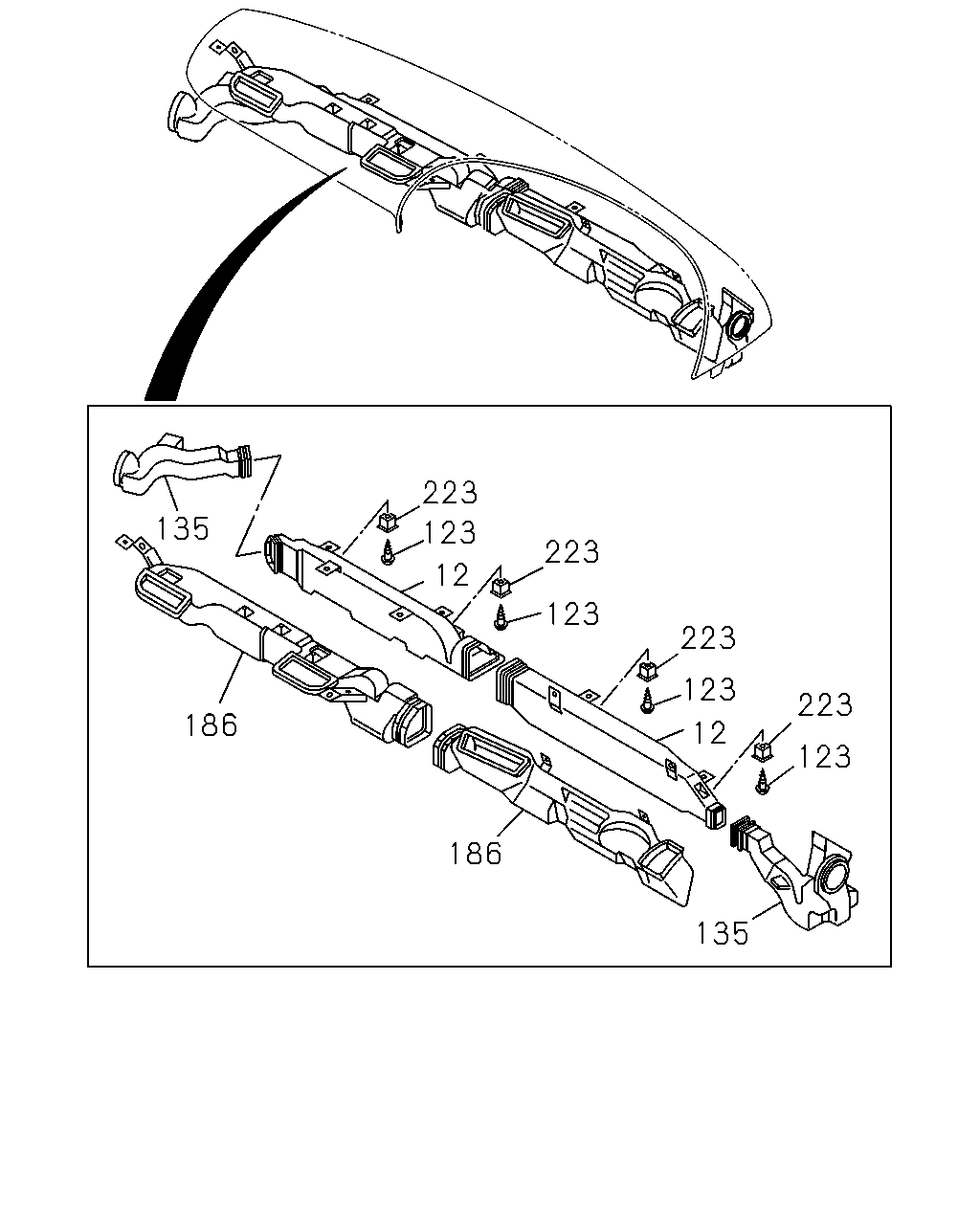

223 135 123 223 12 123 223 123 223 186 12 123 186 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	NOZZLE; DEFROSTER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-321-6	01	1	9510-0004	●
12	NOZZLE; DEFROSTER	1-76378-321-6	01	1	9510-0004		●
12	NOZZLE; DEFROSTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-321-6	01	1	0005-	●
12	NOZZLE; DEFROSTER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76377-172-6	01	1	9510-0004	●
12	NOZZLE; DEFROSTER	1-76377-172-6	01	1	9510-0004		●
12	NOZZLE; DEFROSTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76377-172-7	01	1	0005-	●
123	SCREW; DUCT HEATER & DEFROSTER(C41) M5X14	8-94279-325-0	02	1	9510-9802	●
123	SCREW; DUCT M5X14	8-94279-325-0	02	1	9510-9802		●
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X14	8-94279-325-0	02	1	9803-0004	●
123	SCREW; DUCT M5X14	8-94279-325-0	02	1	9803-0004		●
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X14	8-94279-325-0	02	1	0005-	●
123	SCREW; DUCT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14	8-94279-325-0	08	1	9510-9802	●
123	SCREW; DUCT M5X14	8-94279-325-0	08	1	9510-9802		●
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14	8-94279-325-0	08	1	9803-0004	●
123	SCREW; DUCT M5X14	8-94279-325-0	08	1	9803-0004		●
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14	8-94279-325-0	08	1	0005-	●
135	HOSE; DEFROSTER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-253-4	01	1	9805-0004	●
135	HOSE; DEFROSTER	1-76378-253-4	01	1	9805-0004		●
135	HOSE; DEFROSTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-253-4	01	1	0005-	●
135	HOSE; DEFROSTER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-252-7	01	1	9805-0004	●
135	HOSE; DEFROSTER	1-76378-252-7	01	1	9805-0004		●
135	HOSE; DEFROSTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-252-7	01	1	0005-	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-322-9	01	1	9510-9903	●
186	DUCT; VENTILATOR	1-76378-322-9	01	1	9510-9903		●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-418-0	01	1	9904-0004	●
186	DUCT; VENTILATOR	1-76378-418-0	01	1	9904-0004		●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-418-0	01	1	0005-	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76377-173-6	01	1	9510-0004	●
186	DUCT; VENTILATOR	1-76377-173-6	01	1	9510-0004		●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76377-173-6	01	1	0005-0710	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76377-246-0	01	1	0711-	●
223	GROMMET; SCREW HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	9510-9802	●
223	GROMMET; SCREW D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	9510-9802		●
223	GROMMET; SCREW HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	9803-0004	●
223	GROMMET; SCREW D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	9803-0004		●
223	GROMMET; SCREW HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	0005-	●

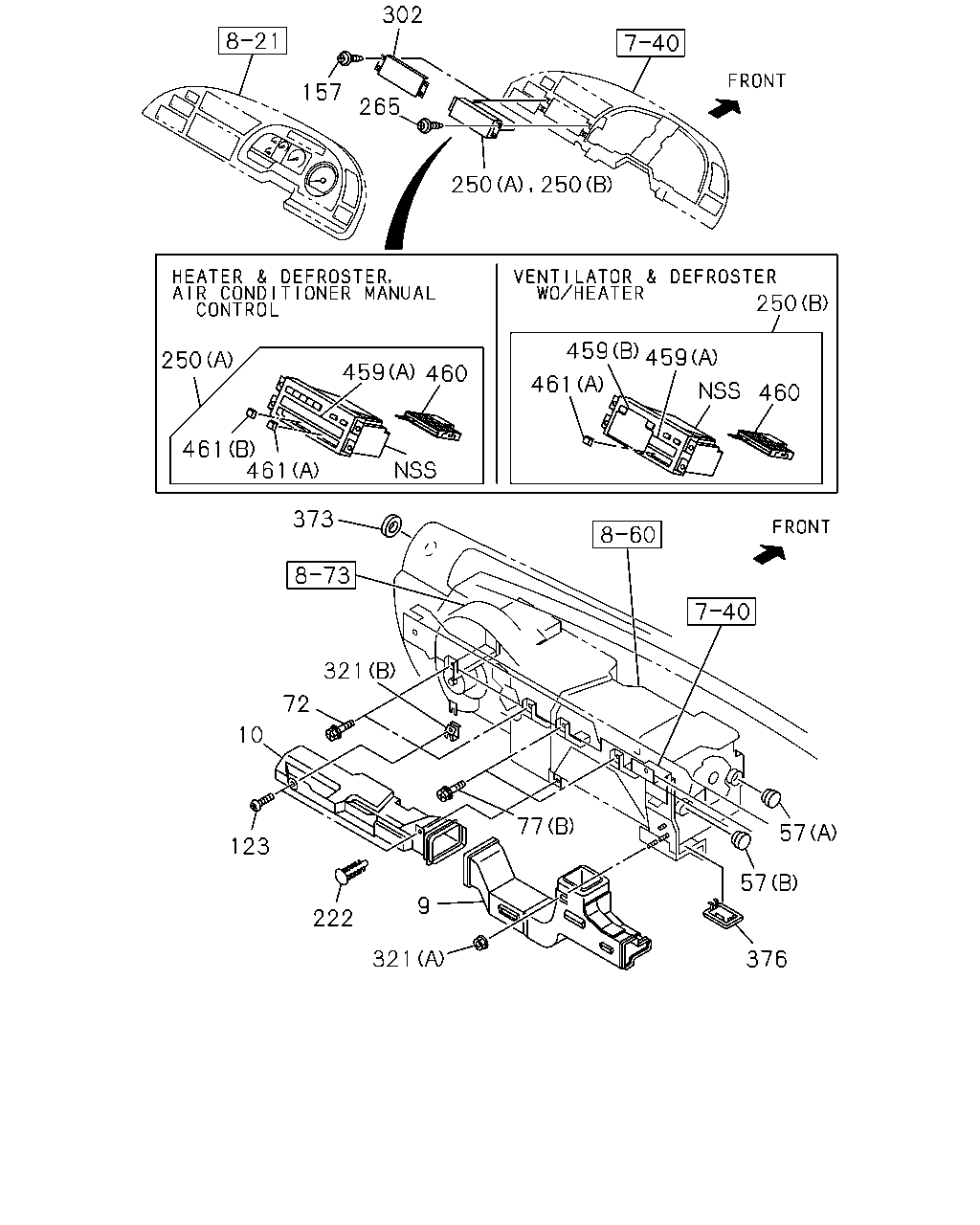

302 157 265 250 250 459 459 250 459 460 461 460 461 461 373 321 72 10 77 57 123 57 9 222 321 376 250

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER(C41)	1-76378-370-3	01	1	9510-9801	●
9	DUCT; HTR AIR,FOOT CENTER	1-76378-370-3	01	1	9510-9801		●
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER(C41)	1-76378-409-0	01	1	9802-9805	●
9	DUCT; HTR AIR,FOOT CENTER	1-76378-409-0	01	1	9802-9805		●
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-76378-409-0	01	1	9806-0004	●
9	DUCT; HTR AIR,FOOT CENTER	1-76378-409-0	01	1	9806-0004		●
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-76378-409-0	01	1	0005-0006	●
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-76378-426-2	01	1	0007-	●
10	DUCT; HTR AIR,ASSIST FOOT HEATER & DEFROSTER(C41)	1-76378-278-7	01	1	9510-9801	●
10	DUCT; HTR AIR,ASSIST FOOT	1-76378-278-7	01	1	9510-9801		●
10	DUCT; HTR AIR,ASSIST FOOT HEATER & DEFROSTER(C41)	1-76378-413-0	01	1	9802-9805	●
10	DUCT; HTR AIR,ASSIST FOOT	1-76378-413-0	01	1	9802-9805		●
10	DUCT; HTR AIR,ASSIST FOOT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-76378-413-0	01	1	9806-0004	●
10	DUCT; HTR AIR,ASSIST FOOT	1-76378-413-0	01	1	9806-0004		●
10	DUCT; HTR AIR,ASSIST FOOT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-76378-413-0	01	1	0005-	●
57	COVER; INL DUCT HEATER & DEFROSTER(C41) (A)	1-83579-617-0	02	1	9510-9802	●
57	COVER; INL DUCT (A)	1-83579-617-0	02	1	9510-9802		●
57	COVER; INL DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-617-0	02	1	9803-0004	●
57	COVER; INL DUCT (A)	1-83579-617-0	02	1	9803-0004		●
57	COVER; INL DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-617-0	02	1	0005-	●
57	COVER; INL DUCT HEATER & DEFROSTER(C41) (B)	1-83579-618-0	01	1	9510-9802	●
57	COVER; INL DUCT (B)	1-83579-618-0	01	1	9510-9802		●
57	COVER; INL DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-618-0	01	1	9803-0004	●
57	COVER; INL DUCT (B)	1-83579-618-0	01	1	9803-0004		●
57	COVER; INL DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-618-0	01	1	0005-	●
57	COVER; INL DUCT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-617-0	01	1	0205-	●
72	BOLT; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-9802	●
72	BOLT; BLOWER UNIT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-9802		●
72	BOLT; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9803-0004	●
72	BOLT; BLOWER UNIT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9803-0004		●
72	BOLT; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-	●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M6X16	1-09980-598-0	02	1	9510-9802	●
77	BOLT; HTR UNIT (A) M6X16	1-09980-598-0	02	1	9510-9802		●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M6X16	1-09980-598-0	02	1	9803-0004	●
77	BOLT; HTR UNIT (A) M6X16	1-09980-598-0	02	1	9803-0004		●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M6X16	1-09980-598-1	02	1	0005-	●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-9802	●
77	BOLT; HTR UNIT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-9802		●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9803-0004	●
77	BOLT; HTR UNIT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9803-0004		●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-	●
123	SCREW; DUCT HEATER & DEFROSTER(C41) M5X14	8-94279-325-0	02	1	9510-9802	●
123	SCREW; DUCT M5X14	8-94279-325-0	02	1	9510-9802		●
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X14	8-94279-325-0	02	1	9803-0004	●
123	SCREW; DUCT M5X14	8-94279-325-0	02	1	9803-0004		●
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X14	8-94279-325-0	02	1	0005-	●
123	SCREW; DUCT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14	8-94279-325-0	08	1	9510-9802	●
123	SCREW; DUCT M5X14	8-94279-325-0	08	1	9510-9802		●
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14	8-94279-325-0	08	1	9803-0004	●
123	SCREW; DUCT M5X14	8-94279-325-0	08	1	9803-0004		●
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14	8-94279-325-0	08	1	0005-	●
157	SCREW EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X20 TAPPING W/PL WASHER	0-74110-620-0	01	1	9510-0004	●
157	SCREW EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X20 TAPPING W/PL WASHER	0-74110-620-0	01	1	0005-0604	●
157	SCREW EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X20 TAPPING W/PL WASHER	0-74160-620-0	01	1	0605-	●
222	FASTENER; DUCT HEATER & DEFROSTER(C41) ID=6 OD=16 L=18	8-94178-705-0	01	1	9802-9811	●
222	FASTENER; DUCT ID=6 OD=16 L=18	8-94178-705-0	01	1	9802-9811		●
222	FASTENER; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=6 OD=16 L=18	8-94178-705-0	01	1	9911-0004	●
222	FASTENER; DUCT ID=6 OD=16 L=18	8-94178-705-0	01	1	9911-0004		●
222	FASTENER; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=6 OD=16 L=18	8-94178-705-0	01	1	0005-	●
250	CONTROL ASM; A/C HEATER & DEFROSTER(C41) (A)	1-83543-033-2	01	1	9510-9802	●
250	CONTROL ASM; A/C (A)	1-83543-033-2	01	1	9510-9802		●
250	CONTROL ASM; A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83543-033-2	01	1	9803-9909	●
250	CONTROL ASM; A/C (A)	1-83543-033-2	01	1	9803-9909		●
250	CONTROL ASM; A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83543-050-0	01	1	9910-0004	●
250	CONTROL ASM; A/C (A)	1-83543-050-0	01	1	9910-0004		●
250	CONTROL ASM; A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83543-050-0	01	1	0005-	●
250	CONTROL ASM; A/C VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83543-034-1	01	1	9510-	●
265	SCREW; A/C CONT UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X20 TAPPING W/PL WASHER	0-74110-620-0	01	1	9510-0004	●
265	SCREW; A/C CONT UNIT M6X20 TAPPING W/PL WASHER	0-74110-620-0	01	1	9510-0004		●
265	SCREW; A/C CONT UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X20 TAPPING W/PL WASHER	0-74110-620-0	01	1	0005-0604	●
265	SCREW; A/C CONT UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X20 TAPPING W/PL WASHER	0-74160-620-0	01	1	0605-	●
302	COVER; AIR HOLE EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-72438-140-1	01	1	9510-9802	●
302	COVER; AIR HOLE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-72438-140-1	01	1	9803-	●
321	NUT; DUCT FIX HEATER & DEFROSTER(C41) (A) M6 FLANGE	0-91150-106-0	01	1	9510-9802	●
321	NUT; DUCT FIX (A) M6 FLANGE	0-91150-106-0	01	1	9510-9802		●
321	NUT; DUCT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M6 FLANGE	0-91150-106-0	01	1	9803-0004	●
321	NUT; DUCT FIX (A) M6 FLANGE	0-91150-106-0	01	1	9803-0004		●
321	NUT; DUCT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M6 FLANGE	0-91150-106-0	01	1	0005-0602	●
321	NUT; DUCT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M6 FLANGE	0-91180-106-0	01	1	0603-	●
321	NUT; DUCT FIX HEATER & DEFROSTER(C41) (B) M5	1-09984-150-0	01	1	9510-9802	●
321	NUT; DUCT FIX (B) M5	1-09984-150-0	01	1	9510-9802		●
321	NUT; DUCT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M5	1-09984-150-0	01	1	9803-0004	●
321	NUT; DUCT FIX (B) M5	1-09984-150-0	01	1	9803-0004		●
321	NUT; DUCT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M5	1-09984-150-0	01	1	0005-0409	●
321	NUT; DUCT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M5	1-09984-196-0	01	1	0410-	●
373	RUBBER; JOINT	1-76378-291-0	02	1	9510-0004	●	●
373	RUBBER; JOINT	1-76378-291-0	02	1	0005-	●
376	COVER; BED HEATER HEATER & DEFROSTER(C41)	1-83579-599-2	01	1	9510-9702	●
376	COVER; BED HEATER	1-83579-599-2	01	1	9510-9702		●
459	PANEL; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83549-013-0	01	1	9510-	●
459	PANEL; CONTROL ASM,A/C VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83549-017-0	01	1	0005-	●
460	SWITCH; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-82489-006-0	01	1	9510-	●
461	KNOB; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83549-015-0	01	1	9510-	●
461	KNOB; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83549-016-0	01	1	0005-	●

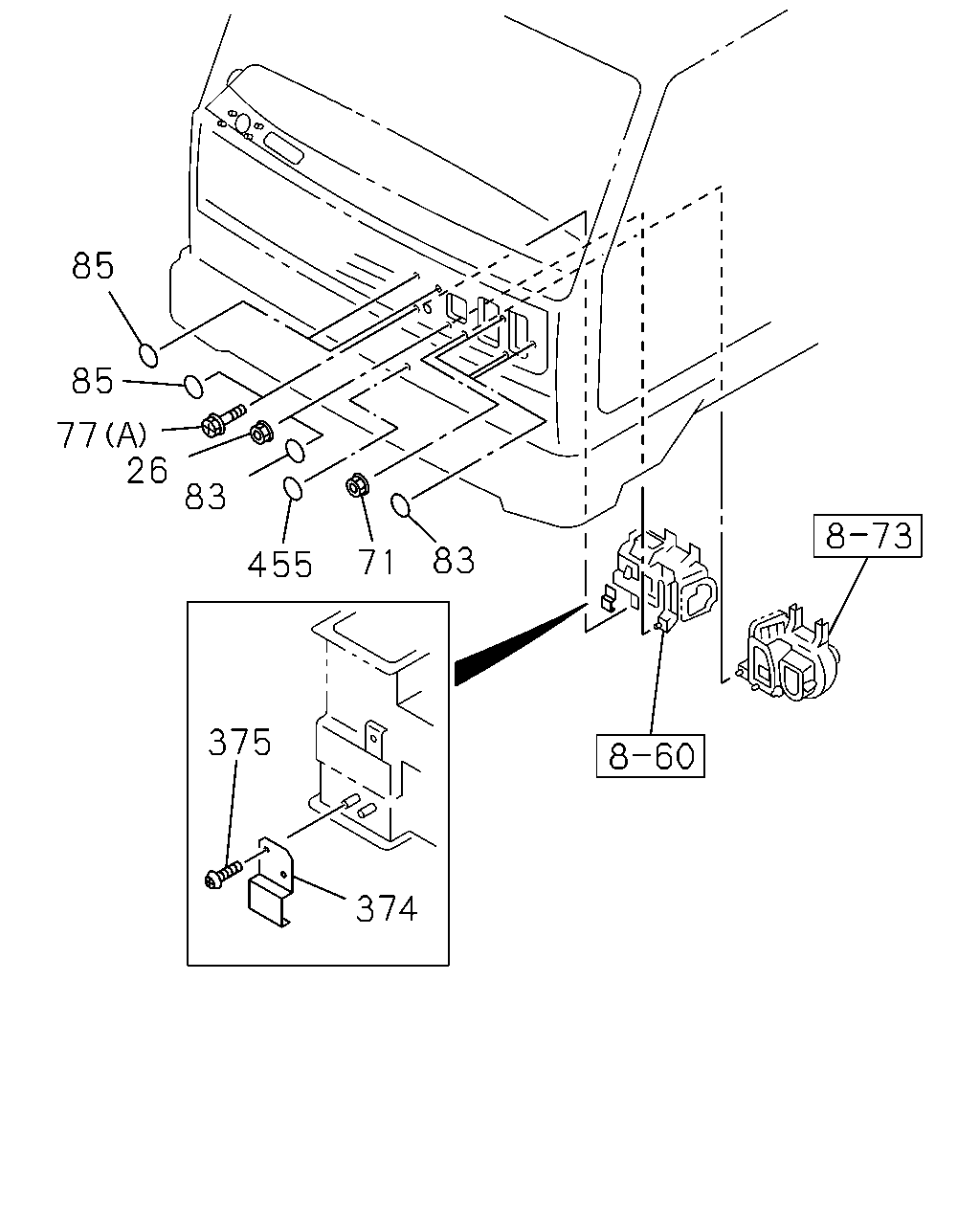

85 85 77 26 83 83 71 455 375 374

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
26	NUT; HTR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9510-9802	●
26	NUT; HTR M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9510-9802		●
26	NUT; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9803-0004	●
26	NUT; HTR M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9803-0004		●
26	NUT; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0005-	●
71	NUT; BLOWER UNIT TO DASH HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 FLANGE W/RUBBER	1-09984-180-0	04	1	9510-9802	●
71	NUT; BLOWER UNIT TO DASH M6 FLANGE W/RUBBER	1-09984-180-0	04	1	9510-9802		●
71	NUT; BLOWER UNIT TO DASH HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 FLANGE W/RUBBER	1-09984-180-0	04	1	9803-0004	●
71	NUT; BLOWER UNIT TO DASH M6 FLANGE W/RUBBER	1-09984-180-0	04	1	9803-0004		●
71	NUT; BLOWER UNIT TO DASH HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 FLANGE W/RUBBER	1-09984-180-0	04	1	0005-	●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M6X16	1-09980-598-0	02	1	9510-9802	●
77	BOLT; HTR UNIT (A) M6X16	1-09980-598-0	02	1	9510-9802		●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M6X16	1-09980-598-0	02	1	9803-0004	●
77	BOLT; HTR UNIT (A) M6X16	1-09980-598-0	02	1	9803-0004		●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M6X16	1-09980-598-1	02	1	0005-	●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-9802	●
77	BOLT; HTR UNIT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-9802		●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9803-0004	●
77	BOLT; HTR UNIT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9803-0004		●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-	●
83	SEAL; COVER,HTR HOLE EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) OD=25 BLACK	1-76798-019-0	04	1	9510-9802	●
83	SEAL; COVER,HTR HOLE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) OD=25 BLACK	1-76798-019-0	04	1	9803-	●
85	SEAL; HTR UNIT EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) OD=25 BLACK	1-76798-019-0	04	1	9510-9802	●
85	SEAL; HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) OD=25 BLACK	1-76798-019-0	04	1	9803-	●
374	HOLDER; DUCT HEATER & DEFROSTER(C41)	1-76398-012-1	01	1	9510-9802	●
374	HOLDER; DUCT	1-76398-012-1	01	1	9510-9802		●
374	HOLDER; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-76398-012-1	01	1	9803-0004	●
374	HOLDER; DUCT	1-76398-012-1	01	1	9803-0004		●
374	HOLDER; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-76398-012-1	01	1	0005-	●
375	SCREW; HOLDER HEATER & DEFROSTER(C41) M5X14	8-94279-325-0	02	1	9510-9802	●
375	SCREW; HOLDER M5X14	8-94279-325-0	02	1	9510-9802		●
375	SCREW; HOLDER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X14	8-94279-325-0	02	1	9803-0004	●
375	SCREW; HOLDER M5X14	8-94279-325-0	02	1	9803-0004		●
375	SCREW; HOLDER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X14	8-94279-325-0	02	1	0005-	●
455	SEAL; CLIP HOLE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK	1-76798-019-0	01	1	9903-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
