◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10700 - FSR32,33(RHD) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#64345) — 115 parça

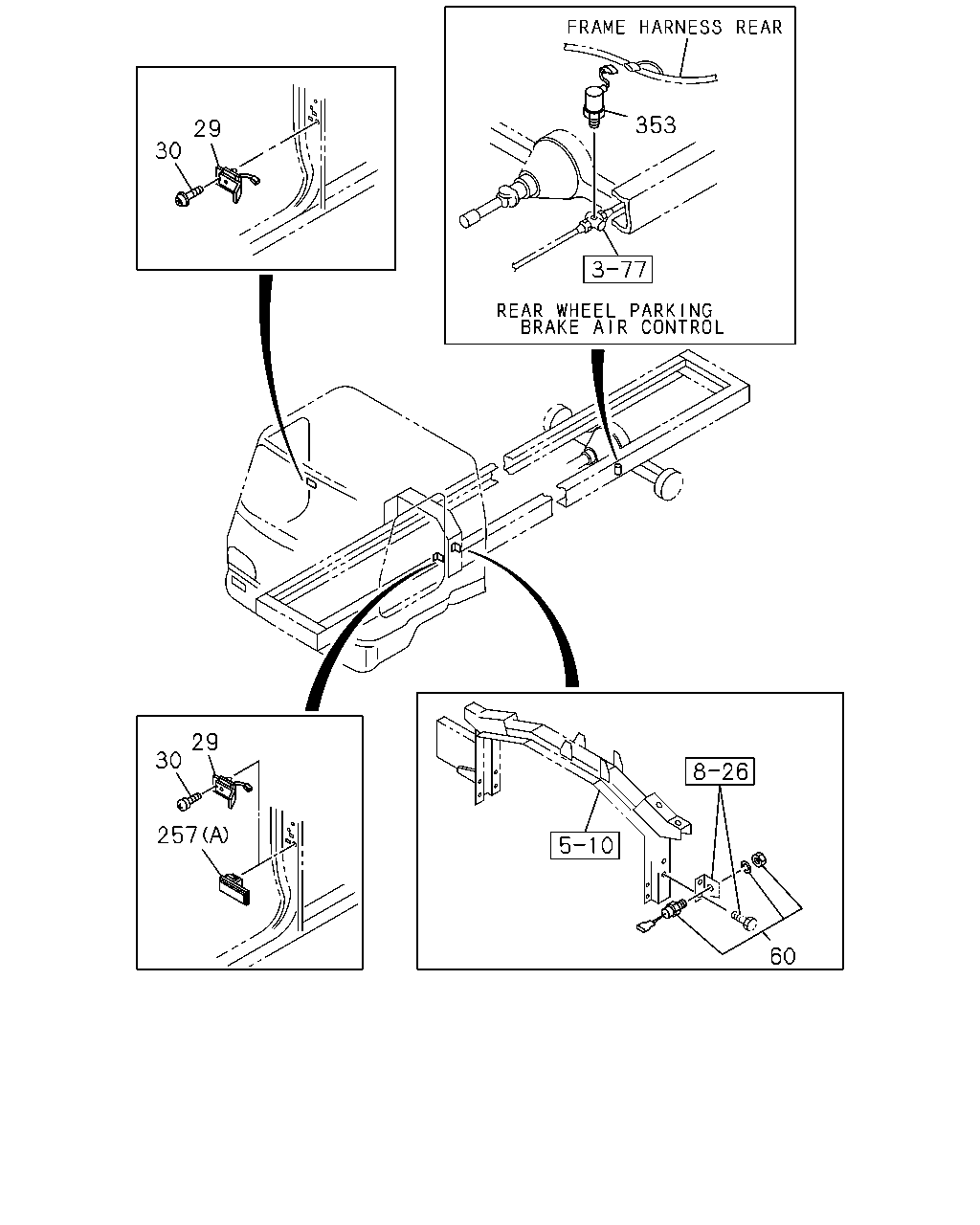

çizim 137339
353 29 30 29 30 257 60
BalonParca AdiParca NoAdetTipApplied Date A B
29 SWITCH; DOOR
EXC. REMOTE CONT DOOR LOCK<SLG> 		8-97855-032-3 01 1 0312- ●
29 SWITCH; DOOR 8-97855-032-2 01 1 9510-0004 ● ●
29 SWITCH; DOOR 8-97855-032-3 01 1 0005-0311 ●
29 SWITCH; DOOR
REMOTE CONT DOOR LOCK<SLG> 		8-97855-032-3 02 1 0312- ●
30 SCREW; DOOR SW
EXC. REMOTE CONT DOOR LOCK<SLG> M5X11 		1-09981-536-1 01 1 0312- ●
30 SCREW; DOOR SW
M5X16 		8-94279-341-0 01 1 9510-9906 ● ●
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 01 1 9907-0004 ● ●
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 01 1 0005-0311 ●
30 SCREW; DOOR SW
REMOTE CONT DOOR LOCK<SLG> M5X11 		1-09981-536-1 02 1 0312- ●
60 SWITCH; STARTER SUB
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-82380-107-1 01 1 9510-9802 ●
60 SWITCH; STARTER SUB
AUSTRALIA EQUIPMENT(RR3) 		1-82380-107-1 01 1 9510-9802 ●
60 SWITCH; STARTER SUB
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-82380-107-1 01 1 9803-0004 ●
60 SWITCH; STARTER SUB 1-82380-107-1 01 1 9803-0004 ●
60 SWITCH; STARTER SUB
NEW ZEALAND EQUIPMENT(PK5) 		1-82380-107-1 01 1 0005-0211 ●
60 SWITCH; STARTER SUB
NEW ZEALAND EQUIPMENT(PK5) EXC. STARTER SWITCH DELETION<E5D> 		1-82380-107-1 01 1 0212- ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B) 		1-82389-012-2 01 1 9510-0004 ●
257 COVER; HOLE,SW
(B) 		1-82389-012-2 01 1 9510-0004 ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B) 		1-82389-012-2 01 1 0005- ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B) 		1-82389-011-2 01 1 9510-0004 ●
257 COVER; HOLE,SW
(B) 		1-82389-011-2 01 1 9510-0004 ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B) 		1-82389-011-2 01 1 0005- ●
257 COVER; HOLE,SW
(A) 		8-94229-914-1 01 1 9510-0004 ● ●
257 COVER; HOLE,SW
(A) 		8-94229-914-1 01 1 0005-0311 ●
257 COVER; HOLE,SW
EXC. REMOTE CONT DOOR LOCK<SLG> (A) 		8-94229-914-1 01 1 0312- ●
353 SWITCH ASM; PARKING BRAKE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82410-163-0 01 1 9510-0004 ● ●
353 SWITCH ASM; PARKING BRAKE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82410-163-1 01 1 0005- ●

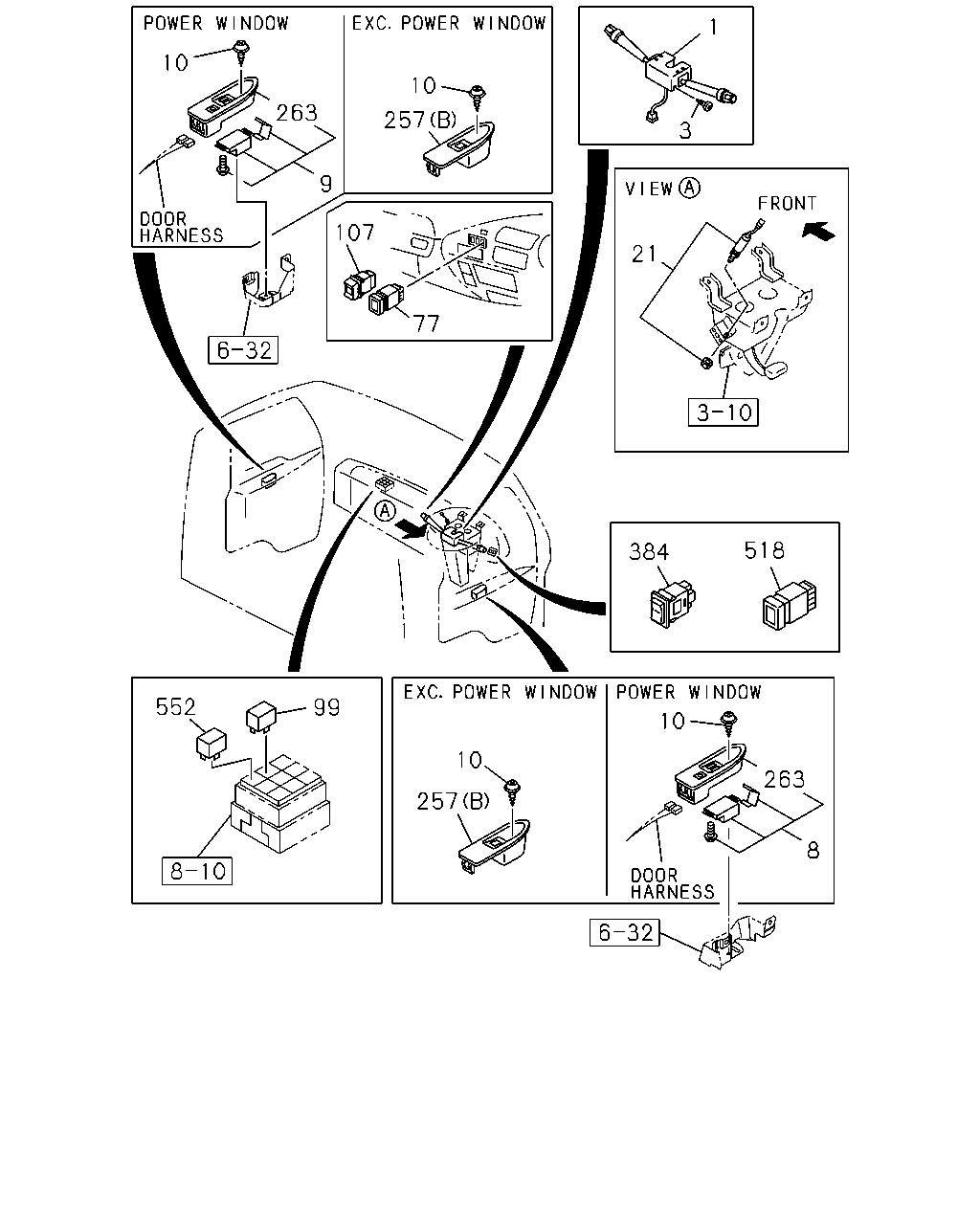

çizim 137911
1 10 10 263 257 3 9 107 21 77 518 384 552 99 10 10 263 257 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 SWITCH; COMB
EXHAUST BRAKE<NF8> NEW ZEALAND EQUIPMENT(PK5) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82360-693-0 01 1 0212-0312 ●
1 SWITCH; COMB
EXHAUST BRAKE<NF8> NEW ZEALAND EQUIPMENT(PK5) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82360-730-0 01 1 0401- ●
1 SWITCH; COMB
EXHAUST BRAKE<NF8> HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82360-412-3 01 1 9510-0103 ●
1 SWITCH; COMB
EXHAUST BRAKE<NF8> HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82360-619-0 01 1 0104-0312 ●
1 SWITCH; COMB
EXHAUST BRAKE<NF8> HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82360-715-0 01 1 0401- ●
1 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-403-4 01 1 9510-0004 ●
1 SWITCH; COMB 1-82360-403-4 01 1 9510-0004 ●
1 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-403-4 01 1 0005-0103 ●
1 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-618-0 01 1 0104-0312 ●
1 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-714-0 01 1 0401- ●
1 SWITCH; COMB
EXHAUST BRAKE<NF8> NEW ZEALAND EQUIPMENT(PK5) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-410-4 01 1 9510-0103 ●
1 SWITCH; COMB
EXHAUST BRAKE<NF8> NEW ZEALAND EQUIPMENT(PK5) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-658-0 01 1 0104-0211 ●
1 SWITCH; COMB
EXHAUST BRAKE<NF8> NEW ZEALAND EQUIPMENT(PK5) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82360-658-0 01 1 0212-0312 ●
1 SWITCH; COMB
EXHAUST BRAKE<NF8> NEW ZEALAND EQUIPMENT(PK5) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82360-726-0 01 1 0401- ●
1 SWITCH; COMB
EXC. EXHAUST BRAKE<NF8>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-404-4 01 1 9510-0103 ●
1 SWITCH; COMB
EXC. EXHAUST BRAKE<NF8>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-599-0 01 1 0104-0312 ●
1 SWITCH; COMB
EXC. EXHAUST BRAKE<NF8>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-710-0 01 1 0401- ●
1 SWITCH; COMB
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. EXHAUST BRAKE<NF8> 		1-82360-442-0 01 1 0005-0103 ●
1 SWITCH; COMB
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. EXHAUST BRAKE<NF8> 		1-82360-624-0 01 1 0104-0312 ●
1 SWITCH; COMB
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. EXHAUST BRAKE<NF8> 		1-82360-718-0 01 1 0401- ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 04 1 9510-0004 ● ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 04 1 0005-0604 ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74165-512-0 04 1 0605- ●
8 SWITCH; POWER WINDOW
POWER WINDOW<A30> DRIVER 		1-82380-148-0 01 1 9510-9709 ●
8 SWITCH; POWER WINDOW
POWER WINDOW<A30> DRIVER 		1-82380-155-4 01 1 9710- ●
9 SWITCH; POWER WINDOW
POWER WINDOW<A30> PASSENGER 		1-82380-138-0 01 1 9510-9709 ●
9 SWITCH; POWER WINDOW
POWER WINDOW<A30> PASSENGER 		1-82380-154-3 01 1 9710- ●
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9510-0004 ● ●
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0005-0604 ●
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605- ●
21 SWITCH; CLU
ISUZU M/T<X9A> 		1-82380-114-2 01 1 9510-0004 ●
21 SWITCH; CLU 1-82380-114-2 01 1 9510-0004 ●
21 SWITCH; CLU
ISUZU M/T<X9A> 		1-82380-114-2 01 1 0005-0010 ●
21 SWITCH; CLU
6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82380-114-3 01 1 0011- ●
21 SWITCH; CLU
ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82380-114-3 01 1 0011- ●
21 SWITCH; CLU
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82440-116-1 01 1 0011-0405 ●
21 SWITCH; CLU
6HH1 STD 4VALVE ENG(1A6),6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82440-116-1 01 1 0406-0608 ●
21 SWITCH; CLU
6HH1 STD 4VALVE ENG(1A6),6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82440-126-1 01 1 0609- ●
77 SWITCH; PTO
PTO CONTROL<SV6> 		1-82340-403-0 01 1 9510- ●
99 RELAY; FOG LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 12.5A MITUBA 		8-97062-815-1 01 1 9510-0111 ●
99 RELAY; FOG LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112- ●
107 SWITCH; REMOTE CONT,MIRROR
MIR STAY O/S W/REMOTE<TBA> 		1-82350-233-0 01 1 9803- ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B) 		1-82389-012-2 01 1 9510-0004 ●
257 COVER; HOLE,SW
(B) 		1-82389-012-2 01 1 9510-0004 ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B) 		1-82389-012-2 01 1 0005- ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B) 		1-82389-011-2 01 1 9510-0004 ●
257 COVER; HOLE,SW
(B) 		1-82389-011-2 01 1 9510-0004 ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B) 		1-82389-011-2 01 1 0005- ●
257 COVER; HOLE,SW
(A) 		8-94229-914-1 01 1 9510-0004 ● ●
257 COVER; HOLE,SW
(A) 		8-94229-914-1 01 1 0005-0311 ●
257 COVER; HOLE,SW
EXC. REMOTE CONT DOOR LOCK<SLG> (A) 		8-94229-914-1 01 1 0312- ●
263 COVER; SW
POWER WINDOW<A30> 		1-82385-006-3 01 1 9510- ●
263 COVER; SW
POWER WINDOW<A30> 		1-82385-005-2 01 1 9510- ●
384 SWITCH; IDLING CONT,ELEC
6HK1 TCC ENG(81L) 		1-82350-213-1 01 1 0406- ●
518 SWITCH; RADIO TUNE
RADIO SEEK SW<NBN> 		1-82350-231-0 01 1 0011- ●
518 SWITCH; RADIO TUNE
RADIO SEEK SW<NBN> 		1-82350-231-0 01 1 9807-0004 ● ●
552 RELAY; CIGAR LIGHTER
24V 12.5A MITUBA 		8-97062-815-1 01 1 9510-0004 ● ●
552 RELAY; CIGAR LIGHTER
24V 12.5A MITUBA 		8-97062-815-1 01 1 0005-0111 ●
552 RELAY; CIGAR LIGHTER
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112- ●
çizim 138446
436 436
BalonParca AdiParca NoAdetTipApplied Date A B
436 SWITCH; HEADLAMP LEVELING
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		1-82330-043-0 01 1 0212- ●

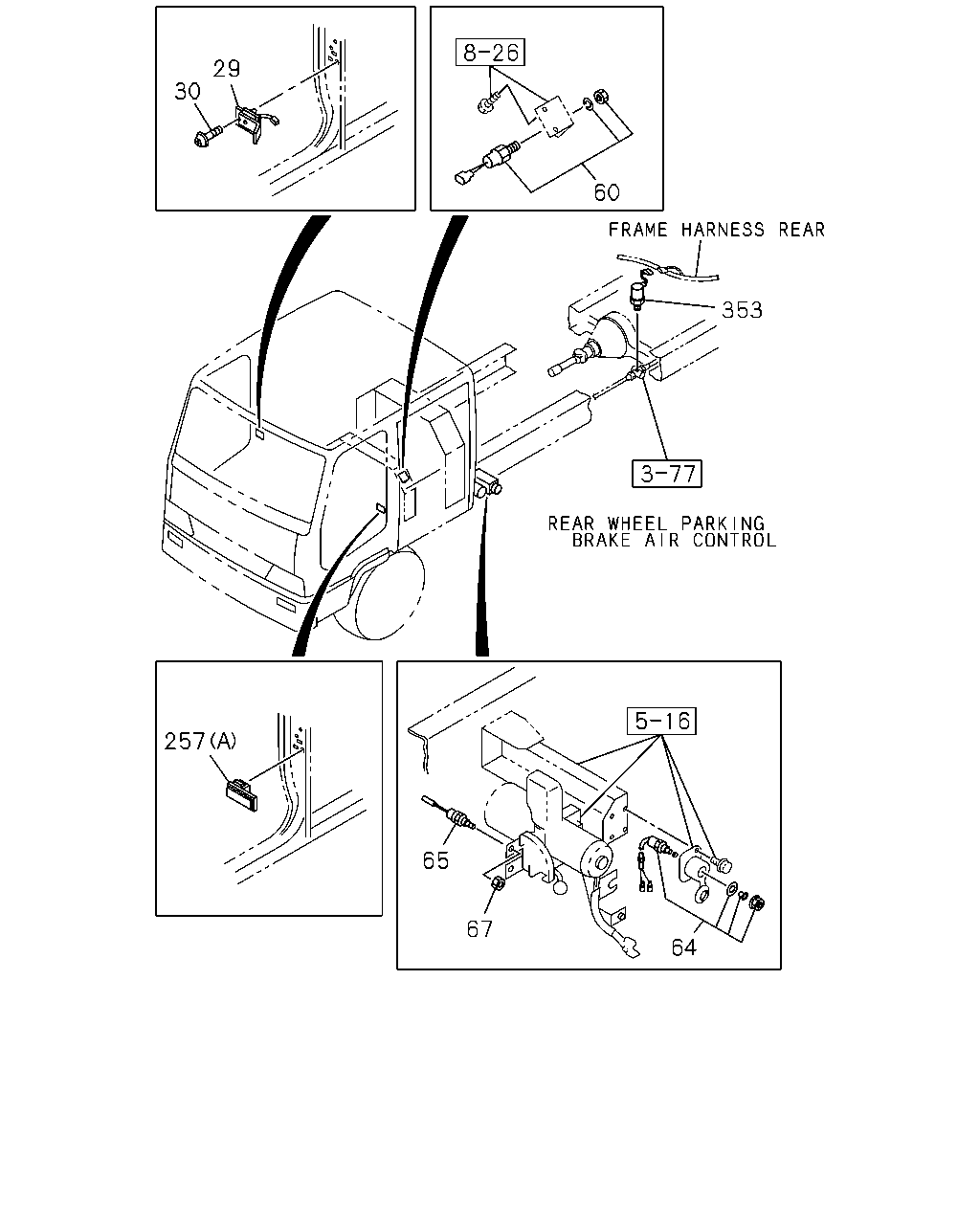

çizim 184054
29 30 60 353 257 65 67 64
BalonParca AdiParca NoAdetTipApplied Date A B
29 SWITCH; DOOR
EXC. REMOTE CONT DOOR LOCK<SLG> 		8-97855-032-3 01 1 0312- ●
29 SWITCH; DOOR 8-97855-032-2 01 1 9510-0004 ● ●
29 SWITCH; DOOR 8-97855-032-3 01 1 0005-0311 ●
29 SWITCH; DOOR
REMOTE CONT DOOR LOCK<SLG> 		8-97855-032-3 02 1 0312- ●
30 SCREW; DOOR SW
EXC. REMOTE CONT DOOR LOCK<SLG> M5X11 		1-09981-536-1 01 1 0312- ●
30 SCREW; DOOR SW
M5X16 		8-94279-341-0 01 1 9510-9906 ● ●
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 01 1 9907-0004 ● ●
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 01 1 0005-0311 ●
30 SCREW; DOOR SW
REMOTE CONT DOOR LOCK<SLG> M5X11 		1-09981-536-1 02 1 0312- ●
60 SWITCH; STARTER SUB
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-82380-107-1 01 1 9510-9802 ●
60 SWITCH; STARTER SUB
AUSTRALIA EQUIPMENT(RR3) 		1-82380-107-1 01 1 9510-9802 ●
60 SWITCH; STARTER SUB
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-82380-107-1 01 1 9803-0004 ●
60 SWITCH; STARTER SUB 1-82380-107-1 01 1 9803-0004 ●
60 SWITCH; STARTER SUB
NEW ZEALAND EQUIPMENT(PK5) 		1-82380-107-1 01 1 0005-0211 ●
60 SWITCH; STARTER SUB
NEW ZEALAND EQUIPMENT(PK5) EXC. STARTER SWITCH DELETION<E5D> 		1-82380-107-1 01 1 0212- ●
64 SWITCH; CAB TILT MAIN 1-82380-108-0 01 1 9510-0004 ●
65 SWITCH; CAB TILT LK
STAMP NO 		1-82380-126-0 01 1 9510-0004 ●
67 NUT; SW,CAB TILT
M16 		9-99111-416-0 01 1 9510-0004 ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B) 		1-82389-012-2 01 1 9510-0004 ●
257 COVER; HOLE,SW
(B) 		1-82389-012-2 01 1 9510-0004 ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B) 		1-82389-012-2 01 1 0005- ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B) 		1-82389-011-2 01 1 9510-0004 ●
257 COVER; HOLE,SW
(B) 		1-82389-011-2 01 1 9510-0004 ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B) 		1-82389-011-2 01 1 0005- ●
257 COVER; HOLE,SW
(A) 		8-94229-914-1 01 1 9510-0004 ● ●
257 COVER; HOLE,SW
(A) 		8-94229-914-1 01 1 0005-0311 ●
257 COVER; HOLE,SW
EXC. REMOTE CONT DOOR LOCK<SLG> (A) 		8-94229-914-1 01 1 0312- ●
353 SWITCH ASM; PARKING BRAKE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82410-163-0 01 1 9510-0004 ● ●
353 SWITCH ASM; PARKING BRAKE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82410-163-1 01 1 0005- ●
