◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10700 - FSR32,33(RHD) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-20 - METER CABLE ▶
8-20 — METER CABLE (#64343) — 18 parça

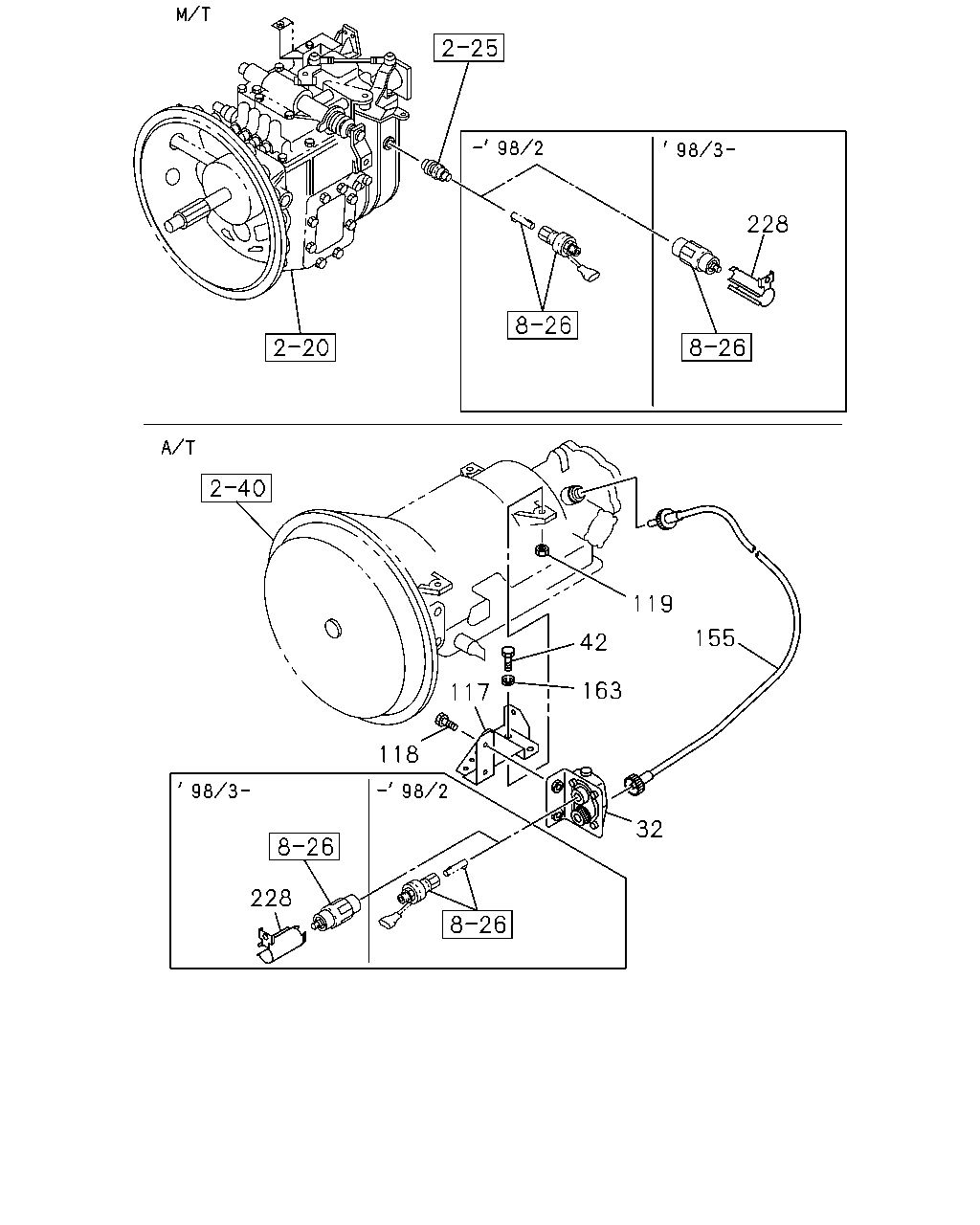

çizim 137699
228 119 155 42 163 117 118 32 228
BalonParca AdiParca NoAdetTipApplied Date A B
32 BOX; GEAR,FLEX SHAFT
A/T<X9D> 		1-83126-248-0 01 1 9510-9702 ●
32 BOX; GEAR,FLEX SHAFT
A/T<X9D> 		1-83126-390-0 01 1 9703- ●
42 BOLT; BRKT
A/T<X9D> M14X45 		0-20801-445-0 01 1 9510-9606 ●
42 BOLT; BRKT
A/T<X9D> M14X50 FLANGE 		0-28881-450-0 01 1 9607-9907 ●
42 BOLT; BRKT
A/T<X9D> M14X50 		0-20801-450-0 01 1 9908-0512 ●
42 BOLT; BRKT
A/T<X9D> M14X50 		0-20851-450-0 01 1 0601- ●
117 BRACKET; GEAR BOX
A/T<X9D> 		1-82699-718-1 01 1 9510- ●
118 BOLT; GEAR BOX
A/T<X9D> M8X20 FLANGE 		0-28080-820-0 02 1 9510-9606 ●
118 BOLT; GEAR BOX
A/T<X9D> M8X20 FLANGE 		0-28680-820-0 02 1 9607-0512 ●
118 BOLT; GEAR BOX
A/T<X9D> M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
119 NUT; BRKT
A/T<X9D> M14 		9-99110-414-0 01 1 9510-0512 ●
119 NUT; BRKT
A/T<X9D> M14 		0-91110-514-0 01 1 0601- ●
155 SHAFT; FLEX,CONN TO TRANS
A/T<X9D> L=400 		1-83124-133-0 01 1 9510- ●
163 WASHER; LK,GEAR BOX
A/T<X9D> ID=14.2 		9-09150-514-0 01 1 9510-0603 ●
163 WASHER; LK,GEAR BOX
A/T<X9D> ID=14.2 		0-91510-514-0 01 1 0604- ●
228 PROTECTOR; SENSOR 8-97168-308-0 01 1 9803-0004 ● ●
228 PROTECTOR; SENSOR 8-97168-308-0 01 1 0005-0808 ●
228 PROTECTOR; SENSOR 8-98119-901-0 01 1 0809- ●
