◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10700 - FSR32,33(RHD) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#64341) — 996 parça

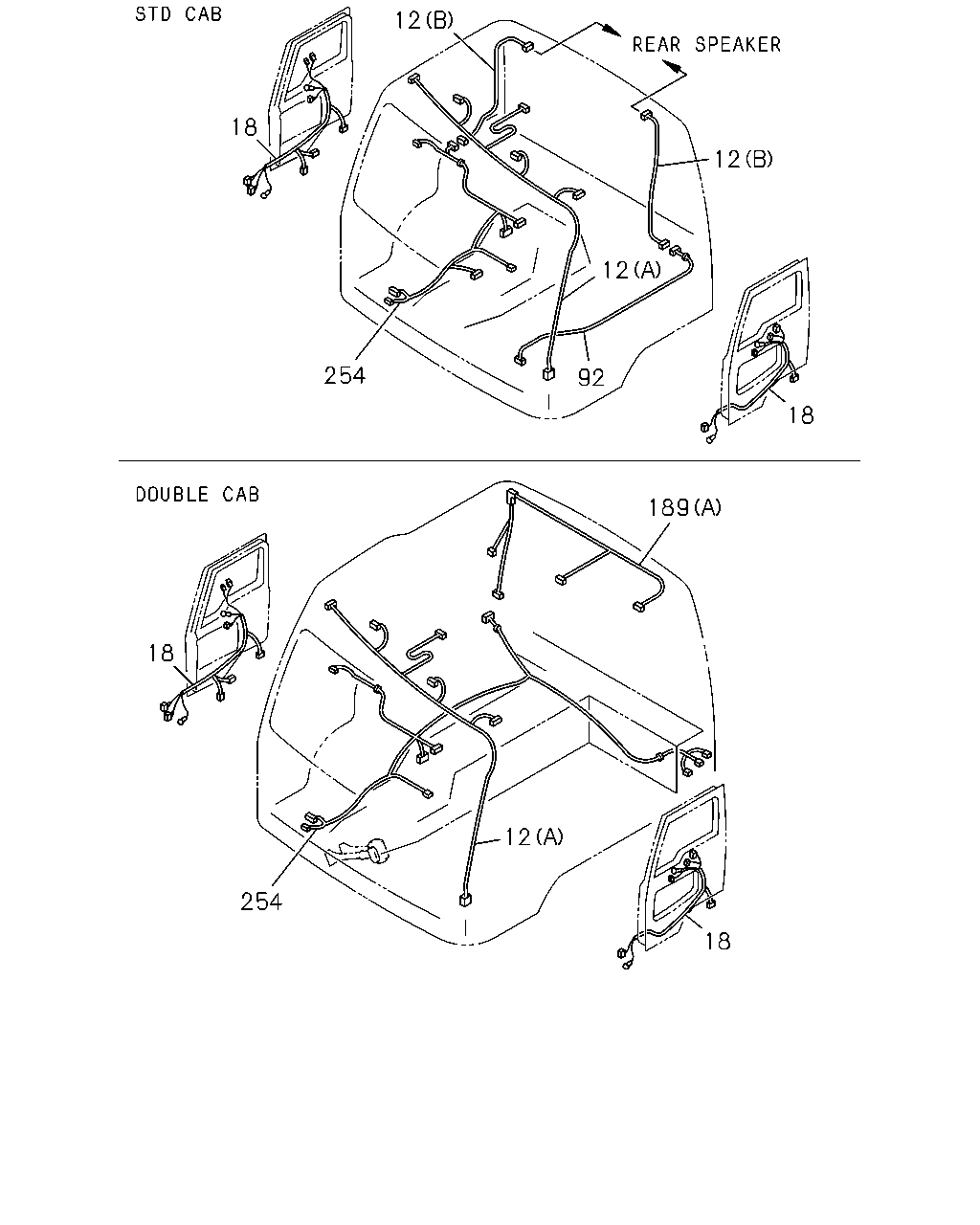

çizim 136018
12 18 12 12 254 92 18 189 18 12 254 18
BalonParca AdiParca NoAdetTipApplied Date A B
12 HARNESS; ROOF
MAP LAMP<C85> LAMPS FOUR ROOF MARKER<PJ5> HIGH ROOF<S2F> MIR STAY O/S W/REMOTE<TBA> (A) 		1-82661-618-1 01 1 0212- ●
12 HARNESS; ROOF
MAP LAMP<C85> LAMPS FOUR ROOF MARKER<PJ5> HIGH ROOF<S2F> EXC. MIR STAY O/S W/REMOTE<TBA> (A) 		1-82661-617-1 01 1 0212- ●
12 HARNESS; ROOF
HIGH ROOF<S2F> EXC. LAMPS FOUR ROOF MARKER<PJ5>,LAMPS TWO ROOF MARKER<TEC> (A) 		1-82625-714-4 01 1 9510-0004 ●
12 HARNESS; ROOF
HIGH ROOF<S2F> EXC. LAMPS FOUR ROOF MARKER<PJ5> (A) 		1-82625-714-6 01 1 0005- ●
12 HARNESS; ROOF
HIGH ROOF<S2F> LAMPS TWO ROOF MARKER<TEC> (A) 		1-82625-715-2 01 1 9510-0004 ●
12 HARNESS; ROOF
(A) 		1-82625-715-2 01 1 9510-0004 ●
12 HARNESS; ROOF
LAMPS FOUR ROOF MARKER<PJ5> HIGH ROOF<S2F> (A) 		1-82625-716-2 01 1 9510-9802 ●
12 HARNESS; ROOF
LAMPS FOUR ROOF MARKER<PJ5> HIGH ROOF<S2F> EXC. MIR STAY O/S W/REMOTE<TBA> (A) 		1-82625-716-3 01 1 9803-0211 ●
12 HARNESS; ROOF
LAMPS FOUR ROOF MARKER<PJ5> HIGH ROOF<S2F> EXC. MAP LAMP<C85>,MIR STAY O/S W/REMOTE<TBA> (A) 		1-82625-716-4 01 1 0212- ●
12 HARNESS; ROOF
LAMPS FOUR ROOF MARKER<PJ5> HIGH ROOF<S2F> MIR STAY O/S W/REMOTE<TBA> (A) 		1-82627-090-2 01 1 9803-0211 ●
12 HARNESS; ROOF
LAMPS FOUR ROOF MARKER<PJ5> HIGH ROOF<S2F> MIR STAY O/S W/REMOTE<TBA> EXC. MAP LAMP<C85> (A) 		1-82627-090-3 01 1 0212- ●
12 HARNESS; ROOF
LOW ROOF<6XQ> (A) 		1-82625-713-4 01 1 9510- ●
12 HARNESS; ROOF
SPEAKER SYSTEM RR 2 SPEAKERS<TLS> (B) 		1-82626-753-0 02 1 9803-0004 ●
18 HARNESS; DOOR
POWER WINDOW<A30> FRONT FENDER WIDE<SA4> REMOTE CONT DOOR LOCK<SLG> 		1-82629-302-1 01 1 0212- ●
18 HARNESS; DOOR
POWER WINDOW<A30> REMOTE CONT DOOR LOCK<SLG> EXC. FRONT FENDER WIDE<SA4> 		1-82629-301-1 01 1 0212- ●
18 HARNESS; DOOR
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> EXC. FRONT FENDER WIDE<SA4> 		1-82660-347-0 01 1 0102- ●
18 HARNESS; DOOR
POWER WINDOW<A30> FRONT FENDER WIDE<SA4> 		1-82625-723-1 01 1 9510-9610 ●
18 HARNESS; DOOR
POWER WINDOW<A30> FRONT FENDER WIDE<SA4> 		1-82626-789-0 01 1 9611-9904 ●
18 HARNESS; DOOR
POWER WINDOW<A30> FRONT FENDER WIDE<SA4> 		1-82628-585-0 01 1 9905-0211 ●
18 HARNESS; DOOR
POWER WINDOW<A30> FRONT FENDER WIDE<SA4> EXC. REMOTE CONT DOOR LOCK<SLG> 		1-82628-585-0 01 1 0212- ●
18 HARNESS; DOOR
POWER WINDOW<A30> FRONT FENDER WIDE<SA4> 		1-82625-721-1 01 1 9510-9610 ●
18 HARNESS; DOOR
POWER WINDOW<A30> FRONT FENDER WIDE<SA4> 		1-82626-787-0 01 1 9611-9904 ●
18 HARNESS; DOOR
POWER WINDOW<A30> FRONT FENDER WIDE<SA4> 		1-82628-583-0 01 1 9905-0101 ●
18 HARNESS; DOOR
POWER WINDOW<A30> FRONT FENDER WIDE<SA4> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-82628-583-0 01 1 0102- ●
18 HARNESS; DOOR
POWER WINDOW<A30> FRONT FENDER WIDE<SA4> DOOR WITH UNDER VIEW WINDOW<YD8> 		1-82660-348-0 01 1 0102- ●
18 HARNESS; DOOR
POWER WINDOW<A30> EXC. FRONT FENDER WIDE<SA4> 		1-82625-720-1 01 1 9510-9610 ●
18 HARNESS; DOOR
POWER WINDOW<A30> EXC. FRONT FENDER WIDE<SA4> 		1-82626-786-0 01 1 9611-9904 ●
18 HARNESS; DOOR
POWER WINDOW<A30> EXC. FRONT FENDER WIDE<SA4> 		1-82628-582-0 01 1 9905-0101 ●
18 HARNESS; DOOR
POWER WINDOW<A30> EXC. FRONT FENDER WIDE<SA4>,DOOR WITH UNDER VIEW WINDOW<YD8> 		1-82628-582-0 01 1 0102- ●
18 HARNESS; DOOR
POWER WINDOW<A30> EXC. FRONT FENDER WIDE<SA4> 		1-82625-722-1 01 1 9510-9610 ●
18 HARNESS; DOOR
POWER WINDOW<A30> EXC. FRONT FENDER WIDE<SA4> 		1-82626-788-0 01 1 9611-9904 ●
18 HARNESS; DOOR
POWER WINDOW<A30> EXC. FRONT FENDER WIDE<SA4> 		1-82628-584-0 01 1 9905-0211 ●
18 HARNESS; DOOR
POWER WINDOW<A30> EXC. FRONT FENDER WIDE<SA4>,REMOTE CONT DOOR LOCK<SLG> 		1-82628-584-0 01 1 0212- ●
18 HARNESS; DOOR
EXC. POWER WINDOW<A30>,FRONT FENDER WIDE<SA4> 		1-82625-719-2 02 1 9510-9610 ●
18 HARNESS; DOOR 1-82625-719-2 02 1 9510-9610 ●
18 HARNESS; DOOR
EXC. POWER WINDOW<A30>,FRONT FENDER WIDE<SA4> 		1-82626-785-0 02 1 9611-9904 ●
18 HARNESS; DOOR 1-82626-785-0 02 1 9611-9904 ●
18 HARNESS; DOOR
EXC. POWER WINDOW<A30>,FRONT FENDER WIDE<SA4> 		1-82628-581-0 02 1 9905-0004 ●
18 HARNESS; DOOR 1-82628-581-0 02 1 9905-0004 ●
18 HARNESS; DOOR
EXC. POWER WINDOW<A30>,FRONT FENDER WIDE<SA4> 		1-82628-581-0 02 1 0005- ●
92 HARNESS; FLOOR
SPEAKER SYSTEM RR 2 SPEAKERS<TLS> 		1-82626-752-0 01 1 9803-9806 ●
92 HARNESS; FLOOR
SPEAKER SYSTEM RR 2 SPEAKERS<TLS> EXC. ELEC OUTLET 12V<TAW> 		1-82626-752-0 01 1 9807-0004 ●
189 HARNESS; EXT
FRONT FENDER WIDE<SA4> (B) 		1-82625-673-2 02 1 9510- ●
189 HARNESS; EXT
(A) 		1-82625-498-0 01 1 9510-9602 ●
189 HARNESS; EXT
(A) 		1-82625-774-0 01 1 9603-0004 ●
254 HARNESS; CAB FLOOR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> REMOTE CONT DOOR LOCK<SLG> HEADLAMPS LEVELING SYSTEM MANUAL<TAS> ELEC OUTLET 12V<TAW> ISUZU M/T<X9A> 		1-82662-865-0 01 1 0601- ●
254 HARNESS; CAB FLOOR
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> REMOTE CONT DOOR LOCK<SLG> HEADLAMPS LEVELING SYSTEM MANUAL<TAS> ELEC OUTLET 12V<TAW> ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82662-864-0 01 1 0601- ●
254 HARNESS; CAB FLOOR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) REMOTE CONT DOOR LOCK<SLG> HEADLAMPS LEVELING SYSTEM MANUAL<TAS> ELEC OUTLET 12V<TAW> ISUZU M/T<X9A> 		1-82661-856-1 01 1 0303-0512 ●
254 HARNESS; CAB FLOOR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) REMOTE CONT DOOR LOCK<SLG> HEADLAMPS LEVELING SYSTEM MANUAL<TAS> ELEC OUTLET 12V<TAW> ISUZU M/T<X9A> EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-82661-856-1 01 1 0601- ●
254 HARNESS; CAB FLOOR
REMOTE CONT DOOR LOCK<SLG> HEADLAMPS LEVELING SYSTEM MANUAL<TAS> ELEC OUTLET 12V<TAW> ISUZU M/T<X9A> 		1-82661-619-0 01 1 0212-0302 ●
254 HARNESS; CAB FLOOR
REMOTE CONT DOOR LOCK<SLG> HEADLAMPS LEVELING SYSTEM MANUAL<TAS> ELEC OUTLET 12V<TAW> ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82661-619-2 01 1 0303-0512 ●
254 HARNESS; CAB FLOOR
REMOTE CONT DOOR LOCK<SLG> HEADLAMPS LEVELING SYSTEM MANUAL<TAS> ELEC OUTLET 12V<TAW> ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-82661-619-2 01 1 0601- ●
254 HARNESS; CAB FLOOR
A/T<X9D> 		1-82625-712-1 01 1 9510-9802 ●
254 HARNESS; CAB FLOOR
SPEAKER SYSTEM RR 2 SPEAKERS<TLS> A/T<X9D> 		1-82627-085-1 01 1 9803-9806 ●
254 HARNESS; CAB FLOOR
SPEAKER SYSTEM RR 2 SPEAKERS<TLS> A/T<X9D> EXC. ELEC OUTLET 12V<TAW> 		1-82627-085-1 01 1 9807-0004 ●
254 HARNESS; CAB FLOOR
A/T<X9D> EXC. ELEC OUTLET 12V<TAW> 		1-82629-308-3 01 1 0005- ●
254 HARNESS; CAB FLOOR
A/T<X9D> EXC. SPEAKER SYSTEM RR 2 SPEAKERS<TLS> 		1-82627-086-1 01 1 9803-9806 ●
254 HARNESS; CAB FLOOR
A/T<X9D> EXC. ELEC OUTLET 12V<TAW>,SPEAKER SYSTEM RR 2 SPEAKERS<TLS> 		1-82627-086-1 01 1 9807-0004 ●
254 HARNESS; CAB FLOOR
AUSTRALIA EQUIPMENT(RR3) ELEC OUTLET 12V<TAW> ISUZU M/T<X9A> EXC. SPEAKER SYSTEM RR 2 SPEAKERS<TLS> 		1-82628-128-4 01 1 9807-0004 ●
254 HARNESS; CAB FLOOR
ELEC OUTLET 12V<TAW> ISUZU M/T<X9A> 		1-82628-128-5 01 1 0005-0211 ●
254 HARNESS; CAB FLOOR
ELEC OUTLET 12V<TAW> ISUZU M/T<X9A> EXC. REMOTE CONT DOOR LOCK<SLG>,HEADLAMPS LEVELINGSYSTEM MANUAL<TAS> 		1-82628-128-6 01 1 0212- ●
254 HARNESS; CAB FLOOR
AUSTRALIA EQUIPMENT(RR3) ELEC OUTLET 12V<TAW> SPEAKER SYSTEM RR 2 SPEAKERS<TLS> ISUZU M/T<X9A> 		1-82628-129-4 01 1 9807-0004 ●
254 HARNESS; CAB FLOOR
ISUZU M/T<X9A> EXC. ELEC OUTLET 12V<TAW> 		1-82629-307-3 01 1 0005- ●
254 HARNESS; CAB FLOOR
AUSTRALIA EQUIPMENT(RR3) ISUZU M/T<X9A> EXC. SPEAKER SYSTEM RR 2 SPEAKERS<TLS> 		1-82627-084-1 01 1 9803-9806 ●
254 HARNESS; CAB FLOOR
AUSTRALIA EQUIPMENT(RR3) ISUZU M/T<X9A> EXC. ELEC OUTLET 12V<TAW>,SPEAKER SYSTEM RR 2 SPEAKERS<TLS> 		1-82627-084-1 01 1 9807-0004 ●
254 HARNESS; CAB FLOOR
AUSTRALIA EQUIPMENT(RR3) SPEAKER SYSTEM RR 2 SPEAKERS<TLS> ISUZU M/T<X9A> 		1-82627-083-1 01 1 9803-9806 ●
254 HARNESS; CAB FLOOR
AUSTRALIA EQUIPMENT(RR3) SPEAKER SYSTEM RR 2 SPEAKERS<TLS> ISUZU M/T<X9A> EXC. ELEC OUTLET 12V<TAW> 		1-82627-083-1 01 1 9807-0004 ●
254 HARNESS; CAB FLOOR
ELEC OUTLET 12V<TAW> A/T<X9D> EXC. SPEAKER SYSTEM RR 2 SPEAKERS<TLS> 		1-82628-132-4 01 1 9807-0004 ●
254 HARNESS; CAB FLOOR
ELEC OUTLET 12V<TAW> SPEAKER SYSTEM RR 2 SPEAKERS<TLS> A/T<X9D> 		1-82628-133-4 01 1 9807-0004 ●
254 HARNESS; CAB FLOOR
ISUZU M/T<X9A> 		1-82625-711-4 01 1 9510-9802 ●
254 HARNESS; CAB FLOOR
ISUZU M/T<X9A> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-82625-711-4 01 1 9803-0004 ●
254 HARNESS; CAB FLOOR 1-82626-064-1 01 1 9510-9806 ●
254 HARNESS; CAB FLOOR
EXC. FULL TRACTOR TRUCK(RD6),ELEC OUTLET 12V<TAW> 		1-82626-064-2 01 1 9807-0004 ●
254 HARNESS; CAB FLOOR
ELEC OUTLET 12V<TAW> EXC. FULL TRACTOR TRUCK(RD6) 		1-82628-136-2 01 1 9807-0004 ●
254 HARNESS; CAB FLOOR
FULL TRACTOR TRUCK(RD6) EXC. ELEC OUTLET 12V<TAW> 		1-82627-087-1 01 1 9807-0004 ●

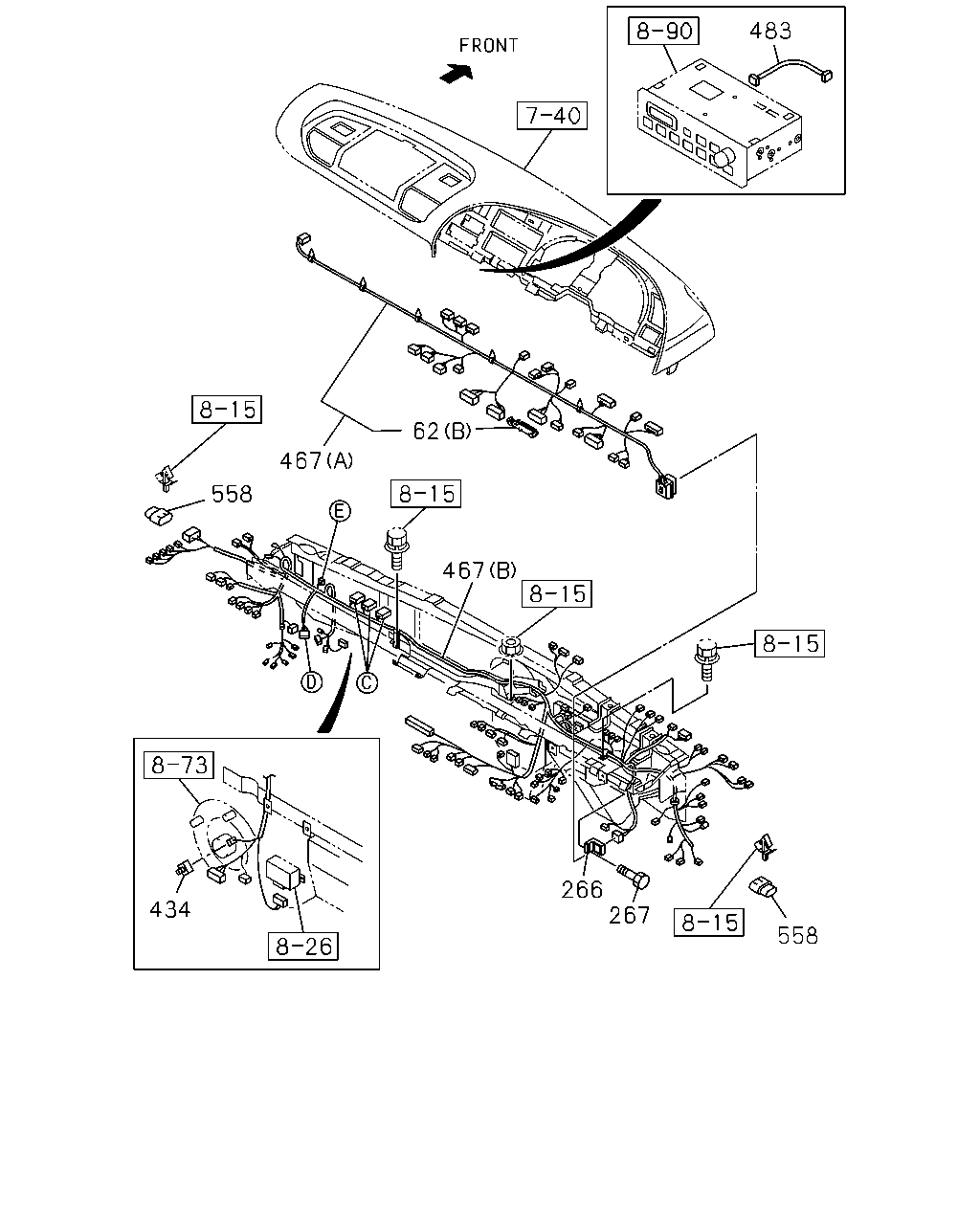

çizim 136310
483 62 467 558 467 266 267 434 558
BalonParca AdiParca NoAdetTipApplied Date A B
62 DIODE; HARNESS
(B) 10P BROWN 		1-82699-601-0 AR 1 0005- ●
62 DIODE; HARNESS
(A) BLACK 10P 		1-82699-703-0 AR 1 0005- ●
62 DIODE; HARNESS
(C) BLACK 2P-1.5A 		8-94422-639-1 AR 1 0005- ●
62 DIODE; HARNESS
(B) 10P BROWN 		1-82699-601-0 AR 1 9510-0004 ● ●
62 DIODE; HARNESS
(A) BLACK 10P 		1-82699-703-0 AR 1 9510-0004 ● ●
62 DIODE; HARNESS
(C) BLACK 2P-1.5A 		8-94422-639-1 AR 1 9510-0004 ● ●
266 BRACKET; CONN BOX 1-82699-580-0 01 1 9510-0004 ● ●
266 BRACKET; CONN BOX 1-82699-580-0 01 1 0005- ●
267 BOLT; BRKT
M6X16 W/PL WASHER 		1-09981-438-0 02 1 9510-0004 ● ●
267 BOLT; BRKT
M6X16 W/PL WASHER 		1-09981-438-0 02 1 0005- ●
434 CONNECTOR; SHORT CIRCUIT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82691-051-0 01 1 0212- ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L) POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> NEW ZEALAND EQUIPMENT(PK5) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> (B) 		1-82662-863-2 01 1 0601- ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L) POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) CUSTOM CAB(SR5) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> (B) 		1-82662-210-0 01 1 0406-0512 ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L) POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) CUSTOM CAB(SR5) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> (B) 		1-82662-210-2 01 1 0601- ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L) POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) CUSTOM CAB(SR5) ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82662-209-0 01 1 0406-0512 ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L) POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) CUSTOM CAB(SR5) ISUZU M/T<X9A> EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ>,MIR STAY O/S W/REMOTE<TBA> (B) 		1-82662-209-2 01 1 0601- ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) (A) 		1-82662-207-0 01 1 0406- ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) CUSTOM CAB(SR5) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> (B) 		1-82661-621-4 01 1 0212- ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) CUSTOM CAB(SR5) ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82661-620-4 01 1 0212- ●
467 HARNESS; FACIA
EURO2 SPECIFICATION<THN> HEADLAMPS RECTANGULAR<TR4> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), NEWZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),V ENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-82629-336-0 01 1 9911-0004 ●
467 HARNESS; FACIA
ENGINE OVERRUN BUZZER<SK4> EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-82625-737-1 01 1 9510-9609 ●
467 HARNESS; FACIA
ENGINE OVERRUN BUZZER<SK4> EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ),EURO2 SPECIFICATION<THN> (A) 		1-82625-737-2 01 1 9610-9802 ●
467 HARNESS; FACIA
ENGINE OVERRUN BUZZER<SK4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (A) 		1-82625-737-3 01 1 9803-0004 ●
467 HARNESS; FACIA
ENGINE OVERRUN BUZZER<SK4> MIR STAY O/S W/REMOTE<TBA> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),EURO2 SPECIFICATION<THN> (A) 		1-82627-088-1 01 1 9803-0004 ●
467 HARNESS; FACIA
HEADLAMPS RECTANGULAR<TR4> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), NEWZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9),AU STRALIA EQUIPMENT(RR3),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-82625-698-5 01 1 9510-9802 ●
467 HARNESS; FACIA
HEADLAMPS RECTANGULAR<TR4> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), NEWZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),V ENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-82625-698-7 01 1 9803-9910 ●
467 HARNESS; FACIA
HEADLAMPS RECTANGULAR<TR4> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), NEWZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),V ENTILATOR & DEFROSTER WO/HEATER(SAZ),EURO2 SPECIFICATION<THN> (B) 		1-82625-698-7 01 1 9911-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. ENGINE OVERRUN BUZZER<SK4>,EURO2 SPECIFICATION<THN> (A) 		1-82625-708-4 01 1 9803-0004 ●
467 HARNESS; FACIA
(A) 		1-82625-708-4 01 1 9803-0004 ●
467 HARNESS; FACIA
A/T<X9D> EURO2 SPECIFICATION<THN> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-265-6 01 1 0005- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ENGINE OVERRUN BUZZER<SK4> MIR STAY O/S W/REMOTE<TBA> EXC. EURO2 SPECIFICATION<THN> (A) 		1-82627-089-1 01 1 9803-0004 ●
467 HARNESS; FACIA
ENGINE OVERRUN BUZZER<SK4> (A) 		1-82627-089-1 01 1 0005-0010 ●
467 HARNESS; FACIA
MIR STAY O/S W/REMOTE<TBA> EXC. ENGINE OVERRUN BUZZER<SK4> (A) 		1-82627-089-1 01 1 0005-0010 ●
467 HARNESS; FACIA
6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) ENGINE OVERRUN BUZZER<SK4> (A) 		1-82627-089-3 01 1 0011- ●
467 HARNESS; FACIA
6HH1 STD ENG(65L) MIR STAY O/S W/REMOTE<TBA> EXC. ENGINE OVERRUN BUZZER<SK4> (A) 		1-82627-089-3 01 1 0011- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ENGINE OVERRUN BUZZER<SK4> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-82627-089-3 01 1 0011- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30> (B) 		1-82625-694-6 01 1 9510-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30> (B) 		1-82627-079-2 01 1 9803-9806 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,ELEC OUTLET 12V<TAW>,EURO2 SPECIFICATION<THN> (B) 		1-82627-079-3 01 1 9807-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> EXC. POWER WINDOW<A30> (B) 		1-82625-696-6 01 1 9510-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> EXC. POWER WINDOW<A30> (B) 		1-82627-081-2 01 1 9803-9806 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> EXC. POWER WINDOW<A30>,ELEC OUTLET 12V<TAW> (B) 		1-82627-081-3 01 1 9807-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) ELEC OUTLET 12V<TAW> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> EXC. POWER WINDOW<A30> (B) 		1-82628-142-1 01 1 9807-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) ELEC OUTLET 12V<TAW> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,EURO2 SPECIFICATION<THN> (B) 		1-82628-147-1 01 1 9807-0004 ●
467 HARNESS; FACIA
ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA>, EURO2 SPECIFICATION<THN> (B) 		1-82629-240-5 01 1 0005- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> EXC. ENGINE OVERRUN BUZZER<SK4> (A) 		1-82626-344-1 01 1 9610-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> EXC. ENGINE OVERRUN BUZZER<SK4> (A) 		1-82626-344-2 01 1 9803-0004 ●
467 HARNESS; FACIA
ISUZU M/T<X9A> EURO2 SPECIFICATION<THN> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-245-5 01 1 0005- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> HEADLAMPS RECTANGULAR<TR4> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,NEW ZEALAND EQUIPMENT(PK5), AUSTRALIA EQUIPMENT(RR3) (B) 		1-82629-337-0 01 1 9911-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ENGINE OVERRUN BUZZER<SK4> (A) 		1-82625-738-1 01 1 9510-9609 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ENGINE OVERRUN BUZZER<SK4> EXC. EURO2 SPECIFICATION<THN> (A) 		1-82625-738-2 01 1 9610-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ENGINE OVERRUN BUZZER<SK4> EXC. MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (A) 		1-82625-738-3 01 1 9803-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA>, EURO2 SPECIFICATION<THN> (B) 		1-82629-241-5 01 1 0005- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. ENGINE OVERRUN BUZZER<SK4> (A) 		1-82625-708-2 01 1 9510-9609 ●
467 HARNESS; FACIA
(A) 		1-82625-708-2 01 1 9510-9609 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. ENGINE OVERRUN BUZZER<SK4>,EURO2 SPECIFICATION<THN> (A) 		1-82625-708-3 01 1 9610-9802 ●
467 HARNESS; FACIA
(A) 		1-82625-708-3 01 1 9610-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS RECTANGULAR<TR4> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,NEW ZEALAND EQUIPMENT(PK5), THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) (B) 		1-82625-699-5 01 1 9510-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS RECTANGULAR<TR4> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,NEW ZEALAND EQUIPMENT(PK5), AUSTRALIA EQUIPMENT(RR3) (B) 		1-82625-699-7 01 1 9803-9910 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS RECTANGULAR<TR4> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,NEW ZEALAND EQUIPMENT(PK5), AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> (B) 		1-82625-699-7 01 1 9911-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3) (B) 		1-82625-689-3 01 1 9510-9609 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> (B) 		1-82625-689-5 01 1 9610-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,AUSTRALIA EQUIPMENT(RR3), MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (B) 		1-82625-689-7 01 1 9803-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. POWER WINDOW<A30>,THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-746-0 01 1 9610-9612 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. POWER WINDOW<A30>,THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-938-1 01 1 9701-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. POWER WINDOW<A30>,AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-938-4 01 1 9803-0004 ●
467 HARNESS; FACIA
AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-262-5 01 1 0005- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MIR STAY O/S W/REMOTE<TBA> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,AUSTRALIA EQUIPMENT(RR3), EURO2 SPECIFICATION<THN> (B) 		1-82627-076-4 01 1 9803-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) THAILAND EQUIPMENT(PM9) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30> (B) 		1-82625-691-5 01 1 9510-9802 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MIR STAY O/S W/REMOTE<TBA> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> (B) 		1-82627-074-4 01 1 9803-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-246-5 01 1 0005- ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ),ENGINE OVERRUN BUZZER<SK4> (A) 		1-82625-707-2 01 1 9510-9609 ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ),ENGINE OVERRUN BUZZER<SK4>,EURO2 SPECIFICATION<THN> (A) 		1-82625-707-3 01 1 9610-9802 ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),ENGINE OVERRUN BUZZER<SK4>,EURO2 SPECIFICATION<THN> (A) 		1-82625-707-5 01 1 9803-0004 ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),ENGINE OVERRUN BUZZER<SK4>,MIR STAY O/S W/REMOTE<TBA> (A) 		1-82625-707-7 01 1 0005- ●
467 HARNESS; FACIA
POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-263-5 01 1 0005- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) (B) 		1-82625-690-3 01 1 9510-9609 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> (B) 		1-82625-690-5 01 1 9610-9802 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. AUSTRALIA EQUIPMENT(RR3),MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (B) 		1-82625-690-7 01 1 9803-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> A/T<X9D> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-264-6 01 1 0005- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> (B) 		1-82625-695-6 01 1 9510-9802 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> (B) 		1-82627-078-2 01 1 9803-9806 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. ELEC OUTLET 12V<TAW>,EURO2 SPECIFICATION<THN> (B) 		1-82627-078-3 01 1 9807-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. ENGINE OVERRUN BUZZER<SK4>,MIR STAY O/S W/REMOTE<TBA> (A) 		1-82629-294-2 01 1 0005- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> (B) 		1-82625-697-6 01 1 9510-9802 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> (B) 		1-82627-080-2 01 1 9803-9806 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> EXC. ELEC OUTLET 12V<TAW> (B) 		1-82627-080-3 01 1 9807-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,EURO2 SPECIFICATION<THN> (B) 		1-82629-242-5 01 1 0005- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-747-0 01 1 9610-9612 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-939-1 01 1 9701-9802 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-939-4 01 1 9803-0004 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> EXC. EURO2 SPECIFICATION<THN> (B) 		1-82629-244-1 01 1 0005-0010 ●
467 HARNESS; FACIA
6HH1 STD ENG(65L) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> (B) 		1-82629-244-5 01 1 0011- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN> (B) 		1-82629-244-5 01 1 0011- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) ELEC OUTLET 12V<TAW> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> (B) 		1-82628-143-1 01 1 9807-0004 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (B) 		1-82629-243-1 01 1 0005-0010 ●
467 HARNESS; FACIA
6HH1 STD ENG(65L) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-243-5 01 1 0011- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (B) 		1-82629-243-5 01 1 0011- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) ELEC OUTLET 12V<TAW> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. EURO2 SPECIFICATION<THN> (B) 		1-82628-148-1 01 1 9807-0004 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-247-5 01 1 0005- ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) ENGINE OVERRUN BUZZER<SK4> (A) 		1-82629-902-2 01 1 0011- ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) MIR STAY O/S W/REMOTE<TBA> EXC. ENGINE OVERRUN BUZZER<SK4> (A) 		1-82629-902-2 01 1 0011- ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-904-2 01 1 0011-0211 ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> EXC. CUSTOM CAB(SR5),MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-904-5 01 1 0212- ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> (B) 		1-82629-905-2 01 1 0011-0211 ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> EXC. CUSTOM CAB(SR5) (B) 		1-82629-905-5 01 1 0212- ●
467 HARNESS; FACIA
AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-065-3 01 1 9510-9802 ●
467 HARNESS; FACIA
(B) 		1-82627-082-2 01 1 9803-9806 ●
467 HARNESS; FACIA
EXC. ELEC OUTLET 12V<TAW> (B) 		1-82627-082-3 01 1 9807-0004 ●
467 HARNESS; FACIA
ELEC OUTLET 12V<TAW> (B) 		1-82628-146-1 01 1 9807-0004 ●
483 HARNESS; EXT,RADIO
RADIO CLARION(SK2) 		8-98075-645-0 01 1 0703- ●
558 CONNECTOR; HARNESS
EXC. FRONT FENDER WIDE<SA4> 2P 		1-82690-666-0 02 1 9510-0004 ●
558 CONNECTOR; HARNESS
FRONT FENDER WIDE<SA4> EXC. POWER WINDOW<A30> 2P 		1-82690-666-0 02 1 9510-0004 ●
558 CONNECTOR; HARNESS
2P 		1-82690-666-0 02 1 9510-0004 ●
558 CONNECTOR; HARNESS
EXC. FRONT FENDER WIDE<SA4> 2P 		1-82690-666-0 02 1 0005- ●
558 CONNECTOR; HARNESS
FRONT FENDER WIDE<SA4> EXC. POWER WINDOW<A30> 2P 		1-82690-666-0 02 1 0005- ●
558 CONNECTOR; HARNESS
HONG KONG EQUIPMENT(PQ1) EXC. AIR CONDITIONER MANUAL CONTROL(C60) 3P 		1-82690-667-0 01 1 9805-0004 ●

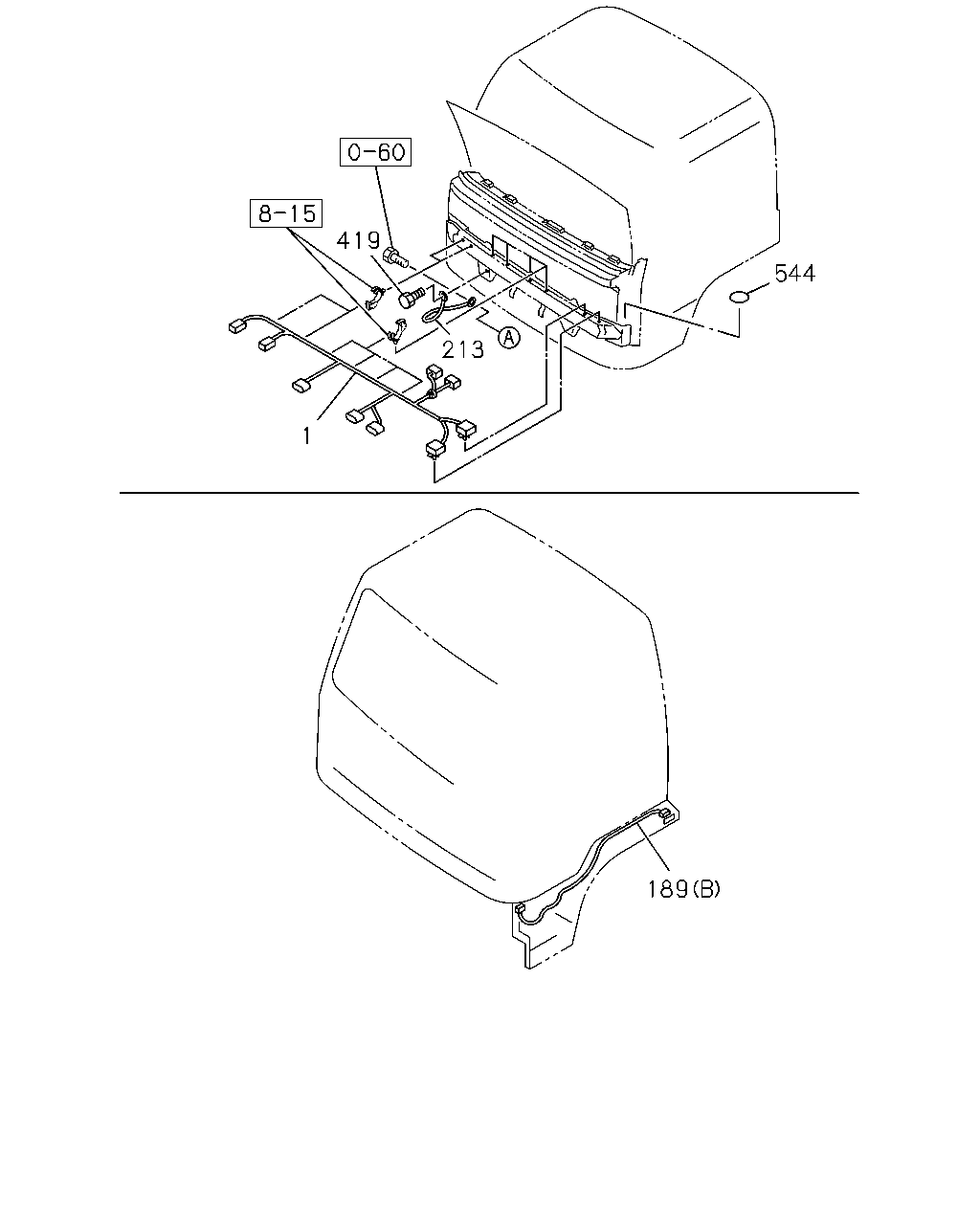

çizim 136375
419 544 213 1 189
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
6HK1 TCC ENG(81L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82629-662-1 01 1 0406- ●
1 HARNESS; CAB
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82629-909-1 01 1 0011-0308 ●
1 HARNESS; CAB
AUSTRALIA EQUIPMENT(RR3) 		1-82626-256-0 01 1 9510-9802 ● ●
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) 		1-82626-256-0 01 1 9803-0004 ●
1 HARNESS; CAB
AUSTRALIA EQUIPMENT(RR3) 		1-82626-256-0 01 1 9803-0004 ●
1 HARNESS; CAB 1-82626-256-0 01 1 9803-0004 ●
1 HARNESS; CAB
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) A/T<X9D> 		1-82626-365-0 01 1 0005-0403 ●
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) ISUZU M/T<X9A> 		1-82626-365-0 01 1 0005-0403 ●
1 HARNESS; CAB
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) A/T<X9D> 		1-82626-365-0 01 1 0404- ●
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82626-365-0 01 1 0404- ●
1 HARNESS; CAB
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-82625-717-1 01 1 9510-9802 ● ●
1 HARNESS; CAB
EXC. AIR CONDITIONER MANUAL CONTROL(C60), AUSTRALIAEQUIPMENT(RR3) 		1-82625-717-1 01 1 9803-0004 ●
1 HARNESS; CAB
ISUZU M/T<X9A> EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-82625-717-1 01 1 0005-0010 ●
1 HARNESS; CAB
A/T<X9D> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-82625-717-1 01 1 0005-0010 ●
1 HARNESS; CAB
6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82625-717-1 01 1 0011-0308 ●
1 HARNESS; CAB
ISUZU M/T<X9A> EXC. AIR CONDITIONER MANUAL CONTROL(C60),NEW ZEALAND EQUIPMENT(PK5) 		1-82625-717-1 01 1 0011-0308 ●
1 HARNESS; CAB
A/T<X9D> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-82625-717-1 01 1 0011-0308 ●
1 HARNESS; CAB
ISUZU M/T<X9A> EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-82625-717-1 01 1 0309-0403 ●
1 HARNESS; CAB
A/T<X9D> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-82625-717-1 01 1 0309-0403 ●
1 HARNESS; CAB
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-82625-717-1 01 1 0404- ●
1 HARNESS; CAB
ISUZU M/T<X9A> EXC. AIR CONDITIONER MANUAL CONTROL(C60),NEW ZEALAND EQUIPMENT(PK5) 		1-82625-717-1 01 1 0404- ●
1 HARNESS; CAB
A/T<X9D> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-82625-717-1 01 1 0404- ●
189 HARNESS; EXT
FRONT FENDER WIDE<SA4> (B) 		1-82625-673-2 02 1 9510- ●
189 HARNESS; EXT
(A) 		1-82625-498-0 01 1 9510-9602 ●
189 HARNESS; EXT
(A) 		1-82625-774-0 01 1 9603-0004 ●
213 CABLE; EARTH,CAB TO FRAME 1-82657-055-1 01 1 9510-0004 ● ●
213 CABLE; EARTH,CAB TO FRAME 1-82657-055-1 01 1 0005- ●
419 BOLT; CAB EARTH
M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9510-0004 ● ●
419 BOLT; CAB EARTH
M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0005-1201 ●
419 BOLT; CAB EARTH
M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1202- ●
419 BOLT; CAB EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9908-0004 ● ●
544 SEAL; FRT MTG RAIL
OD=25 BLACK 		1-76798-019-0 01 1 9510-9802 ● ●
544 SEAL; FRT MTG RAIL
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 01 1 9803-0004 ●
544 SEAL; FRT MTG RAIL
OD=25 BLACK 		1-76798-019-0 01 1 9803-0004 ●
544 SEAL; FRT MTG RAIL
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 01 1 0005- ●

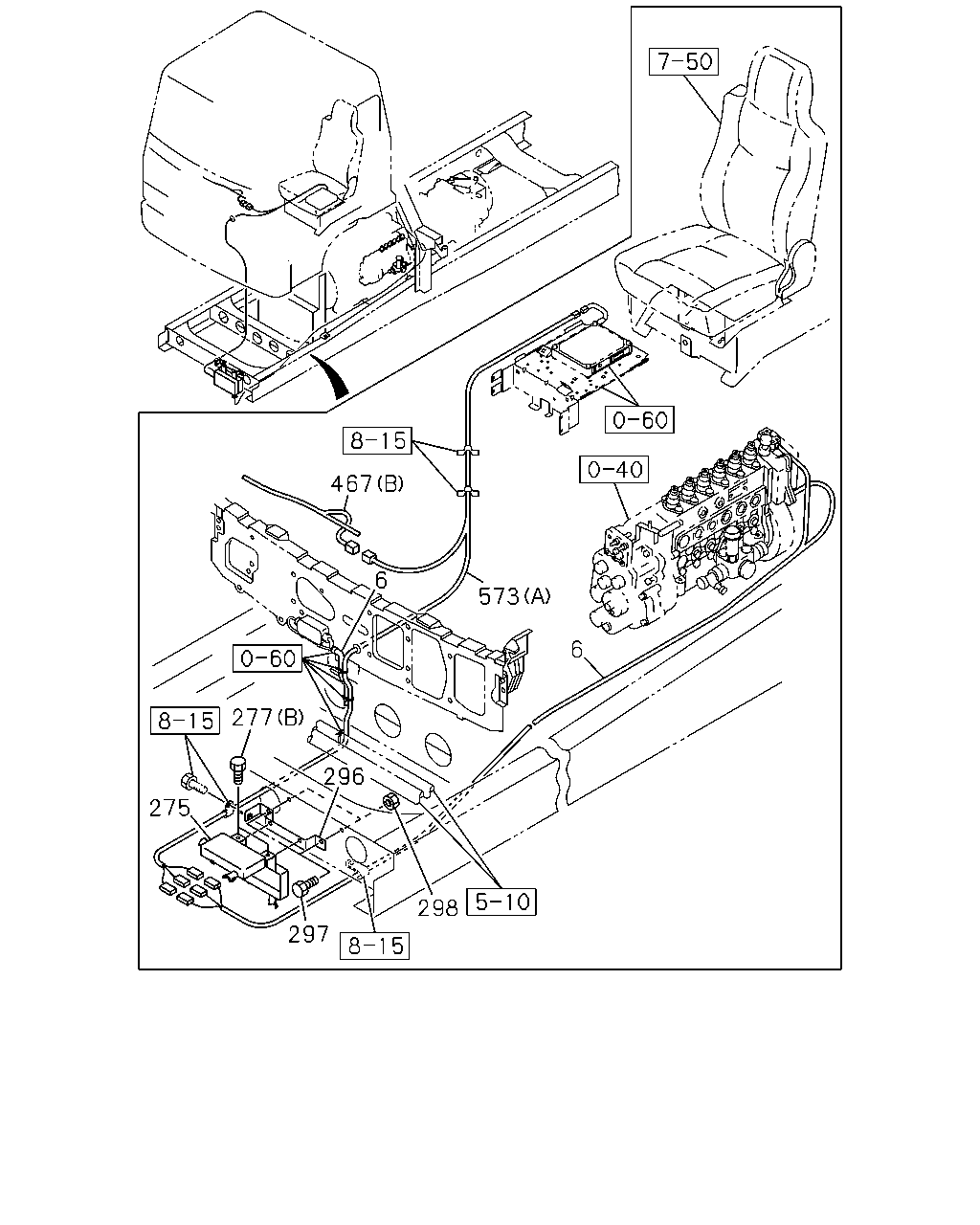

çizim 136645
467 6 573 6 277 296 275 298 297
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82677-581-0 01 1 0406- ●
6 HARNESS; FRAME
AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> 		1-82639-008-3 01 1 9510-9802 ●
6 HARNESS; FRAME
AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> 		1-82670-479-0 01 1 9803-0004 ●
6 HARNESS; FRAME
EURO2 SPECIFICATION<THN> A/T<X9D> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82672-992-2 01 1 0005-0401 ●
6 HARNESS; FRAME
EURO2 SPECIFICATION<THN> A/T<X9D> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82677-450-0 01 1 0402- ●
6 HARNESS; FRAME
AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> 		1-82639-009-4 01 1 9510-9802 ●
6 HARNESS; FRAME
AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> 		1-82670-481-0 01 1 9803-0004 ●
6 HARNESS; FRAME
EURO2 SPECIFICATION<THN> HEADLAMPS RECTANGULAR<TR4> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-82673-186-0 01 1 9911-0004 ●
6 HARNESS; FRAME
EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82672-993-2 01 1 0005-0401 ●
6 HARNESS; FRAME
EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82677-451-0 01 1 0402- ●
6 HARNESS; FRAME
HEADLAMPS RECTANGULAR<TR4> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		1-82639-011-2 01 1 9510-9802 ●
6 HARNESS; FRAME
HEADLAMPS RECTANGULAR<TR4> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-82639-011-2 01 1 9803-9910 ●
6 HARNESS; FRAME
HEADLAMPS RECTANGULAR<TR4> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> 		1-82639-011-2 01 1 9911-0004 ●
6 HARNESS; FRAME
ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN> 		1-82672-990-2 01 1 0005-0401 ●
6 HARNESS; FRAME
ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN> 		1-82677-448-0 01 1 0402- ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		1-82670-042-0 01 1 9610-9612 ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		1-82670-196-0 01 1 9701-9802 ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-82670-196-1 01 1 9803-0004 ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		1-82639-006-2 01 1 9510-9609 ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> 		1-82639-006-2 01 1 9610-9802 ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> 		1-82639-006-2 01 1 9803-0004 ●
6 HARNESS; FRAME
NEW ZEALAND EQUIPMENT(PK5) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> 		1-82639-007-2 01 1 9510-0004 ●
6 HARNESS; FRAME
NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82672-991-2 01 1 0005-0010 ●
6 HARNESS; FRAME
6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82672-991-2 01 1 0011-0401 ●
6 HARNESS; FRAME
6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82677-449-0 01 1 0402- ●
6 HARNESS; FRAME
THAILAND EQUIPMENT(PM9) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> 		1-82639-010-2 01 1 9510-9802 ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> 		1-82670-960-1 01 1 0011- ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82674-043-0 01 1 0011-0102 ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82674-715-1 01 1 0103-0401 ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82677-457-0 01 1 0402- ●
6 HARNESS; FRAME 1-82639-386-4 01 1 9510-9802 ●
6 HARNESS; FRAME 1-82670-480-0 01 1 9803-0004 ●
275 BOX ASM; FRAME HARNESS
EURO2 SPECIFICATION<THN> 		1-82699-378-0 01 1 9610- ●
277 BOLT; BOX ASM FIX
EURO2 SPECIFICATION<THN> (B) M8X25 FLANGE 		0-28680-825-0 02 1 9610-0512 ●
277 BOLT; BOX ASM FIX
EURO2 SPECIFICATION<THN> (B) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
277 BOLT; BOX ASM FIX
6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (C) M8X25 W/LK&PL WASHER 		1-09980-479-0 02 1 0011-0405 ●
277 BOLT; BOX ASM FIX
6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (C) M8X25 W/LK&PL WASHER 		1-09980-479-0 02 1 0406-0801 ●
277 BOLT; BOX ASM FIX
6HK1 TCC ENG(81L) (C) M8X25 W/LK&PL WASHER 		1-09980-479-0 02 1 0406-0801 ●
277 BOLT; BOX ASM FIX
6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (C) M8X25 W/LK&PL WASHER 		1-09980-548-0 02 1 0802- ●
277 BOLT; BOX ASM FIX
6HK1 TCC ENG(81L) (C) M8X25 W/LK&PL WASHER 		1-09980-548-0 02 1 0802- ●
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50140-625-0 02 1 9510-0004 ● ●
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50140-625-0 02 1 0005-0512 ●
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50640-625-0 02 1 0601- ●
296 BRACKET; HARNESS BOX
EURO2 SPECIFICATION<THN> 		1-82699-923-0 01 1 9610- ●
297 BOLT; BOX BRKT
EURO2 SPECIFICATION<THN> M8X25 FLANGE 		0-28680-825-0 02 1 9610-0512 ●
297 BOLT; BOX BRKT
EURO2 SPECIFICATION<THN> M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
298 NUT; BOX BRKT
EURO2 SPECIFICATION<THN> M8 FLANGE 		0-91150-108-0 02 1 9610-0602 ●
298 NUT; BOX BRKT
EURO2 SPECIFICATION<THN> M8 FLANGE 		0-91180-108-0 02 1 0603- ●

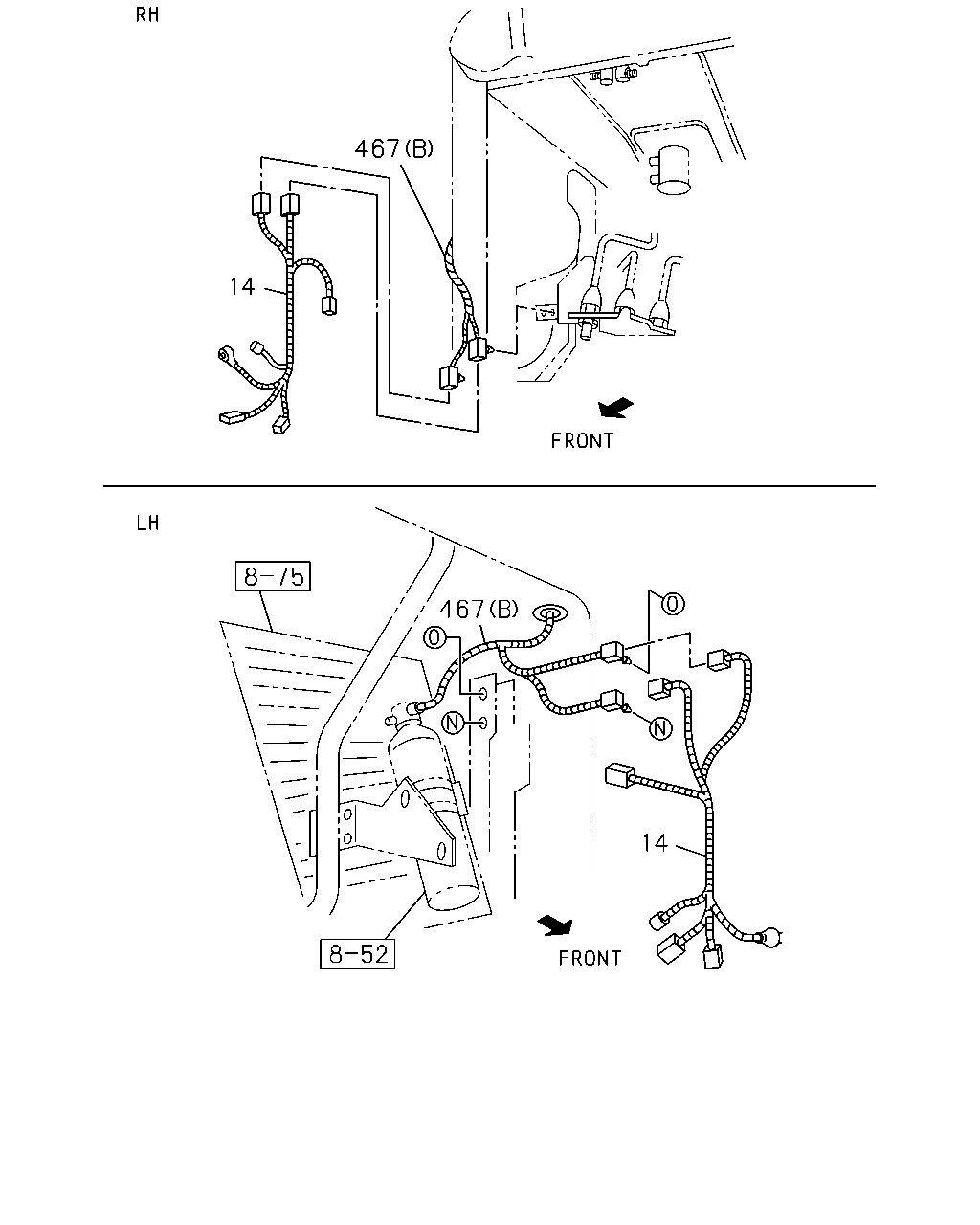

467 HARNESS; FACIA
6HK1 TCC ENG(81L) POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> NEW ZEALAND EQUIPMENT(PK5) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> (B) 		1-82662-863-2 01 1 0601- ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L) POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) CUSTOM CAB(SR5) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> (B) 		1-82662-210-0 01 1 0406-0512 ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L) POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) CUSTOM CAB(SR5) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> (B) 		1-82662-210-2 01 1 0601- ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L) POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) CUSTOM CAB(SR5) ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82662-209-0 01 1 0406-0512 ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L) POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) CUSTOM CAB(SR5) ISUZU M/T<X9A> EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ>,MIR STAY O/S W/REMOTE<TBA> (B) 		1-82662-209-2 01 1 0601- ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) (A) 		1-82662-207-0 01 1 0406- ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) CUSTOM CAB(SR5) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> (B) 		1-82661-621-4 01 1 0212- ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) CUSTOM CAB(SR5) ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82661-620-4 01 1 0212- ●
467 HARNESS; FACIA
EURO2 SPECIFICATION<THN> HEADLAMPS RECTANGULAR<TR4> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), NEWZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),V ENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-82629-336-0 01 1 9911-0004 ●
467 HARNESS; FACIA
ENGINE OVERRUN BUZZER<SK4> EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-82625-737-1 01 1 9510-9609 ●
467 HARNESS; FACIA
ENGINE OVERRUN BUZZER<SK4> EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ),EURO2 SPECIFICATION<THN> (A) 		1-82625-737-2 01 1 9610-9802 ●
467 HARNESS; FACIA
ENGINE OVERRUN BUZZER<SK4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (A) 		1-82625-737-3 01 1 9803-0004 ●
467 HARNESS; FACIA
ENGINE OVERRUN BUZZER<SK4> MIR STAY O/S W/REMOTE<TBA> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),EURO2 SPECIFICATION<THN> (A) 		1-82627-088-1 01 1 9803-0004 ●
467 HARNESS; FACIA
HEADLAMPS RECTANGULAR<TR4> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), NEWZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9),AU STRALIA EQUIPMENT(RR3),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-82625-698-5 01 1 9510-9802 ●
467 HARNESS; FACIA
HEADLAMPS RECTANGULAR<TR4> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), NEWZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),V ENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-82625-698-7 01 1 9803-9910 ●
467 HARNESS; FACIA
HEADLAMPS RECTANGULAR<TR4> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), NEWZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),V ENTILATOR & DEFROSTER WO/HEATER(SAZ),EURO2 SPECIFICATION<THN> (B) 		1-82625-698-7 01 1 9911-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. ENGINE OVERRUN BUZZER<SK4>,EURO2 SPECIFICATION<THN> (A) 		1-82625-708-4 01 1 9803-0004 ●
467 HARNESS; FACIA
(A) 		1-82625-708-4 01 1 9803-0004 ●
467 HARNESS; FACIA
A/T<X9D> EURO2 SPECIFICATION<THN> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-265-6 01 1 0005- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ENGINE OVERRUN BUZZER<SK4> MIR STAY O/S W/REMOTE<TBA> EXC. EURO2 SPECIFICATION<THN> (A) 		1-82627-089-1 01 1 9803-0004 ●
467 HARNESS; FACIA
ENGINE OVERRUN BUZZER<SK4> (A) 		1-82627-089-1 01 1 0005-0010 ●
467 HARNESS; FACIA
MIR STAY O/S W/REMOTE<TBA> EXC. ENGINE OVERRUN BUZZER<SK4> (A) 		1-82627-089-1 01 1 0005-0010 ●
467 HARNESS; FACIA
6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) ENGINE OVERRUN BUZZER<SK4> (A) 		1-82627-089-3 01 1 0011- ●
467 HARNESS; FACIA
6HH1 STD ENG(65L) MIR STAY O/S W/REMOTE<TBA> EXC. ENGINE OVERRUN BUZZER<SK4> (A) 		1-82627-089-3 01 1 0011- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ENGINE OVERRUN BUZZER<SK4> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-82627-089-3 01 1 0011- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30> (B) 		1-82625-694-6 01 1 9510-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30> (B) 		1-82627-079-2 01 1 9803-9806 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,ELEC OUTLET 12V<TAW>,EURO2 SPECIFICATION<THN> (B) 		1-82627-079-3 01 1 9807-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> EXC. POWER WINDOW<A30> (B) 		1-82625-696-6 01 1 9510-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> EXC. POWER WINDOW<A30> (B) 		1-82627-081-2 01 1 9803-9806 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> EXC. POWER WINDOW<A30>,ELEC OUTLET 12V<TAW> (B) 		1-82627-081-3 01 1 9807-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) ELEC OUTLET 12V<TAW> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> EXC. POWER WINDOW<A30> (B) 		1-82628-142-1 01 1 9807-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) ELEC OUTLET 12V<TAW> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,EURO2 SPECIFICATION<THN> (B) 		1-82628-147-1 01 1 9807-0004 ●
467 HARNESS; FACIA
ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA>, EURO2 SPECIFICATION<THN> (B) 		1-82629-240-5 01 1 0005- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> EXC. ENGINE OVERRUN BUZZER<SK4> (A) 		1-82626-344-1 01 1 9610-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> EXC. ENGINE OVERRUN BUZZER<SK4> (A) 		1-82626-344-2 01 1 9803-0004 ●
467 HARNESS; FACIA
ISUZU M/T<X9A> EURO2 SPECIFICATION<THN> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-245-5 01 1 0005- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> HEADLAMPS RECTANGULAR<TR4> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,NEW ZEALAND EQUIPMENT(PK5), AUSTRALIA EQUIPMENT(RR3) (B) 		1-82629-337-0 01 1 9911-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ENGINE OVERRUN BUZZER<SK4> (A) 		1-82625-738-1 01 1 9510-9609 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ENGINE OVERRUN BUZZER<SK4> EXC. EURO2 SPECIFICATION<THN> (A) 		1-82625-738-2 01 1 9610-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ENGINE OVERRUN BUZZER<SK4> EXC. MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (A) 		1-82625-738-3 01 1 9803-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA>, EURO2 SPECIFICATION<THN> (B) 		1-82629-241-5 01 1 0005- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. ENGINE OVERRUN BUZZER<SK4> (A) 		1-82625-708-2 01 1 9510-9609 ●
467 HARNESS; FACIA
(A) 		1-82625-708-2 01 1 9510-9609 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. ENGINE OVERRUN BUZZER<SK4>,EURO2 SPECIFICATION<THN> (A) 		1-82625-708-3 01 1 9610-9802 ●
467 HARNESS; FACIA
(A) 		1-82625-708-3 01 1 9610-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS RECTANGULAR<TR4> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,NEW ZEALAND EQUIPMENT(PK5), THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) (B) 		1-82625-699-5 01 1 9510-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS RECTANGULAR<TR4> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,NEW ZEALAND EQUIPMENT(PK5), AUSTRALIA EQUIPMENT(RR3) (B) 		1-82625-699-7 01 1 9803-9910 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS RECTANGULAR<TR4> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,NEW ZEALAND EQUIPMENT(PK5), AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> (B) 		1-82625-699-7 01 1 9911-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3) (B) 		1-82625-689-3 01 1 9510-9609 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> (B) 		1-82625-689-5 01 1 9610-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,AUSTRALIA EQUIPMENT(RR3), MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (B) 		1-82625-689-7 01 1 9803-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. POWER WINDOW<A30>,THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-746-0 01 1 9610-9612 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. POWER WINDOW<A30>,THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-938-1 01 1 9701-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. POWER WINDOW<A30>,AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-938-4 01 1 9803-0004 ●
467 HARNESS; FACIA
AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-262-5 01 1 0005- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MIR STAY O/S W/REMOTE<TBA> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,AUSTRALIA EQUIPMENT(RR3), EURO2 SPECIFICATION<THN> (B) 		1-82627-076-4 01 1 9803-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) THAILAND EQUIPMENT(PM9) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30> (B) 		1-82625-691-5 01 1 9510-9802 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MIR STAY O/S W/REMOTE<TBA> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> (B) 		1-82627-074-4 01 1 9803-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-246-5 01 1 0005- ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ),ENGINE OVERRUN BUZZER<SK4> (A) 		1-82625-707-2 01 1 9510-9609 ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ),ENGINE OVERRUN BUZZER<SK4>,EURO2 SPECIFICATION<THN> (A) 		1-82625-707-3 01 1 9610-9802 ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),ENGINE OVERRUN BUZZER<SK4>,EURO2 SPECIFICATION<THN> (A) 		1-82625-707-5 01 1 9803-0004 ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),ENGINE OVERRUN BUZZER<SK4>,MIR STAY O/S W/REMOTE<TBA> (A) 		1-82625-707-7 01 1 0005- ●
467 HARNESS; FACIA
POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-263-5 01 1 0005- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) (B) 		1-82625-690-3 01 1 9510-9609 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> (B) 		1-82625-690-5 01 1 9610-9802 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. AUSTRALIA EQUIPMENT(RR3),MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (B) 		1-82625-690-7 01 1 9803-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> A/T<X9D> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-264-6 01 1 0005- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> (B) 		1-82625-695-6 01 1 9510-9802 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> (B) 		1-82627-078-2 01 1 9803-9806 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. ELEC OUTLET 12V<TAW>,EURO2 SPECIFICATION<THN> (B) 		1-82627-078-3 01 1 9807-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. ENGINE OVERRUN BUZZER<SK4>,MIR STAY O/S W/REMOTE<TBA> (A) 		1-82629-294-2 01 1 0005- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> (B) 		1-82625-697-6 01 1 9510-9802 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> (B) 		1-82627-080-2 01 1 9803-9806 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> EXC. ELEC OUTLET 12V<TAW> (B) 		1-82627-080-3 01 1 9807-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,EURO2 SPECIFICATION<THN> (B) 		1-82629-242-5 01 1 0005- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-747-0 01 1 9610-9612 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-939-1 01 1 9701-9802 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-939-4 01 1 9803-0004 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> EXC. EURO2 SPECIFICATION<THN> (B) 		1-82629-244-1 01 1 0005-0010 ●
467 HARNESS; FACIA
6HH1 STD ENG(65L) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> (B) 		1-82629-244-5 01 1 0011- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN> (B) 		1-82629-244-5 01 1 0011- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) ELEC OUTLET 12V<TAW> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> (B) 		1-82628-143-1 01 1 9807-0004 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (B) 		1-82629-243-1 01 1 0005-0010 ●
467 HARNESS; FACIA
6HH1 STD ENG(65L) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-243-5 01 1 0011- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (B) 		1-82629-243-5 01 1 0011- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) ELEC OUTLET 12V<TAW> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. EURO2 SPECIFICATION<THN> (B) 		1-82628-148-1 01 1 9807-0004 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-247-5 01 1 0005- ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) ENGINE OVERRUN BUZZER<SK4> (A) 		1-82629-902-2 01 1 0011- ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) MIR STAY O/S W/REMOTE<TBA> EXC. ENGINE OVERRUN BUZZER<SK4> (A) 		1-82629-902-2 01 1 0011- ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-904-2 01 1 0011-0211 ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> EXC. CUSTOM CAB(SR5),MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-904-5 01 1 0212- ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> (B) 		1-82629-905-2 01 1 0011-0211 ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> EXC. CUSTOM CAB(SR5) (B) 		1-82629-905-5 01 1 0212- ●
467 HARNESS; FACIA
AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-065-3 01 1 9510-9802 ●
467 HARNESS; FACIA
(B) 		1-82627-082-2 01 1 9803-9806 ●
467 HARNESS; FACIA
EXC. ELEC OUTLET 12V<TAW> (B) 		1-82627-082-3 01 1 9807-0004 ●
467 HARNESS; FACIA
ELEC OUTLET 12V<TAW> (B) 		1-82628-146-1 01 1 9807-0004 ●

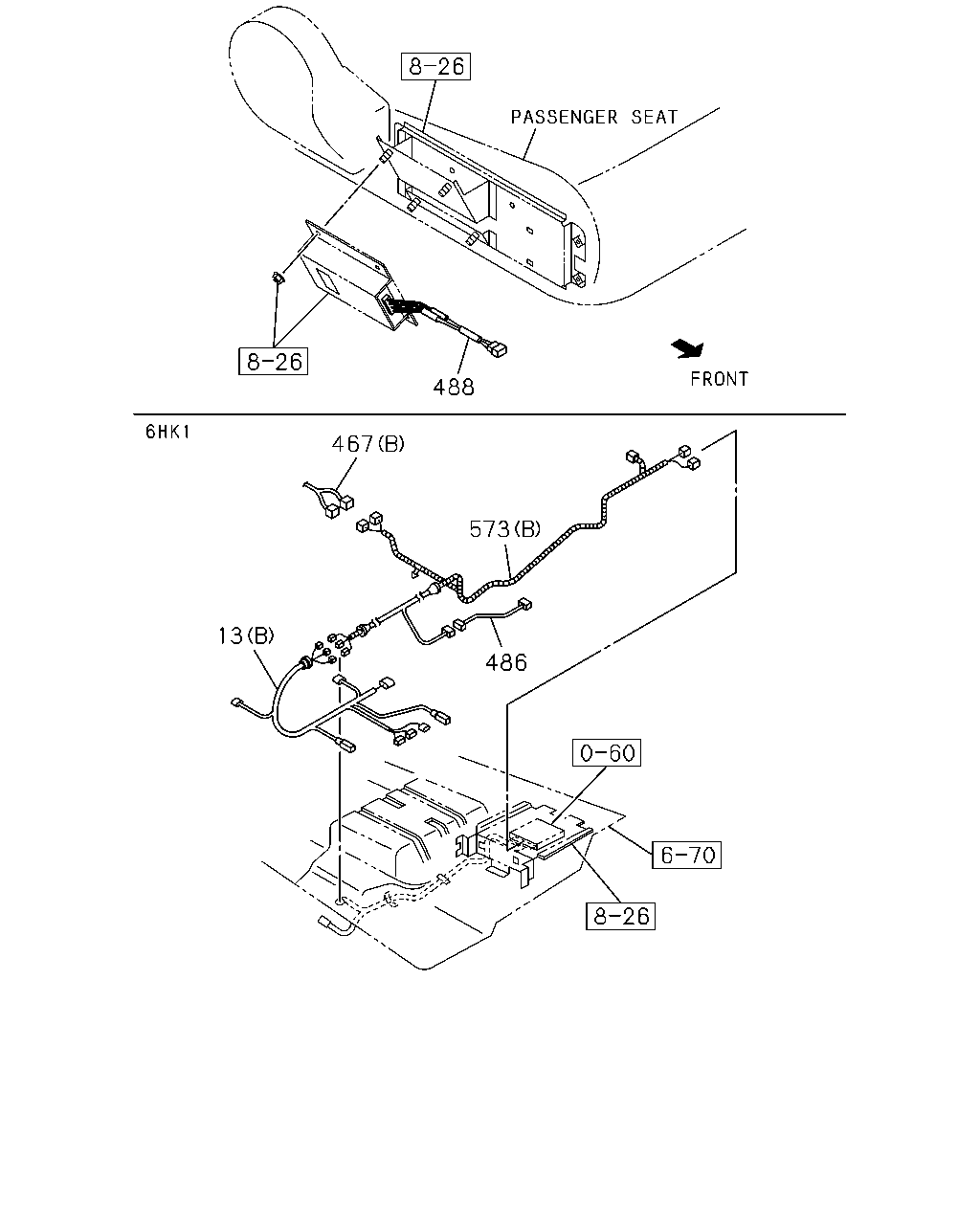

573 HARNESS; CONTROL UNIT
6HK1 TCC ENG(81L) (B) 		1-82661-390-2 01 1 0406- ●
573 HARNESS; CONTROL UNIT
EURO2 SPECIFICATION<THN> (A) 		1-82626-745-4 01 1 9610- ●
573 HARNESS; CONTROL UNIT
6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (A) 		1-82629-908-2 01 1 0011- ●

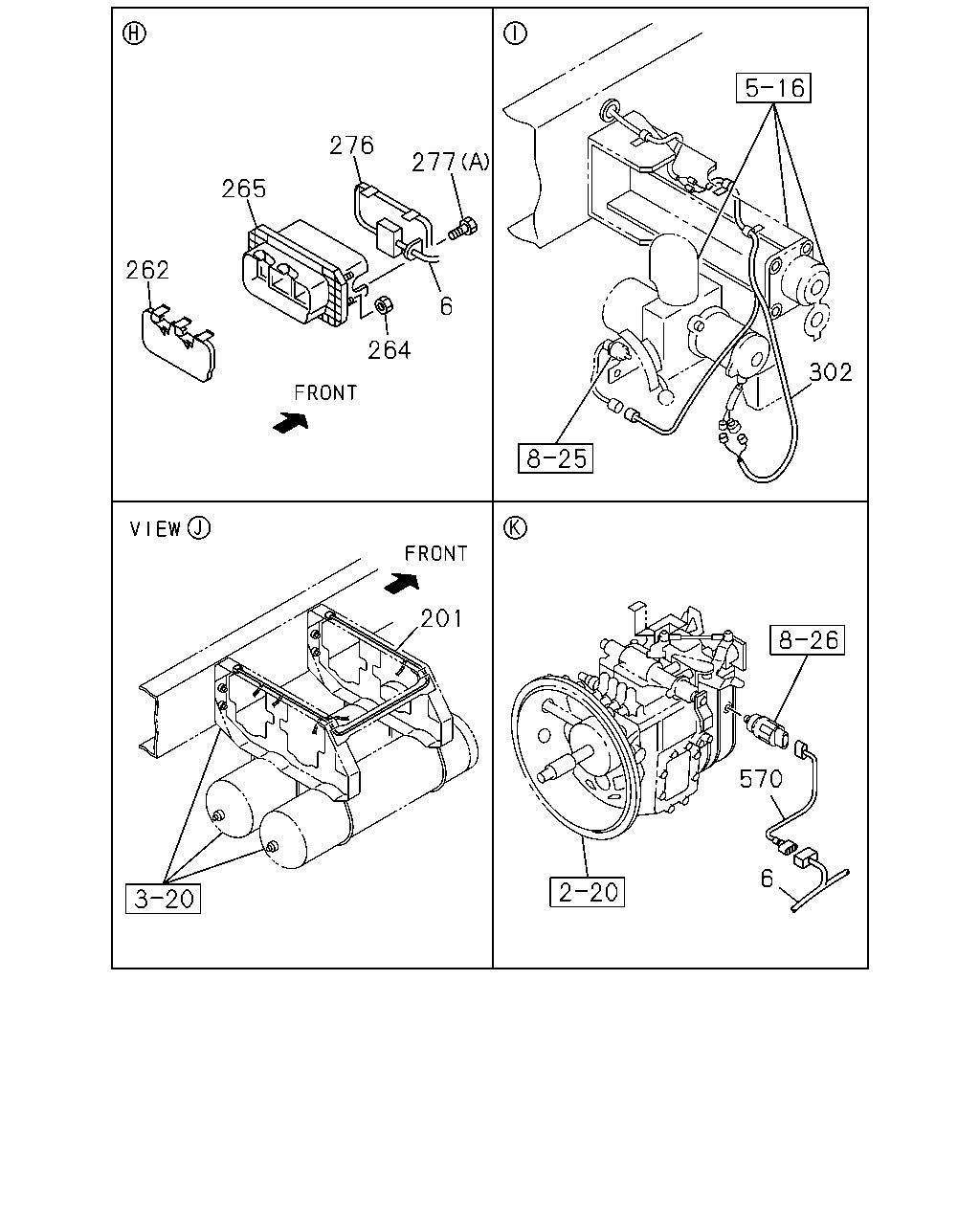

çizim 136863
276 277 265 262 6 264 302 201 570 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82677-581-0 01 1 0406- ●
6 HARNESS; FRAME
AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> 		1-82639-008-3 01 1 9510-9802 ●

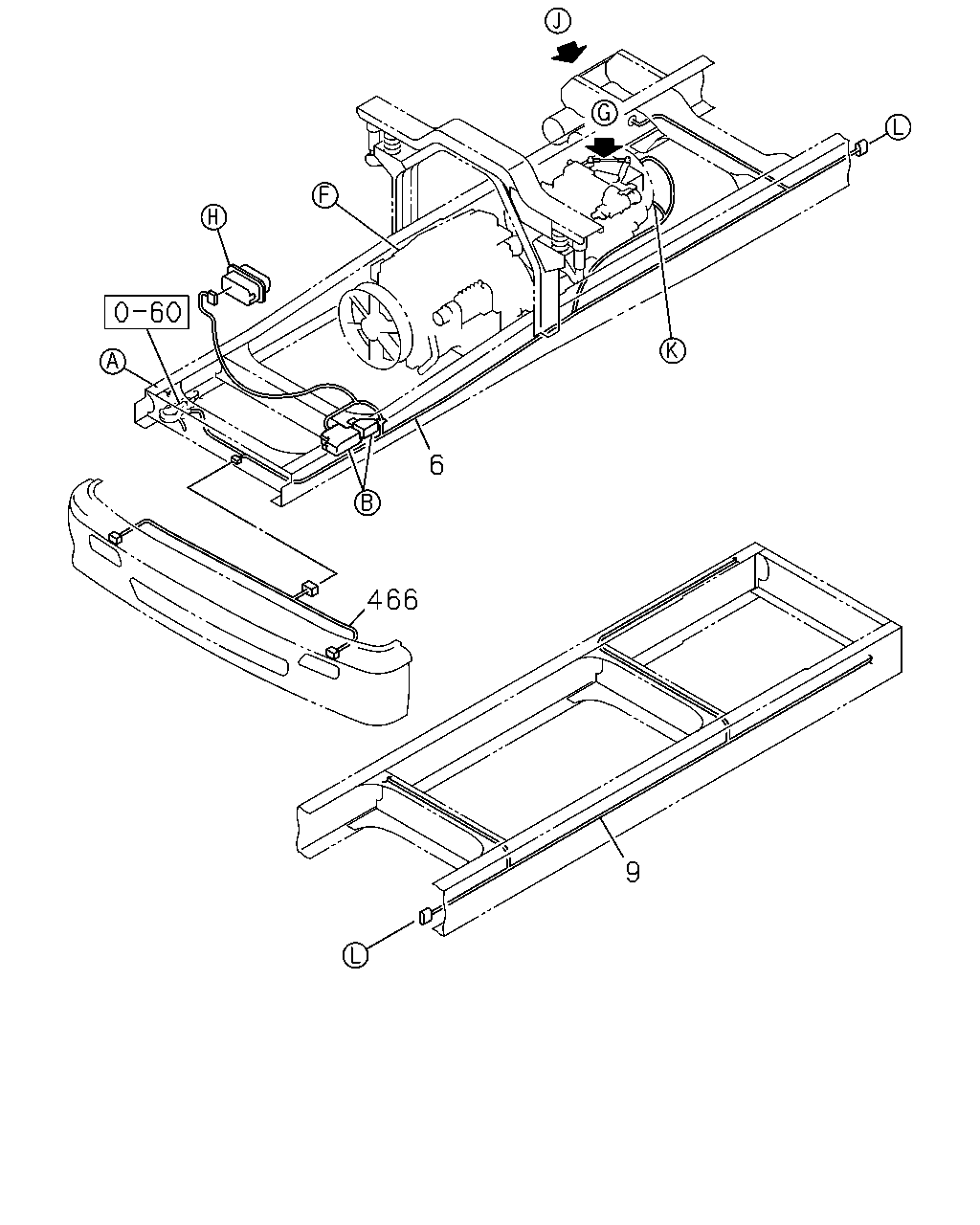

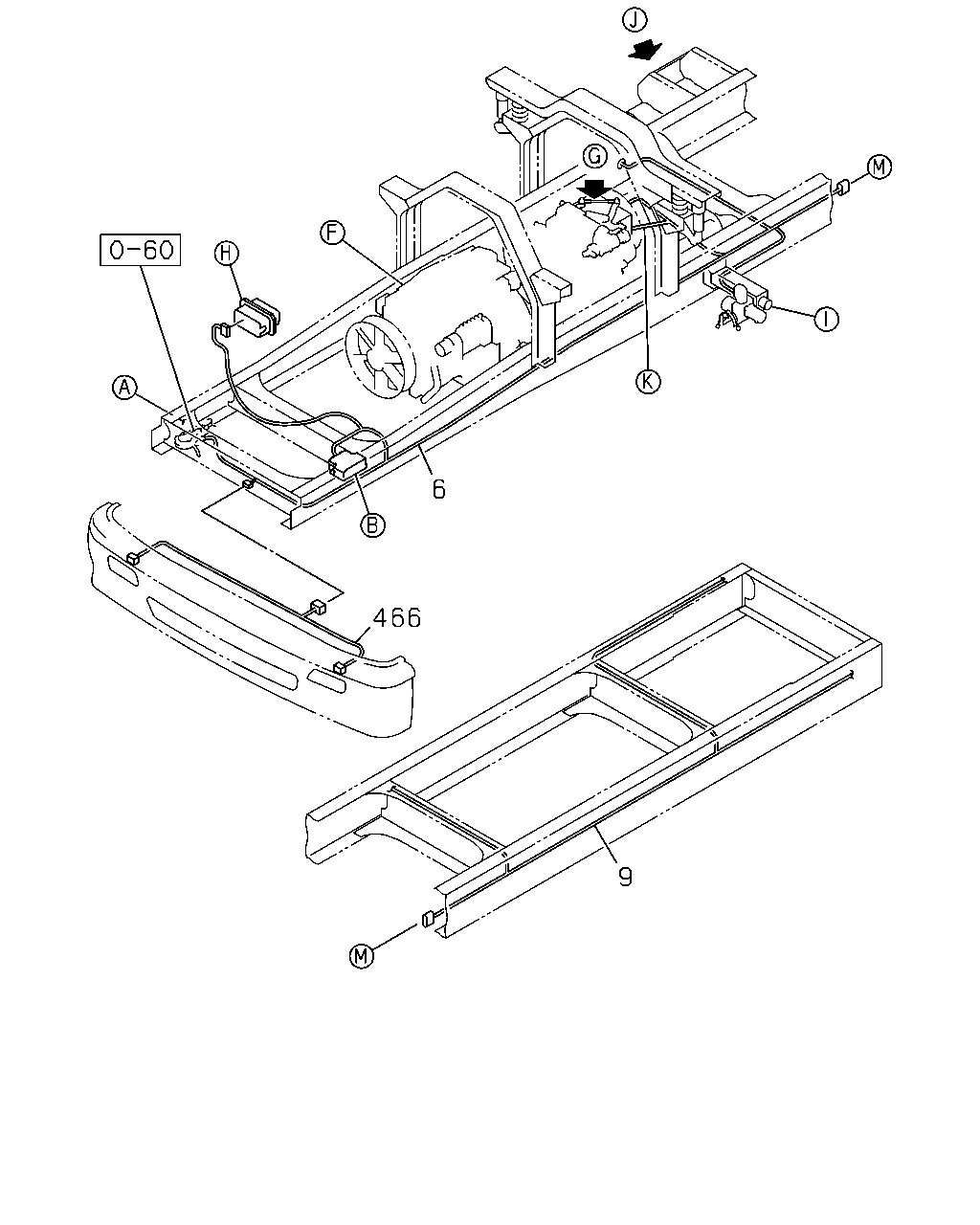

6 HARNESS; FRAME
AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> 		1-82670-479-0 01 1 9803-0004 ●
6 HARNESS; FRAME
EURO2 SPECIFICATION<THN> A/T<X9D> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82672-992-2 01 1 0005-0401 ●
6 HARNESS; FRAME
EURO2 SPECIFICATION<THN> A/T<X9D> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82677-450-0 01 1 0402- ●
6 HARNESS; FRAME
AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> 		1-82639-009-4 01 1 9510-9802 ●
6 HARNESS; FRAME
AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> 		1-82670-481-0 01 1 9803-0004 ●
6 HARNESS; FRAME
EURO2 SPECIFICATION<THN> HEADLAMPS RECTANGULAR<TR4> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-82673-186-0 01 1 9911-0004 ●
6 HARNESS; FRAME
EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82672-993-2 01 1 0005-0401 ●
6 HARNESS; FRAME
EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82677-451-0 01 1 0402- ●
6 HARNESS; FRAME
HEADLAMPS RECTANGULAR<TR4> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		1-82639-011-2 01 1 9510-9802 ●
6 HARNESS; FRAME
HEADLAMPS RECTANGULAR<TR4> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-82639-011-2 01 1 9803-9910 ●
6 HARNESS; FRAME
HEADLAMPS RECTANGULAR<TR4> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> 		1-82639-011-2 01 1 9911-0004 ●
6 HARNESS; FRAME
ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN> 		1-82672-990-2 01 1 0005-0401 ●
6 HARNESS; FRAME
ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN> 		1-82677-448-0 01 1 0402- ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		1-82670-042-0 01 1 9610-9612 ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		1-82670-196-0 01 1 9701-9802 ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-82670-196-1 01 1 9803-0004 ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		1-82639-006-2 01 1 9510-9609 ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> 		1-82639-006-2 01 1 9610-9802 ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> 		1-82639-006-2 01 1 9803-0004 ●
6 HARNESS; FRAME
NEW ZEALAND EQUIPMENT(PK5) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> 		1-82639-007-2 01 1 9510-0004 ●
6 HARNESS; FRAME
NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82672-991-2 01 1 0005-0010 ●
6 HARNESS; FRAME
6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82672-991-2 01 1 0011-0401 ●
6 HARNESS; FRAME
6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82677-449-0 01 1 0402- ●
6 HARNESS; FRAME
THAILAND EQUIPMENT(PM9) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> 		1-82639-010-2 01 1 9510-9802 ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> 		1-82670-960-1 01 1 0011- ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82674-043-0 01 1 0011-0102 ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82674-715-1 01 1 0103-0401 ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82677-457-0 01 1 0402- ●
6 HARNESS; FRAME 1-82639-386-4 01 1 9510-9802 ●
6 HARNESS; FRAME 1-82670-480-0 01 1 9803-0004 ●
201 HARNESS; AIR TANK
BRAKE REGULATION ADR<TDU> 		1-82638-507-1 01 1 9510-9802 ●
201 HARNESS; AIR TANK 1-82638-507-1 01 1 9510-9802 ●
201 HARNESS; AIR TANK
DUAL AIR GAUGE<UG2> 		1-82670-504-2 01 1 9803-0004 ●
201 HARNESS; AIR TANK 1-82670-504-2 01 1 9803-0004 ●
201 HARNESS; AIR TANK
DUAL AIR GAUGE<UG2> 		1-82670-504-2 01 1 0005- ●
201 HARNESS; AIR TANK
EXC. BRAKE REGULATION ADR<TDU> 		1-82638-999-1 01 1 9510-9802 ●
201 HARNESS; AIR TANK
EXC. DUAL AIR GAUGE<UG2> 		1-82670-503-2 01 1 9803- ●
262 COVER; CONNECTOR BOX,FRT PNL 1-82699-605-1 01 1 9510-0004 ● ●
262 COVER; CONNECTOR BOX,FRT PNL 1-82699-605-1 01 1 0005- ●
264 NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 9510-0004 ● ●
264 NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0005- ●

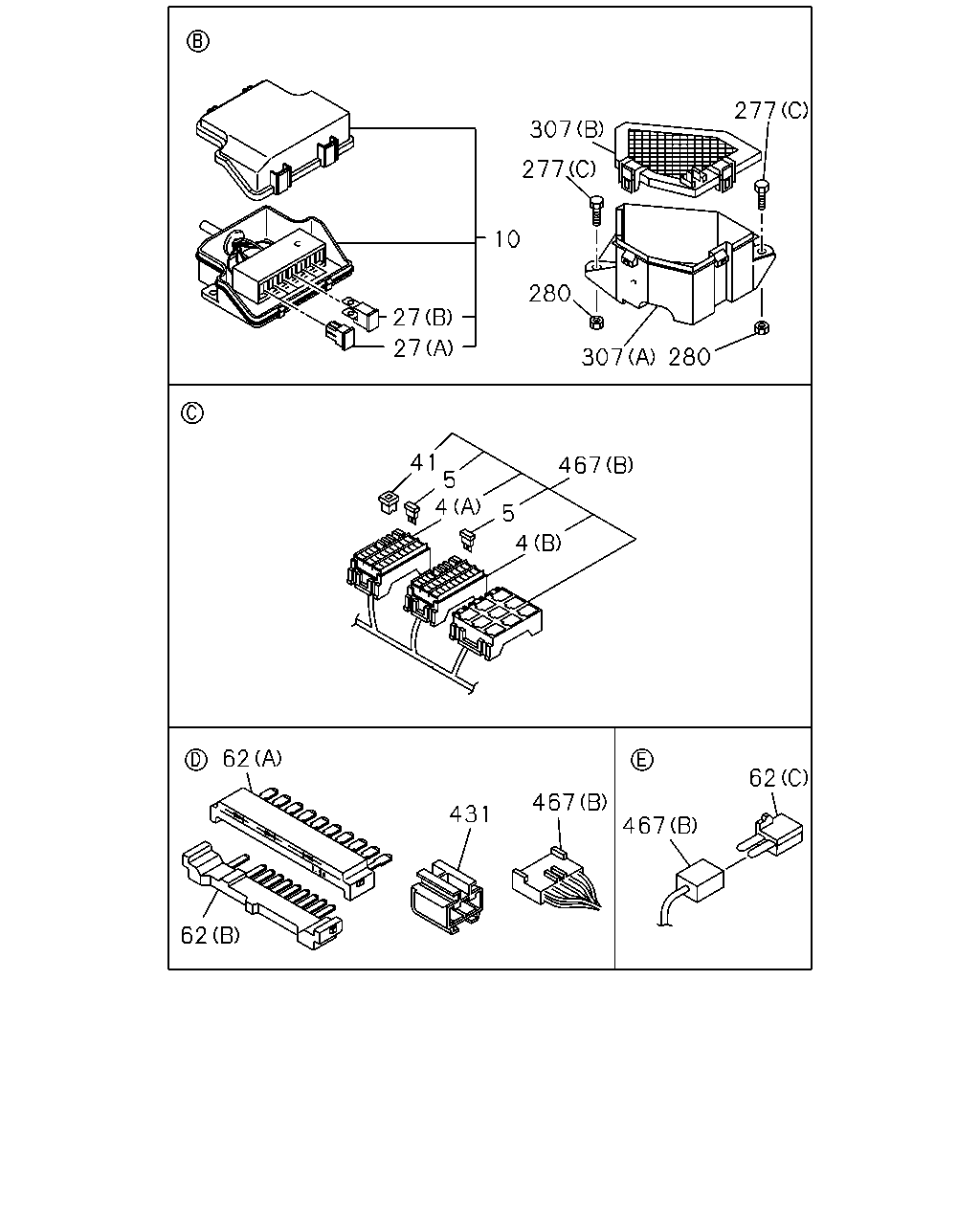

265 BOX; CONN,FRT PNL 1-82699-538-3 01 1 9510-0004 ● ●
265 BOX; CONN,FRT PNL 1-82699-538-3 01 1 0005- ●
276 COVER; BOX,FRAME HARNESS 1-82699-558-3 01 1 9510-0004 ● ●
276 COVER; BOX,FRAME HARNESS 1-82699-558-3 01 1 0005- ●
277 BOLT; BOX ASM FIX
EURO2 SPECIFICATION<THN> (B) M8X25 FLANGE 		0-28680-825-0 02 1 9610-0512 ●
277 BOLT; BOX ASM FIX
EURO2 SPECIFICATION<THN> (B) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
277 BOLT; BOX ASM FIX
6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (C) M8X25 W/LK&PL WASHER 		1-09980-479-0 02 1 0011-0405 ●
277 BOLT; BOX ASM FIX
6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (C) M8X25 W/LK&PL WASHER 		1-09980-479-0 02 1 0406-0801 ●
277 BOLT; BOX ASM FIX
6HK1 TCC ENG(81L) (C) M8X25 W/LK&PL WASHER 		1-09980-479-0 02 1 0406-0801 ●
277 BOLT; BOX ASM FIX
6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (C) M8X25 W/LK&PL WASHER 		1-09980-548-0 02 1 0802- ●
277 BOLT; BOX ASM FIX
6HK1 TCC ENG(81L) (C) M8X25 W/LK&PL WASHER 		1-09980-548-0 02 1 0802- ●
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50140-625-0 02 1 9510-0004 ● ●
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50140-625-0 02 1 0005-0512 ●
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50640-625-0 02 1 0601- ●
302 HARNESS; POWER CAB TILT 1-82639-388-2 01 1 9510-0004 ●
570 HARNESS; SPEED SENSOR 1-82670-078-0 01 1 9803-0004 ● ●
570 HARNESS; SPEED SENSOR 1-82670-078-0 01 1 0005-0401 ●
çizim 136959
488 467 573 13 486
BalonParca AdiParca NoAdetTipApplied Date A B

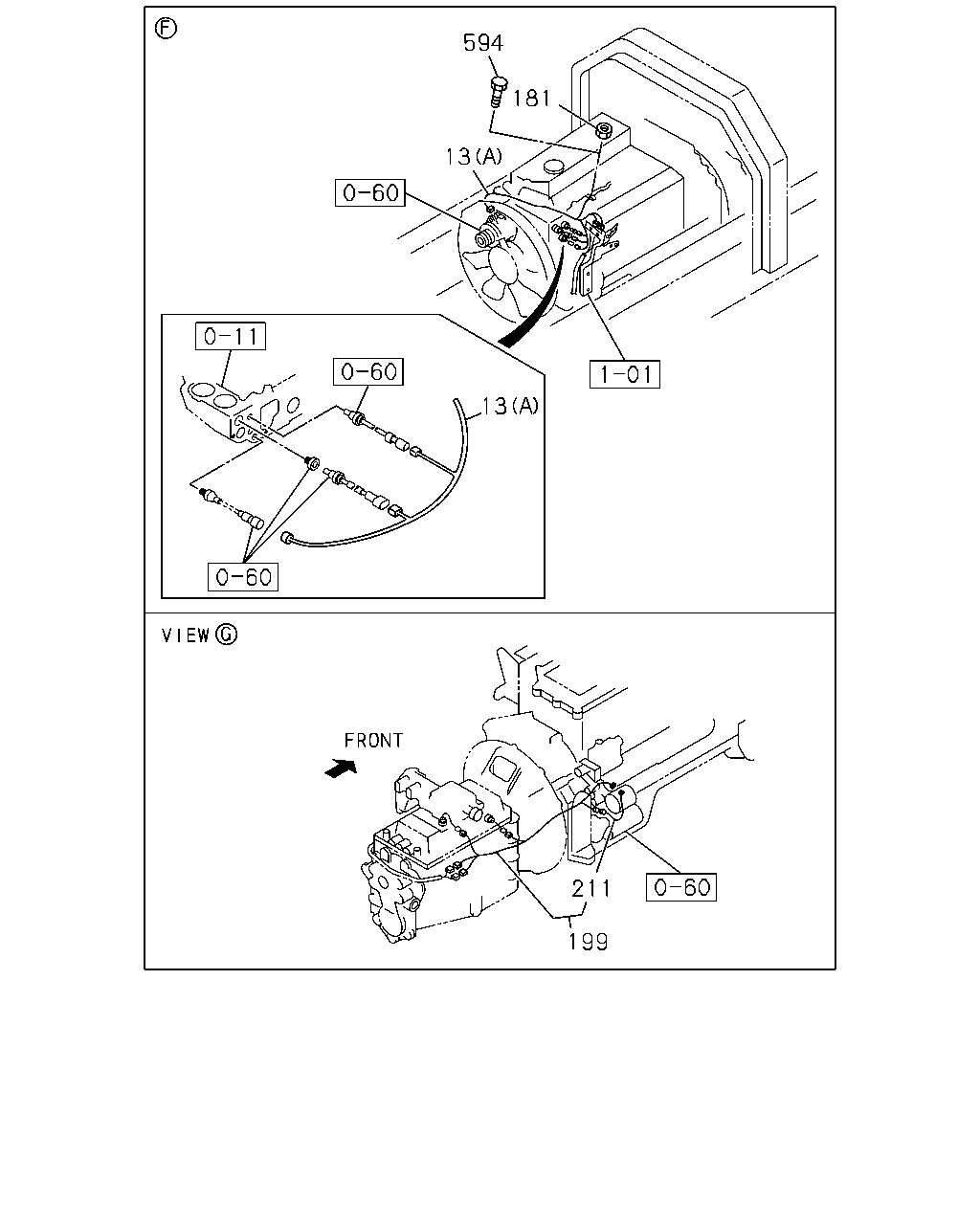

13 HARNESS; ENG
6HK1 TCC ENG(81L) (B) 		1-82640-950-7 01 1 0406- ●
13 HARNESS; ENG
EURO2 SPECIFICATION<THN> (A) 		1-82640-793-1 01 1 9610-9802 ●
13 HARNESS; ENG
THAILAND EQUIPMENT(PM9) (A) 		1-82640-716-0 01 1 9510-9802 ●
13 HARNESS; ENG
EURO2 SPECIFICATION<THN> (A) 		1-82640-982-0 01 1 9803-9910 ●
13 HARNESS; ENG
6HE1 TCN ENG(58L) EURO2 SPECIFICATION<THN> (A) 		1-82640-982-0 01 1 9911- ●
13 HARNESS; ENG
EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) (A) 		1-82640-714-0 01 1 9510-9609 ●
13 HARNESS; ENG
EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> (A) 		1-82640-714-0 01 1 9610-9802 ●
13 HARNESS; ENG
EXC. AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> (A) 		1-82640-714-0 01 1 9803-0004 ●
13 HARNESS; ENG
EXC. EURO2 SPECIFICATION<THN> (A) 		1-82640-714-0 01 1 0005-0010 ●
13 HARNESS; ENG
6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L) EXC. EURO2 SPECIFICATION<THN> (A) 		1-82640-714-0 01 1 0011- ●
13 HARNESS; ENG
6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN> (A) 		1-82641-019-2 01 1 9911-0004 ●
13 HARNESS; ENG
6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> (A) 		1-82641-138-0 01 1 0005- ●
13 HARNESS; ENG
6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (A) 		1-82641-019-2 01 1 0011-0405 ●
13 HARNESS; ENG
6HH1 STD 4VALVE ENG(1A6),6HK1 TCC ENG(81L) EXC. EURO2 SPECIFICATION<THN> (A) 		1-82641-019-2 01 1 0406- ●
13 HARNESS; ENG
AUSTRALIA EQUIPMENT(RR3) (A) 		1-82640-715-1 01 1 9510-9802 ● ●
13 HARNESS; ENG
AUSTRALIA EQUIPMENT(RR3) (A) 		1-82640-715-1 01 1 9803-0004 ●
13 HARNESS; ENG
(A) 		1-82640-715-1 01 1 9803-0004 ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L) POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> NEW ZEALAND EQUIPMENT(PK5) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> (B) 		1-82662-863-2 01 1 0601- ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L) POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) CUSTOM CAB(SR5) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> (B) 		1-82662-210-0 01 1 0406-0512 ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L) POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) CUSTOM CAB(SR5) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> (B) 		1-82662-210-2 01 1 0601- ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L) POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) CUSTOM CAB(SR5) ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82662-209-0 01 1 0406-0512 ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L) POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) CUSTOM CAB(SR5) ISUZU M/T<X9A> EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ>,MIR STAY O/S W/REMOTE<TBA> (B) 		1-82662-209-2 01 1 0601- ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) (A) 		1-82662-207-0 01 1 0406- ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) CUSTOM CAB(SR5) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> (B) 		1-82661-621-4 01 1 0212- ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) CUSTOM CAB(SR5) ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82661-620-4 01 1 0212- ●
467 HARNESS; FACIA
EURO2 SPECIFICATION<THN> HEADLAMPS RECTANGULAR<TR4> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), NEWZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),V ENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-82629-336-0 01 1 9911-0004 ●
467 HARNESS; FACIA
ENGINE OVERRUN BUZZER<SK4> EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-82625-737-1 01 1 9510-9609 ●
467 HARNESS; FACIA
ENGINE OVERRUN BUZZER<SK4> EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ),EURO2 SPECIFICATION<THN> (A) 		1-82625-737-2 01 1 9610-9802 ●
467 HARNESS; FACIA
ENGINE OVERRUN BUZZER<SK4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (A) 		1-82625-737-3 01 1 9803-0004 ●
467 HARNESS; FACIA
ENGINE OVERRUN BUZZER<SK4> MIR STAY O/S W/REMOTE<TBA> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),EURO2 SPECIFICATION<THN> (A) 		1-82627-088-1 01 1 9803-0004 ●
467 HARNESS; FACIA
HEADLAMPS RECTANGULAR<TR4> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), NEWZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9),AU STRALIA EQUIPMENT(RR3),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-82625-698-5 01 1 9510-9802 ●
467 HARNESS; FACIA
HEADLAMPS RECTANGULAR<TR4> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), NEWZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),V ENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-82625-698-7 01 1 9803-9910 ●
467 HARNESS; FACIA
HEADLAMPS RECTANGULAR<TR4> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), NEWZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),V ENTILATOR & DEFROSTER WO/HEATER(SAZ),EURO2 SPECIFICATION<THN> (B) 		1-82625-698-7 01 1 9911-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. ENGINE OVERRUN BUZZER<SK4>,EURO2 SPECIFICATION<THN> (A) 		1-82625-708-4 01 1 9803-0004 ●
467 HARNESS; FACIA
(A) 		1-82625-708-4 01 1 9803-0004 ●
467 HARNESS; FACIA
A/T<X9D> EURO2 SPECIFICATION<THN> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-265-6 01 1 0005- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ENGINE OVERRUN BUZZER<SK4> MIR STAY O/S W/REMOTE<TBA> EXC. EURO2 SPECIFICATION<THN> (A) 		1-82627-089-1 01 1 9803-0004 ●
467 HARNESS; FACIA
ENGINE OVERRUN BUZZER<SK4> (A) 		1-82627-089-1 01 1 0005-0010 ●
467 HARNESS; FACIA
MIR STAY O/S W/REMOTE<TBA> EXC. ENGINE OVERRUN BUZZER<SK4> (A) 		1-82627-089-1 01 1 0005-0010 ●
467 HARNESS; FACIA
6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) ENGINE OVERRUN BUZZER<SK4> (A) 		1-82627-089-3 01 1 0011- ●
467 HARNESS; FACIA
6HH1 STD ENG(65L) MIR STAY O/S W/REMOTE<TBA> EXC. ENGINE OVERRUN BUZZER<SK4> (A) 		1-82627-089-3 01 1 0011- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ENGINE OVERRUN BUZZER<SK4> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-82627-089-3 01 1 0011- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30> (B) 		1-82625-694-6 01 1 9510-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30> (B) 		1-82627-079-2 01 1 9803-9806 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,ELEC OUTLET 12V<TAW>,EURO2 SPECIFICATION<THN> (B) 		1-82627-079-3 01 1 9807-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> EXC. POWER WINDOW<A30> (B) 		1-82625-696-6 01 1 9510-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> EXC. POWER WINDOW<A30> (B) 		1-82627-081-2 01 1 9803-9806 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> EXC. POWER WINDOW<A30>,ELEC OUTLET 12V<TAW> (B) 		1-82627-081-3 01 1 9807-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) ELEC OUTLET 12V<TAW> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> EXC. POWER WINDOW<A30> (B) 		1-82628-142-1 01 1 9807-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) ELEC OUTLET 12V<TAW> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,EURO2 SPECIFICATION<THN> (B) 		1-82628-147-1 01 1 9807-0004 ●
467 HARNESS; FACIA
ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA>, EURO2 SPECIFICATION<THN> (B) 		1-82629-240-5 01 1 0005- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> EXC. ENGINE OVERRUN BUZZER<SK4> (A) 		1-82626-344-1 01 1 9610-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> EXC. ENGINE OVERRUN BUZZER<SK4> (A) 		1-82626-344-2 01 1 9803-0004 ●
467 HARNESS; FACIA
ISUZU M/T<X9A> EURO2 SPECIFICATION<THN> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-245-5 01 1 0005- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> HEADLAMPS RECTANGULAR<TR4> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,NEW ZEALAND EQUIPMENT(PK5), AUSTRALIA EQUIPMENT(RR3) (B) 		1-82629-337-0 01 1 9911-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ENGINE OVERRUN BUZZER<SK4> (A) 		1-82625-738-1 01 1 9510-9609 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ENGINE OVERRUN BUZZER<SK4> EXC. EURO2 SPECIFICATION<THN> (A) 		1-82625-738-2 01 1 9610-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ENGINE OVERRUN BUZZER<SK4> EXC. MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (A) 		1-82625-738-3 01 1 9803-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA>, EURO2 SPECIFICATION<THN> (B) 		1-82629-241-5 01 1 0005- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. ENGINE OVERRUN BUZZER<SK4> (A) 		1-82625-708-2 01 1 9510-9609 ●
467 HARNESS; FACIA
(A) 		1-82625-708-2 01 1 9510-9609 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. ENGINE OVERRUN BUZZER<SK4>,EURO2 SPECIFICATION<THN> (A) 		1-82625-708-3 01 1 9610-9802 ●
467 HARNESS; FACIA
(A) 		1-82625-708-3 01 1 9610-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS RECTANGULAR<TR4> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,NEW ZEALAND EQUIPMENT(PK5), THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) (B) 		1-82625-699-5 01 1 9510-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS RECTANGULAR<TR4> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,NEW ZEALAND EQUIPMENT(PK5), AUSTRALIA EQUIPMENT(RR3) (B) 		1-82625-699-7 01 1 9803-9910 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS RECTANGULAR<TR4> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,NEW ZEALAND EQUIPMENT(PK5), AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> (B) 		1-82625-699-7 01 1 9911-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3) (B) 		1-82625-689-3 01 1 9510-9609 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> (B) 		1-82625-689-5 01 1 9610-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,AUSTRALIA EQUIPMENT(RR3), MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (B) 		1-82625-689-7 01 1 9803-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. POWER WINDOW<A30>,THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-746-0 01 1 9610-9612 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. POWER WINDOW<A30>,THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-938-1 01 1 9701-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. POWER WINDOW<A30>,AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-938-4 01 1 9803-0004 ●
467 HARNESS; FACIA
AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-262-5 01 1 0005- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MIR STAY O/S W/REMOTE<TBA> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,AUSTRALIA EQUIPMENT(RR3), EURO2 SPECIFICATION<THN> (B) 		1-82627-076-4 01 1 9803-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) THAILAND EQUIPMENT(PM9) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30> (B) 		1-82625-691-5 01 1 9510-9802 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MIR STAY O/S W/REMOTE<TBA> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> (B) 		1-82627-074-4 01 1 9803-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-246-5 01 1 0005- ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ),ENGINE OVERRUN BUZZER<SK4> (A) 		1-82625-707-2 01 1 9510-9609 ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ),ENGINE OVERRUN BUZZER<SK4>,EURO2 SPECIFICATION<THN> (A) 		1-82625-707-3 01 1 9610-9802 ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),ENGINE OVERRUN BUZZER<SK4>,EURO2 SPECIFICATION<THN> (A) 		1-82625-707-5 01 1 9803-0004 ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),ENGINE OVERRUN BUZZER<SK4>,MIR STAY O/S W/REMOTE<TBA> (A) 		1-82625-707-7 01 1 0005- ●
467 HARNESS; FACIA
POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-263-5 01 1 0005- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) (B) 		1-82625-690-3 01 1 9510-9609 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> (B) 		1-82625-690-5 01 1 9610-9802 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. AUSTRALIA EQUIPMENT(RR3),MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (B) 		1-82625-690-7 01 1 9803-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> A/T<X9D> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-264-6 01 1 0005- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> (B) 		1-82625-695-6 01 1 9510-9802 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> (B) 		1-82627-078-2 01 1 9803-9806 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. ELEC OUTLET 12V<TAW>,EURO2 SPECIFICATION<THN> (B) 		1-82627-078-3 01 1 9807-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. ENGINE OVERRUN BUZZER<SK4>,MIR STAY O/S W/REMOTE<TBA> (A) 		1-82629-294-2 01 1 0005- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> (B) 		1-82625-697-6 01 1 9510-9802 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> (B) 		1-82627-080-2 01 1 9803-9806 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> EXC. ELEC OUTLET 12V<TAW> (B) 		1-82627-080-3 01 1 9807-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,EURO2 SPECIFICATION<THN> (B) 		1-82629-242-5 01 1 0005- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-747-0 01 1 9610-9612 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-939-1 01 1 9701-9802 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-939-4 01 1 9803-0004 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> EXC. EURO2 SPECIFICATION<THN> (B) 		1-82629-244-1 01 1 0005-0010 ●
467 HARNESS; FACIA
6HH1 STD ENG(65L) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> (B) 		1-82629-244-5 01 1 0011- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN> (B) 		1-82629-244-5 01 1 0011- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) ELEC OUTLET 12V<TAW> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> (B) 		1-82628-143-1 01 1 9807-0004 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (B) 		1-82629-243-1 01 1 0005-0010 ●
467 HARNESS; FACIA
6HH1 STD ENG(65L) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-243-5 01 1 0011- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (B) 		1-82629-243-5 01 1 0011- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) ELEC OUTLET 12V<TAW> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. EURO2 SPECIFICATION<THN> (B) 		1-82628-148-1 01 1 9807-0004 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-247-5 01 1 0005- ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) ENGINE OVERRUN BUZZER<SK4> (A) 		1-82629-902-2 01 1 0011- ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) MIR STAY O/S W/REMOTE<TBA> EXC. ENGINE OVERRUN BUZZER<SK4> (A) 		1-82629-902-2 01 1 0011- ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-904-2 01 1 0011-0211 ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> EXC. CUSTOM CAB(SR5),MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-904-5 01 1 0212- ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> (B) 		1-82629-905-2 01 1 0011-0211 ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> EXC. CUSTOM CAB(SR5) (B) 		1-82629-905-5 01 1 0212- ●
467 HARNESS; FACIA
AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-065-3 01 1 9510-9802 ●
467 HARNESS; FACIA
(B) 		1-82627-082-2 01 1 9803-9806 ●
467 HARNESS; FACIA
EXC. ELEC OUTLET 12V<TAW> (B) 		1-82627-082-3 01 1 9807-0004 ●
467 HARNESS; FACIA
ELEC OUTLET 12V<TAW> (B) 		1-82628-146-1 01 1 9807-0004 ●
486 HARNESS; ALL SPEED ACCEL
6HK1 TCC ENG(81L) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82675-898-0 01 1 0406- ●
488 HARNESS; EXT,CONVERTER
ELEC OUTLET 12V<TAW> W/FUSE 12V 6.3A 		1-82628-954-0 01 1 0009-0603 ●
488 HARNESS; EXT,CONVERTER
ELEC OUTLET 12V<TAW> 		1-82662-883-0 01 1 0604- ●
573 HARNESS; CONTROL UNIT
6HK1 TCC ENG(81L) (B) 		1-82661-390-2 01 1 0406- ●
573 HARNESS; CONTROL UNIT
EURO2 SPECIFICATION<THN> (A) 		1-82626-745-4 01 1 9610- ●
573 HARNESS; CONTROL UNIT
6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (A) 		1-82629-908-2 01 1 0011- ●
çizim 136989
277 307 277 10 280 27 27 280 307 41 5 4 467 5 4 62 62 467 431 467 62
BalonParca AdiParca NoAdetTipApplied Date A B
4 BOX ASM; FUSE,HARNESS
6HK1 TCC ENG(81L) POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) CUSTOM CAB(SR5) ISUZU M/T<X9A> (A) 7.5AX13 		1-82510-421-0 01 1 0406-0512 ●
4 BOX ASM; FUSE,HARNESS
6HK1 TCC ENG(81L) POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> NEW ZEALAND EQUIPMENT(PK5) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> (A) 7.5AX13 		1-82510-421-0 01 1 0601- ●
4 BOX ASM; FUSE,HARNESS
6HK1 TCC ENG(81L) POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) CUSTOM CAB(SR5) ISUZU M/T<X9A> EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> (A) 7.5AX13 		1-82510-421-0 01 1 0601- ●
4 BOX ASM; FUSE,HARNESS
A/T<X9D> (B) 15AX12 		1-82510-432-0 01 1 9701-9806 ●
4 BOX ASM; FUSE,HARNESS
A/T<X9D> EXC. ELEC OUTLET 12V<TAW> (B) 15AX12 		1-82510-432-0 01 1 9807-0004 ●
4 BOX ASM; FUSE,HARNESS
A/T<X9D> ELEC OUTLET 12V<TAW> (B) 15AX13 		1-82510-475-0 01 1 9807-0004 ●
4 BOX ASM; FUSE,HARNESS
EURO2 SPECIFICATION<THN> (B) 7.5AX2 15AX11 		1-82510-471-0 01 1 9610-9612 ●
4 BOX ASM; FUSE,HARNESS
ISUZU M/T<X9A> (B) 15AX13 		1-82510-475-0 01 1 9701-9710 ●
4 BOX ASM; FUSE,HARNESS
(B) 15AX13 		1-82510-475-0 01 1 9701-9710 ●
4 BOX ASM; FUSE,HARNESS
ISUZU M/T<X9A> (B) 15AX14 		1-82510-472-0 01 1 9711-9806 ●
4 BOX ASM; FUSE,HARNESS
(B) 15AX14 		1-82510-472-0 01 1 9711-9806 ●
4 BOX ASM; FUSE,HARNESS
ISUZU M/T<X9A> EXC. ELEC OUTLET 12V<TAW> (B) 15AX14 		1-82510-472-0 01 1 9807-0004 ●
4 BOX ASM; FUSE,HARNESS
EXC. ELEC OUTLET 12V<TAW> (B) 15AX14 		1-82510-472-0 01 1 9807-0004 ●
4 BOX ASM; FUSE,HARNESS
A/T<X9D> (B) 15AX14 		1-82510-472-0 01 1 0005-0203 ●
4 BOX ASM; FUSE,HARNESS
A/T<X9D> (A) 7.5AX15 		1-82510-391-0 01 1 0204-0207 ●
4 BOX ASM; FUSE,HARNESS
A/T<X9D> (A) 7.5AX15 		1-82510-391-0 01 1 0208- ●
4 BOX ASM; FUSE,HARNESS
6HH1 STD 4VALVE ENG(1A6) ISUZU M/T<X9A> NEW ZEALAND EQUIPMENT(PK5) (A) 7.5AX15 		1-82510-391-0 01 1 0208- ●
4 BOX ASM; FUSE,HARNESS
ISUZU M/T<X9A> (B) 15AX16 		1-82510-397-0 01 1 0005- ●
4 BOX ASM; FUSE,HARNESS
ISUZU M/T<X9A> (A) 7.5AX18 		1-82510-422-0 01 1 0005-0010 ●
4 BOX ASM; FUSE,HARNESS
ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 7.5AX18 		1-82510-422-0 01 1 0011- ●
4 BOX ASM; FUSE,HARNESS
ISUZU M/T<X9A> 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) (A) 7.5AX18 		1-82510-422-0 01 1 0011- ●
4 BOX ASM; FUSE,HARNESS
ISUZU M/T<X9A> ELEC OUTLET 12V<TAW> (B) 15AX15 		1-82510-521-0 01 1 9807-0004 ●
4 BOX ASM; FUSE,HARNESS
ELEC OUTLET 12V<TAW> (B) 15AX15 		1-82510-521-0 01 1 9807-0004 ●
4 BOX ASM; FUSE,HARNESS
ISUZU M/T<X9A> EXC. EURO2 SPECIFICATION<THN> (A) 7.5AX14 		1-82510-486-0 01 1 9711-9802 ●
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX14 		1-82510-486-0 01 1 9711-9802 ●
4 BOX ASM; FUSE,HARNESS
ISUZU M/T<X9A> (A) 7.5AX14 		1-82510-486-0 01 1 9803-0004 ●
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX14 		1-82510-486-0 01 1 9803-0004 ●
4 BOX ASM; FUSE,HARNESS
A/T<X9D> (A) 7.5AX14 		1-82510-486-0 01 1 0005-0203 ●
4 BOX ASM; FUSE,HARNESS
A/T<X9D> (B) 15AX15 		1-82510-521-0 01 1 0204-0405 ●
4 BOX ASM; FUSE,HARNESS
EURO2 SPECIFICATION<THN> A/T<X9D> EXC. POWER WINDOW<A30>,AIR CONDITIONER MANUAL CONTROL(C60),MIR STAY O/S W/REMOTE<TBA> (B) 15AX15 		1-82510-521-0 01 1 0406-0512 ●
4 BOX ASM; FUSE,HARNESS
6HK1 TCC ENG(81L) POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) CUSTOM CAB(SR5) ISUZU M/T<X9A> (B) 15AX15 		1-82510-521-0 01 1 0406-0512 ●
4 BOX ASM; FUSE,HARNESS
6HK1 TCC ENG(81L) POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> NEW ZEALAND EQUIPMENT(PK5) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> (B) 15AX15 		1-82510-521-0 01 1 0601- ●
4 BOX ASM; FUSE,HARNESS
EURO2 SPECIFICATION<THN> A/T<X9D> EXC. POWER WINDOW<A30>,AIR CONDITIONER MANUAL CONTROL(C60),MIR STAY O/S W/REMOTE<TBA> (B) 15AX15 		1-82510-521-0 01 1 0601- ●
4 BOX ASM; FUSE,HARNESS
6HK1 TCC ENG(81L) POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) CUSTOM CAB(SR5) ISUZU M/T<X9A> EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> (B) 15AX15 		1-82510-521-0 01 1 0601- ●
4 BOX ASM; FUSE,HARNESS
ISUZU M/T<X9A> 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (A) 7.5AX16 		1-82510-395-0 01 1 0011-0207 ●
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX13 		1-82510-421-0 01 1 9510-9612 ● ●
4 BOX ASM; FUSE,HARNESS
A/T<X9D> (A) 7.5AX13 		1-82510-421-0 01 1 9701-0004 ●
4 BOX ASM; FUSE,HARNESS
(B) 15AX11 		1-82510-431-0 01 1 9510-9609 ● ●
4 BOX ASM; FUSE,HARNESS
EXC. EURO2 SPECIFICATION<THN> (B) 15AX11 		1-82510-431-0 01 1 9610-9612 ●
4 BOX ASM; FUSE,HARNESS
(B) 15AX11 		1-82510-431-0 01 1 9610-9612 ●
4 BOX ASM; FUSE,HARNESS
ISUZU M/T<X9A> (A) 7.5AX14 		1-82510-265-0 01 1 9701-9710 ●
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX14 		1-82510-265-0 01 1 9701-9710 ●
4 BOX ASM; FUSE,HARNESS
EURO2 SPECIFICATION<THN> (A) 7.5AX14 		1-82510-265-0 01 1 9711-9802 ●
5 FUSE; FACIA HARNESS
15A BLUE 		5-82516-003-0 AR 1 0005- ●
5 FUSE; FACIA HARNESS
7.5A BROWN 		8-94159-007-0 AR 1 0005- ●
10 BOX; FUSE,HARNESS
6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82510-408-0 01 1 0406- ●
10 BOX; FUSE,HARNESS 1-82510-409-0 01 1 9510-0004 ● ●
10 BOX; FUSE,HARNESS 1-82510-409-0 01 1 0005-0405 ●
10 BOX; FUSE,HARNESS
ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN> 		1-82510-409-0 01 1 0406- ●
10 BOX; FUSE,HARNESS
EURO2 SPECIFICATION<THN> ISUZU M/T<X9A>,A/T<X9D> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82510-409-0 01 1 0406- ●
10 BOX; FUSE,HARNESS
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82510-409-0 01 1 0406- ●
27 FUSE UNIT
6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> (A) 40A GREEN 		8-94468-662-0 04 1 0406- ●
27 FUSE UNIT
(A) 40A GREEN 		8-94468-662-0 03 1 9510-0004 ● ●
27 FUSE UNIT
(A) 40A GREEN 		8-94468-662-0 03 1 0005-0405 ●
27 FUSE UNIT
ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN> (A) 40A GREEN 		8-94468-662-0 03 1 0406- ●
27 FUSE UNIT
EURO2 SPECIFICATION<THN> ISUZU M/T<X9A>,A/T<X9D> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 40A GREEN 		8-94468-662-0 03 1 0406- ●
27 FUSE UNIT
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> (A) 40A GREEN 		8-94468-662-0 03 1 0406- ●
27 FUSE UNIT
(B) 60A YELLOW 		8-94468-669-0 01 1 9510-0004 ● ●
27 FUSE UNIT
(B) 60A YELLOW 		8-94468-669-0 01 1 0005- ●
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 9510-0004 ● ●
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 0005- ●
62 DIODE; HARNESS
(B) 10P BROWN 		1-82699-601-0 AR 1 0005- ●
62 DIODE; HARNESS
(A) BLACK 10P 		1-82699-703-0 AR 1 0005- ●
62 DIODE; HARNESS
(C) BLACK 2P-1.5A 		8-94422-639-1 AR 1 0005- ●
62 DIODE; HARNESS
(B) 10P BROWN 		1-82699-601-0 AR 1 9510-0004 ● ●
62 DIODE; HARNESS
(A) BLACK 10P 		1-82699-703-0 AR 1 9510-0004 ● ●
62 DIODE; HARNESS
(C) BLACK 2P-1.5A 		8-94422-639-1 AR 1 9510-0004 ● ●
277 BOLT; BOX ASM FIX
EURO2 SPECIFICATION<THN> (B) M8X25 FLANGE 		0-28680-825-0 02 1 9610-0512 ●
277 BOLT; BOX ASM FIX
EURO2 SPECIFICATION<THN> (B) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
277 BOLT; BOX ASM FIX
6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (C) M8X25 W/LK&PL WASHER 		1-09980-479-0 02 1 0011-0405 ●
277 BOLT; BOX ASM FIX
6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (C) M8X25 W/LK&PL WASHER 		1-09980-479-0 02 1 0406-0801 ●
277 BOLT; BOX ASM FIX
6HK1 TCC ENG(81L) (C) M8X25 W/LK&PL WASHER 		1-09980-479-0 02 1 0406-0801 ●
277 BOLT; BOX ASM FIX
6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (C) M8X25 W/LK&PL WASHER 		1-09980-548-0 02 1 0802- ●
277 BOLT; BOX ASM FIX
6HK1 TCC ENG(81L) (C) M8X25 W/LK&PL WASHER 		1-09980-548-0 02 1 0802- ●
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50140-625-0 02 1 9510-0004 ● ●
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50140-625-0 02 1 0005-0512 ●
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50640-625-0 02 1 0601- ●
280 NUT; BOX ASM FIX
6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> M8 		9-09110-408-0 02 1 0011-0405 ●
280 NUT; BOX ASM FIX
6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> M8 		9-09110-408-0 02 1 0406-0512 ●
280 NUT; BOX ASM FIX
6HK1 TCC ENG(81L) M8 		9-09110-408-0 02 1 0406-0512 ●
280 NUT; BOX ASM FIX
6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> M8 		0-91110-508-0 02 1 0601- ●
280 NUT; BOX ASM FIX
6HK1 TCC ENG(81L) M8 		0-91110-508-0 02 1 0601- ●
307 BOX; ENG HARNESS
6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (A) 		1-82698-070-1 01 1 0011-0405 ●
307 BOX; ENG HARNESS
6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (A) 		1-82698-070-1 01 1 0406- ●
307 BOX; ENG HARNESS
6HK1 TCC ENG(81L) (A) 		1-82698-070-1 01 1 0406- ●
307 BOX; ENG HARNESS
6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (B) 		1-82698-138-0 01 1 0011-0405 ●
307 BOX; ENG HARNESS
6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (B) 		1-82698-138-0 01 1 0406- ●
307 BOX; ENG HARNESS
6HK1 TCC ENG(81L) (B) 		1-82698-138-0 01 1 0406- ●
431 CONNECTOR; JOINT
A/T<X9D> 3P & 3P 		1-82698-170-0 01 1 0204-0207 ●
431 CONNECTOR; JOINT
A/T<X9D> 3P & 3P 		1-82698-170-0 02 1 0208- ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L) POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> NEW ZEALAND EQUIPMENT(PK5) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> (B) 		1-82662-863-2 01 1 0601- ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L) POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) CUSTOM CAB(SR5) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> (B) 		1-82662-210-0 01 1 0406-0512 ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L) POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) CUSTOM CAB(SR5) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> (B) 		1-82662-210-2 01 1 0601- ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L) POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) CUSTOM CAB(SR5) ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82662-209-0 01 1 0406-0512 ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L) POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) CUSTOM CAB(SR5) ISUZU M/T<X9A> EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ>,MIR STAY O/S W/REMOTE<TBA> (B) 		1-82662-209-2 01 1 0601- ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) (A) 		1-82662-207-0 01 1 0406- ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) CUSTOM CAB(SR5) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> (B) 		1-82661-621-4 01 1 0212- ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) CUSTOM CAB(SR5) ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82661-620-4 01 1 0212- ●
467 HARNESS; FACIA
EURO2 SPECIFICATION<THN> HEADLAMPS RECTANGULAR<TR4> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), NEWZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),V ENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-82629-336-0 01 1 9911-0004 ●
467 HARNESS; FACIA
ENGINE OVERRUN BUZZER<SK4> EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-82625-737-1 01 1 9510-9609 ●
467 HARNESS; FACIA
ENGINE OVERRUN BUZZER<SK4> EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ),EURO2 SPECIFICATION<THN> (A) 		1-82625-737-2 01 1 9610-9802 ●
467 HARNESS; FACIA
ENGINE OVERRUN BUZZER<SK4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (A) 		1-82625-737-3 01 1 9803-0004 ●
467 HARNESS; FACIA
ENGINE OVERRUN BUZZER<SK4> MIR STAY O/S W/REMOTE<TBA> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),EURO2 SPECIFICATION<THN> (A) 		1-82627-088-1 01 1 9803-0004 ●
467 HARNESS; FACIA
HEADLAMPS RECTANGULAR<TR4> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), NEWZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9),AU STRALIA EQUIPMENT(RR3),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-82625-698-5 01 1 9510-9802 ●
467 HARNESS; FACIA
HEADLAMPS RECTANGULAR<TR4> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), NEWZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),V ENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-82625-698-7 01 1 9803-9910 ●
467 HARNESS; FACIA
HEADLAMPS RECTANGULAR<TR4> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), NEWZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),V ENTILATOR & DEFROSTER WO/HEATER(SAZ),EURO2 SPECIFICATION<THN> (B) 		1-82625-698-7 01 1 9911-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. ENGINE OVERRUN BUZZER<SK4>,EURO2 SPECIFICATION<THN> (A) 		1-82625-708-4 01 1 9803-0004 ●
467 HARNESS; FACIA
(A) 		1-82625-708-4 01 1 9803-0004 ●
467 HARNESS; FACIA
A/T<X9D> EURO2 SPECIFICATION<THN> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-265-6 01 1 0005- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ENGINE OVERRUN BUZZER<SK4> MIR STAY O/S W/REMOTE<TBA> EXC. EURO2 SPECIFICATION<THN> (A) 		1-82627-089-1 01 1 9803-0004 ●
467 HARNESS; FACIA
ENGINE OVERRUN BUZZER<SK4> (A) 		1-82627-089-1 01 1 0005-0010 ●
467 HARNESS; FACIA
MIR STAY O/S W/REMOTE<TBA> EXC. ENGINE OVERRUN BUZZER<SK4> (A) 		1-82627-089-1 01 1 0005-0010 ●
467 HARNESS; FACIA
6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) ENGINE OVERRUN BUZZER<SK4> (A) 		1-82627-089-3 01 1 0011- ●
467 HARNESS; FACIA
6HH1 STD ENG(65L) MIR STAY O/S W/REMOTE<TBA> EXC. ENGINE OVERRUN BUZZER<SK4> (A) 		1-82627-089-3 01 1 0011- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ENGINE OVERRUN BUZZER<SK4> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-82627-089-3 01 1 0011- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30> (B) 		1-82625-694-6 01 1 9510-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30> (B) 		1-82627-079-2 01 1 9803-9806 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,ELEC OUTLET 12V<TAW>,EURO2 SPECIFICATION<THN> (B) 		1-82627-079-3 01 1 9807-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> EXC. POWER WINDOW<A30> (B) 		1-82625-696-6 01 1 9510-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> EXC. POWER WINDOW<A30> (B) 		1-82627-081-2 01 1 9803-9806 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> EXC. POWER WINDOW<A30>,ELEC OUTLET 12V<TAW> (B) 		1-82627-081-3 01 1 9807-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) ELEC OUTLET 12V<TAW> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> EXC. POWER WINDOW<A30> (B) 		1-82628-142-1 01 1 9807-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) ELEC OUTLET 12V<TAW> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,EURO2 SPECIFICATION<THN> (B) 		1-82628-147-1 01 1 9807-0004 ●
467 HARNESS; FACIA
ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA>, EURO2 SPECIFICATION<THN> (B) 		1-82629-240-5 01 1 0005- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> EXC. ENGINE OVERRUN BUZZER<SK4> (A) 		1-82626-344-1 01 1 9610-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> EXC. ENGINE OVERRUN BUZZER<SK4> (A) 		1-82626-344-2 01 1 9803-0004 ●
467 HARNESS; FACIA
ISUZU M/T<X9A> EURO2 SPECIFICATION<THN> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-245-5 01 1 0005- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> HEADLAMPS RECTANGULAR<TR4> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,NEW ZEALAND EQUIPMENT(PK5), AUSTRALIA EQUIPMENT(RR3) (B) 		1-82629-337-0 01 1 9911-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ENGINE OVERRUN BUZZER<SK4> (A) 		1-82625-738-1 01 1 9510-9609 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ENGINE OVERRUN BUZZER<SK4> EXC. EURO2 SPECIFICATION<THN> (A) 		1-82625-738-2 01 1 9610-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ENGINE OVERRUN BUZZER<SK4> EXC. MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (A) 		1-82625-738-3 01 1 9803-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA>, EURO2 SPECIFICATION<THN> (B) 		1-82629-241-5 01 1 0005- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. ENGINE OVERRUN BUZZER<SK4> (A) 		1-82625-708-2 01 1 9510-9609 ●
467 HARNESS; FACIA
(A) 		1-82625-708-2 01 1 9510-9609 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. ENGINE OVERRUN BUZZER<SK4>,EURO2 SPECIFICATION<THN> (A) 		1-82625-708-3 01 1 9610-9802 ●
467 HARNESS; FACIA
(A) 		1-82625-708-3 01 1 9610-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS RECTANGULAR<TR4> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,NEW ZEALAND EQUIPMENT(PK5), THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) (B) 		1-82625-699-5 01 1 9510-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS RECTANGULAR<TR4> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,NEW ZEALAND EQUIPMENT(PK5), AUSTRALIA EQUIPMENT(RR3) (B) 		1-82625-699-7 01 1 9803-9910 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS RECTANGULAR<TR4> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,NEW ZEALAND EQUIPMENT(PK5), AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> (B) 		1-82625-699-7 01 1 9911-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3) (B) 		1-82625-689-3 01 1 9510-9609 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> (B) 		1-82625-689-5 01 1 9610-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,AUSTRALIA EQUIPMENT(RR3), MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (B) 		1-82625-689-7 01 1 9803-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. POWER WINDOW<A30>,THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-746-0 01 1 9610-9612 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. POWER WINDOW<A30>,THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-938-1 01 1 9701-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. POWER WINDOW<A30>,AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-938-4 01 1 9803-0004 ●
467 HARNESS; FACIA
AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-262-5 01 1 0005- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MIR STAY O/S W/REMOTE<TBA> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,AUSTRALIA EQUIPMENT(RR3), EURO2 SPECIFICATION<THN> (B) 		1-82627-076-4 01 1 9803-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) THAILAND EQUIPMENT(PM9) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30> (B) 		1-82625-691-5 01 1 9510-9802 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MIR STAY O/S W/REMOTE<TBA> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> (B) 		1-82627-074-4 01 1 9803-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-246-5 01 1 0005- ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ),ENGINE OVERRUN BUZZER<SK4> (A) 		1-82625-707-2 01 1 9510-9609 ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ),ENGINE OVERRUN BUZZER<SK4>,EURO2 SPECIFICATION<THN> (A) 		1-82625-707-3 01 1 9610-9802 ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),ENGINE OVERRUN BUZZER<SK4>,EURO2 SPECIFICATION<THN> (A) 		1-82625-707-5 01 1 9803-0004 ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),ENGINE OVERRUN BUZZER<SK4>,MIR STAY O/S W/REMOTE<TBA> (A) 		1-82625-707-7 01 1 0005- ●
467 HARNESS; FACIA
POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-263-5 01 1 0005- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) (B) 		1-82625-690-3 01 1 9510-9609 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> (B) 		1-82625-690-5 01 1 9610-9802 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. AUSTRALIA EQUIPMENT(RR3),MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (B) 		1-82625-690-7 01 1 9803-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> A/T<X9D> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-264-6 01 1 0005- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> (B) 		1-82625-695-6 01 1 9510-9802 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> (B) 		1-82627-078-2 01 1 9803-9806 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. ELEC OUTLET 12V<TAW>,EURO2 SPECIFICATION<THN> (B) 		1-82627-078-3 01 1 9807-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. ENGINE OVERRUN BUZZER<SK4>,MIR STAY O/S W/REMOTE<TBA> (A) 		1-82629-294-2 01 1 0005- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> (B) 		1-82625-697-6 01 1 9510-9802 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> (B) 		1-82627-080-2 01 1 9803-9806 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> EXC. ELEC OUTLET 12V<TAW> (B) 		1-82627-080-3 01 1 9807-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,EURO2 SPECIFICATION<THN> (B) 		1-82629-242-5 01 1 0005- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-747-0 01 1 9610-9612 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-939-1 01 1 9701-9802 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-939-4 01 1 9803-0004 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> EXC. EURO2 SPECIFICATION<THN> (B) 		1-82629-244-1 01 1 0005-0010 ●
467 HARNESS; FACIA
6HH1 STD ENG(65L) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> (B) 		1-82629-244-5 01 1 0011- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN> (B) 		1-82629-244-5 01 1 0011- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) ELEC OUTLET 12V<TAW> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> (B) 		1-82628-143-1 01 1 9807-0004 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (B) 		1-82629-243-1 01 1 0005-0010 ●
467 HARNESS; FACIA
6HH1 STD ENG(65L) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-243-5 01 1 0011- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (B) 		1-82629-243-5 01 1 0011- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) ELEC OUTLET 12V<TAW> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. EURO2 SPECIFICATION<THN> (B) 		1-82628-148-1 01 1 9807-0004 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-247-5 01 1 0005- ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) ENGINE OVERRUN BUZZER<SK4> (A) 		1-82629-902-2 01 1 0011- ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) MIR STAY O/S W/REMOTE<TBA> EXC. ENGINE OVERRUN BUZZER<SK4> (A) 		1-82629-902-2 01 1 0011- ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-904-2 01 1 0011-0211 ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> EXC. CUSTOM CAB(SR5),MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-904-5 01 1 0212- ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> (B) 		1-82629-905-2 01 1 0011-0211 ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> EXC. CUSTOM CAB(SR5) (B) 		1-82629-905-5 01 1 0212- ●
467 HARNESS; FACIA
AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-065-3 01 1 9510-9802 ●
467 HARNESS; FACIA
(B) 		1-82627-082-2 01 1 9803-9806 ●
467 HARNESS; FACIA
EXC. ELEC OUTLET 12V<TAW> (B) 		1-82627-082-3 01 1 9807-0004 ●
467 HARNESS; FACIA
ELEC OUTLET 12V<TAW> (B) 		1-82628-146-1 01 1 9807-0004 ●
çizim 137036
594 181 13 13 211 199
BalonParca AdiParca NoAdetTipApplied Date A B
13 HARNESS; ENG
6HK1 TCC ENG(81L) (B) 		1-82640-950-7 01 1 0406- ●
13 HARNESS; ENG
EURO2 SPECIFICATION<THN> (A) 		1-82640-793-1 01 1 9610-9802 ●
13 HARNESS; ENG
THAILAND EQUIPMENT(PM9) (A) 		1-82640-716-0 01 1 9510-9802 ●
13 HARNESS; ENG
EURO2 SPECIFICATION<THN> (A) 		1-82640-982-0 01 1 9803-9910 ●
13 HARNESS; ENG
6HE1 TCN ENG(58L) EURO2 SPECIFICATION<THN> (A) 		1-82640-982-0 01 1 9911- ●
13 HARNESS; ENG
EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) (A) 		1-82640-714-0 01 1 9510-9609 ●
13 HARNESS; ENG
EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> (A) 		1-82640-714-0 01 1 9610-9802 ●
13 HARNESS; ENG
EXC. AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> (A) 		1-82640-714-0 01 1 9803-0004 ●
13 HARNESS; ENG
EXC. EURO2 SPECIFICATION<THN> (A) 		1-82640-714-0 01 1 0005-0010 ●
13 HARNESS; ENG
6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L) EXC. EURO2 SPECIFICATION<THN> (A) 		1-82640-714-0 01 1 0011- ●
13 HARNESS; ENG
6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN> (A) 		1-82641-019-2 01 1 9911-0004 ●
13 HARNESS; ENG
6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> (A) 		1-82641-138-0 01 1 0005- ●
13 HARNESS; ENG
6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (A) 		1-82641-019-2 01 1 0011-0405 ●
13 HARNESS; ENG
6HH1 STD 4VALVE ENG(1A6),6HK1 TCC ENG(81L) EXC. EURO2 SPECIFICATION<THN> (A) 		1-82641-019-2 01 1 0406- ●
13 HARNESS; ENG
AUSTRALIA EQUIPMENT(RR3) (A) 		1-82640-715-1 01 1 9510-9802 ● ●
13 HARNESS; ENG
AUSTRALIA EQUIPMENT(RR3) (A) 		1-82640-715-1 01 1 9803-0004 ●
13 HARNESS; ENG
(A) 		1-82640-715-1 01 1 9803-0004 ●
181 NUT; GLOW PLUG HARNESS
EXC. THAILAND EQUIPMENT(PM9) M4 FLANGE 		5-09440-007-0 01 1 9510-9802 ●
181 NUT; GLOW PLUG HARNESS
M4 FLANGE 		5-09440-007-0 01 1 9510-9802 ●
181 NUT; GLOW PLUG HARNESS
M4 FLANGE 		5-09440-007-0 01 1 9803-0004 ● ●
181 NUT; GLOW PLUG HARNESS
6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L) M4 FLANGE 		5-09440-007-0 01 1 0005-0405 ●
181 NUT; GLOW PLUG HARNESS
6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L),6HK1 TCC ENG(81L) M4 FLANGE 		5-09440-007-0 01 1 0406- ●
199 HARNESS; STARTER
MLD6 M/T<X9Y> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82640-972-2 01 1 0406- ●
199 HARNESS; STARTER
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) MLD6 M/T<X9Y> EXC. EURO2 SPECIFICATION<THN> 		1-82640-962-5 01 1 0406- ●
199 HARNESS; STARTER
6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) MLD6 M/T<X9Y> EXC. EURO2 SPECIFICATION<THN> 		1-82640-974-2 01 1 0406- ●
199 HARNESS; STARTER
6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) MLD6 M/T<X9Y> 		1-82641-302-2 01 1 0406- ●
199 HARNESS; STARTER
A/T<X9D> 		1-82640-720-3 01 1 9510-0105 ●
199 HARNESS; STARTER
A/T<X9D> 		1-82641-206-2 01 1 0106- ●
199 HARNESS; STARTER
MBJ5 M/T<Y9A>,MBJ6 M/T<Y9B> NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-82640-667-1 01 1 9510-9711 ●
199 HARNESS; STARTER 1-82640-667-1 01 1 9510-9711 ●
199 HARNESS; STARTER
MBJ5 M/T<Y9A>,MBJ6 M/T<Y9B> NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-82640-966-0 01 1 9712-0004 ●
199 HARNESS; STARTER 1-82640-966-0 01 1 9712-0004 ●
199 HARNESS; STARTER
NEW ZEALAND EQUIPMENT(PK5) MBJ5 M/T<Y9A>,MBJ6 M/T<Y9B> 		1-82640-966-0 01 1 0005-0010 ●
199 HARNESS; STARTER
6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) MBJ5 M/T<Y9A>,MBJ6 M/T<Y9B> 		1-82640-966-1 01 1 0011- ●
199 HARNESS; STARTER
MBJ5 M/T<Y9A>,MBJ6 M/T<Y9B> EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-82640-717-1 01 1 9510-0004 ●
199 HARNESS; STARTER
MBJ5 M/T<Y9A>,MBJ6 M/T<Y9B> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82640-717-3 01 1 0005- ●
199 HARNESS; STARTER
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) MBJ5 M/T<Y9A>,MBJ6 M/T<Y9B> 		1-82640-961-4 01 1 0011- ●
211 WIRE; FUSIBLE LINK,STARTER
WHITE 		1-82659-124-0 01 1 9510-0004 ● ●
211 WIRE; FUSIBLE LINK,STARTER
WHITE 		1-82659-124-1 01 1 0005- ●
594 BOLT; GLOW PLUG HARNESS
6HH1 STD 4VALVE ENG(1A6) M4X10 W/LK&PL WASHER 		9-03920-410-0 01 1 0005-0405 ●
594 BOLT; GLOW PLUG HARNESS
6HH1 STD 4VALVE ENG(1A6),6HK1 TCC ENG(81L) M4X10 W/LK&PL WASHER 		9-03920-410-0 01 1 0406-0604 ●
594 BOLT; GLOW PLUG HARNESS
6HH1 STD 4VALVE ENG(1A6),6HK1 TCC ENG(81L) M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 0605- ●
çizim 184047
6 466 9
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82677-581-0 01 1 0406- ●
6 HARNESS; FRAME
AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> 		1-82639-008-3 01 1 9510-9802 ●
6 HARNESS; FRAME
AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> 		1-82670-479-0 01 1 9803-0004 ●
6 HARNESS; FRAME
EURO2 SPECIFICATION<THN> A/T<X9D> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82672-992-2 01 1 0005-0401 ●
6 HARNESS; FRAME
EURO2 SPECIFICATION<THN> A/T<X9D> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82677-450-0 01 1 0402- ●
6 HARNESS; FRAME
AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> 		1-82639-009-4 01 1 9510-9802 ●
6 HARNESS; FRAME
AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> 		1-82670-481-0 01 1 9803-0004 ●
6 HARNESS; FRAME
EURO2 SPECIFICATION<THN> HEADLAMPS RECTANGULAR<TR4> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-82673-186-0 01 1 9911-0004 ●
6 HARNESS; FRAME
EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82672-993-2 01 1 0005-0401 ●
6 HARNESS; FRAME
EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82677-451-0 01 1 0402- ●
6 HARNESS; FRAME
HEADLAMPS RECTANGULAR<TR4> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		1-82639-011-2 01 1 9510-9802 ●
6 HARNESS; FRAME
HEADLAMPS RECTANGULAR<TR4> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-82639-011-2 01 1 9803-9910 ●
6 HARNESS; FRAME
HEADLAMPS RECTANGULAR<TR4> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> 		1-82639-011-2 01 1 9911-0004 ●
6 HARNESS; FRAME
ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN> 		1-82672-990-2 01 1 0005-0401 ●
6 HARNESS; FRAME
ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN> 		1-82677-448-0 01 1 0402- ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		1-82670-042-0 01 1 9610-9612 ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		1-82670-196-0 01 1 9701-9802 ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-82670-196-1 01 1 9803-0004 ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		1-82639-006-2 01 1 9510-9609 ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> 		1-82639-006-2 01 1 9610-9802 ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> 		1-82639-006-2 01 1 9803-0004 ●
6 HARNESS; FRAME
NEW ZEALAND EQUIPMENT(PK5) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> 		1-82639-007-2 01 1 9510-0004 ●
6 HARNESS; FRAME
NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82672-991-2 01 1 0005-0010 ●
6 HARNESS; FRAME
6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82672-991-2 01 1 0011-0401 ●
6 HARNESS; FRAME
6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82677-449-0 01 1 0402- ●
6 HARNESS; FRAME
THAILAND EQUIPMENT(PM9) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> 		1-82639-010-2 01 1 9510-9802 ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> 		1-82670-960-1 01 1 0011- ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82674-043-0 01 1 0011-0102 ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82674-715-1 01 1 0103-0401 ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82677-457-0 01 1 0402- ●
6 HARNESS; FRAME 1-82639-386-4 01 1 9510-9802 ●
6 HARNESS; FRAME 1-82670-480-0 01 1 9803-0004 ●
9 HARNESS; FRAME,RR
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82639-033-2 01 1 9510-9802 ●
9 HARNESS; FRAME,RR
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82670-490-0 01 1 9803- ●
9 HARNESS; FRAME,RR
WHEEL BASE 3700MM(37W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82639-023-0 01 1 9510- ●
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82639-034-2 01 1 9510-9802 ●
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82670-491-0 01 1 9803- ●
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82639-024-0 01 1 9510- ●
9 HARNESS; FRAME,RR
WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3) 		1-82639-035-2 01 1 9510-9802 ●
9 HARNESS; FRAME,RR
WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82670-492-0 01 1 9803- ●
9 HARNESS; FRAME,RR
WHEEL BASE 4800MM(48W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AUSTRALIA EQUIPMENT(RR3) 		1-82639-025-0 01 1 9510-9802 ●
9 HARNESS; FRAME,RR
WHEEL BASE 4800MM(48W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82639-025-0 01 1 9803- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5500MM(55W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82639-026-0 01 1 0005- ●
9 HARNESS; FRAME,RR
WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) 		1-82639-036-3 01 1 9510-9802 ● ●
9 HARNESS; FRAME,RR
WHEEL BASE 5100MM(51W) 		1-82670-493-0 01 1 9803-0004 ●
9 HARNESS; FRAME,RR 1-82670-493-0 01 1 9803-0004 ●
9 HARNESS; FRAME,RR
WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82673-006-0 01 1 0005- ●
466 HARNESS; BUMPER
HEADLAMPS RECTANGULAR<TR4> 		1-82638-996-1 01 1 9510-0004 ●
466 HARNESS; BUMPER
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82638-758-1 01 1 9510-0004 ●
466 HARNESS; BUMPER 1-82638-758-1 01 1 9510-0004 ●
466 HARNESS; BUMPER
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82638-758-1 01 1 0005-0512 ●
466 HARNESS; BUMPER
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82638-758-1 01 1 0601- ●
çizim 184051
6 466 9
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82677-581-0 01 1 0406- ●
6 HARNESS; FRAME
AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> 		1-82639-008-3 01 1 9510-9802 ●
6 HARNESS; FRAME
AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> 		1-82670-479-0 01 1 9803-0004 ●
6 HARNESS; FRAME
EURO2 SPECIFICATION<THN> A/T<X9D> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82672-992-2 01 1 0005-0401 ●
6 HARNESS; FRAME
EURO2 SPECIFICATION<THN> A/T<X9D> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82677-450-0 01 1 0402- ●
6 HARNESS; FRAME
AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> 		1-82639-009-4 01 1 9510-9802 ●
6 HARNESS; FRAME
AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> 		1-82670-481-0 01 1 9803-0004 ●
6 HARNESS; FRAME
EURO2 SPECIFICATION<THN> HEADLAMPS RECTANGULAR<TR4> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-82673-186-0 01 1 9911-0004 ●
6 HARNESS; FRAME
EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82672-993-2 01 1 0005-0401 ●
6 HARNESS; FRAME
EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82677-451-0 01 1 0402- ●
6 HARNESS; FRAME
HEADLAMPS RECTANGULAR<TR4> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		1-82639-011-2 01 1 9510-9802 ●
6 HARNESS; FRAME
HEADLAMPS RECTANGULAR<TR4> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-82639-011-2 01 1 9803-9910 ●
6 HARNESS; FRAME
HEADLAMPS RECTANGULAR<TR4> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> 		1-82639-011-2 01 1 9911-0004 ●
6 HARNESS; FRAME
ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN> 		1-82672-990-2 01 1 0005-0401 ●
6 HARNESS; FRAME
ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN> 		1-82677-448-0 01 1 0402- ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		1-82670-042-0 01 1 9610-9612 ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		1-82670-196-0 01 1 9701-9802 ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-82670-196-1 01 1 9803-0004 ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		1-82639-006-2 01 1 9510-9609 ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> 		1-82639-006-2 01 1 9610-9802 ●
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> 		1-82639-006-2 01 1 9803-0004 ●
6 HARNESS; FRAME
NEW ZEALAND EQUIPMENT(PK5) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> 		1-82639-007-2 01 1 9510-0004 ●
6 HARNESS; FRAME
NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82672-991-2 01 1 0005-0010 ●
6 HARNESS; FRAME
6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82672-991-2 01 1 0011-0401 ●
6 HARNESS; FRAME
6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82677-449-0 01 1 0402- ●
6 HARNESS; FRAME
THAILAND EQUIPMENT(PM9) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> 		1-82639-010-2 01 1 9510-9802 ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> 		1-82670-960-1 01 1 0011- ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82674-043-0 01 1 0011-0102 ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82674-715-1 01 1 0103-0401 ●
6 HARNESS; FRAME
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> 		1-82677-457-0 01 1 0402- ●
6 HARNESS; FRAME 1-82639-386-4 01 1 9510-9802 ●
6 HARNESS; FRAME 1-82670-480-0 01 1 9803-0004 ●
9 HARNESS; FRAME,RR
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82639-033-2 01 1 9510-9802 ●
9 HARNESS; FRAME,RR
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82670-490-0 01 1 9803- ●
9 HARNESS; FRAME,RR
WHEEL BASE 3700MM(37W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82639-023-0 01 1 9510- ●
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82639-034-2 01 1 9510-9802 ●
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82670-491-0 01 1 9803- ●
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82639-024-0 01 1 9510- ●
9 HARNESS; FRAME,RR
WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3) 		1-82639-035-2 01 1 9510-9802 ●
9 HARNESS; FRAME,RR
WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82670-492-0 01 1 9803- ●
9 HARNESS; FRAME,RR
WHEEL BASE 4800MM(48W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AUSTRALIA EQUIPMENT(RR3) 		1-82639-025-0 01 1 9510-9802 ●
9 HARNESS; FRAME,RR
WHEEL BASE 4800MM(48W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82639-025-0 01 1 9803- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5500MM(55W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82639-026-0 01 1 0005- ●
9 HARNESS; FRAME,RR
WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) 		1-82639-036-3 01 1 9510-9802 ● ●
9 HARNESS; FRAME,RR
WHEEL BASE 5100MM(51W) 		1-82670-493-0 01 1 9803-0004 ●
9 HARNESS; FRAME,RR 1-82670-493-0 01 1 9803-0004 ●
9 HARNESS; FRAME,RR
WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82673-006-0 01 1 0005- ●
466 HARNESS; BUMPER
HEADLAMPS RECTANGULAR<TR4> 		1-82638-996-1 01 1 9510-0004 ●
466 HARNESS; BUMPER
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82638-758-1 01 1 9510-0004 ●
466 HARNESS; BUMPER 1-82638-758-1 01 1 9510-0004 ●
466 HARNESS; BUMPER
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82638-758-1 01 1 0005-0512 ●
466 HARNESS; BUMPER
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82638-758-1 01 1 0601- ●
çizim 184071
467 14 467 14
BalonParca AdiParca NoAdetTipApplied Date A B
14 HARNESS; HEADLAMP
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-82662-226-0 02 1 0601- ●
14 HARNESS; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82628-706-0 01 1 0212- ●
14 HARNESS; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82628-707-0 01 1 0212- ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L) POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> NEW ZEALAND EQUIPMENT(PK5) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> (B) 		1-82662-863-2 01 1 0601- ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L) POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) CUSTOM CAB(SR5) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> (B) 		1-82662-210-0 01 1 0406-0512 ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L) POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) CUSTOM CAB(SR5) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> (B) 		1-82662-210-2 01 1 0601- ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L) POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) CUSTOM CAB(SR5) ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82662-209-0 01 1 0406-0512 ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L) POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) CUSTOM CAB(SR5) ISUZU M/T<X9A> EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ>,MIR STAY O/S W/REMOTE<TBA> (B) 		1-82662-209-2 01 1 0601- ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) (A) 		1-82662-207-0 01 1 0406- ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) CUSTOM CAB(SR5) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> (B) 		1-82661-621-4 01 1 0212- ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) CUSTOM CAB(SR5) ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82661-620-4 01 1 0212- ●
467 HARNESS; FACIA
EURO2 SPECIFICATION<THN> HEADLAMPS RECTANGULAR<TR4> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), NEWZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),V ENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-82629-336-0 01 1 9911-0004 ●
467 HARNESS; FACIA
ENGINE OVERRUN BUZZER<SK4> EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-82625-737-1 01 1 9510-9609 ●
467 HARNESS; FACIA
ENGINE OVERRUN BUZZER<SK4> EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ),EURO2 SPECIFICATION<THN> (A) 		1-82625-737-2 01 1 9610-9802 ●
467 HARNESS; FACIA
ENGINE OVERRUN BUZZER<SK4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (A) 		1-82625-737-3 01 1 9803-0004 ●
467 HARNESS; FACIA
ENGINE OVERRUN BUZZER<SK4> MIR STAY O/S W/REMOTE<TBA> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),EURO2 SPECIFICATION<THN> (A) 		1-82627-088-1 01 1 9803-0004 ●
467 HARNESS; FACIA
HEADLAMPS RECTANGULAR<TR4> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), NEWZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9),AU STRALIA EQUIPMENT(RR3),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-82625-698-5 01 1 9510-9802 ●
467 HARNESS; FACIA
HEADLAMPS RECTANGULAR<TR4> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), NEWZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),V ENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-82625-698-7 01 1 9803-9910 ●
467 HARNESS; FACIA
HEADLAMPS RECTANGULAR<TR4> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), NEWZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),V ENTILATOR & DEFROSTER WO/HEATER(SAZ),EURO2 SPECIFICATION<THN> (B) 		1-82625-698-7 01 1 9911-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. ENGINE OVERRUN BUZZER<SK4>,EURO2 SPECIFICATION<THN> (A) 		1-82625-708-4 01 1 9803-0004 ●
467 HARNESS; FACIA
(A) 		1-82625-708-4 01 1 9803-0004 ●
467 HARNESS; FACIA
A/T<X9D> EURO2 SPECIFICATION<THN> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-265-6 01 1 0005- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ENGINE OVERRUN BUZZER<SK4> MIR STAY O/S W/REMOTE<TBA> EXC. EURO2 SPECIFICATION<THN> (A) 		1-82627-089-1 01 1 9803-0004 ●
467 HARNESS; FACIA
ENGINE OVERRUN BUZZER<SK4> (A) 		1-82627-089-1 01 1 0005-0010 ●
467 HARNESS; FACIA
MIR STAY O/S W/REMOTE<TBA> EXC. ENGINE OVERRUN BUZZER<SK4> (A) 		1-82627-089-1 01 1 0005-0010 ●
467 HARNESS; FACIA
6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) ENGINE OVERRUN BUZZER<SK4> (A) 		1-82627-089-3 01 1 0011- ●
467 HARNESS; FACIA
6HH1 STD ENG(65L) MIR STAY O/S W/REMOTE<TBA> EXC. ENGINE OVERRUN BUZZER<SK4> (A) 		1-82627-089-3 01 1 0011- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ENGINE OVERRUN BUZZER<SK4> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-82627-089-3 01 1 0011- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30> (B) 		1-82625-694-6 01 1 9510-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30> (B) 		1-82627-079-2 01 1 9803-9806 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,ELEC OUTLET 12V<TAW>,EURO2 SPECIFICATION<THN> (B) 		1-82627-079-3 01 1 9807-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> EXC. POWER WINDOW<A30> (B) 		1-82625-696-6 01 1 9510-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> EXC. POWER WINDOW<A30> (B) 		1-82627-081-2 01 1 9803-9806 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> EXC. POWER WINDOW<A30>,ELEC OUTLET 12V<TAW> (B) 		1-82627-081-3 01 1 9807-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) ELEC OUTLET 12V<TAW> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> EXC. POWER WINDOW<A30> (B) 		1-82628-142-1 01 1 9807-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) ELEC OUTLET 12V<TAW> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,EURO2 SPECIFICATION<THN> (B) 		1-82628-147-1 01 1 9807-0004 ●
467 HARNESS; FACIA
ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA>, EURO2 SPECIFICATION<THN> (B) 		1-82629-240-5 01 1 0005- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> EXC. ENGINE OVERRUN BUZZER<SK4> (A) 		1-82626-344-1 01 1 9610-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> EXC. ENGINE OVERRUN BUZZER<SK4> (A) 		1-82626-344-2 01 1 9803-0004 ●
467 HARNESS; FACIA
ISUZU M/T<X9A> EURO2 SPECIFICATION<THN> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-245-5 01 1 0005- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> HEADLAMPS RECTANGULAR<TR4> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,NEW ZEALAND EQUIPMENT(PK5), AUSTRALIA EQUIPMENT(RR3) (B) 		1-82629-337-0 01 1 9911-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ENGINE OVERRUN BUZZER<SK4> (A) 		1-82625-738-1 01 1 9510-9609 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ENGINE OVERRUN BUZZER<SK4> EXC. EURO2 SPECIFICATION<THN> (A) 		1-82625-738-2 01 1 9610-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ENGINE OVERRUN BUZZER<SK4> EXC. MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (A) 		1-82625-738-3 01 1 9803-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA>, EURO2 SPECIFICATION<THN> (B) 		1-82629-241-5 01 1 0005- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. ENGINE OVERRUN BUZZER<SK4> (A) 		1-82625-708-2 01 1 9510-9609 ●
467 HARNESS; FACIA
(A) 		1-82625-708-2 01 1 9510-9609 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. ENGINE OVERRUN BUZZER<SK4>,EURO2 SPECIFICATION<THN> (A) 		1-82625-708-3 01 1 9610-9802 ●
467 HARNESS; FACIA
(A) 		1-82625-708-3 01 1 9610-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS RECTANGULAR<TR4> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,NEW ZEALAND EQUIPMENT(PK5), THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) (B) 		1-82625-699-5 01 1 9510-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS RECTANGULAR<TR4> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,NEW ZEALAND EQUIPMENT(PK5), AUSTRALIA EQUIPMENT(RR3) (B) 		1-82625-699-7 01 1 9803-9910 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS RECTANGULAR<TR4> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,NEW ZEALAND EQUIPMENT(PK5), AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> (B) 		1-82625-699-7 01 1 9911-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3) (B) 		1-82625-689-3 01 1 9510-9609 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> (B) 		1-82625-689-5 01 1 9610-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,AUSTRALIA EQUIPMENT(RR3), MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (B) 		1-82625-689-7 01 1 9803-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. POWER WINDOW<A30>,THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-746-0 01 1 9610-9612 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. POWER WINDOW<A30>,THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-938-1 01 1 9701-9802 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. POWER WINDOW<A30>,AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-938-4 01 1 9803-0004 ●
467 HARNESS; FACIA
AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-262-5 01 1 0005- ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MIR STAY O/S W/REMOTE<TBA> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,AUSTRALIA EQUIPMENT(RR3), EURO2 SPECIFICATION<THN> (B) 		1-82627-076-4 01 1 9803-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) THAILAND EQUIPMENT(PM9) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. POWER WINDOW<A30> (B) 		1-82625-691-5 01 1 9510-9802 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MIR STAY O/S W/REMOTE<TBA> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> (B) 		1-82627-074-4 01 1 9803-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-246-5 01 1 0005- ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ),ENGINE OVERRUN BUZZER<SK4> (A) 		1-82625-707-2 01 1 9510-9609 ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ),ENGINE OVERRUN BUZZER<SK4>,EURO2 SPECIFICATION<THN> (A) 		1-82625-707-3 01 1 9610-9802 ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),ENGINE OVERRUN BUZZER<SK4>,EURO2 SPECIFICATION<THN> (A) 		1-82625-707-5 01 1 9803-0004 ●
467 HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ),ENGINE OVERRUN BUZZER<SK4>,MIR STAY O/S W/REMOTE<TBA> (A) 		1-82625-707-7 01 1 0005- ●
467 HARNESS; FACIA
POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-263-5 01 1 0005- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) (B) 		1-82625-690-3 01 1 9510-9609 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> (B) 		1-82625-690-5 01 1 9610-9802 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. AUSTRALIA EQUIPMENT(RR3),MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (B) 		1-82625-690-7 01 1 9803-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> A/T<X9D> EXC. POWER WINDOW<A30>,MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-264-6 01 1 0005- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> (B) 		1-82625-695-6 01 1 9510-9802 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> (B) 		1-82627-078-2 01 1 9803-9806 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. ELEC OUTLET 12V<TAW>,EURO2 SPECIFICATION<THN> (B) 		1-82627-078-3 01 1 9807-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. ENGINE OVERRUN BUZZER<SK4>,MIR STAY O/S W/REMOTE<TBA> (A) 		1-82629-294-2 01 1 0005- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> (B) 		1-82625-697-6 01 1 9510-9802 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> (B) 		1-82627-080-2 01 1 9803-9806 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> EXC. ELEC OUTLET 12V<TAW> (B) 		1-82627-080-3 01 1 9807-0004 ●
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> EXC. POWER WINDOW<A30>,EURO2 SPECIFICATION<THN> (B) 		1-82629-242-5 01 1 0005- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-747-0 01 1 9610-9612 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-939-1 01 1 9701-9802 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EURO2 SPECIFICATION<THN> EXC. AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-939-4 01 1 9803-0004 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> EXC. EURO2 SPECIFICATION<THN> (B) 		1-82629-244-1 01 1 0005-0010 ●
467 HARNESS; FACIA
6HH1 STD ENG(65L) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> (B) 		1-82629-244-5 01 1 0011- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN> (B) 		1-82629-244-5 01 1 0011- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) ELEC OUTLET 12V<TAW> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> A/T<X9D> (B) 		1-82628-143-1 01 1 9807-0004 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (B) 		1-82629-243-1 01 1 0005-0010 ●
467 HARNESS; FACIA
6HH1 STD ENG(65L) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-243-5 01 1 0011- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT(PK5),MIR STAY O/S W/REMOTE<TBA>,EURO2 SPECIFICATION<THN> (B) 		1-82629-243-5 01 1 0011- ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AUSTRALIA EQUIPMENT(RR3) ELEC OUTLET 12V<TAW> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ISUZU M/T<X9A> EXC. EURO2 SPECIFICATION<THN> (B) 		1-82628-148-1 01 1 9807-0004 ●
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-247-5 01 1 0005- ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) ENGINE OVERRUN BUZZER<SK4> (A) 		1-82629-902-2 01 1 0011- ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) MIR STAY O/S W/REMOTE<TBA> EXC. ENGINE OVERRUN BUZZER<SK4> (A) 		1-82629-902-2 01 1 0011- ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-904-2 01 1 0011-0211 ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) ISUZU M/T<X9A> EXC. CUSTOM CAB(SR5),MIR STAY O/S W/REMOTE<TBA> (B) 		1-82629-904-5 01 1 0212- ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> (B) 		1-82629-905-2 01 1 0011-0211 ●
467 HARNESS; FACIA
6HH1 STD 4VALVE ENG(1A6) POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) NEW ZEALAND EQUIPMENT(PK5) MIR STAY O/S W/REMOTE<TBA> ISUZU M/T<X9A> EXC. CUSTOM CAB(SR5) (B) 		1-82629-905-5 01 1 0212- ●
467 HARNESS; FACIA
AUSTRALIA EQUIPMENT(RR3) (B) 		1-82626-065-3 01 1 9510-9802 ●
467 HARNESS; FACIA
(B) 		1-82627-082-2 01 1 9803-9806 ●
467 HARNESS; FACIA
EXC. ELEC OUTLET 12V<TAW> (B) 		1-82627-082-3 01 1 9807-0004 ●
467 HARNESS; FACIA
ELEC OUTLET 12V<TAW> (B) 		1-82628-146-1 01 1 9807-0004 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
